Honeywell TH1100DV1000 Pro 1000 Instruction Manual

Name: Honeywell TH1100DV1000 Pro 1000 Instruction Manual
Brand: Manualverse
Availability: InStock
Rating: 5 (1 reviews)

Honeywell TH1100DV1000 Pro 1000 Instruction Manual

5/5 (1👤)

📕 Manual PDF 📄 16 Pages

★Rate It★

📖 Manual 📋 Specifications 📝 Summary 💬 FAQs

Honeywell TH1100DV1000 Pro 1000

User Manual

16 pages

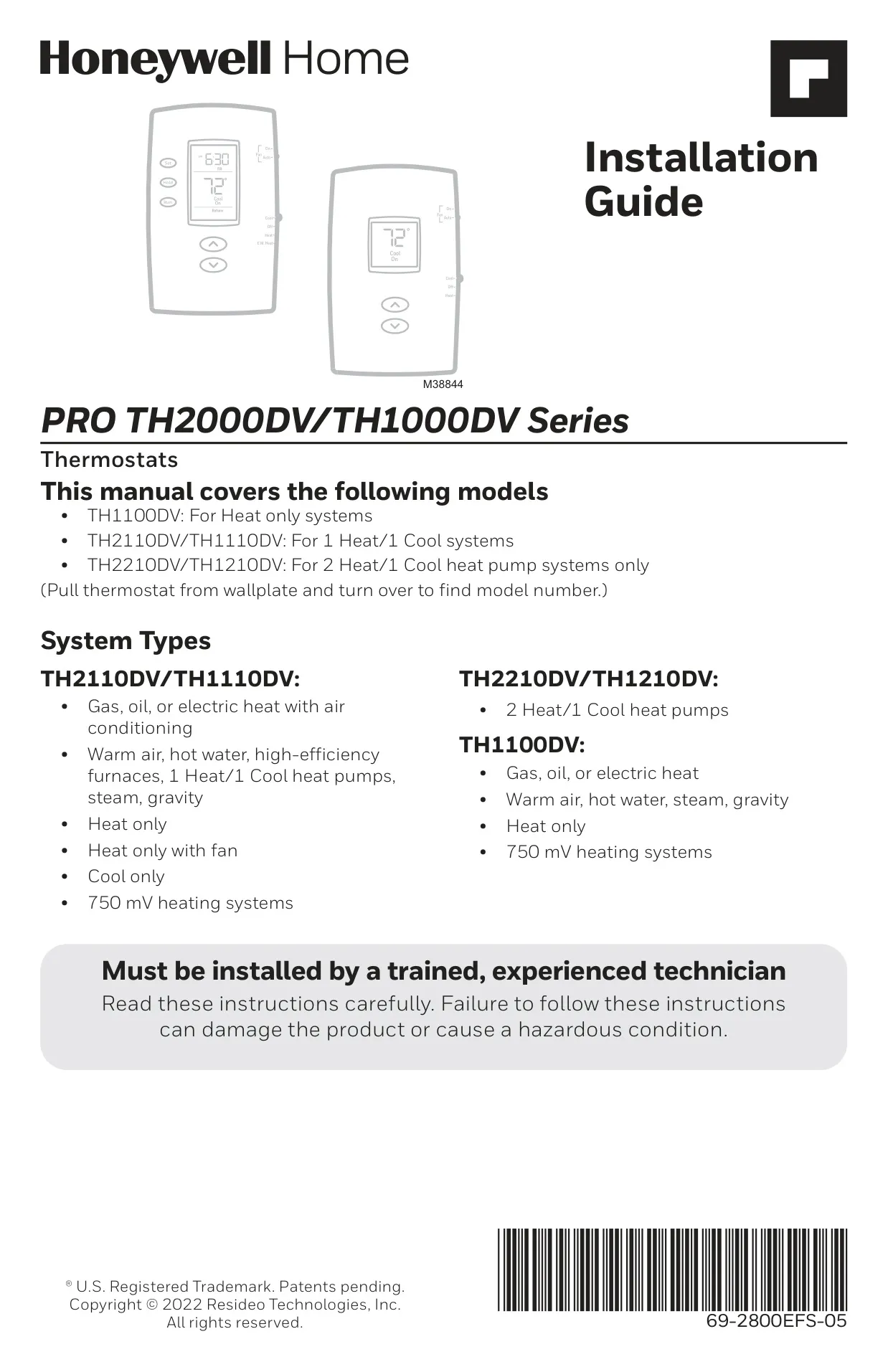

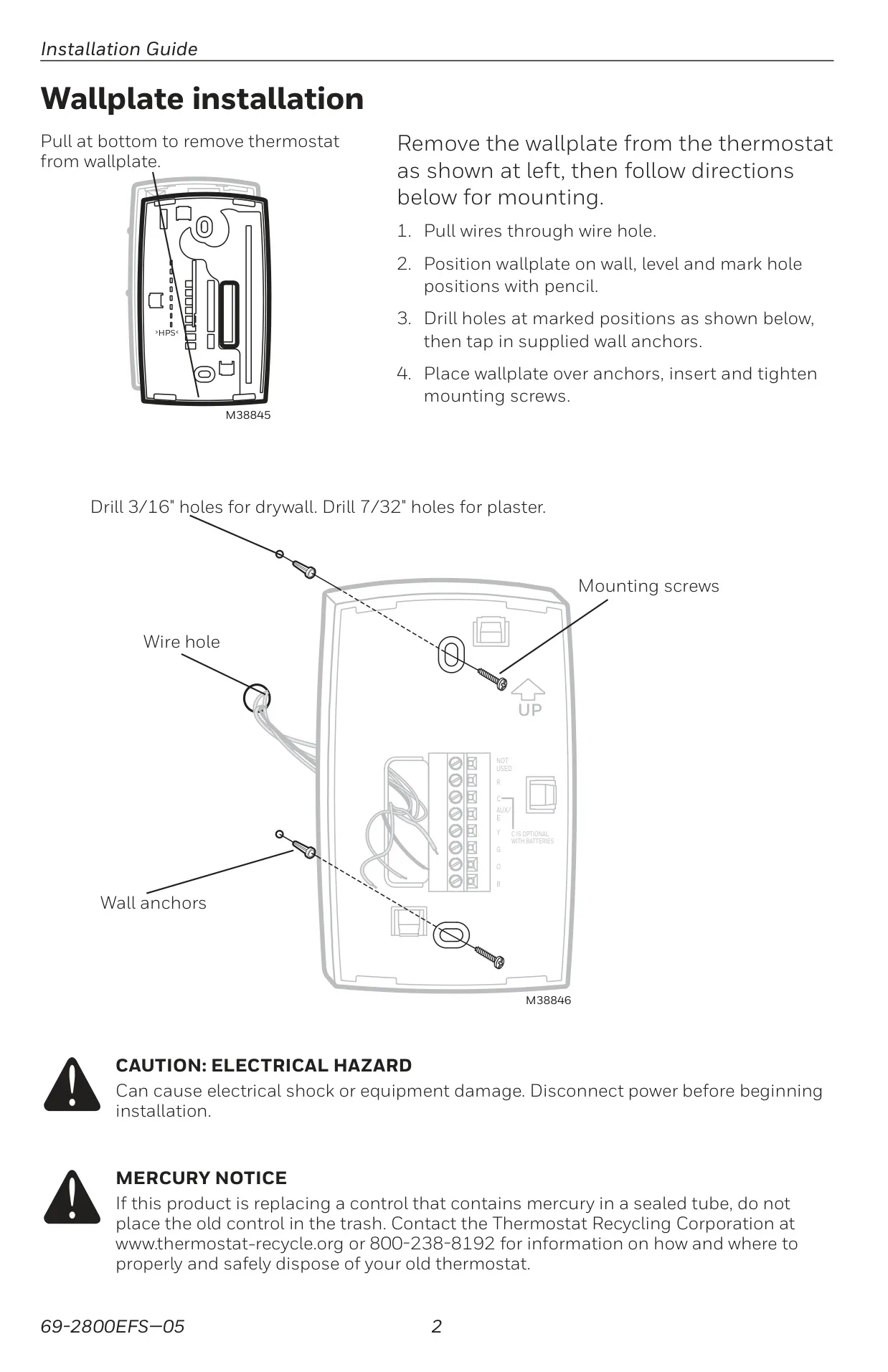

Installation Guide

8 pages

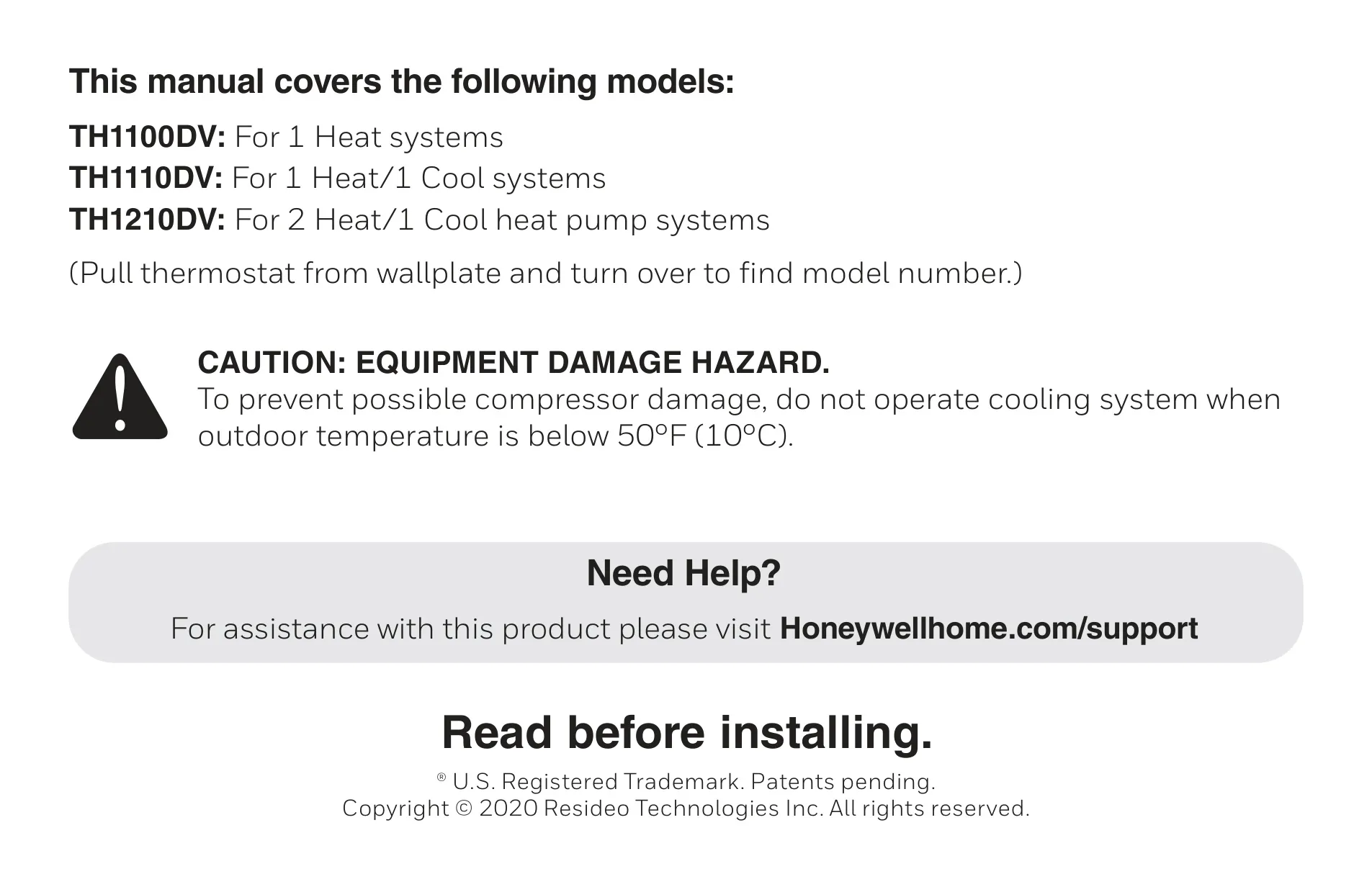

Honeywell TH1100DV1000 Instructions

Here we offer the Honeywell TH1100DV1000 Pro 1000 manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell TH1100DV1000 Pro 1000, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

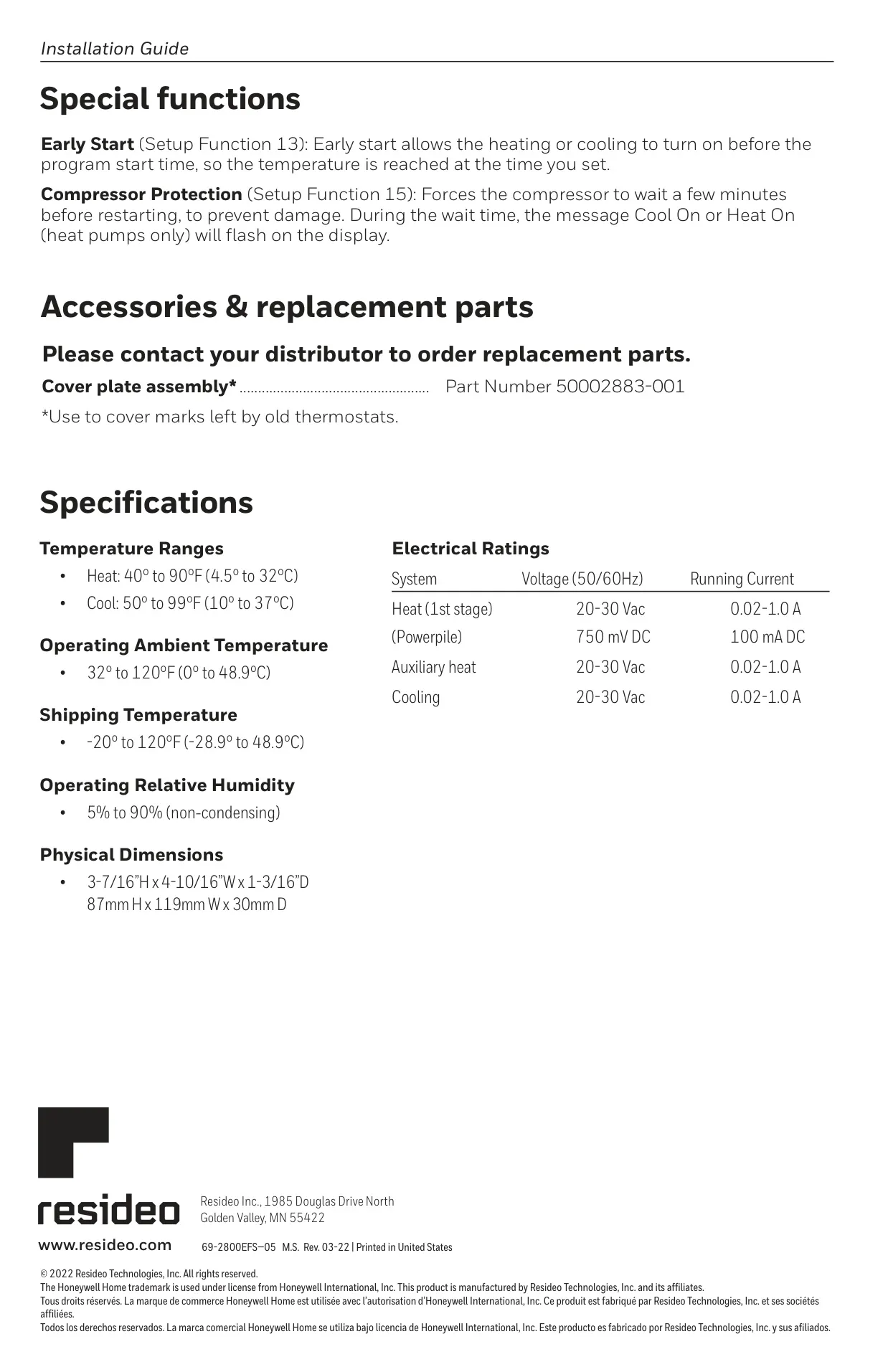

Honeywell TH1100DV1000 Pro 1000 Thermostat Specifications

Specification	Value
Model	TH1100DV1000 (Pro 1000 Series)
System Type	1 Heat Systems (Non-Programmable)
Heating Temperature Range	40° to 90°F (4.5° to 32°C)
Operating Ambient Temperature	32° to 120°F (0° to 48.9°C)
Shipping Temperature	-20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity	5% to 90% (non-condensing)
Physical Dimensions (H x W x D)	3-7/16” x 4-10/16” x 1-3/16” (87mm x 119mm x 30mm)
Electrical Rating (Heat 1st stage)	20-30 Vac, 0.02-1.0 A
Electrical Rating (Powerpile Heat)	750 mV DC, 100 mA DC
Electrical Rating (Auxiliary Heat)	20-30 Vac, 0.02-1.0 A (Series rating, not applicable for TH1100DV)
Electrical Rating (Cooling)	20-30 Vac, 0.02-1.0 A (Series rating, not applicable for TH1100DV)

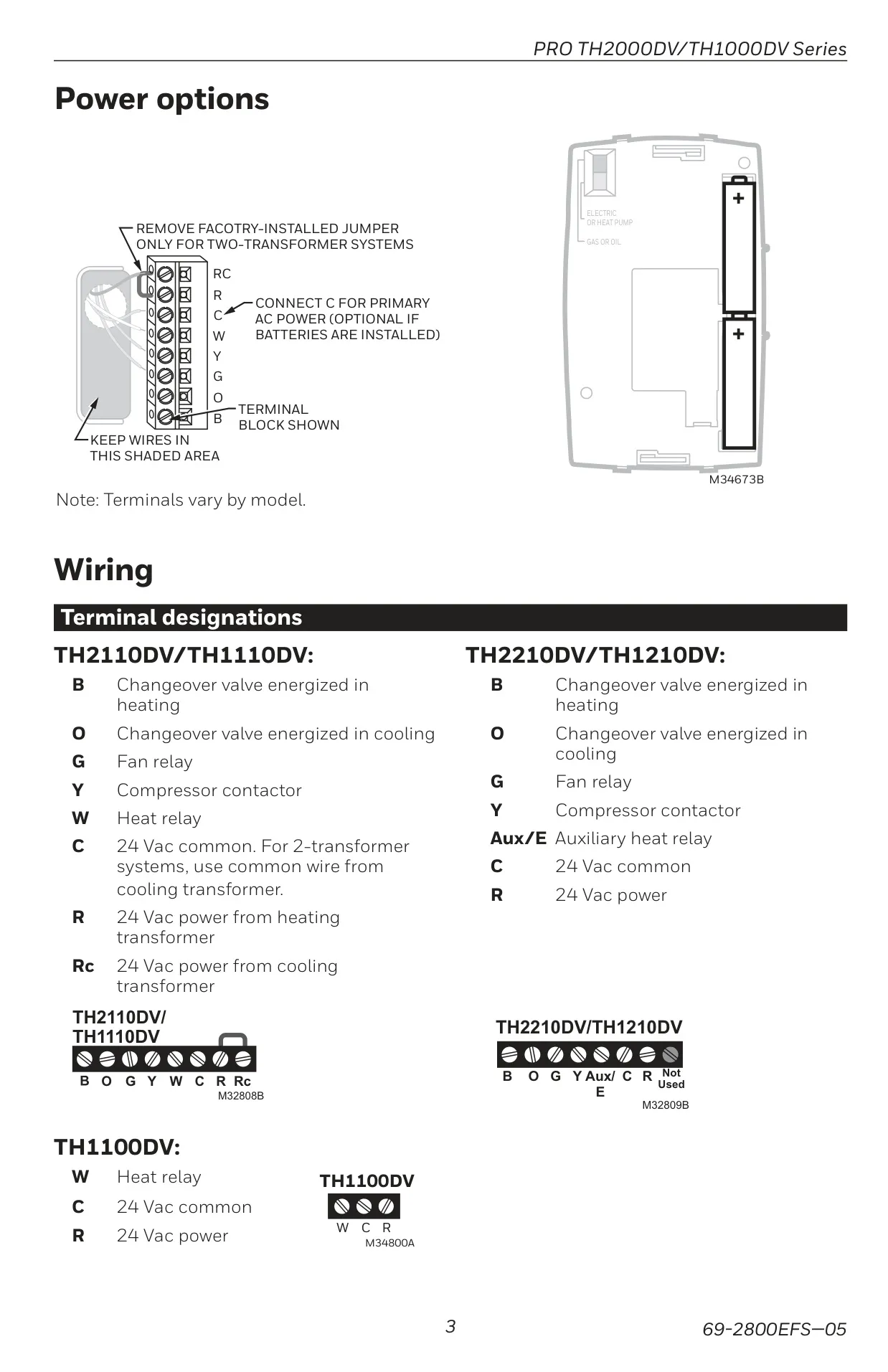

Power Source	2x AAA Alkaline Batteries (optional 24 Vac common connection)
Non-volatile Memory	Yes

Honeywell TH1100DV1000 Pro 1000 Details

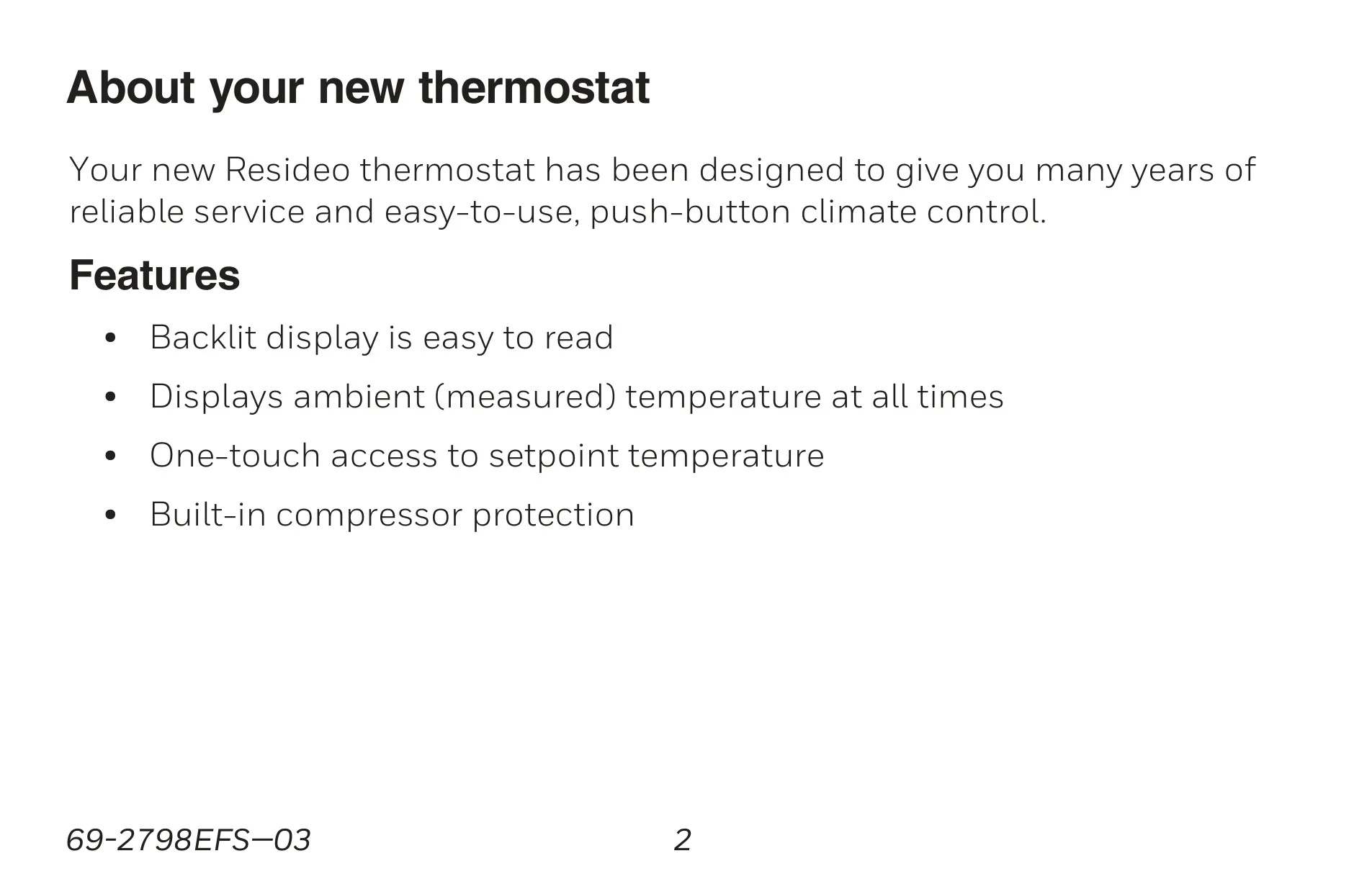

The Honeywell TH1100DV1000 Pro 1000 is a highly reliable and user-friendly non-programmable thermostat specifically designed for 1 Heat systems. This model prioritizes straightforward operation, offering push-button climate control without complex scheduling, making it ideal for those who prefer manual temperature management.

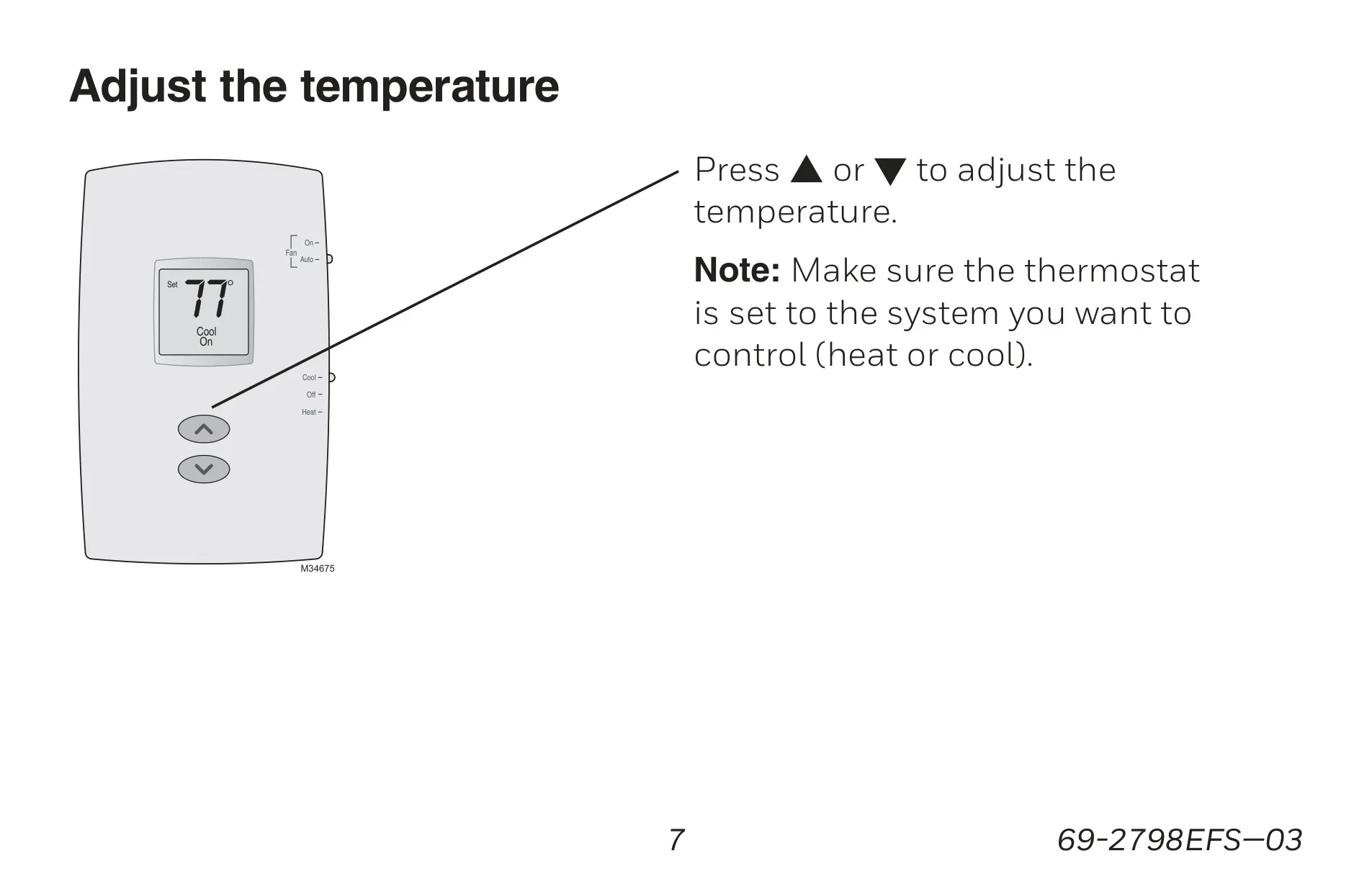

A key feature is its backlit display, ensuring that the ambient (measured) room temperature is always easy to read, even in low-light conditions. Users can effortlessly access and adjust their desired setpoint temperature with a simple touch, providing immediate control over their comfort settings.

The thermostat features an intuitive system switch that allows users to select between "Heat" mode for active warming or "Off" to completely deactivate the heating system. This clear selection mechanism ensures ease of use for all household members, reducing the potential for operational confusion.

Powering the TH1100DV1000 Pro 1000 are two standard AAA alkaline batteries, which are simple to replace. A convenient "Lo Batt" warning will flash on the display approximately 60 days before the batteries are fully depleted, providing ample time for replacement. Furthermore, all your thermostat settings are securely stored in non-volatile (permanent) memory, so they remain intact even when batteries are changed or power is lost.

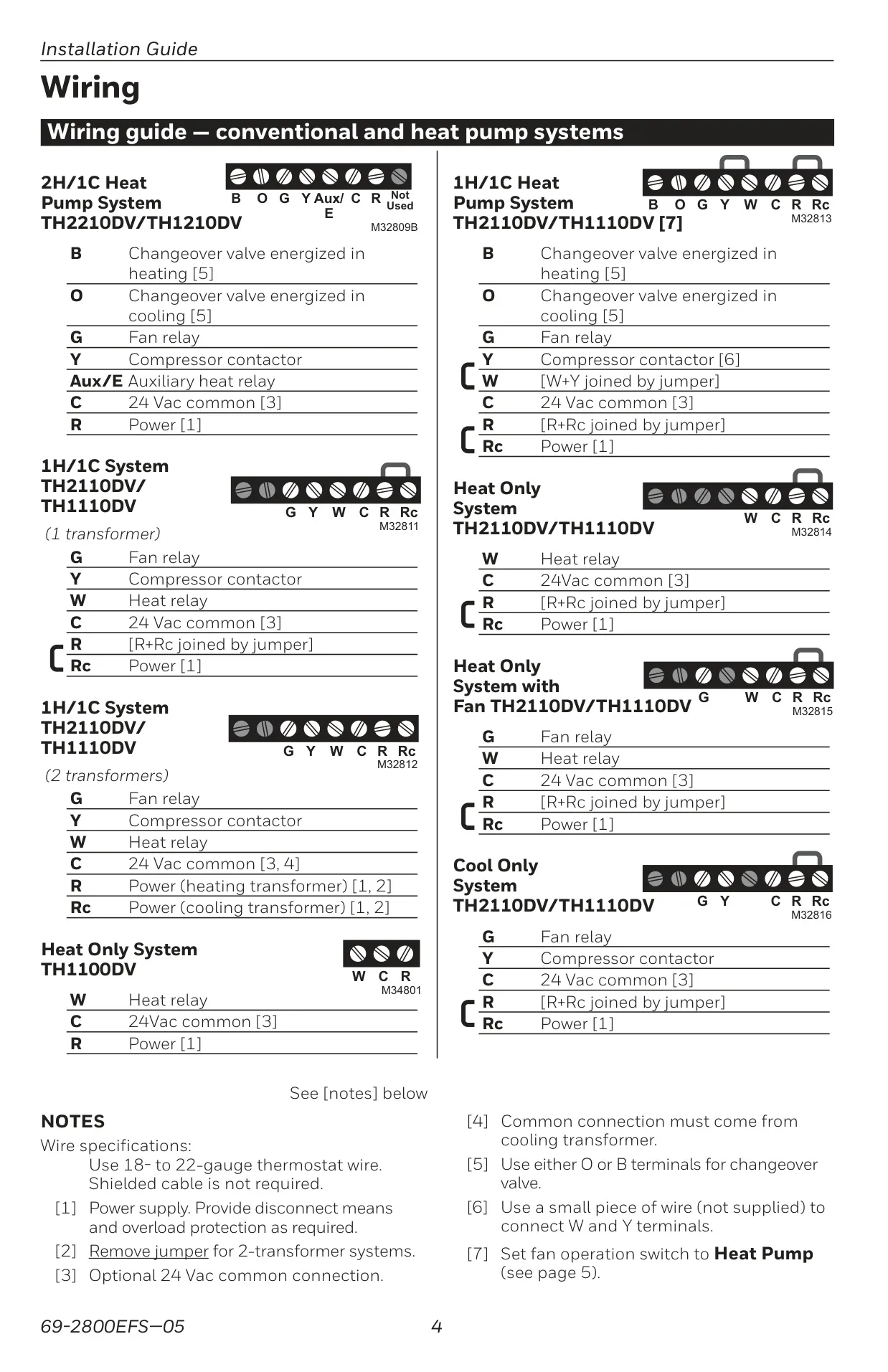

This model boasts broad compatibility with various heating systems, including traditional gas, oil, or electric furnaces, as well as warm air, hot water, steam, gravity systems, and even low-voltage 750 mV heating setups. This versatility ensures it can integrate seamlessly into a wide range of residential heating configurations.

For optimal system performance, the thermostat offers installer-configurable settings such as the heating cycle rate (CPH). This allows technicians to fine-tune the thermostat’s operation to match the specific characteristics of different furnace types, from steam systems to high-efficiency electric furnaces, ensuring efficient heating and comfort.

Customization options extend to the display, allowing users to choose between Fahrenheit or Celsius temperature readings according to their preference. An additional practical feature, configurable during installation, is the ability to select a lower temperature range, enabling a "garage mode" that can set heating as low as 35°F (1.5°C).

The thermostat’s design focuses on simplicity and durability, promising many years of reliable service. Its compact dimensions allow for discrete wall mounting, blending effortlessly into any home environment while providing essential temperature control. This attention to detail reinforces its position as a practical and dependable heating solution.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell TH1100DV1000 Pro 1000, and we answer them below.

What should I do if the thermostat display is blank?

If your display is blank, first check your circuit breaker and reset it if necessary. Ensure the power switch at your heating system is on and the furnace door is securely closed. Finally, verify that fresh AAA alkaline batteries are correctly installed.

Why is my heating system not responding?

Ensure the system switch is set to "Heat." Confirm that your desired temperature is set higher than the current inside temperature. If it still doesn't respond, wait approximately 5 minutes for the system to initiate.

My temperature settings aren't changing. What's wrong?

Make sure the heating temperature is set within the acceptable operating range. The standard range is 40° to 90°F (4.5° to 32°C). If you are using the optional garage mode, the lower range can extend to 35°F (1.5°C).

Why is 'Heat On' not displayed when I expect it to be?

To see "Heat On," ensure the System switch is set to "Heat" and that your desired temperature is set to a level above the current room temperature.

What does the 'Lo Batt' warning on the screen indicate?

'Lo Batt' signifies that your thermostat batteries are running low. You have approximately 60 days to replace the two AAA alkaline batteries before they become completely depleted. All your settings are saved in non-volatile memory during this process.

What type of heating systems is the TH1100DV1000 compatible with?

The TH1100DV1000 is designed for 1 Heat systems. This includes compatibility with gas, oil, or electric heat, warm air, hot water, steam, gravity, and 750 mV heating systems.

Is the Honeywell TH1100DV1000 Pro 1000 a programmable thermostat?

No, the Honeywell TH1100DV1000 Pro 1000 is a non-programmable thermostat. It offers manual, push-button temperature control without scheduling capabilities.

How frequently should I replace the batteries in my thermostat?

It is recommended to replace the two AAA batteries once a year. You should also replace them if you see the 'Lo Batt' warning on the screen or if you anticipate being away from home for more than a month.

Does this thermostat provide control for a cooling system?

No, the Honeywell TH1100DV1000 model is specifically designed for 1 Heat systems only and does not include functionality for controlling a cooling system.

What are the physical dimensions of the TH1100DV1000 thermostat?

The physical dimensions of the thermostat are approximately 3-7/16 inches in height, 4-10/16 inches in width, and 1-3/16 inches in depth (87mm H x 119mm W x 30mm D).

How can I adjust the heating cycle rate (CPH) for my system?

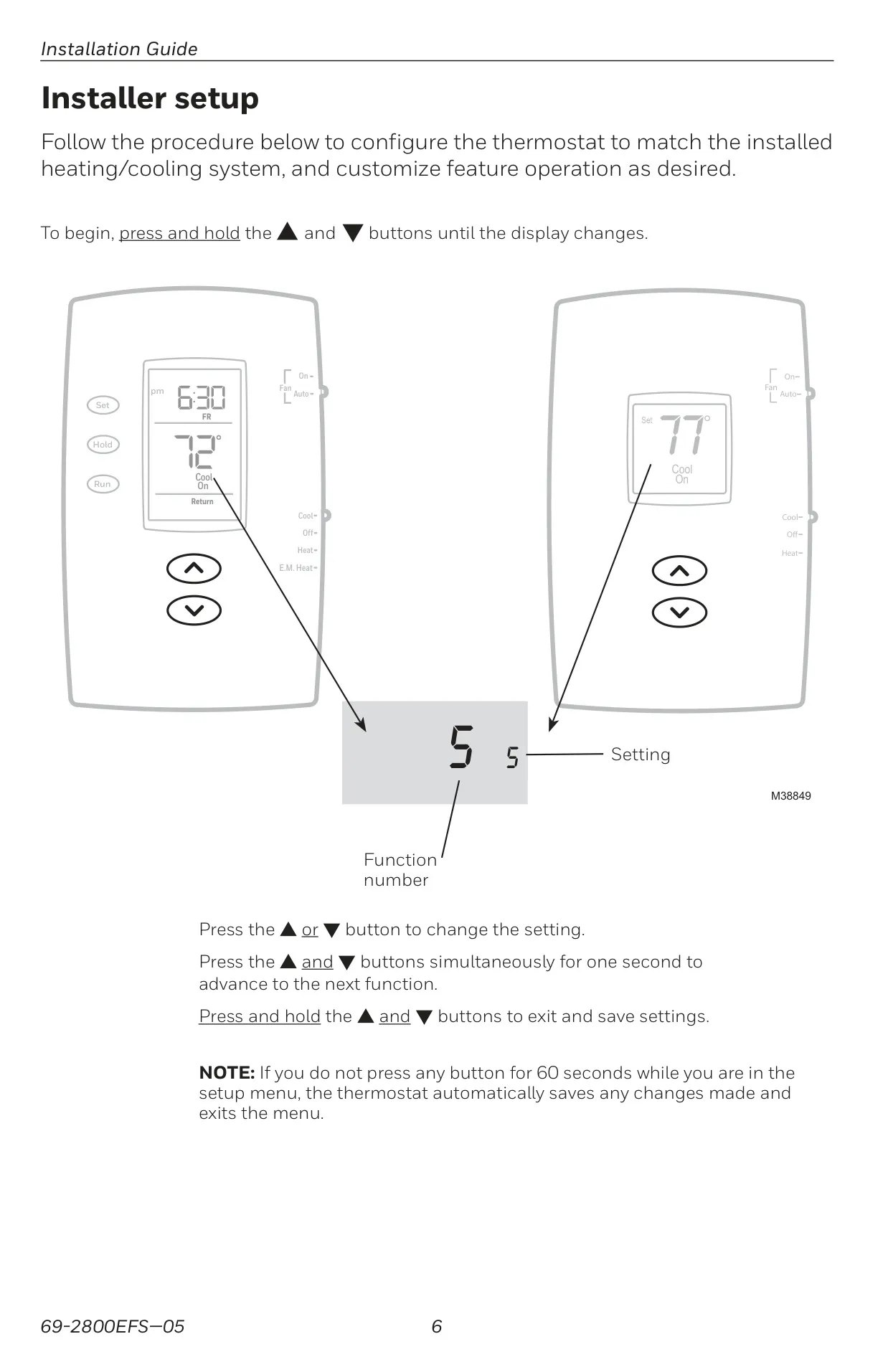

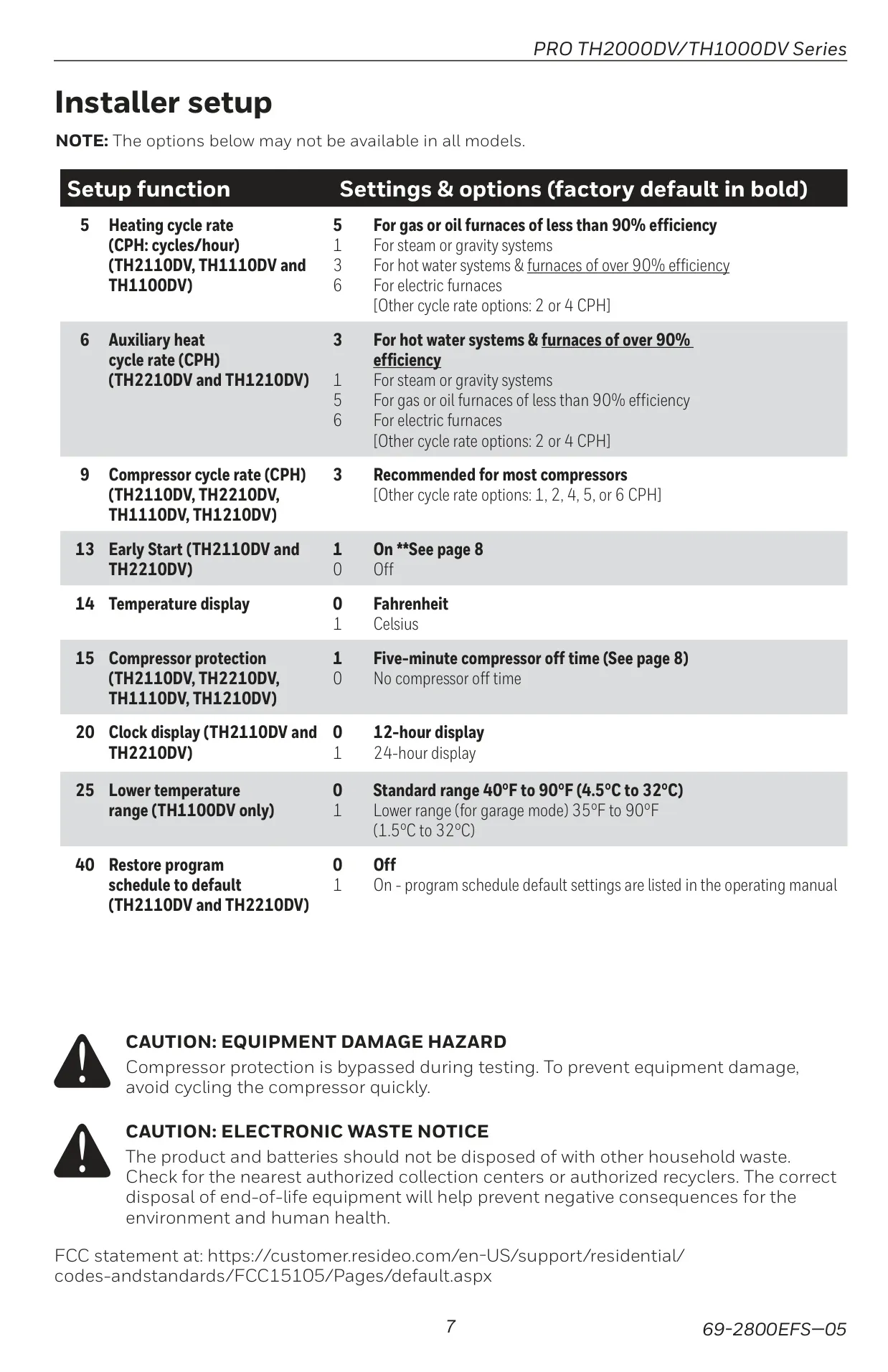

The heating cycle rate is an installer-configurable setting (Setup Function 5). To adjust it, an installer would access the setup menu by holding the Up and Down buttons simultaneously, then navigate to Function 5 to select the appropriate cycle rate for your specific heating system type.

Is it possible to switch the temperature display between Fahrenheit and Celsius?

Yes, the temperature display can be configured in the installer setup menu (Setup Function 14). You can choose to display temperatures in either Fahrenheit (default) or Celsius.
