Honeywell TH5220D1029 FocusPRO TH5000

User Manual

19 pages

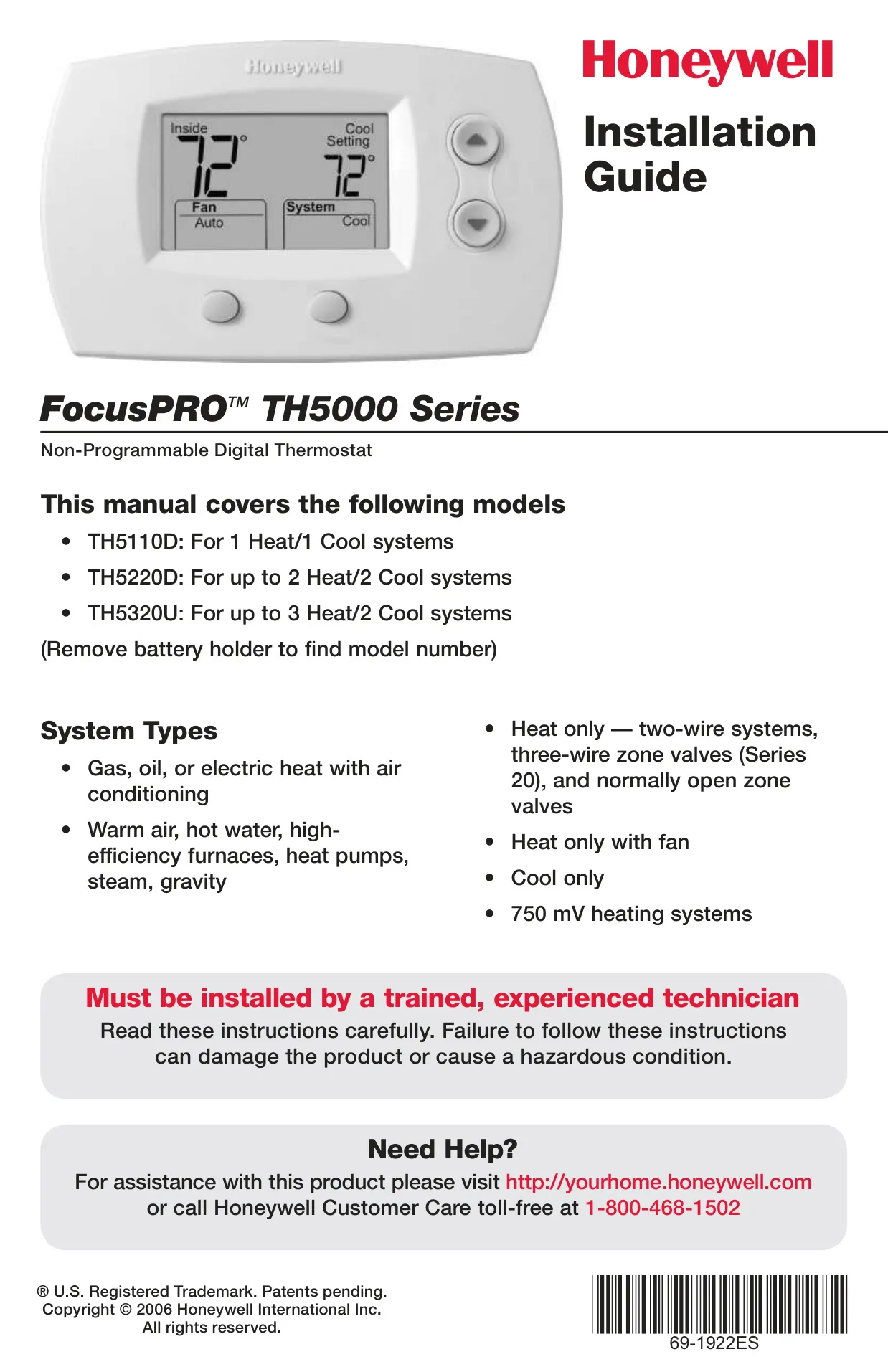

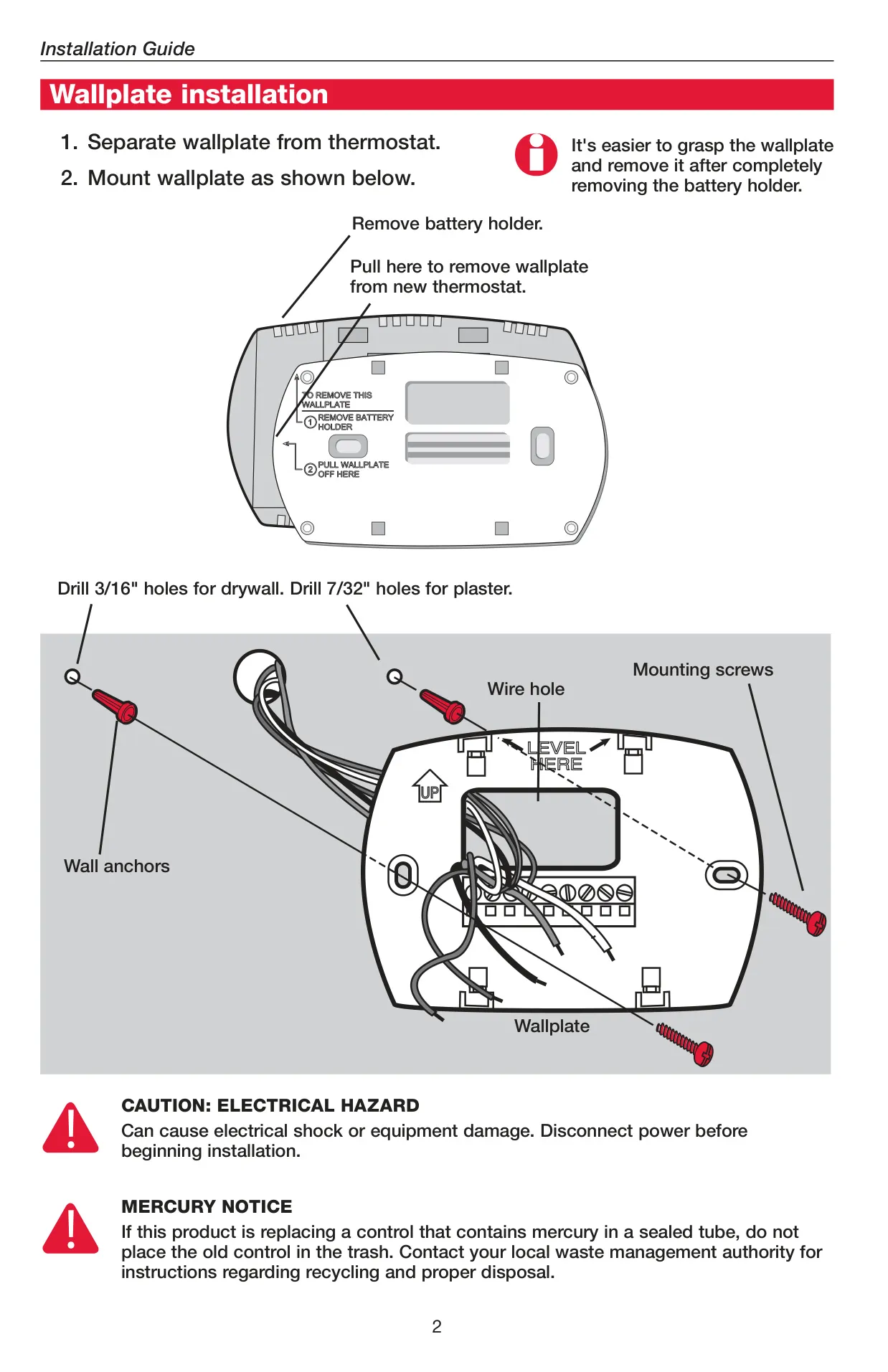

Installation Guide

8 pages

Honeywell FocusPRO TH5000 Instructions

Here we offer the Honeywell TH5220D1029 FocusPRO TH5000 manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell TH5220D1029 FocusPRO TH5000, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

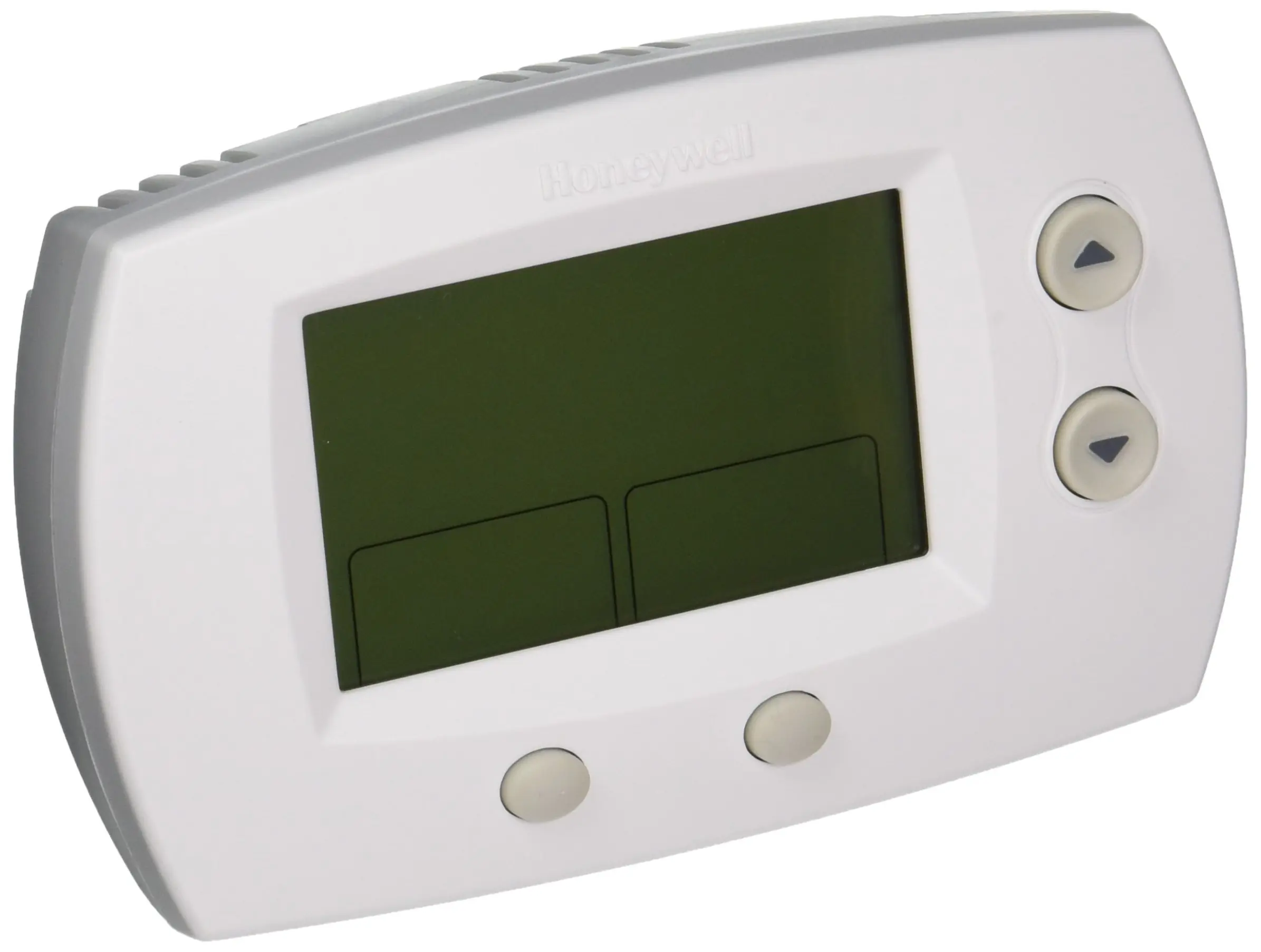

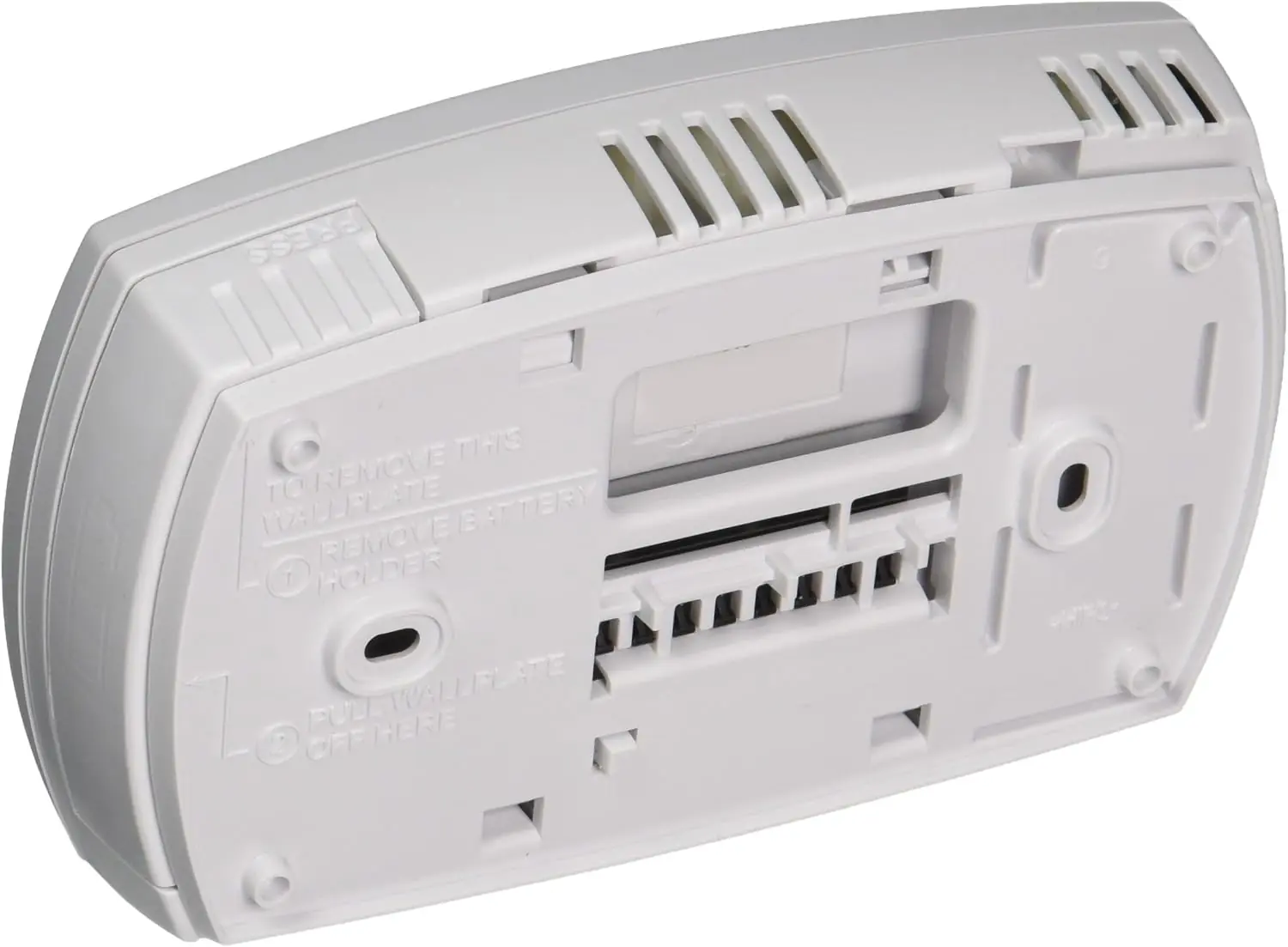

Product Images

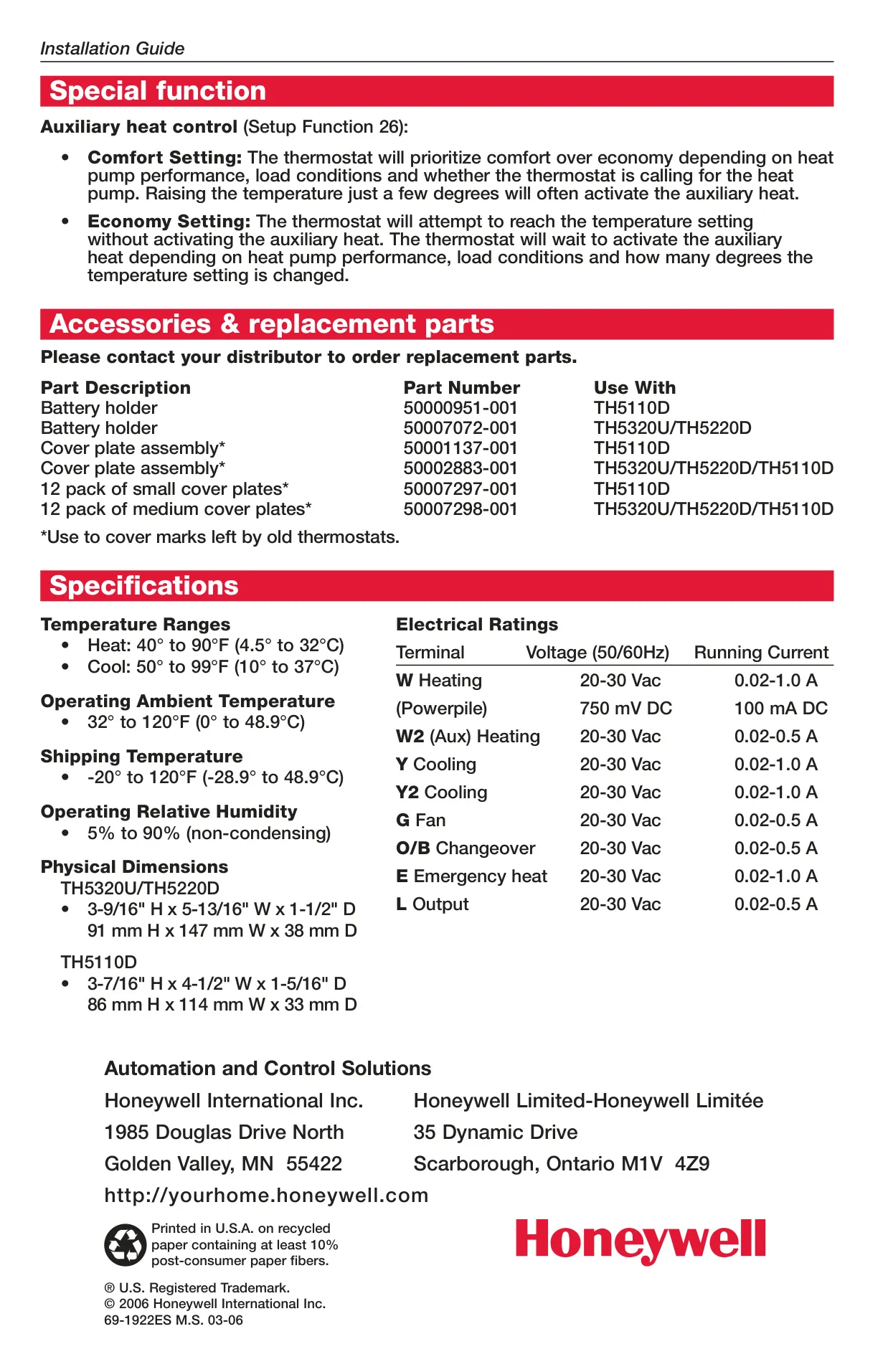

Honeywell TH5220D1029 FocusPRO TH5000 Thermostat Specifications

Feature	Specification (TH5220D1029 FocusPRO TH5000)
Model Compatibility	Up to 2 Heat / 2 Cool systems
Heating Temperature Range	40° to 90°F (4.5° to 32°C)
Cooling Temperature Range	50° to 99°F (10° to 37°C)
Operating Ambient Temperature	32° to 120°F (0° to 48.9°C)
Shipping Temperature	-20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity	5% to 90% (non-condensing)
Physical Dimensions (H x W x D)	3-9/16" H x 5-13/16" W x 1-1/2" D (91 mm H x 147 mm W x 38 mm D)
Electrical Rating (W Heating)	20-30 Vac, 0.02-1.0 A
Electrical Rating (W2/Aux Heating)	20-30 Vac, 0.02-0.5 A
Electrical Rating (Y Cooling)	20-30 Vac, 0.02-1.0 A
Electrical Rating (Y2 Cooling)	20-30 Vac, 0.02-1.0 A
Electrical Rating (G Fan)	20-30 Vac, 0.02-0.5 A
Electrical Rating (O/B Changeover)	20-30 Vac, 0.02-0.5 A
Electrical Rating (E Emergency Heat)	20-30 Vac, 0.02-1.0 A
Electrical Rating (L Output)	20-30 Vac, 0.02-0.5 A
Wiring Compatibility	18- to 22-gauge thermostat wire (shielded cable not required)

Honeywell TH5220D1029 Thermostat Details

The Honeywell TH5220D1029 FocusPRO TH5000 stands out as a reliable and user-friendly non-programmable digital thermostat. Designed for simplicity, it arrives pre-programmed by the installer, making it ready for immediate use. Users can easily select fan operation between "Auto," where the fan runs only when heating or cooling, or "On" for continuous air circulation to enhance comfort.

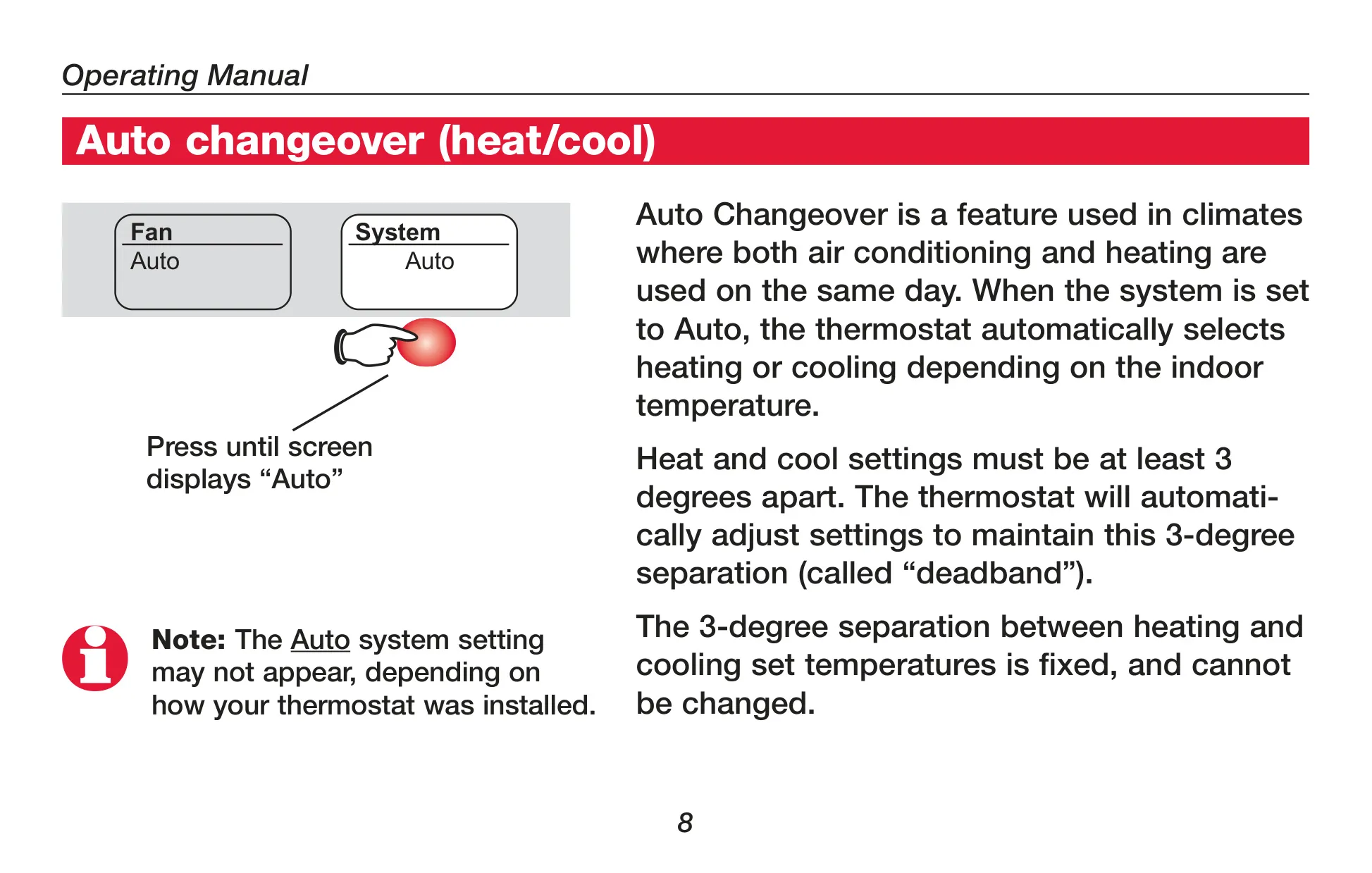

This model offers flexible system control, allowing users to choose between "Heat," "Cool," or "Off" modes. For systems with a heat pump, an "Em Heat" (Emergency Heat) option is available. The "Auto" system setting provides added convenience, automatically switching between heating and cooling based on the indoor temperature to maintain the desired comfort level without manual intervention.

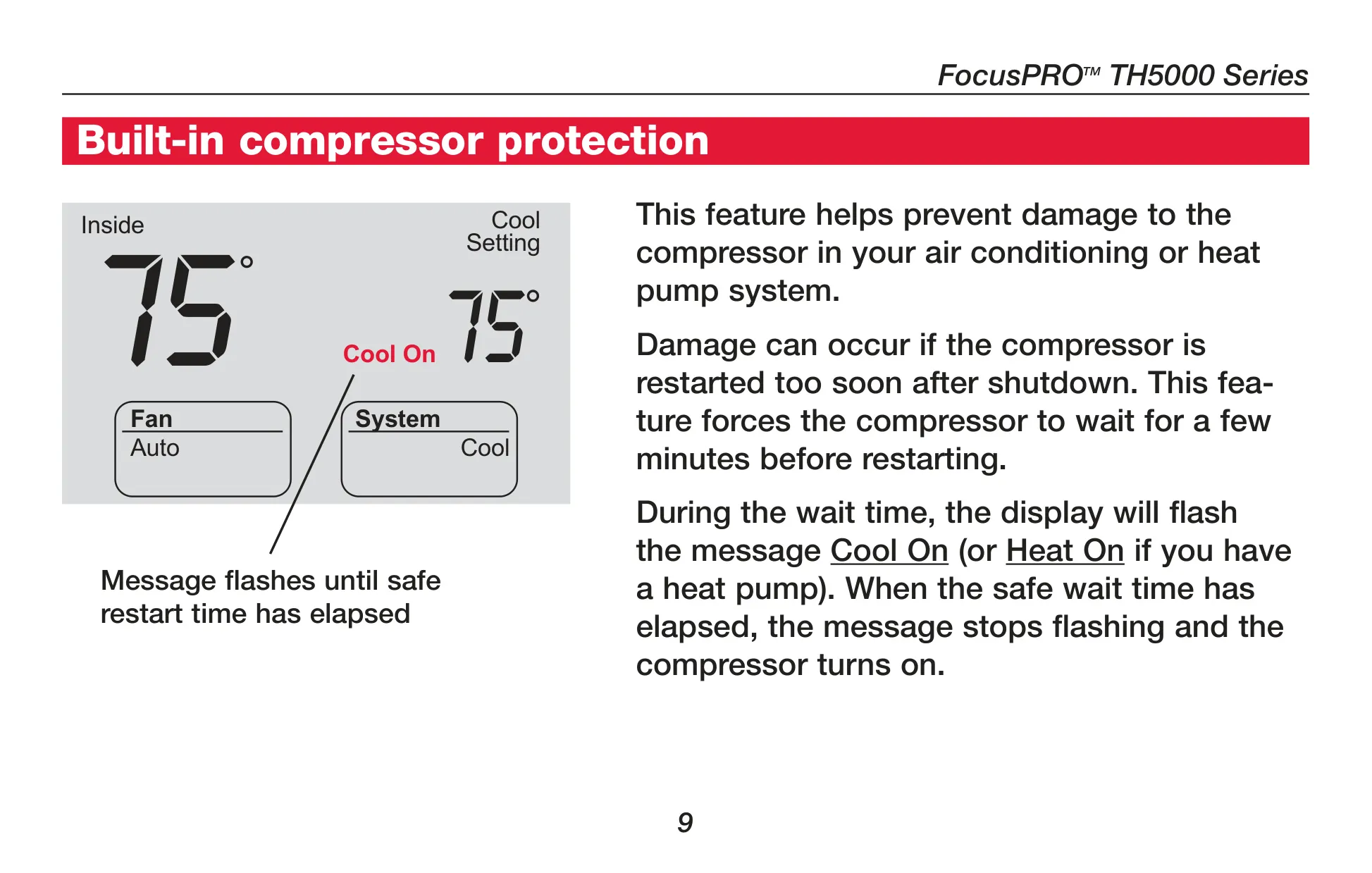

A key safety feature is the built-in compressor protection. This intelligent function safeguards the compressor in your air conditioning or heat pump system by enforcing a short delay before restarting after shutdown. This prevents potential damage from rapid cycling. During this protective waiting period, the display conveniently flashes "Cool On" or "Heat On" to inform the user.

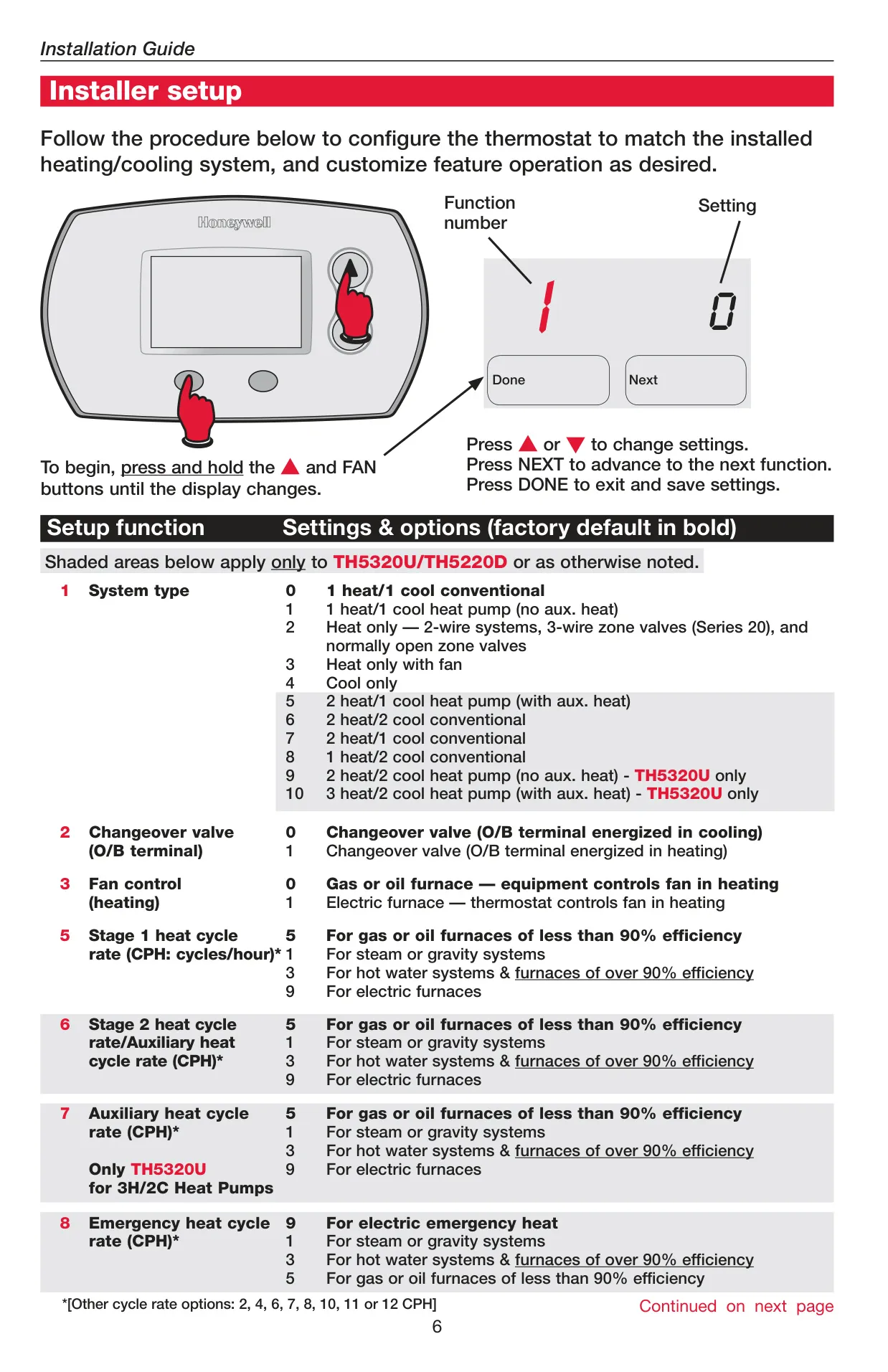

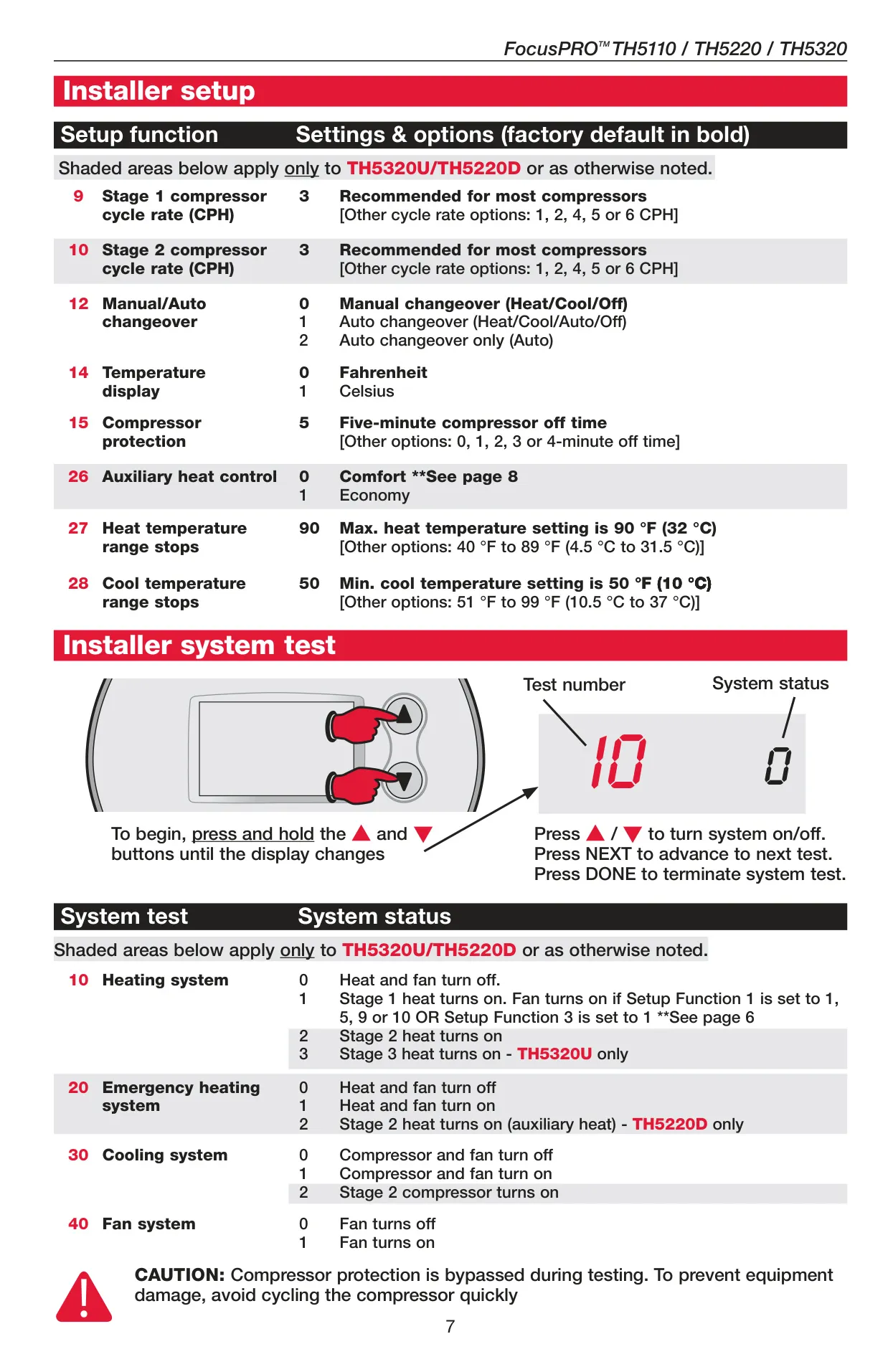

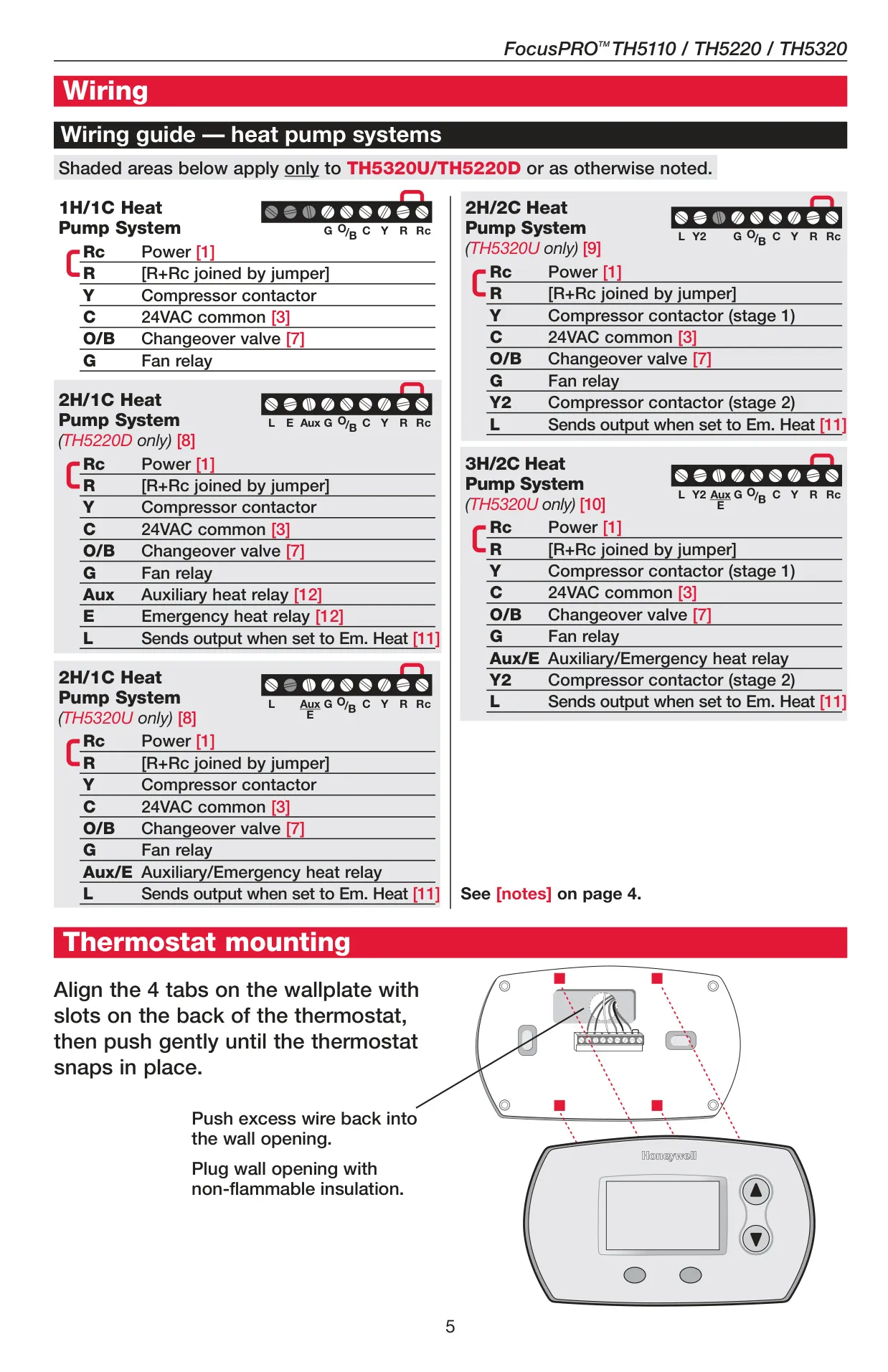

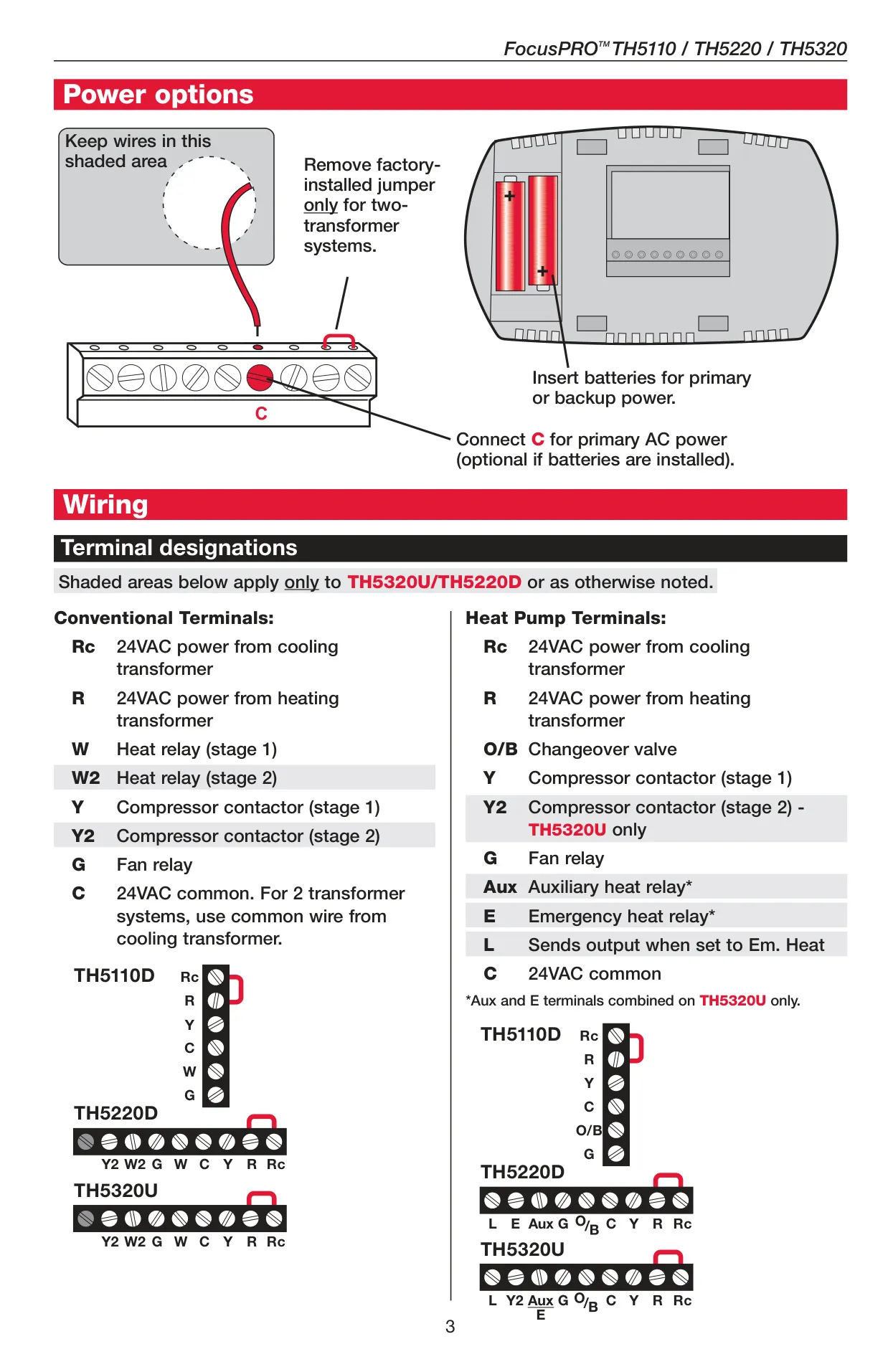

Installation and configuration offer significant flexibility, accommodating a wide array of HVAC systems. The installer can customize critical settings such as the system type (e.g., 2 Heat/2 Cool conventional, or 2 Heat/2 Cool heat pump), changeover valve operation, and fan control during heating. Furthermore, parameters like cycle rates per hour (CPH) for heat stages and compressors, temperature display units (Fahrenheit or Celsius), and even minimum/maximum temperature range stops are configurable.

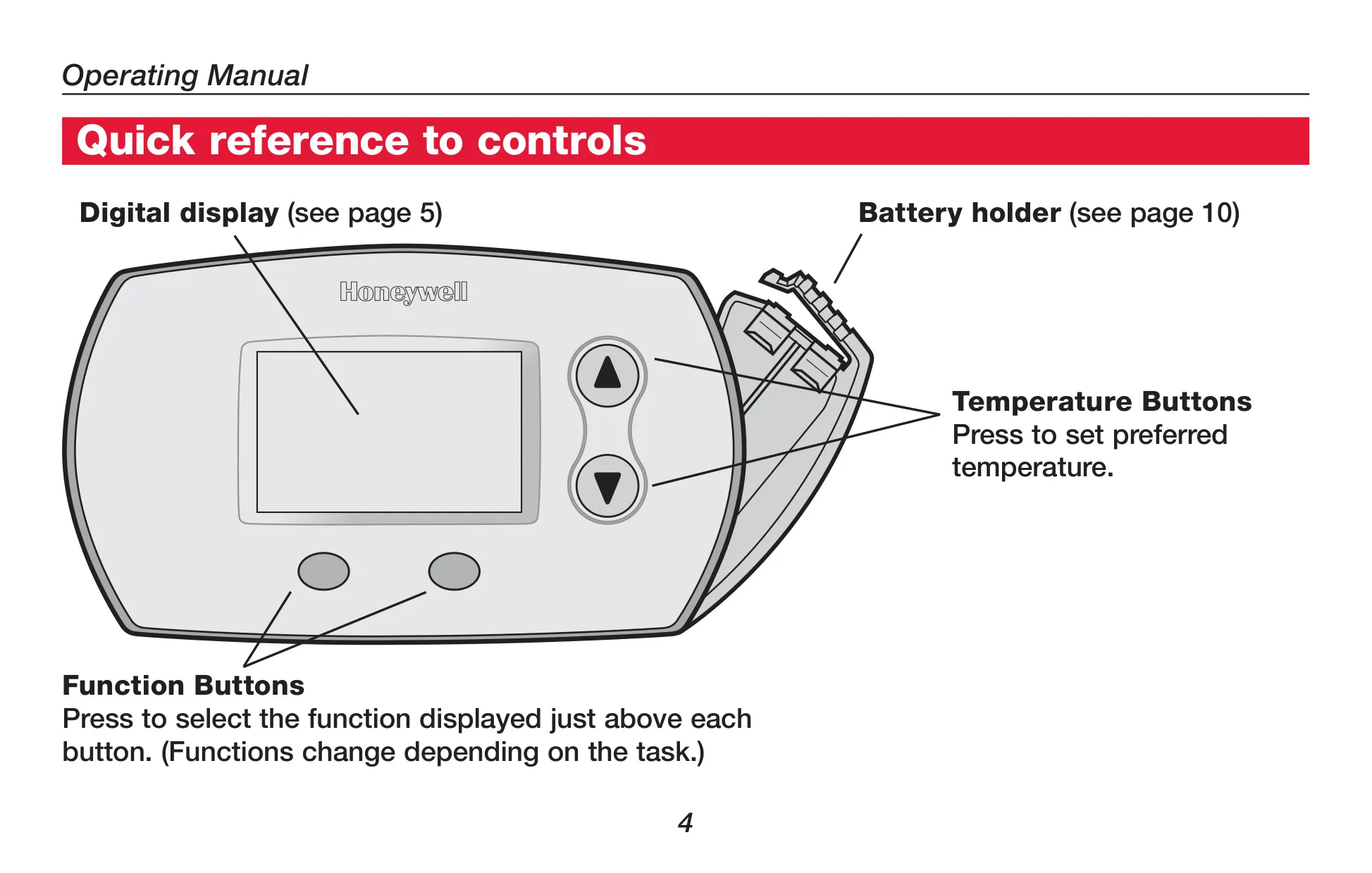

The thermostat's display provides clear and concise information, including the current inside temperature, desired set temperature, and fan/system status. It also includes helpful indicators such as a low battery warning and auxiliary heat activation for heat pump systems. For heat pumps, the Auxiliary Heat Control setting (Comfort vs. Economy) allows users to choose whether the thermostat prioritizes rapid temperature recovery or energy efficiency when supplemental heat is required, optimizing performance to individual preferences.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell TH5220D1029 FocusPRO TH5000, and we answer them below.

What type of thermostat is the Honeywell TH5220D1029?

The Honeywell TH5220D1029 is a non-programmable digital thermostat from the FocusPRO TH5000 series, designed for straightforward operation and reliable temperature control.

What HVAC systems is the TH5220D1029 compatible with?

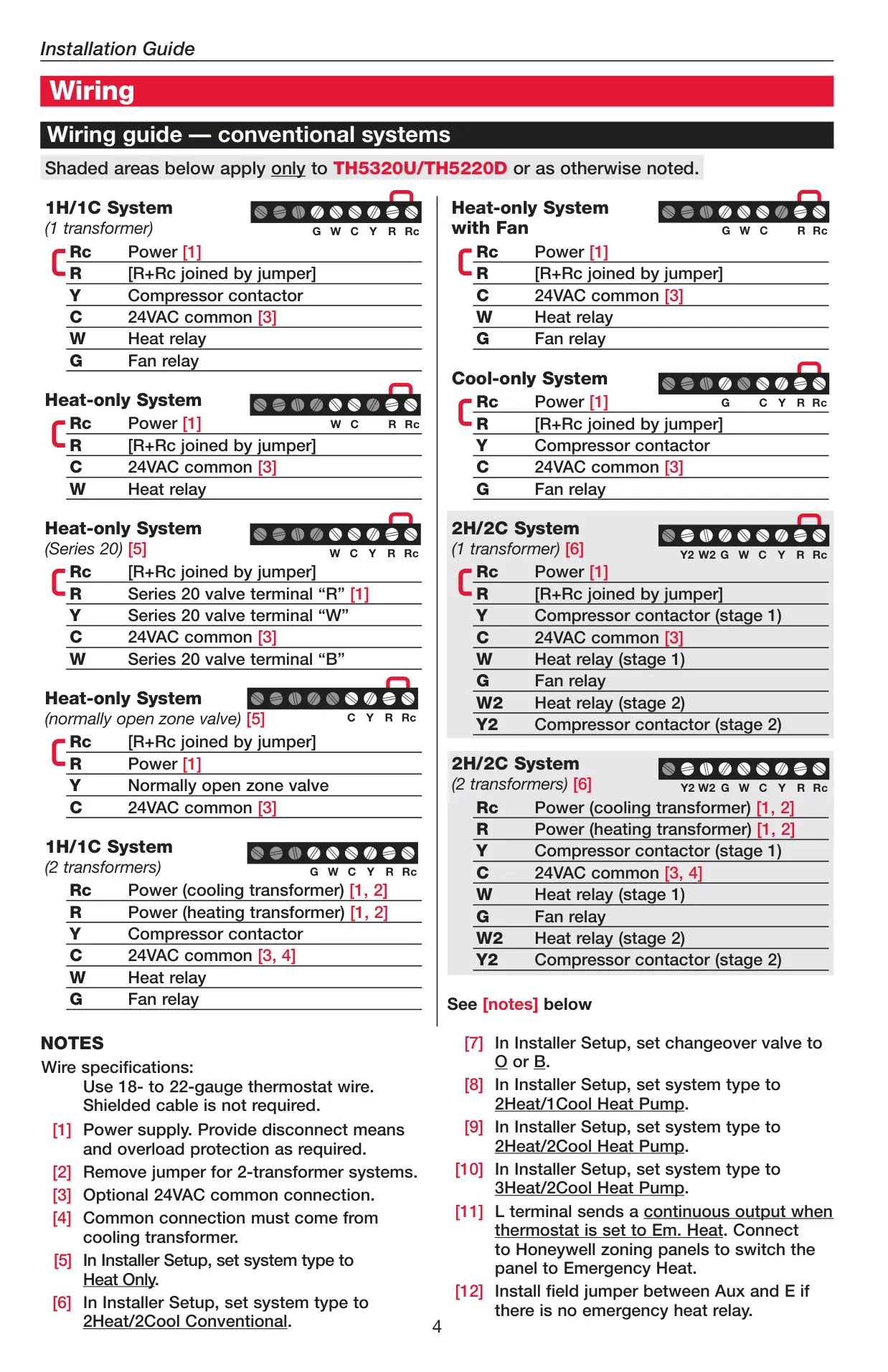

This model is compatible with a wide range of systems, including up to 2 Heat/2 Cool conventional systems, heat pumps (up to 2 Heat/2 Cool), gas, oil, electric heat with air conditioning, warm air, hot water, steam, gravity, heat-only, cool-only, and 750 mV heating systems.

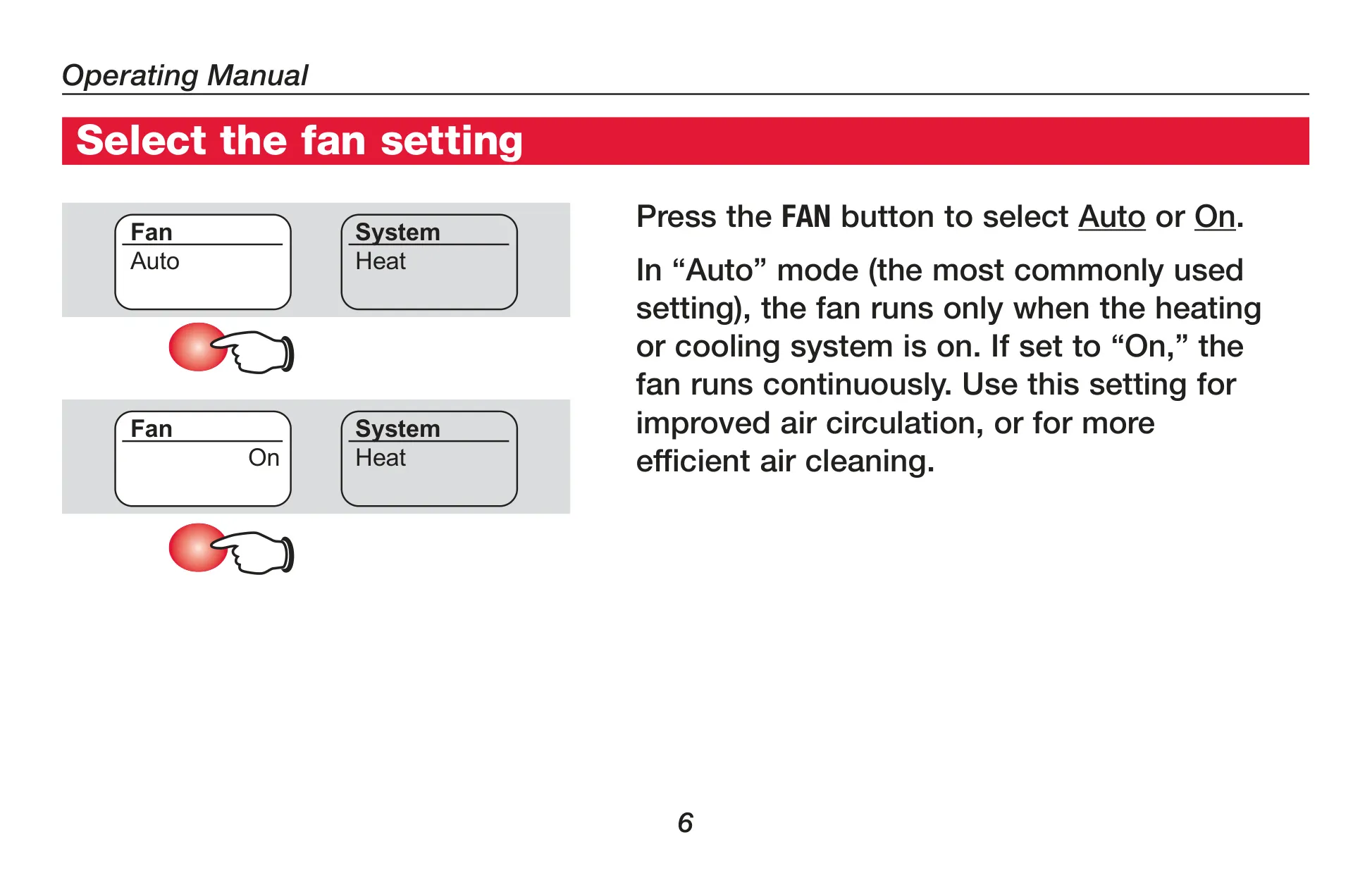

How do I choose between fan 'Auto' and 'On' settings?

In 'Auto' mode, the fan runs only when the heating or cooling system is actively operating. In 'On' mode, the fan runs continuously, providing constant air circulation throughout your home.

What do the system settings Heat, Cool, Off, Auto, and Em Heat mean?

'Heat' controls only the heating system, 'Cool' controls only the cooling system, and 'Off' turns both off. 'Auto' allows the thermostat to automatically switch between heating and cooling. 'Em Heat' (Emergency Heat) is for heat pumps with auxiliary heat, providing an alternative heating source.

Does the TH5220D1029 protect my air conditioner's compressor?

Yes, it features built-in compressor protection. This functionality prevents damage by forcing the compressor to wait a few minutes before restarting, avoiding rapid on/off cycling.

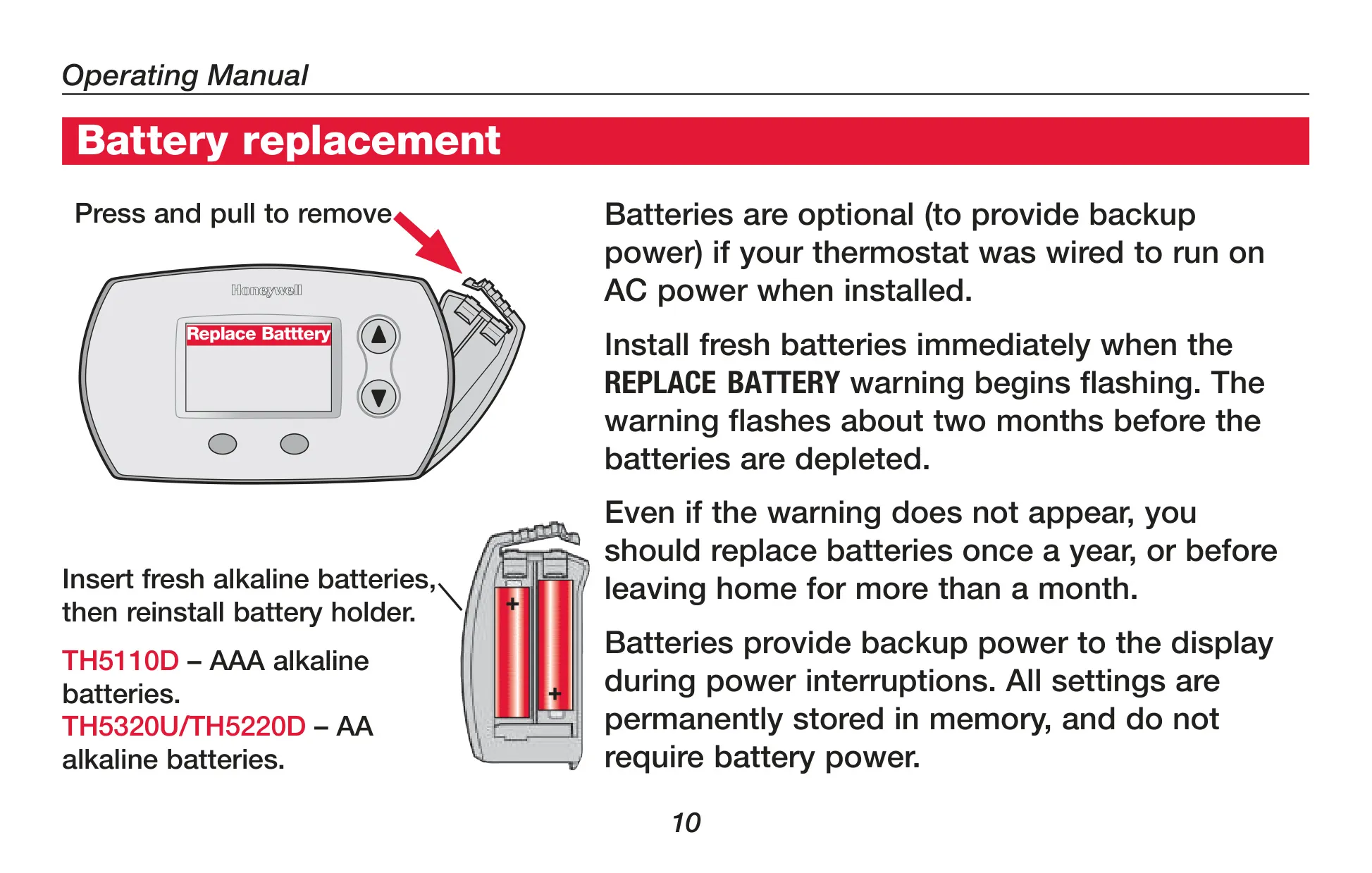

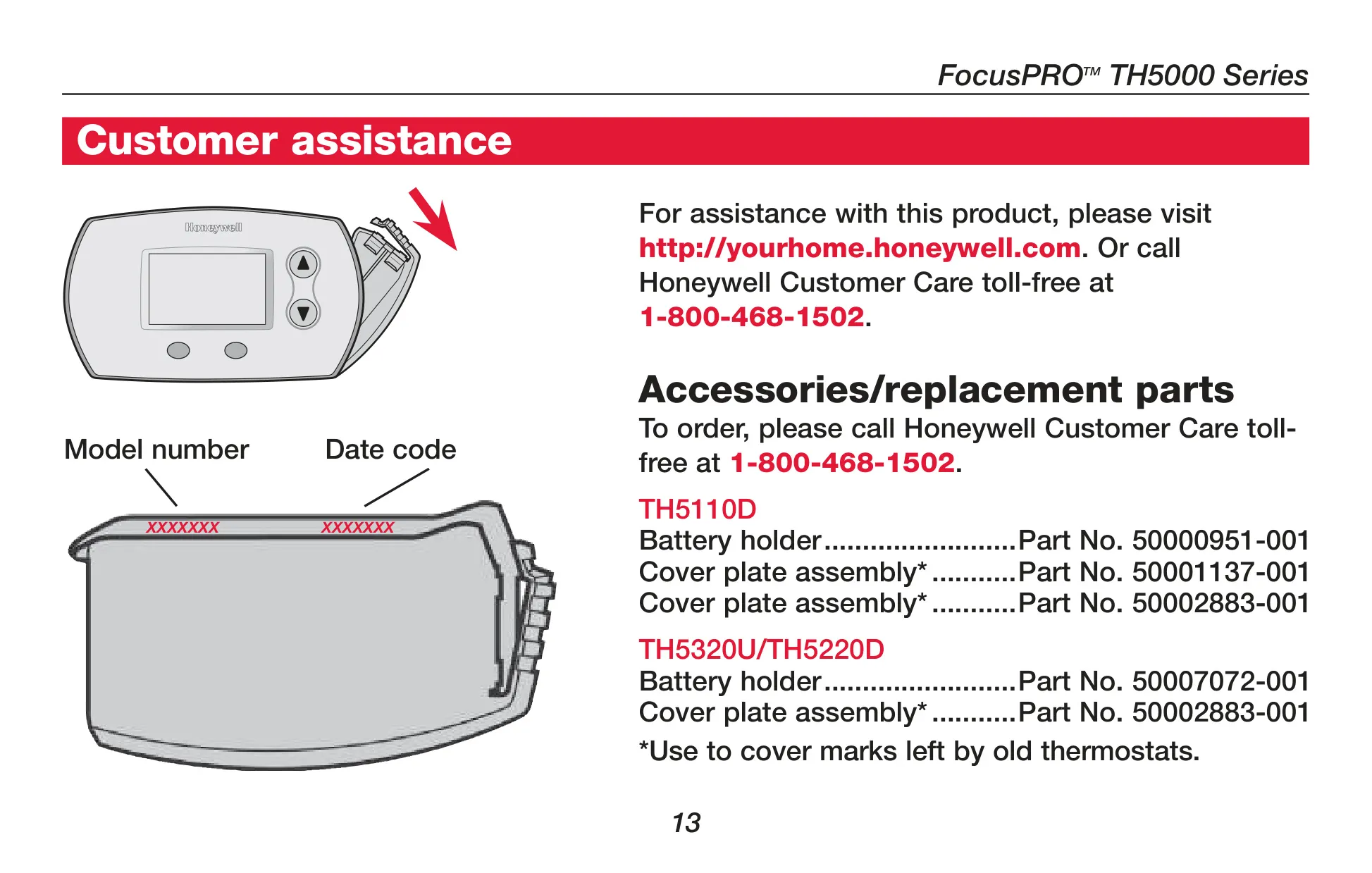

How often should I replace the batteries in my thermostat?

It is recommended to replace the batteries once a year. The thermostat will display a low battery warning on the screen when replacement is needed.

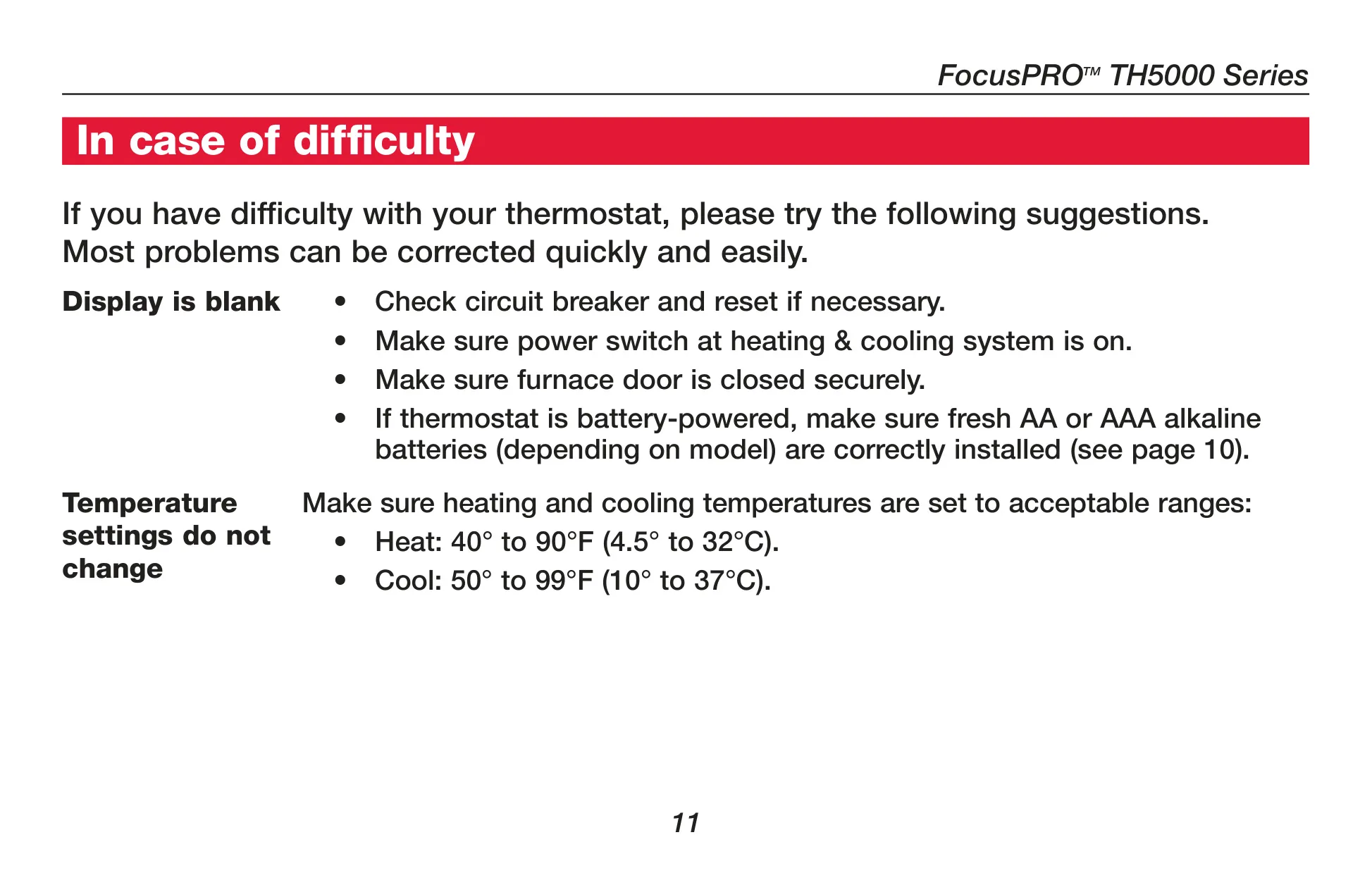

Can I set temperature limits on the thermostat?

Yes, an installer can set maximum heat temperature range stops (e.g., 90°F / 32°C) and minimum cool temperature range stops (e.g., 50°F / 10°C) during the setup process to prevent extreme settings.

What is the purpose of the 'Auxiliary Heat Control' setting?

For heat pumps, this setting allows you to choose between 'Comfort' or 'Economy'. 'Comfort' prioritizes faster temperature recovery using auxiliary heat sooner, while 'Economy' attempts to reach the set temperature with less auxiliary heat usage, saving energy.

What are the physical dimensions of the TH5220D1029?

The physical dimensions of the TH5220D1029 are 3-9/16" H x 5-13/16" W x 1-1/2" D (91 mm H x 147 mm W x 38 mm D).

What is the operating temperature range for the thermostat?

The thermostat is designed to operate in ambient temperatures ranging from 32° to 120°F (0° to 48.9°C).

How do I know if the thermostat is calling for auxiliary heat?

When auxiliary heat is active, the digital display will clearly show "Auxiliary Heat On" in addition to the regular system status.

Is the TH5220D1029 programmable?

No, the Honeywell TH5220D1029 is a non-programmable thermostat, meaning it does not have the functionality to set schedules for different times of the day or week.

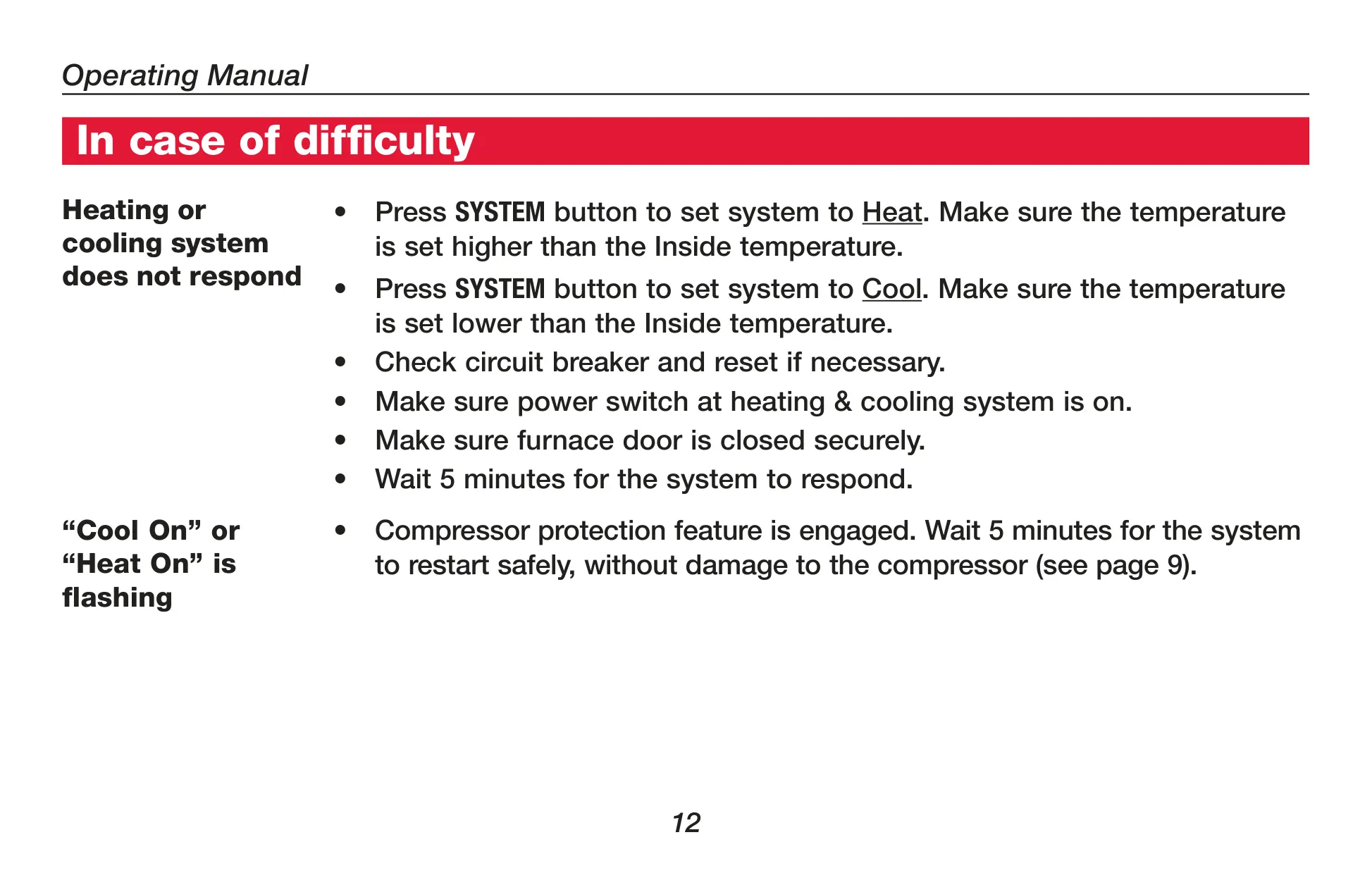

What does the flashing 'Cool On' or 'Heat On' message mean on the display?

This message indicates that the compressor protection feature is active. The compressor is in a temporary wait period before restarting to prevent damage, and operation will resume shortly.
