Nikon D800 DSLR Camera Instruction Manual
Nikon D800 DSLR Camera
Nikon D800 DSLR Camera Instructions
Here we offer the Nikon D800 DSLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Nikon D800 DSLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

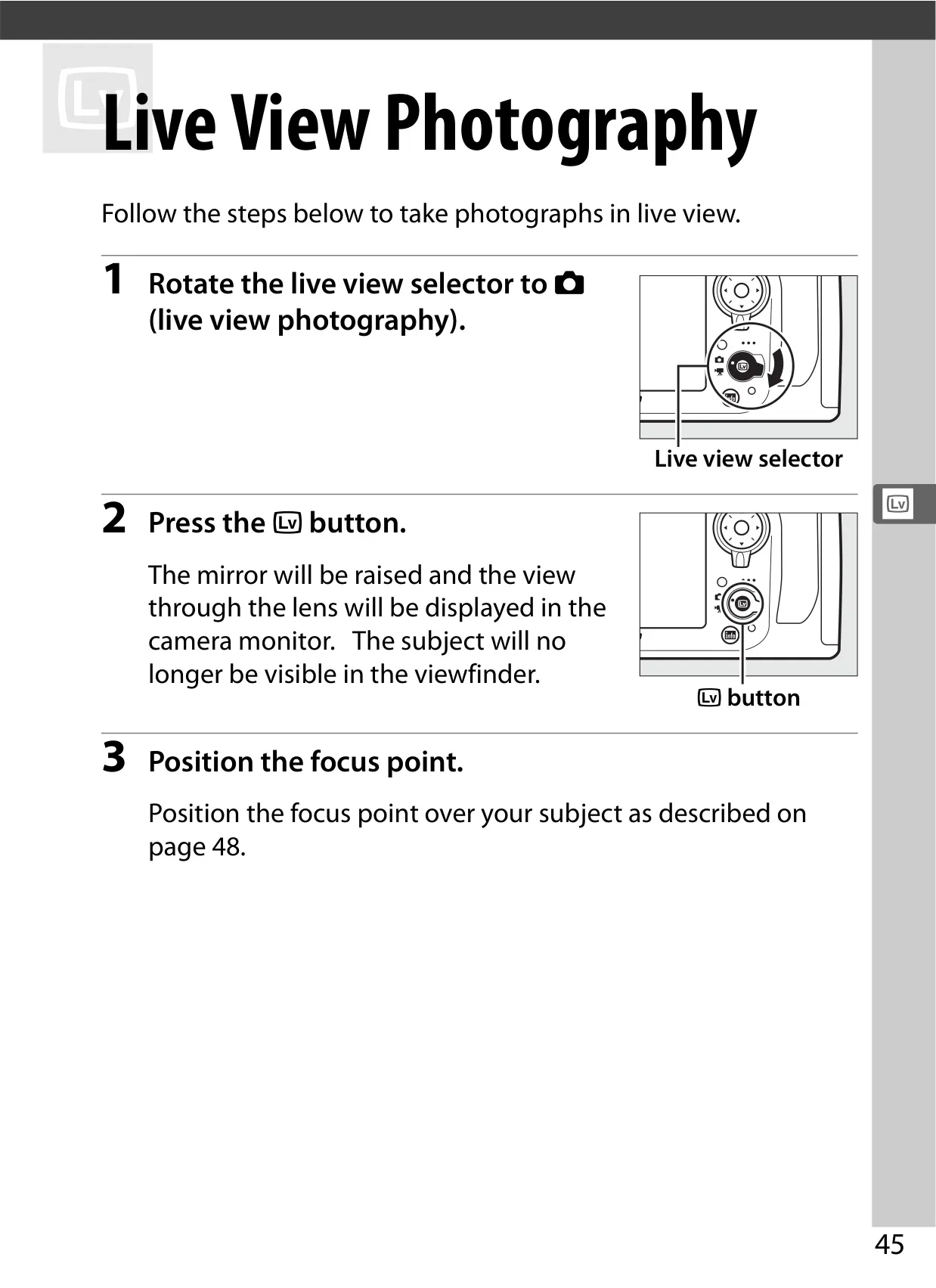

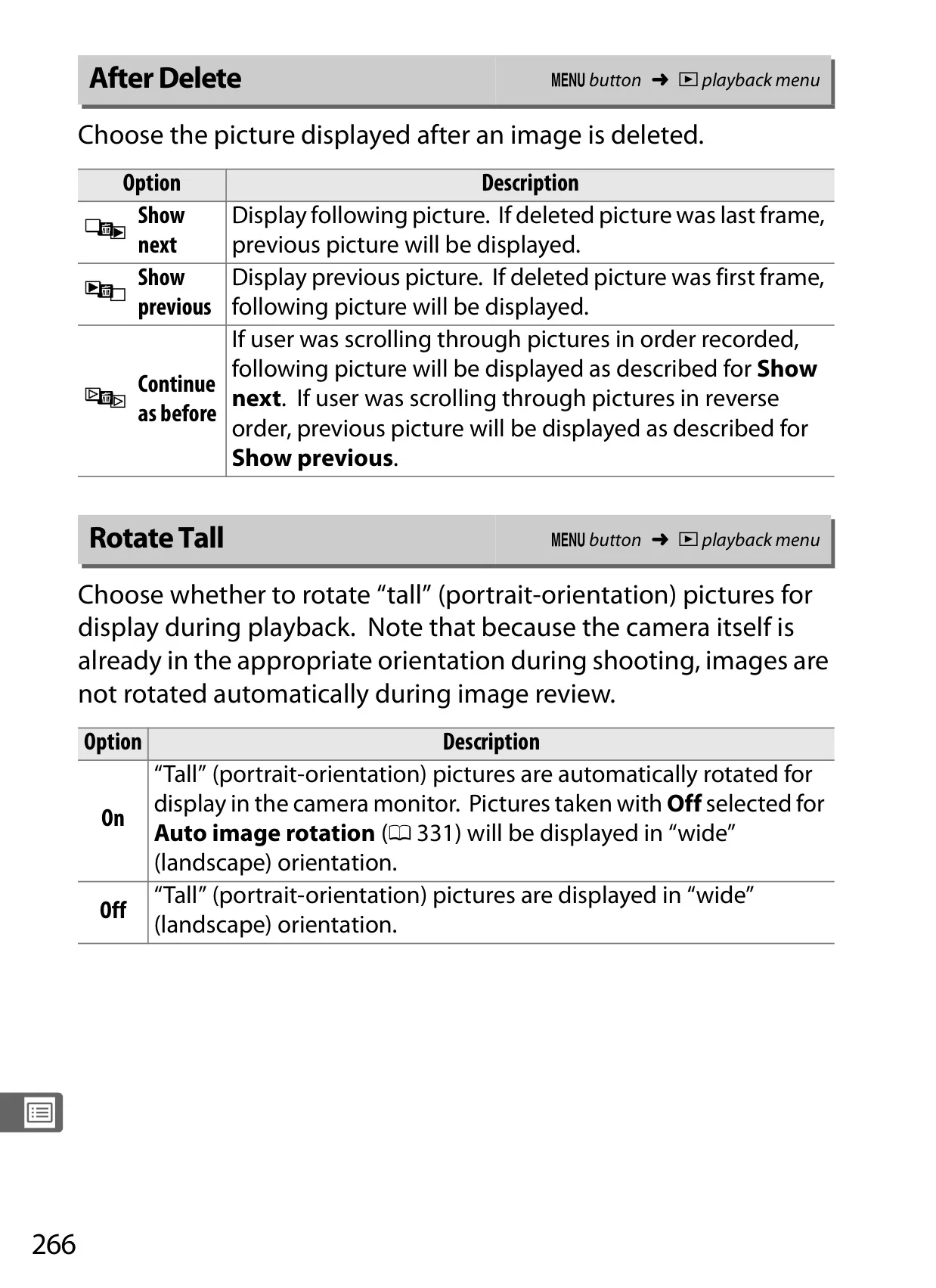

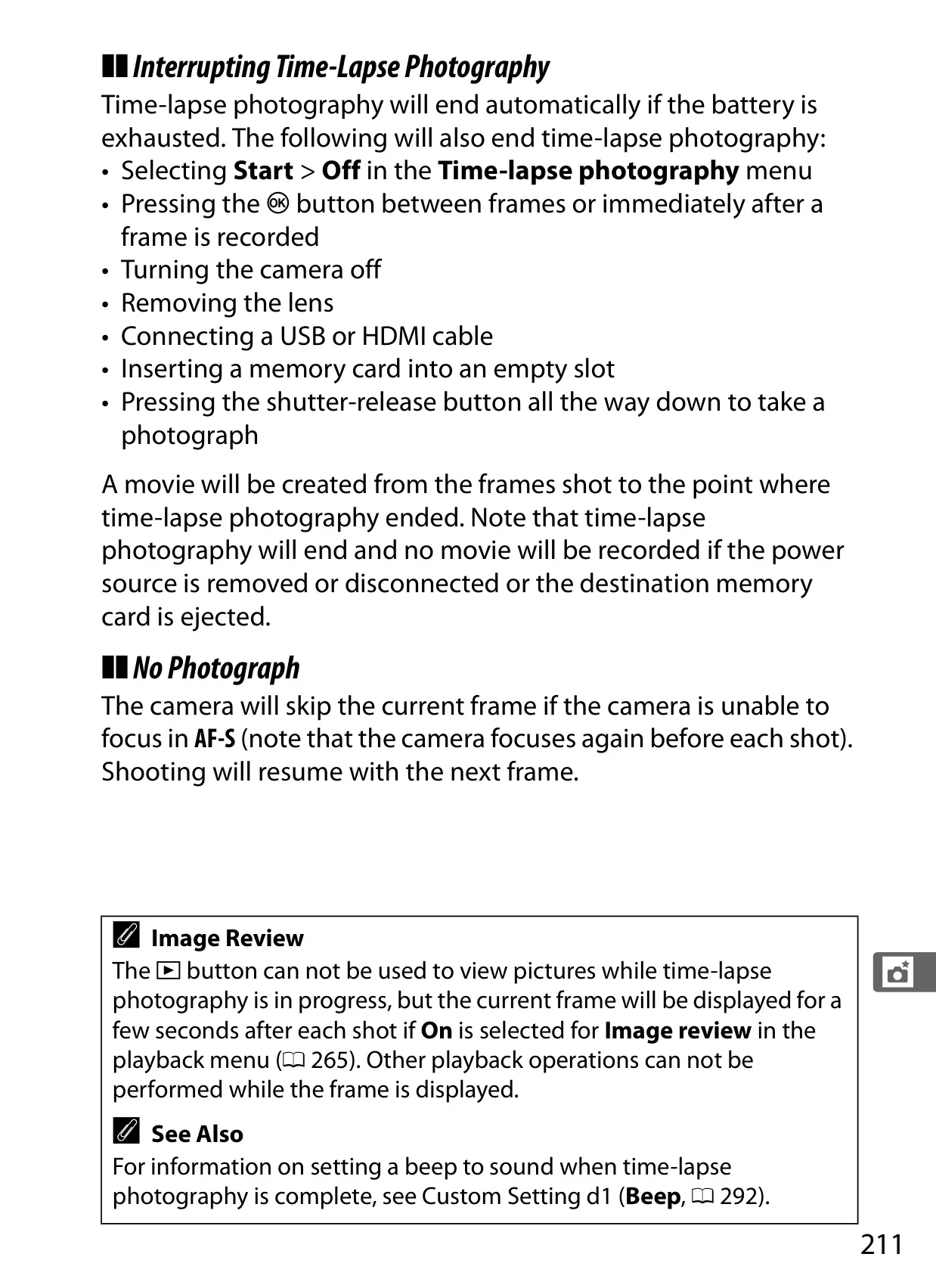

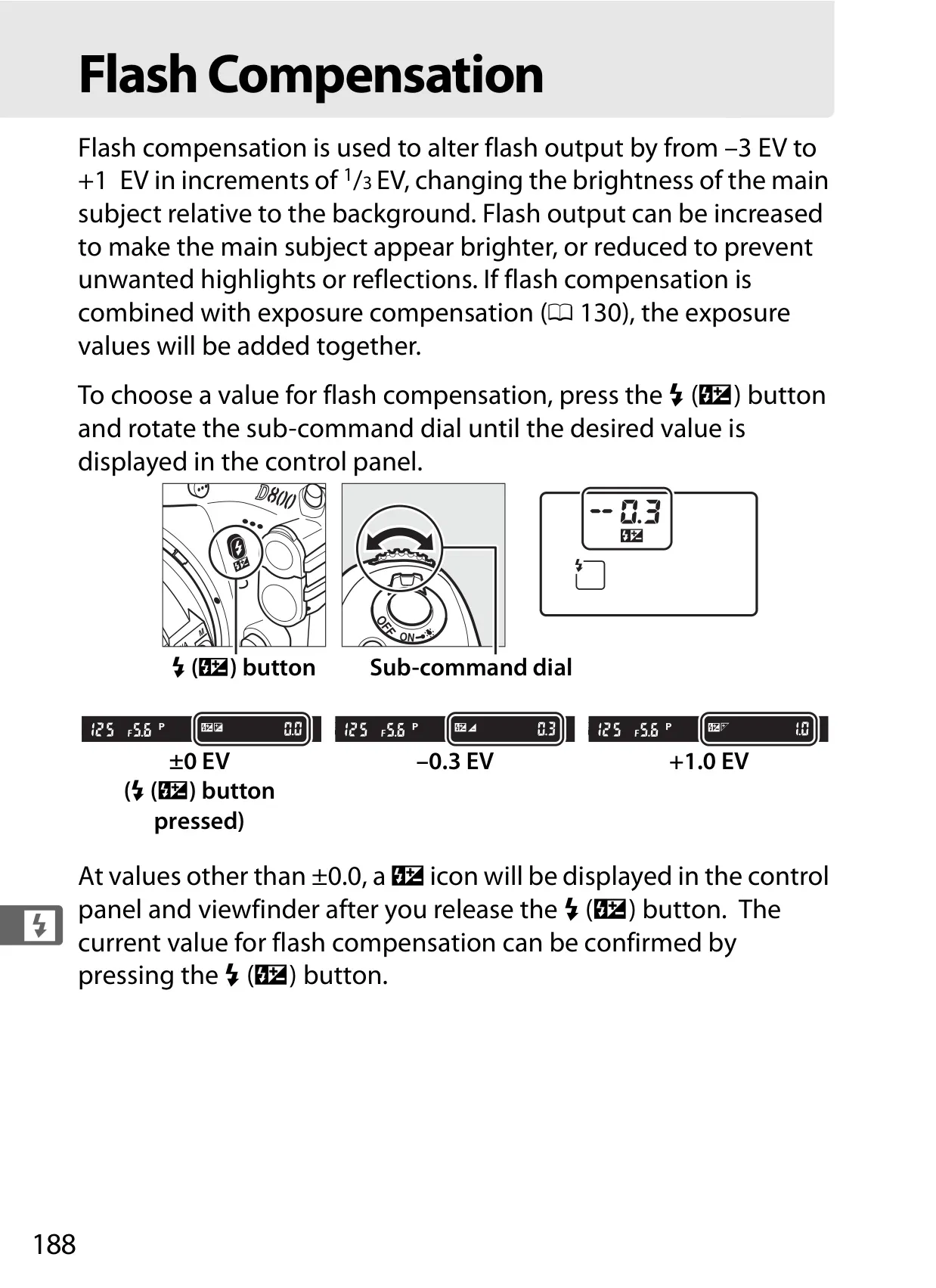

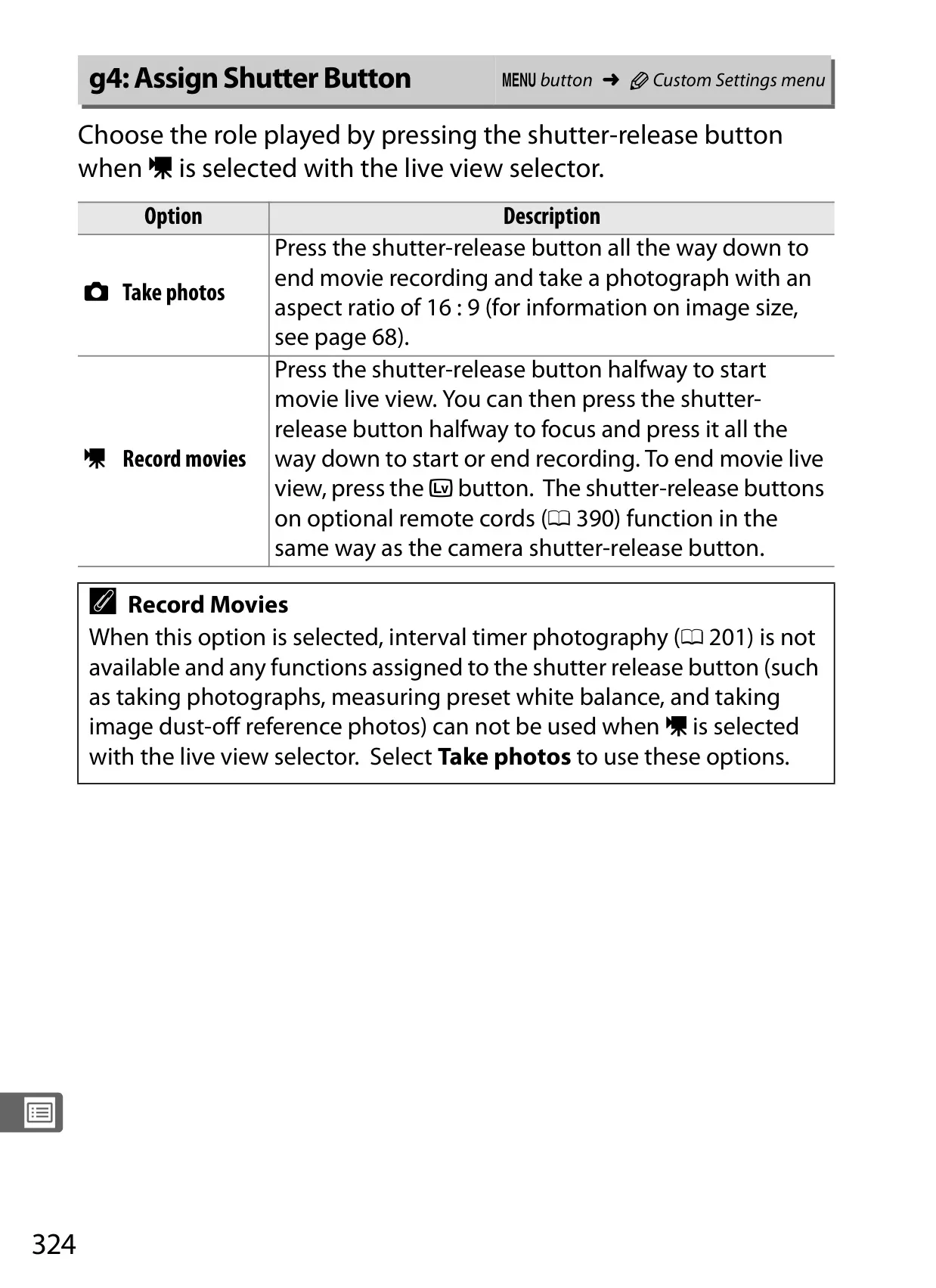

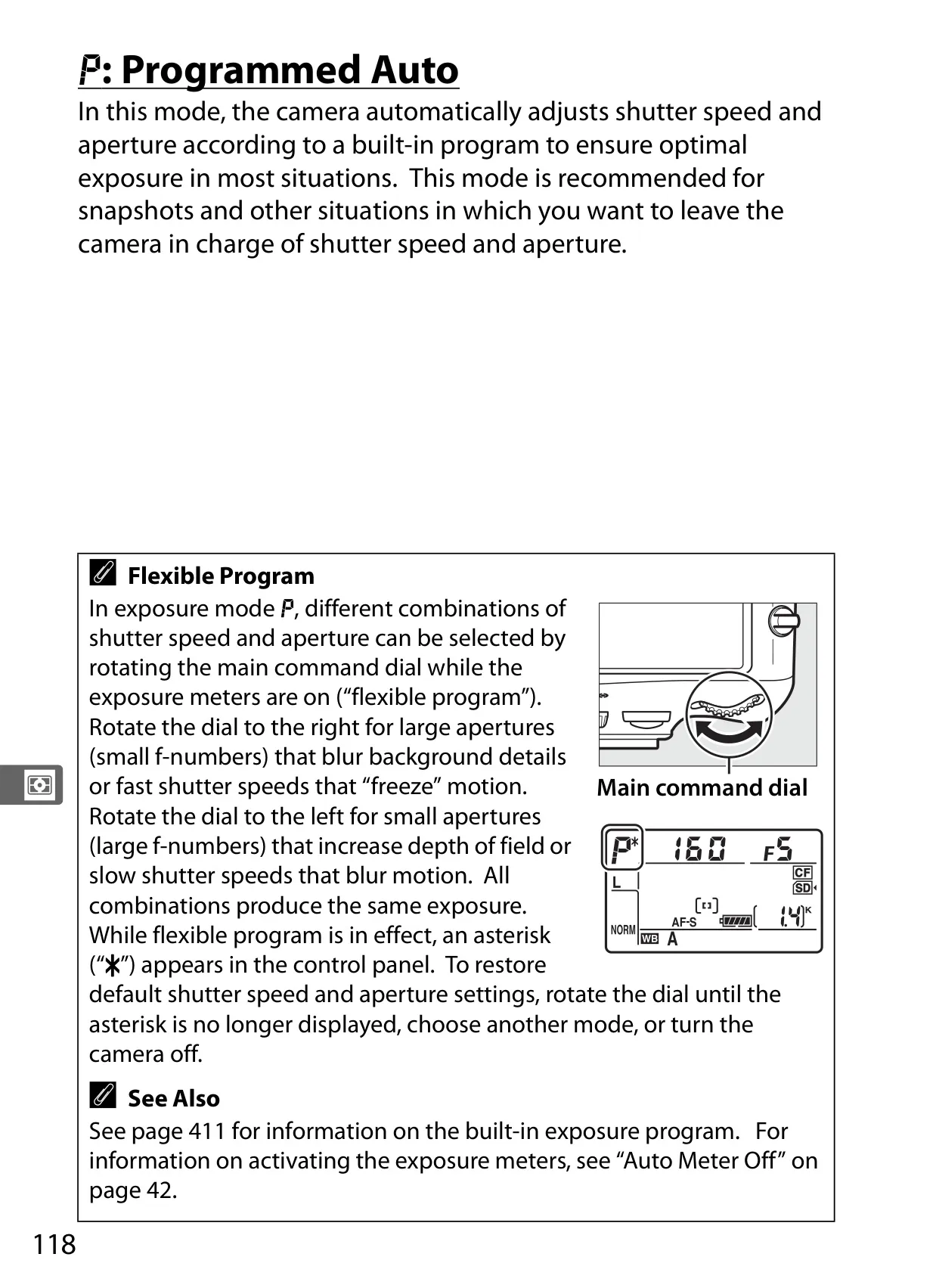

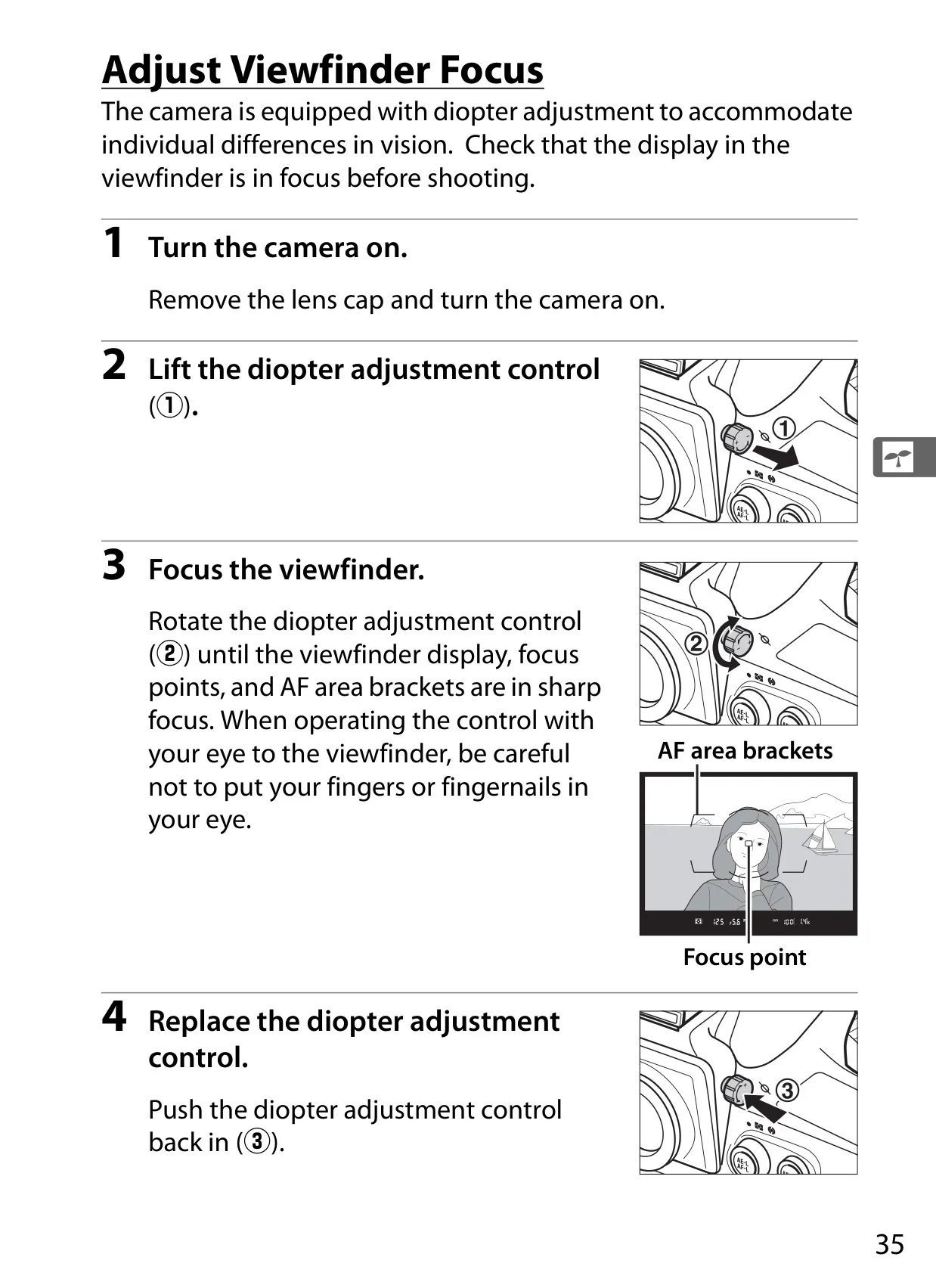

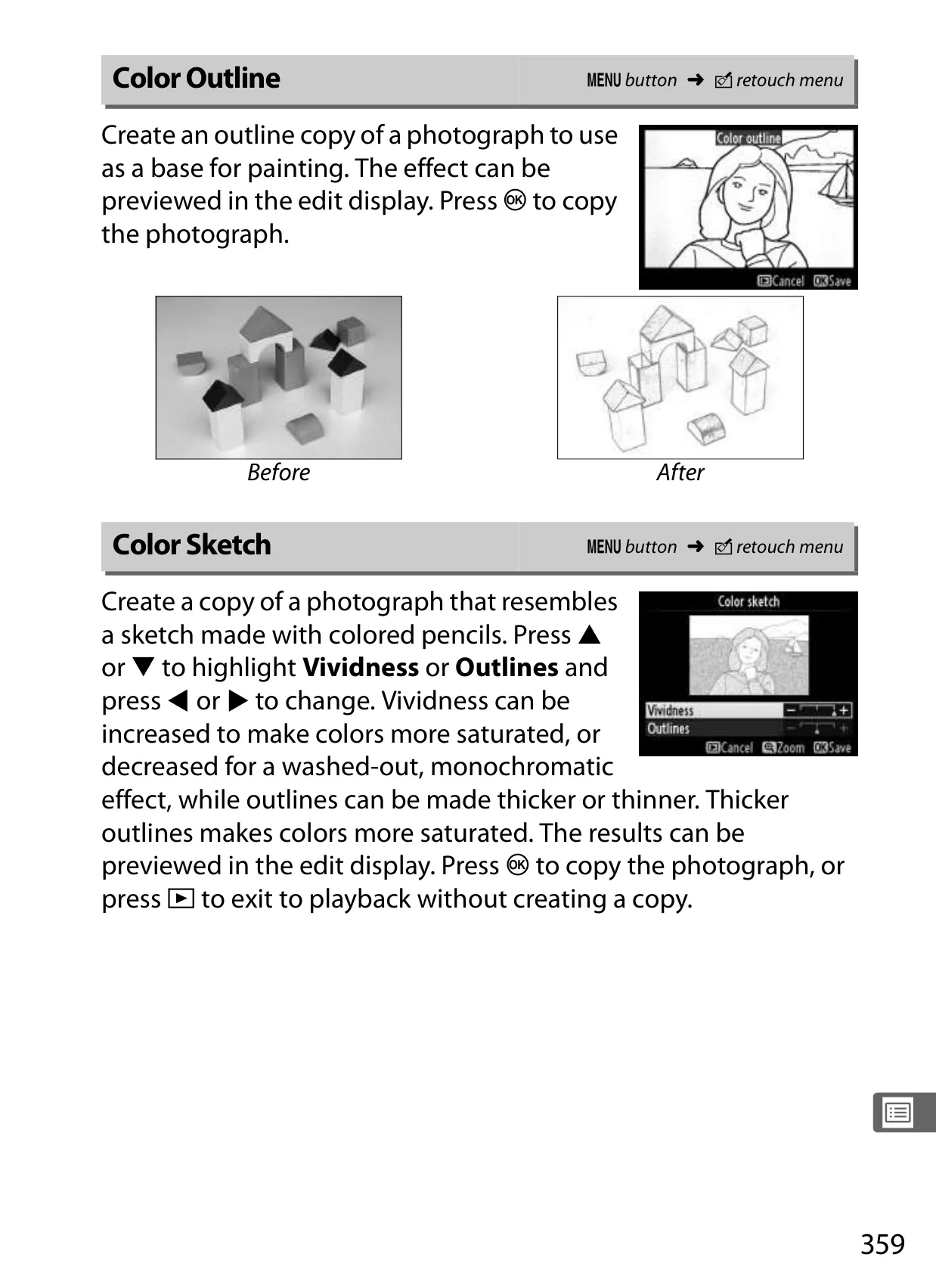

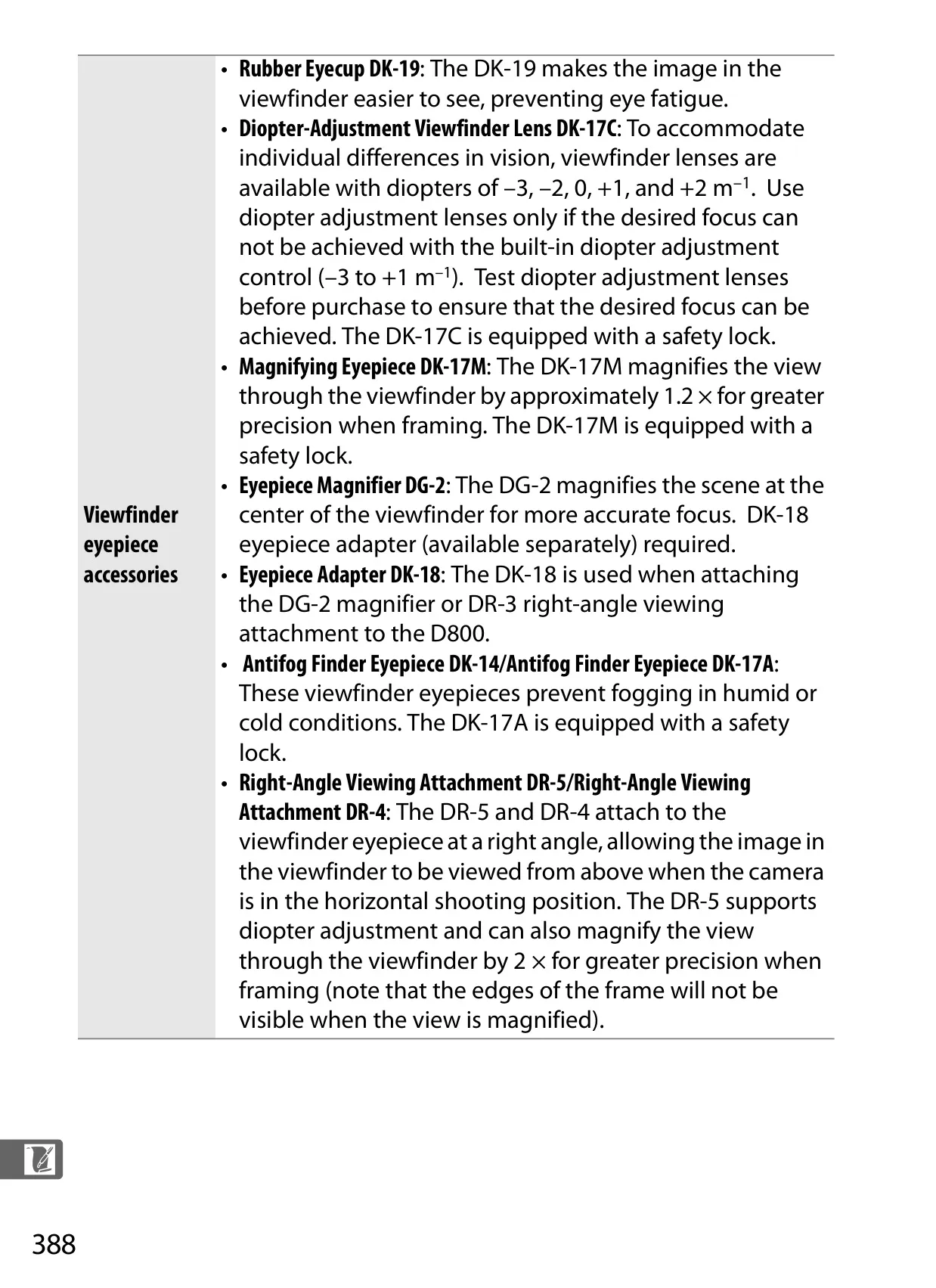

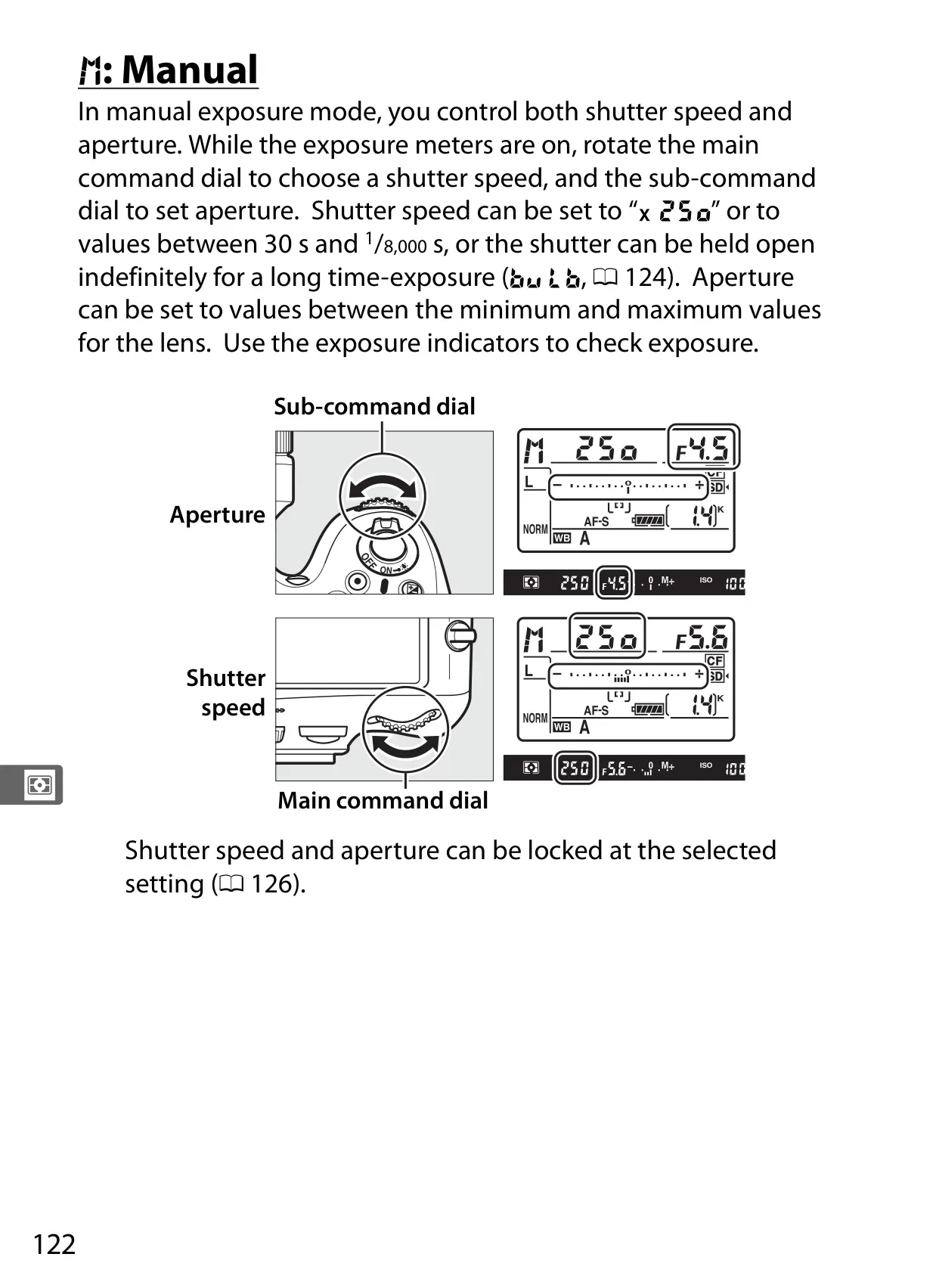

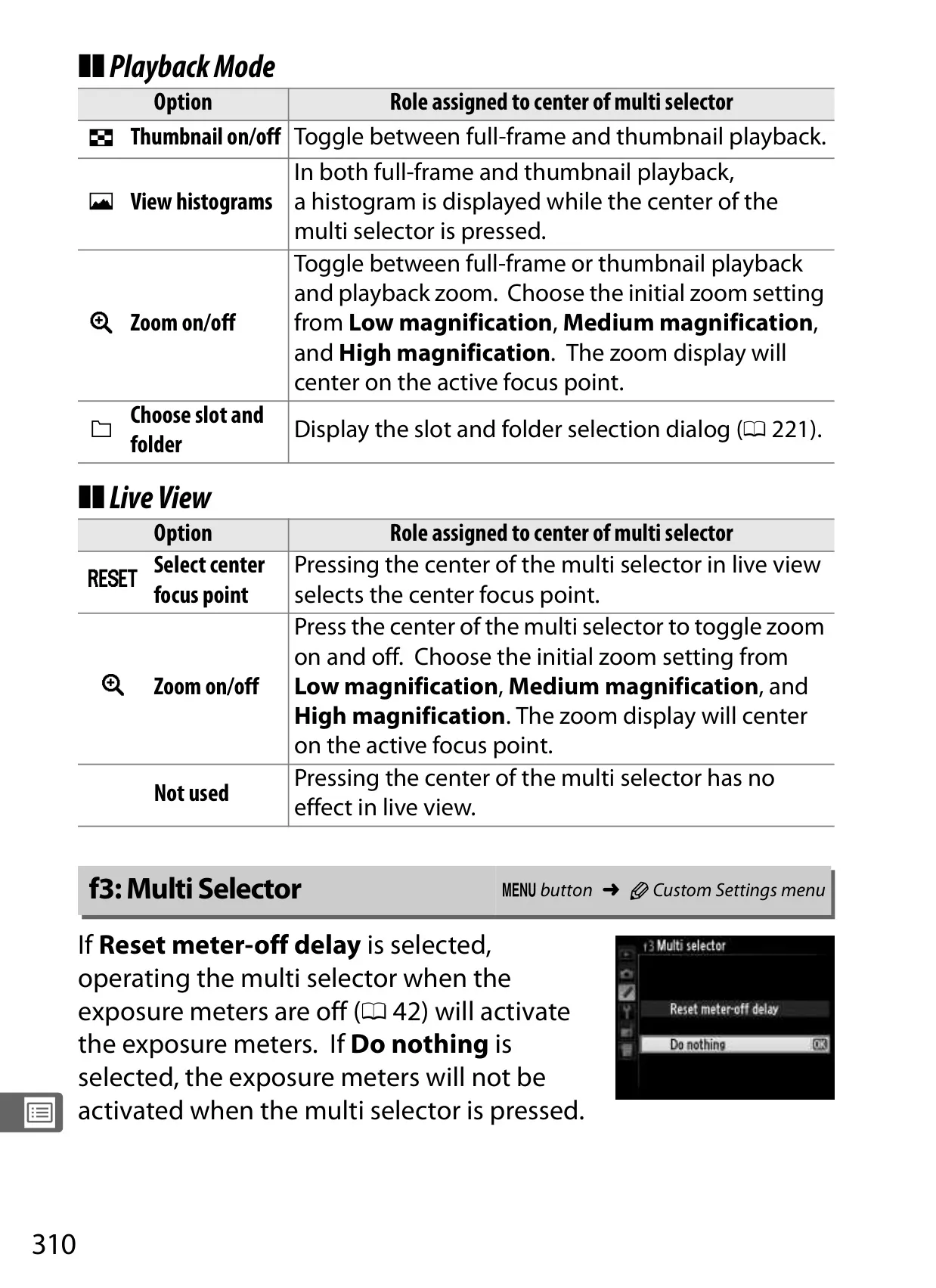

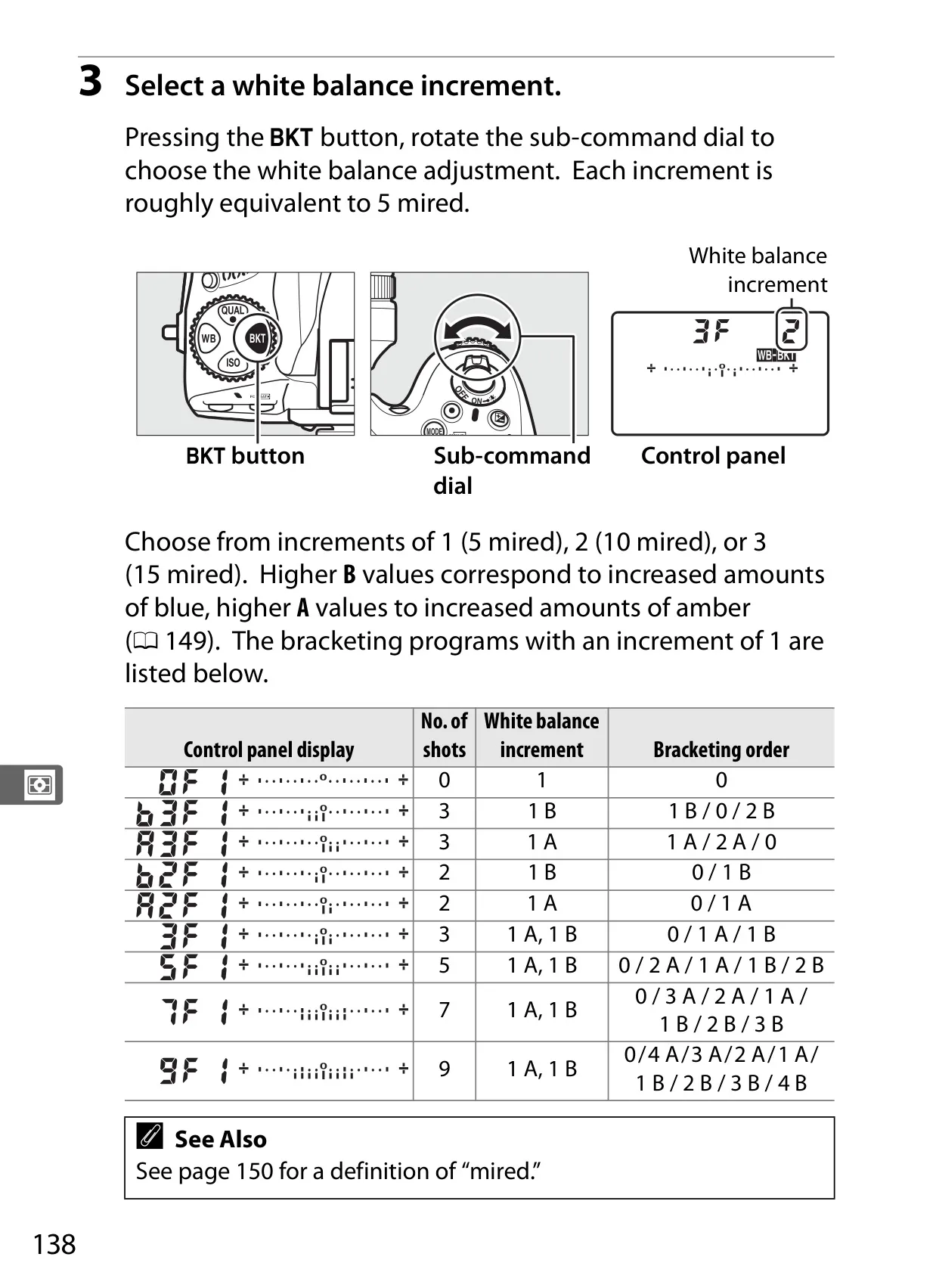

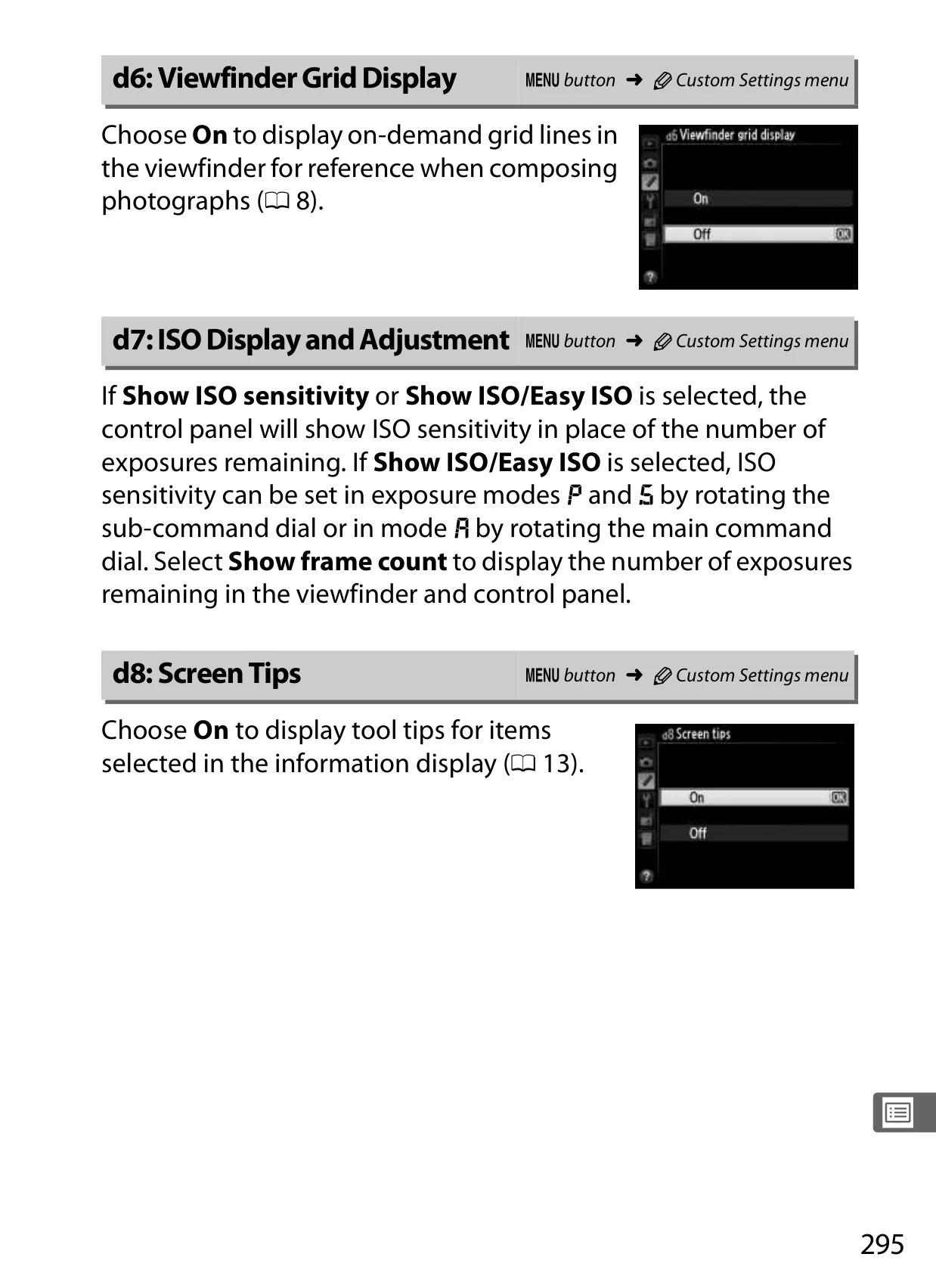

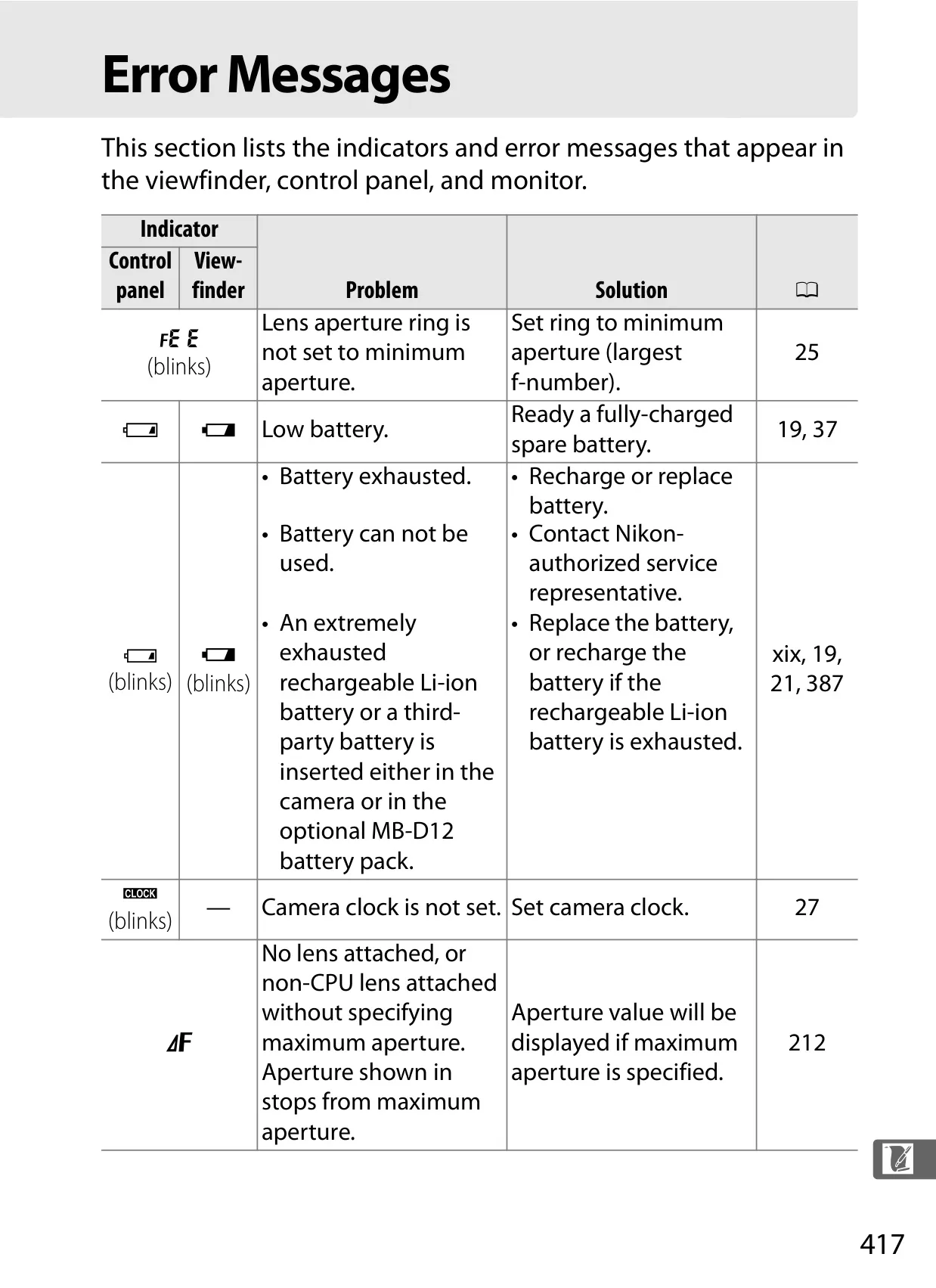

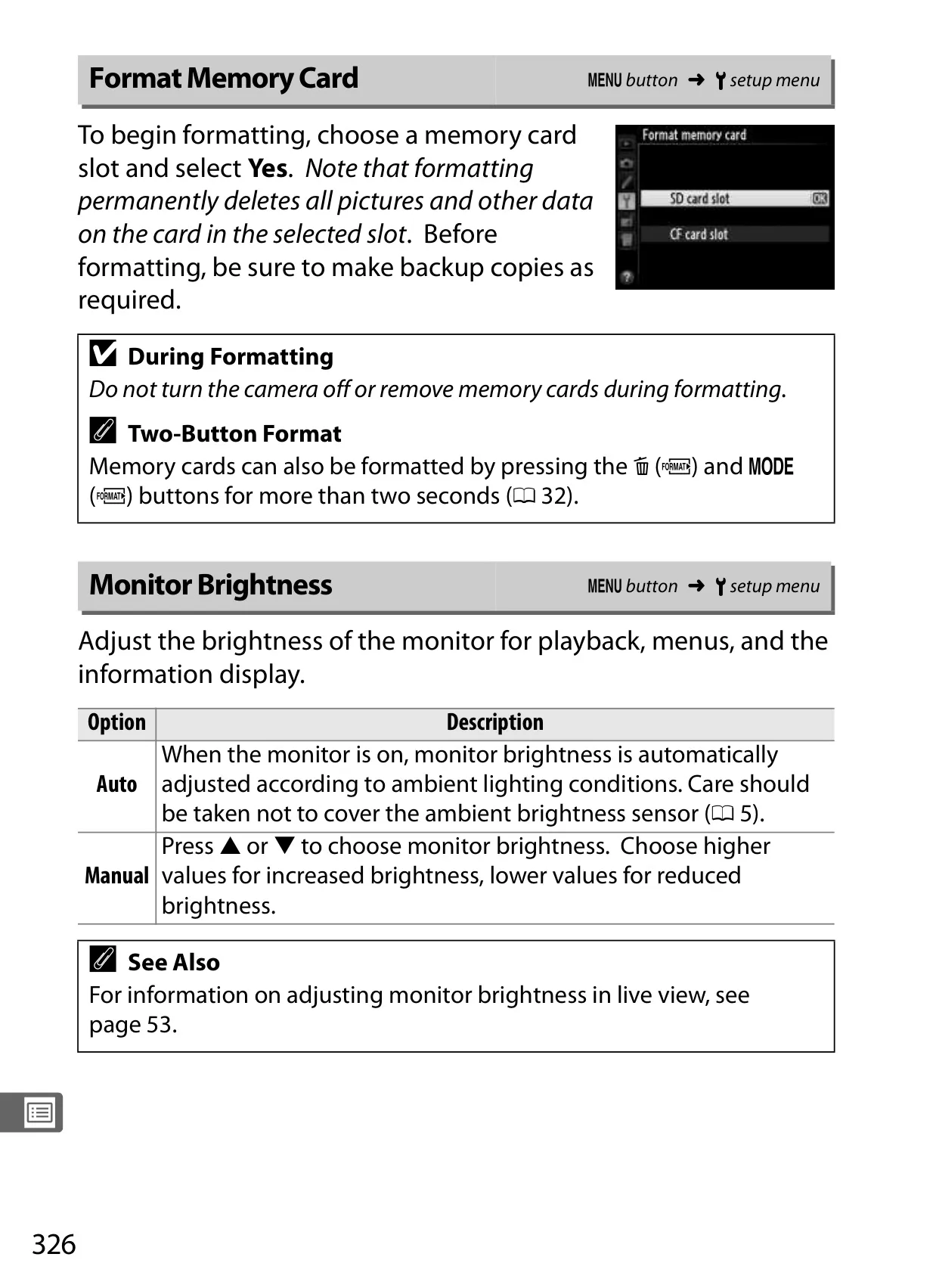

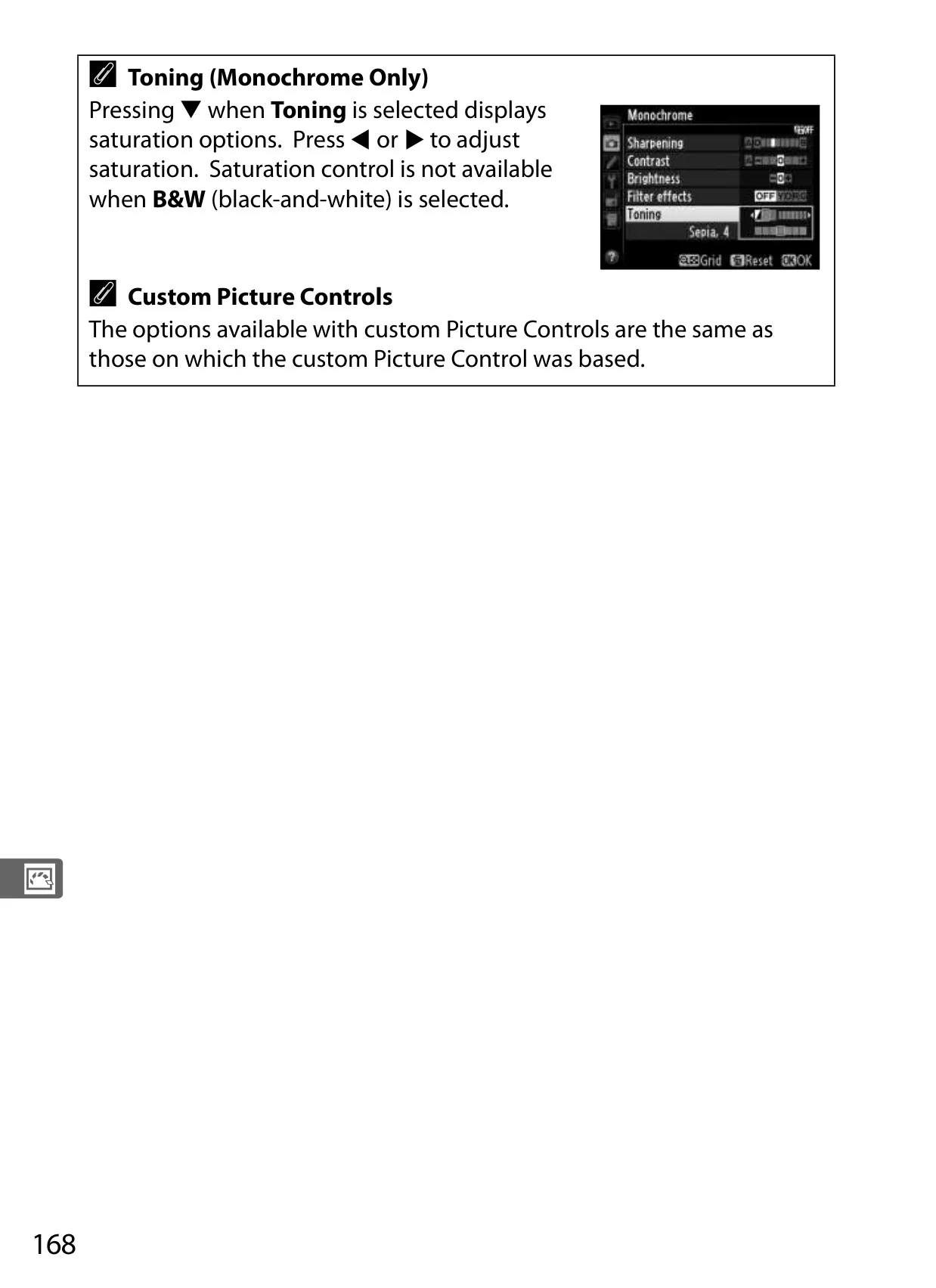

Product Images
Nikon D800 DSLR Camera Specifications
| Feature | Specification |
|---|---|
| Camera Type | Digital single-lens reflex (SLR) |
| Lens Mount | Nikon F mount (with AF coupling and AF contacts) |
| Effective Pixels | 36.3 million |
| Image Sensor | 35.9 × 24.0 mm CMOS (Nikon FX format) |
| Image Formats | NEF (RAW), TIFF (RGB), JPEG, NEF (RAW)+JPEG |

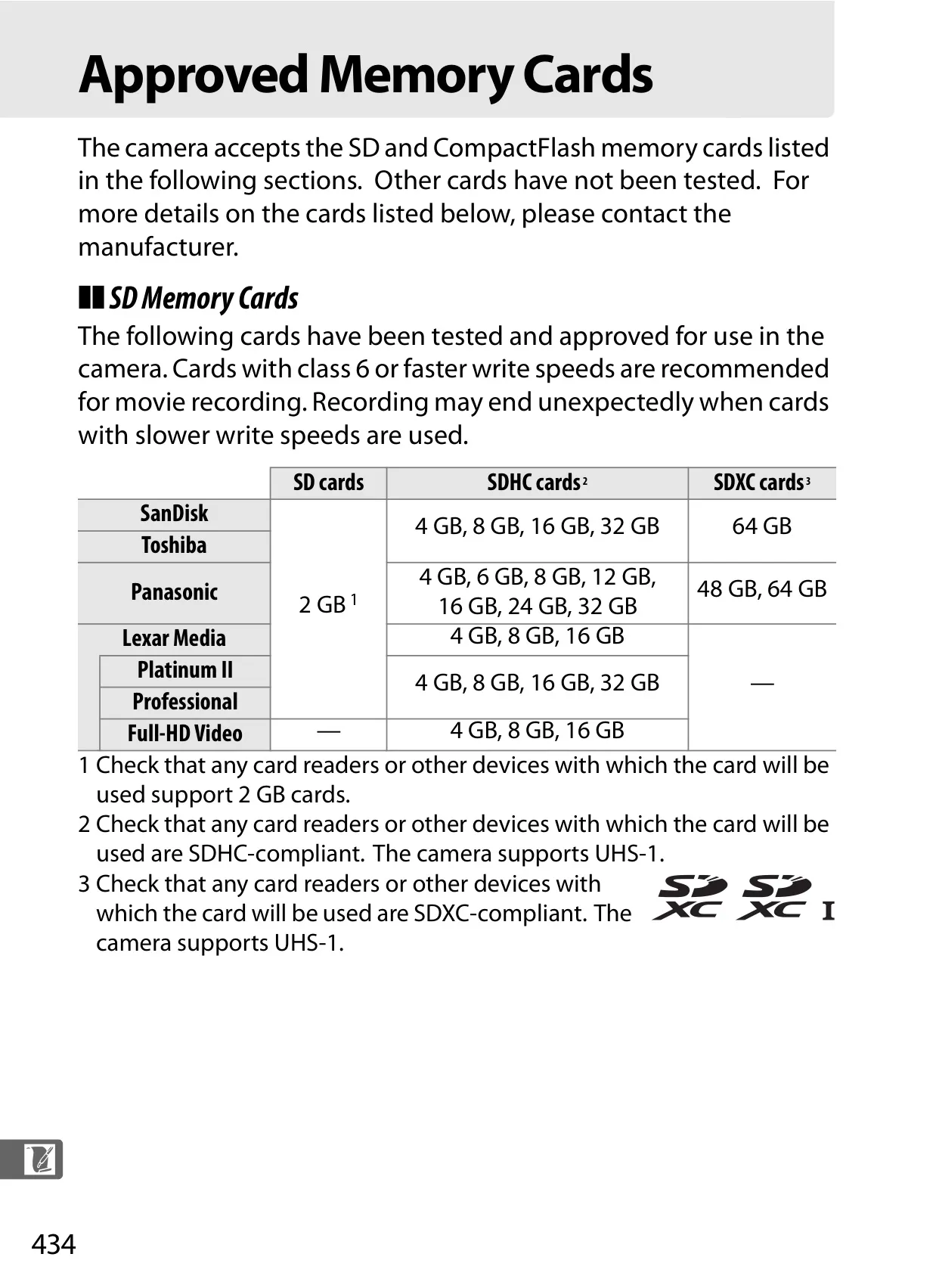

| Storage Media | SD (UHS-I compatible), CompactFlash Type I (UDMA compatible) |

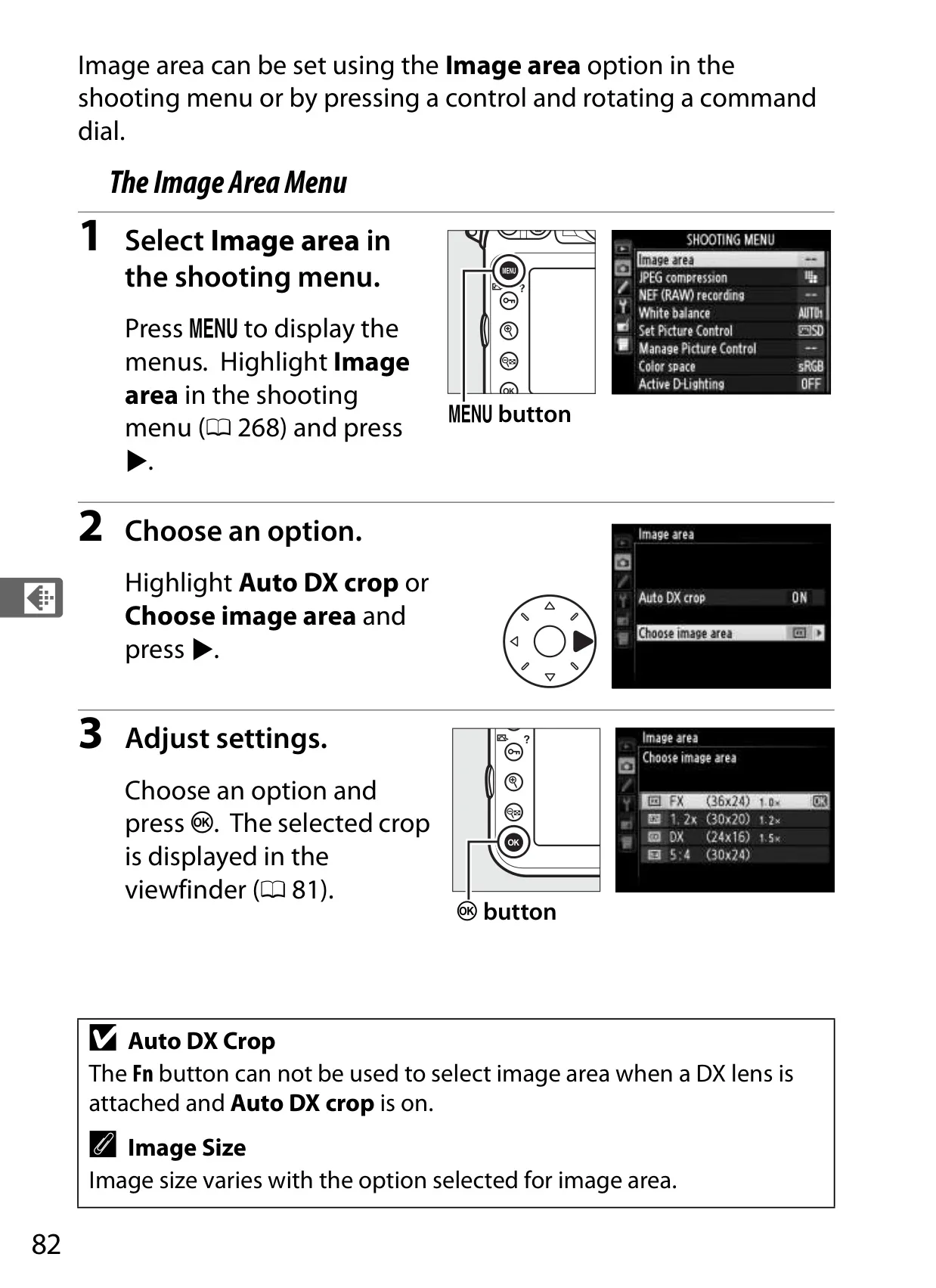

| Image Area (FX) | L: 7360 × 4912, M: 5520 × 3680, S: 3680 × 2456 |
| Viewfinder Coverage | Approx. 100% H/V (FX), 97% H/V (1.2×, DX), 97% H, 100% V (5:4) |
| Viewfinder Magnification | Approx. 0.7× (50mm f/1.4 lens at infinity, -1.0 m⁻¹) |
| Shutter Speed | 1/8000 to 30 s (1/3, 1/2, 1 EV steps), Bulb, X250 |
| Flash Sync Speed | X=1/250 s (up to 1/320 s with reduced flash range) |
| Continuous Shooting | Approx. 4 fps (FX/5:4), 5 fps (DX/1.2×) with EN-EL15; 6 fps (DX) with other power sources |
| ISO Sensitivity | ISO 100–6400 (1/3, 1/2, 1 EV steps); extendable to Lo 1 (ISO 50) and Hi 2 (ISO 25600) |
| Metering System | TTL using 91,000-pixel RGB sensor |
| Autofocus System | Nikon Advanced Multi-CAM 3500FX (51 focus points, 15 cross-type) |
| AF Detection Range | –2 to +19 EV (ISO 100, 20°C) |

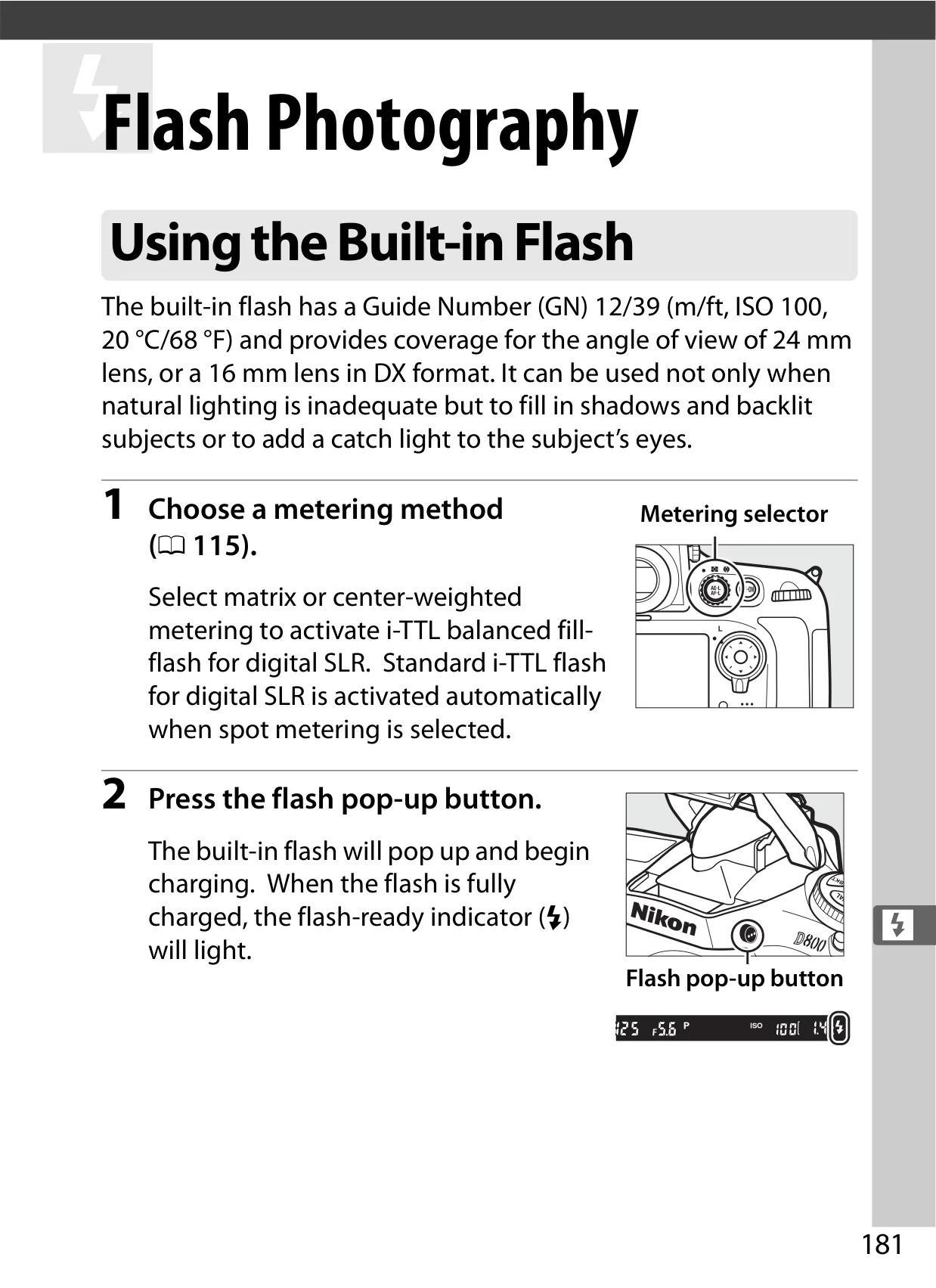

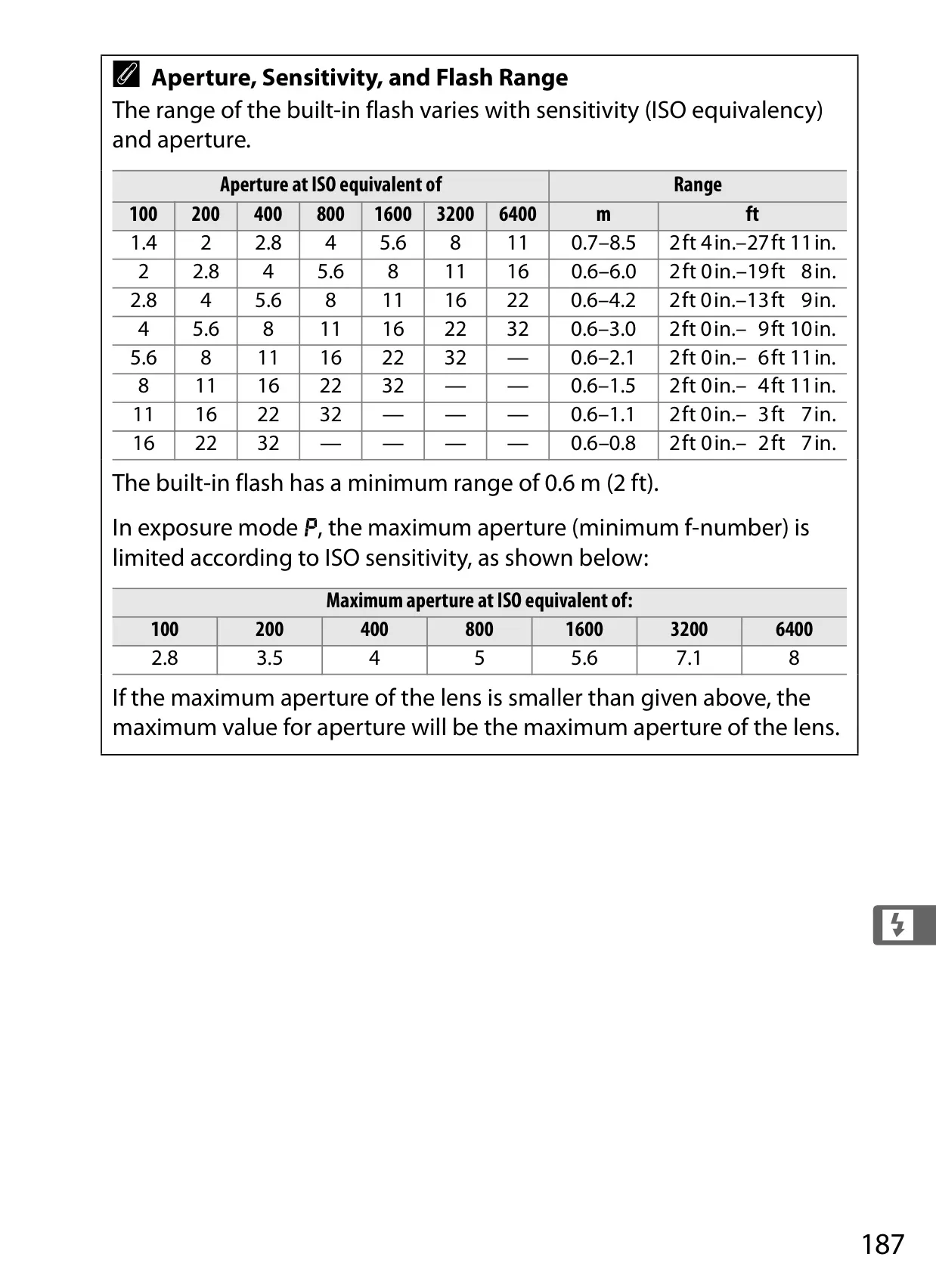

| Built-in Flash Guide No. | 12/39 (m/ft, ISO 100, 20°C) |
| Monitor | 8 cm (3.2 in.), approx. 921k-dot TFT LCD, 170° viewing angle |
| Video Resolution (Max) | 1920 × 1080 (Full HD) at 30p/25p/24p |
| Video File Format | MOV (H.264/MPEG-4 Advanced Video Coding) |
| Audio Recording | Built-in monaural mic, external stereo mic input |
| USB | SuperSpeed USB (USB 3.0 Micro-B connector) |
| HDMI Output | Type C mini-pin HDMI connector |

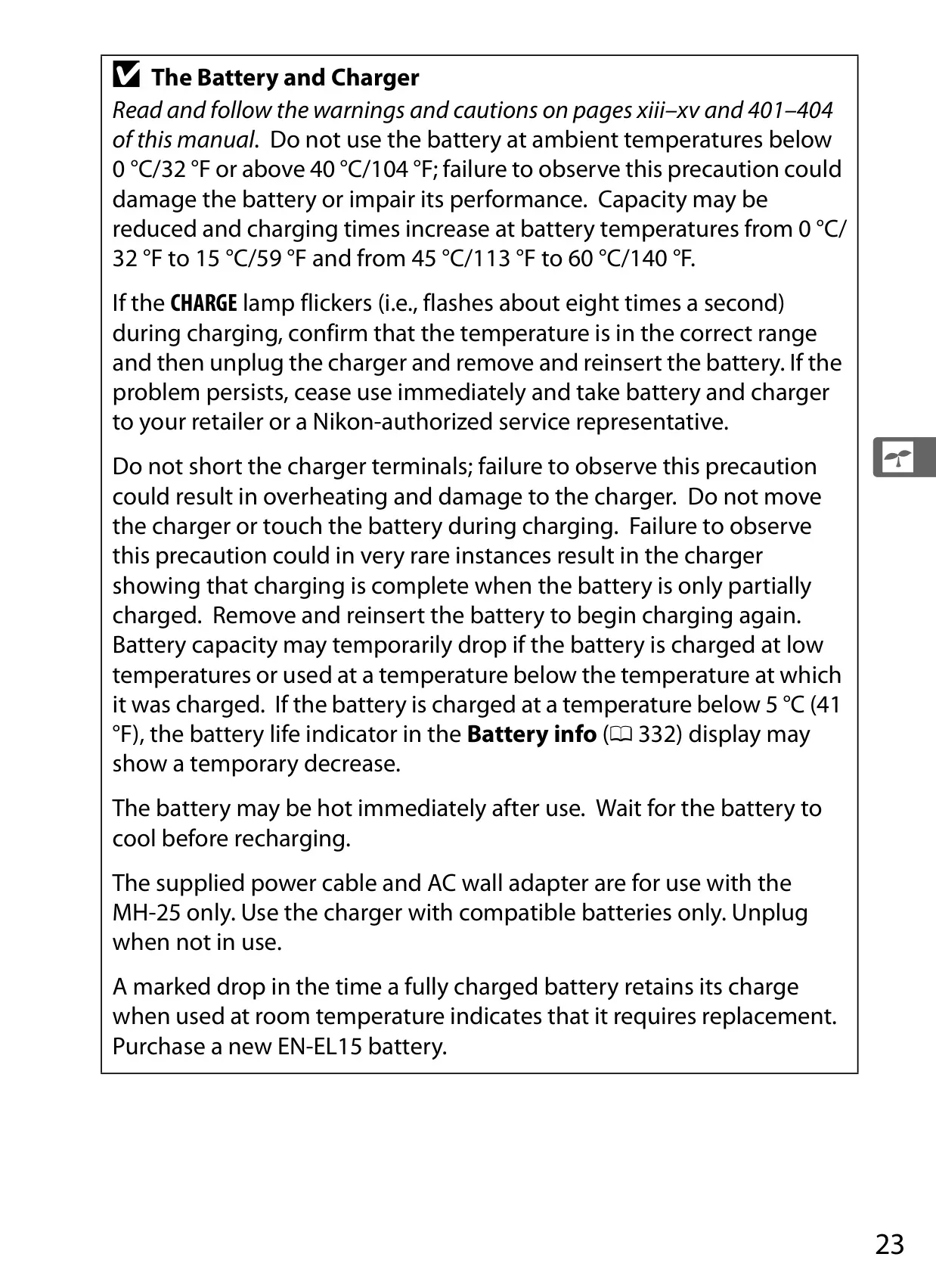

| Battery | One EN-EL15 Rechargeable Li-ion Battery |
| Dimensions (W × H × D) | Approx. 146 × 123 × 81.5 mm (5.7 × 4.8 × 3.2 in.) |
| Weight (body only) | Approx. 900 g (1 lb 15.7 oz) |
Nikon D800 DSLR Camera Details

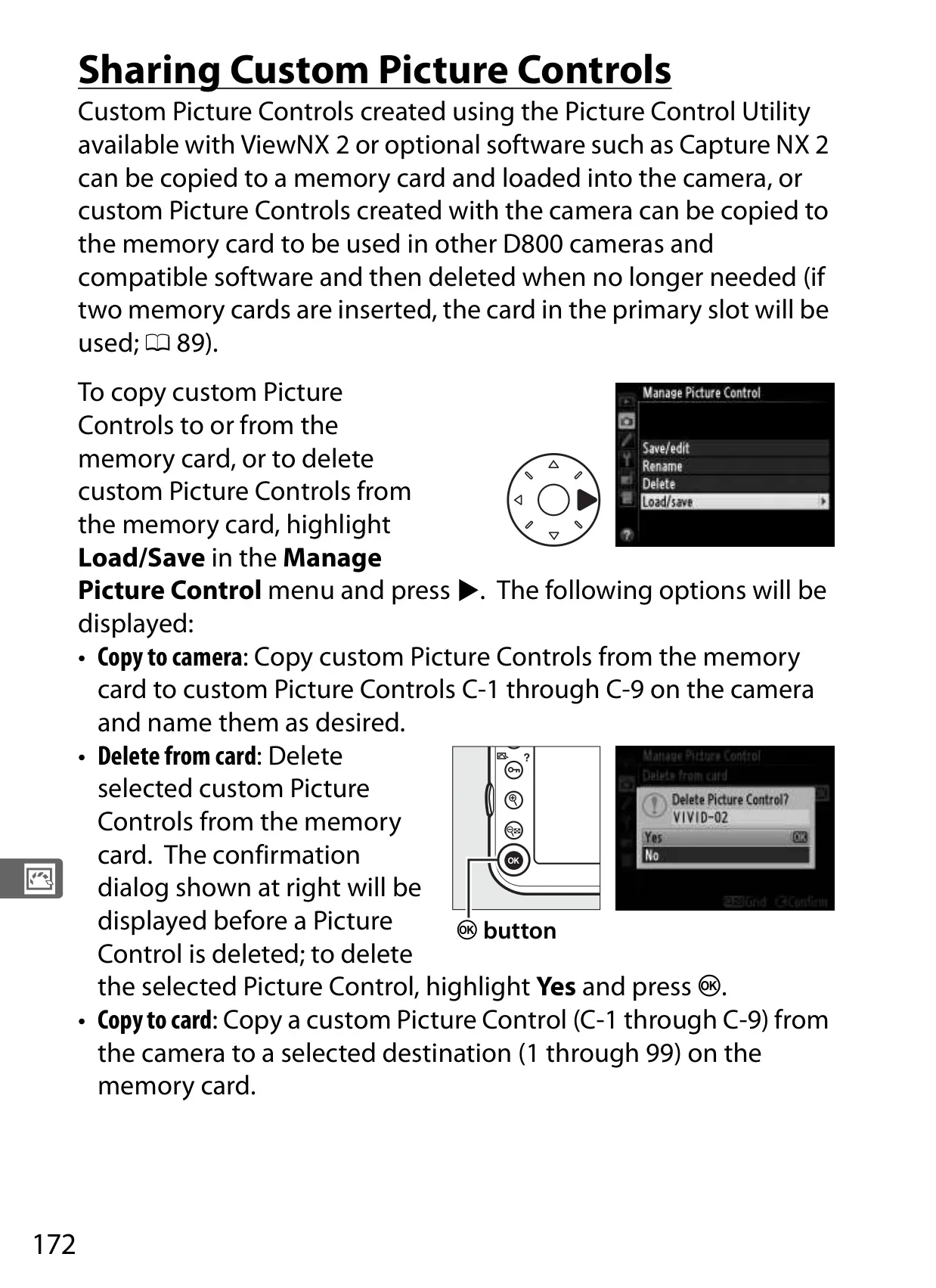

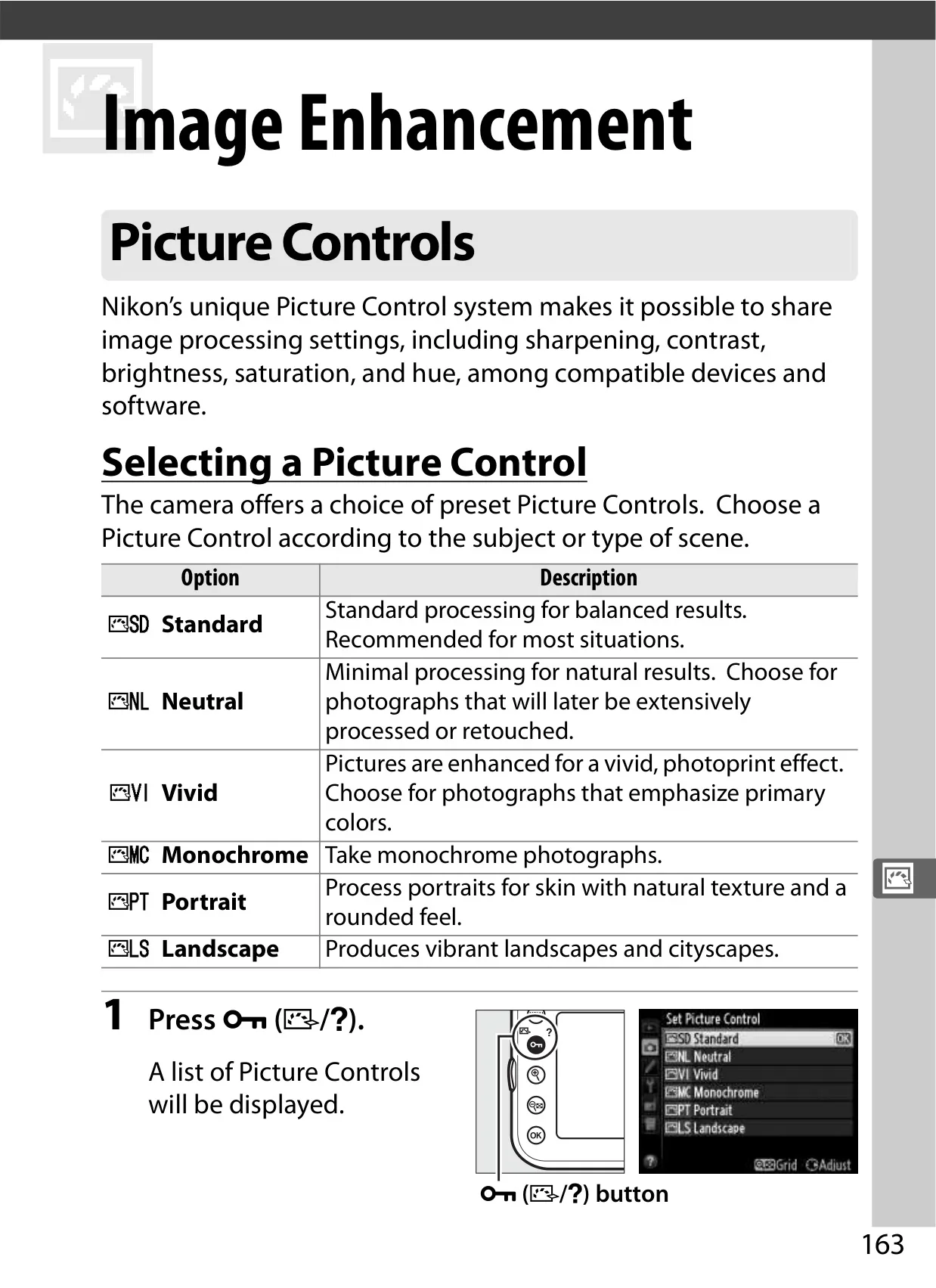

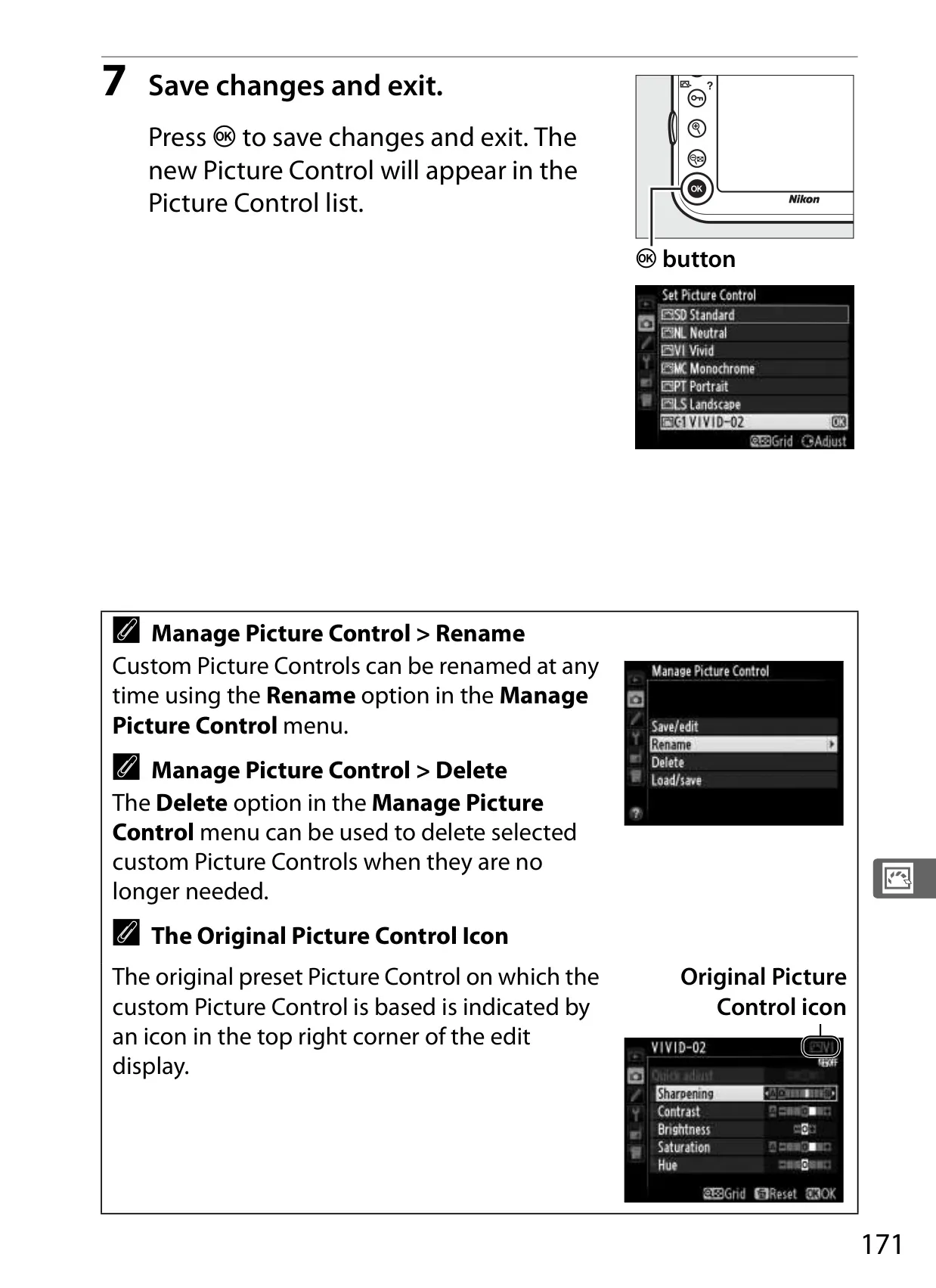

Beyond its robust specifications, the Nikon D800 offers a sophisticated suite of features designed to empower photographers with unparalleled control and flexibility. The camera supports diverse Picture Control settings—Standard, Neutral, Vivid, Monochrome, Portrait, and Landscape—all of which are modifiable and allow for custom control storage, enabling photographers to fine-tune color, tone, and sharpness to their exact preferences.

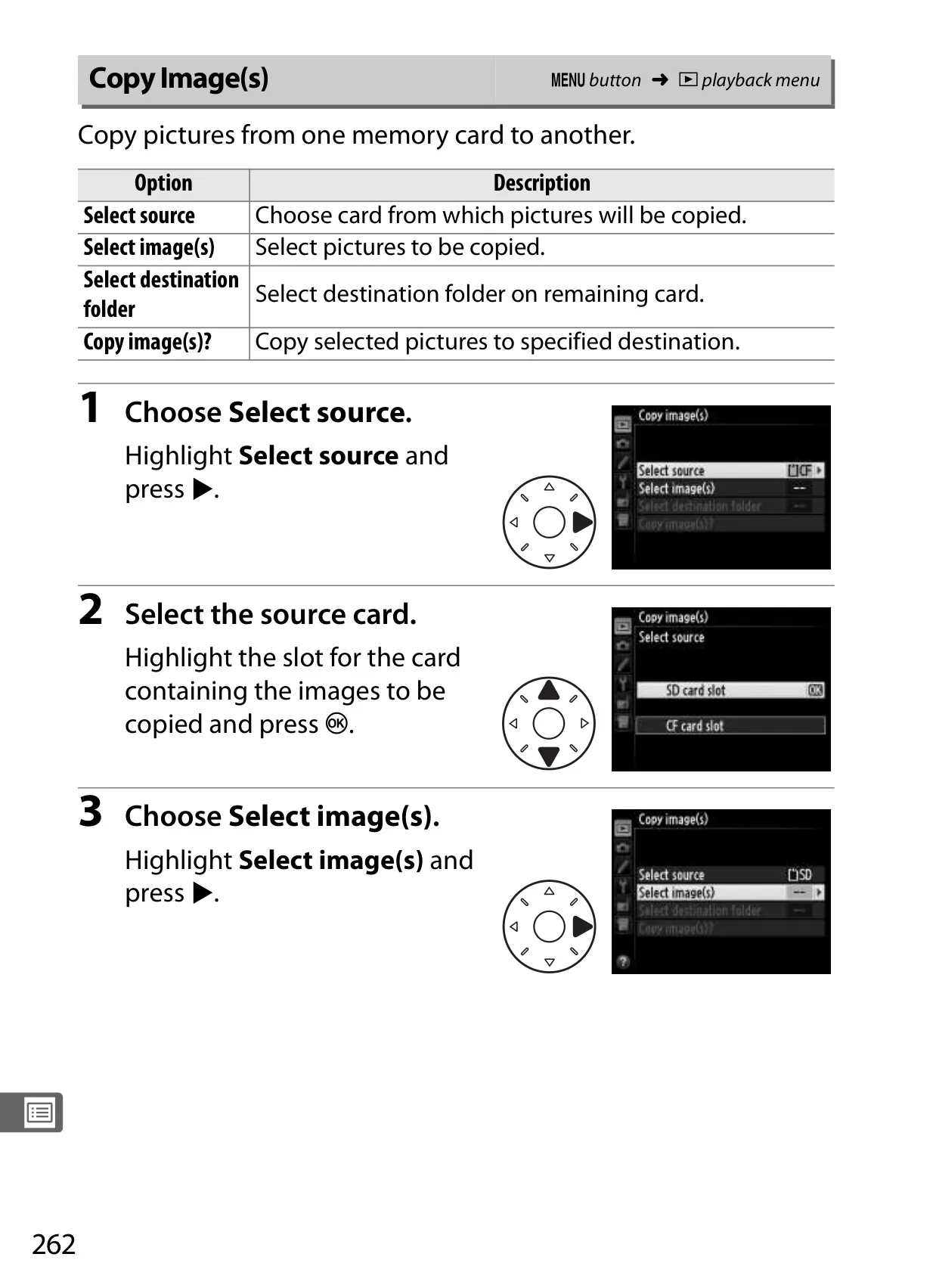

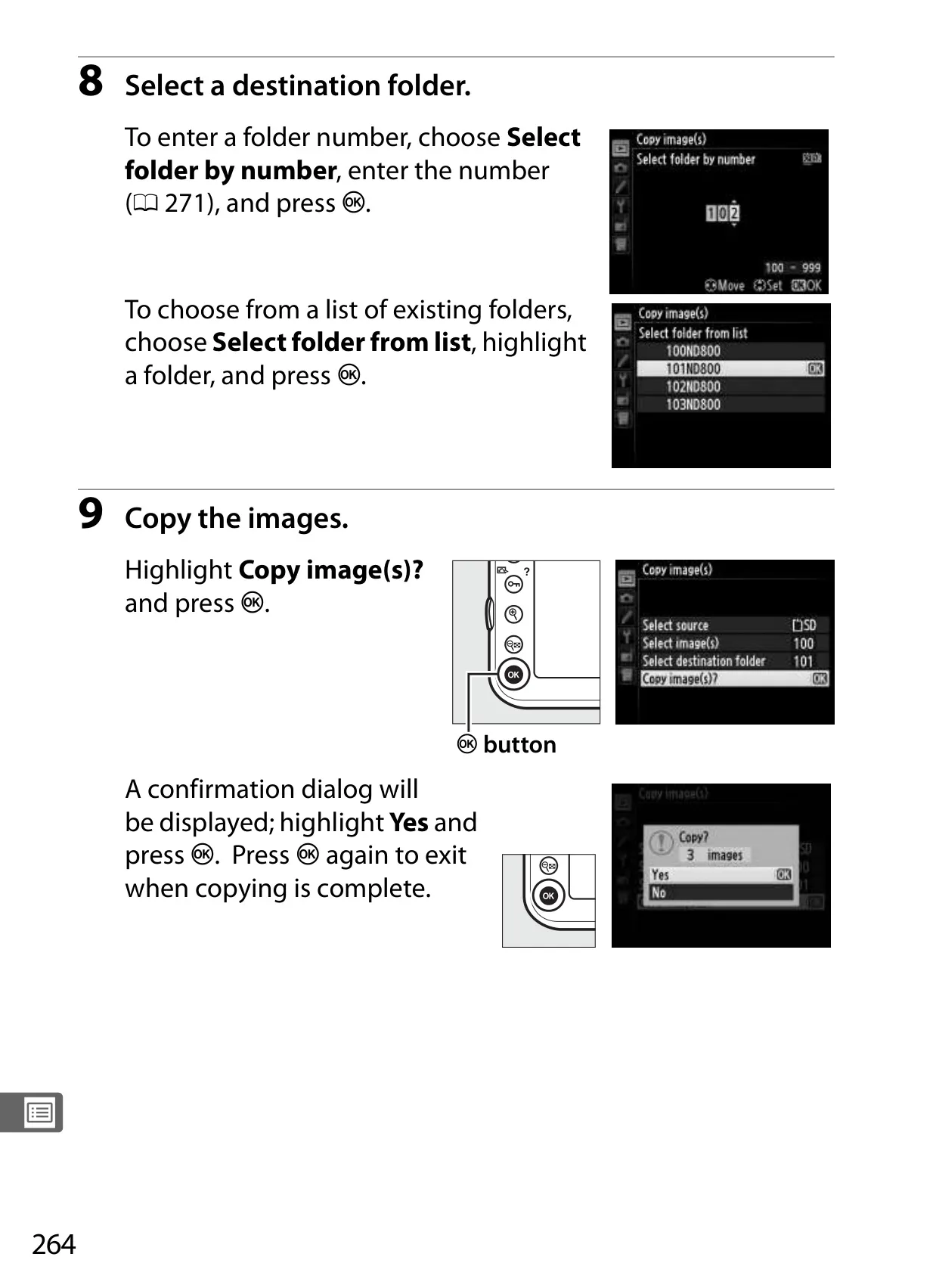

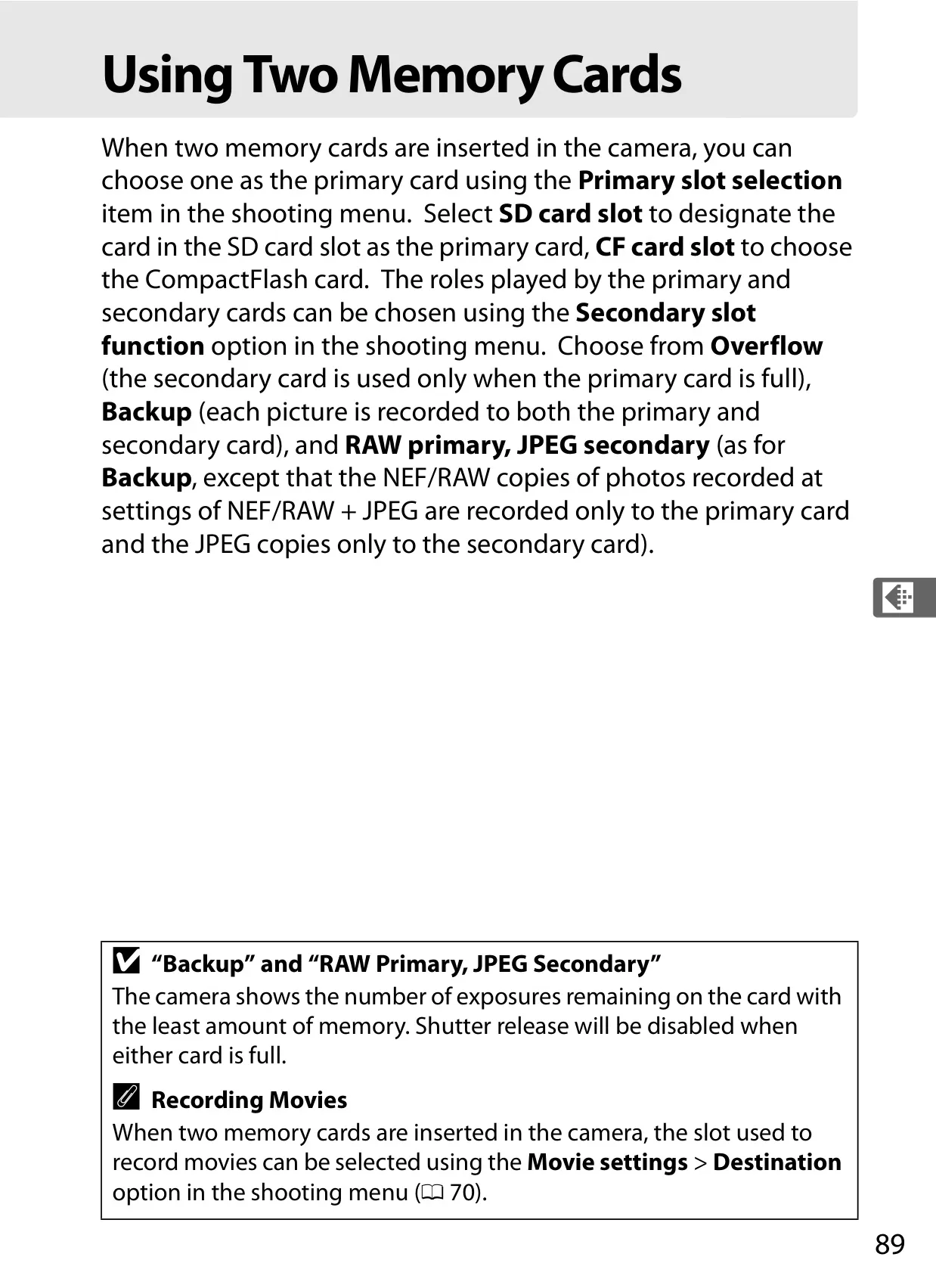

The D800's dual card slots provide versatile storage solutions, allowing for primary/backup recording or separate storage of NEF (RAW) and JPEG images. This feature is particularly useful for professionals who require immediate access to smaller JPEG files for proofing while preserving the full fidelity of RAW images for extensive post-processing. Images can also be copied directly between cards.

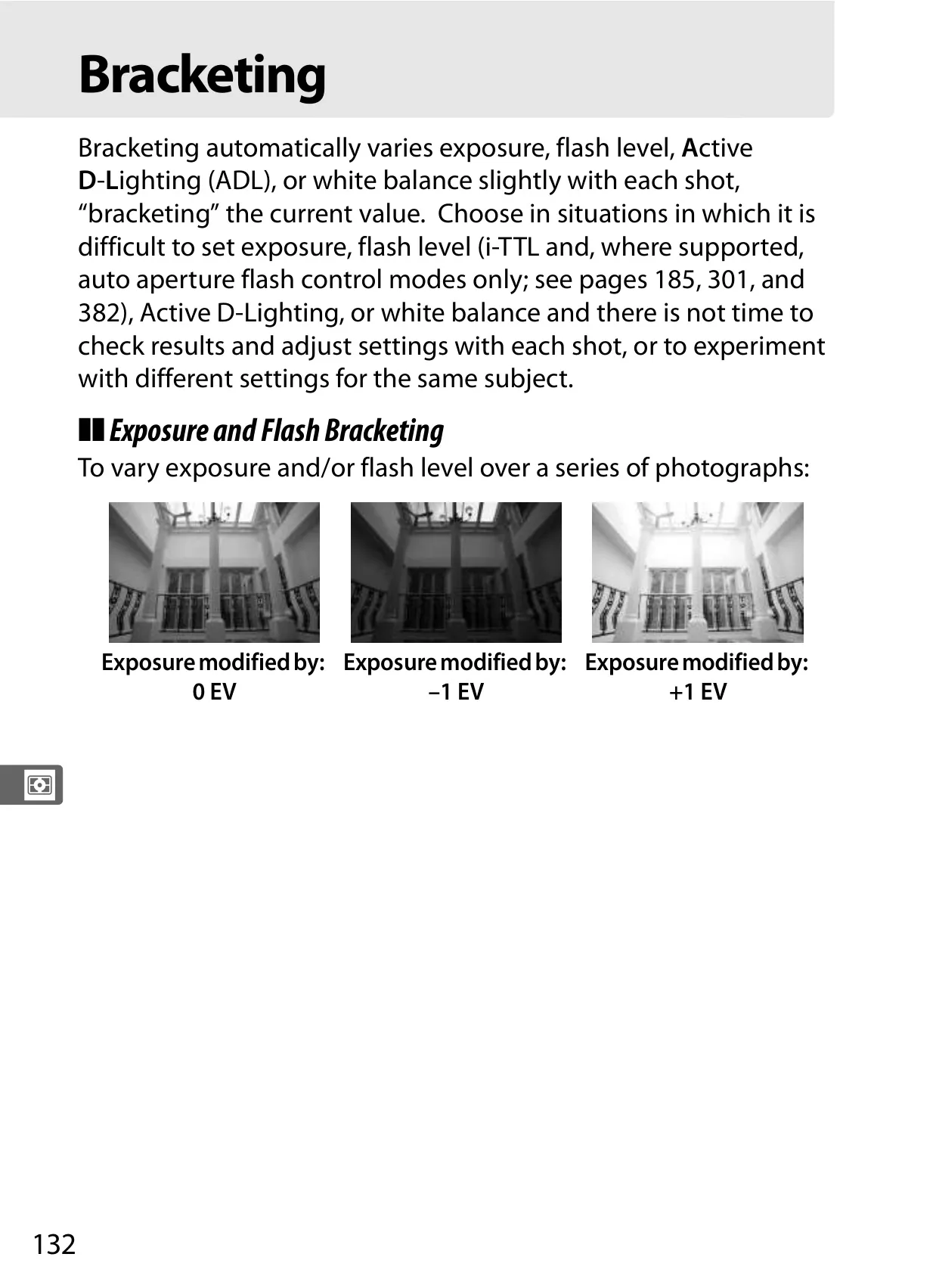

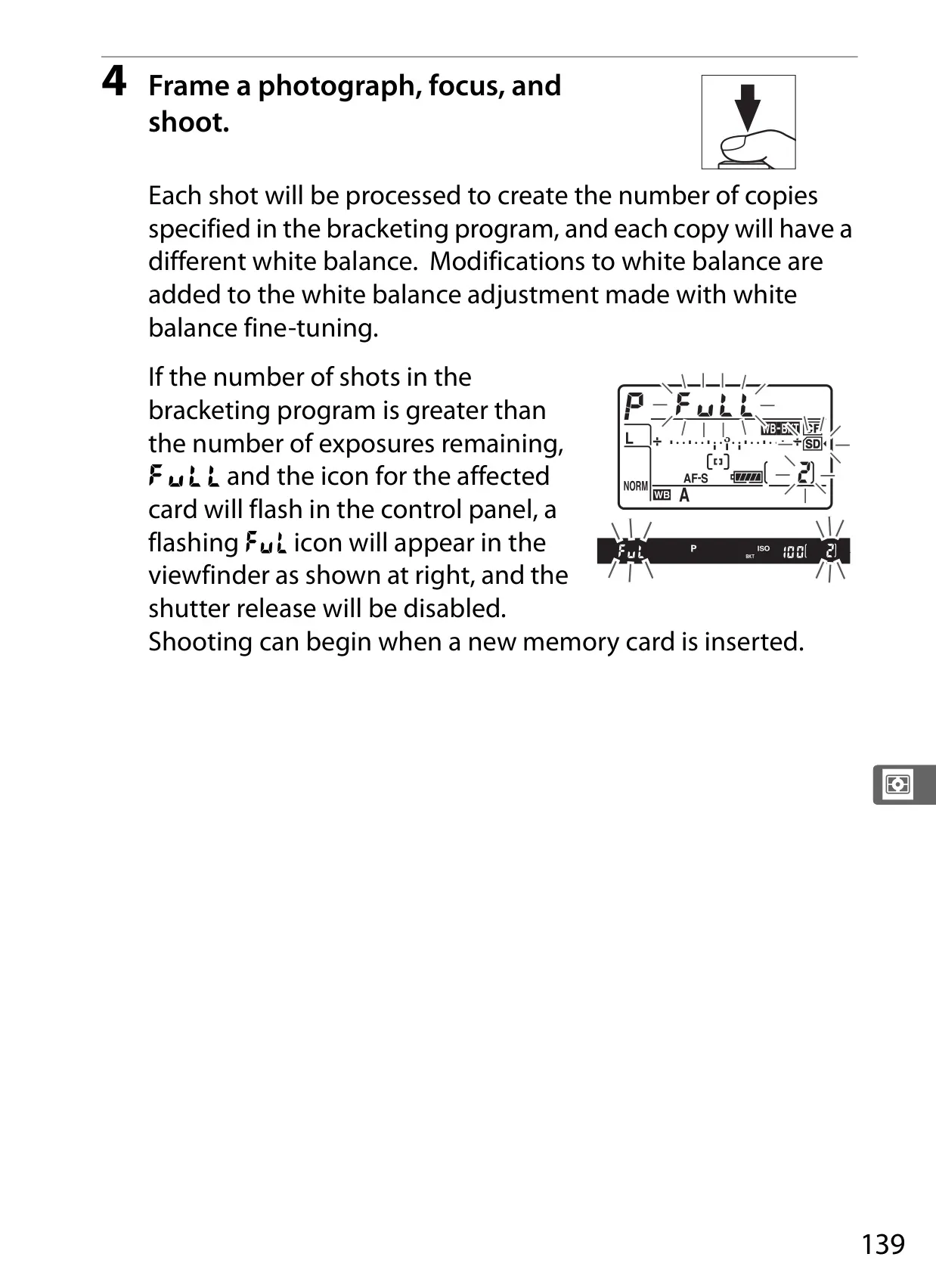

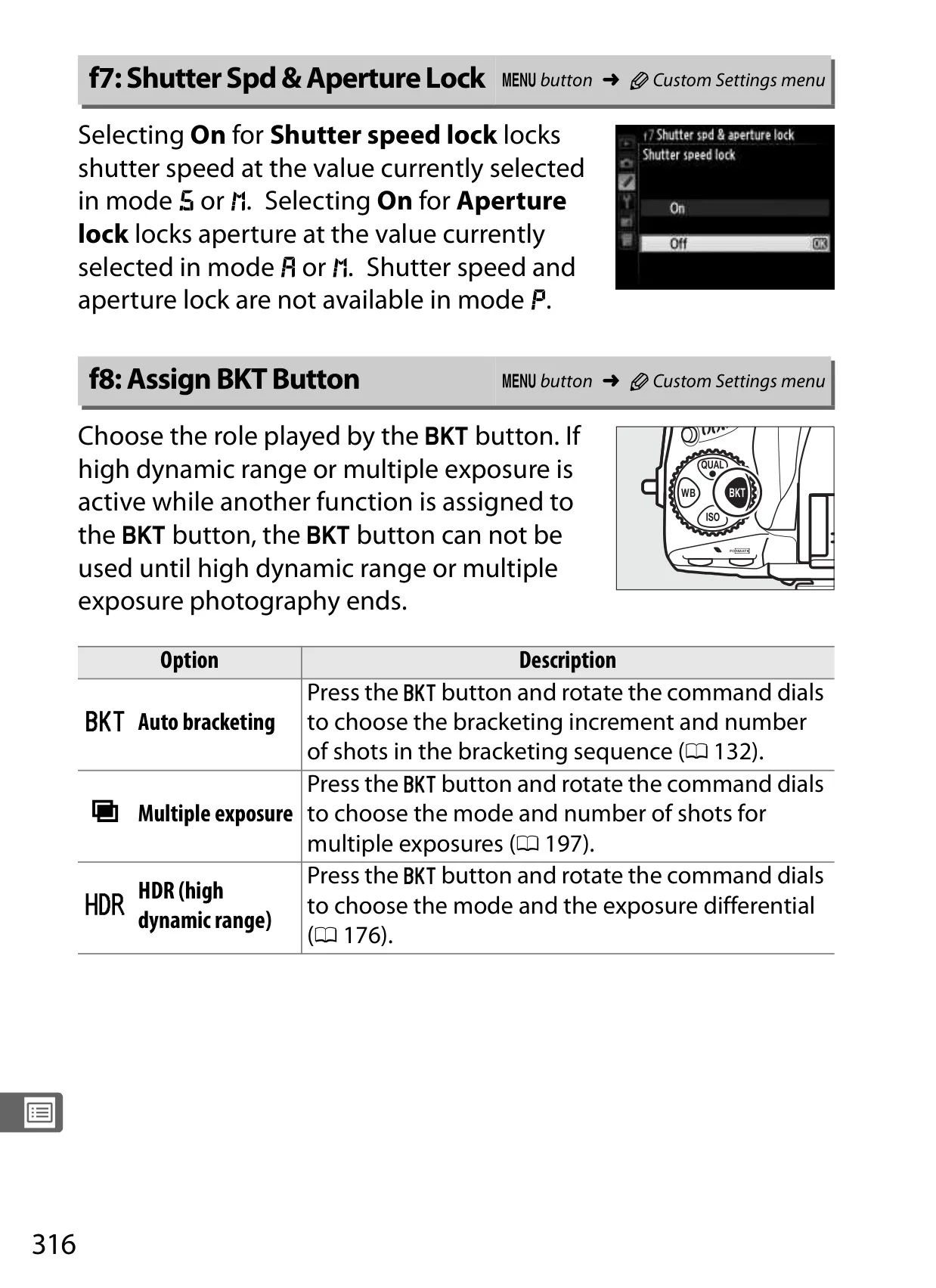

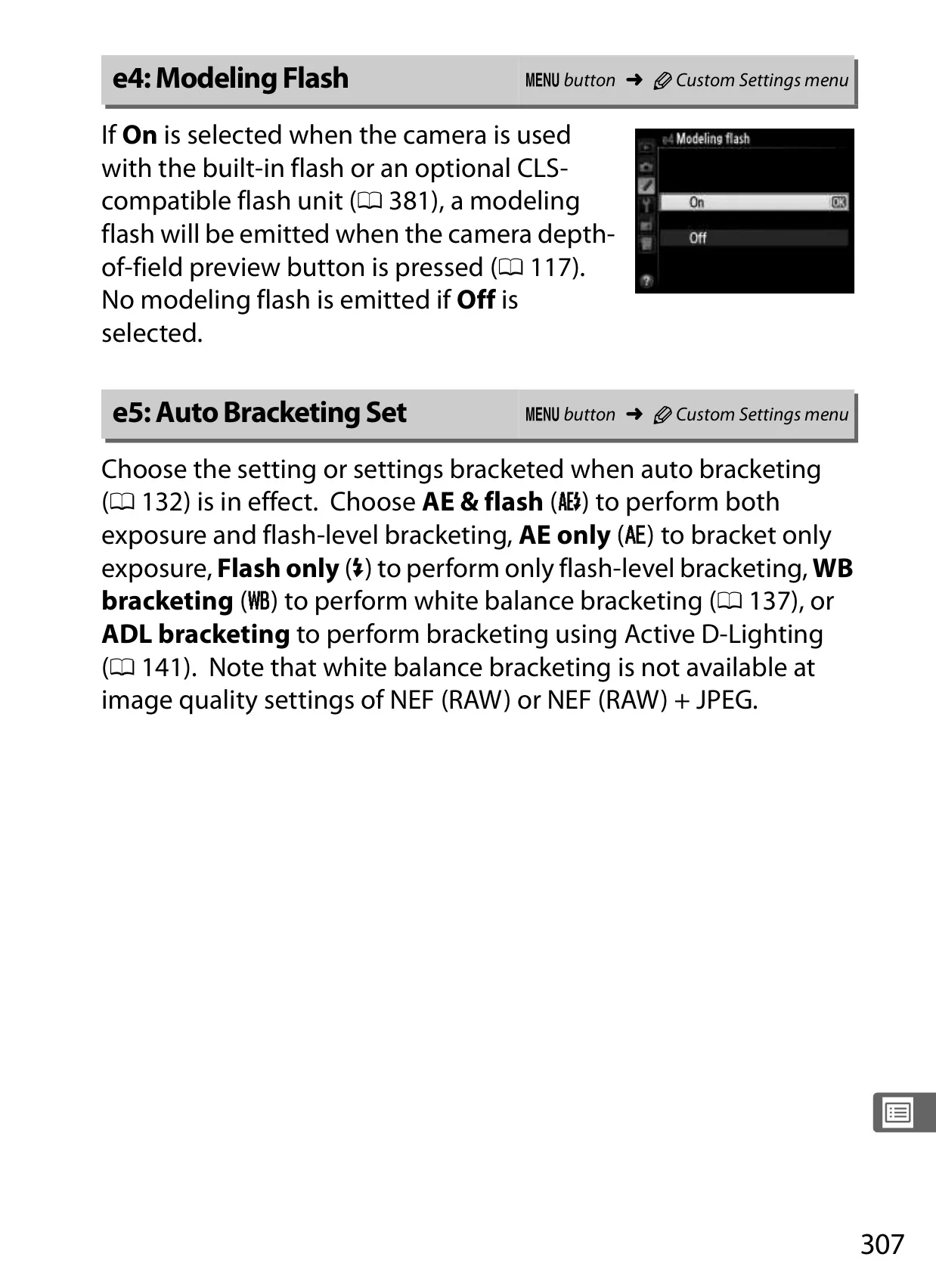

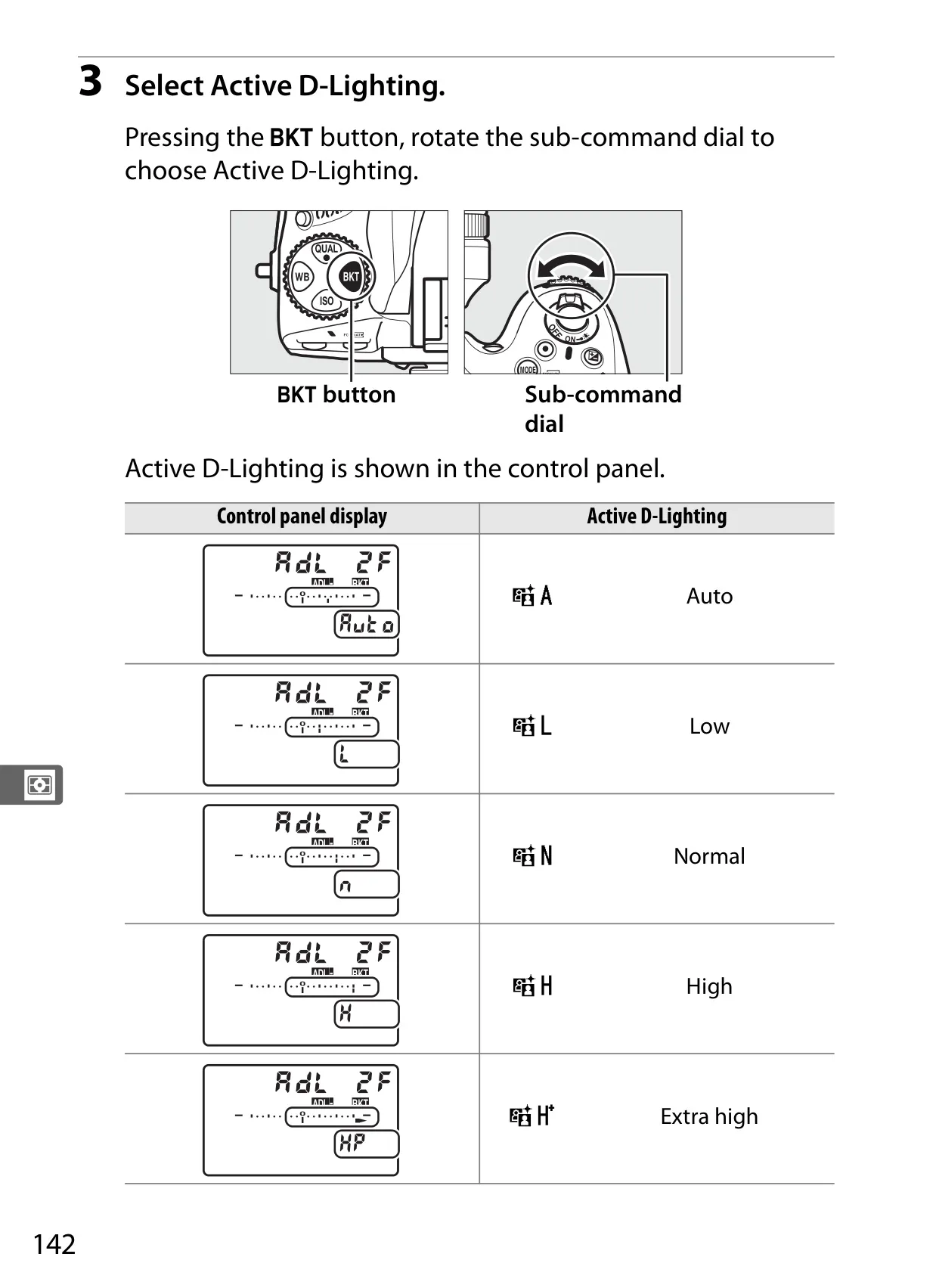

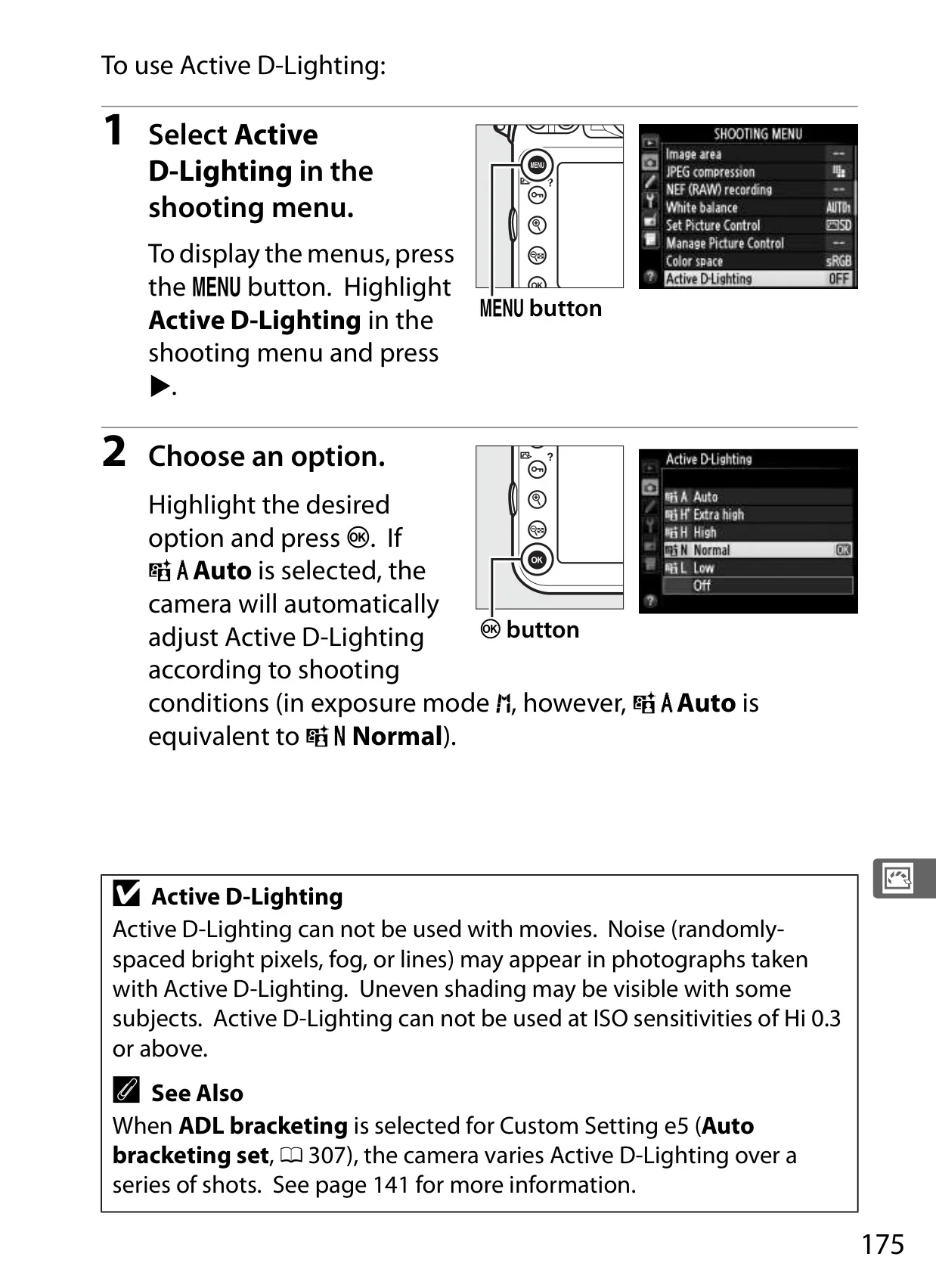

For exposure control, the D800 includes comprehensive bracketing options for exposure, flash, and white balance, ensuring consistent results in challenging lighting conditions or for creative effects. The camera also supports Active D-Lighting, which can be set to Auto, Extra High, High, Normal, Low, or Off, optimizing dynamic range in high-contrast scenes by preserving details in both shadows and highlights.

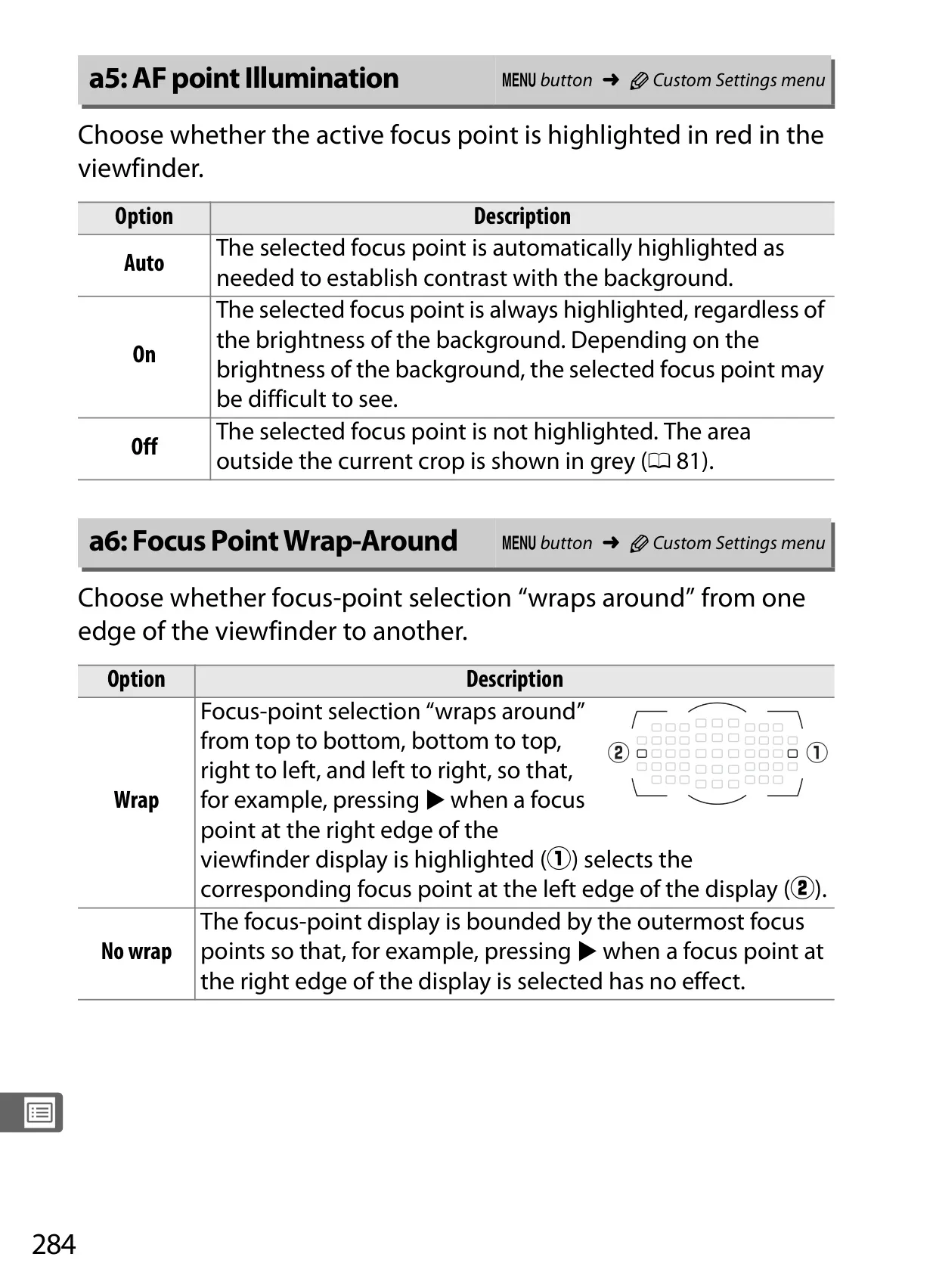

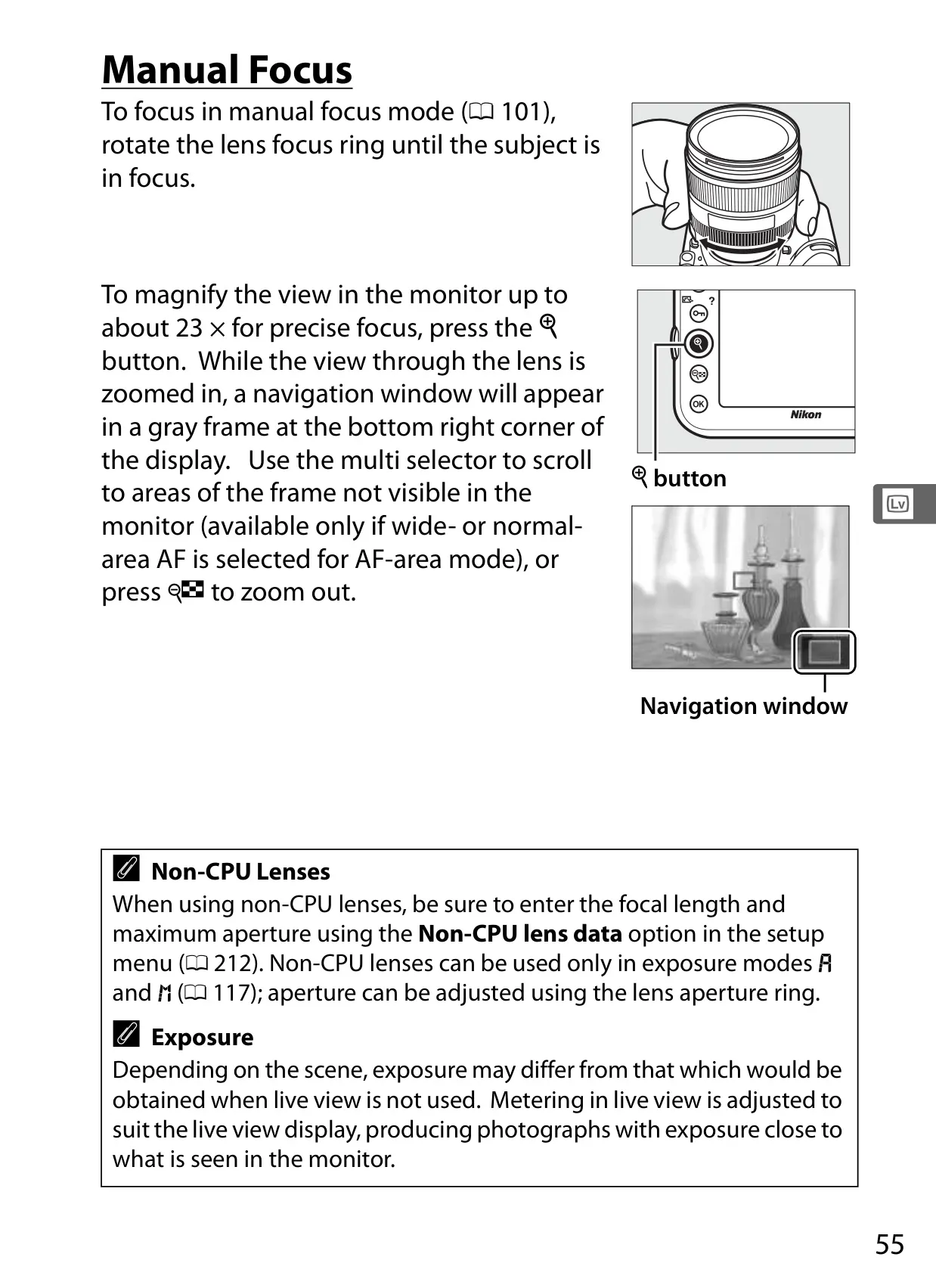

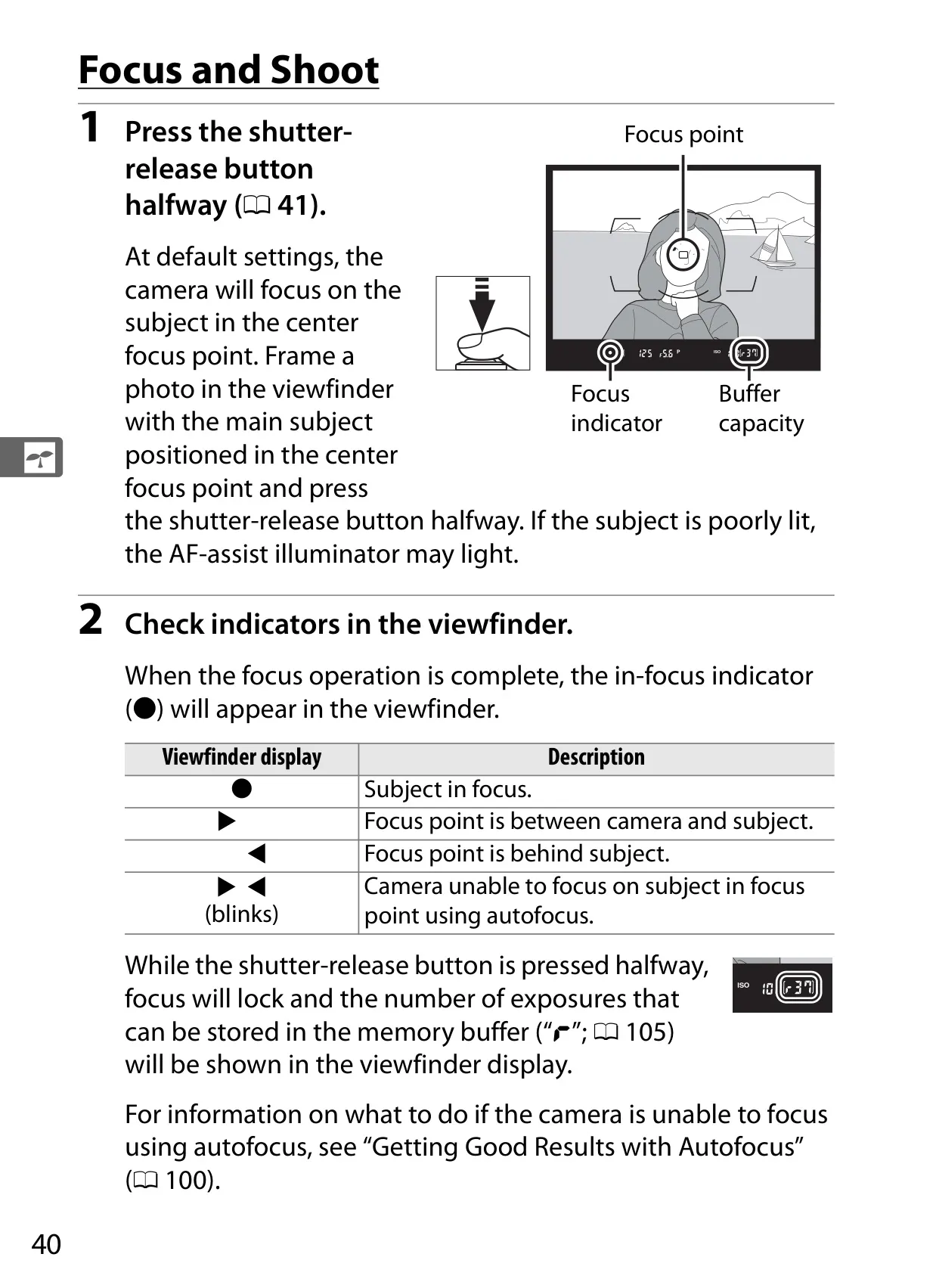

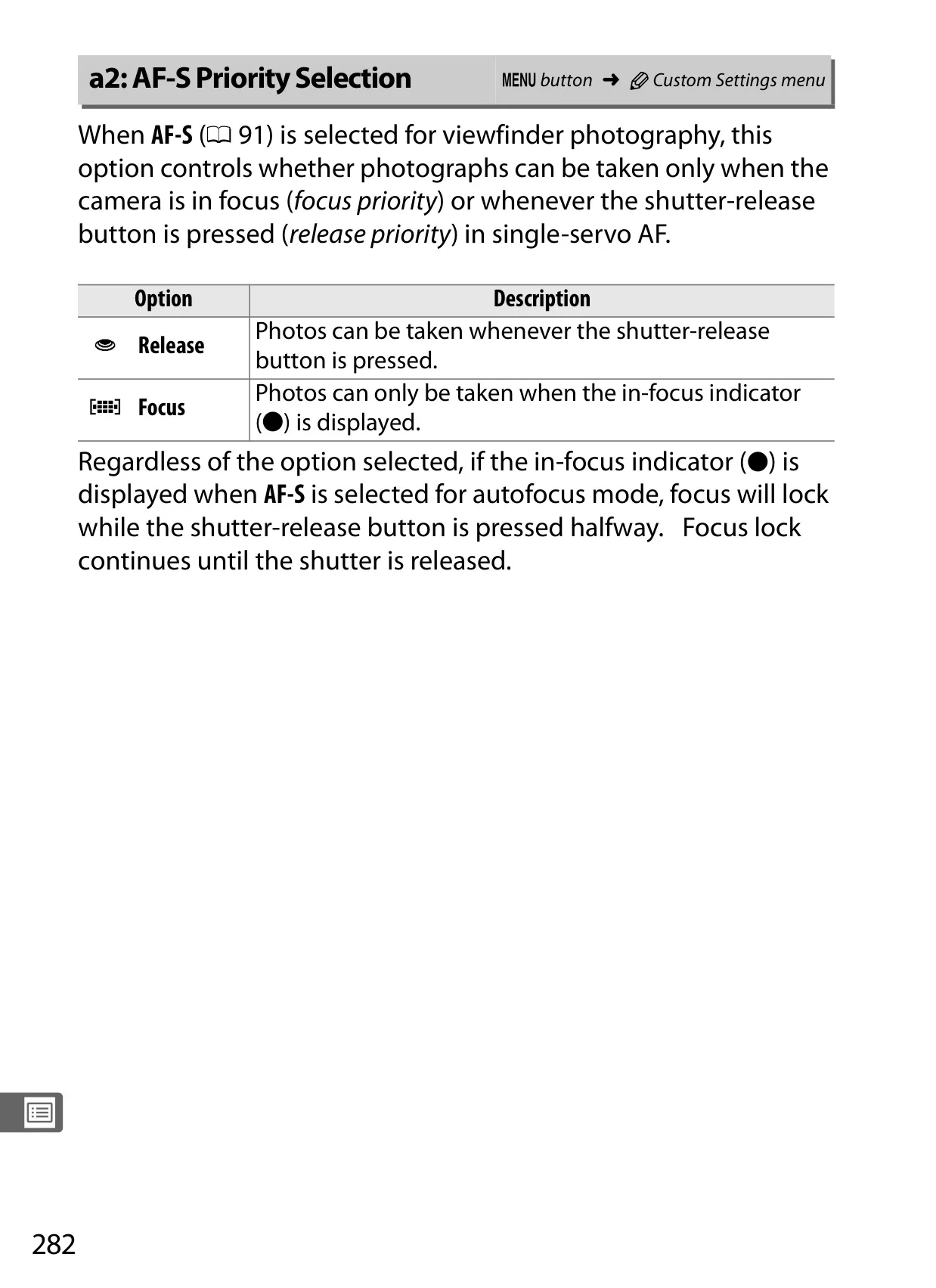

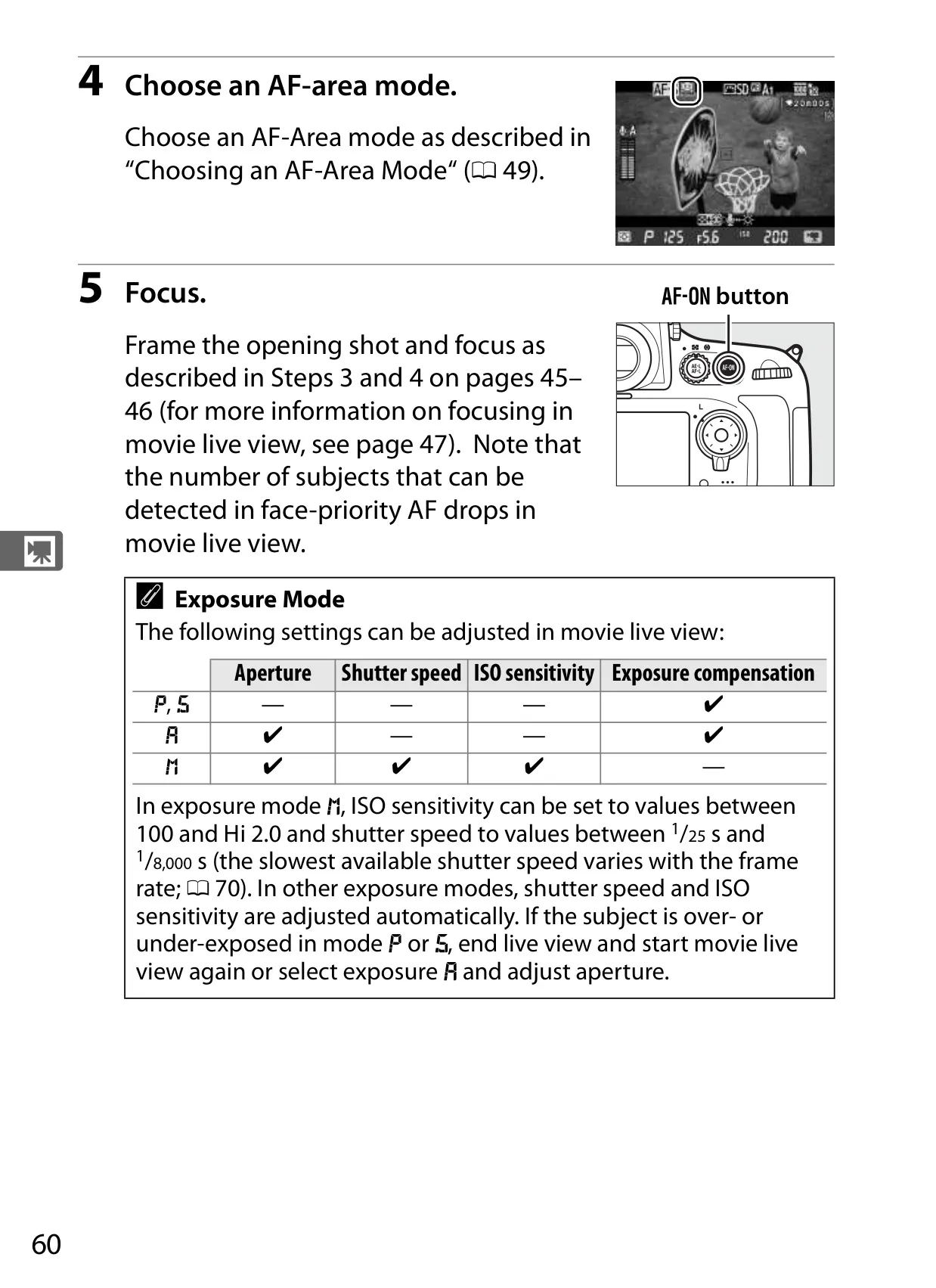

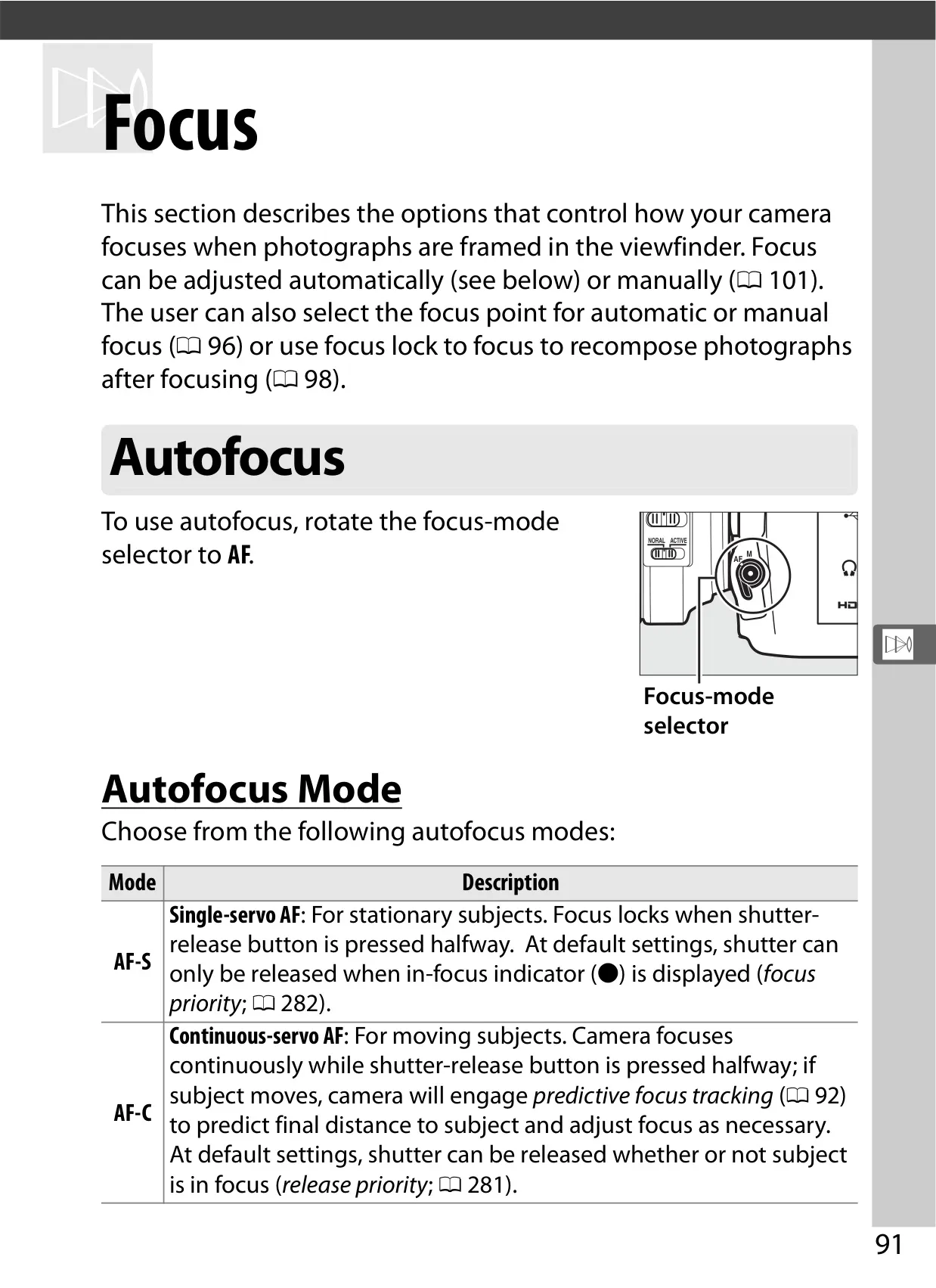

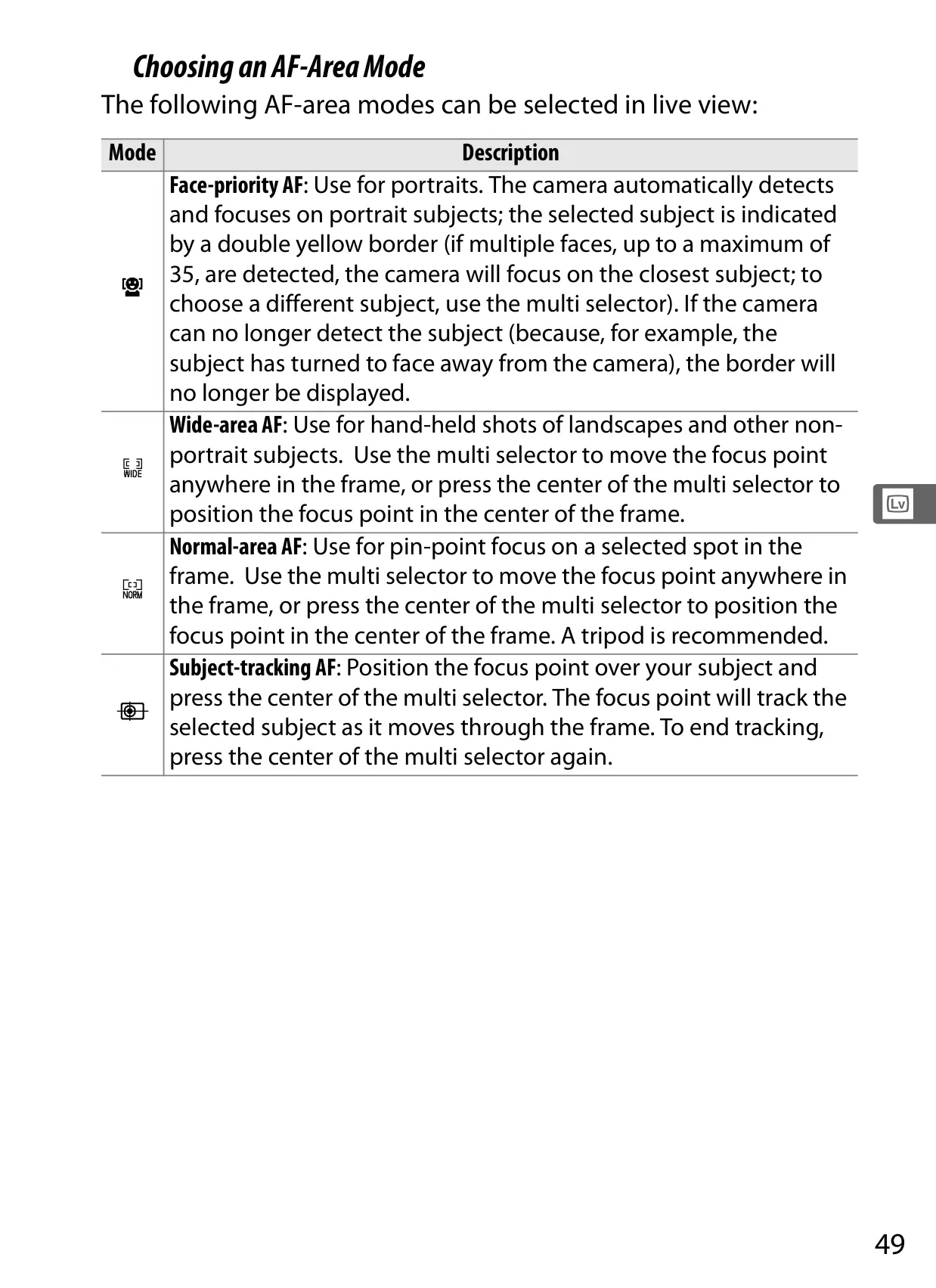

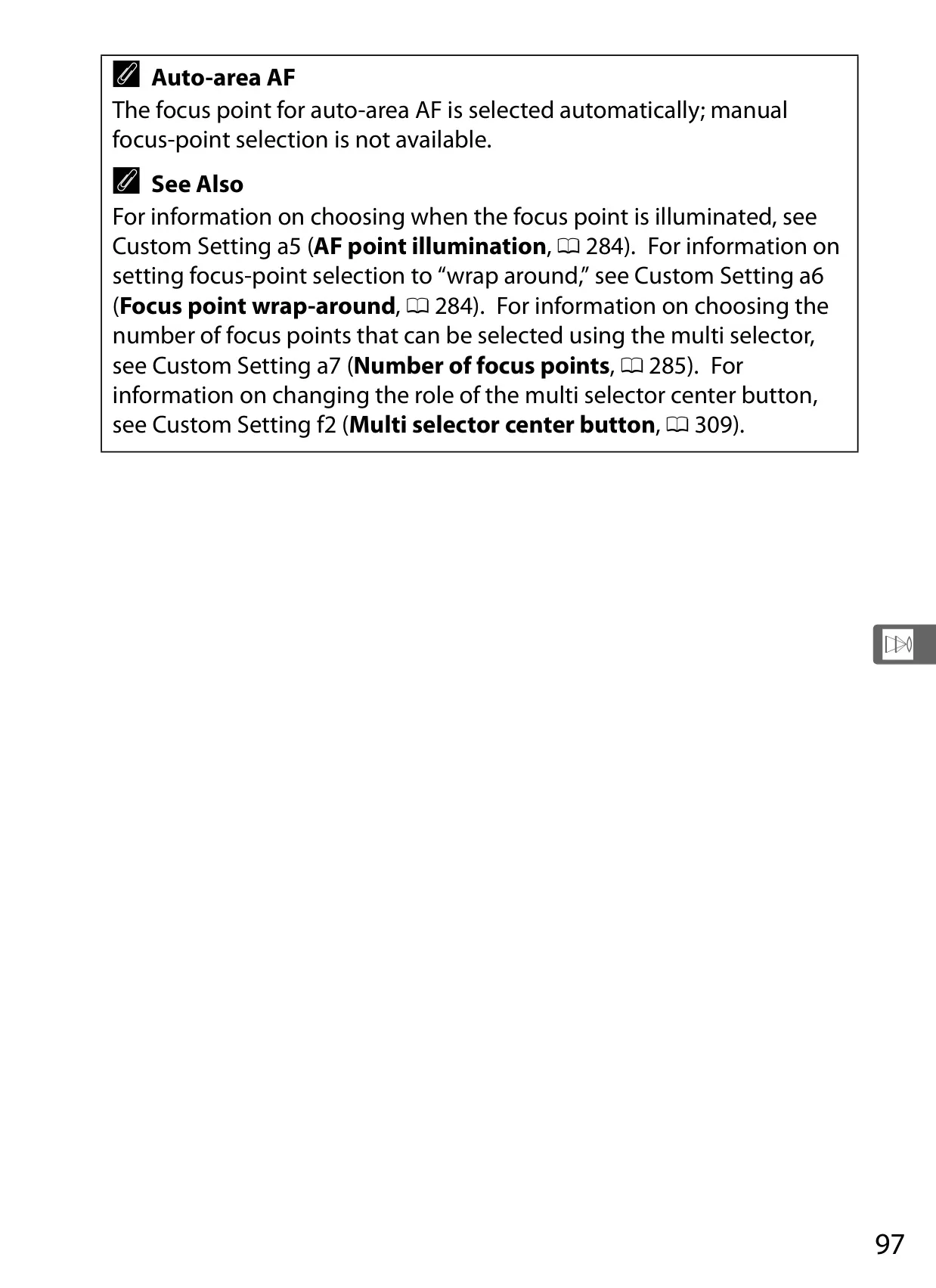

The advanced autofocus system includes dynamic-area AF modes (9, 21, or 51 points) and 3D Tracking, which maintains focus on moving subjects even if they briefly leave the selected AF area. In Live View, dedicated AF modes like Face-priority AF and Subject-tracking AF enhance precision for both still photography and video recording, simplifying complex focusing tasks.

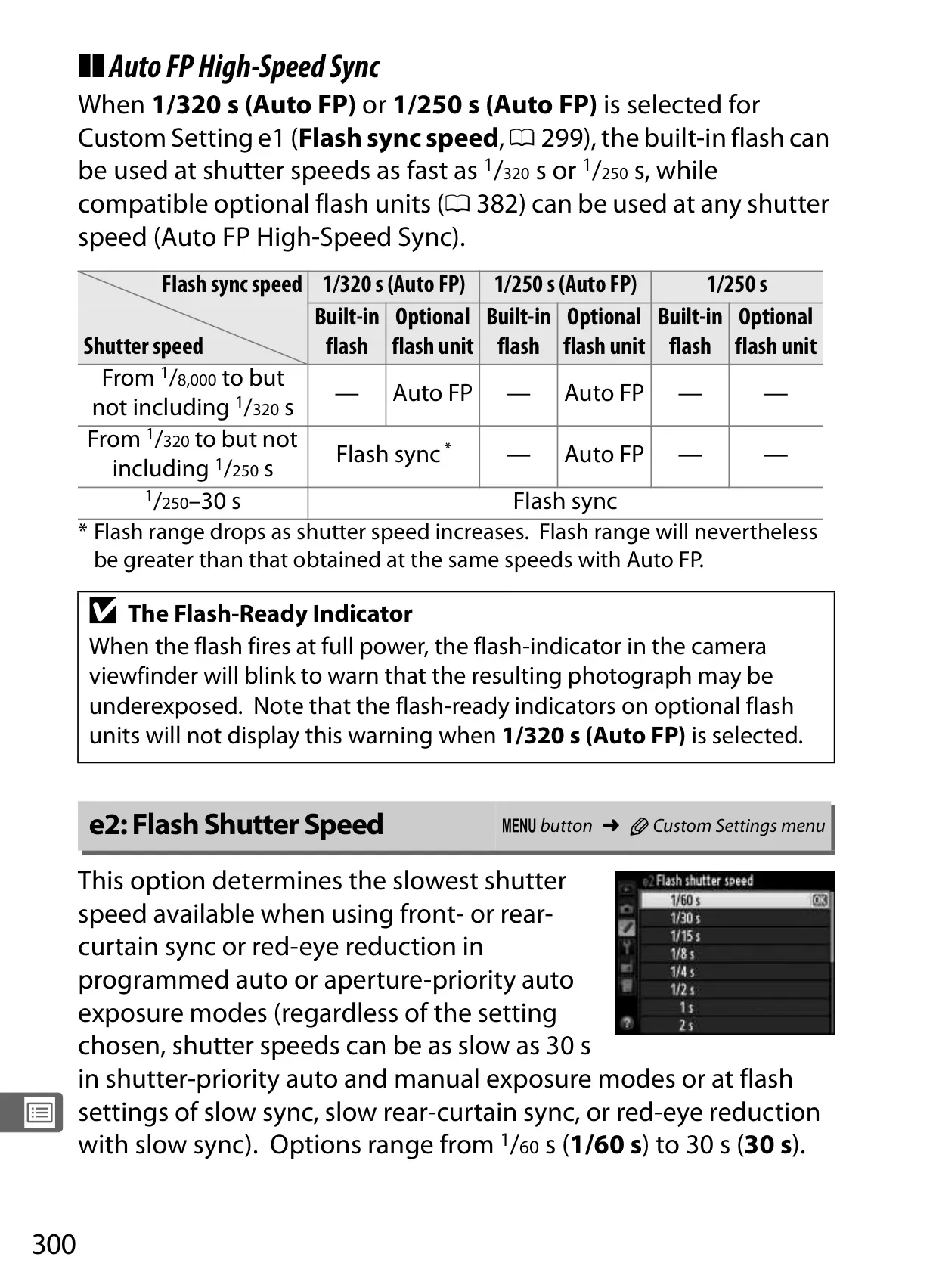

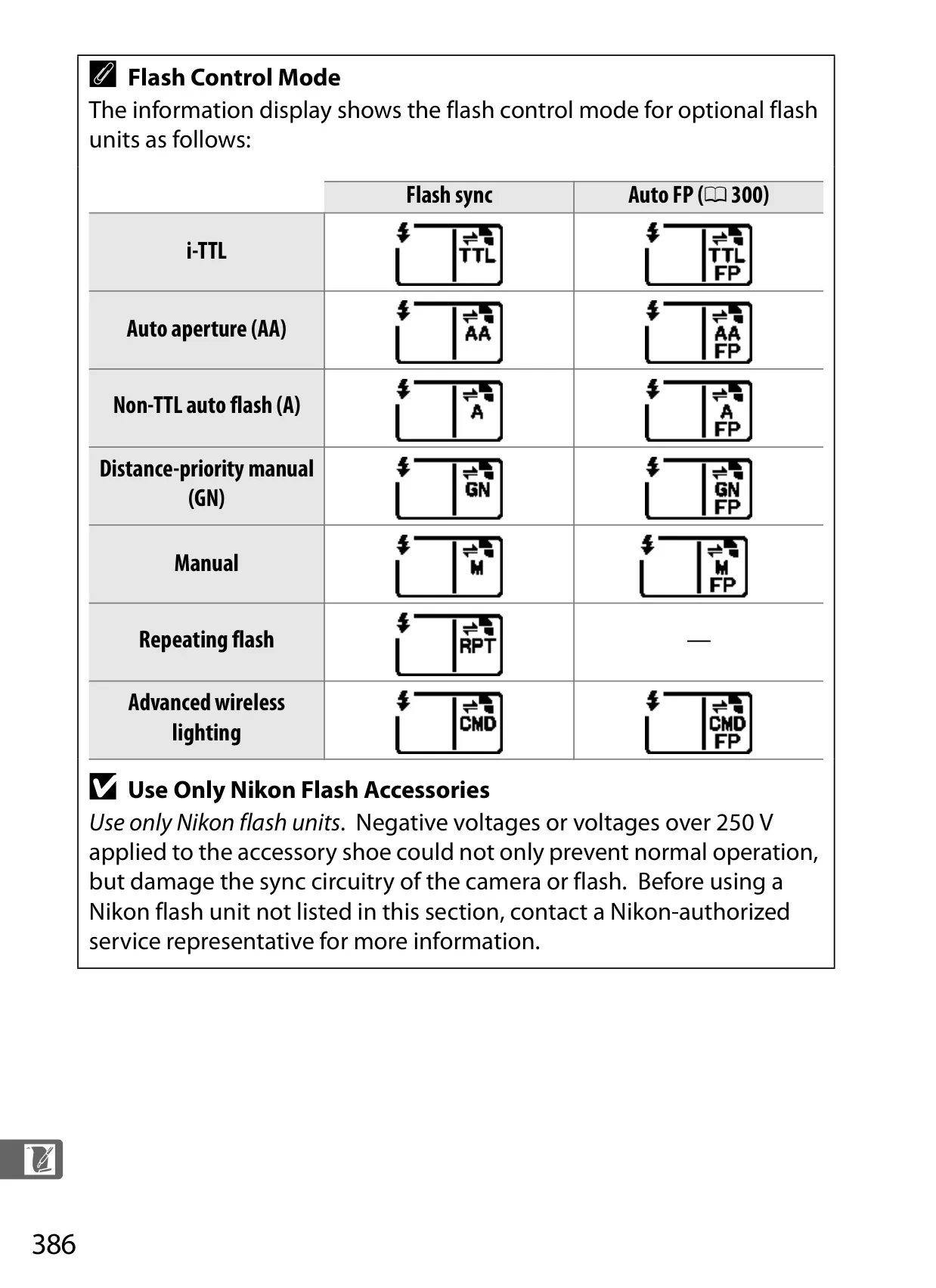

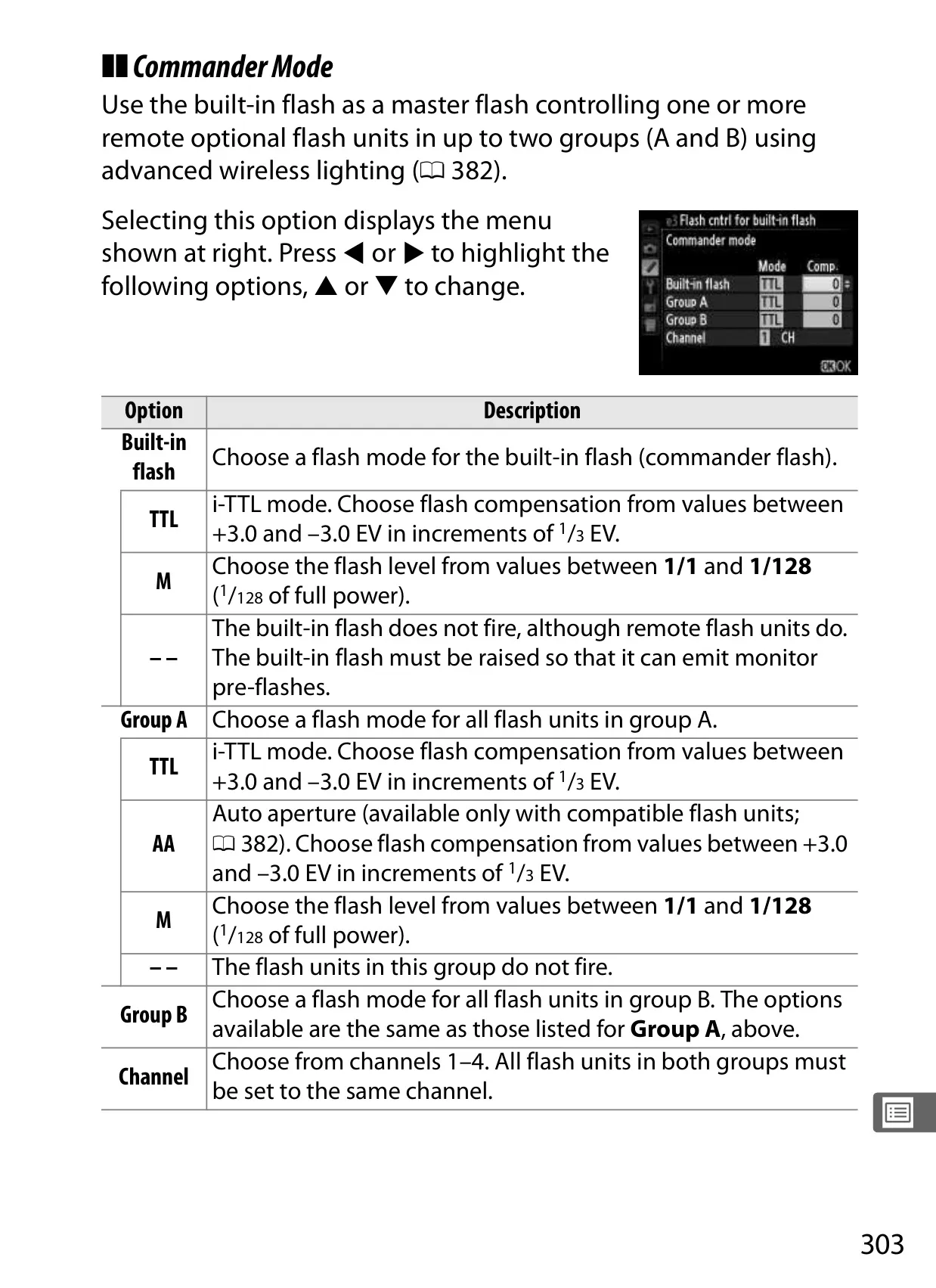

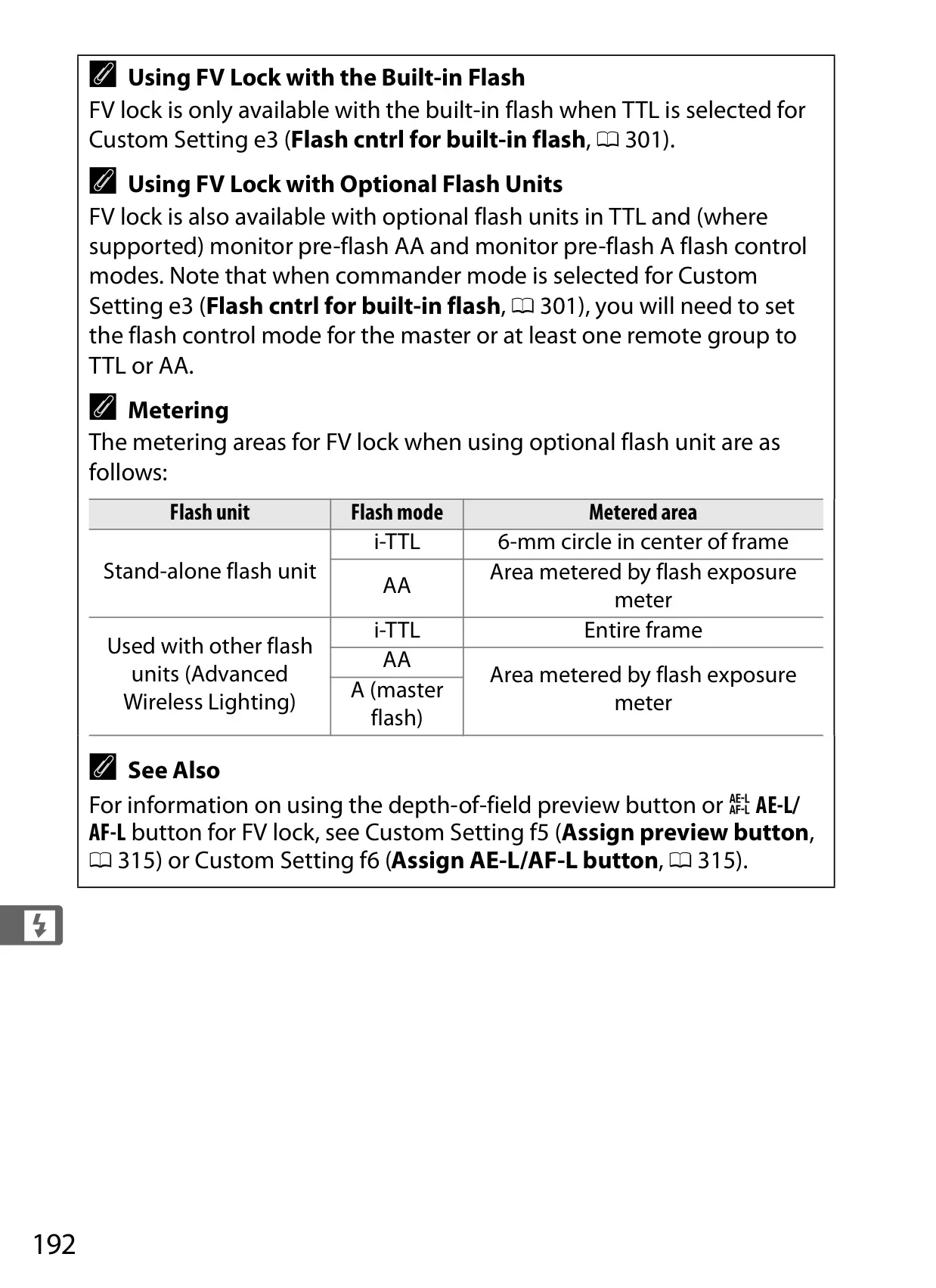

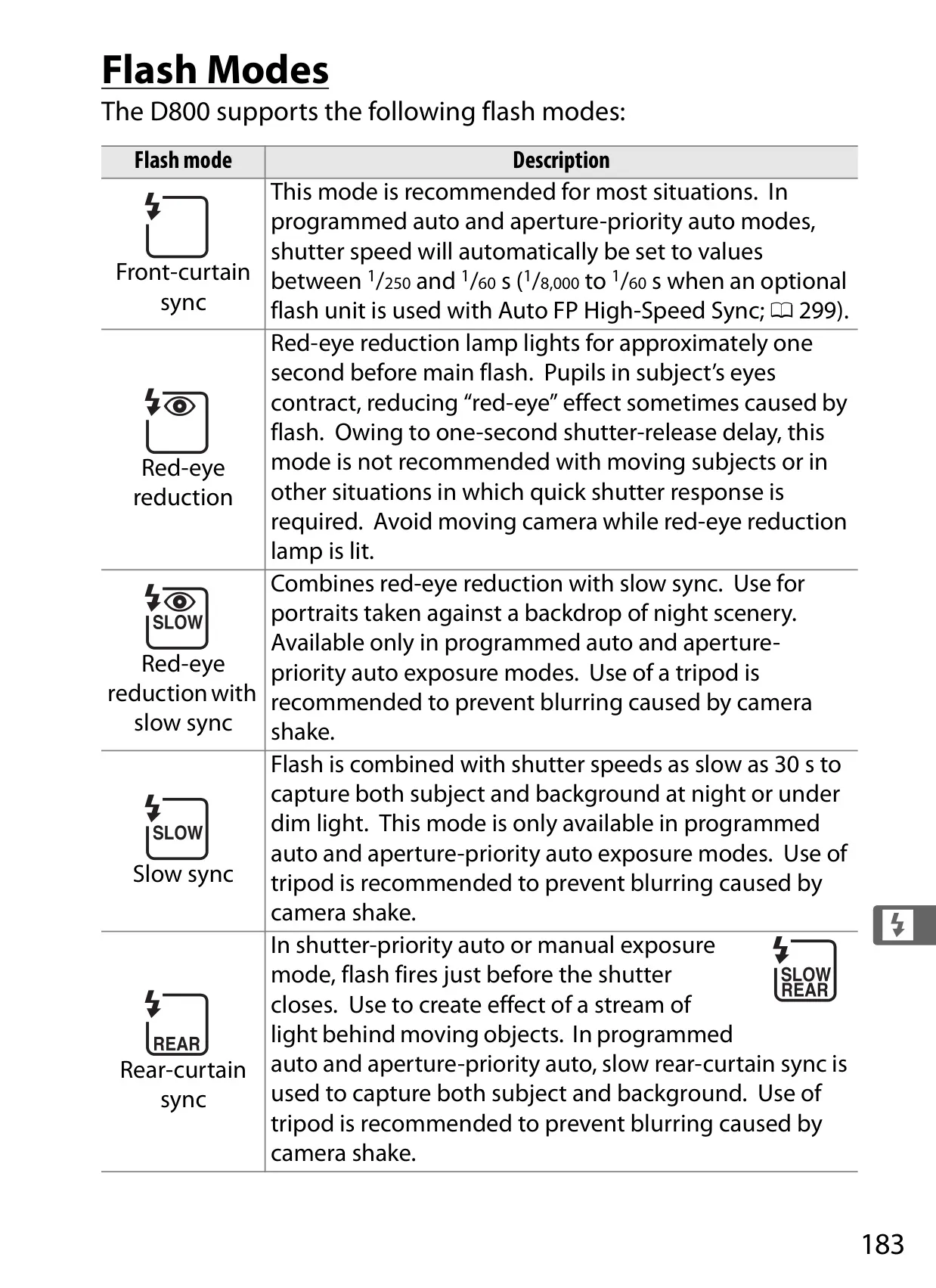

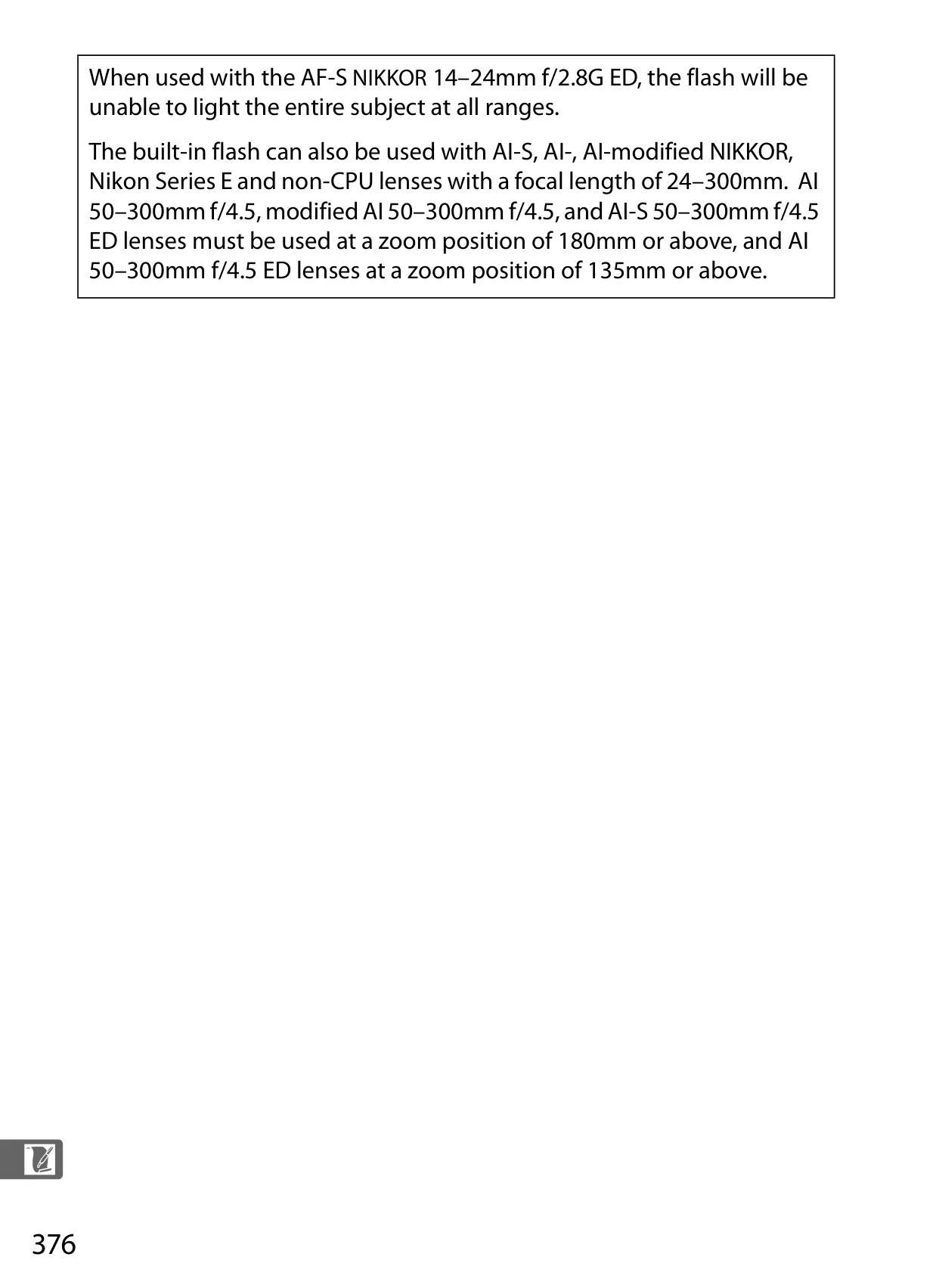

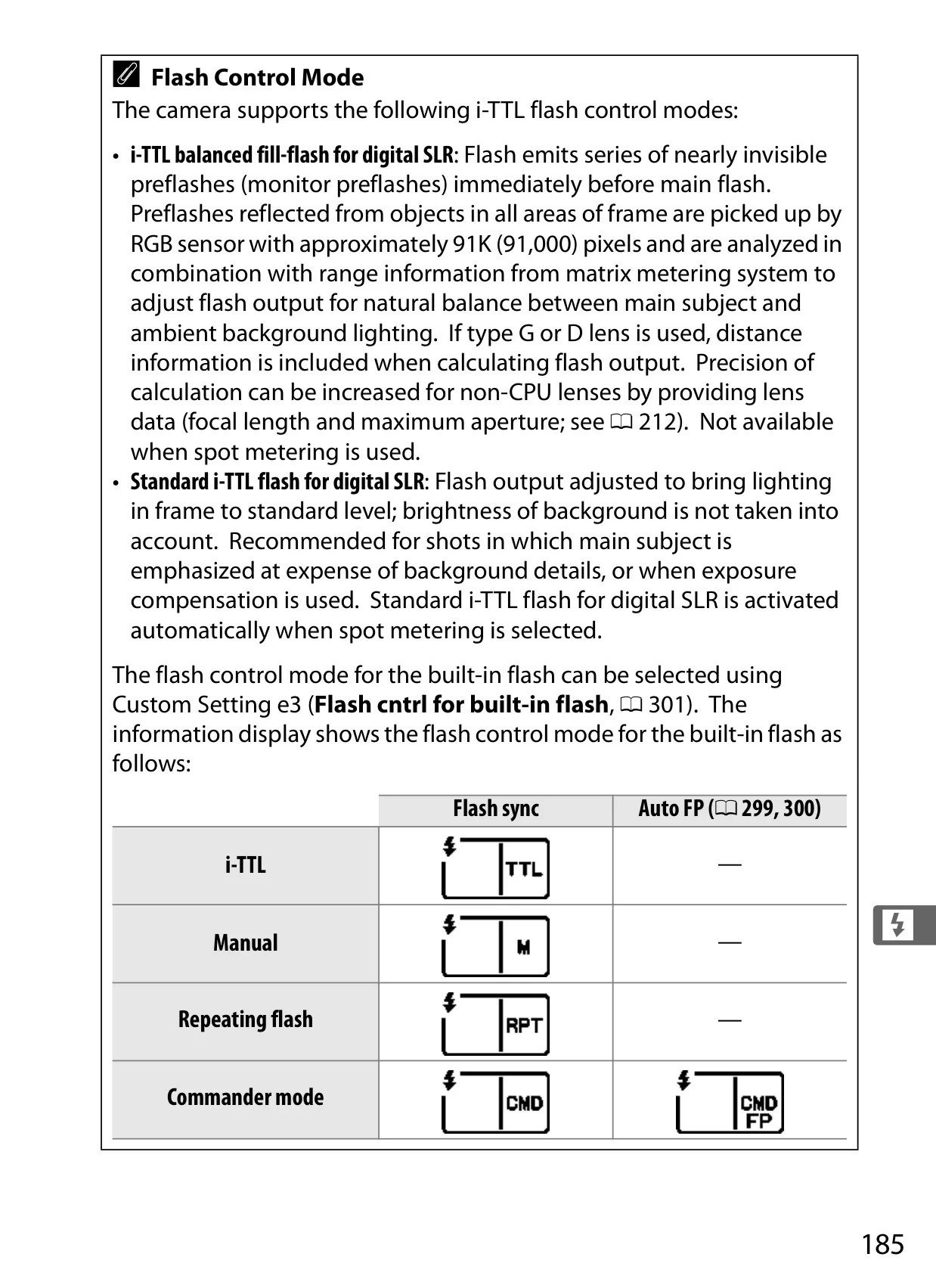

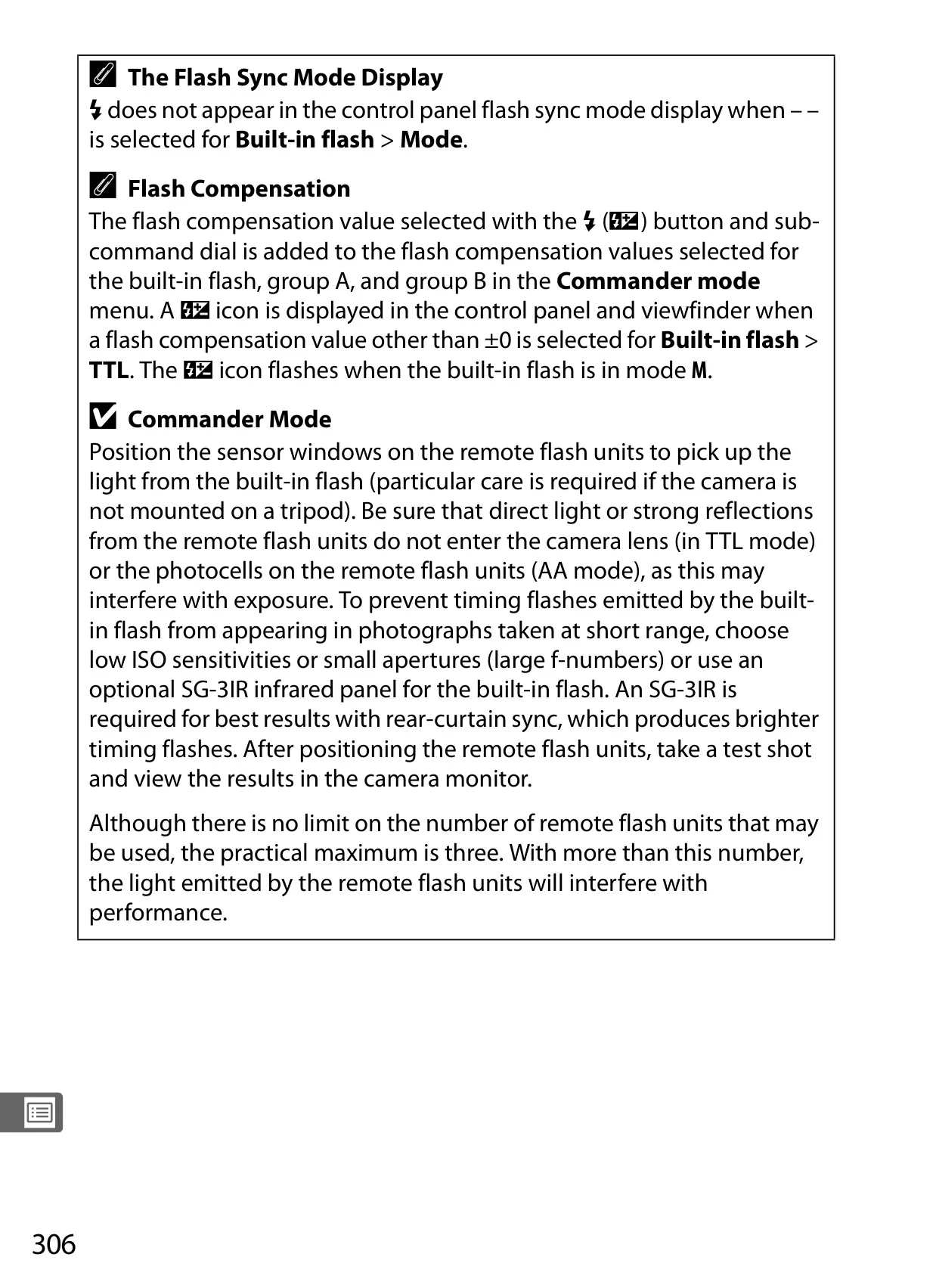

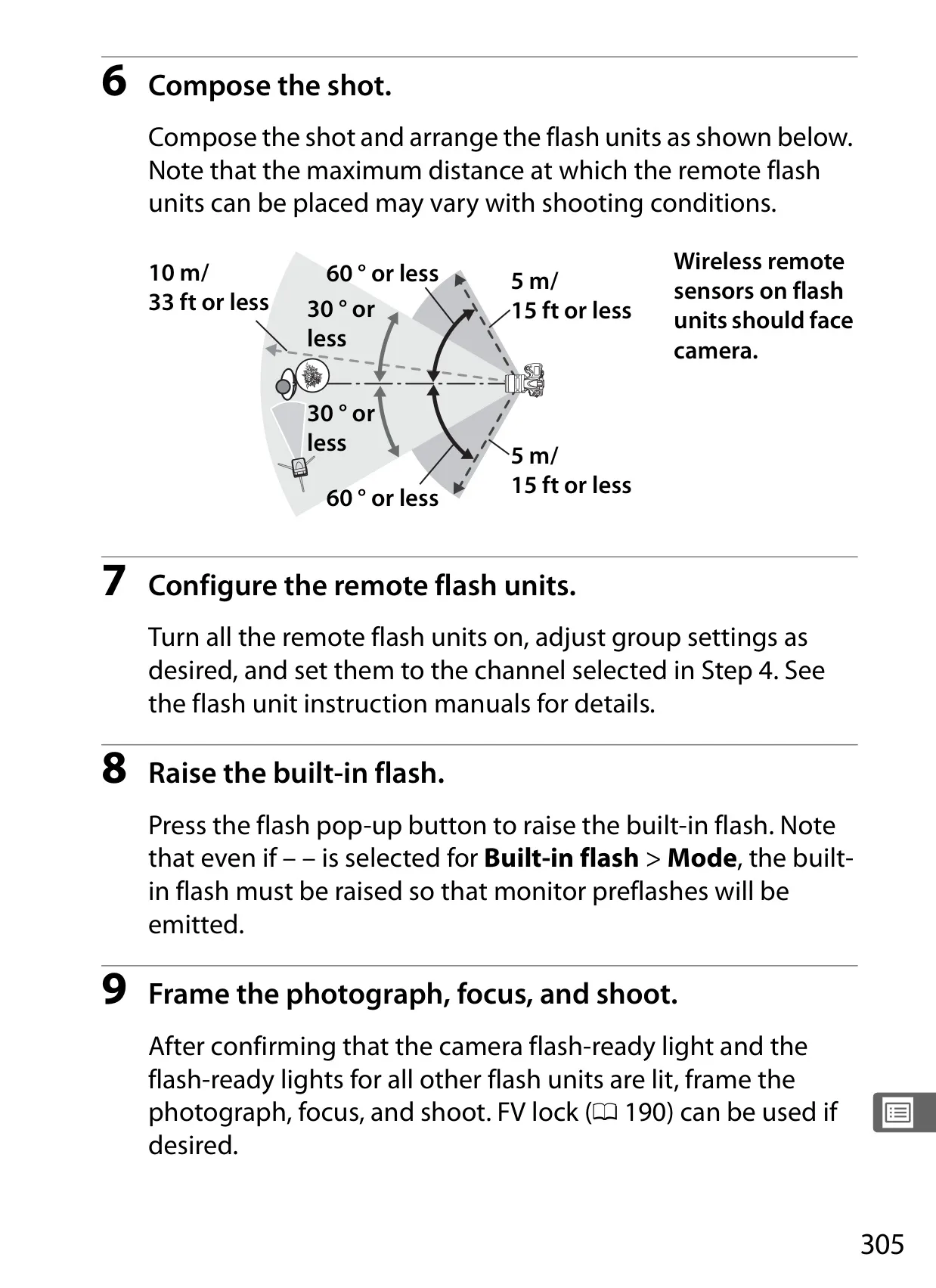

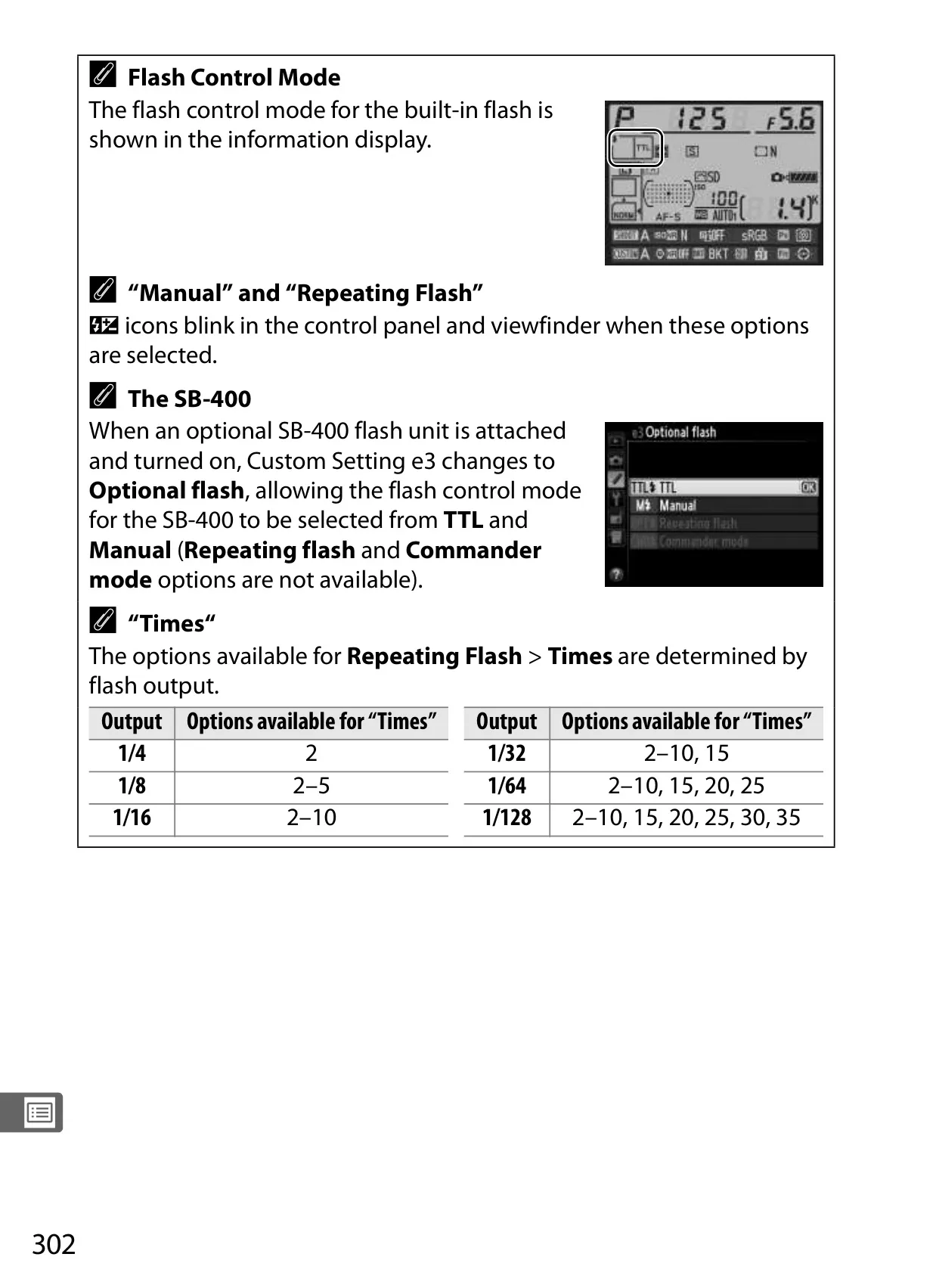

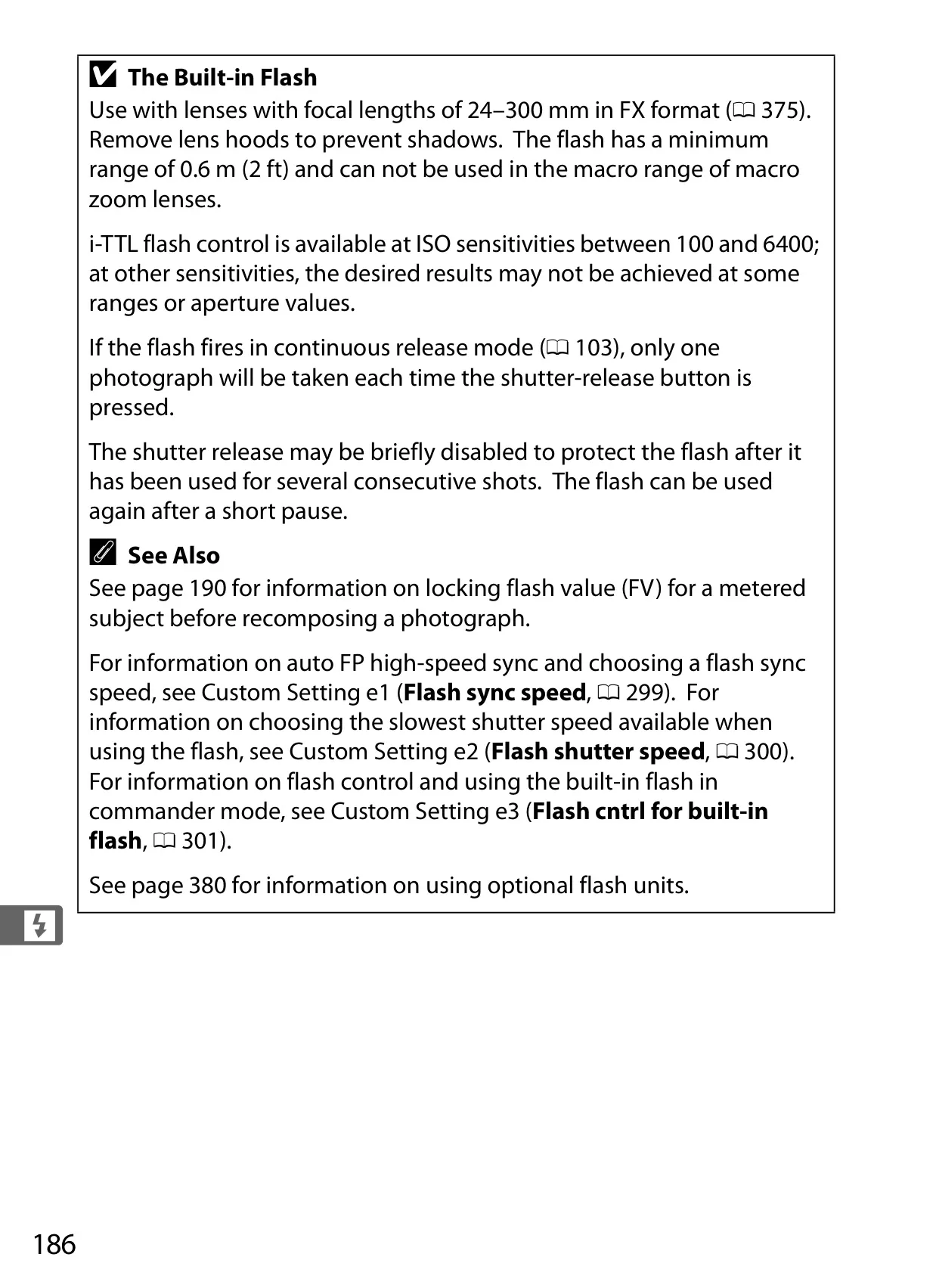

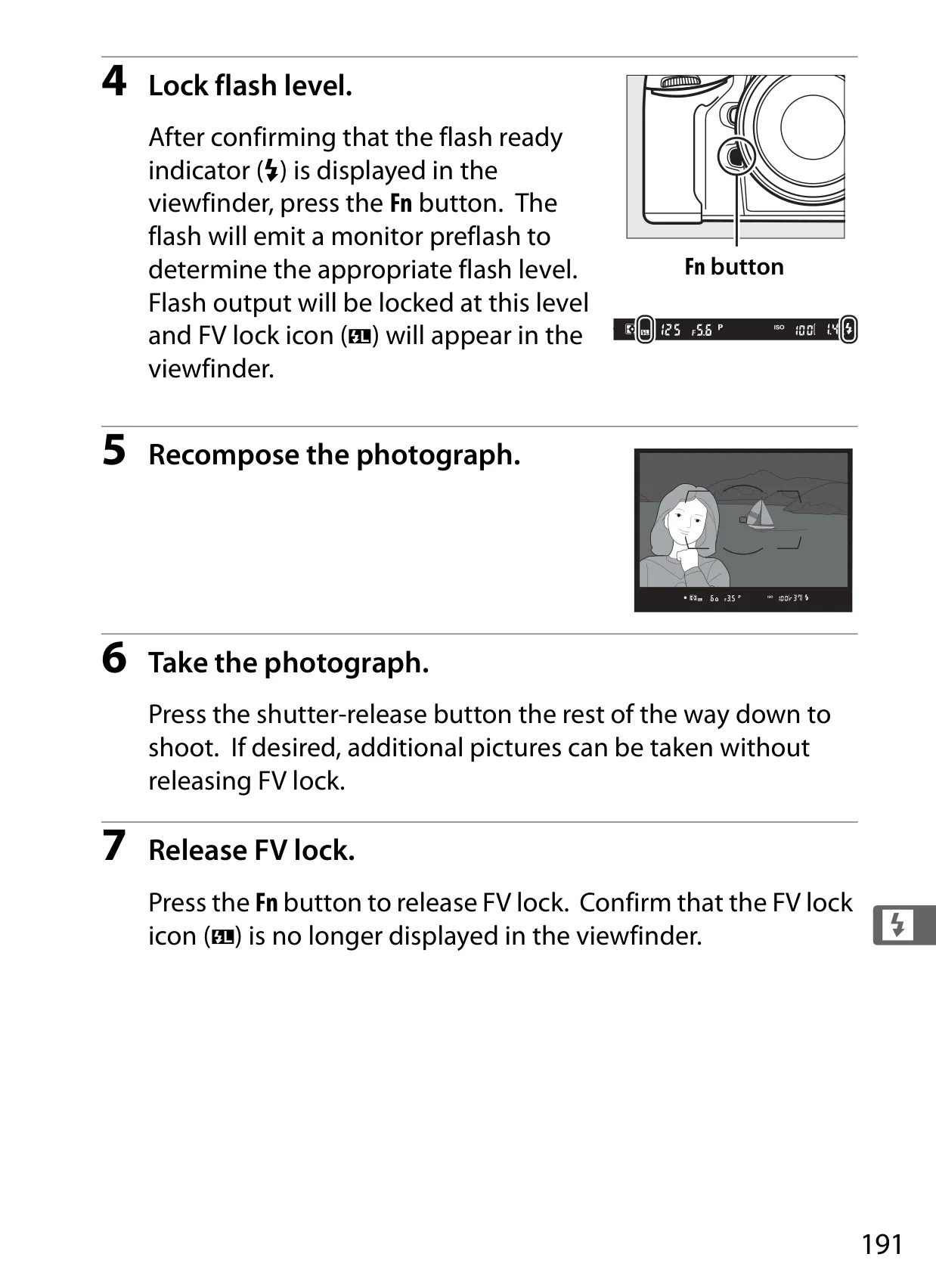

For advanced lighting, the Nikon D800 integrates seamlessly with the Nikon Creative Lighting System (CLS). This provides support for Advanced Wireless Lighting (AWL), allowing the built-in flash to act as a commander for off-camera Speedlights. Features like Auto FP High-Speed Sync and Flash Color Information Communication offer precise flash control for dynamic and creative illumination.

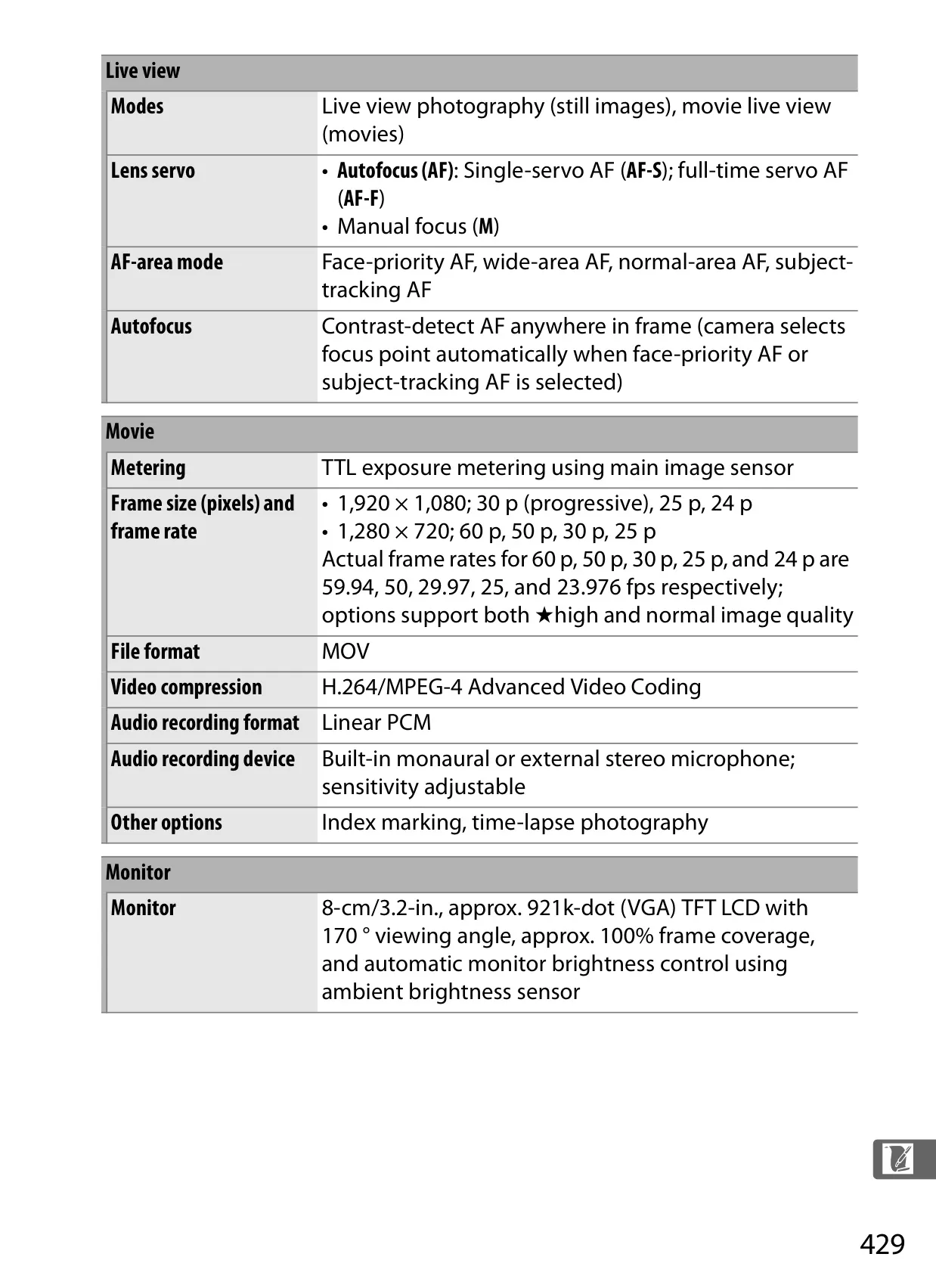

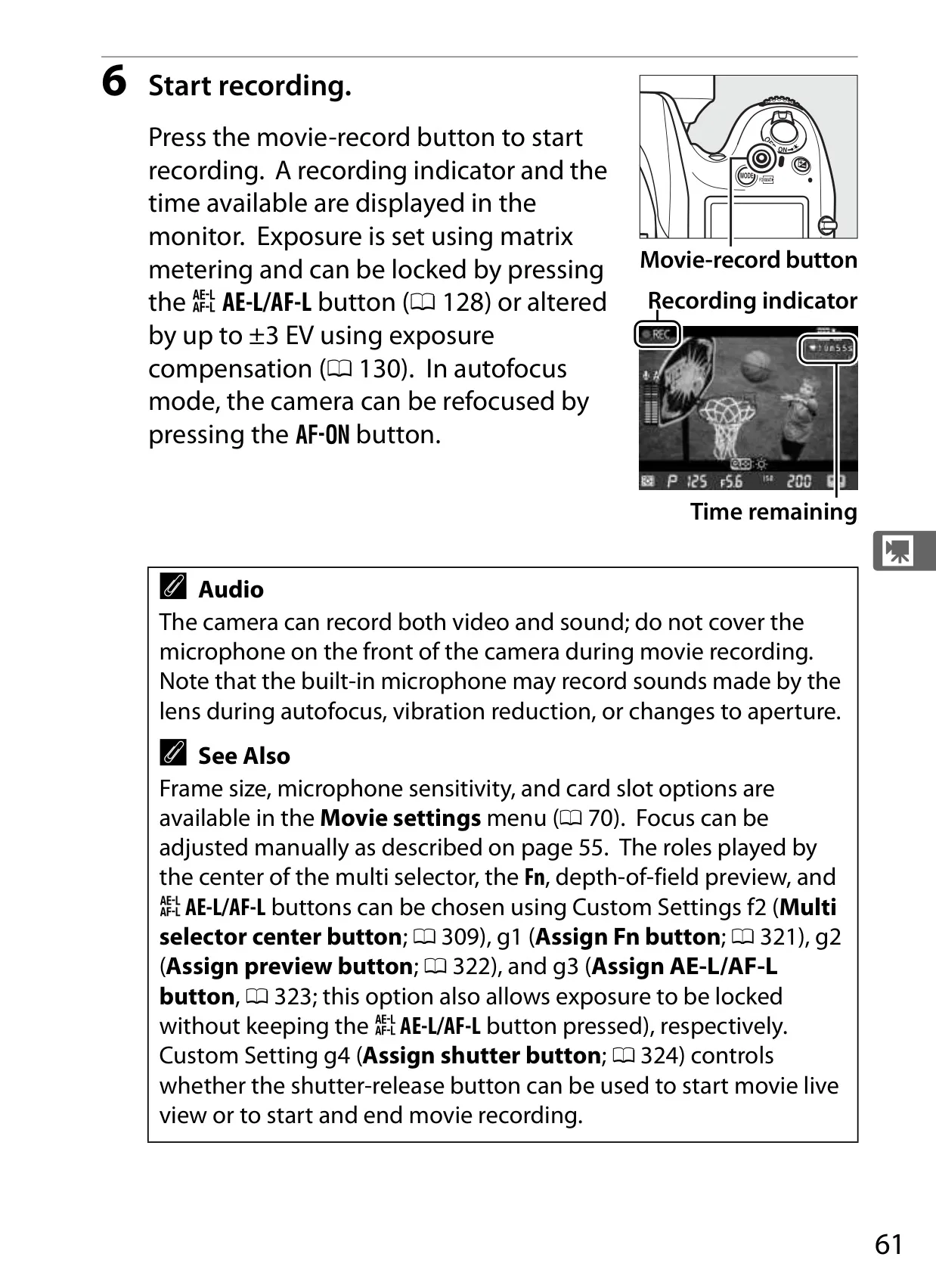

Video recording on the D800 is not just an add-on; it's a powerful capability with adjustable frame rates and quality settings (High and Normal). The camera records in MOV format using H.264/MPEG-4 Advanced Video Coding and offers linear PCM audio recording, ensuring high-quality sound for cinematic projects. Users can connect an external stereo microphone for superior audio capture.

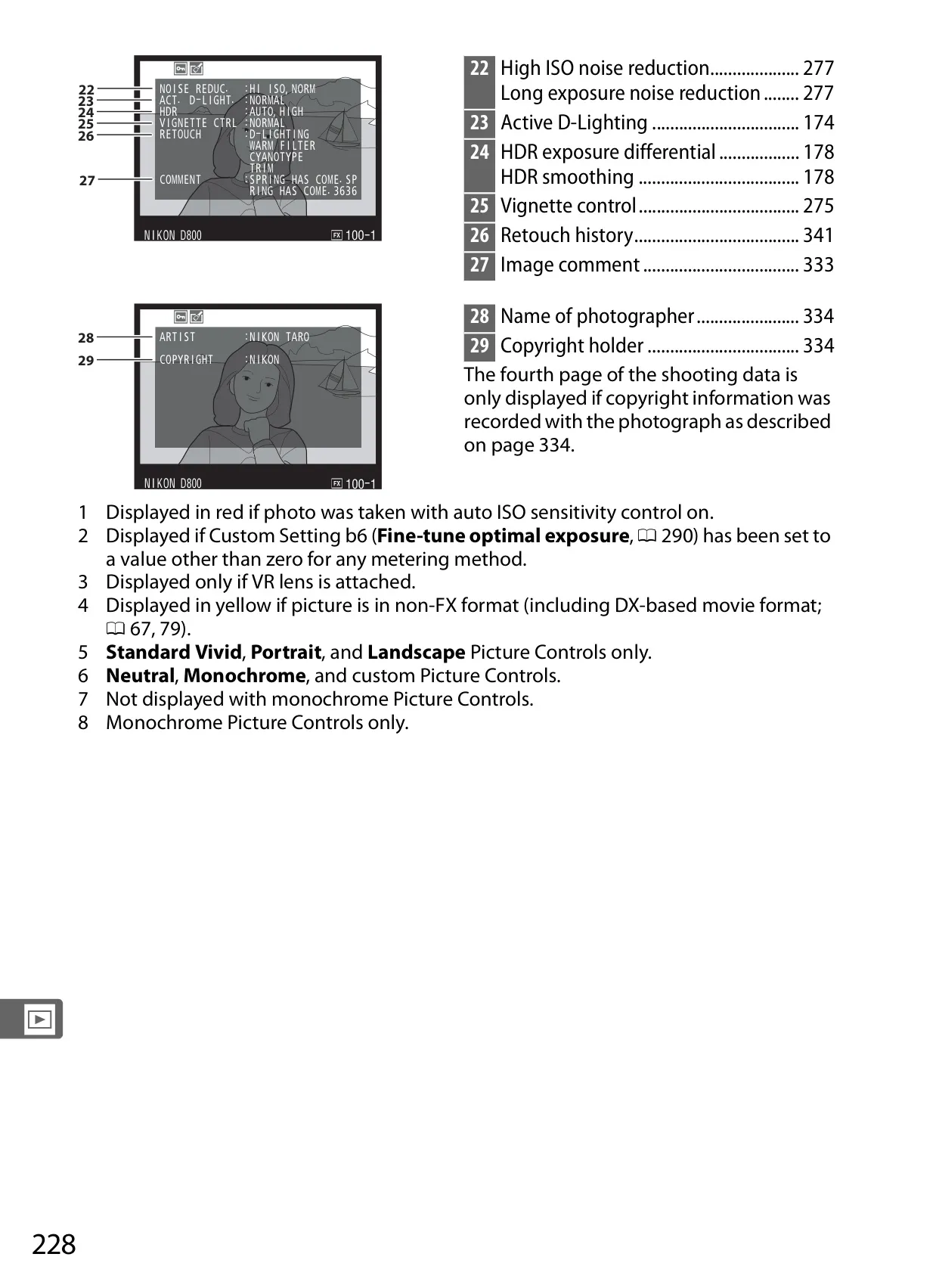

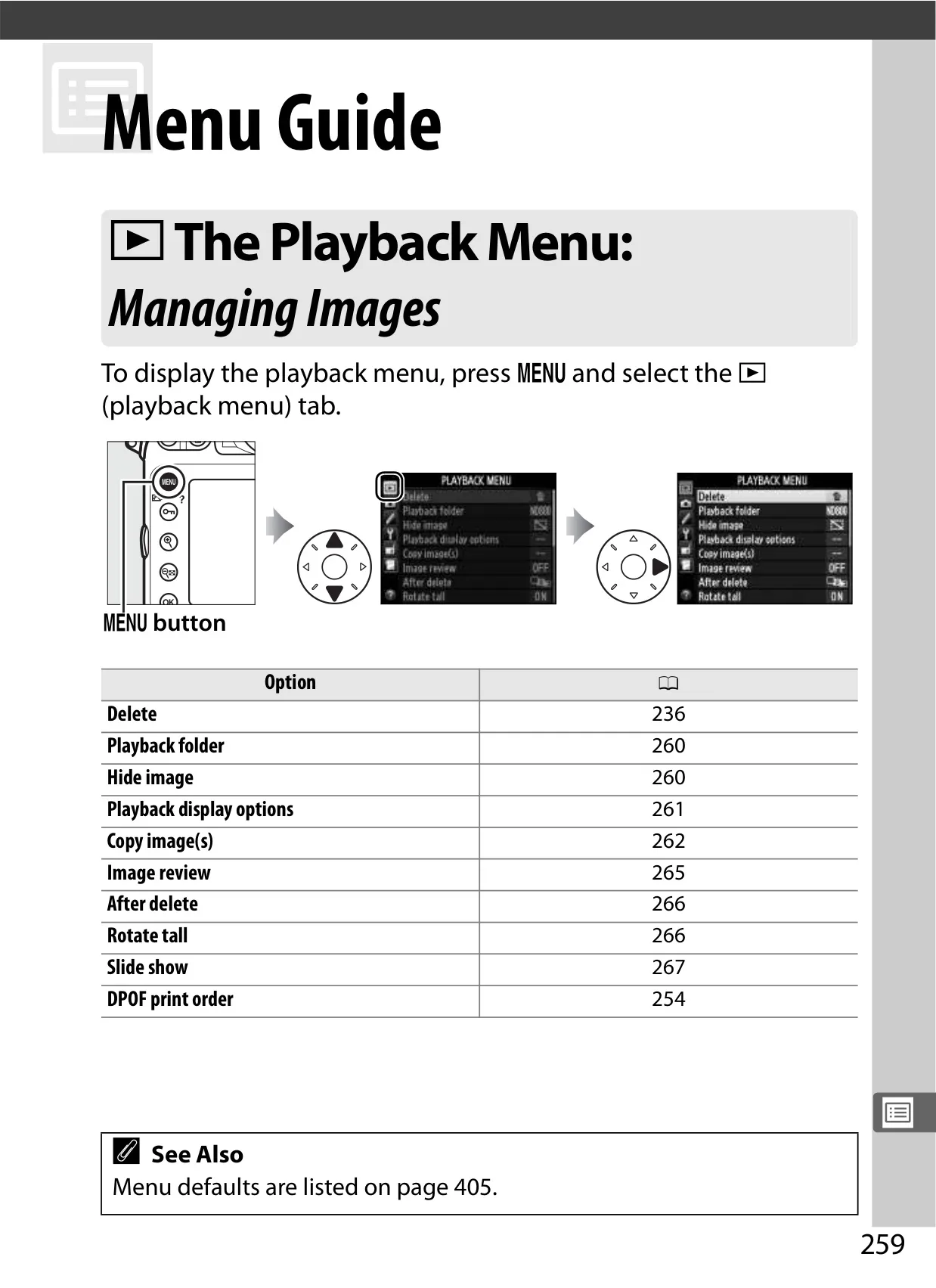

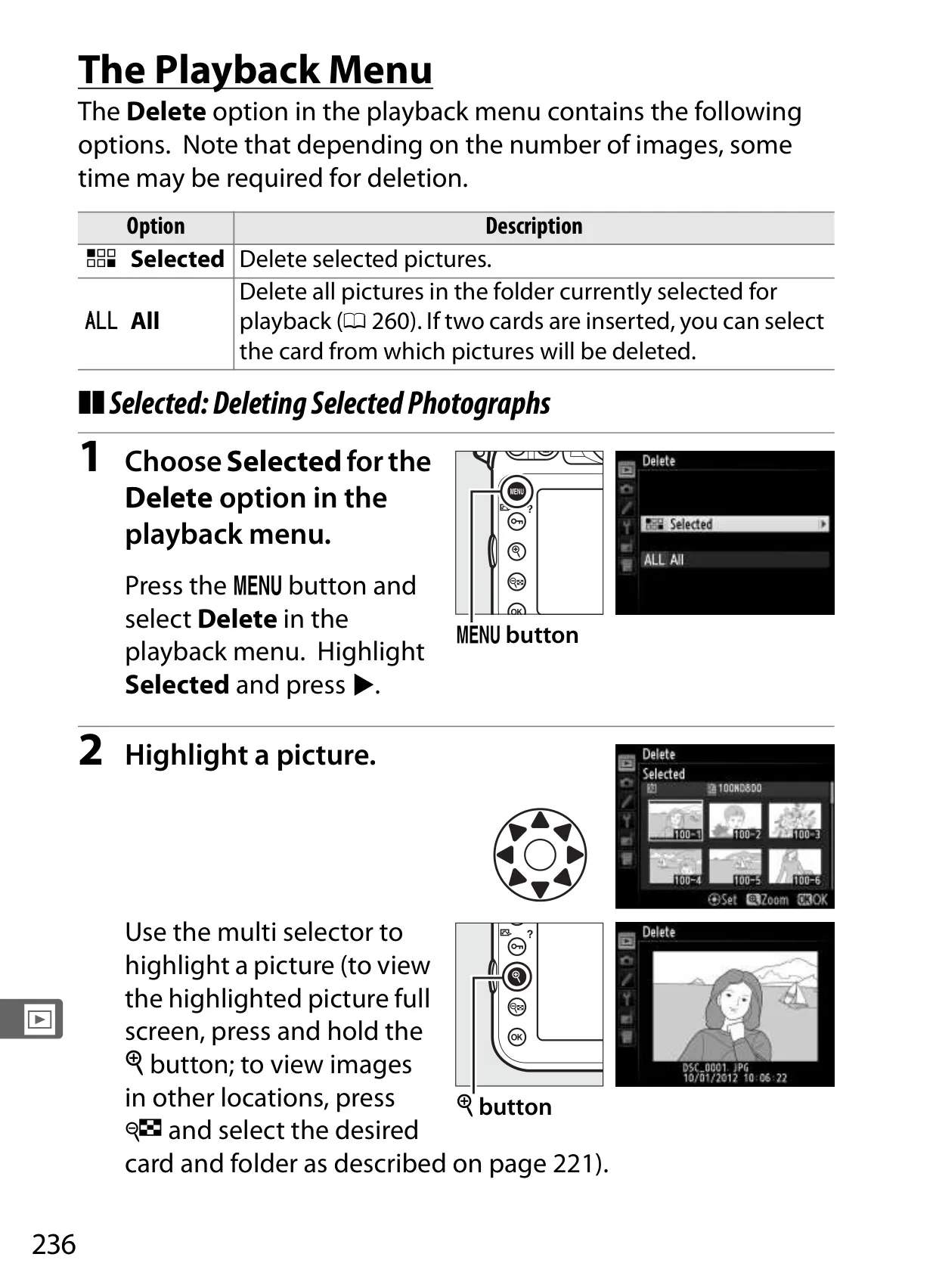

The camera's monitor is an 8 cm (3.2 inch), 921k-dot TFT LCD with a 170° viewing angle and automatic brightness control, adapting to ambient light for optimal viewing. Playback options are extensive, including full-frame, thumbnail, and detailed information displays, with RGB histograms and highlight warnings to assist in exposure analysis post-capture.

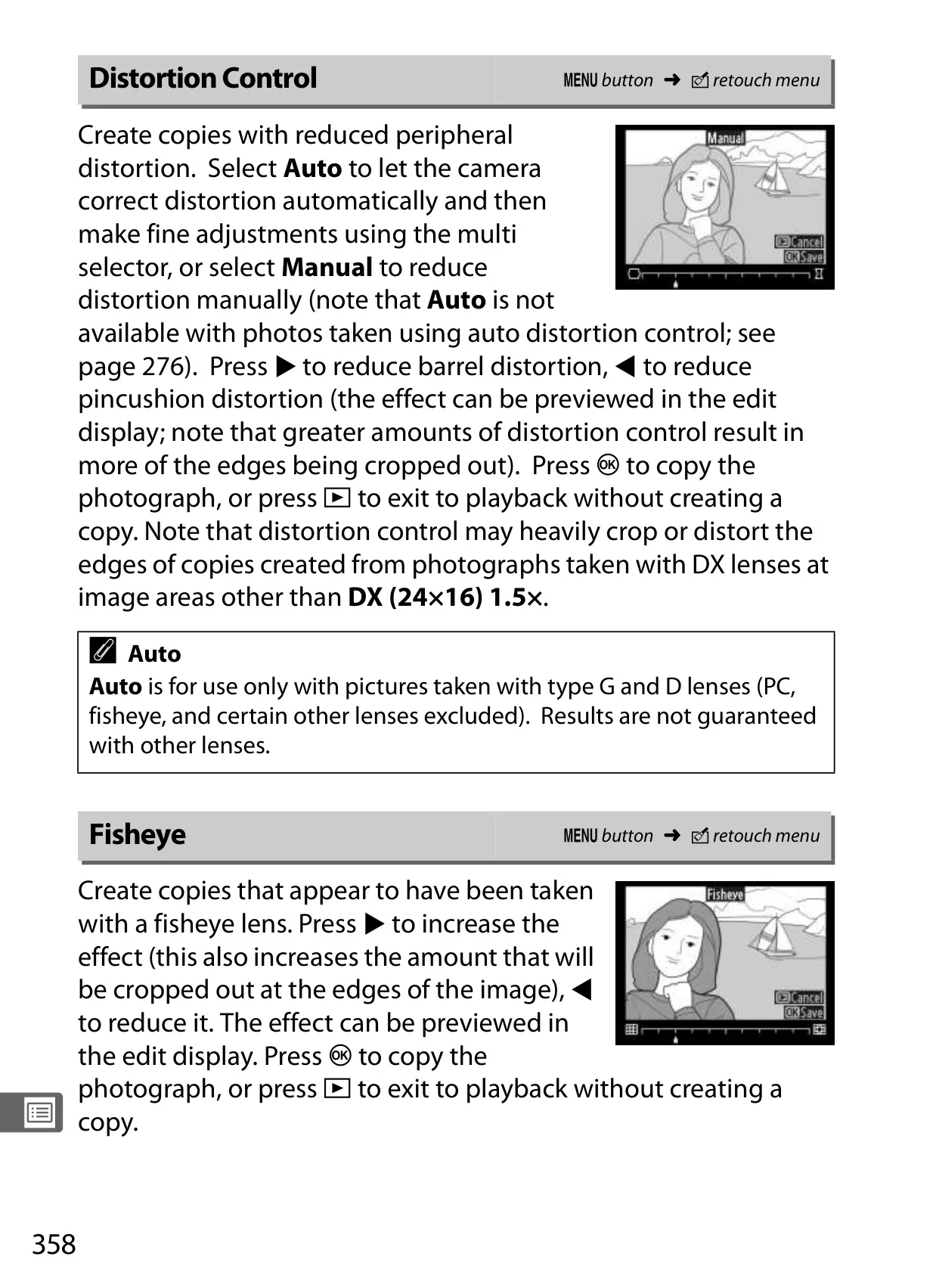

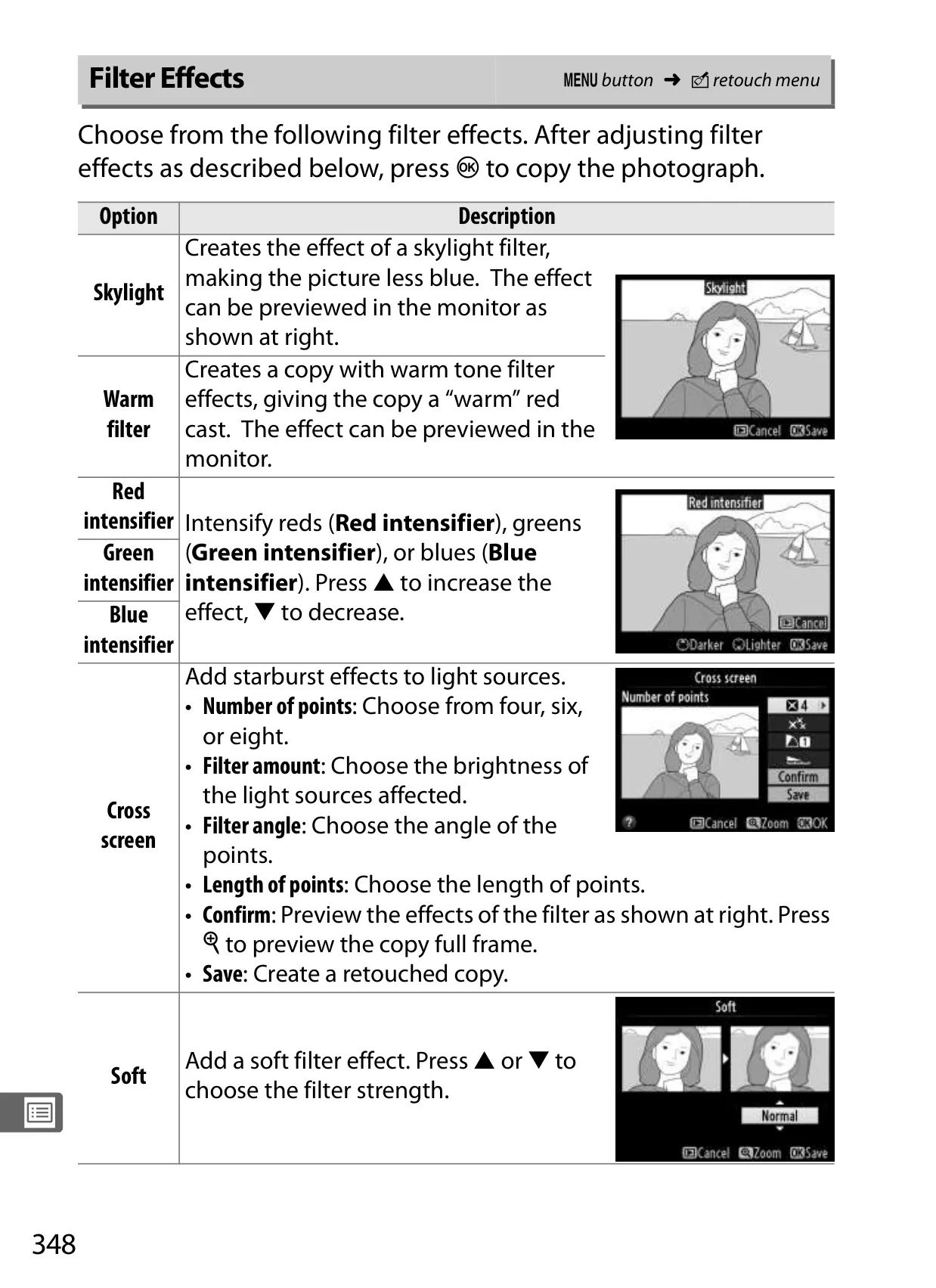

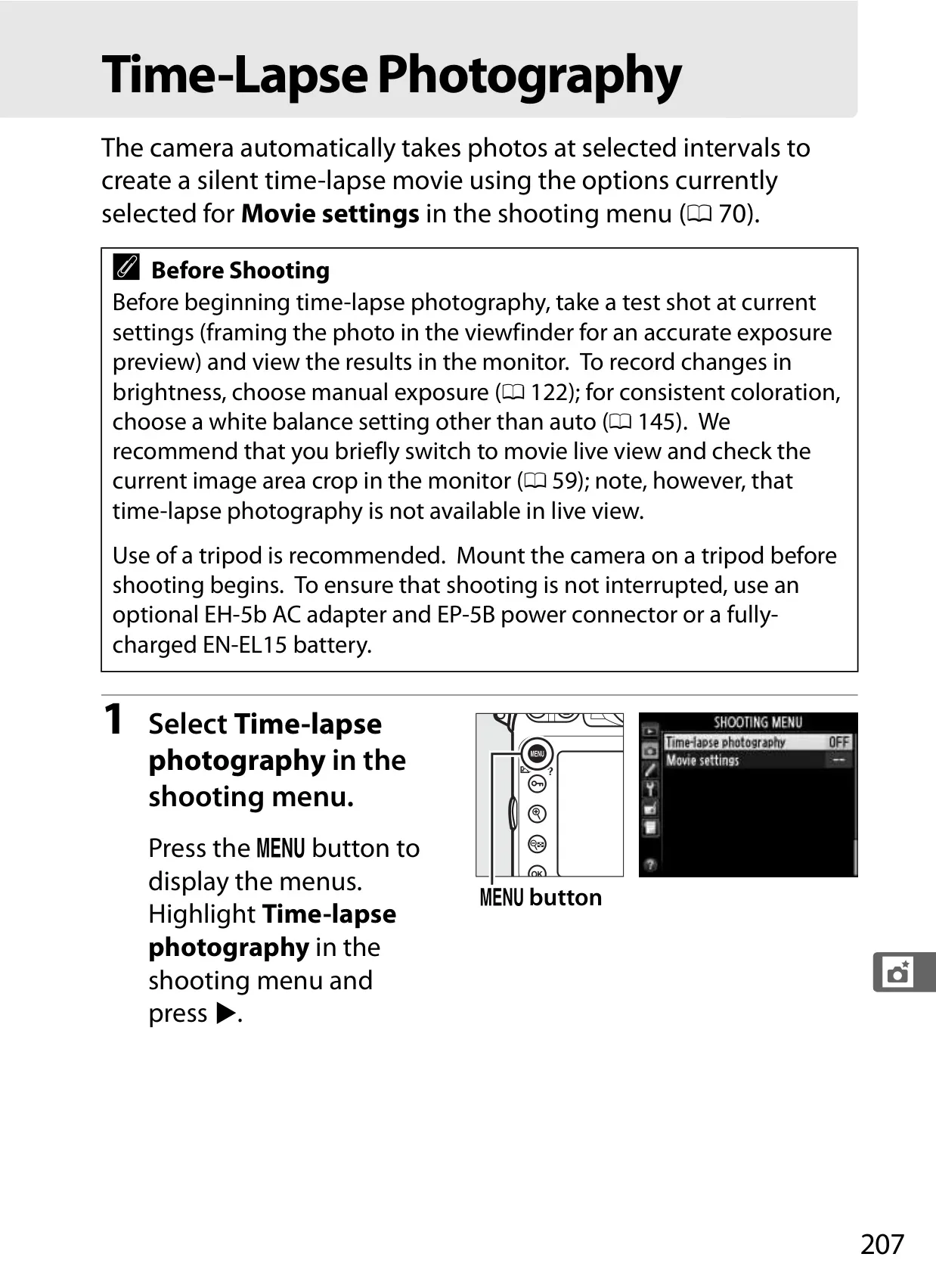

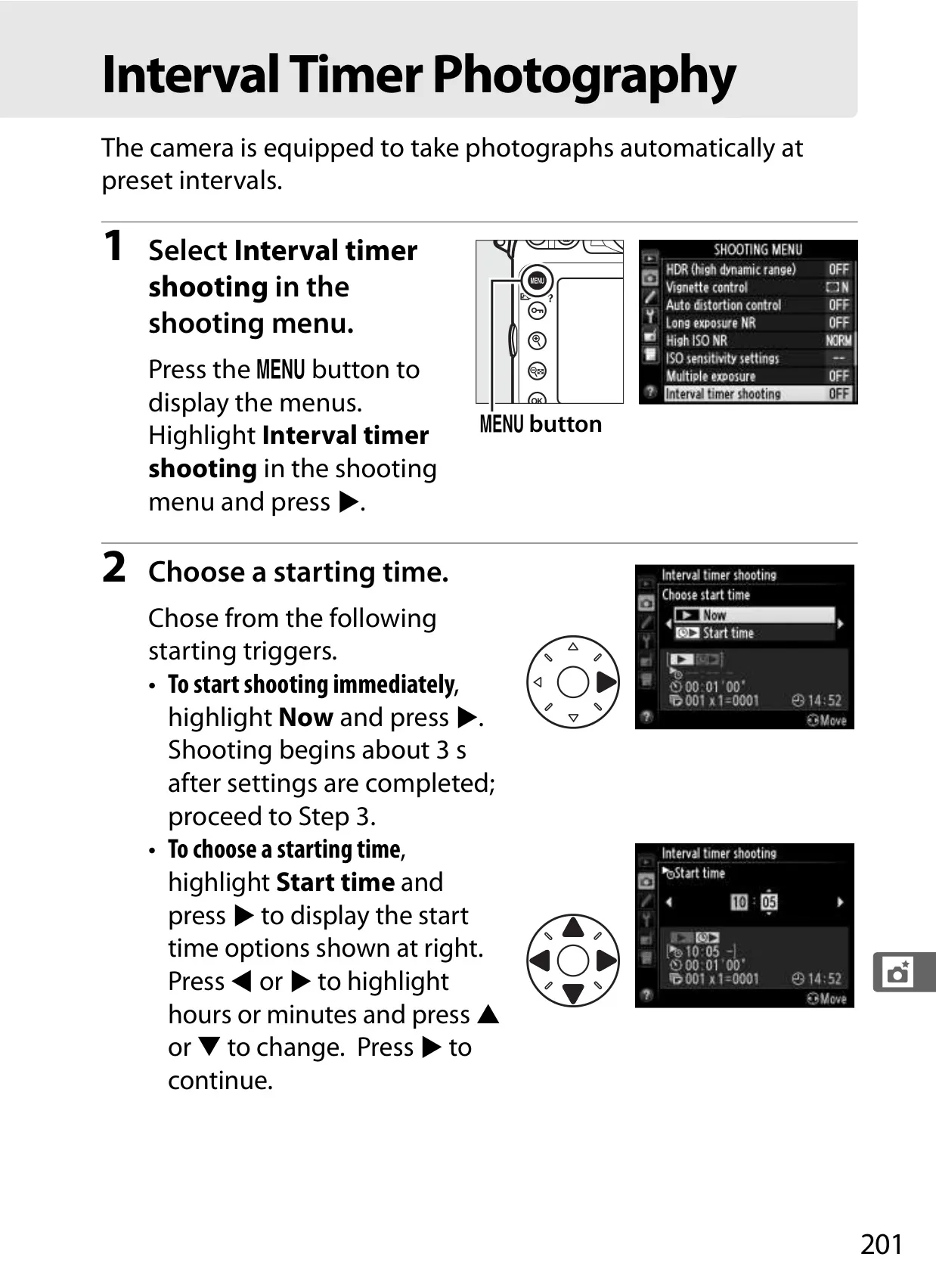

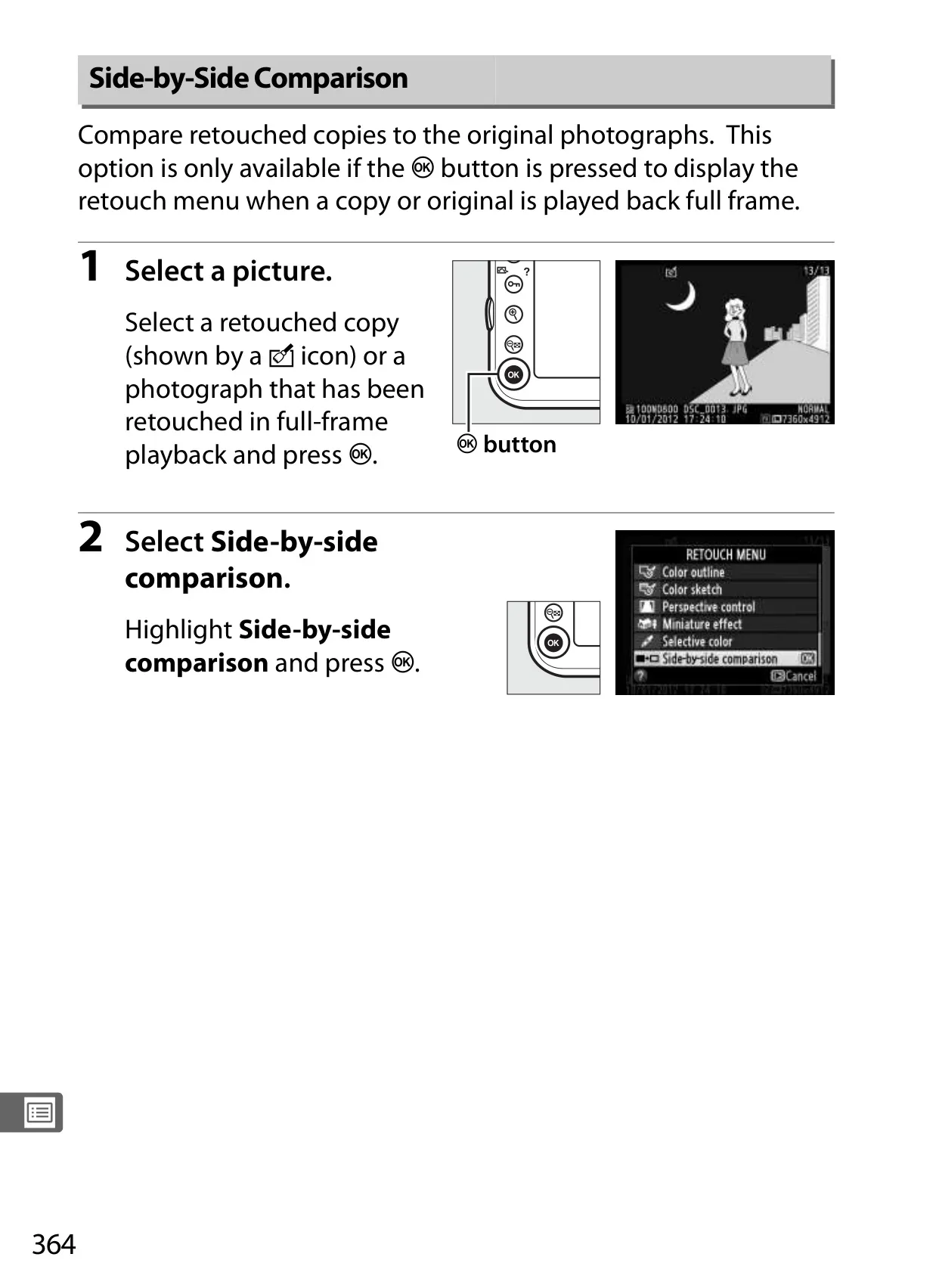

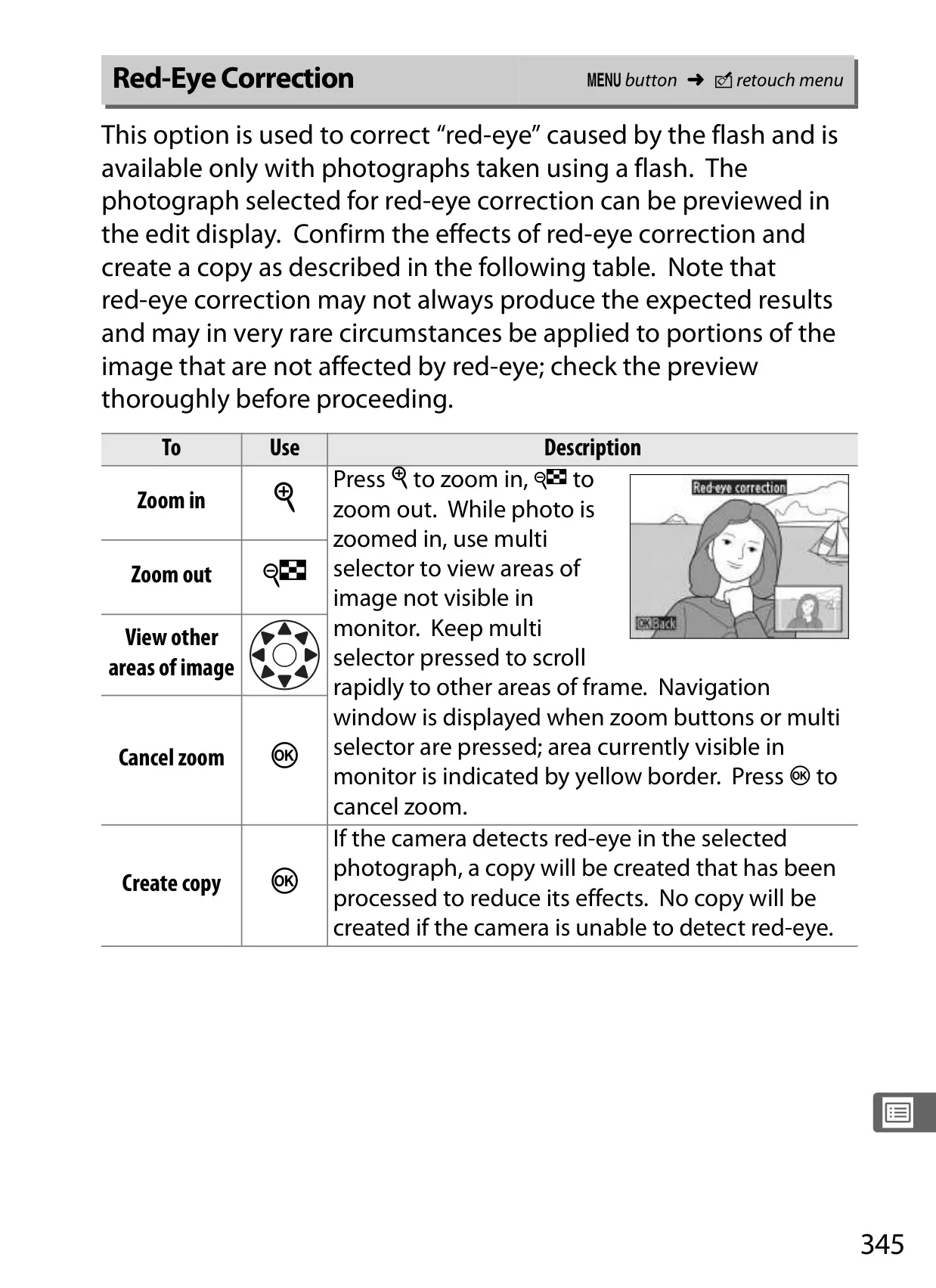

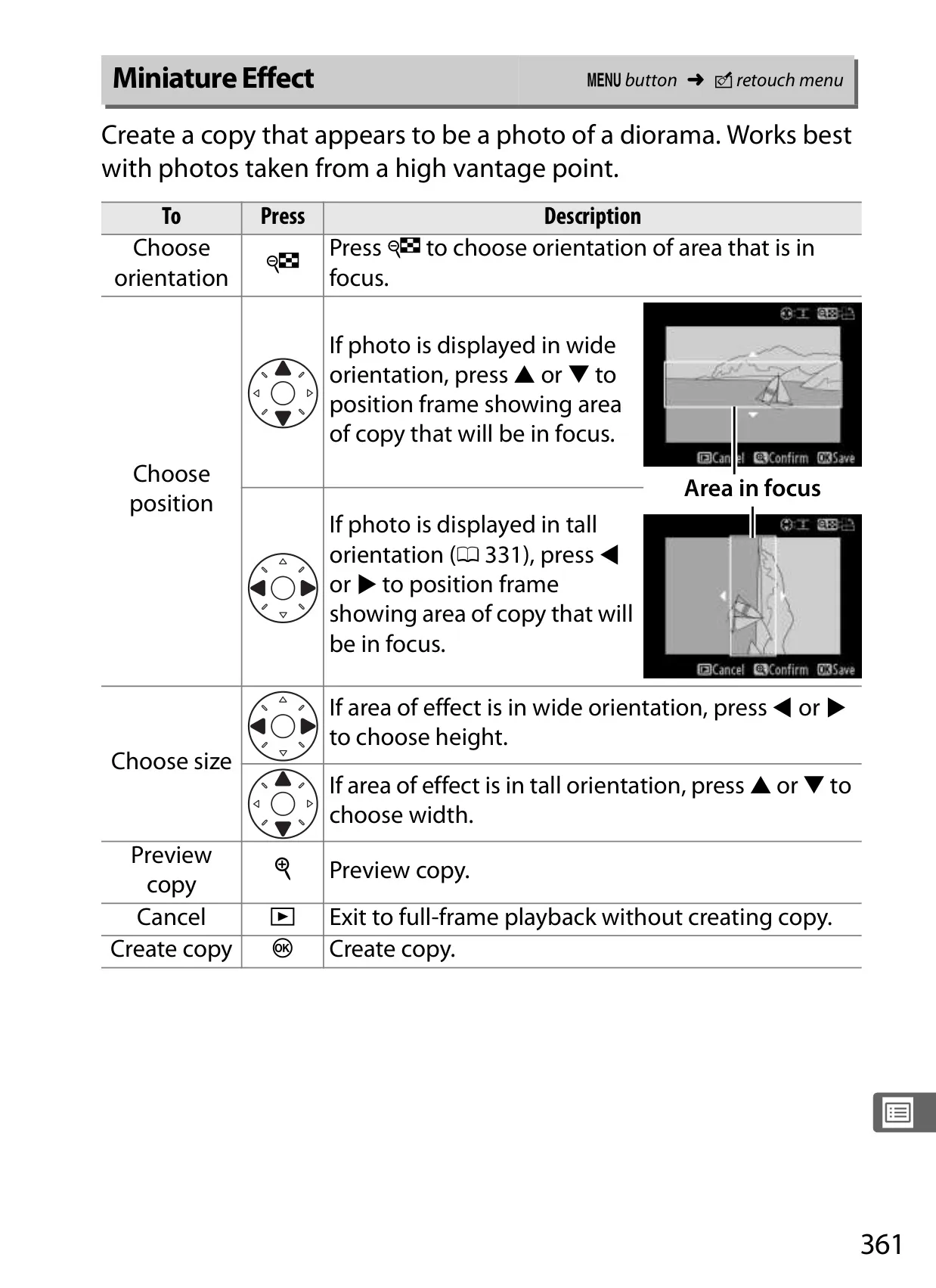

Further enhancing usability, the D800 provides numerous in-camera retouching options. These include D-Lighting, red-eye correction, trimming, straightening, distortion control, and even miniature effect. Photographers can also utilize features like HDR (High Dynamic Range) combining two exposures for a single image, and interval timer photography for creating captivating time-lapse sequences.

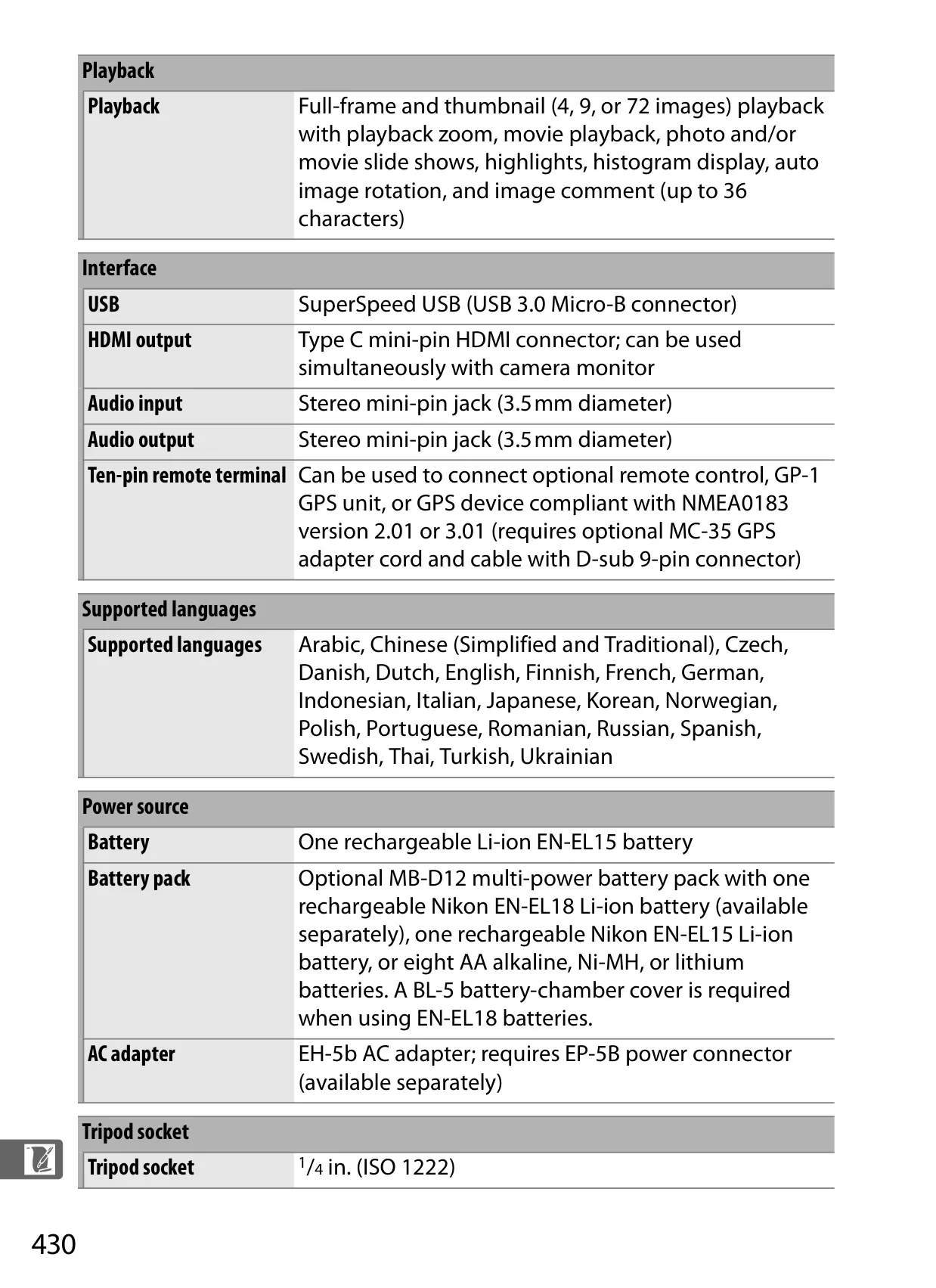

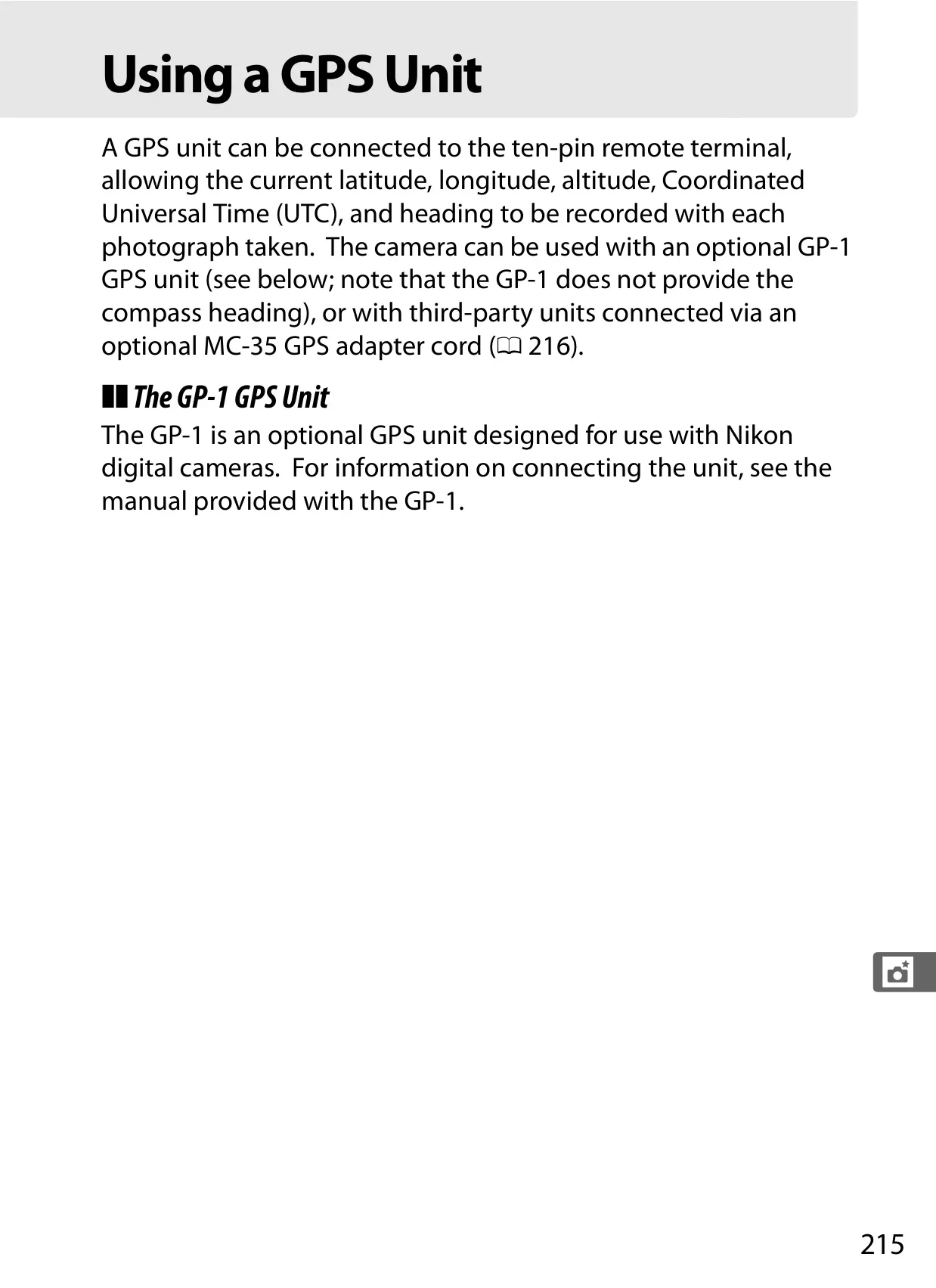

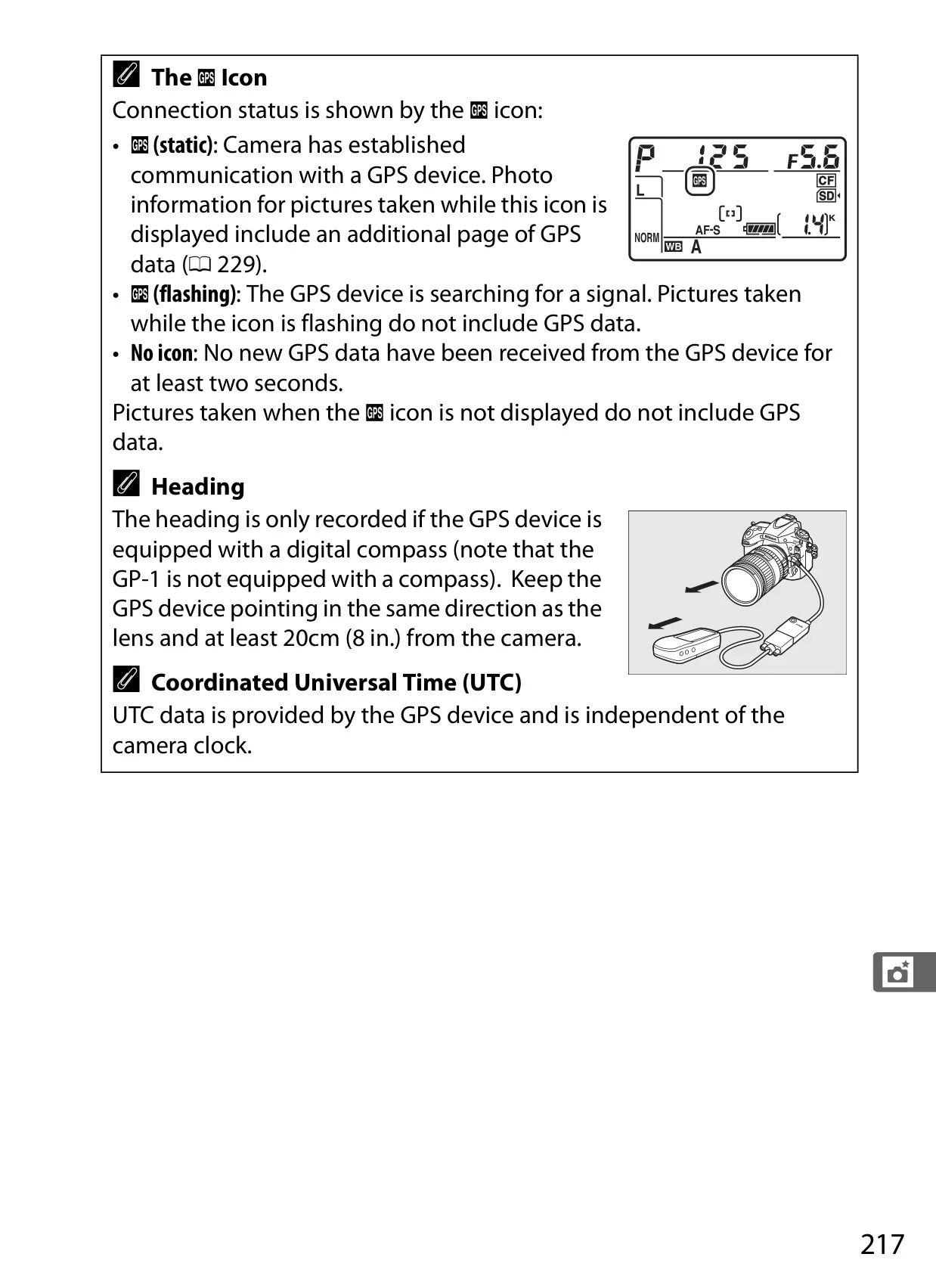

Connectivity options are robust, featuring SuperSpeed USB 3.0 for rapid data transfer, HDMI output for viewing images and videos on external displays, and dedicated audio input/output jacks. A ten-pin remote terminal allows for connection of optional accessories like remote controls and GPS units, expanding the camera's capabilities for various professional workflows.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Nikon D800 DSLR Camera, and we answer them below.
