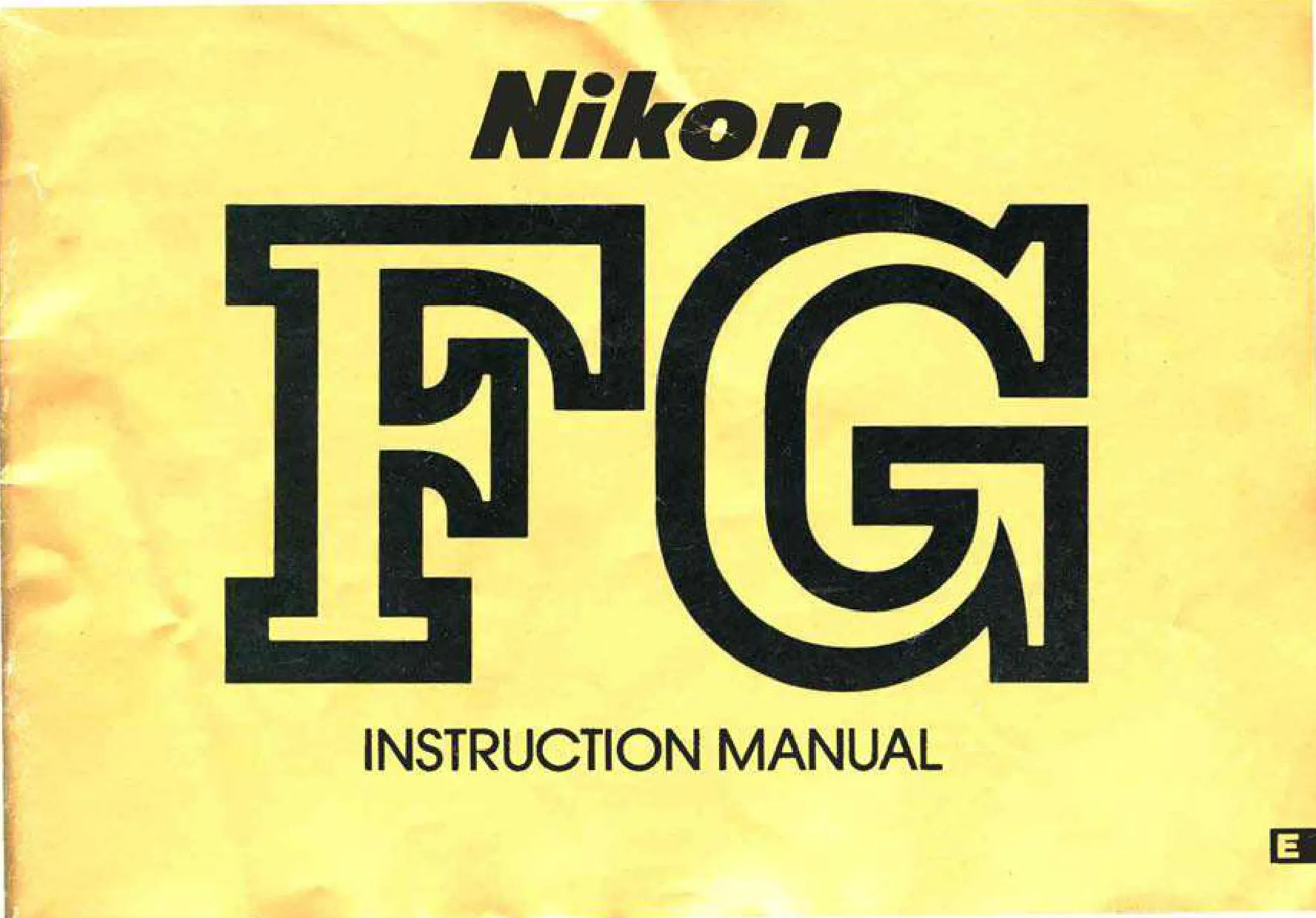

Nikon FG Analog SLR Camera Instruction Manual
Nikon FG Analog SLR Camera
Nikon FG Analog SLR Camera Instructions
Here we offer the Nikon FG Analog SLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Nikon FG Analog SLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images

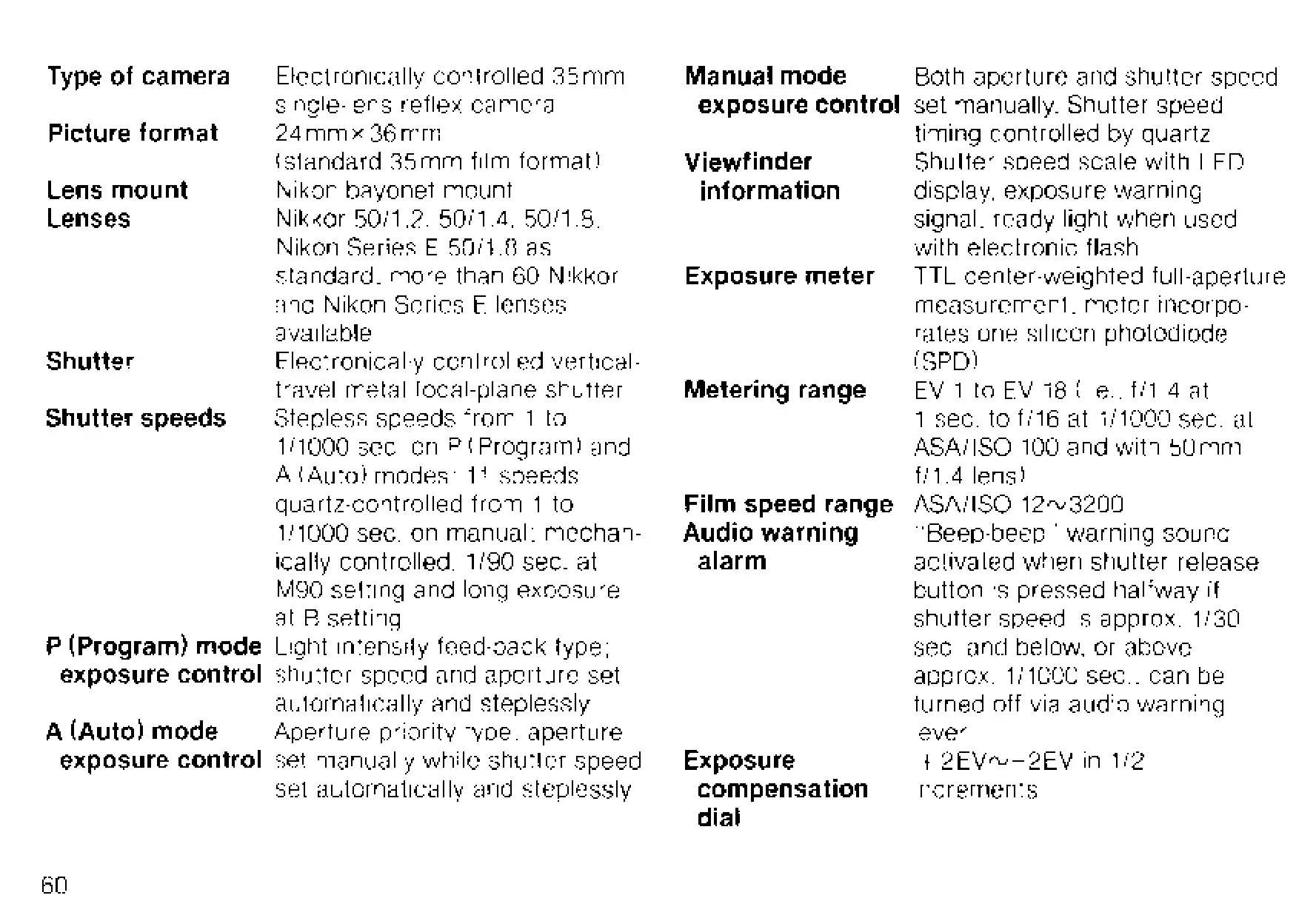

Nikon FG Analog SLR Camera Specifications
| Feature | Specification |
|---|---|
| Camera Type | Electronically controlled 35mm single-lens reflex camera |
| Picture Format | 24mm x 36mm (standard 35mm film format) |
| Lens Mount | Nikon bayonet mount |
| Compatible Lenses | Nikkor 50/1.2, 50/1.4, 50/1.8; Nikon Series E 50/1.8 (standard); over 60 Nikkor and Nikon Series E lenses available |
| Shutter Type | Electronically controlled vertical-travel metal focal-plane shutter |
| Shutter Speeds | P/A Modes: Stepless 1 to 1/1000 sec. Manual Mode: 11 quartz-controlled speeds from 1 to 1/1000 sec. Fixed: 1/90 sec. (M90), Long exposure (B) |
| Exposure Modes | P (Program), A (Aperture-priority Auto), Manual |
| Exposure Metering | TTL center-weighted full-aperture measurement, Silicon Photodiode (SPD) |

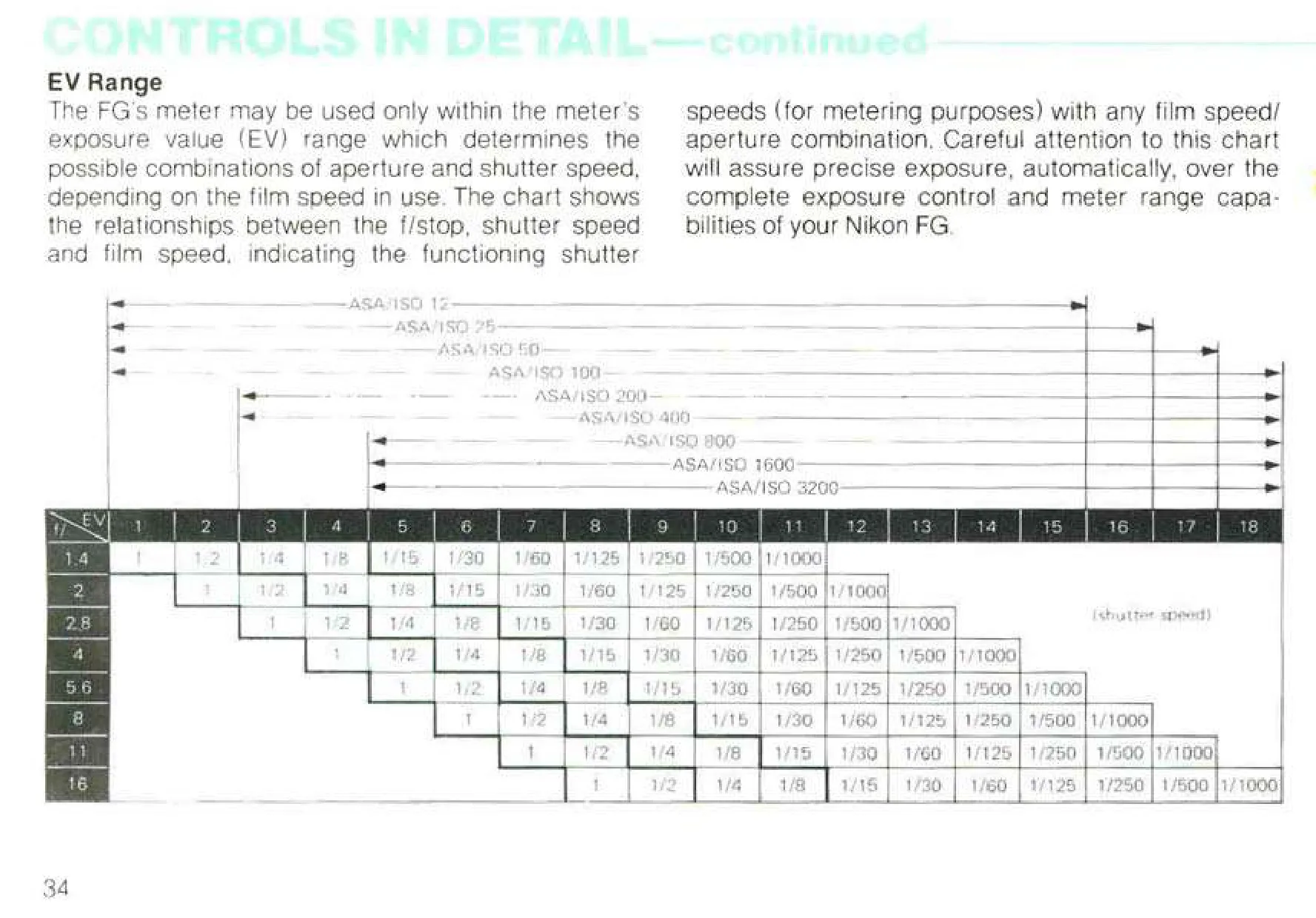

| Metering Range | EV 1 to EV 18 (e.g., f/1.4 at 1 sec. to f/16 at 1/1000 sec. at ASA/ISO 100 with 50mm f/1.4 lens) |

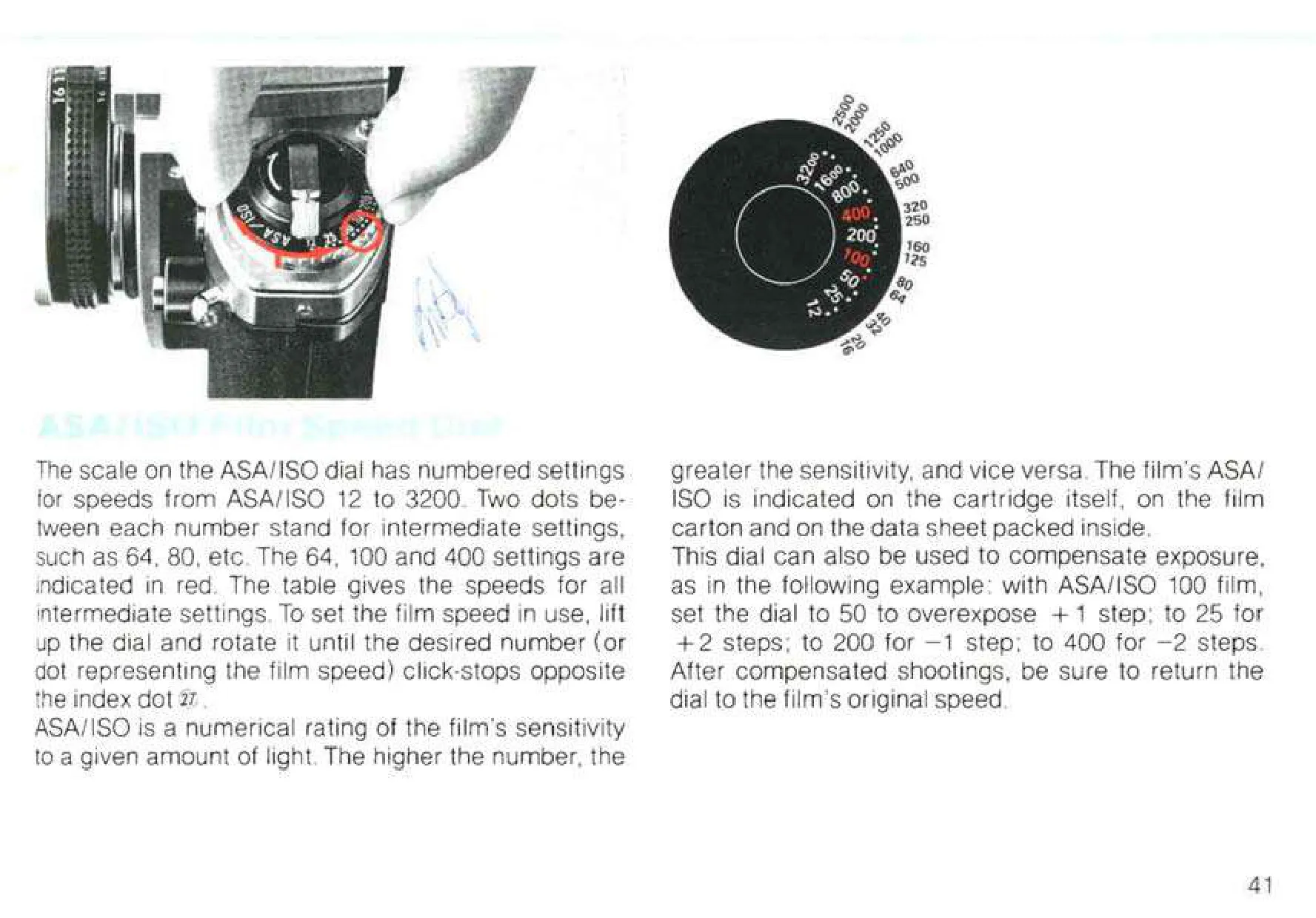

| Film Speed Range | ASA/ISO 12 to 3200 |
| Viewfinder | Fixed eye-level pentaprism, approx. 92% frame coverage, LED display for shutter speed, exposure warning, flash ready-light |
| Focusing Screen | Fixed Nikon standard Type K screen (split-image rangefinder, microprism collar, matte/Fresnel outer field) |
| Flash Sync Speed | Up to 1/90 sec. (automatically set with dedicated Nikon Speedlights) |
| Exposure Comp. | +2 EV to -2 EV in 1/2 increments via dial, approx. +2 EV via button |

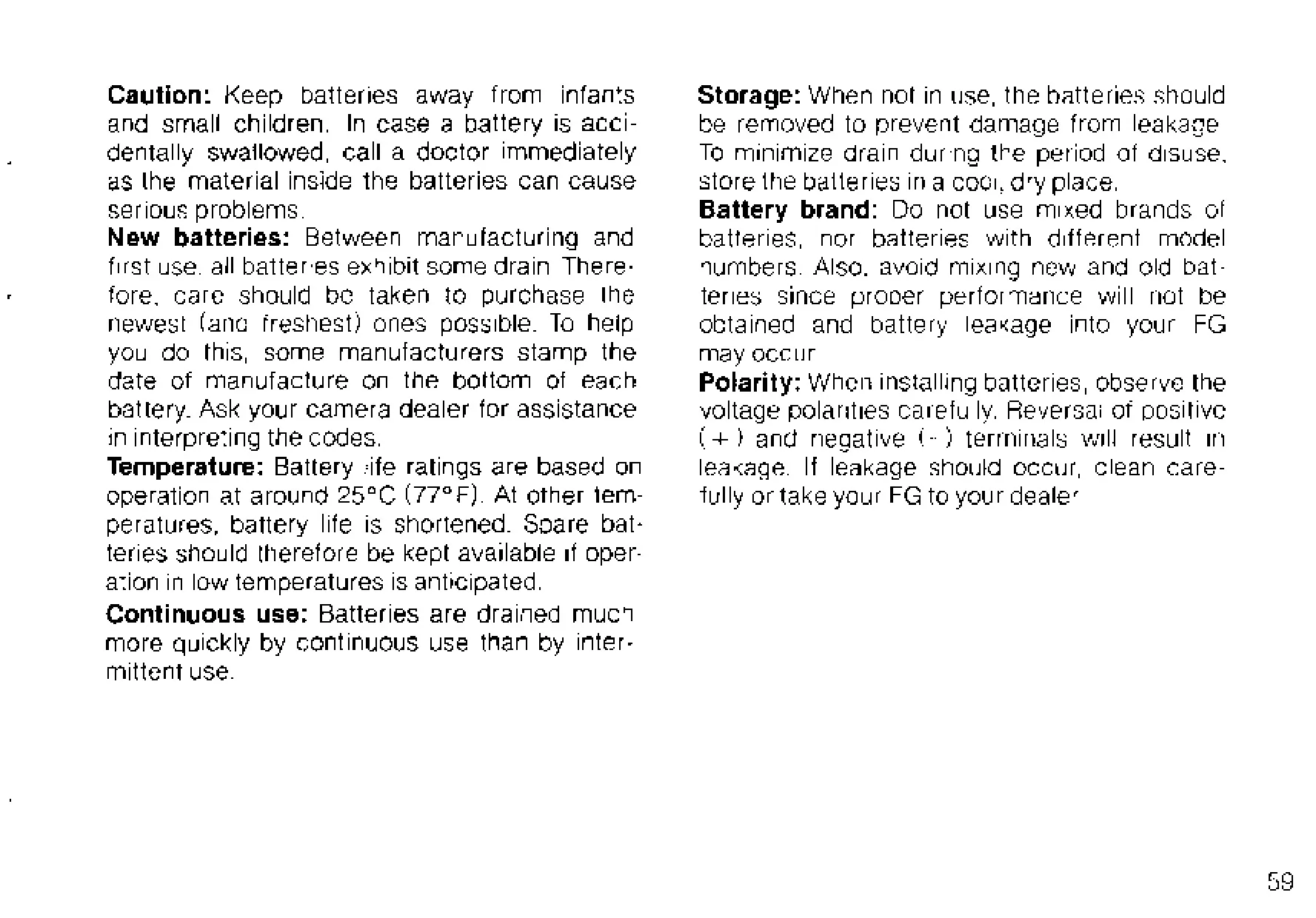

| Power Source | Two 1.55V silver-oxide (S-76/SR-44), two 1.5V alkaline-manganese (LR-44), or one 3V lithium (CR-1/3N) batteries |
| Dimensions (WxHxD) | 136.0mm x 87.5mm x 54mm |
| Weight | Approx. 490g (body only) |

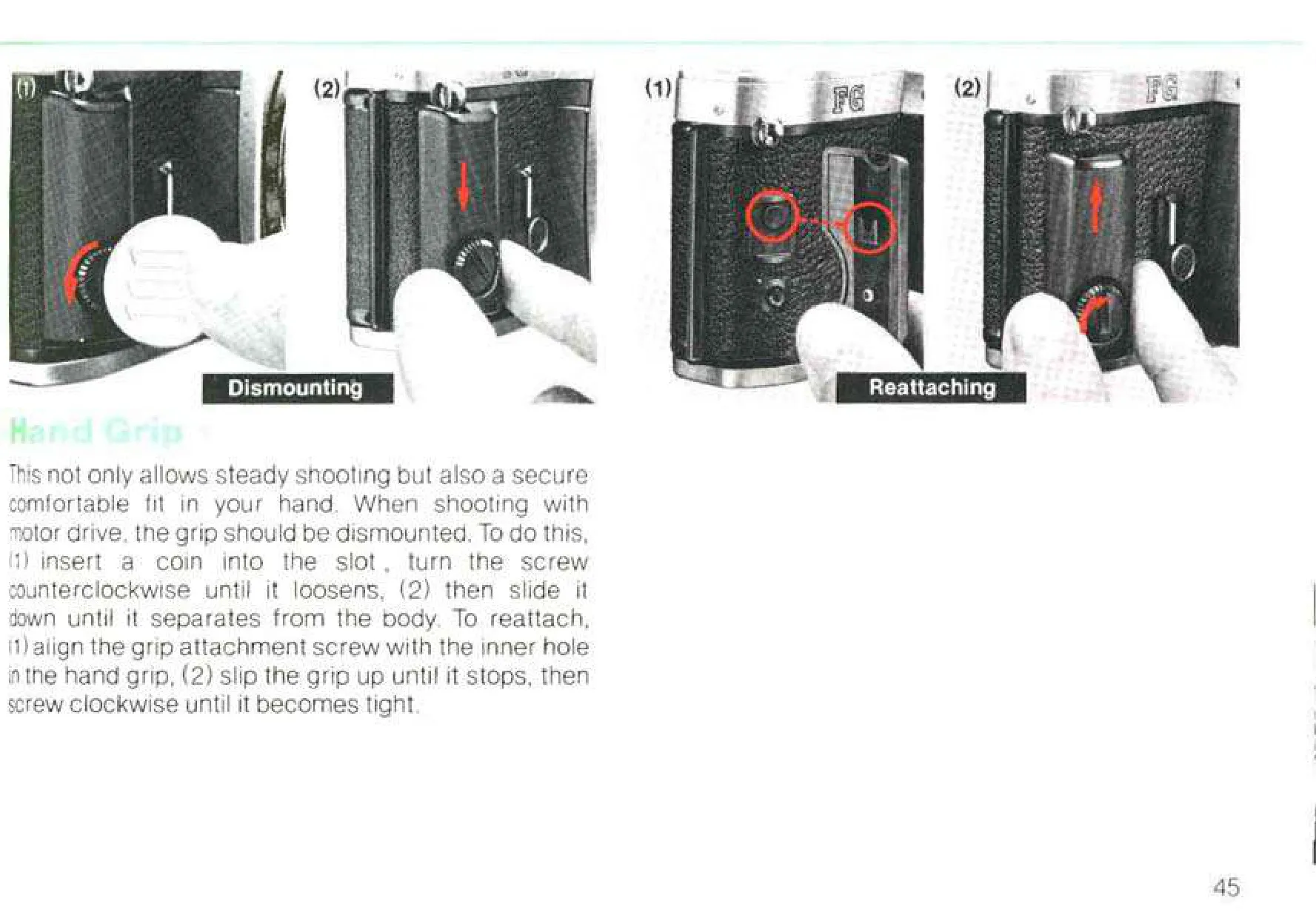

| Special Features | Audio warning alarm (turn-off option), detachable hand grip, motor drive coupling (MD-14/MD-E), interchangeable camera back (MF-15) |
Nikon FG Analog SLR Camera Details
The Nikon FG stands out as a sophisticated yet user-friendly 35mm SLR camera, offering a harmonious blend of automated and manual controls. Its innovative Program (P) mode provides true point-and-shoot simplicity, where the camera intelligently selects both shutter speed and aperture based on a light intensity feedback type system. This stepless, automatic adjustment ensures optimal exposure without requiring complex calculations from the photographer, making it an excellent choice for beginners or fast-paced shooting scenarios.

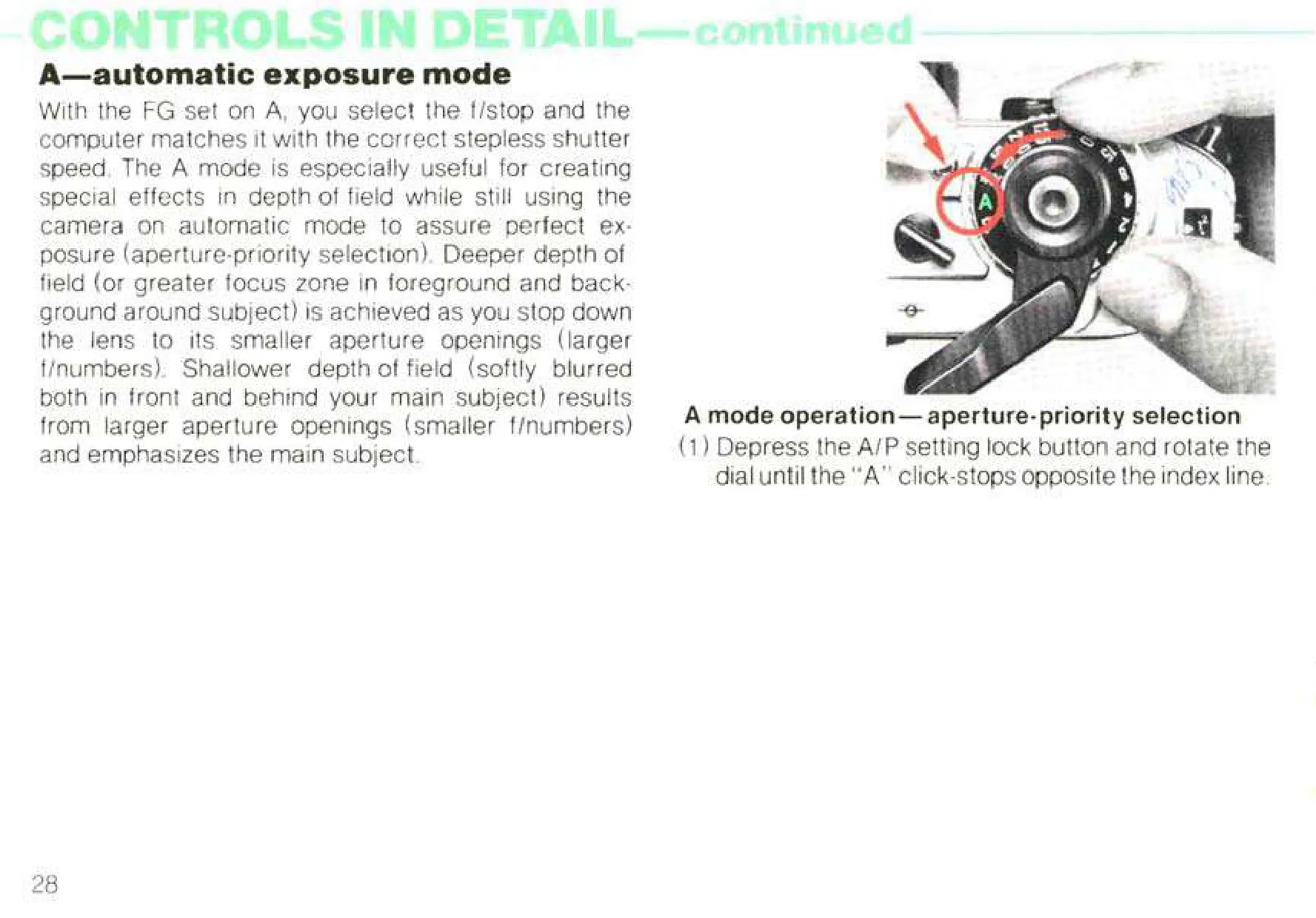

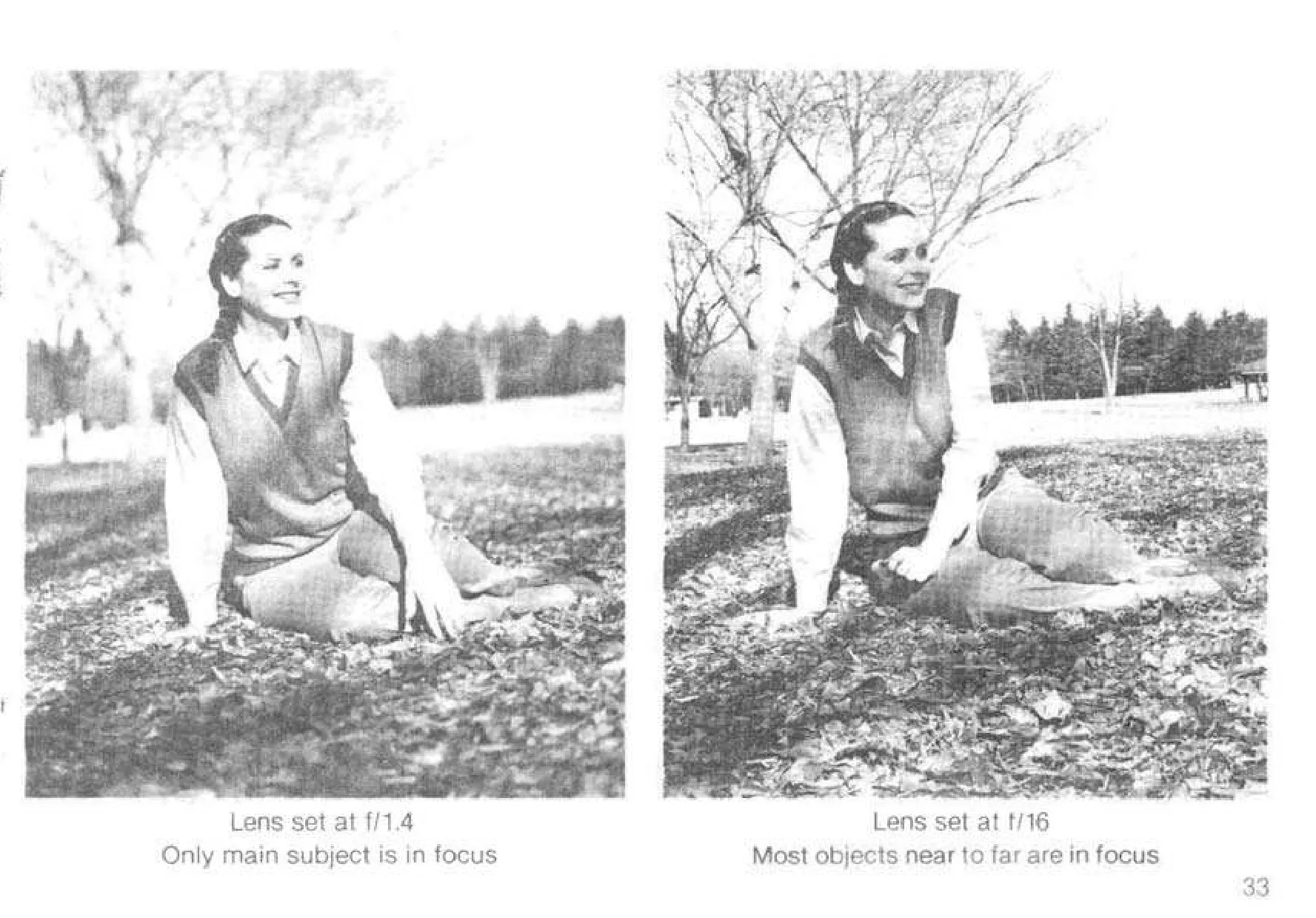

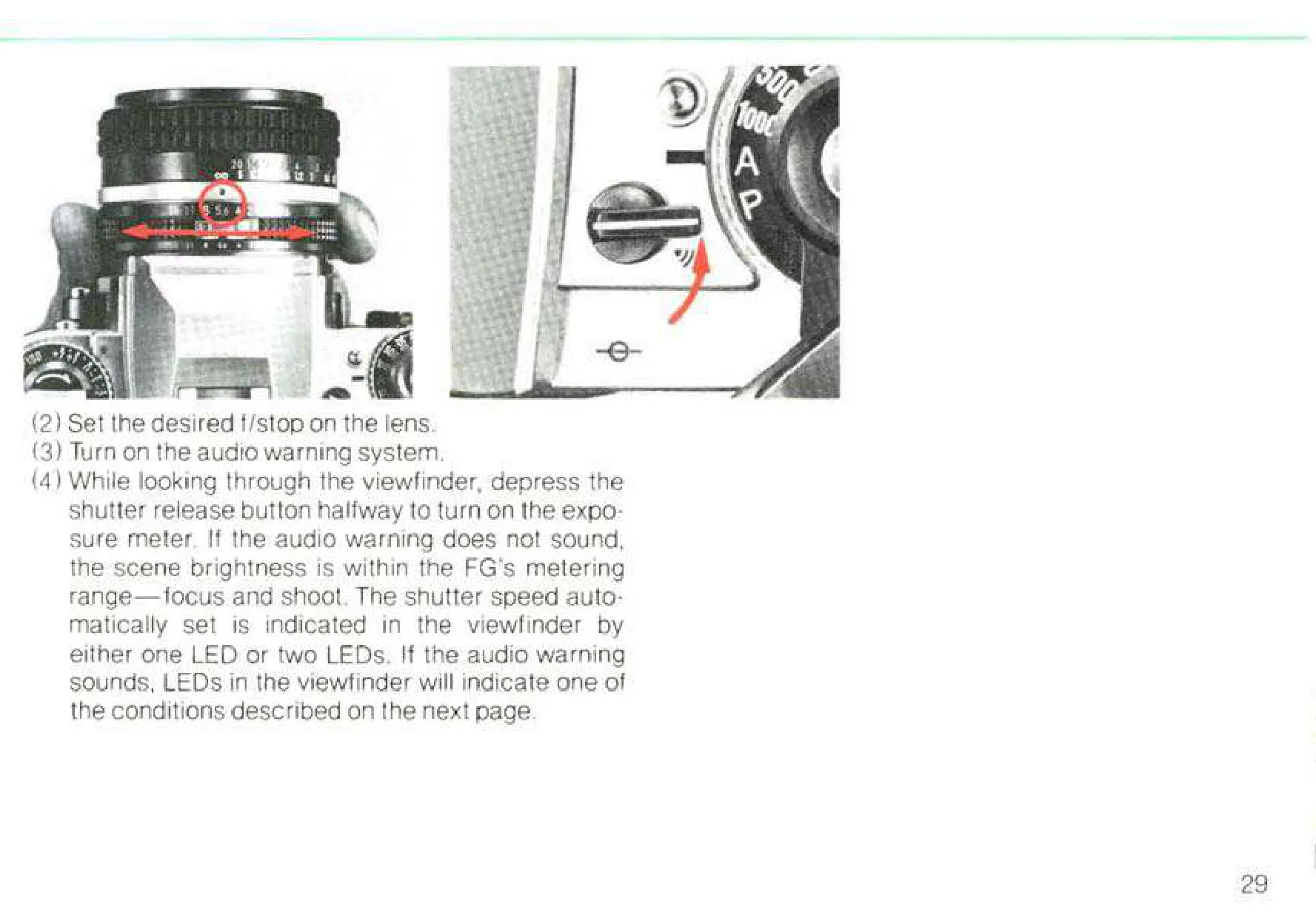

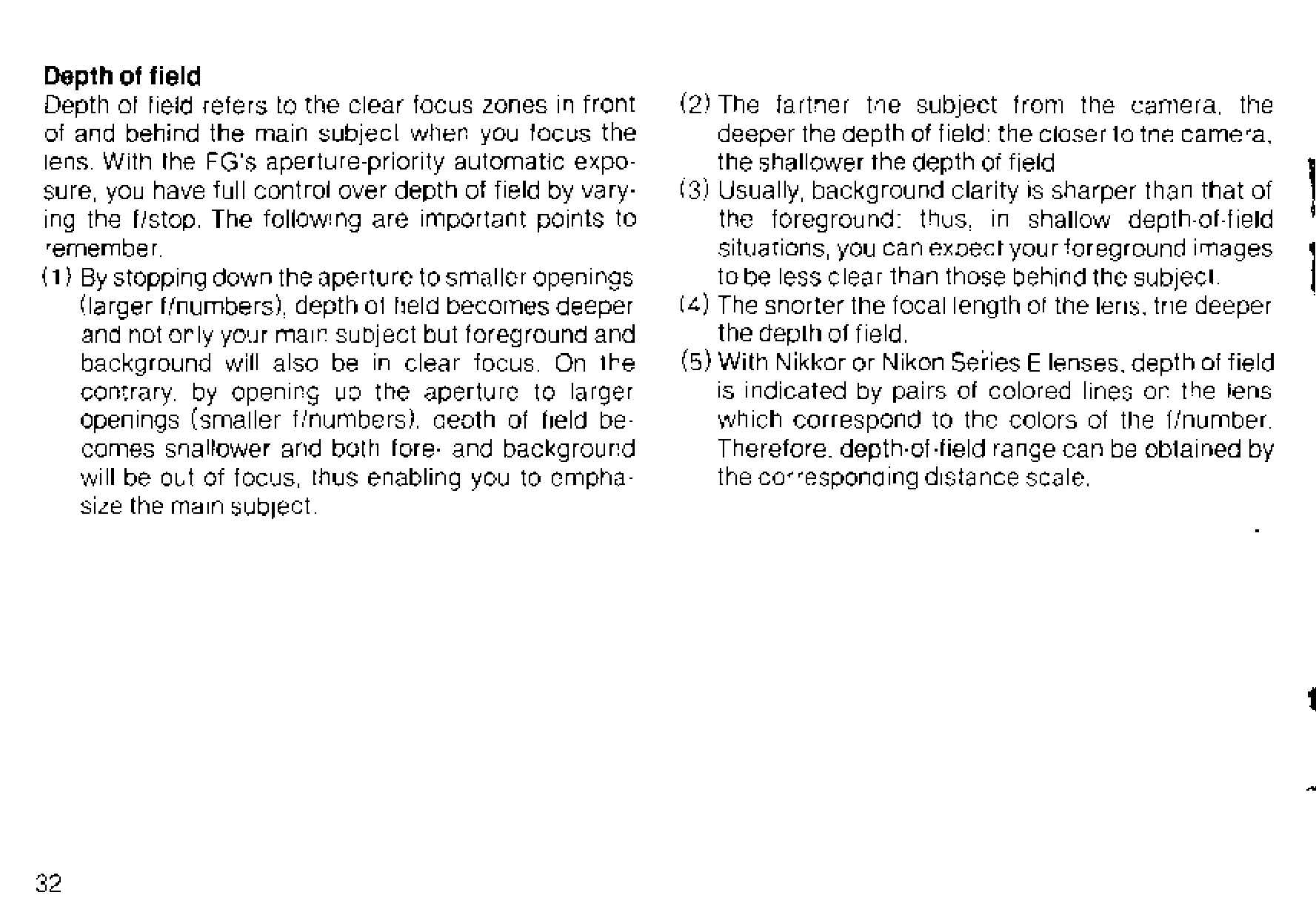

For photographers seeking a balance between automation and creative control, the FG's Aperture-priority Auto (A) mode is invaluable. In this setting, the user manually selects the aperture, directly influencing the depth of field, while the camera precisely determines the appropriate stepless shutter speed. This allows for artistic expression, such as achieving a blurred background for portraits or a sharp foreground and background for landscapes, with the convenience of automated exposure.

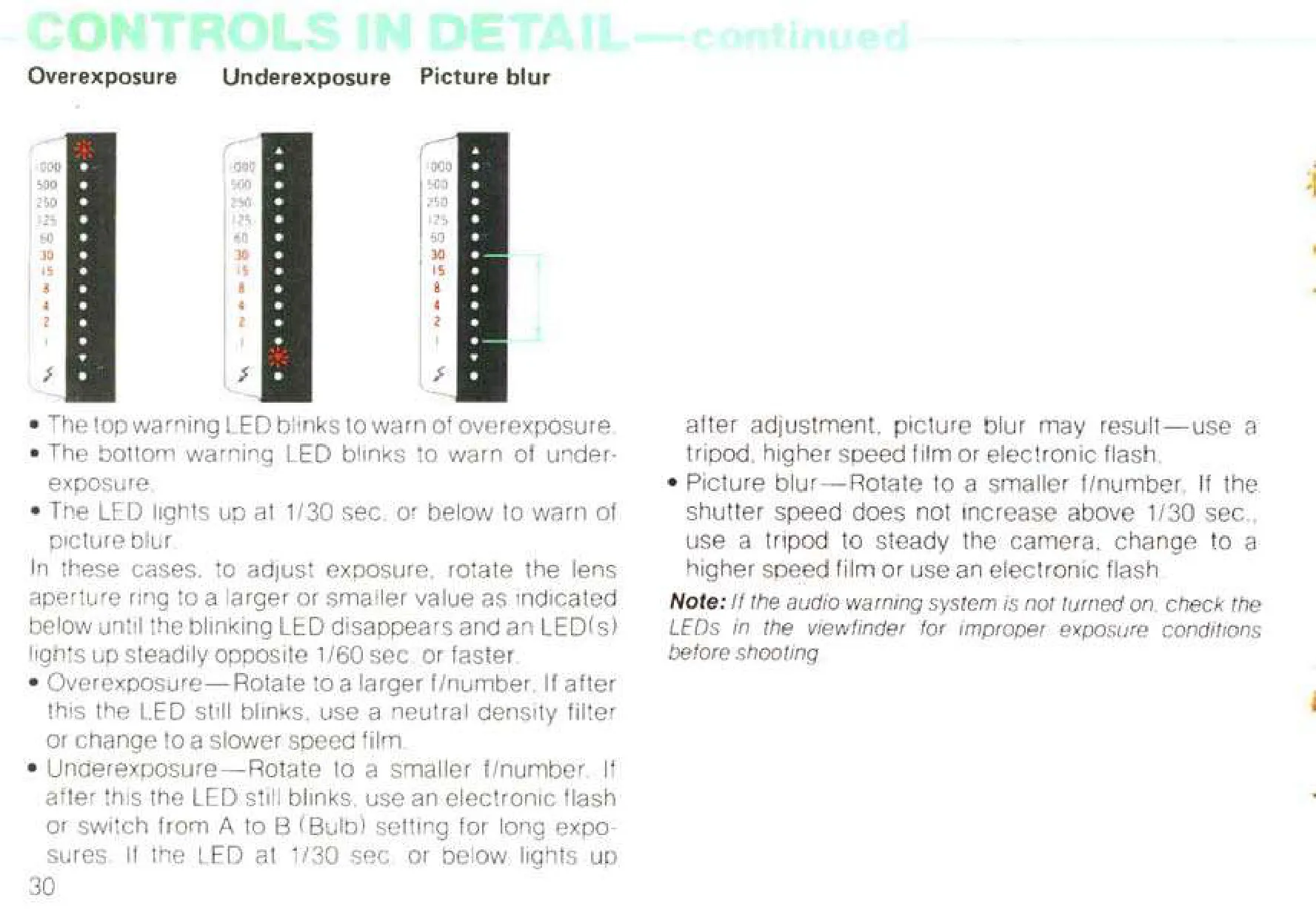

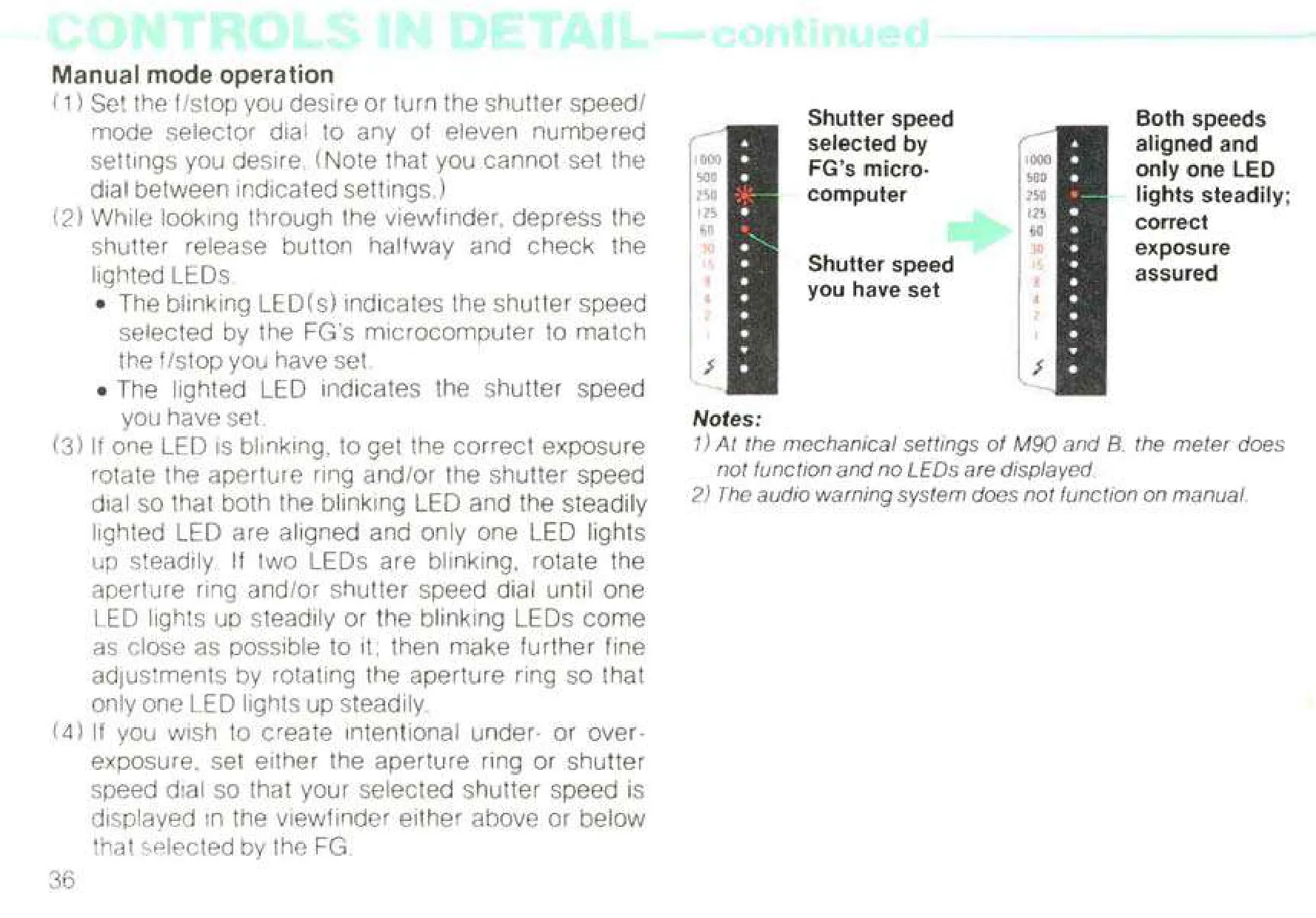

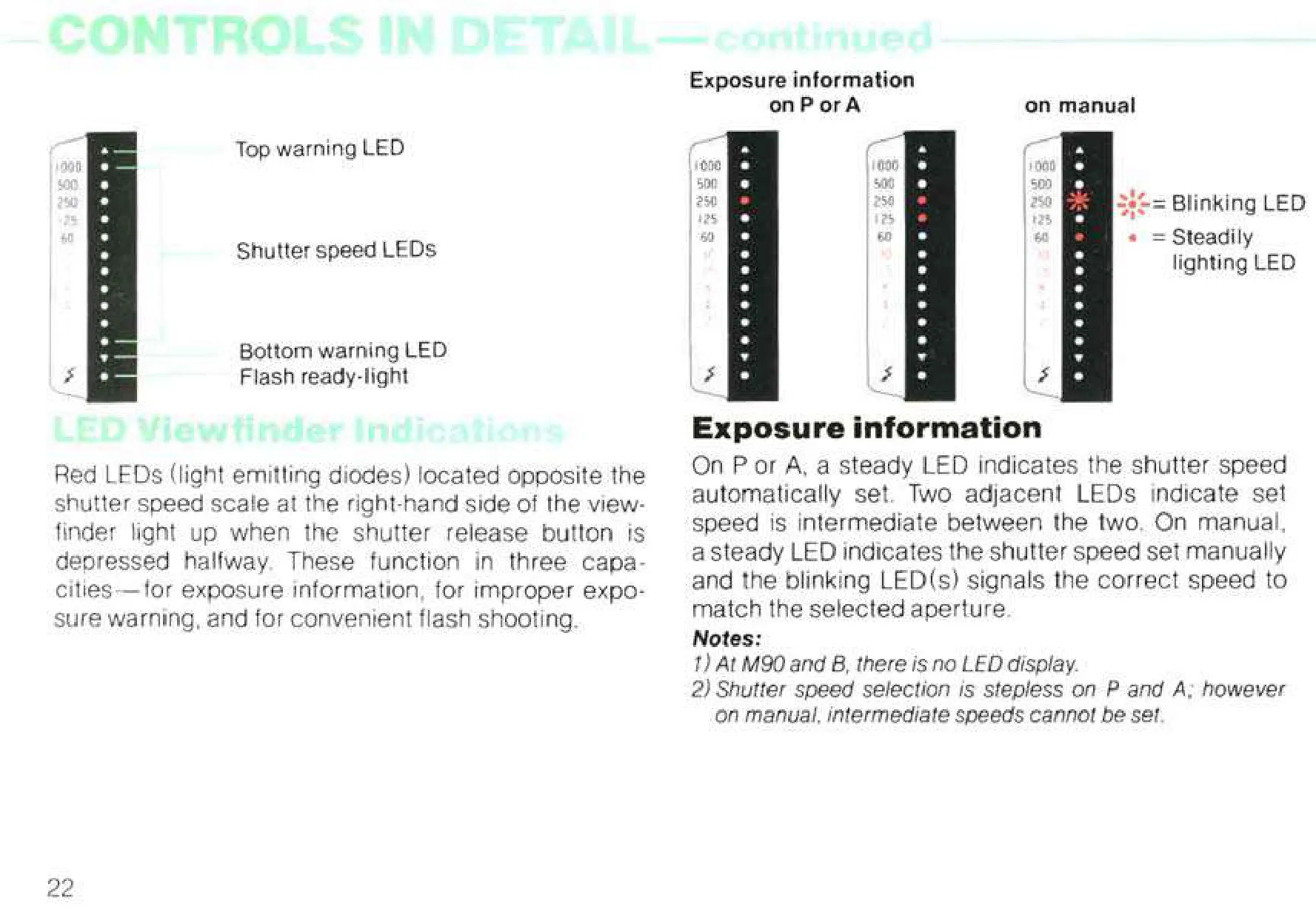

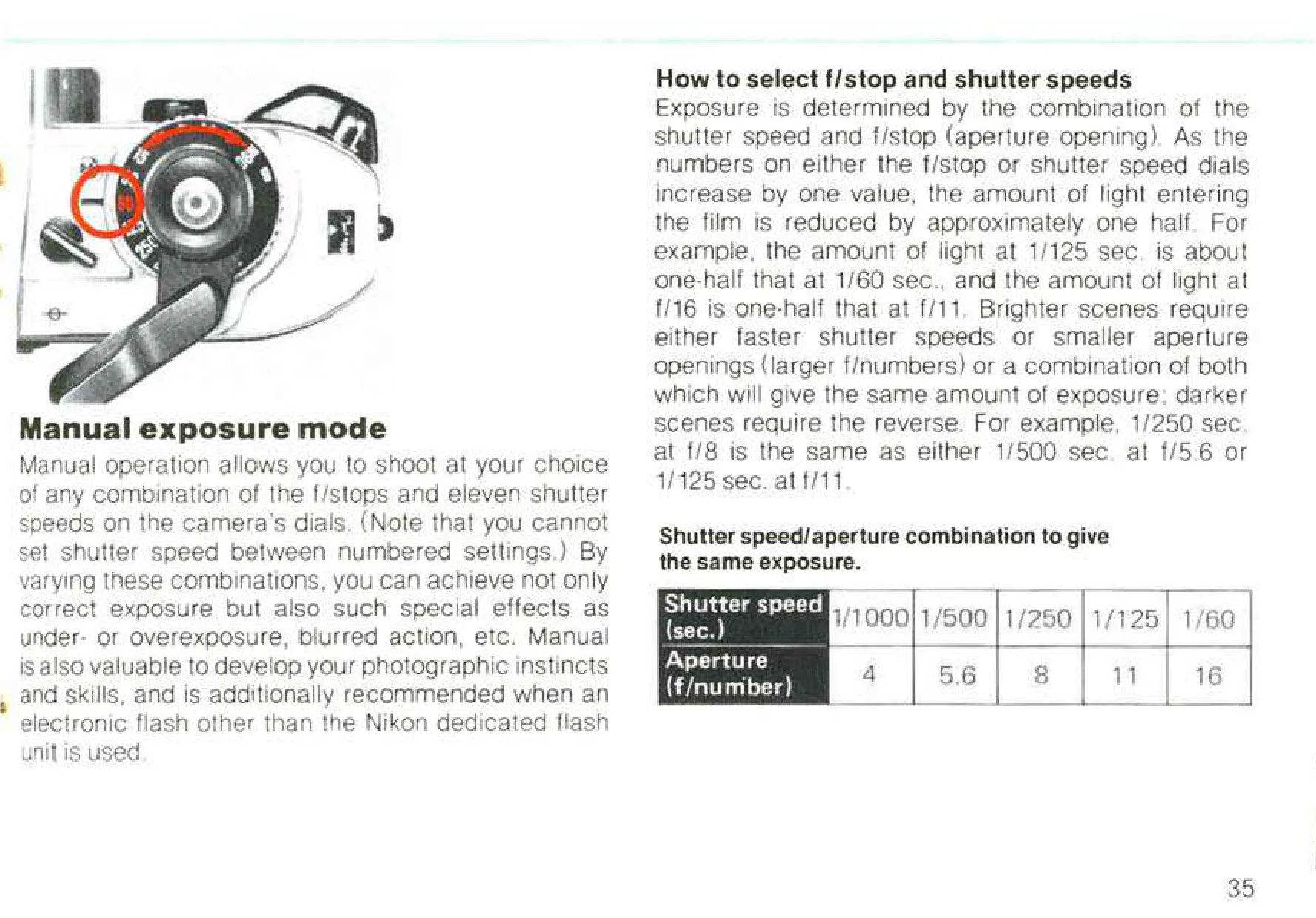

Beyond its automatic capabilities, the Nikon FG offers robust manual control for those who prefer full command over their settings. Photographers can independently set both aperture and shutter speed, with the latter benefiting from quartz-controlled timing for exceptional accuracy across its 11 discrete speed settings. The viewfinder, a fixed eye-level pentaprism, prominently displays an LED scale indicating the chosen shutter speed, an exposure warning signal, and a flash ready-light, ensuring critical information is always at a glance.
The camera's TTL center-weighted full-aperture metering system, powered by a highly sensitive silicon photodiode (SPD), delivers reliable exposure readings across a broad EV range. Focusing is made intuitive through the Nikon standard Type K screen, featuring a central split-image rangefinder spot, a microprism collar, and a matte/Fresnel outer field. This combination provides clear visual cues for precise focusing in diverse lighting conditions, catering to both quick snaps and meticulous compositions.

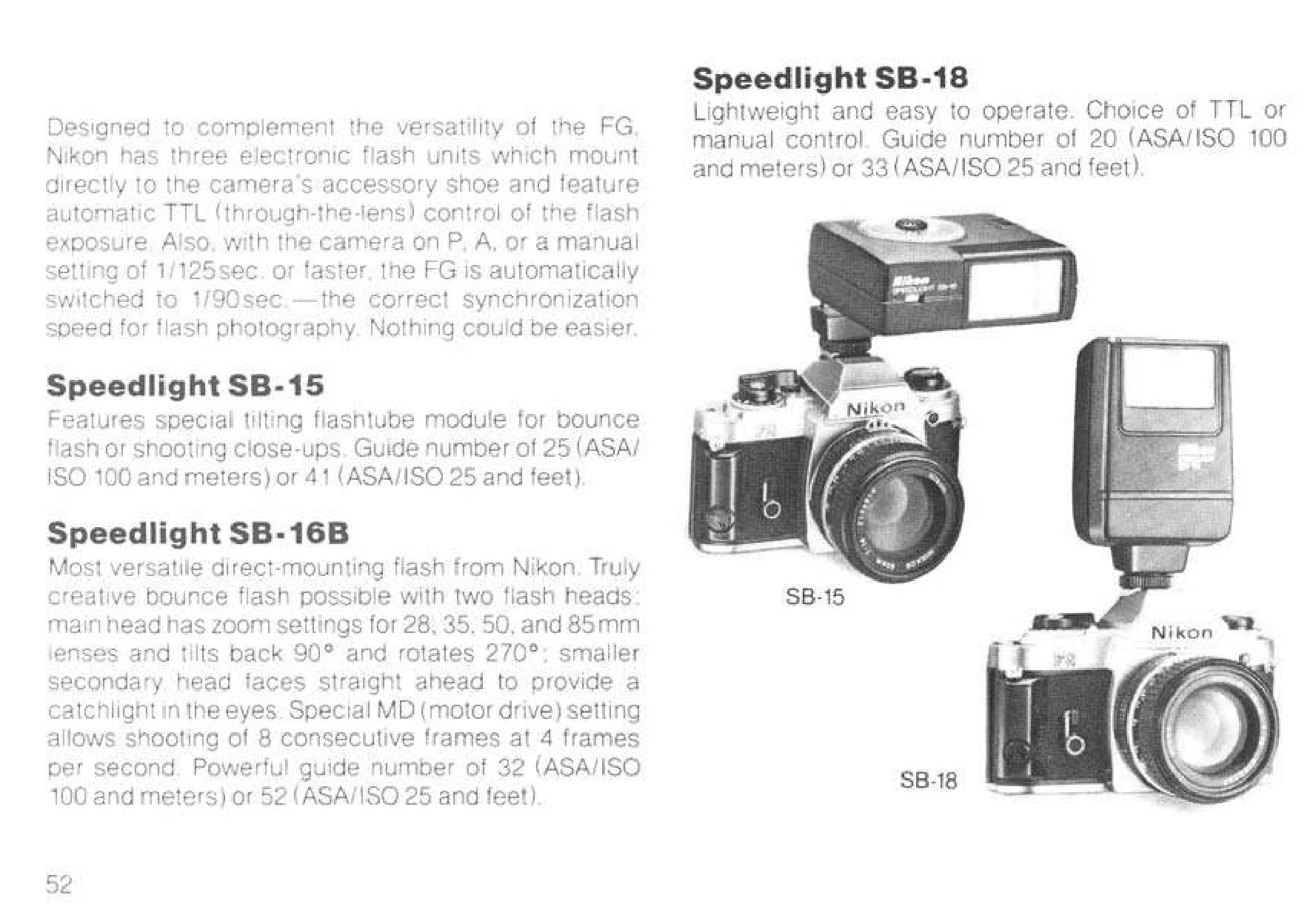

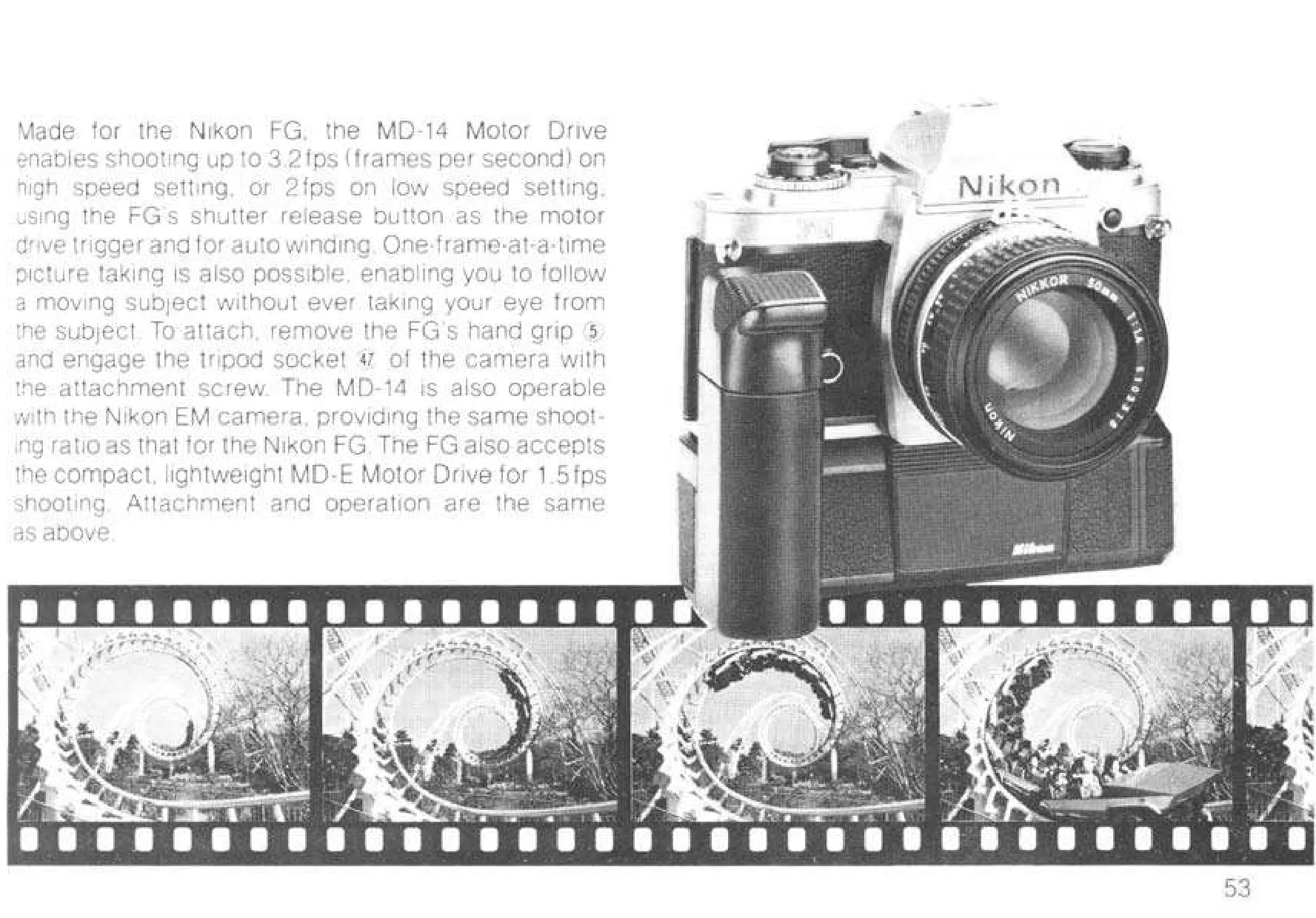

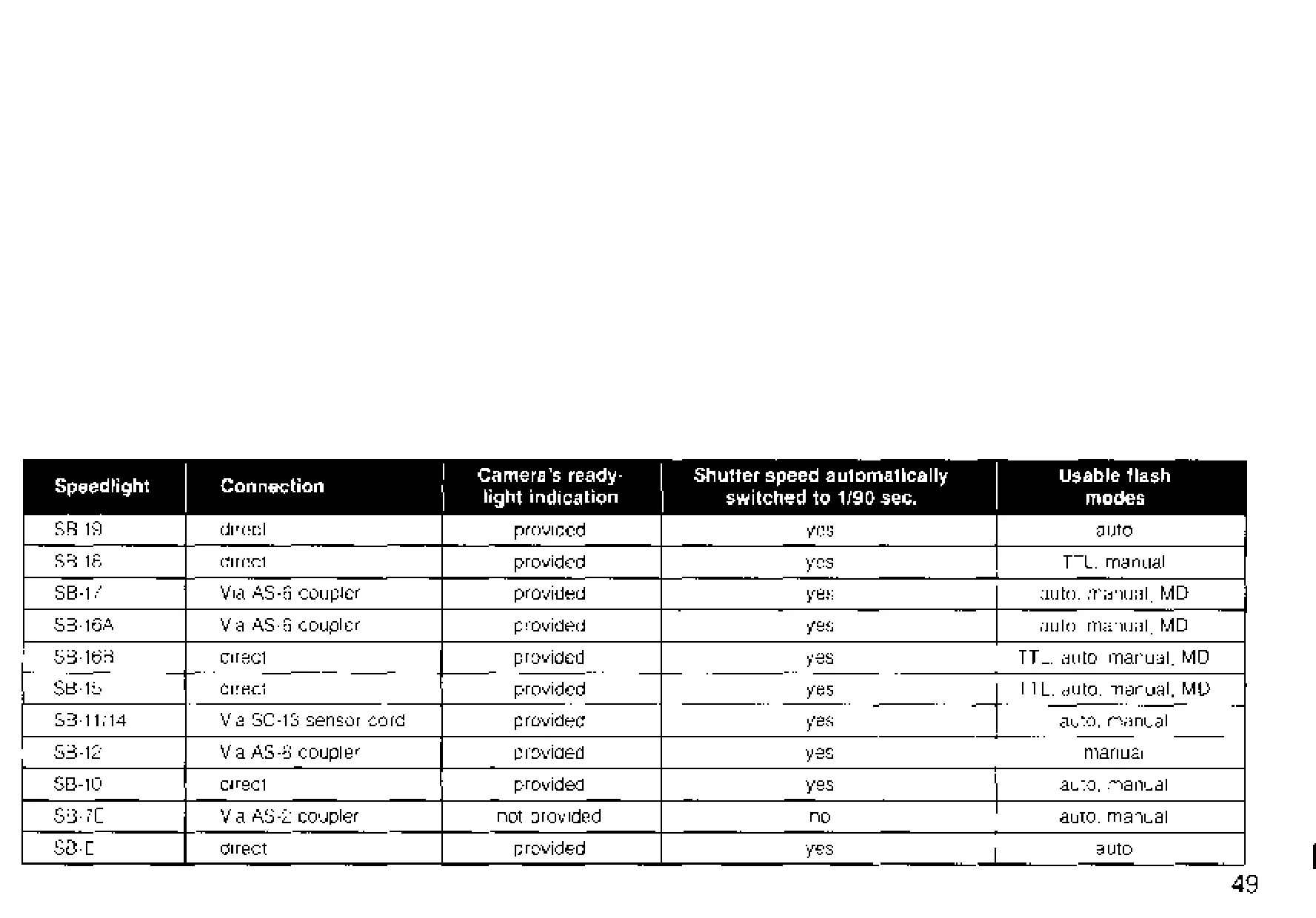

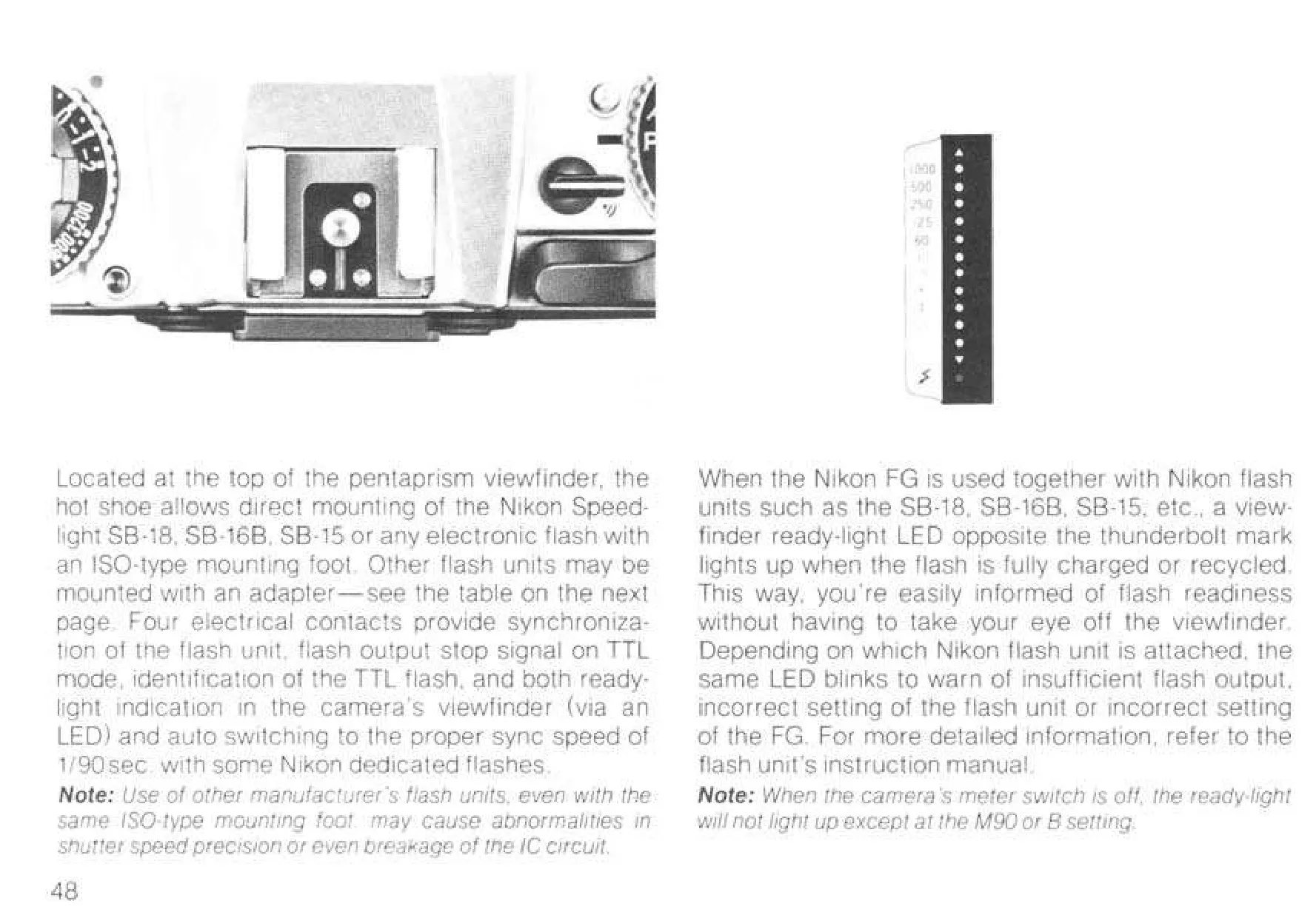

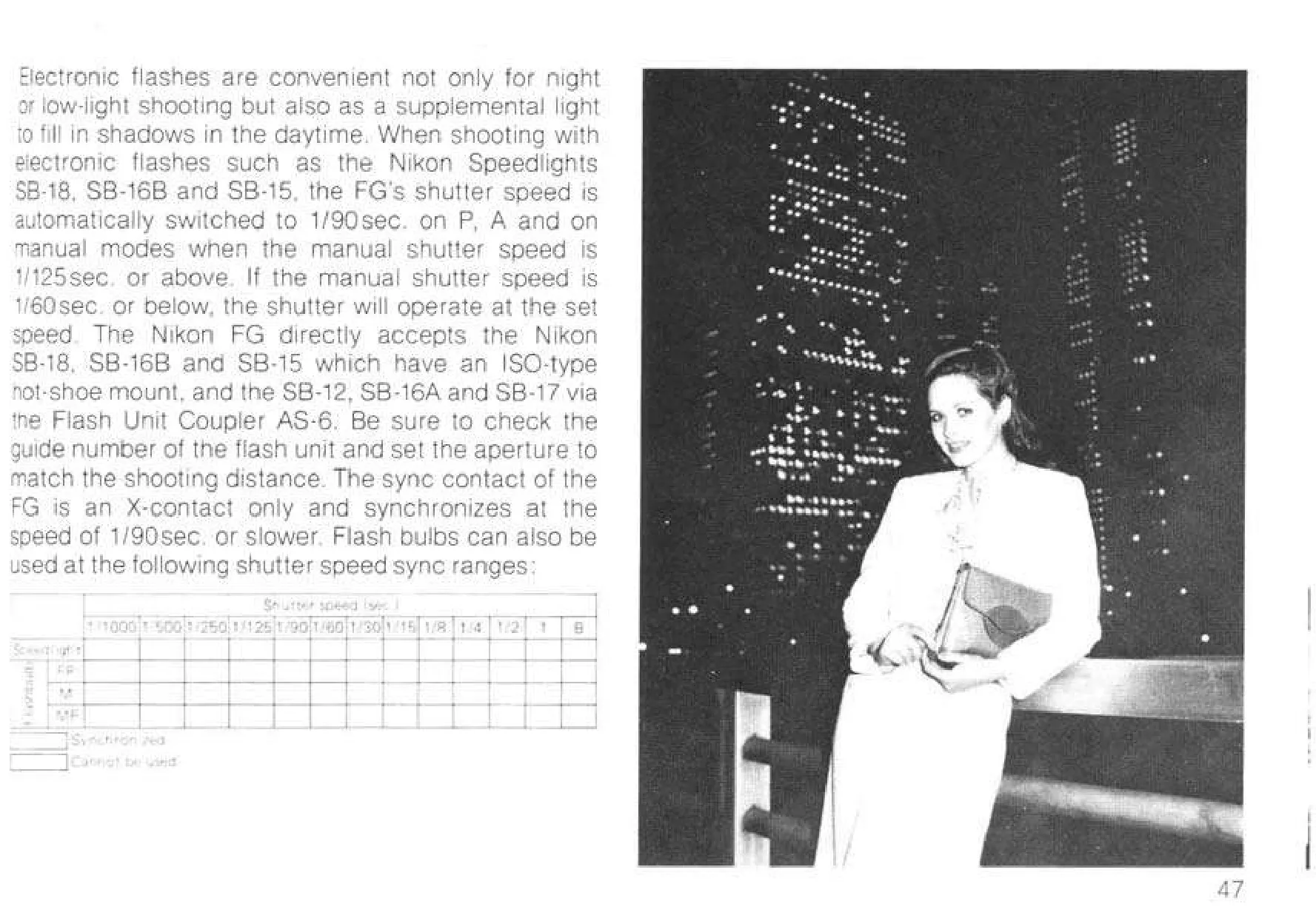

The Nikon FG is also designed for expandability, supporting a range of accessories that enhance its versatility. Its hot-shoe contacts are compatible with dedicated Nikon Speedlights like the SB-18, SB-16B, and SB-15, which automatically set the flash synchronization speed to a fast 1/90 sec. when used in P, A, or certain manual modes. Additionally, built-in electrical contacts and a mechanical coupler allow for seamless integration with motor drives such as the MD-14 or MD-E, enabling continuous shooting for capturing action sequences.

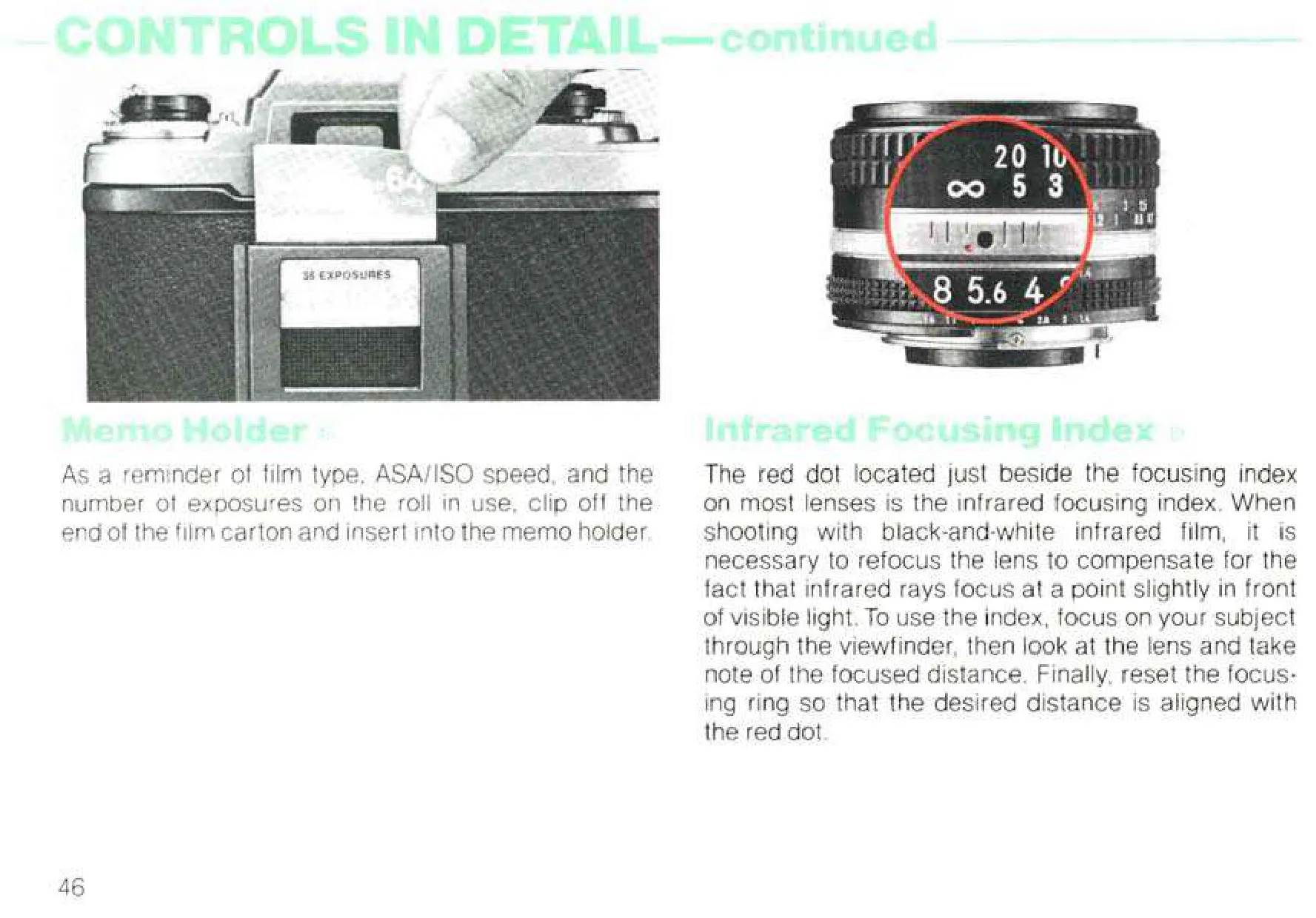

Practical features like the self-timer, which can be set for up to approximately 10 seconds and is cancellable before release, further improve usability. The camera also includes a convenient memo holder on its swinging camera back, which is interchangeable with the Data Back MF-15, expanding its data recording capabilities. These thoughtful details, combined with its compact dimensions and lightweight build, solidify the Nikon FG as a capable and user-friendly camera for enthusiasts.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Nikon FG Analog SLR Camera, and we answer them below.
