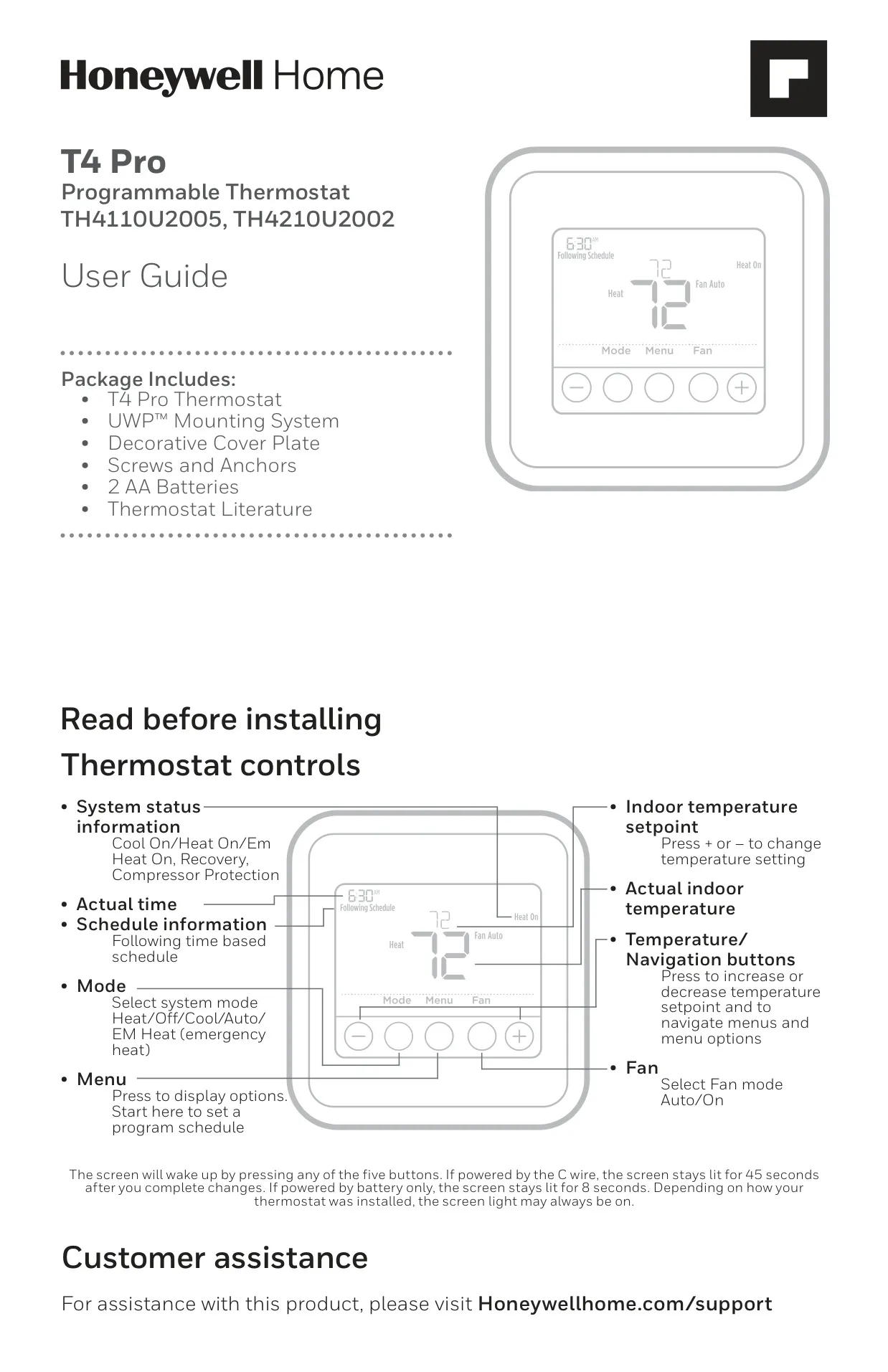

Honeywell TH4210U2002 T4 Pro

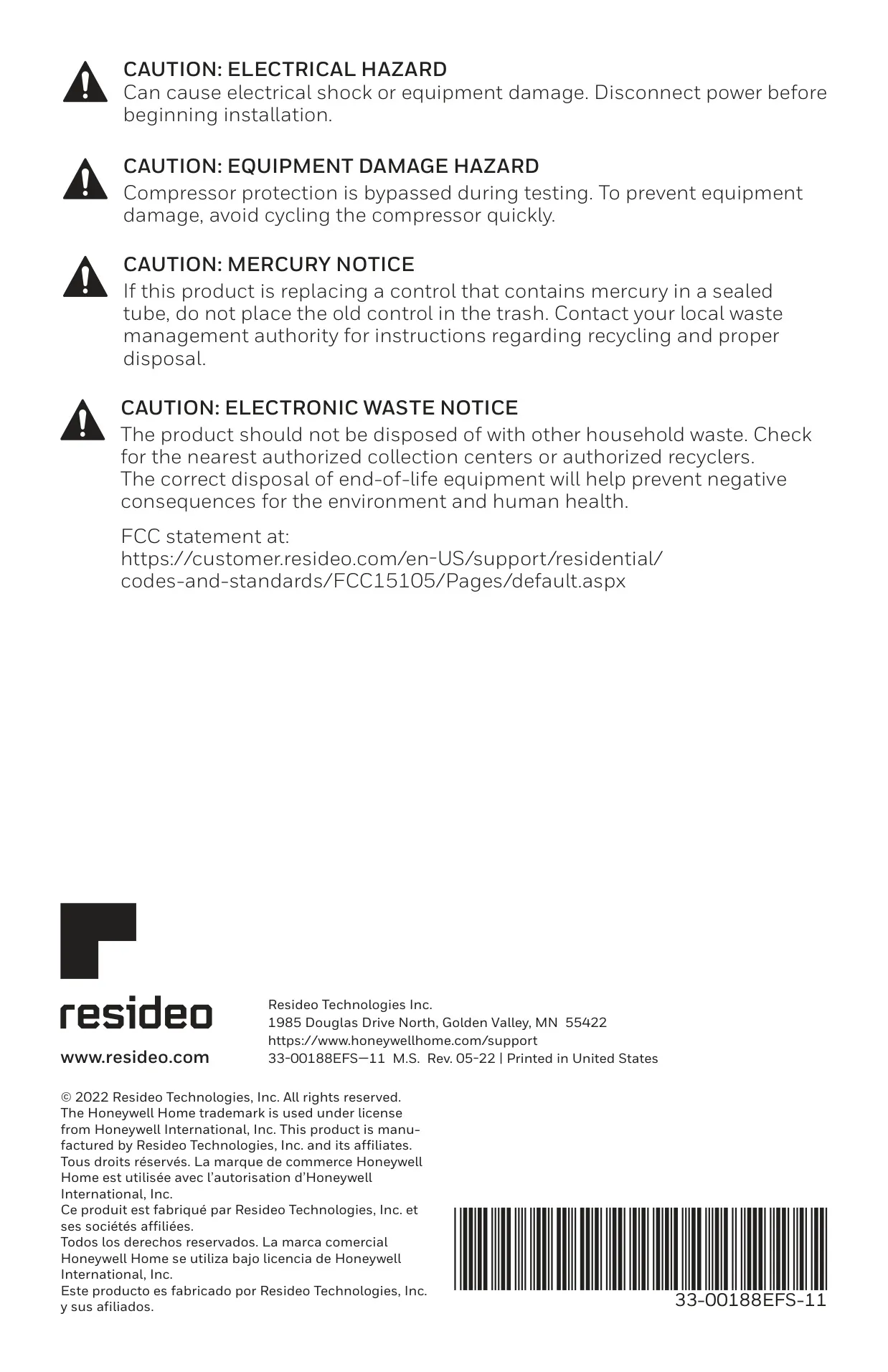

User Manual

10 pages

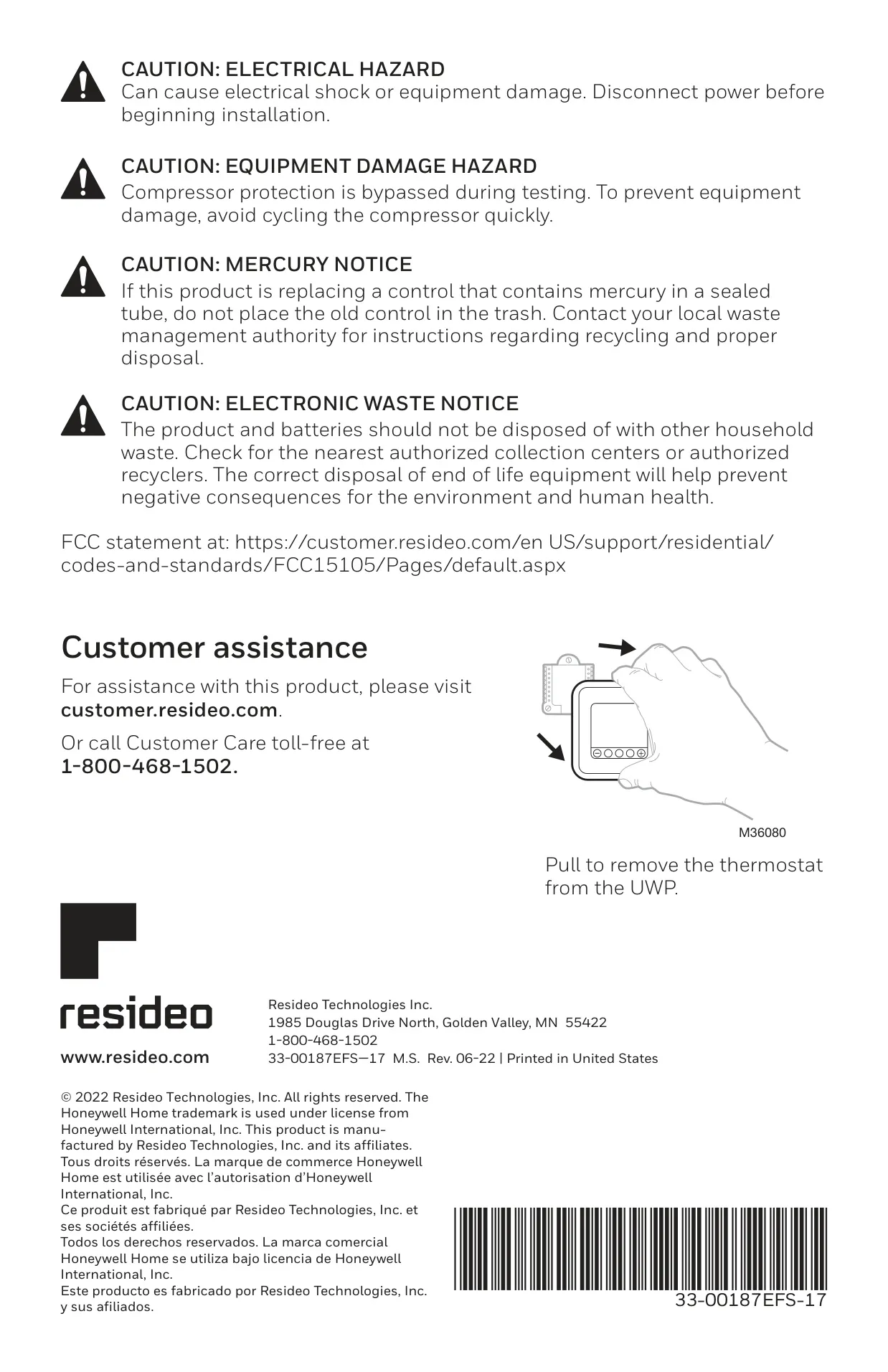

Installation Guide

12 pages

Honeywell TH4210U2002 Instructions

Here we offer the Honeywell TH4210U2002 T4 Pro manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell TH4210U2002 T4 Pro, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

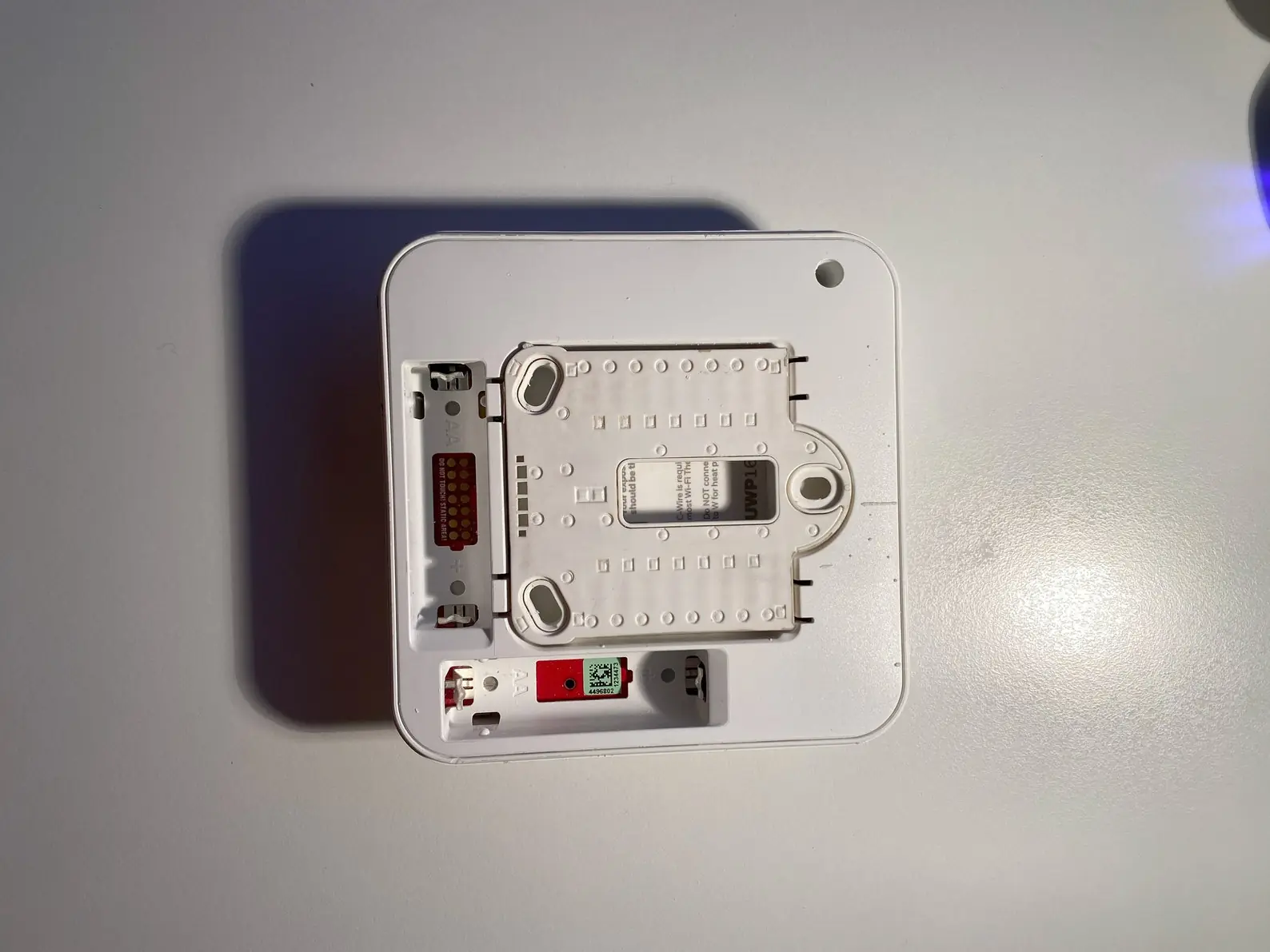

Product Images

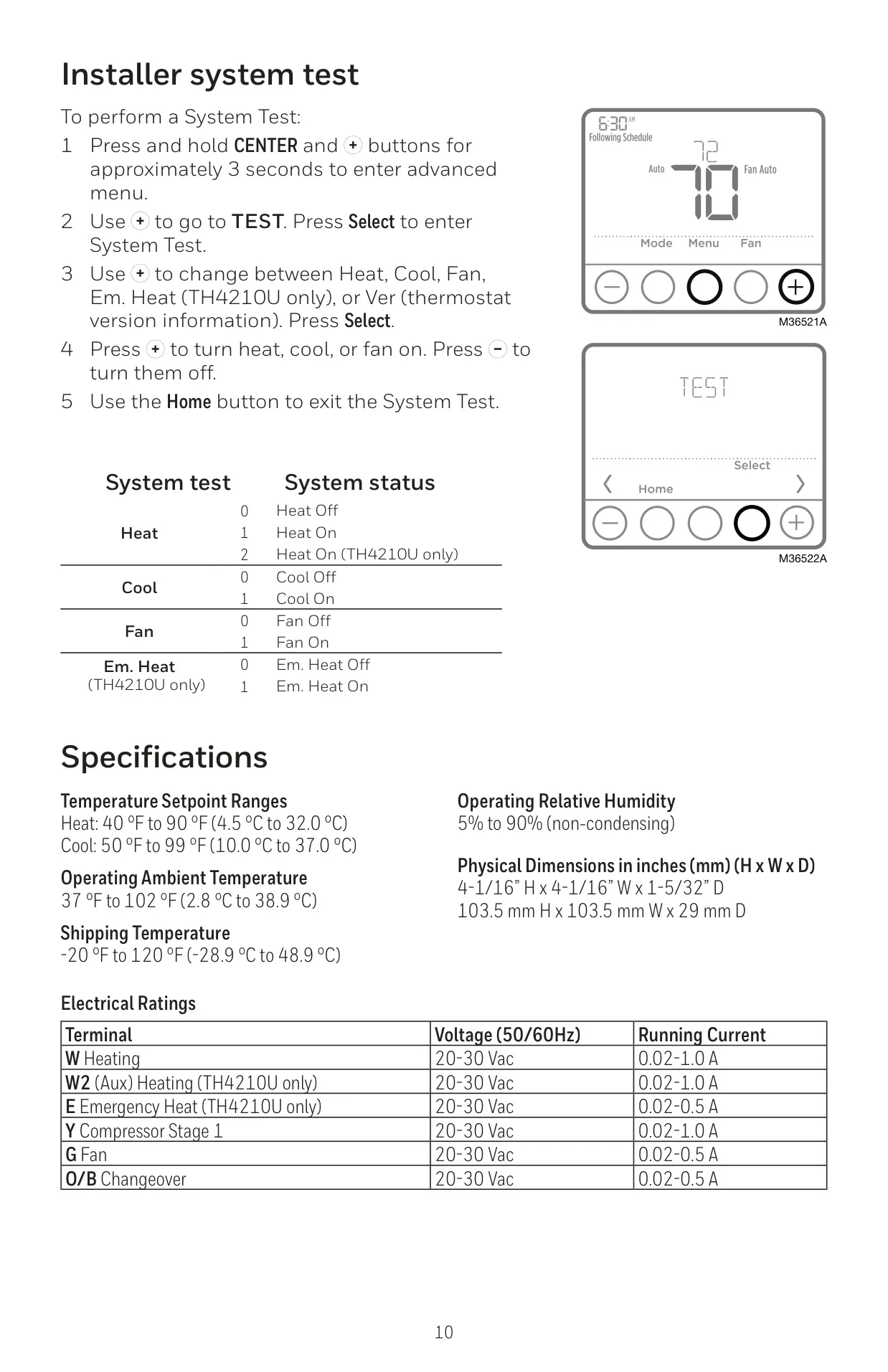

Honeywell TH4210U2002 T4 Pro Thermostat Specifications

Category	Specification
Model Number	TH4210U2002 (T4 Pro)
Temperature Setpoint Range (Heat)	40 °F to 90 °F (4.5 °C to 32.0 °C)
Temperature Setpoint Range (Cool)	50 °F to 99 °F (10.0 °C to 37.0 °C)
Operating Ambient Temperature	37 °F to 102 °F (2.8 °C to 38.9 °C)
Operating Relative Humidity	5% to 90% (non-condensing)
Shipping Temperature	-20 °F to 120 °F (-28.9 °C to 48.9 °C)
Physical Dimensions (H x W x D)	4-1/16” H x 4-1/16” W x 1-5/32” D (103.5 mm H x 103.5 mm W x 29 mm D)
Electrical Ratings - W Heating	20-30 Vac, 0.02-1.0 A
Electrical Ratings - W2(Aux) Heating (TH4210U only)	20-30 Vac, 0.02-1.0 A
Electrical Ratings - E Emergency Heat (TH4210U only)	20-30 Vac, 0.02-0.5 A
Electrical Ratings - Y Compressor Stage 1	20-30 Vac, 0.02-1.0 A
Electrical Ratings - G Fan	20-30 Vac, 0.02-0.5 A
Electrical Ratings - O/B Changeover	20-30 Vac, 0.02-0.5 A
Power Options	2 AA Batteries (Primary/Backup) or 24VAC (with C-wire)
Programmability	5-2, 5-1-1, or 7-Day Programmable

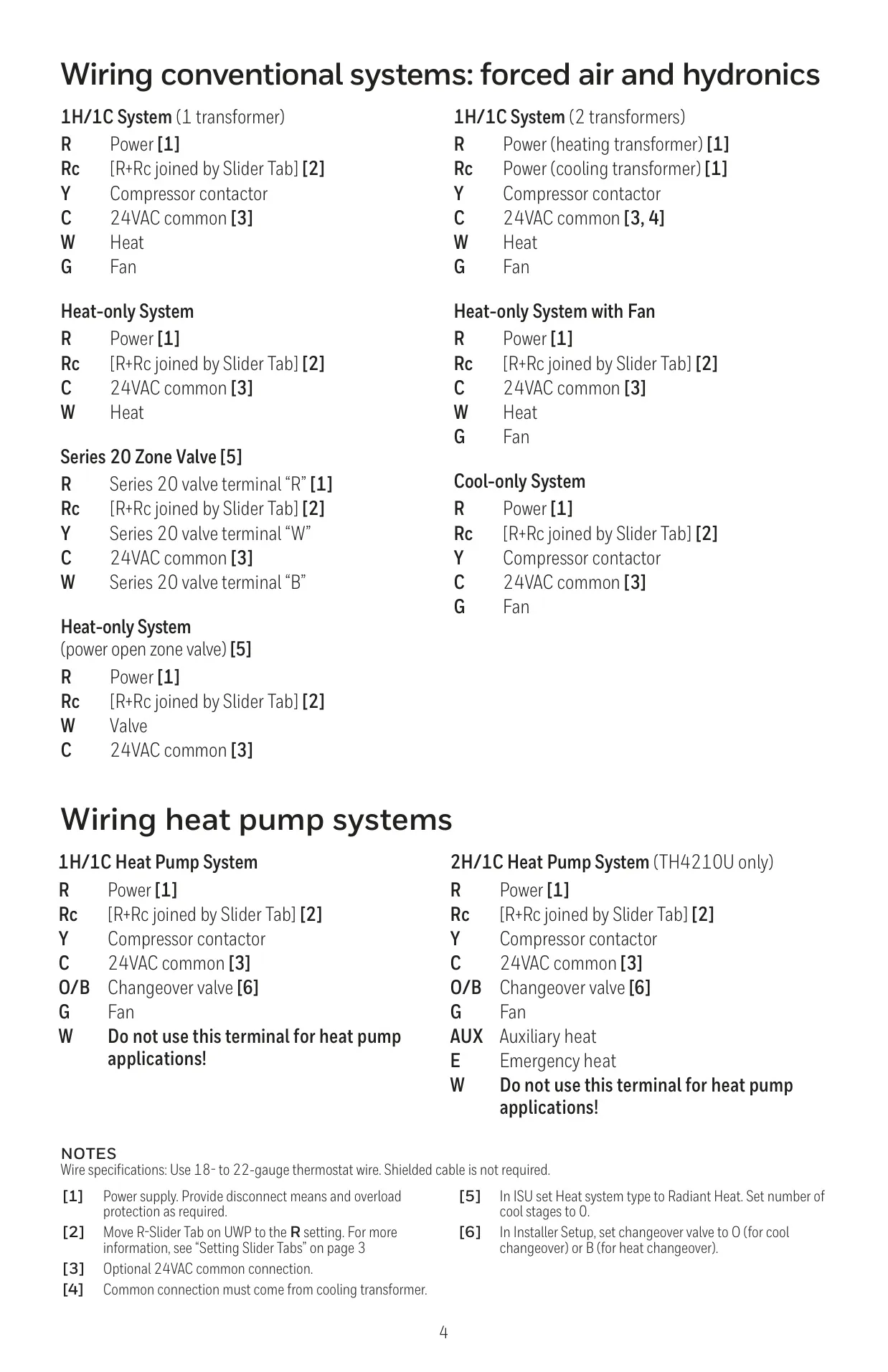

Honeywell TH4210U2002 T4 Pro Details

The Honeywell TH4210U2002, part of the T4 Pro series, is a versatile programmable thermostat designed for comfort and energy savings. Its user-friendly interface features a backlit screen that wakes up with any button press, staying illuminated for 45 seconds if powered by a C-wire or 8 seconds on battery-only power. The display clearly shows system status, actual time, schedule information, and both the indoor temperature and desired setpoint.

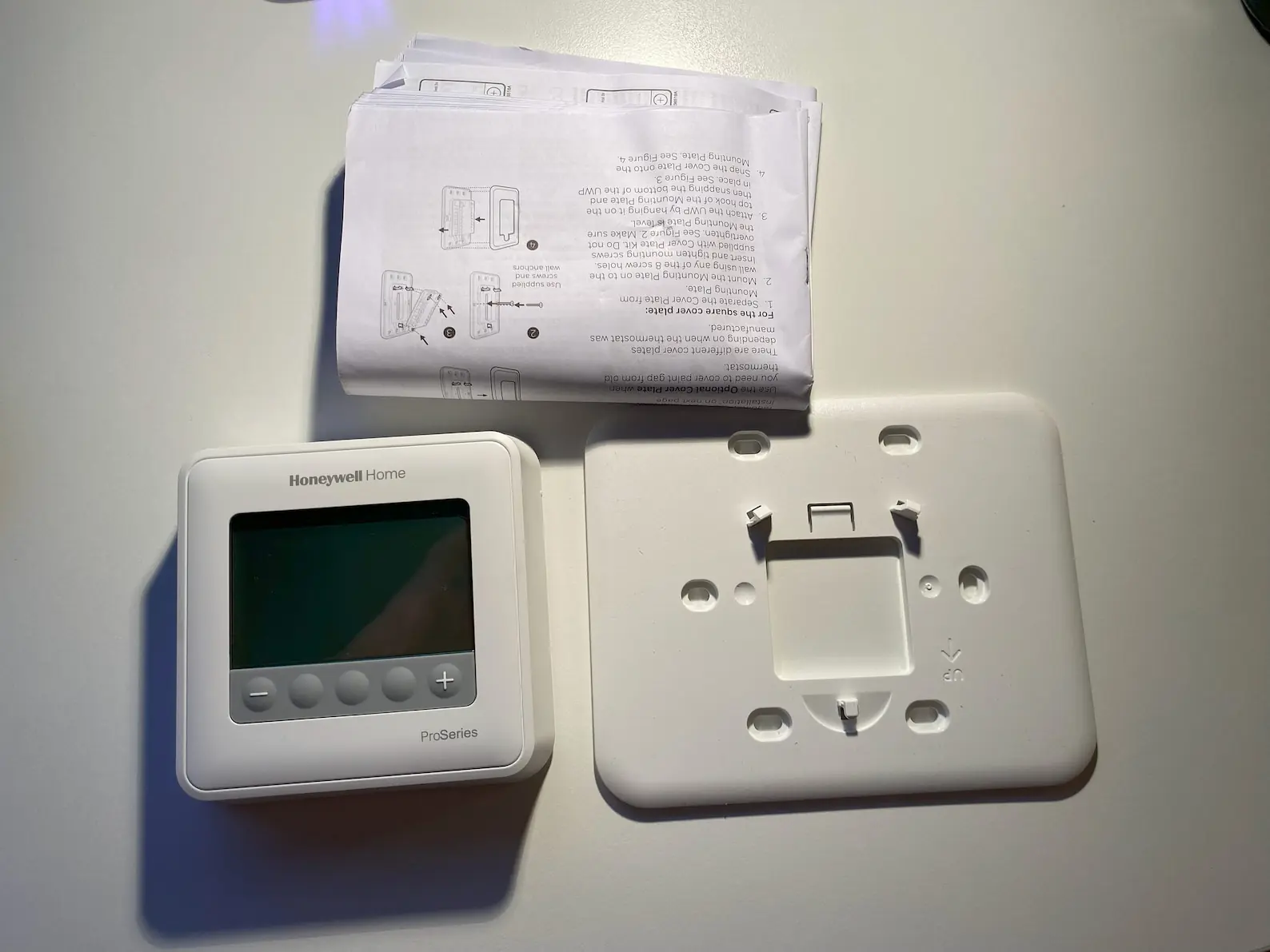

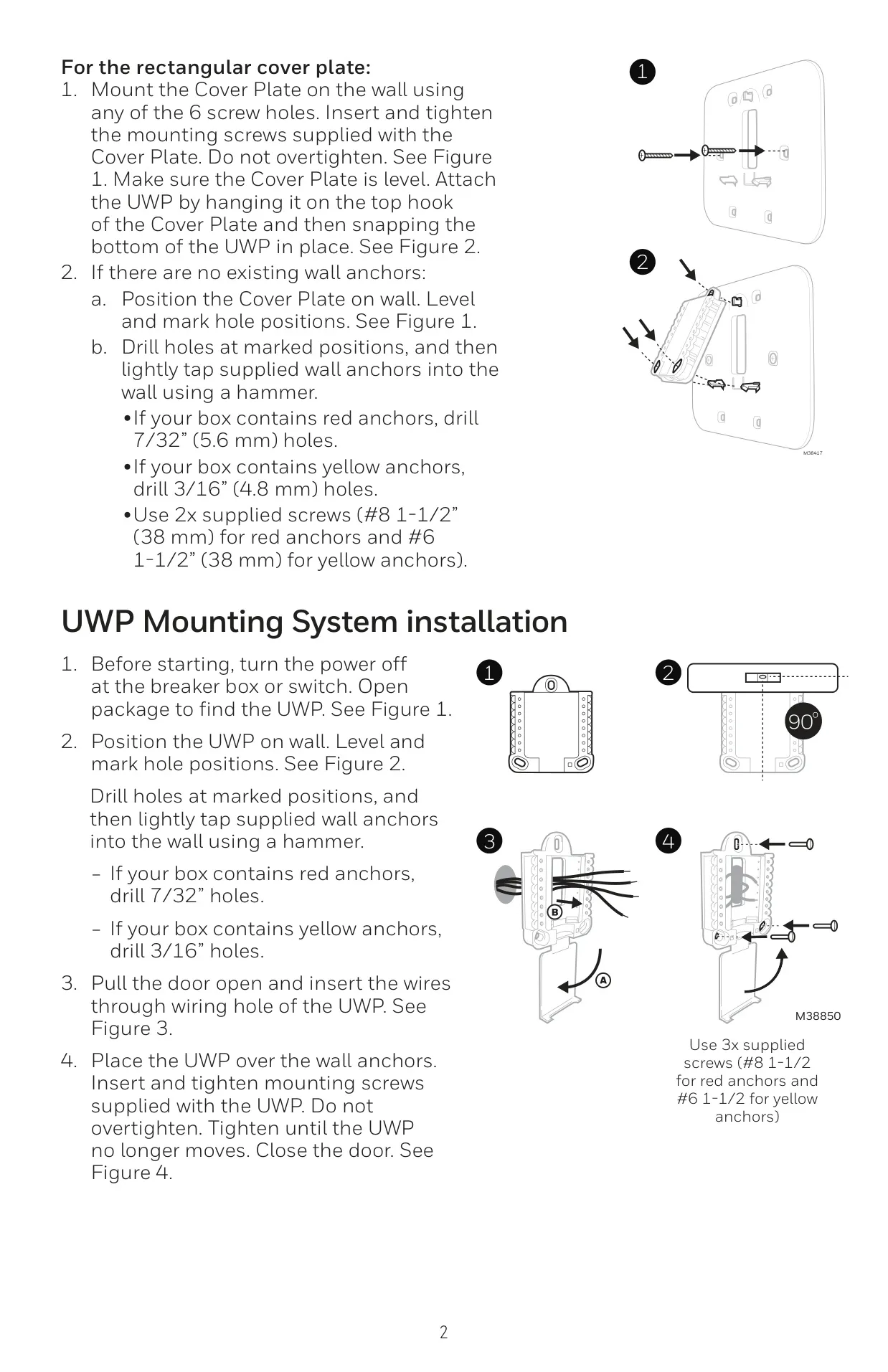

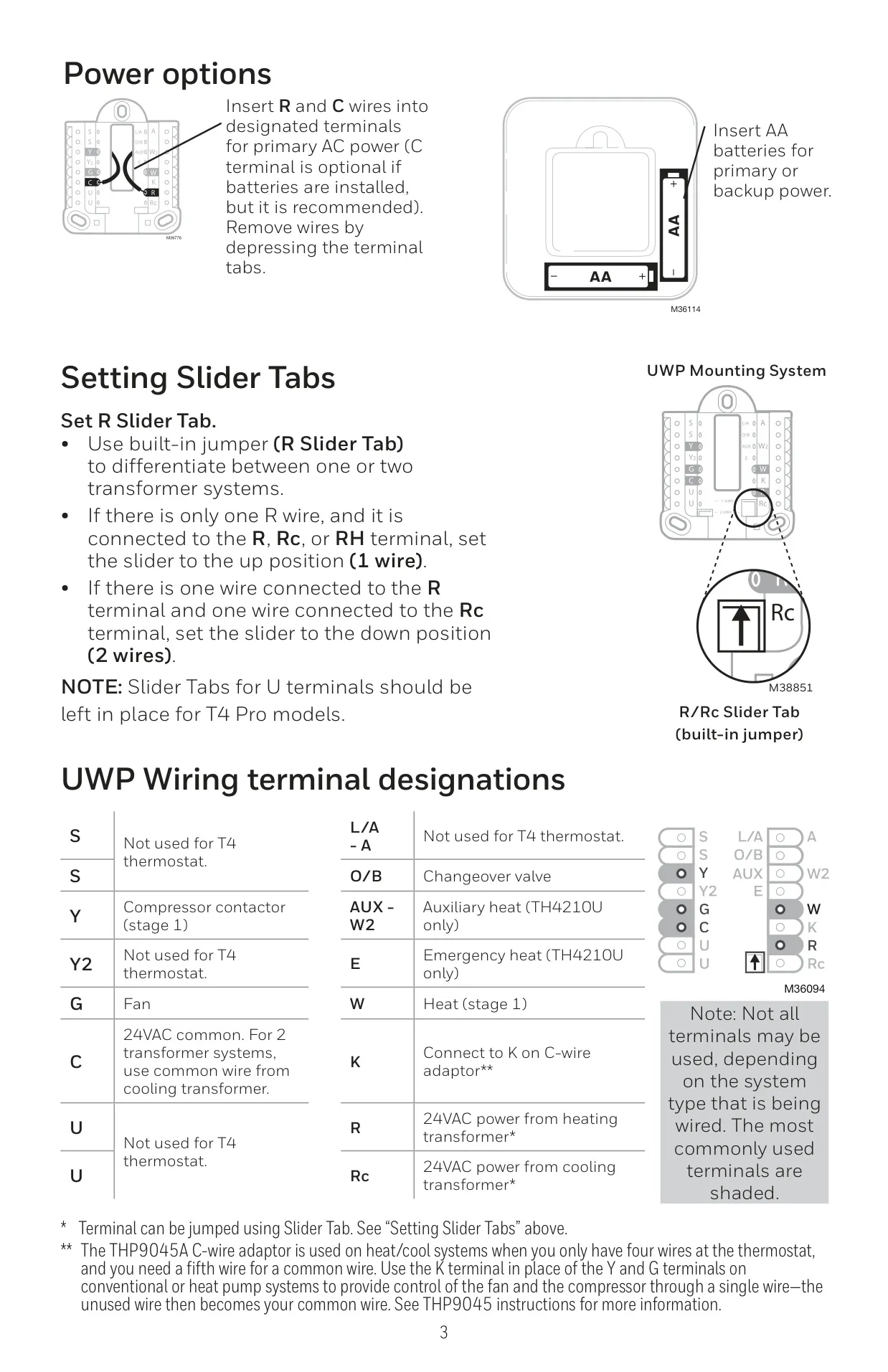

Included in the package are the T4 Pro Thermostat, a UWP™ Mounting System, a decorative cover plate for aesthetics, necessary screws and anchors, two AA batteries, and comprehensive literature. The UWP system simplifies installation by accommodating various wiring configurations and provides a built-in R-Slider Tab to easily differentiate between one or two transformer systems, ensuring compatibility with a wide range of HVAC setups.

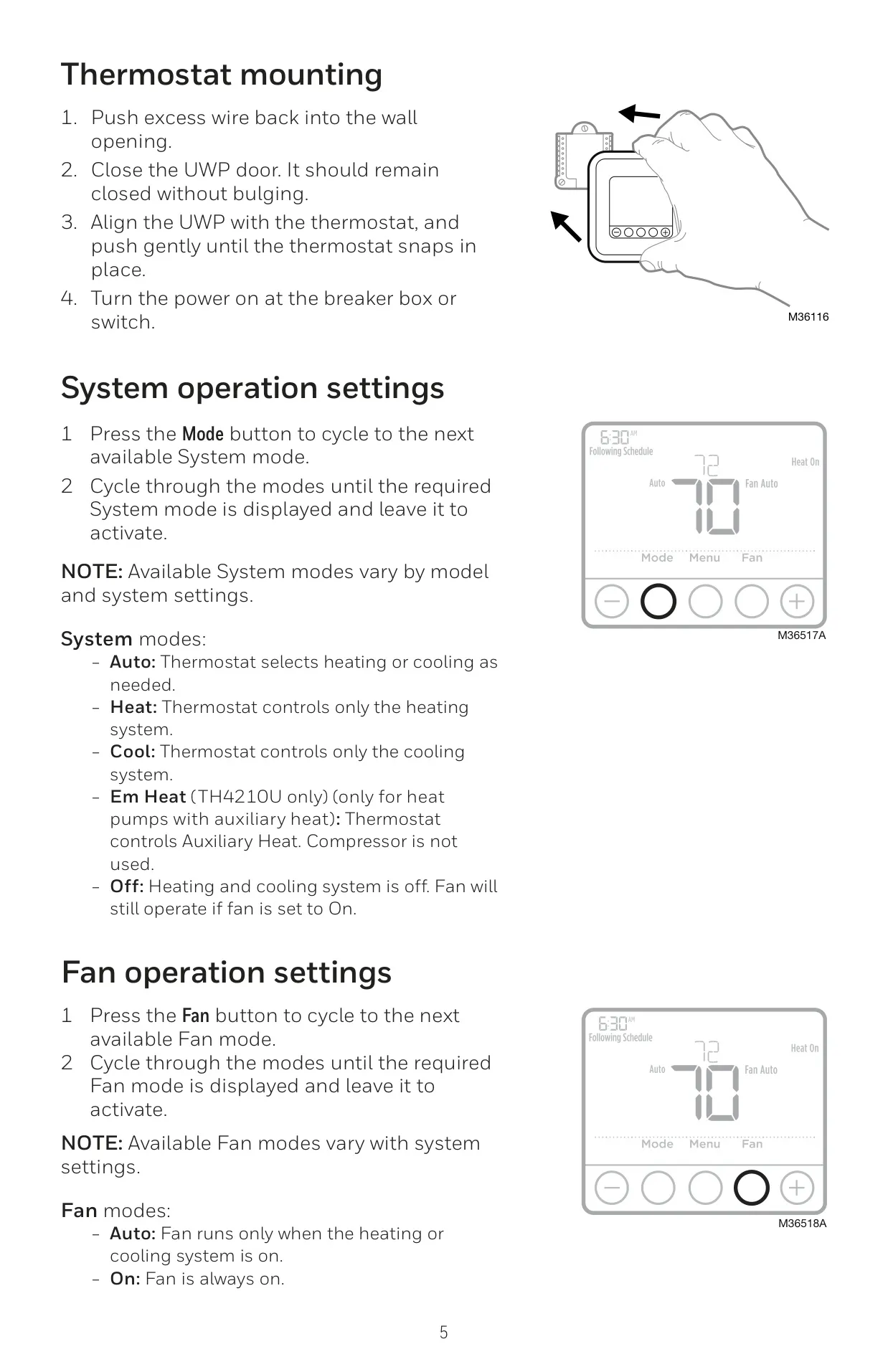

The thermostat offers several system operation modes, including Heat, Cool, Off, Auto, and Em. Heat (Emergency Heat), which is exclusive to the TH4210U2002 model for heat pump systems with auxiliary heat. Fan operation can be set to either Auto, where the fan runs only with the heating or cooling system, or On, for continuous airflow, allowing users to customize air circulation.

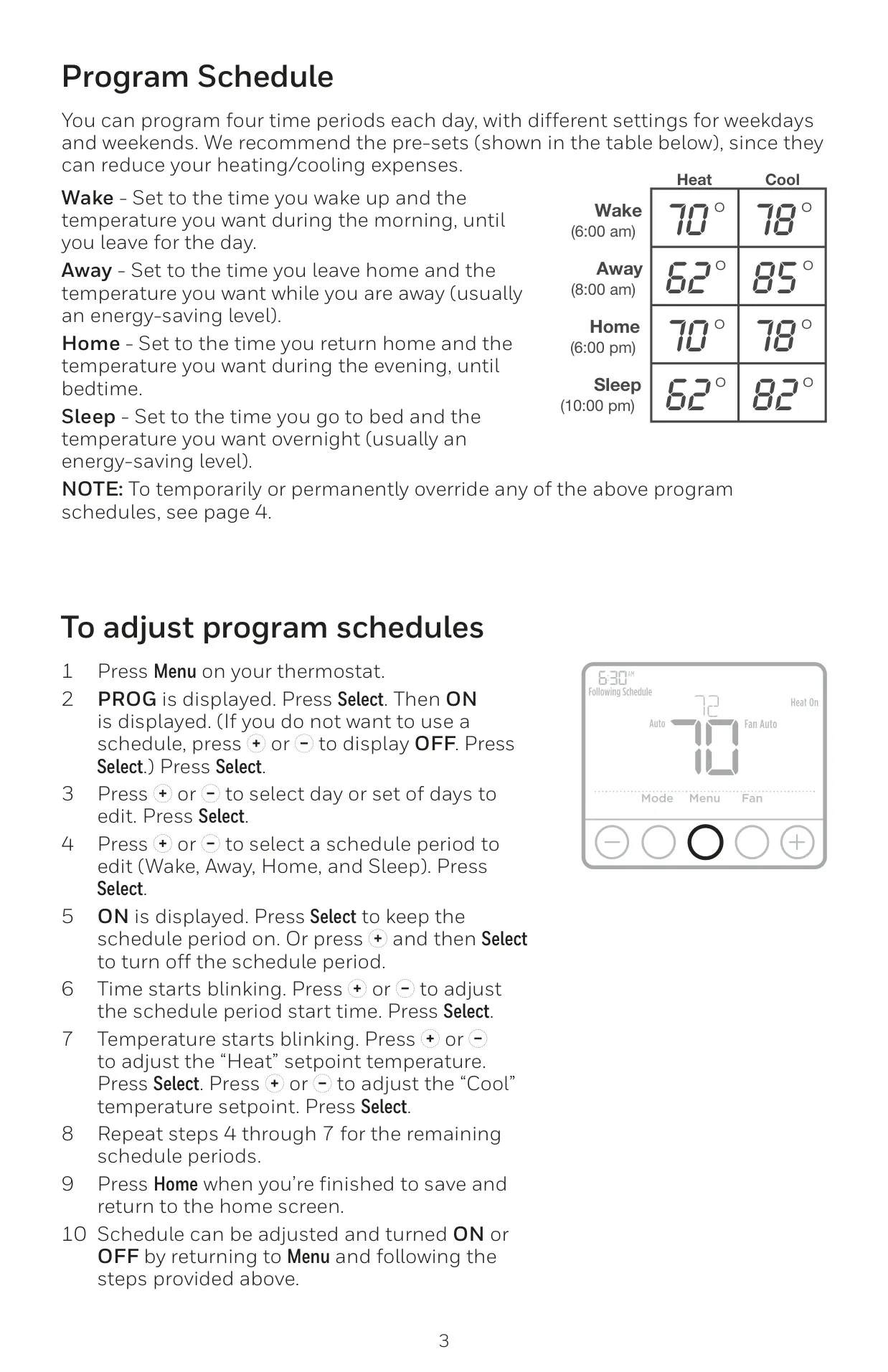

A key feature is its flexible programming schedule. Users can program four distinct time periods each day—Wake, Away, Home, and Sleep—with independent settings for weekdays and weekends. This allows for tailored temperature management throughout the week, with recommended pre-sets aimed at reducing heating and cooling expenses. Users can also temporarily or permanently override these schedules as needed.

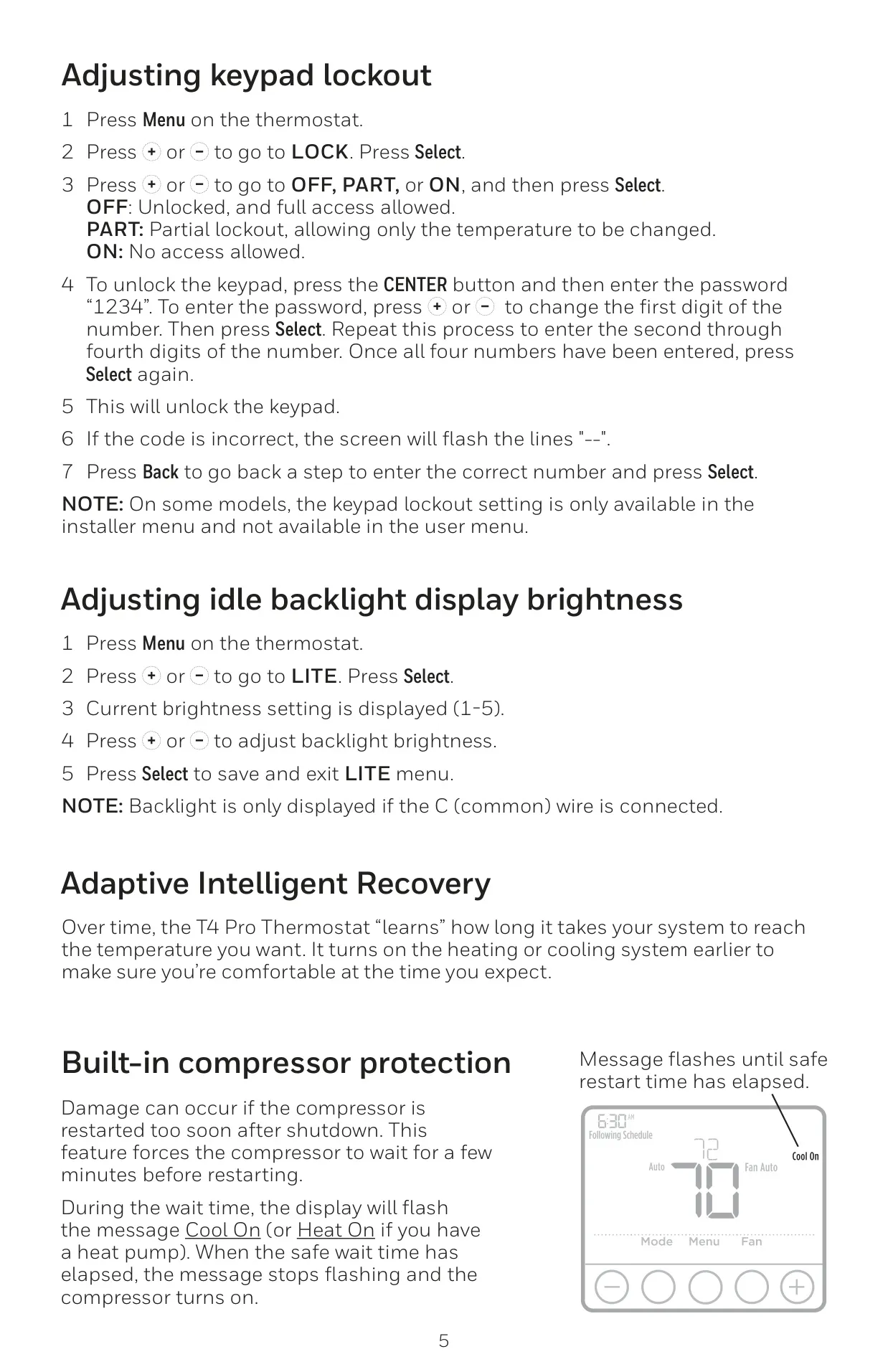

For enhanced control, the TH4210U2002 includes a keypad lockout feature, offering three levels: OFF (unlocked), PART (partial lockout, allowing only temperature changes), and ON (no access). This is secured by a "1234" password, providing security against unauthorized adjustments. The backlight brightness is also adjustable from levels 1 to 5, though continuous backlighting requires a common (C) wire connection.

The thermostat incorporates Adaptive Intelligent Recovery (AIR), a smart feature that learns how long your HVAC system takes to reach a desired temperature. It activates heating or cooling earlier to ensure the setpoint is met precisely at the scheduled time. Additionally, built-in compressor protection prevents damage by enforcing a brief wait time before restarting the compressor, indicated by a flashing "Cool On" or "Heat On" message.

Battery management is straightforward; the thermostat uses two AA alkaline batteries which are optional if a C-wire provides primary power but required otherwise. A low battery icon appears approximately two months before depletion, and annual replacement is recommended. Crucially, settings are stored in memory, and the time/day only needs resetting if batteries are out for more than two minutes.

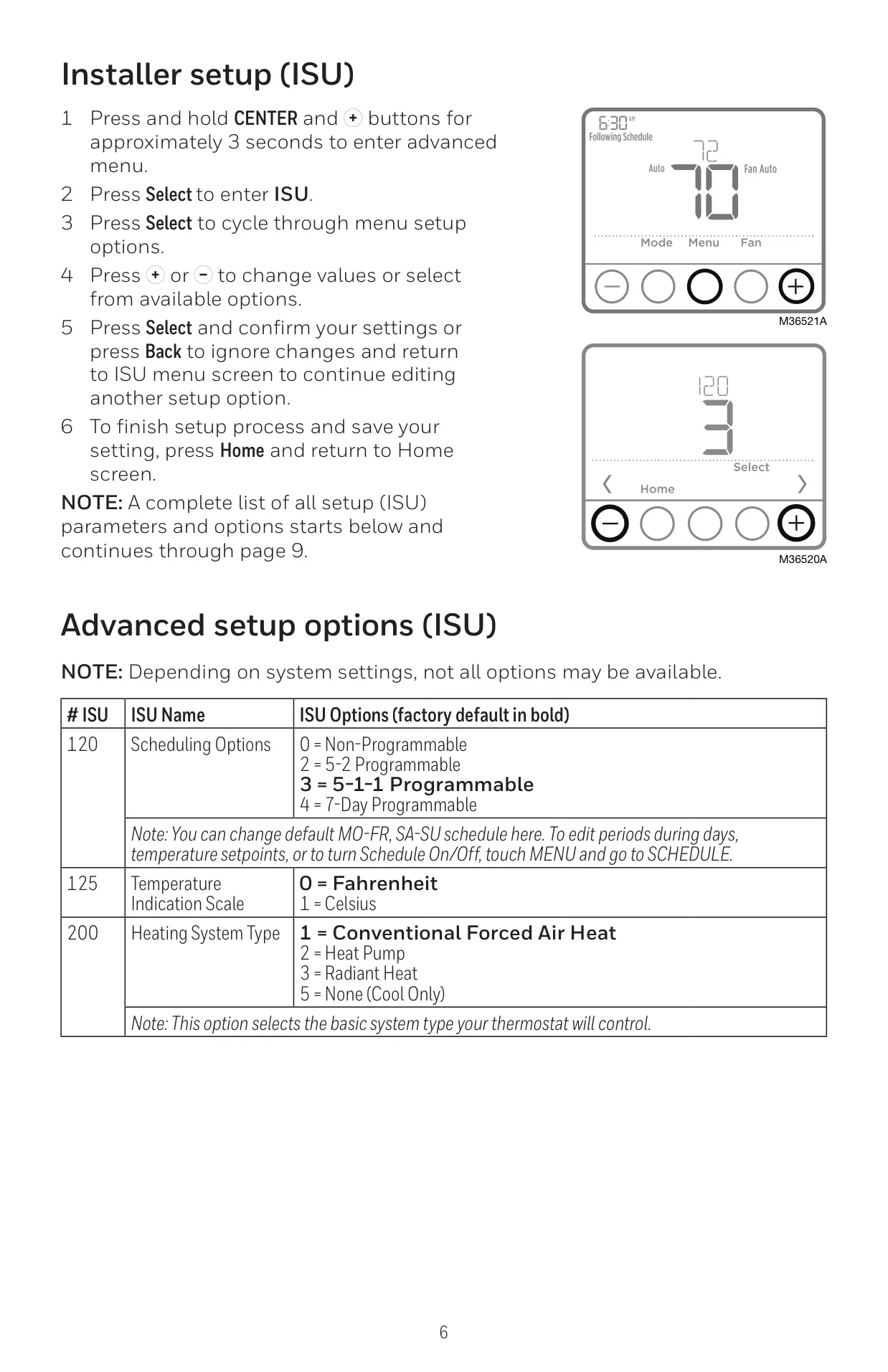

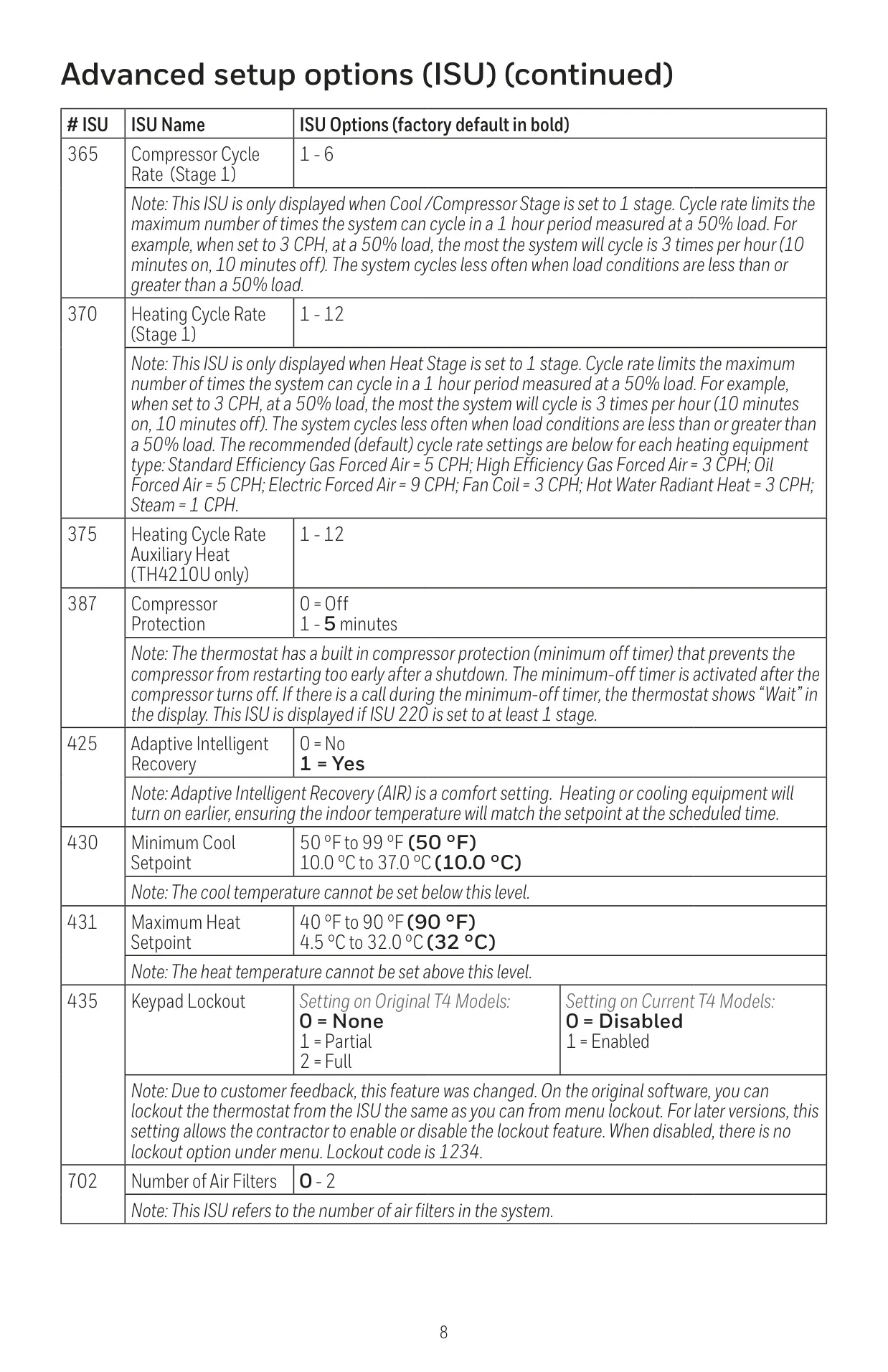

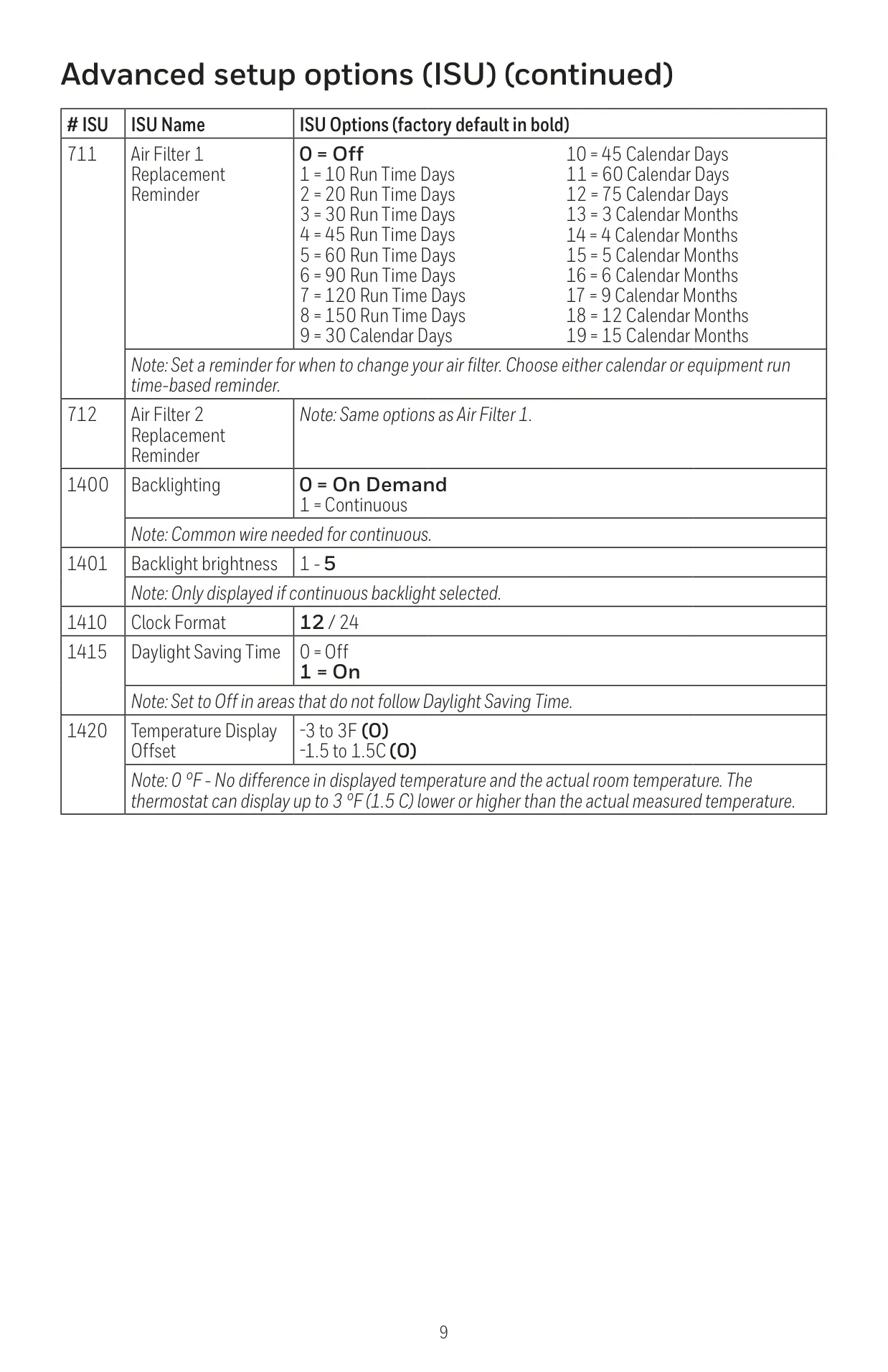

The TH4210U2002 also provides helpful alerts and reminders, such as a low battery warning and an air filter replacement reminder. The air filter reminder can be configured based on equipment run time or calendar days and can be snoozed for 7 days or cleared after maintenance. Advanced installer setup (ISU) options allow professionals to fine-tune system parameters, including scheduling types, heating equipment specifics, cycle rates, and temperature offsets.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell TH4210U2002 T4 Pro Thermostat, and we answer them below.

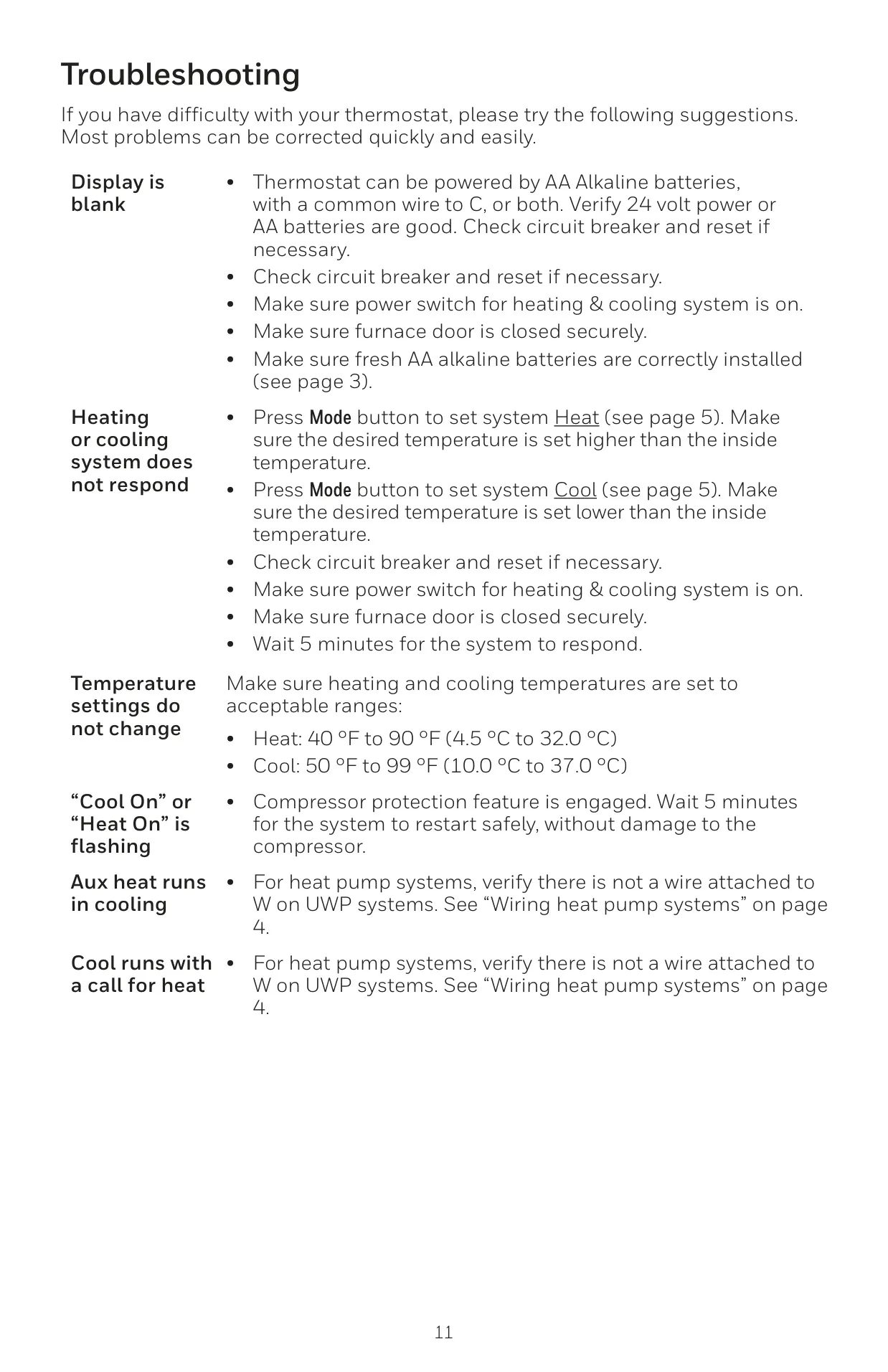

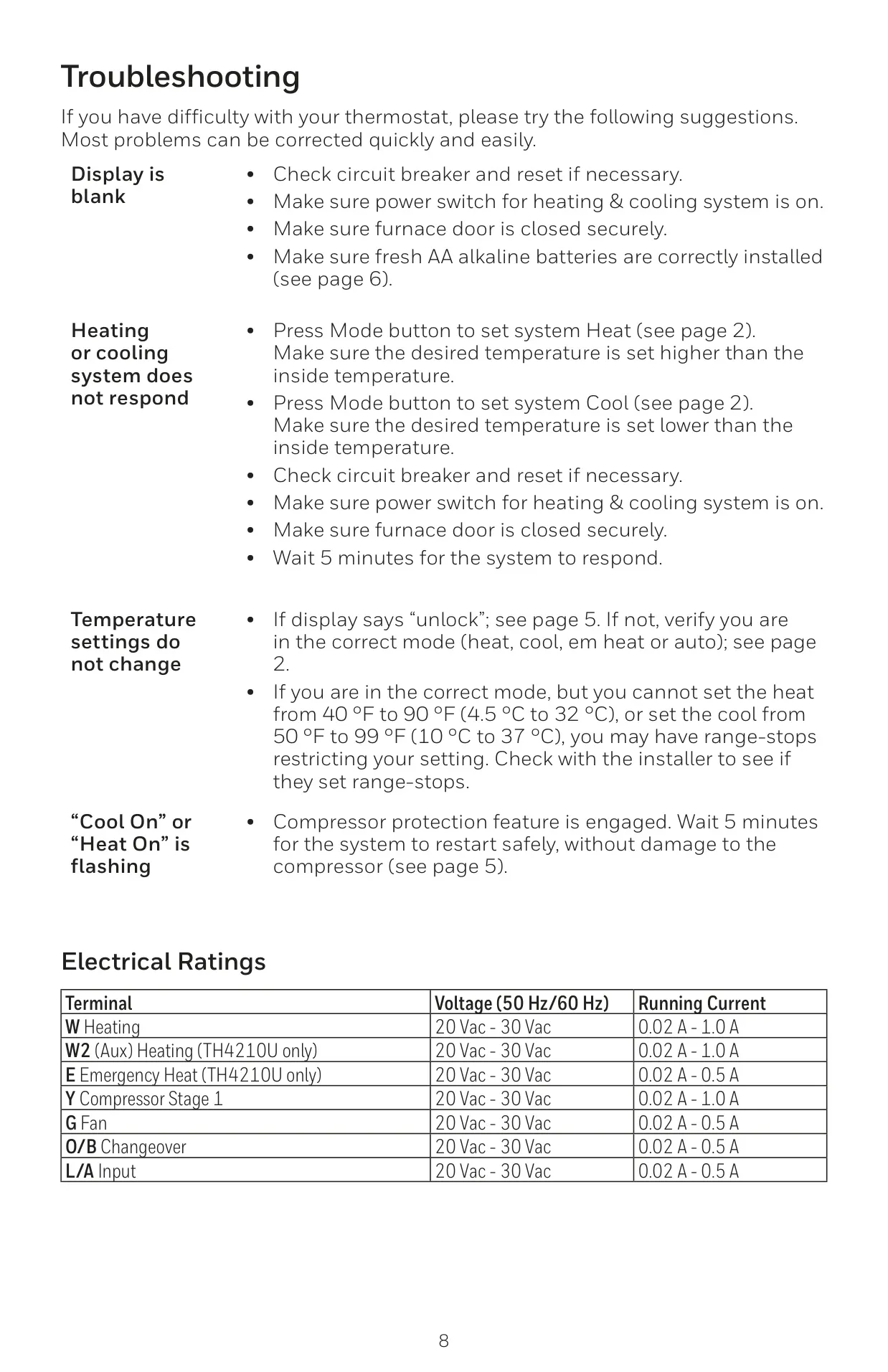

What should I do if the thermostat display is blank?

First, check your circuit breaker and reset it if necessary. Ensure the power switch for your heating/cooling system is on and the furnace door is securely closed. Also, verify that fresh AA alkaline batteries are correctly installed.

Why isn't my heating or cooling system responding to the thermostat?

Confirm that the system mode is set to Heat or Cool and that the desired temperature is appropriately higher (for heat) or lower (for cool) than the inside temperature. Recheck the circuit breaker, power switch, and furnace door. Allow 5 minutes for the system to respond after making changes.

My temperature settings are not changing. What's wrong?

Ensure the keypad isn't locked; if it shows "unlock," enter the password "1234". Verify you are in the correct mode (Heat, Cool, Em. Heat, or Auto). If the issue persists, check if range-stops have been set in the installer menu, which restrict the temperature adjustment limits (e.g., Heat: 40-90 °F, Cool: 50-99 °F).

Why is 'Cool On' or 'Heat On' flashing on the display?

This indicates that the compressor protection feature is engaged. This feature prevents damage by enforcing a brief waiting period before the compressor restarts. Please wait approximately 5 minutes for the system to safely restart, and the flashing will stop.

How do I set the time and date on my thermostat?

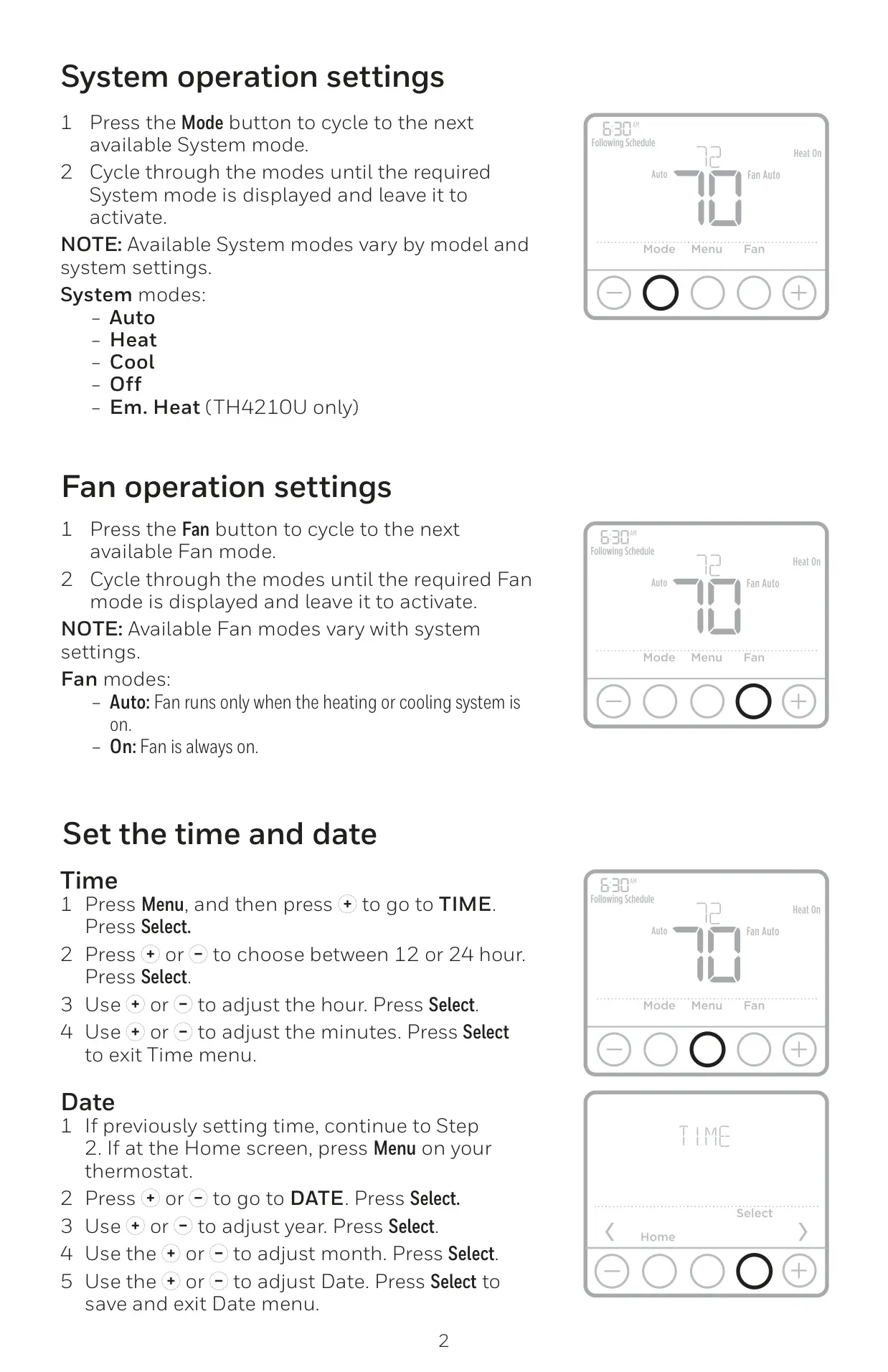

Press the Menu button, then navigate to TIME and press Select. Choose 12 or 24 hour format, then adjust the hour and minutes using the navigation buttons. Press Select after each adjustment. For the date, go to DATE in the Menu and adjust the year, month, and date similarly.

How can I adjust the program schedule?

Press Menu, then Select when PROG is displayed. You can then select the day or set of days, and the specific schedule period (Wake, Away, Home, Sleep) to edit. Adjust the start time and the Heat/Cool setpoint temperatures for each period. Press Home when finished to save.

What is the difference between a temporary and permanent schedule override?

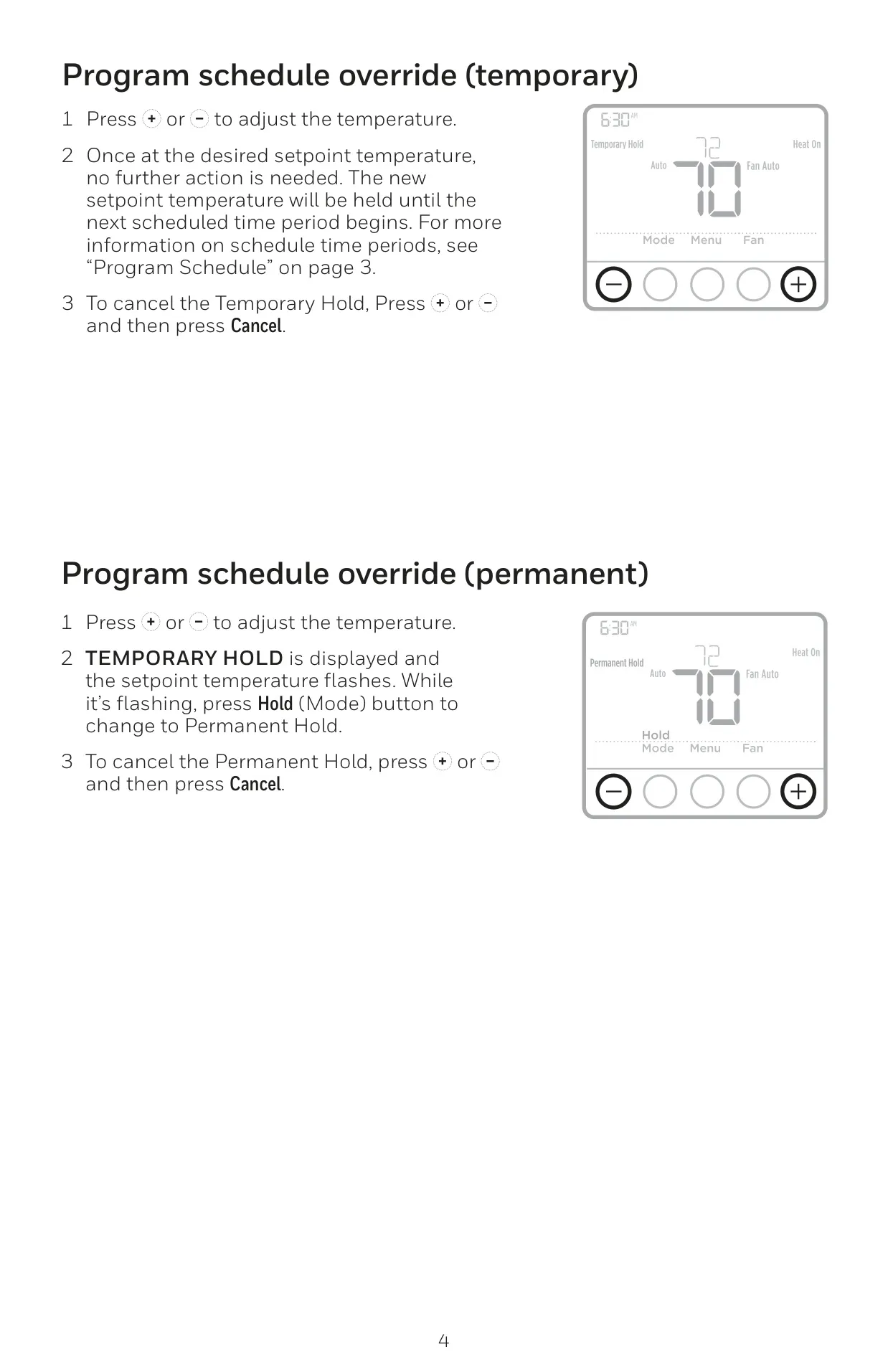

A *temporary override* changes the setpoint until the next scheduled time period begins. Simply adjust the temperature using the +/- buttons. A *permanent hold* maintains a temperature indefinitely. Adjust the temperature, and while "TEMPORARY HOLD" flashes, press the Hold (Mode) button to change it to Permanent Hold. Both can be cancelled by pressing Cancel.

What is Adaptive Intelligent Recovery (AIR)?

AIR is a comfort feature where the thermostat "learns" the optimal time to activate your heating or cooling system. It turns on the system earlier to ensure your home reaches the desired temperature precisely at your scheduled time, enhancing comfort and efficiency.

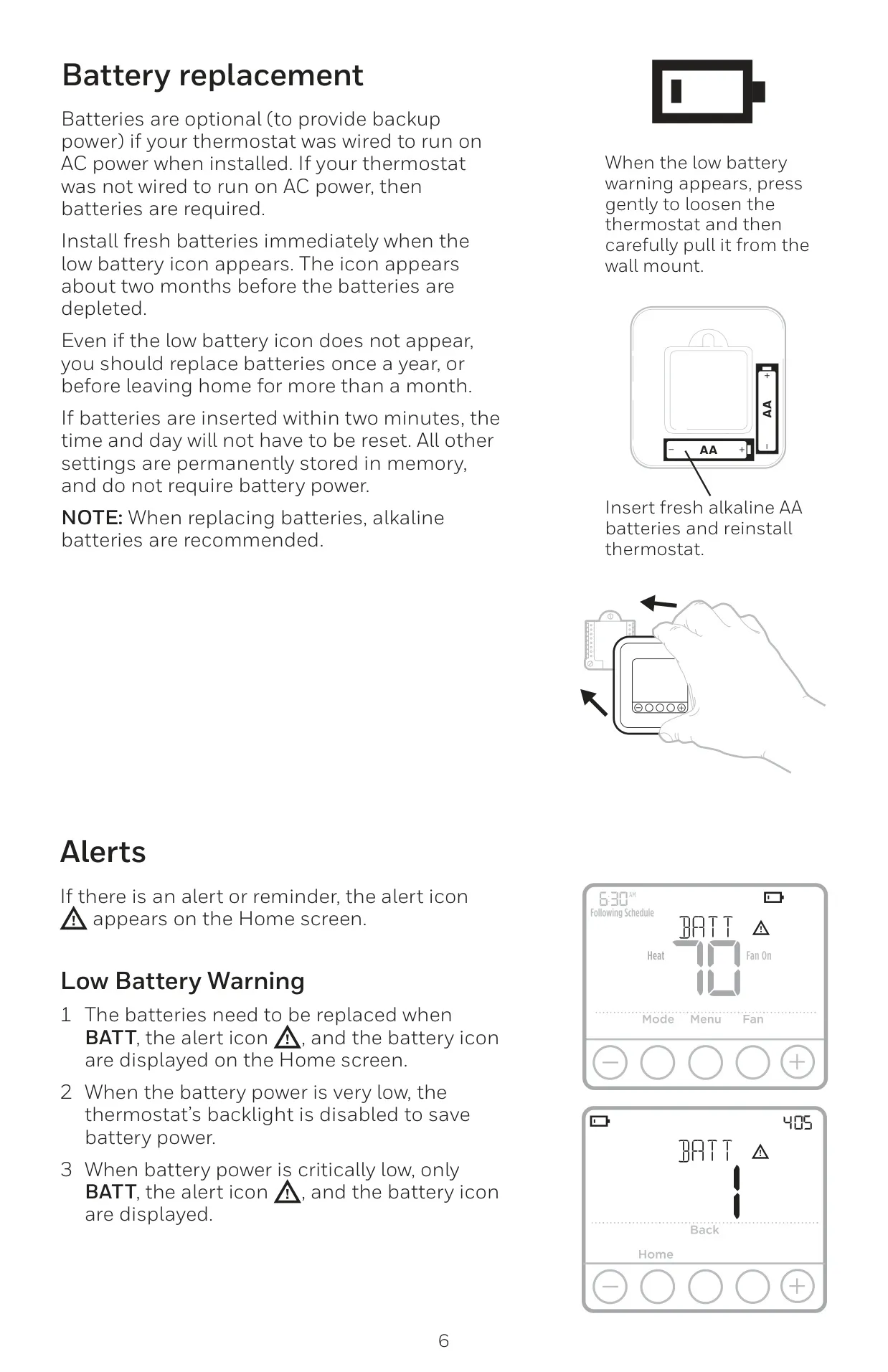

When should I replace the batteries in my thermostat?

If your thermostat is not C-wire powered, batteries are required. If it has C-wire, they are for backup. The low battery icon appears about two months before depletion. Even without the icon, it's recommended to replace alkaline AA batteries once a year or before leaving home for an extended period.

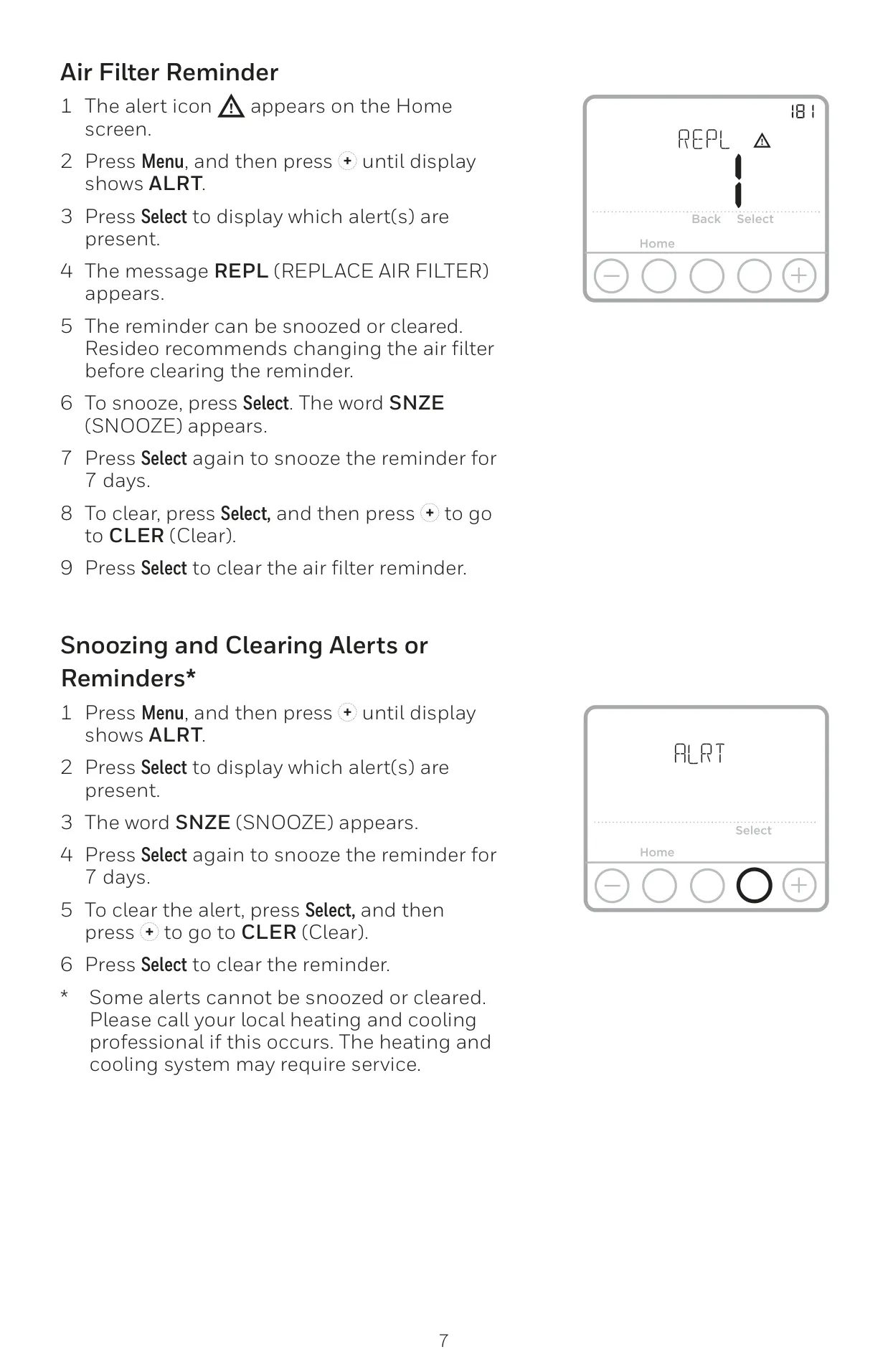

How do I clear an Air Filter Reminder?

When the alert icon appears on the Home screen, press Menu and navigate to ALRT. Press Select to view the alert, which will show "REPL" (REPLACE AIR FILTER). You can then choose to "SNZE" (Snooze) the reminder for 7 days or "CLER" (Clear) it after you've changed the filter.

What are the different keypad lockout options?

The TH4210U2002 offers three lockout settings: OFF (unlocked, full access), PART (partial lockout, only temperature changes allowed), and ON (no access allowed). To unlock, press the CENTER button and enter the password "1234".

Why does Aux heat run during cooling cycles on my heat pump system?

This typically indicates a wiring error. For heat pump systems, ensure that there is no wire connected to the W terminal on the UWP mounting system. Refer to the "Wiring heat pump systems" section in your installation guide for correct terminal connections.
