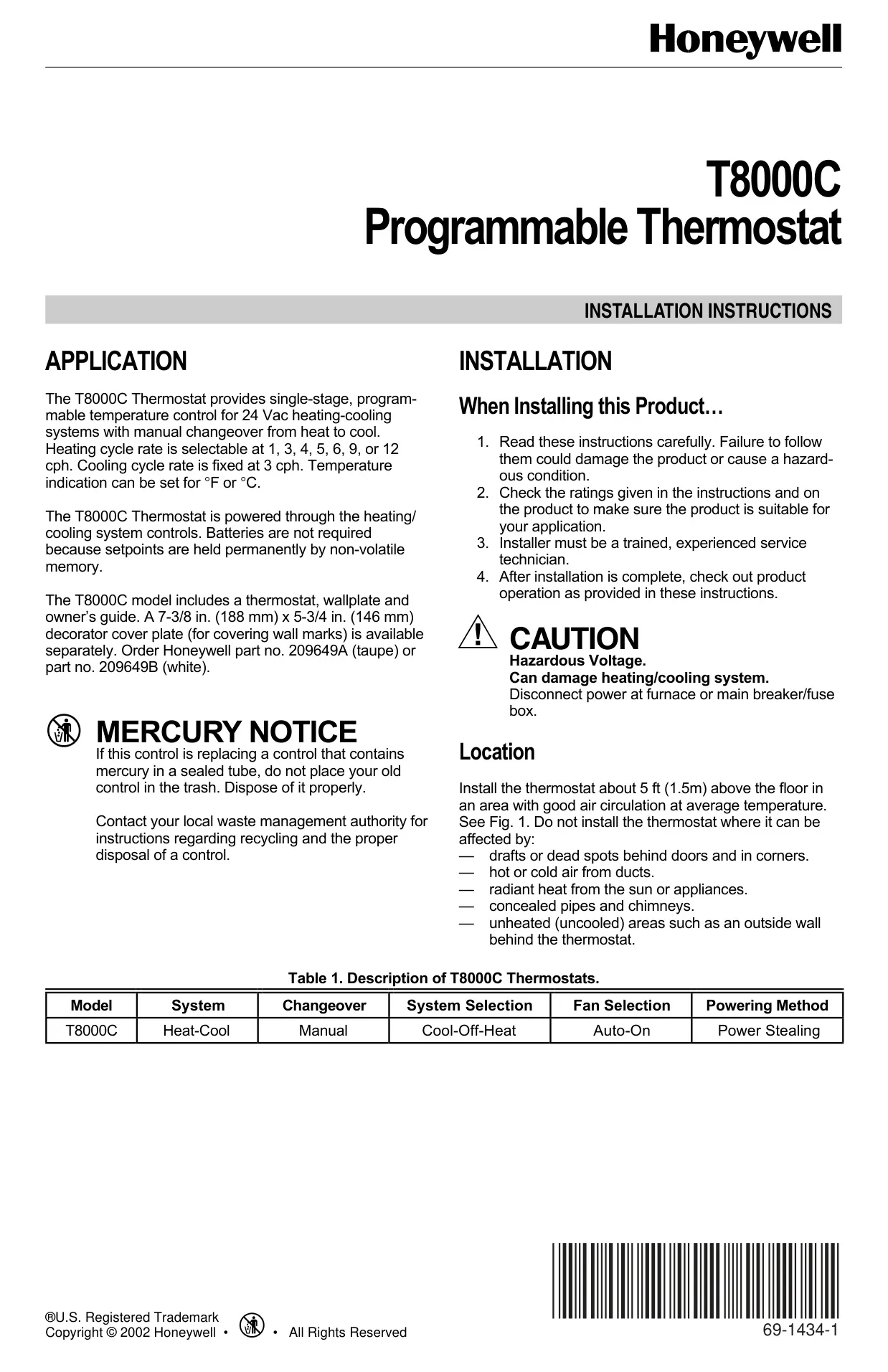

Installation Guide

8 pages

Data Sheet

12 pages

Honeywell T8000C Thermostat Instructions

Here we offer the Honeywell T8000C Thermostat manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell T8000C Thermostat, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

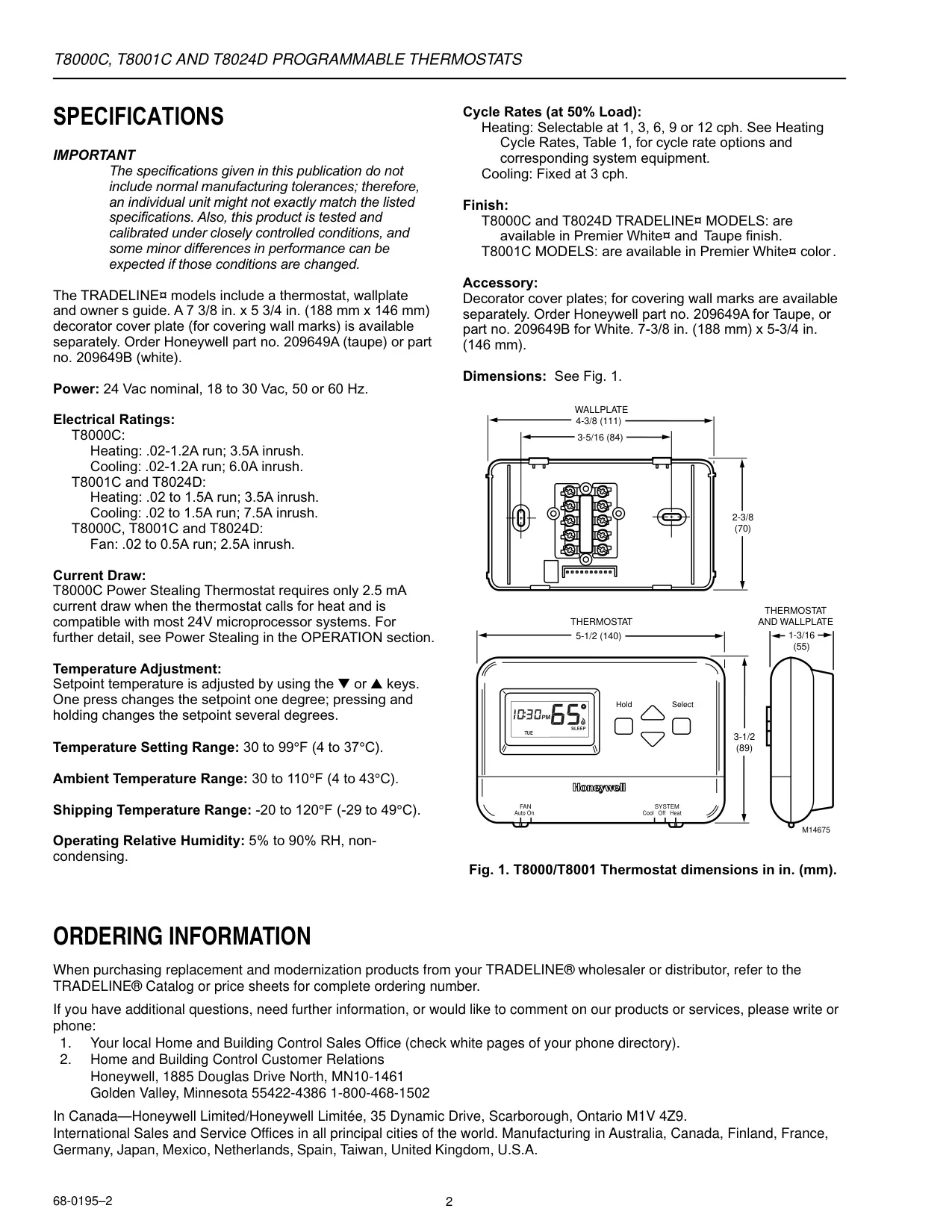

Honeywell T8000C Thermostat Specifications

Feature	Specification
Model	T8000C Programmable Thermostat
System Compatibility	Single-stage Heating and Cooling systems (24 Vac)
Changeover Type	Manual (Heat to Cool)
System Switch Settings	Cool, Off, Heat
Fan Switch Settings	Auto, On
Powering Method	Power Stealing (No batteries required)
Input Voltage	24 Vac nominal, 18 to 30 Vac, 50 or 60 Hz
Current Draw (Operating)	2.5 mA (call for heat/cool), 0.1 mA (system off)
Electrical Rating - Heating	0.02-1.2A run; 3.5A inrush
Electrical Rating - Cooling	0.02-1.2A run; 6.0A inrush
Electrical Rating - Fan	0.02-0.5A run; 2.5A inrush
Temperature Setting Range	30 to 99°F (4 to 37°C)
Ambient Temperature Range	30 to 110°F (4 to 43°C)
Shipping Temperature Range	-20 to 120°F (-29 to 49°C)
Heating Cycle Rates (cph)	Selectable: 1, 3, 4, 5, 6, 9, or 12
Cooling Cycle Rates (cph)	Fixed: 3
Temperature Display	°F or °C (selectable)
Humidity Range	5% to 90% RH, non-condensing
Dimensions (Thermostat on Wallplate)	5-1/2 in. (140 mm) W x 3-1/2 in. (89 mm) H x 1-3/16 in. (30 mm) D
Finish (TRADELINE Models)	Premier White® and Taupe
Optional Accessory	Decorator Cover Plate (7-3/8 in. x 5-3/4 in., P/N 209649A Taupe / 209649B White)

Honeywell T8000C Thermostat Details

The Honeywell T8000C programmable thermostat is engineered to deliver both comfort and energy savings. This device provides a reliable and precise temperature control solution, automatically managing your home's climate to ensure you always return to a comfortable environment while optimizing energy use.

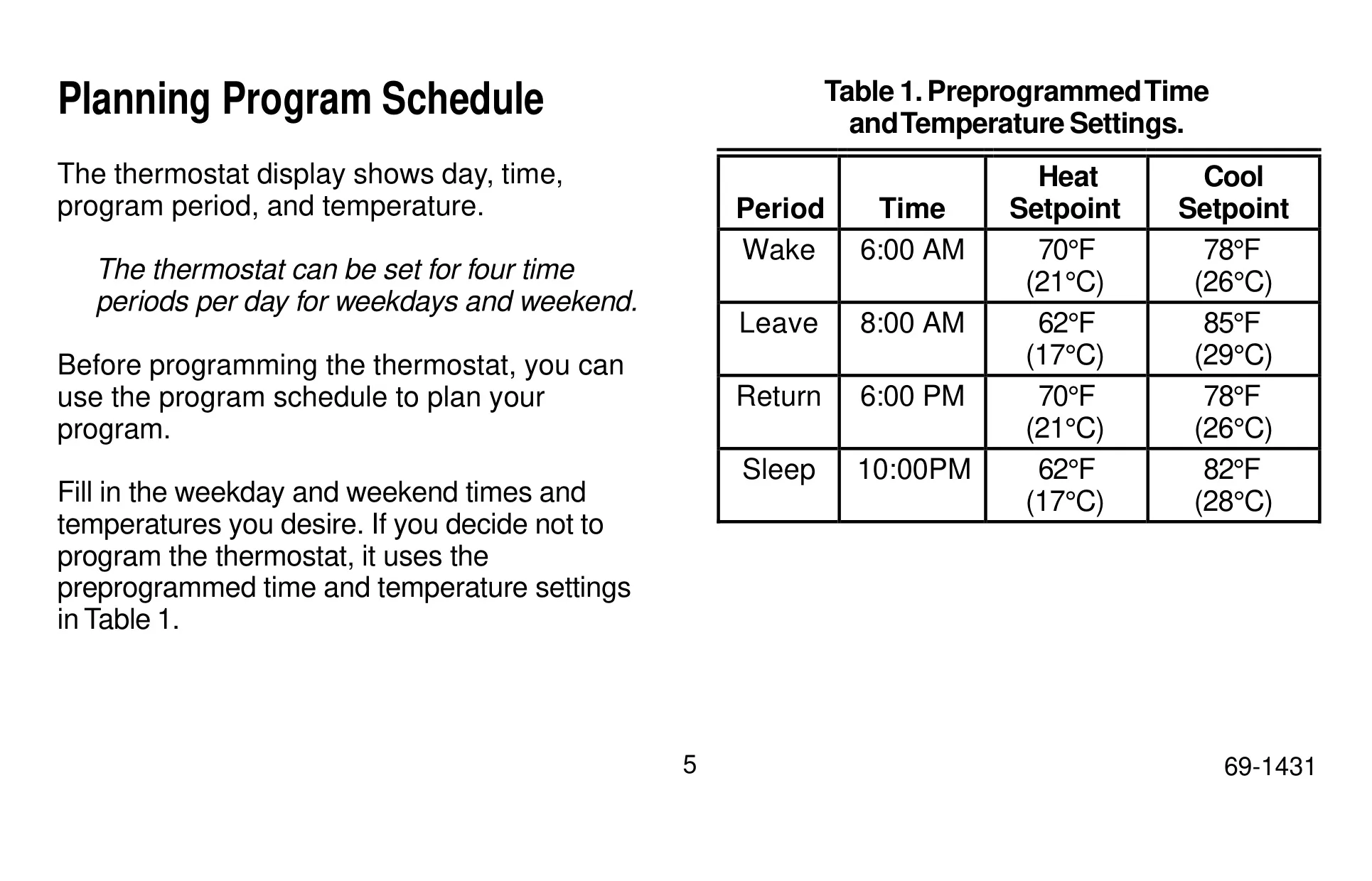

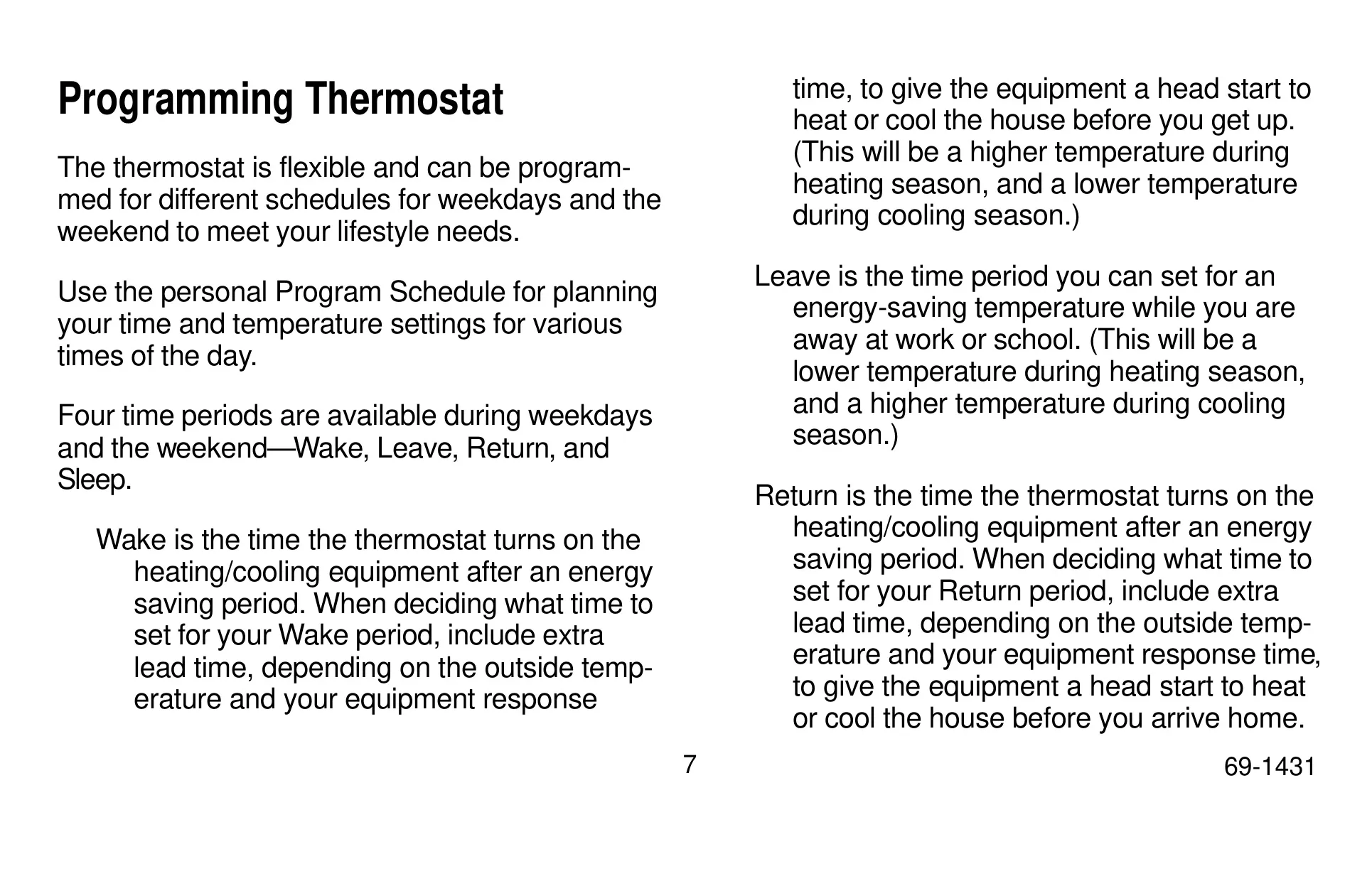

One of its standout features is the ability to program up to four distinct time periods each day, allowing for customized temperature settings that perfectly align with your daily routine and lifestyle. This flexibility extends to setting different schedules for weekdays and weekends, accommodating varying patterns.

A key convenience is that all programmed settings are permanently stored in nonvolatile memory. This eliminates the need for batteries and ensures that your personalized schedules remain intact even in the event of a power failure, saving you the hassle of reprogramming.

The thermostat also includes an indefinite temperature hold feature, which allows you to temporarily override the programmed schedule and maintain a desired temperature for an extended period. For immediate use, the unit comes preprogrammed with convenient default settings.

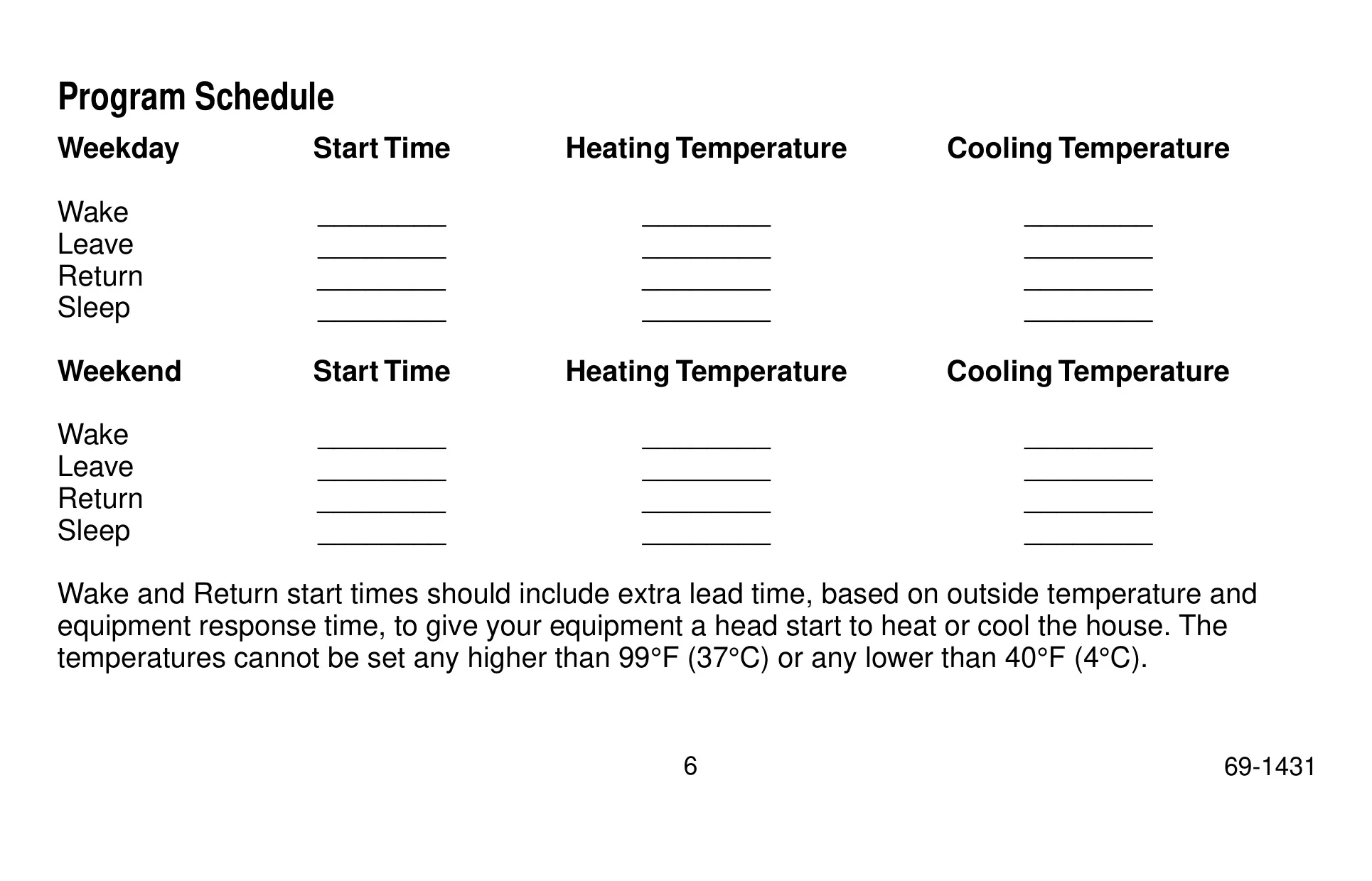

When planning your program, it's important to consider "lead time" for Wake and Return periods. This allows your heating or cooling equipment to start early, ensuring the house reaches your desired temperature before you wake up or arrive home. Temperature settings are constrained between 40°F (4°C) and 99°F (37°C).

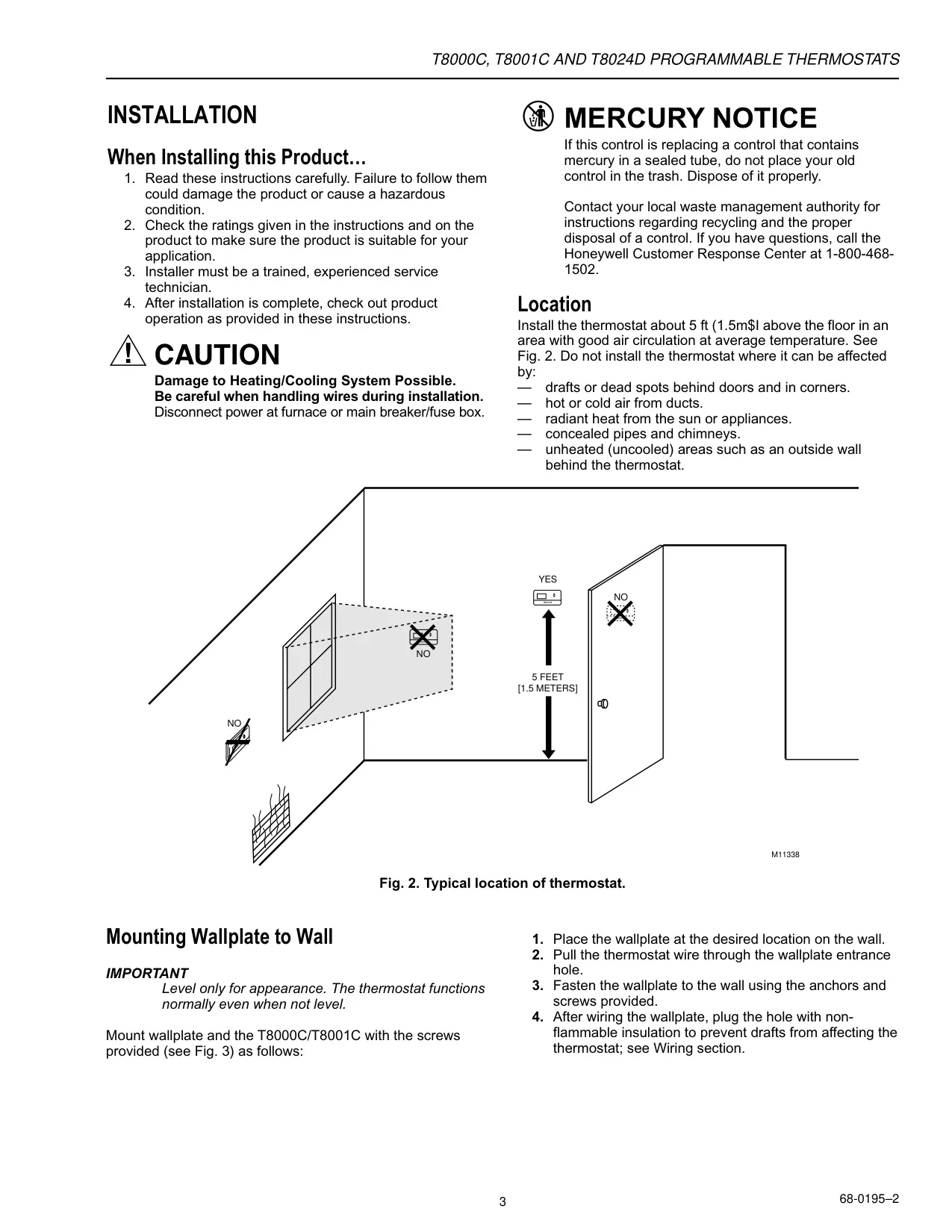

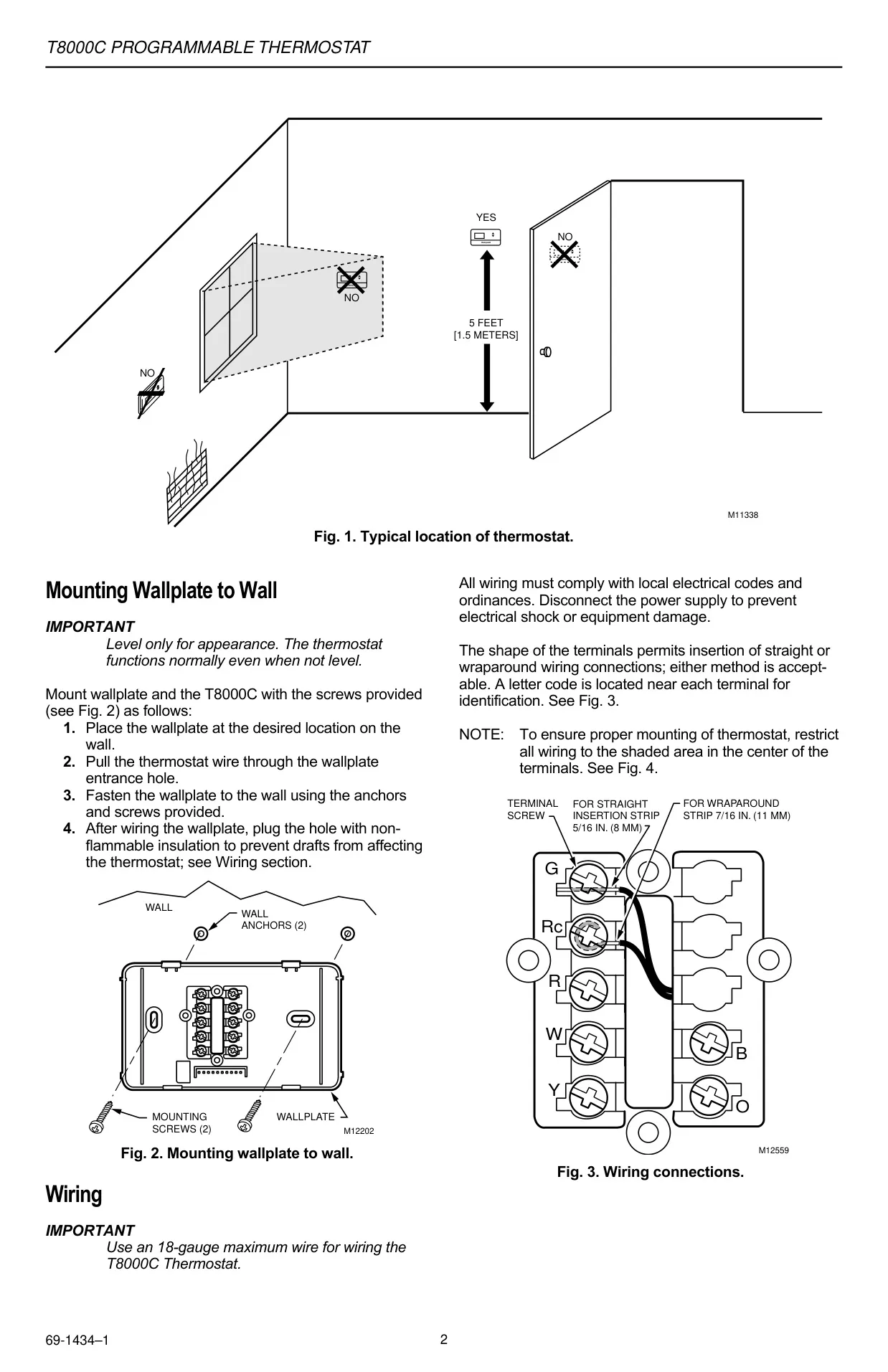

Installation of the T8000C thermostat requires careful placement. It should be mounted approximately 5 feet (1.5 meters) above the floor in an area with good air circulation and average temperature. To ensure accurate readings, it's crucial to avoid locations prone to drafts, direct hot or cold air from ducts, radiant heat sources, concealed pipes, or unheated wall sections.

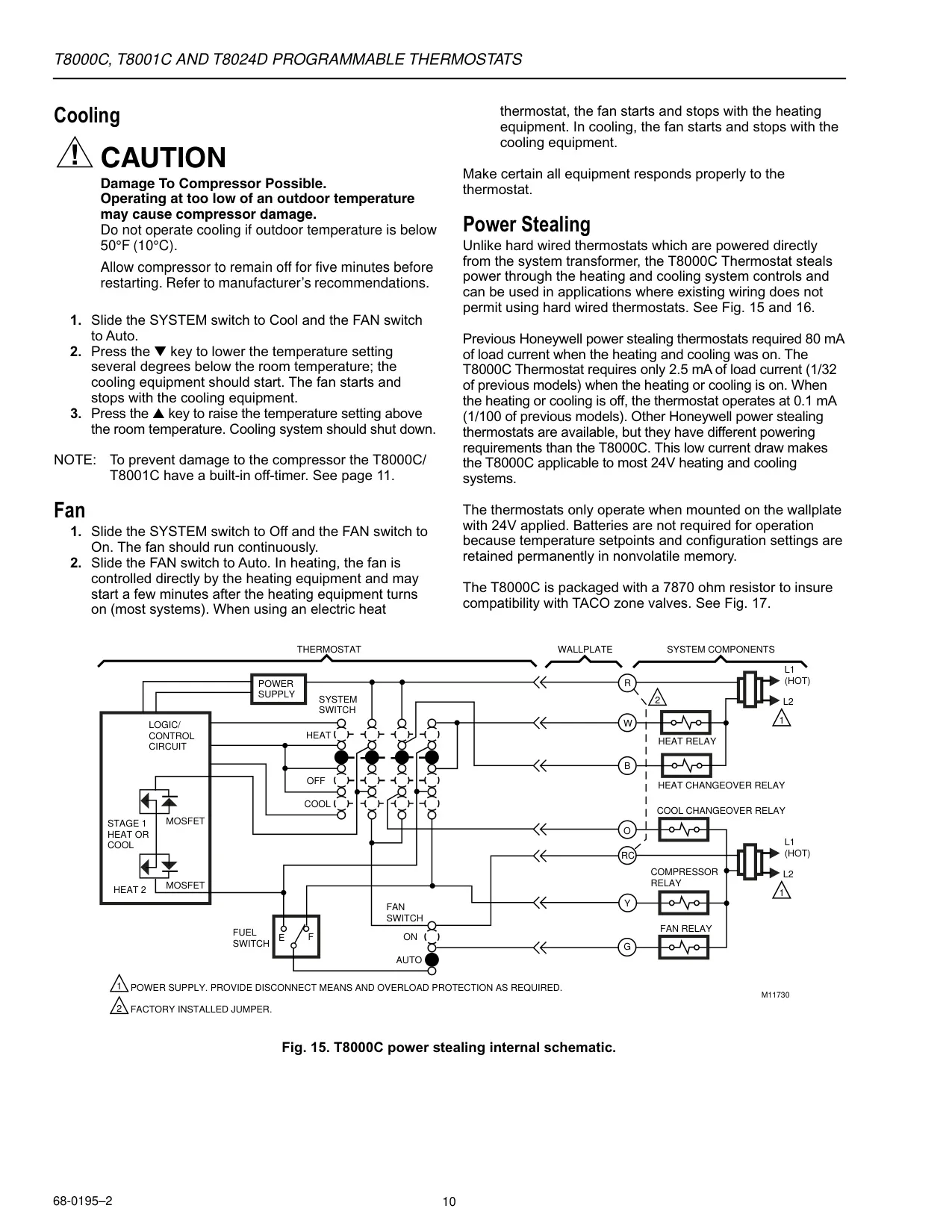

The T8000C operates using a unique "power stealing" method, drawing minimal current directly from your heating/cooling system. This innovative approach means no batteries are ever required, simplifying maintenance and ensuring continuous operation without unexpected power loss.

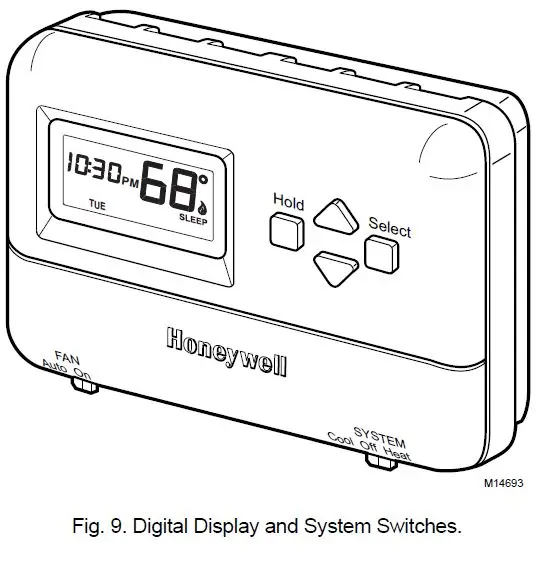

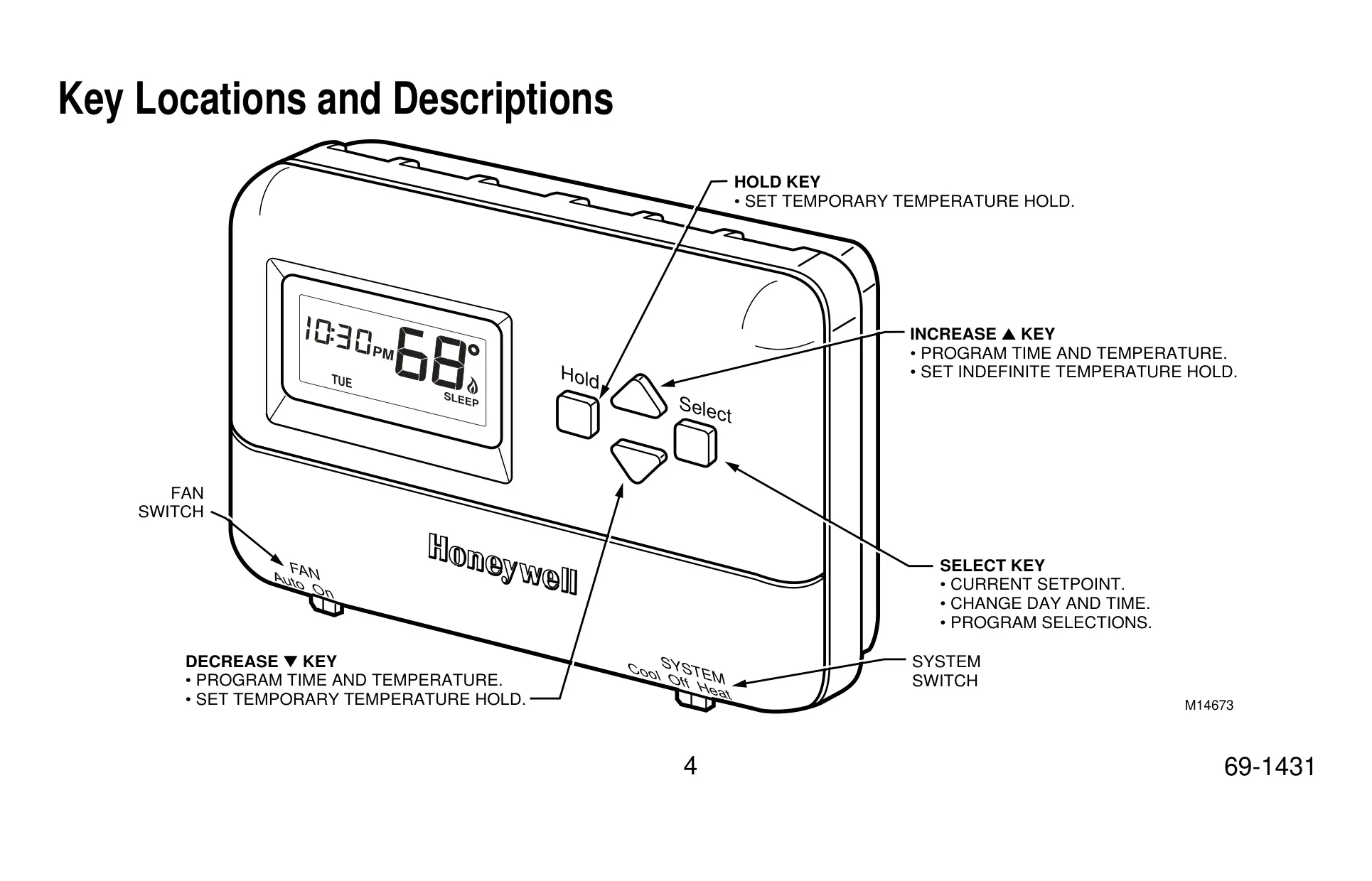

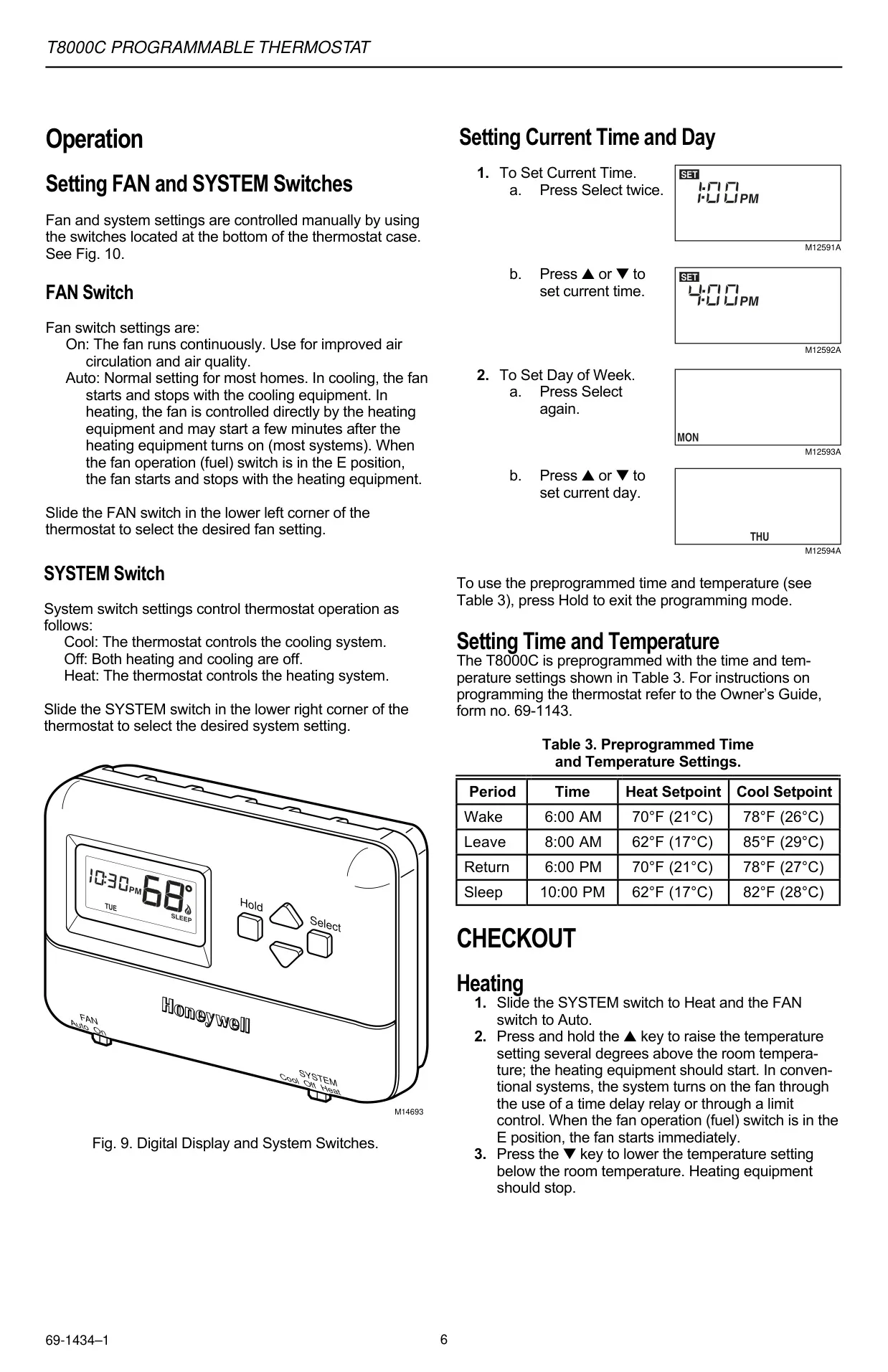

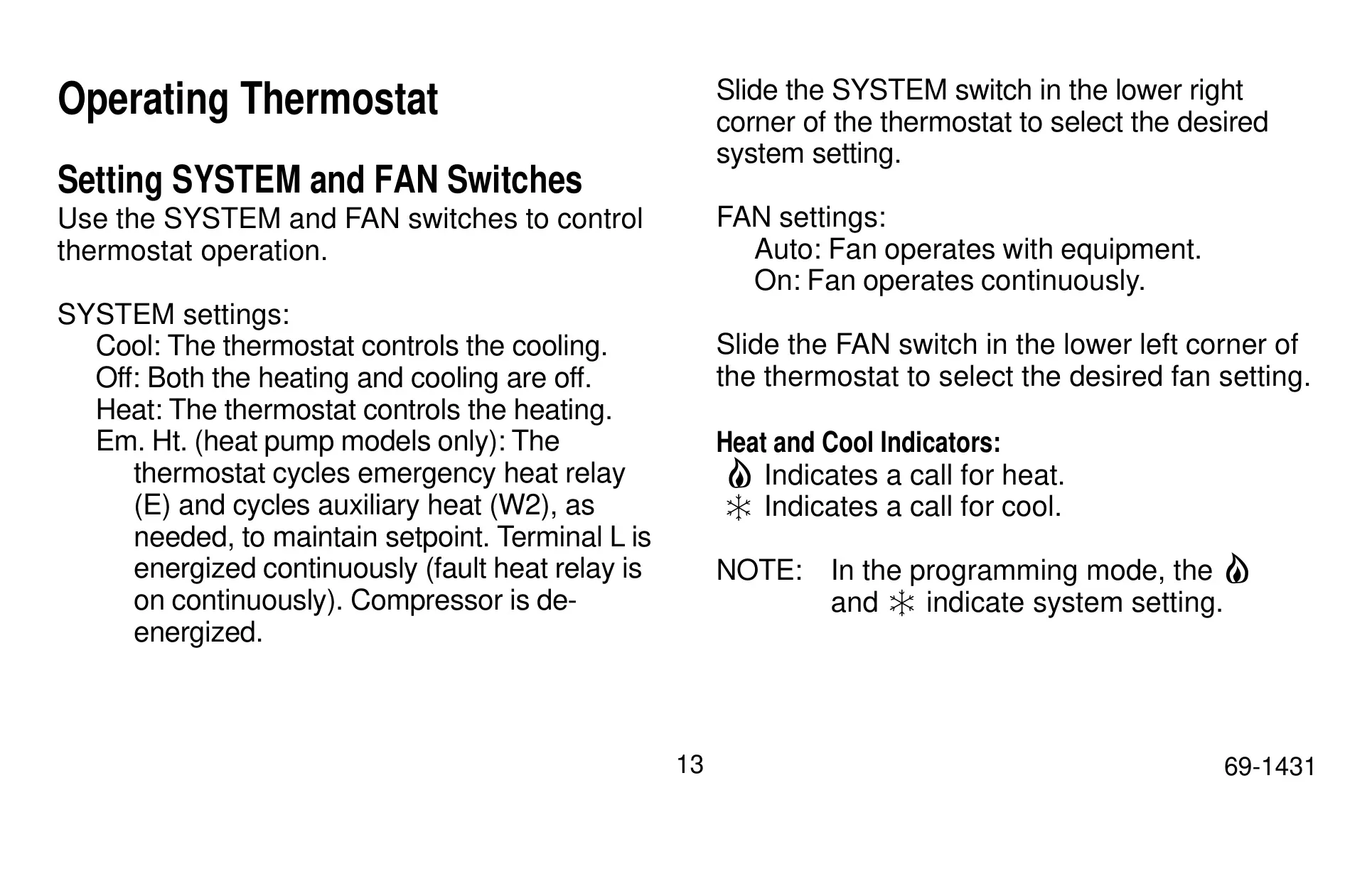

User interaction is intuitive, featuring a large temperature display for quick readability and keys conveniently located near the display. The physical FAN and SYSTEM switches are strategically placed on the lower edge of the unit, minimizing the risk of accidental adjustments during everyday use.

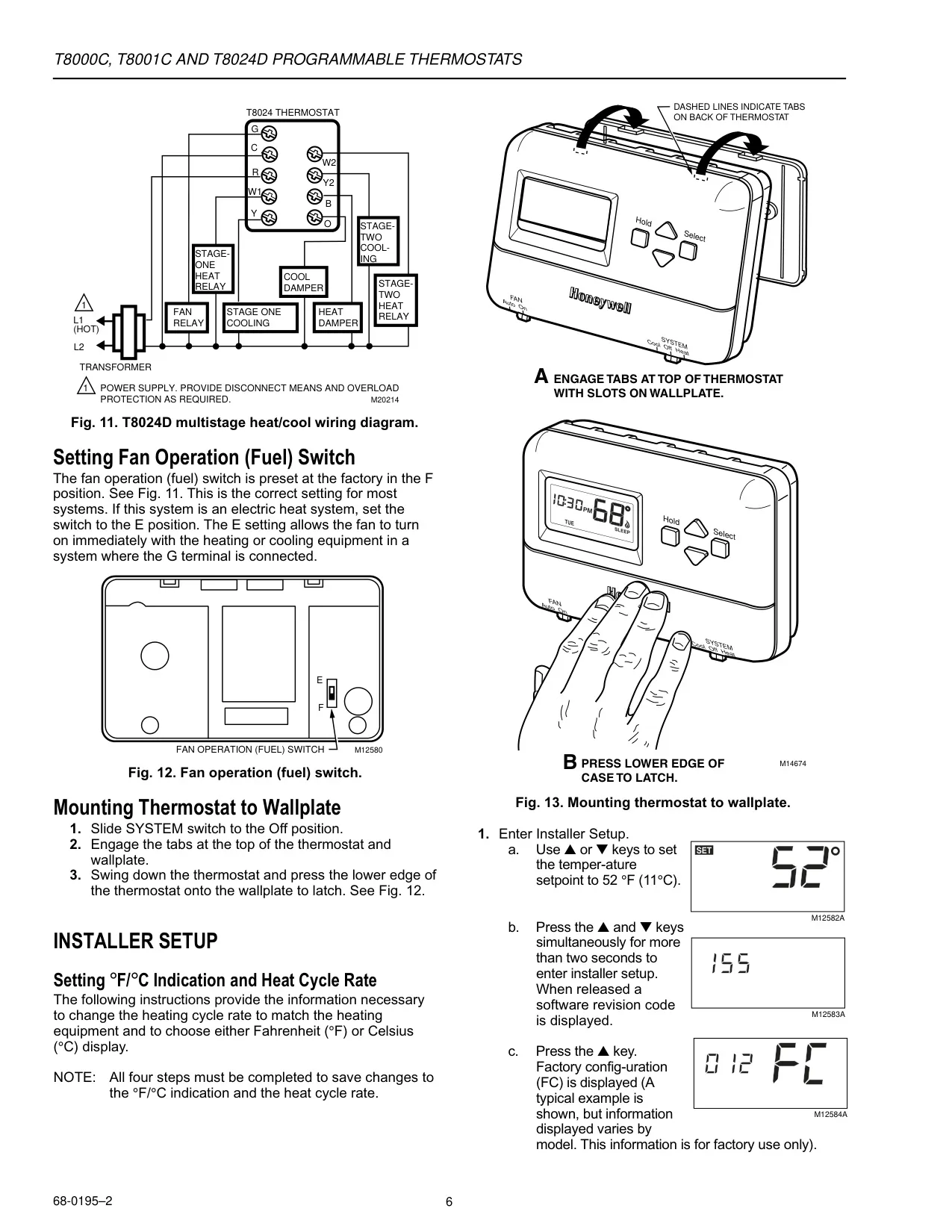

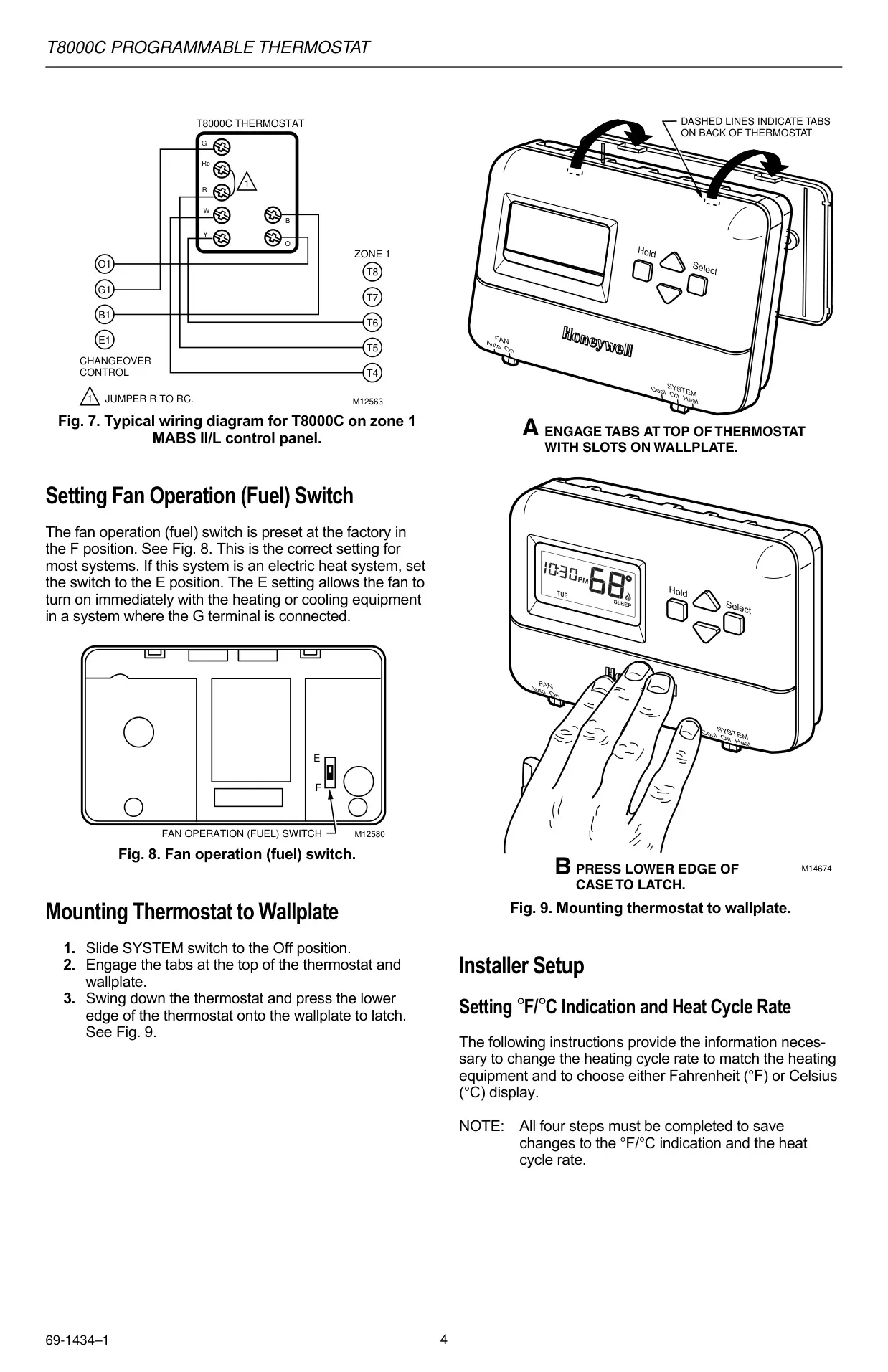

An internal "fan operation (fuel) switch" allows configuration for electric heat systems (E position) versus most other systems (F position). This ensures the fan activates immediately with the heating/cooling equipment when appropriate, enhancing system response and comfort.

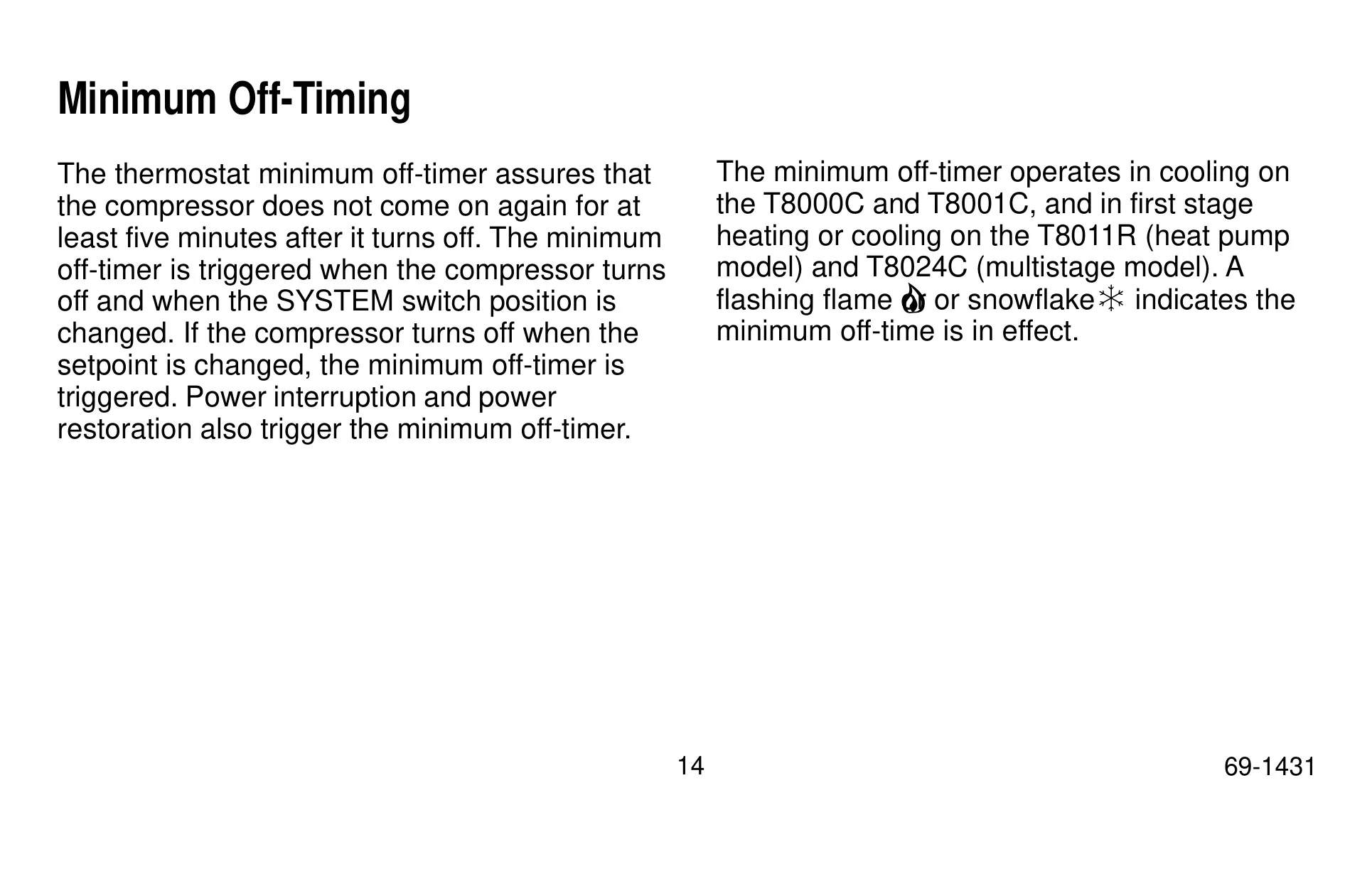

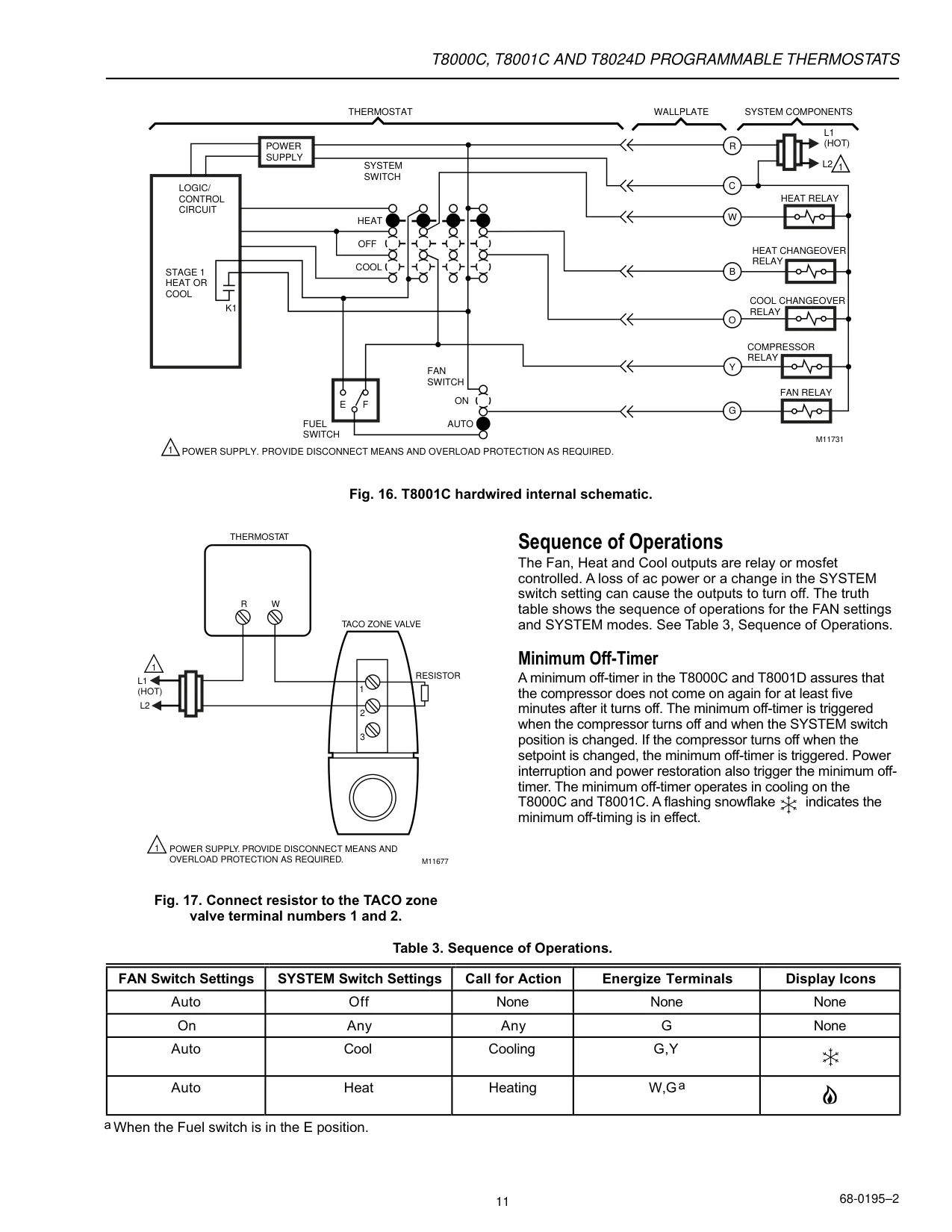

The thermostat also incorporates a minimum off-timer, a vital protective feature for your compressor. This five-minute delay prevents the compressor from short-cycling, which can cause damage and reduce the lifespan of your cooling equipment. A flashing snowflake indicator signals when this timer is active.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell T8000C Thermostat, and we answer them below.

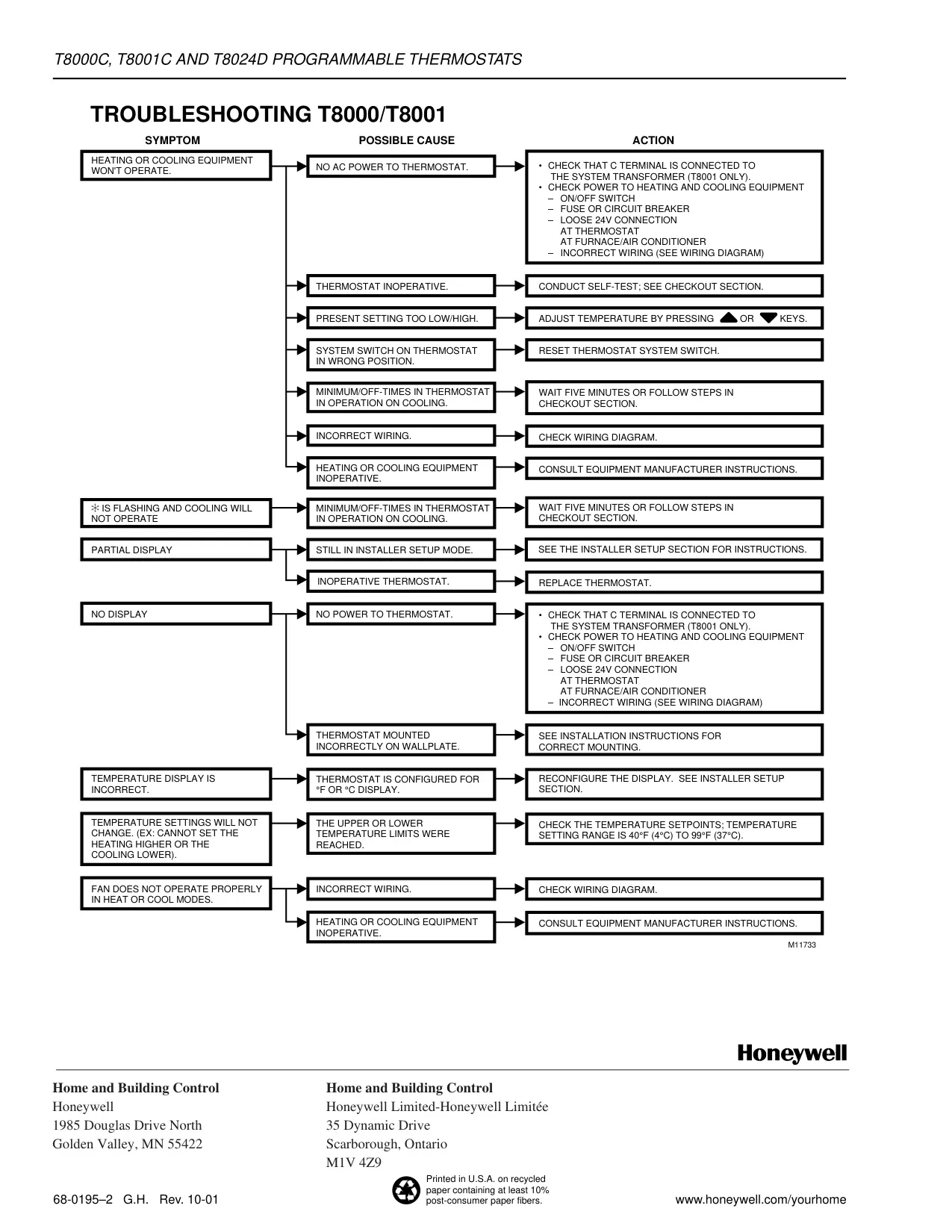

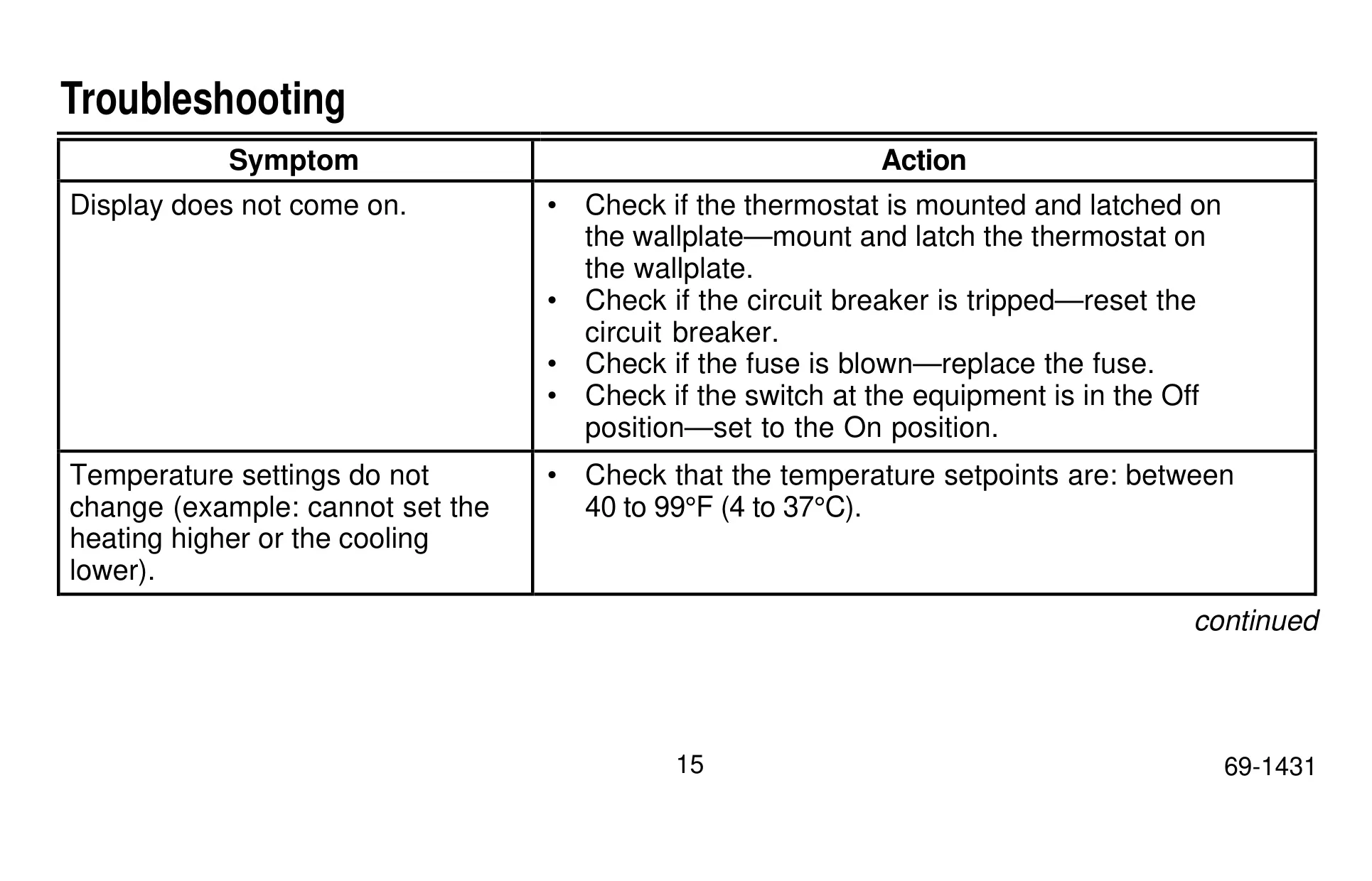

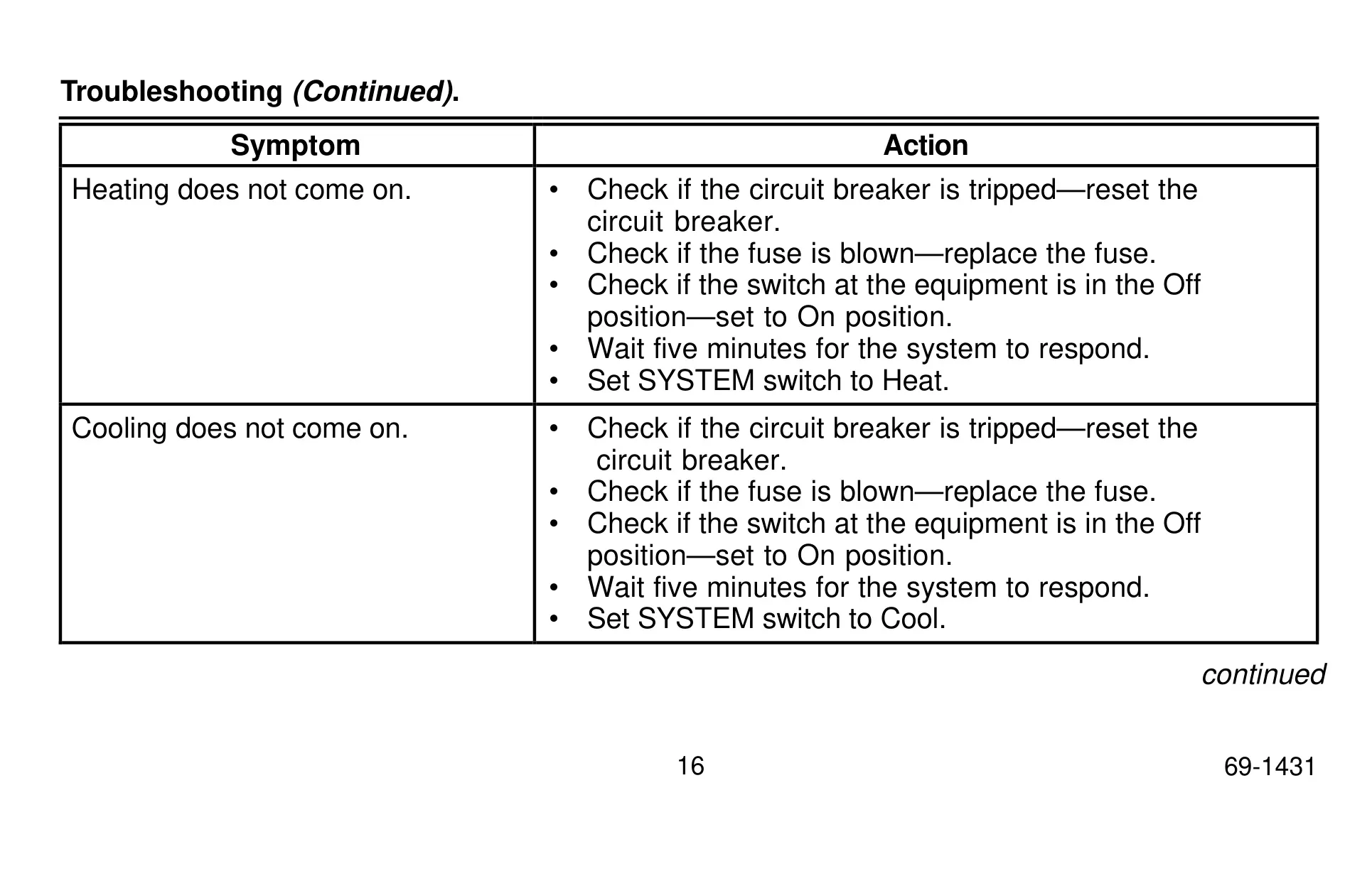

What should I do if the thermostat display does not come on?

First, check if the thermostat is properly mounted and latched onto its wallplate. Then, verify your circuit breaker and replace any blown fuses. Finally, ensure the ON/OFF switch at your heating/cooling equipment is in the "On" position.

Why can't I set the temperature higher for heating or lower for cooling?

The Honeywell T8000C thermostat has a specified temperature setting range of 40°F (4°C) to 99°F (37°C). Ensure your desired setpoint falls within these limits.

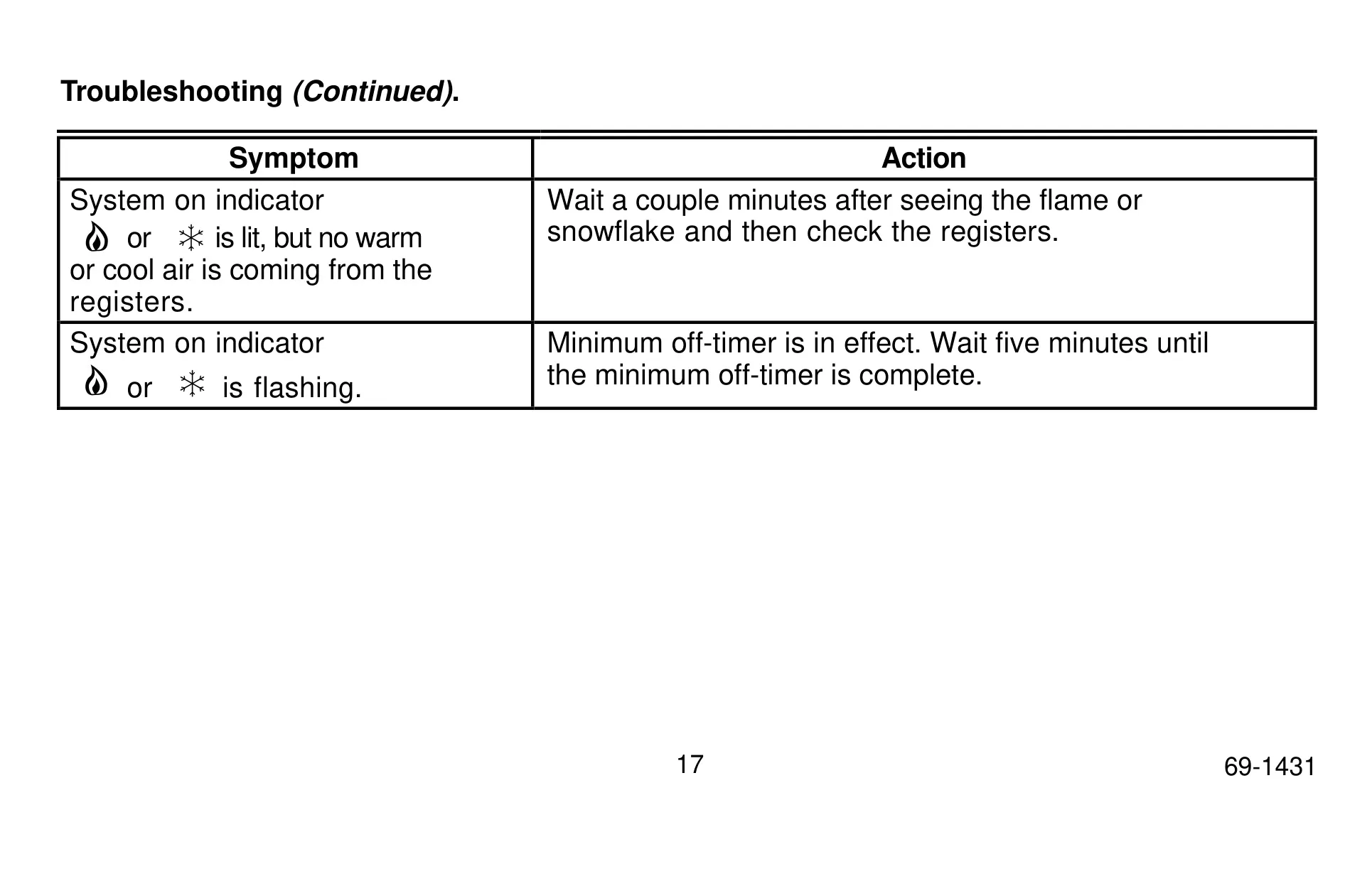

The system on indicator (flame or snowflake) is lit, but no air is coming from the registers. What's wrong?

After the flame or snowflake indicator illuminates, wait a couple of minutes. Some systems, especially conventional ones, have a slight delay before the fan activates or conditioned air reaches the registers.

Why is the system on indicator (flame or snowflake) flashing?

A flashing flame or snowflake icon indicates that the minimum off-timer is currently in effect. This is a built-in protective delay for the compressor, typically lasting five minutes. Wait for the timer to complete its cycle.

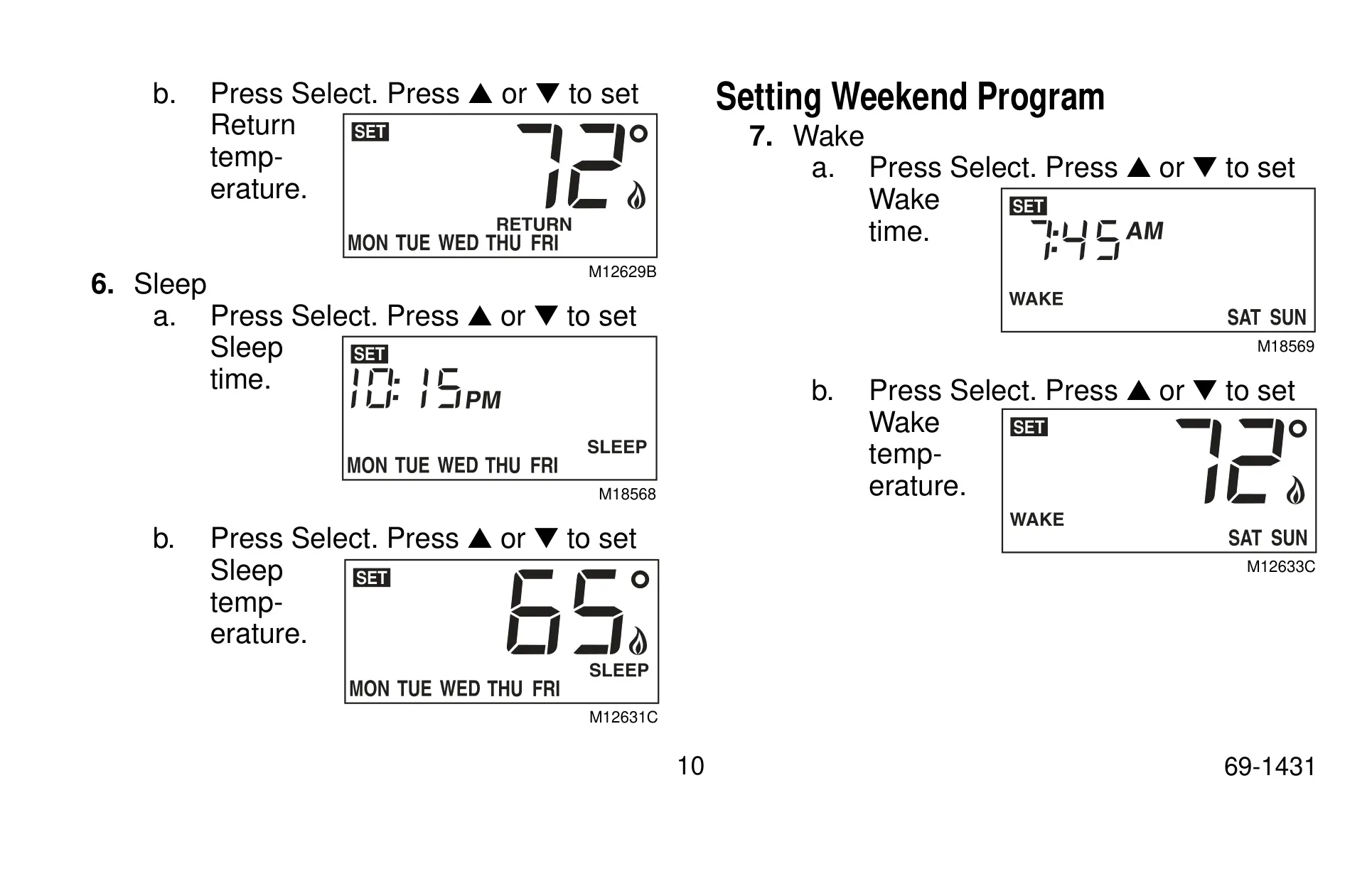

How do I program my thermostat for different times of the day?

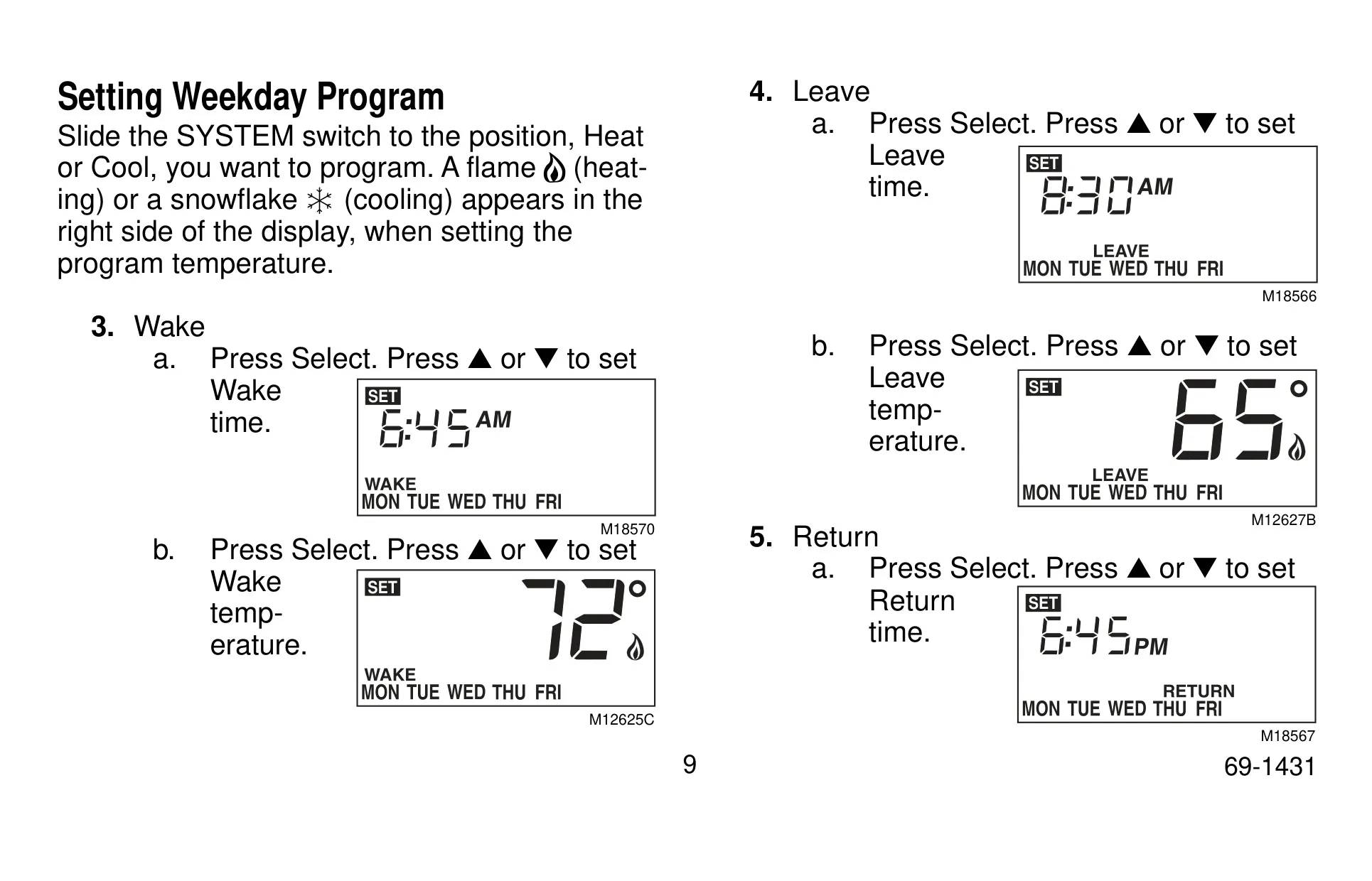

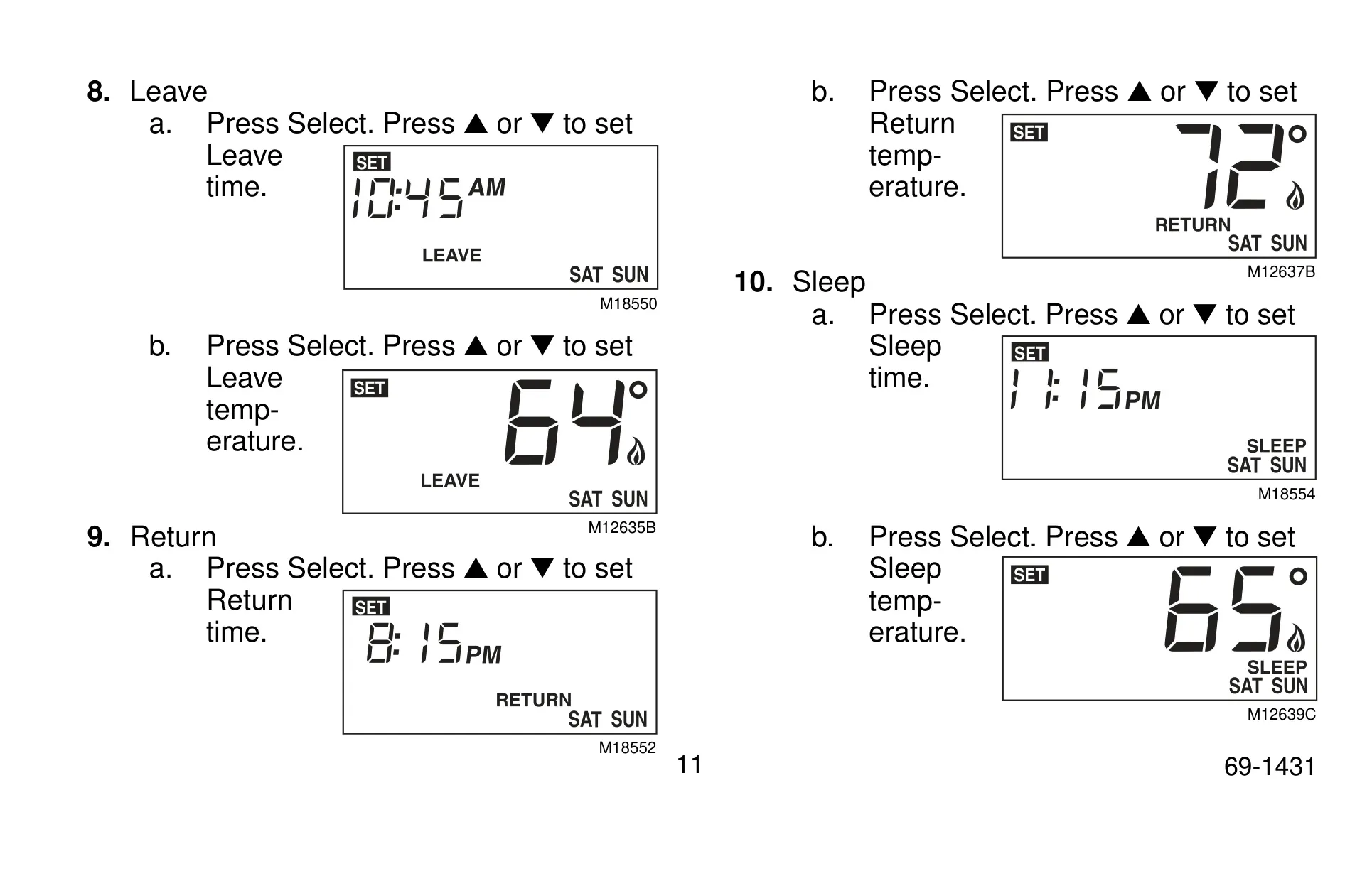

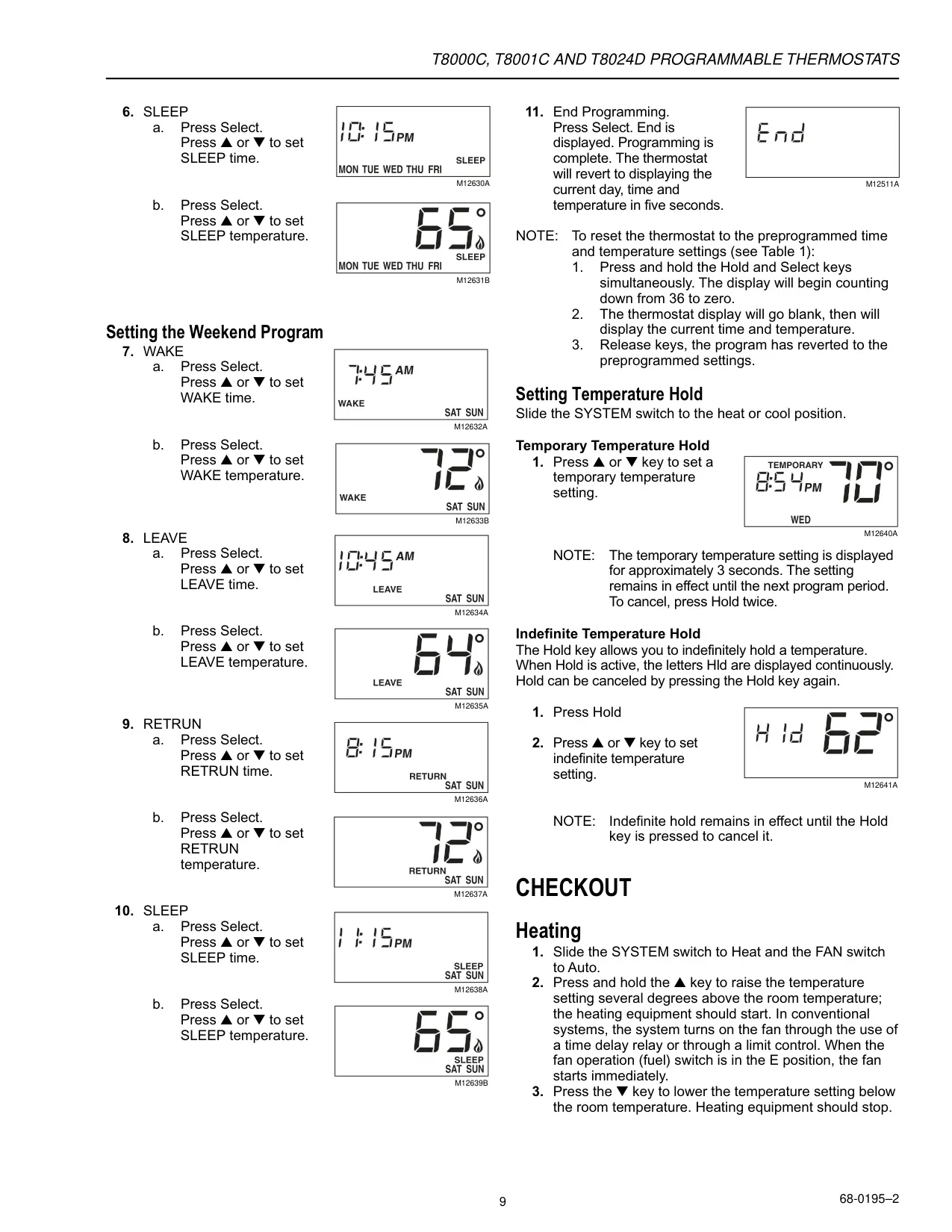

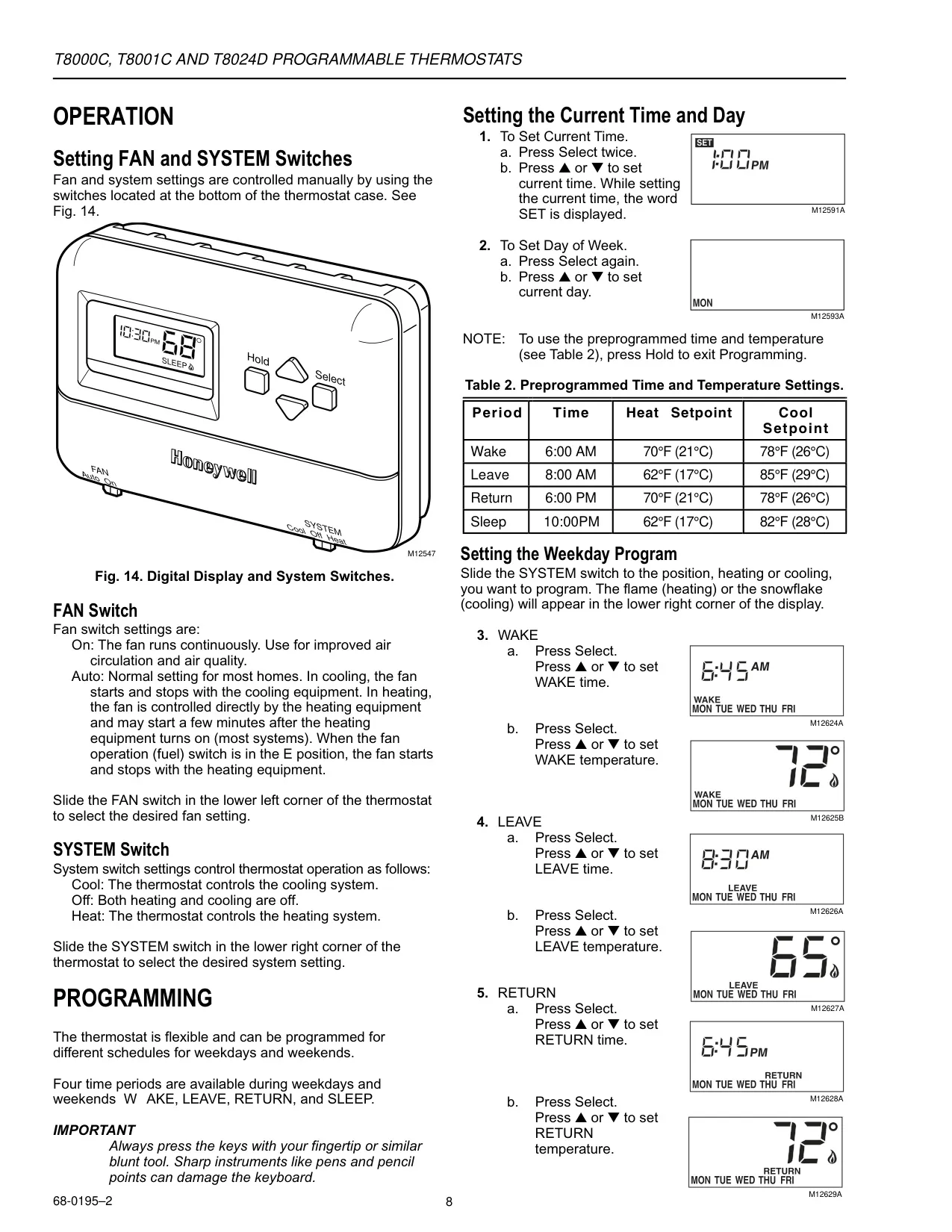

The T8000C allows you to program up to four daily time periods (Wake, Leave, Return, Sleep) with specific temperature settings for both weekdays and weekends. Slide the SYSTEM switch to Heat or Cool, then use the "Select" key and the Up (L) or Down (M) keys to set the desired times and temperatures for each period.

What is the purpose of the 'Hold' key?

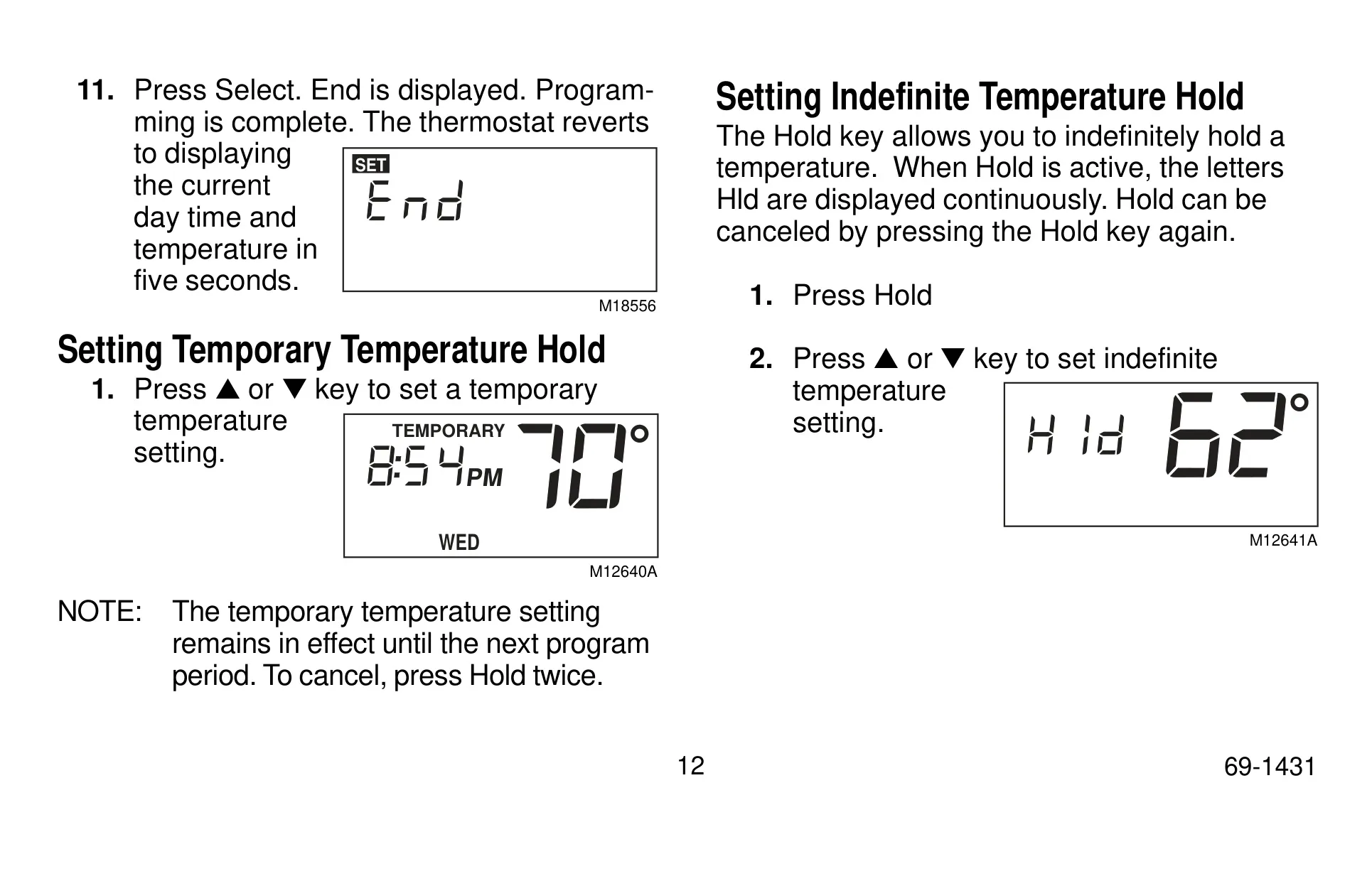

The "Hold" key offers two functions: a temporary temperature hold that overrides the program until the next scheduled period, or an indefinite temperature hold, indicated by "Hld" on the display, which maintains a set temperature until manually canceled by pressing "Hold" again.

Does this thermostat require batteries?

No, the Honeywell T8000C thermostat does not require batteries. It is powered directly through your heating/cooling system controls, and its programmed settings are retained indefinitely in nonvolatile memory, even during power outages.

Can I change the temperature display from Fahrenheit to Celsius?

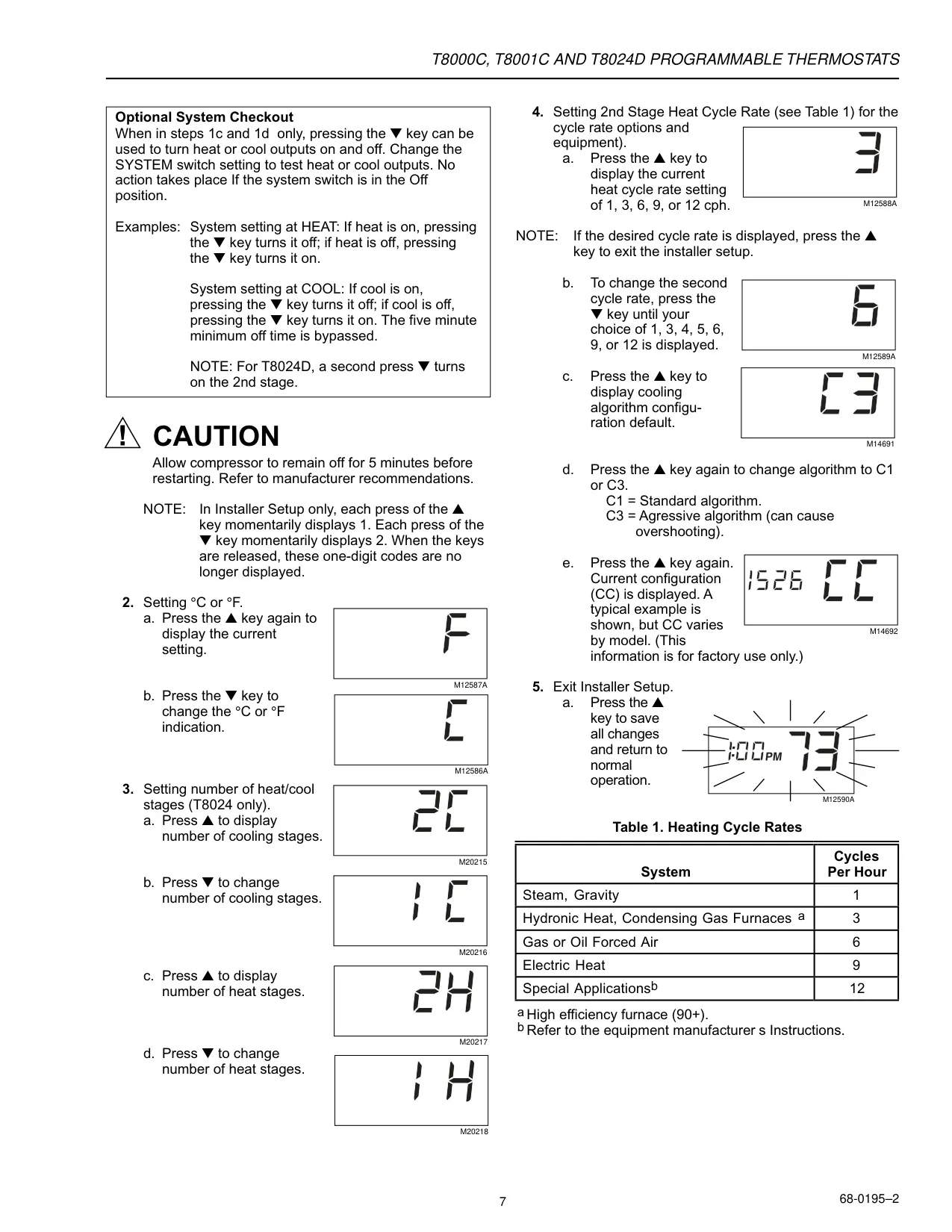

Yes, you can. This is an installer setting. To change it, you need to enter the Installer Setup mode (by setting the setpoint to 52°F/11°C and simultaneously pressing and holding the Up and Down keys), then navigate through the options to select either °C or °F indication.

What is 'Minimum Off-Timing' and why is it important?

Minimum Off-Timing is a five-minute delay designed to protect your compressor from potential damage caused by short-cycling. It ensures the compressor does not restart too quickly after shutting off, thereby prolonging the life of your heating and cooling equipment.

Where should I install my thermostat for optimal performance?

For best performance, install the thermostat approximately 5 feet (1.5 meters) above the floor in an area that has good air circulation and an average room temperature. Avoid locations affected by drafts, direct hot or cold air from ducts, radiant heat from appliances or the sun, or behind unheated/uncooled walls.

How do I reset the thermostat to its preprogrammed factory settings?

To restore factory default settings, simultaneously press and hold both the "Hold" and "Select" keys. The display will show a countdown from 36 to zero, then briefly go blank before returning to the original default time and temperature settings.
