Zanussi Lindo 300 Washer 9 kg ZWF91483WR

Zanussi Lindo 300 Washer 9 kg Instructions

Here we offer the Zanussi Lindo 300 Washer 9 kg ZWF91483WR manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi Lindo 300 Washer 9 kg ZWF91483WR, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

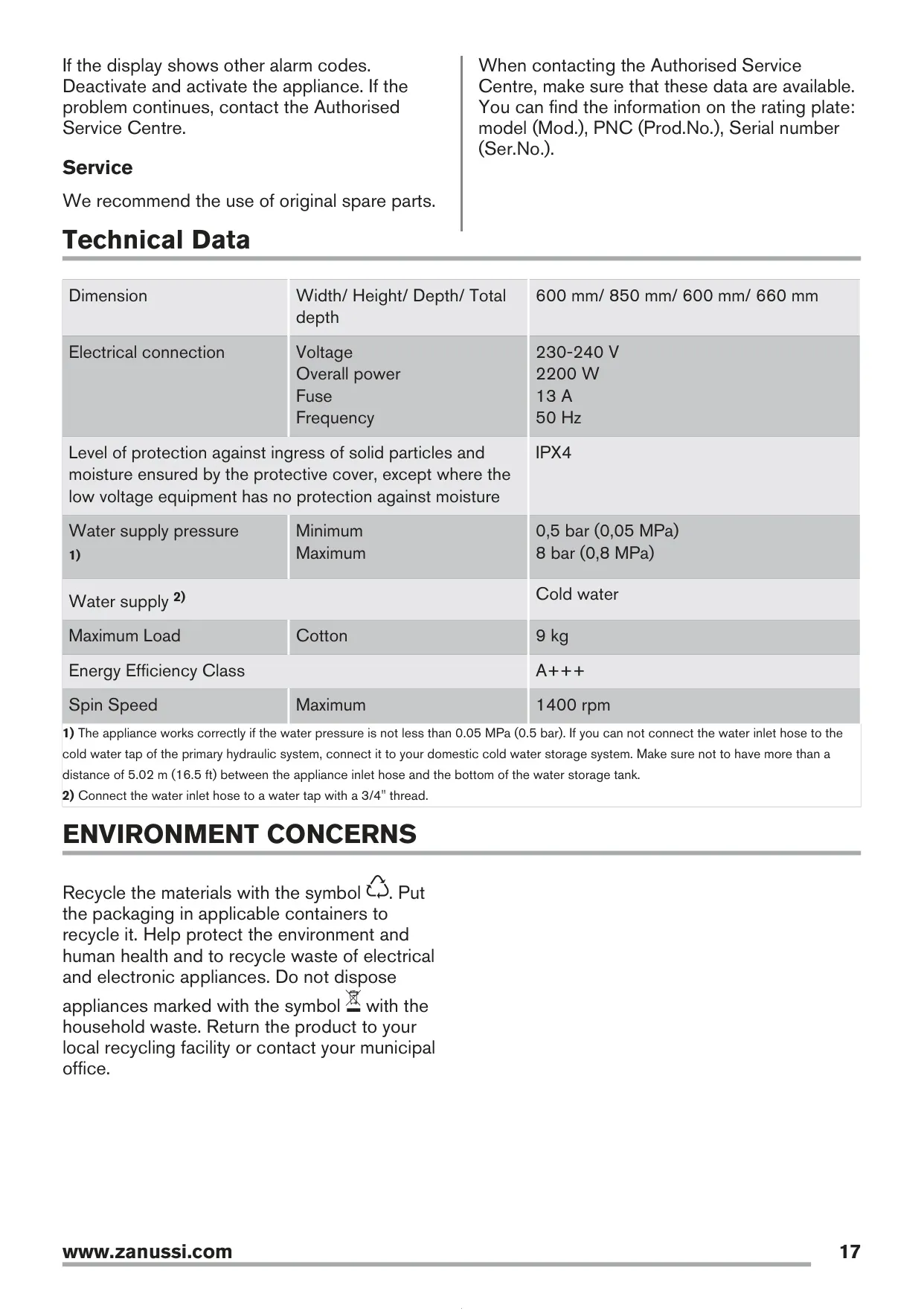

Zanussi Lindo 300 Washing Machine 9 kg ZWF91483WR Specifications

Feature	Specification
Model	ZWF91483WR
Maximum Load Capacity	9 kg
Maximum Spin Speed	1400 rpm
Dimensions (Width / Height / Depth)	600 mm / 850 mm / 600 mm
Total Depth	660 mm
Electrical Connection (Voltage)	230-240 V
Electrical Connection (Overall Power)	2200 W
Electrical Connection (Fuse)	13 A
Electrical Connection (Frequency)	50 Hz
Water Supply Pressure (Minimum)	0.5 bar (0.05 MPa)
Water Supply Pressure (Maximum)	8 bar (0.8 MPa)
Water Supply	Cold water
Energy Efficiency Class	A+++
Off Mode Power Consumption	0.48 W
Left On Mode Power Consumption	0.48 W
Protection against Ingress of Solid Particles and Moisture	IPX4

Zanussi Lindo 300 ZWF91483WR Details

The Zanussi Lindo 300 ZWF91483WR washing machine offers a diverse range of programmes tailored for various fabric types and soil levels. These include specific cycles like "30' @ 30°" for quick washes, "Cottons" and "Synthetics" for daily laundry, and a specialized "Cotton Eco" programme which is optimized for energy and water efficiency, being the standard for consumption values. The machine also features dedicated cycles such as "Delicates" for gentle care, "Wool/Handwash" for machine or hand washable woolens, and "Duvets" for bulky items like synthetic blankets.

Beyond its core programmes, the ZWF91483WR is equipped with several intuitive options to enhance washing flexibility and results. Users can easily adjust the default temperature and spin speed to suit their laundry needs. The 'Quick' option allows for a reduced programme duration, ideal for lightly soiled items or those needing a refresh, though a decreased laundry quantity is recommended for optimal results. For heavily soiled loads, the 'Intensive' option extends the wash cycle, ensuring a deeper clean.

The appliance incorporates thoughtful features to prevent creasing and simplify post-wash care. The 'Easy Iron' option gently washes and spins, reducing creases by lowering the spin speed and using more water. Additionally, the 'Rinse Hold' option is available to keep laundry submerged in water at the end of the cycle, preventing creases until the user is ready to drain. This ensures clothes remain smooth, requiring less effort during ironing.

For users with specific needs, the ZWF91483WR includes options like 'Extra Rinse', which adds additional rinses to a programme, beneficial for those allergic to detergents or in soft water areas. This setting can even be permanently activated for consistent use. The convenient 'Finish In' option allows users to delay the start of a wash cycle by up to 20 hours, ensuring laundry is ready precisely when needed.

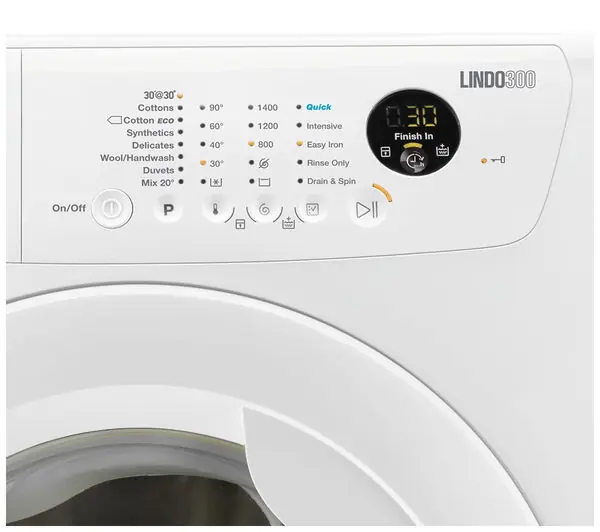

The washing machine's control panel is designed for ease of use, featuring touchpads for programme selection, temperature, spin, and various options, all displayed clearly on an intuitive screen. The display shows essential information such as programme duration, "finish in" time, and alarm codes. Practical additions like the child lock prevent unintended changes to settings, while acoustic signals provide feedback on programme completion or malfunctions, which can also be deactivated.

Maintenance is simplified with accessible cleaning instructions for the detergent dispenser, inlet hose, and valve filter, helping to ensure the appliance's longevity and performance. The flexible detergent dispenser flap accommodates both powder and liquid detergents, with clear guidance on usage. Furthermore, the machine has an AUTO-OFF function that automatically deactivates the appliance to reduce energy consumption after a period of inactivity or at the end of a programme, reflecting its eco-conscious design.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Zanussi Lindo 300 Washing Machine 9 kg ZWF91483WR, and we answer them below.

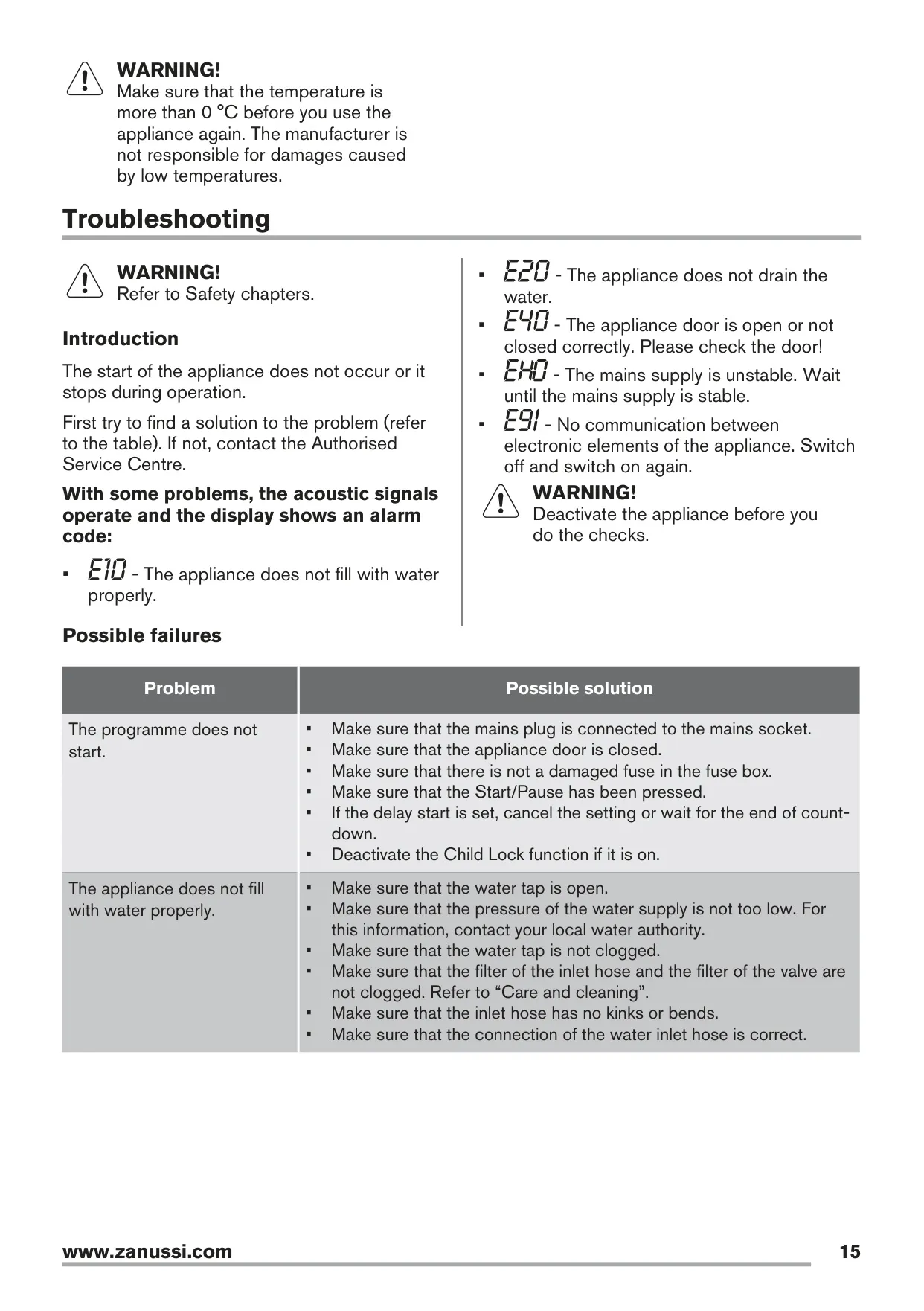

What should I do if the washing machine does not start?

Ensure the mains plug is connected, the appliance door is closed, there is no damaged fuse, the Start/Pause button has been pressed, and the Child Lock function is deactivated. If a delay start is set, cancel it or wait for the countdown to end.

Why is my washing machine not filling with water properly?

Check that the water tap is open, the water supply pressure is not too low (contact your local water authority if unsure), the water tap is not clogged, and the filters of the inlet hose and valve are clean. Also, ensure the inlet hose has no kinks or bends and its connection is correct.

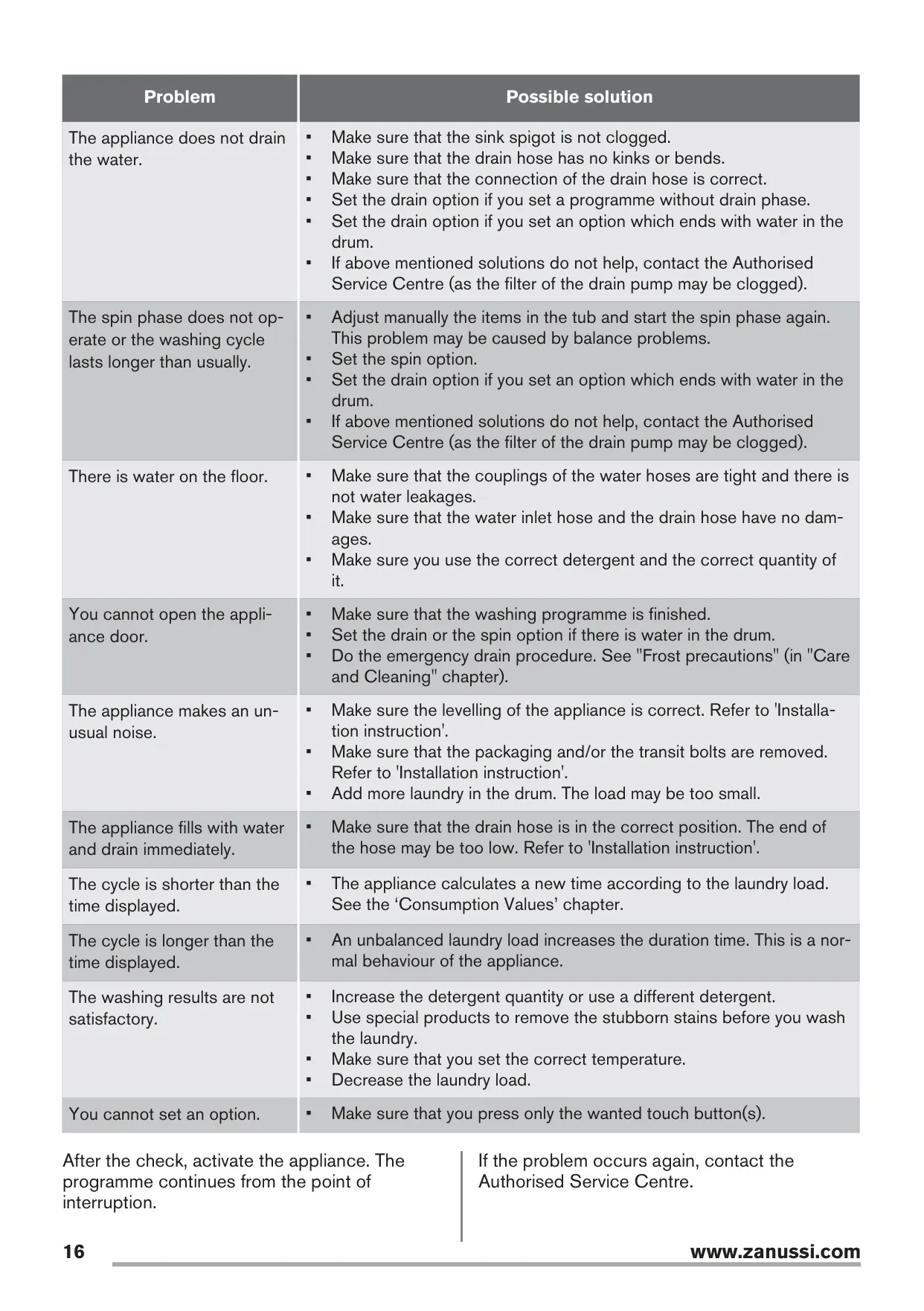

The appliance is not draining water; what could be the issue?

Verify that the sink spigot is not clogged, the drain hose has no kinks or bends, and its connection is correct. If you've set a programme without a drain phase or an option that ends with water in the drum (like Rinse Hold), select the drain option. If these don't help, the drain pump filter might be clogged, requiring service.

Why does the spin phase not operate, or why does the cycle take longer than usual?

This can be caused by balance problems; manually adjust the items in the tub and restart the spin phase. Ensure the spin option is selected, and if an option ending with water in the drum was set, choose the drain option. Contact service if the issue persists, as the drain pump filter may be clogged.

I see water on the floor around the washing machine. What should I check?

Confirm that the water hose couplings are tight and not leaking. Inspect the water inlet and drain hoses for any damages. Also, make sure you are using the correct type and quantity of detergent to avoid excessive sudsing.

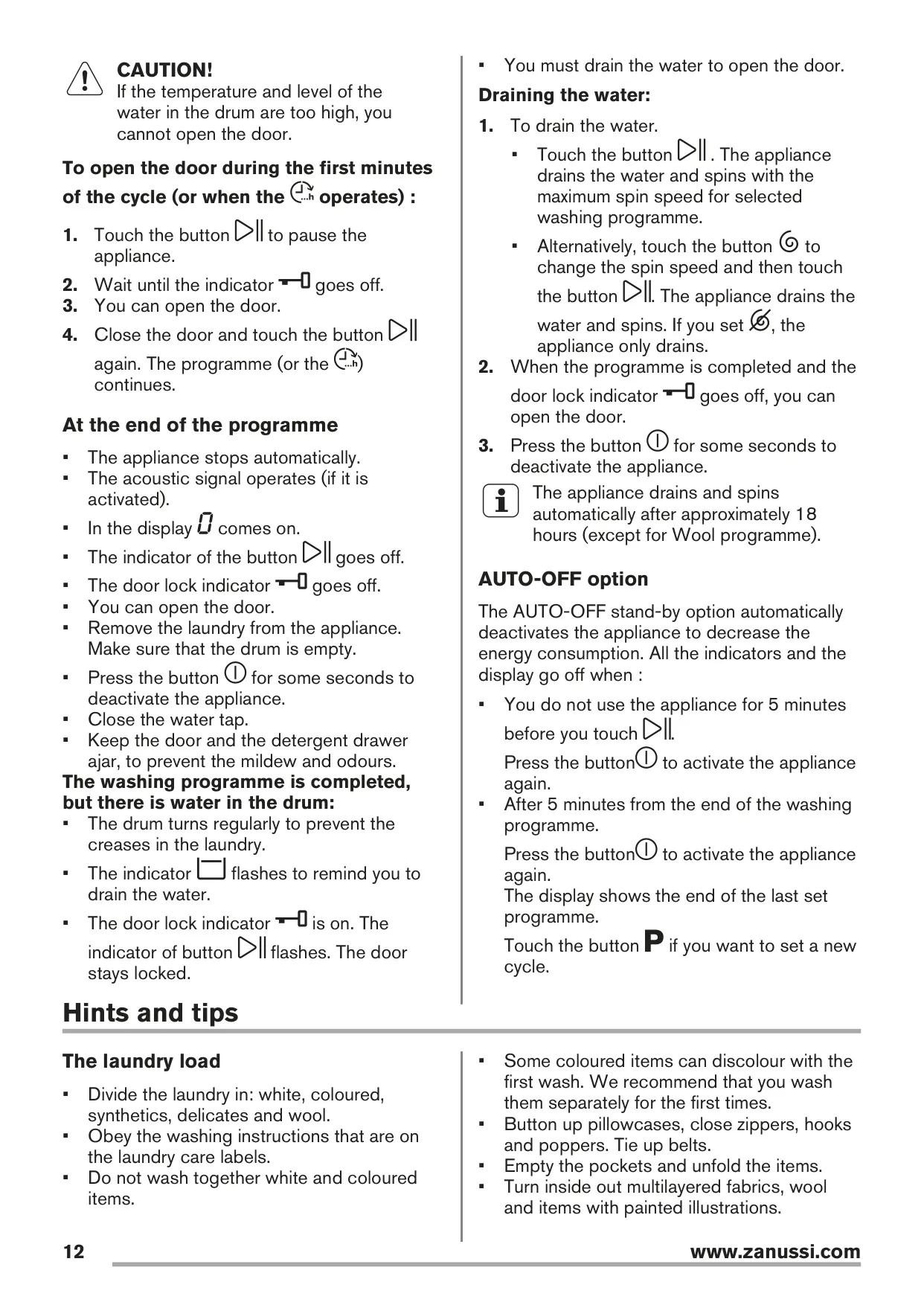

How can I open the appliance door if it's locked after a programme?

Ensure the washing programme is completely finished. If there's still water in the drum, you'll need to set and start the drain or spin option. In an emergency, or if water remains, you might need to perform the emergency drain procedure as described in the "Frost precautions" section of the manual.

Why is my washing machine making an unusual noise?

Check that the appliance is correctly levelled according to the installation instructions. Ensure all packaging and transit bolts have been removed. Sometimes, a very small laundry load can cause balance problems and unusual noise; try adding more laundry.

How can I activate or deactivate the Child Lock function?

To activate or deactivate the Child Lock, simultaneously touch the Temperature and Spin selection touchpads for four seconds. The child lock indicator on the display will come on or go off to confirm its status. When active, all buttons except the On/Off button are locked.

Can I use liquid detergent with this washing machine?

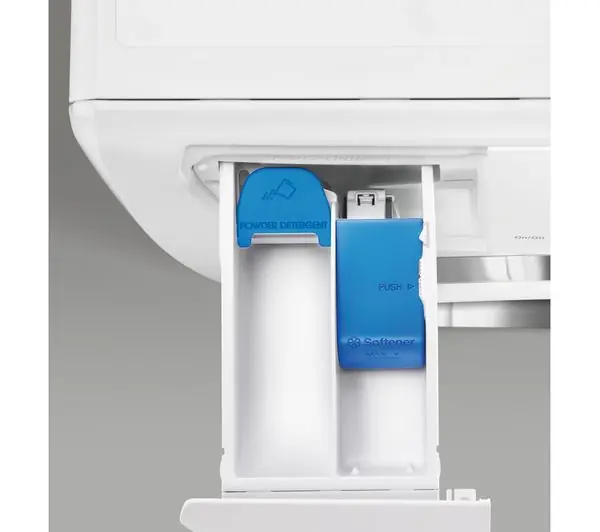

Yes, you can use liquid detergent. The detergent dispenser has a flap that needs to be adjusted to position 'B' for liquid detergent. Remember not to exceed the MAX level, avoid gelatinous or thick liquid detergents, and do not use the delay start option when using liquid detergent.

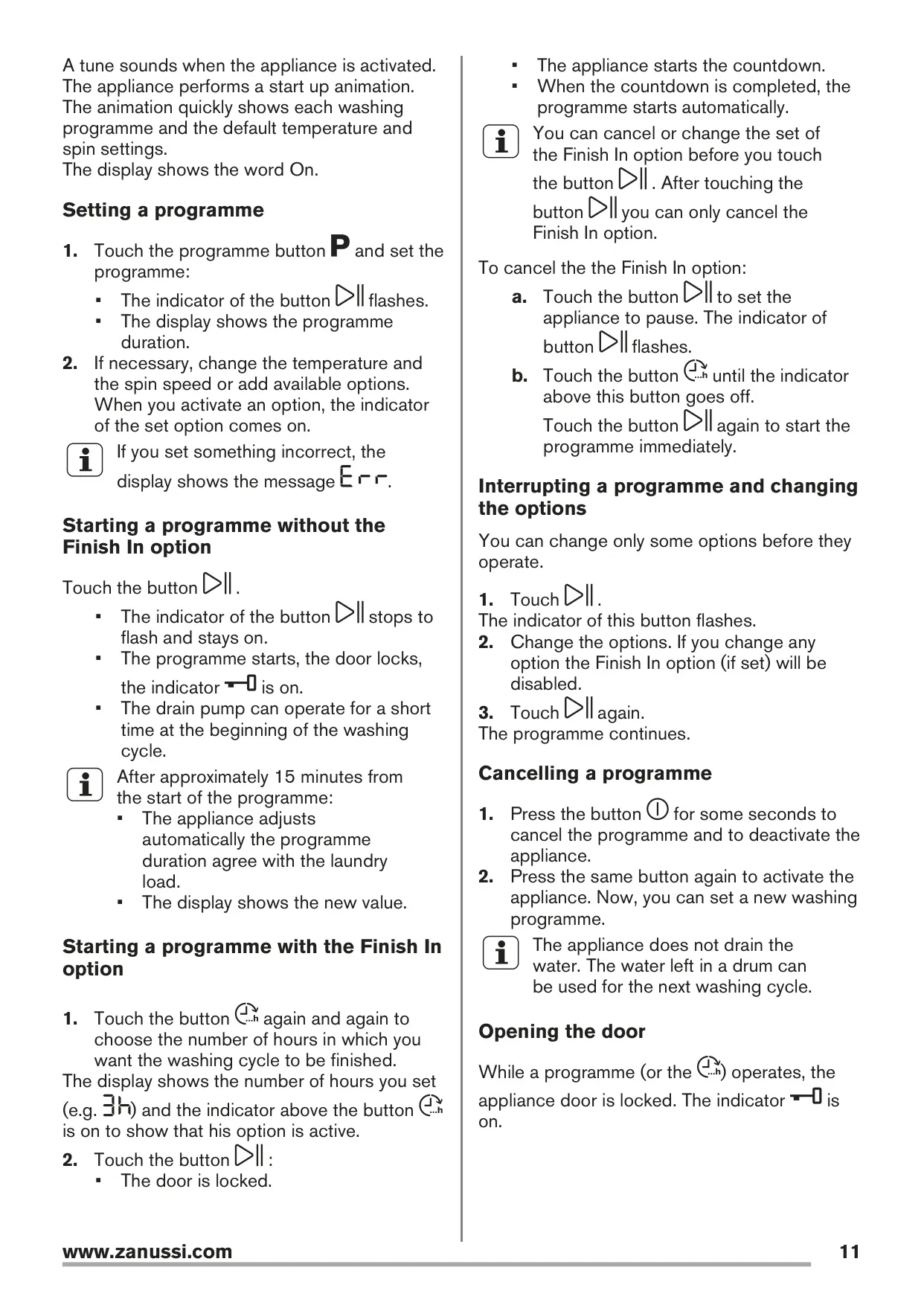

What is the 'Finish In' option and how do I use it?

The 'Finish In' option allows you to set the number of hours (from 3 to 20) until your washing programme is completed. Touch the 'Finish In' button repeatedly to select the desired delay. The display will show the chosen hours, and the appliance will start a countdown before automatically beginning the programme.

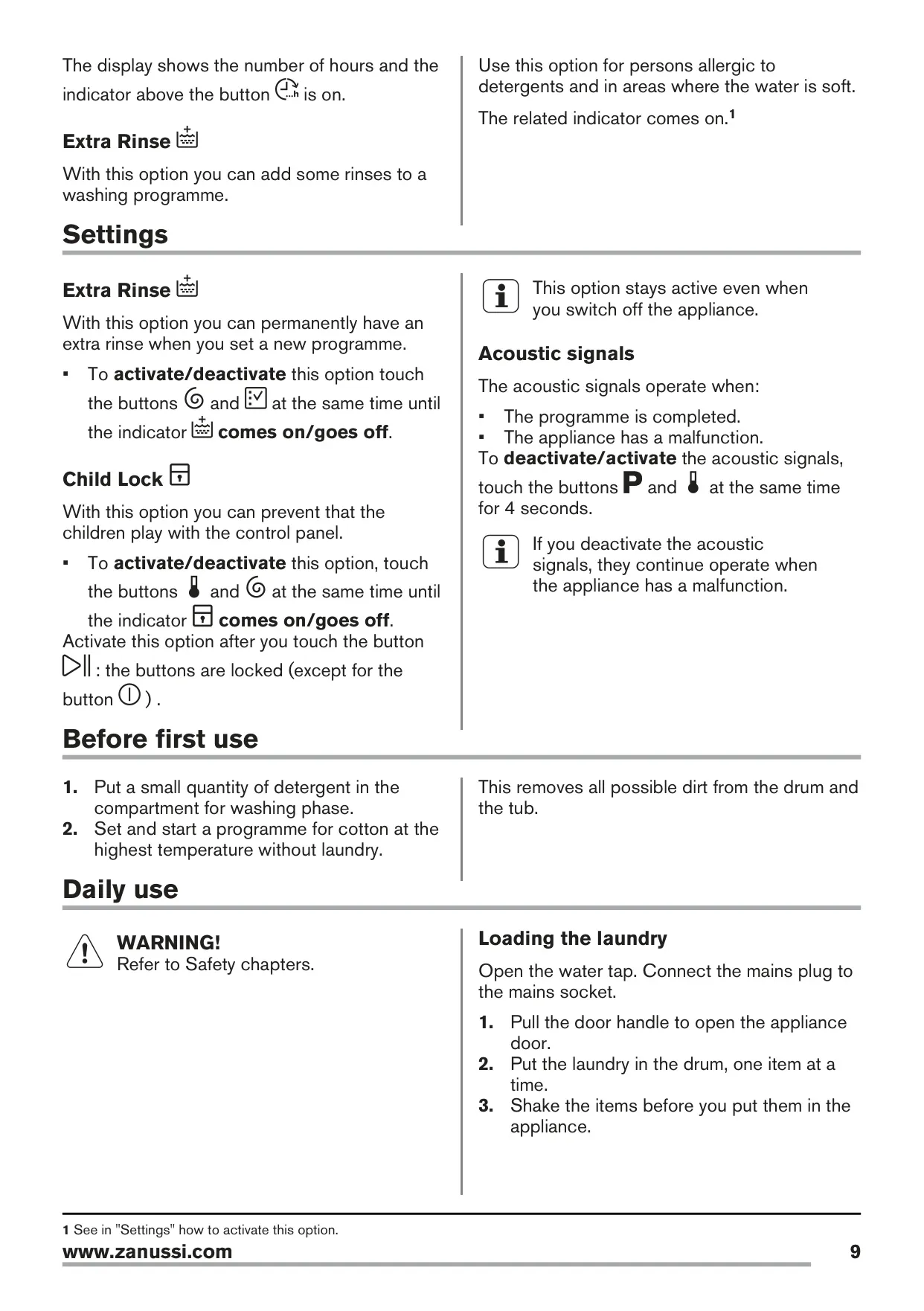

How do I permanently activate the Extra Rinse option?

To permanently activate the Extra Rinse option, simultaneously touch the Options selection and Spin selection touchpads until the indicator comes on. This setting will remain active even after you switch off and on the appliance, adding an extra rinse to all subsequent programmes.

What does the 'Easy Iron' option do?

The 'Easy Iron' option is designed to prevent creases in your laundry. When activated, the appliance carefully washes and spins the items, decreasing the spin speed, using more water, and adapting the programme duration to the type of laundry, resulting in less wrinkled clothes.

How does the appliance adjust programme duration?

At the beginning of a programme, the display shows the duration for the maximum load capacity. During the washing phase, the appliance automatically calculates and adjusts the programme duration based on the actual laundry load. A blinking dot on the display indicates this calculation is in progress, and the time can be significantly reduced for smaller loads.

What should I do if the washing machine is installed in an area with temperatures below 0°C?

If the appliance is in an area where temperatures can drop below 0°C, you must remove any remaining water from the inlet hose and drain pump to prevent frost damage. This involves disconnecting the mains plug, removing both hoses, and letting the water drain into a container before reinstalling them. Ensure the temperature is above 0°C before using the appliance again.

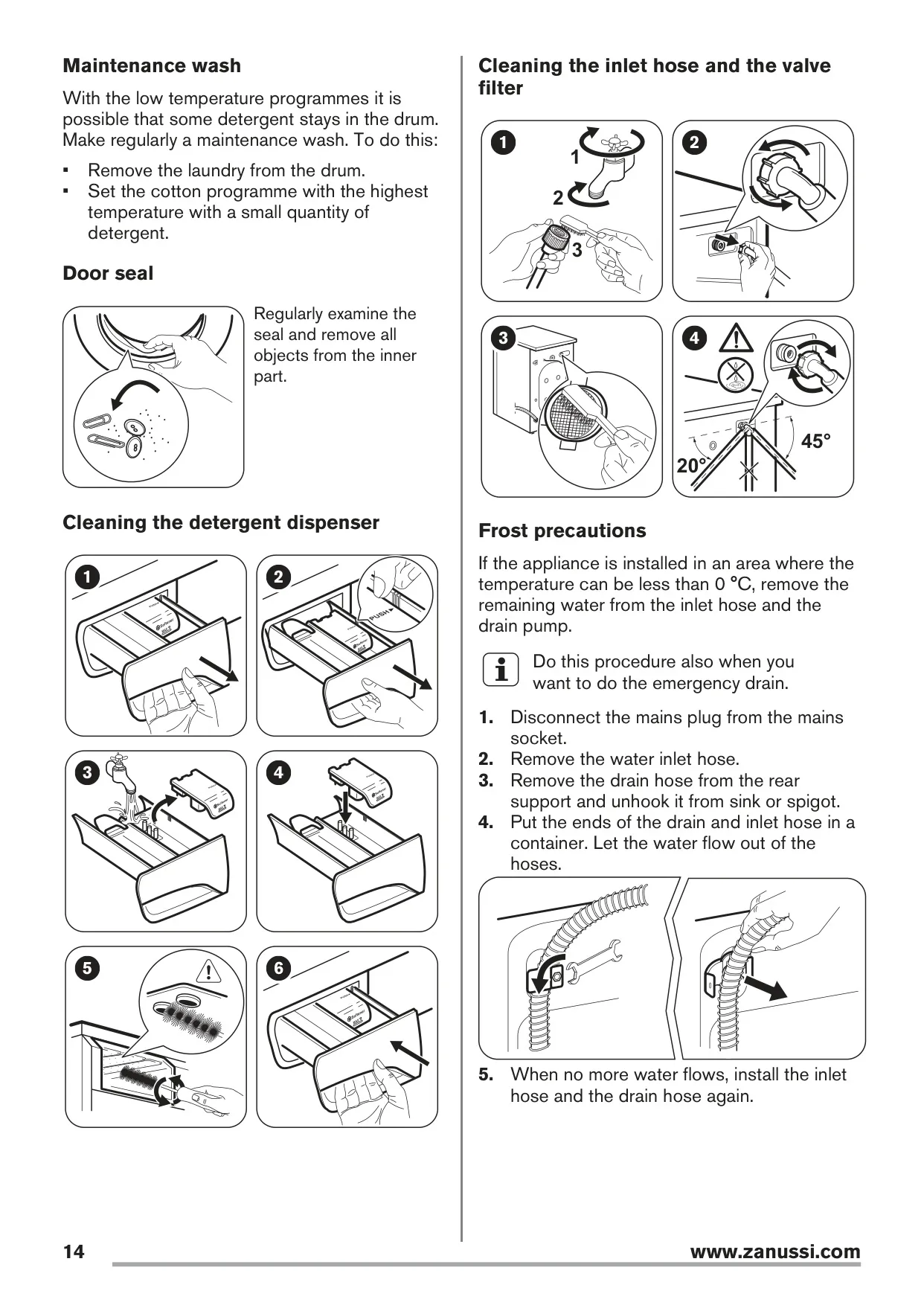

How do I perform a maintenance wash?

To perform a maintenance wash, ensure the drum is empty of laundry. Set the cotton programme with the highest possible temperature and add a small quantity of detergent. This helps to remove any detergent residue that might accumulate with frequent low-temperature programmes.
