Zanussi ZDLN1511 Dishwasher Instruction Manual
Zanussi ZDLN1511 Dishwasher
Zanussi ZDLN1511 Dishwasher Instructions
Here we offer the Zanussi ZDLN1511 Dishwasher manual completely free and in English. We have cataloged this manual in the Dishwashers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi ZDLN1511 Dishwasher, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

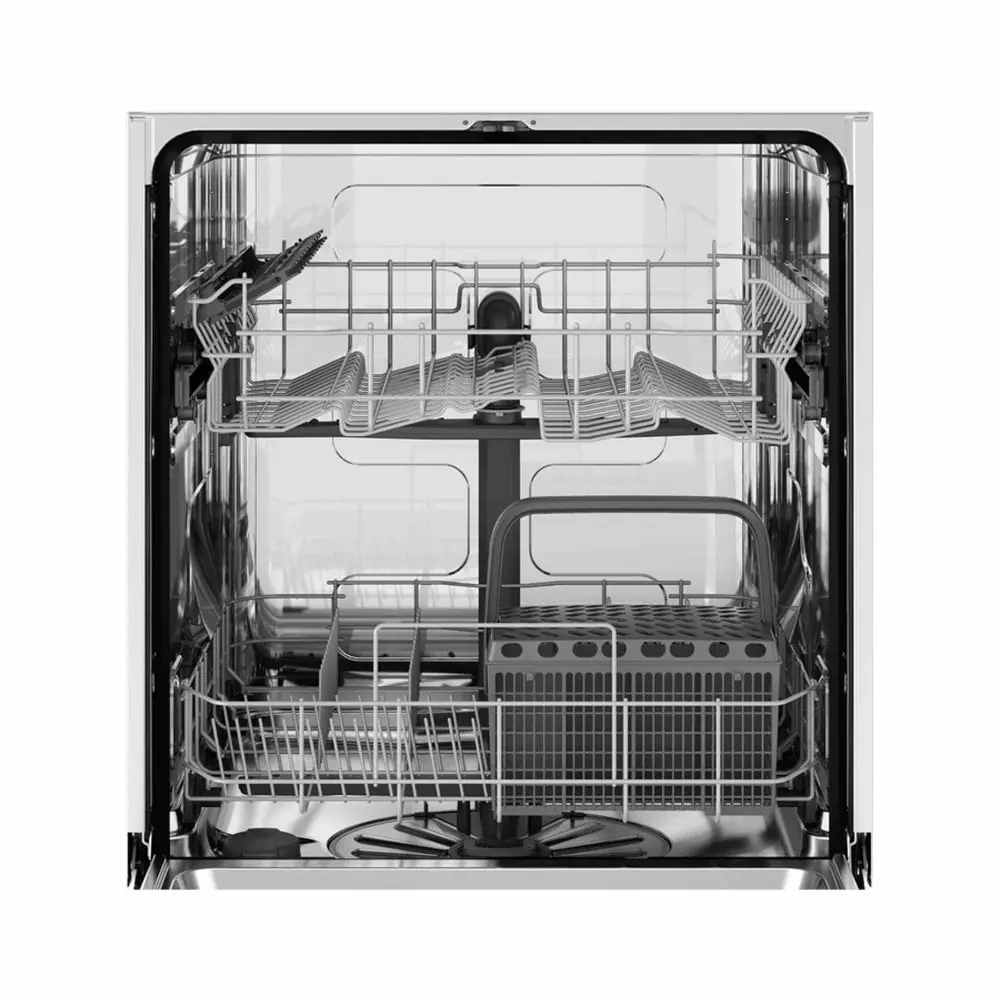

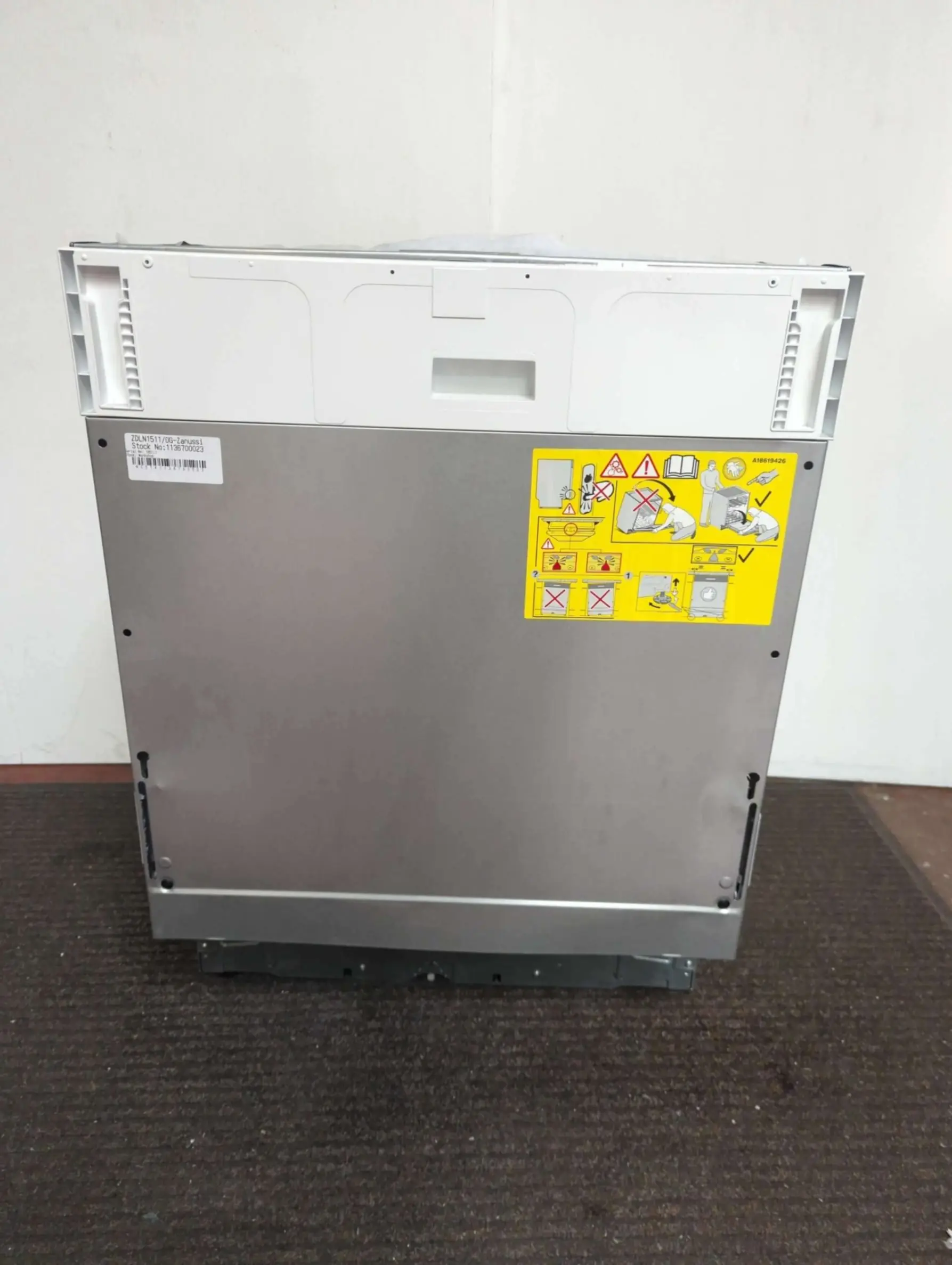

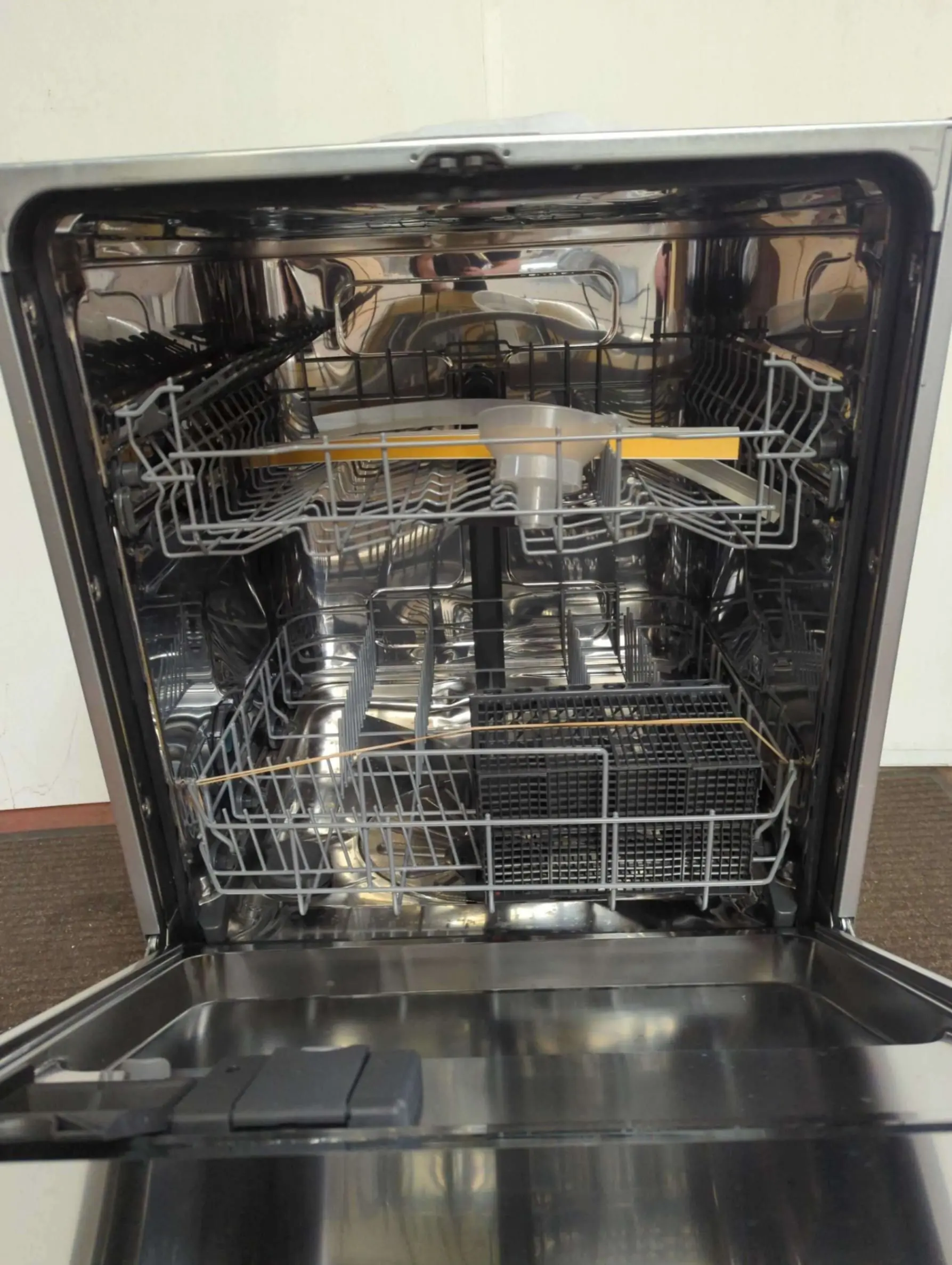

Product Images

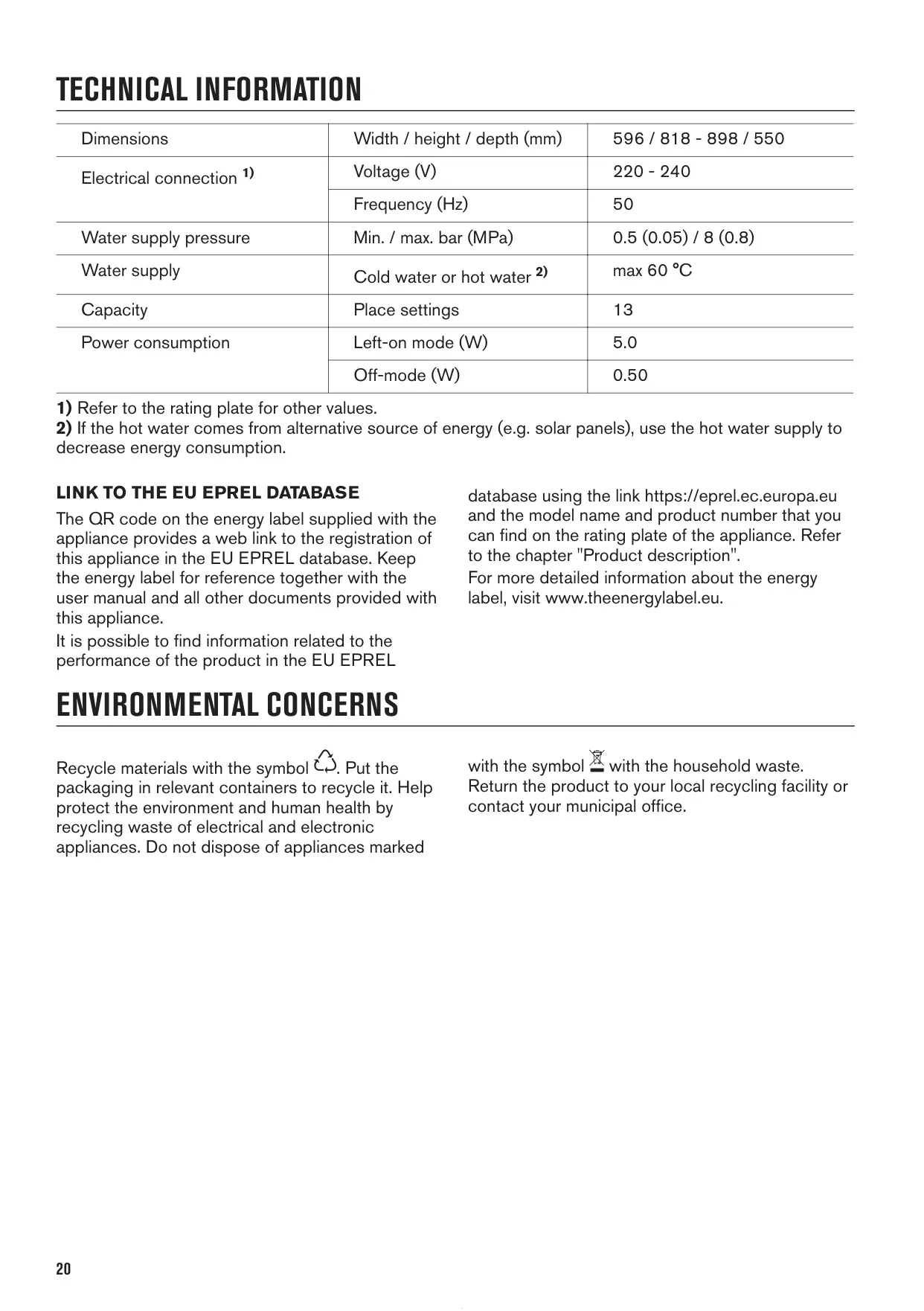

Zanussi ZDLN1511 Dishwasher Specifications
| Feature | Specification |
|---|---|
| Dimensions (W x H x D) | 596 / 818 - 898 / 550 mm |
| Electrical Connection (Voltage / Frequency) | 220 - 240 V / 50 Hz |
| Water Supply Pressure (Min. / Max.) | 0.5 (0.05) / 8 (0.8) bar (MPa) |
| Water Supply Temperature | Max 60 °C (cold or hot water) |
| Capacity | 13 Place Settings |
| Power Consumption (Left-on mode) | 5.0 W |
| Power Consumption (Off-mode) | 0.50 W |
| Ecodesign Programme Water Consumption | 9.9 Litres |
| Ecodesign Programme Energy Consumption | 1.039 kWh (2010 reg.) / 1.036 kWh (2022 reg.) |
| Ecodesign Programme Duration | 227 minutes |
Zanussi ZDLN1511 Dishwasher Details

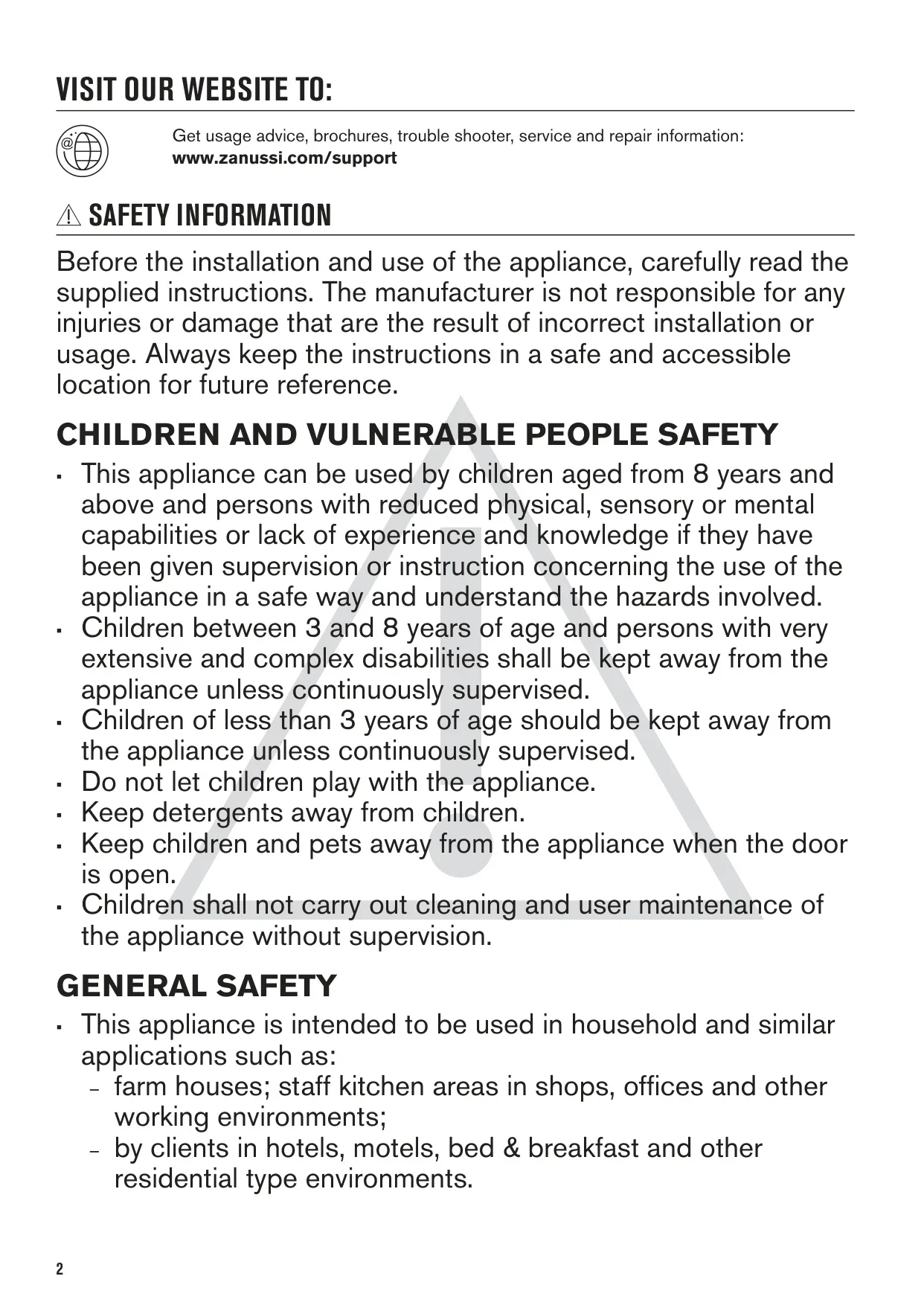

The Zanussi ZDLN1511 Dishwasher is designed for household use, adhering to strict safety standards. It features dedicated child safety guidelines, including warnings about keeping children away when the door is open and from detergents. The appliance is built for reliability, recommending professional installation and emphasizing the importance of not altering its specifications or using damaged units.

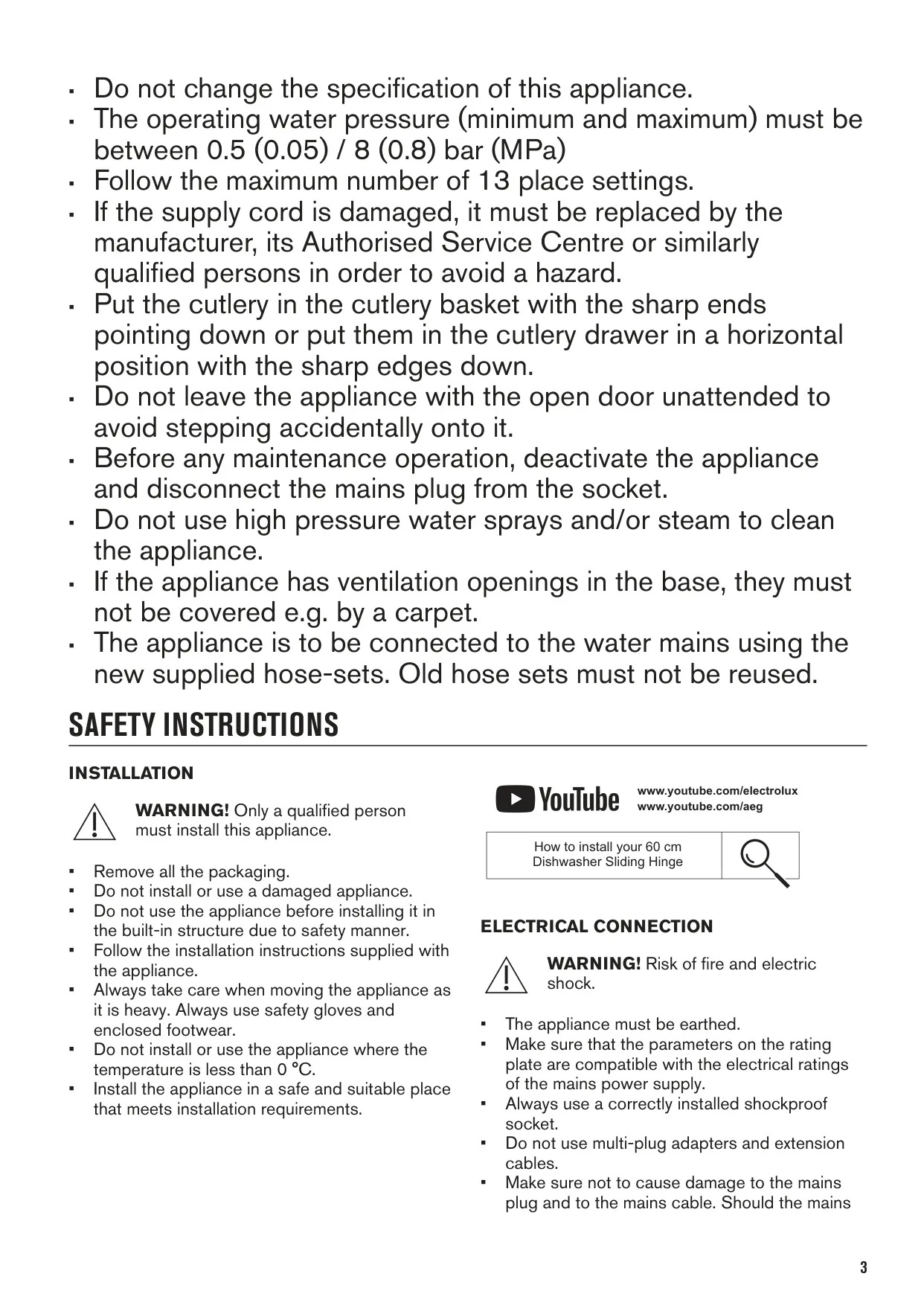

Safety extends to electrical and water connections, which must meet specific criteria. The dishwasher requires an earthed, shockproof socket and warns against using multi-plug adapters. For water, new hose-sets must be used, and users are advised to flush pipes before connection to ensure clean water supply and prevent leaks.

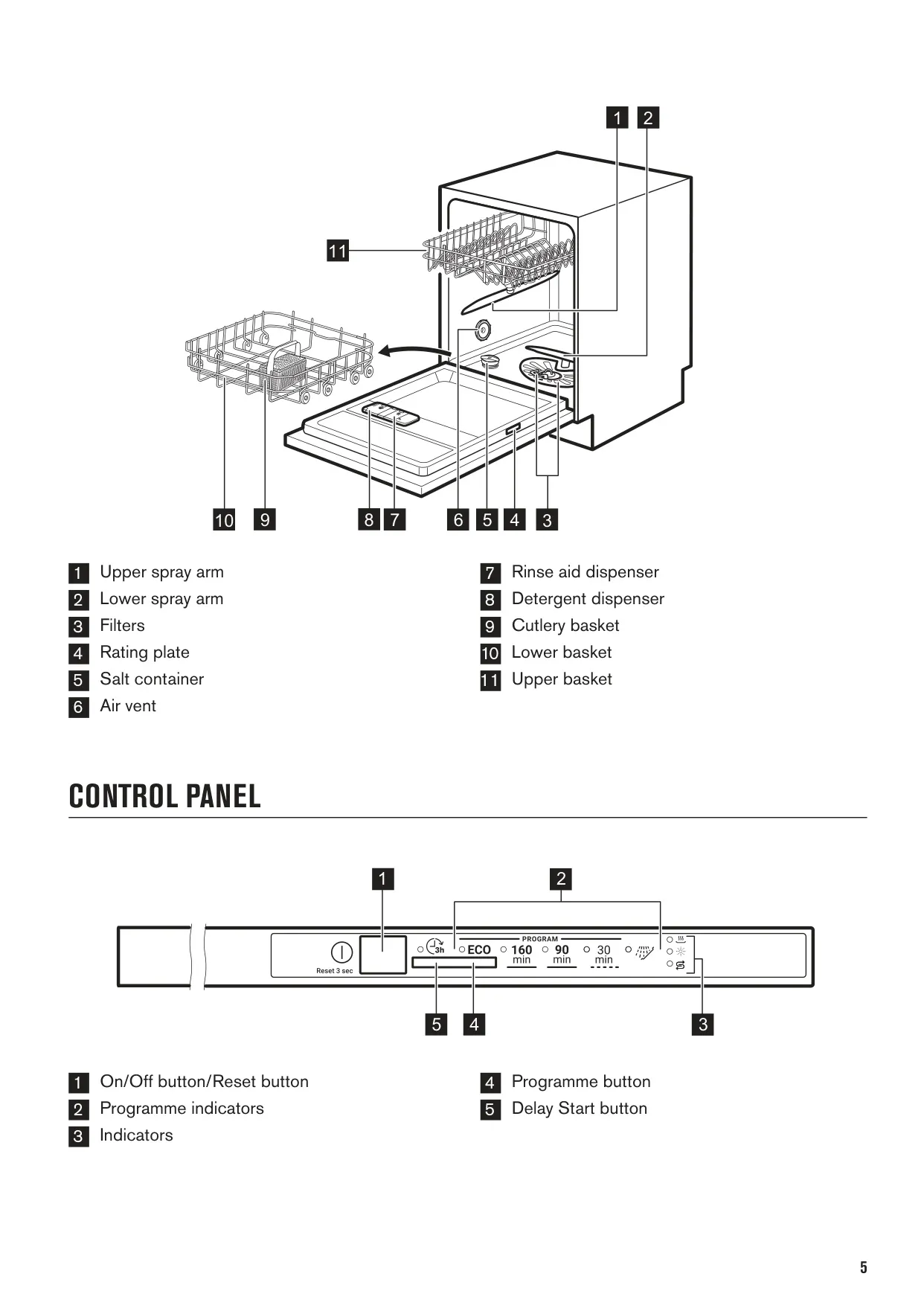

The product description highlights key components, including upper and lower spray arms for thorough cleaning, a multi-part filter system, and separate dispensers for rinse aid and detergent. It also includes a salt container to manage water hardness effectively, alongside upper and lower baskets and a cutlery basket for organised loading.

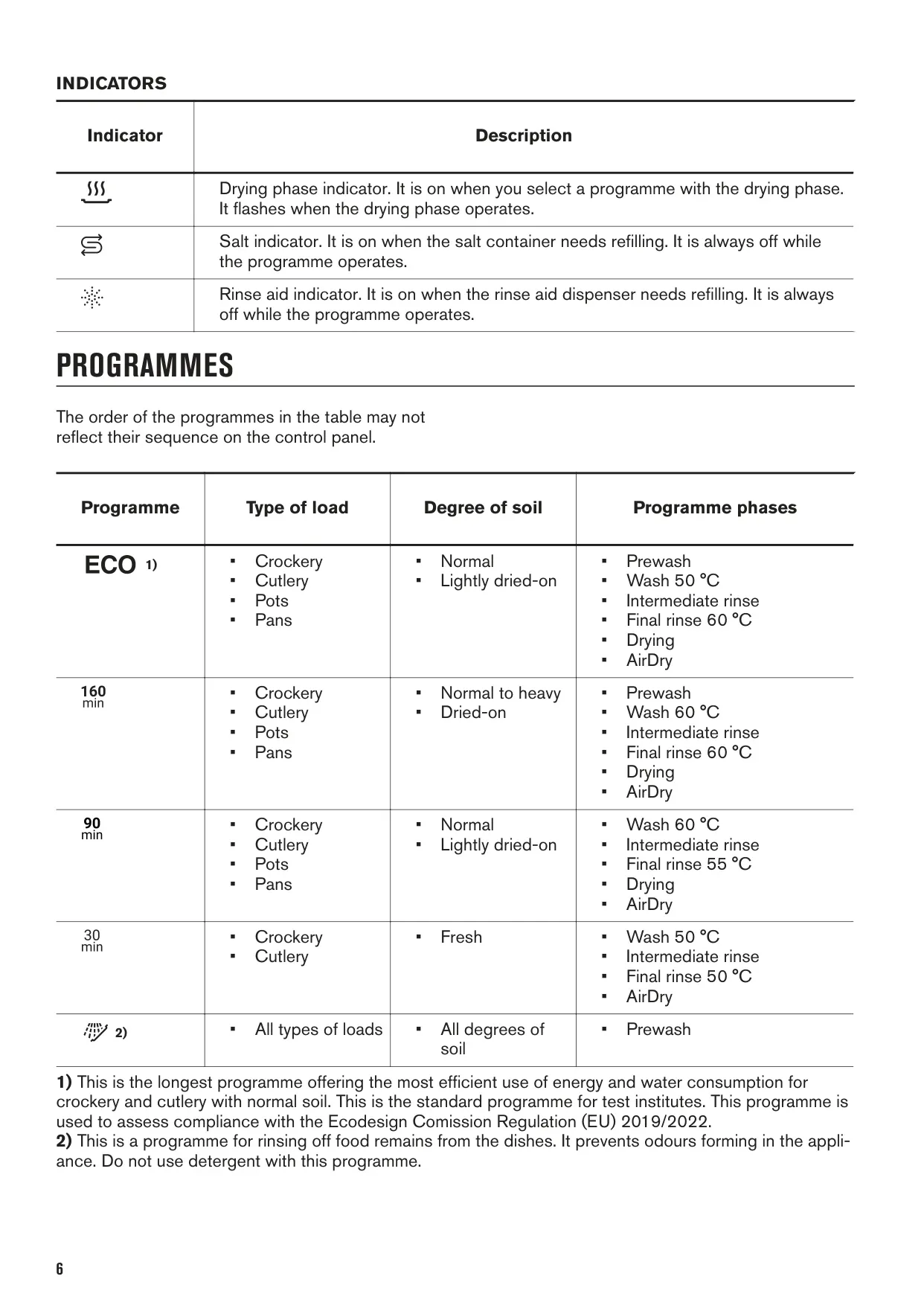

Its control panel is user-friendly, featuring an On/Off/Reset button, program indicators, and a Delay Start option. Essential indicators notify users about the drying phase, and when salt or rinse aid levels are low, ensuring optimal performance and maintenance. These visual cues are crucial for day-to-day operation.
The dishwasher offers several programs tailored to different load types and soil levels, from prewash for rinsing food remains to the eco-efficient program for normally soiled dishes. This variety ensures flexibility, while the "Prewash" program helps prevent odours without detergent.

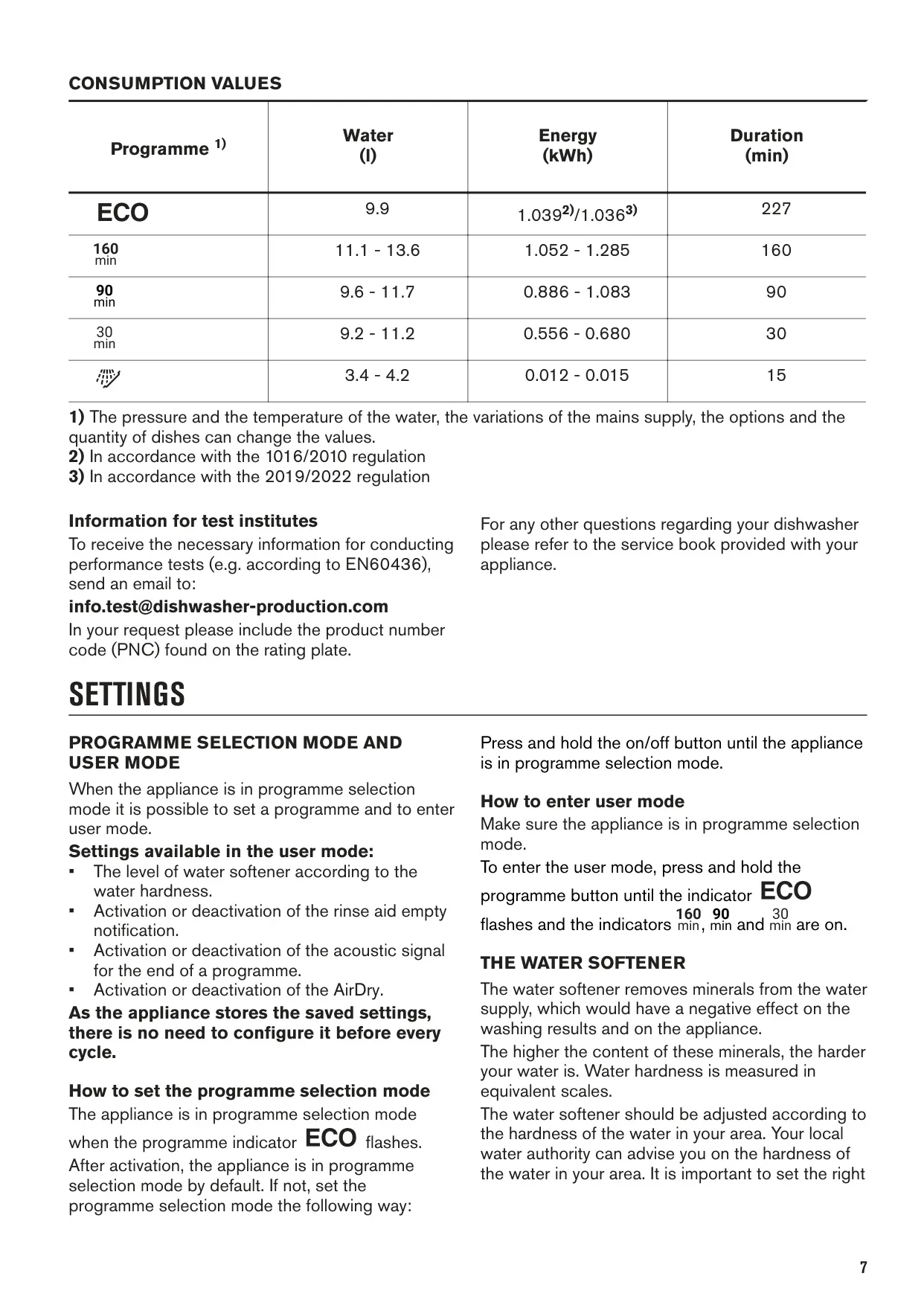

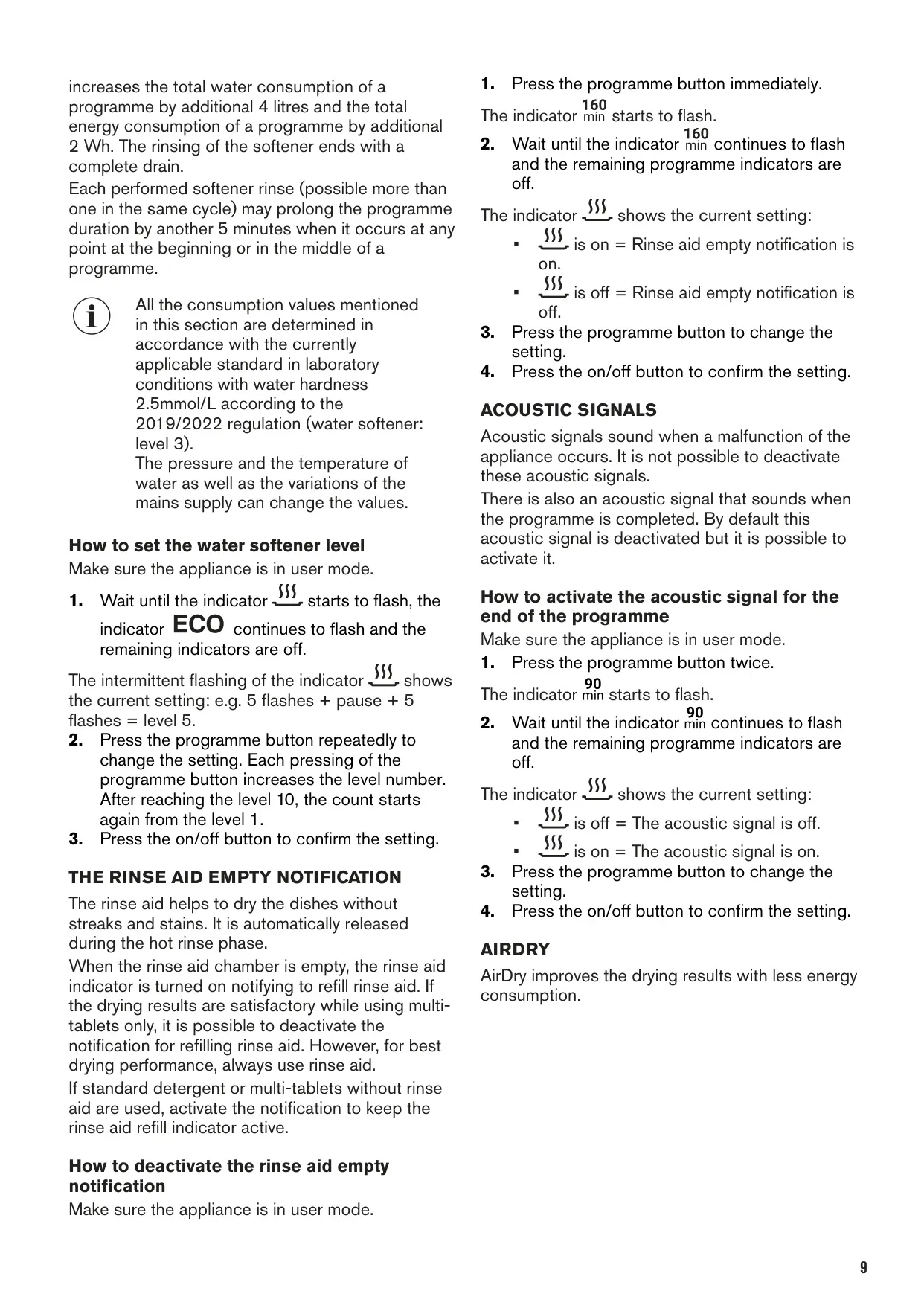

Settings can be customized via a user mode, allowing adjustments for water softener levels, rinse aid empty notifications, and an end-of-program acoustic signal. Users can also activate or deactivate the AirDry function, which automatically opens the door for enhanced drying and reduced energy consumption.

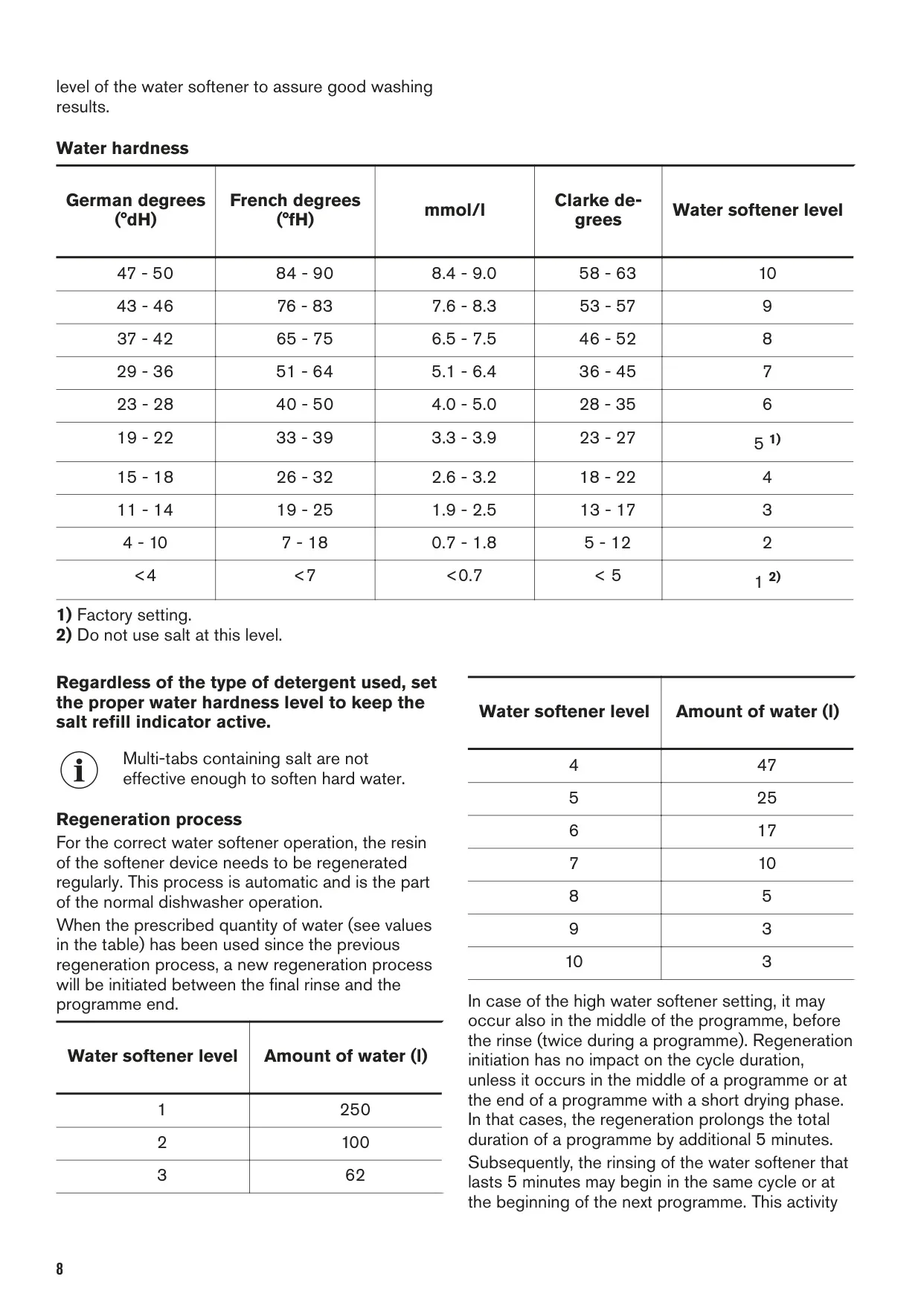

The water softener is a critical feature, removing minerals to improve wash results. Its level must be adjusted according to local water hardness, a setting that impacts salt consumption and cleaning efficacy. The appliance also performs an automatic regeneration process for the softener resin, which may slightly extend programme duration.
Before first use, it's essential to set the water softener, fill the salt and rinse aid containers, and run an initial program without dishes or detergent. This primes the system and removes any manufacturing residuals, ensuring the appliance is ready for efficient operation.
The Salt Container needs to be filled with coarse dishwasher salt, especially for the first use, where one litre of water is also added. Proper sealing of the cap and immediately starting a program after refilling are vital to prevent corrosion and maintain softening performance.

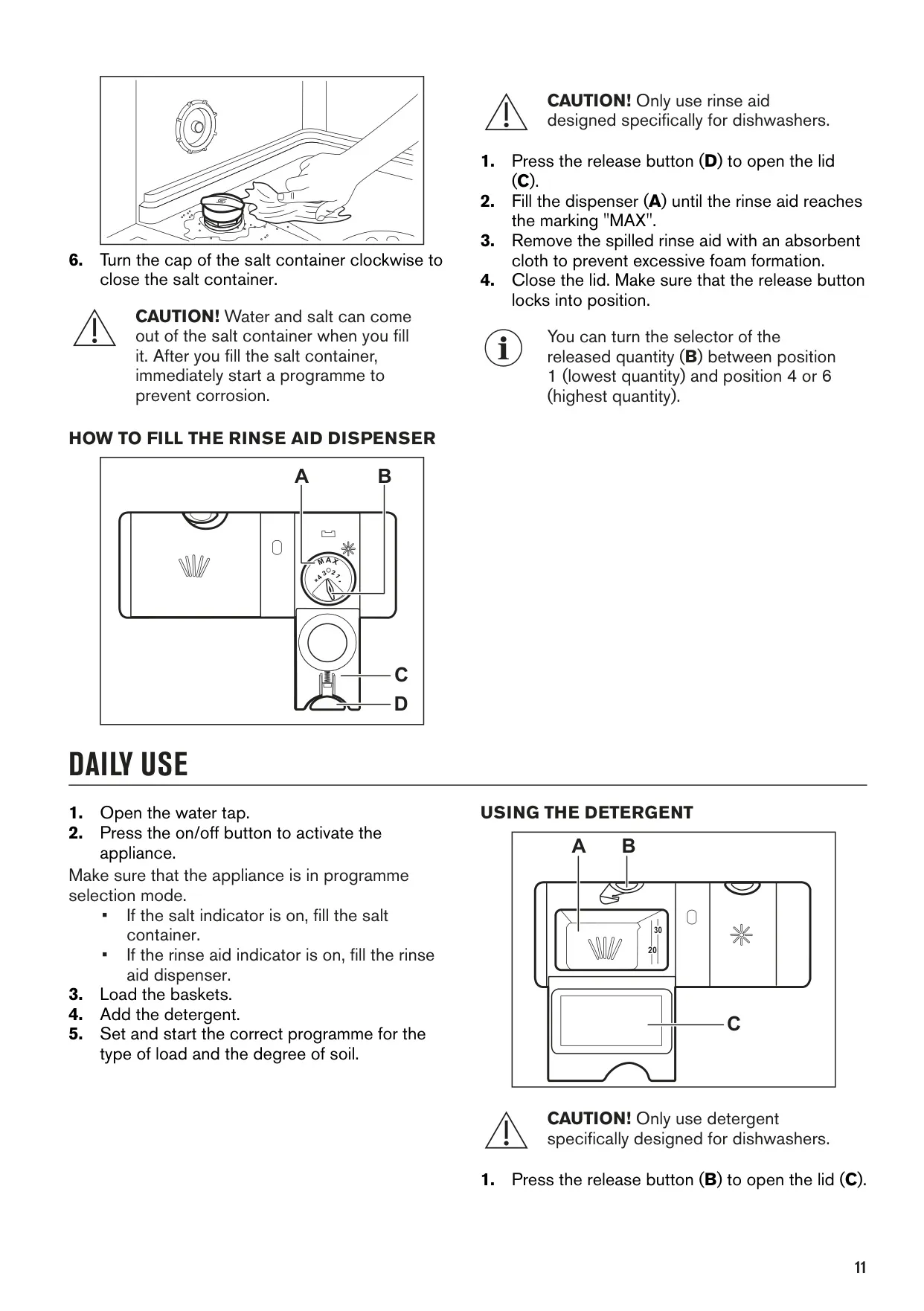

Rinse aid is automatically dispensed during the hot rinse phase, contributing to streak-free, spotless drying. Users can adjust the dispensed quantity and toggle the refill notification, providing flexibility, especially when using multi-tabs that may contain integrated rinse aid.
For daily use, a straightforward process involves activating the appliance, checking indicators for salt or rinse aid, loading baskets, adding detergent, and selecting the appropriate program. The detergent dispenser accommodates powder or tablets, with a dedicated section for prewash detergent.

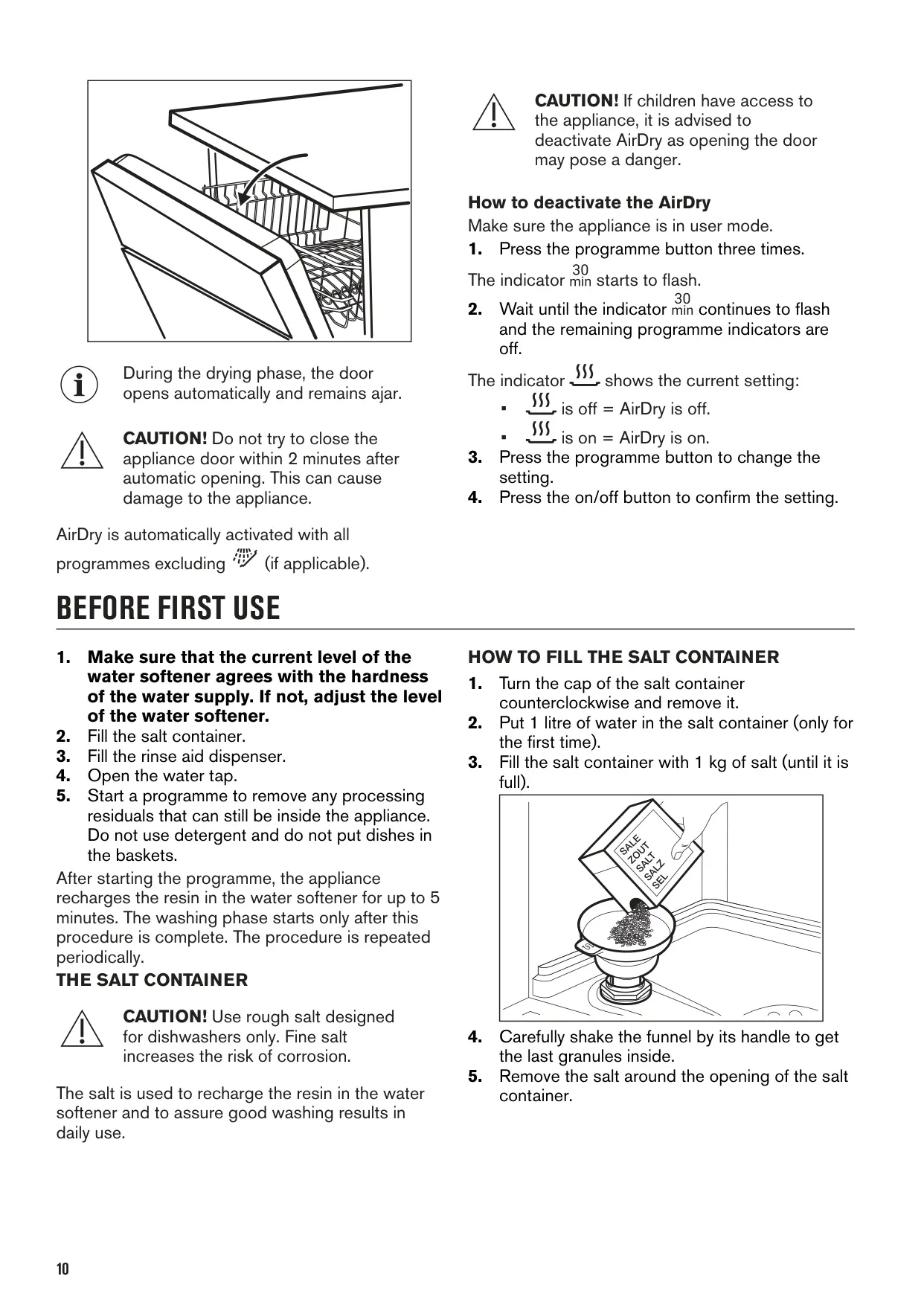

The Zanussi ZDLN1511 includes AirDry technology, which automatically opens the door during the drying phase to improve results and save energy. Users are advised not to close the door within two minutes of its automatic opening to prevent damage, ensuring the feature operates as intended.
The Auto Off function is an energy-saving feature, automatically deactivating the dishwasher after a program completes or after five minutes of inactivity. This mechanism helps reduce standby power consumption, contributing to overall household energy efficiency.
Maintenance is key to sustained performance. Regular cleaning of the three-part filter system and the lower spray arm is crucial to prevent clogging and ensure effective water circulation. External cleaning requires only a moist, soft cloth, while internal cleaning benefits from monthly dishwasher-specific cleaning products and regular long-duration programs.
