Zanussi Lindo 100 Washer 7 kg ZWF71240W Instruction Manual
Zanussi Lindo 100 Washer 7 kg ZWF71240W
Zanussi Lindo 100 ZWF71240W Instructions
Here we offer the Zanussi Lindo 100 Washer 7 kg ZWF71240W manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi Lindo 100 Washer 7 kg ZWF71240W, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

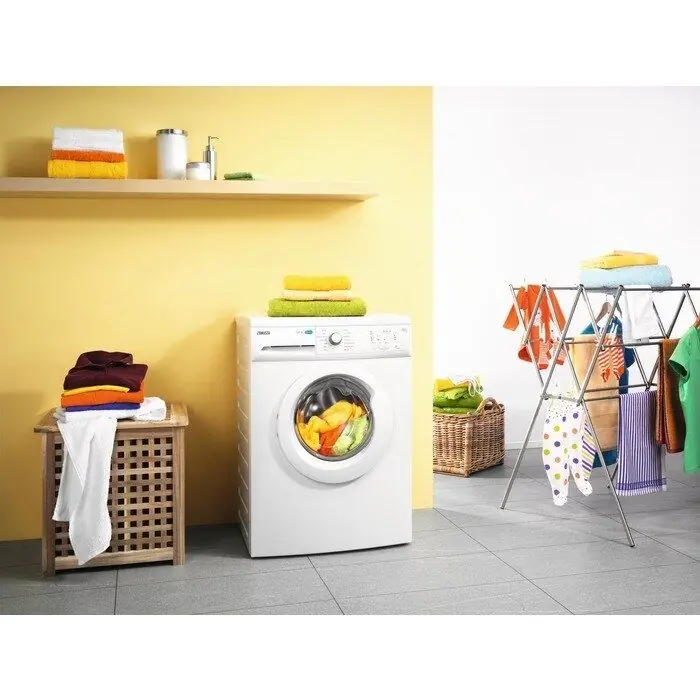

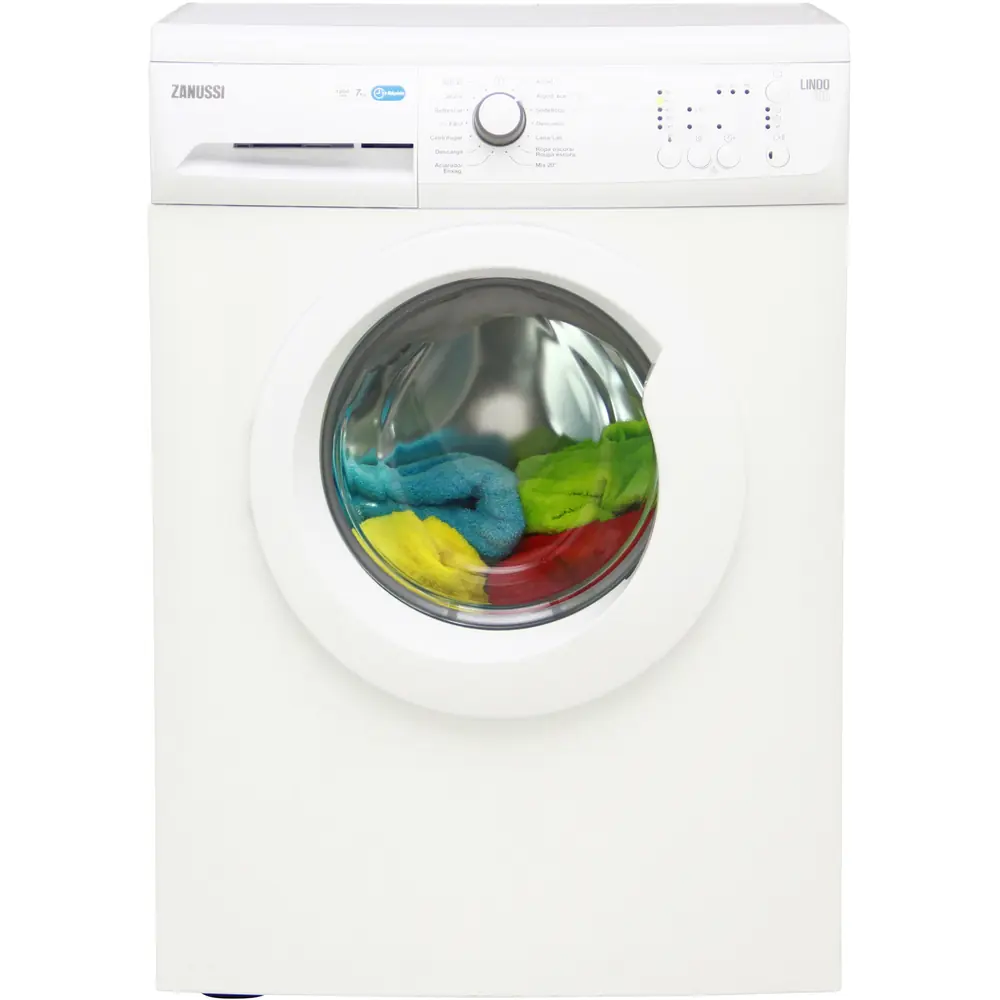

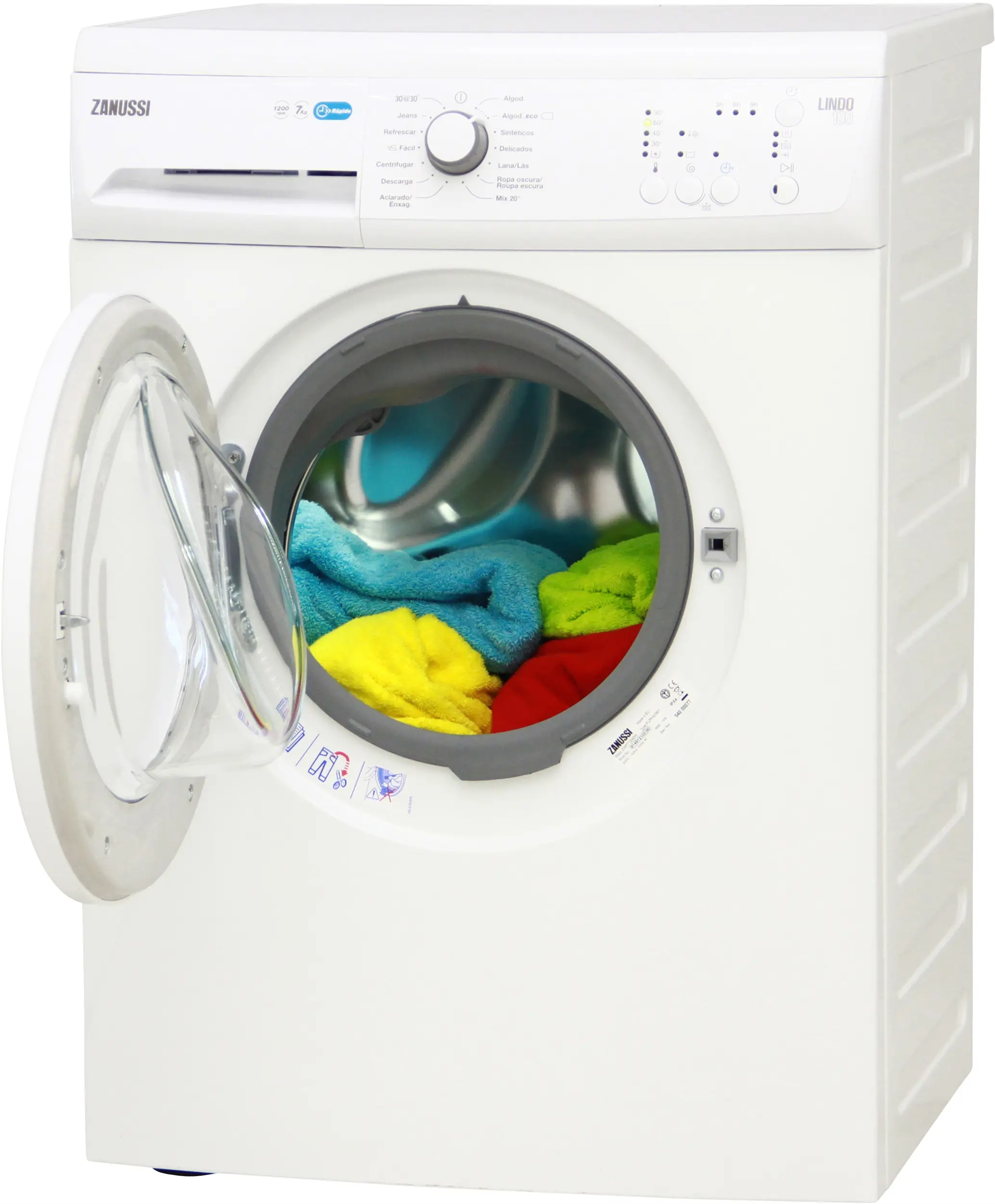

Product Images

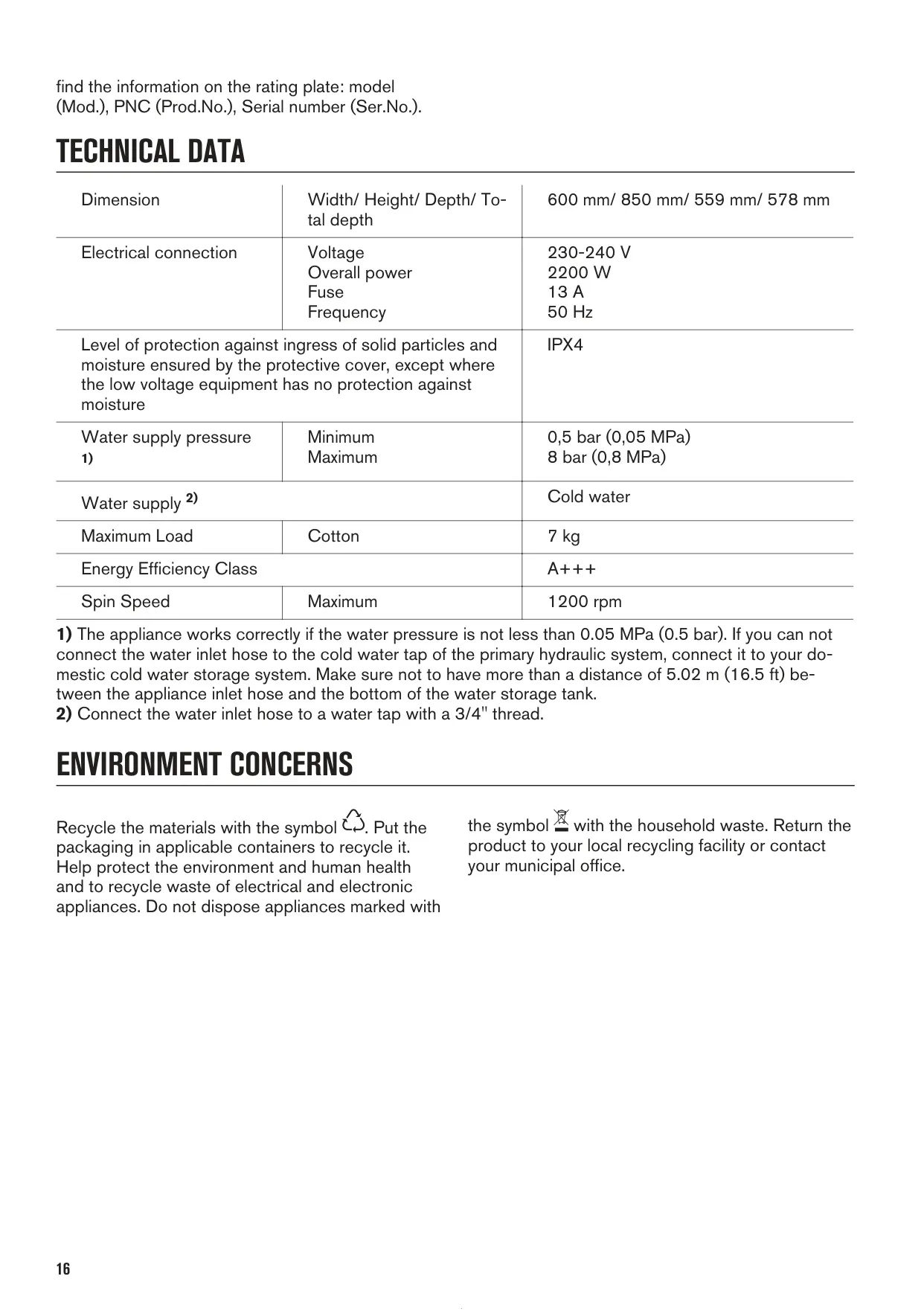

Zanussi Lindo 100 Washing Machine 7 kg ZWF71240W Specifications
| Feature | Specification |
|---|---|
| Model | ZWF71240W |
| Maximum Load Capacity (Cotton) | 7 kg |

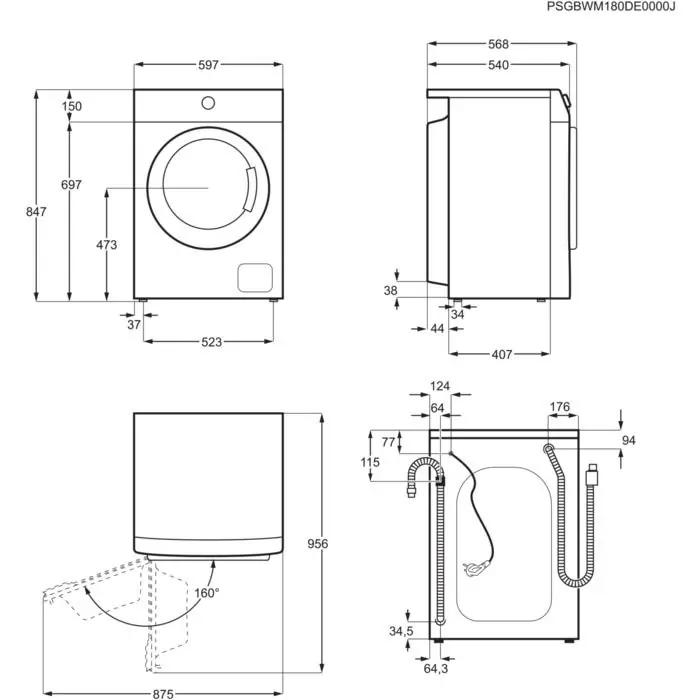

| Dimensions (Width/Height/Depth/Total Depth) | 600 mm / 850 mm / 559 mm / 578 mm |
| Electrical Voltage | 230-240 V |
| Overall Electrical Power | 2200 W |
| Fuse | 13 A |
| Electrical Frequency | 50 Hz |
| Minimum Water Supply Pressure | 0.5 bar (0.05 MPa) |
| Maximum Water Supply Pressure | 8 bar (0.8 MPa) |
| Water Supply Type | Cold Water |
| Energy Efficiency Class | A+++ |
| Maximum Spin Speed | 1200 rpm |
| Protection Level (Solid particles & moisture) | IPX4 |
Zanussi Lindo 100 7 kg ZWF71240W Details

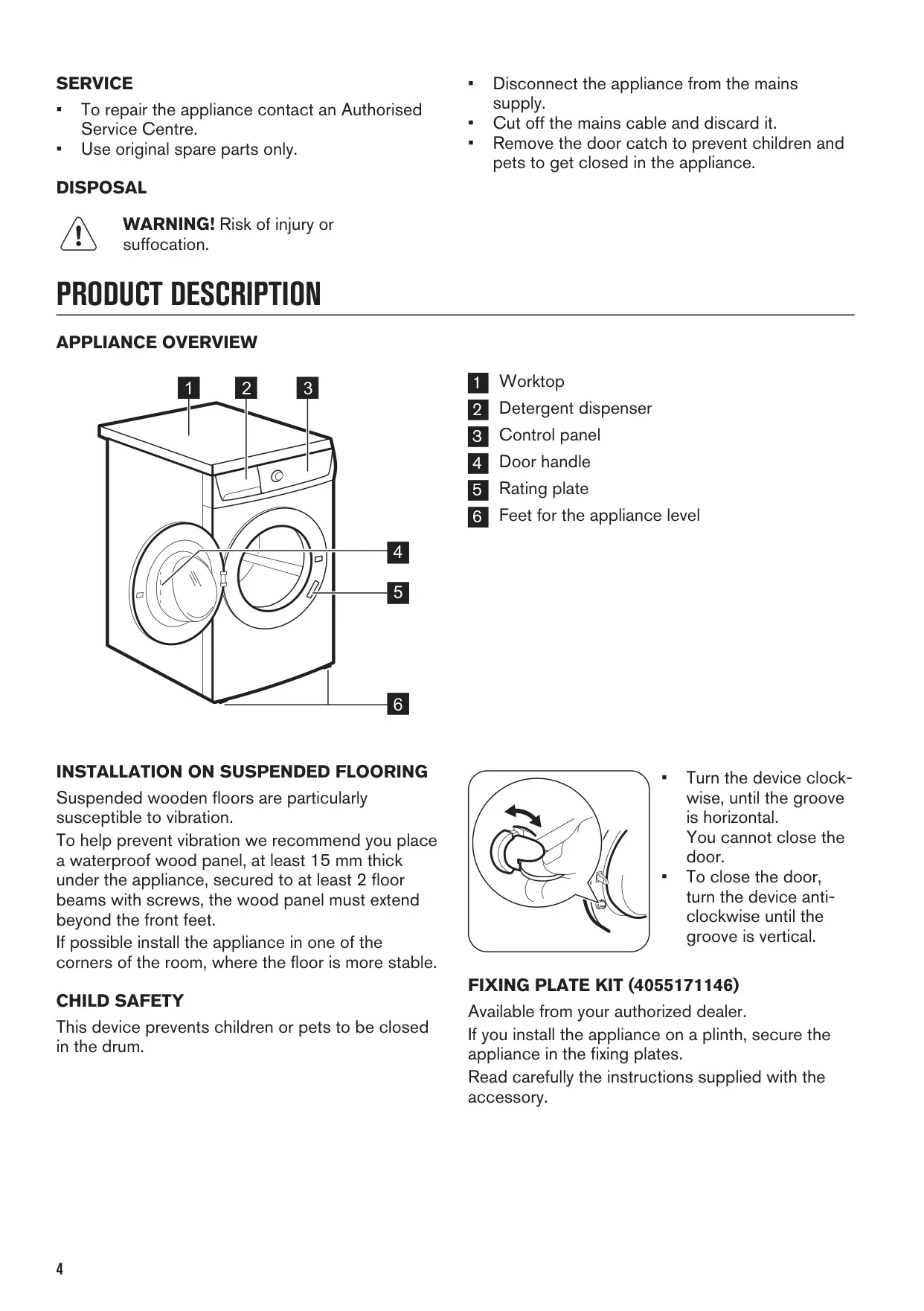

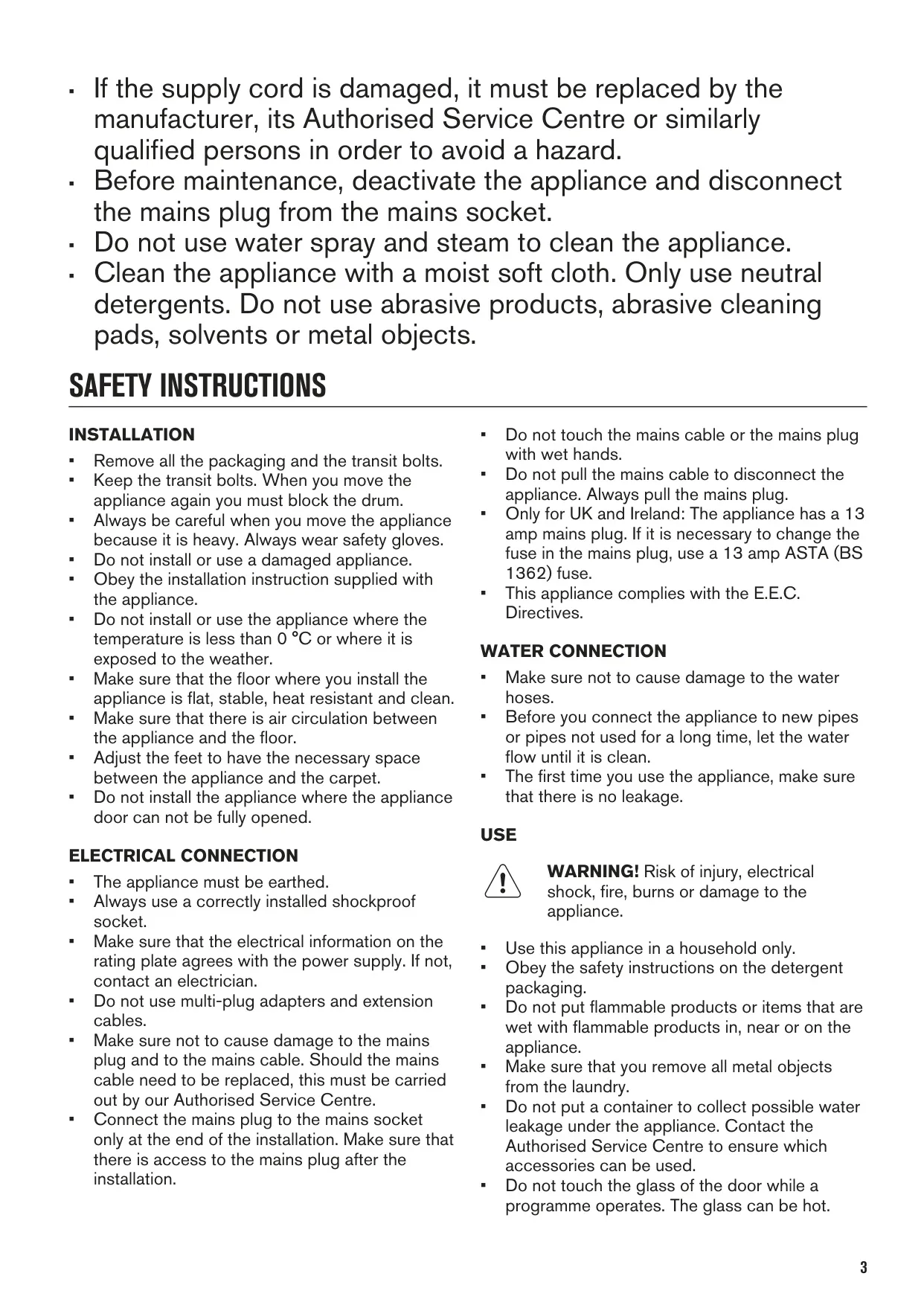

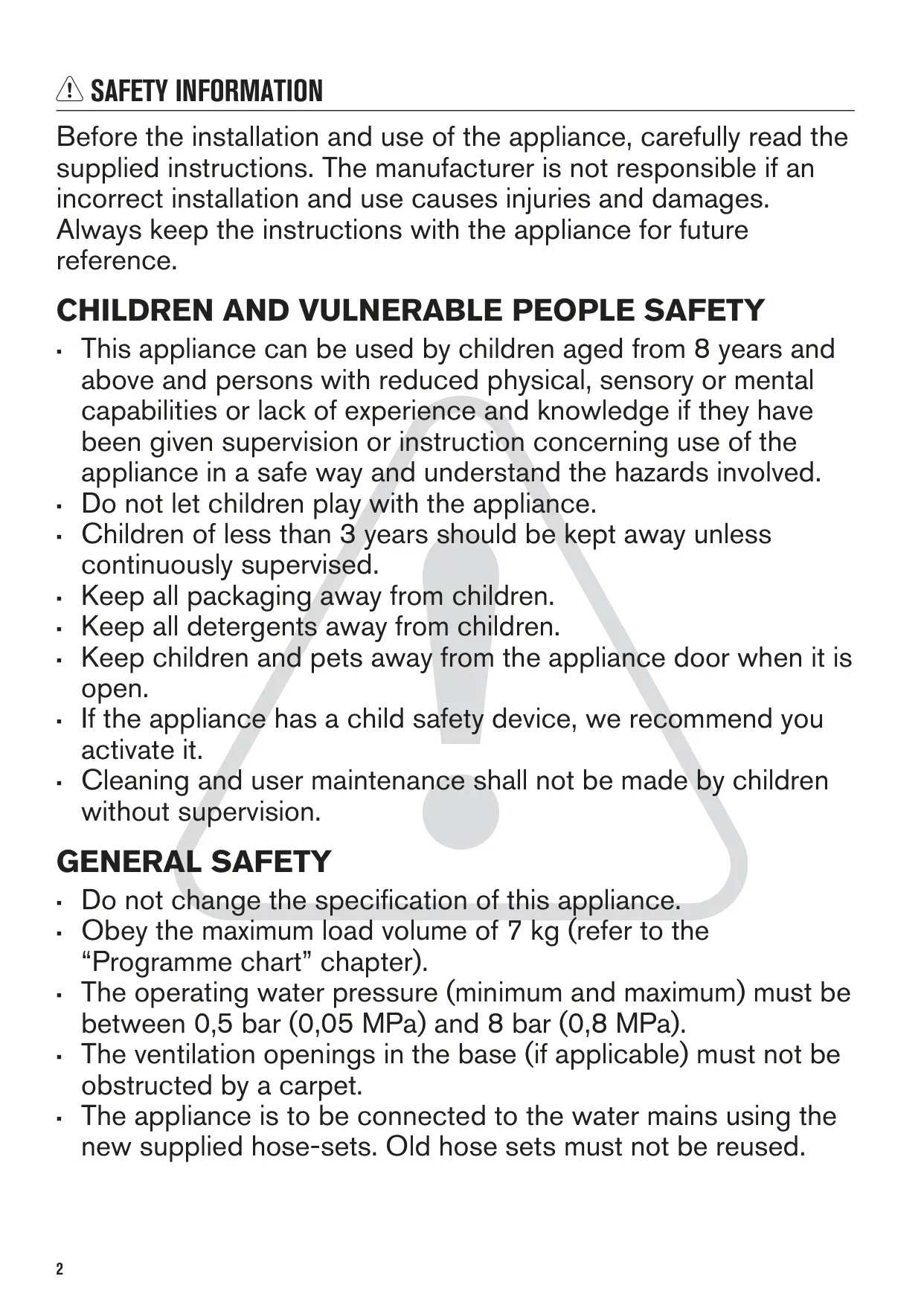

The Zanussi Lindo 100 ZWF71240W is designed with user safety and convenience as paramount. Comprehensive safety guidelines are provided, including specific instructions for children aged 8 and above, as well as vulnerable individuals. A crucial child safety device is integrated, preventing accidental closure of the drum. Installation instructions detail important steps such as removing transit bolts and specific guidance for securing the appliance on suspended wooden floors to minimize vibration, ensuring a stable and safe operation environment.

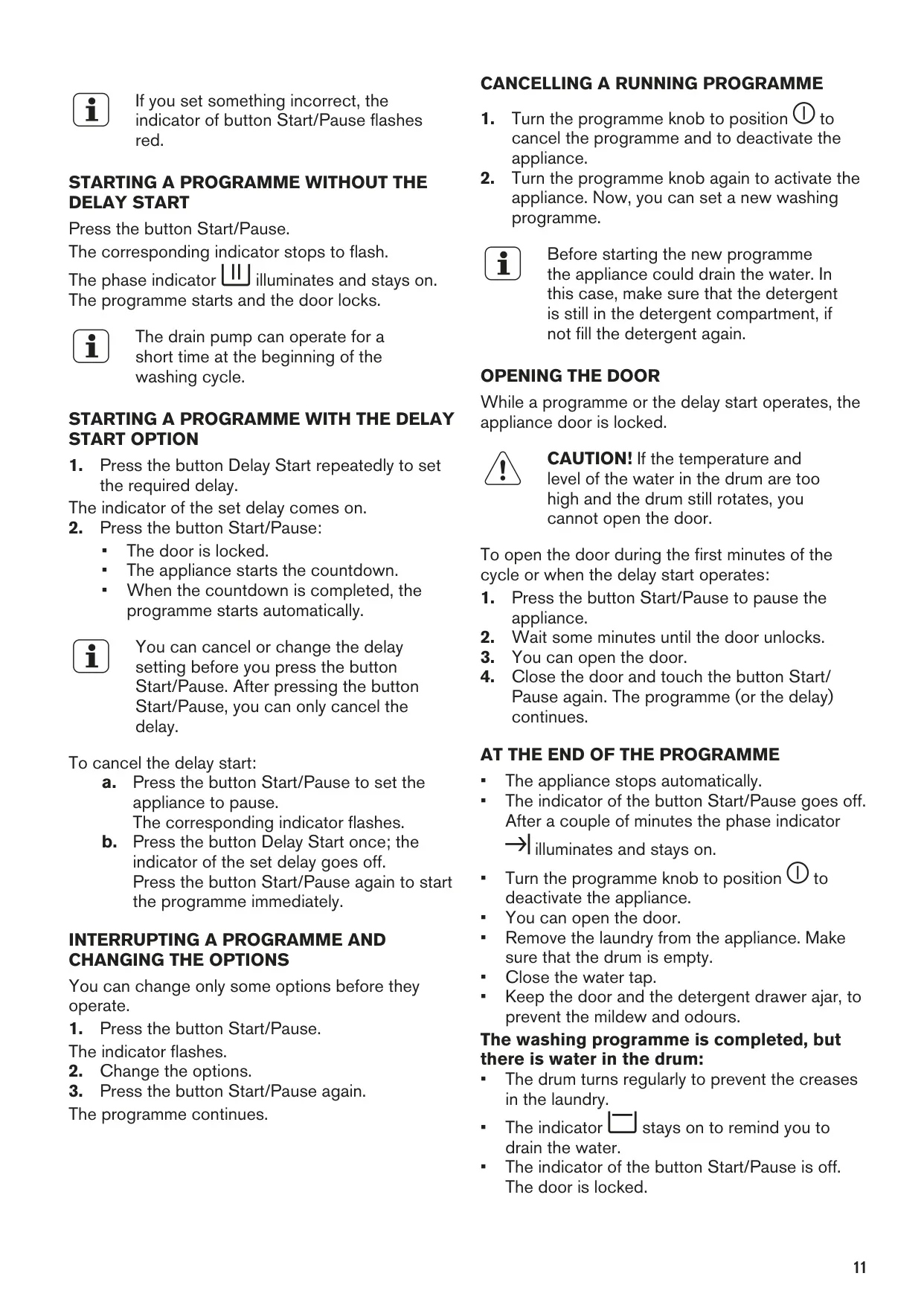

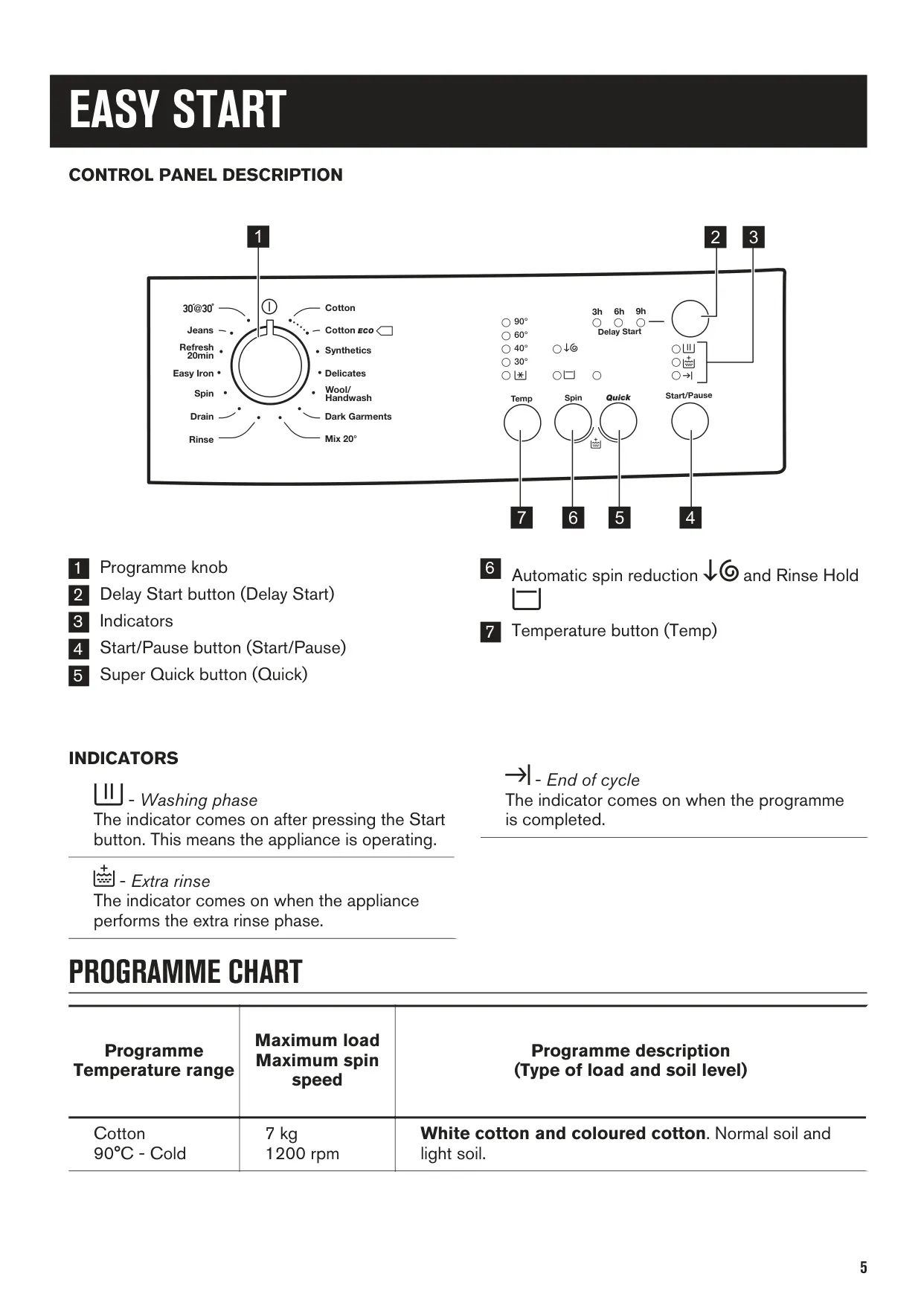

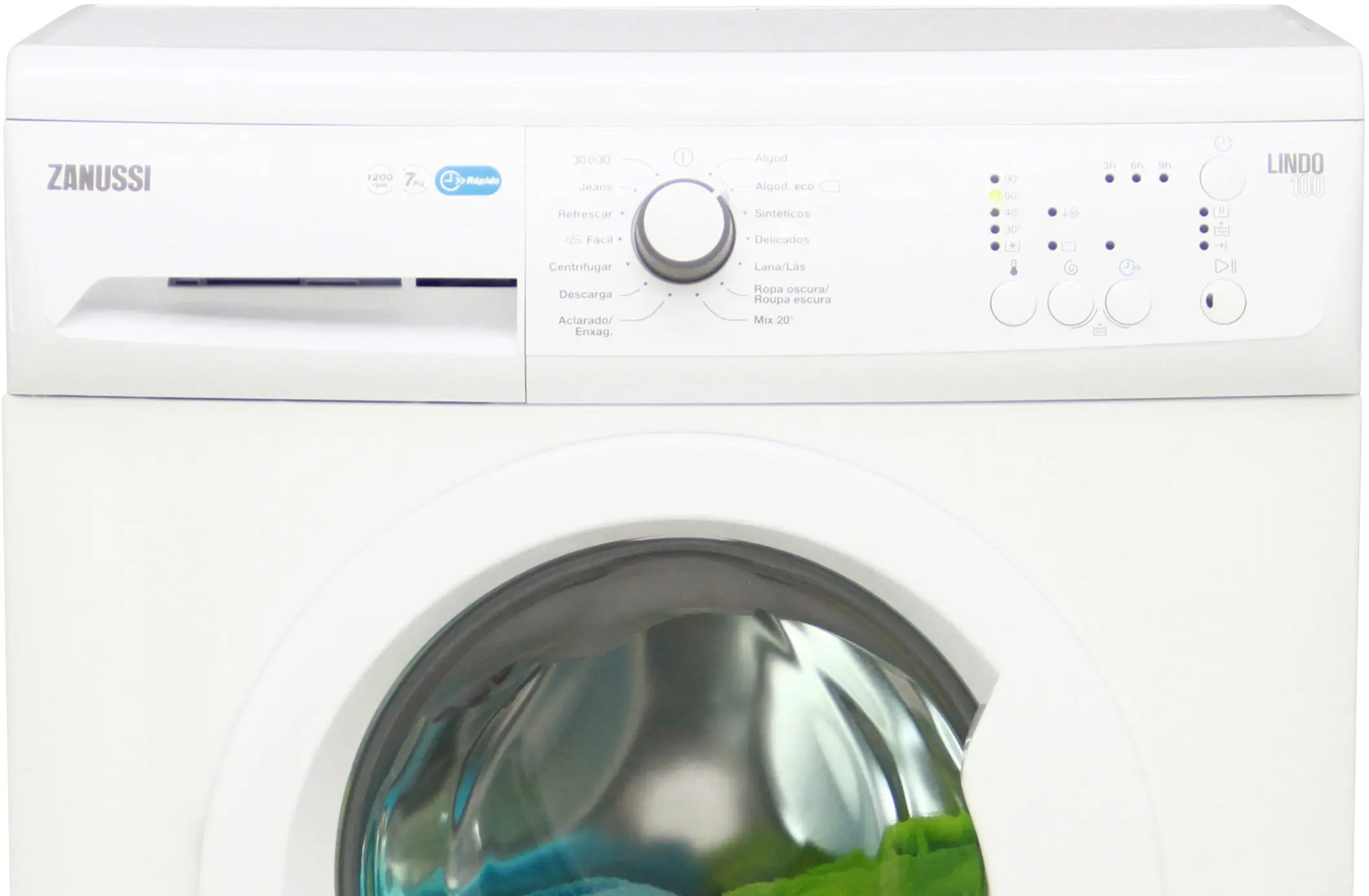

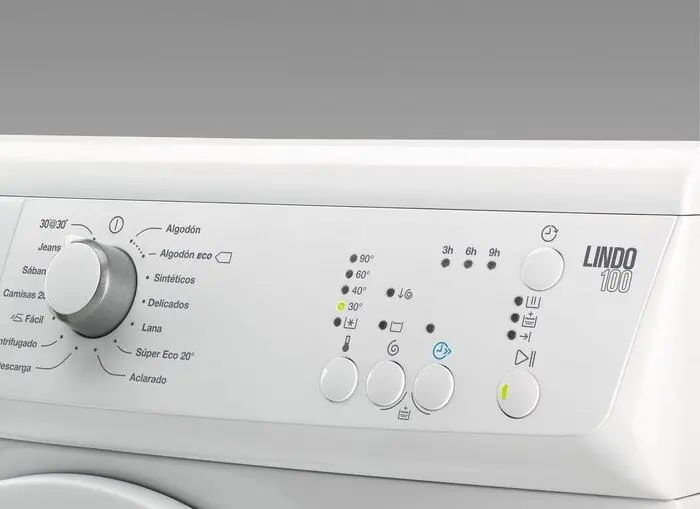

The washing machine features an intuitive control panel that makes program selection and option activation straightforward. A central program knob allows users to easily select from a wide range of washing cycles. Clear indicators illuminate to show the current washing phase and activated options, providing immediate feedback on the appliance's status. This user-friendly interface simplifies the washing process, making it accessible for all users.

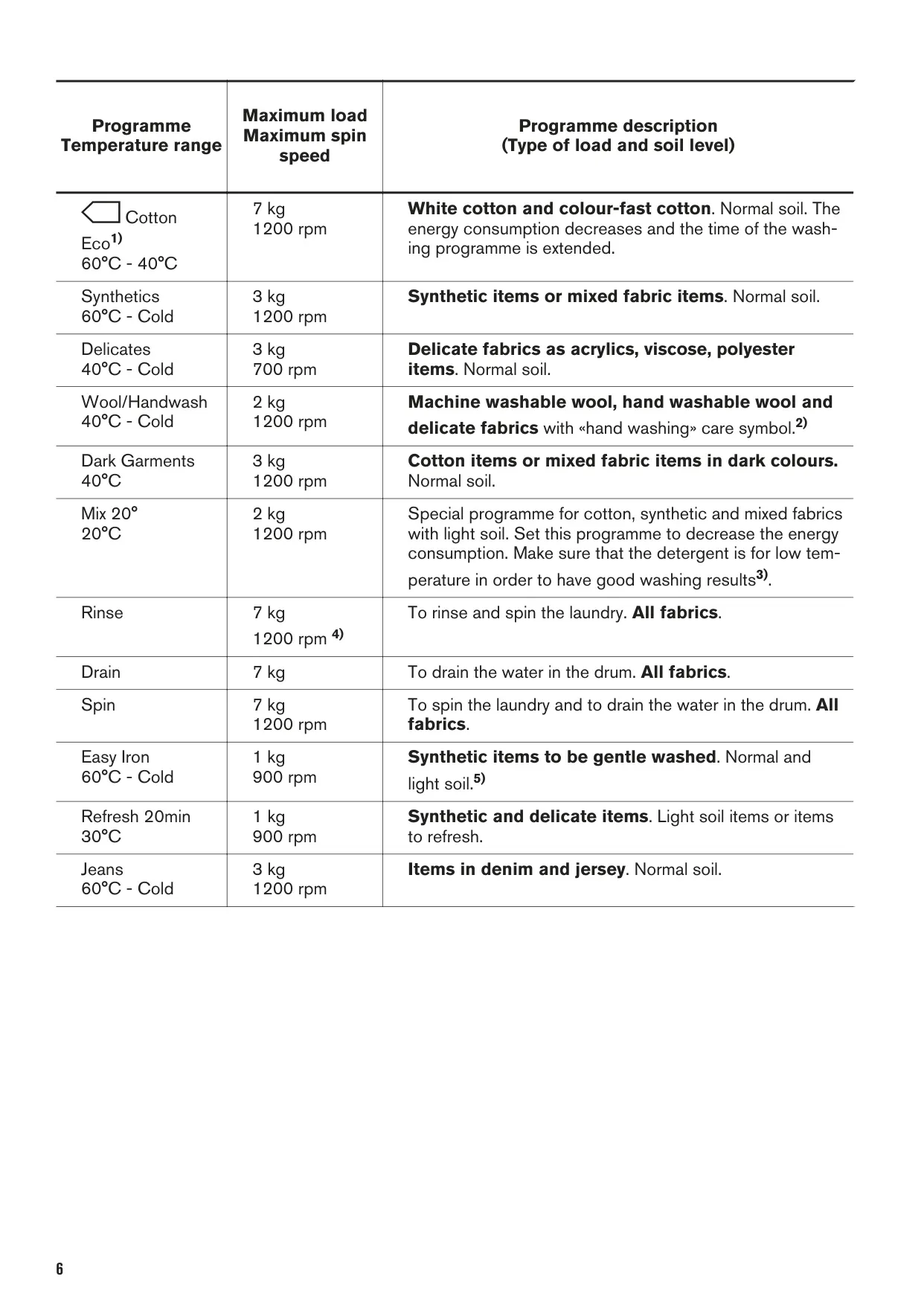

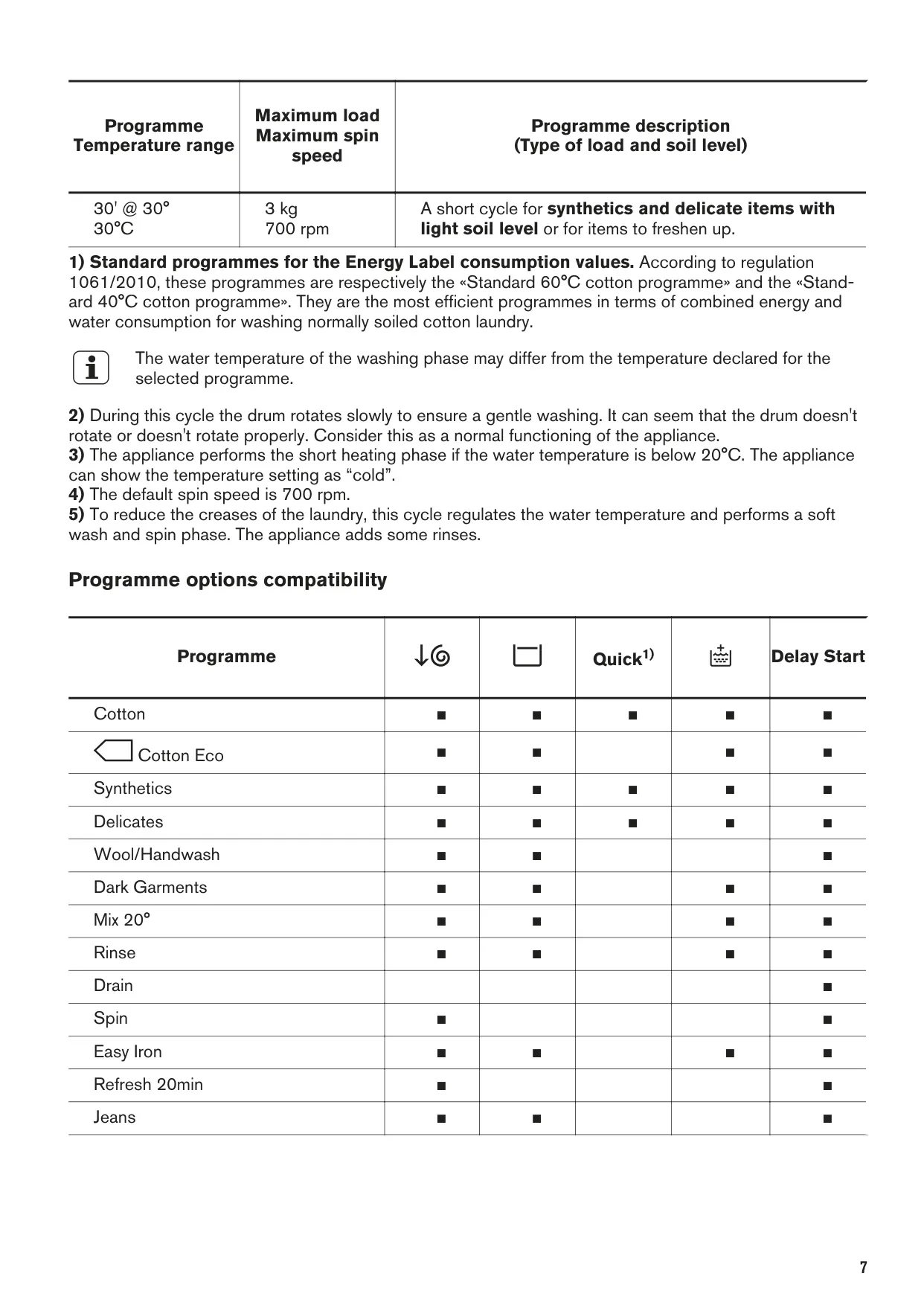

A diverse selection of programs caters to various fabric types and soil levels. Beyond standard cottons and synthetics, specialized cycles like Delicates, Wool/Handwash, and Dark Garments ensure optimal care for specific laundry items. The Mix 20° program is an energy-conscious choice for lightly soiled mixed fabrics, while Refresh 20min offers a quick solution for items needing a freshen-up without a full wash.

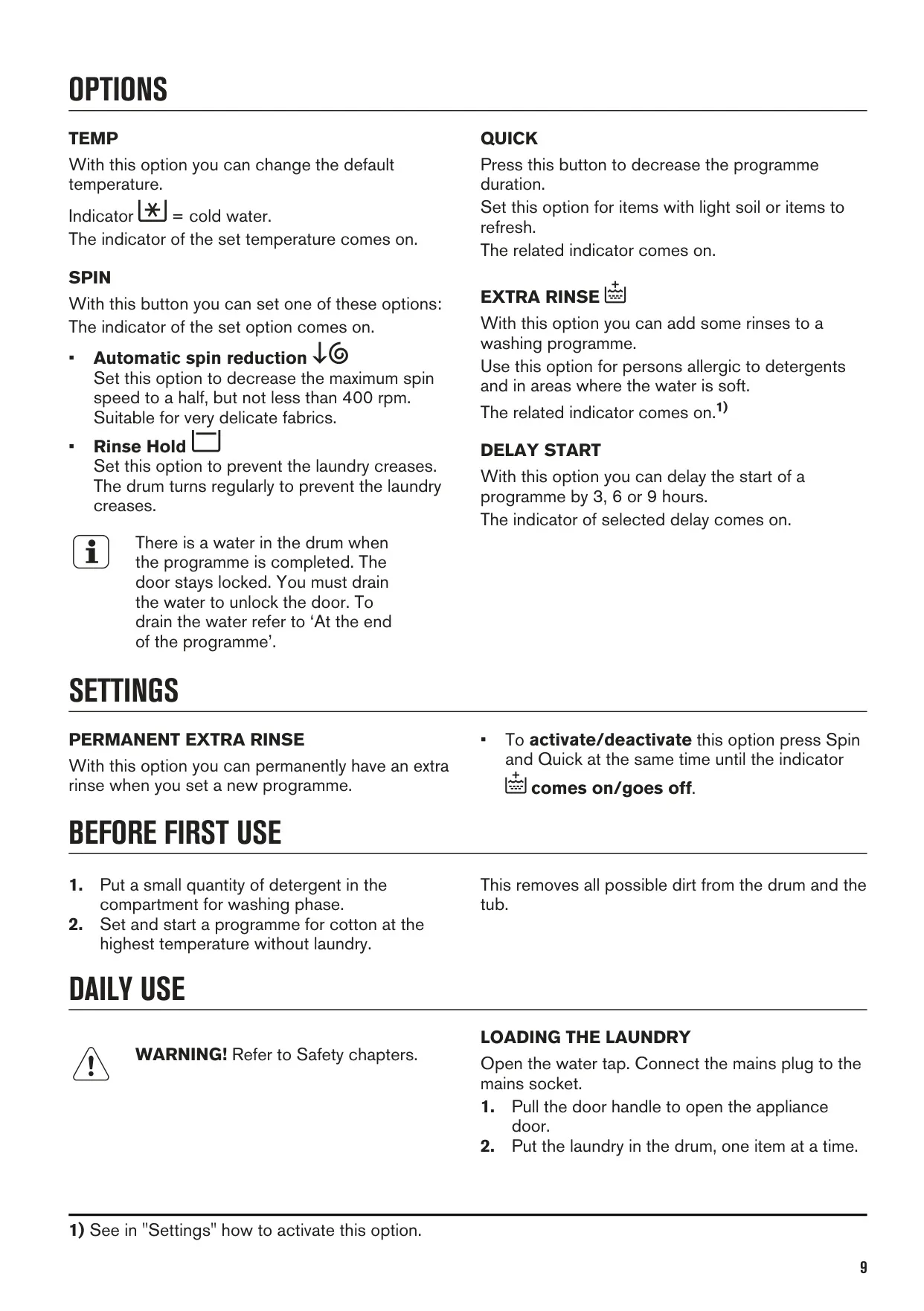

Customization is a key aspect, with several options available to tailor each wash. The Temp button allows temperature adjustments for specific needs, while the Quick option significantly reduces program duration for smaller, lightly soiled loads. The Spin button provides flexibility, offering automatic spin reduction for delicate garments or a Rinse Hold feature to prevent creases, maintaining garment quality.
Further enhancing convenience, the Extra Rinse option can be added to any program, beneficial for sensitive skin or in areas with soft water, and can even be permanently activated. The Delay Start function provides scheduling flexibility, enabling users to postpone the wash start by 3, 6, or 9 hours to align with their daily routines or off-peak energy tariffs.

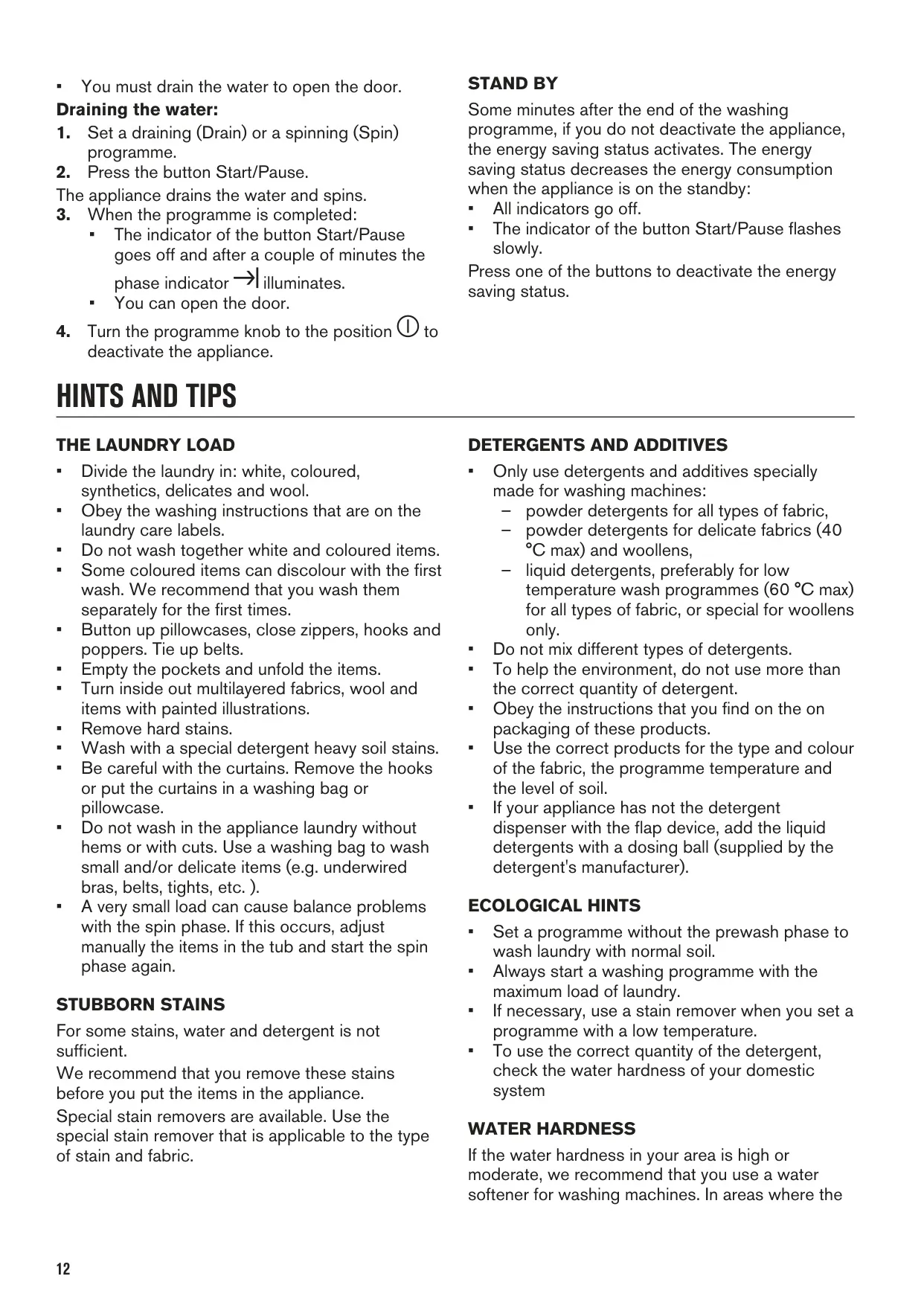

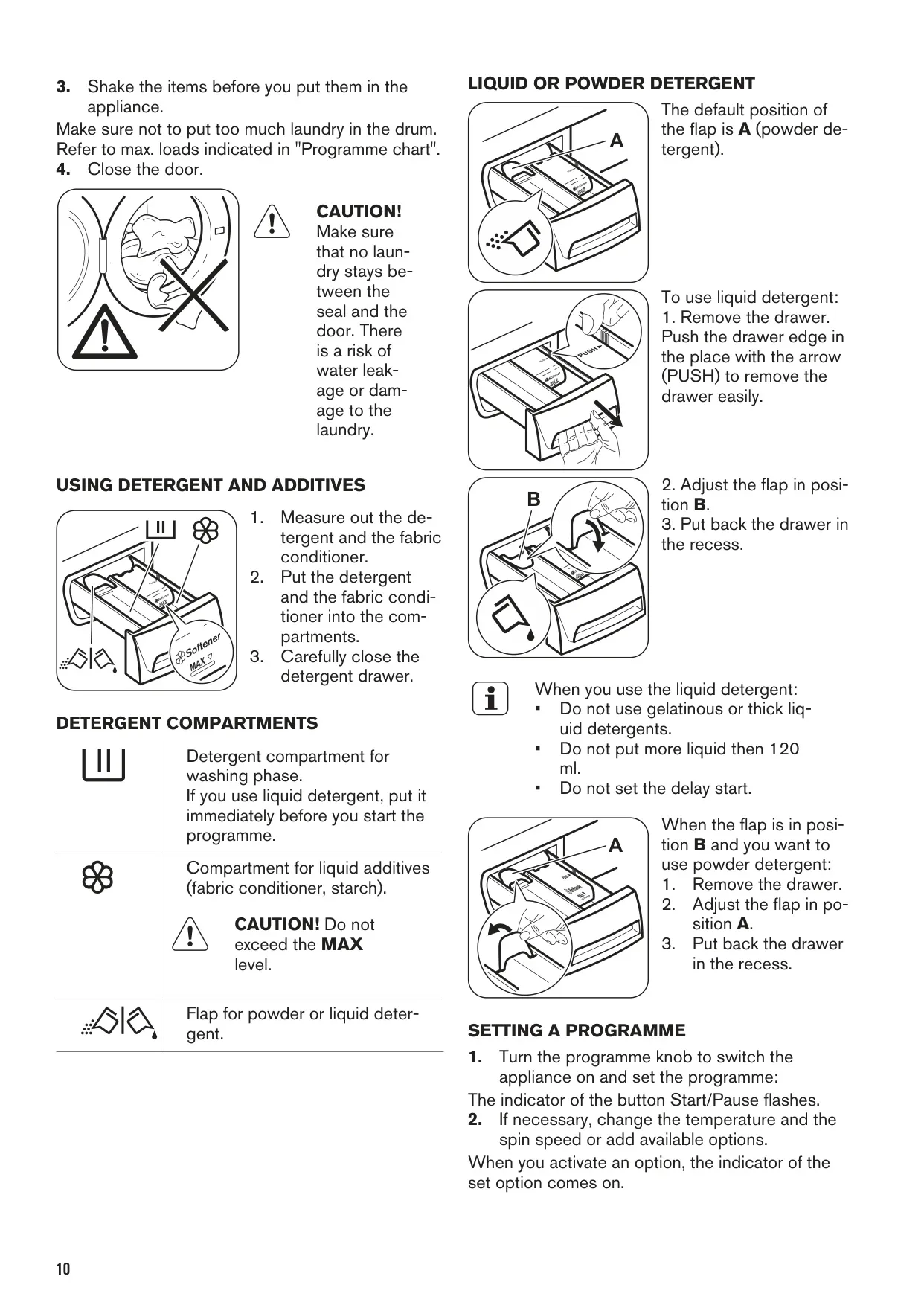

The appliance's detergent dispenser is thoughtfully designed, featuring a movable flap that effortlessly switches between liquid and powder detergents, accommodating user preference. The manual also emphasizes ecological hints, encouraging optimal loading, the use of stain removers for lower temperature washes, and consideration of water hardness to ensure efficient detergent usage and environmental responsibility.

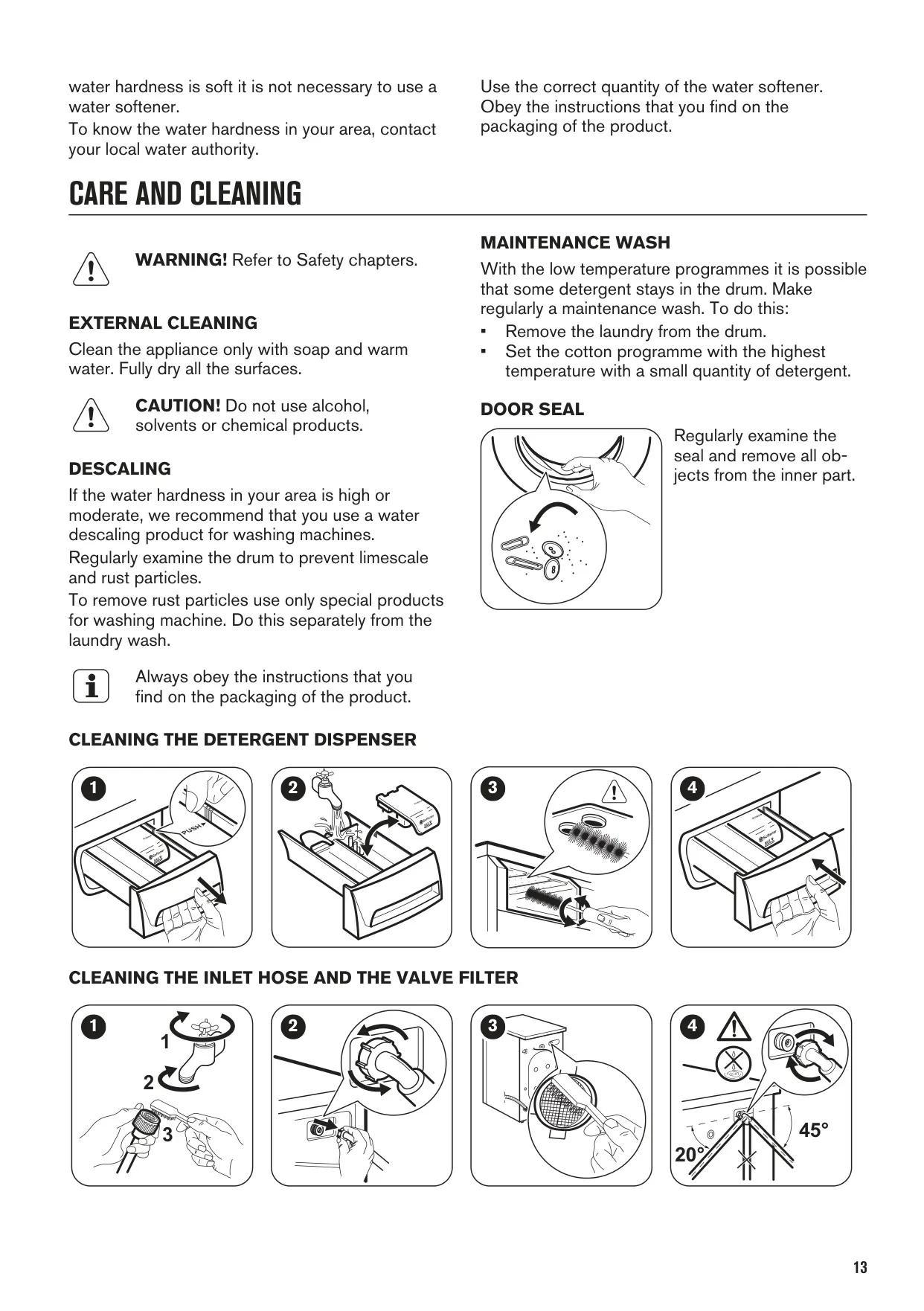

Maintenance is straightforward with clear instructions for upkeep. Regular maintenance washes are recommended to prevent detergent residue buildup, especially with low-temperature programs. Advice on descaling, external cleaning, and specific cleaning procedures for the door seal, detergent dispenser, inlet hose, and valve filter are provided, all contributing to the longevity and optimal performance of the washing machine.

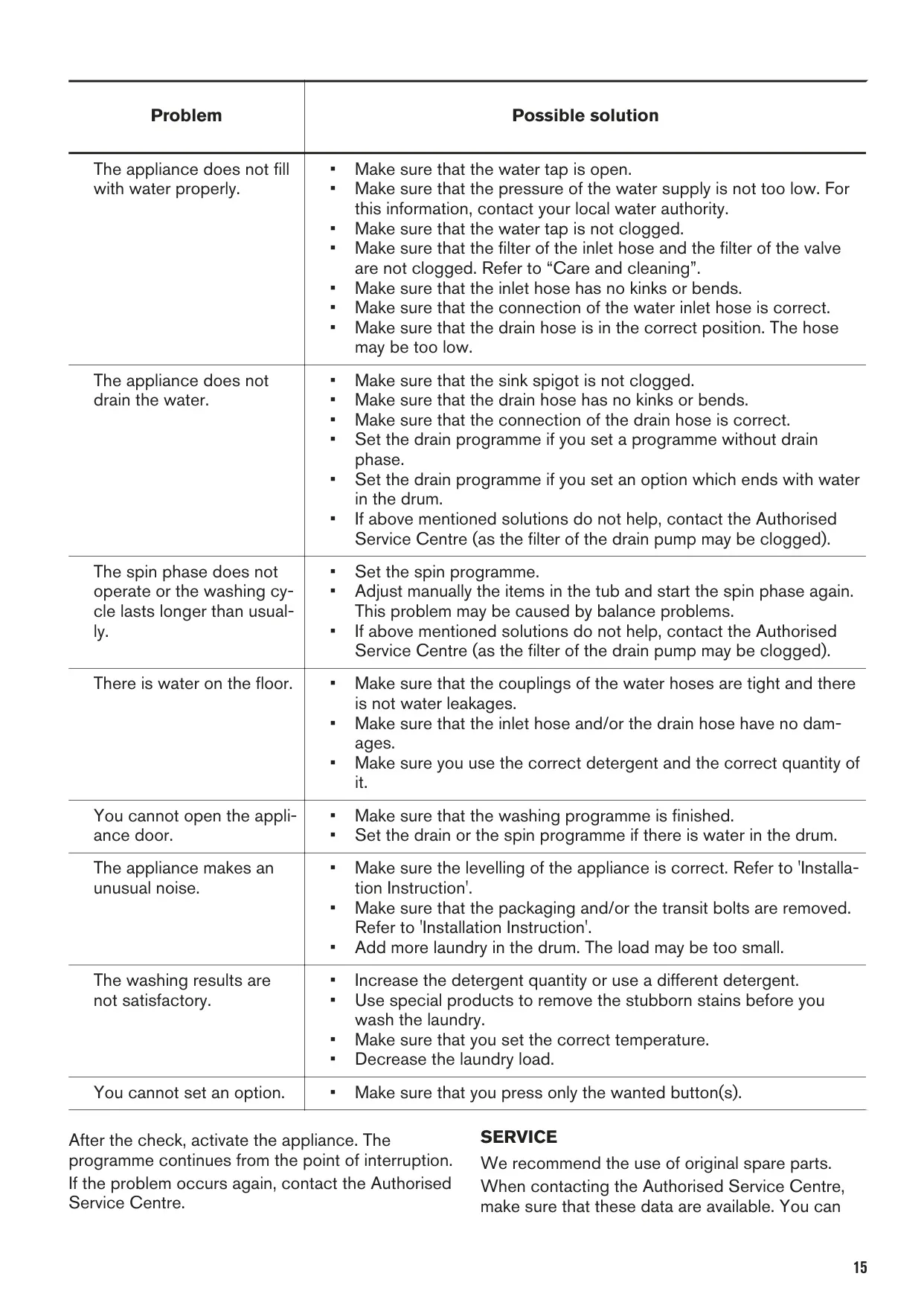

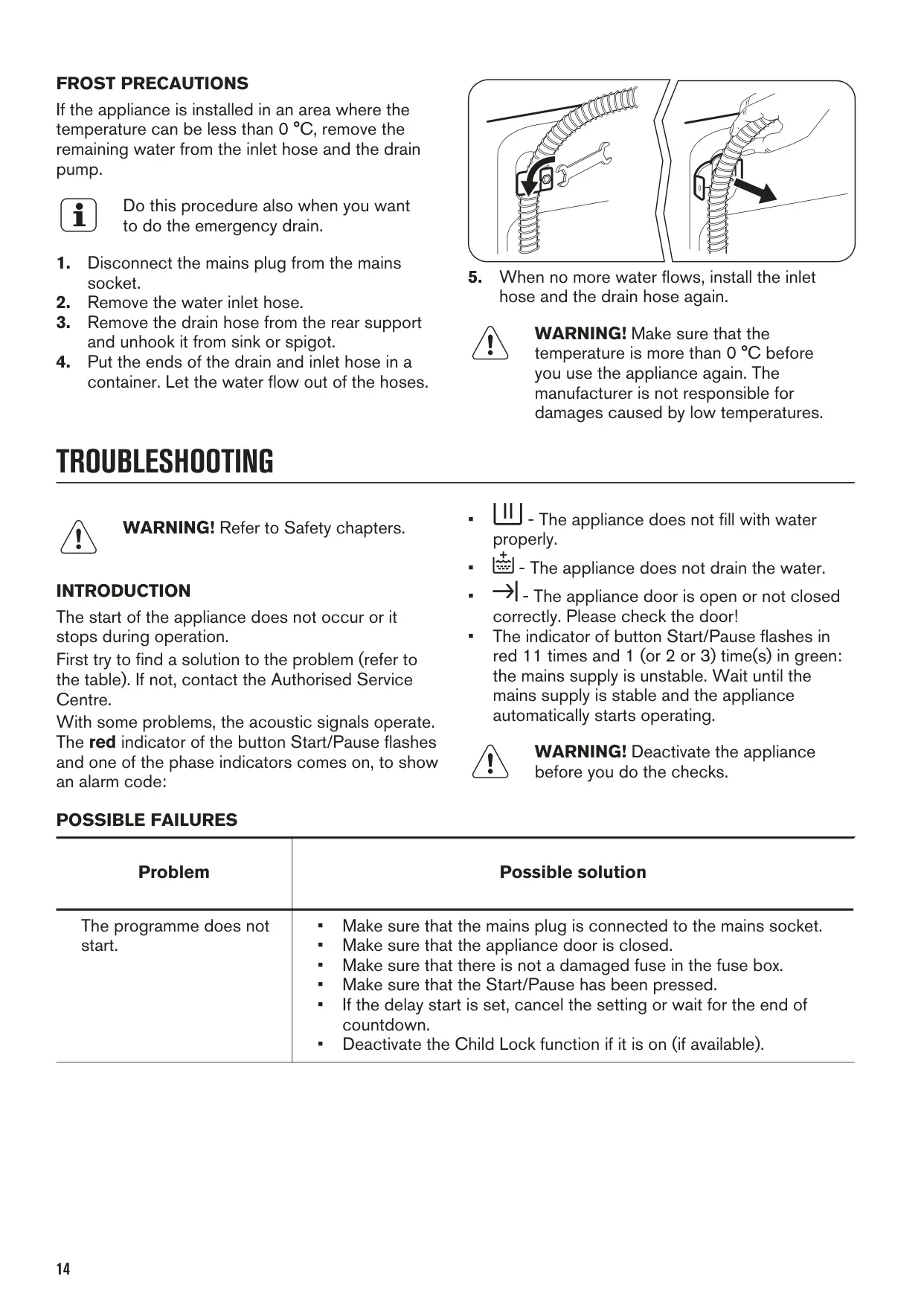

In the event of an issue, a comprehensive troubleshooting guide is included, featuring alarm codes and possible solutions for common problems such as failure to start, water filling or draining issues, and unusual noise. This empowers users to diagnose and resolve minor faults independently, reducing the need for service calls and ensuring continuous operation of the Zanussi Lindo 100.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Zanussi Lindo 100 Washing Machine 7 kg ZWF71240W, and we answer them below.
