Zanussi Lindo 1000 7 kg ZDH7332PZ Dryer Instruction Manual
Zanussi Lindo 1000 7 kg ZDH7332PZ Dryer
Zanussi Lindo 1000 ZDH7332PZ Instructions
Here we offer the Zanussi Lindo 1000 7 kg ZDH7332PZ Dryer manual completely free and in English. We have cataloged this manual in the Dryers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi Lindo 1000 7 kg ZDH7332PZ Dryer, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

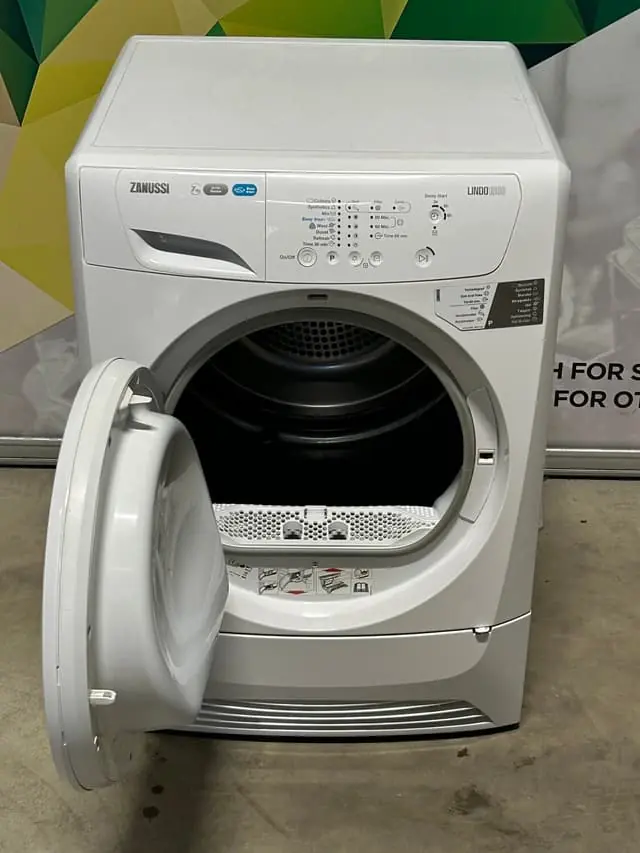

Product Images

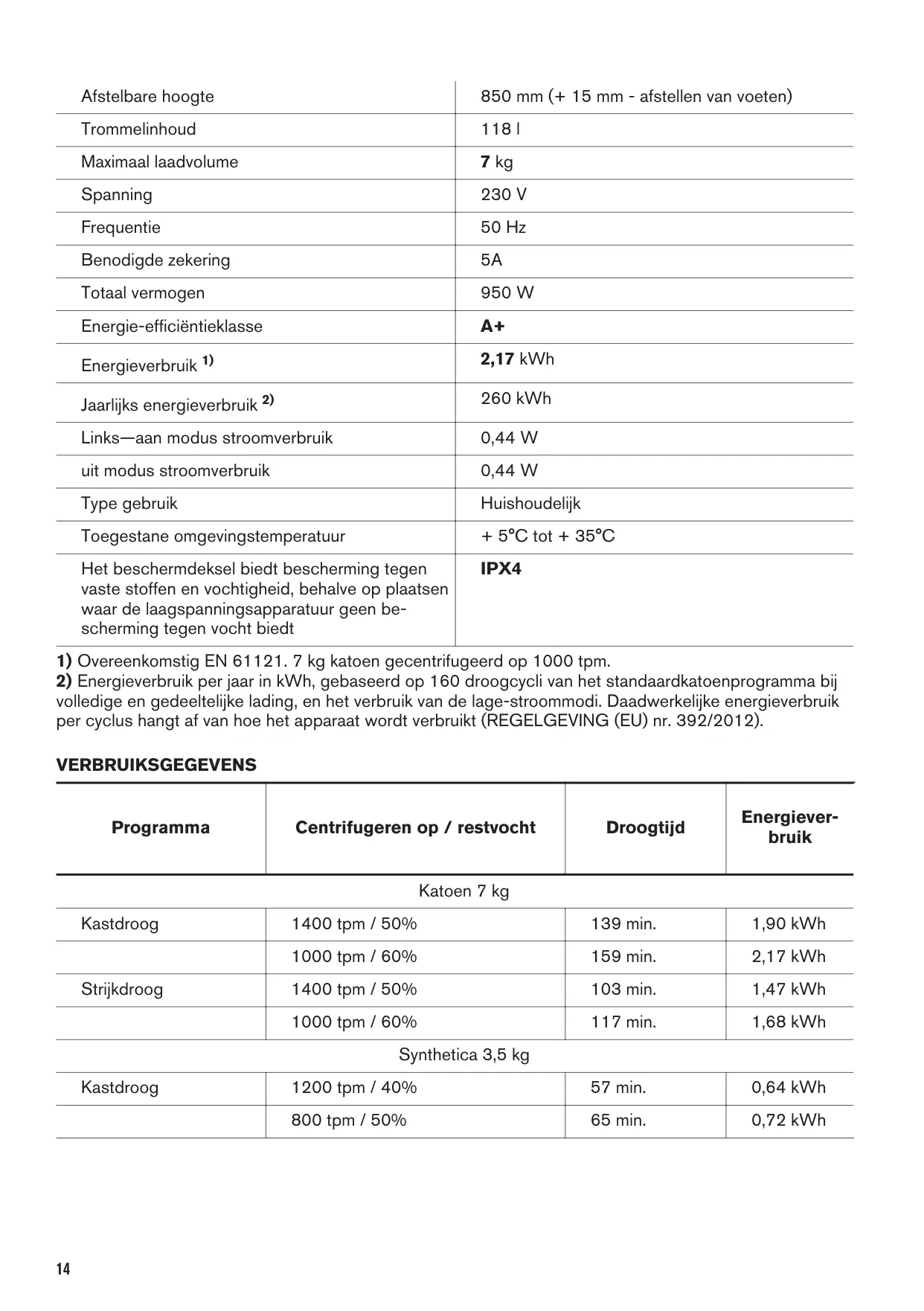

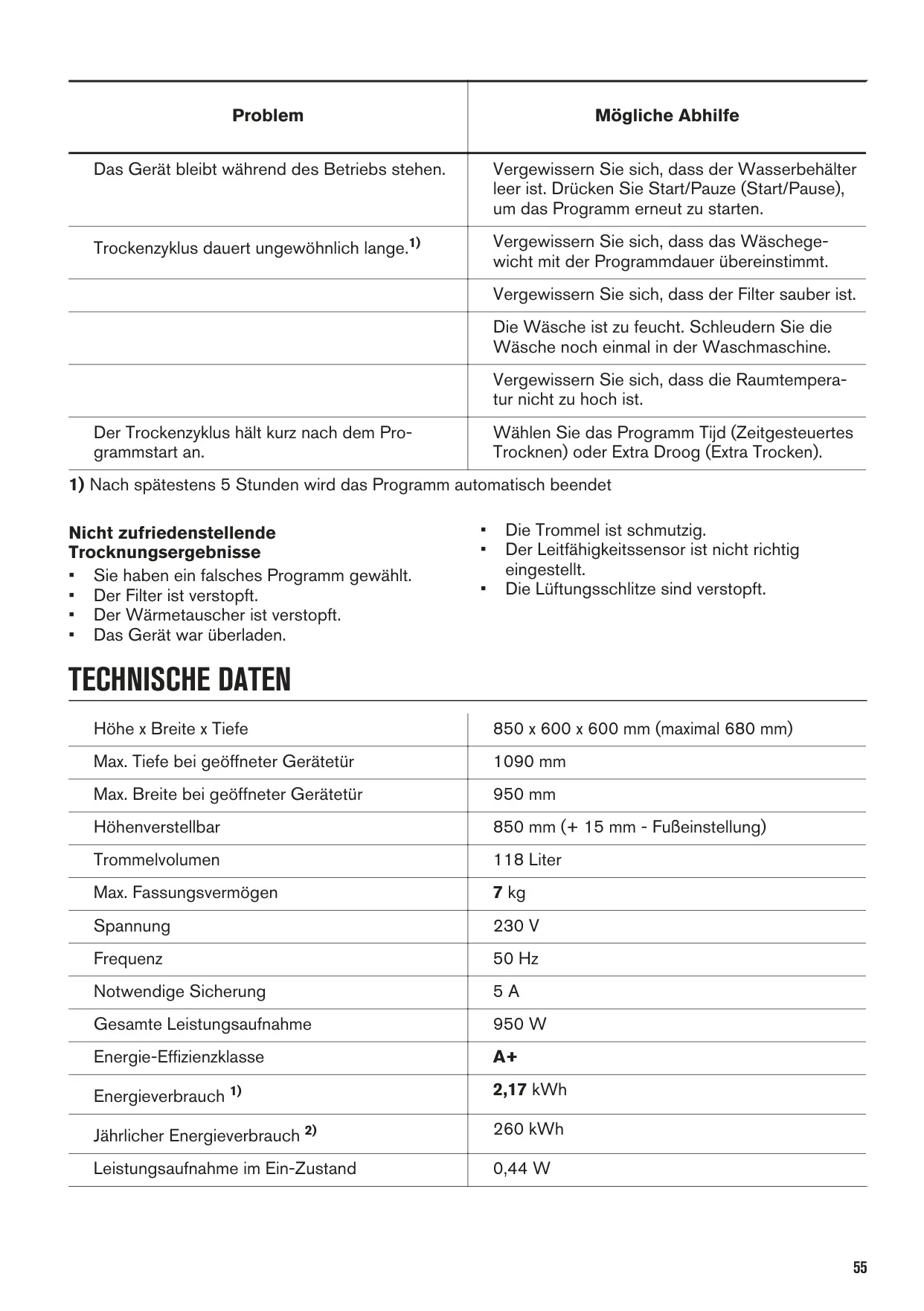

Zanussi Lindo 1000 7 kg ZDH7332PZ Dryer Specifications
| Feature | Specification |
|---|---|
| Dimensions (Height x Width x Depth) | 850 x 600 x 600 mm (maximal 680 mm) |
| Max. Depth with door open | 1090 mm |
| Max. Width with door open | 950 mm |
| Adjustable Height | 850 mm (+ 15 mm - feet regulation) |
| Drum Volume | 118 liters |
| Maximum Load Volume | 7 kg |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Necessary Fuse | 5 A |
| Total Power | 950 W |
| Energy Efficiency Class | A+ |

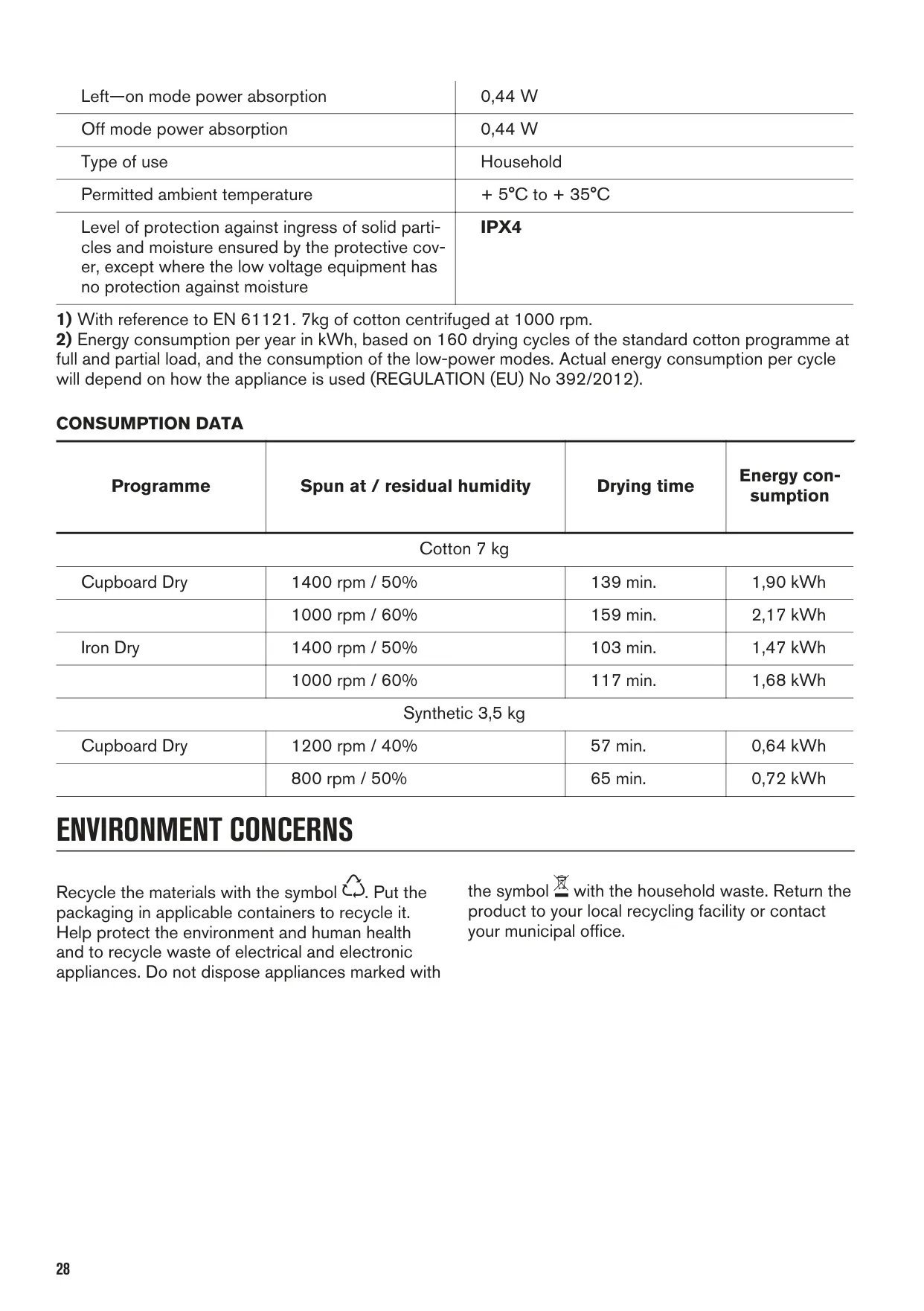

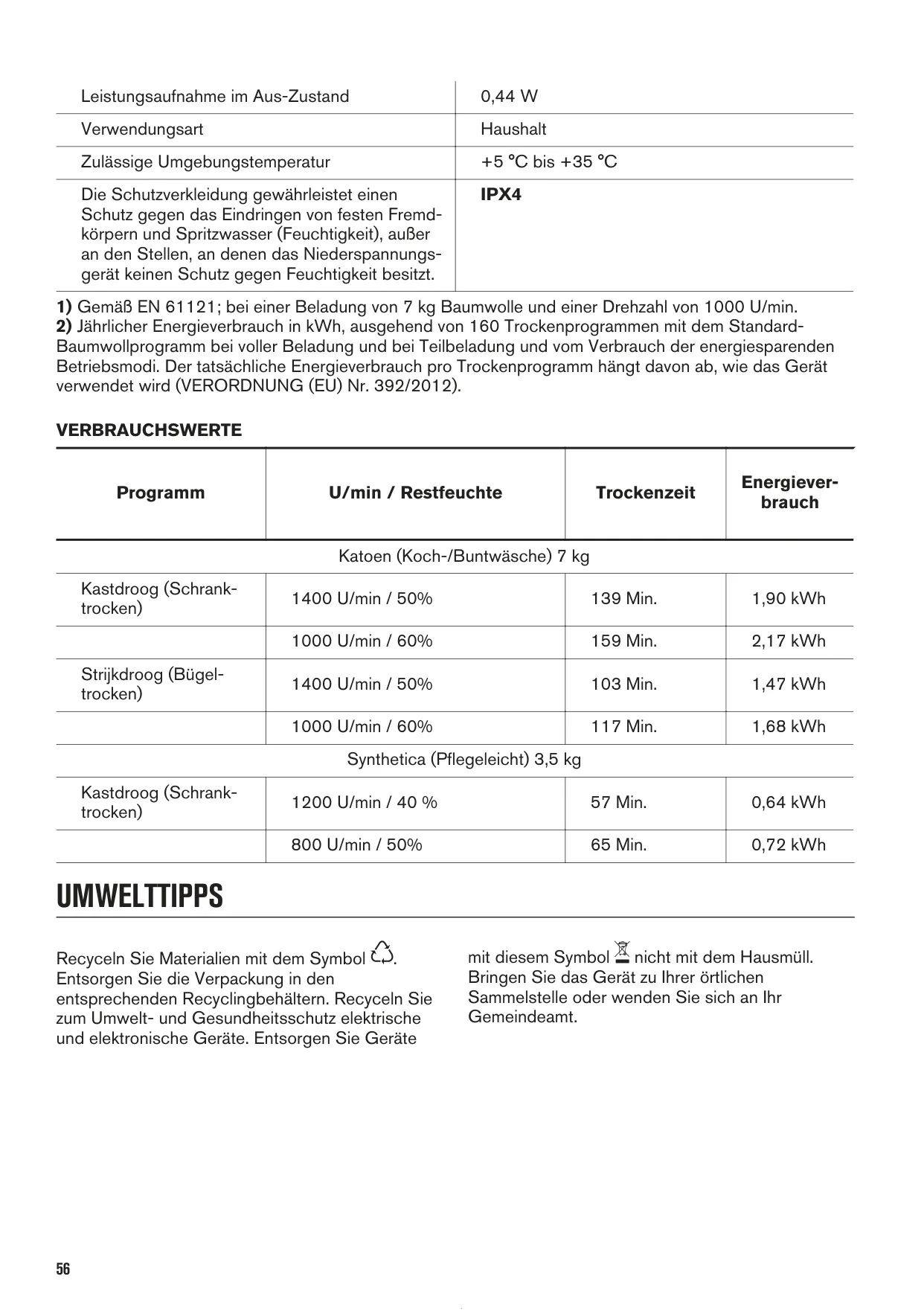

| Energy Consumption (EN 61121, 7kg cotton @ 1000 rpm) | 2.17 kWh |
| Annual Energy Consumption (based on 160 cycles) | 260 kWh |
| Left-on Mode Power Absorption | 0.44 W |
| Off Mode Power Absorption | 0.44 W |
| Type of Use | Household |
| Permitted Ambient Temperature | +5°C to +35°C |
| Level of Protection against Ingress | IPX4 |
Zanussi Lindo 1000 ZDH7332PZ Details

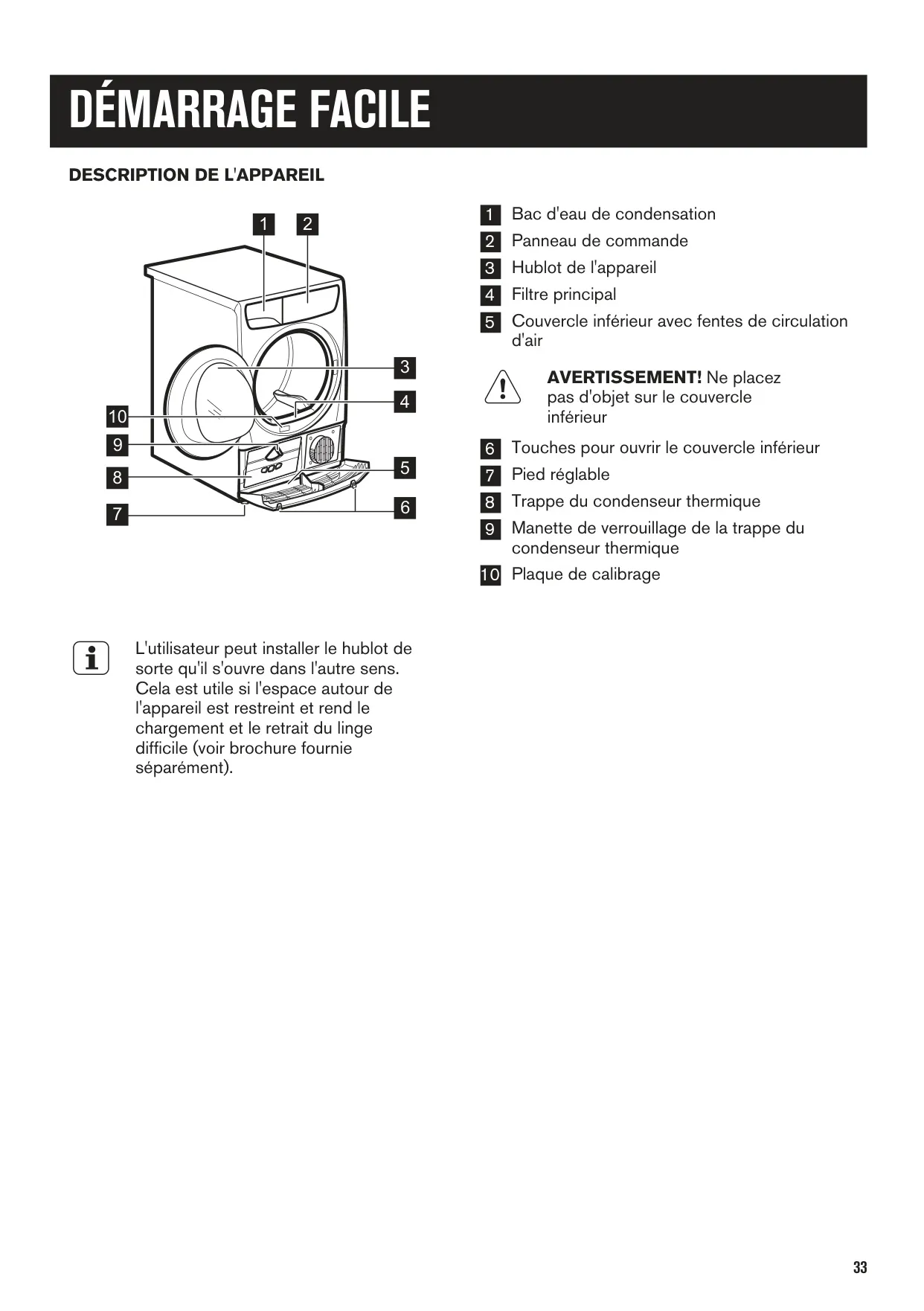

The Zanussi Lindo 1000 7 kg ZDH7332PZ dryer is designed for efficient and user-friendly laundry care, offering a range of programs and smart features to simplify your drying routine. Its thoughtful design includes a reversible load door, allowing users to adjust it for optimal convenience in their home setup, making loading and unloading laundry easier in various kitchen or utility room layouts.

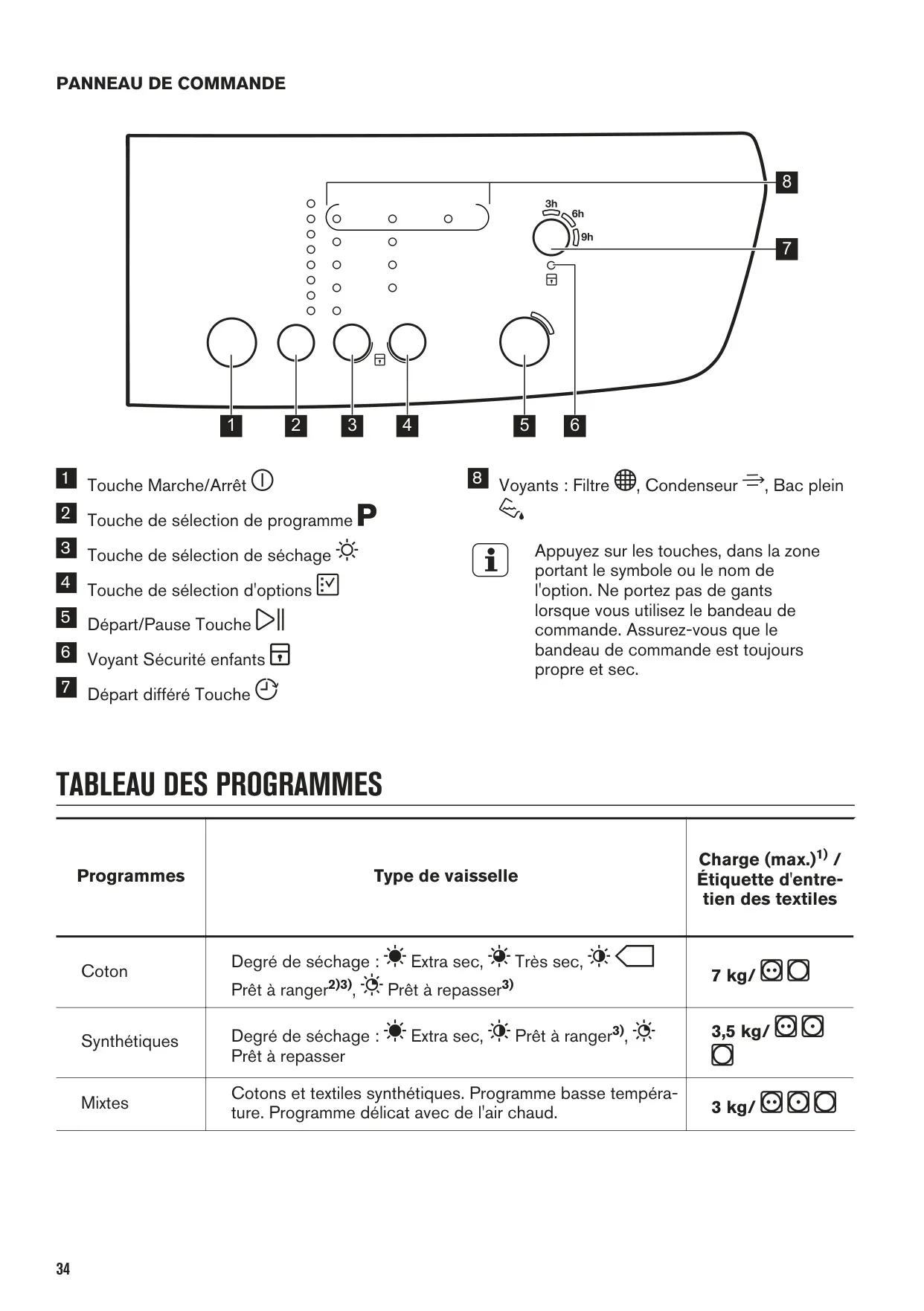

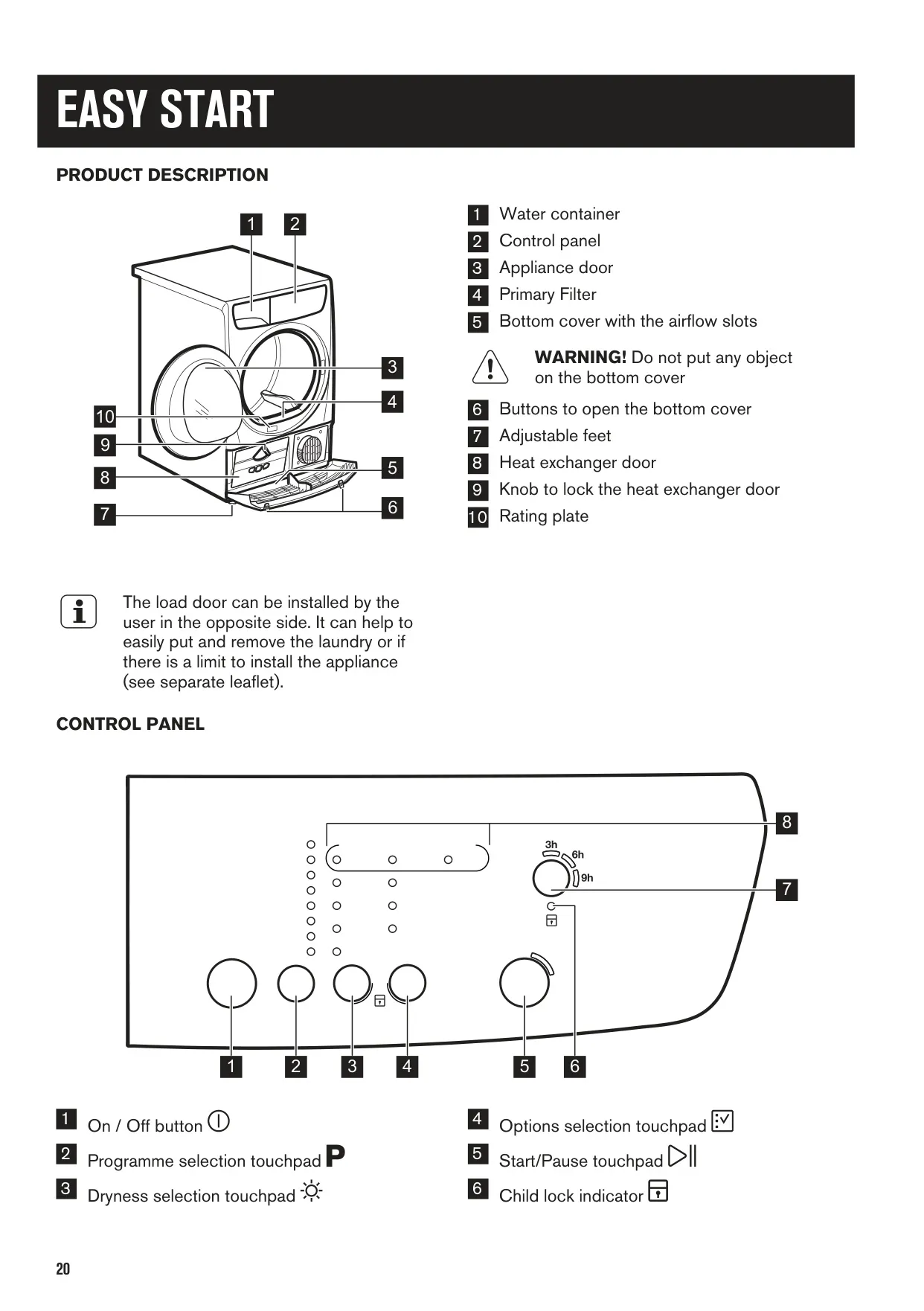

Navigating the dryer is intuitive thanks to its responsive control panel, which features touchpads for program and option selection, along with a clear On/Off button and a delay start function. Indicator lights for the filter, condenser, and water tank keep you informed about maintenance needs, ensuring consistent performance. The touchpads are designed for finger operation and should be kept clean and dry.

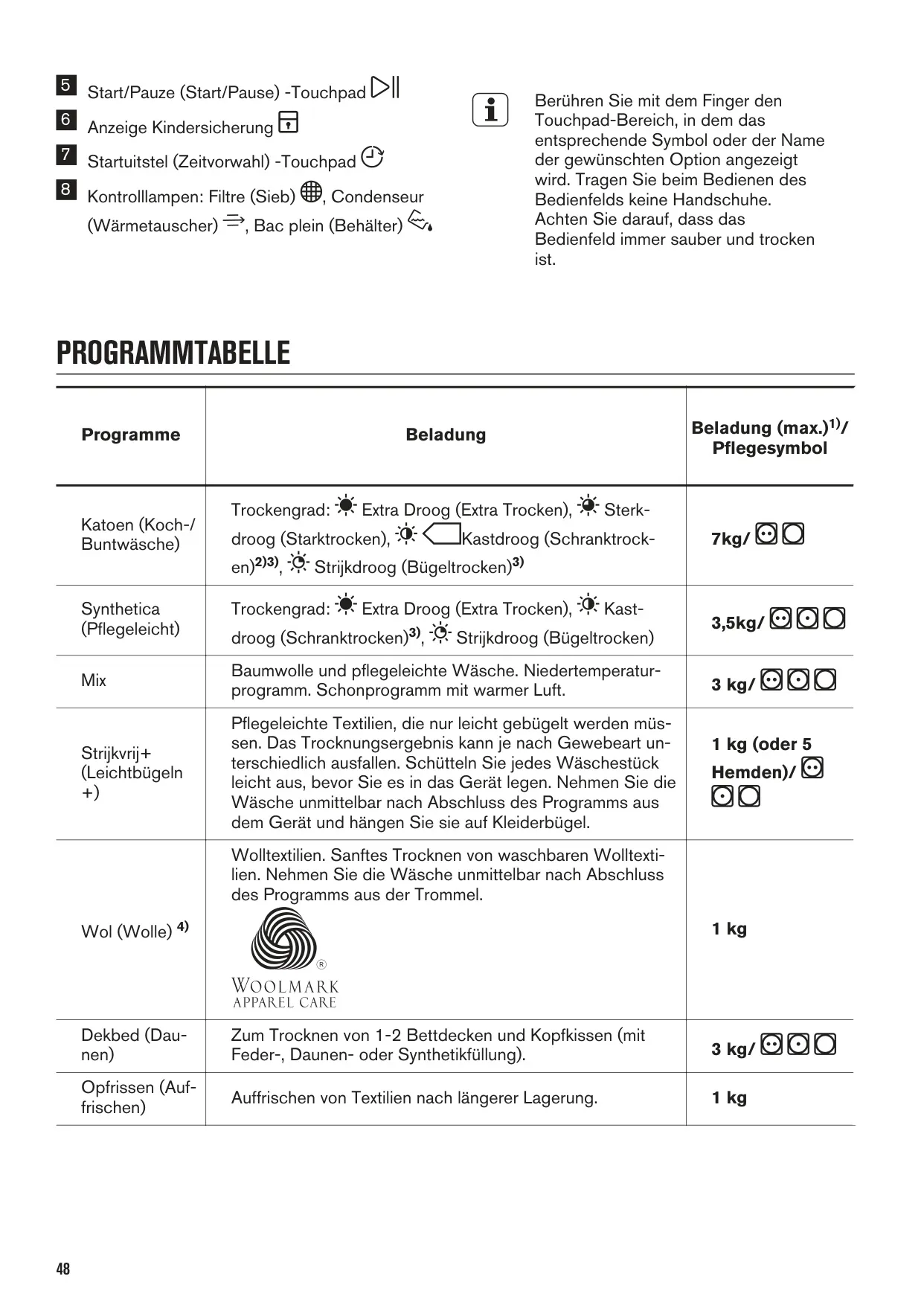

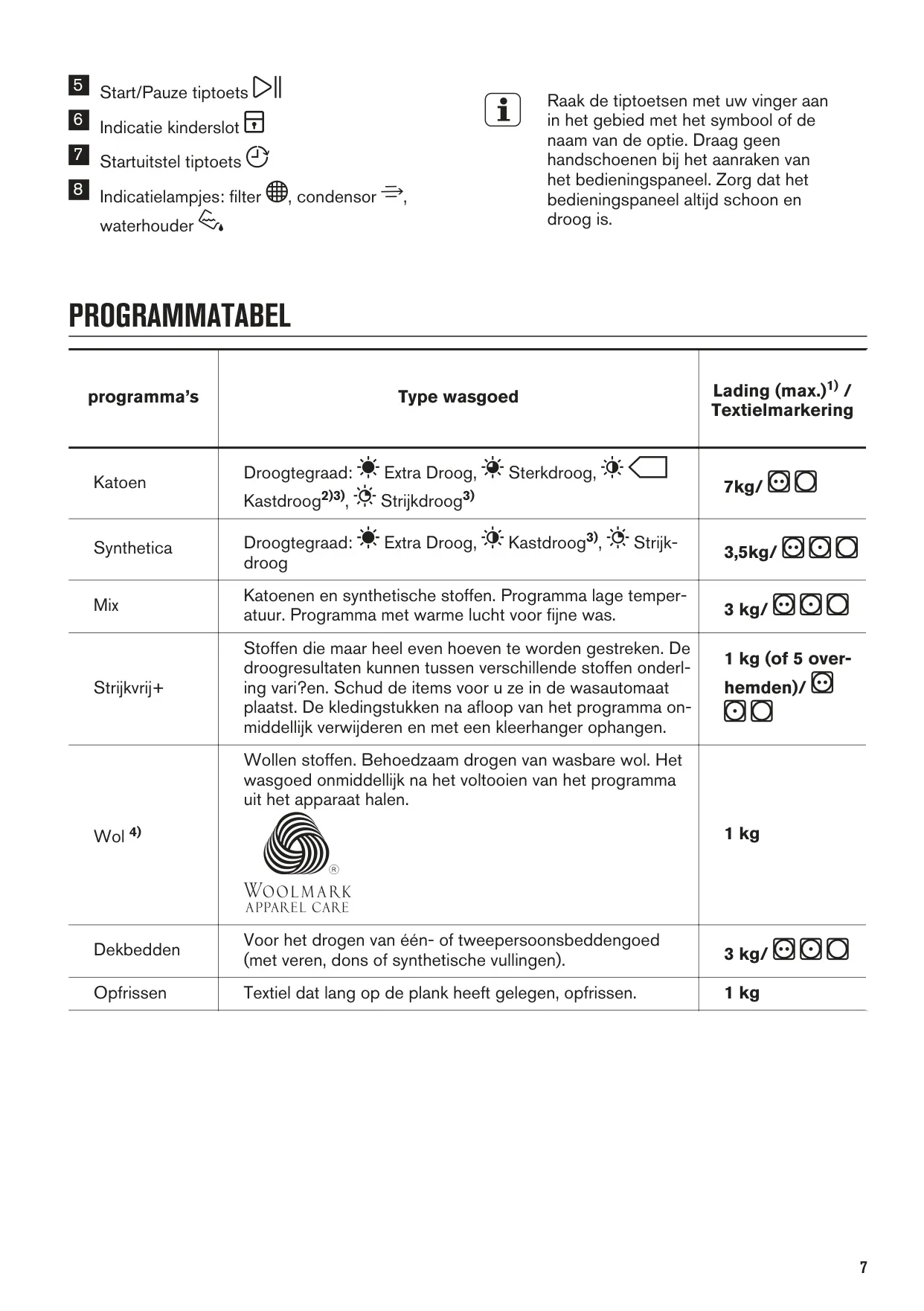

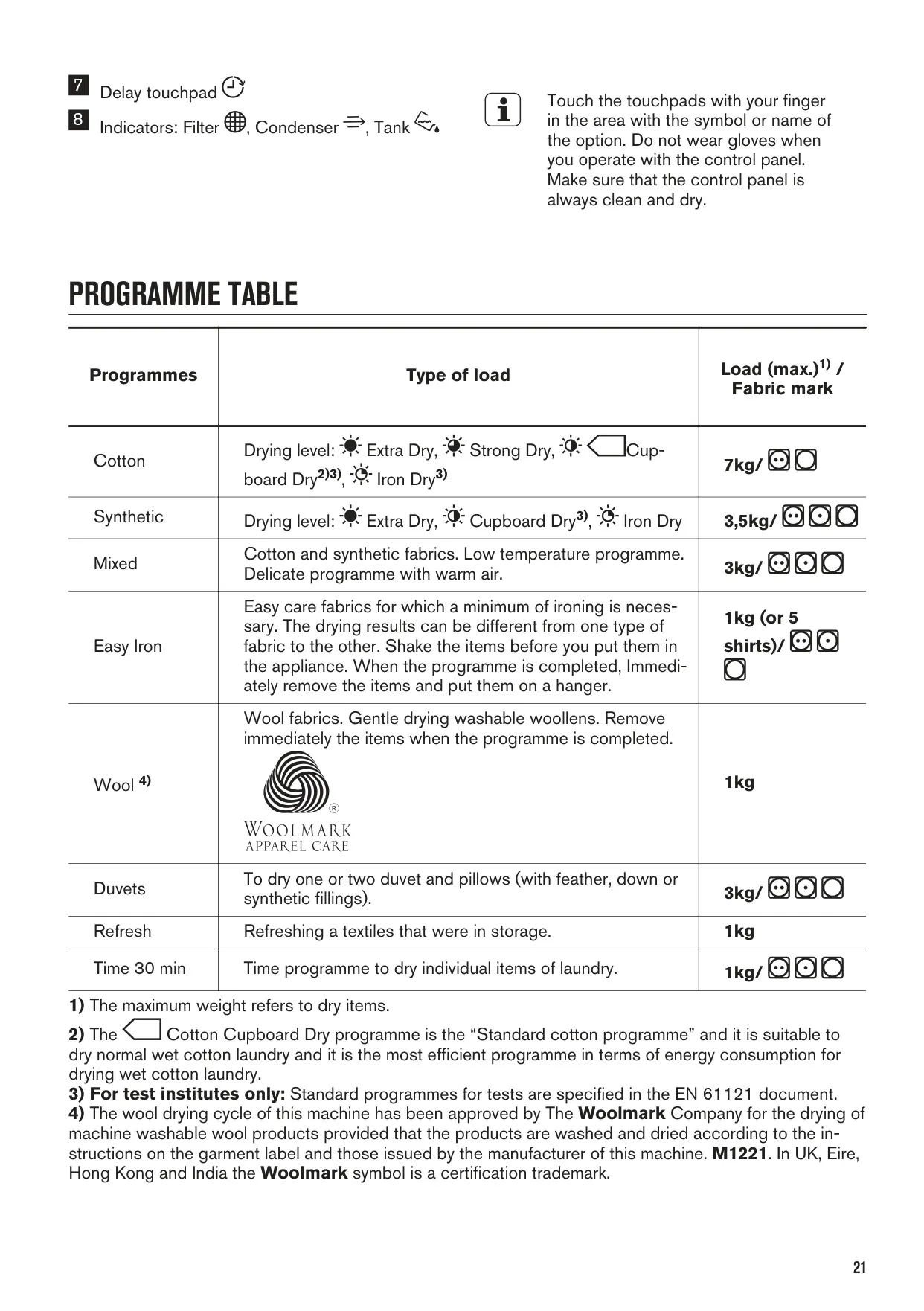

A comprehensive array of drying programs caters to diverse fabric types and drying requirements. Standard cycles like Cotton and Synthetic offer multiple dryness levels, from Iron Dry to Extra Dry, providing flexibility. For delicate items or specific needs, the Mixed program uses a low temperature and warm air, while the Refresh program quickly revitalizes stored textiles.
Specialized programs enhance garment care; the Easy Iron cycle is perfect for fabrics requiring minimal ironing, gently preparing them for immediate hanging. The Wool program is Woolmark-approved for machine-washable woollens, ensuring gentle drying, while the Duvets program effectively dries single or double bedding with various fillings. These programs help extend the life of your clothes and bedding.

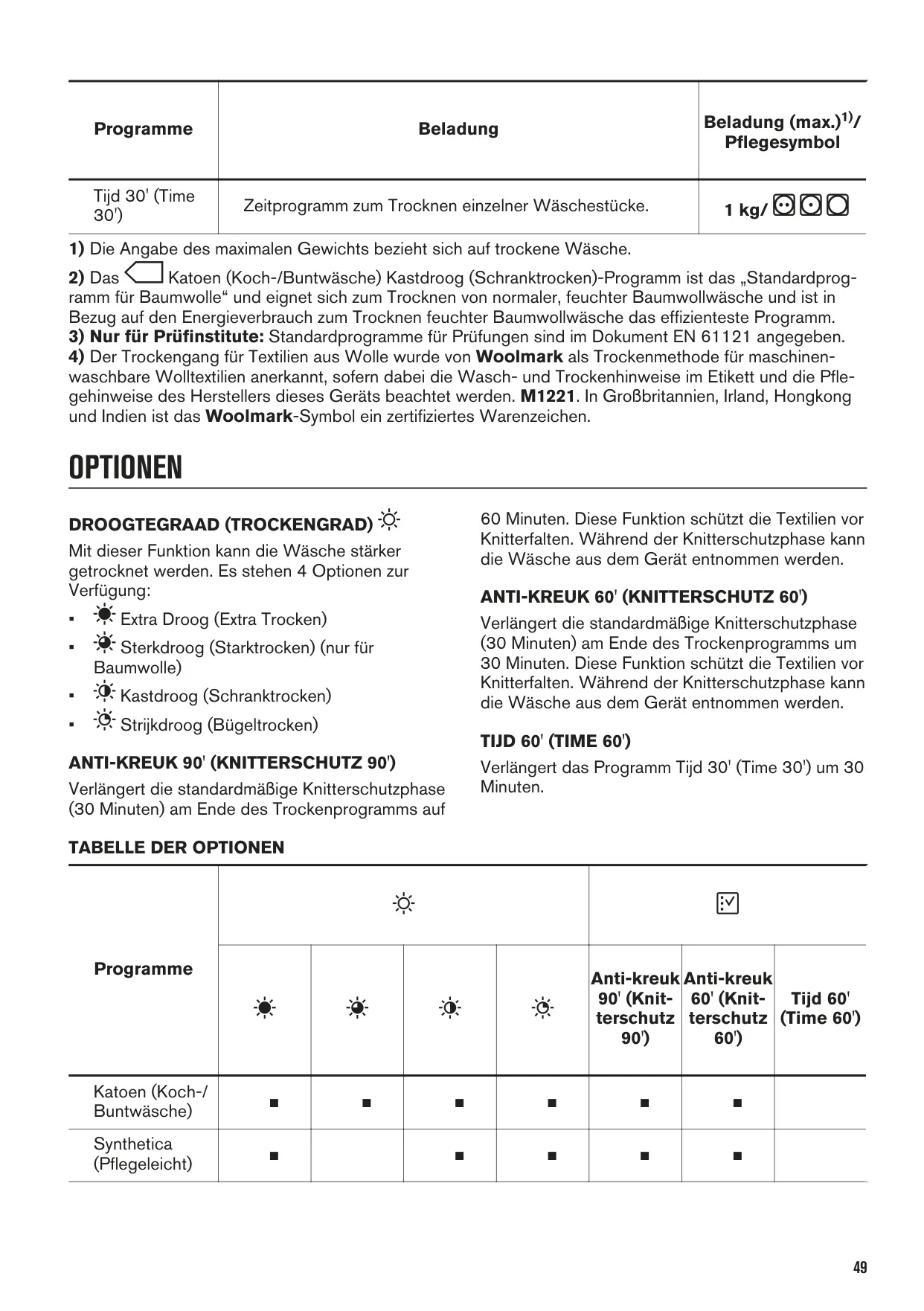

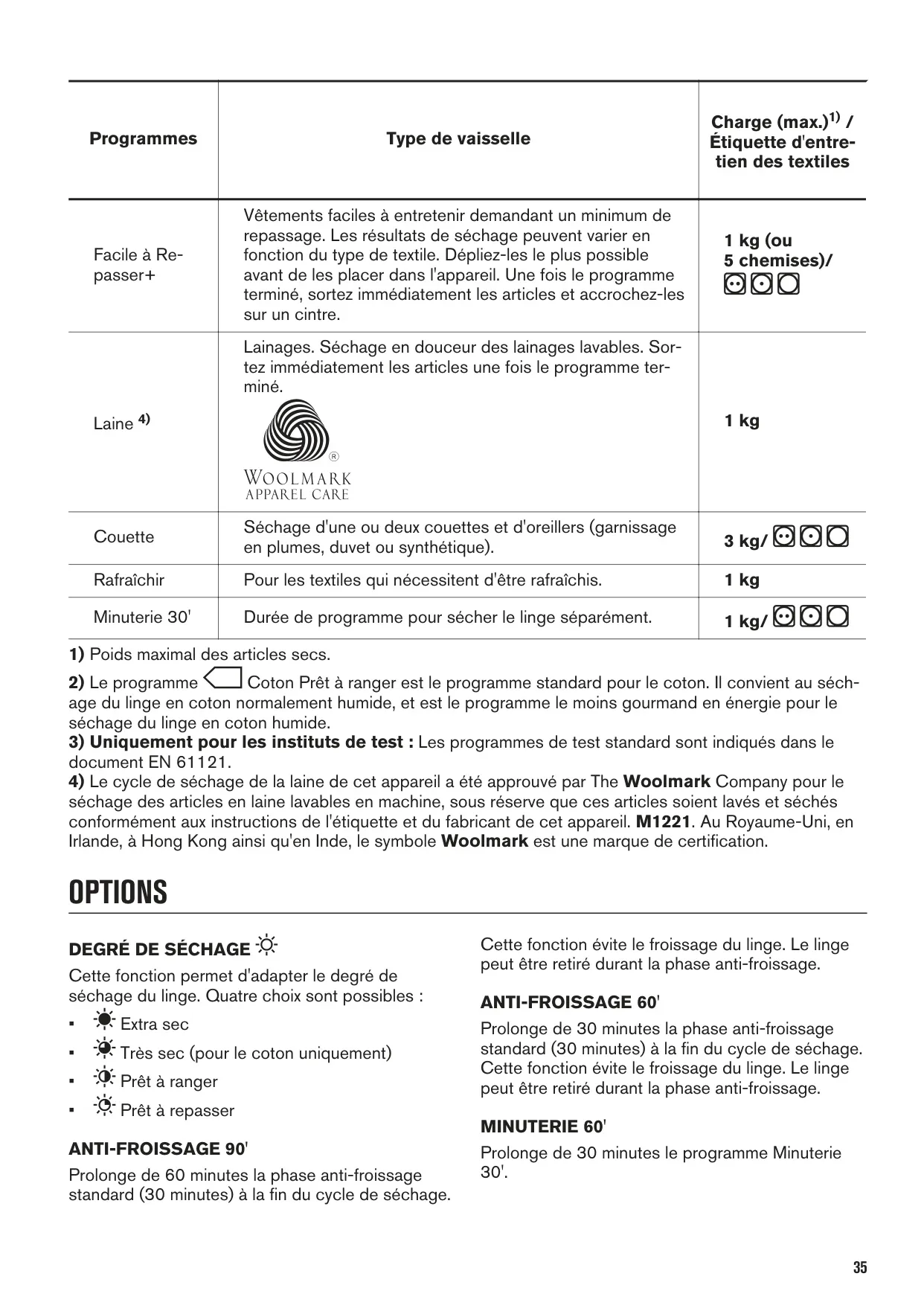

Beyond standard cycles, the dryer offers advanced options to customize each load. Users can select from four dryness levels—Extra Dry, Strong Dry (for Cotton), Cupboard Dry, and Iron Dry—to achieve the desired result. The Anticrease 60 min and Anticrease 90 min options extend the standard crease guard phase, actively preventing wrinkles and making post-drying ironing a breeze. A Time 60 min option is also available for extending shorter drying cycles.

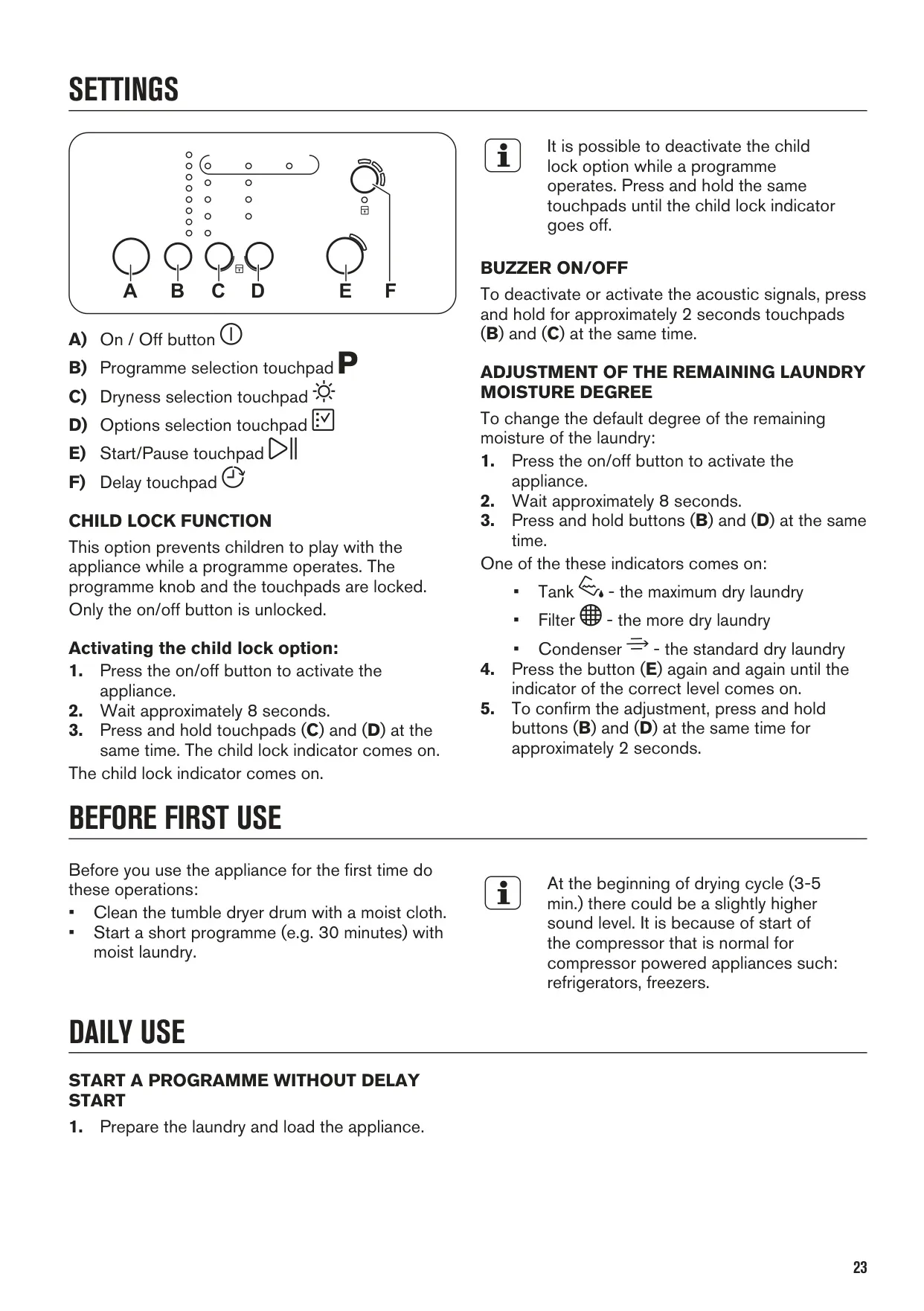

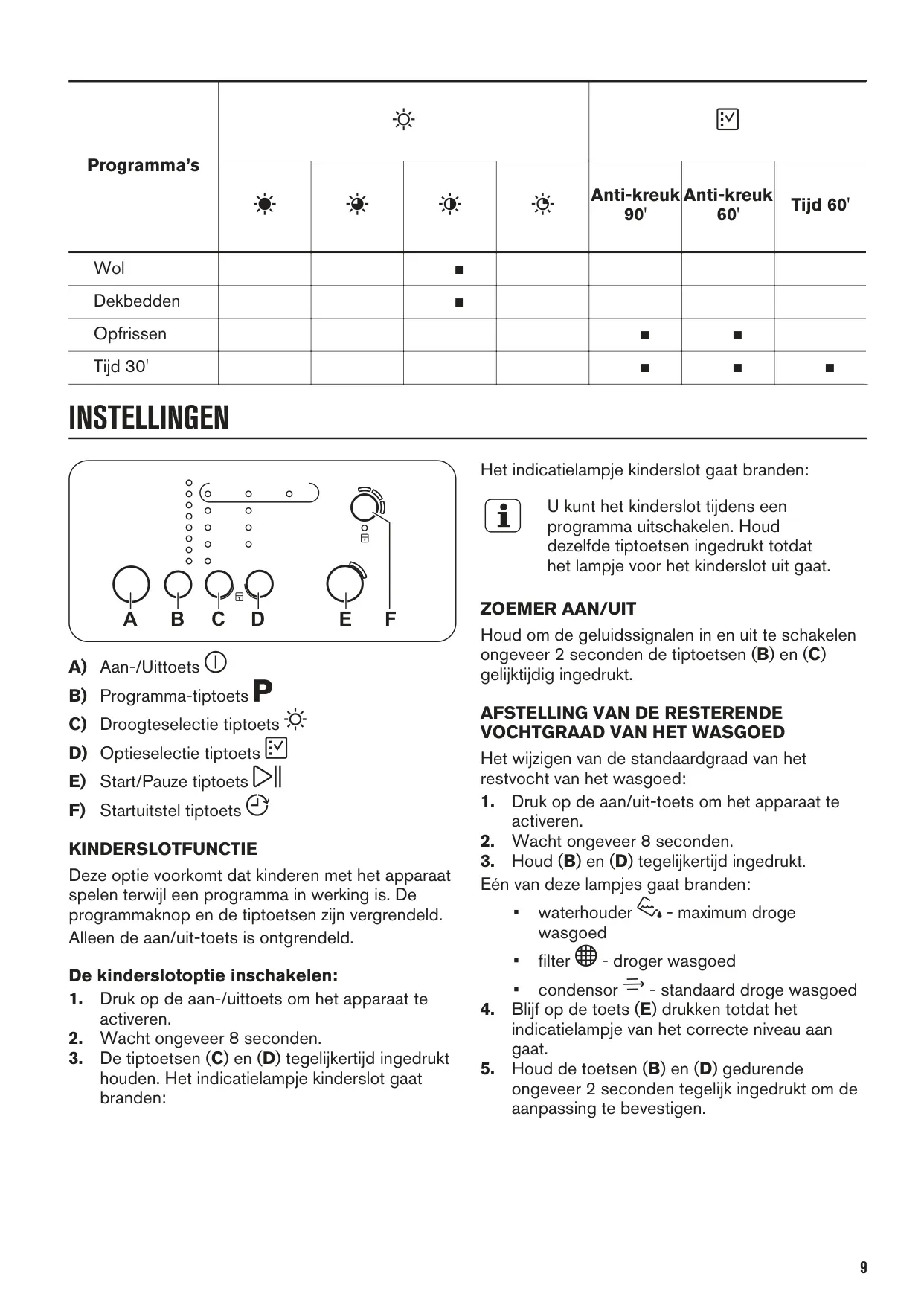

The Zanussi Lindo 1000 prioritizes safety and convenience with features like the Child Lock Function, which disables the program knob and touchpads to prevent unintended operation, with only the On/Off button remaining active for emergencies. The dryer also allows for the adjustment of the remaining laundry moisture degree, ensuring clothes are dried to your exact preference.
Before its first use, it is recommended to clean the drum and run a short program with moist laundry. A slightly higher sound level at the beginning of a drying cycle is normal due to the compressor starting, similar to refrigerators. For energy saving, a stand-by function automatically deactivates the appliance after 5 minutes of inactivity or program completion.

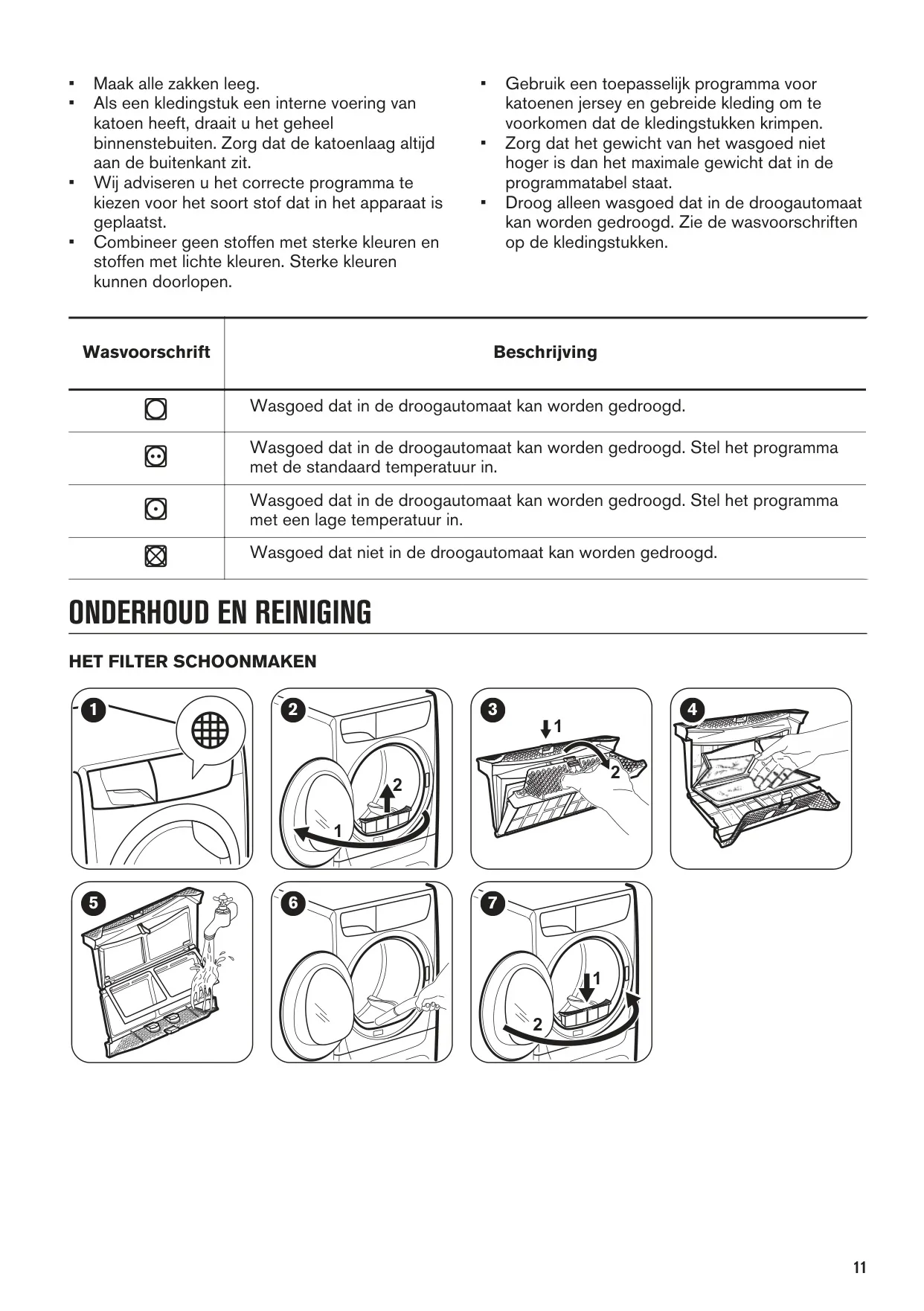

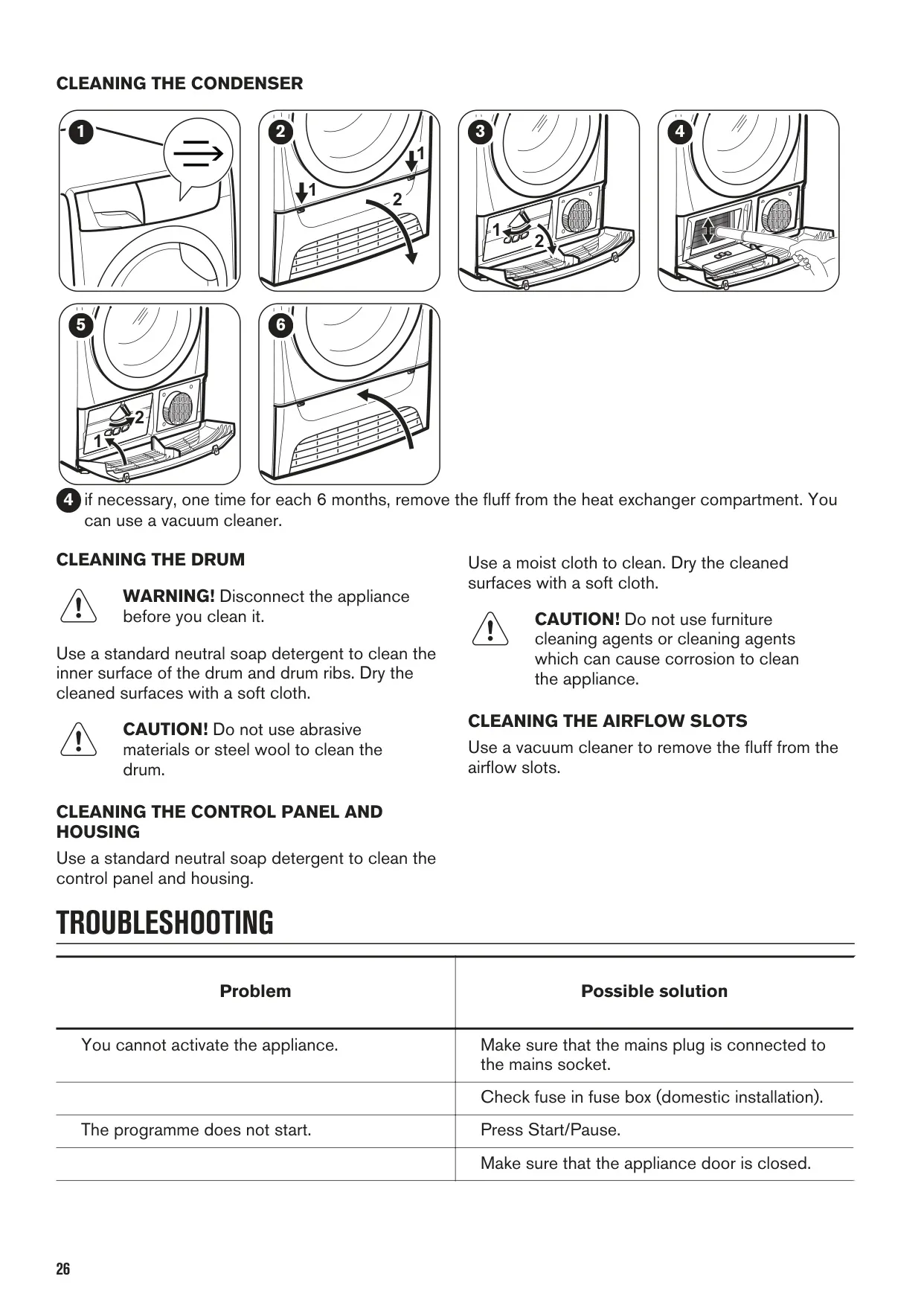

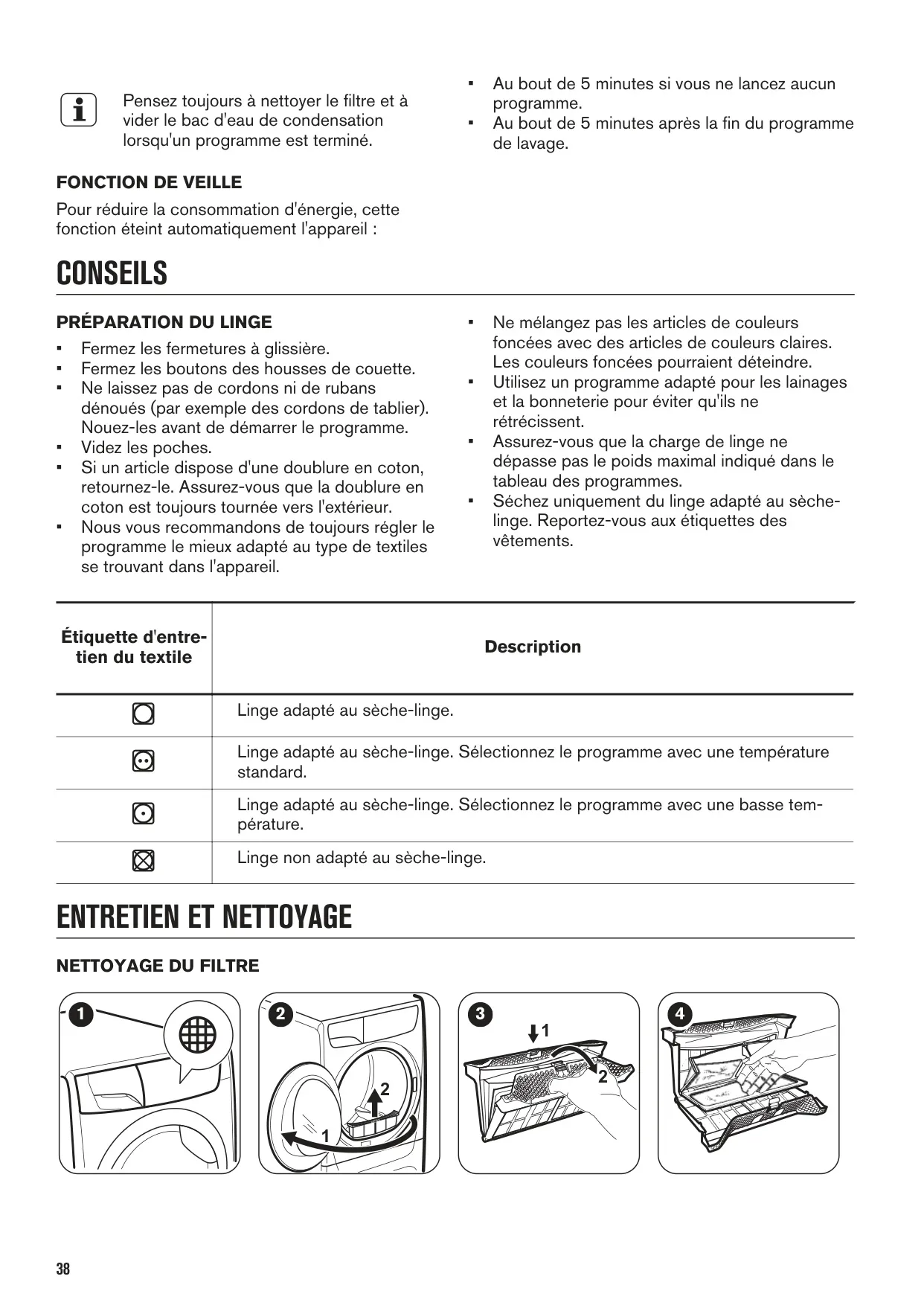

Maintaining the dryer is straightforward. Always clean the lint filter and empty the water container after each use. The condensed water can be reused as an alternative to distilled water, for example, in a steam iron, after filtering out any dirt residues. The condenser requires cleaning every six months, and the drum can be cleaned with a neutral soap detergent and a soft cloth.
