Zanussi ZDT21006FA Dishwasher Instruction Manual
Zanussi ZDT21006FA Dishwasher
Zanussi ZDT21006FA Instructions
Here we offer the Zanussi ZDT21006FA Dishwasher manual completely free and in English. We have cataloged this manual in the Dishwashers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi ZDT21006FA Dishwasher, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

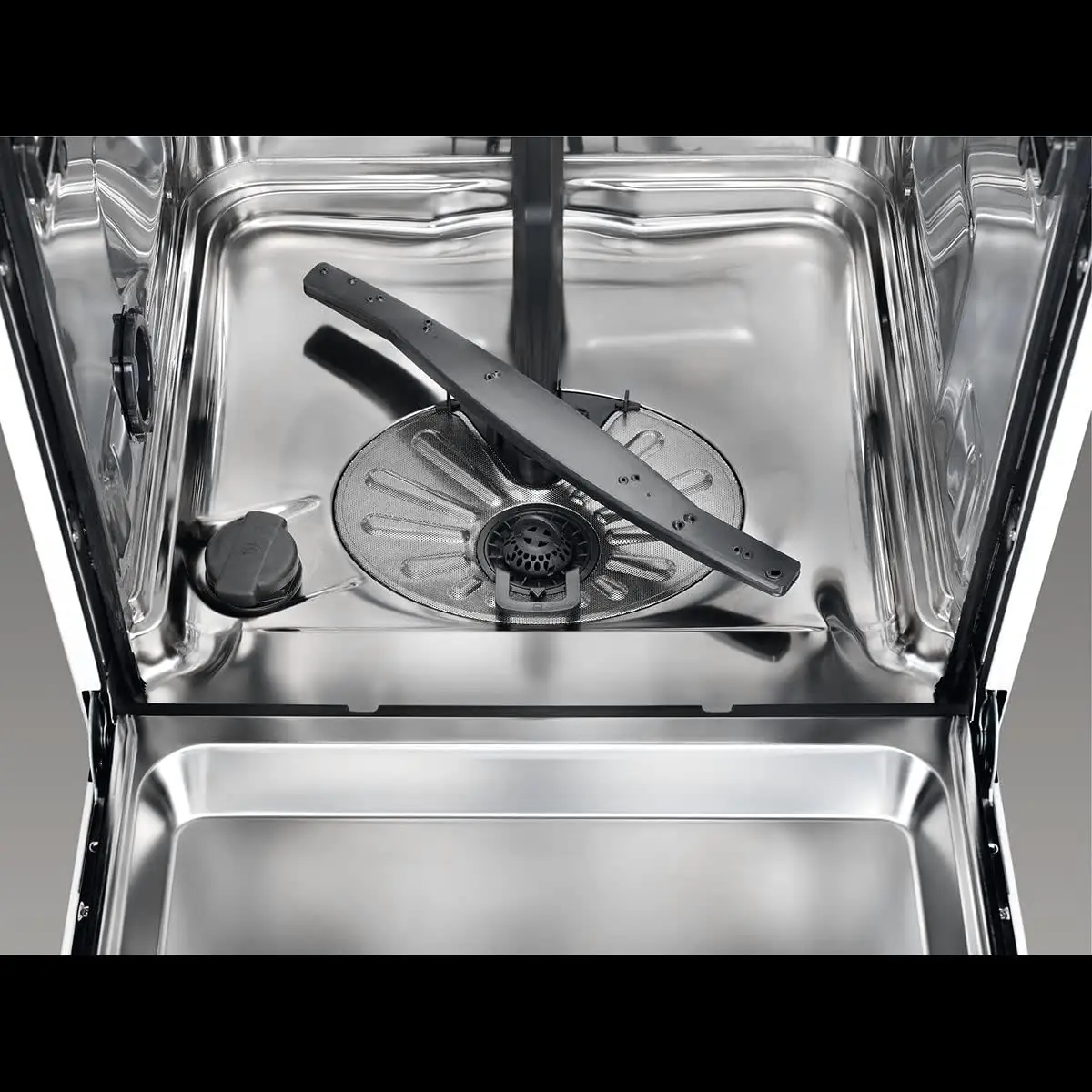

Product Images

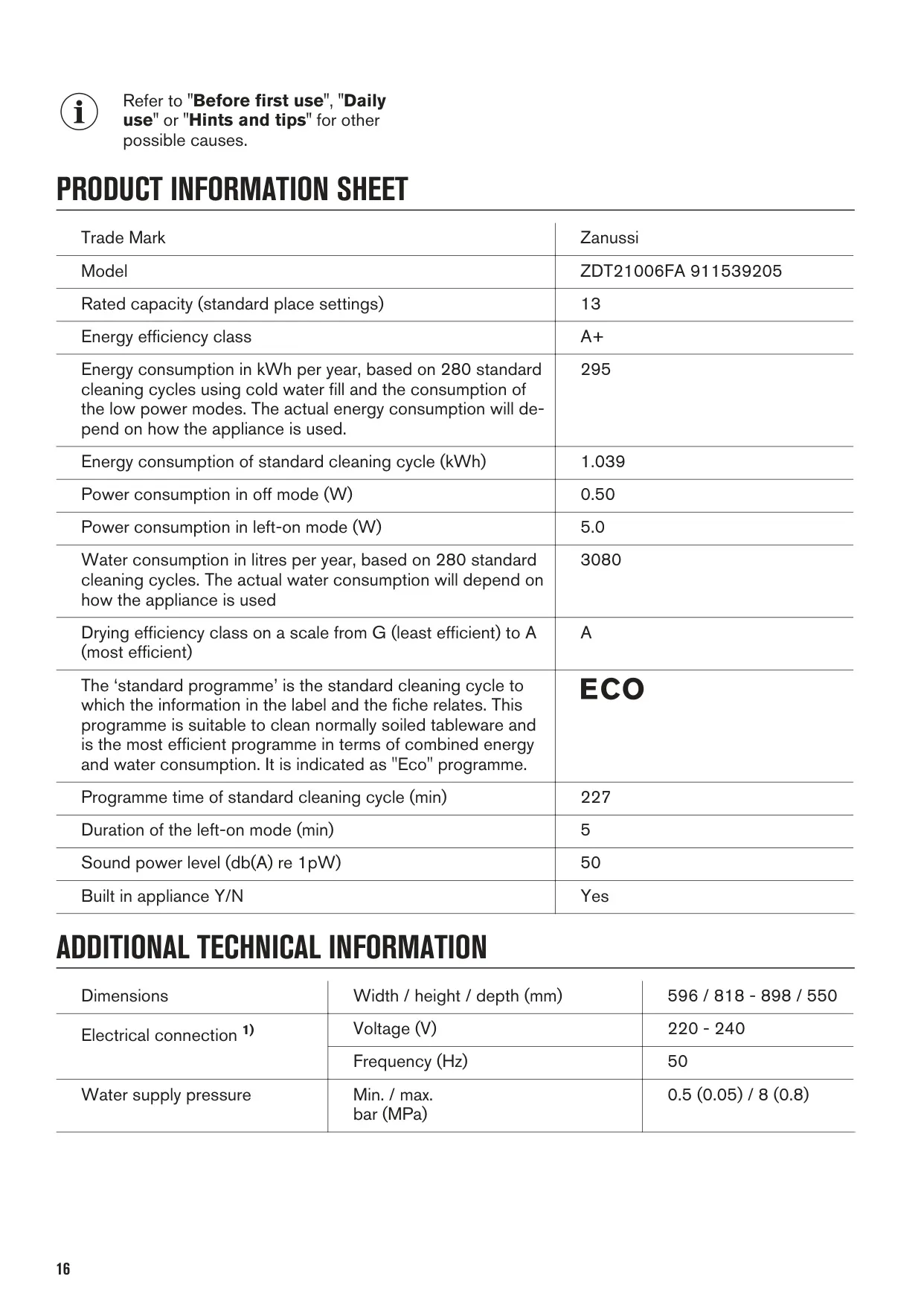

Zanussi ZDT21006FA Dishwasher Specifications
| Feature | Specification |
|---|---|
| Trade Mark | Zanussi |
| Model | ZDT21006FA 911539205 |
| Rated Capacity | 13 standard place settings |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 295 kWh (based on 280 cycles) |
| Energy Consumption (Standard Cycle) | 1.039 kWh |
| Power Consumption (Off Mode) | 0.50 W |
| Power Consumption (Left-on Mode) | 5.0 W |
| Annual Water Consumption | 3080 litres (based on 280 cycles) |
| Drying Efficiency Class | A |
| Standard Programme Time | 227 min |
| Duration of Left-on Mode | 5 min |
| Sound Power Level | 50 db(A) re 1pW |
| Appliance Type | Built-in |
| Dimensions (W x H x D) | 596 x 818-898 x 550 mm |
| Voltage | 220 - 240 V |
| Frequency | 50 Hz |
| Water Supply Pressure (Min / Max) | 0.5 (0.05) / 8 (0.8) bar (MPa) |
Zanussi ZDT21006FA Dishwasher Details

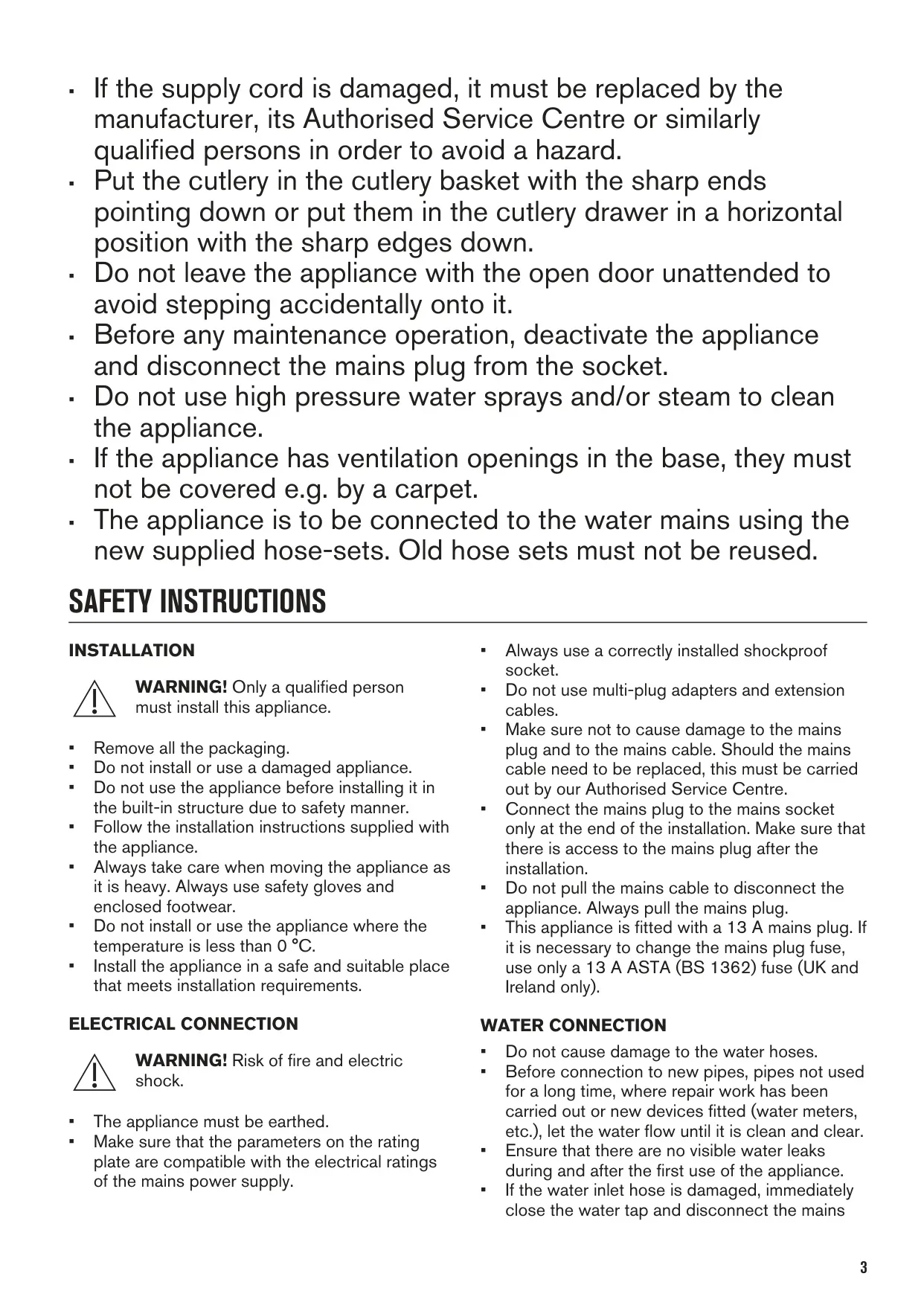

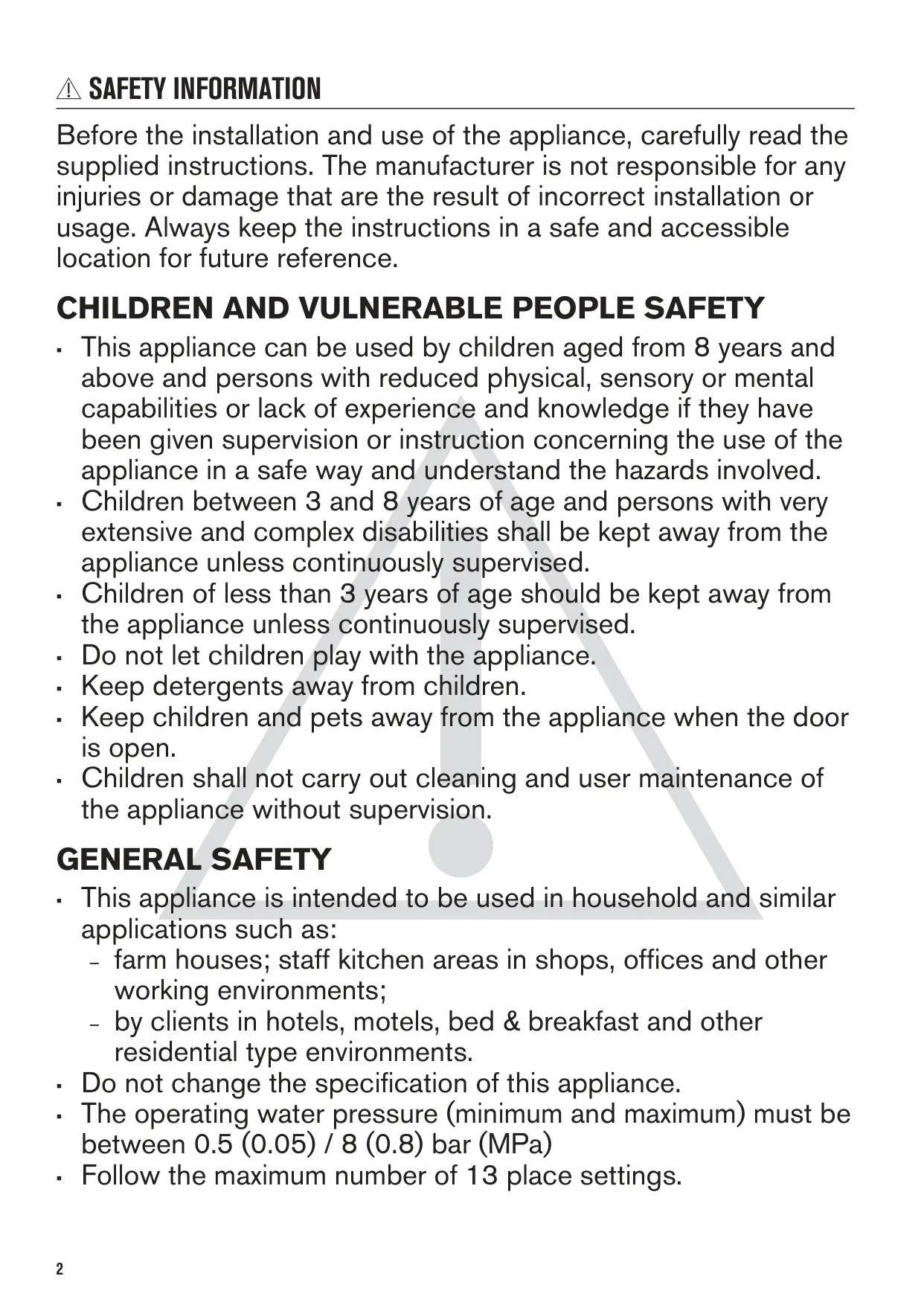

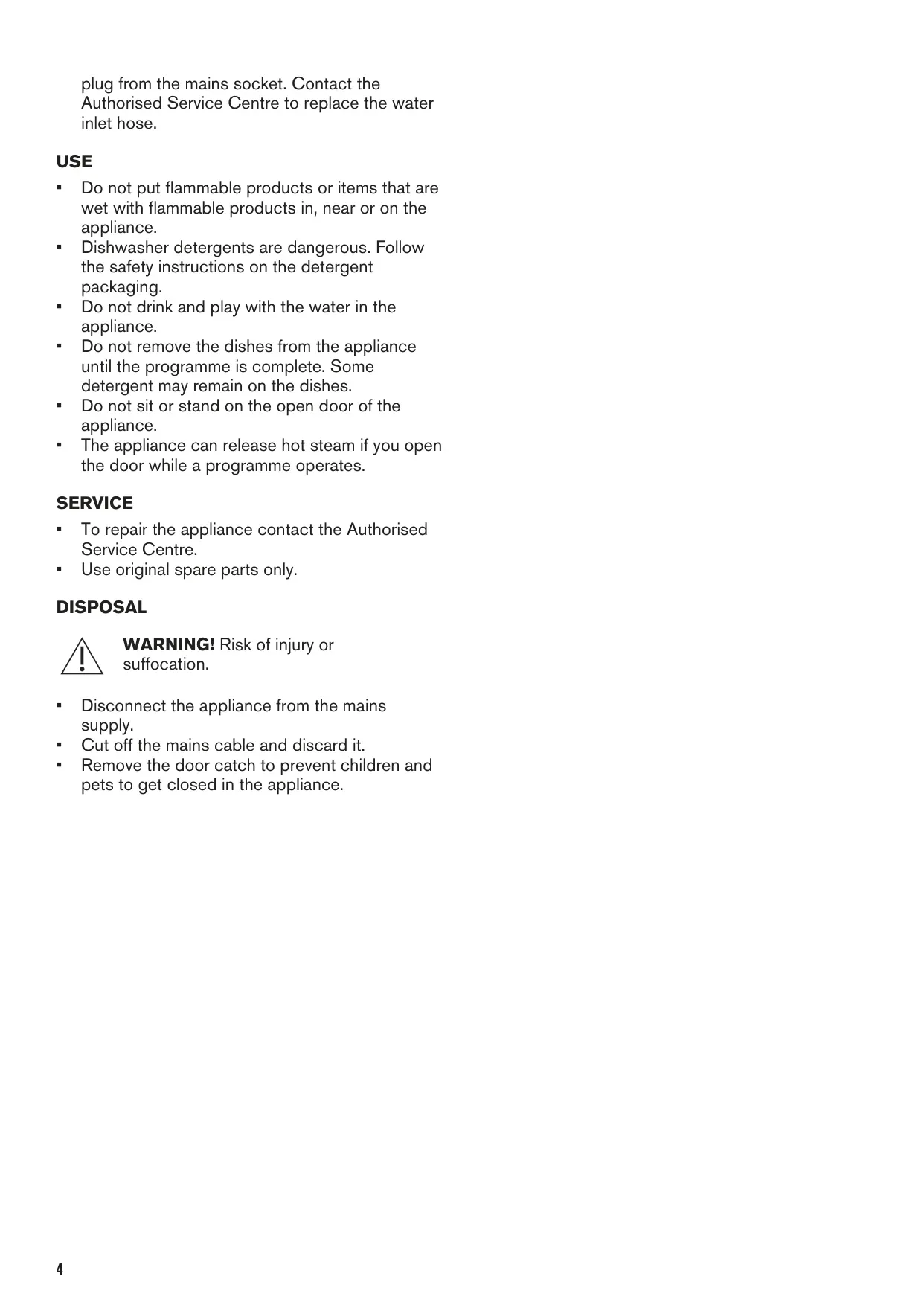

The Zanussi ZDT21006FA dishwasher is designed with user convenience and safety in mind, offering a range of features to simplify daily dishwashing tasks. It includes comprehensive safety guidelines covering everything from child protection to general operational precautions, ensuring a secure environment for your household. The appliance is intended for household and similar applications, emphasizing safety through proper installation by a qualified person and adherence to specific electrical and water connection requirements.

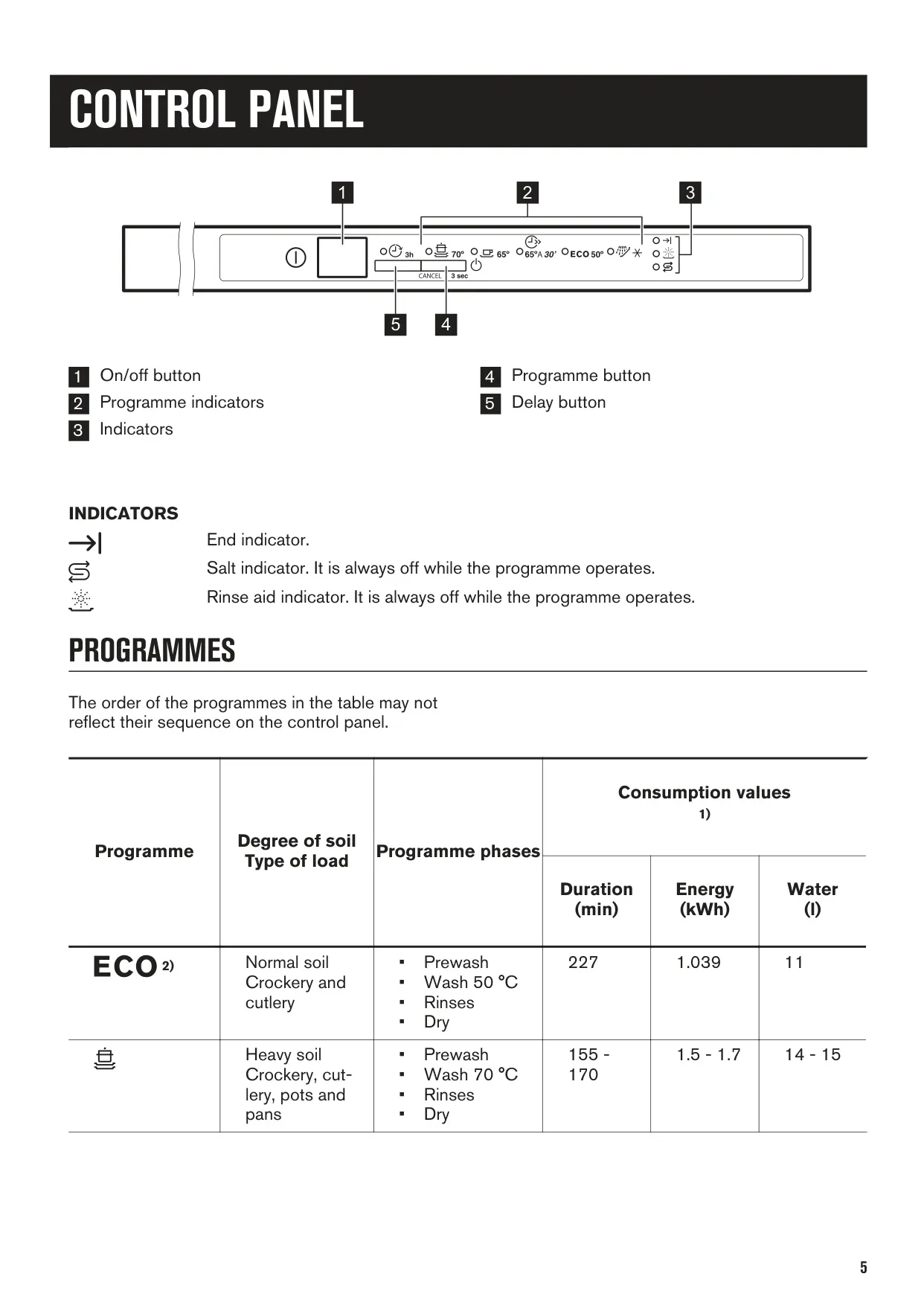

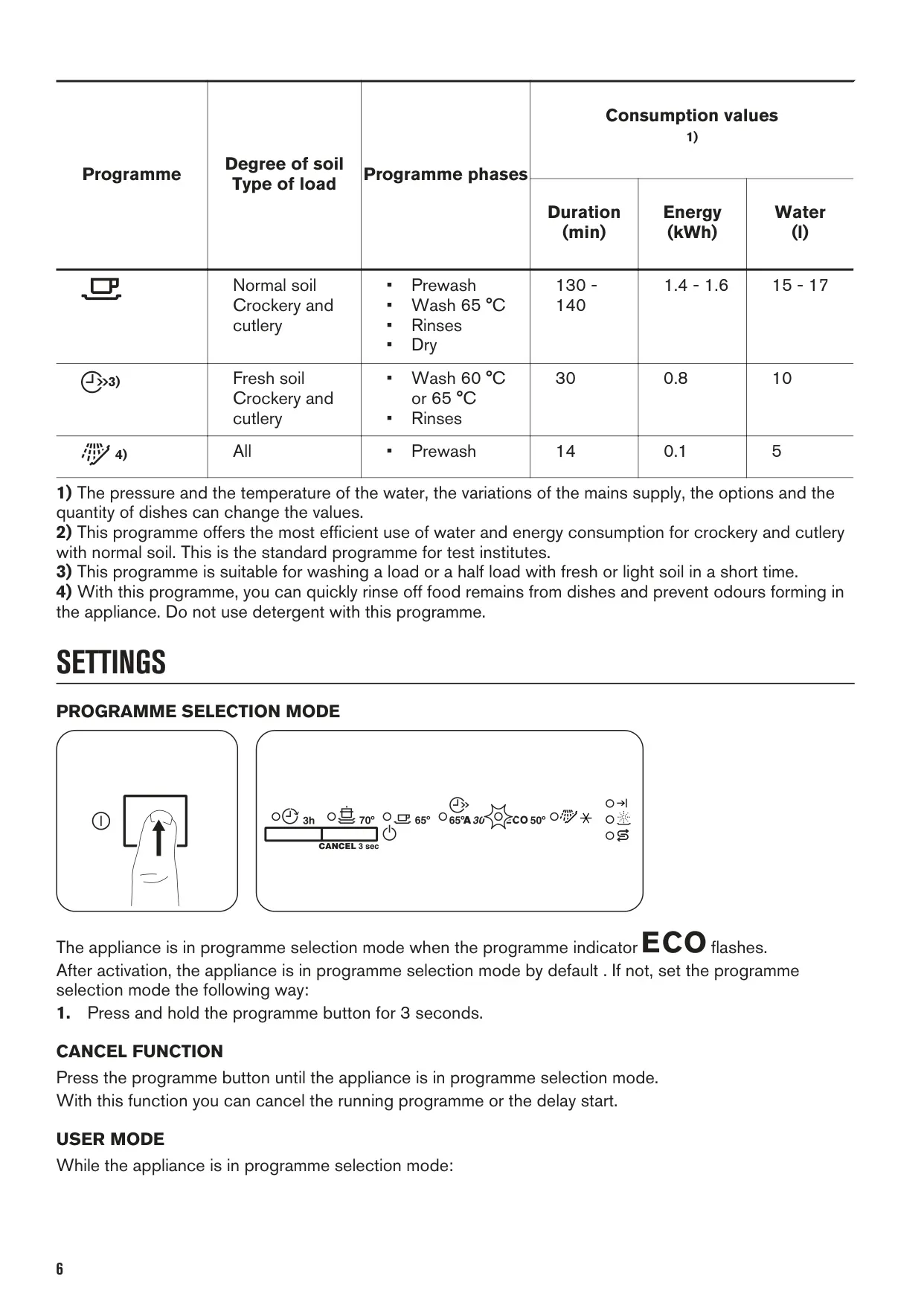

Operational flexibility is a key aspect, with multiple wash programs tailored for different soil levels and load types. Beyond the standard program, there are options for heavy soil on pots and pans at 70°C, a program for normal soil at 65°C, and a rapid 30-minute cycle ideal for fresh or lightly soiled items. For quick refreshing, a 14-minute prewash option effectively rinses off food residues and prevents odors, without the need for detergent.

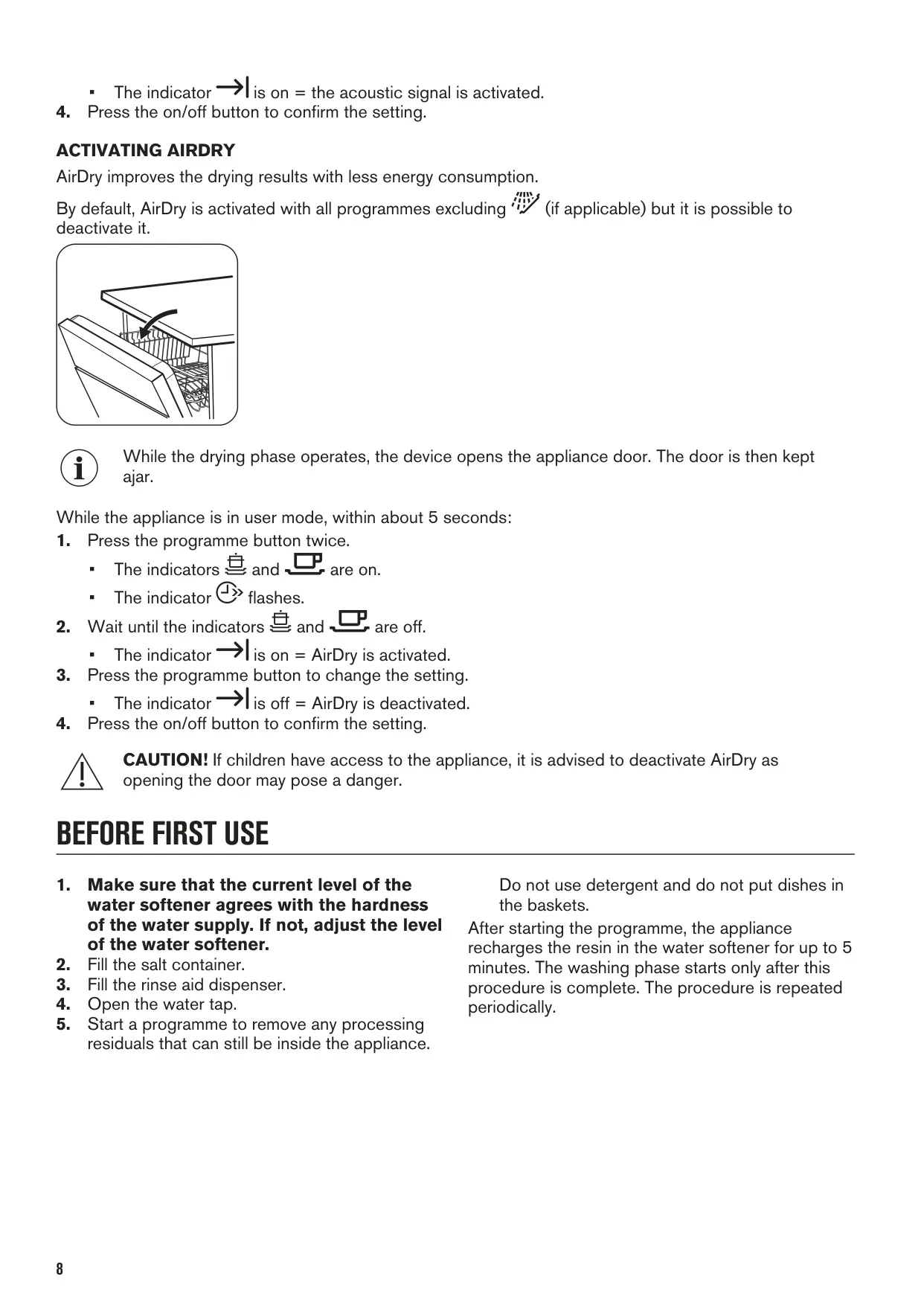

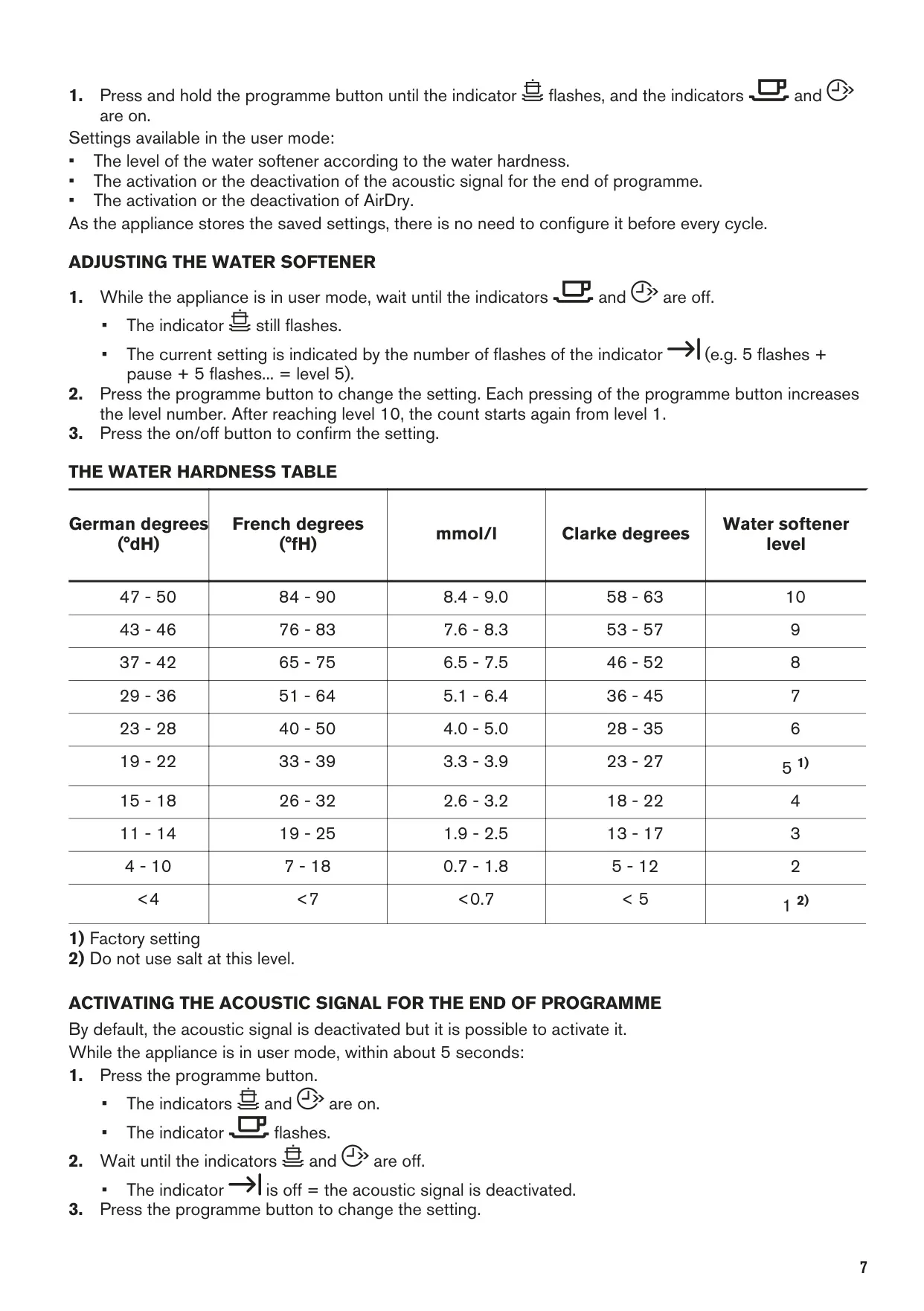

Advanced settings allow for optimal performance, including the ability to adjust the water softener according to your local water hardness, preventing mineral buildup and enhancing wash results. Users can also activate or deactivate an acoustic signal for the end of a program, providing audible alerts as desired. A notable feature is AirDry, which automatically opens the appliance door during the drying phase to improve drying results and reduce energy consumption.

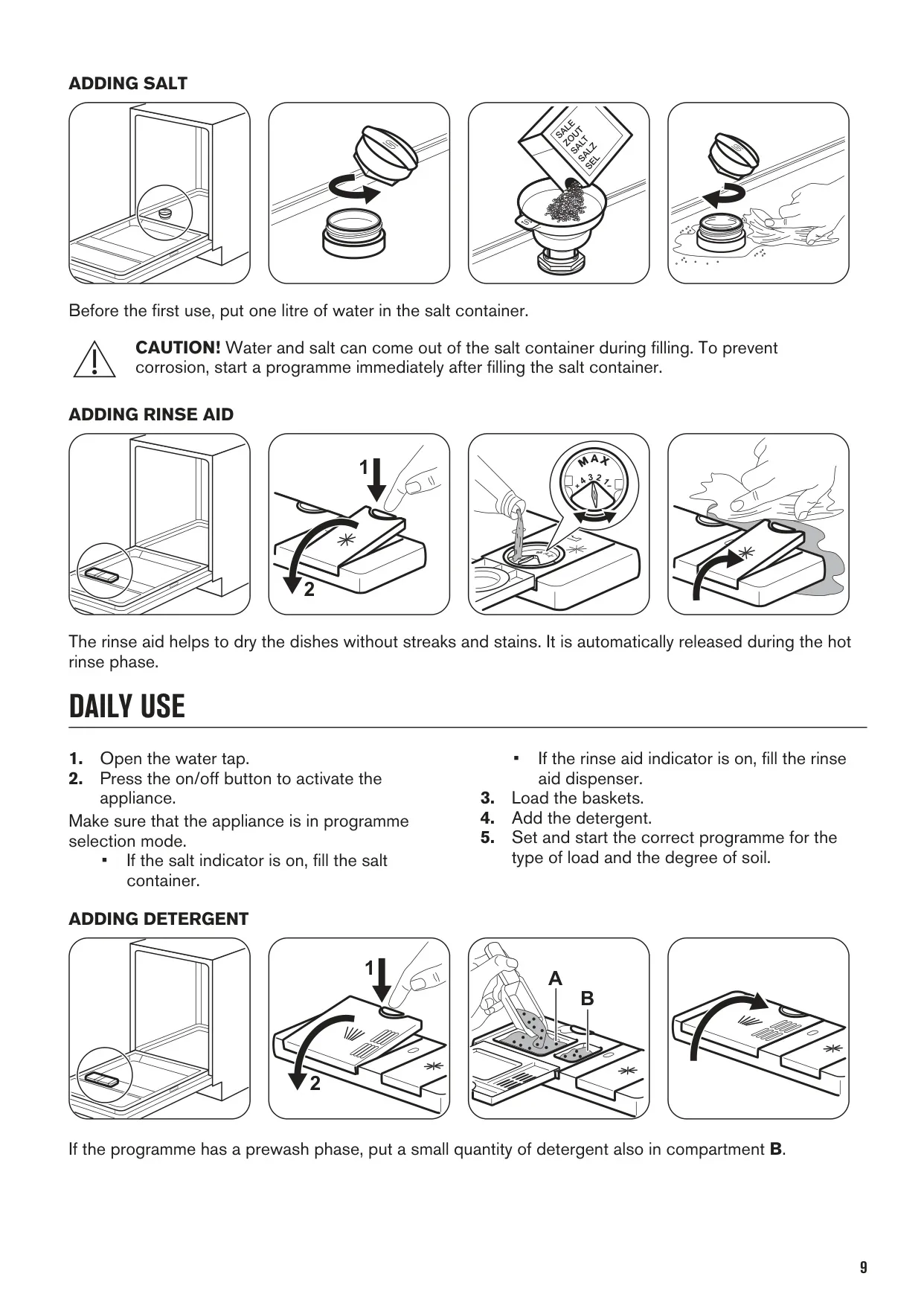

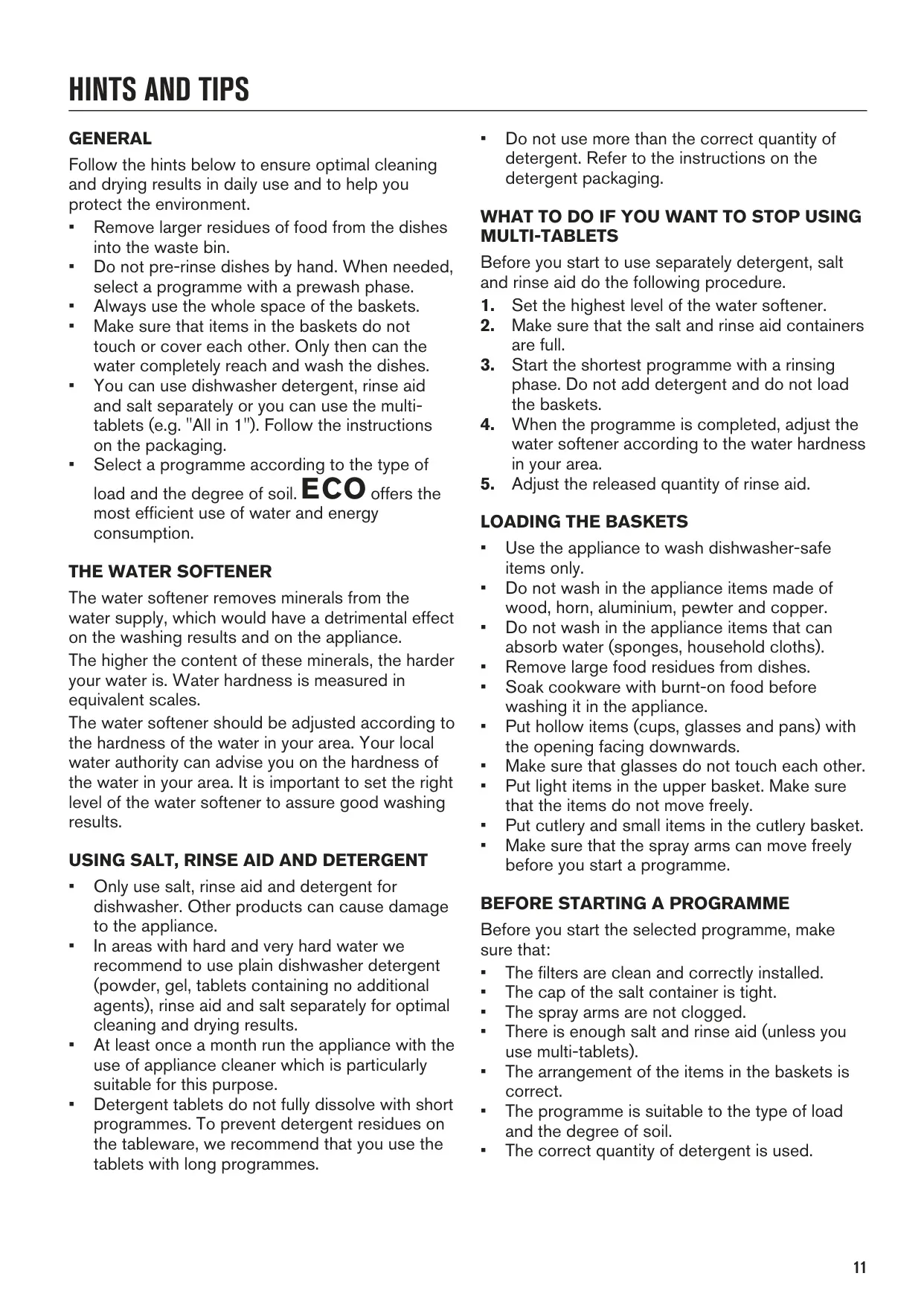

For first-time use, the manual provides clear steps, including filling the salt and rinse aid dispensers and running an initial program without dishes or detergent to prepare the appliance. Daily operation is straightforward, guiding users through loading, detergent addition—including specific instructions for multi-tablets—and program selection. The dishwasher also offers a delay start option to postpone a cycle by three hours, catering to flexible scheduling needs.

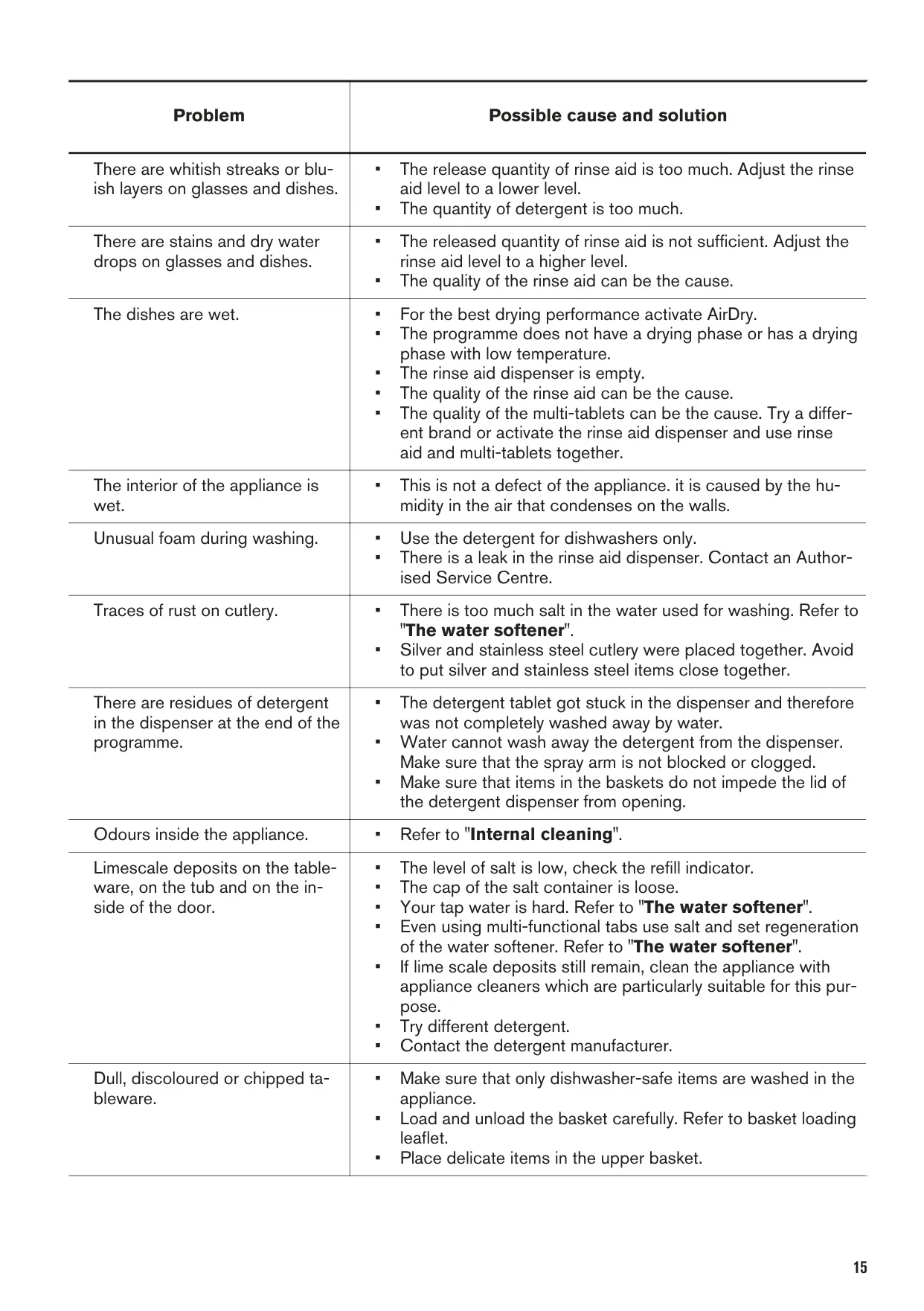

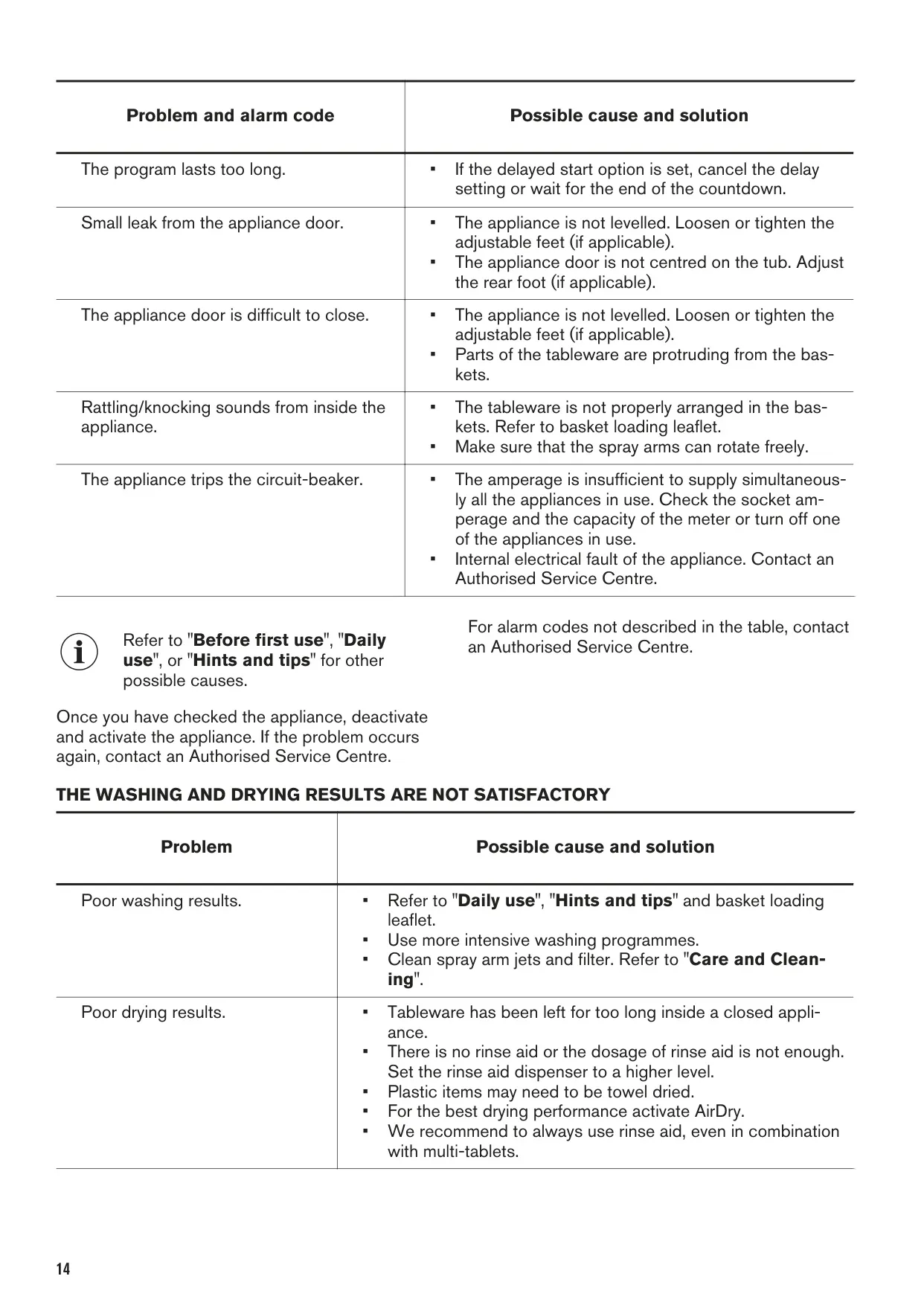

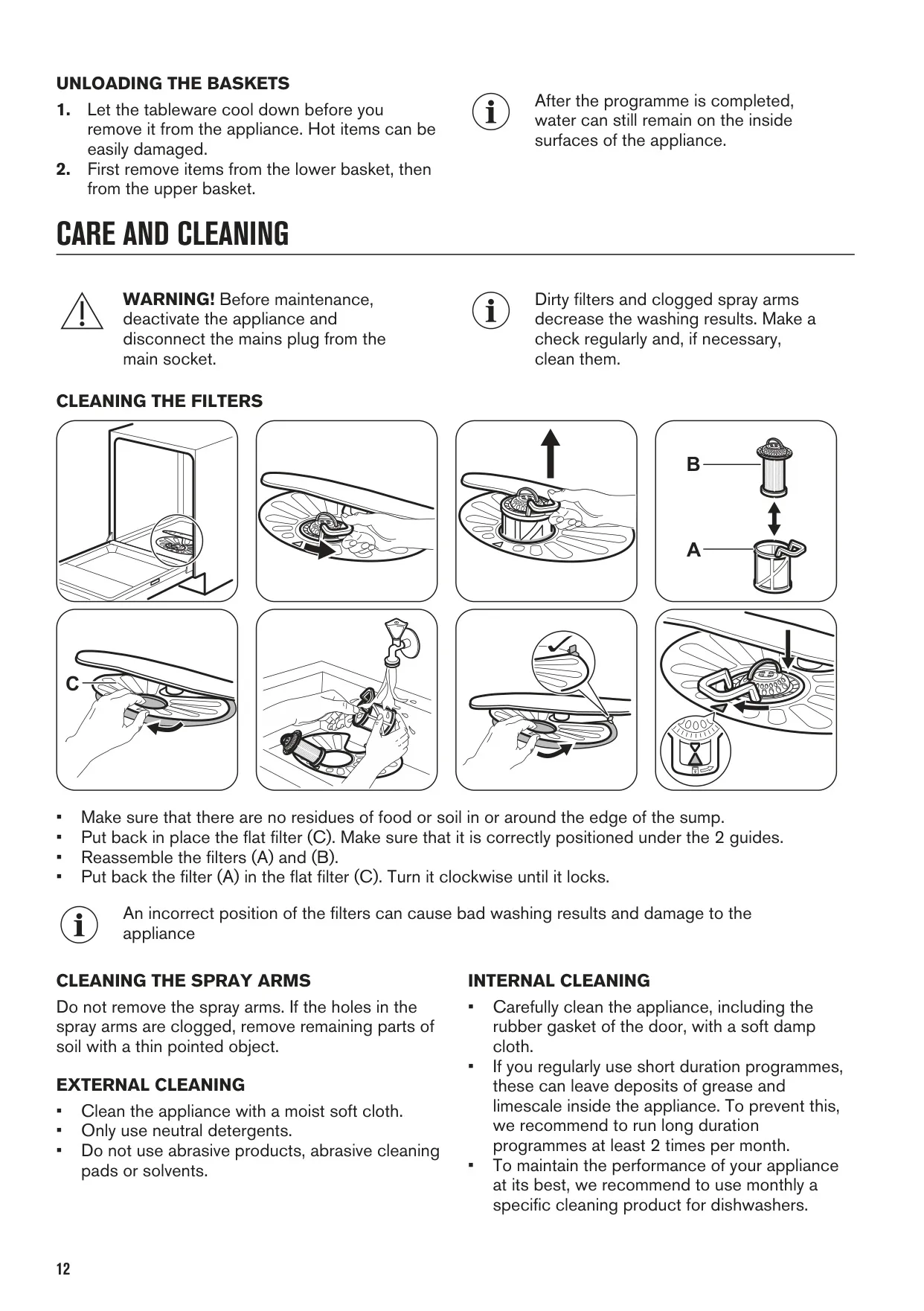

Maintenance is crucial for long-term performance, and the manual details procedures for cleaning the filters and spray arms. It advises on external and internal cleaning, including tips for preventing grease and limescale deposits, such as running long duration programs monthly and using specialized cleaning products. Troubleshooting guidance helps users resolve common issues, from power problems to unsatisfactory wash results, empowering self-service before contacting support.
