Zanussi Z716WT83BI Washer Dryer 7-4 kg Instruction Manual
Zanussi Z716WT83BI Washer Dryer 7-4 kg
Zanussi Z716WT83BI Instructions
Here we offer the Zanussi Z716WT83BI Washer Dryer 7-4 kg manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Zanussi Z716WT83BI Washer Dryer 7-4 kg, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Zanussi Z716WT83BI Washer Dryer 7-4 kg Specifications
| Specification | Detail |
|---|---|
| Model | Z716WT83BI |
| Type | Washer Dryer |

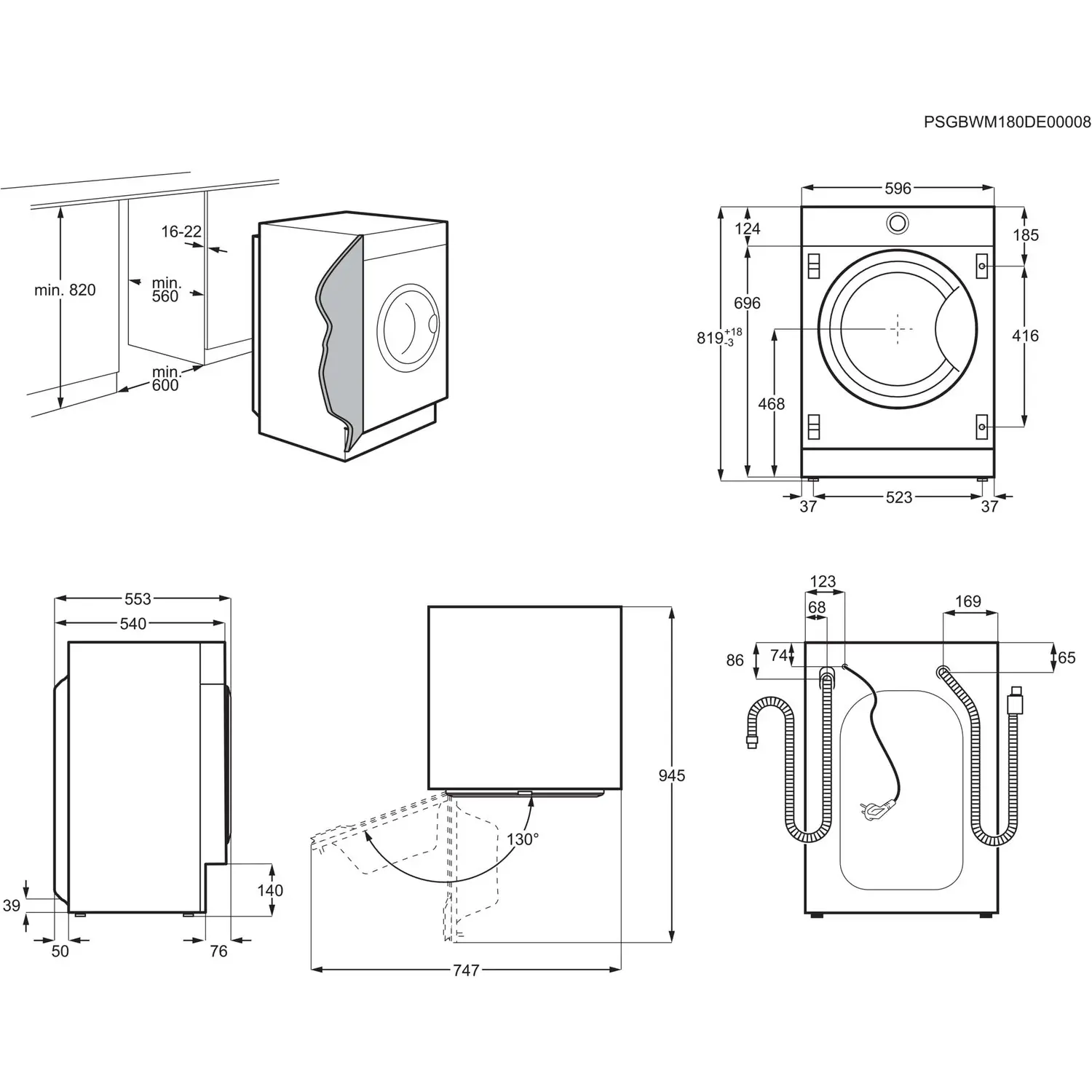

| Dimensions (Width / Height / Depth / Total Depth) | 596 mm / 819 mm / 540 mm / 553 mm |
| Electrical Voltage | 230-240 V |
| Overall Electrical Power | 2000 W |
| Fuse | 13 A |
| Frequency | 50 Hz |
| Level of Protection (Solid Particles & Moisture) | IPX4 |
| Water Supply | Cold water, 3/4'' thread connection |
| Water Supply Pressure (Minimum) | 0.5 bar (0.05 MPa) |
| Water Supply Pressure (Maximum) | 8 bar (0.8 MPa) |
| Maximum Wash Load (Cotton) | 7 kg |
| Maximum Dry Load (Cotton) | 4 kg |
| Maximum Dry Load (Synthetics) | 3 kg |
| Maximum Spin Speed | Up to 1600 rpm |
| Energy Consumption (Cottons 60°C, 7kg) | 1.08 kWh |
| Water Consumption (Cottons 60°C, 7kg) | 79 litres |
| Approx. Programme Duration (Cottons 60°C, 7kg) | 205 minutes |
| Energy Consumption (Cottons Eco 60°C, 7kg) | 0.80 kWh |
| Water Consumption (Cottons Eco 60°C, 7kg) | 52 litres |
| Approx. Programme Duration (Cottons Eco 60°C, 7kg) | 265 minutes |
Zanussi Z716WT83BI Washer Dryer Details
The Zanussi Z716WT83BI Washer Dryer offers an intuitive user experience through its meticulously designed control panel. It features a clear display that provides crucial information, including program duration, delay times, and error codes. Various touch buttons allow for easy selection of options, with specific indicators illuminating to confirm chosen settings. This ensures users are always informed about their cycle's status and applied functions.

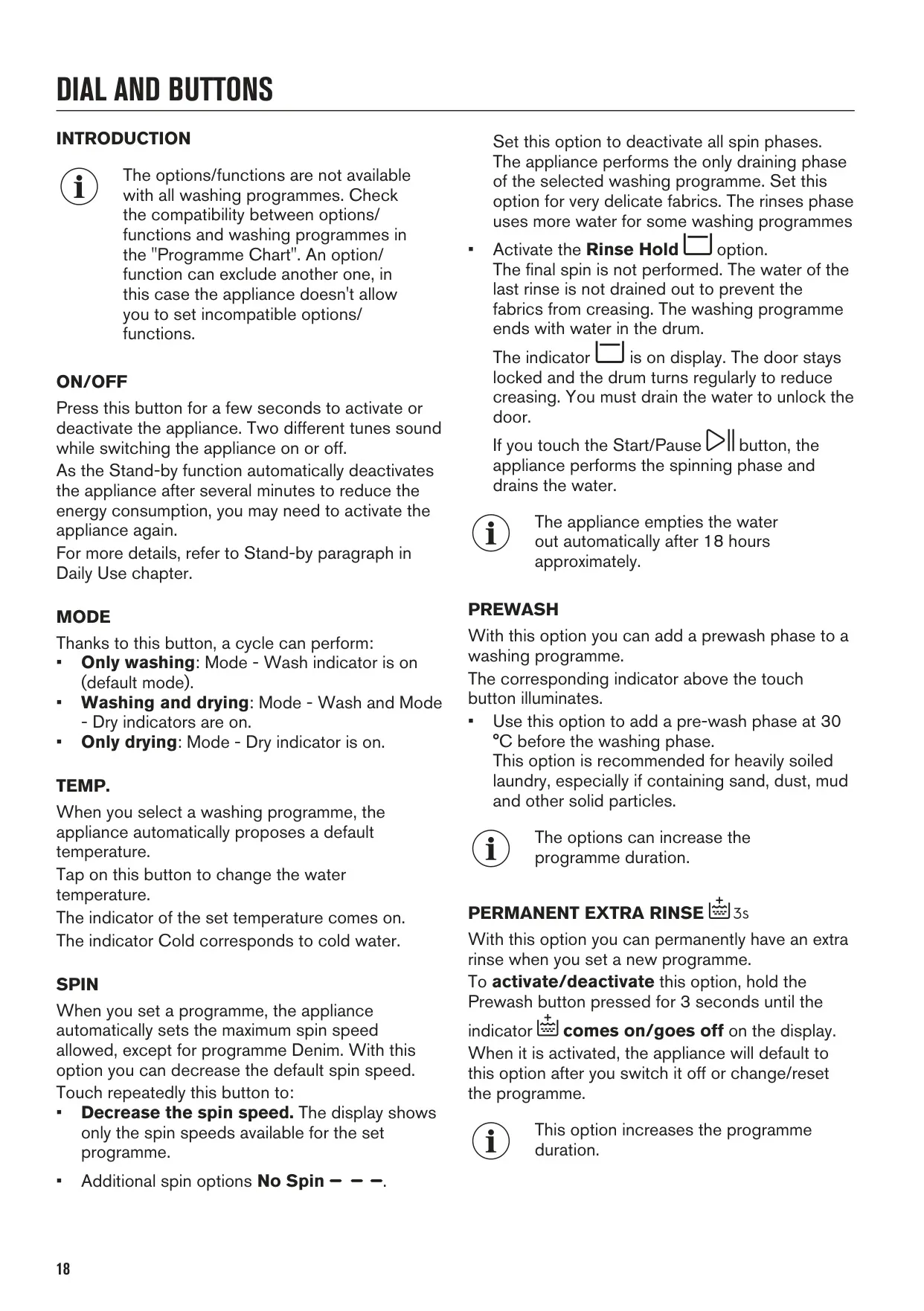

Versatility is at the core of this appliance's design, evident in its operational modes. The dedicated Mode button enables seamless switching between "Only Washing," "Washing and Drying," and "Only Drying" cycles. This flexibility caters to diverse laundry requirements, whether you need a full wash-and-dry solution or just a quick refresh for dry items, enhancing convenience for daily use.

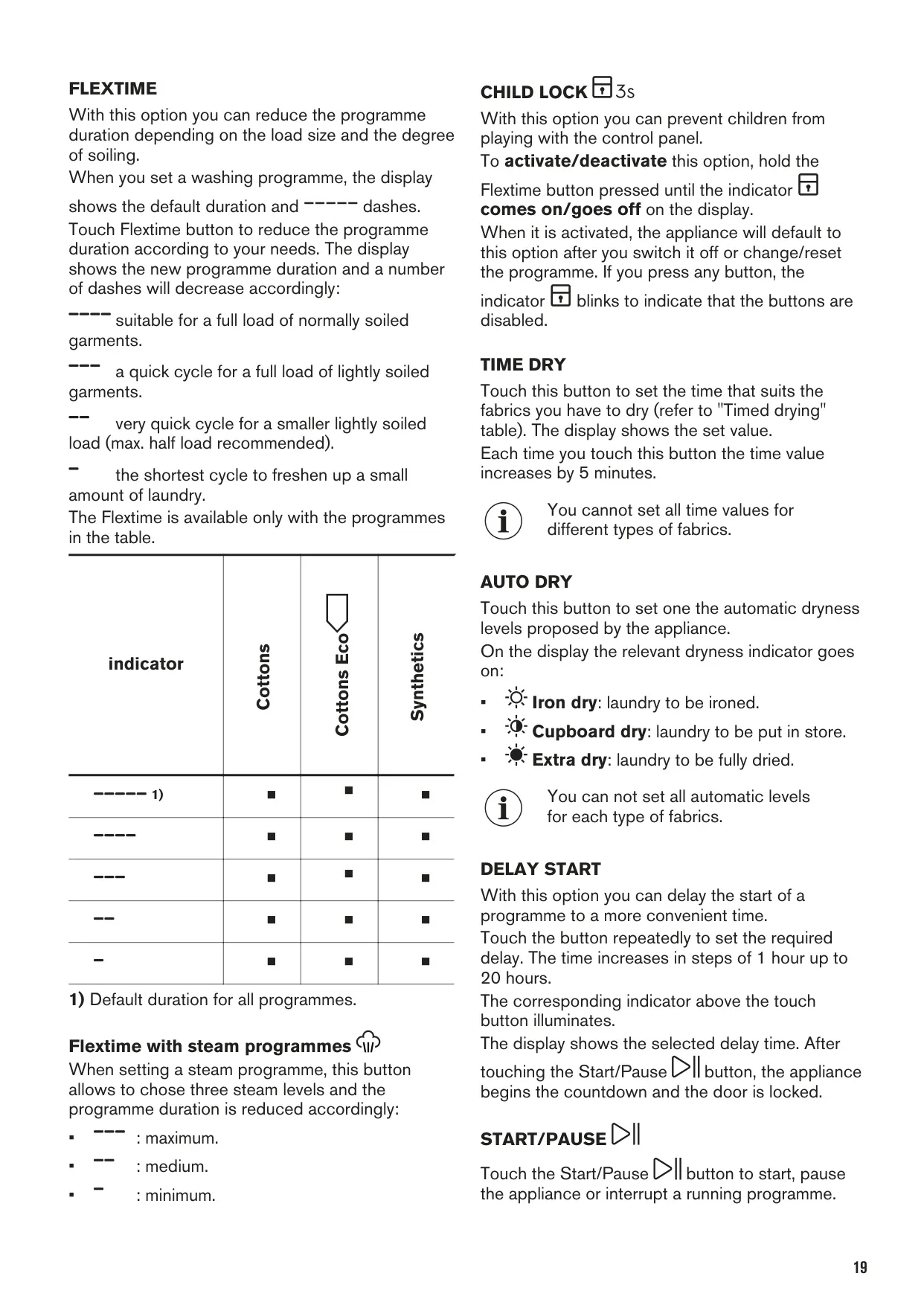

For tailored washing, the Zanussi Z716WT83BI includes smart features like Flextime, which dynamically adjusts program duration based on the load size and soil level. Heavily soiled garments benefit from the Prewash option, adding an effective 30°C pre-wash phase. Users with sensitive skin or allergies can also activate a Permanent Extra Rinse for thorough detergent removal, ensuring optimal hygiene and comfort.

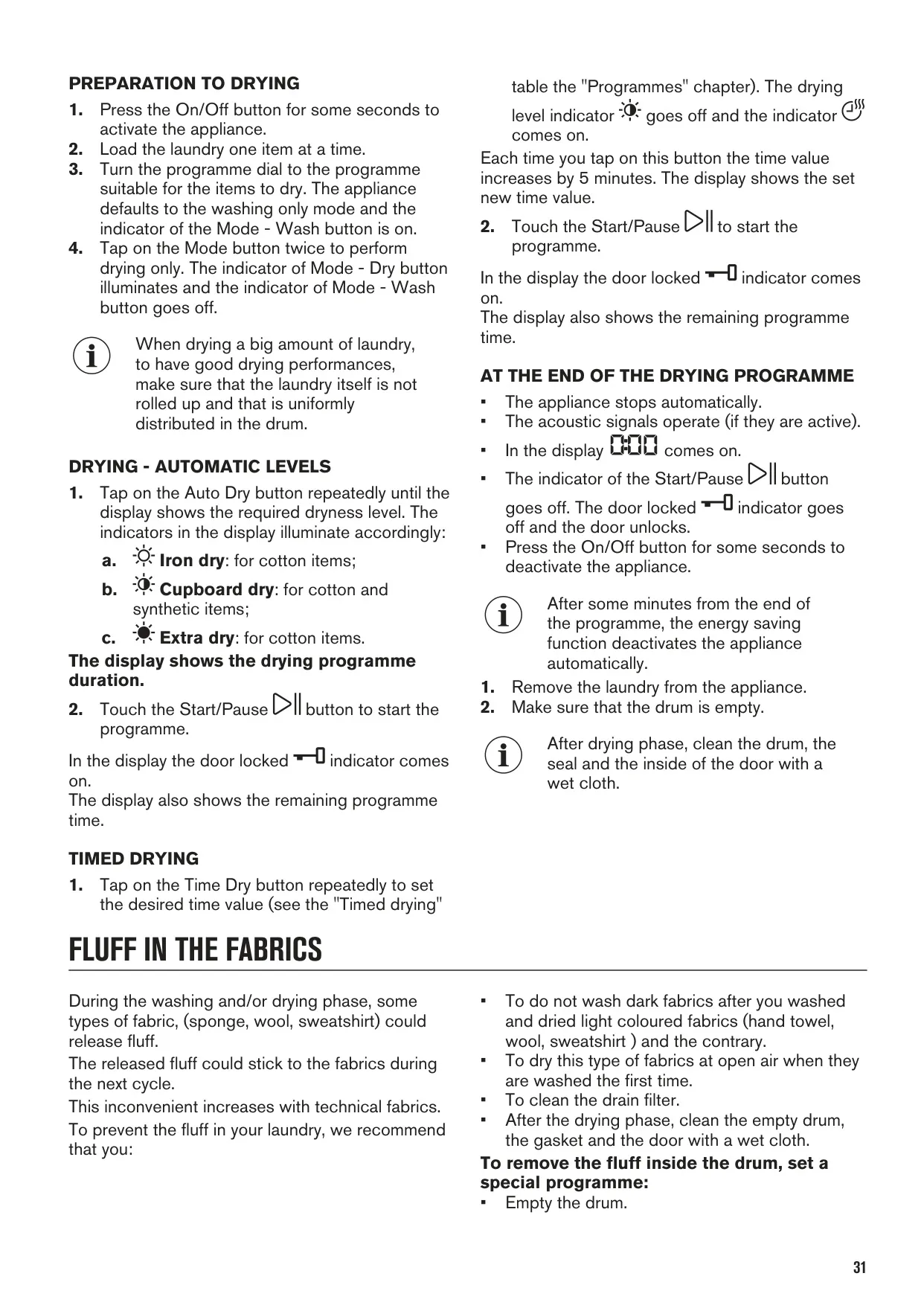

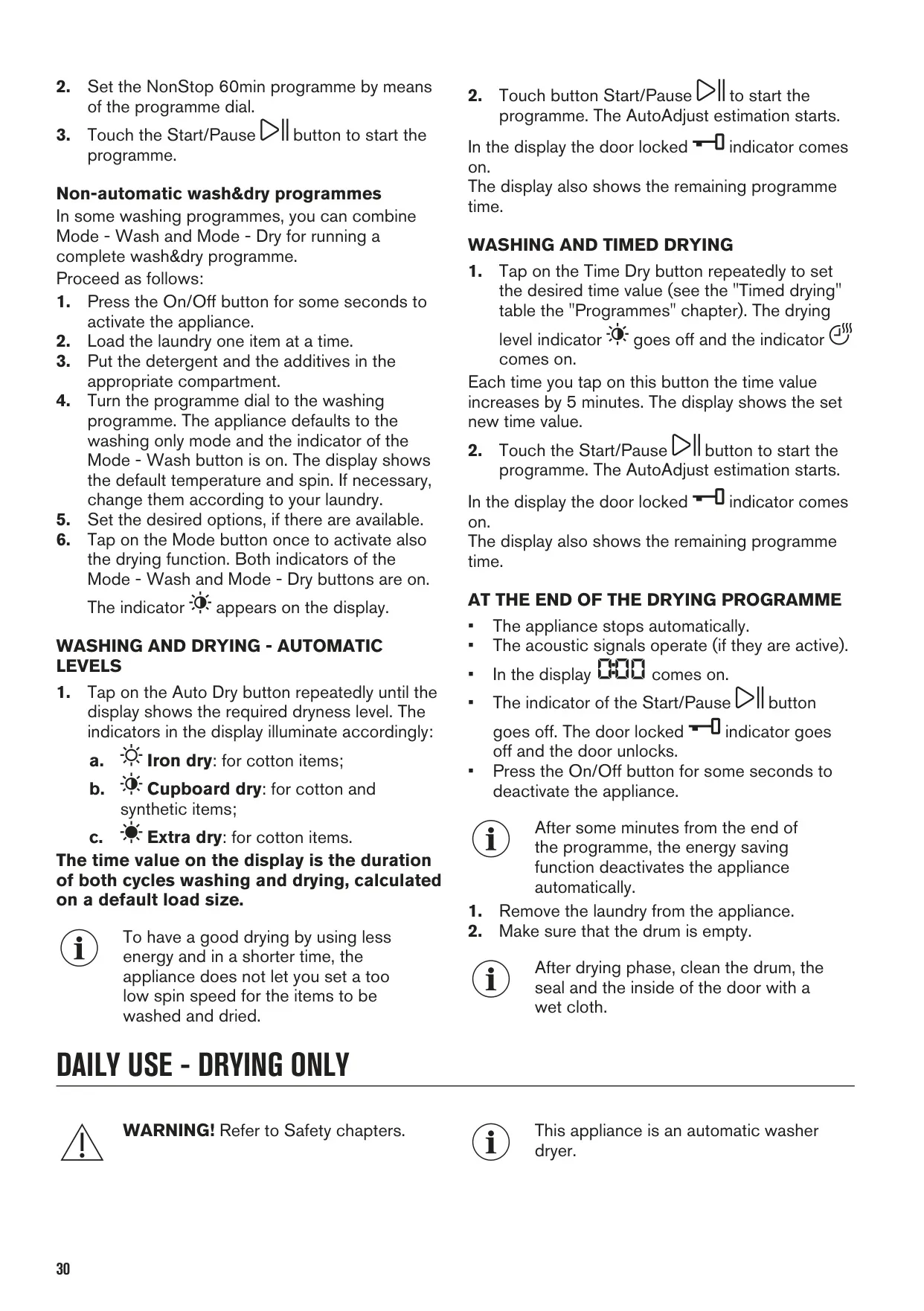

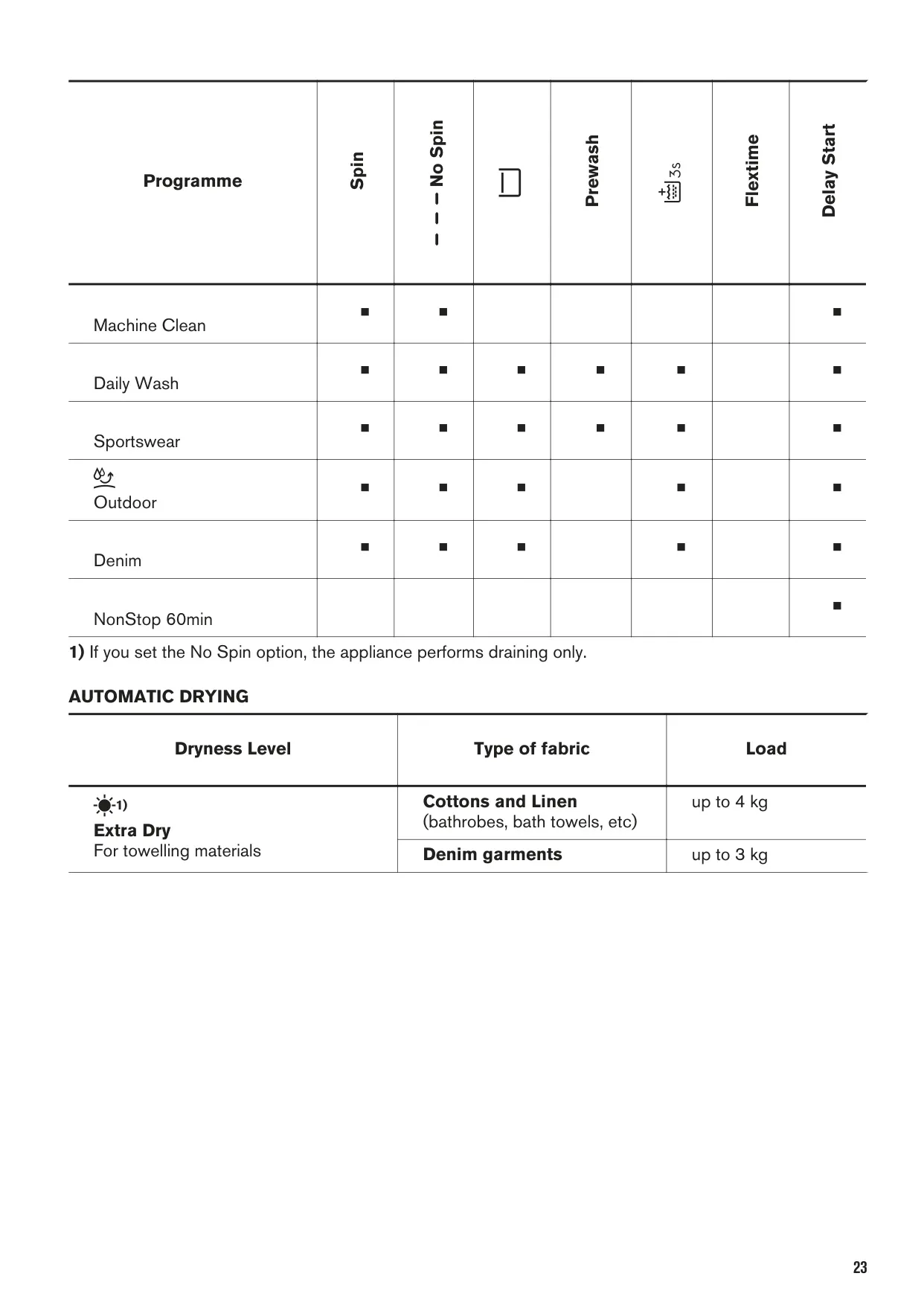

Drying capabilities are equally sophisticated. The appliance offers both automated and manual control. Auto Dry provides preset dryness levels such as "Iron dry," "Cupboard dry," and "Extra dry," allowing the machine to stop automatically once the desired dryness is achieved. Alternatively, Time Dry permits precise duration setting in 5-minute increments, ideal for specific fabrics or smaller loads.

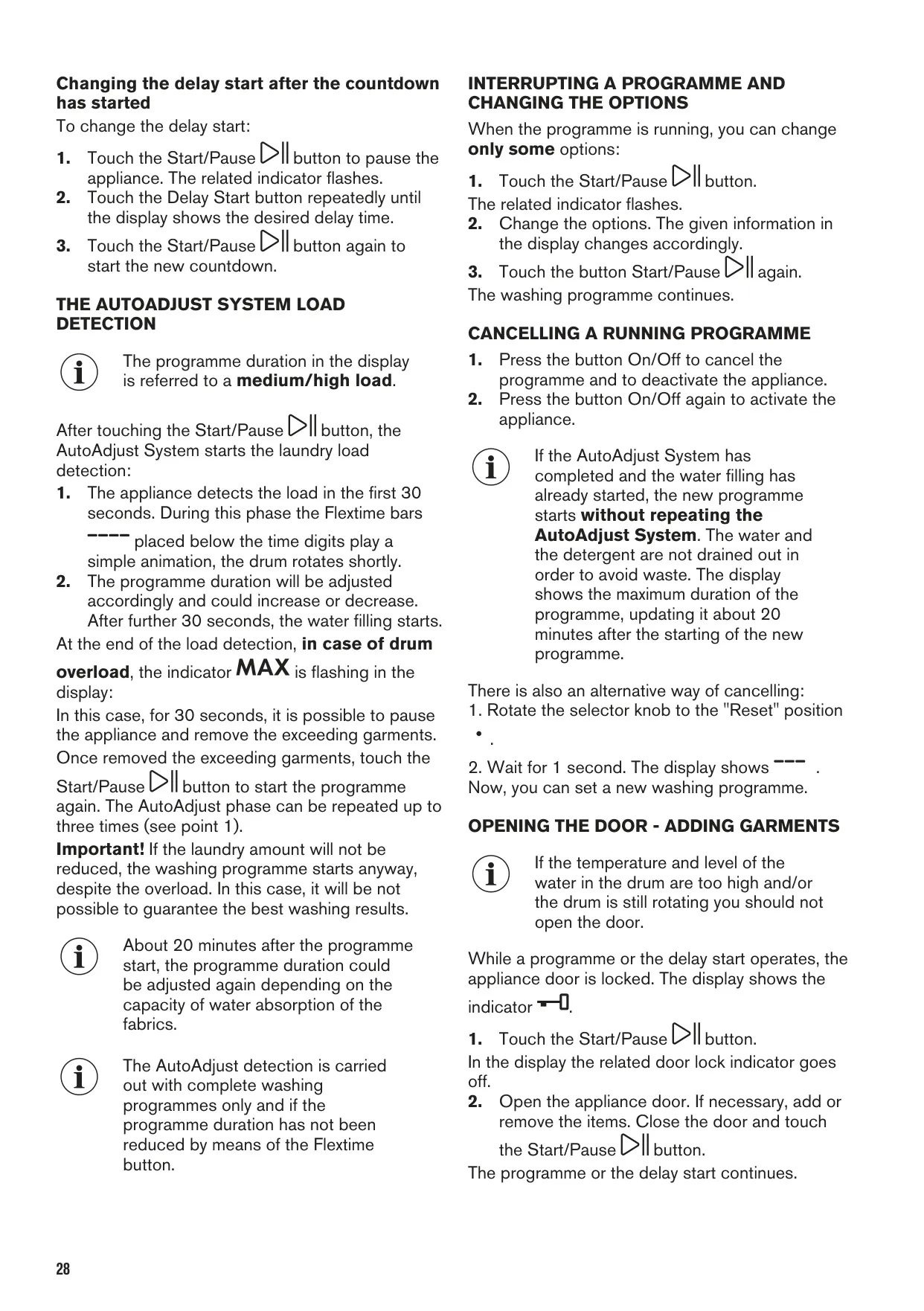

Safety and maintenance are paramount with this Zanussi model. The AutoAdjust System intelligently detects the laundry load, optimizing water and energy consumption, and alerts users to overloads. A Child Lock feature prevents accidental program changes, safeguarding curious hands. For upkeep, the manual details how to use the Machine Clean program, which, when combined with the drying function, performs an anti-fluff action, crucial for maintaining drum hygiene and preventing lint transfer.

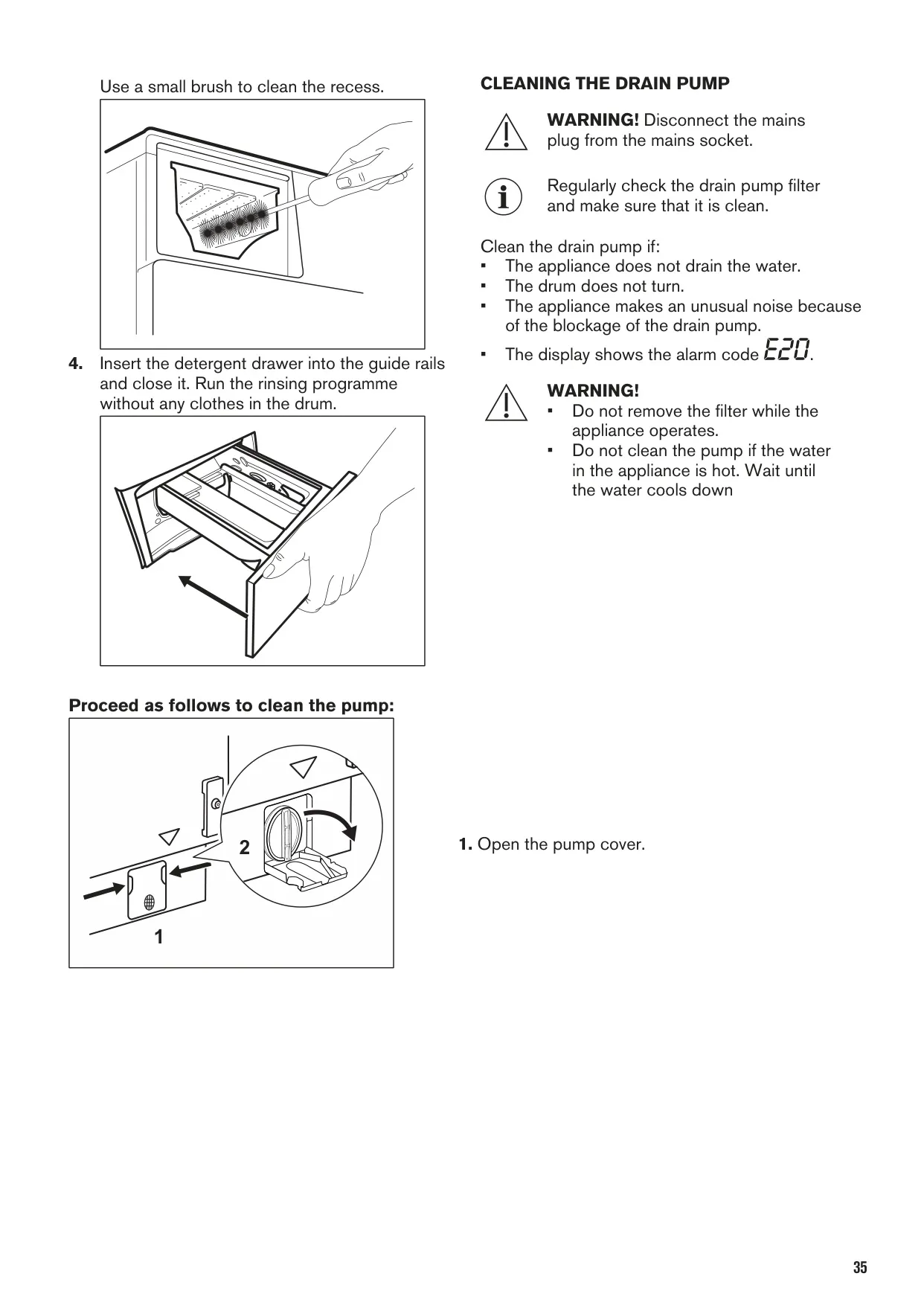

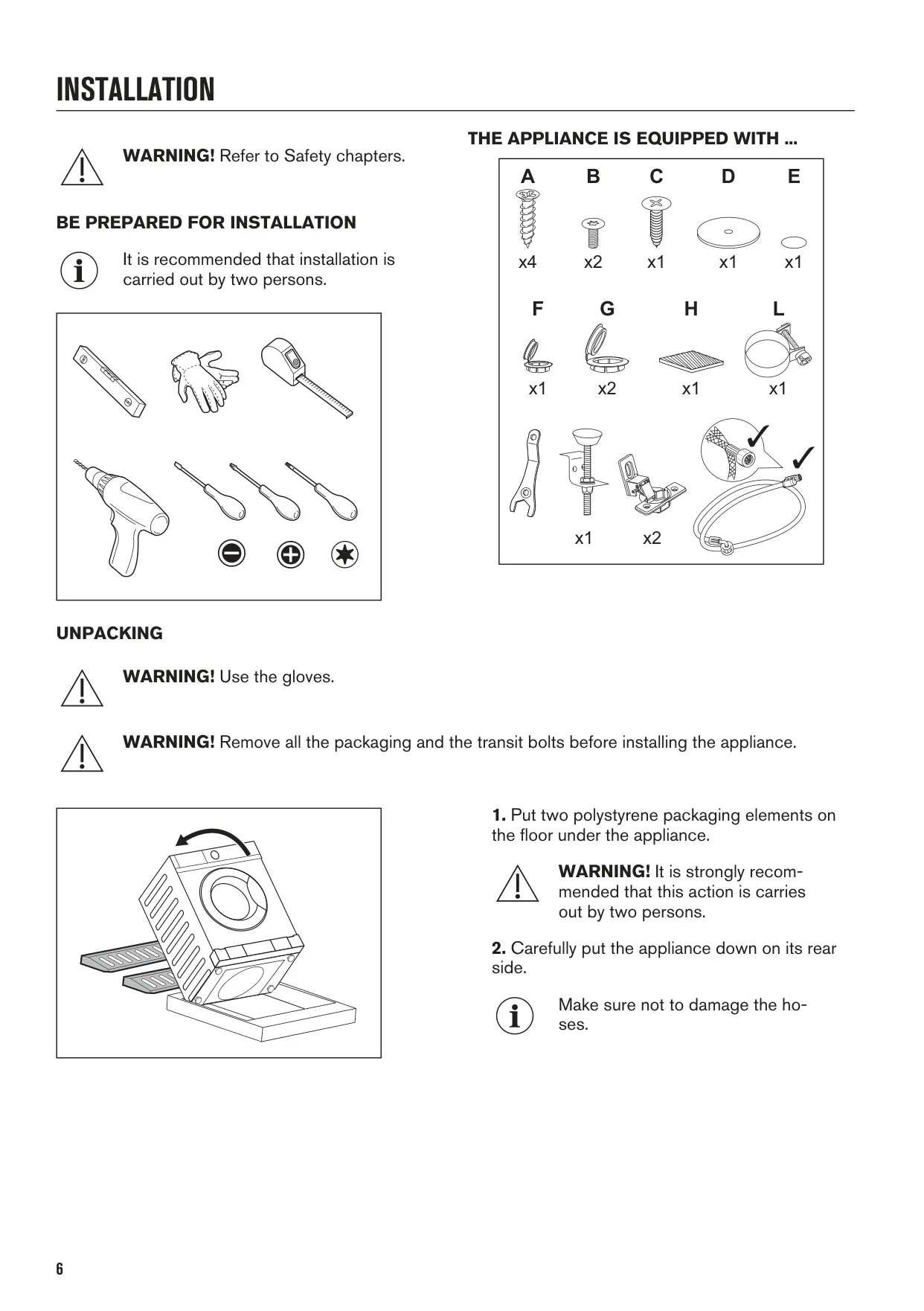

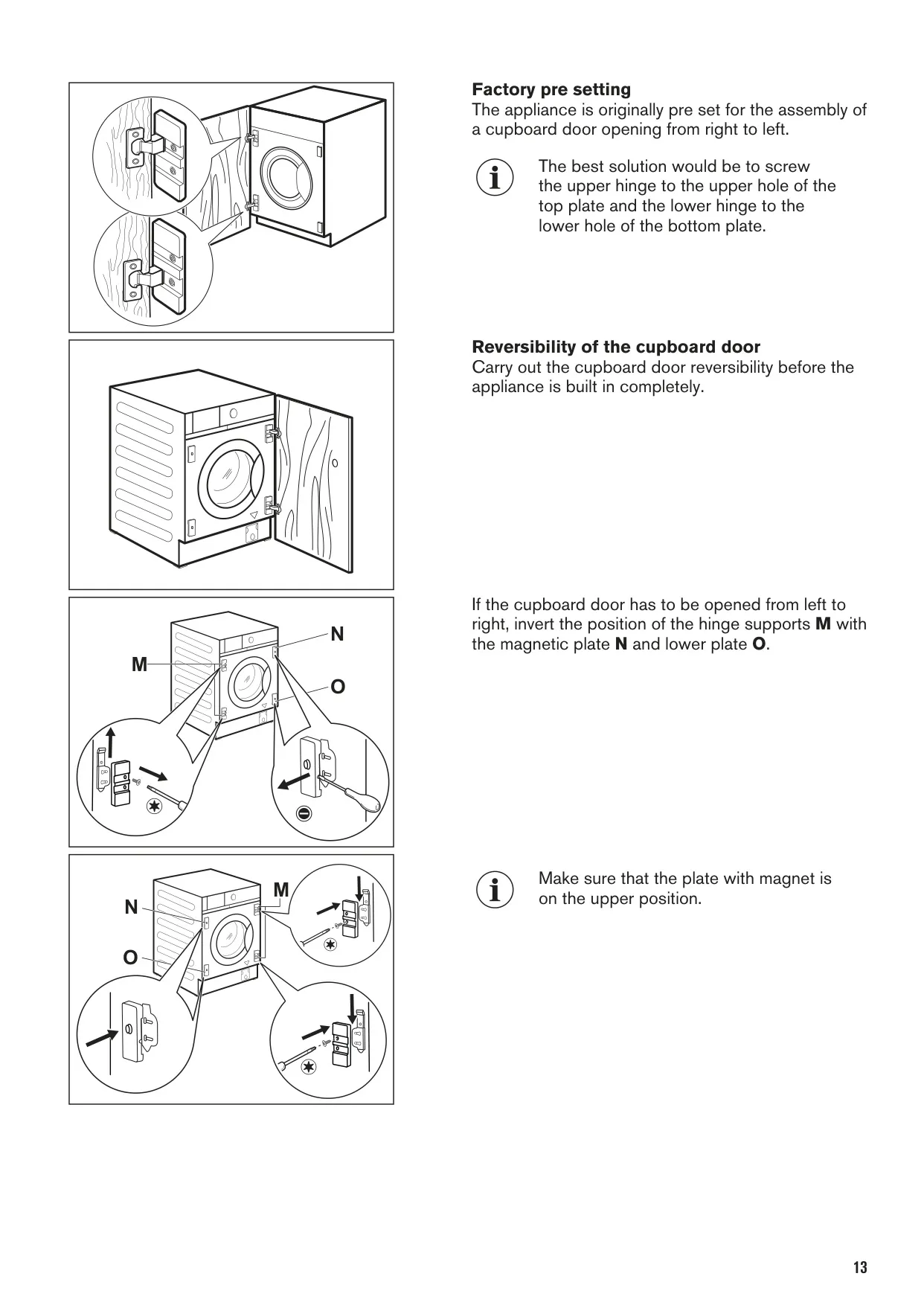

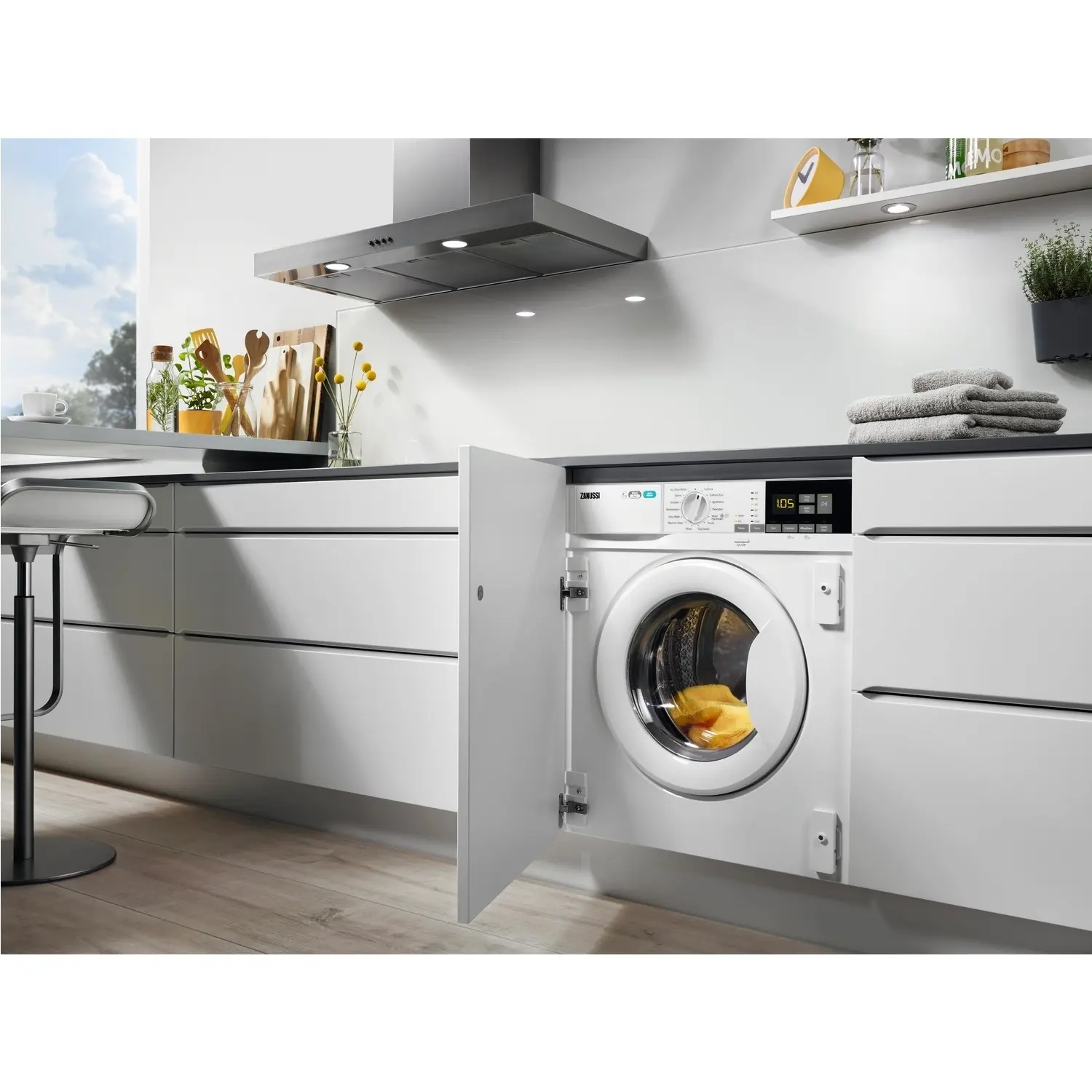

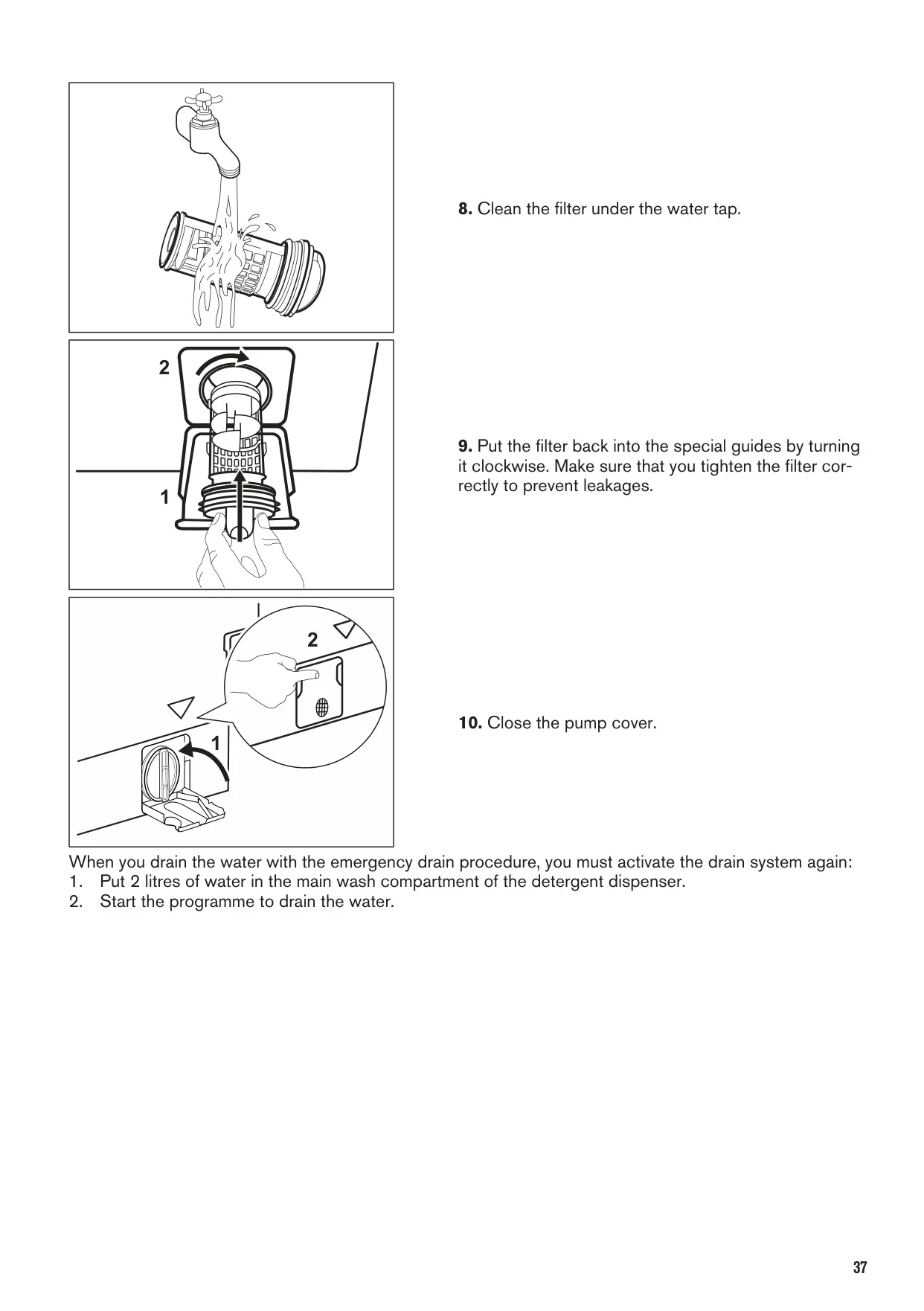

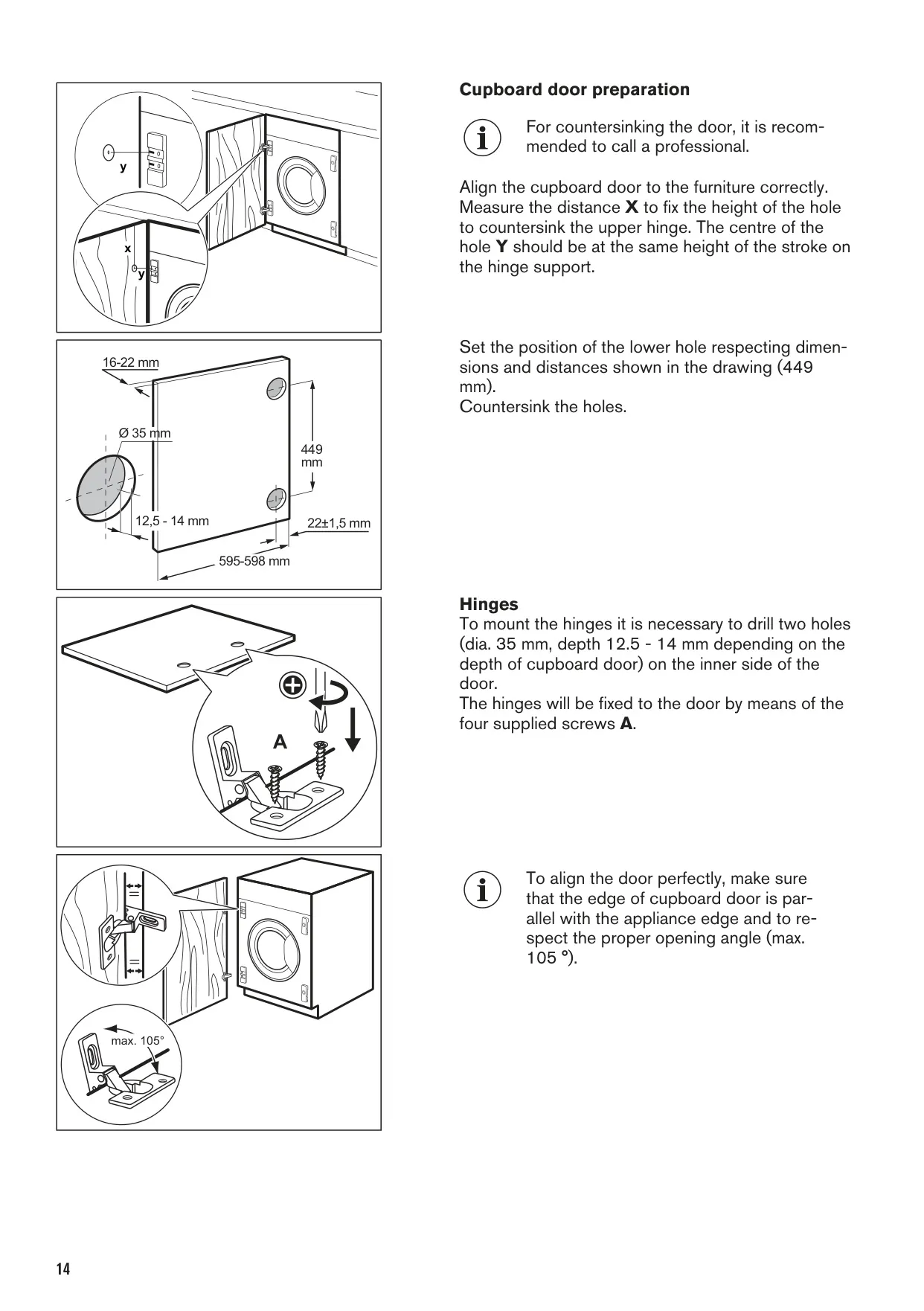

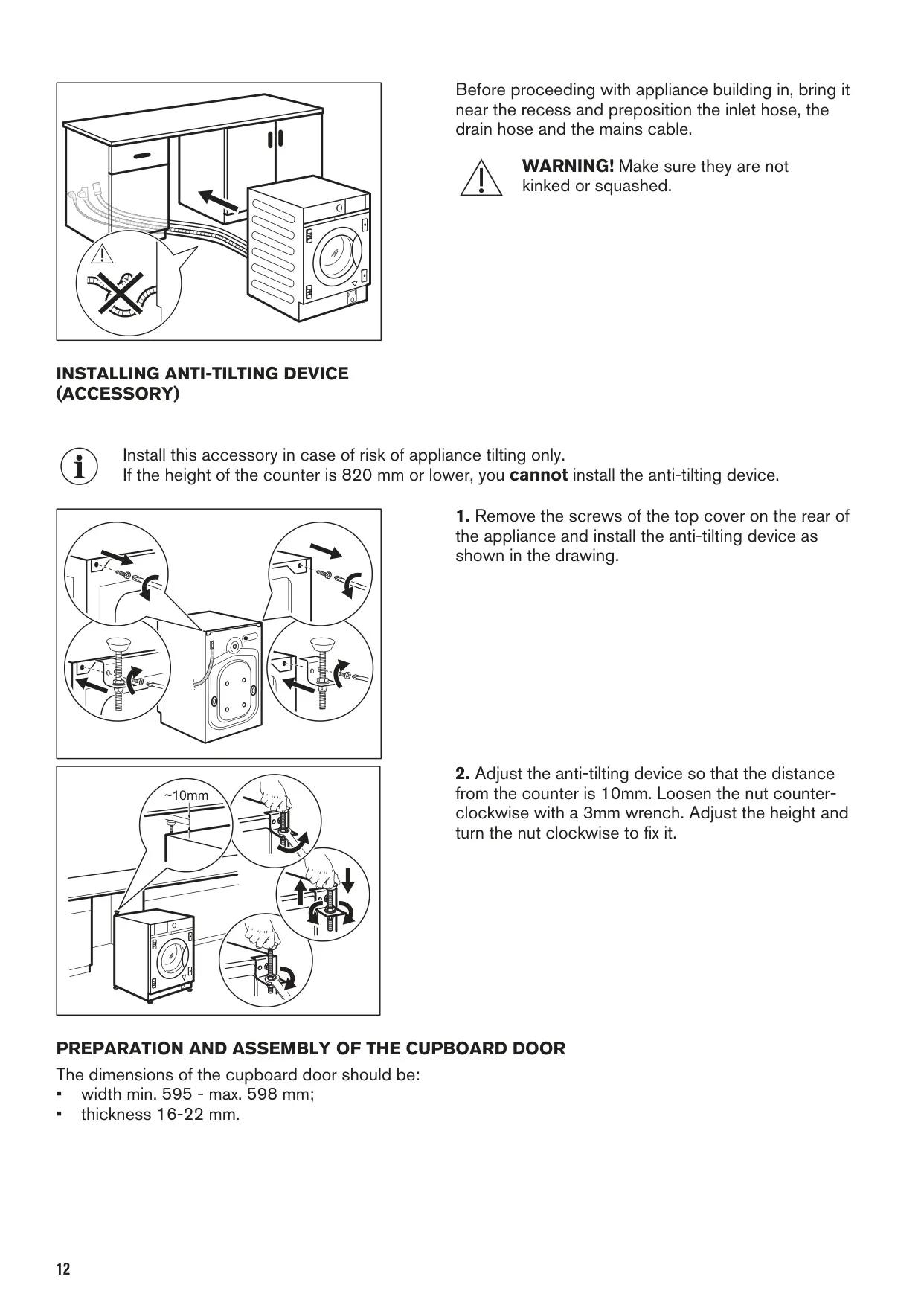

Installation guidance ensures seamless integration into kitchen cabinetry, including instructions for an anti-tilting device for enhanced stability. The appliance also provides vital tips on preparing laundry, managing stubborn stains, and ecologically sound detergent use. Regular cleaning of the detergent dispenser and drain pump is encouraged, with clear instructions provided to maintain optimal performance and prevent common issues like fluff accumulation.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Zanussi Z716WT83BI Washer Dryer 7-4 kg, and we answer them below.
