Moultrie D5 (MCG-12617) Digital Game Camera

User Manual

12 pages

Technical Specifications

1 pages

Moultrie D5 (MCG-12617) Instructions

Here we offer the Moultrie D5 (MCG-12617) Digital Game Camera manual completely free and in English. We have cataloged this manual in the Digital Game Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Moultrie D5 (MCG-12617) Digital Game Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

Moultrie D5 (MCG-12617) Digital Game Camera Specifications

Feature	Specification
Operational Mode	Game Detect/Video
Resolution	5.0 MP (Still)
Still Resolutions (JPEG)	Low: 640 x 480, High: 2560 x 1920
Video Resolutions (AVI)	640 x 480
SD Memory Card Support	Up to 32 GB (not included)
Image Format	JPEG (Still pictures)
Video Format	AVI (Video clips)
Power Supply	4 C-cell Alkaline batteries (not included)
Operating System (OS)	Microsoft® Windows® XP SP2 (SP3 recommended); Windows Vista® Home Premium, Business, Ultimate, or Enterprise SP1; or Windows 7
Hard Disk Space	100MB or above
CPU	Intel® Pentium® 4 or AMD Athlon® 64 processor or above
Memory (RAM)	1GB of RAM

Moultrie D5 (MCG-12617) Details

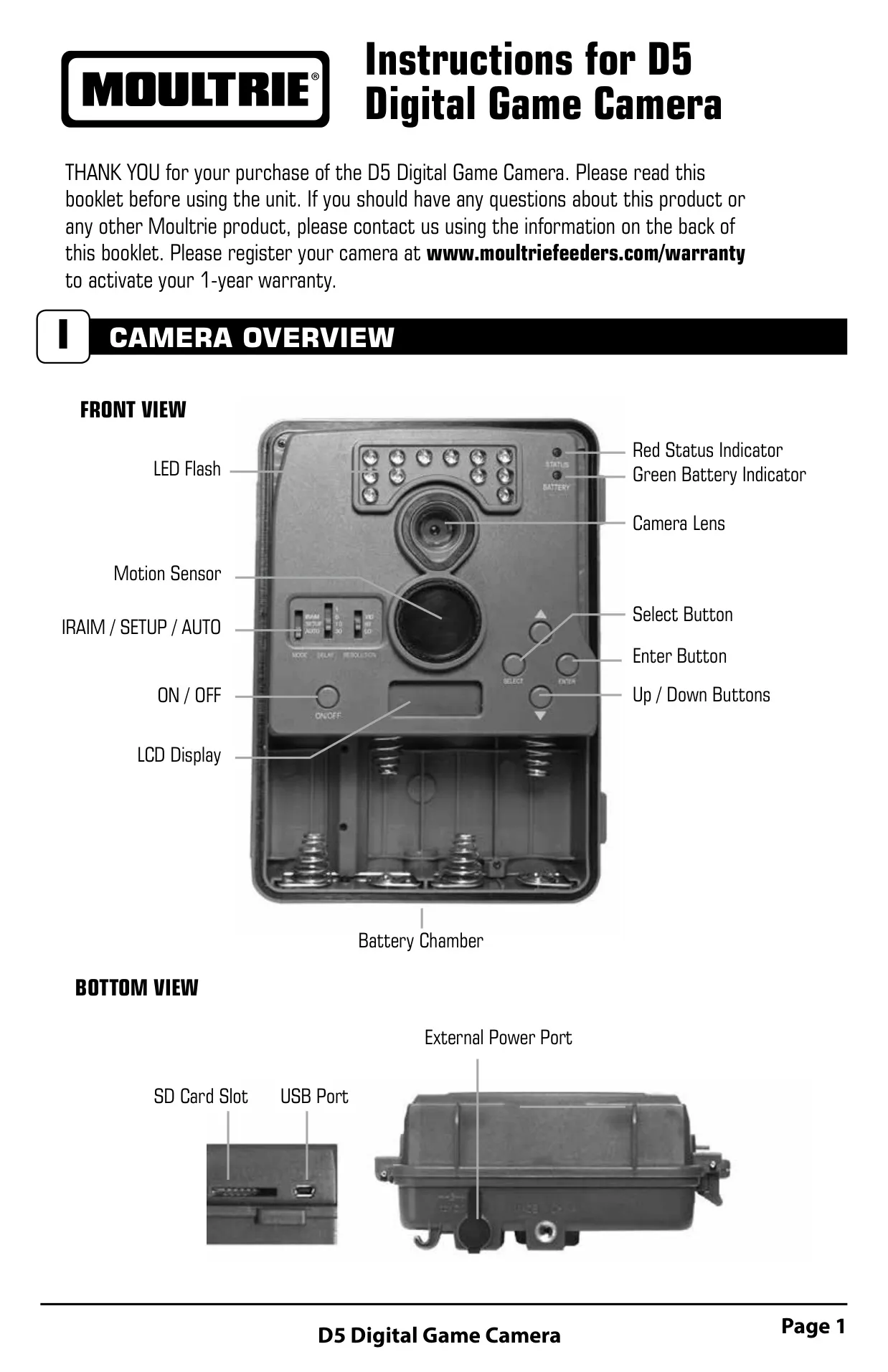

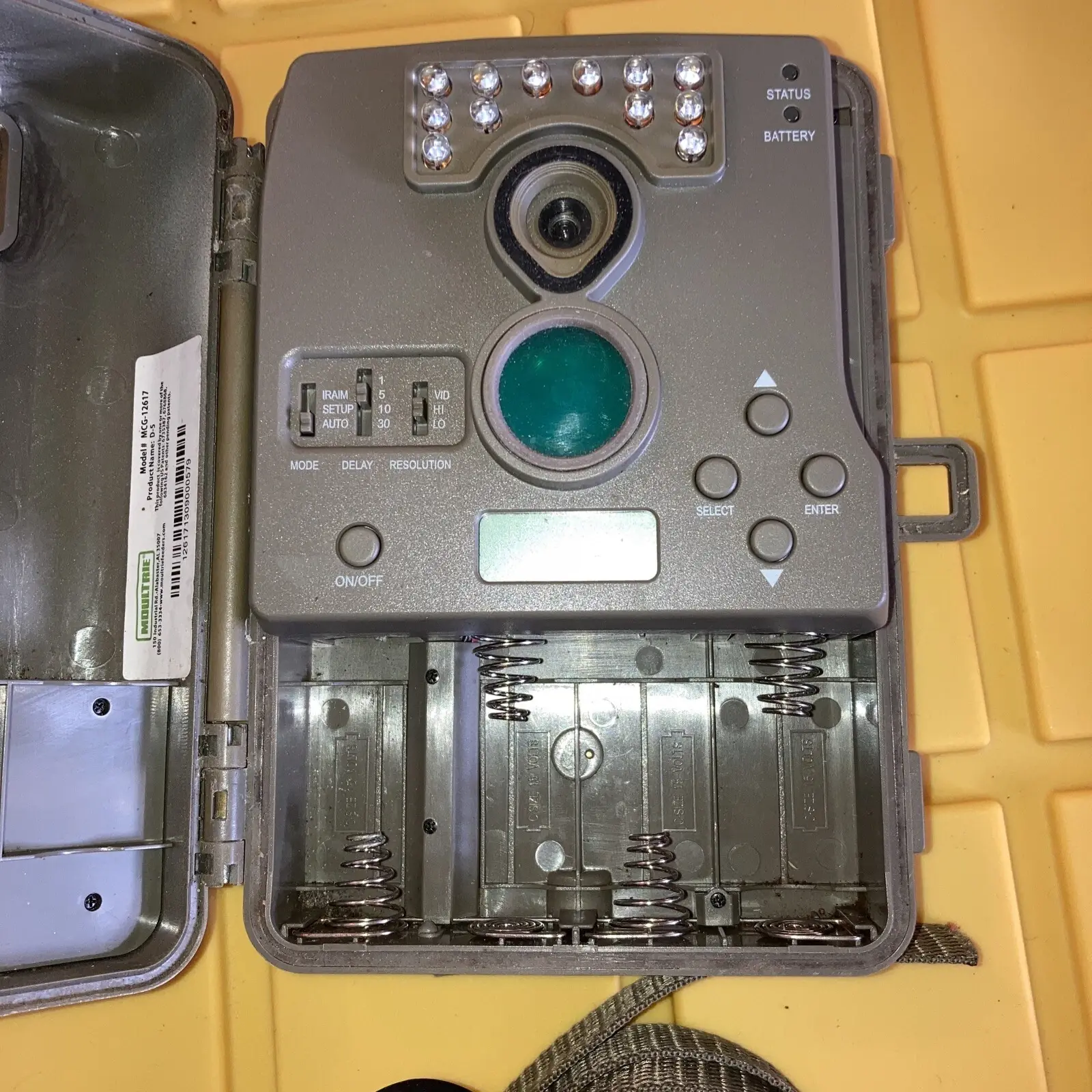

The Moultrie D5 Digital Game Camera is designed for straightforward field use, featuring a clear front view with a camera lens, motion sensor, and red status indicator LED flash. A green LED indicates battery status. Its bottom view reveals an external power port, SD card slot, and USB port, offering comprehensive connectivity options for data transfer and extended power.

This camera offers three distinct modes via a slide switch: IR Aim, Setup, and Auto. IR Aim assists in positioning the camera by flashing a red LED upon motion detection, ensuring the desired target area is covered. The Setup mode allows access to the main screen for adjusting settings like time, date, camera ID, and resetting the file count.

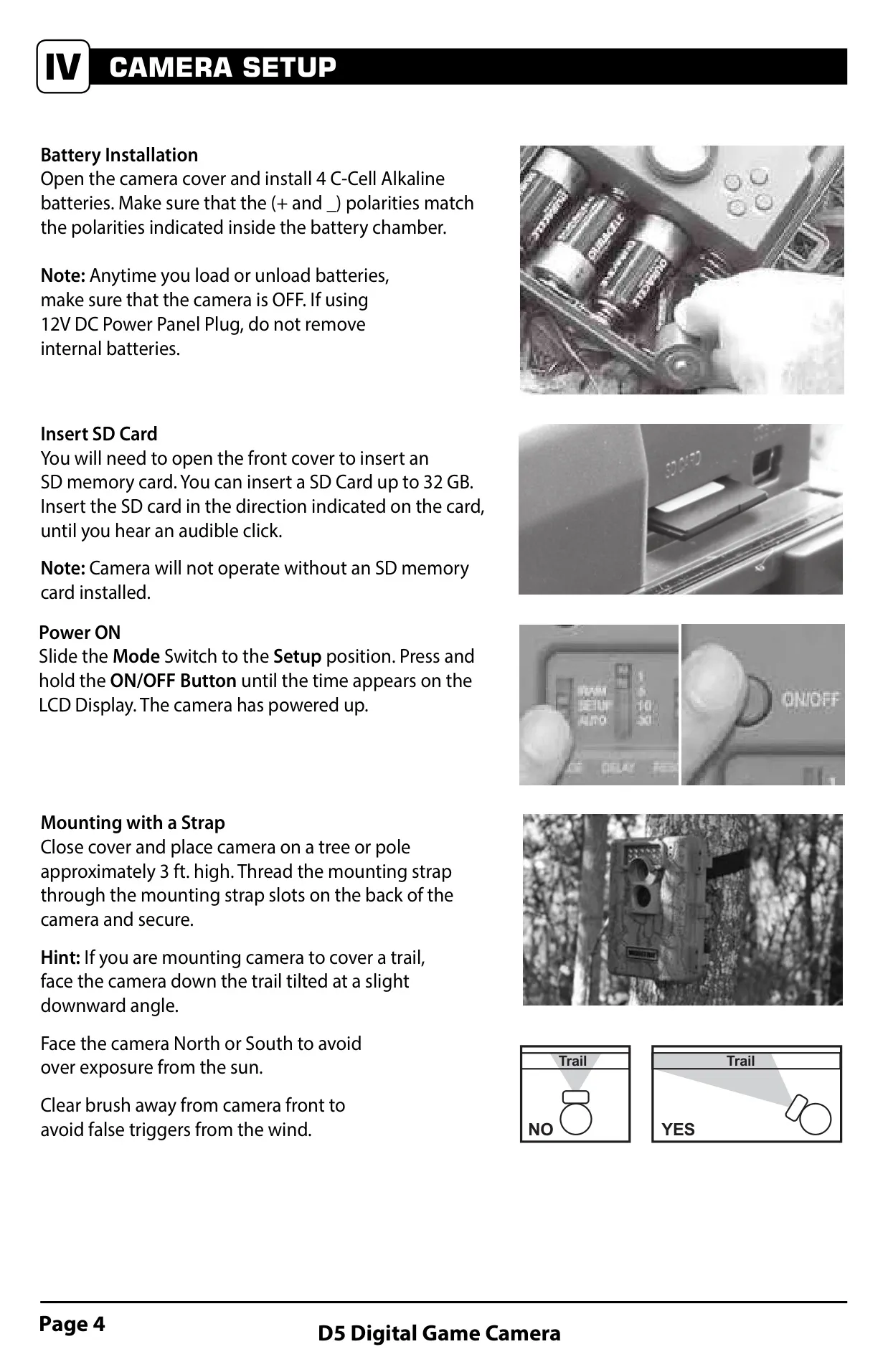

User interaction is facilitated through intuitive controls, including the ON/OFF button for power management and waking the camera from sleep. Select, Enter, and Up/Down buttons allow users to scroll through options, confirm selections, and change values, making configuration seamless. For power, the camera relies on four C-cell alkaline batteries, with strict polarity alignment required to prevent damage.

Storage for captured photos and videos is handled by an SD card slot, supporting cards up to 32GB. It's crucial that an SD card is installed for the camera to function. For data retrieval, a USB port enables direct connection to a computer, allowing users to download media using a separately sold USB cable.

The camera supports external power sources, specifically Moultrie PowerPanel or Moultrie Battery Box accessories, which are sold separately. It's important to note that using any other power source will void the warranty and may damage the camera. The PowerPanel requires at least four hours of sunlight for a full charge, extending field life.

Mounting the D5 is flexible, often involving a strap to secure it to a tree or pole approximately three feet high. Proper camera placement advises facing it North or South to prevent sun overexposure and clearing brush to avoid false triggers from wind. The camera can also be used with a Deluxe Tree Mount accessory for more precise positioning.

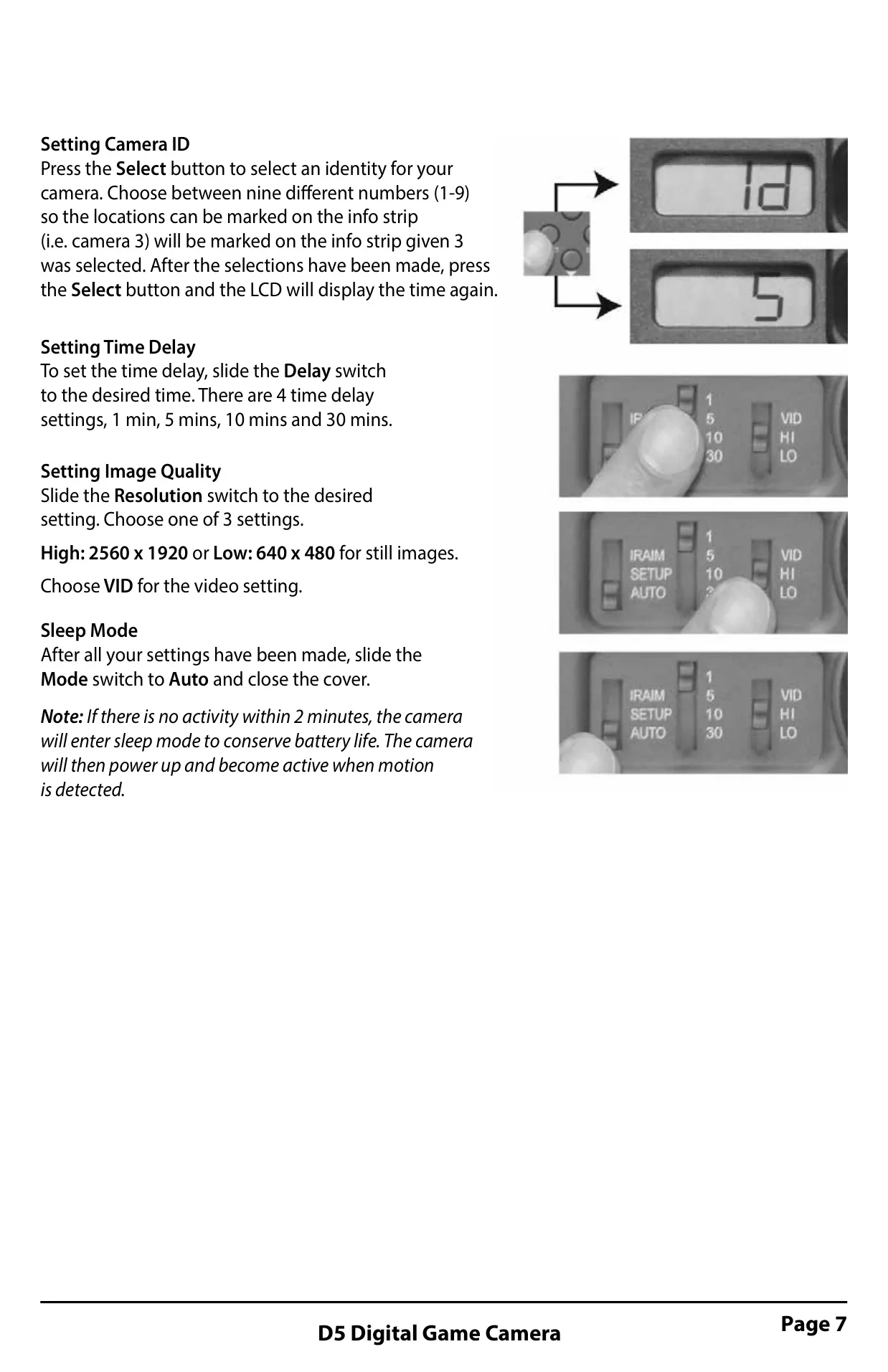

Programming includes setting the time and date, resetting the picture count (starting from 0001), and assigning a unique camera ID (1-9) which will appear on the info strip of captured images. The camera also features adjustable time delay settings (1, 5, 10, or 30 minutes) between triggers, allowing users to customize capture intervals based on their needs.

Image quality is selectable with High (2560 x 1920) or Low (640 x 480) resolution for still photos, and a VID setting for video capture. Video clips are recorded at 10-second intervals at 30 frames per second. After setting preferences, sliding the mode switch to Auto activates the camera, which will enter a power-saving sleep mode after two minutes of inactivity.

Viewing captured media can be done by removing the SD card and inserting it into a compatible player or card reader. Alternatively, the camera can be connected directly to a Windows PC (XP/Vista/7) via a USB cable, which makes the camera appear as a removable drive for easy file transfer. This allows for convenient editing or printing of images and videos at home.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Moultrie D5 (MCG-12617), and we answer them below.

How do I activate the 1-year warranty for my Moultrie D5 camera?

You can activate your 1-year warranty by registering your camera at www.moultriefeeders.com/warranty.

What type of batteries does the Moultrie D5 camera use?

The camera uses 4 C-cell alkaline batteries. It is recommended to use Duracell® or Energizer® batteries, and avoid mixing old and new batteries.

What is the maximum SD card capacity supported by the Moultrie D5?

The camera supports external SD memory cards up to 32 GB. An SD card must be installed for the camera to operate.

Why isn't my Moultrie D5 camera taking photos or videos?

The camera requires an SD memory card to be installed to operate. Ensure an SD card is properly inserted until you hear an audible click.

Can I use any external power source with the Moultrie D5?

No, the external power port only accepts the Moultrie PowerPanel or Moultrie Battery Box accessories. Using any other power source will void your warranty and may damage the camera.

How do I aim the camera to ensure it covers the desired area?

After mounting, slide the mode switch to "IR Aim." When the camera detects movement, the red status LED will flash. Use this feedback to adjust the camera's position to cover your target area.

What happens if the camera is inactive for a period?

If there is no activity for 2 minutes, the camera will automatically enter sleep mode to conserve battery life. It will power up and become active again when motion is detected.

How do I reset the picture count on my camera?

In Setup mode, press the "Select" button until "Clr" shows on the LCD display. Press "Enter" and use the Up/Down buttons to choose "Yes" to reset the file number to start from 0001.

How can I view the images and videos captured by the Moultrie D5?

You can remove the SD card and use an external card reader, or connect the camera directly to a Windows PC (XP/Vista/7) using a USB cable (sold separately). The PC will recognize it as a removable drive.

What are the default settings for the Moultrie D5 camera?

The factory default settings are PHOTOQUALITY: HIGH 2560 x 1920, TIME/DATE: AM12:00 2011/1/01, FILE COUNT: 0001, and CAMERA ID: 1.

What are the specifications for video recording on the Moultrie D5?

The camera records video in AVI format at 640 x 480 resolution. Video clips are 10 seconds long at 30 frames per second.

What should I do if the camera causes radio or TV interference?

Try reorienting or relocating the receiving antenna, increasing the separation between the equipment and receiver, or connecting the camera to an outlet on a different circuit. Consult a technician if necessary.

Is it okay to mix old and new batteries in the Moultrie D5 camera?

No, you should never mix old and new batteries. Always replace all batteries at the same time to ensure proper operation and prevent damage.

How can I contact Moultrie customer service for assistance?

You can contact Moultrie's Service Department by calling 800-653-3334, Monday - Friday, 8:00 AM to 5:00 PM CST, or visit their website at www.moultriefeeders.com.
