Ideal Logic Heat H30 Boiler Instruction Manual
Ideal Logic Heat H30 Boiler
Ideal Logic Heat H30 Boiler
Ideal Logic Heat H30 Boiler
Ideal Logic Heat H30 Boiler
Ideal Logic Heat H30 Boiler Instructions
Here we offer the Ideal Logic Heat H30 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Ideal Logic Heat H30 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

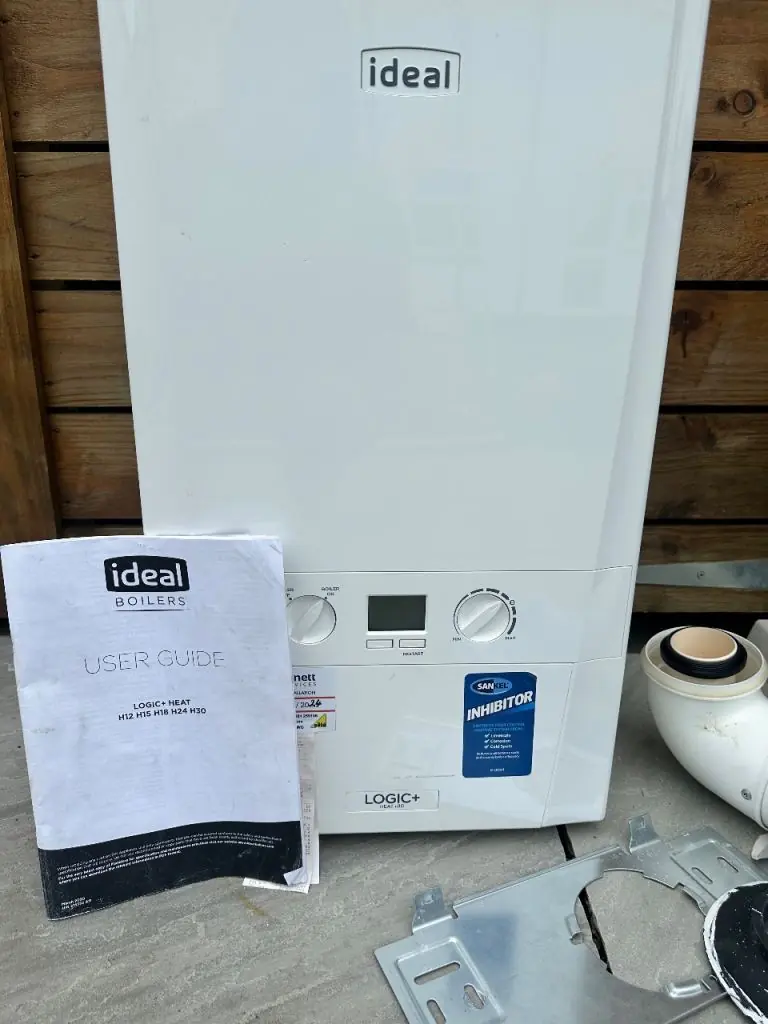

Product Images
Ideal Logic Heat H30 Boiler Specifications
| Feature | Specification |
|---|---|
| Boiler Type | Wall-mounted, heat-only condensing gas boiler with fan-assisted combustion and full sequence automatic spark ignition |
| G.C. Appliance No. (Benchmark No.) | 41-860-14 |
| Rated Heat Output | 30 kW |
| Nominal Heat Output, Full Load (P4) | 30.3 kW |
| Nominal Heat Output, Part Load (P1) | 9.8 kW |
| Boiler Input (Net CV) Min/Max | 6.1 kW / 30.4 kW |
| Boiler Input (Gross CV) Min/Max | 6.7 kW / 33.7 kW |
| Gas Consumption Min/Max | 0.623 m³/h / 3.136 m³/h |
| CH Output, Non-Condensing (70°C Mean Water Temp.) | 6.1 – 30.3 kW |
| CH Output, Condensing (40°C Mean Water Temp.) | 6.4 – 31.0 kW |
| CH Flow Temperature Range | 30°C – 80°C |
| Nominal Room Temperature Range (Outside Sensor Connected) | 10°C – 30°C |
| Seasonal Space Heating Efficiency Class | A |
| Seasonal Space Heating Energy Efficiency (ηs) | 93% |
| Useful Efficiency, Full Load (η4) | 89.6% |
| Useful Efficiency, Part Load (η1) | 98.2% |
| SEDBUK 2005 | 91.1% |
| SEDBUK 2009/2012 | 89.6% |
| Annual Energy Consumption (QHE) | 93 GJ |
| NOx Classification | Class 6 |
| NOx Emissions (Gross) | 24 mg/kWh |
| Sound Power Level, Indoors | 50 dB (LWA) / 49 dB(A) |
| Auxiliary Electricity Consumption (Full / Part / Standby) | 0.050 kW / 0.012 kW / 0.002 kW |
| Standby Heat Loss | 0.05 kW |
| Gas Supply | 2H – G20 – 20 mbar (Natural Gas; LPG conversion kit available) |
| Appliance Category | I2H |
| Flue Type Classification | C13, C33, C53 (room sealed, concentric) |
| Injector Size | 4.65 mm |
| Gas Supply Connection | 15 mm copper compression |
| Flow / Return Connections | 22 mm copper compression |
| Flue Terminal Diameter | 100 mm |
| Average Flue Temperature – Mass Flow Rate | 69°C – 13 g/s |
| CO2 Content (±0.7) | 9.7% max CH / 8.8% min CH |
| Maximum Horizontal Effective Flue Length | 8.0 m |
| Maximum Vertical Effective Flue Length | 7.5 m |
| Flue Elbow Equivalent Length | 45° elbow: 0.6 m / 90° elbow: 1.0 m |
| Maximum Working Pressure (Sealed Systems) | 2.5 bar (36.3 psi) |
| Water Content (Central Heating) | 1.2 litres (0.26 gal) |
| Heat Exchanger Material | Cast aluminium |
| Electrical Supply | 230 V ~ 50 Hz |
| Power Consumption | 50 W |
| Fuse Rating | External: 3 A / Internal: T4A HRC L250 V |
| IP Rating | IP20 |
| Casing Dimensions (H x W x D) | 700 x 395 x 278 mm |
| Packaged Weight | 25.1 kg |
| Lift Weight | 21.9 kg |
| Servicing Clearances | 165 mm above, 100 mm below, 2.5 mm sides, 450 mm front |
| Condensate Trap | 75 mm siphonic trap; outlet sized for 21.5 mm overflow pipe |
| Destination Country | GB |
Ideal Logic Heat H30 Boiler Details
The Ideal Logic Heat H30 is the largest model in the Logic Heat2 H range. It is a heat-only boiler, so it provides central heating and supplies domestic hot water through a separate cylinder. It has no integral pump and relies on an external system pump, fitted on the flow side. It works on fully pumped open vented or sealed systems but cannot be used on gravity circulation systems. Pipework leaves the top of the boiler, and an optional stand-off kit lets system pipework run downwards.
The user controls are simple: a temperature knob, a Mode button, a Restart button and a high-resolution status display with a burner indicator. The display shows the operating state with codes such as FP for frost protection, L codes for lockouts and F codes for faults. Built-in frost protection runs in every mode as long as the boiler stays powered. It fires when the water temperature drops below 5°C and runs until it reaches 19°C. For this reason, the boiler must be wired with a permanent live supply.
A feature called Intelligent Load Optimisation reduces on/off cycling. If the flow temperature reaches the CH target plus 4°C, the boiler shuts off. When it relights, it ramps down to minimum rate over 60 seconds and holds there for 10 minutes. Normal operation resumes after those 10 minutes, or after the CH demand has been off for more than an hour. This is useful when the system load is smaller than the boiler's minimum output.
The boiler works with a wide range of controls, including Ideal's Halo range, OpenTherm room thermostats, weather compensation through an outside sensor, and the Link remote monitoring solution. Without an outside sensor, you can select 2x Switched Live operation from the menu. In this mode, sL1 handles CH/DHW demand and sL2 handles DHW demand. Y Plan and S Plan wiring diagrams are included for both single and dual switched live setups.
Systems where the flow and return pipes turn horizontal close to the top of the boiler are prone to overheat lockouts. For these systems, Ideal recommends the optional pump overrun kit (221792), which keeps water circulating for 4 minutes after the burner stops. The boiler also has a fan overrun cycle, which should not be interrupted by cutting the electricity supply.
For servicing, there is an installer mode, opened by holding Mode and Restart for more than 5 seconds. It shows the last three faults and can run the burner at maximum or minimum rate for 10 minutes for combustion checks. A single combined spark and detection electrode, a low component count, a Honeywell gas valve and QR codes linked to how-to videos make maintenance easier. The 1:1 gas valve lets the boiler deliver full output at inlet pressures as low as 14 mbar.
The condensate system uses a siphonic trap that reduces the risk of freezing. The manual still explains how to safely thaw a frozen pipe with warm water or heat packs. Because the heat exchanger is aluminium, only approved inhibitors should be used, such as Fernox, Sentinel X100 and ADEY MC1. Artificially softened water is not permitted for filling. Flue options include telescopic, vertical, balcony, soffit and a compact rear flue outlet kit (55/80).
