Rain Bird ESP-6TM Instruction Manual
Rain Bird ESP-6TM
Rain Bird ESP-6TM Instructions
Here we offer the Rain Bird ESP-6TM manual completely free and in English. We have cataloged this manual in the Irrigation Controllers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Rain Bird ESP-6TM, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

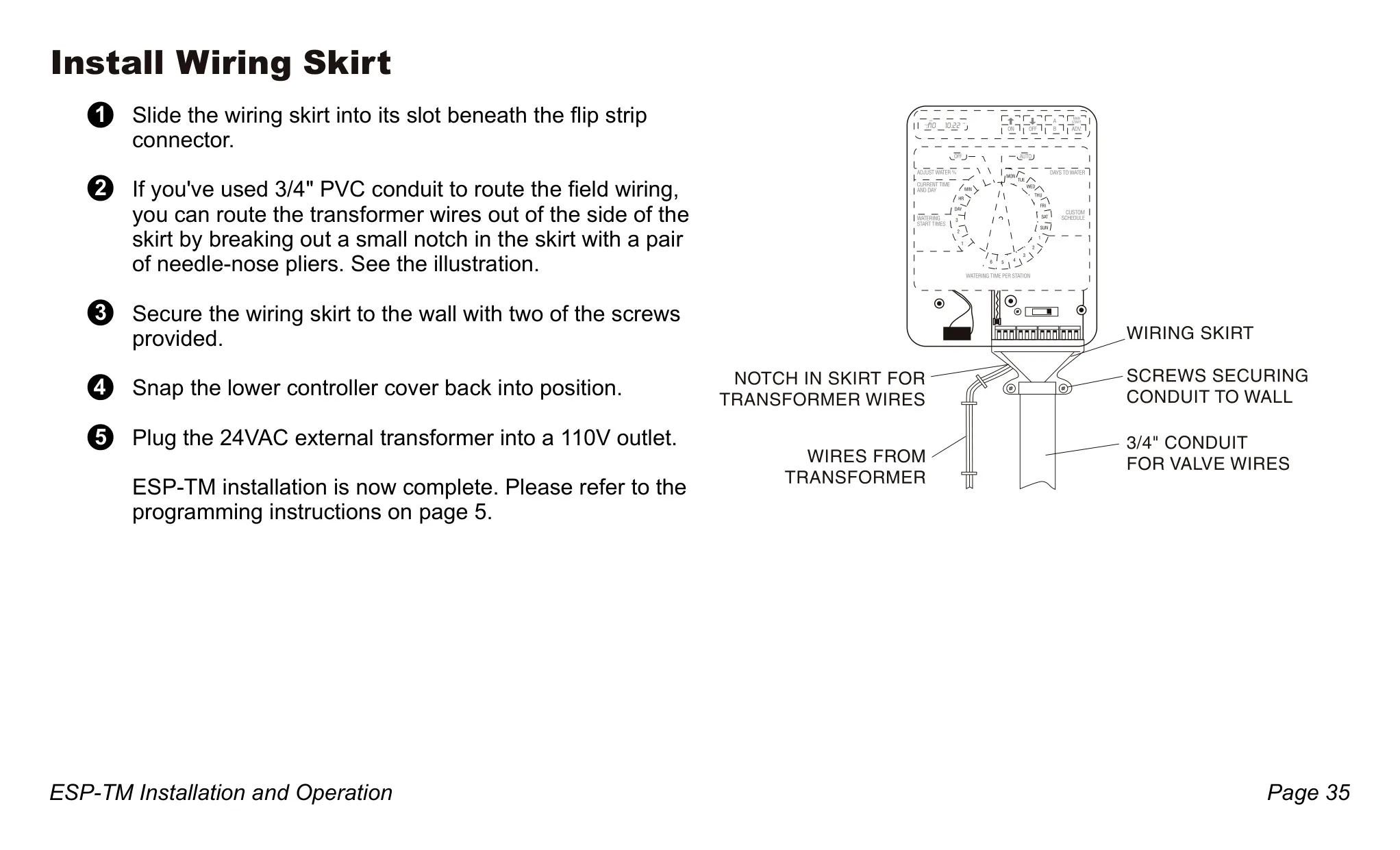

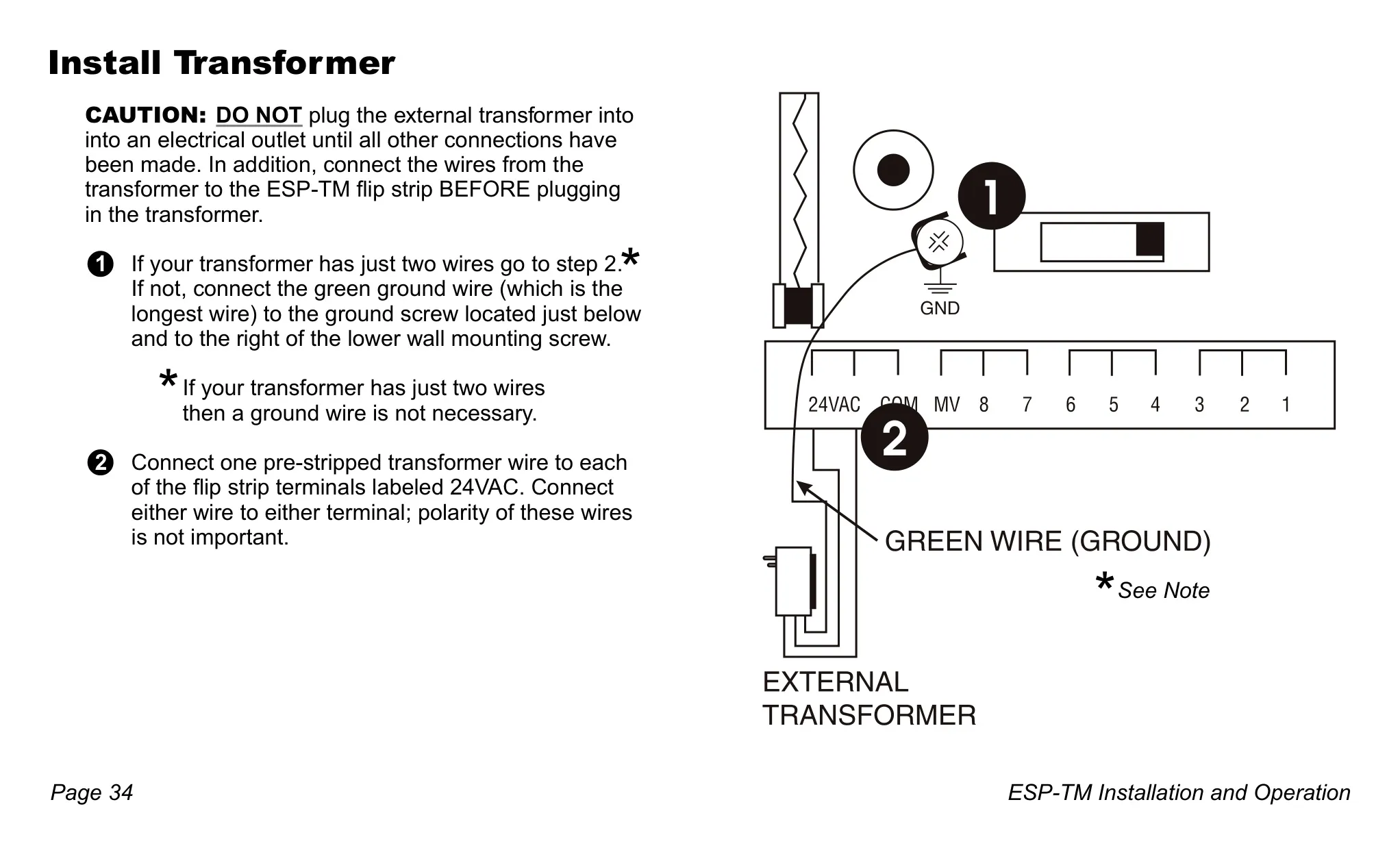

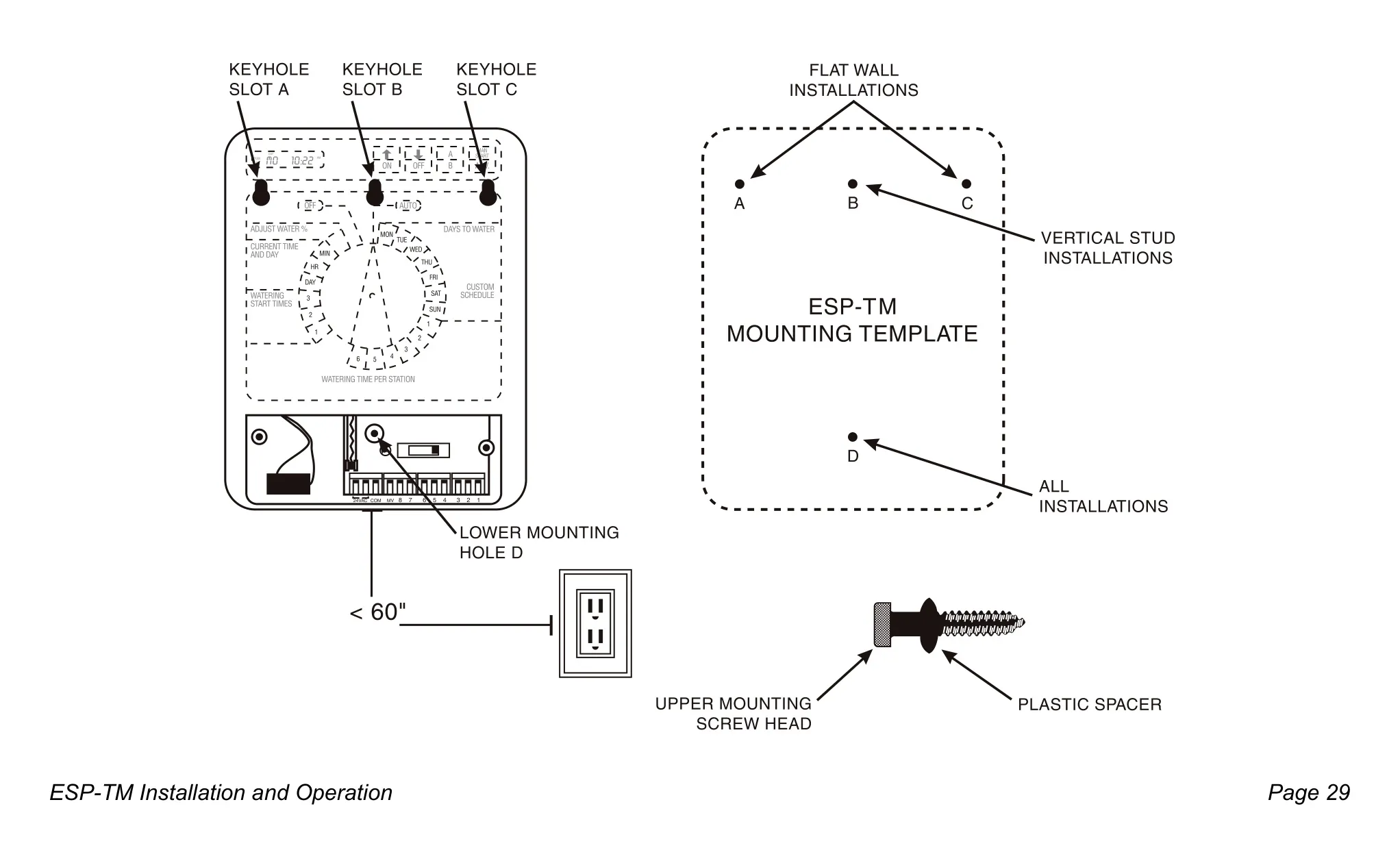

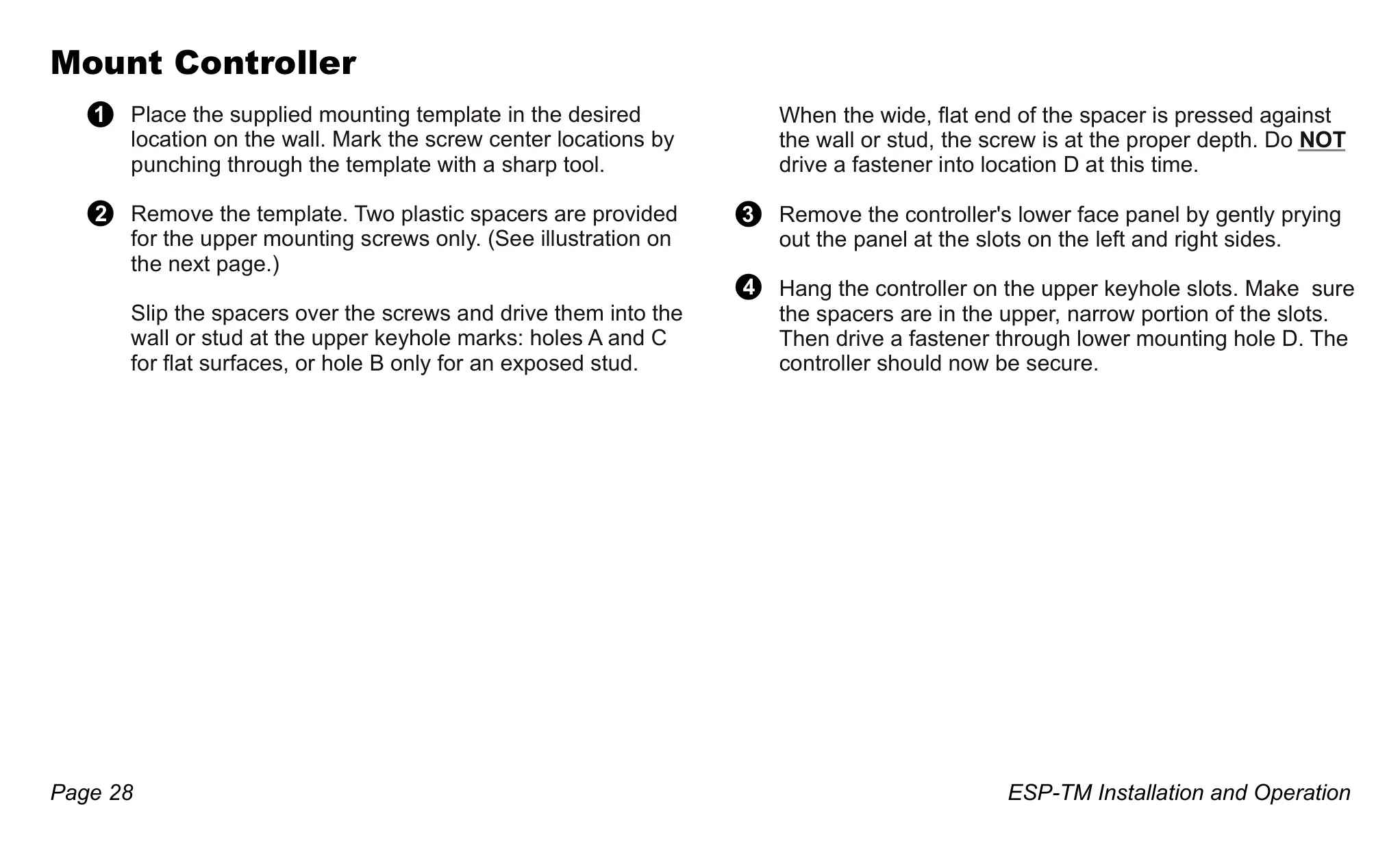

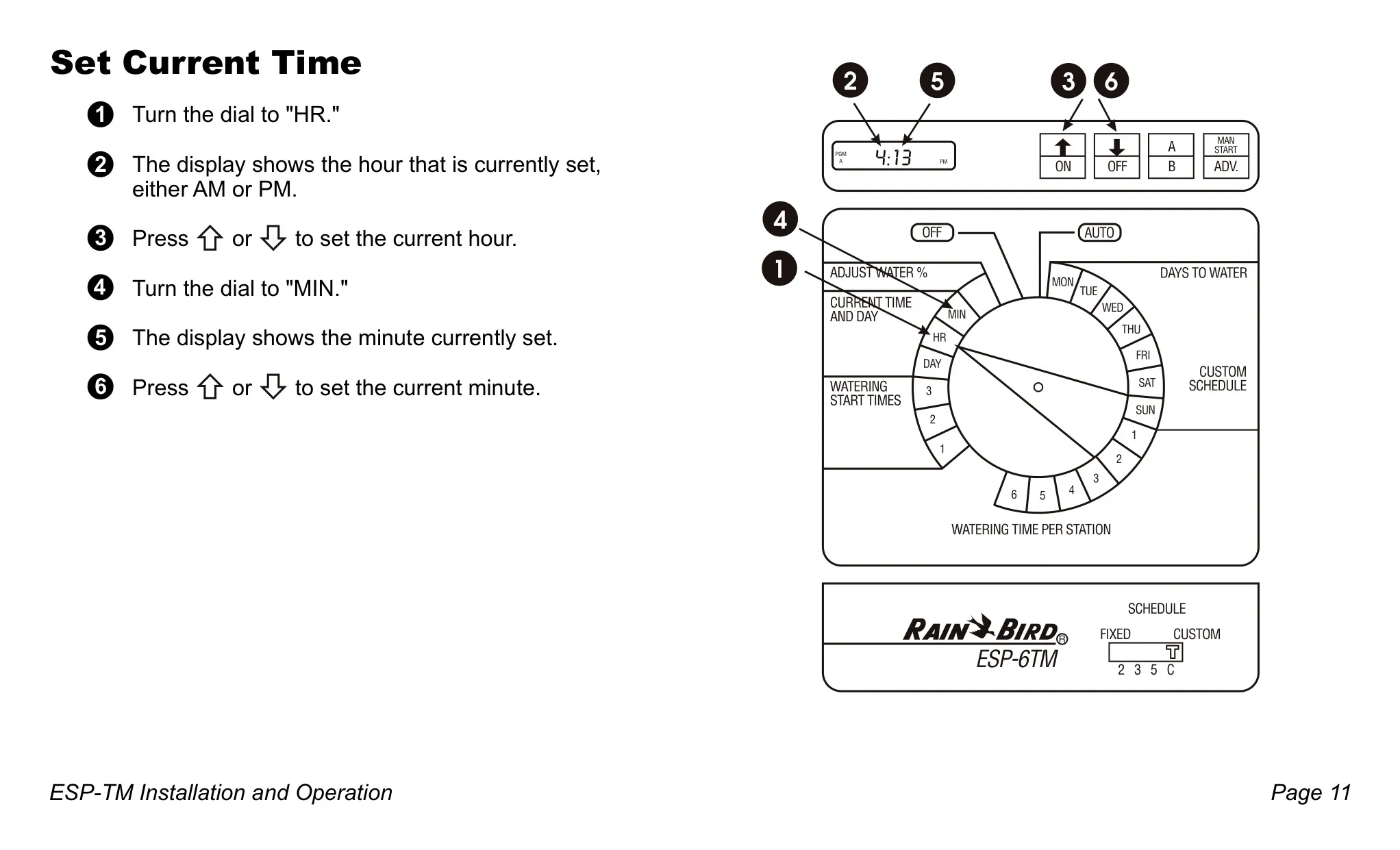

Product Images
Rain Bird ESP-6TM Specifications
| Feature | Specification |
|---|---|
| Model | Rain Bird ESP-6TM |
| Stations (Zones) | 6 (Fixed) |
| Input Power | 230V AC ±10%, 50Hz |
| Station Output Power | 24V AC, 0.5A (max) |
| Pump/Master Valve Output Power | 24V AC, 0.5A (max) |
| Total Output Power | 24V AC, 1.0A (max) |
| Surge Protection | Internal MOV (Metal Oxide Varistor) on all stations |
| Operating Temperature Range | -10°C to 65°C (14°F to 149°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Ingress Protection Rating | IP24 |
| Certifications | CE, UKCA, RCM |
| Programs | Multiple (e.g., 3-4, typically) |
| Start Times per Program | Multiple (e.g., 4 per program) |
| Watering Day Cycles | Custom, Odd/Even, Cyclic |
Rain Bird ESP-6TM Details

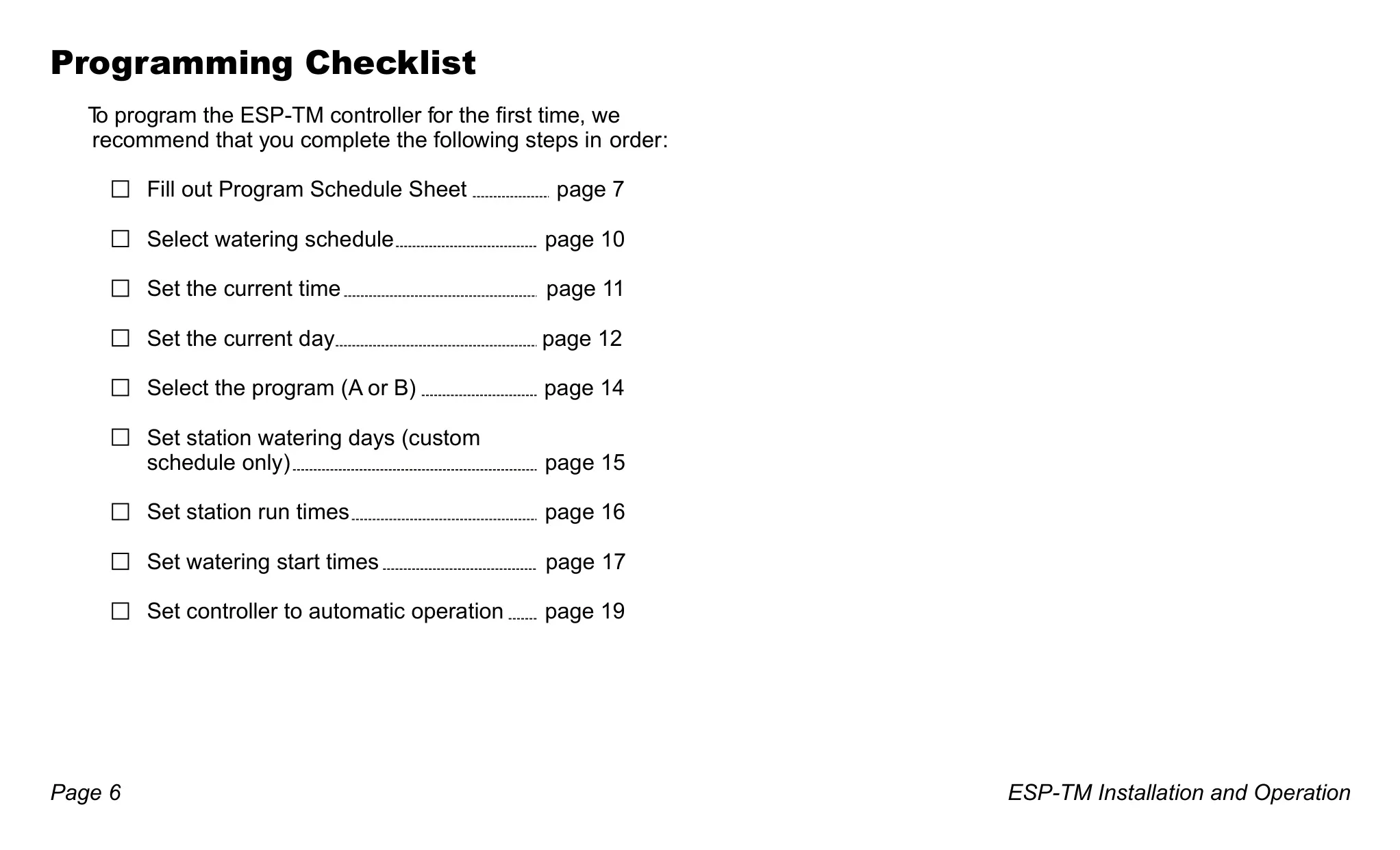

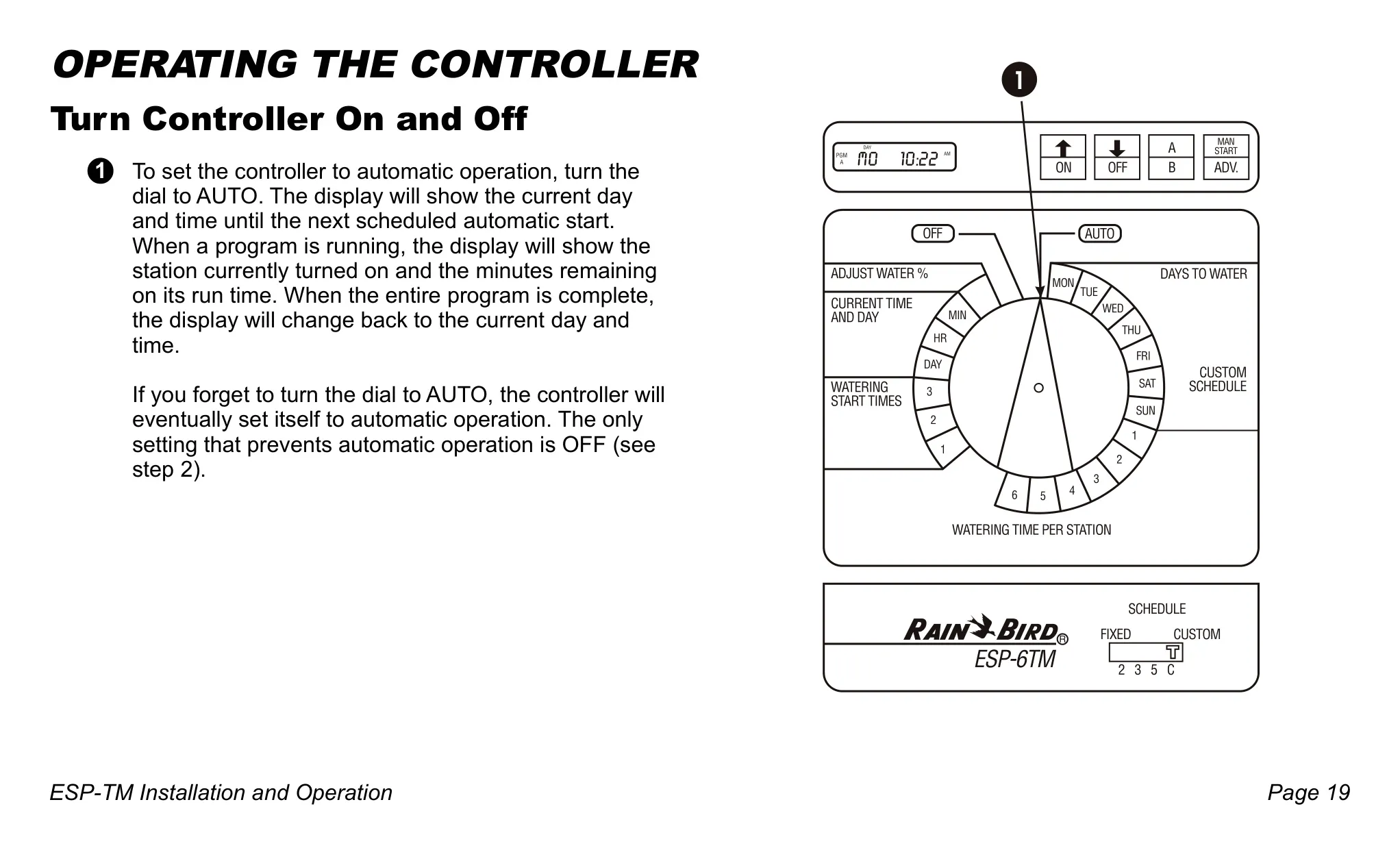

The Rain Bird ESP-6TM irrigation controller is engineered for user-friendliness, offering an intuitive interface that streamlines the programming process. It empowers homeowners and landscapers to manage their watering schedules effectively, ensuring a healthy and vibrant outdoor space. The design prioritizes ease of setup and daily operation, making advanced irrigation control accessible to all users.

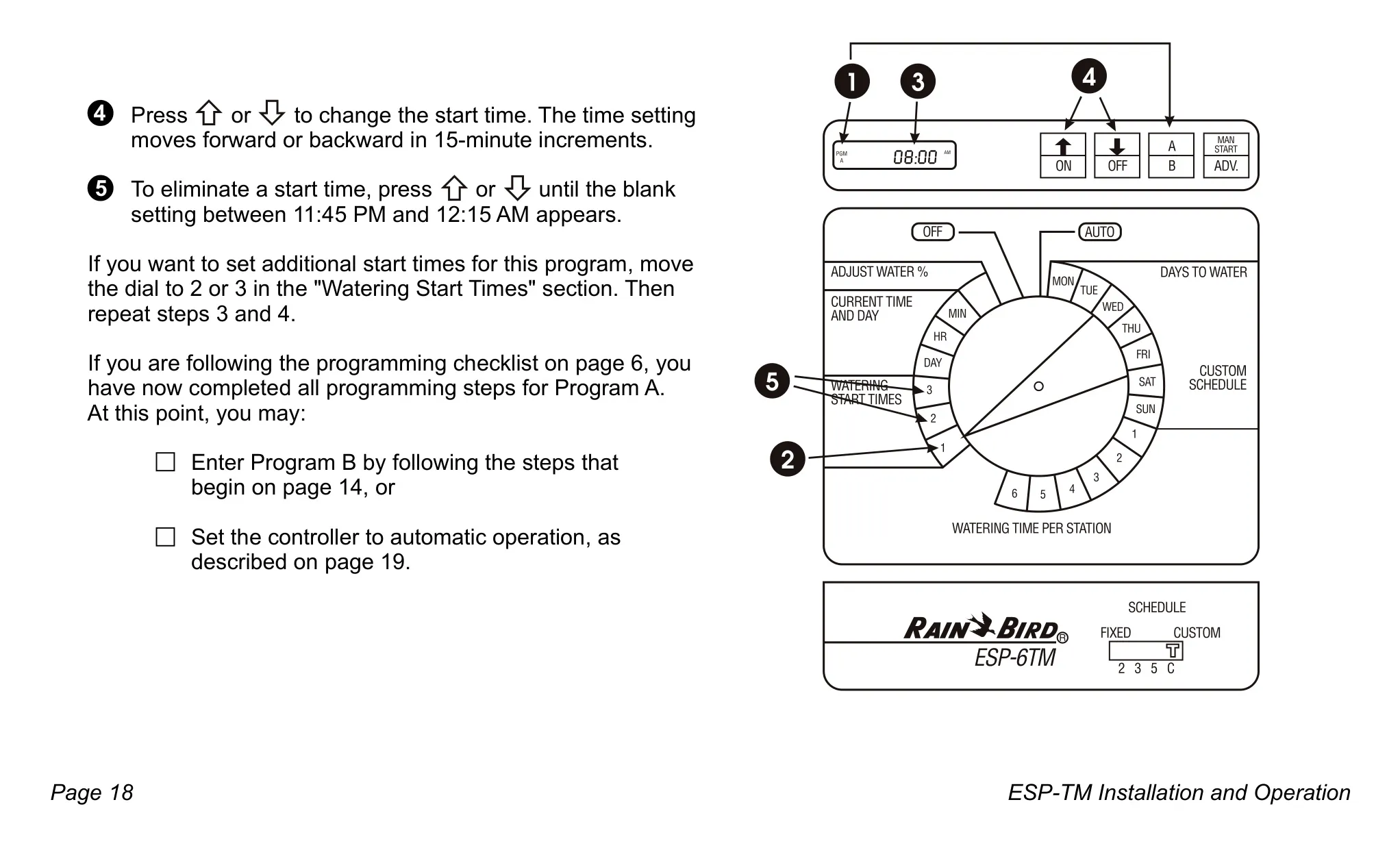

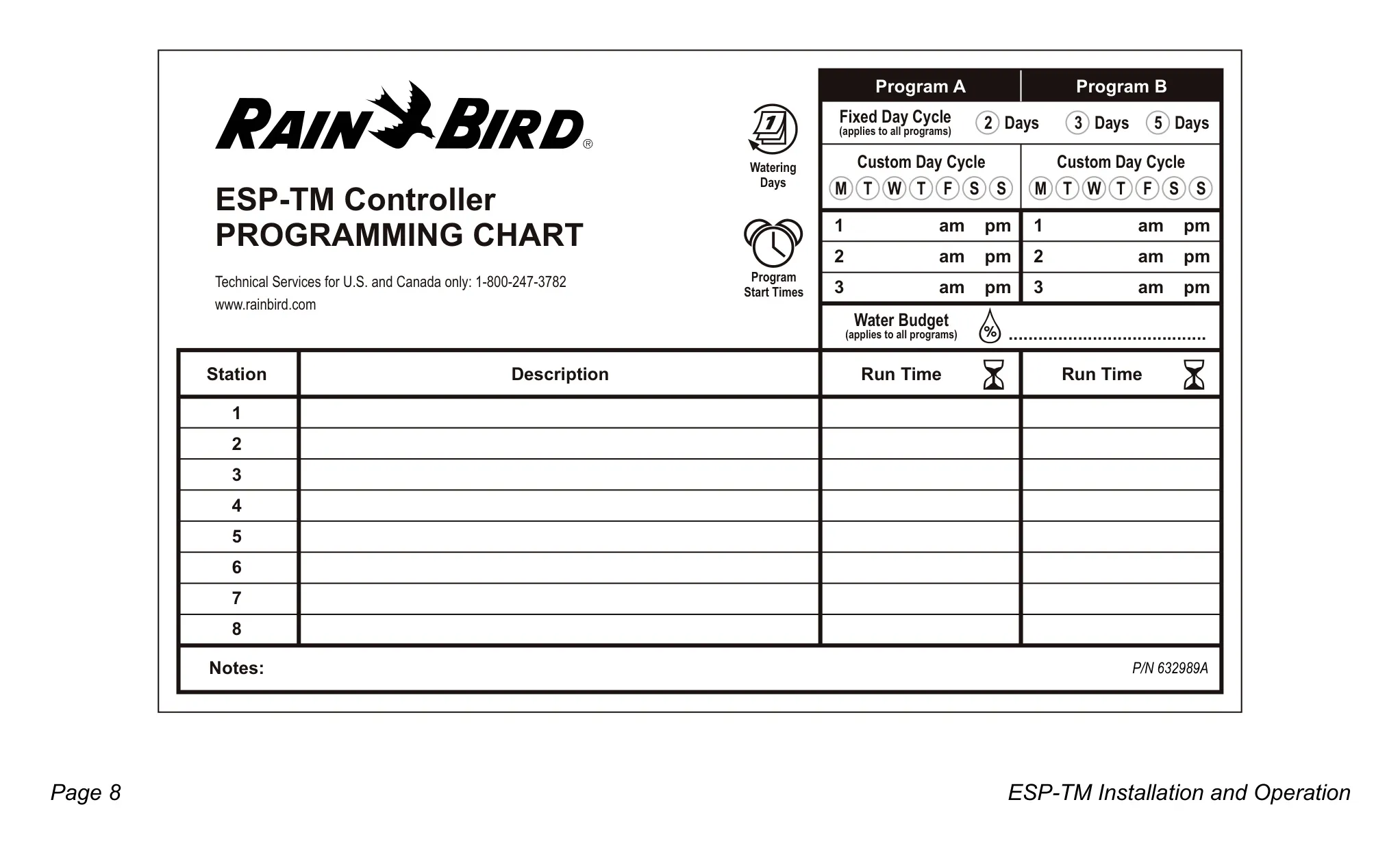

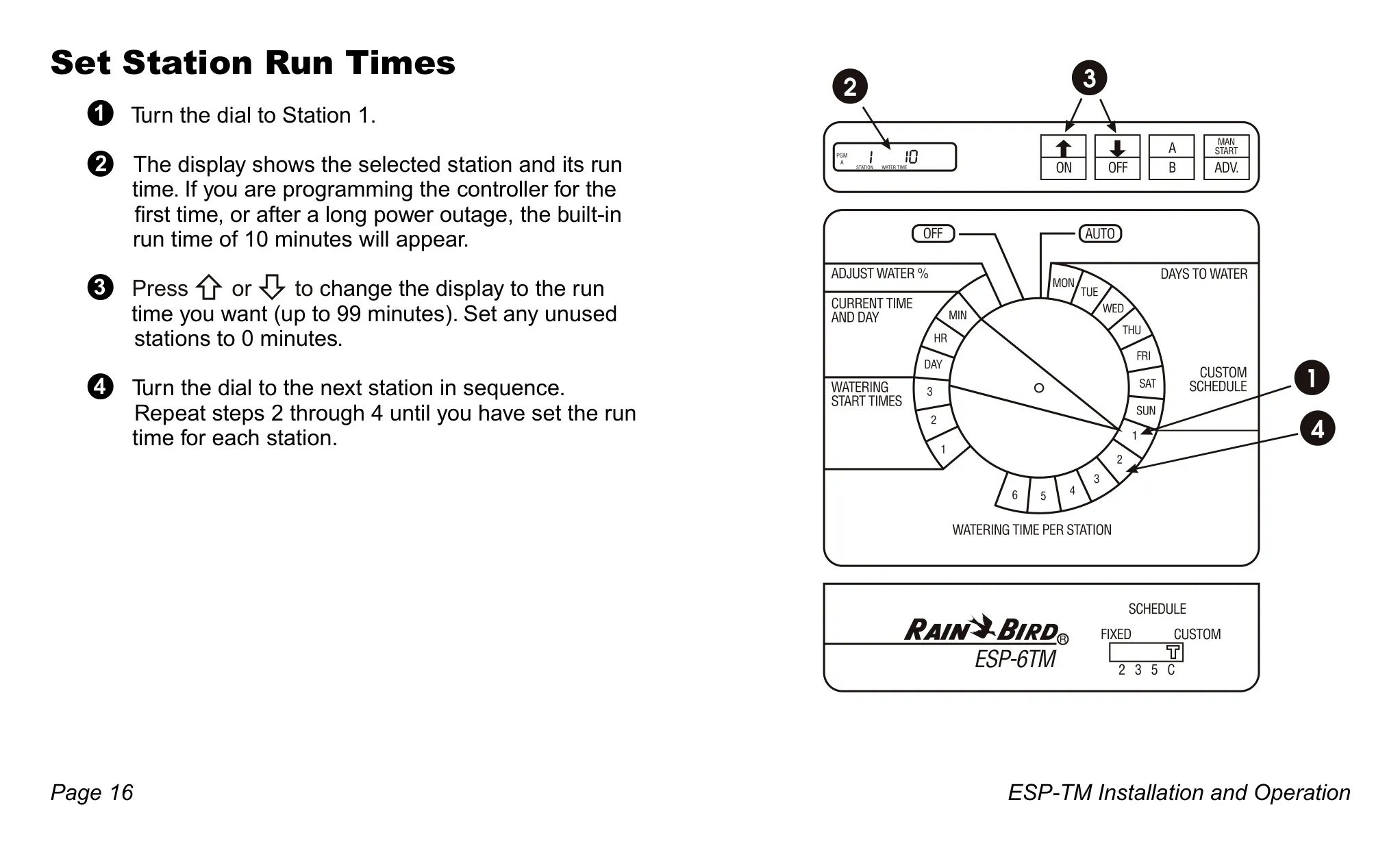

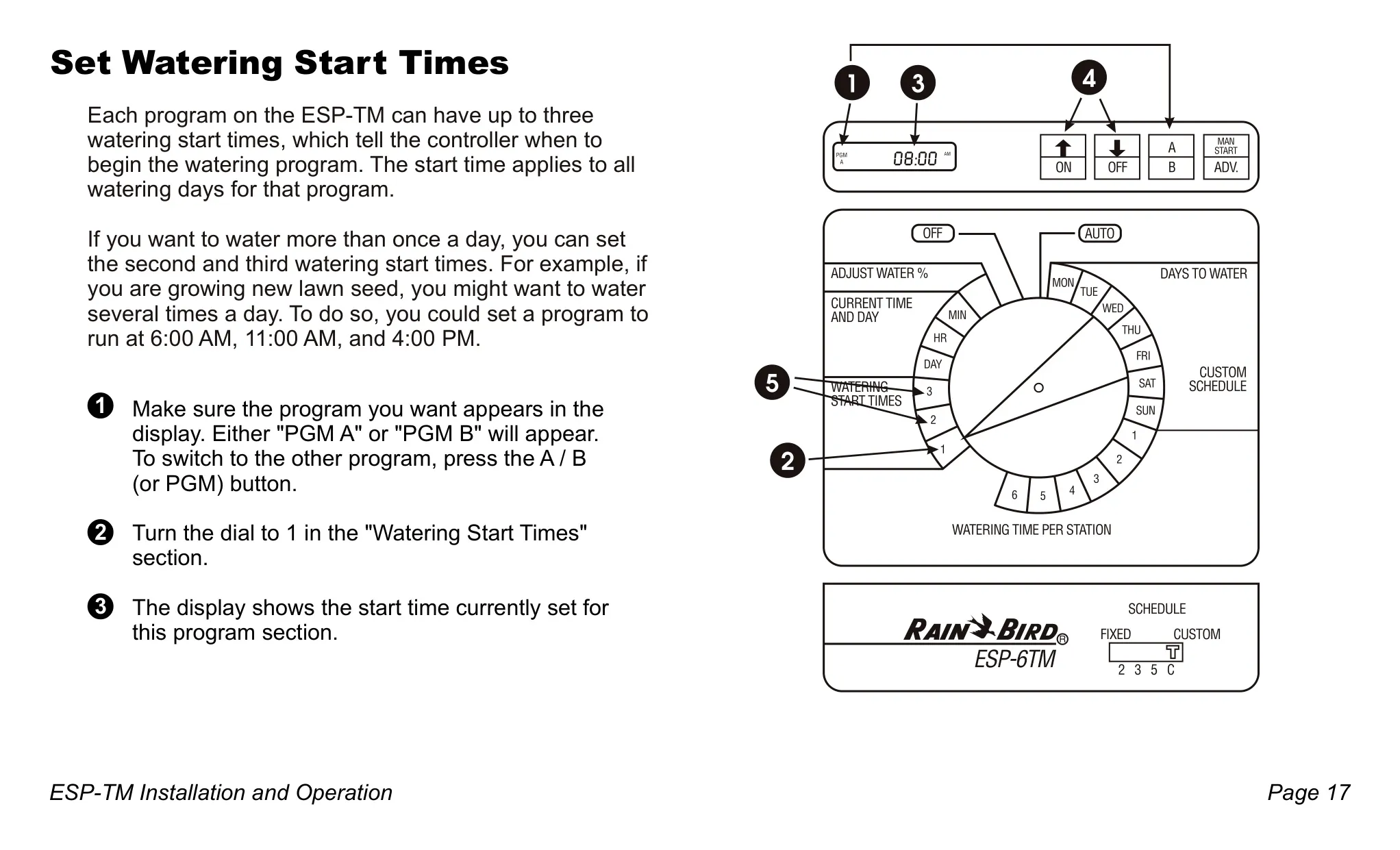

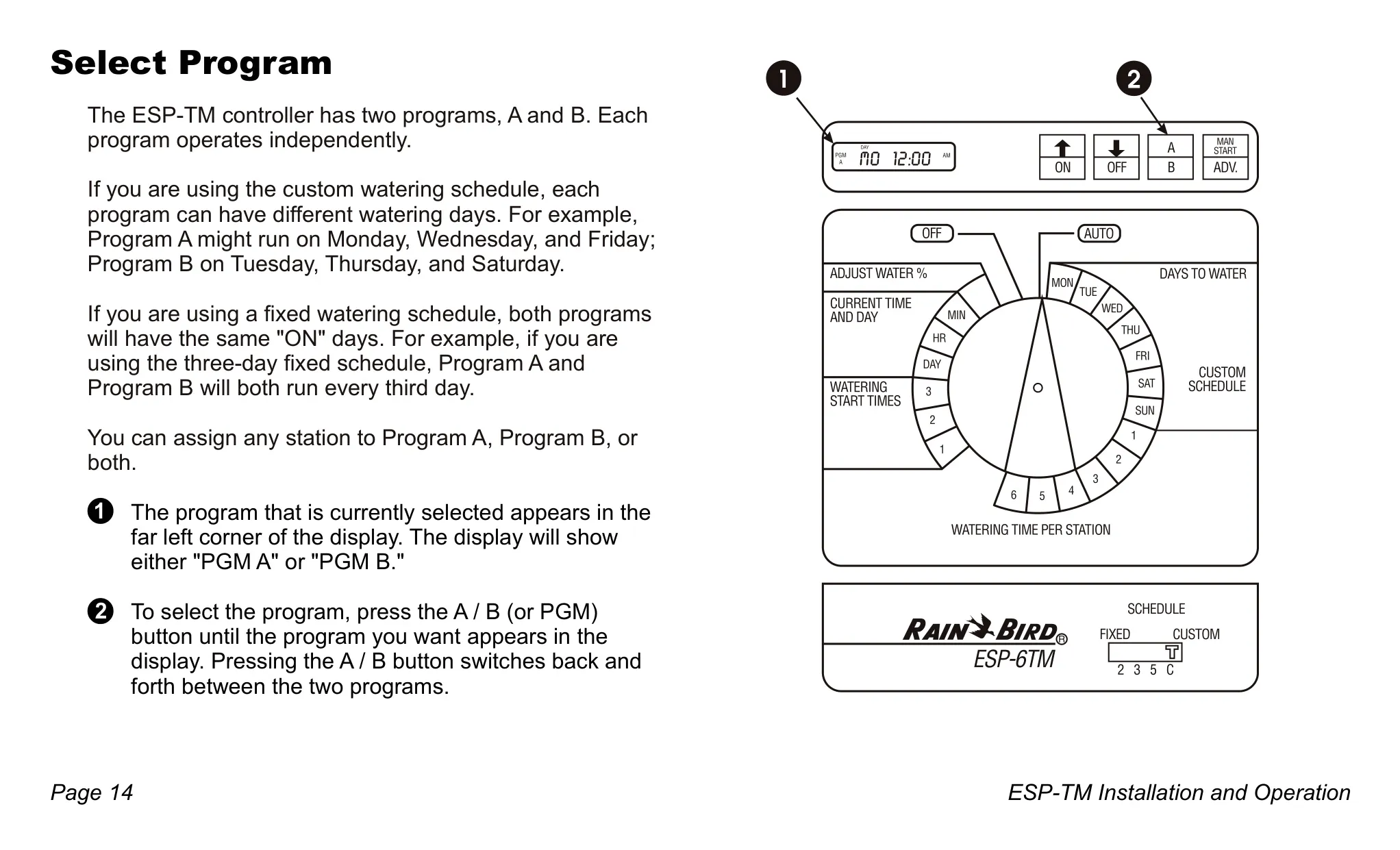

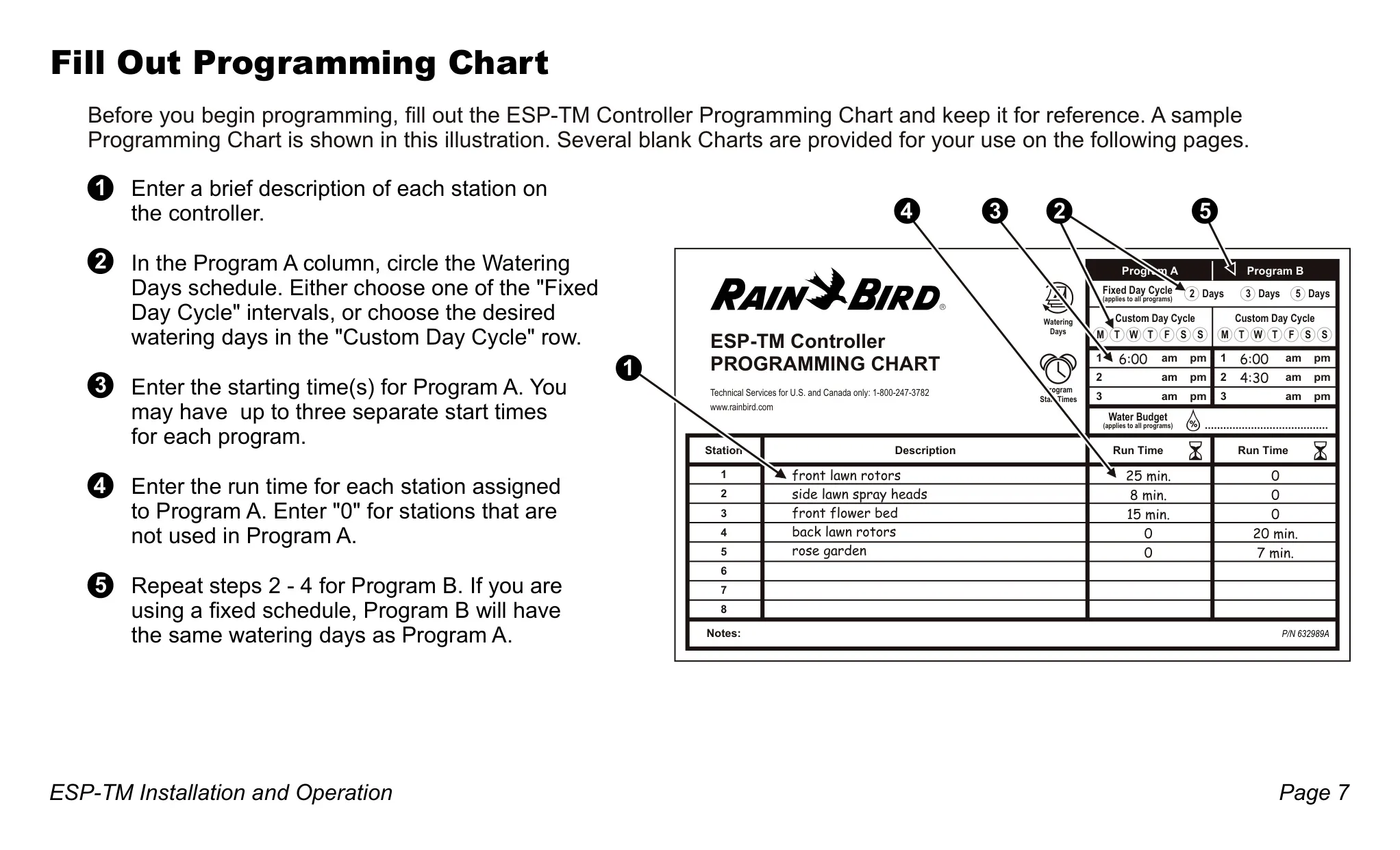

This controller features multiple independent programs, allowing for tailored watering strategies across different landscape zones or plant types. Each program can be set with several start times per day, providing precise control over when irrigation commences. This capability helps optimize water absorption and minimize runoff, contributing to efficient water usage.

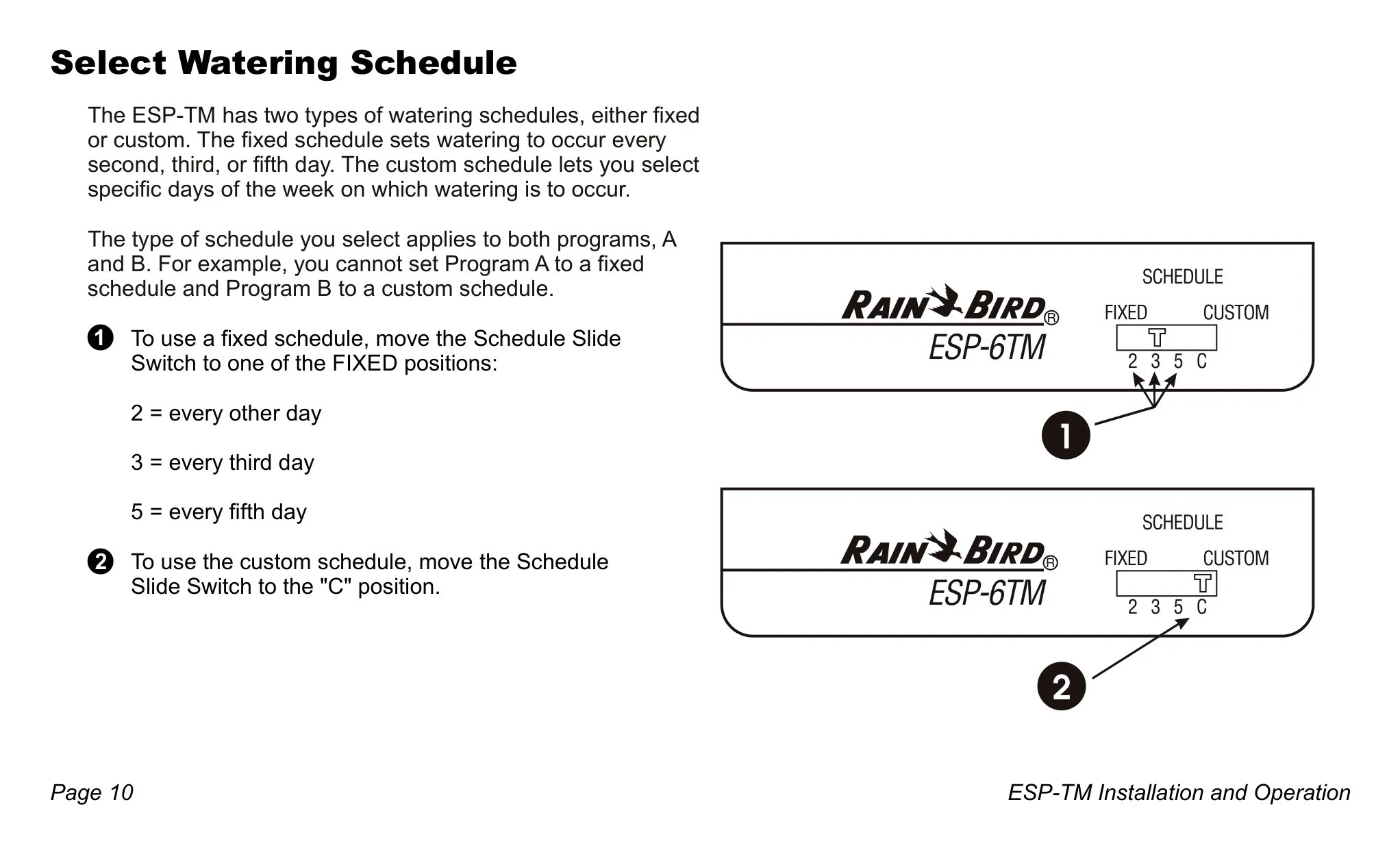

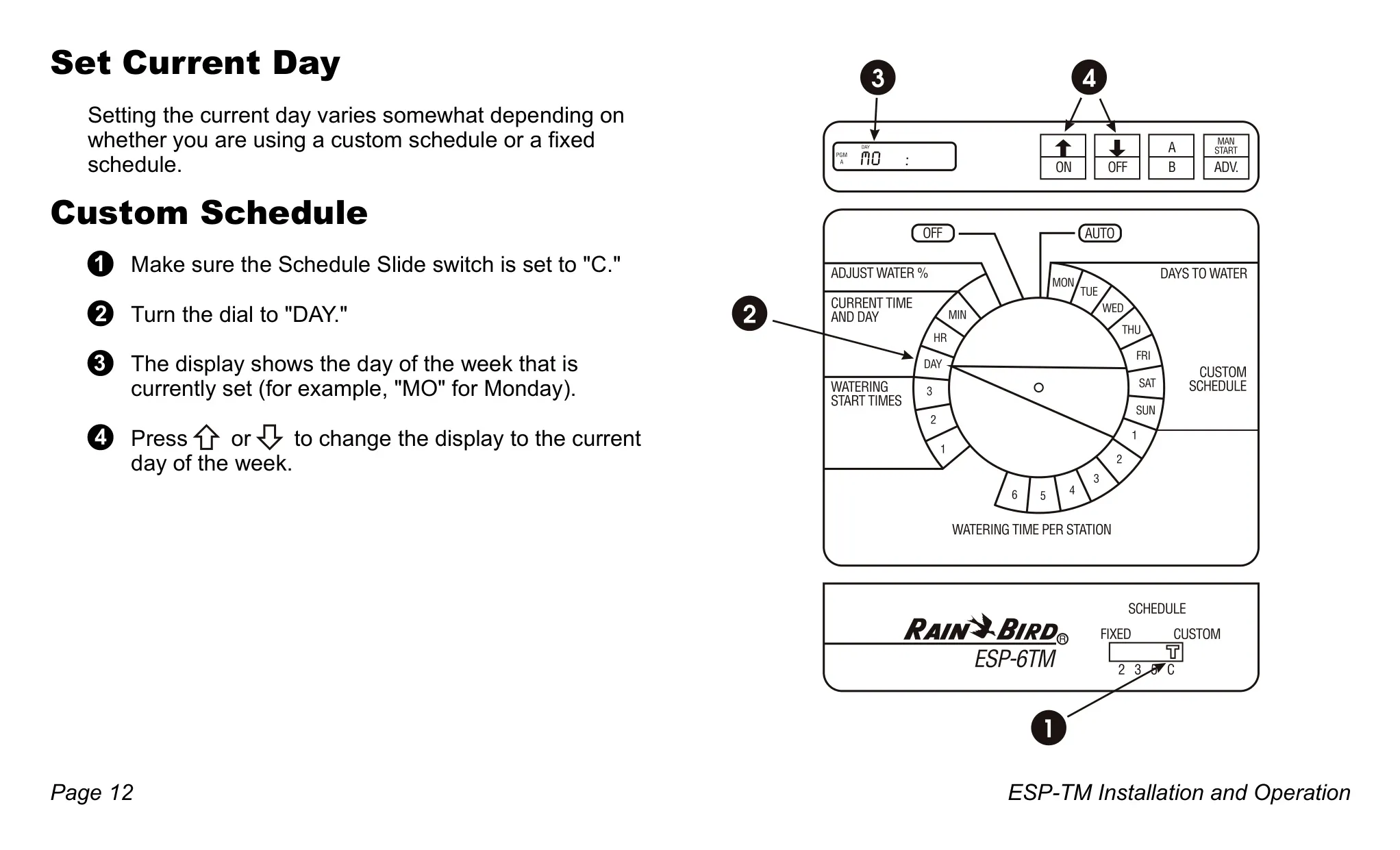

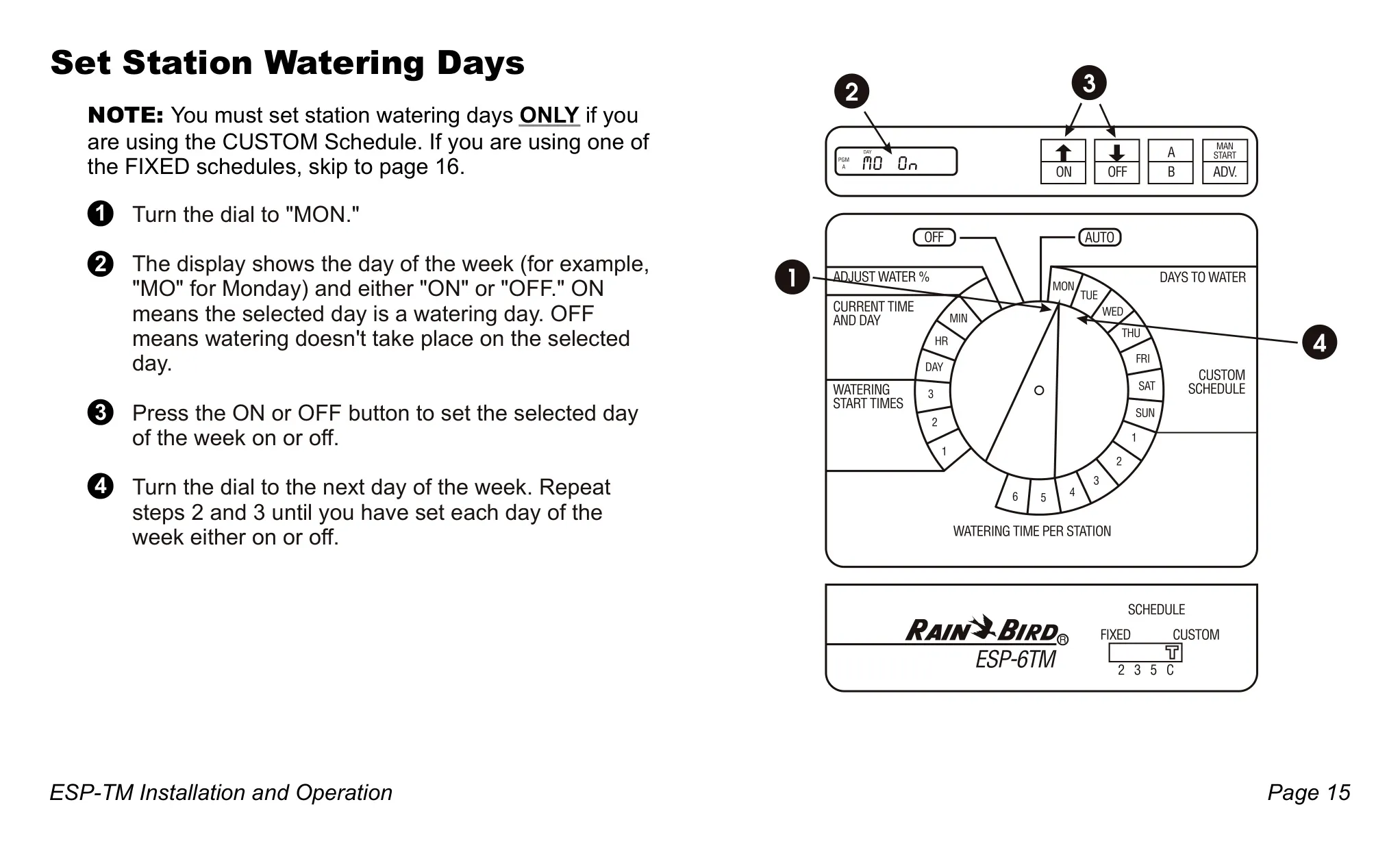

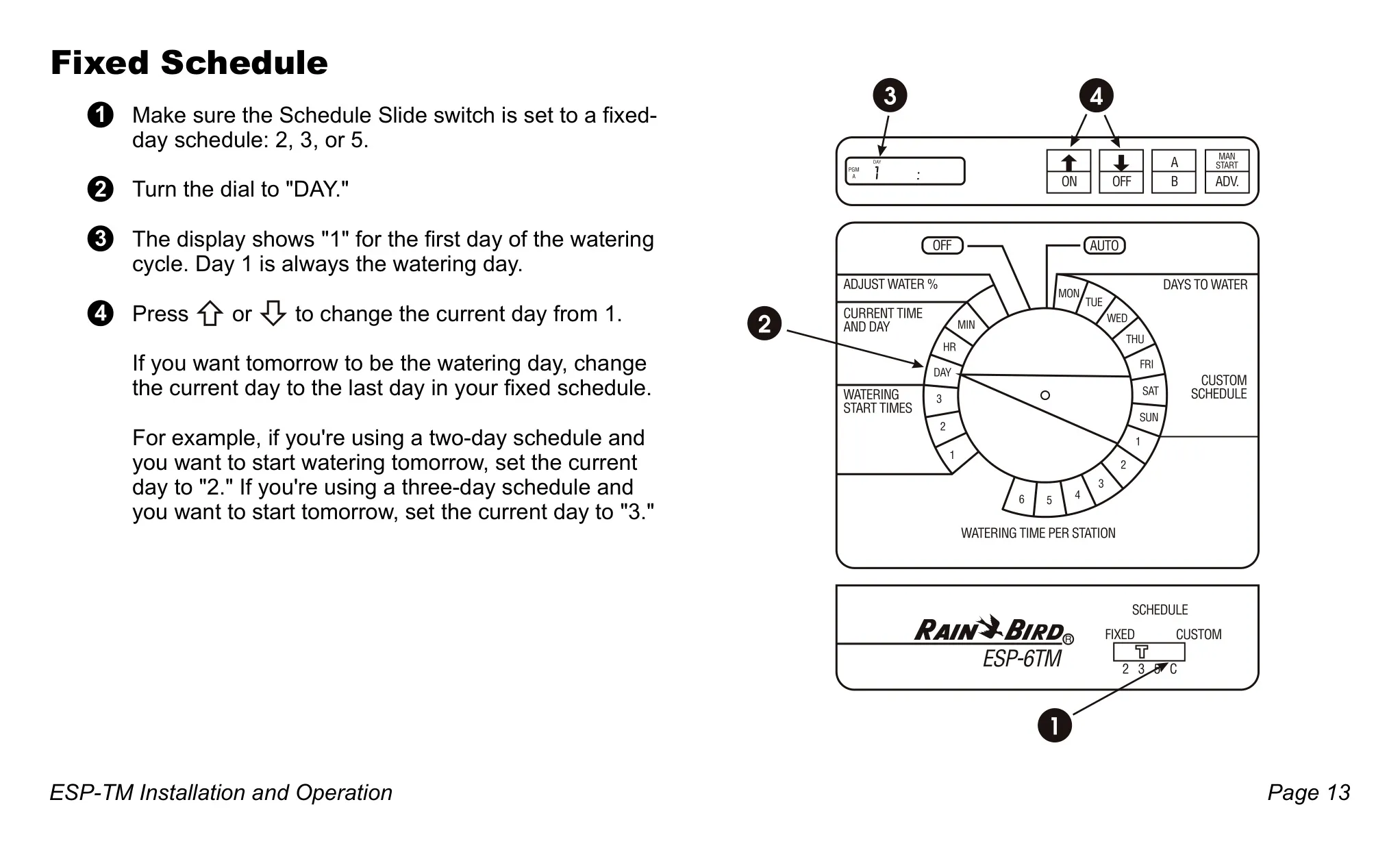

With diverse watering day options, including specific days of the week, odd/even day watering, or cyclic scheduling, the ESP-6TM adapts to various local restrictions and plant needs. This flexibility is crucial for maintaining compliance with regulations while ensuring that every part of the landscape receives adequate moisture.

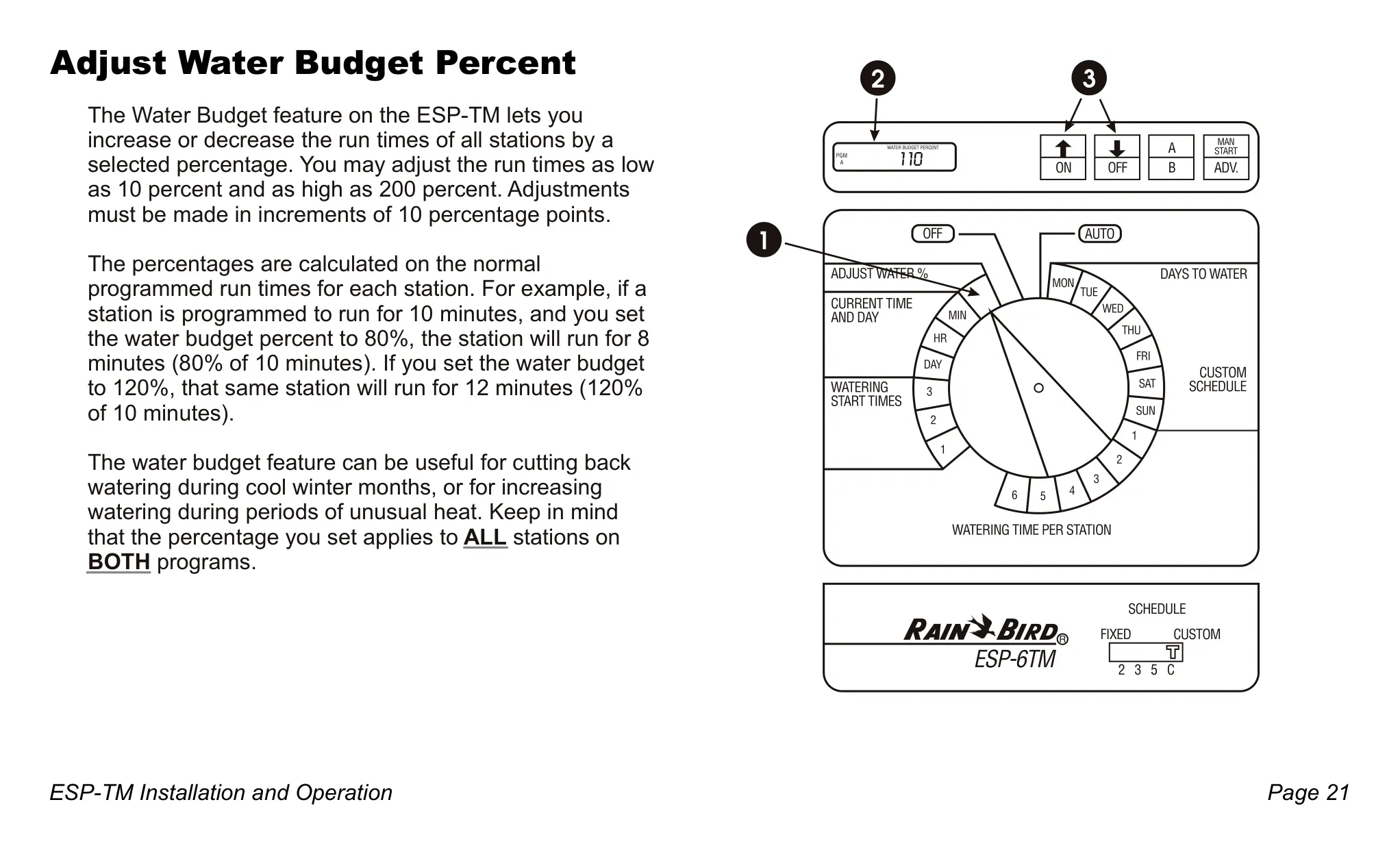

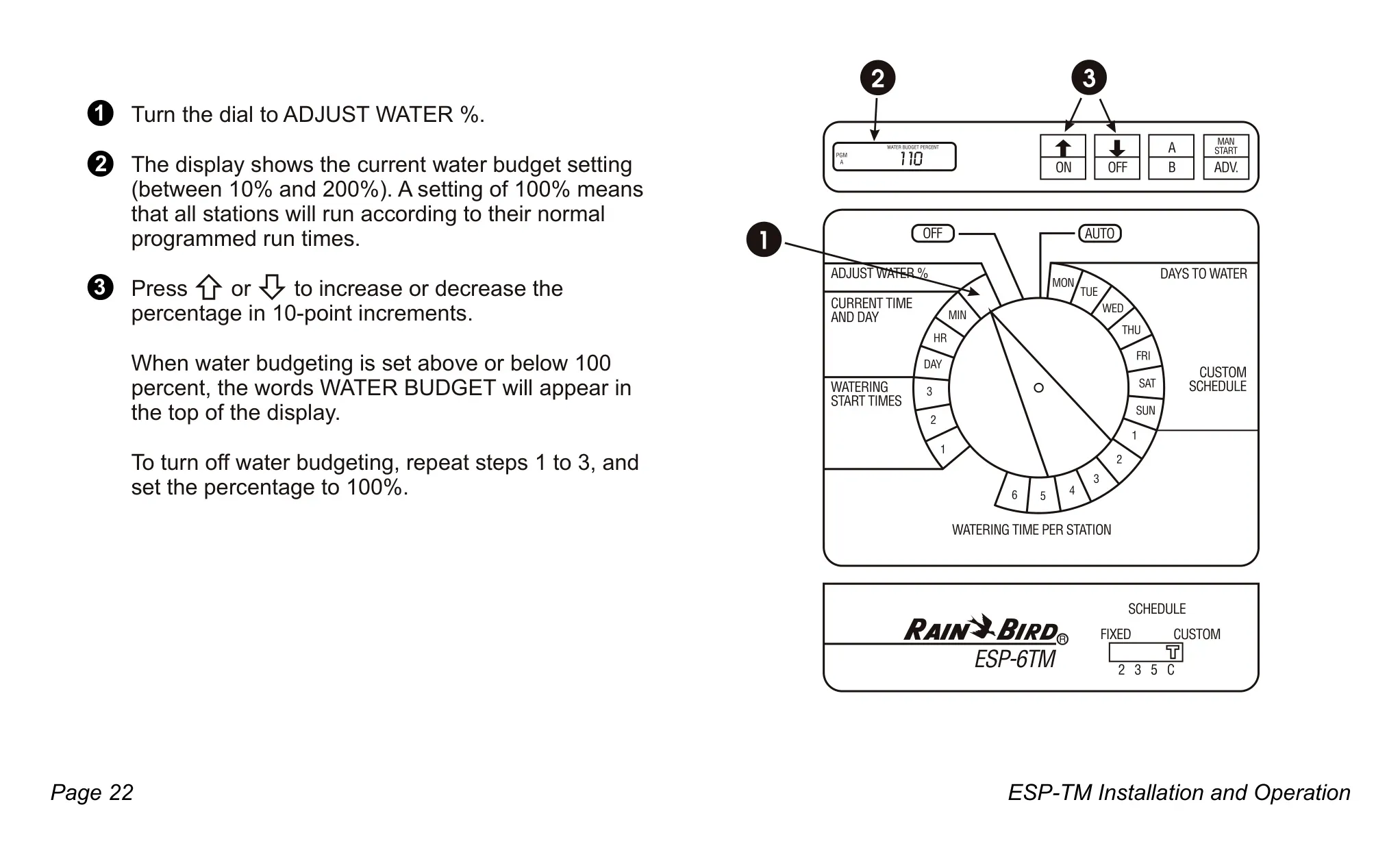

A significant water-saving feature is the Seasonal Adjust function. This allows users to globally modify watering durations for all active programs with a single percentage adjustment. It eliminates the tedious task of individually altering each station's run time, making it simple to adapt to seasonal changes and conserve water during cooler months.
For enhanced water conservation, the controller includes a dedicated rain sensor input. When connected to a compatible rain sensor, the system can automatically suspend scheduled irrigation upon detecting precipitation. This proactive measure prevents unnecessary watering, contributing to more sustainable and cost-effective landscape maintenance.

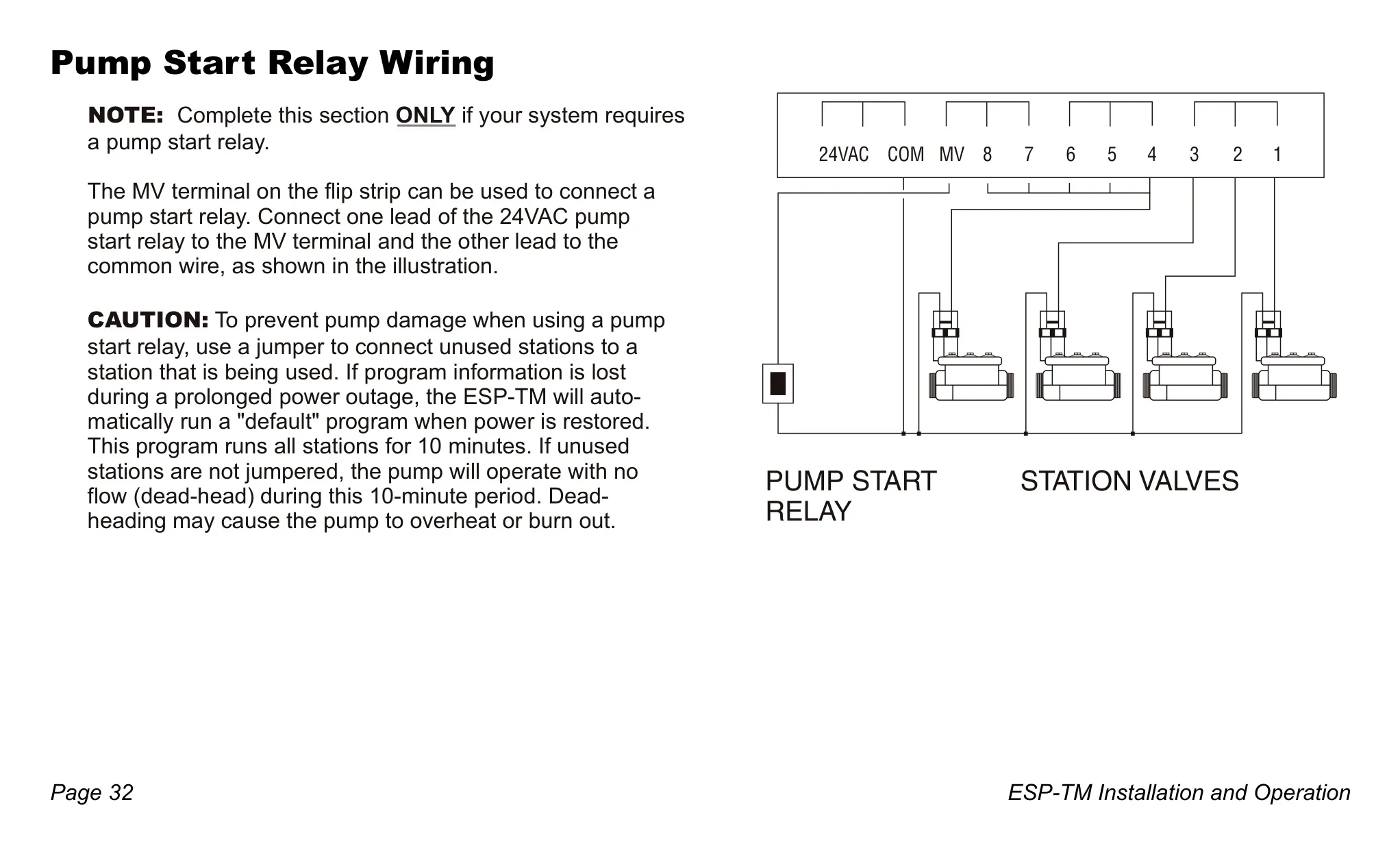

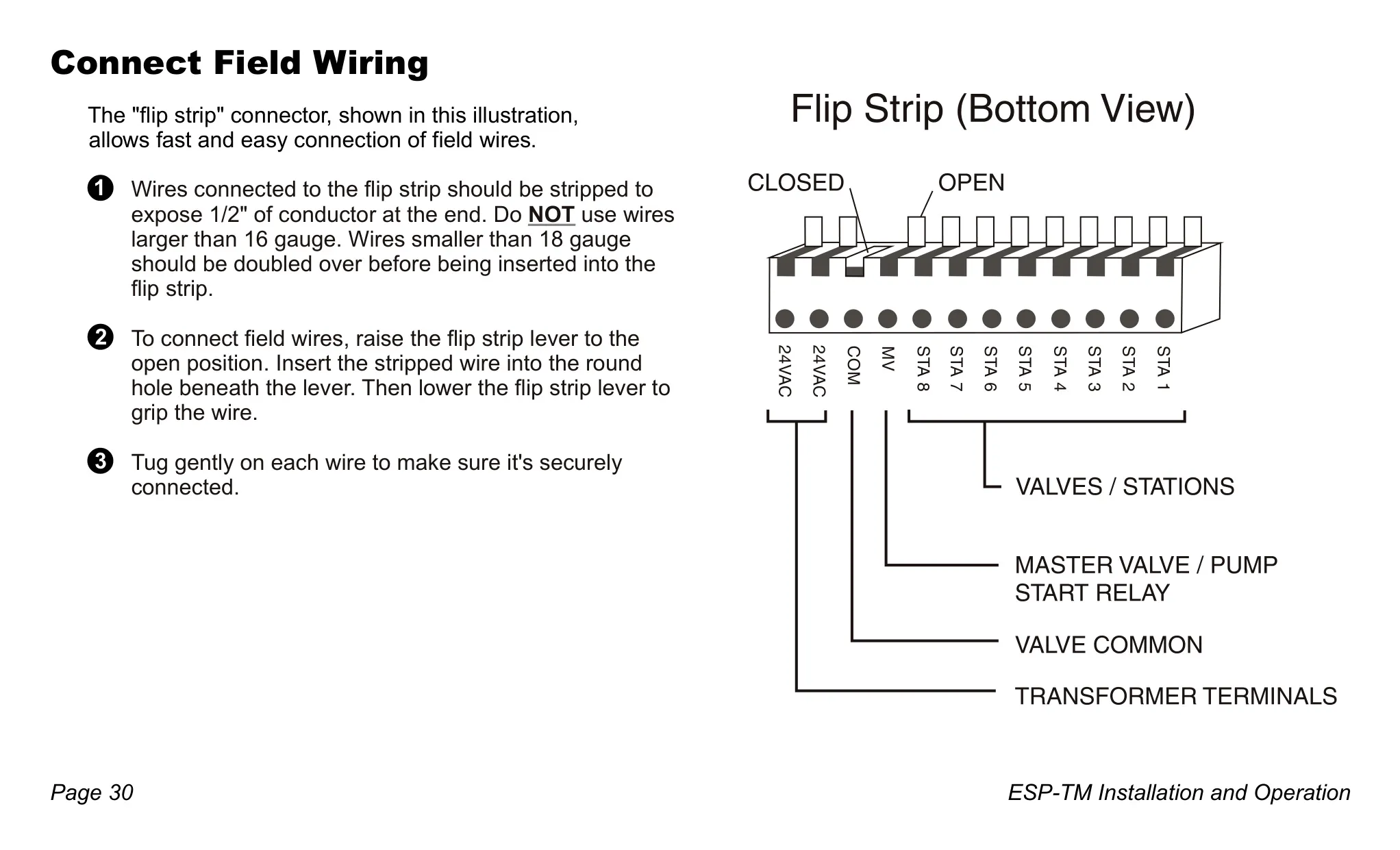

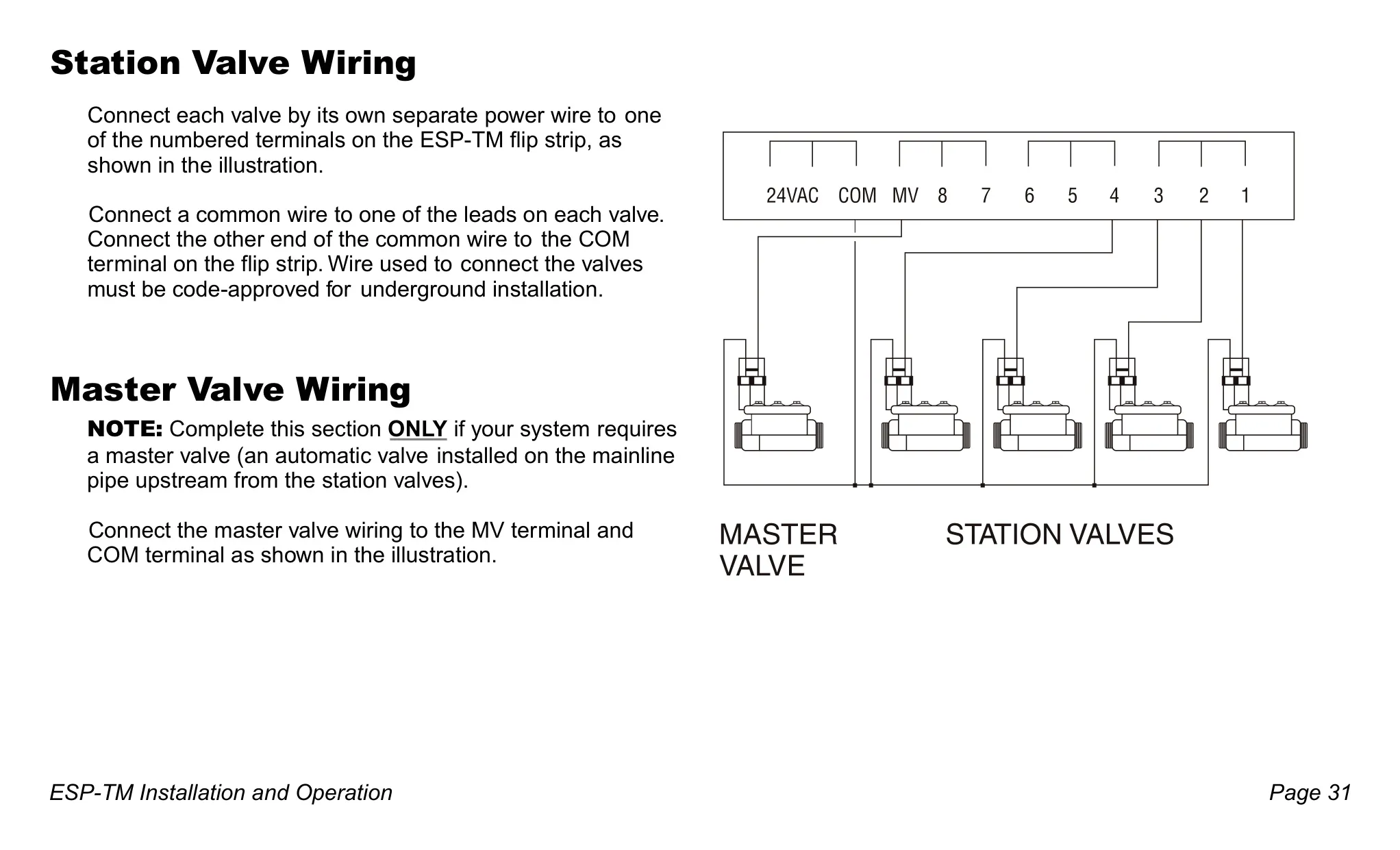

The ESP-6TM also incorporates a master valve/pump start circuit, an essential component for irrigation systems that require a main valve or a booster pump. This ensures proper water flow and pressure management, which is particularly vital for larger properties or systems relying on alternative water sources.

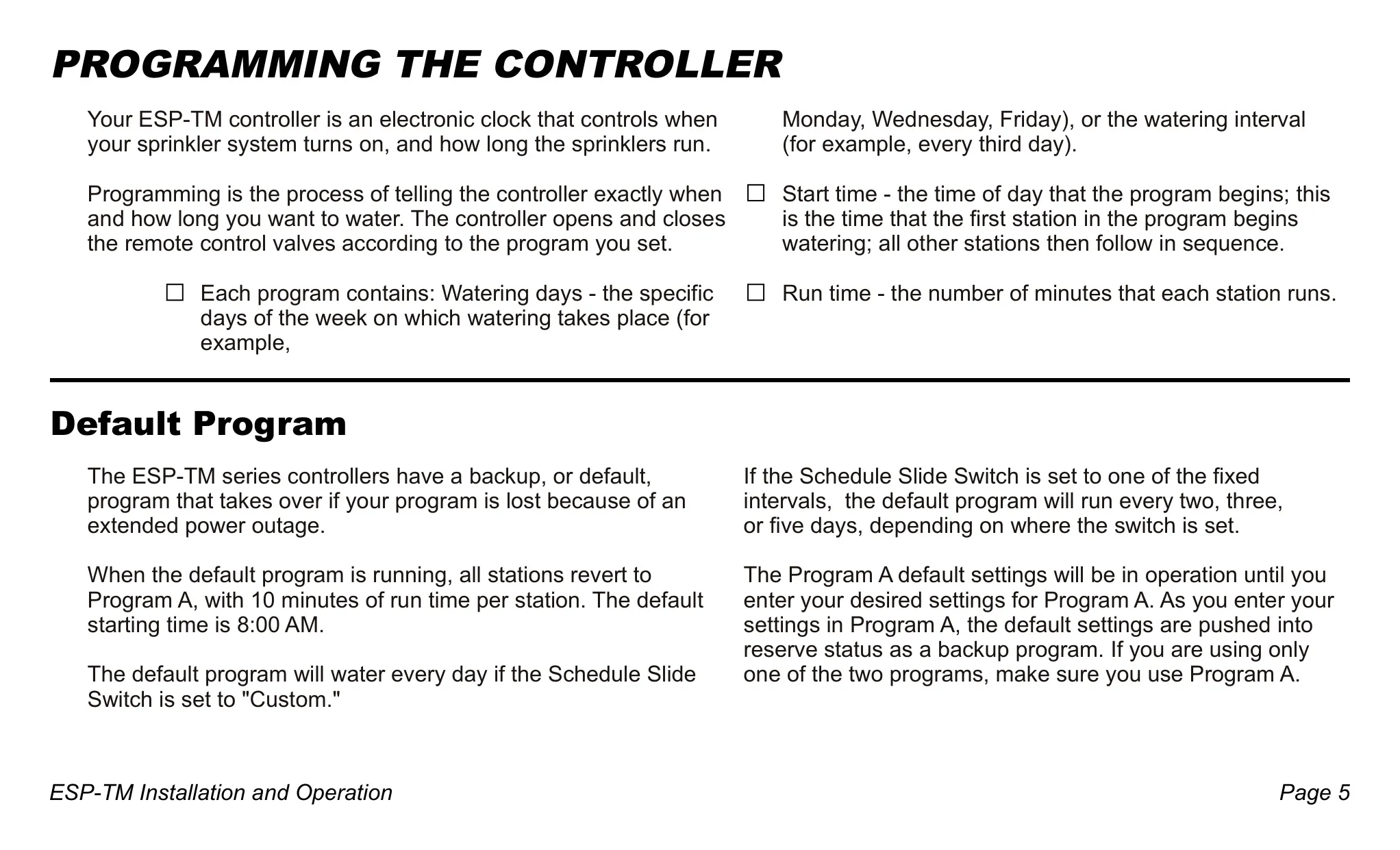

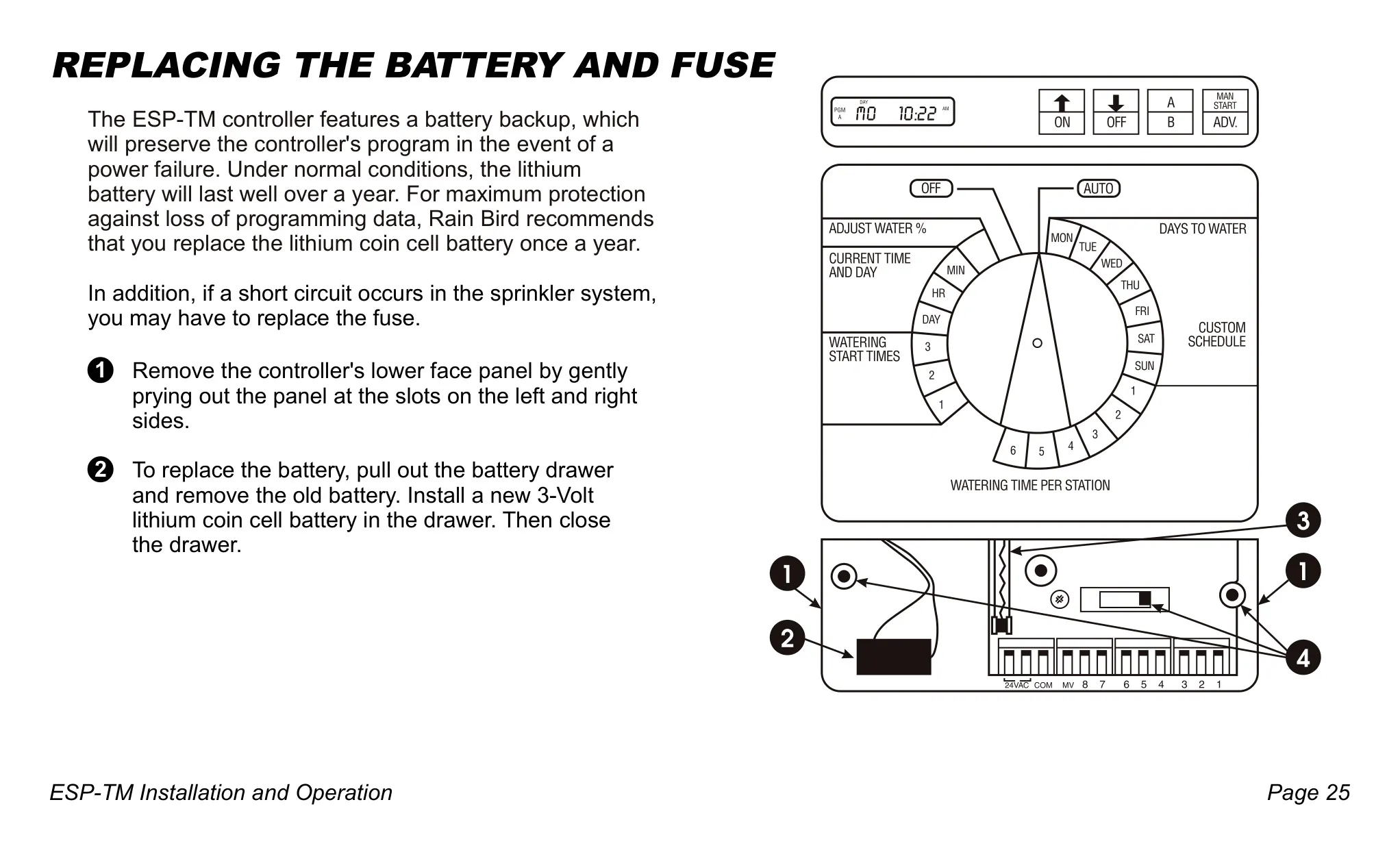

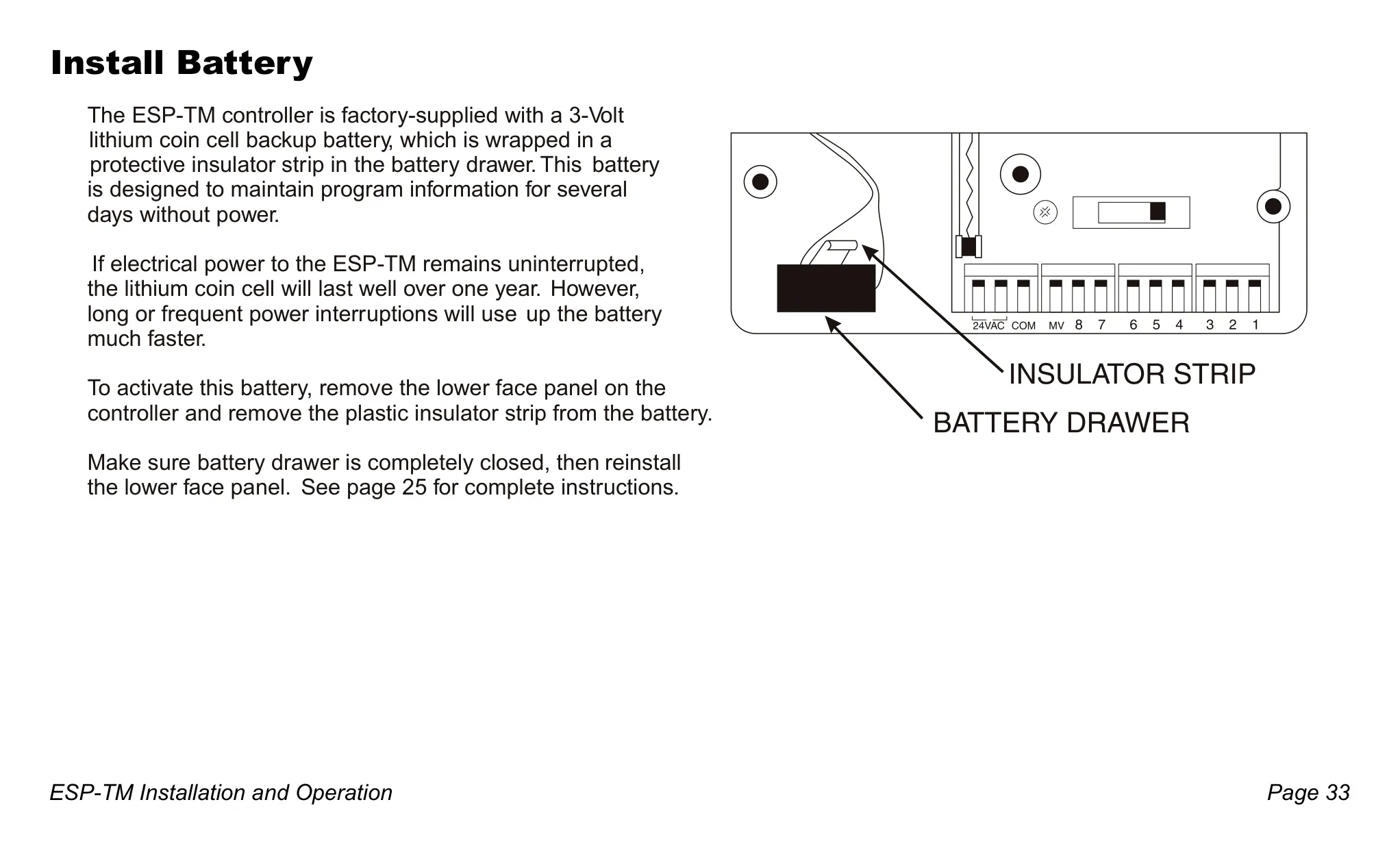

Reliability is built into the ESP-6TM with its non-volatile memory. This critical feature ensures that all programmed schedules and settings are retained indefinitely, even during prolonged power outages. Users can rest assured that their irrigation plans will resume without the need for manual reprogramming once power is restored.

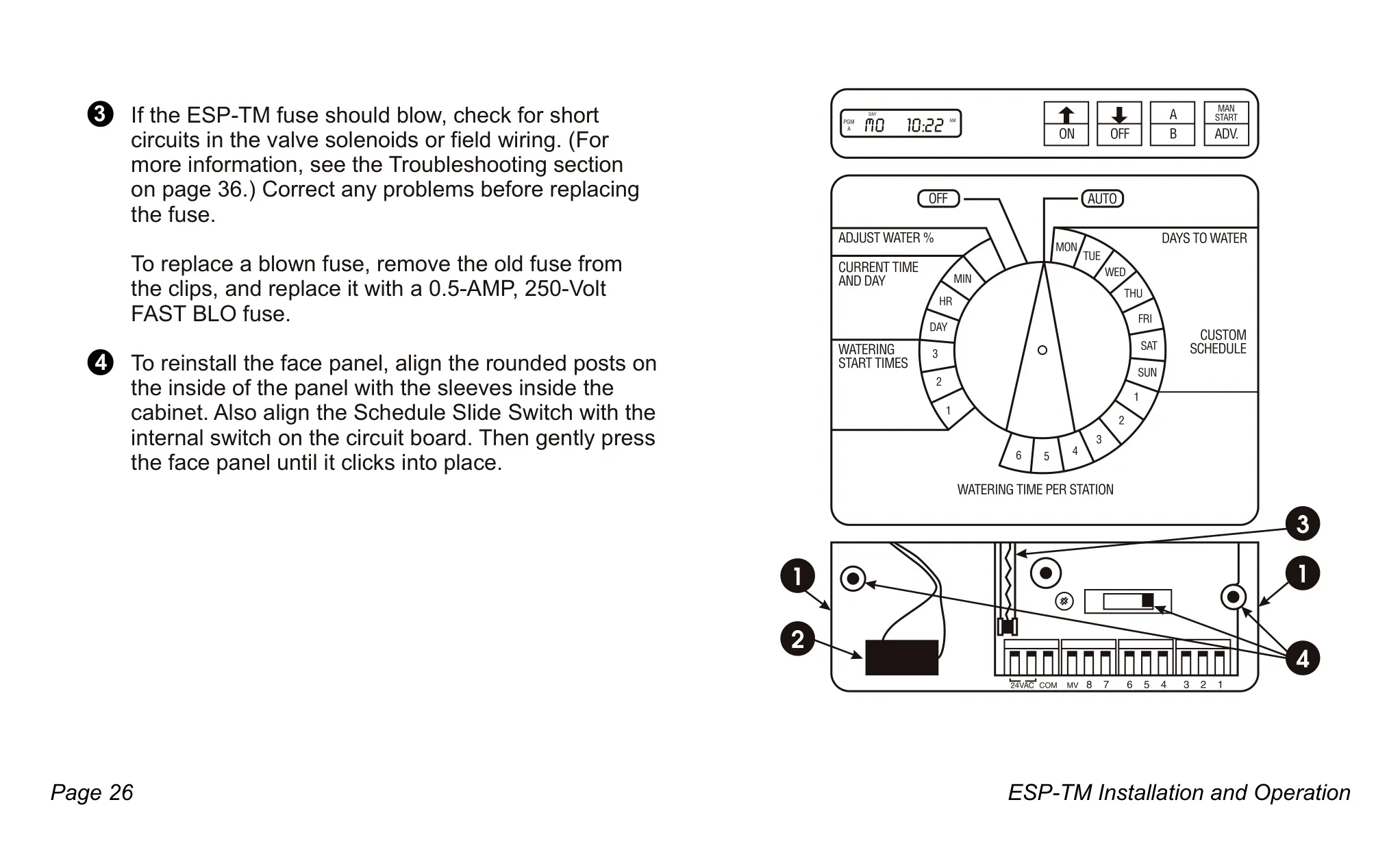

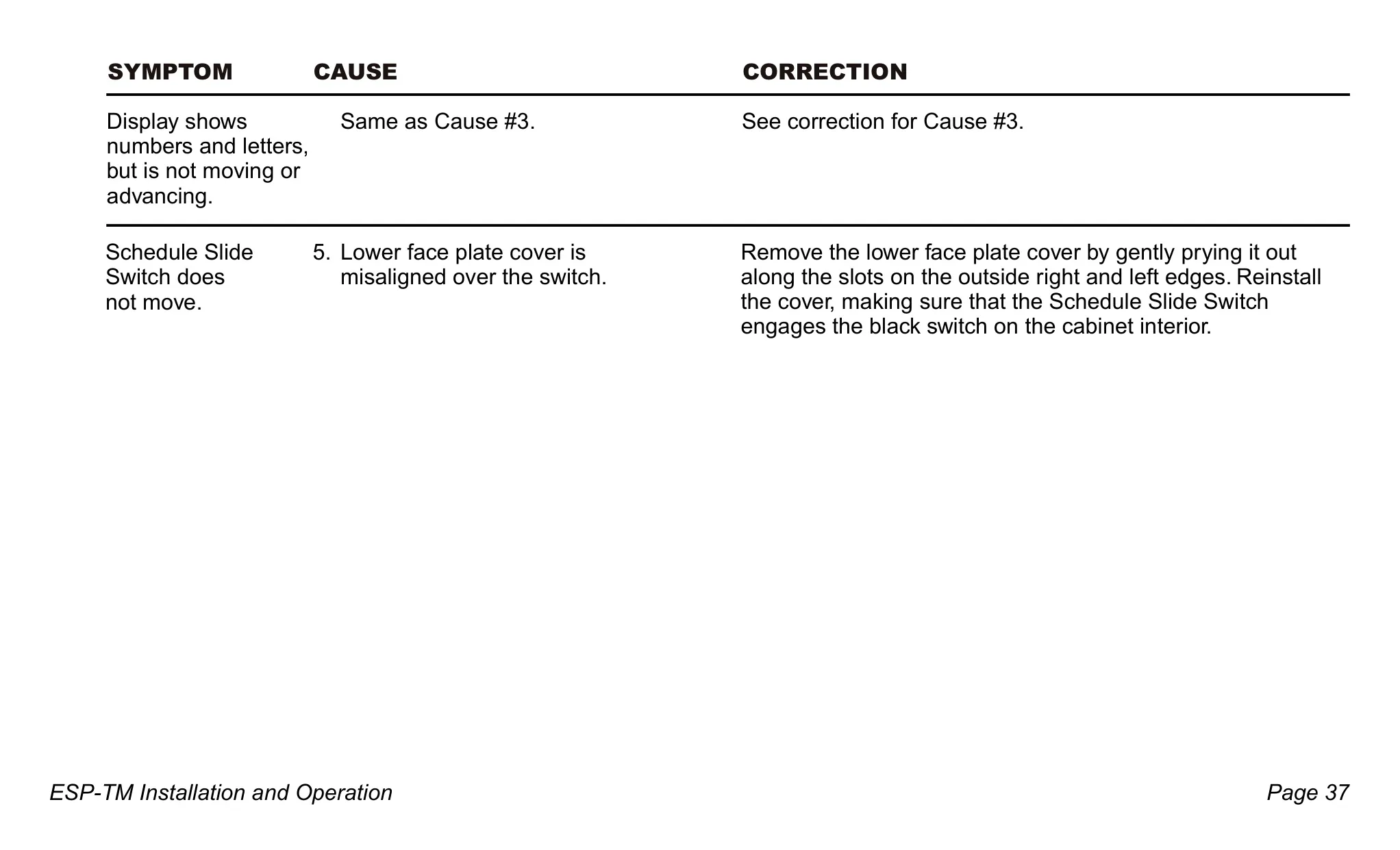

For system integrity and troubleshooting, the controller boasts electronic diagnostic capabilities. It includes automatic circuit protection that can detect and bypass shorted stations, preventing damage to the controller and ensuring that other zones continue to operate without interruption. This self-protection mechanism extends the lifespan of the unit.

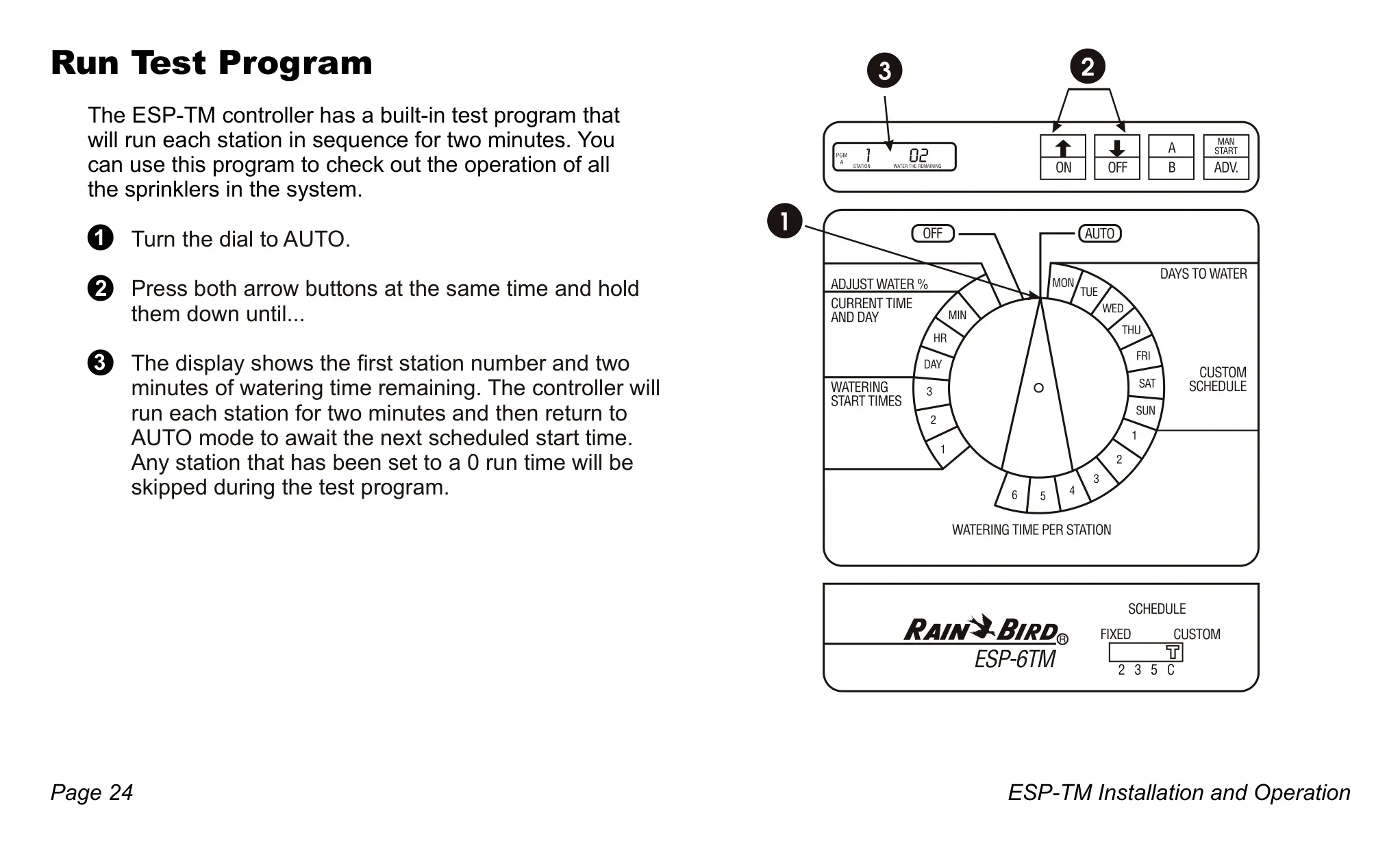

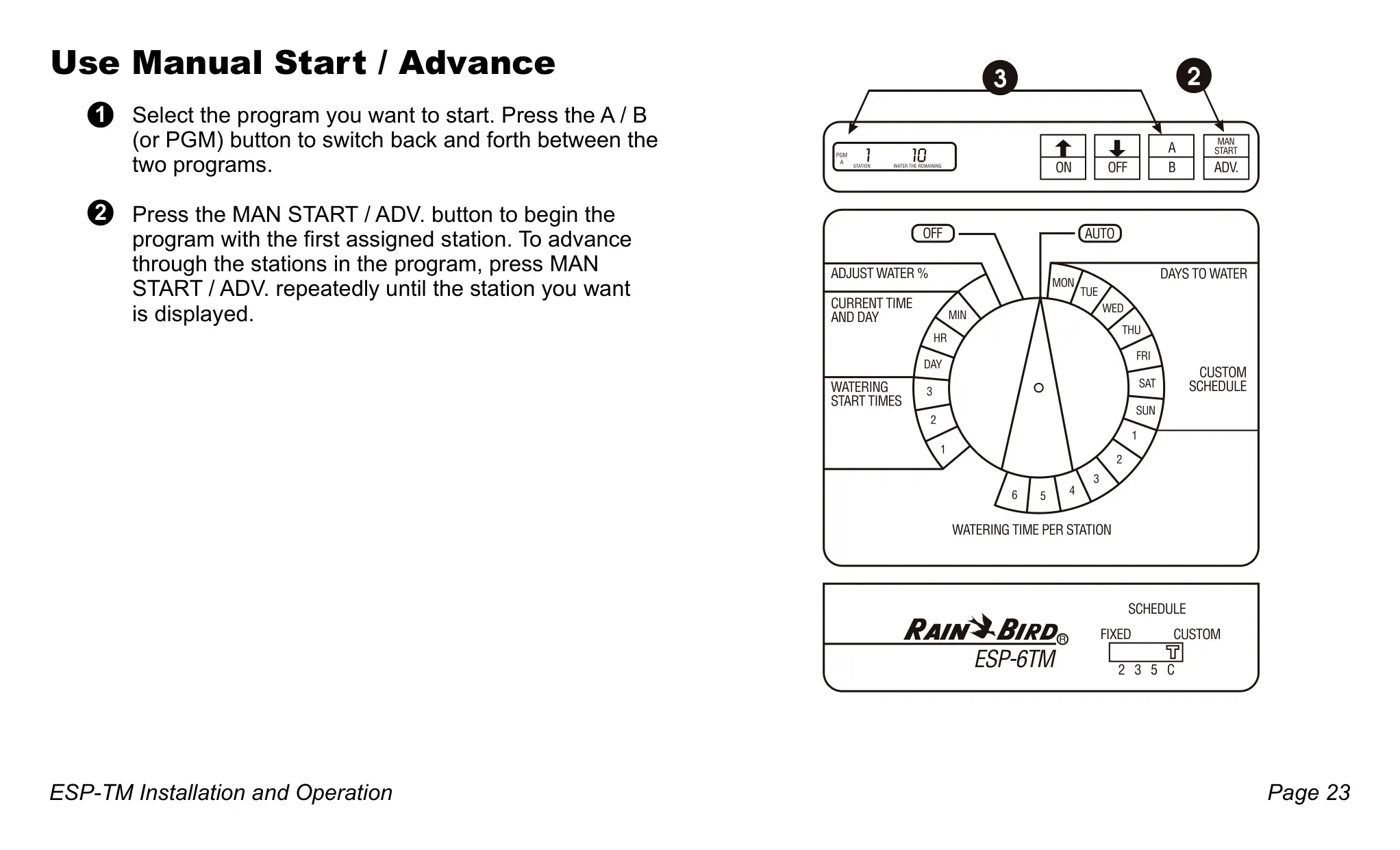

Users have the convenience of manual watering for individual stations or all stations, providing immediate control for specific needs such as newly planted areas or spot treatments. This on-demand functionality offers exceptional flexibility, allowing for quick adjustments outside of the regular programming.

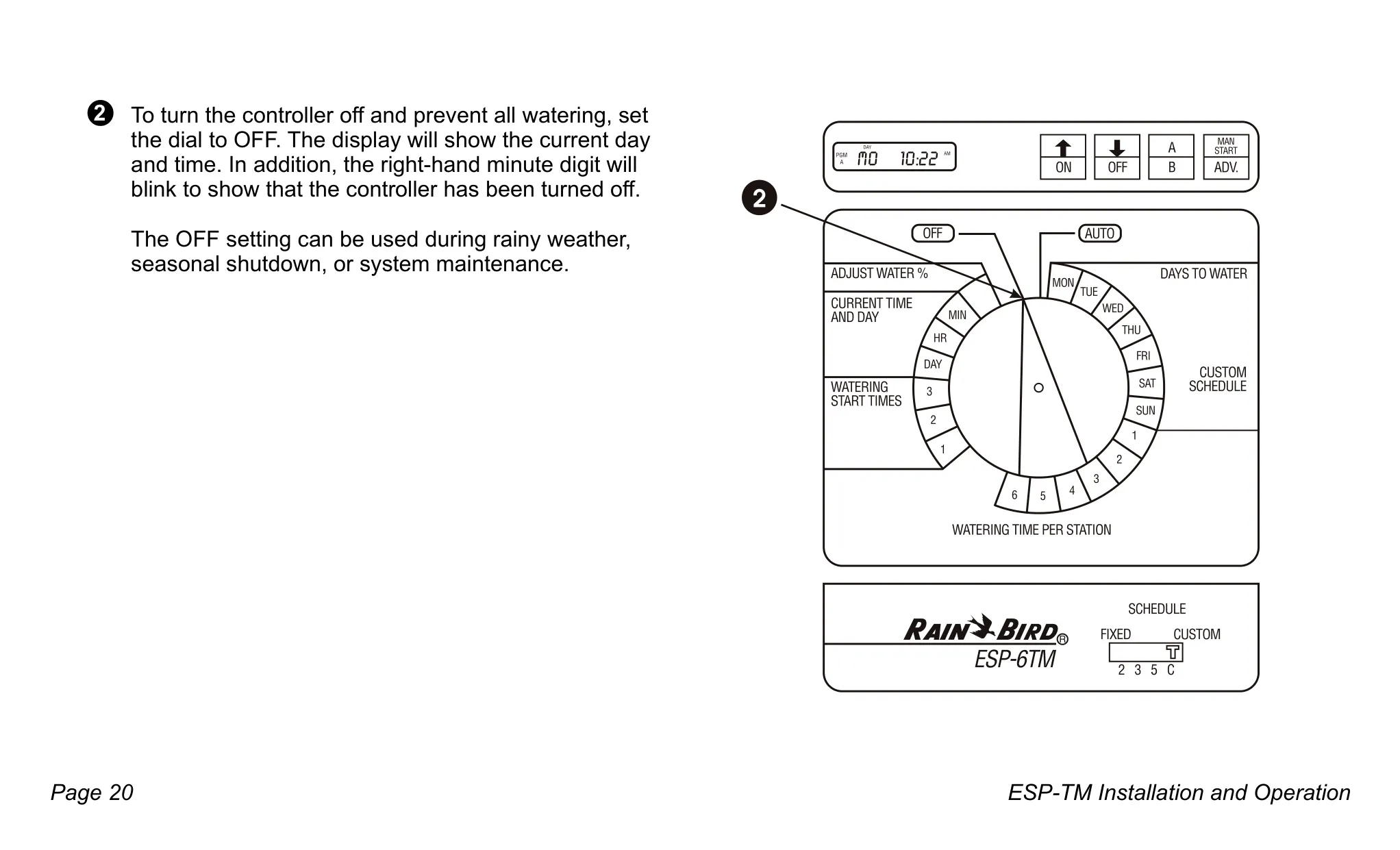

Another practical feature is the Delay Watering option. This allows for a temporary pause in the irrigation schedule for a specified number of days, which is ideal after heavy rainfall or during periods of landscape maintenance. It helps prevent overwatering and supports overall water management efficiency.

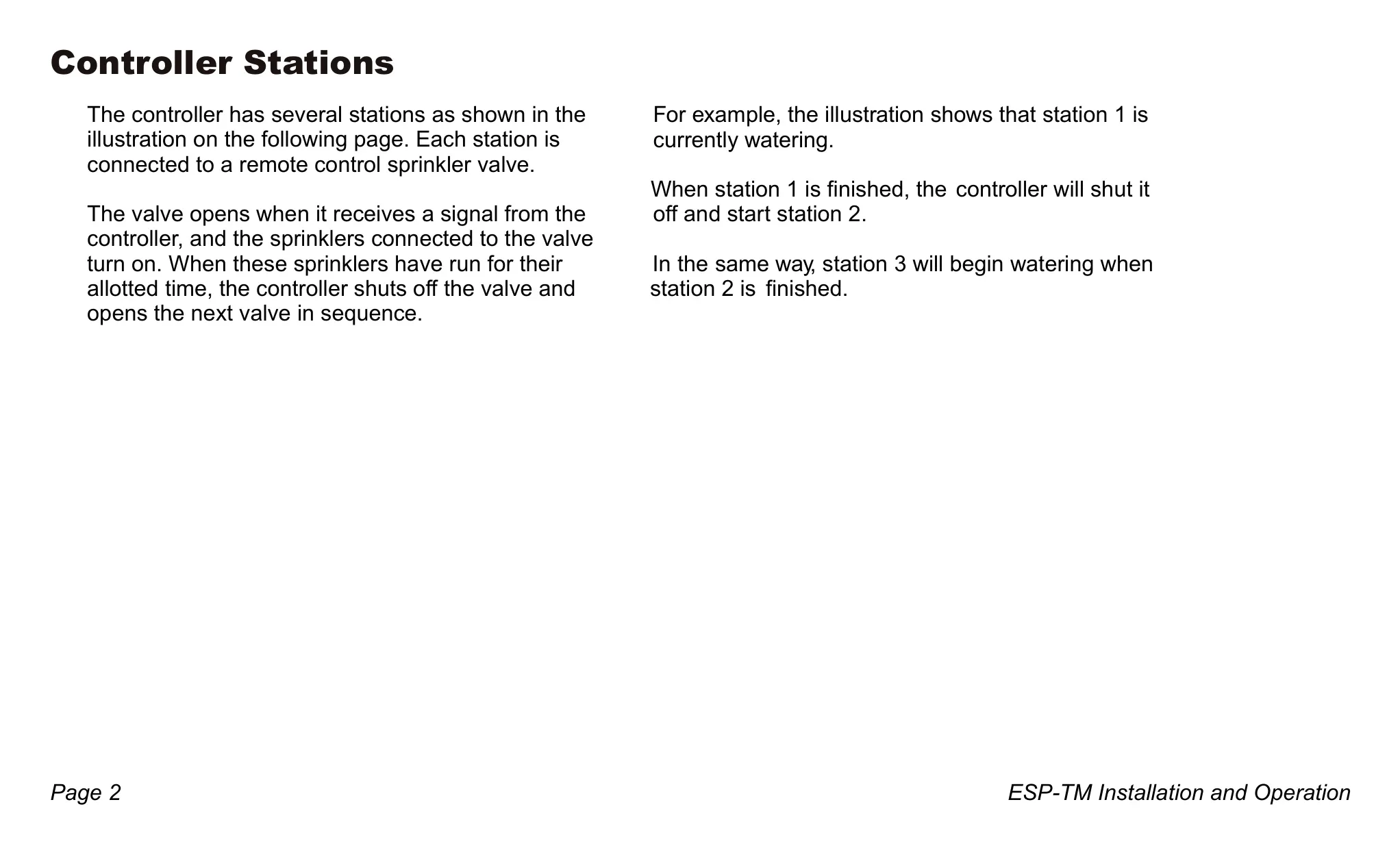

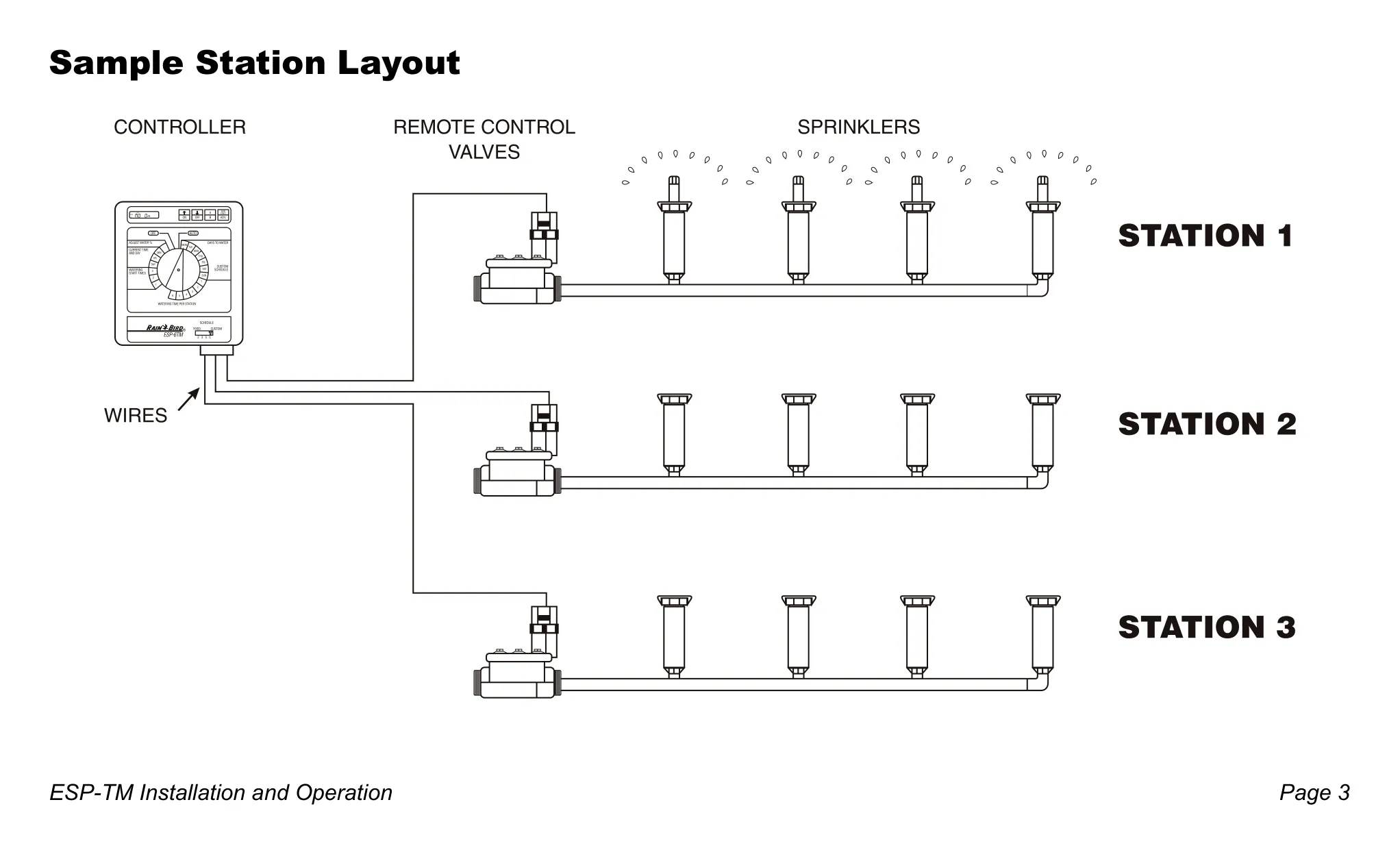

As a fixed station controller, the ESP-6TM provides a consistent and reliable number of zones, making it an excellent choice for installations where the number of irrigation areas is established. Its straightforward design ensures stable and predictable performance for up to six zones, simplifying system management.

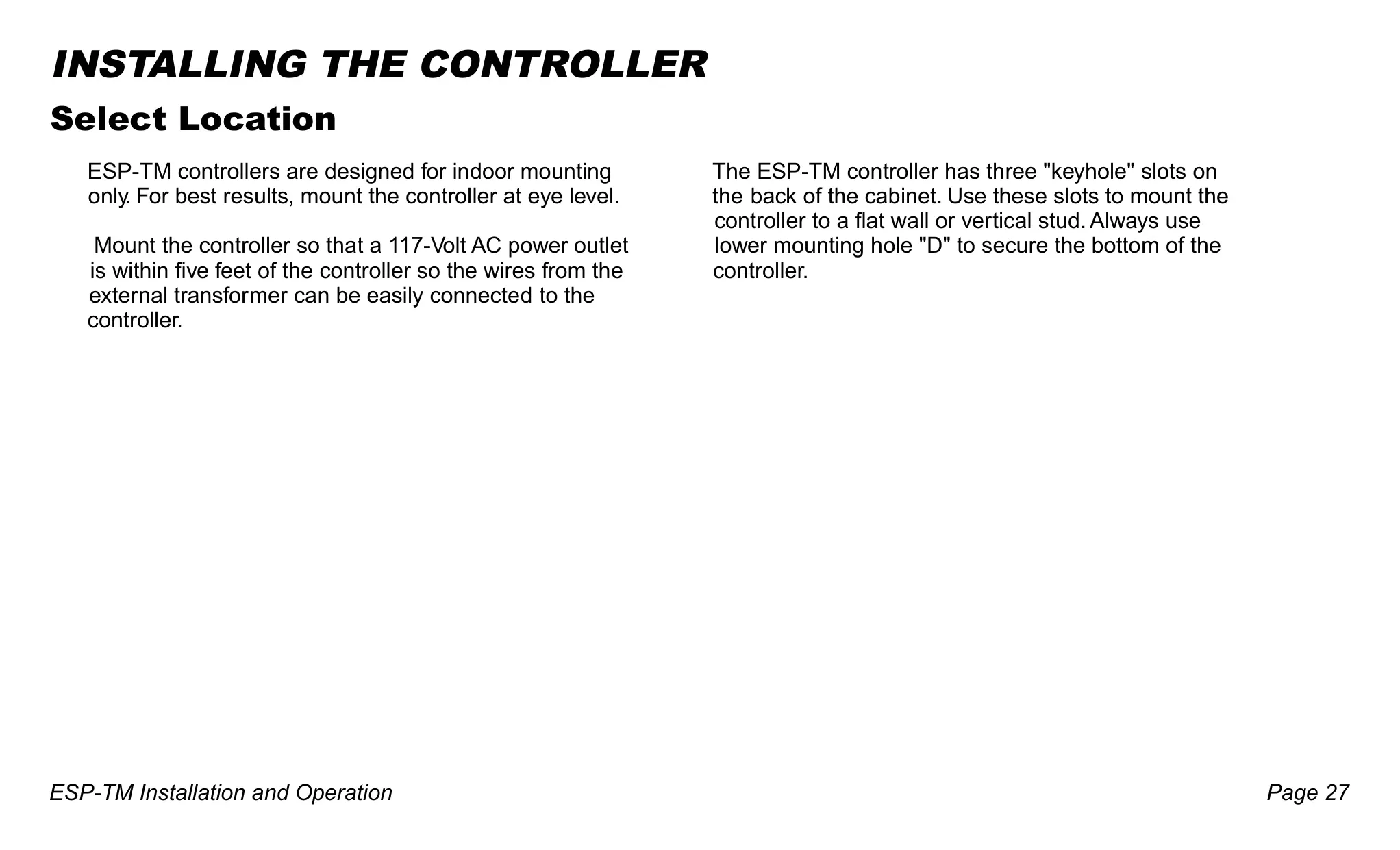

The robust construction of the Rain Bird ESP-6TM ensures durability and consistent operation across various environmental conditions within its specified range. This makes it a dependable solution for effectively and efficiently managing residential and light commercial irrigation systems.
