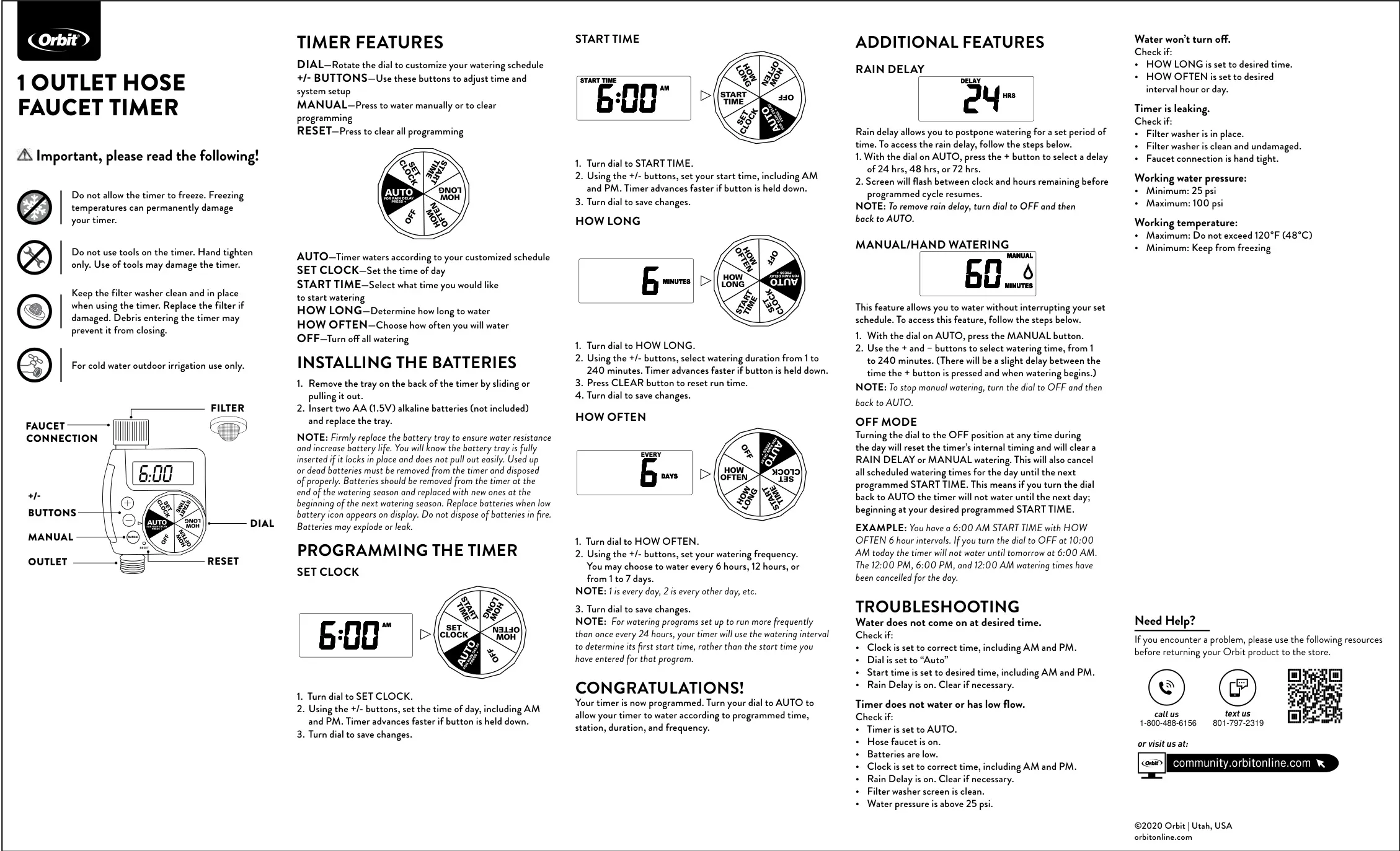

📕 Manual PDF 📄 2 Pages

★Rate It★

📖 Manual 📋 Specifications 📝 Summary 💬 FAQs

Orbit 62061Z Irrigation Controller

Orbit 62061Z Irrigation Controller Instructions

Here we offer the Orbit 62061Z Irrigation Controller manual completely free and in English. We have cataloged this manual in the Irrigation Controllers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Orbit 62061Z Irrigation Controller, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

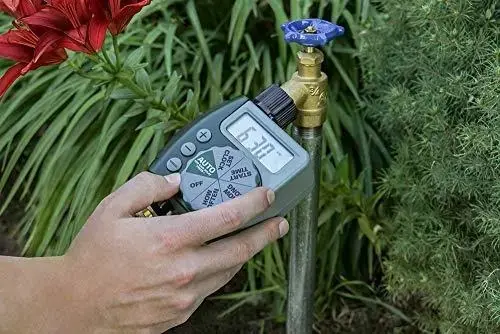

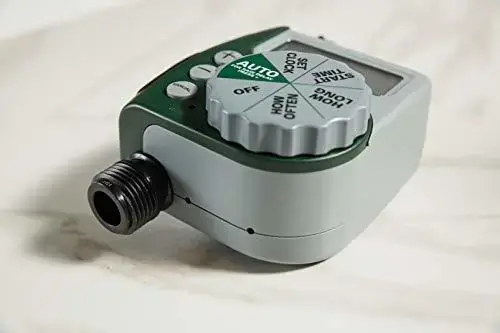

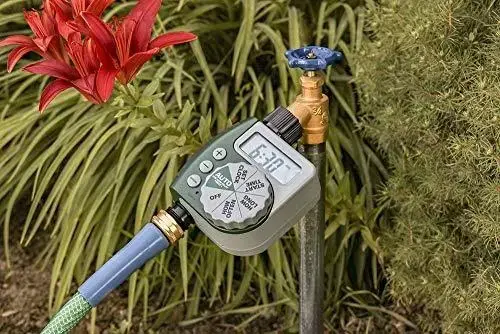

Product Images

Orbit 62061Z Irrigation Controller Specifications

Feature	Specification
Product Type	1-Outlet Hose Faucet Timer
Model Number	62061Z
Power Source	2 AA (1.5V) alkaline batteries (not included)
Watering Duration Range	1 to 240 minutes
Watering Frequency Options	Every 6 hours, 12 hours, or 1 to 7 days
Minimum Working Water Pressure	25 psi
Maximum Working Water Pressure	100 psi
Maximum Working Temperature	120°F (48°C)
Minimum Working Temperature	Keep from freezing
Intended Use	Cold water outdoor irrigation only

Orbit 62061Z Irrigation Controller Details

The Orbit 62061Z Irrigation Controller is a user-friendly 1-outlet hose faucet timer designed to automate your outdoor watering schedule. Its intuitive interface features a rotating dial for navigation and +/- buttons for precise adjustments to time and system setup. For immediate needs, a dedicated MANUAL button allows for temporary watering, while a RESET button provides a quick way to clear all programmed settings, ensuring a fresh start.

Installation is straightforward, requiring two AA (1.5V) alkaline batteries, which are not included. The battery tray is located on the back and slides out easily. It's crucial to firmly replace the tray to ensure water resistance and prolong battery life, listening for a secure lock. The timer's display will show a low battery icon when replacement is needed, indicating it's time to swap out old batteries for new ones.

Programming the Orbit 62061Z is a simple four-step process. First, turn the dial to SET CLOCK to establish the current time, including AM/PM. Next, select your desired watering start time under START TIME, again confirming AM/PM settings. Then, determine the duration of each watering cycle, from 1 to 240 minutes, using the HOW LONG setting. The CLEAR button can reset this run time if needed.

Finally, set your watering frequency with the HOW OFTEN option. You can choose to water every 6 hours, 12 hours, or select a specific interval from 1 to 7 days (where 1 means daily, 2 means every other day, and so on). After completing these steps, simply turn the dial to AUTO, and the timer will execute your customized watering schedule efficiently, adhering to the specified start time, duration, and frequency.

Beyond basic programming, the Orbit 62061Z offers several helpful additional features. The Rain Delay function allows you to pause watering for 24, 48, or 72 hours, which is activated by pressing the + button while the dial is on AUTO. The screen will flash, indicating the remaining delay. To cancel it, turn the dial to OFF and then back to AUTO.

For instant watering, the Manual/Hand Watering feature lets you run the system without altering your programmed schedule. Simply press the MANUAL button when the dial is on AUTO, then use the +/- buttons to set a duration from 1 to 240 minutes. There will be a slight delay before watering begins. To stop manual watering, rotate the dial to OFF and then return it to AUTO.

Understanding the OFF Mode is important. Turning the dial to OFF will reset the timer's internal timing and cancel any active Rain Delay or Manual watering. It also cancels all scheduled watering times for the remainder of the current day. This means if you switch back to AUTO, the timer will not water until the *next* programmed start time, effectively skipping any immediate cycles.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Orbit 62061Z Irrigation Controller, and we answer them below.

Why isn't the water coming on at the desired time?

Check if the clock is set correctly (including AM/PM), the dial is on "Auto," the start time is correct, or if Rain Delay is active and needs to be cleared. Also, ensure batteries are not low.

Why isn't the timer watering, or why is the flow low?

Verify that the timer is set to AUTO and the hose faucet is fully on. Check if the batteries are low, the filter washer screen is clean, or if the water pressure is below the minimum 25 psi.

Why won't the water turn off?

Ensure that the 'HOW LONG' duration and 'HOW OFTEN' interval are set to your desired times. An incorrect setting here can lead to continuous watering or unexpected cycles.

Why is the timer leaking?

Confirm that the filter washer is correctly in place, clean, and undamaged. Also, check that the faucet connection is hand-tight; using tools can cause damage and leaks.

What type of batteries does the Orbit 62061Z use?

The controller requires two AA (1.5V) alkaline batteries, which are not included with the unit.

What are the acceptable working water pressure and temperature ranges?

The timer operates effectively between 25 psi (minimum) and 100 psi (maximum) water pressure. For temperature, it should not exceed 120°F (48°C) and must be kept from freezing.

Can I use tools to tighten the timer connection to the faucet?

No, tools should not be used on the timer. Always hand tighten connections only, as using tools can permanently damage the unit.

What happens when I turn the dial to the OFF position?

Turning the dial to OFF resets the timer's internal timing, clears any active Rain Delay or Manual watering, and cancels all scheduled watering times for the rest of that day. Watering will resume at your next programmed start time on the following day.

How do I activate a rain delay and how long can it last?

With the dial on AUTO, press the + button to select a delay of 24, 48, or 72 hours. The screen will flash between the current time and the remaining delay hours. To remove it, turn the dial to OFF and then back to AUTO.

How do I perform manual watering without affecting my schedule?

Turn the dial to AUTO, then press the MANUAL button. Use the + and – buttons to set a watering time from 1 to 240 minutes. To stop manual watering, turn the dial to OFF and then back to AUTO.

How often should I replace the batteries?

Batteries should be removed at the end of the watering season and replaced with new ones at the beginning of the next season. Also replace them immediately when the low battery icon appears on the display.
