Minolta X 700 Analog SLR Camera Instruction Manual
Minolta X 700 Analog SLR Camera
Minolta X 700 Camera Instructions
Here we offer the Minolta X 700 Analog SLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Minolta X 700 Analog SLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

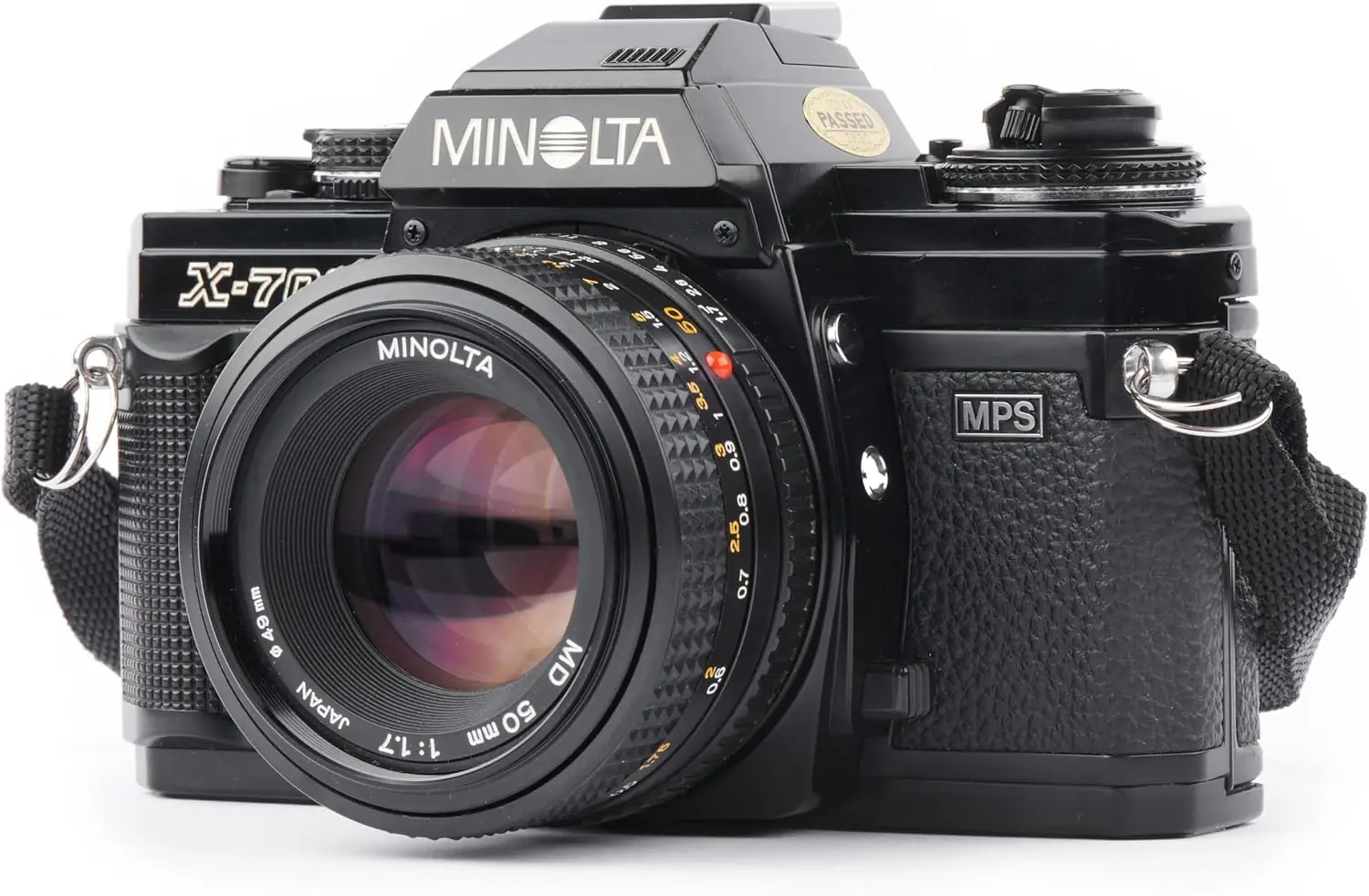

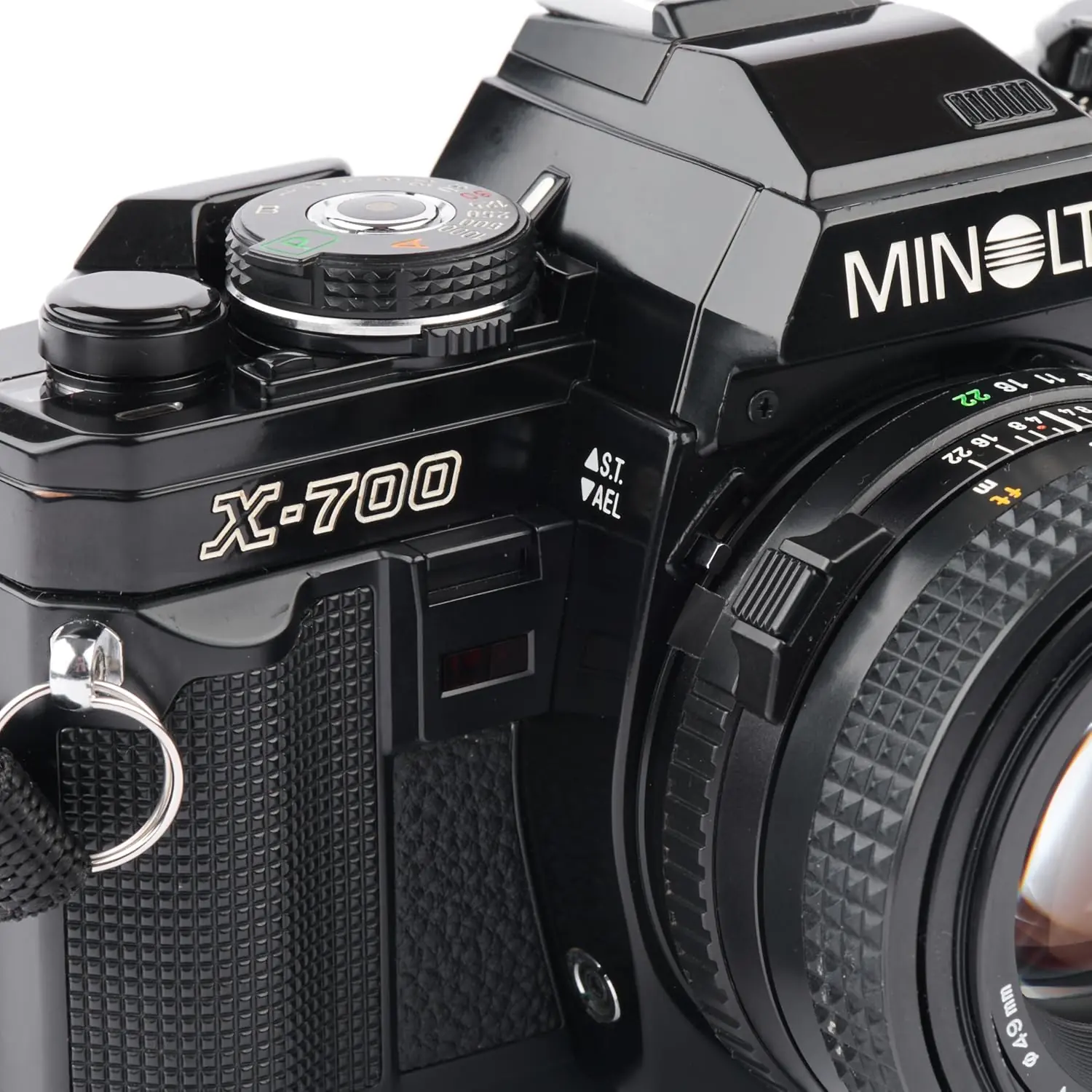

Product Images
Minolta X 700 Analog SLR Camera Specifications
| Feature | Specification |
|---|---|
| Camera Type | Electronically governed 35mm single-lens reflex AE camera |
| Exposure Control Modes | Programmed Auto-Exposure (P), Aperture-Priority Auto-Exposure (A), Metered Manual (M) |
| Lens Mount | Minolta SLR Bayonet (integrally lubricated stainless steel, 54° rotating angle) |
| Compatible Lenses | Minolta MD lenses (P/A/M modes), Minolta MC and other SLR lenses/accessories (A/M modes) |
| Auto-Exposure Range (ISO 100/21°, f/1.4 lens) | EV 1 (1 sec. at f/1.4) to EV 18 (1/1000 sec. at f/16) |
| Shutter Type | Horizontal-traverse focal-plane type |
| Shutter Speeds (Auto) | Stepless 1/1000 to 4 sec. |
| Shutter Speeds (Manual) | Fixed 1 to 1/1000 sec. or "B" (Bulb) |
| Shutter Release | "Soft touch" electromagnetic; locks on low battery |
| Metering System | TTL Center-weighted averaging type |
| Photocells | Pentaprism-mounted SPC (available light), Mirror compartment SPC (Direct Autoflash Metering) |
| Film Speed Range | ISO 25/15° to 1600/33° (1/3-EV increments) |
| Exposure Adjustment | ±2 EV continuous adjustment (locks at 0 and 1/2-EV stops) |
| Mirror | Triple-coated oversize instant-return slide-up type |
| Viewfinder Coverage | 95% of 24x36mm film-frame area |
| Viewfinder Magnification | 0.9X (with 50mm standard lens focused at infinity) |
| Focusing Screen | Fresnel-field, central split-image (horizontal), microprism band, Acute Matte field (interchangeable with 8 optional screens) |
| Viewfinder Display | Mode, Shutter-speed scale with LED, Over/under-range LEDs, Flash-ready, FDC, Mis-set lens warning, Battery check, f-number, Exposure-adjustment indicator |
| Flash Sync | Hot shoe and PC terminal for X sync (1/60 sec. auto with PX/X units, slower manual speeds, or "B") |

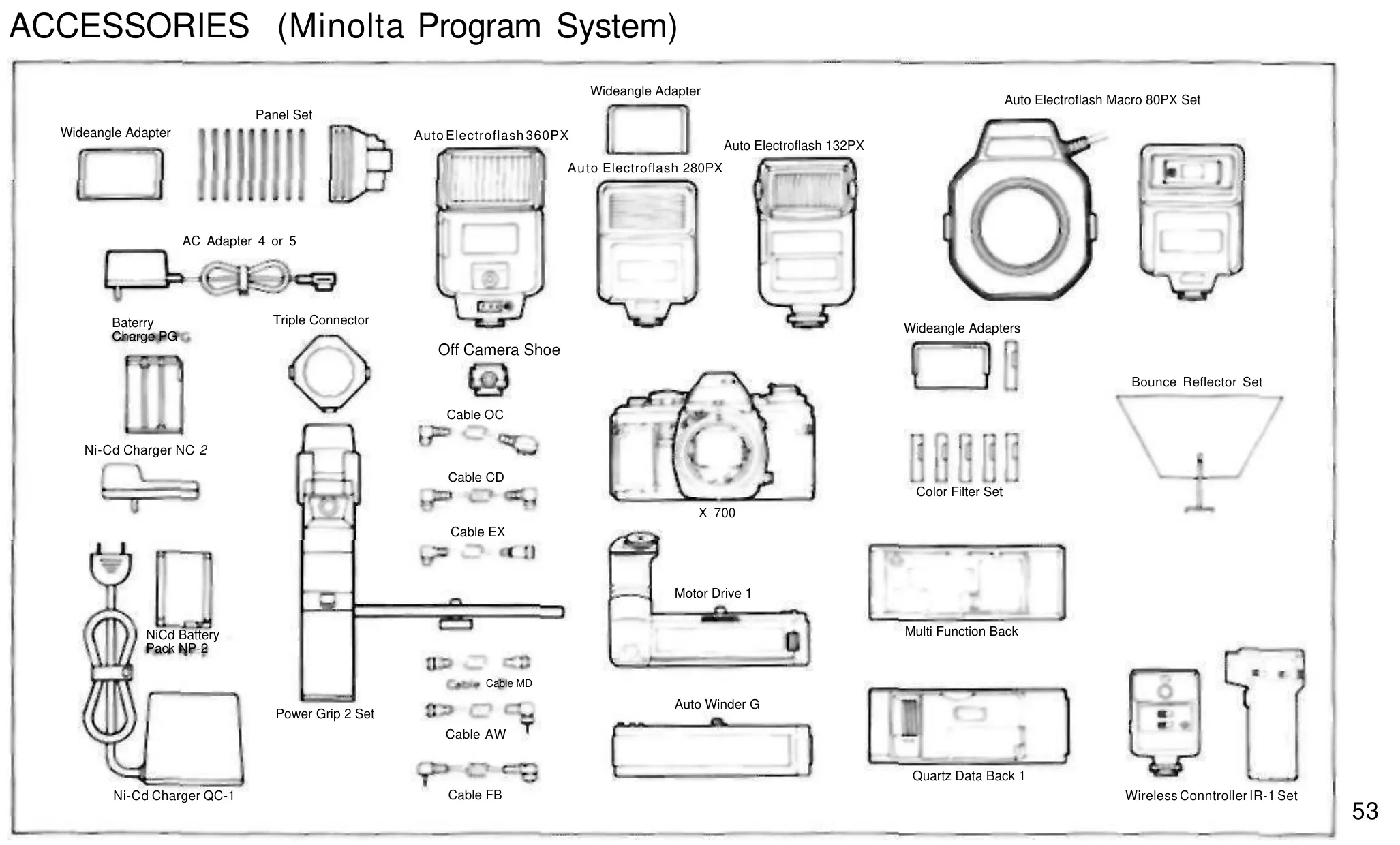

| Film Advance | Manual lever (130° stroke); Motorized via accessory Motor Drive 1 or Auto Winder G |
| Safe Load Signal | Visual indicator for film loading and advancing condition |

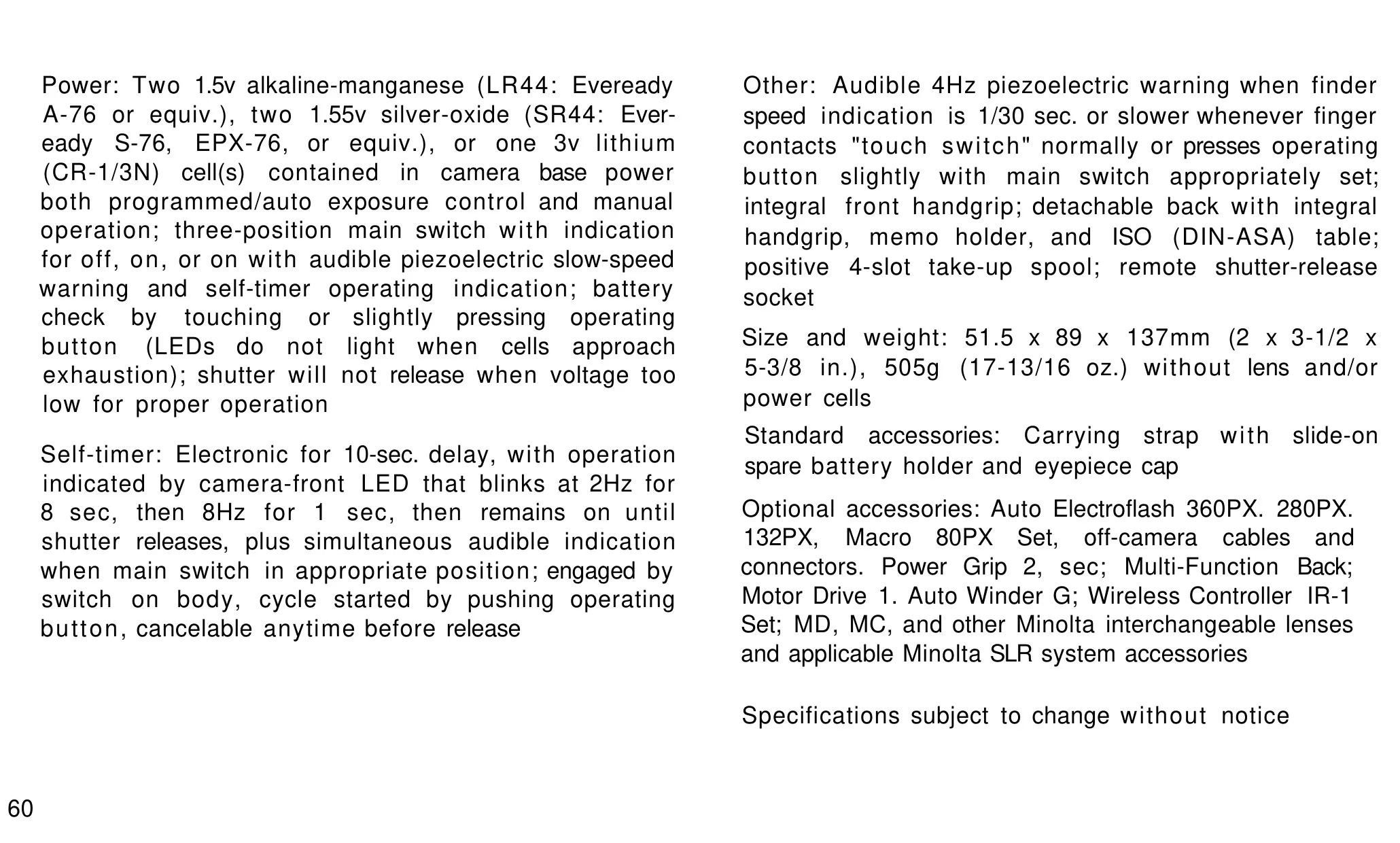

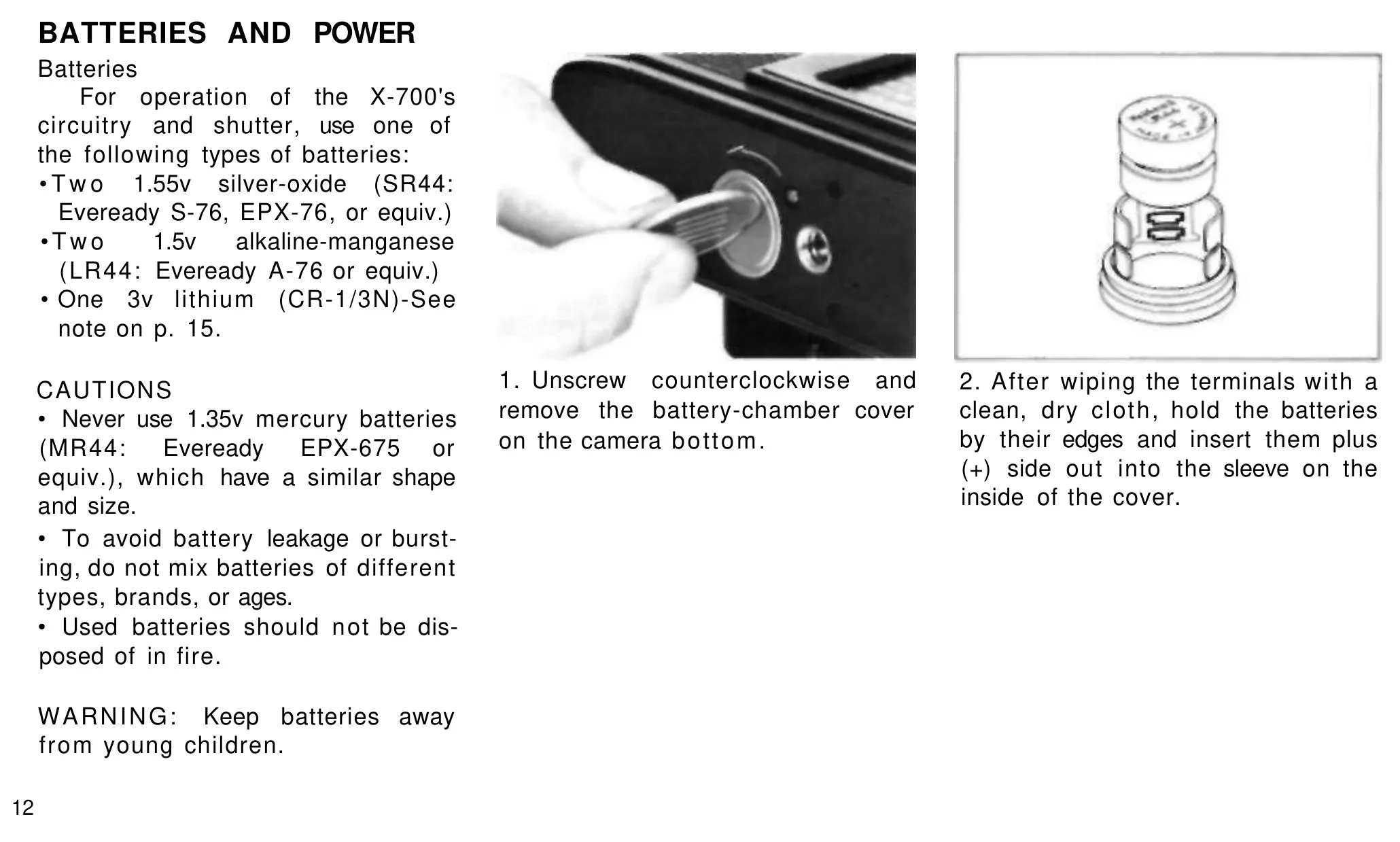

| Power Source | Two 1.5v LR44 alkaline-manganese, two 1.55v SR44 silver-oxide, or one 3v CR-1/3N lithium cell(s) |
| Self-Timer | Electronic, 10-sec delay, with visual LED and optional audible indication |
| Dimensions (WxHxD) | 137 x 89 x 51.5mm (5-3/8 x 3-1/2 x 2 in.) |
| Weight | 505g (17-13/16 oz.) without lens and/or power cells |
Minolta X 700 Analog SLR Camera Details

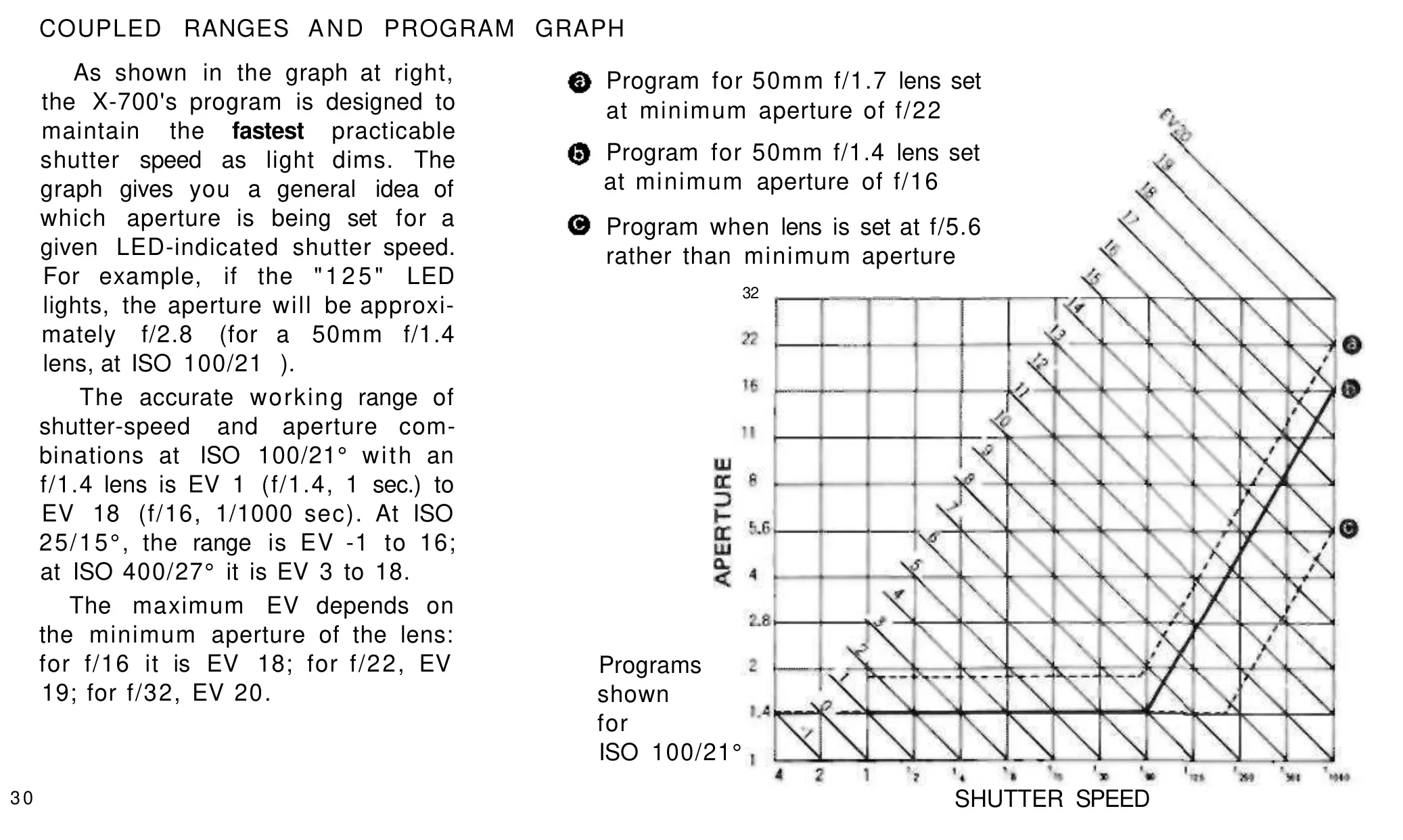

The Minolta X-700 introduces programmed auto-exposure (P mode) for effortless photography. The camera automatically selects both aperture and shutter speed, optimizing for faster speeds in dim light. An optional audible warning system helps prevent blur from camera or subject movement, making it ideal for casual users or capturing fast-paced action with ease.
For creative control, aperture-priority AE (A mode) allows photographers to set the aperture, directly influencing depth of field. The camera then precisely determines the stepless shutter speed for optimal exposure, metered continuously. This versatility supports a wide range of Minolta SLR lenses and accessories, including mirror lenses and close-up bellows.
Achieve complete photographic freedom with the metered/full-manual (M mode), where aperture and shutter speed are set independently. This mode is invaluable for specialized effects or challenging high-contrast scenarios where automatic systems may not suffice, empowering the photographer with ultimate creative control.

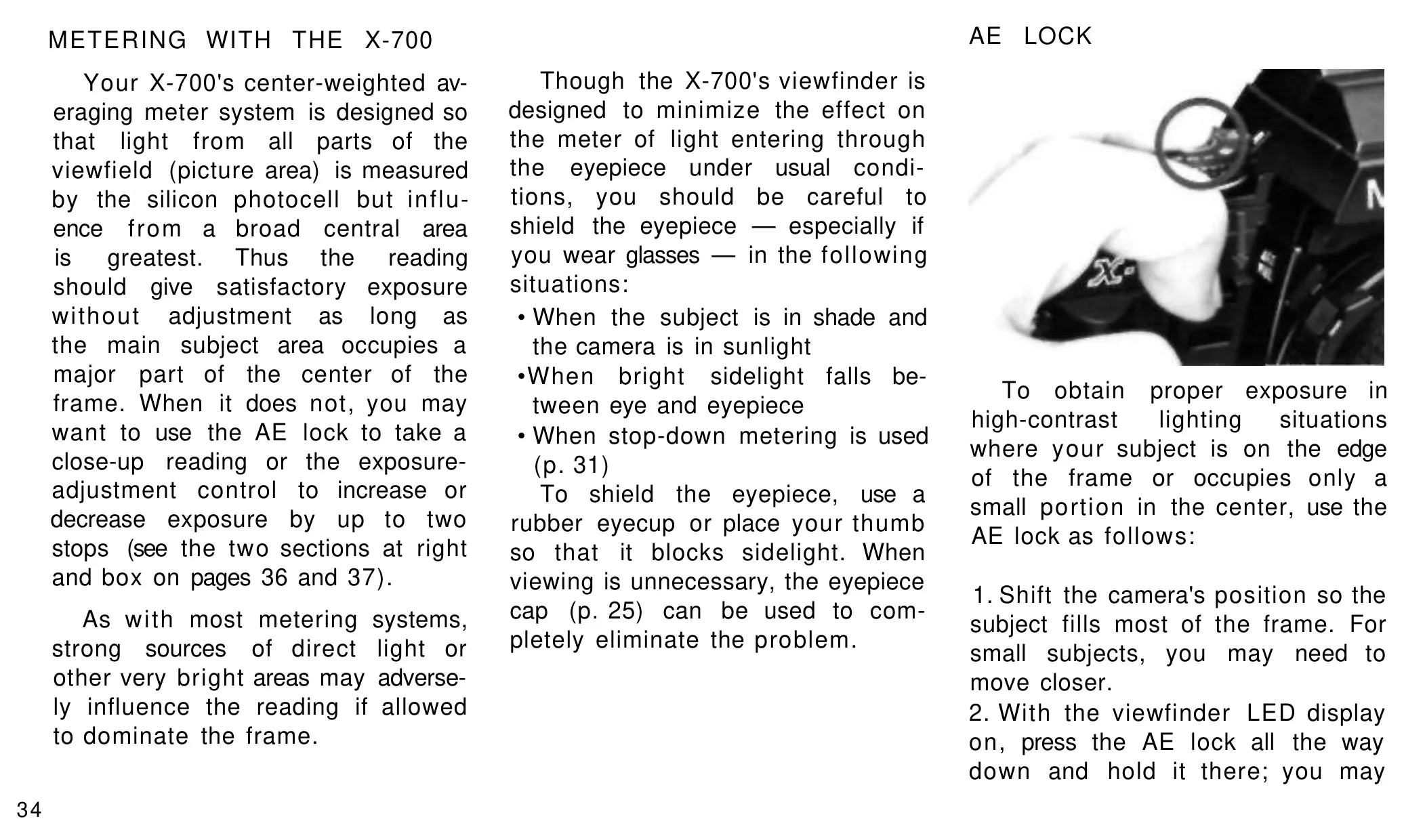

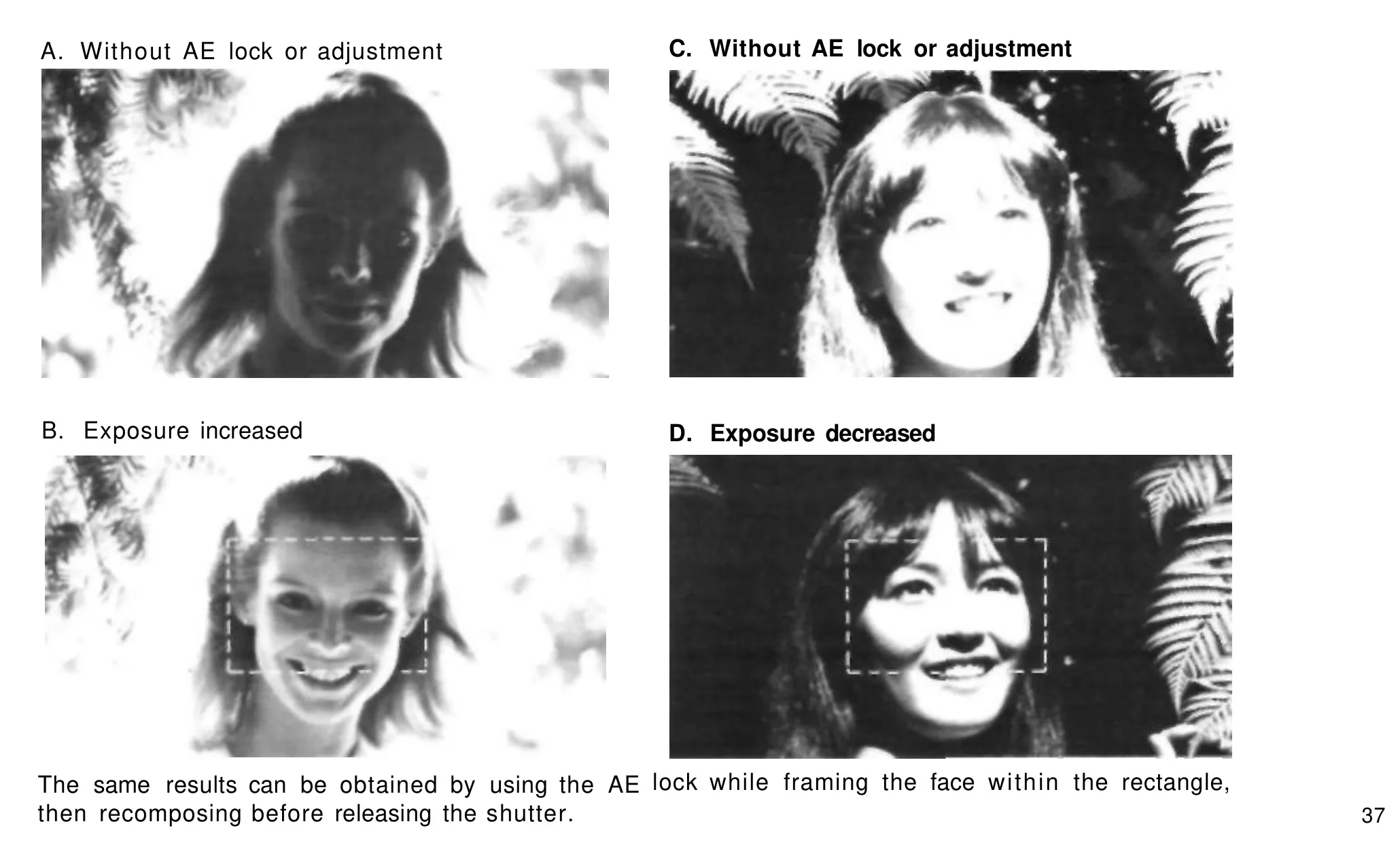

Enhancing the user experience, touch-switch metering activates viewfinder LEDs for 15 seconds after a light touch, facilitating settings adjustment. The AE lock function securely holds specific meter readings, crucial for accurate exposure when the main subject is off-center or in complex lighting conditions.

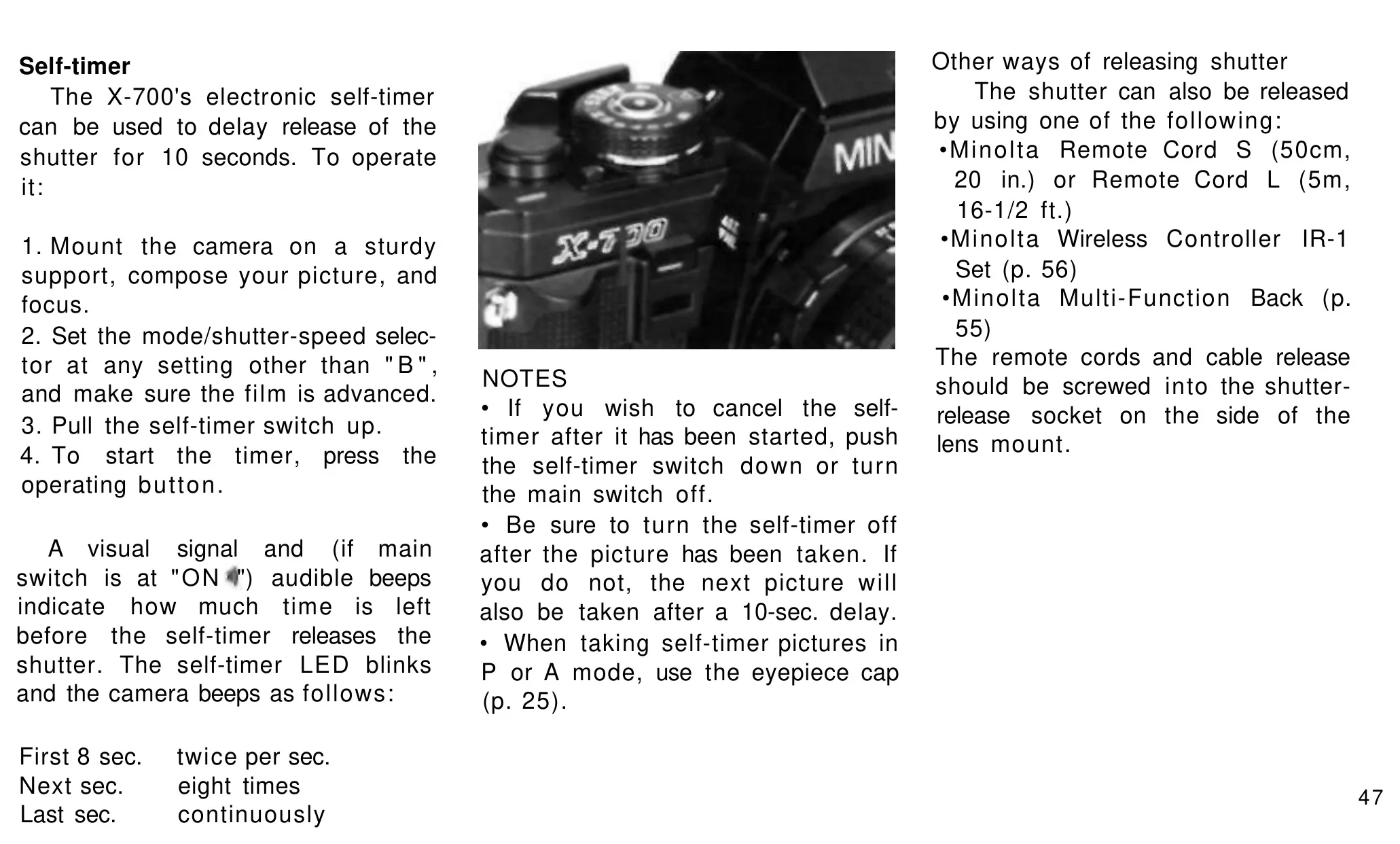

An exposure-adjustment control provides up to ±2 EV compensation, clearly indicated by a blinking LED. The electronic self-timer delays shutter release by 10 seconds, featuring a triple-rate visual LED and optional audible beeps, perfect for self-portraits or long exposures on a tripod.

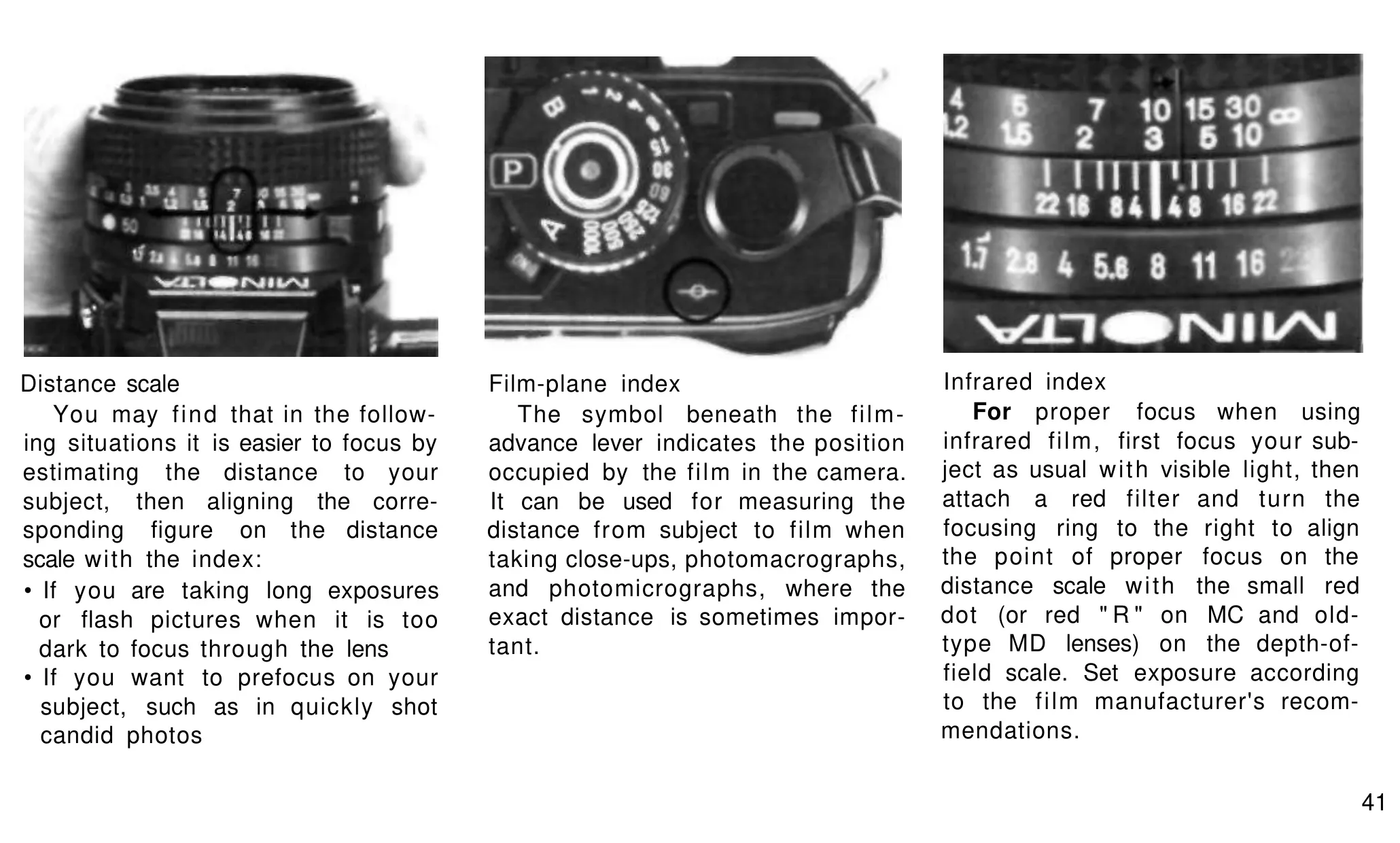

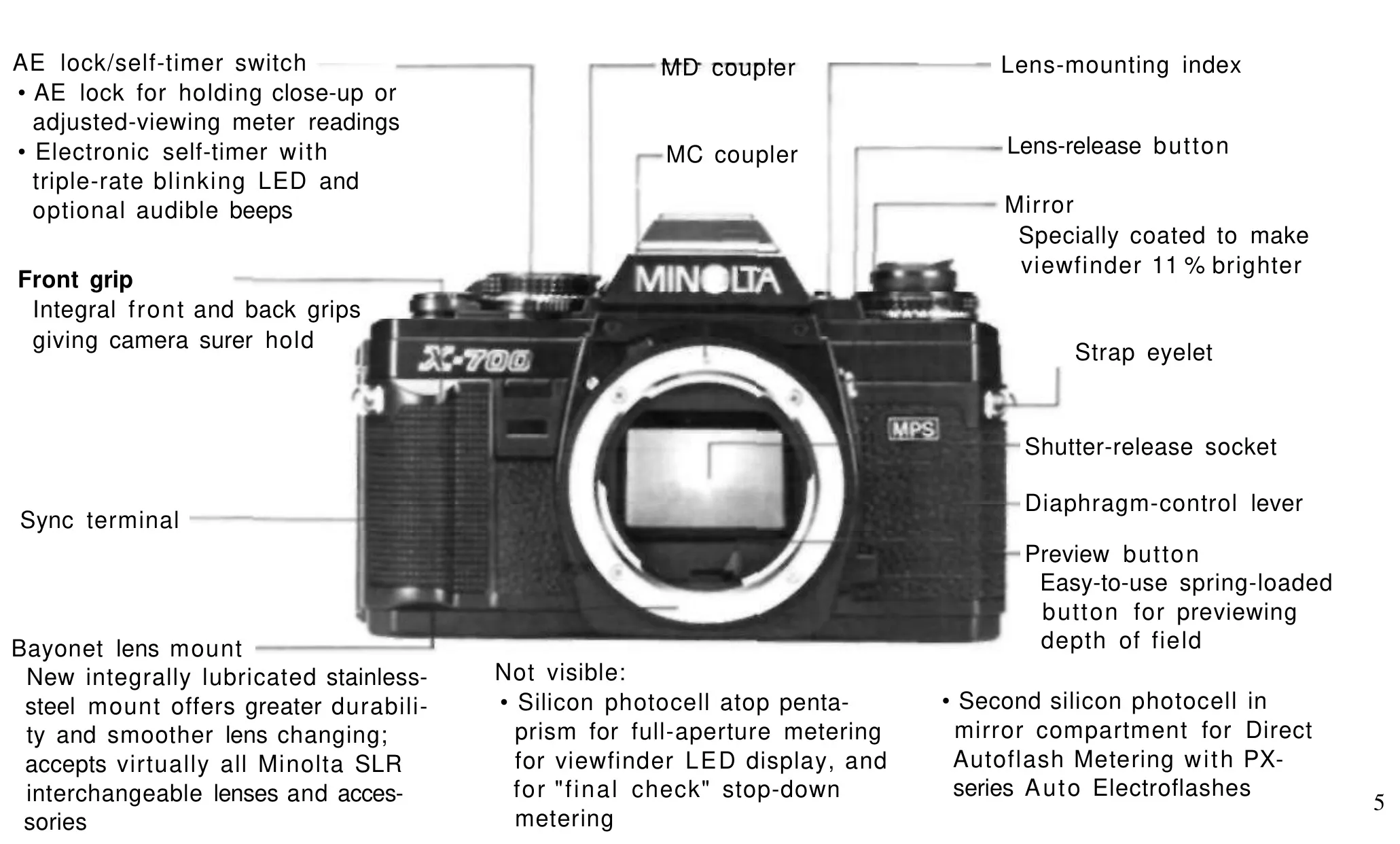

Focusing is aided by a split-image microprism spot and Acute Matte field in the viewfinder, offering 95% coverage and 0.9X magnification. This screen is interchangeable with eight specialized options. Integral front and back grips ensure a secure and comfortable hold, improving stability during shooting.

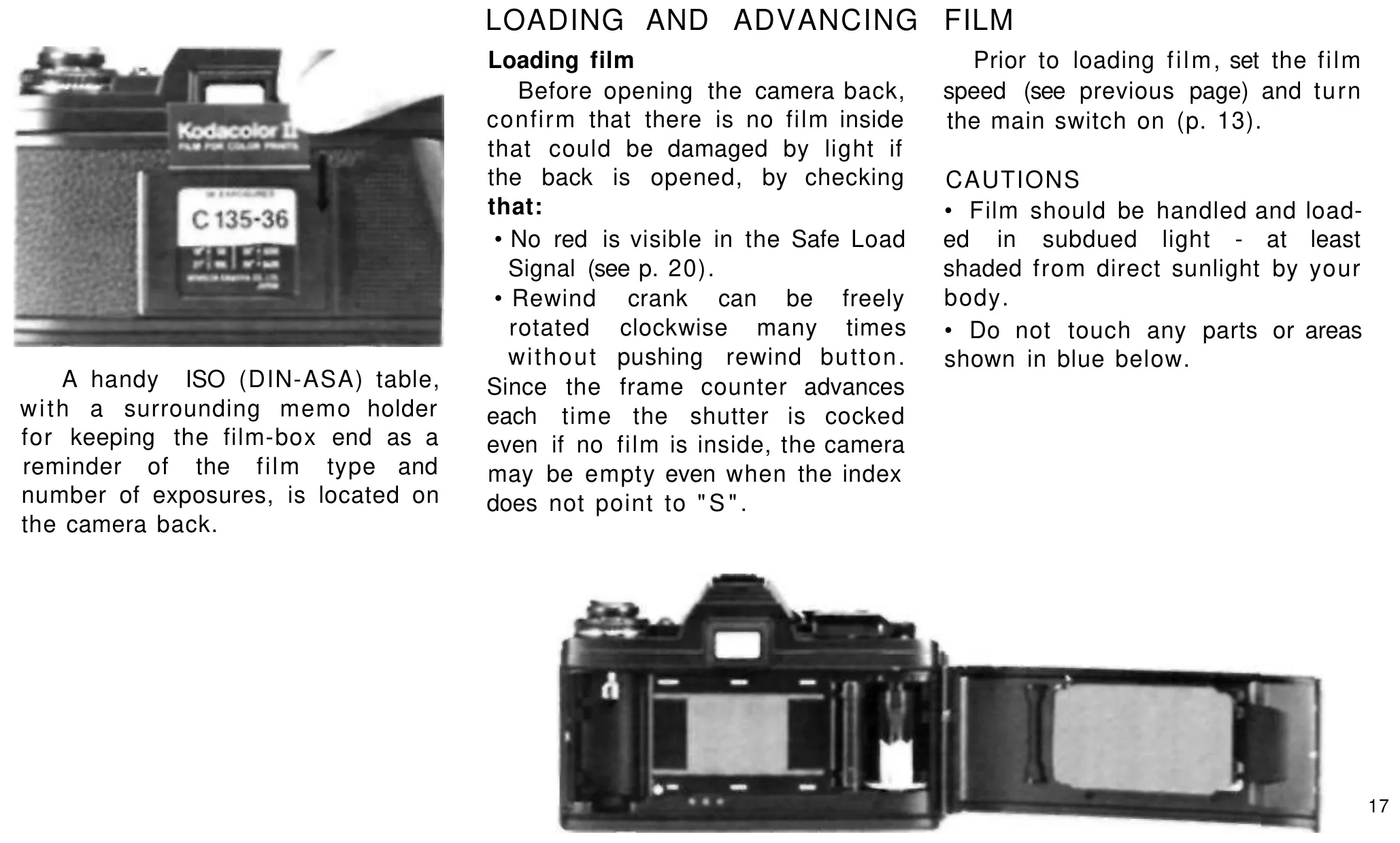

Film management is streamlined with the Safe Load Signal, a visual indicator ensuring correct film loading and advance, complemented by a new easy-load take-up spool. These thoughtful design elements simplify the preparation process, reducing film-related errors and enhancing overall usability for photographers.

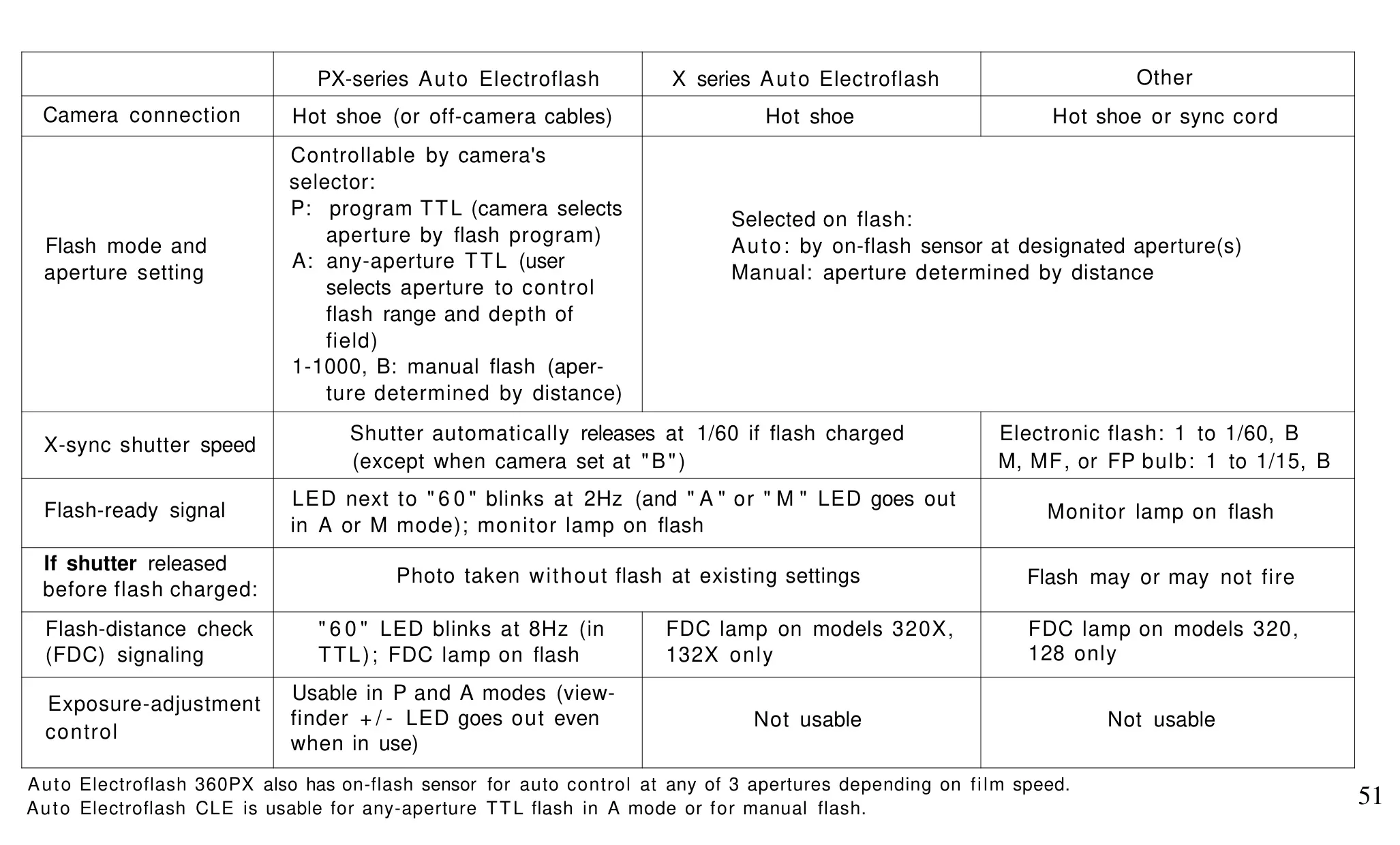

The X-700 excels in flash photography, leveraging Minolta's Direct Autoflash Metering system for through-the-lens (TTL) off-film flash control with PX-series units. This system allows programmed aperture selection in P mode or user-controlled aperture in A mode, offering creative flexibility for techniques like bounce flash or macro lighting. Viewfinder indicators confirm flash-ready and distance.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Minolta X 700 Analog SLR Camera, and we answer them below.
