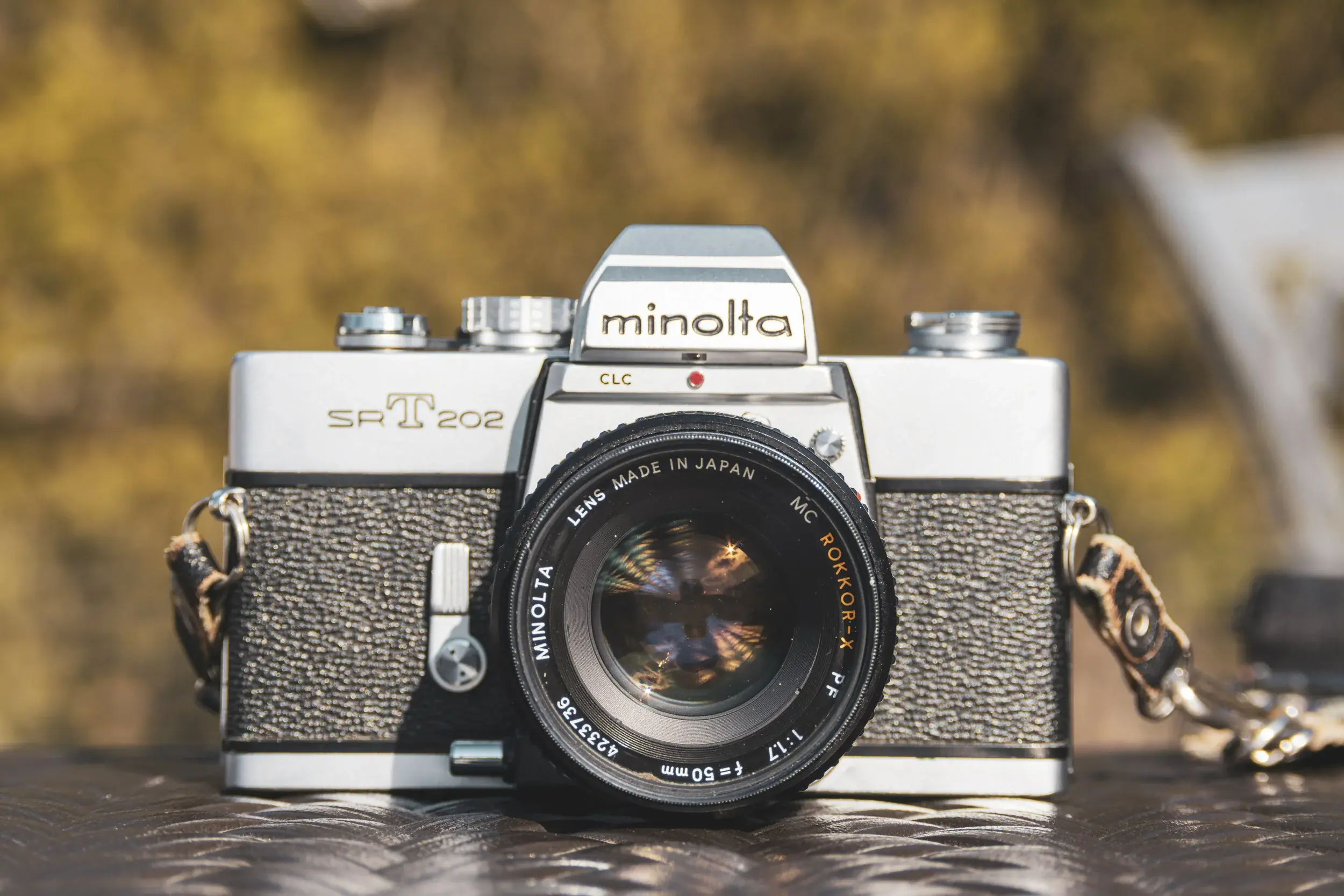

Product Images
Minolta SRT 202 Analog SLR Camera Specifications
| Feature | Specification |
|---|---|
| Type | 35mm single-lens reflex with match-needle/manual exposure control |
| Lens Mount | Minolta SLR bayonet, 54° rotating angle; coupling for full-aperture metering and automatic diaphragm control with "MC" lenses |
| Light Metering | Full-aperture TTL type with overlapping readings by 2 CdS cells (CLC system) |
| Film Speed Range | ASA 6 to 6400 (set by selector on shutter-speed dial) |
| Power | One 1.35V mercury cell (Eveready EPX-625 or equivalent) |
| Exposure Control | Match-needle (follower aligns with meter needle) or full manual |
| Metering & Match-Needle Range | EV 3 to EV 17 (e.g., 1/4 sec. at f/1.4 to 1/1000 at f/11) at ASA 100 with f/1.4 lens |
| Shutter | Horizontal-traverse mechanically controlled focal-plane type |
| Shutter Speeds | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000 sec. + "B" (bulb) |
| Mirror | Oversize quick-return type (PO value: 138mm) |
| Finder Type | Eye-level pentaprism, showing 94% of 24x36mm film-frame area |
| Finder Magnification | 0.83X with 50mm lens focused at infinity |
| Focusing Screen (SRT 202) | Mat-Fresnel-field with Ø2.5mm horizontal split-image spot surrounded by 1.5mm microprism band |
| Finder Indications (SRT 202) | Meter needle, follower, metering-range limits, battery-check, shutter-speed scale, lens aperture (f-number) |
| Flash Sync (SRT 202) | X or FP delay: through single PC terminal or hot shoe; X contact: Electronic flash at 1/60 sec. and slower; FP contact: FP flashbulbs at all settings through 1/1000 sec. |
| Film Advance | Lever type, single- or multiple-stroke, 150° winding angle (20° unengaged movement) |
| Exposure Counter | Advancing type, resets automatically when camera back is opened |
| Safe Load Signal (SLS) | Indicates film alignment and advancing condition (SRT 202 only) |
| Self-Timer | Lever-type, approx. 10 sec. maximum delay (SRT 201 & 202 only) |
| Multiple Exposures | Possible with rewind button (SRT 202 only) |
| Dimensions (W x H x D) | 145 x 47.5 x 95mm (5-3/4 x 1-7/8 x 3-3/4 in.) without lens |
| Weight | 710g (25 oz.) without lens |
| Standard Lens (Example) | Minolta 50mm f/1.4 MC Rokkor-X |
| Lens Construction | 7 elements in 5 groups |
| Lens Angle of View | 46° |
| Min. Focusing Distance | 0.5m (1.75 ft.) |
| Lens Diaphragm | Fully automatic, meter-coupled, with full and half click-stops |
| Filter Thread Diameter | 55mm |
| Lens Dimensions (Dia. x L) | 65mm x 46mm (2-9/16" x 1-13/16") |
| Lens Weight | 305g (10-3/4 oz.) |
Minolta SRT 202 Analog SLR Camera Details
Minolta's SRT 202 distinguishes itself with the CLC (Contrast Light Compensator) metering system. This exclusive design employs two CdS cells strategically mounted on the pentaprism, taking separate, overlapping light readings. Their unique circuit interaction intelligently balances these readings, providing optimal exposure across diverse lighting, including challenging high-contrast situations, often eliminating the need for manual adjustments. This sophisticated system essentially combines the advantages of both spot and averaging meters, simplifying complex lighting scenarios for photographers seeking consistent and accurate results without specialized techniques.
The camera offers remarkable lens versatility, supporting both modern and older optics within the Minolta SLR system. While Minolta MC (meter-coupled) lenses enable precise full-aperture TTL metering, ensuring maximum viewfinder brightness and metering accuracy, any other interchangeable Rokkor lens, including older Auto Rokkors or manual-diaphragm types, can be used effectively with the stop-down metering method. This extensive compatibility allows photographers to leverage Minolta’s entire ecosystem of high-quality, computer-designed lenses, all benefiting from their exclusive achromatic coating for superior image rendition and clarity.
For precise image composition and control, the SRT 202 features a highly functional viewfinder. It incorporates a bright split-image focusing spot surrounded by a microprism band, providing dual aids for achieving critical focus quickly and accurately across various subjects. This combination ensures images are sharp whether they possess strong vertical lines or more subtle textures. Additionally, the camera includes a dedicated depth-of-field preview button, empowering users to visually inspect the exact range of sharpness at the chosen aperture before capturing the image, which is invaluable for creative control.
Operational aspects are designed for user convenience and reliability, even in challenging environments. The camera is powered by a single 1.35V mercury battery, with a clear battery-check mark visible in the viewfinder for swift power status verification. For optimal performance in cold weather, using a fresh battery is strongly advised, and an "OFF" switch helps conserve power during periods of non-use. Film loading is further enhanced by the Safe Load Signal (SLS), a unique SRT 202 innovation that visually confirms correct film alignment and smooth advance, preventing wasted frames and ensuring peace of mind.
The SRT 202 incorporates several advanced features tailored for creative photographic expression and enhanced user experience. It offers multiple-exposure capability, allowing photographers to overlay several distinct images onto a single film frame with ease by utilizing the rewind button. The viewfinder provides a convenient aperture readout, displaying the selected f-number directly, alongside the shutter speed, for quick and comprehensive settings confirmation. A useful memo holder on the camera's back also allows for easy tracking of the loaded film type, preventing confusion.
Proper camera handling and care are crucial for longevity and performance. The manual emphasizes supporting the camera steadily, particularly at slower shutter speeds, and releasing the shutter with a slow, steady squeeze to prevent blur. For extremely long exposures, tripod mounting with a cable release is recommended. Users are also advised on essential maintenance, such as never forcing parts, keeping the camera in its case when not in use, and proper cleaning techniques for lenses and internal components, avoiding harsh chemicals.
