Minolta SRT 101 Analog SLR Camera Instruction Manual
Minolta SRT 101 Analog SLR Camera
Minolta SRT 101 Camera Instructions
Here we offer the Minolta SRT 101 Analog SLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Minolta SRT 101 Analog SLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Minolta SRT 101 Analog SLR Camera Specifications
| Specification | Detail |
|---|---|
| Camera Type | 35mm SLR (Single-Lens Reflex) |
| Lens Mount | Minolta SR (MC/MD) mount |
| Metering System | CLC (Contrast Light Compensator) full-aperture TTL (Through-The-Lens) metering with two CdS cells |
| Metering Range | EV 3 to EV 17 (ISO 100, f/1.4 lens) |
| Shutter Type | Horizontal-travel focal-plane shutter |
| Shutter Speeds | B, 1 to 1/1000 sec |
| Flash Sync Speed | 1/60 sec (X-sync) |
| ISO Sensitivity Range | 6 to 6400 (manual setting) |
| Viewfinder | Fixed eye-level pentaprism with microprism spot, split-image rangefinder, and ground-glass collar |
| Focusing Screen | Type P (split image/microprism) |
| Exposure Modes | Manual |
| Power Source | One PX625 1.35V mercury battery (for meter only) |
| Dimensions (Body Only) | Approx. 145 x 95 x 47.5 mm |
| Weight (Body Only) | Approx. 785g |

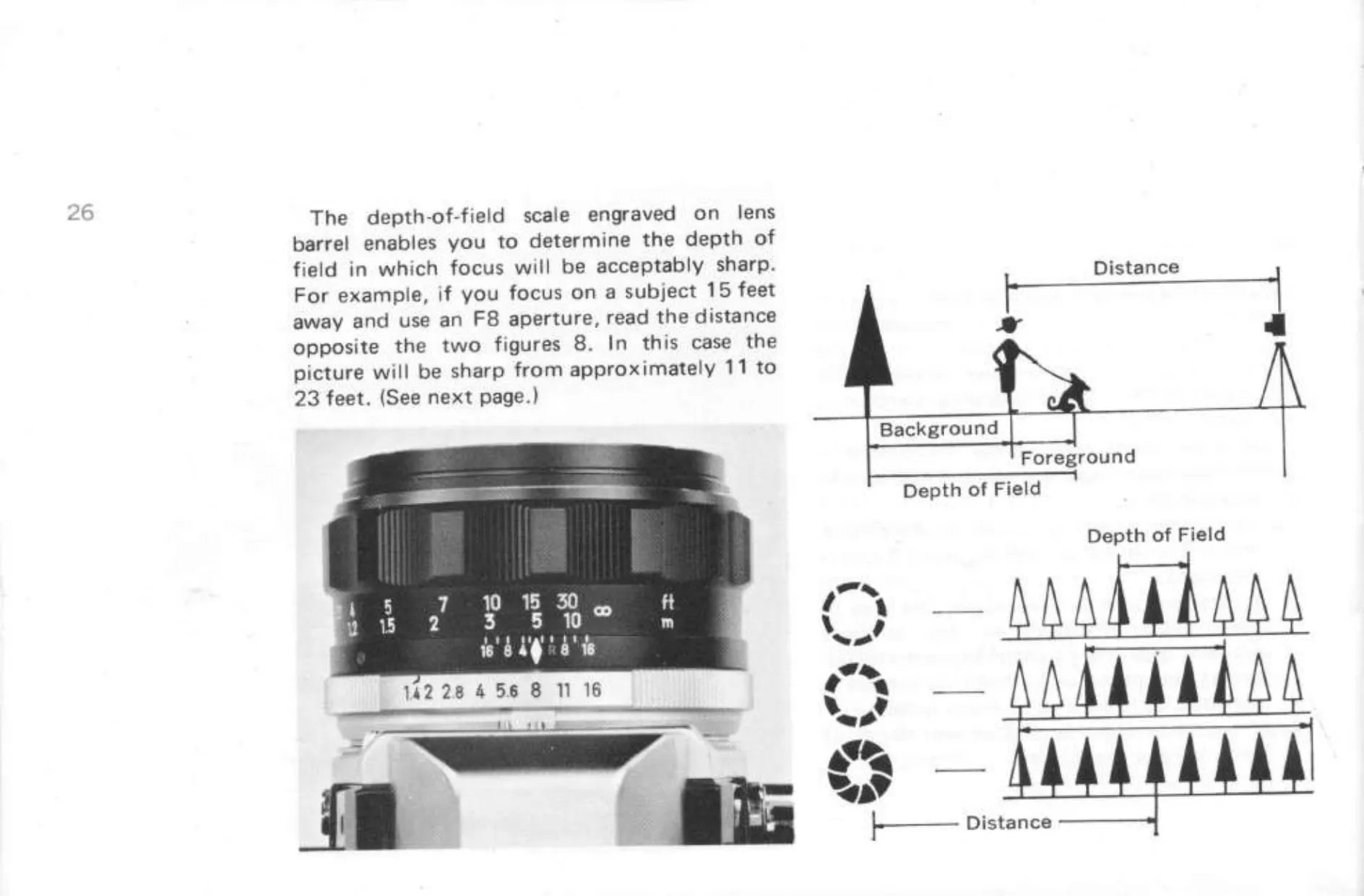

| Manual Snippet Data | Detailed Depth of Field Tables for various lenses, including a 55mm f/1.7 MC Rokkor lens. These tables provide precise near and far focus limits for specific subject distances (e.g., from 0.55m to infinity) and a range of aperture settings (e.g., F/1.7, F/2, F/2.4, F/2.8, F/4, F/5.6, F/8, F/11, F/16) to guide photographers in controlling the depth of the sharp focus area. |
Minolta SRT 101 Analog SLR Camera Details

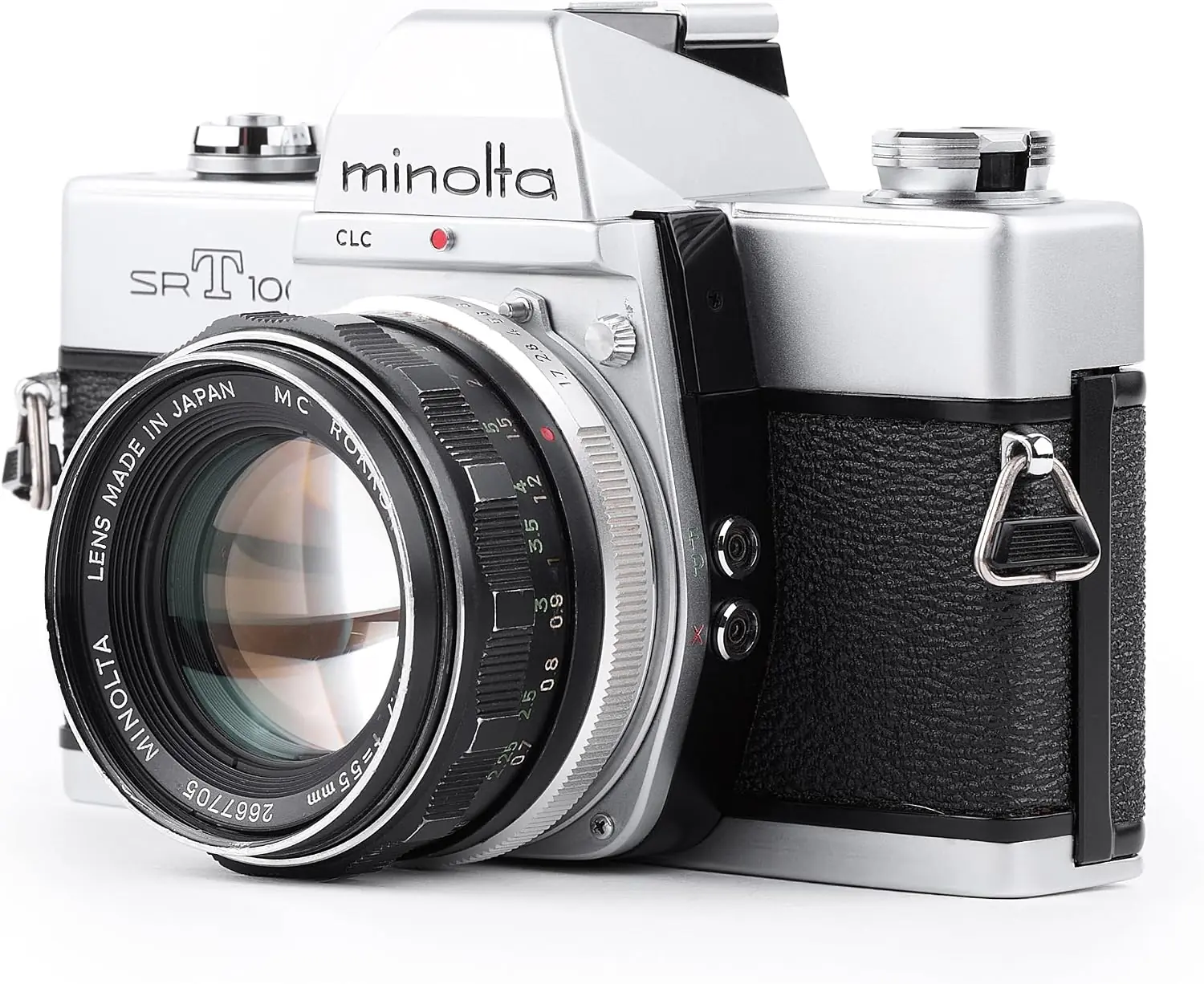

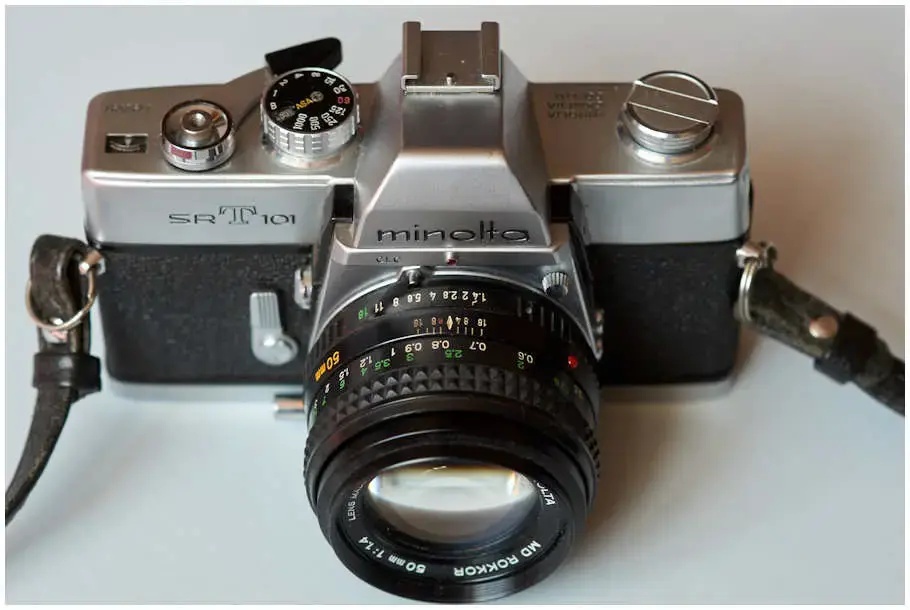

The Minolta SRT 101 stands as a highly regarded mechanical 35mm SLR camera, celebrated for its robust construction and intuitive operation. Introduced in 1966, it quickly established a reputation for reliability, making it a favorite among both amateur and professional photographers. Its entirely mechanical shutter ensures consistent performance even without a battery, which is only required for the built-in exposure meter. This design philosophy emphasizes durability and straightforward photographic control.
A key innovation in the SRT 101 was its "CLC" (Contrast Light Compensator) metering system. This groundbreaking technology utilized two CdS (Cadmium Sulfide) cells to measure light from different areas of the scene simultaneously. Unlike conventional averaging meters, the CLC system intelligently prioritized the darker areas of the frame while still accounting for brighter regions. This clever design helped to minimize overexposure of bright skies and prevent underexposure in shadow areas, resulting in more balanced and consistently accurate exposures for a wider range of challenging lighting conditions.
The camera's bright viewfinder provides a clear and comprehensive view of the scene. It typically features a microprism spot and a split-image rangefinder surrounded by a ground-glass collar, facilitating precise manual focusing. This combination allows photographers to achieve critical focus with ease, a crucial aspect for sharp images, especially when working with various lenses and challenging subjects. The viewfinder also conveniently displays the chosen shutter speed and aperture.
Operating the SRT 101 is straightforward, with dedicated dials for shutter speed, aperture, and ISO settings. Its horizontal-travel focal-plane shutter offers a comprehensive range of speeds from 1 second to an action-stopping 1/1000th of a second, plus Bulb mode for extended exposures. The flash synchronization speed is a reliable 1/60th of a second, compatible with various external flash units, expanding its versatility for different lighting scenarios and creative setups.
The camera boasts the robust Minolta SR (MC/MD) mount, granting access to a vast array of high-quality Minolta Rokkor lenses. These lenses are renowned for their superior optical performance, sharpness, and pleasing bokeh, a characteristic often sought after by photographers. The SRT 101's compatibility with a broad lens ecosystem ensures photographers can choose optics suited for everything from wide-angle landscapes to telephoto portraits, enhancing creative possibilities without limitation.
Another practical feature is the mirror lock-up capability. This allows the photographer to manually raise the reflex mirror before the exposure, thereby eliminating potential vibrations caused by the mirror's movement during critical moments. This is particularly useful in situations like macro photography, long-exposure shots, or when using long telephoto lenses on a tripod, where even the slightest vibration can significantly degrade image sharpness. It's a testament to its thoughtful design for serious photography.
The build quality of the SRT 101 is legendary, contributing significantly to its lasting appeal. Its all-metal construction contributes to its substantial feel and impressive longevity, ensuring it can withstand years of regular use in diverse environments. Many original SRT 101 cameras remain fully functional and highly prized today, a testament to Minolta's exceptional engineering prowess. Its purely mechanical shutter, independent of the battery, means photos can still be captured reliably even if the meter battery unexpectedly dies.
