Minolta SRT 200 Analog SLR Camera Instruction Manual
Minolta SRT 200 Analog SLR Camera
Minolta SRT 200 SLR Camera Instructions
Here we offer the Minolta SRT 200 Analog SLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Minolta SRT 200 Analog SLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

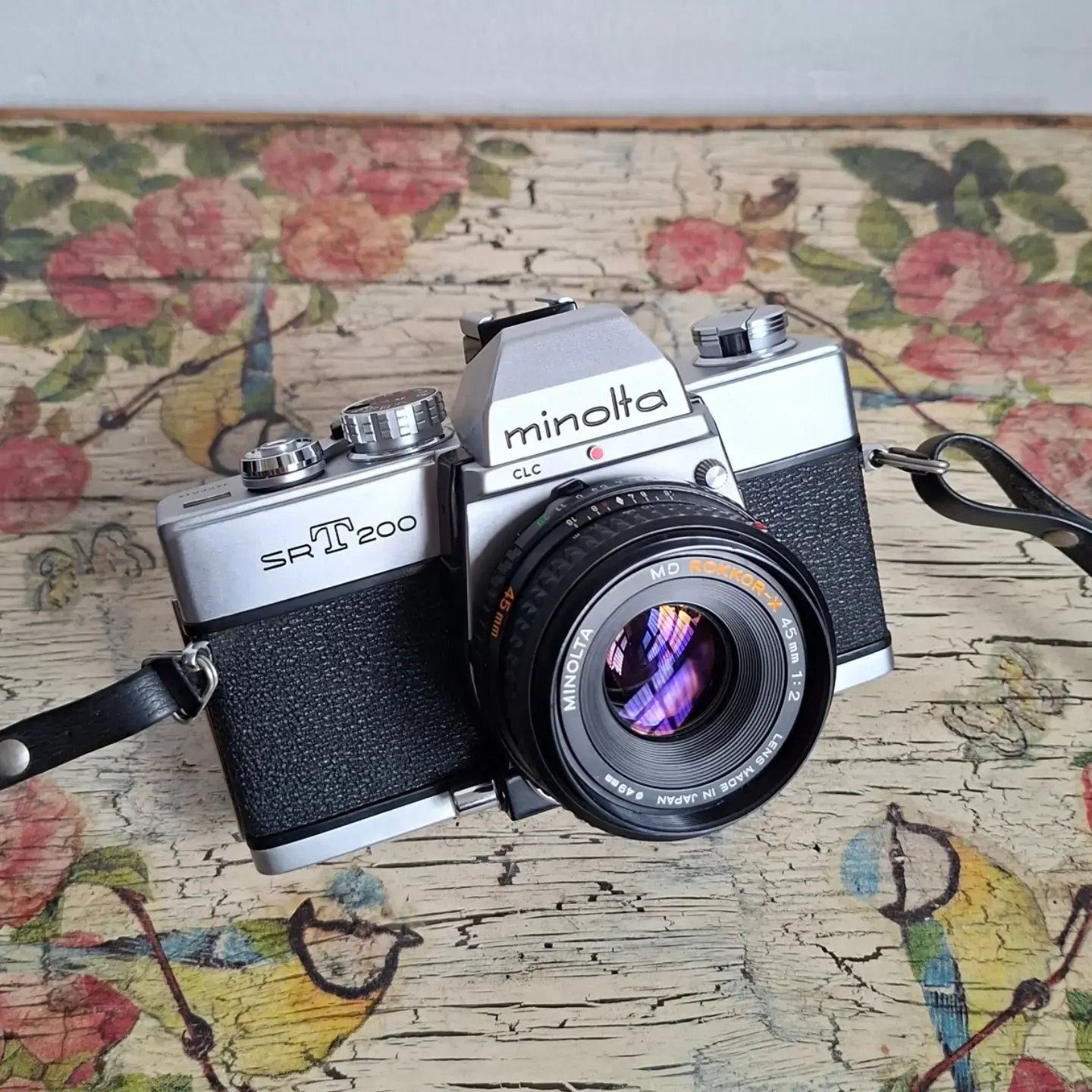

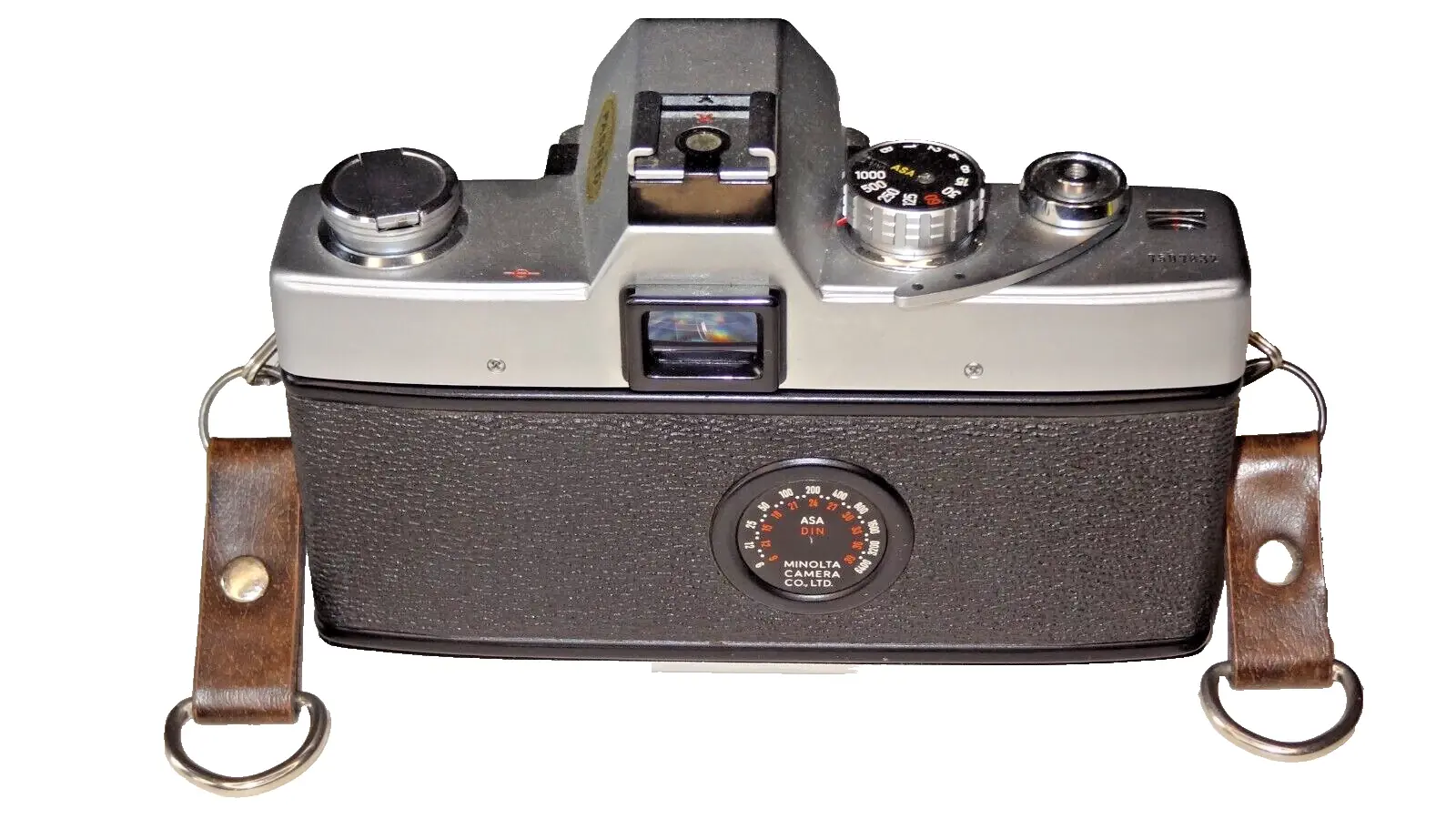

Product Images
Minolta SRT 200 Analog SLR Camera Specifications
| Feature | Specification (Minolta SRT 200) |
|---|---|
| Camera Type | 36mm Single-Lens Reflex (SLR) |
| Lens Mount | Minolta SLR Bayonet (54° rotating angle) |
| Standard Lens Included | 50mm f/2 MC Rokkor-X |
| Standard Lens Construction | 6 elements in 5 groups |
| Standard Lens Min. Focusing Dist. | 0.5m (1.75 ft.) |
| Standard Lens Filter Thread Diam. | 55mm |
| Light Metering | Full-aperture TTL (Through-The-Lens) with Minolta's CLC (Contrast Light Compensator) system (2 CdS cells on pentaprism) |
| Film Speed Range | ASA 6 to 6400 |
| Power Source | One 1.35v mercury cell (Eveready EPX-625 or equivalent) |
| Exposure Range (Metered) | EV 3 to EV 17 (e.g., 1/4 sec. at f/1.4 to 1/1000 at f/11) at ASA 100 with f/1.4 lens |
| Shutter Type | Horizontal-traverse, mechanically controlled focal-plane |
| Shutter Speeds | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000 sec. + "Bulb" (B) |
| Mirror | Oversize quick-return type |
| Viewfinder Type | Eye-level pentaprism |
| Viewfinder Coverage | 94% of 24 x 36mm film-frame area |
| Viewfinder Magnification | 0.83X with 50mm lens focused at infinity |
| Focusing Screen | Mat-Fresnel-field with centered Ø3mm microprism spot |
| Viewfinder Information | Meter needle, circle-tipped follower, metering-range limits, battery-check indication |
| Flash Synchronization | Separate PC terminals for X and FP delay |
| X-Sync. Speed | 1/60 sec. (and all slower settings including B) |
| Film Advance | Lever type, single- or multiple-stroke, 150° winding angle |
| Exposure Counter | Advancing-type, automatically resets when camera back is opened |
| Self-timer | Not included |
| Multiple Exposure Capability | Not included |
| Camera Dimensions (W x H x D) | 145 x 47.5 x 95mm (5-3/4 x 1-7/8 x 3-3/4 in.) without lens |
| Camera Weight | 690g (24-5/16 oz) without lens |
Minolta SRT 200 Analog SLR Camera Details
The Minolta SR-T 200 distinguishes itself with its sophisticated through-the-lens (TTL) exposure system, featuring Minolta's exclusive CLC (Contrast Light Compensator) metering system. This innovative system utilizes two CdS cells mounted on the pentaprism, which take separate, overlapping light readings. These readings are circuited to automatically provide optimal exposure in various lighting conditions, including high-contrast situations, typically without requiring special adjustments from the photographer.
For exposure control, the SR-T 200 employs an intuitive match-needle system visible within the viewfinder. Users simply adjust the shutter-speed dial and/or lens aperture ring until a circletipped follower aligns with the meter needle. This method ensures accurate exposure at a glance, allowing photographers to quickly adapt to changing light. The viewfinder also displays metering range limits and a battery-check mark, keeping essential information readily accessible.
The camera is designed for seamless integration with Minolta's extensive lens system. While its standard 50mm f/2 MC Rokkor-X lens allows for full-aperture TTL metering, the SR-T 200 can also utilize any other interchangeable Rokkor lens by employing a stop-down metering method. All Minolta lenses are renowned for their top quality, computer design, and exclusive Achromatic coating, ensuring excellent optical performance across the range.
Beyond its core functionalities, the SR-T 200 offers practical features for photographic precision. A depth-of-field preview button allows photographers to visually assess the zone of sharp focus at the chosen aperture before taking the shot. Additionally, an infrared index is marked on the lens barrel, providing a specific alignment point for accurate focus when shooting with infrared film, a niche but valuable capability.
Proper film handling is also emphasized in the manual. The loading process involves carefully guiding the film leader onto the take-up spool and confirming proper advance by observing the rotation of the rewind crank. For flash photography, the SR-T 200 provides separate PC terminals for X and FP synchronization, allowing flexibility with different flash types. The recommended X-sync speed for electronic flash is 1/60 second, indicated by a red "60" on the shutter dial.
Though the SR-T 200 is a robust camera, its manual also outlines crucial care and storage guidelines. These include never forcing any parts, always keeping the camera in its case with the lens capped when not in use, and avoiding shocks or extreme environmental conditions. Proper cleaning techniques for lens surfaces and the camera body, along with advice on battery removal for long-term storage, ensure the longevity and optimal performance of this classic analog SLR.
