Lowrance Hook-7 Fishfinder Instruction Manual
Lowrance Hook-7 Fishfinder
Lowrance Hook-7 Fishfinder
Lowrance Hook-7 Fishfinder Instructions
Here we offer the Lowrance Hook-7 Fishfinder manual completely free and in English. We have cataloged this manual in the Fishfinders section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Lowrance Hook-7 Fishfinder, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

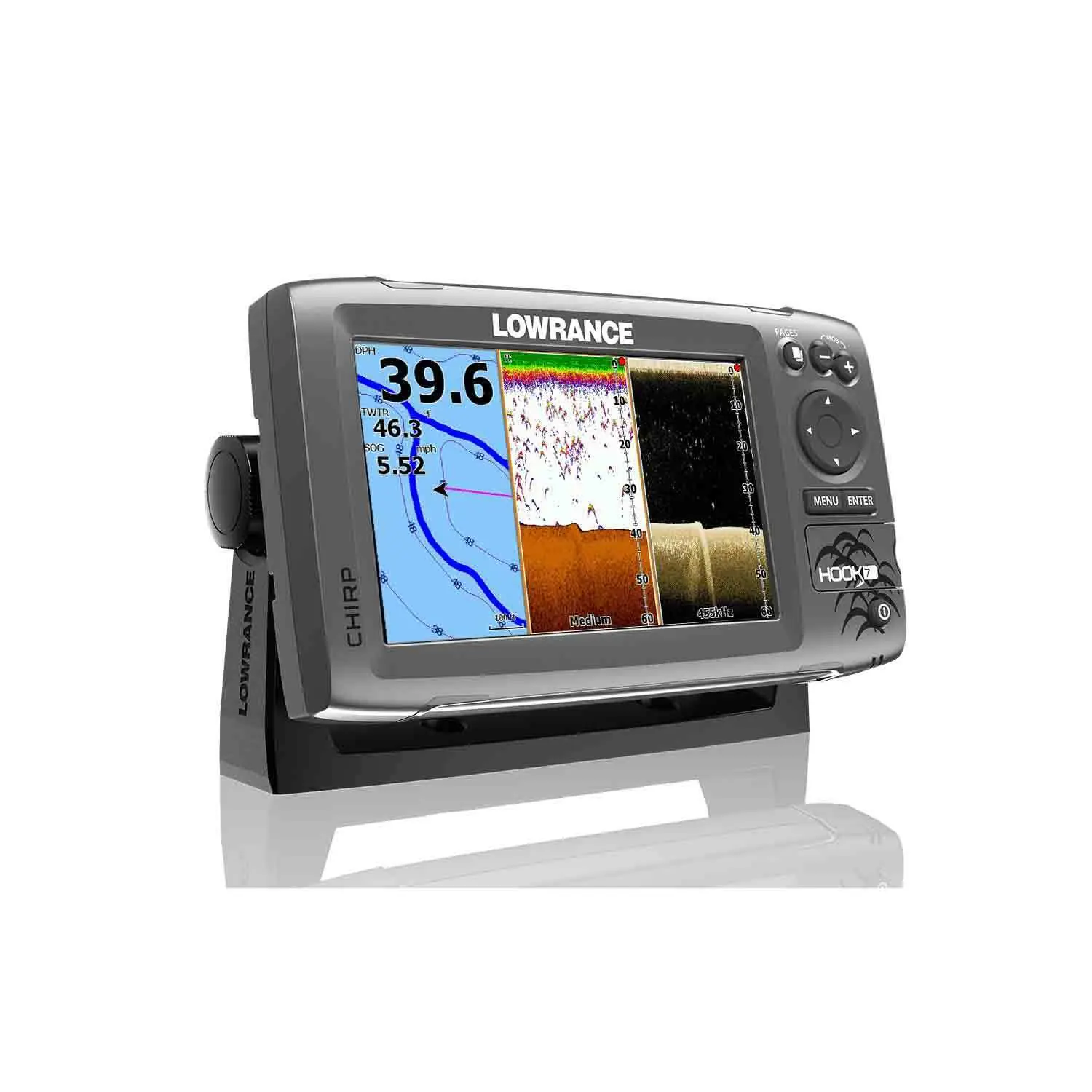

Product Images
Lowrance Hook-7 Fishfinder Specifications
| Feature | Specification |
|---|---|
| Model | Lowrance HOOK-7 (HOOK Series) |
| Case Size | 5.3" H (136 mm) x 9.2" W (234 mm); 5.9" H (151 mm) with bracket |
| Display | 7" diagonal, 16-bit color Full VGA Solar MAX™ TFT |
| Display Resolution | 800 x 480 pixels |
| Waterproof Standard | IPX7 |
| Backlight | LED (11 levels) |
| Communications | NMEA 0183 Input/Output (optional Power/NMEA cable 000-0127-49) |
| Regulatory Mark | 0191 |
| Transmit Power | 500 W RMS |
| Power Requirement | 12 V |
| Voltage Input | 10 to 17 V |
| Current Drain | Typical: 1.1 A |
| Fuse Type | 3-amp Automotive |
| Max Depth (455/800 kHz DownScan) | 300 ft (91 m) |
| Max Depth (83/200 kHz) | 1000 ft (305 m) |
| Max Depth (50/200 kHz) | 2500 ft (762 m) |
| Max Speed | 70 mph |
| Available Transducer Frequencies | HDI 50/200 kHz (Low/High CHIRP); HDI 83/200 kHz (Medium/High CHIRP); 83/200 kHz (Medium/High CHIRP) |
| DownScan Frequencies | 455 kHz and 800 kHz |
| Supported Sonar Types | Conventional, CHIRP (Low, Medium, High) and DownScan |
| Transducer Cable | 20 ft (6 m) |
| Mapping Card Slot | microSD and microSDHC |
| GPS Antenna | 16 parallel channel (internal) |
| Satellite Correction | WAAS/MSAS/EGNOS (selectable in Advanced mode) |
| Mapping Compatibility | Lake Insight® and Nautic Insight® PRO, Navionics® +, C-MAP MAX-N, Fishing Hot Spots® PRO, Insight Genesis |
| Waypoints | Up to 3000 |
| Routes | 100 routes, up to 100 waypoints per route |
| Trails | 100 retraceable plot trails, up to 10,000 points per trail |
| Pre-configured Combo Pages | 4 (Chart/Sonar, Chart/Downscan, Sonar/Downscan, Chart/Sonar/Downscan) |
| Custom Range Minimum Span | 6.5 ft (2 m) between upper and lower limits |

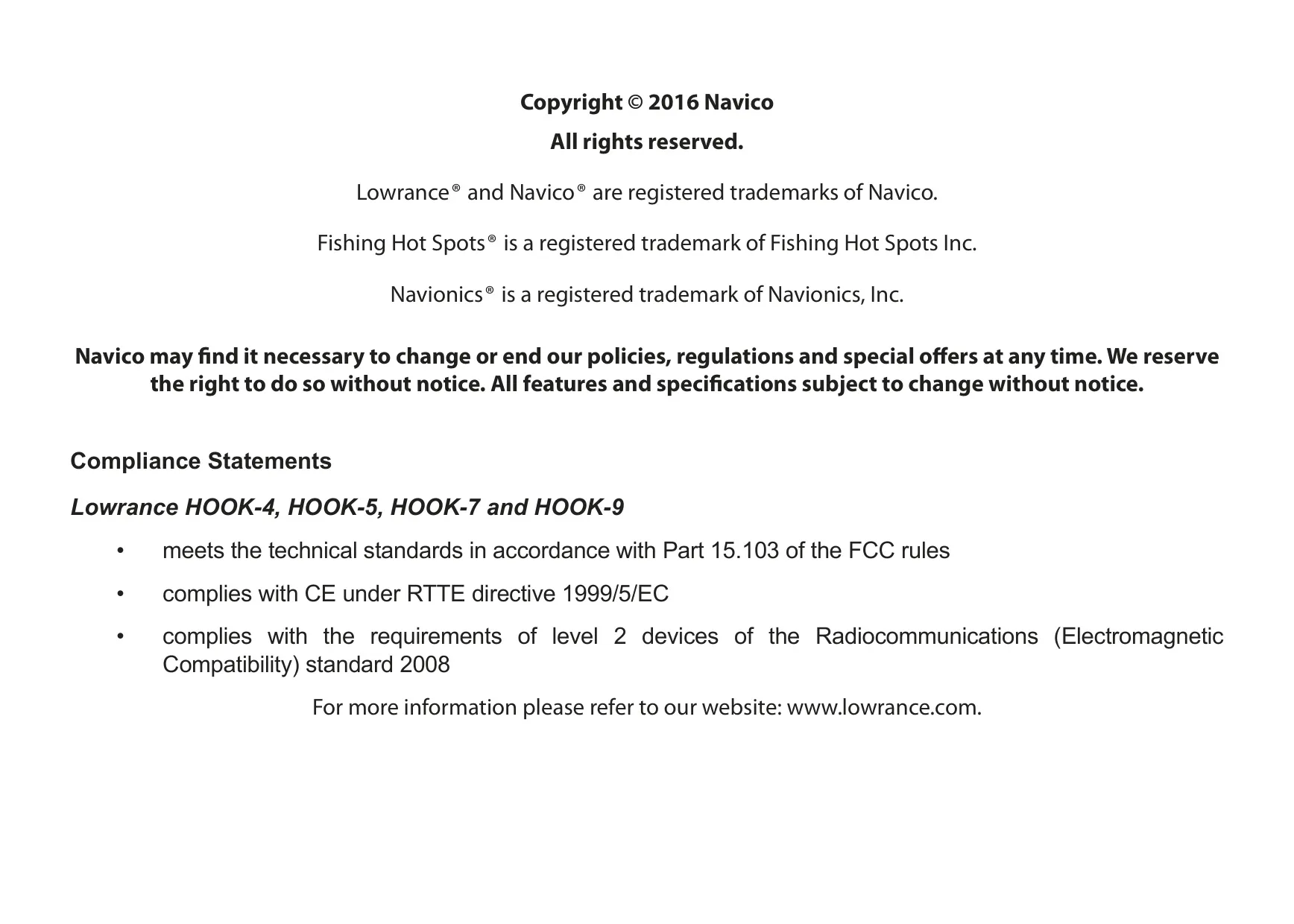

| Compliance | FCC Part 15 (Class B), CE under RTTE directive 1999/5/EC, Radiocommunications (EMC) standard 2008 level 2 |
Lowrance Hook-7 Fishfinder Details
The Lowrance Hook-7 uses a simple set of physical controls: a LIGHT/POWER key, a directional keypad, and the PAGES, MENU, ENTER and ZOOM keys. To turn the unit on or off, press and hold LIGHT/POWER for three seconds. Pressing both Zoom keys at once saves a Man Overboard waypoint and automatically creates an active route back to it. When the unit is first powered on, a Setup wizard runs, and you can launch it again later by restoring defaults.
The Fishing modes are preset packages of conventional sonar settings. The options are General Use (1000 ft or less), Shallow Water (60 ft or less), Fresh Water, Slow Trolling, Fast Trolling, Clear Water, Brackish Water and Ice (all 400 ft or less), plus Deep Water (1000 ft or more). Lowrance recommends Fresh Water mode in water under 100 feet deep so the unit tracks the bottom properly. Reset fishing mode clears any changes you have made and restores that mode's defaults.

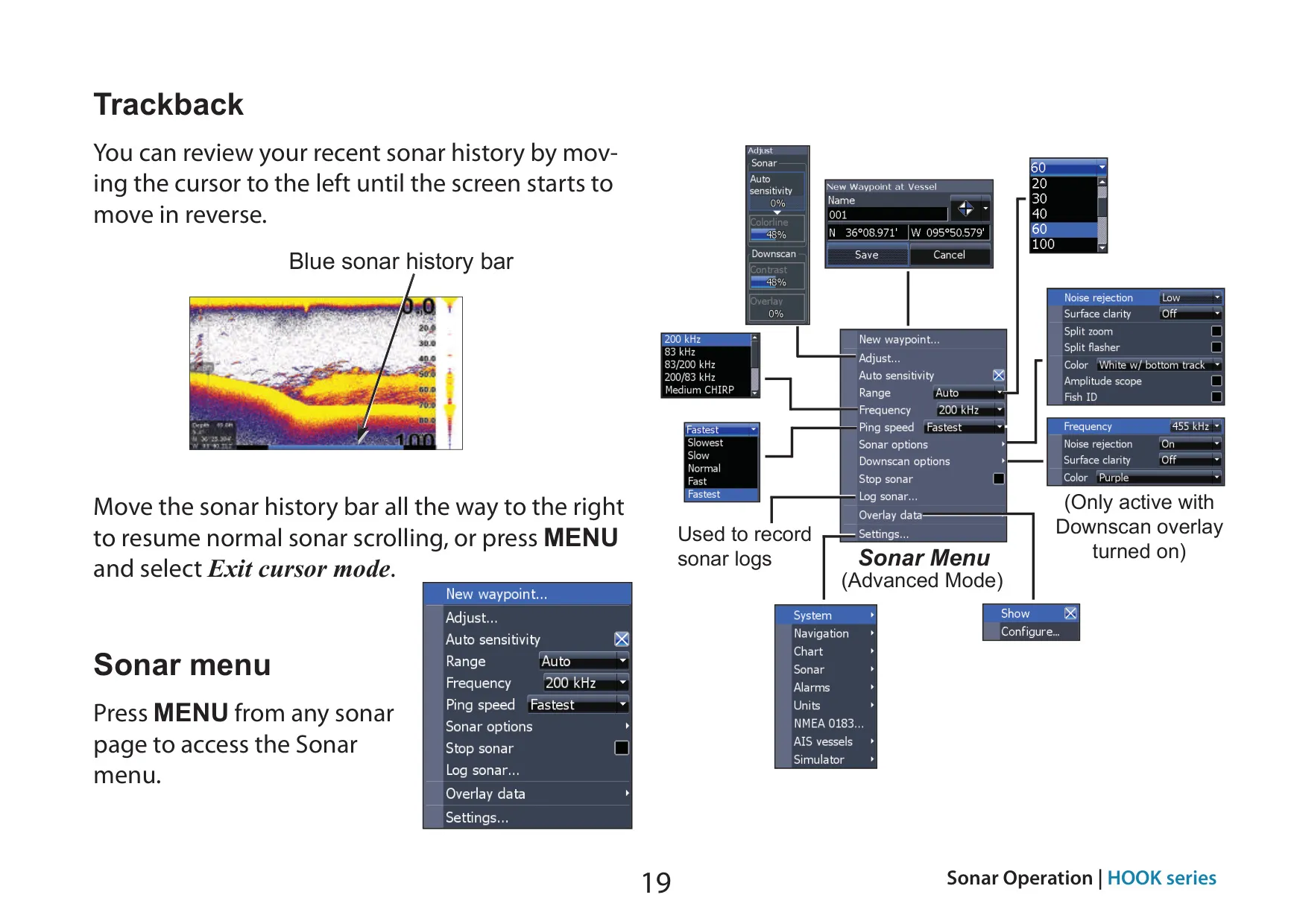

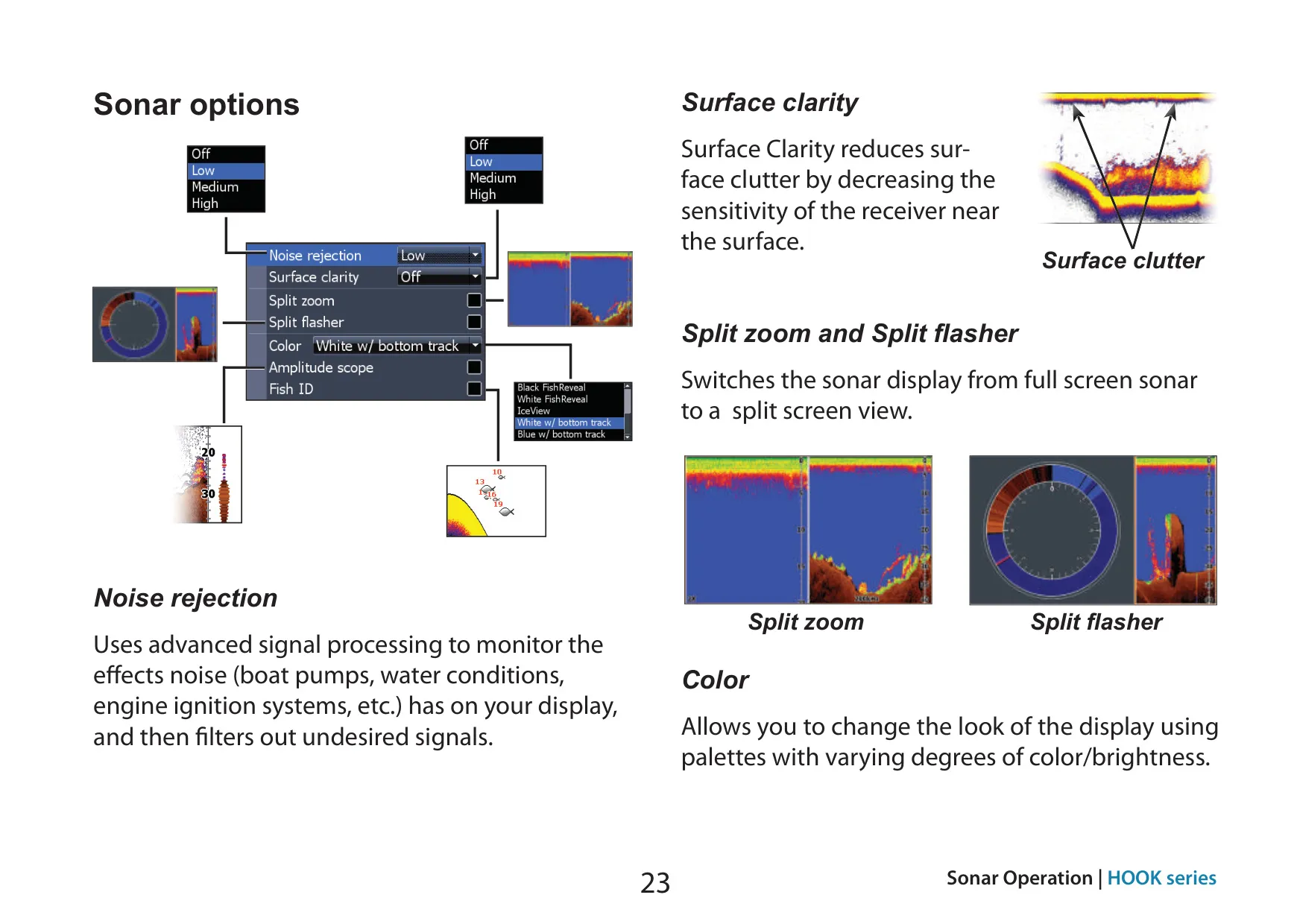

The conventional sonar menu has adjustments for Sensitivity and Colorline. Auto Sensitivity is on by default and still lets you change sensitivity by about +/-40%. The Trackback feature lets you scroll back through recent sonar history by moving the cursor left. Other tools include Noise Rejection, Surface Clarity, Split Zoom, Split Flasher, an Amplitude Scope and Fish ID, which shows echoes as fish symbols. The manual warns that Fish ID can show debris or structure as fish.
The DownScan page adds a Contrast control and color palettes suited to different conditions. White works well for suspended targets, Purple shows structure detail and bottom hardness, and Sepia is best for bottom detail. You can also overlay DownScan on the conventional sonar page. Stop sonar stops the transducer from transmitting, which prevents interference when two sonar units run on the same boat. Sonar logs can be recorded to a microSD card at a quality level you choose.

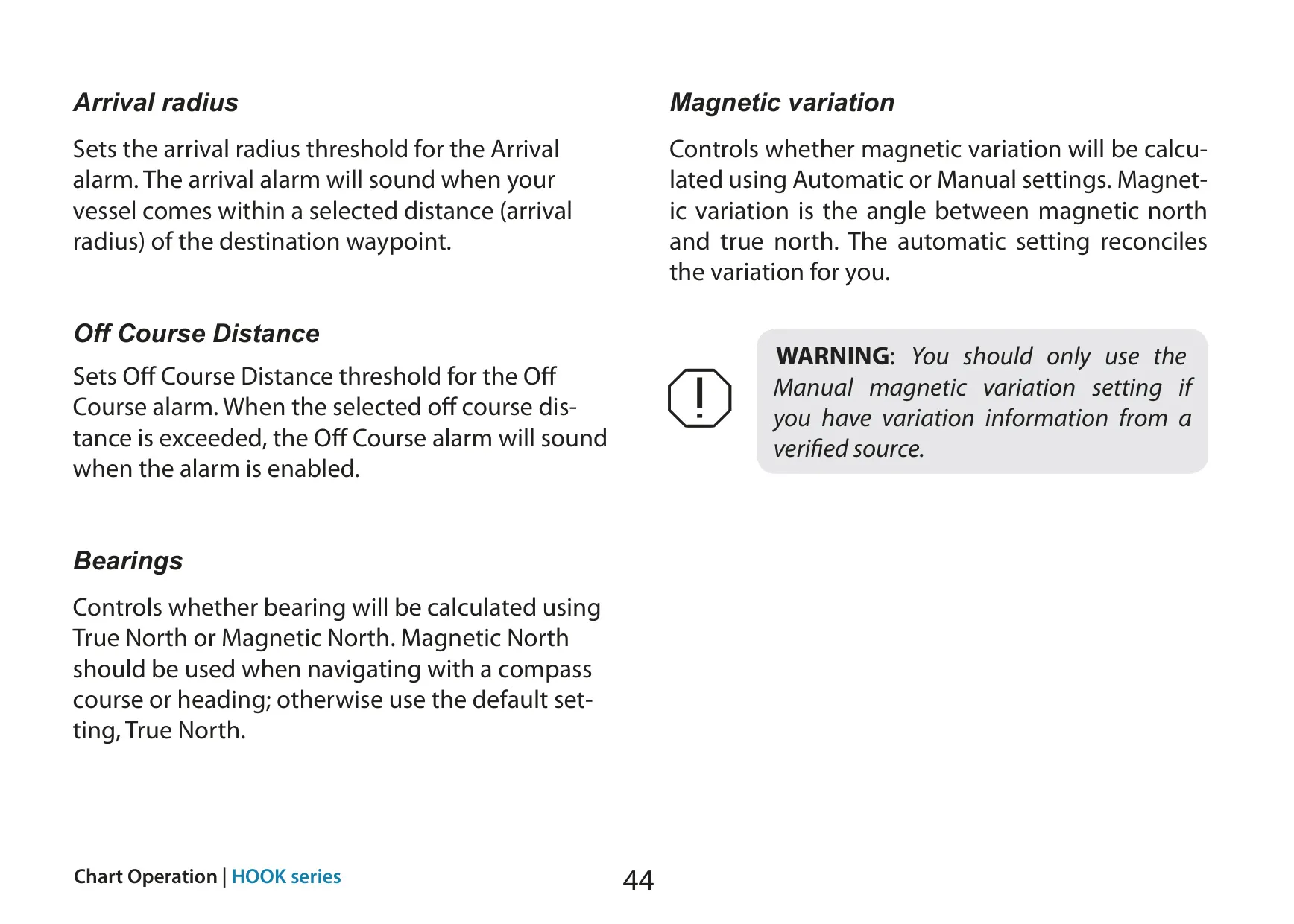

The Installation menu includes keel offset, water speed calibration for paddlewheel sensors, temperature calibration, reset water distance and transducer type selection. Turning on Advanced mode unlocks navigation settings such as arrival radius, off-course distance, magnetic variation and bearings. It also enables arrival, off-course and anchor alarms. In basic mode, the unit offers Shallow and Fish alarms. Standby mode turns off the sonar and display to save power, but leaving the unit in standby will still drain the battery.

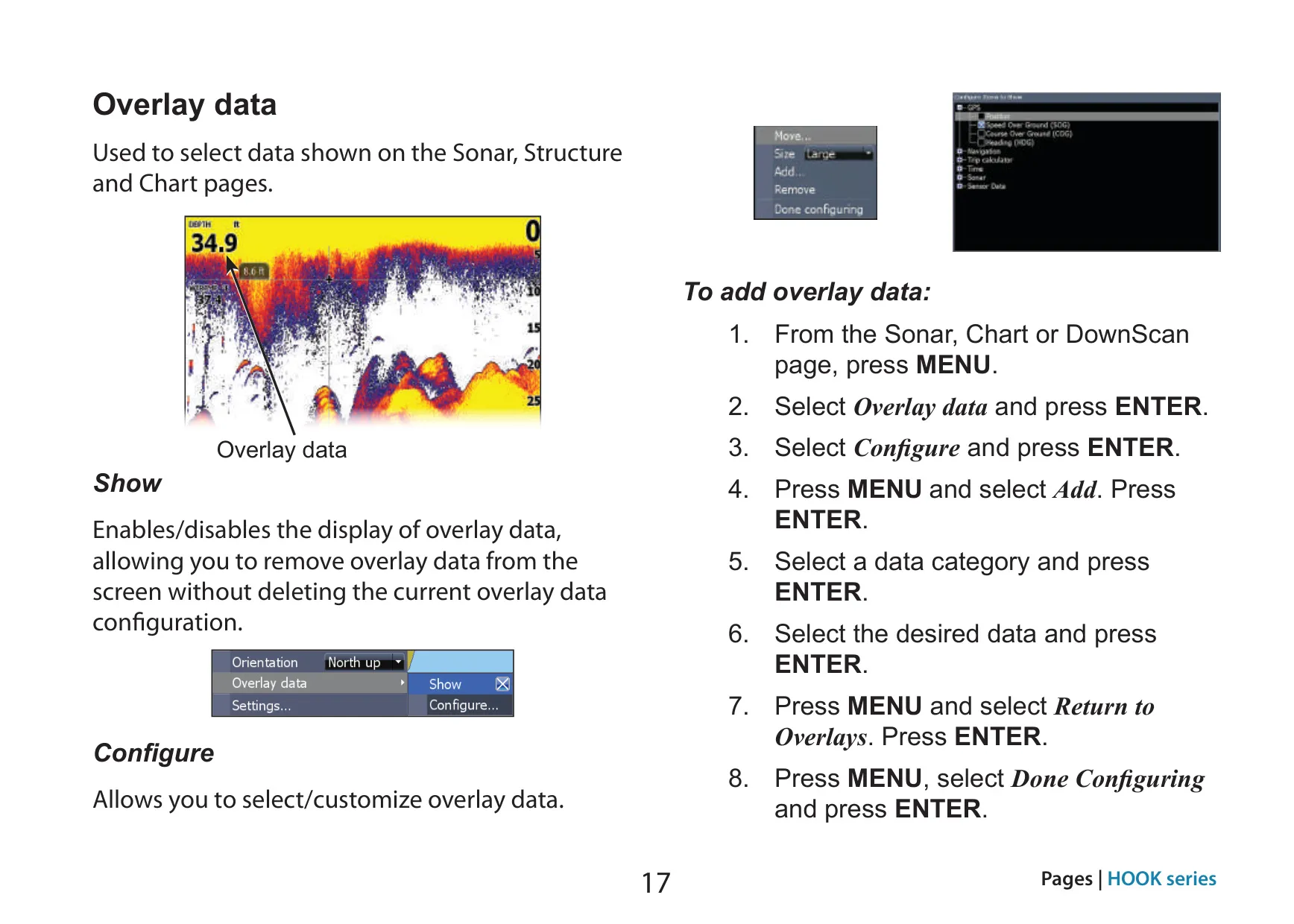

When an AIS device is connected through NMEA 0183, the unit shows AIS targets. You can filter targets by distance and speed and open vessel details such as the MMSI number. Chart orientation can be set to North Up or COG. You can save a screenshot to microSD by pressing Power and then Zoom (+). Other features include a Simulator, a trip calculator, customizable overlay data, and QWERTY or Alpha keyboards for entering text.
