Lowrance Hook Reveal 9 SS CCS Instructions
Here we offer the Lowrance Hook Reveal 9 SS CCS Fishfinder manual completely free and in English. We have cataloged this manual in the Fishfinders section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Lowrance Hook Reveal 9 SS CCS Fishfinder, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

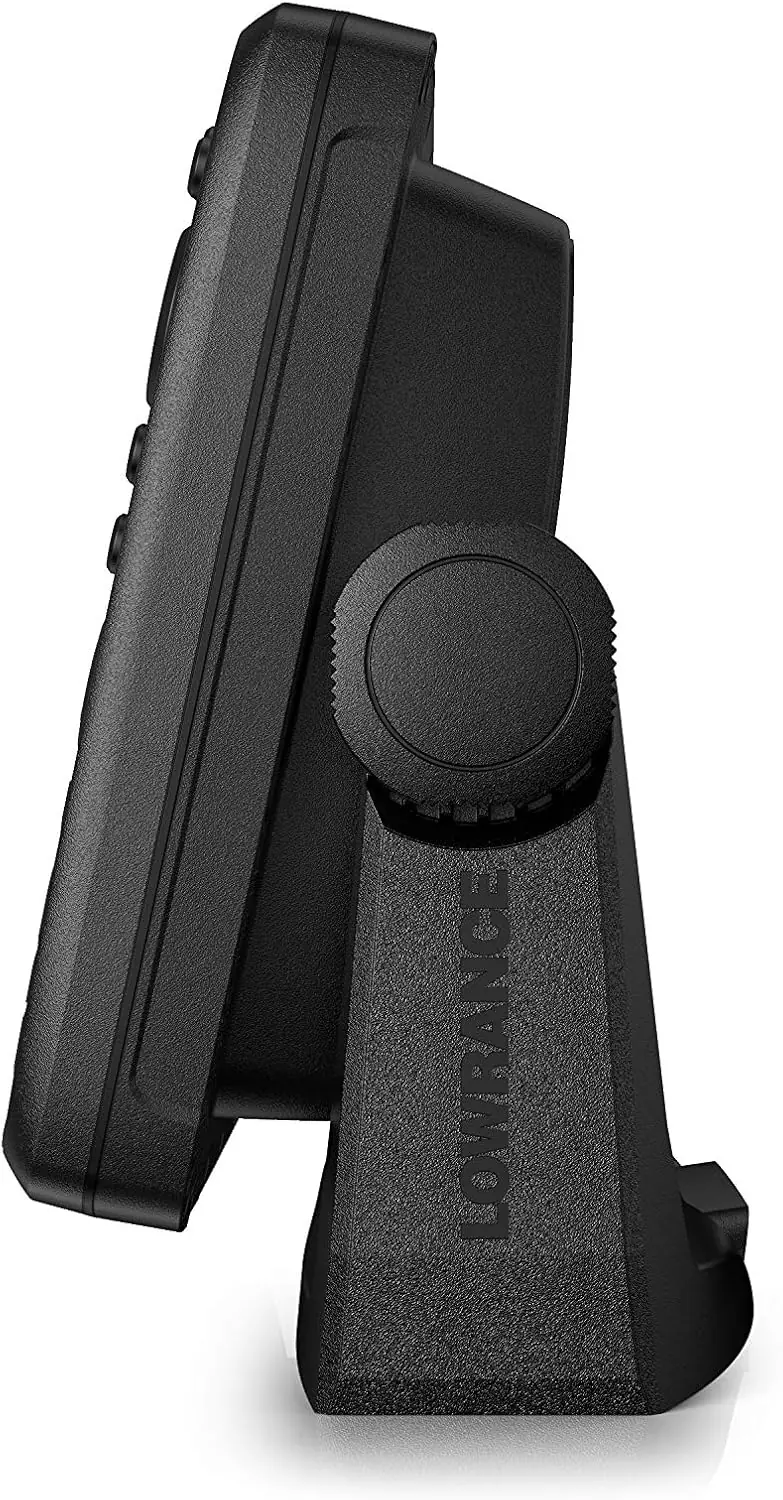

Product Images
Lowrance Hook Reveal 9 SS CCS Fishfinder Specifications
| Feature | Specification |
|---|---|
| Product series | Lowrance Hook Reveal Series |
| Model | Hook Reveal 9 SS CCS |
| Display size | 9 inches (per model designation) |
| Transducer type | SplitShot (SS) |
| Sonar views supported | Traditional Sonar and DownScan Imaging |
| SideScan / StructureMap | Not supported (only available on TripleShot models with a SideScan-capable transducer) |
| DownScan frequencies | 455 kHz (best range) and 800 kHz (highest resolution) |
| Operating modes | Auto (default), Custom, Ice Fishing |
| Split-screen sonar modes | Zoom, Bottom lock, Flasher |
| Split-screen zoom | 2x default, up to 8x |
| Fish ID display options | Traditional fish arches, fish symbols, fish symbols with depth indication |
| Target enhancement | FishReveal (fish arches shown in the DownScan image) |
| Water temperature calibration range | -9.9° to +9.9° (default 0°) |
| Depth offset | Negative value for keel offset, positive value for waterline offset, 0 for depth below transducer |
| Sonar log file formats | .slg (Sonar only), .xtf (Structure only), .sl2 (Sonar and Structure) |
| Log storage location | Internal memory or microSD card |
| Memory card slot | microSD card reader (side or front, depending on model) |
| Chart compatibility | Preloaded cartography, C-MAP, Navionics and compatible third-party chart cards |
| Live depth mapping | Genesis Live (accurate up to 20 knots), Navionics SonarChart Live |
| Navionics shallow water highlight | 0 to a selected depth of up to 10 m / 30 ft |
| Built-in Navionics database depth | Data down to 20 m |
| Chart orientation | North up, Course up |
| Custom pages | Maximum of 9 pages, up to 4 panels per page |
| Wallpaper image formats | .jpg and .png |
| Alarm priority levels | 5 (Red critical, Orange important, Yellow standard, Blue warning, Green lite warning) |
| Default datum | WGS84 (user selectable) |
| Trail logging types | Auto, Distance, Time |
| User data export formats | User Data File versions 2, 3, 4, 5 and 6, GPX |
| Service report attachment limit | 20 MB |
| Front controls | 7 (Pages, Zoom in/out, Arrows, Exit, Menu/Enter, Cursor/Waypoint, Power) |
| Transducer adapter limitation | Airmar transducers not supported via the adapter cable |
| Registration methods | Smart device with internet access or by phone |
| Quick Guide part number | 988-12656-001 |
Lowrance Hook Reveal 9 SS CCS Details
The Lowrance Hook Reveal 9 SS CCS is designed around a simple keypad interface. Everything is reached from the Home page, which you open with a short press of the Pages key. From there you can go to application pages, the Tools panel and page customization. A short press of the Power key opens the System Controls dialog, which gives quick access to brightness, night mode, data overlays, standby, sonar logging and panel split adjustment.
Standby mode saves power by turning off the sonar and the screen backlight while the system keeps running in the background. Night mode changes the color palette for low-light fishing. Repeated short presses on the Power key cycle through preset backlight levels. Pressing the Pages and Power keys together takes a screen capture. In an emergency, pressing both Zoom keys at once creates a Man Overboard waypoint and immediately shows navigation information back to that position.
Because the unit uses the SplitShot transducer, you can overlay DownScan imagery on the traditional sonar image to identify structure and fish more easily. Advanced sonar controls include ping speed, scroll speed, noise rejection for interference from bilge pumps and engines, surface clarity and Colorline, which helps separate fish close to the bottom from the bottom itself. An amplitude scope shows the strength of echoes, and Fish ID beeps can alert you when a target is detected.
For charting, you can choose the level of C-MAP chart detail, turn on the Genesis Layer contributed by the community and set safety depth shading. With Navionics cards, you get Community edits, SonarChart, dynamic tide and current icons, Easy View magnification, fishing range highlighting and U.S. or International presentation styles. Genesis Live creates depth contours in real time from your own soundings and saves them to the memory card. Its transparency, contour interval and palette can all be adjusted.
Navigation tools let you go to the cursor position, go to a waypoint or follow a route, with a configurable arrival radius and a cross-track error (XTE) alarm. You can create routes on screen, build them from existing waypoints or convert recorded trails into routes. Trails are recorded automatically, and when a trail reaches its maximum length, the oldest points are overwritten. Each trail can have its own color. You can also set an alarm radius for each individual waypoint.
The Info tools show sunrise and sunset, moonrise and moonset, tide station data and trip statistics. A built-in service assistant creates a support report with the software version, serial number and settings information. Software updates are installed from a non-mapping microSD card. Waypoints, routes, trails and the settings database can be exported for backup, either in full or for a selected region. A simulator with retail mode and custom sonar source files lets you practice using the unit away from the water.
Maintenance requirements are minimal. Clean the screen with fresh water and a microfiber cloth, and do not use solvents, high-pressure washers or car washes. When the unit is not in use, fit the protective sun cover, which is sold separately.
