Kenmore Washing Machine Series 100

Kenmore Washer Series 100 Instructions

Here we offer the Kenmore Washing Machine Series 100 manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Kenmore Washing Machine Series 100, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

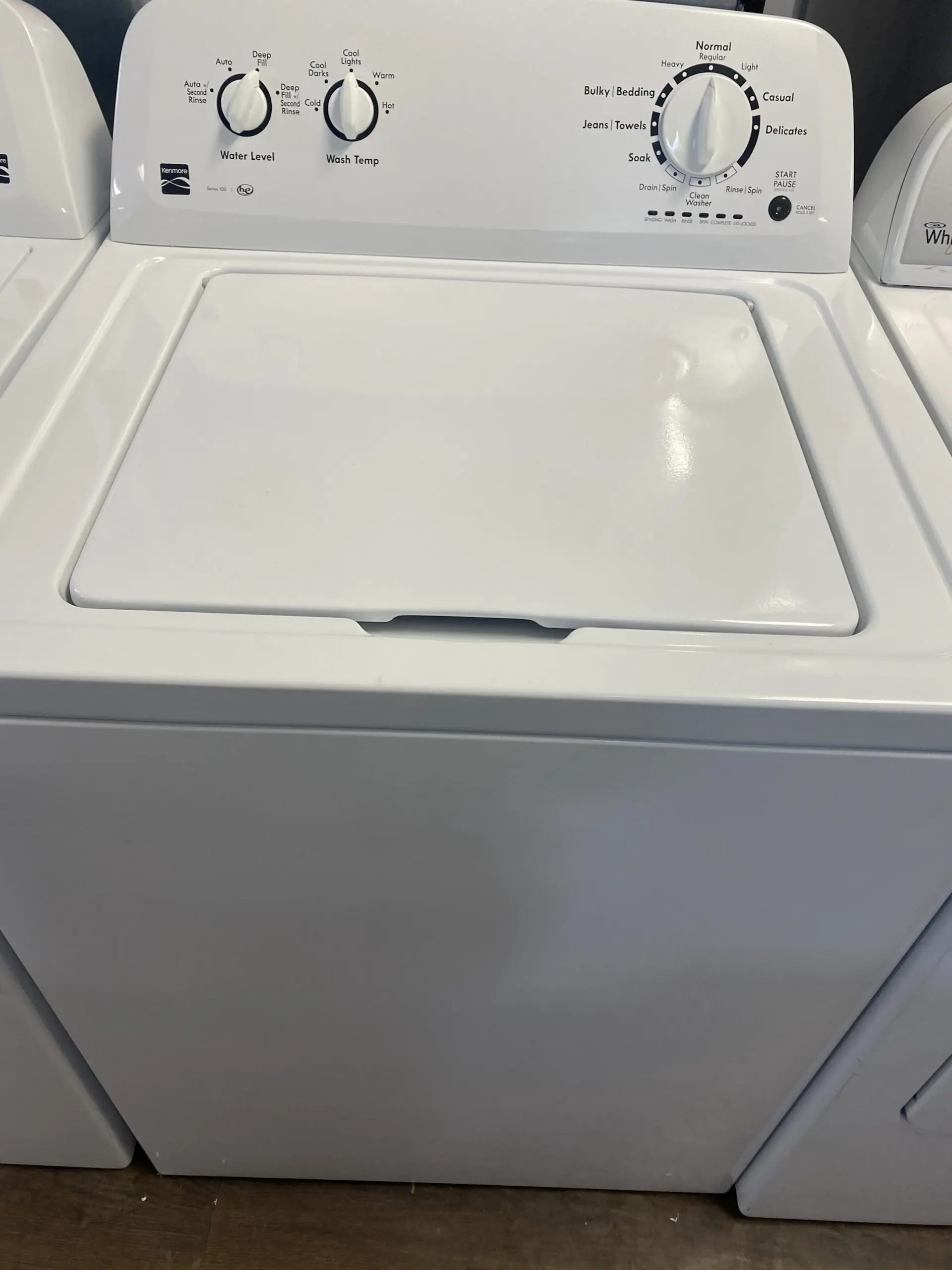

Product Images

Kenmore Washing Machine Series 100 Specifications

Feature	Specification
Models	110.22532512, 110.20232711
Washer Type	Top-Loading, High Efficiency (HE)
Detergent Compatibility	High Efficiency (HE) detergents only
Water Level Settings	Auto Sensing, Deep Fill (Deep Fill not available in Normal cycle)
Rinse Water Temperature	Cold (All rinses)
Lid Feature	Lid Lock (activates before spin phase for higher spin speeds)

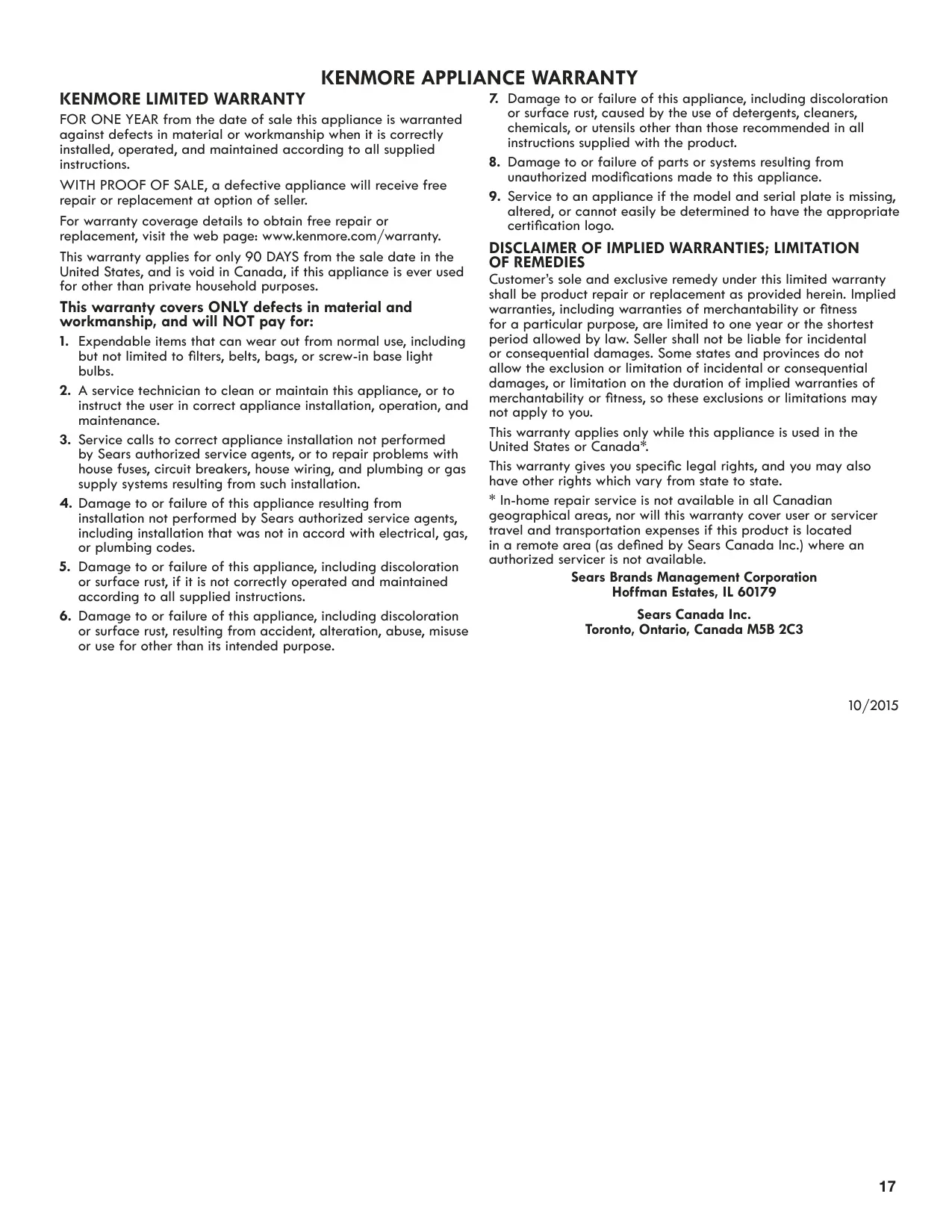

Warranty (Household Use)	1 Year Limited (material/workmanship)
Warranty (Non-Household Use)	90 Days Limited (U.S. only, void in Canada)
Part Number	W11098418A
Manufacturer (U.S.A.)	Sears Brands Management Corporation
Manufacturer (Canada)	Sears Canada Inc.

Kenmore Washer Series 100 Details

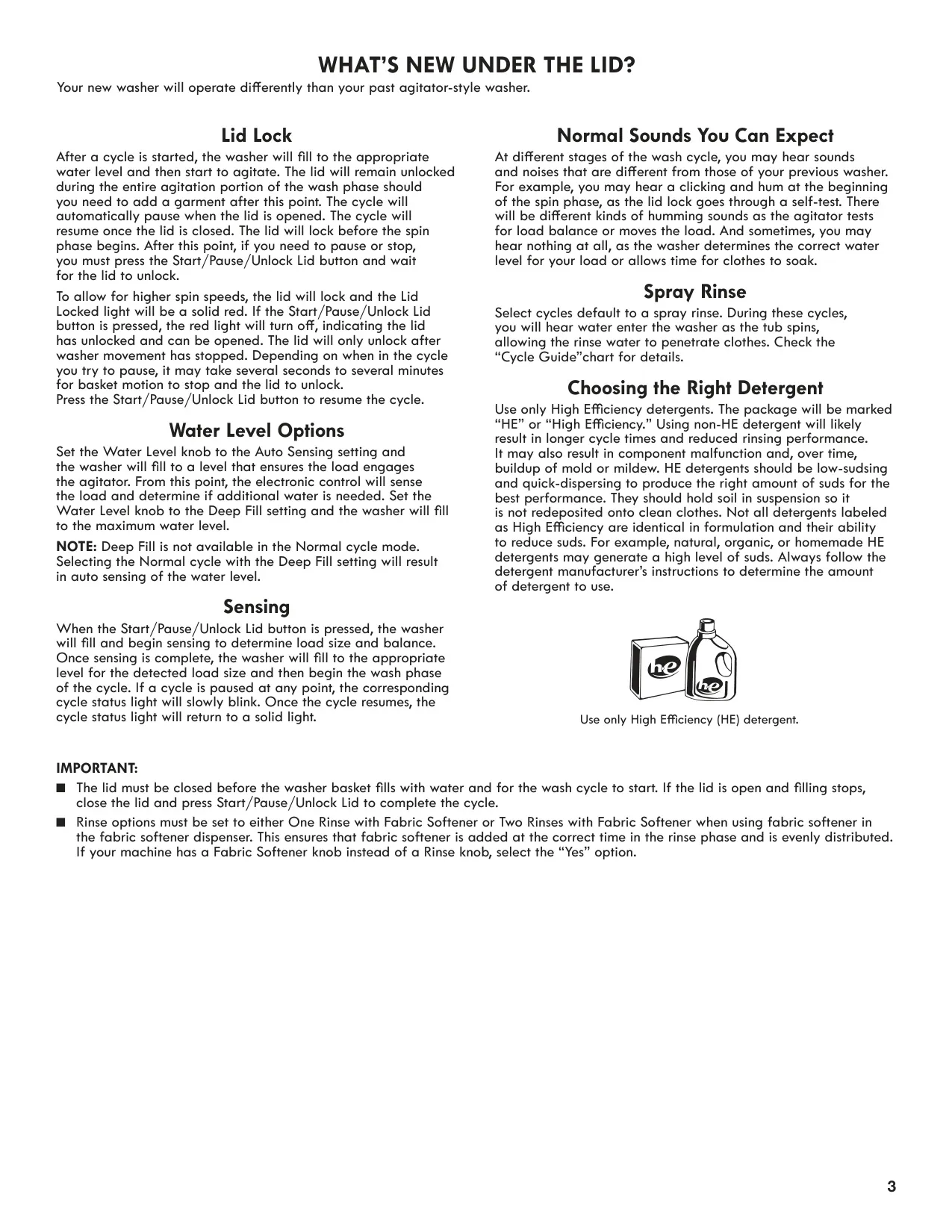

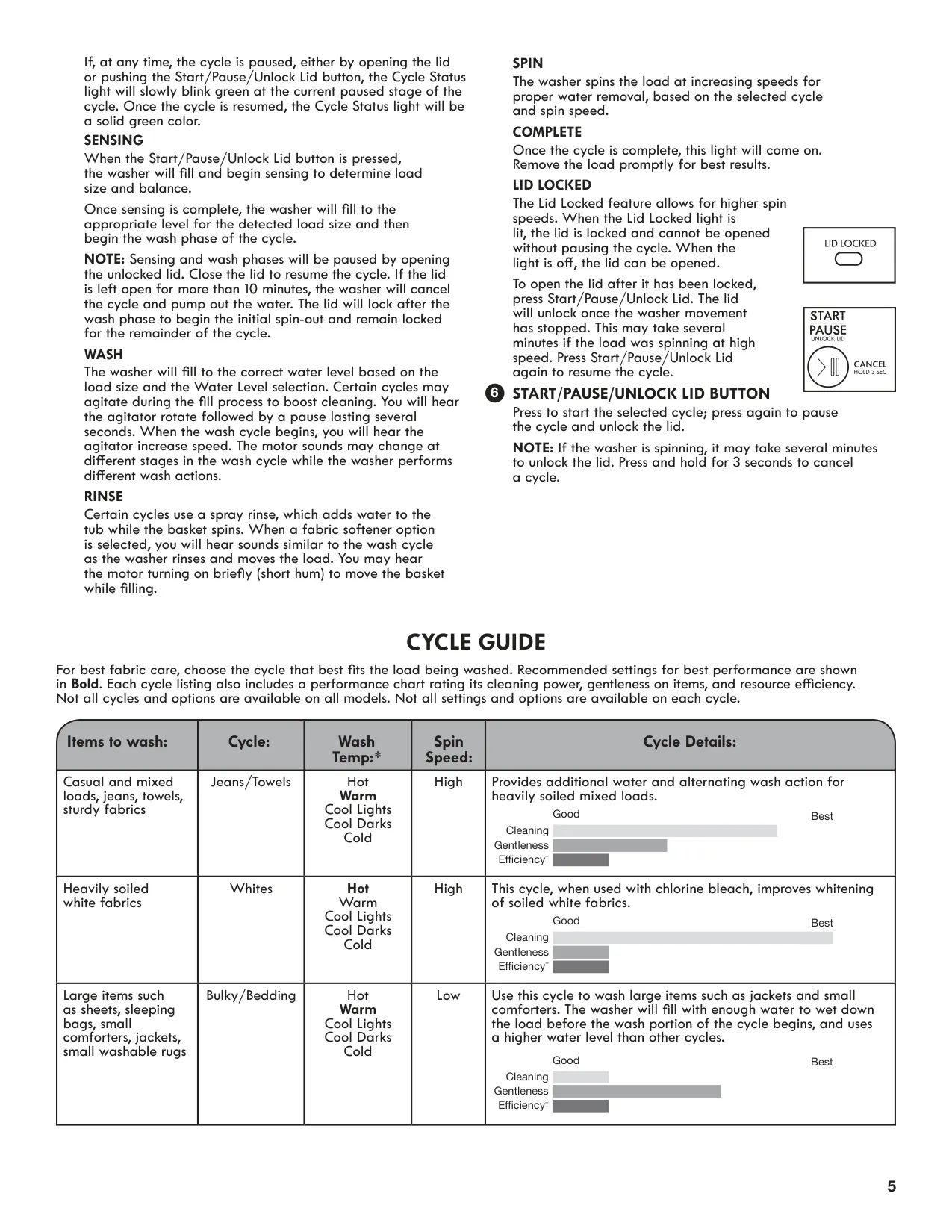

The Kenmore Washer Machine Series 100 incorporates a Lid Lock feature designed for both safety and optimal performance. After initiating a cycle, the lid remains unlocked during the agitation phase, allowing you to conveniently add forgotten garments. However, it automatically locks before the high-speed spin phase to ensure stability and safety. To pause an active cycle and unlock the lid after it has locked, users must press the "Start/Pause/Unlock Lid" button and wait for the basket motion to cease, which may take several minutes depending on the cycle stage. Once unlocked, the lid light will turn off, indicating it can be opened.

This high-efficiency washer provides flexible water level control. The "Auto Sensing" setting intelligently determines the appropriate water volume based on load size and type, ensuring efficient cleaning. For larger loads or when maximum water is desired, the "Deep Fill" option can be selected, though it's important to note this option is unavailable during the Normal wash cycle and typically extends overall cycle times. Crucially, the Series 100 is engineered exclusively for High Efficiency (HE) detergents. Using non-HE detergents can lead to excessive suds, longer cycles, reduced rinsing effectiveness, and potential component damage or mold buildup over time. Always check for the "HE" label on detergent packaging.

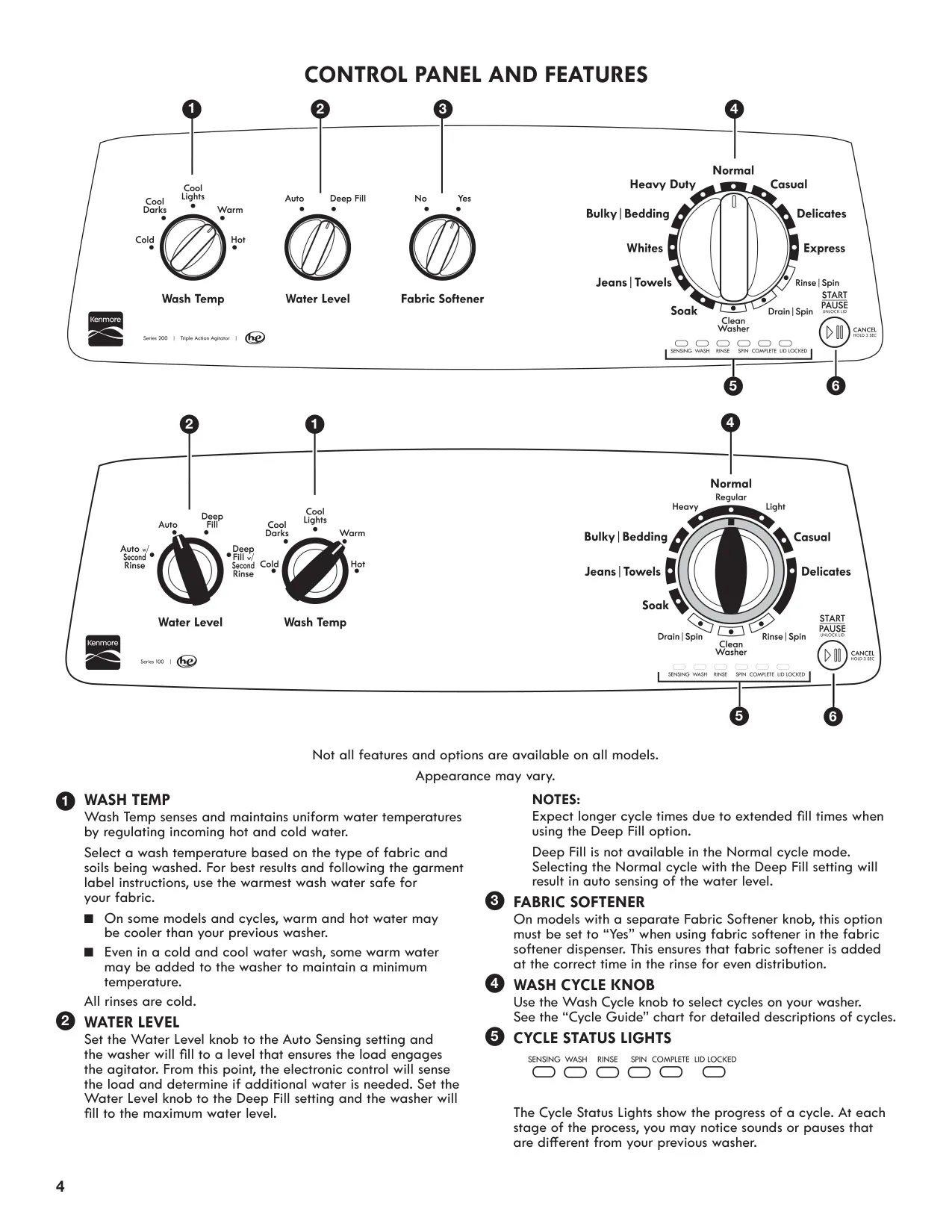

Operating the Kenmore Series 100 introduces several distinct sounds that differ from traditional agitator washers. Users can expect various hums and clicks as the lid lock engages, the agitator senses load balance, or the basket decelerates. Periods of silence are also normal, indicating the washer is sensing water levels or allowing for soaking. Certain cycles utilize a "Spray Rinse" feature, where water is sprayed into the spinning tub, effectively saturating clothes for a thorough rinse. The intuitive Cycle Status Lights on the control panel provide real-time feedback on the wash progress, blinking slowly when a cycle is paused and becoming solid upon resumption.

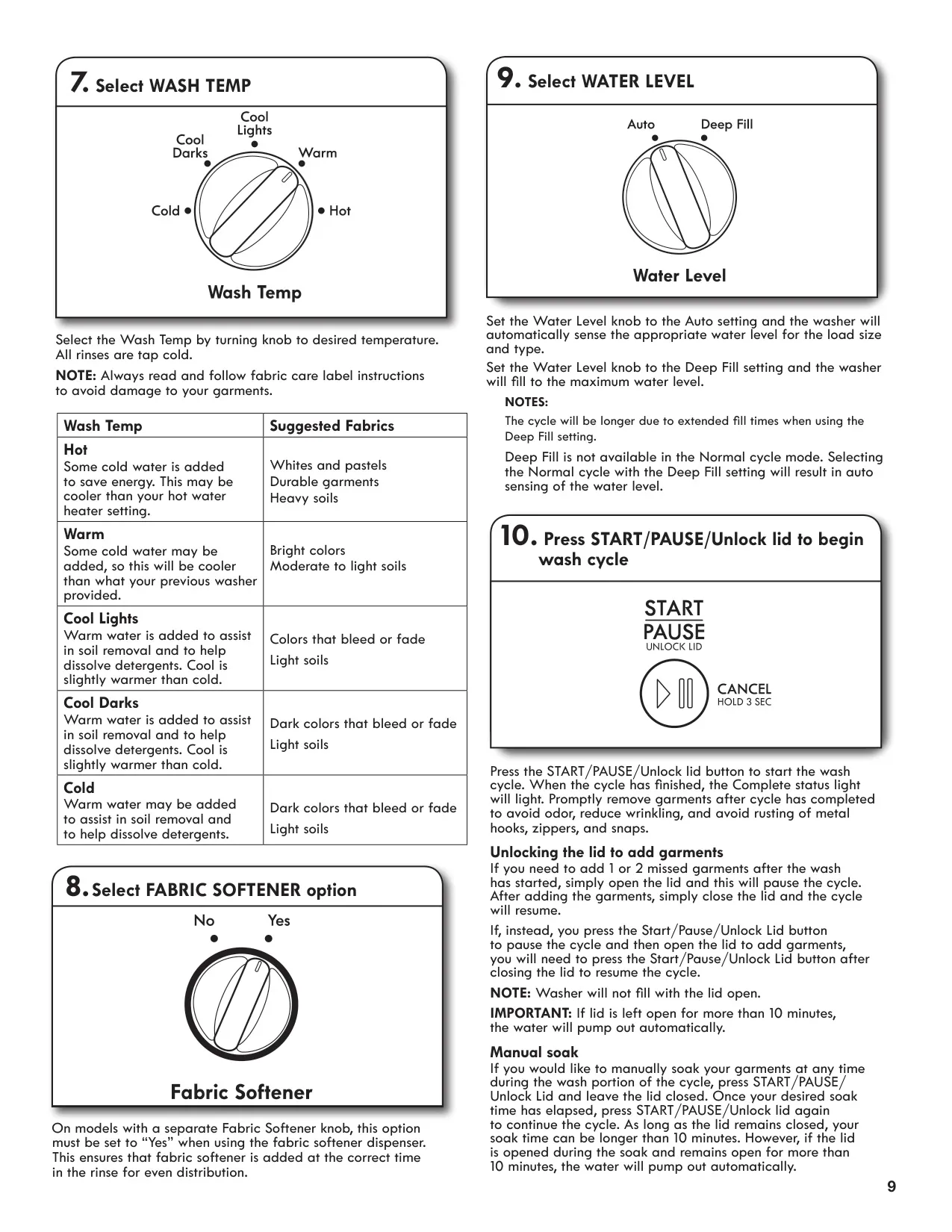

The "Wash Temp" control dynamically adjusts incoming hot and cold water to maintain consistent wash temperatures, offering options like Hot, Warm, Cool Lights, Cool Darks, and Cold. It’s worth noting that even "Hot" and "Warm" settings might be cooler than those on older washers, and some warm water is typically added to cold washes to achieve a minimum temperature for better cleaning. All rinse cycles use cold water. For models equipped with a separate "Fabric Softener" knob, selecting "Yes" is essential when using the dispenser, ensuring fabric softener is released at the precise moment for even distribution across the load.

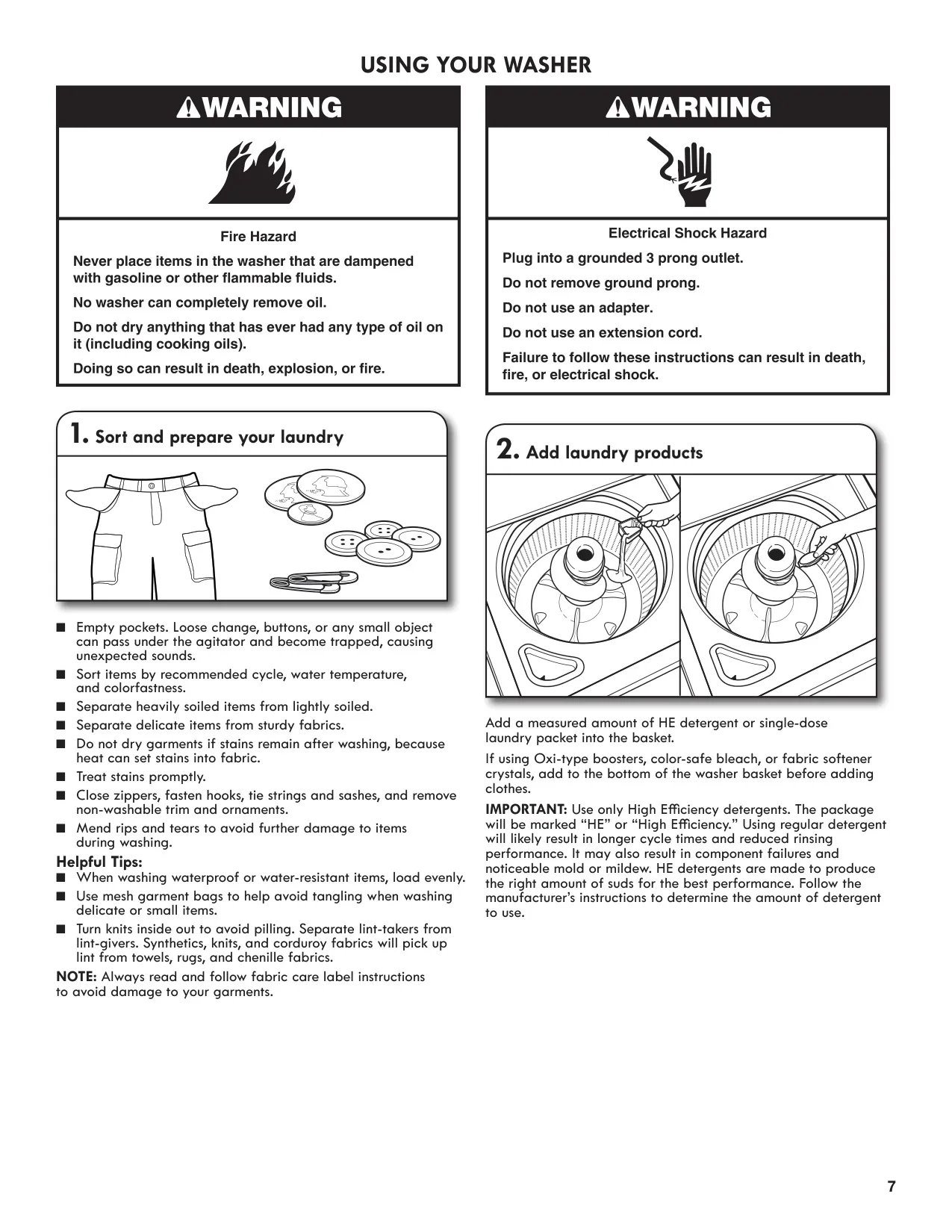

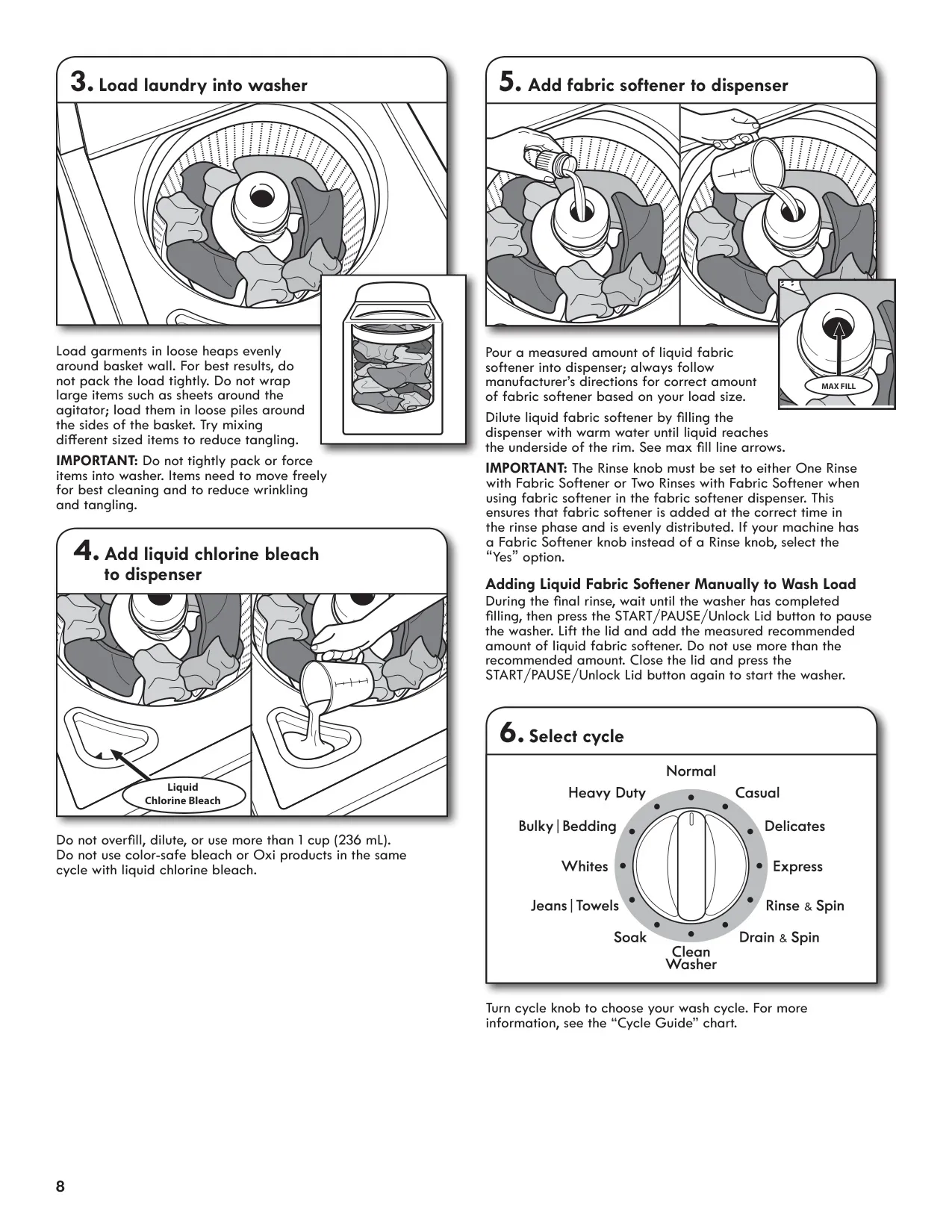

Proper loading is key to achieving optimal cleaning and preventing tangling or wrinkling. Garments should be loaded in loose heaps evenly around the basket wall, avoiding tight packing. When adding liquid chlorine bleach, it should go into the designated compartment, and liquid fabric softener into its dispenser, diluted with warm water to the "MAX FILL" line. Regular maintenance is crucial; running the "Clean Washer" cycle every 30 washes, leaving the lid open between uses to promote drying, and occasionally using warm or hot wash settings helps prevent odor and residue buildup, keeping the washer fresh and performing efficiently.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Kenmore Washer Machine Series 100, and we answer them below.

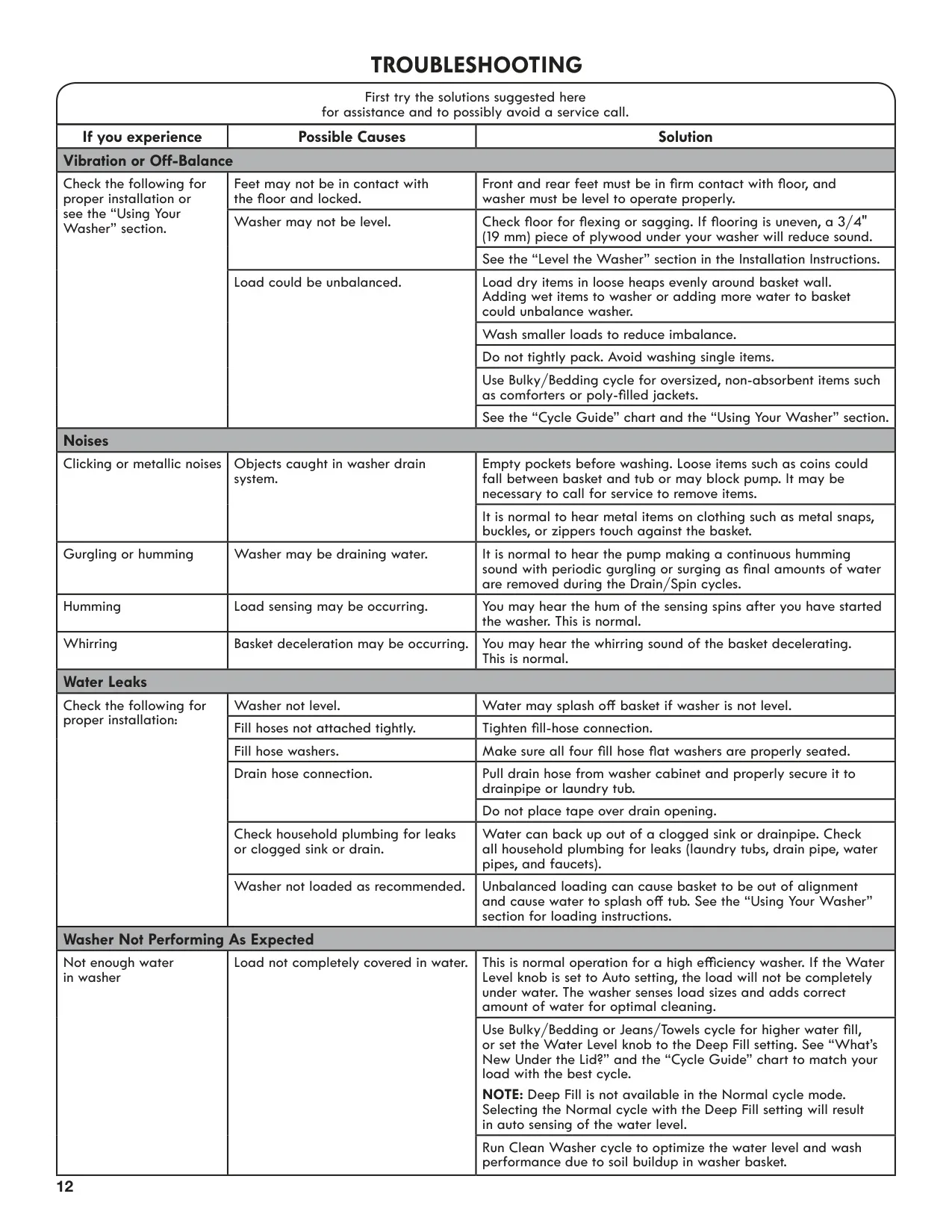

Why is my Kenmore Series 100 washer vibrating excessively or operating off-balance?

This is often due to improper installation or an unbalanced load. Ensure all washer feet are in firm contact with the floor and locked, and that the washer is level. For loads, distribute dry items evenly around the basket, avoid tightly packing, and use the Bulky/Bedding cycle for oversized items.

What if the washer makes clicking, gurgling, or humming noises? Are these normal?

Many sounds are normal. Clicking/metallic noises can be objects caught in the drain (check pockets). Gurgling/humming indicates water draining. Humming at the start is normal load sensing, and whirring is the basket decelerating. If severe or persistent, check for foreign objects.

Why is there not enough water covering my clothes in the wash cycle?

This is normal for a high-efficiency washer. The "Auto Sensing" feature determines the optimal water level for cleaning, which may not completely cover the load. For higher water fill, use the Bulky/Bedding or Jeans/Towels cycle, or select the "Deep Fill" option (not available in Normal cycle).

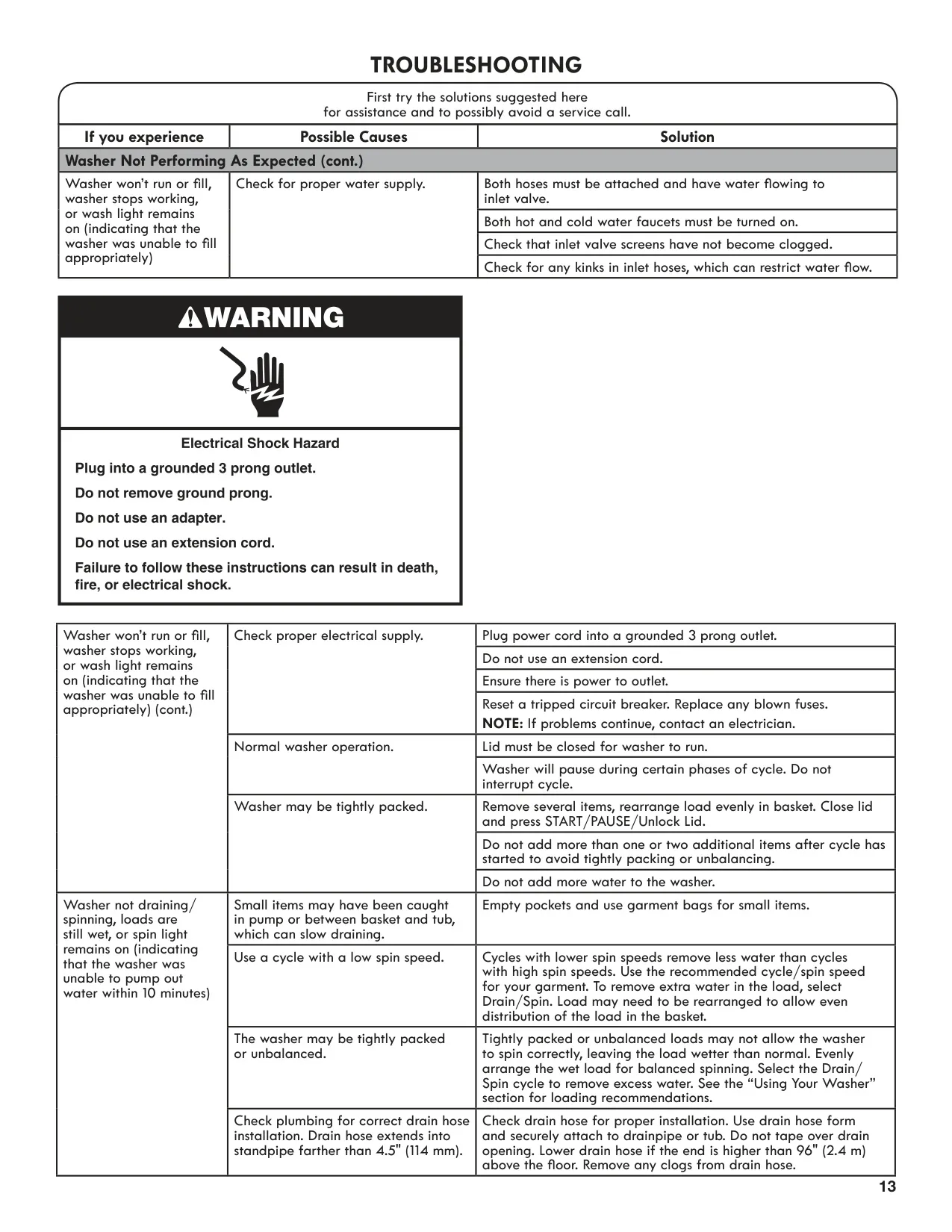

My washer won't start, fill, or stops working mid-cycle. What should I check?

First, ensure proper water and electrical supply. Check that both hot and cold faucets are on, hoses are connected without kinks, and inlet valve screens aren't clogged. Verify the power cord is plugged into a grounded outlet, and check circuit breakers/fuses. The lid must be closed for the washer to run.

Why are my clothes still wet after the spin cycle, or why isn't the washer draining properly?

This could be caused by small items caught in the pump, using a low spin speed cycle, or an unbalanced/tightly packed load. Empty pockets and use garment bags for small items. Redistribute the load evenly. For extra water removal, select the Drain/Spin cycle. Ensure the drain hose is correctly installed and not clogged.

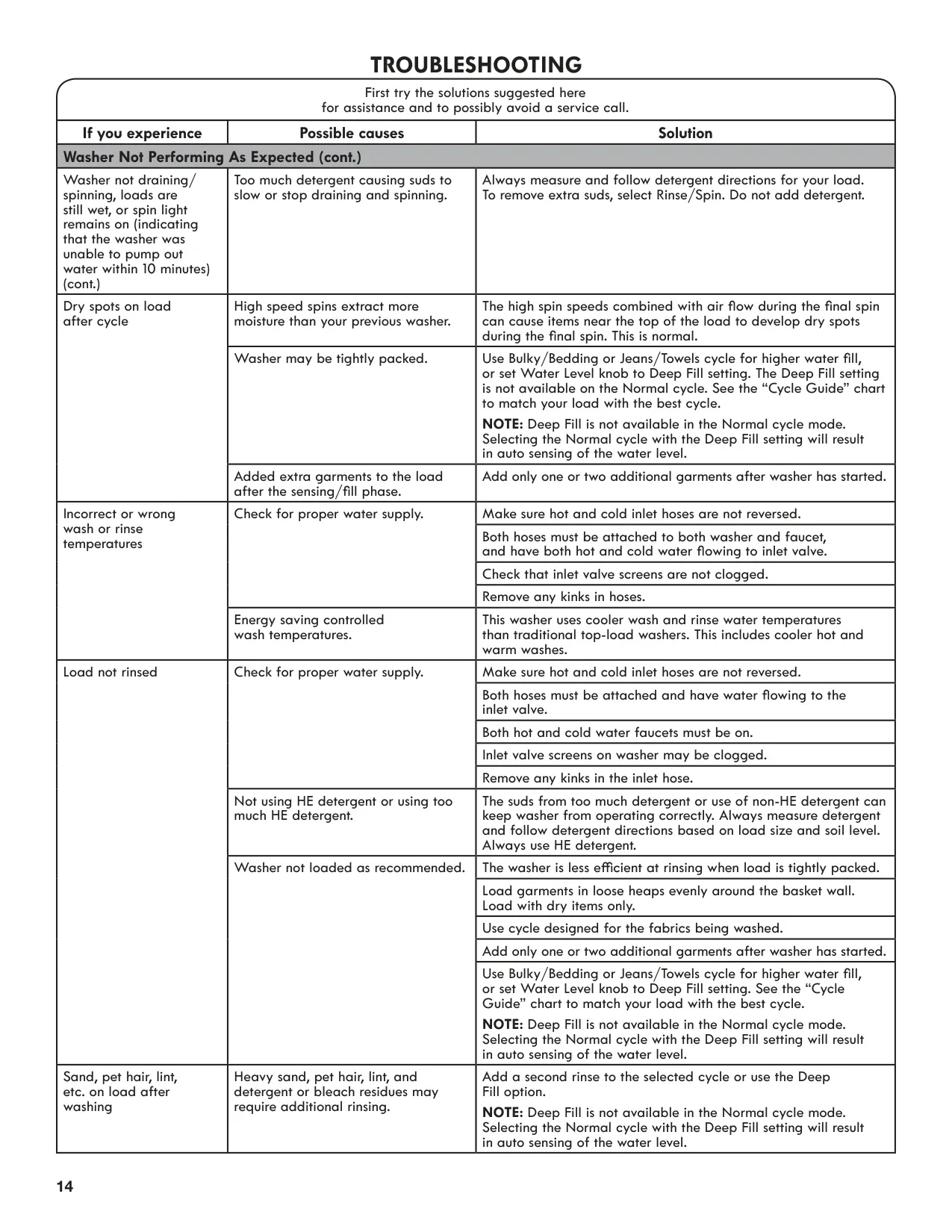

Why are there dry spots on my load after the cycle?

High spin speeds extract more moisture, and combined with air flow, can cause items near the top of the load to develop dry spots. This is normal. If you frequently experience this, ensure the washer isn't tightly packed and try the Bulky/Bedding or Jeans/Towels cycles for higher water levels, or use the Deep Fill setting (not for Normal cycle).

My wash or rinse temperatures seem incorrect. What can I do?

Check that the hot and cold inlet hoses are not reversed and that both faucets are fully on. Also, ensure inlet valve screens aren't clogged and hoses are kink-free. Remember, HE washers use cooler wash and rinse temperatures than traditional models, including warm and hot settings, and all rinses are cold.

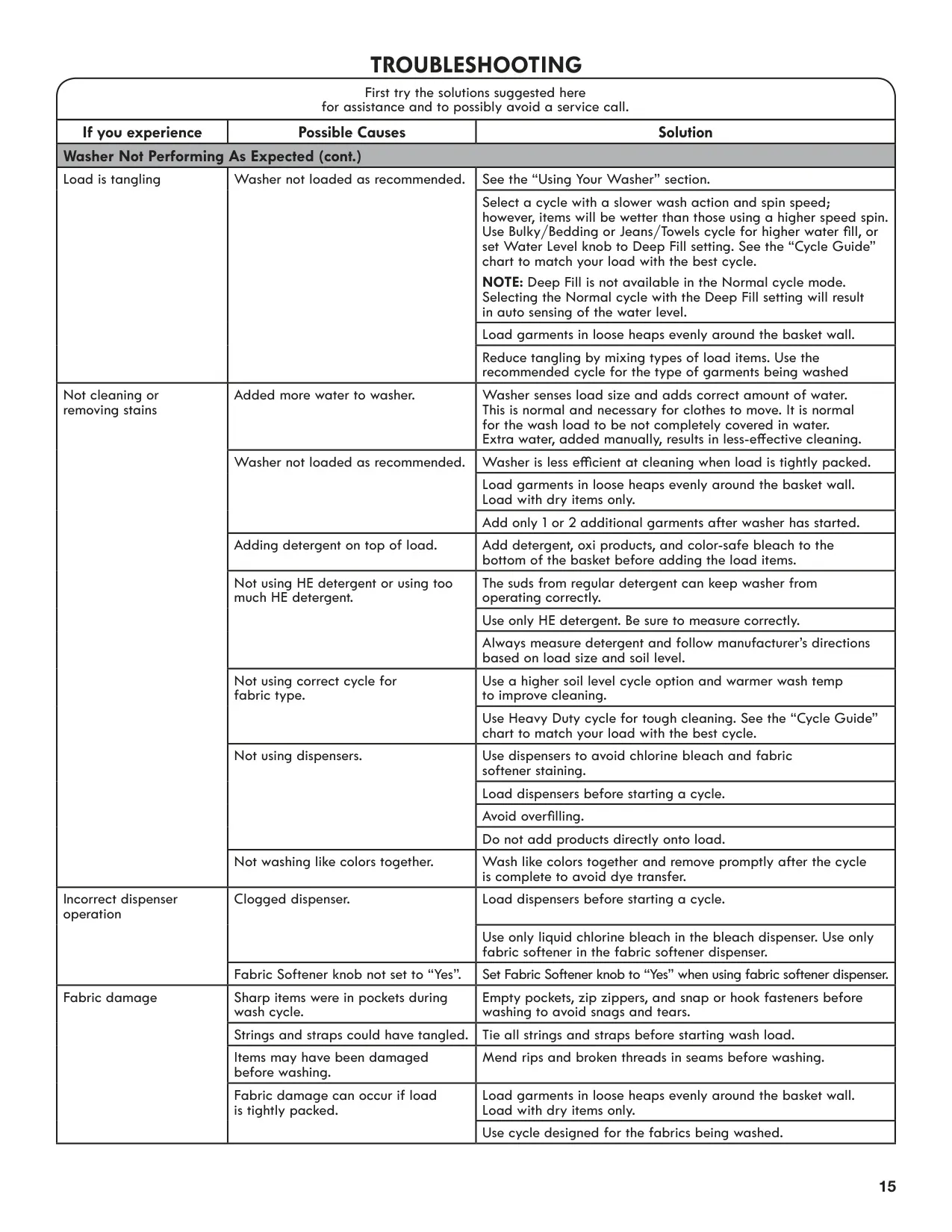

What causes my load to tangle during washing?

Tangling often results from improper loading. Load garments in loose heaps evenly around the basket wall. Reduce tangling by mixing different sized items and using the recommended cycle for the fabric type. Selecting a cycle with a slower wash action and spin speed can also help, though items will be wetter.

Why are my clothes not cleaning well or stains not removing?

Several factors can affect cleaning. Ensure you are not adding extra water manually, as this reduces efficiency. Avoid tightly packing the washer; load in loose, dry heaps. Always add HE detergent, Oxi products, and color-safe bleach to the bottom of the basket before clothes. Use the correct cycle and a warmer wash temp for tougher soils.

The fabric softener dispenser isn't working correctly. What should I check?

Ensure the dispenser isn't clogged and that you are only using liquid fabric softener in its designated compartment. If your model has a "Fabric Softener" knob, make sure it is set to "Yes." Always load dispensers before starting a cycle and avoid overfilling.

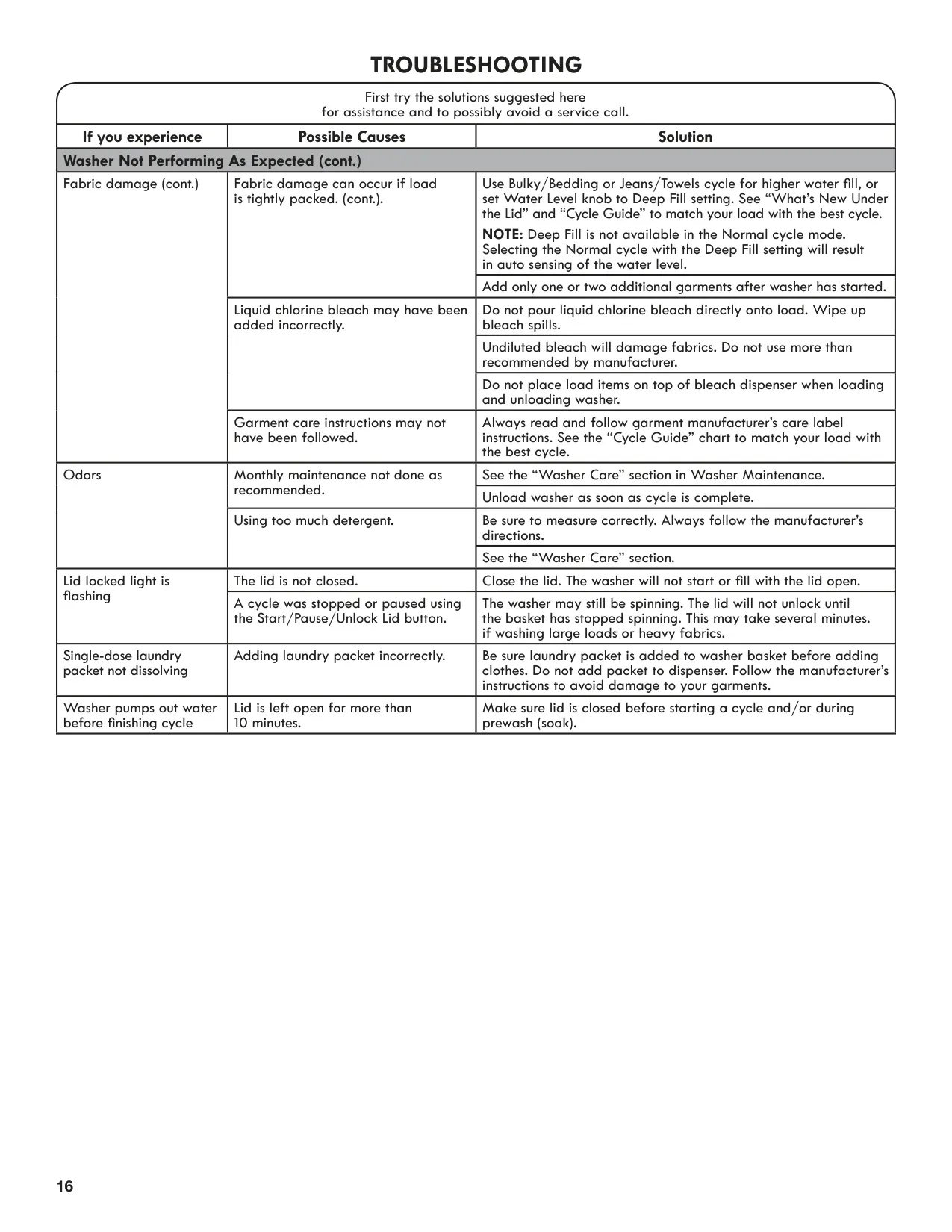

The 'Lid Locked' light is flashing. What does this mean?

This typically means the lid is not fully closed, preventing the washer from starting or filling. If you stopped or paused the cycle using the Start/Pause/Unlock Lid button, the washer basket may still be spinning. The lid will not unlock until motion has completely stopped, which can take several minutes, especially with large or heavy loads.

How often should I run the 'Clean Washer' cycle?

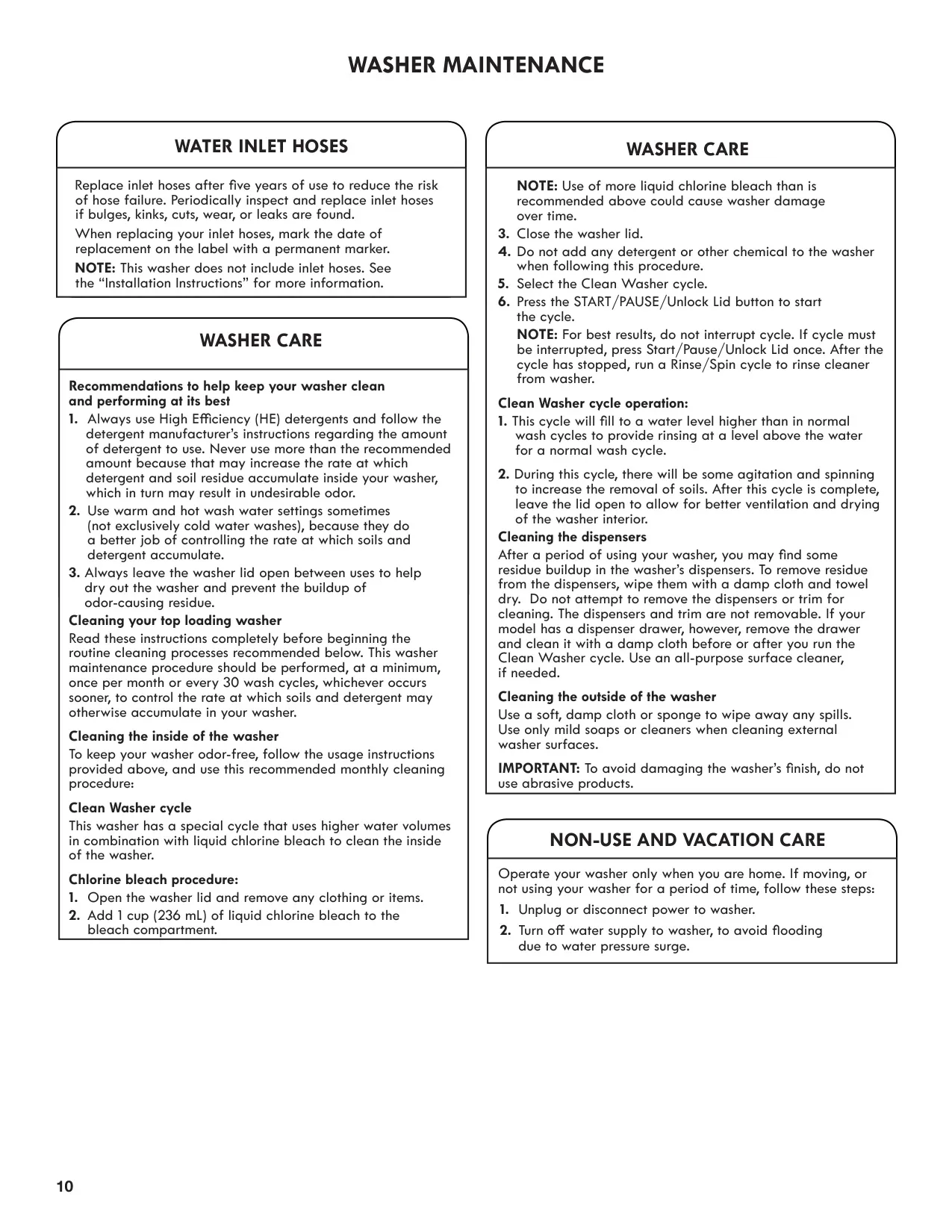

To keep your washer odor-free and performing at its best, run the "Clean Washer" cycle at least once per month or every 30 wash cycles, whichever comes sooner. This cycle uses higher water volumes with liquid chlorine bleach to clean the inside of the washer effectively. Remember, do not place garments in the washer during this cycle.
