Kenmore Elite Dryer HE3 110.87892602

Kenmore Elite Dryer HE3 Instructions

Here we offer the Kenmore Elite Dryer HE3 110.87892602 manual completely free and in English. We have cataloged this manual in the Dryers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Kenmore Elite Dryer HE3 110.87892602, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

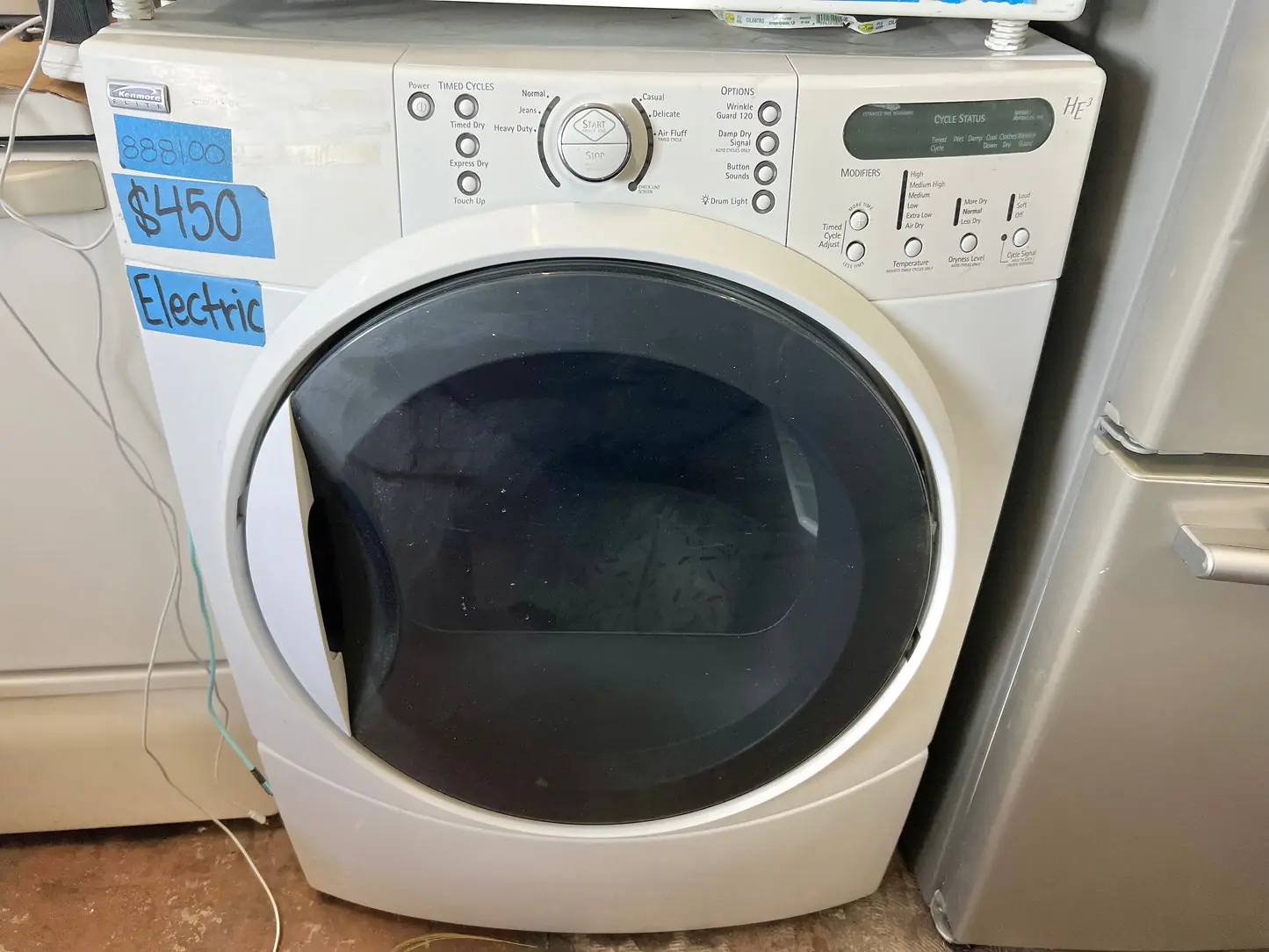

Product Images

Kenmore Elite Dryer HE3 110.87892602 Specifications

Specification	Detail
Model Number	110.87892602

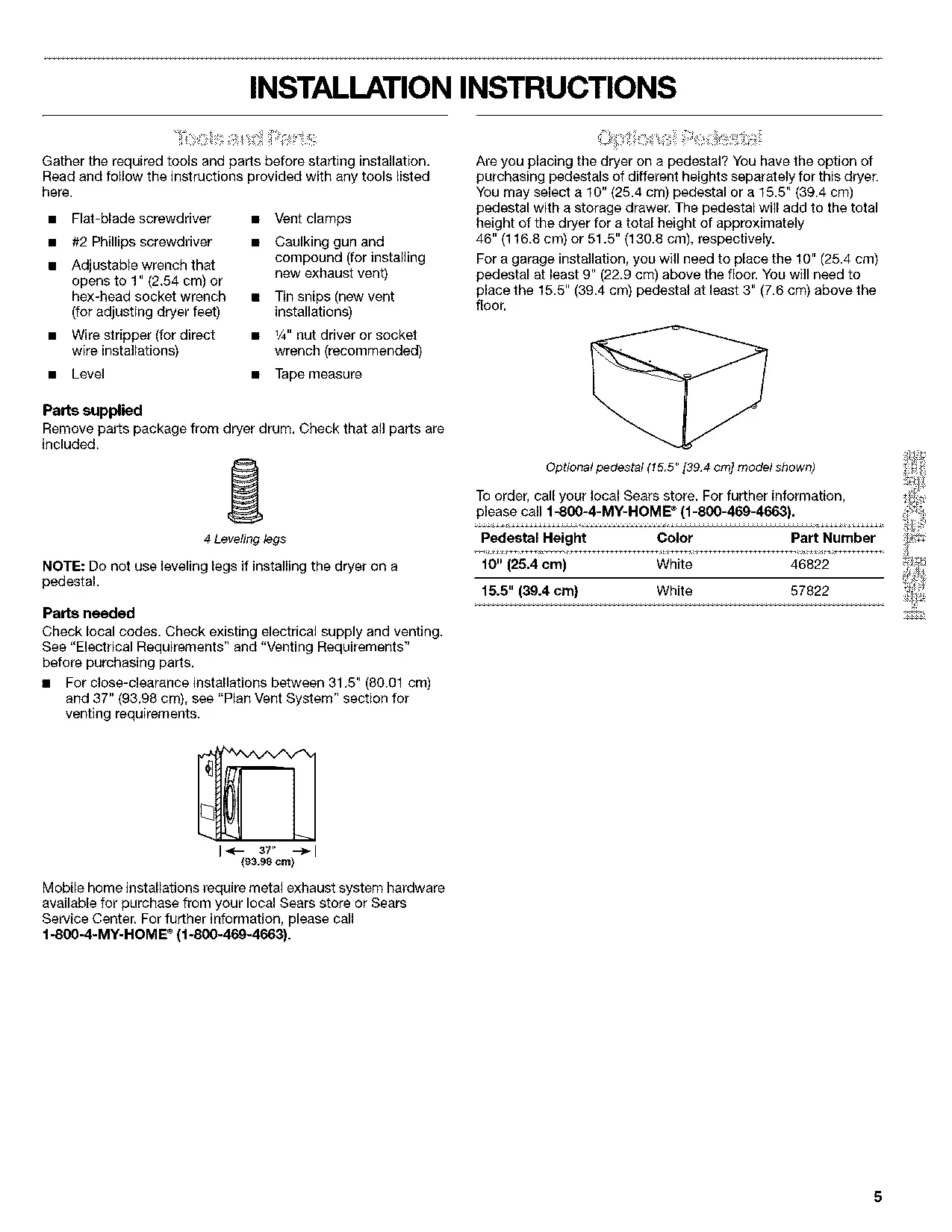

Optional Pedestal Height	15.5 inches (39.4 cm)
Optional Pedestal Color	White
Optional Pedestal Part Number	57822
Maximum Rigid Metal Vent Length (0 turns, Box Hood)	64 ft (20 m)
Default Express Dry™ Cycle Time	23 minutes (High Heat)
Default Normal Cycle Time	40 minutes (Medium Heat)
Default Delicate Cycle Time	30 minutes (Extra Low Heat)
Default Air Fluff Cycle Time	36 minutes (No Heat)
Heated Dryer Rack Cycles (e.g., Wool Sweaters)	Timed Dry, Low Heat, 60 minutes
Heated Dryer Rack Cycles (e.g., Foam Rubber Toys)	Air Fluff, Air Only, 90 minutes

Kenmore Elite Dryer 110.87892602 Details

The Kenmore Elite Dryer HE3 110.87892602 offers a comprehensive set of features designed for efficient and convenient garment care. Users can easily manage drying cycles through intuitive controls for starting, stopping, and pausing operations. For added peace of mind, a Control Locked feature prevents accidental changes to settings, ensuring cycles run uninterrupted, especially in homes with curious children. This focus on user-friendly interaction makes daily laundry tasks straightforward and stress-free.

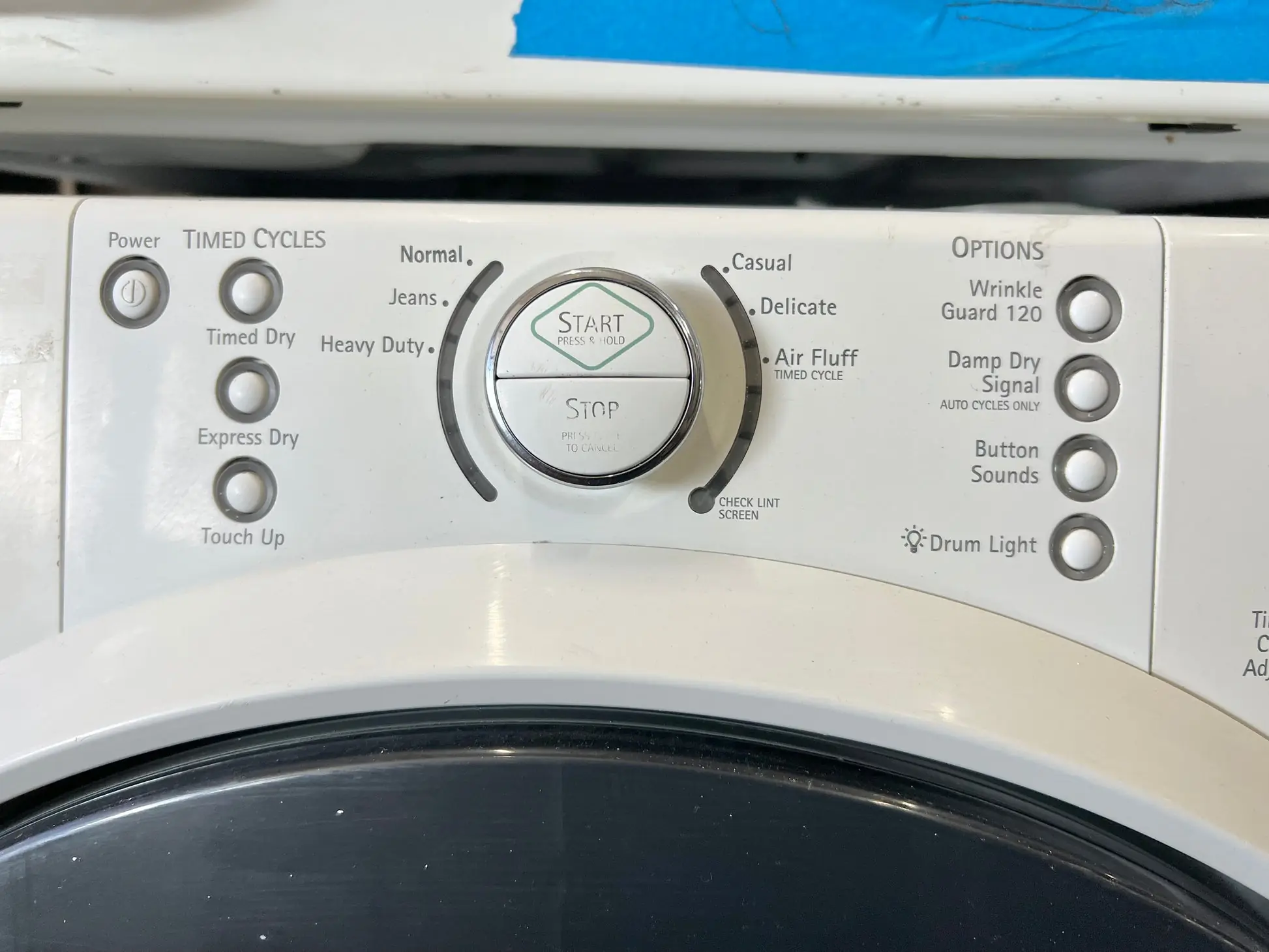

This dryer provides a diverse range of drying cycles tailored to different fabric types and load sizes. Auto Cycles, such as HEAVY DUTY for towels and bedspreads, JEANS for denim, NORMAL for work clothes, CASUAL for permanent press, and DELICATE for sensitive items, automatically adjust drying parameters. Additionally, Timed Cycles like TIMED DRY, the quick EXPRESS DRY™, TOUCH UP for wrinkle reduction, and AIR FLUFF for heat-sensitive items offer precise control, ensuring optimal care for every load.

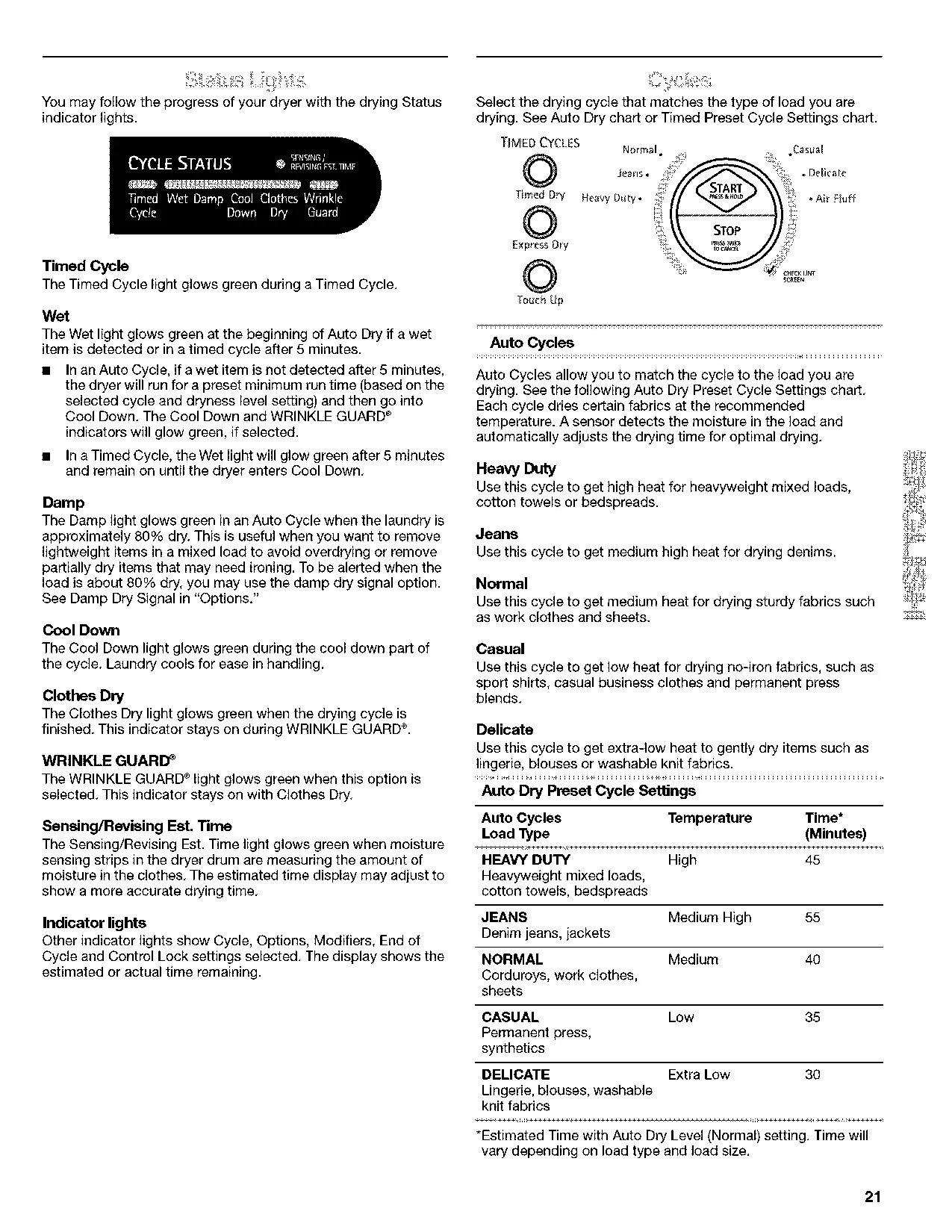

Beyond its core cycles, the Kenmore Elite Dryer HE3 110.87892602 allows for further customization. Users can fine-tune their drying experience using various Options and Modifiers, which enable adjustments to temperature, dryness levels, or special care functions. These features provide flexibility to adapt to specific garment needs, ensuring clothes are dried perfectly without over-drying or damage. The system also includes helpful Status Lights that keep you informed about the current stage of your drying cycle.

A standout feature is the TUMBLE FREE™ Heated Dryer Rack. This accessory is ideal for items that should not be tumbled, such as wool sweaters, stuffed toys, pillows, or sneakers. It allows for gentle drying with or without heat, preventing distortion and maintaining the item's shape and integrity. Specific instructions are provided for various items, including suggested cycle times and temperatures, highlighting the versatility and protective capabilities of the rack.

Maintaining the Kenmore Elite Dryer HE3 110.87892602 is simple, promoting longevity and optimal performance. Regular cleaning of the lint screen is crucial for efficiency and safety. The manual also guides users on cleaning the dryer interior, removing accumulated lint from the exhaust system, and performing general vacation and moving care. Even replacing the drum light is straightforward, ensuring visibility inside the drum for easy loading and unloading of laundry.

Should any issues arise, the manual includes a comprehensive troubleshooting section. This resource addresses common concerns related to "Dryer Operation" and "Dryer Results," helping users diagnose and resolve minor problems without requiring service. From understanding why the dryer isn't starting to improving drying effectiveness, the guide empowers users to maintain their appliance's performance, reinforcing the dryer's reliability and user-centric design.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Kenmore Elite Dryer HE3 110.87892602, and we answer them below.

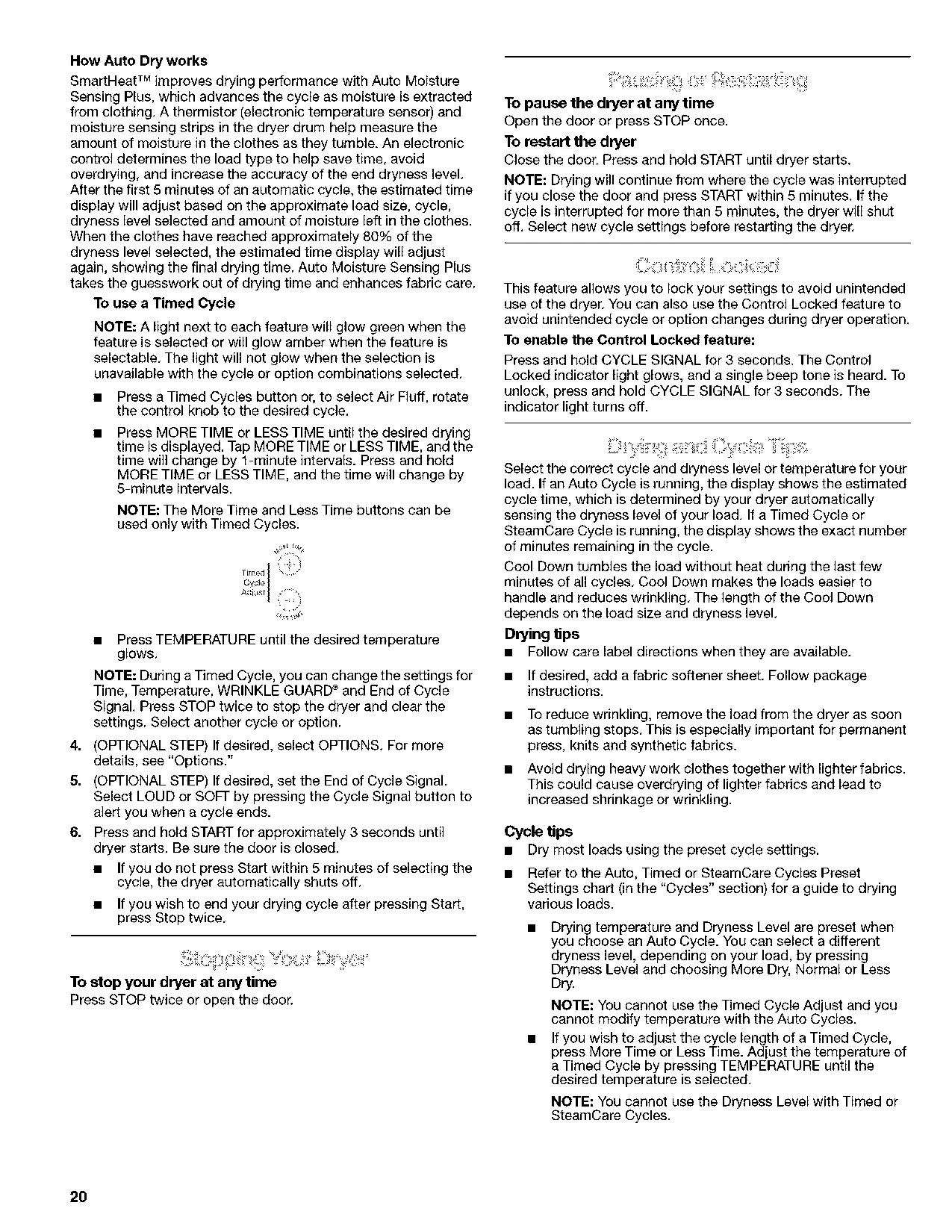

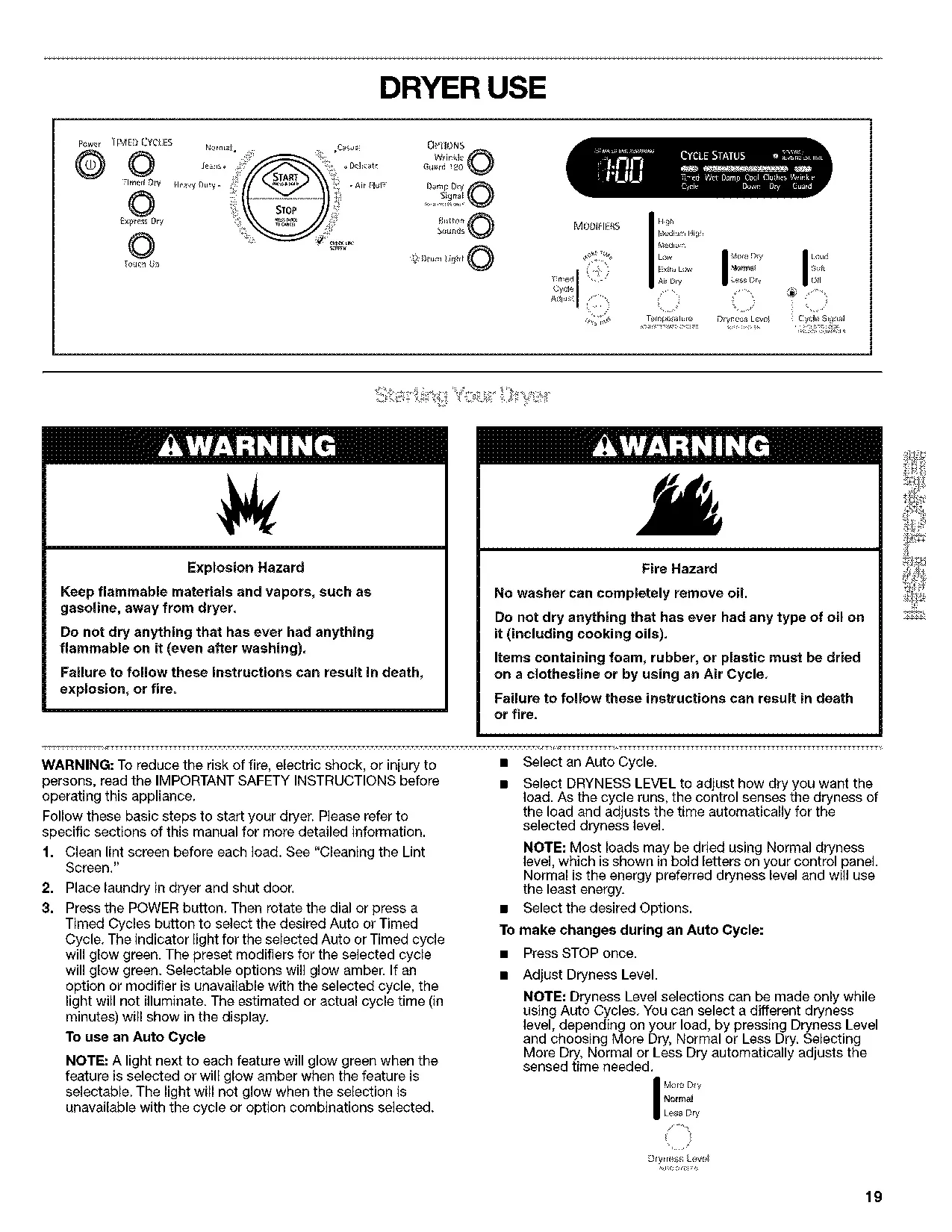

How do I start and stop a drying cycle on the Kenmore Elite Dryer HE3 110.87892602?

To start a cycle, select your desired settings and press the Start button. To stop a cycle mid-operation, simply press the Pause/Cancel button. You can also pause a cycle temporarily and restart it later.

What is the Control Locked feature for?

The Control Locked feature is designed to prevent accidental changes to your dryer settings during a cycle. Once activated, the control panel becomes unresponsive to touch, ensuring the selected cycle completes without interruption, especially useful in homes with children.

How often should I clean the lint screen?

It is highly recommended to clean the lint screen before *every* load to ensure optimal drying performance, energy efficiency, and to prevent lint buildup, which can be a fire hazard. Refer to the 'DRYER CARE' section for detailed instructions.

What is the TUMBLE FREE™ Heated Dryer Rack and how is it used?

The TUMBLE FREE™ Heated Dryer Rack is an accessory designed to dry delicate items, such as wool sweaters, foam rubber pillows, stuffed toys, or sneakers, without tumbling. It allows these items to dry gently and maintain their shape. Simply place the item on the rack and select an appropriate cycle, like Timed Dry (Low Heat) or Air Fluff.

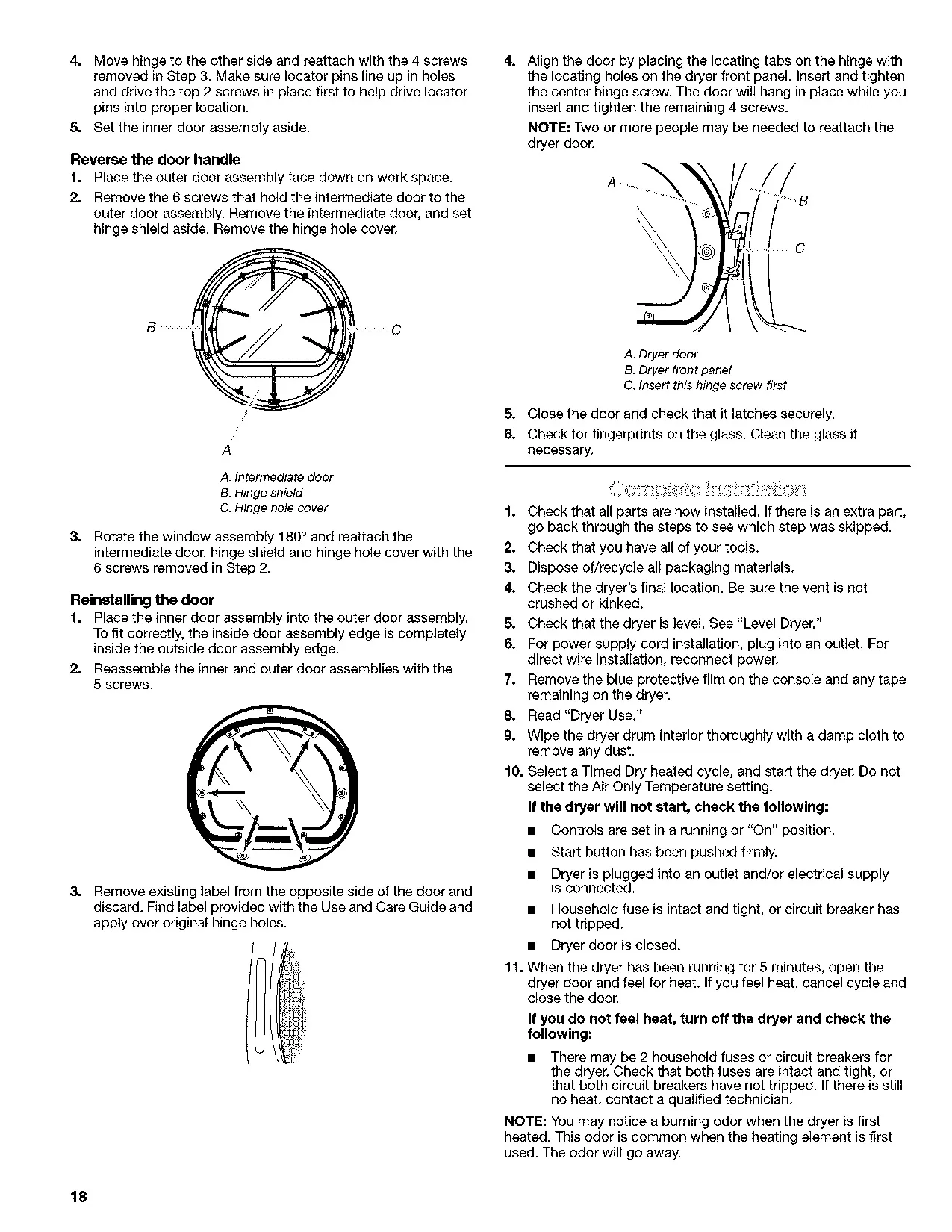

Can I reverse the door swing on my Kenmore Elite Dryer HE3 110.87892602?

Yes, the Kenmore Elite Dryer HE3 110.87892602 typically allows for the door swing to be reversed to better suit your laundry room layout. Detailed instructions for reversing the door swing can be found in the 'INSTALLATION INSTRUCTIONS' section of the manual.

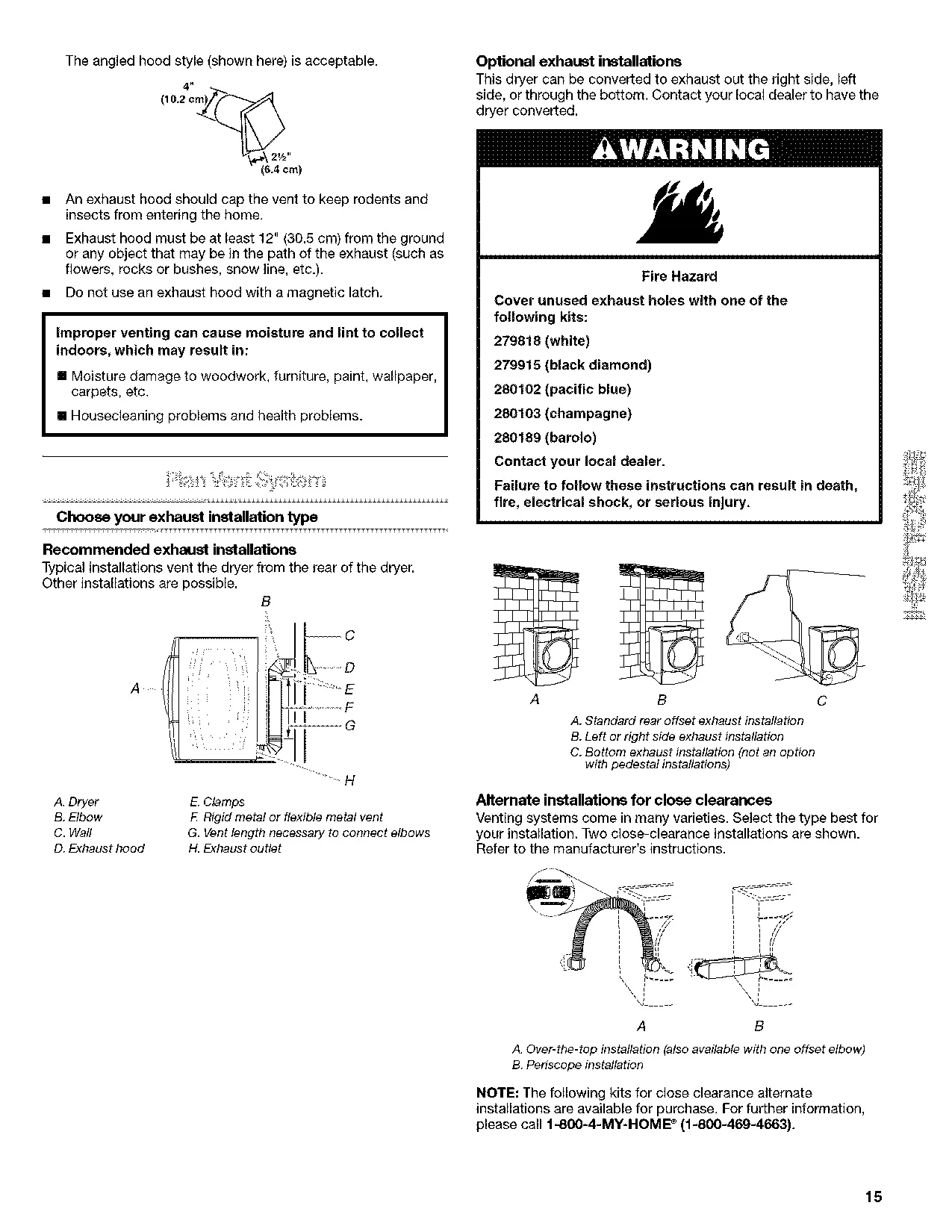

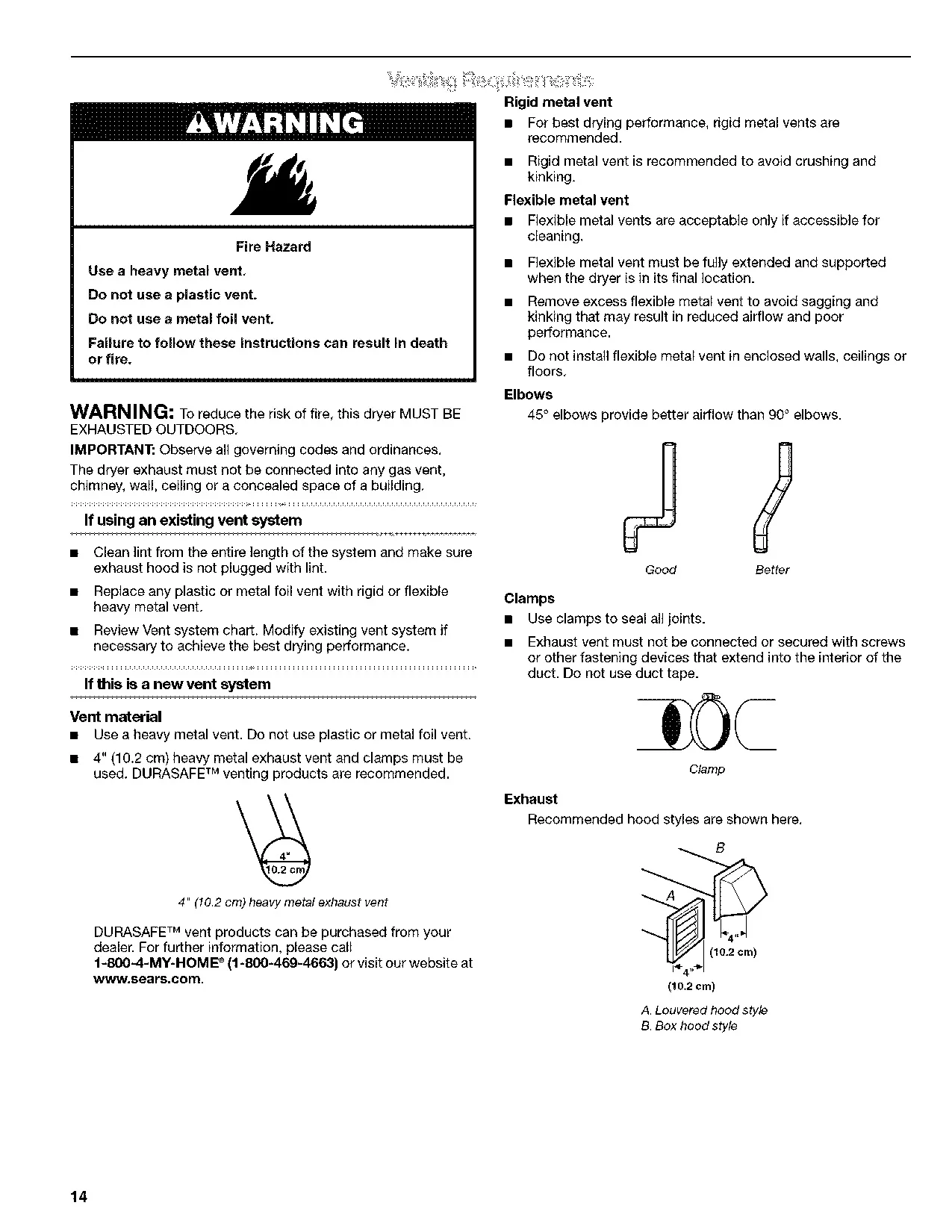

What are the general venting requirements for this dryer?

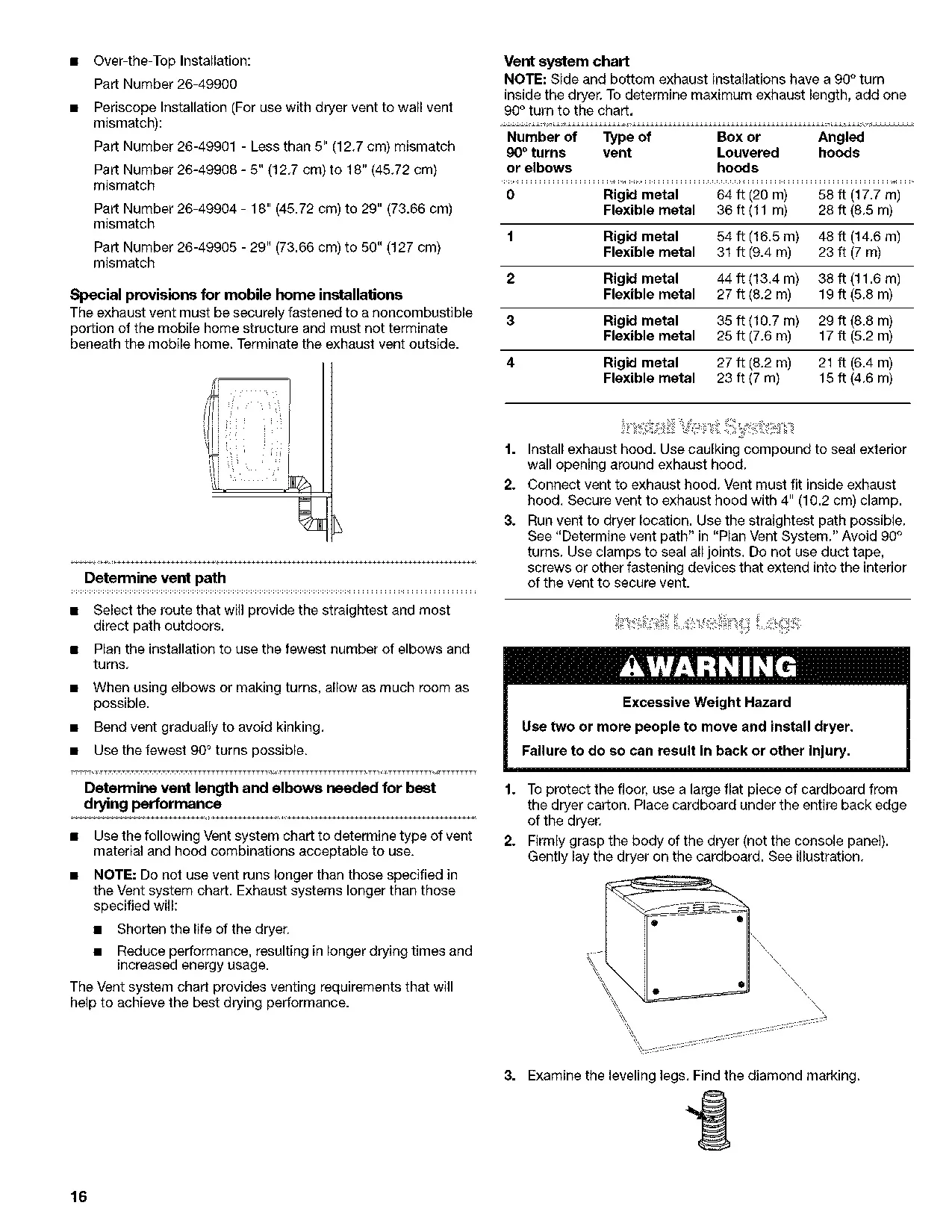

The dryer requires proper venting with either rigid or flexible metal vent material to the outside. The maximum allowable vent length depends on the number of 90° turns and the type of vent hood used. For example, with 0 turns and a box hood, rigid metal venting can be up to 64 ft (20 m). Always consult the 'Venting Requirements' section for specific guidelines.

What should I do if my dryer is not drying clothes effectively?

First, ensure the lint screen is clean and that the dryer's exhaust vent is not blocked or crushed. Check that you are selecting the appropriate cycle and temperature for the load type. Overloading the dryer can also lead to inefficient drying. Refer to the 'TROUBLESHOOTING - Dryer Results' section for more specific solutions.

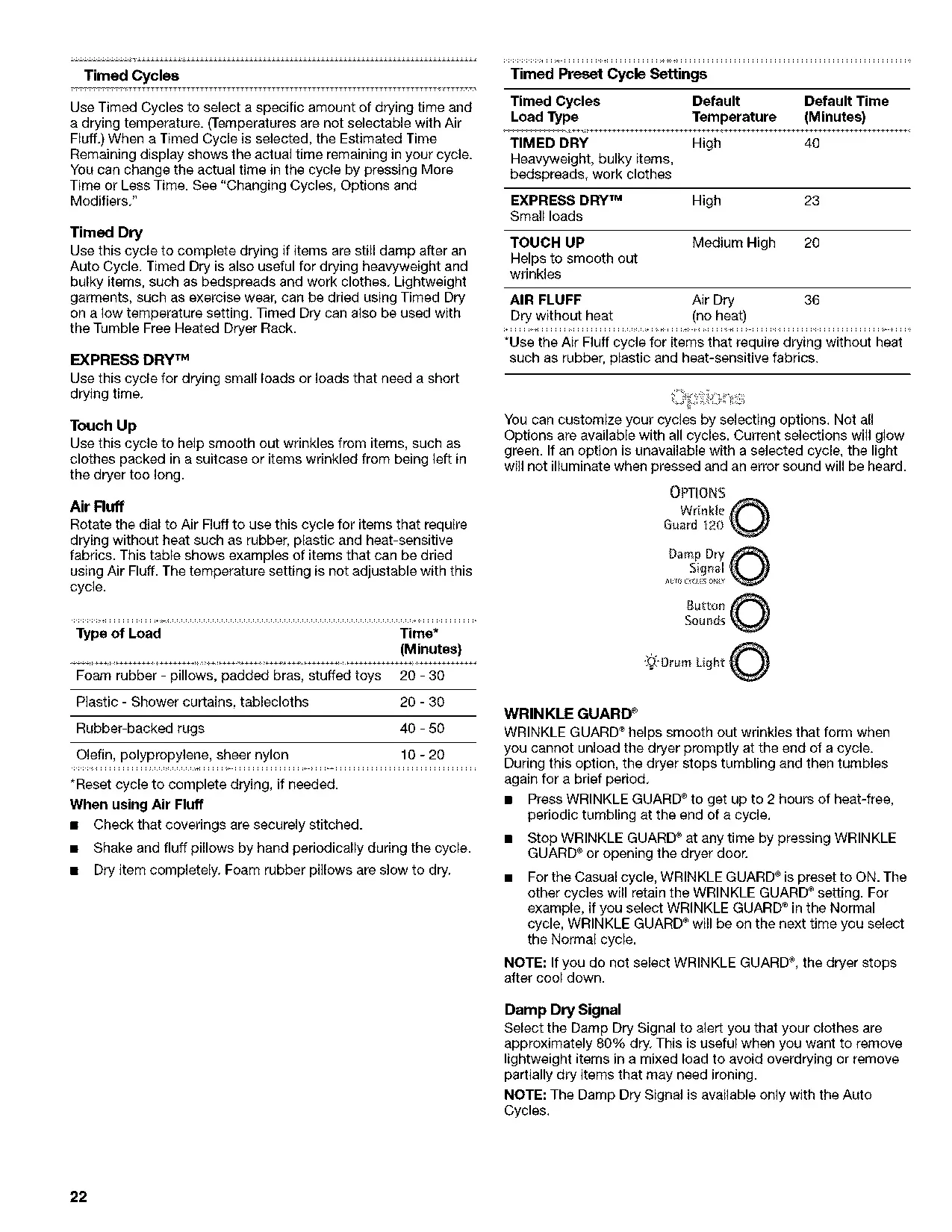

What are the available Timed Cycles and their default durations?

The Kenmore Elite Dryer HE3 110.87892602 features several Timed Cycles: TIMED DRY (default 40 minutes, High heat for heavy items), EXPRESS DRY™ (default 23 minutes, High heat for small loads), TOUCH UP (default 20 minutes, Medium-High heat for wrinkle smoothing), and AIR FLUFF (default 36 minutes, Air Dry with no heat).

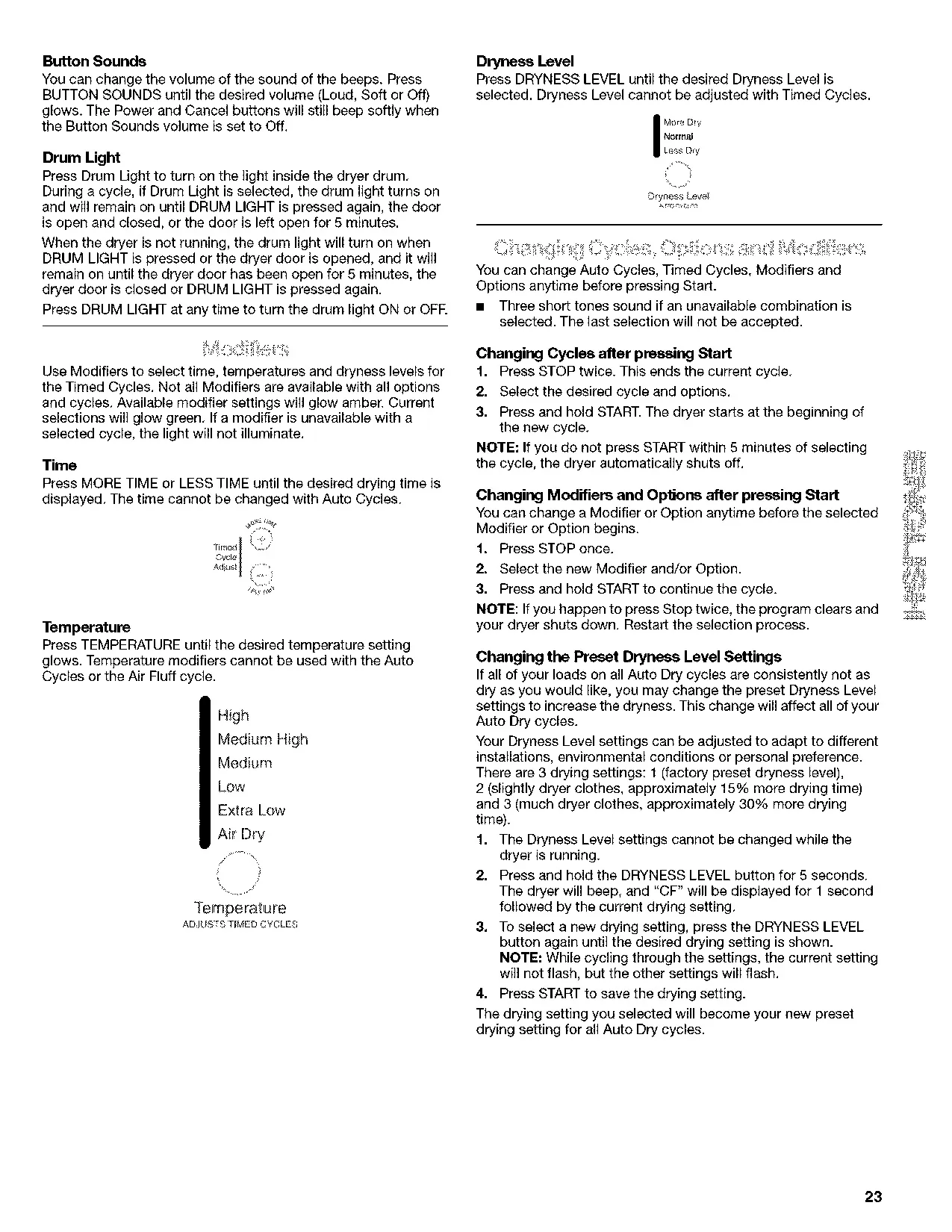

How do 'Options' and 'Modifiers' affect drying cycles?

Options and Modifiers provide additional control to customize your chosen drying cycle. While specific details aren't provided here, they generally allow you to adjust temperature levels, select dryness levels, add anti-wrinkle features, or set a delayed start, tailoring the cycle to your specific needs.

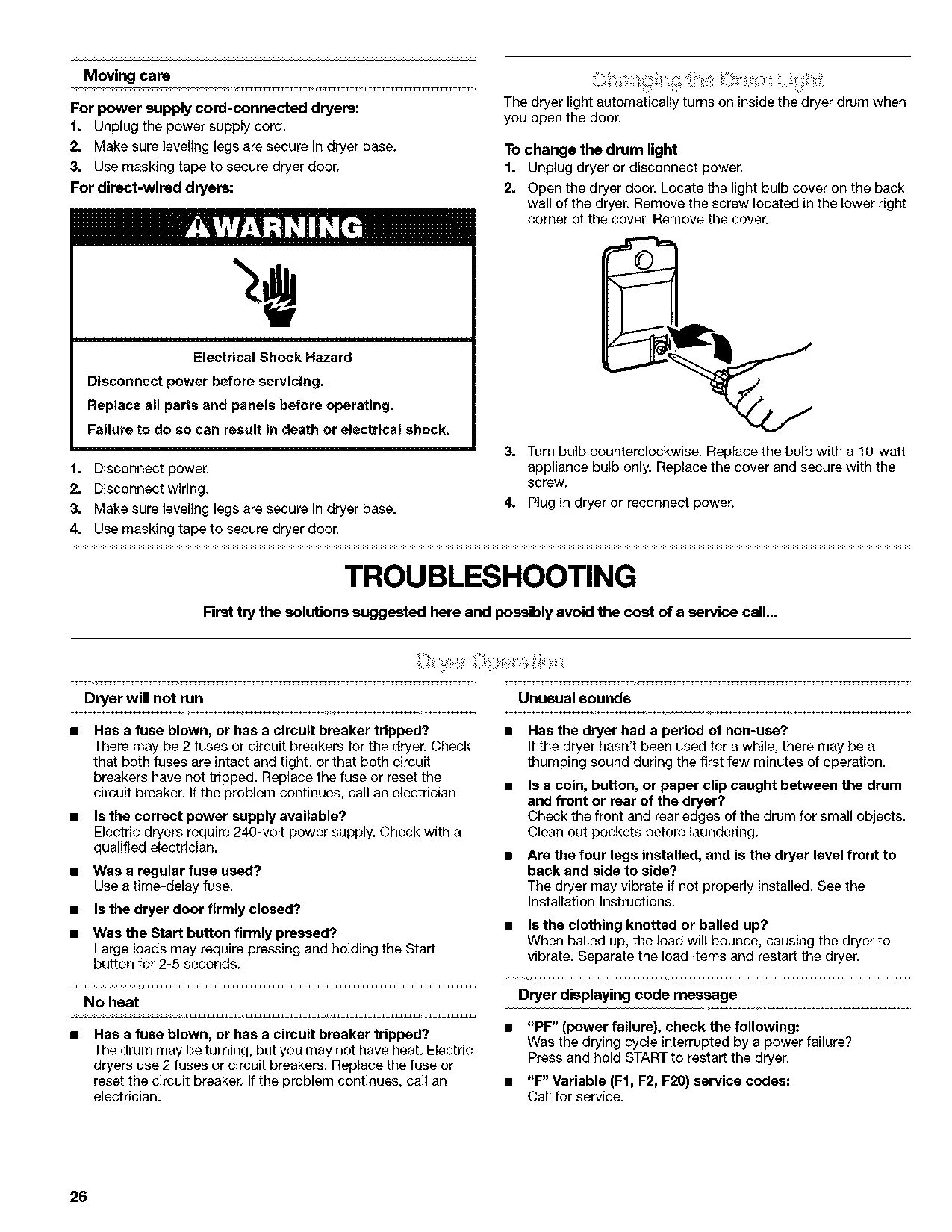

Is there a light inside the dryer drum, and how do I change it?

Yes, the Kenmore Elite Dryer HE3 110.87892602 typically includes a drum light for better visibility when loading and unloading. Instructions for changing the drum light bulb can be found in the 'DRYER CARE' section of your manual, ensuring you can maintain this convenient feature.

What care is needed for the dryer if I go on vacation or move?

For vacation care, it's recommended to clean the lint screen and unplug the dryer. When moving, ensure the dryer is unplugged and any vent connections are properly disconnected and secured. Follow specific guidelines in the 'Vacation and Moving Care' section to prepare your dryer for extended periods of non-use or relocation.
