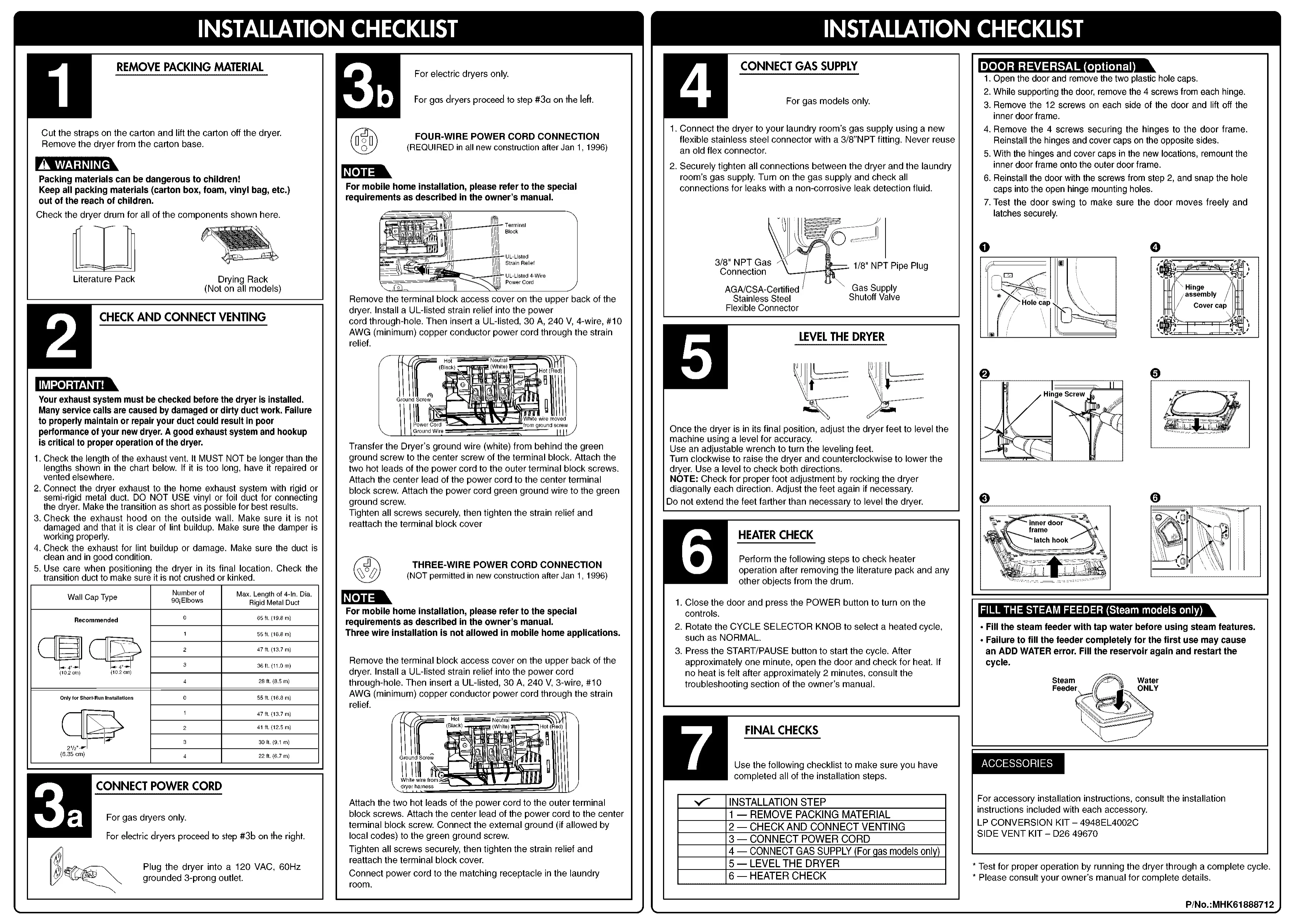

Installation Guide

1 pages

Kenmore Elite Dryer Model 796 Instructions

Here we offer the Kenmore Elite Dryer Model 796 manual completely free and in English. We have cataloged this manual in the Dryers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Kenmore Elite Dryer Model 796, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

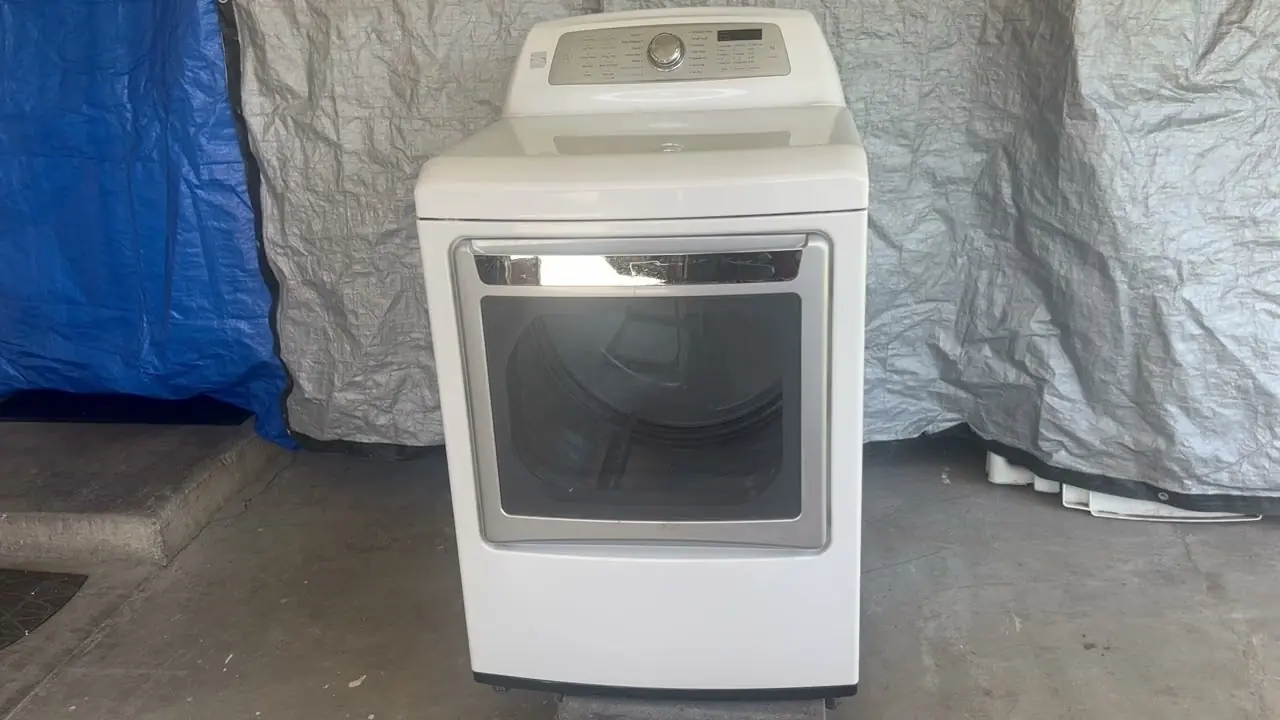

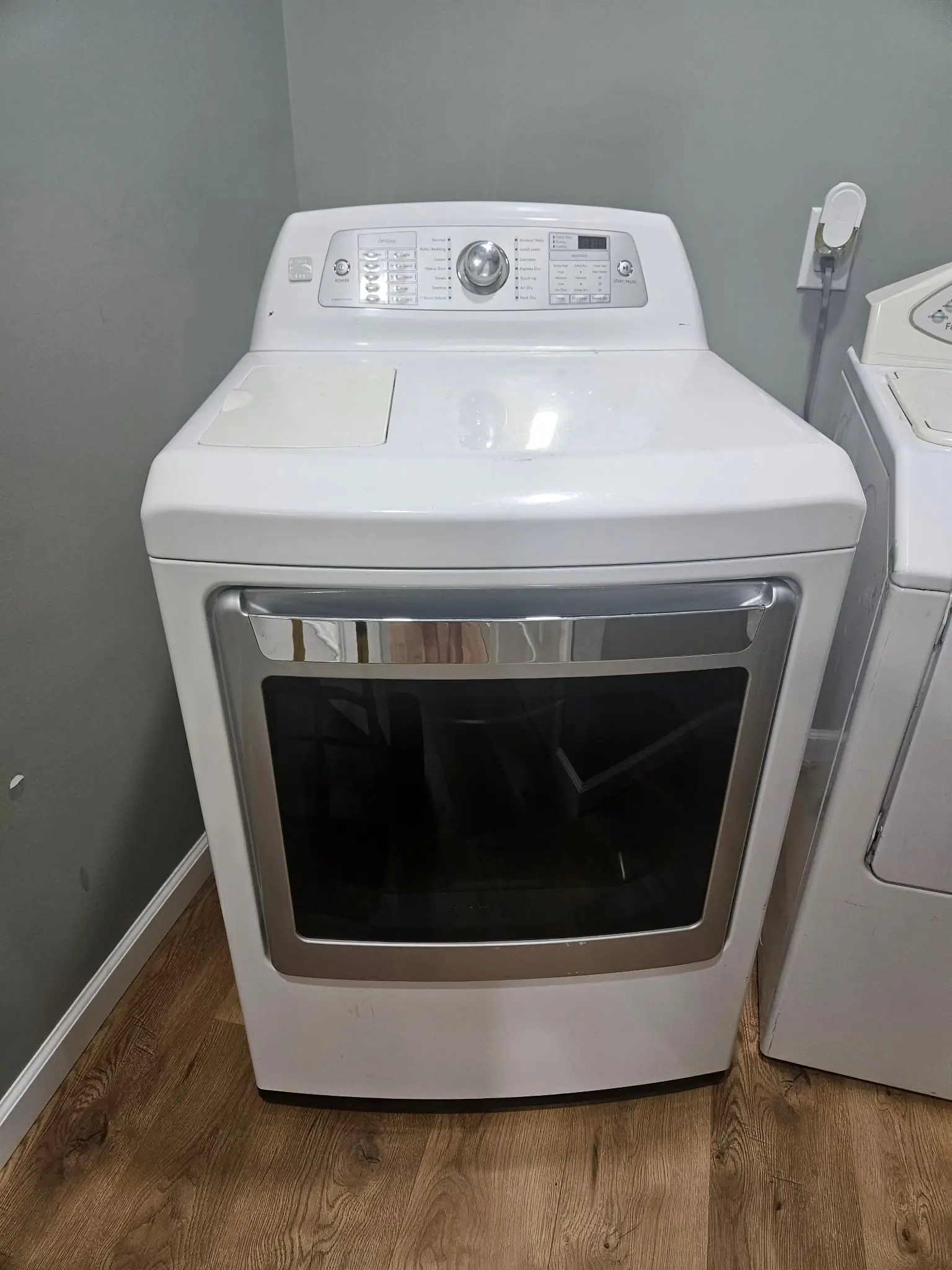

Product Images

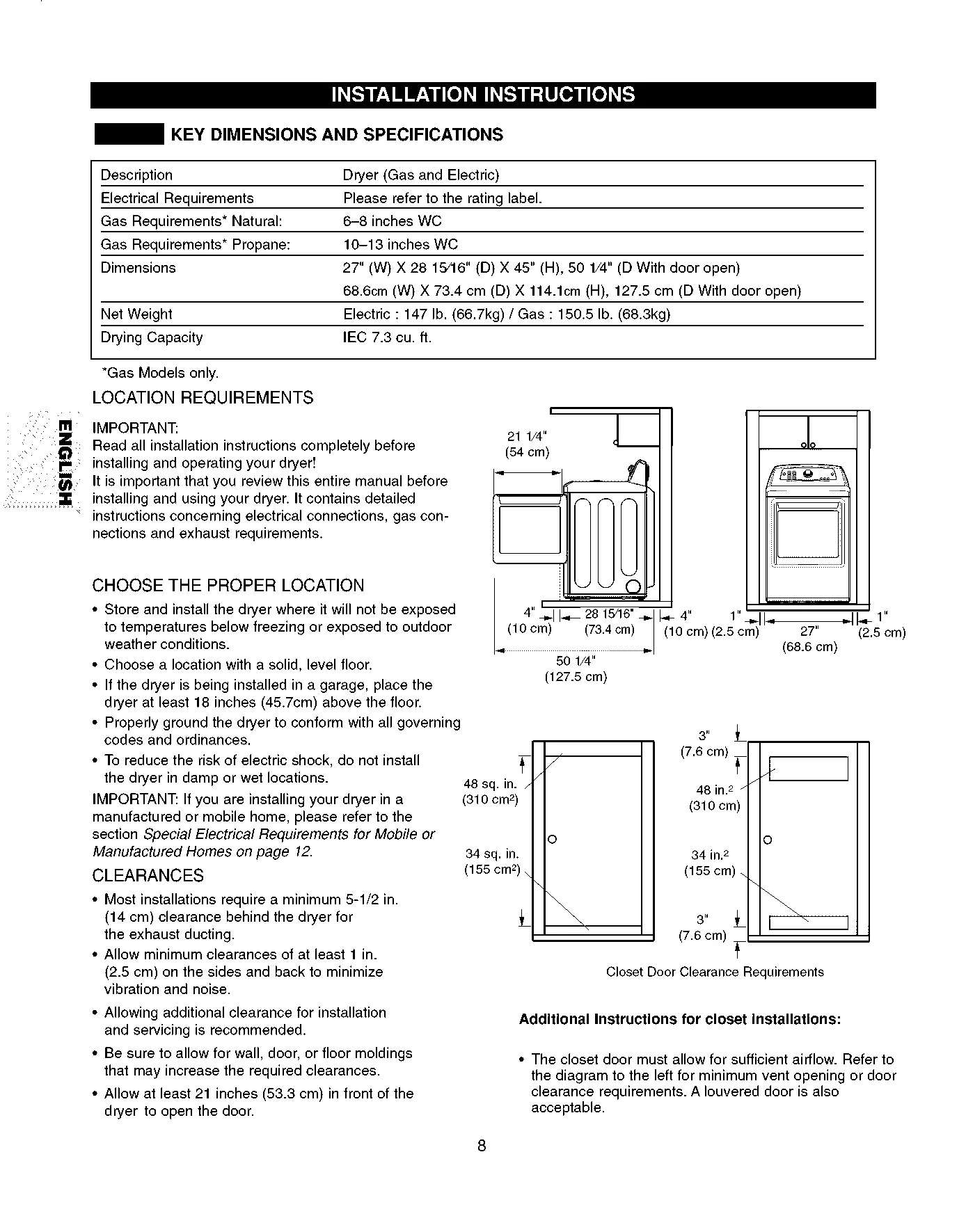

Kenmore Elite Dryer Model 796 Specifications

Description	Dryer (Gas and Electric)
Electrical Requirements	Please refer to the rating label.
Gas Requirements* (Natural)	6-8 inches WC
Gas Requirements* (Propane)	10-13 inches WC
Dimensions	27" (W) X 28 15/16" (D) X 45" (H), 50 1/4" (D With door open) (68.60 cm (W) X 73.4 cm (D) X 114.10 cm (H), 127.5 cm (D With door open))
Net Weight	Electric: 147 lb. (66.7 kg) / Gas: 150.5 lb. (68.3 kg)
Drying Capacity	IEC 7.3 cu. ft.

Kenmore Elite Dryer Model 796 Details

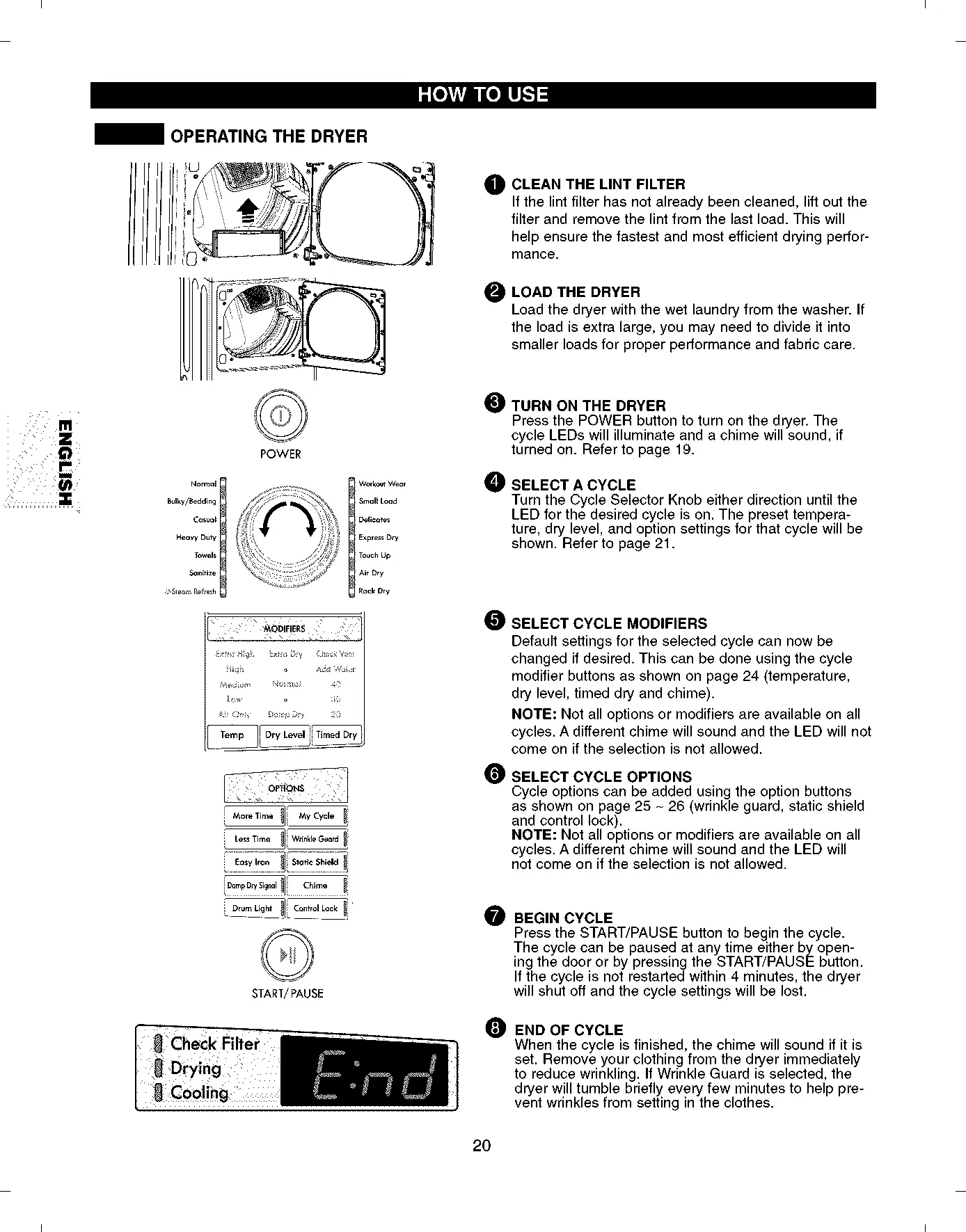

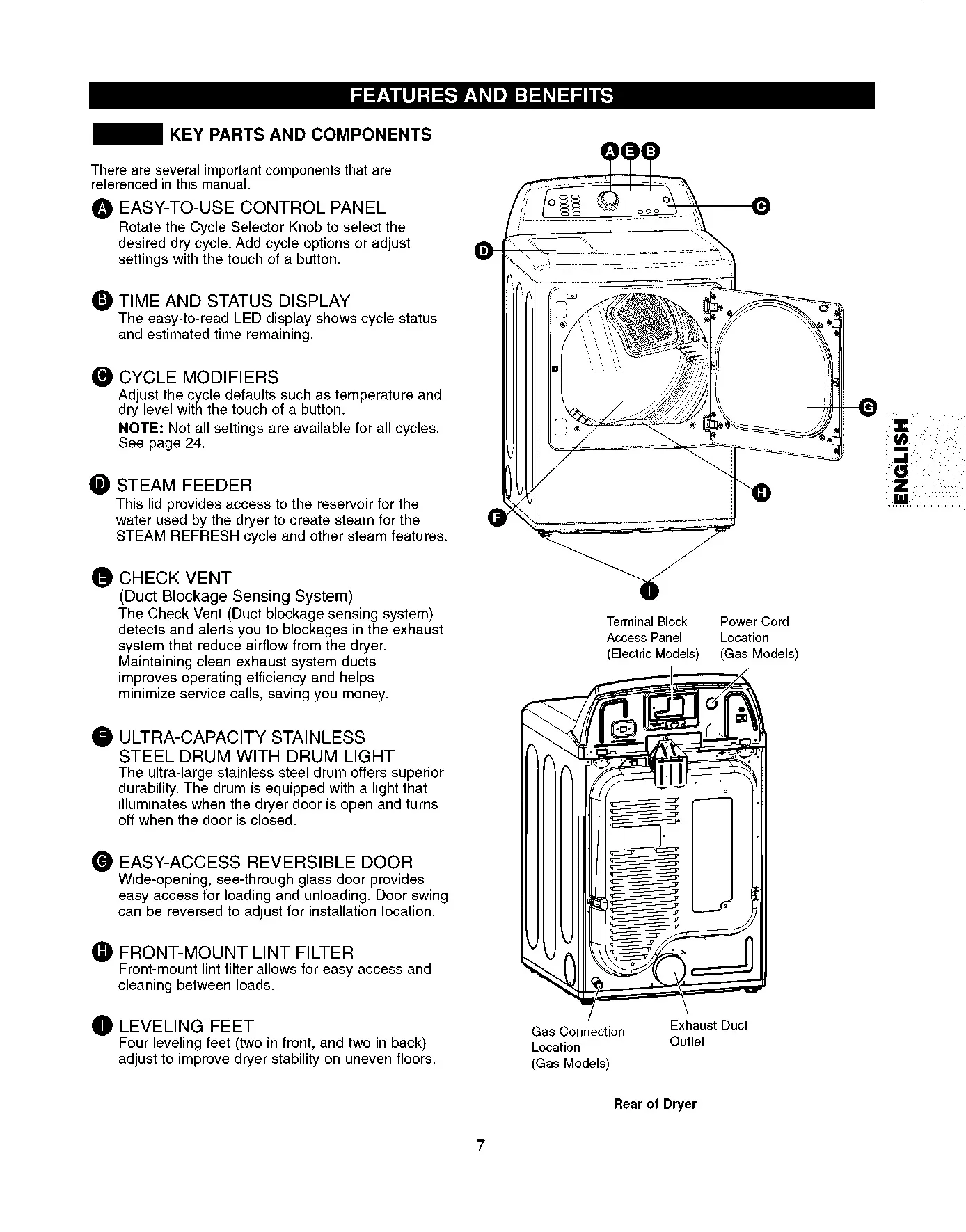

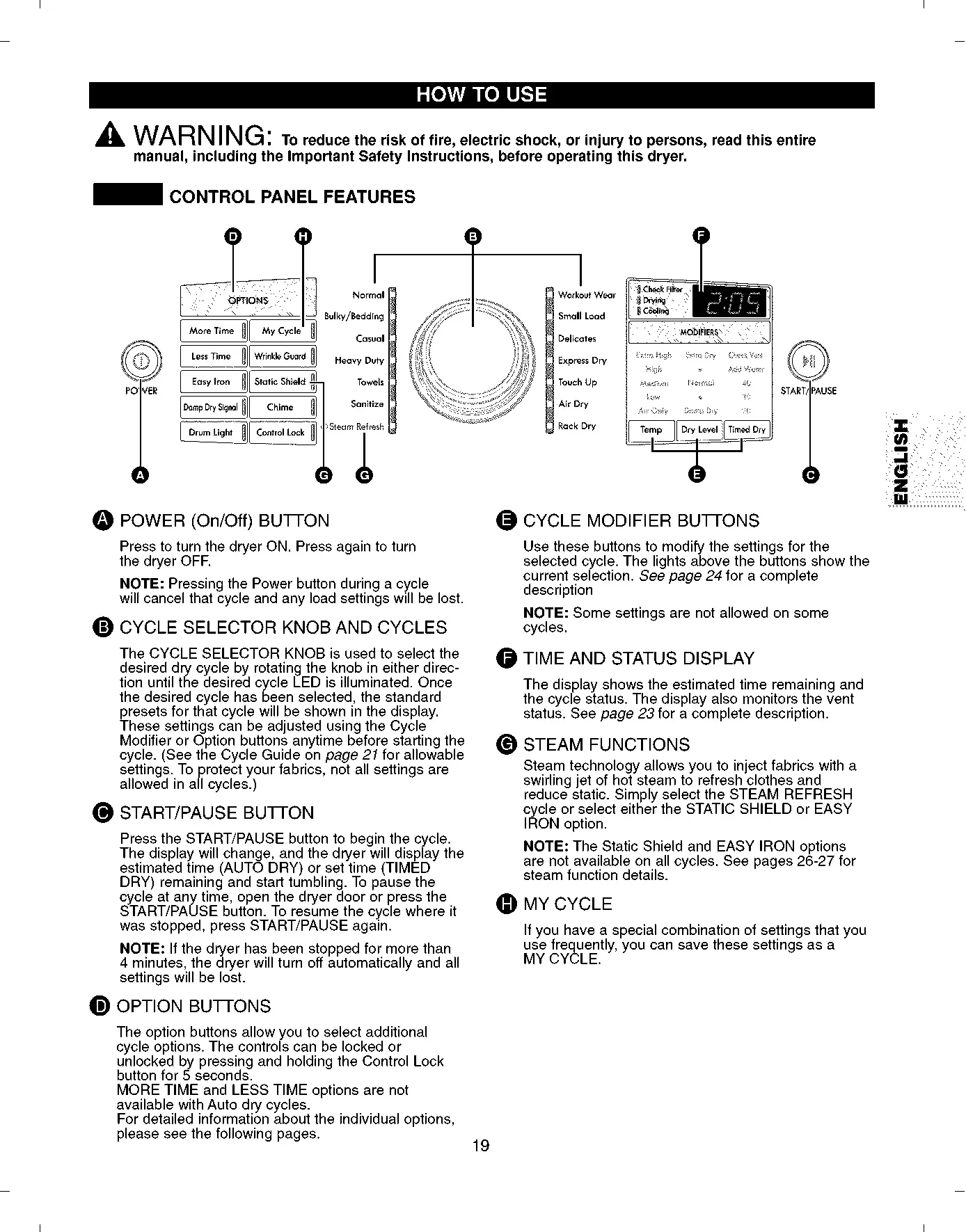

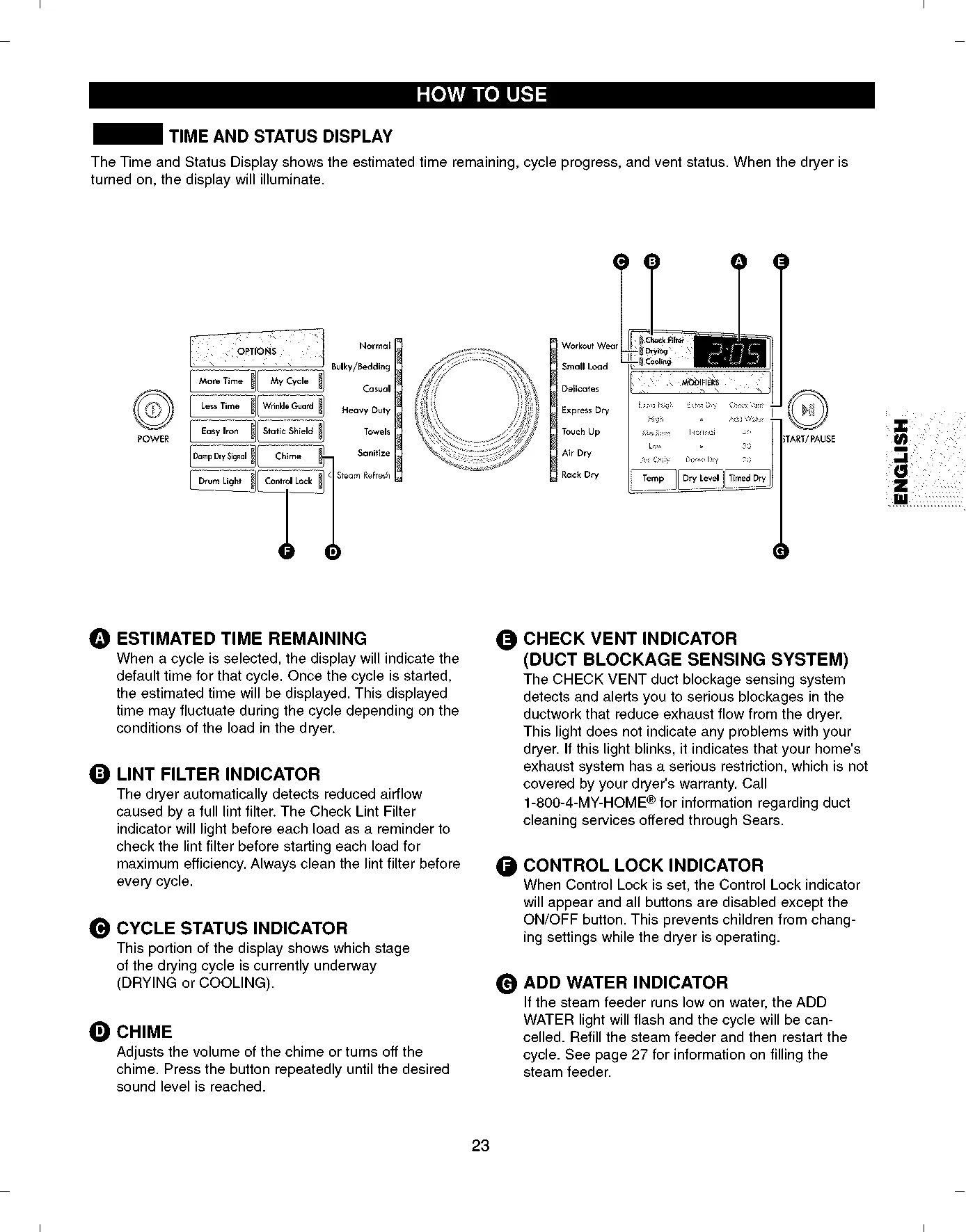

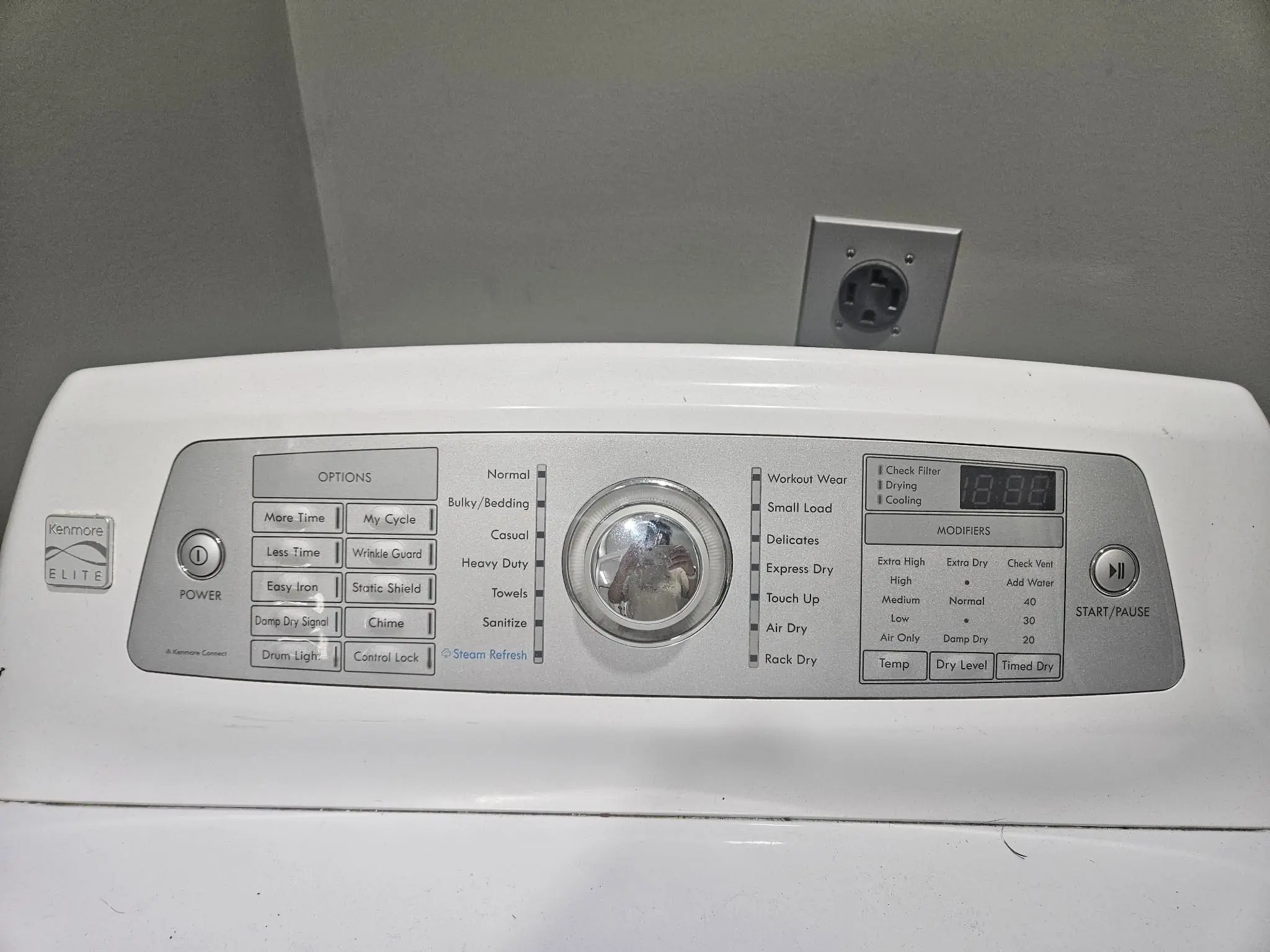

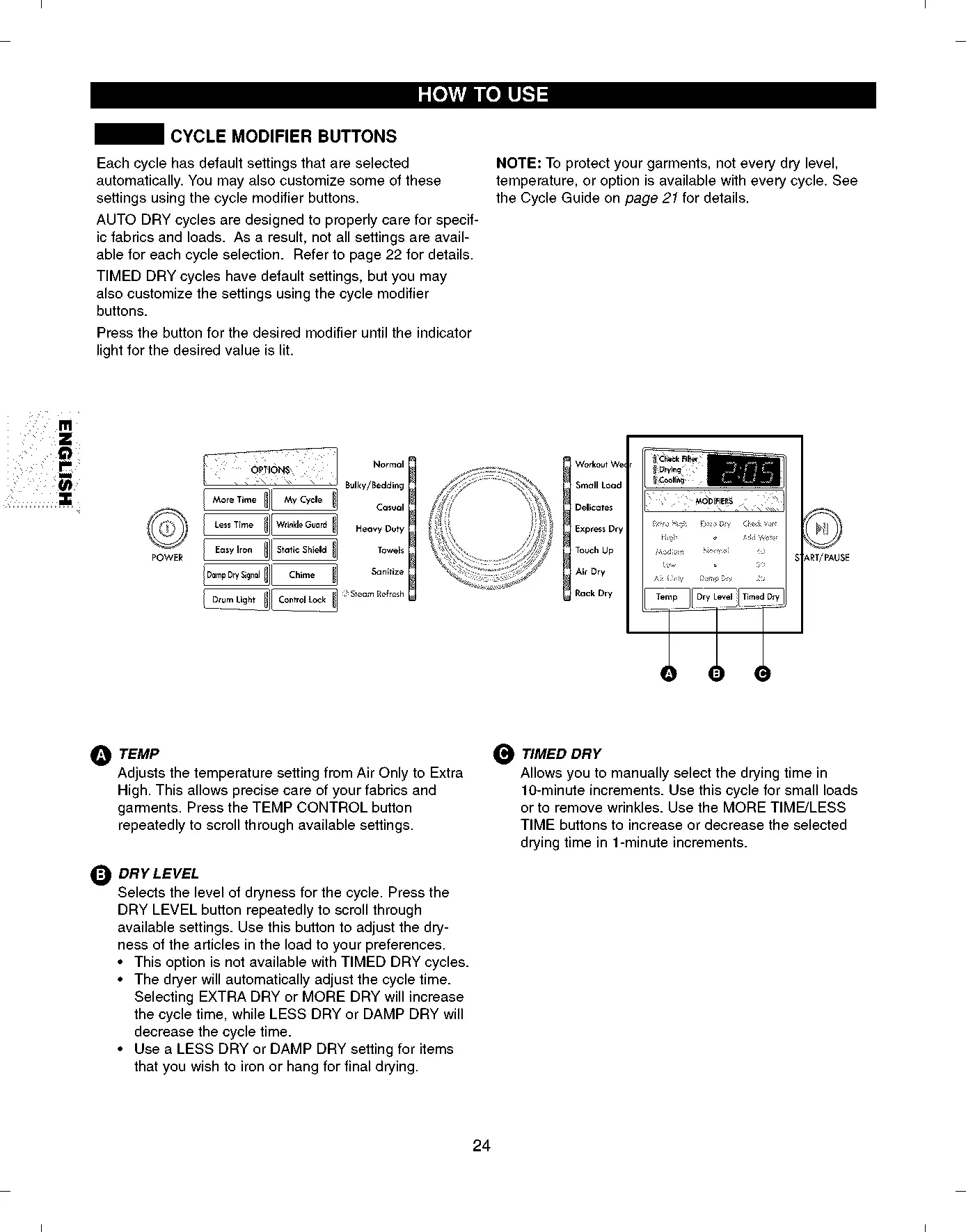

The Kenmore Elite Dryer Model 796 is designed for both efficiency and user convenience. Its intuitive control panel features a clear Time and Status Display, allowing users to monitor cycle progress at a glance. A variety of Cycle Modifier Buttons, such as temperature and dry level adjustments, provide precise control over drying conditions. Essential Cycle Options like My Cycle, Drum Light, and Control Lock further enhance the user experience, offering customization, visibility, and safety. This sophisticated interface ensures that operating the dryer is straightforward, from selecting a cycle to managing special features, making laundry day simpler and more effective.

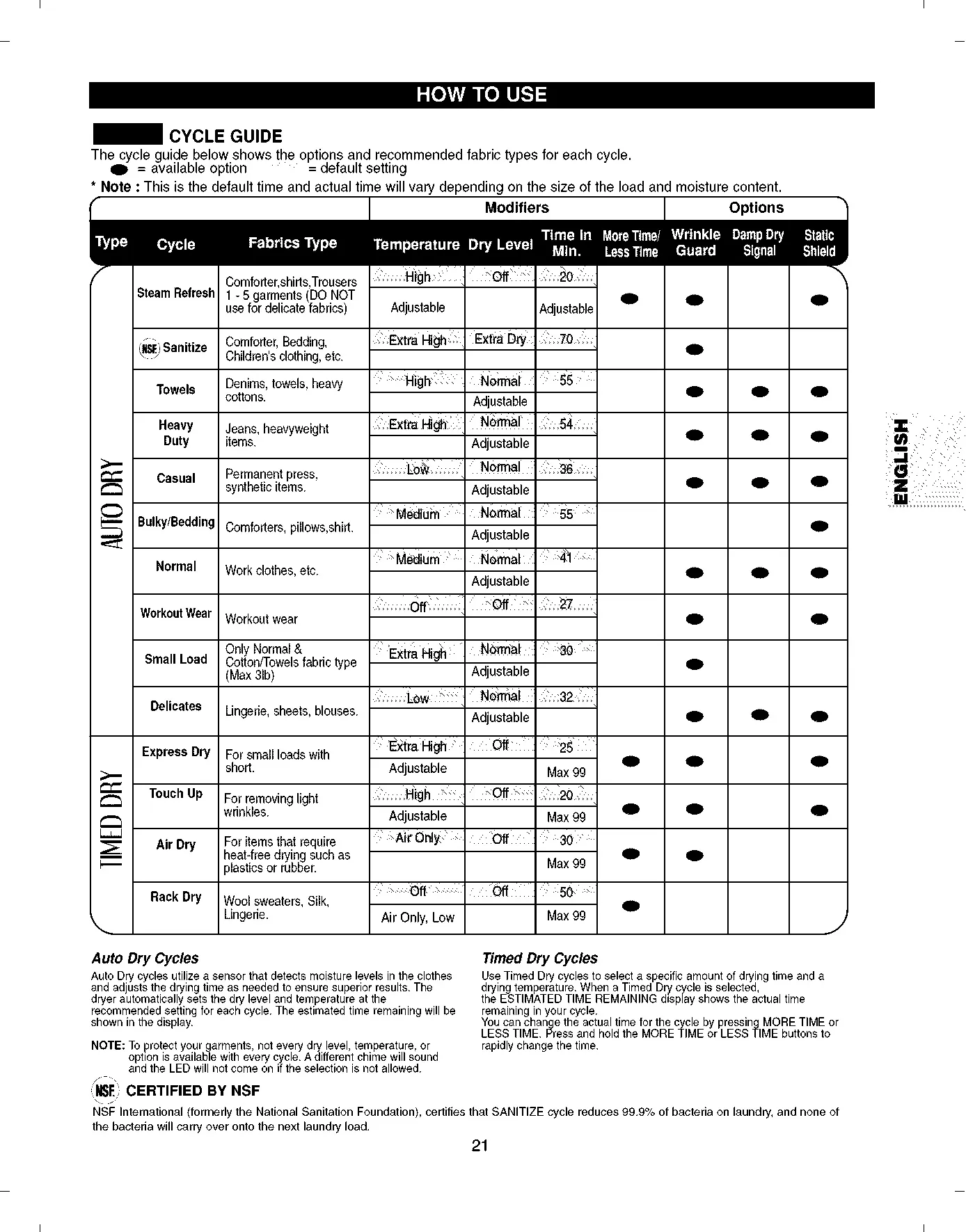

This dryer boasts an impressive range of specialized drying cycles tailored for diverse fabric types and needs. Beyond standard settings, it includes unique options like Steam Refresh for quickly de-wrinkling 1-5 garments, and a powerful Sanitize Cycle perfect for items requiring high-temperature disinfection, such as bedding or children's clothes. For delicate items, the Rack Dry Cycle offers heat-free or low-heat drying, ideal for wool sweaters, silk, and lingerie. The comprehensive Cycle Guide ensures users can select the most appropriate setting for every load, optimizing care and performance.

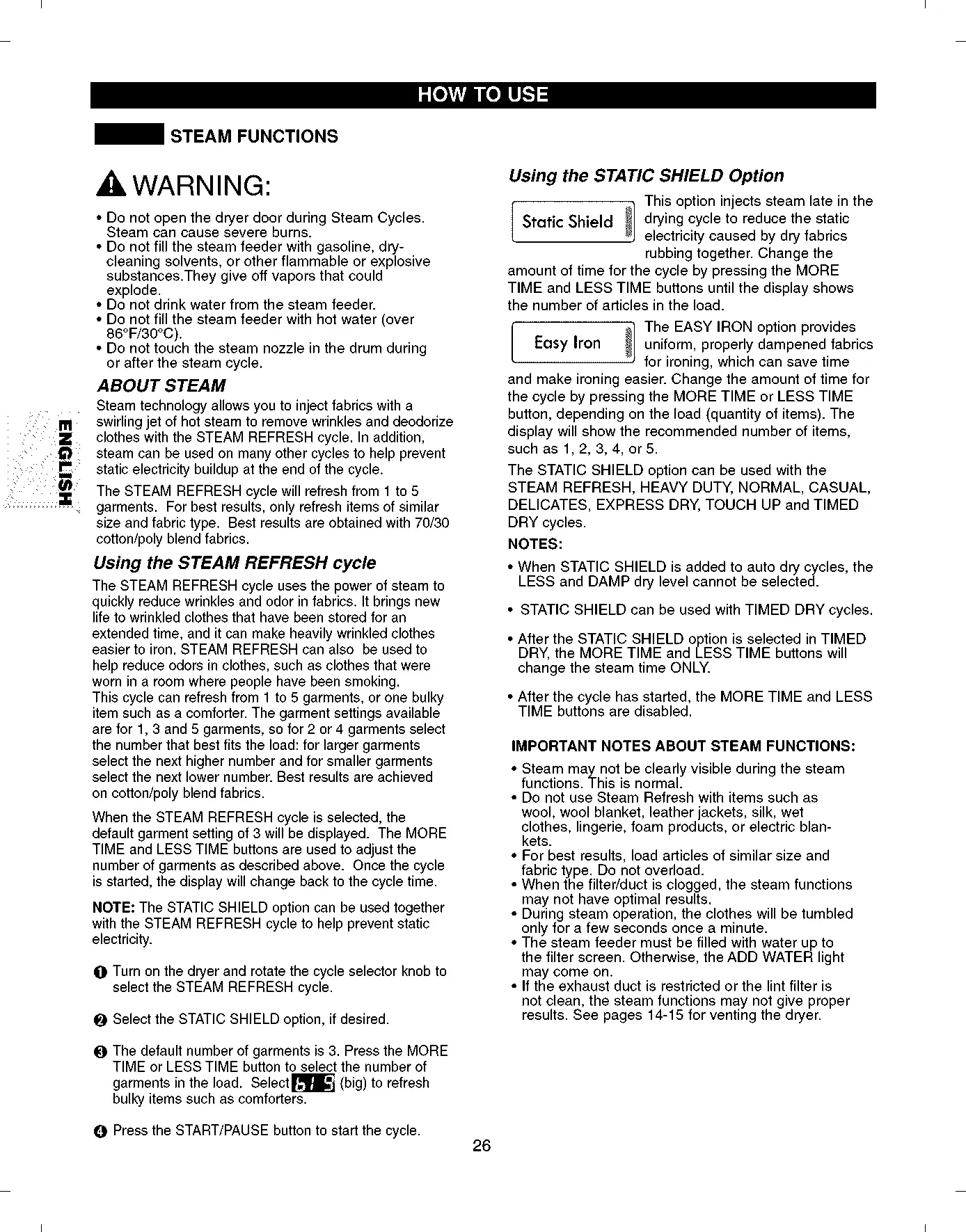

A standout feature of the Kenmore Elite Model 796 is its advanced steam technology. The Steam Refresh cycle efficiently removes wrinkles and odors from lightly worn clothes, providing a quick refresh without a full wash. For static-prone fabrics, the STATIC SHIELD option actively reduces static electricity, leaving clothes smoother and more comfortable. The convenience of a dedicated steam feeder, which is easy to fill, underscores the dryer's commitment to modern laundry solutions. These steam functions significantly enhance garment care, offering convenience and professional-level results at home.

The dryer incorporates several features aimed at convenience and garment protection. The Wrinkle Guard option is particularly useful, tumbling clothes intermittently after a cycle finishes for up to 150 minutes to prevent wrinkles from setting in. This allows users flexibility in retrieving their laundry without compromising on garment freshness. The Control Lock feature prevents accidental changes to settings during operation, which is especially handy in households with curious children. These thoughtful additions ensure that clothes remain in optimal condition, even if not removed immediately, and that the dryer operates as intended.

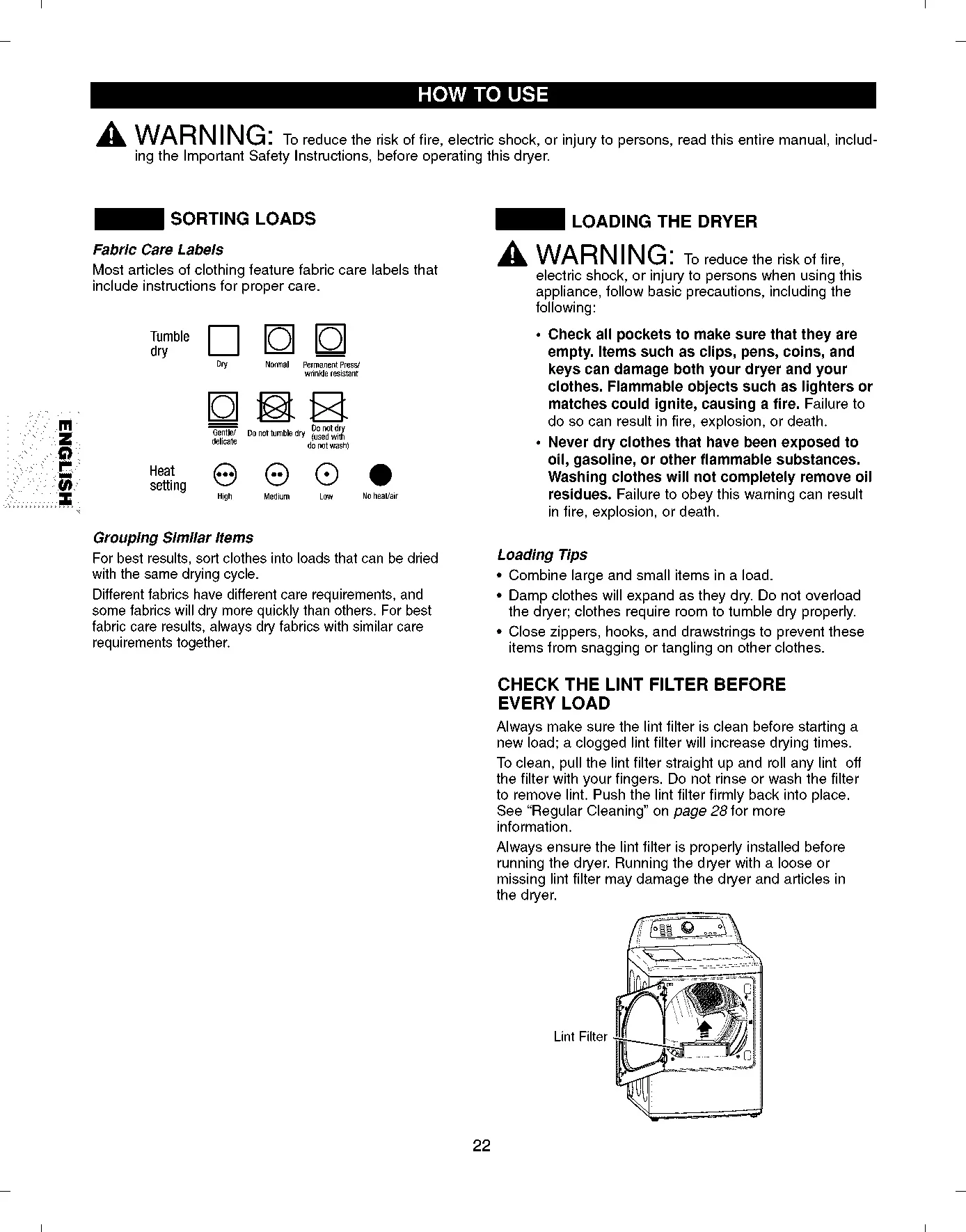

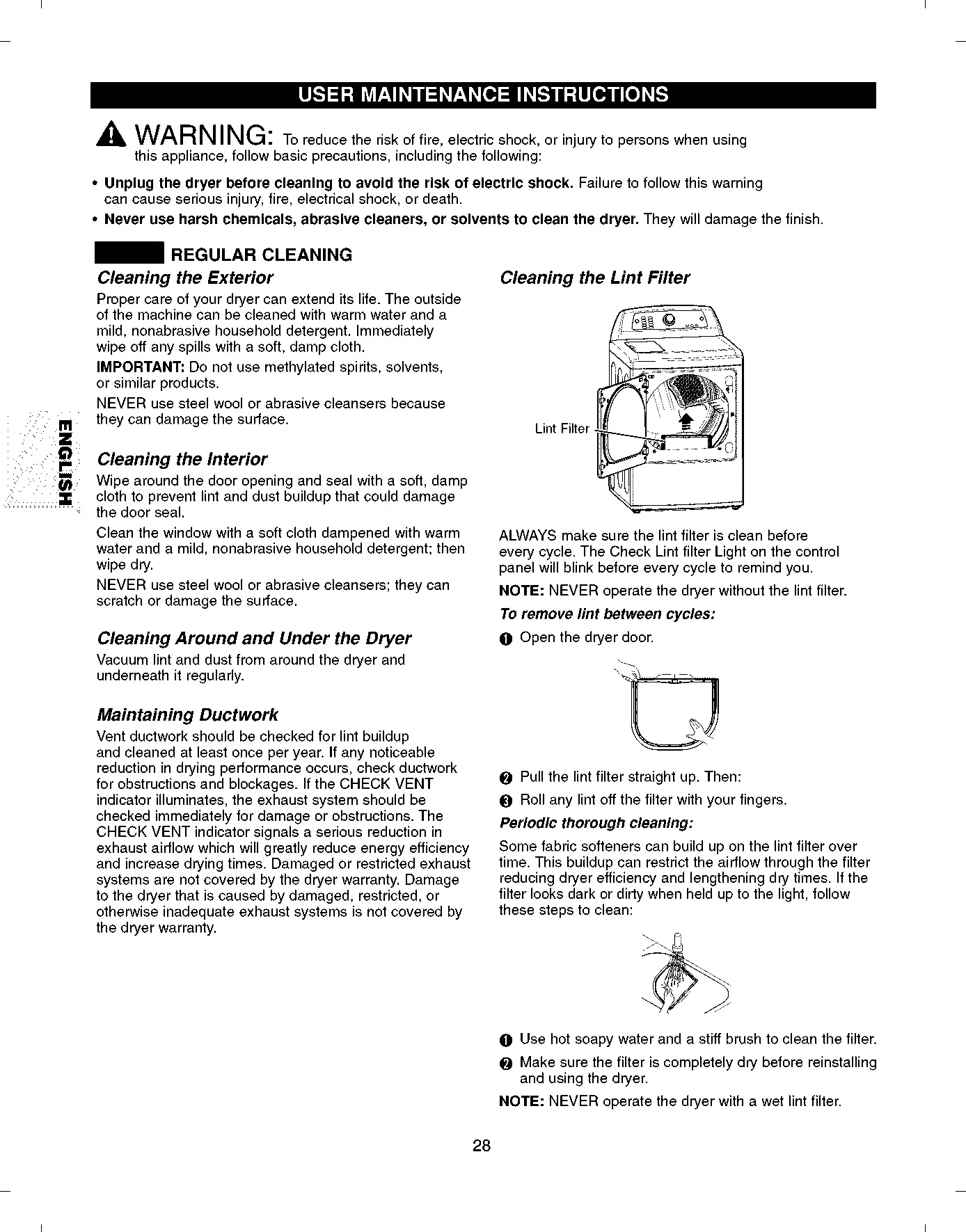

Maintaining the Kenmore Elite Dryer Model 796 is designed to be straightforward, promoting long-term efficiency and performance. Regular tasks such as cleaning the lint filter before every load are emphasized, crucial for preventing blockages and maintaining optimal drying times. The manual also provides clear instructions for cleaning the dryer's exterior, interior, and around/under the unit, as well as maintaining the ductwork. Proper maintenance not only extends the life of the appliance but also ensures consistent drying results and energy efficiency, safeguarding your investment.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Kenmore Elite Dryer Model 796, and we answer them below.

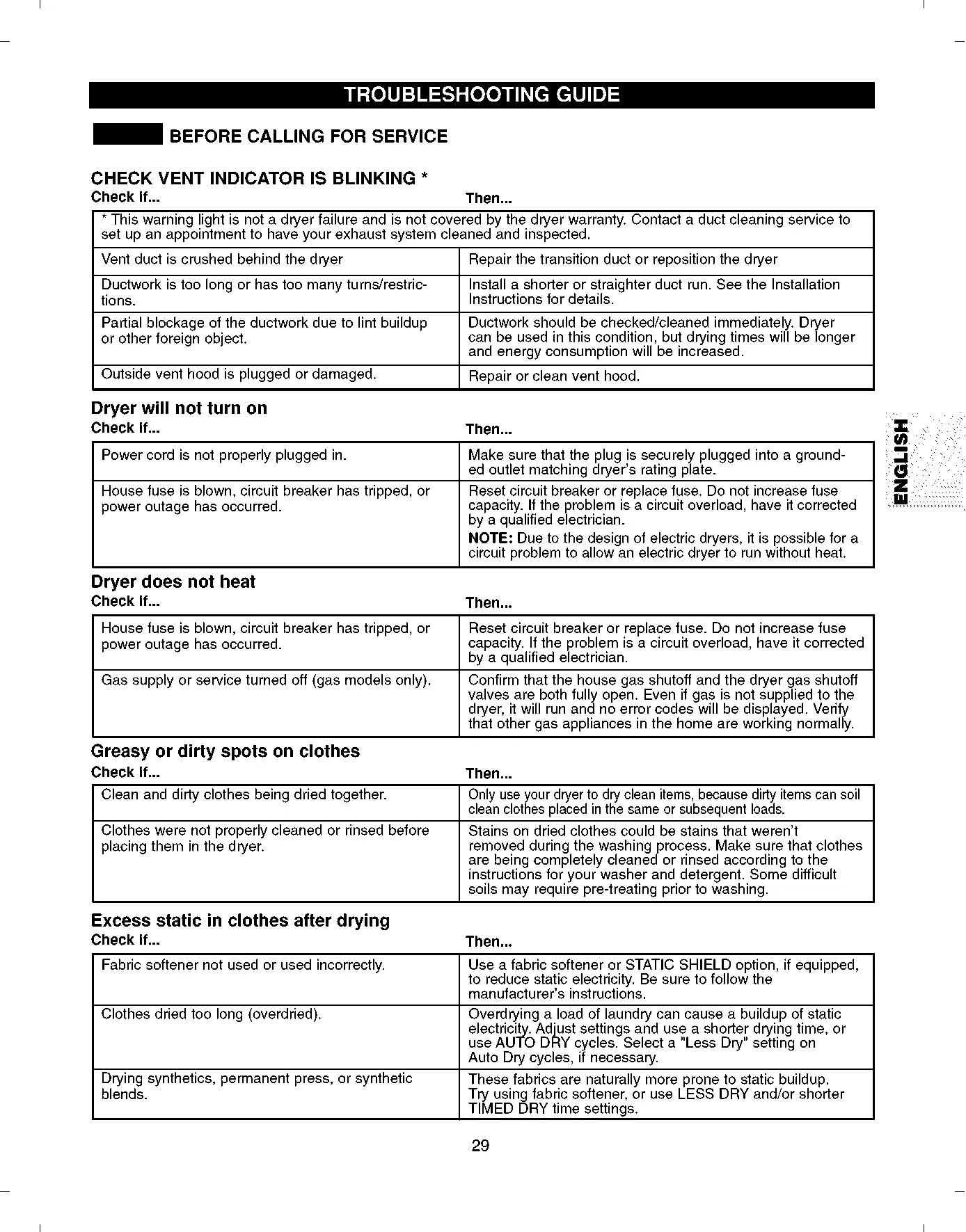

Why are my clothes taking too long to dry with the Kenmore Elite Dryer Model 796?

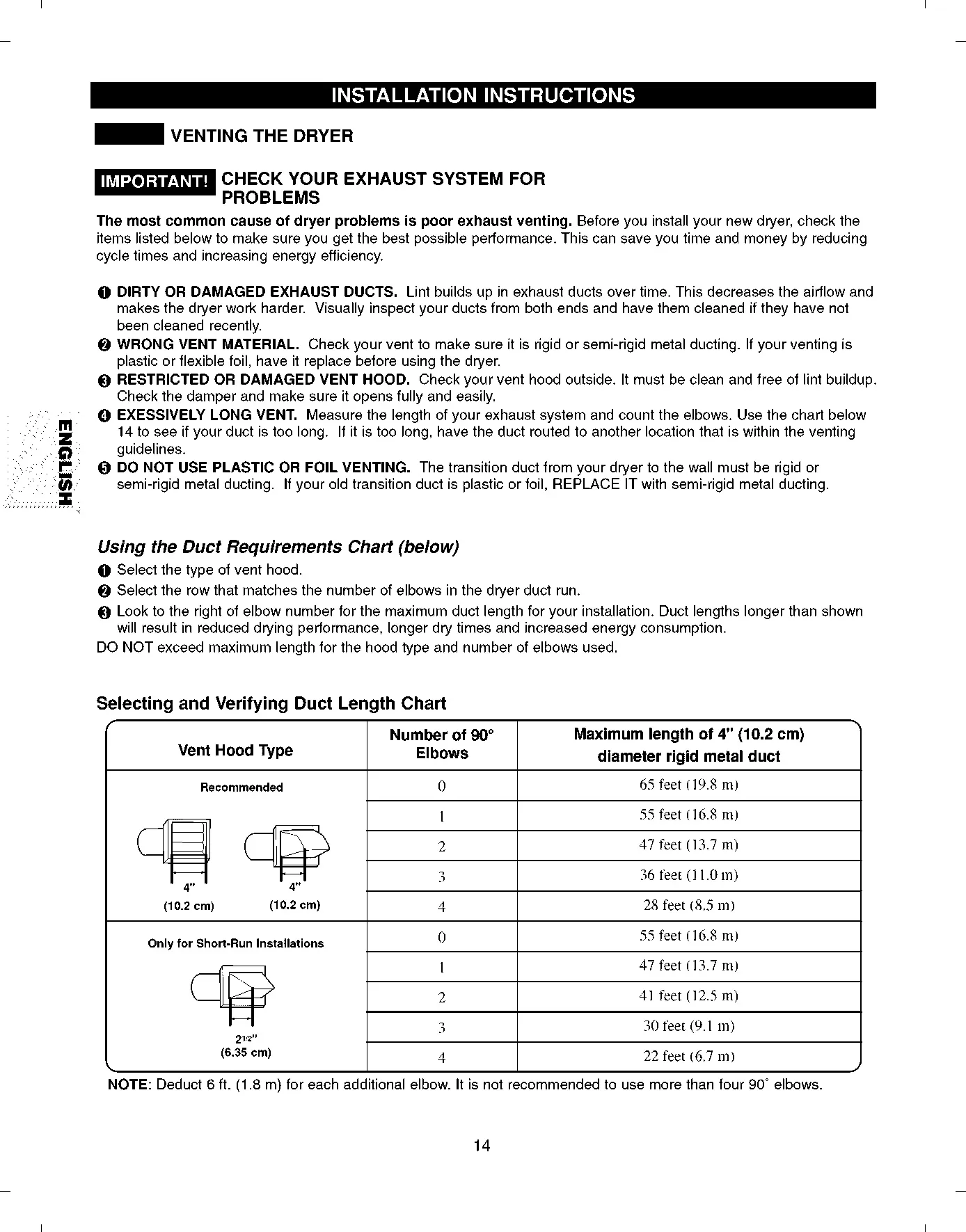

This can be caused by several factors. Check if the exhaust ducts are blocked, dirty, or if the duct run is too long. Ensure the load is properly sorted (separate heavy from lightweight items), the dryer isn't overloaded or underloaded, and that the lint filter is clean before every load. Also, confirm that the dryer controls are set to the appropriate cycle and dry level for the load type.

My Kenmore Elite Dryer Model 796 is not heating. What should I check?

For electric models, a blown house fuse or tripped circuit breaker is a common cause. For gas models, confirm that both the house gas shutoff and the dryer gas shutoff valves are fully open. Even without gas, the dryer may run without heat, so verify other gas appliances in your home are functioning normally.

Why won't my Kenmore Elite Dryer Model 796 turn on?

First, ensure the power cord is securely plugged into a grounded outlet matching the dryer's rating plate. If power is supplied but it still won't turn on, check if a house fuse is blown or a circuit breaker has tripped, and reset if necessary.

I'm getting greasy or dirty spots on my clothes after drying. What's wrong?

This usually happens if clean and dirty clothes are dried together, as dirty items can soil clean ones. Also, ensure clothes were properly cleaned and rinsed in the washer before placing them in the dryer, as stains not removed during washing can become set in the dryer.

How can I reduce excess static in clothes after drying with my Kenmore Elite Dryer Model 796?

To reduce static, use a fabric softener or the dryer's STATIC SHIELD option if available, following manufacturer's instructions. Overdrying can also cause static buildup, so try adjusting settings for a shorter drying time or using AUTO DRY cycles with a "Less Dry" setting. Synthetics and permanent press fabrics are naturally more prone to static.

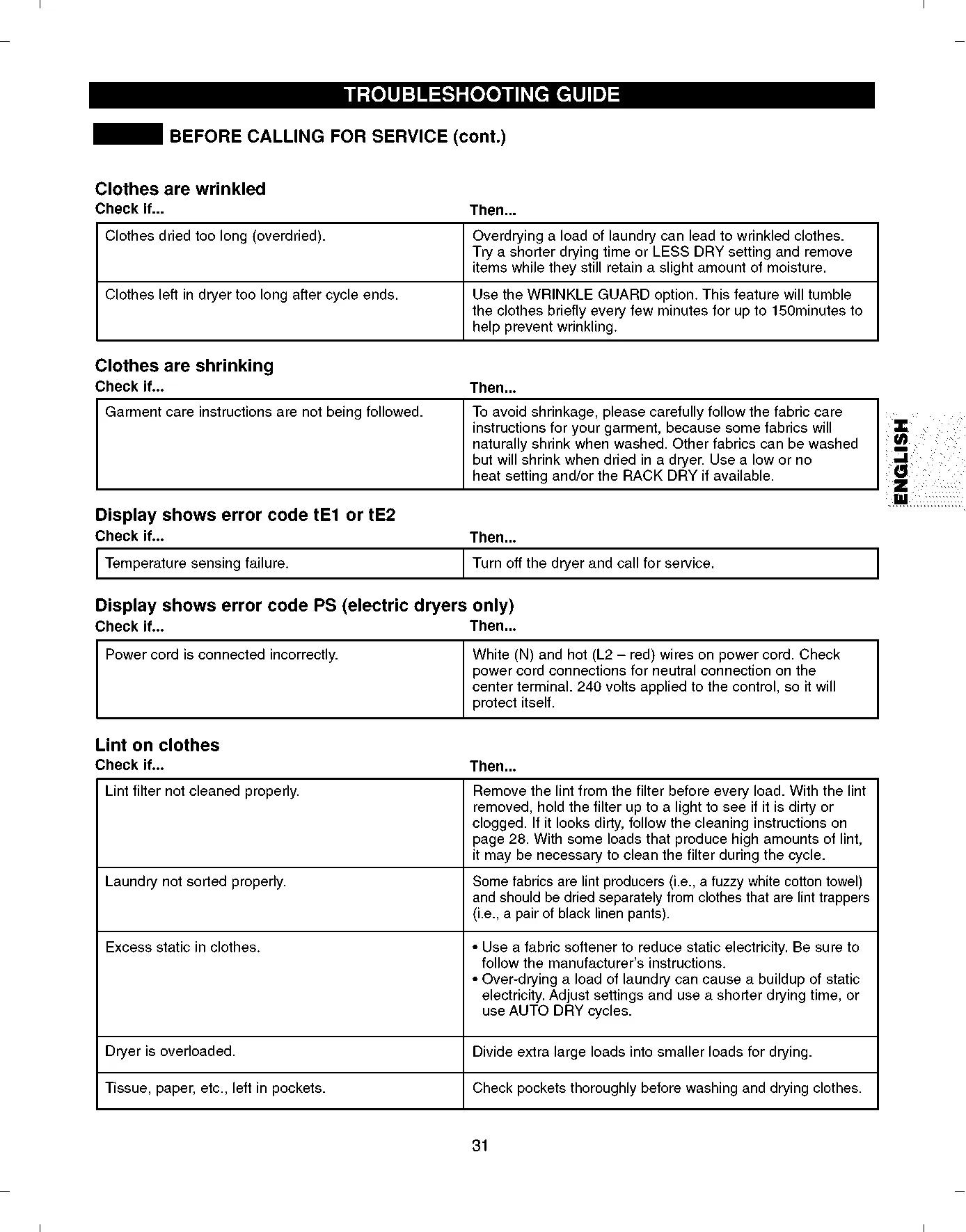

Why are my clothes wrinkled after drying in the Kenmore Elite Dryer Model 796?

Overdrying a load of laundry is a primary cause of wrinkles. Try a shorter drying time or select a "LESS DRY" setting and remove items while they still retain a slight amount of moisture. Additionally, leaving clothes in the dryer too long after the cycle ends can lead to wrinkles. Utilize the WRINKLE GUARD option to tumble clothes periodically and help prevent this.

My clothes are shrinking when I use the dryer. What should I do?

Always follow the garment care instructions carefully. Some fabrics naturally shrink when washed, while others can be washed but will shrink if dried in a dryer. For susceptible items, use a low or no heat setting, or utilize the RACK DRY cycle if available to prevent shrinkage.

What does the error code 'tE1' or 'tE2' mean on my Kenmore Elite Dryer Model 796?

These error codes indicate a temperature sensing failure. If you see these codes, turn off the dryer and contact customer service for assistance.

What does the error code 'PS' mean on an electric Kenmore Elite Dryer Model 796?

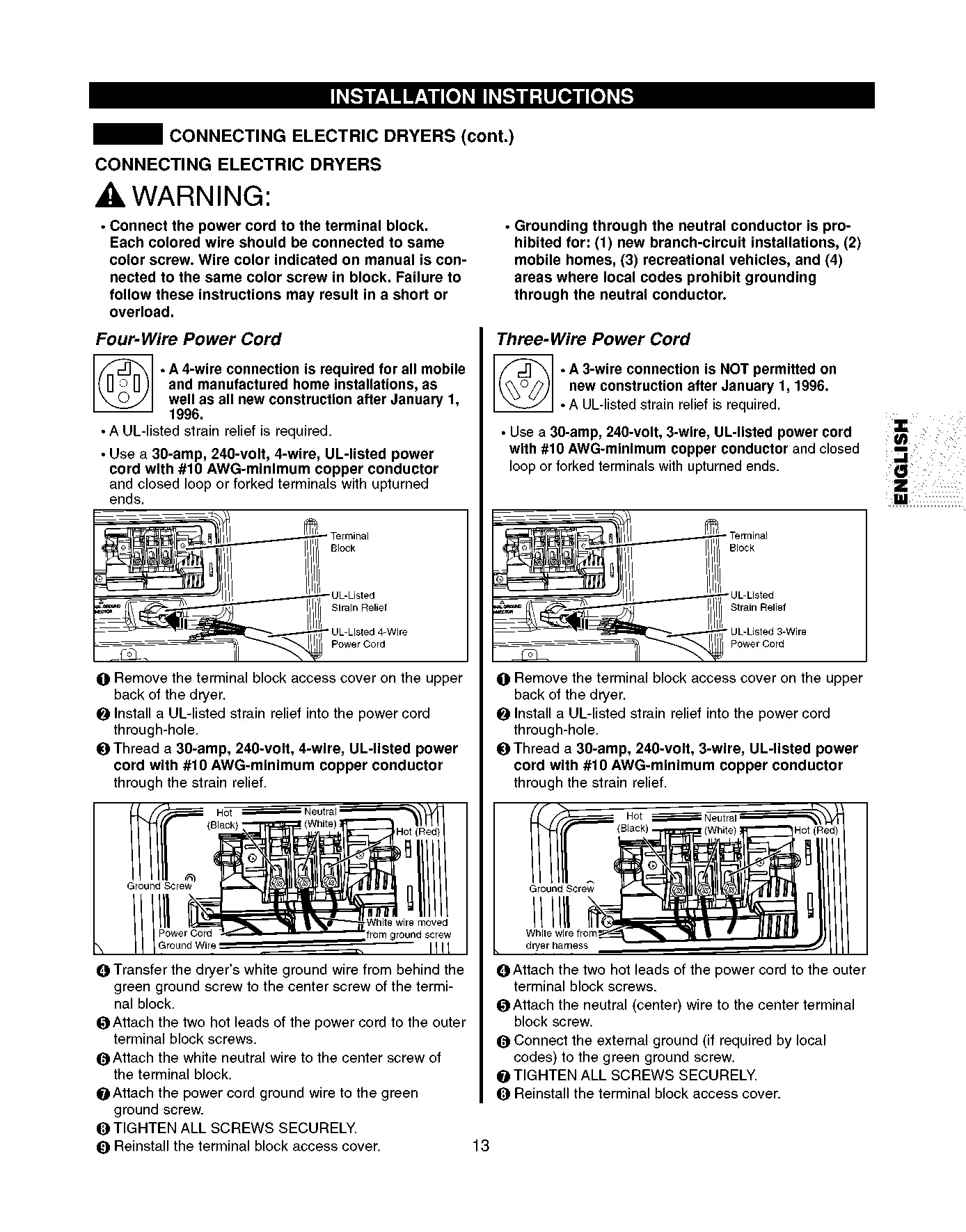

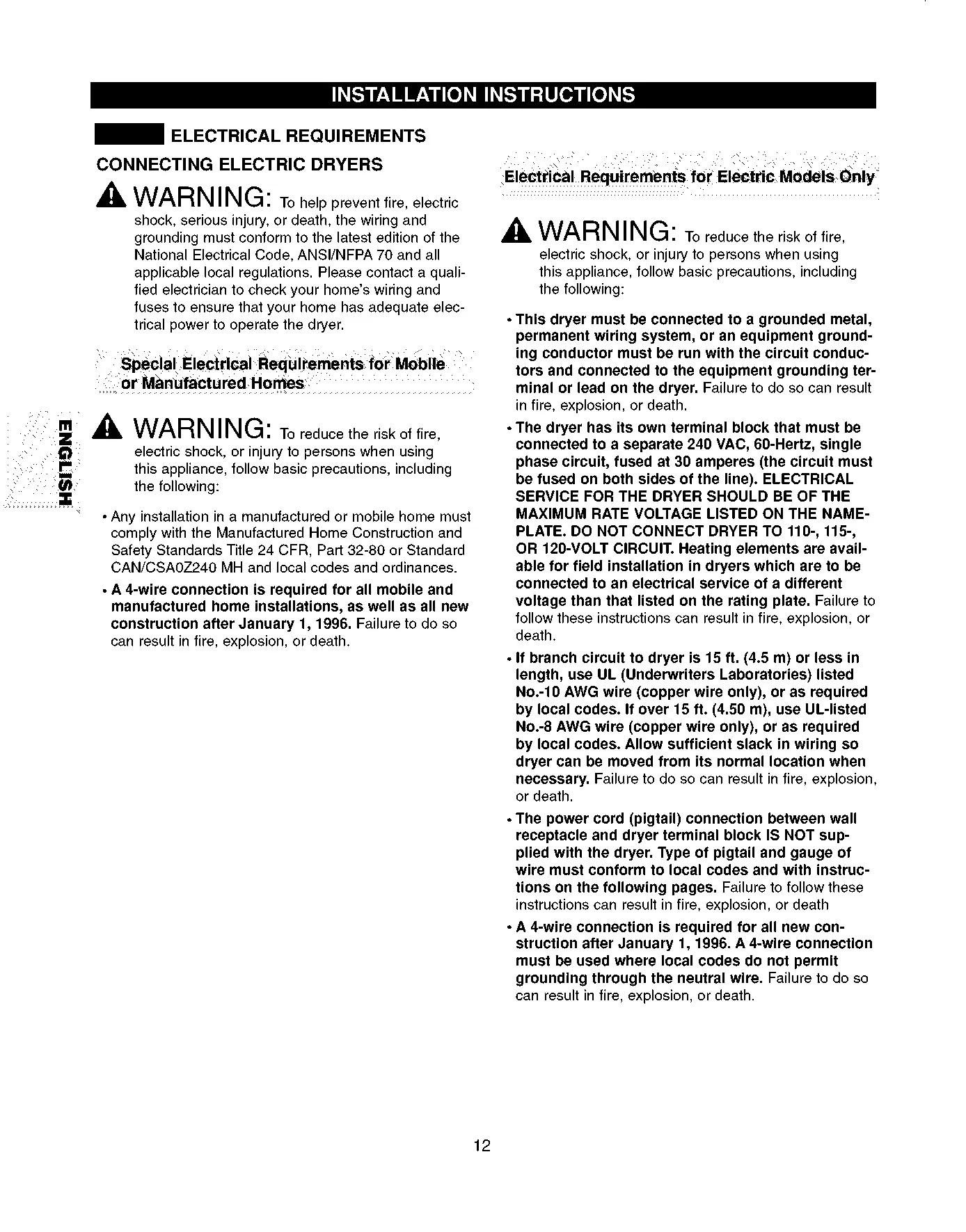

The 'PS' error code, specific to electric models, suggests that the power cord is connected incorrectly, particularly regarding the neutral connection. This often means 240 volts are being applied to the control, triggering its self-protection mechanism. Check power cord connections for the neutral wire on the center terminal.

Why are my clothes covered in lint after drying?

Common causes include a lint filter that isn't cleaned properly (or is dirty/clogged), laundry not sorted correctly (lint producers with lint trappers), excess static, or an overloaded dryer. Always clean the lint filter before each load, sort fabrics, consider fabric softener for static, and divide extra-large loads.

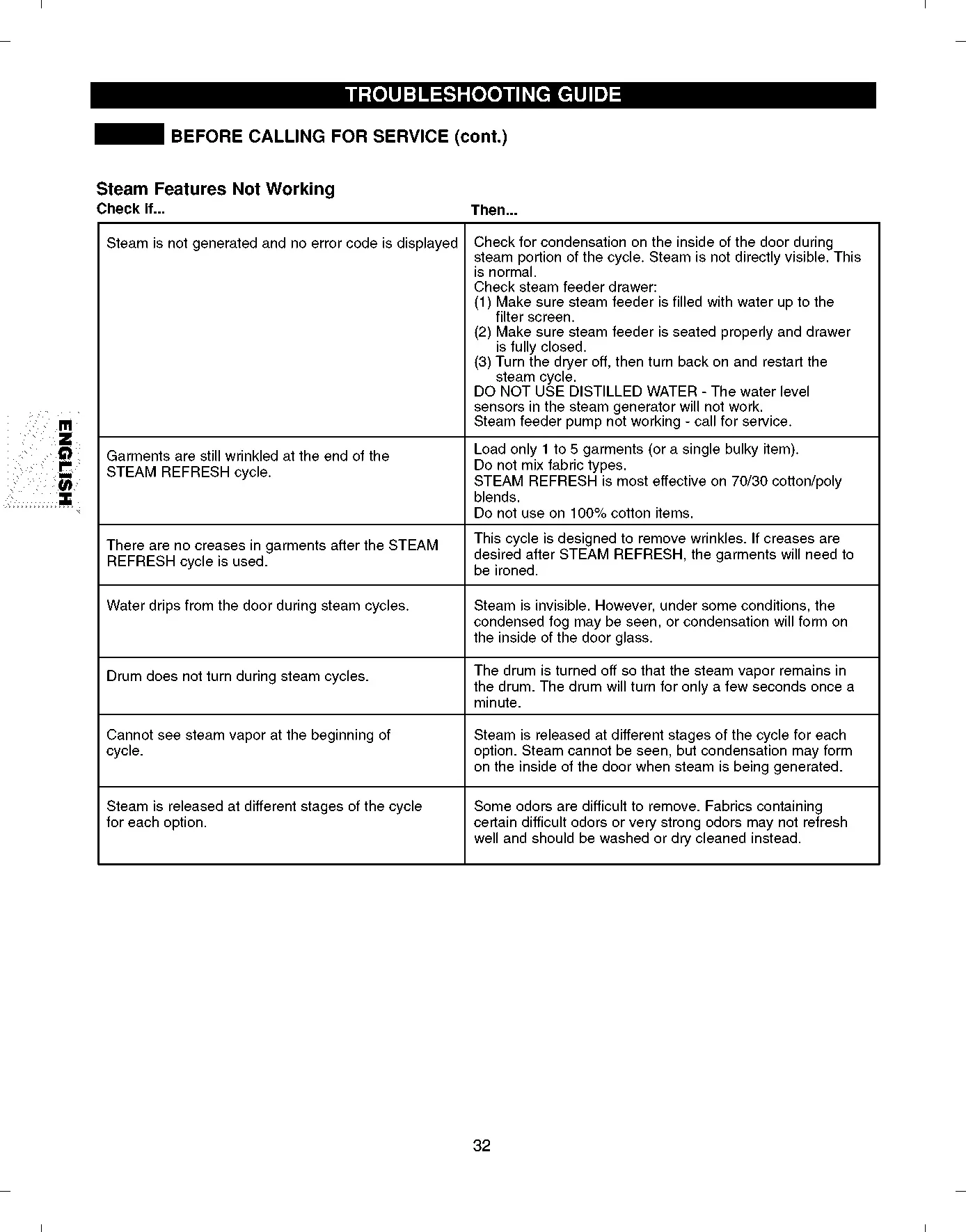

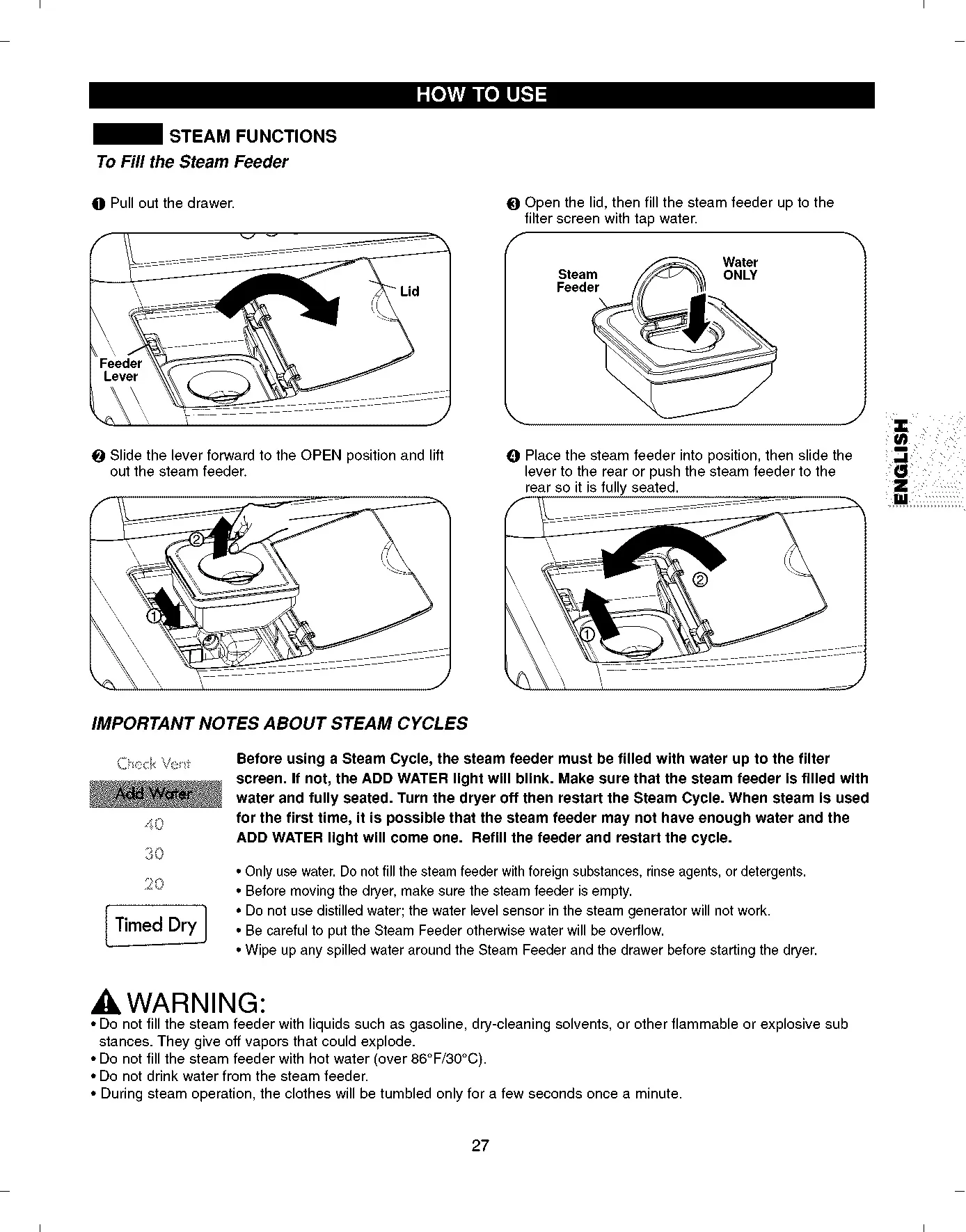

My Kenmore Elite Dryer Model 796's steam features are not working. What could be the issue?

First, check the steam feeder drawer to ensure it's filled with water (up to the filter screen) and properly seated. Avoid using distilled water, as it can interfere with the water level sensors. If using Steam Refresh, ensure you're only loading 1-5 garments and not mixing fabric types, as it's most effective on cotton/poly blends and not 100% cotton. Steam itself is often invisible, so look for condensation on the door.

Why doesn't the drum turn continuously during steam cycles?

During steam cycles, the drum is designed to turn only for a few seconds once a minute. This specific action helps to keep the steam vapor contained within the drum, maximizing its effectiveness on the garments.
