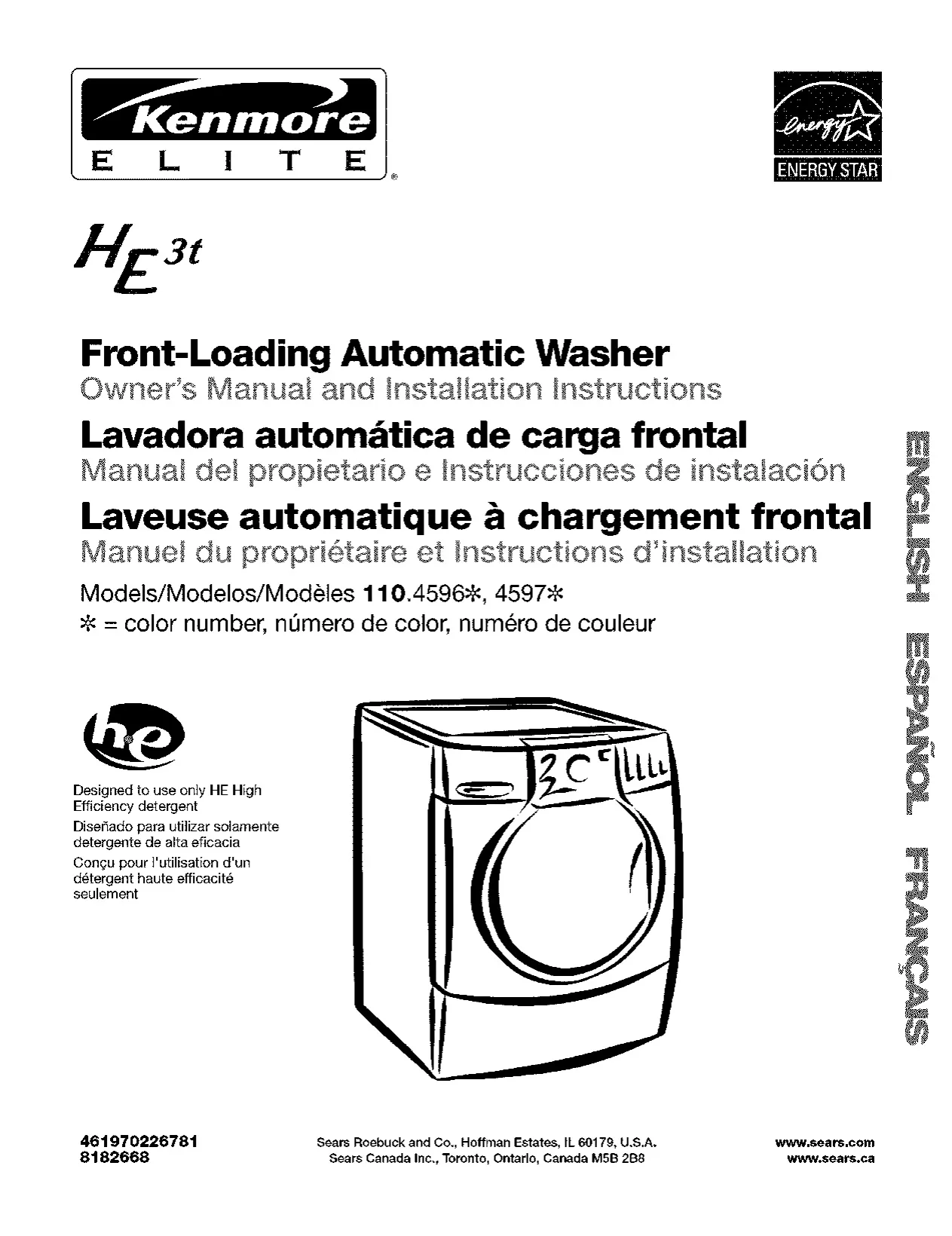

Kenmore Elite Quiet Pak 4 Washer HE3t

Kenmore Elite Washer HE3t Instructions

Here we offer the Kenmore Elite Quiet Pak 4 Washer HE3t manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Kenmore Elite Quiet Pak 4 Washer HE3t, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

Kenmore Elite Quiet Pak 4 Washer HE3t Specifications

Feature	Detail
Model Name	Kenmore Elite Quiet Pak 4 Washer HE3t
Washer Type	High-Efficiency (HE), Front-Load
Noise Reduction Technology	Quiet Pak 4
Efficiency Rating	High Efficiency (HE)

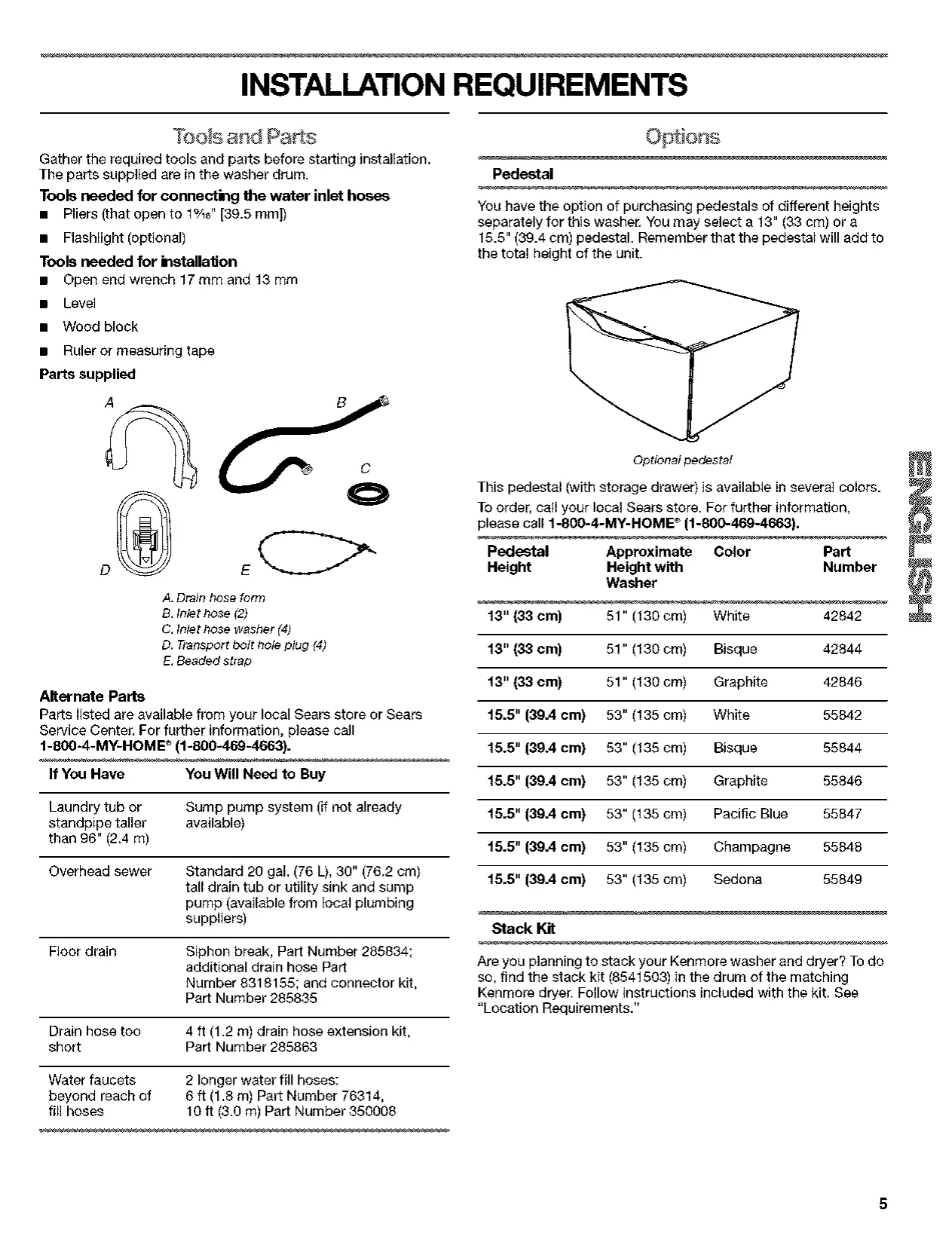

Pedestal Compatibility	Yes, various heights and colors available
Approx. Total Height w/ 13" (33 cm) Pedestal	51" (130 cm)
Approx. Total Height w/ 15.5" (39.4 cm) Pedestal	53" (135 cm)
Maximum Drain Standpipe/Tub Height	96" (2.4 m) (without sump pump system)
Optional Drain Hose Extension	4 ft (1.2 m), Part Number 285863
Optional Longer Water Fill Hoses	6 ft (1.8 m) Part No. 76314; 10 ft (3.0 m) Part No. 350008

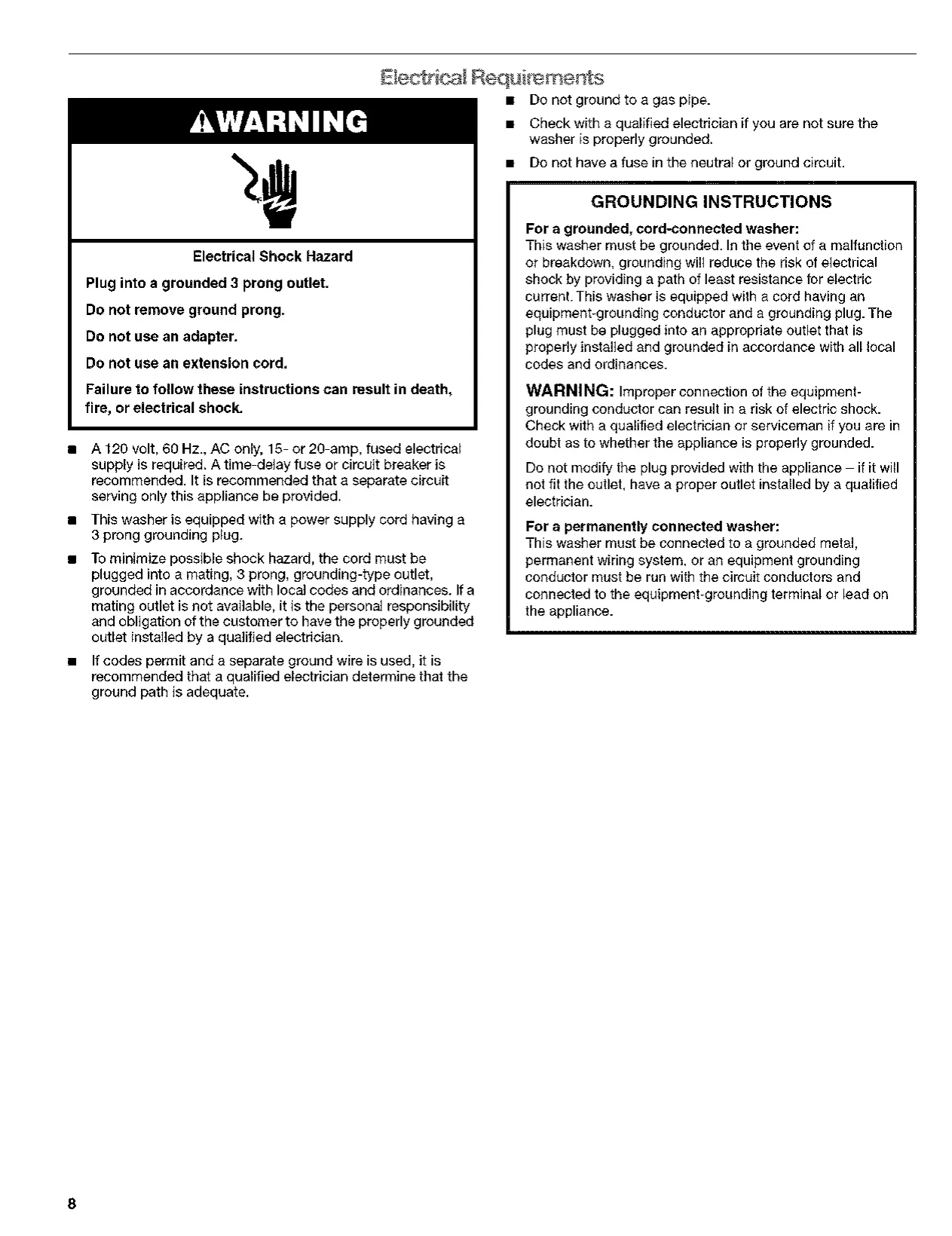

Electrical Requirements	Standard (specific voltage/amperage not provided in source)

Kenmore Elite Quiet Pak 4 Washer Details

The Kenmore Elite Quiet Pak 4 Washer HE3t stands out with its advanced noise reduction technology, ensuring exceptionally quiet operation during every cycle. This high-efficiency (HE) washing machine is engineered to deliver superior cleaning performance while minimizing water and energy consumption. It is imperative to use only High-Efficiency detergents specifically designed for HE washers, optimizing wash results and maintaining the appliance's longevity. The HE3t designation highlights its commitment to environmental responsibility and cost-effective laundry care. Its robust design is built for reliable, long-term performance in demanding household environments.

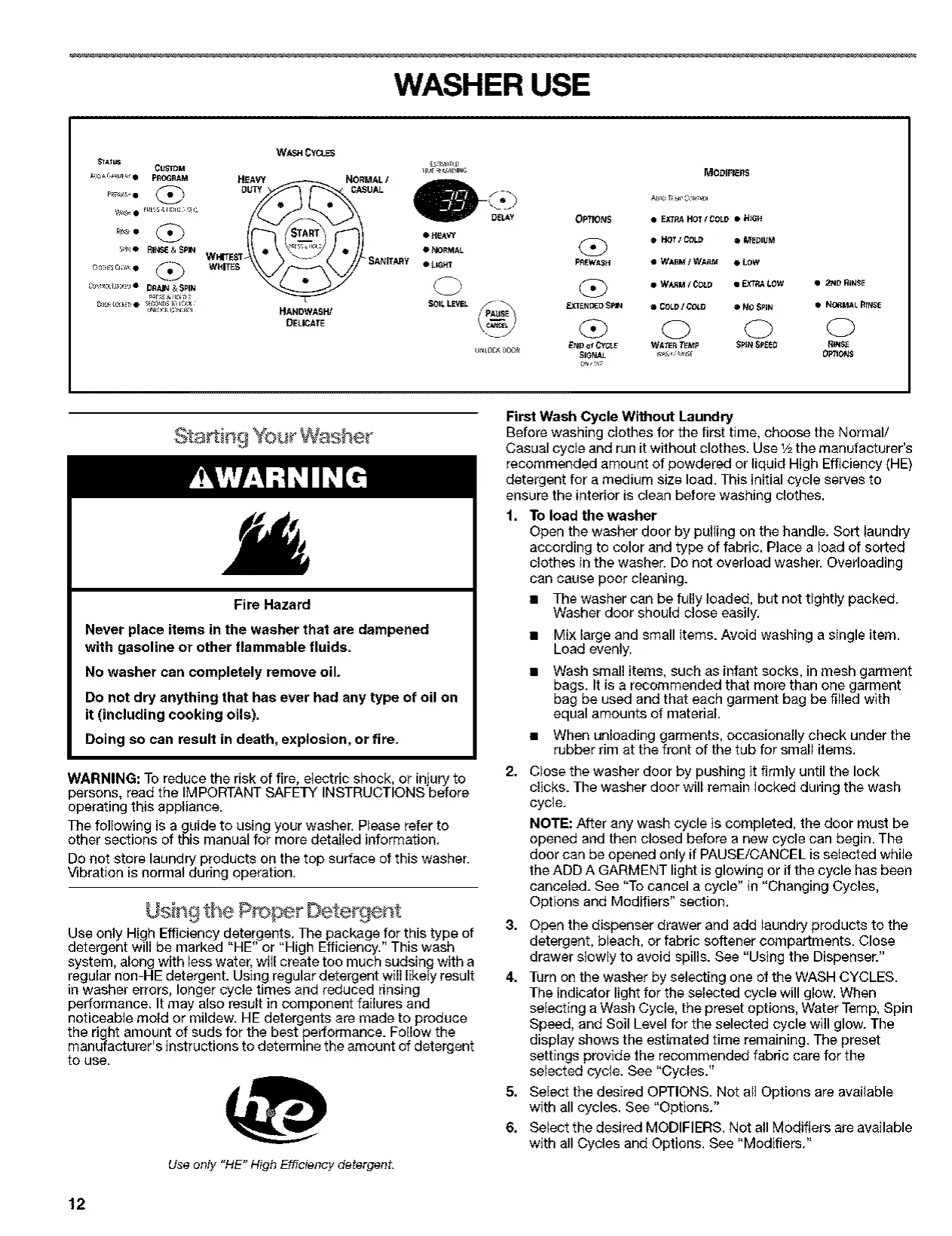

Operating the HE3t is intuitive, featuring a straightforward control panel complemented by clear status lights. These indicators keep you informed throughout the wash process, showing stages like Prewash, Wash, Rinse, Spin, and finally, "Clothes Done." Essential safety features are also communicated via lights such as "Control Locked" and "Door Locked," preventing unintended interruptions or access during operation. The innovative dispenser system is meticulously designed with separate compartments for liquid or powder detergent, fabric softener, and bleach, ensuring each additive is released precisely when needed for optimal cleaning and fabric care.

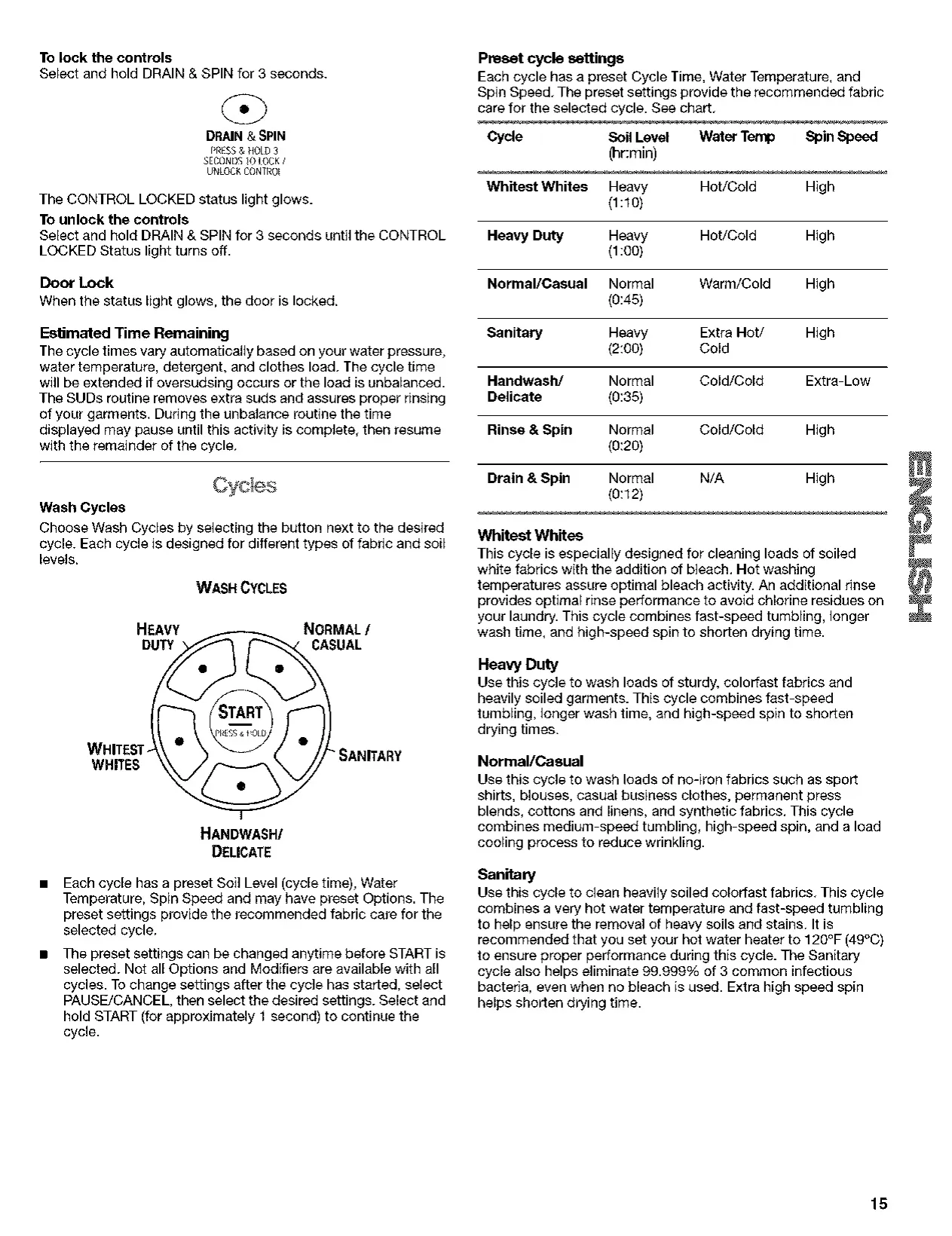

This Kenmore Elite washer offers a comprehensive array of specialized wash cycles to cater to every laundry need. For heavily soiled whites, the "Whitest Whites" cycle utilizes hot/cold water and a high spin, lasting approximately 1 hour and 10 minutes. The "Heavy Duty" cycle is perfect for resilient items, also employing hot/cold water and high spin over 1 hour. Daily loads are best handled by the "Normal/Casual" cycle, a 45-minute wash with warm/cold water and high spin. Each cycle is tailored for specific fabric types and soil levels, ensuring optimal garment care.

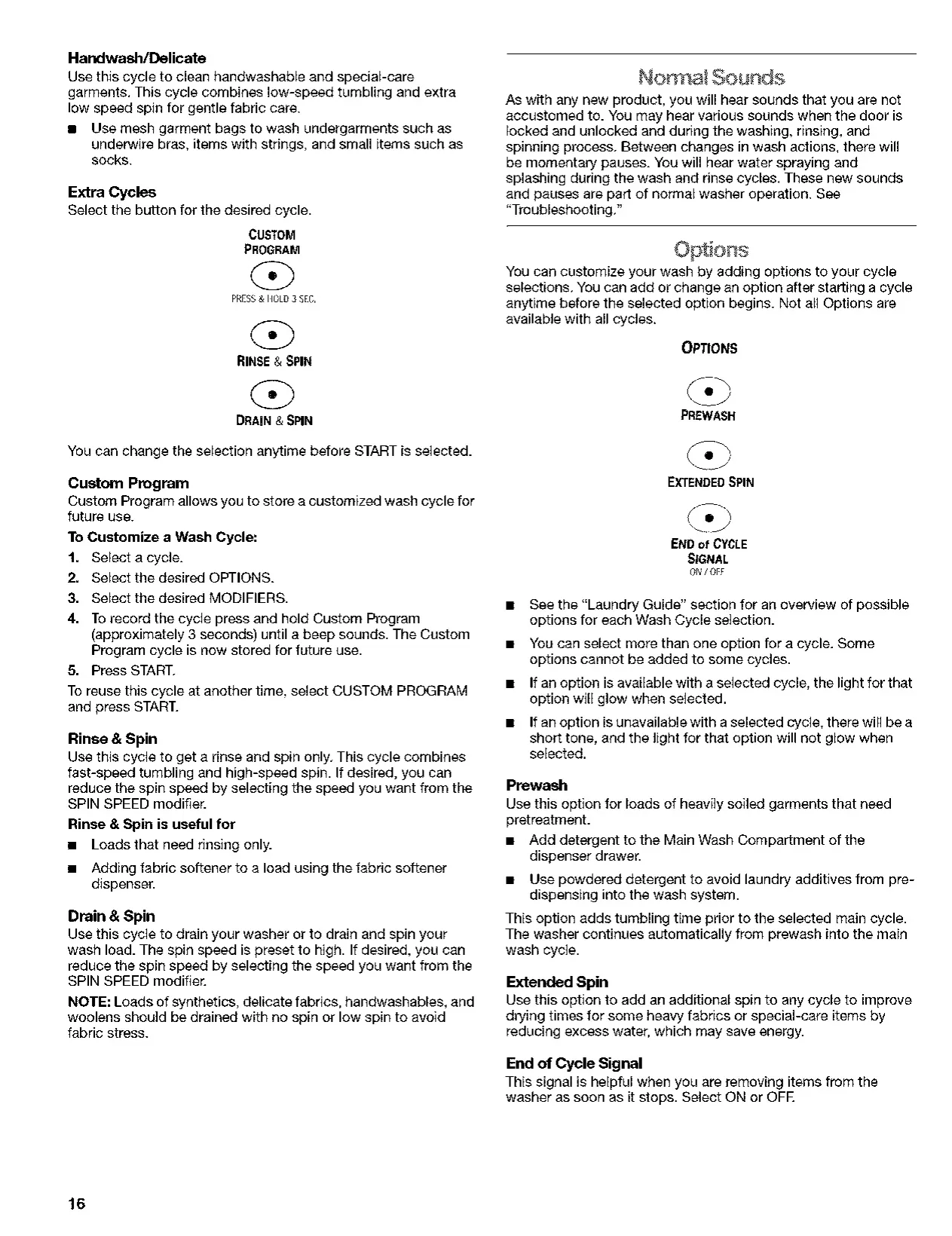

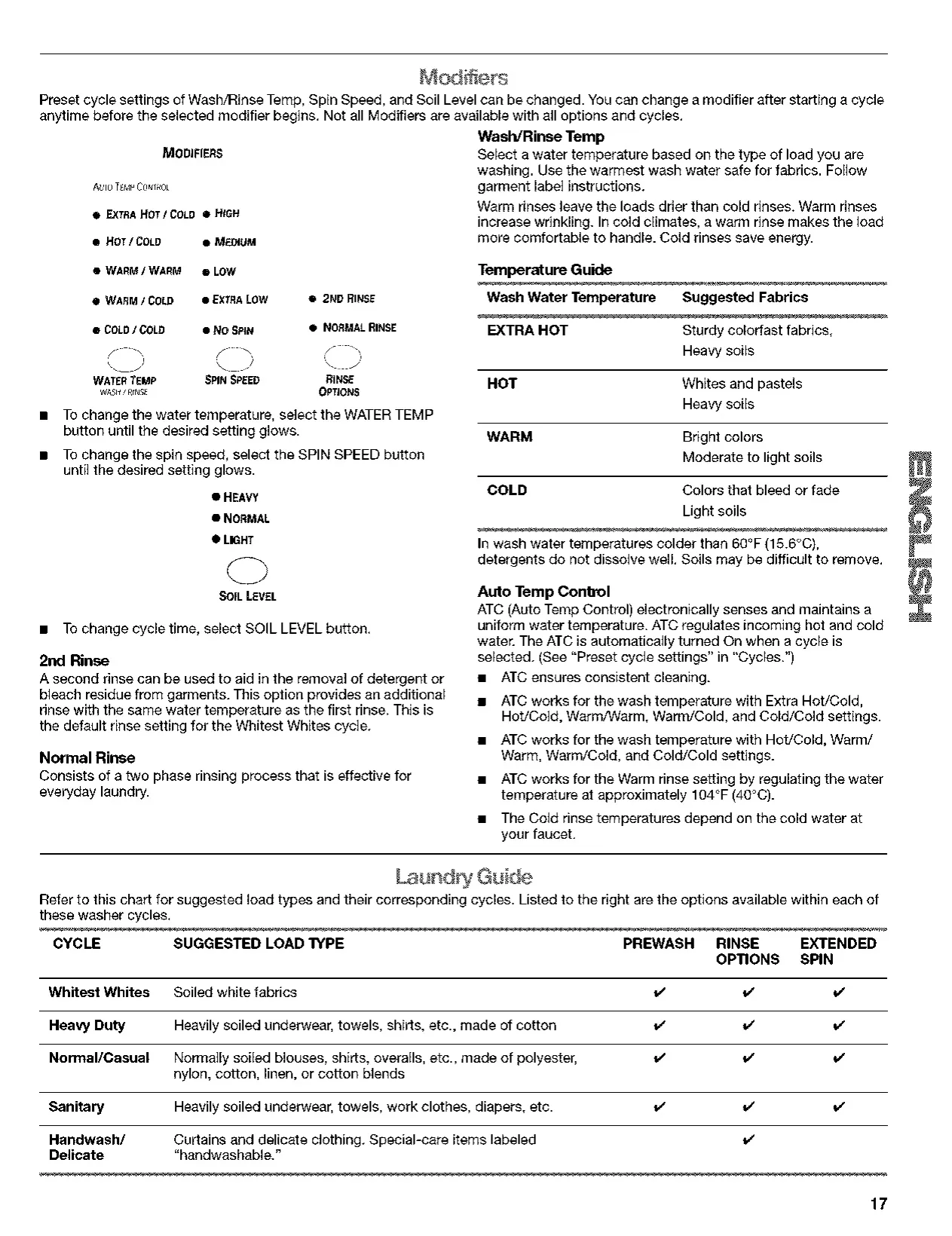

For specific needs, the "Sanitary" cycle offers an intense 2-hour wash with extra hot/cold water and a high spin, ideal for sterilizing heavily soiled items. Delicate garments and handwashables benefit from the "Handwash/Delicate" cycle, which uses cold water and an extra-low spin for 35 minutes, protecting fragile fabrics. Practical options like "Rinse & Spin" and "Drain & Spin" provide quick solutions for rinsing or expelling excess water. The Temperature Guide clarifies ideal settings: Extra Hot for sturdy fabrics, Hot for whites, Warm for bright colors, and Cold for delicate or bleeding colors, ensuring optimal fabric treatment.

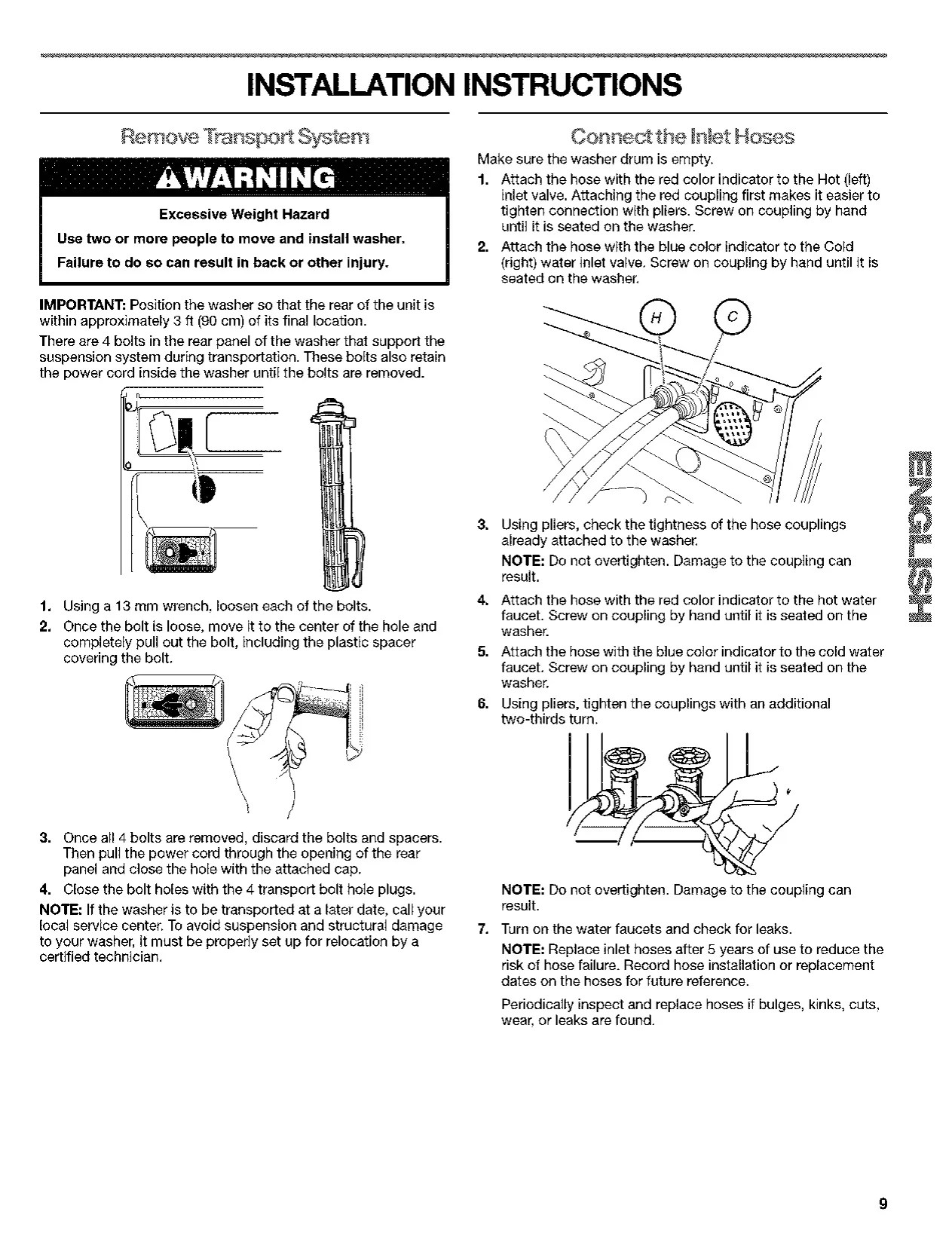

Further enhancing versatility, the HE3t allows for cycle customization through selectable options like PREWASH, RINSE, and EXTENDED SPIN, enabling users to fine-tune their wash for specific garment conditions. Beyond its washing capabilities, the manual also provides detailed guidance on washer care, covering routine cleaning, maintenance of water inlet hoses, and special considerations for vacation, storage, or moving. This comprehensive approach ensures the longevity and continued peak performance of your Kenmore Elite washer, protecting your investment. Proper installation is also emphasized, detailing requirements for location, drain system, and electrical connections for safe operation.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Kenmore Elite Quiet Pak 4 Washer HE3t, and we answer them below.

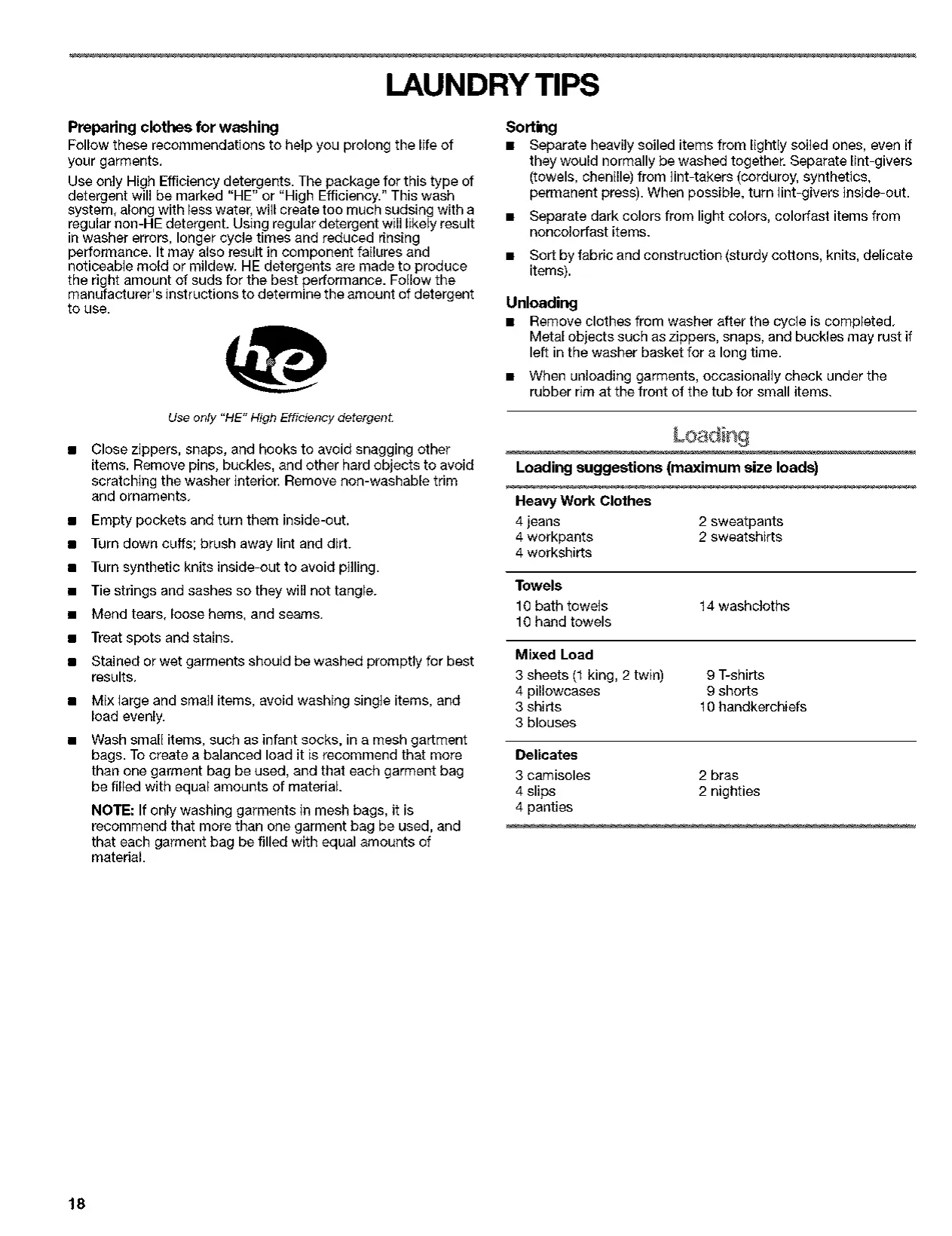

What kind of detergent should I use with my Kenmore Elite Quiet Pak 4 Washer HE3t?

You must use only High-Efficiency (HE) detergent with this washer for optimal performance and to prevent excessive sudsing.

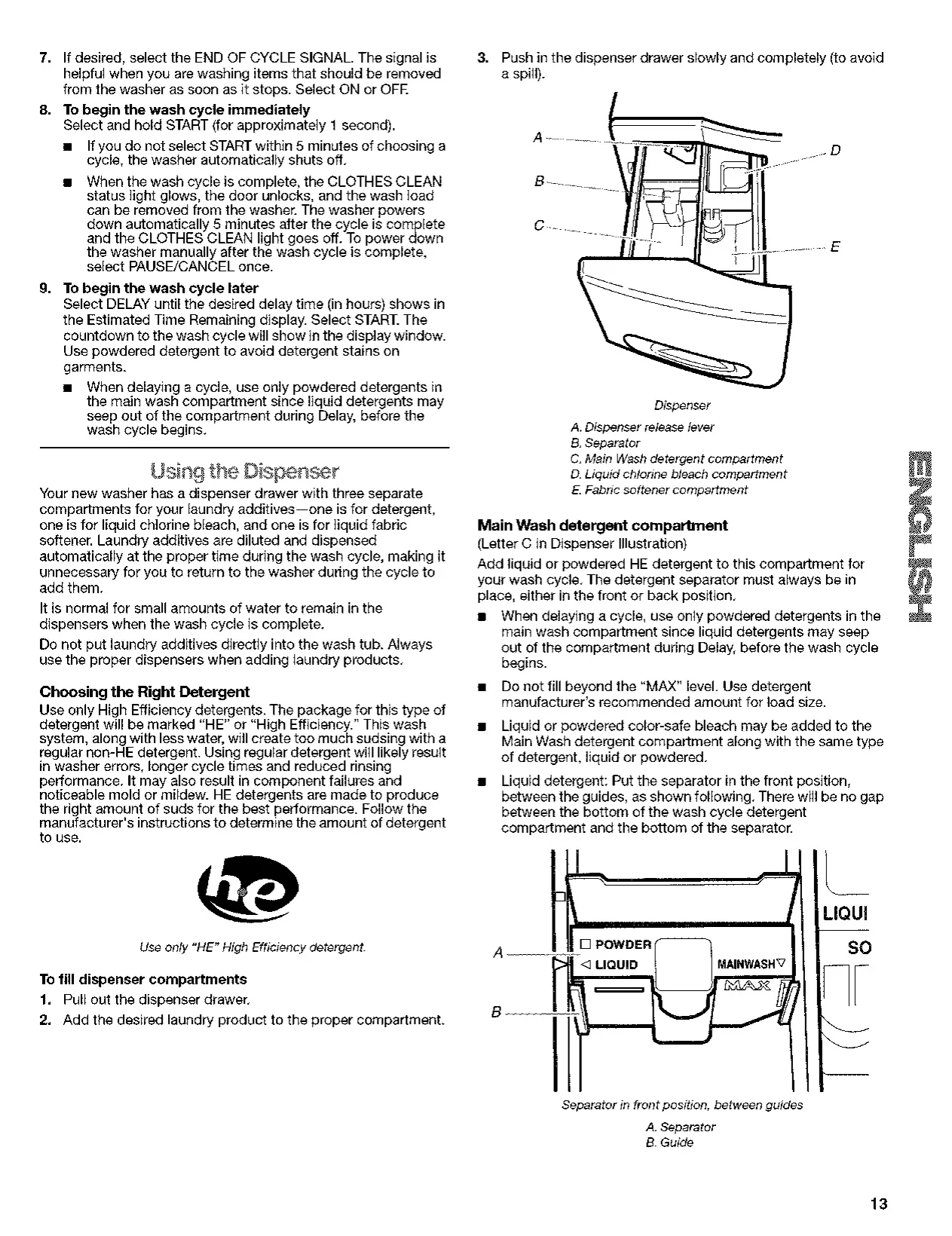

How do I use the dispenser system for detergent and additives?

The washer's dispenser system includes separate compartments for liquid or powder detergent, liquid fabric softener, and liquid bleach. Load them according to your specific laundry needs; the washer will automatically dispense them at the correct time during the cycle.

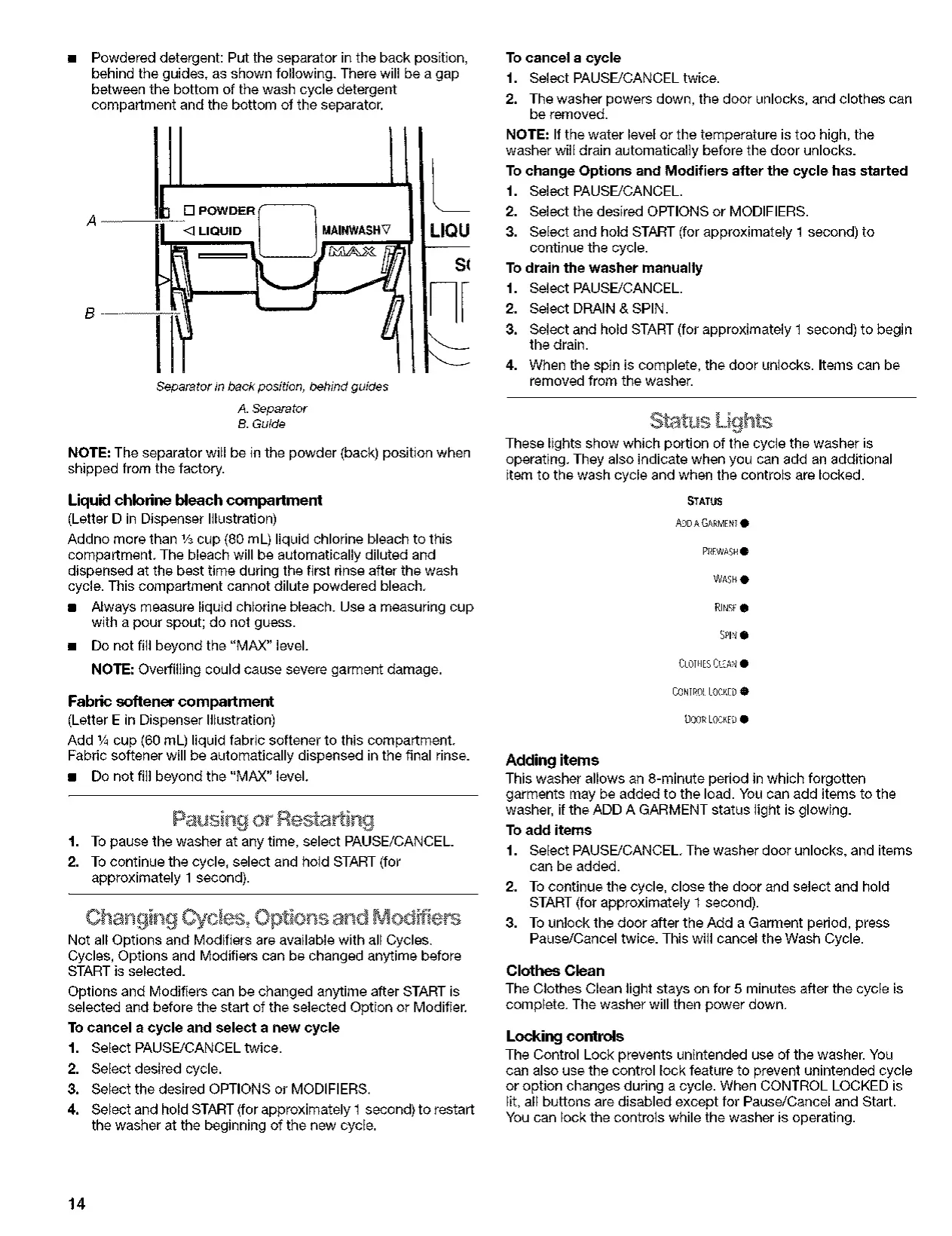

What do the 'Control Locked' and 'Door Locked' status lights signify?

The 'Control Locked' light indicates that the control panel has been locked to prevent accidental changes to settings. The 'Door Locked' light means the washer door is securely latched for safety and during operation, and cannot be opened.

Can I add forgotten items to the washer after a cycle has started?

Yes, you can pause the washer to add items. If the 'Door Locked' light is off, you can open the door immediately. If the light is on, you will need to wait for it to turn off before opening the door, then add your items and resume the cycle.

What is the recommended use for the 'Sanitary' wash cycle?

The 'Sanitary' cycle is designed for heavily soiled items such as towels, work clothes, or diapers. It uses extra hot water and a high spin to ensure a thorough, hygienic clean, lasting approximately 2 hours.

How long does a typical 'Normal/Casual' wash cycle take?

A standard 'Normal/Casual' cycle on the Kenmore Elite Quiet Pak 4 Washer HE3t typically takes about 45 minutes. This cycle is suitable for normal soil levels, using warm/cold water and a high spin speed.

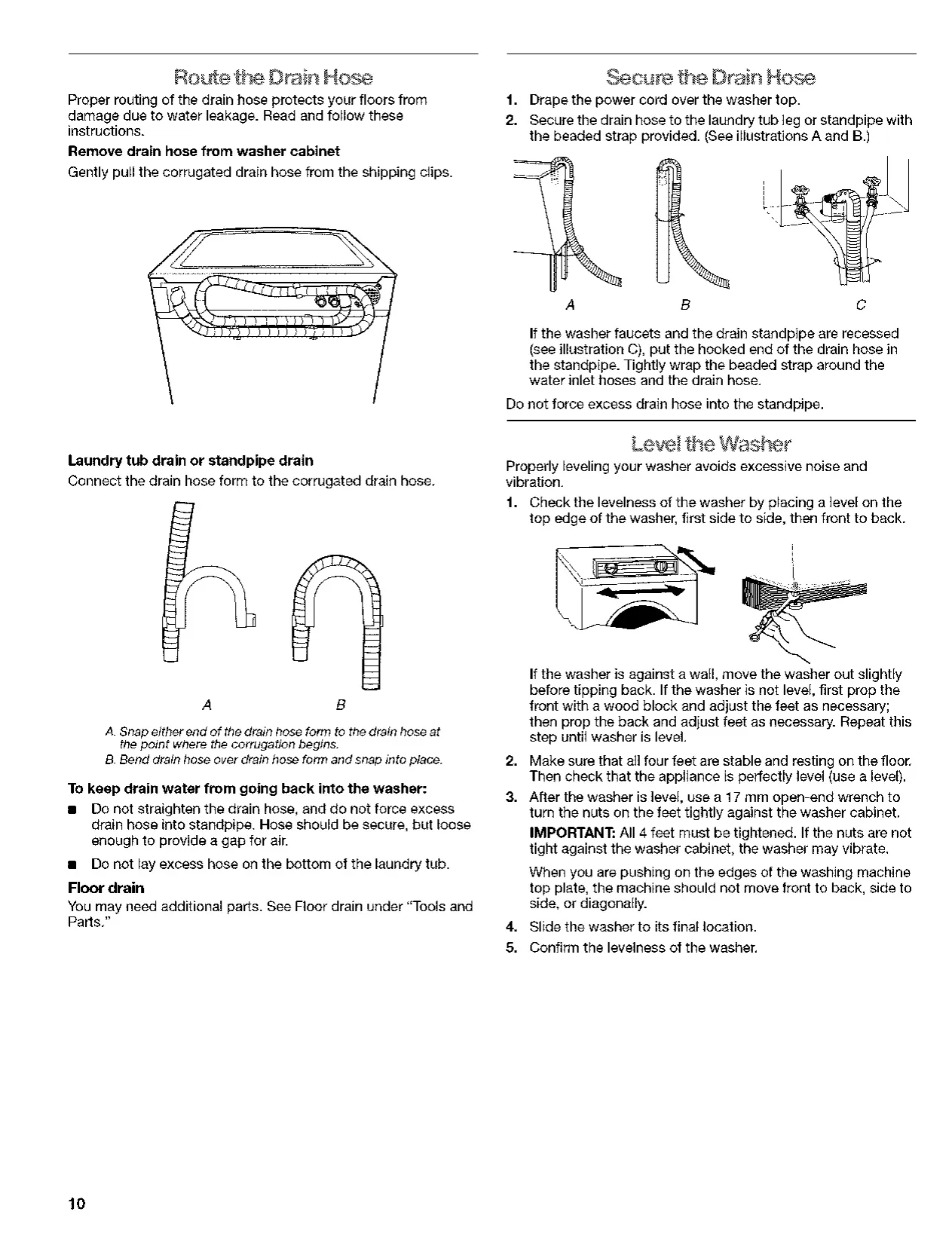

What should I do if my drain hose is too short for the installation?

If your existing drain hose is too short, you can purchase a 4 ft (1.2 m) drain hose extension kit. This accessory is available as Part Number 285863.

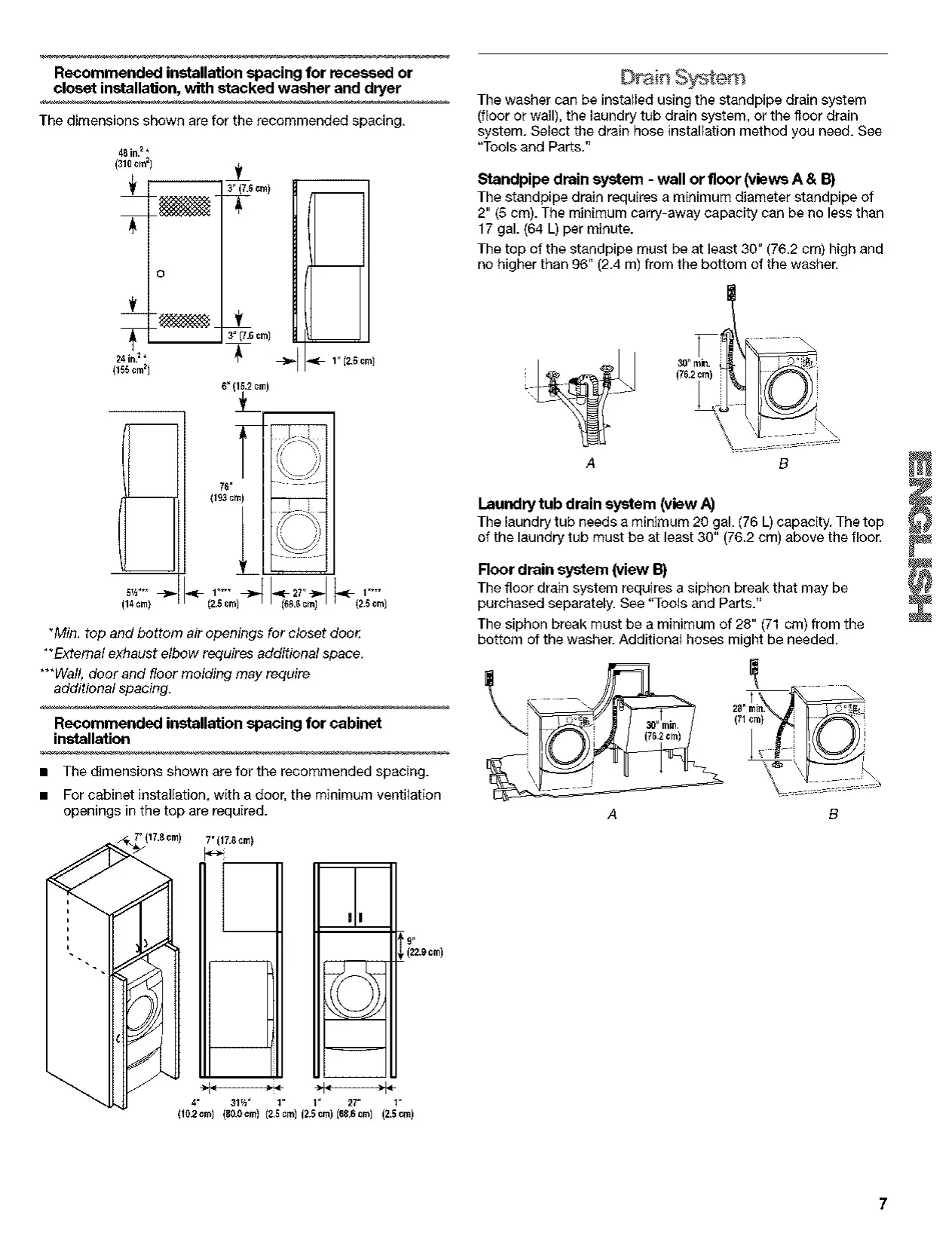

What are the specific requirements for the washer's drain system?

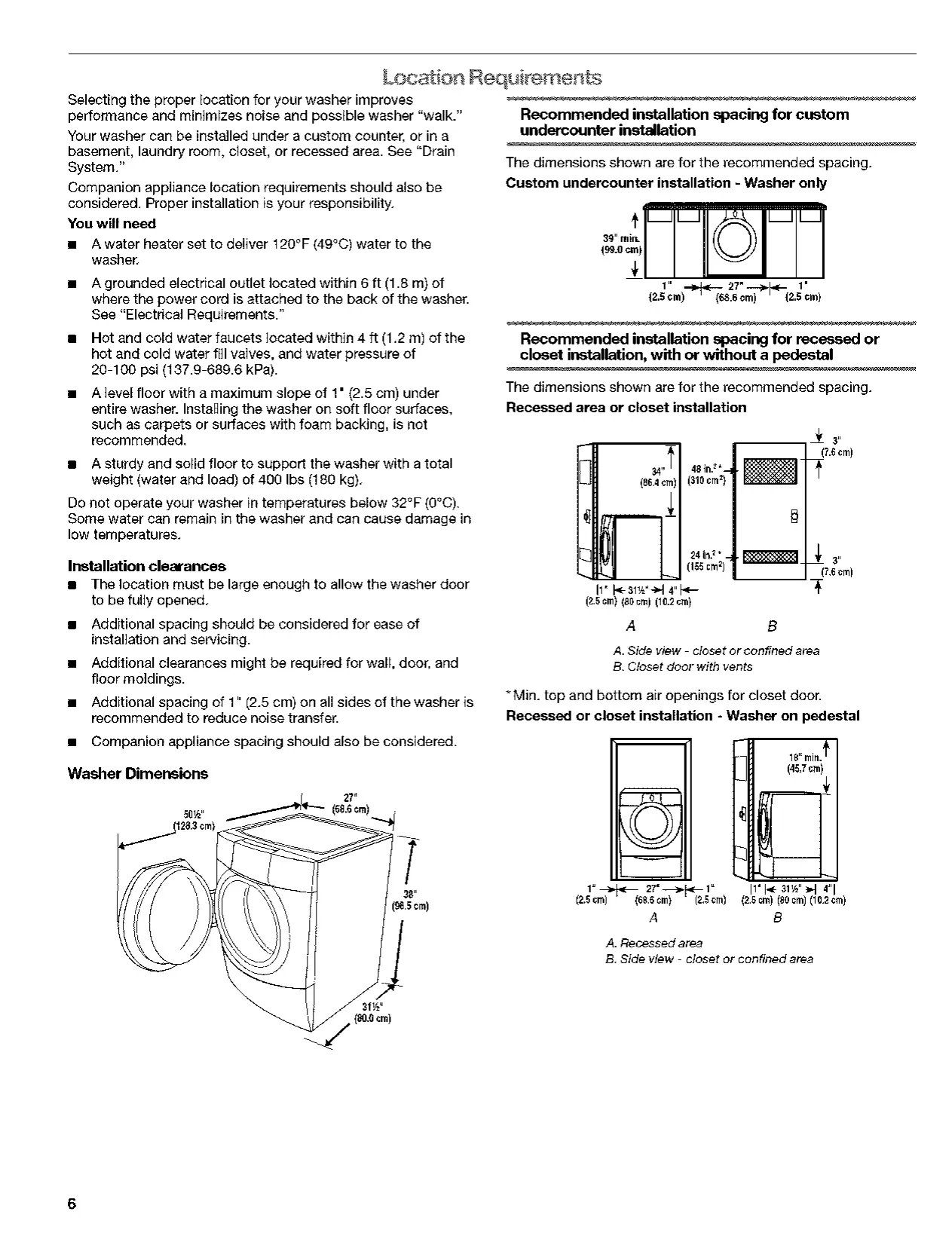

The washer requires a standpipe or laundry tub that does not exceed 96 inches (2.4 meters) in height without requiring a sump pump system. For floor drains, a siphon break (Part Number 285834), an additional drain hose (Part Number 8318155), and a connector kit (Part Number 285835) may be necessary.

How do I properly clean and maintain my Kenmore Elite Quiet Pak 4 Washer HE3t?

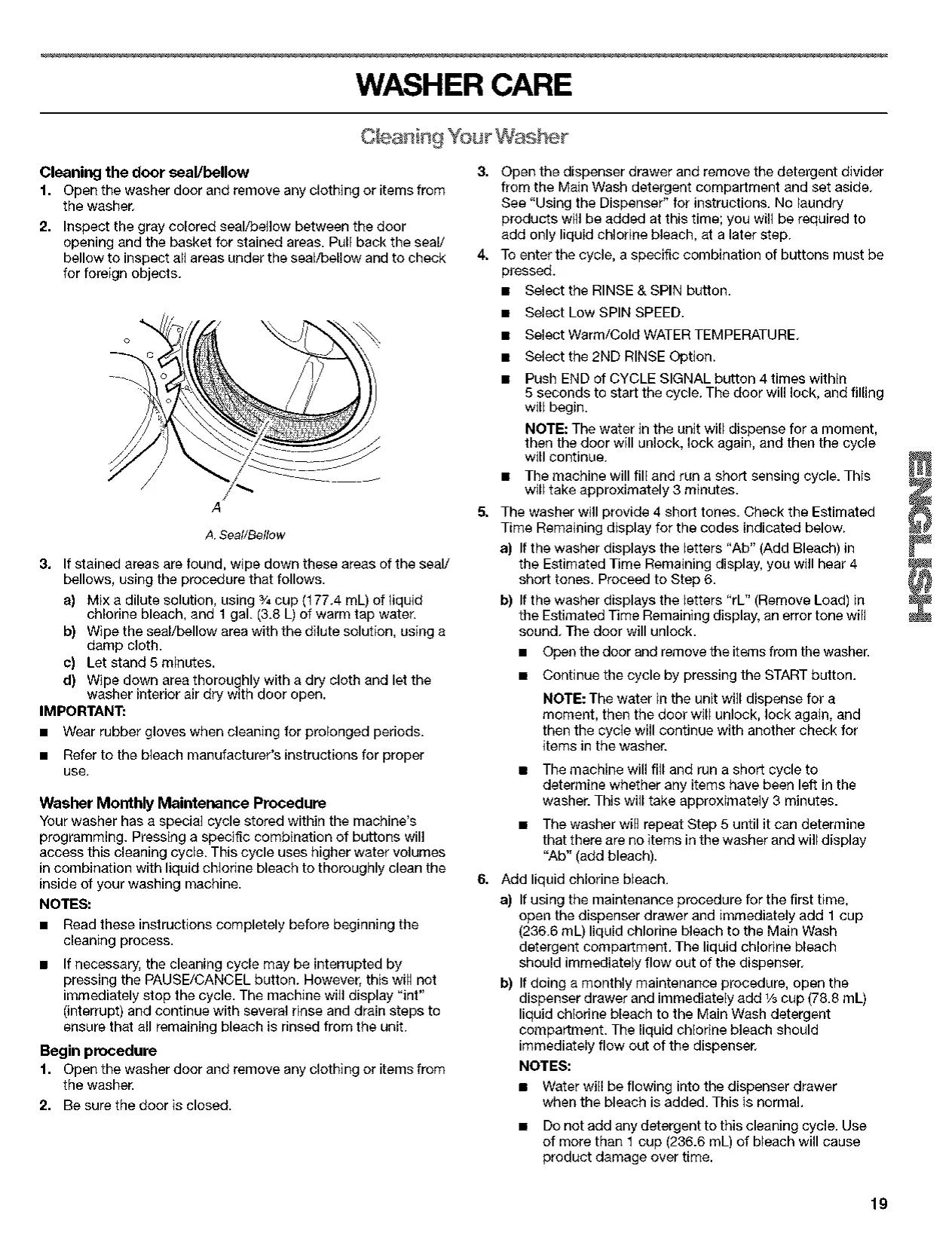

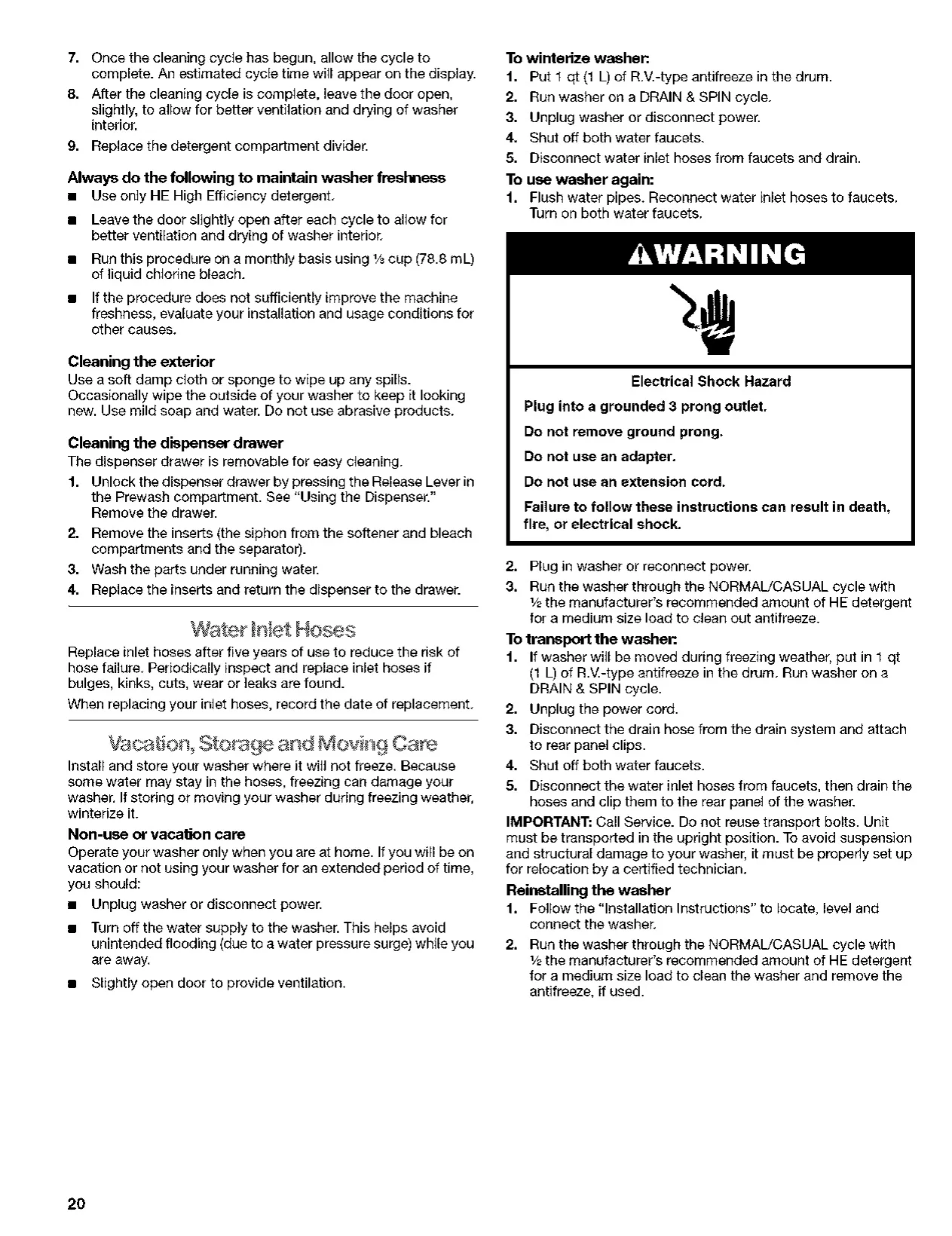

The user manual provides detailed instructions for routine washer care, including how to clean the interior and exterior, maintain water inlet hoses, and prepare the washer for vacation, storage, or moving. Regular cleaning is crucial for optimal performance and longevity.

Are there special considerations when installing the washer on a pedestal?

Yes, pedestals are available in various heights (e.g., 13" or 15.5") and colors. Installing the washer on a pedestal changes the overall height of the appliance system. The manual details specific installation instructions to ensure secure and safe mounting of the washer onto a compatible pedestal.

What are the approximate total heights of the washer when installed with a pedestal?

When using a 13" (33 cm) pedestal, the approximate total height of the washer system is 51" (130 cm). With a 15.5" (39.4 cm) pedestal, the approximate total height becomes 53" (135 cm).

Can I use longer water fill hoses if my faucets are out of reach?

Yes, if the standard water fill hoses are too short, longer options are available for purchase. You can get a 6 ft (1.8 m) hose (Part Number 76314) or a 10 ft (3.0 m) hose (Part Number 350008).
