Kenmore 300 Series Washing Machine

User Manual

18 pages

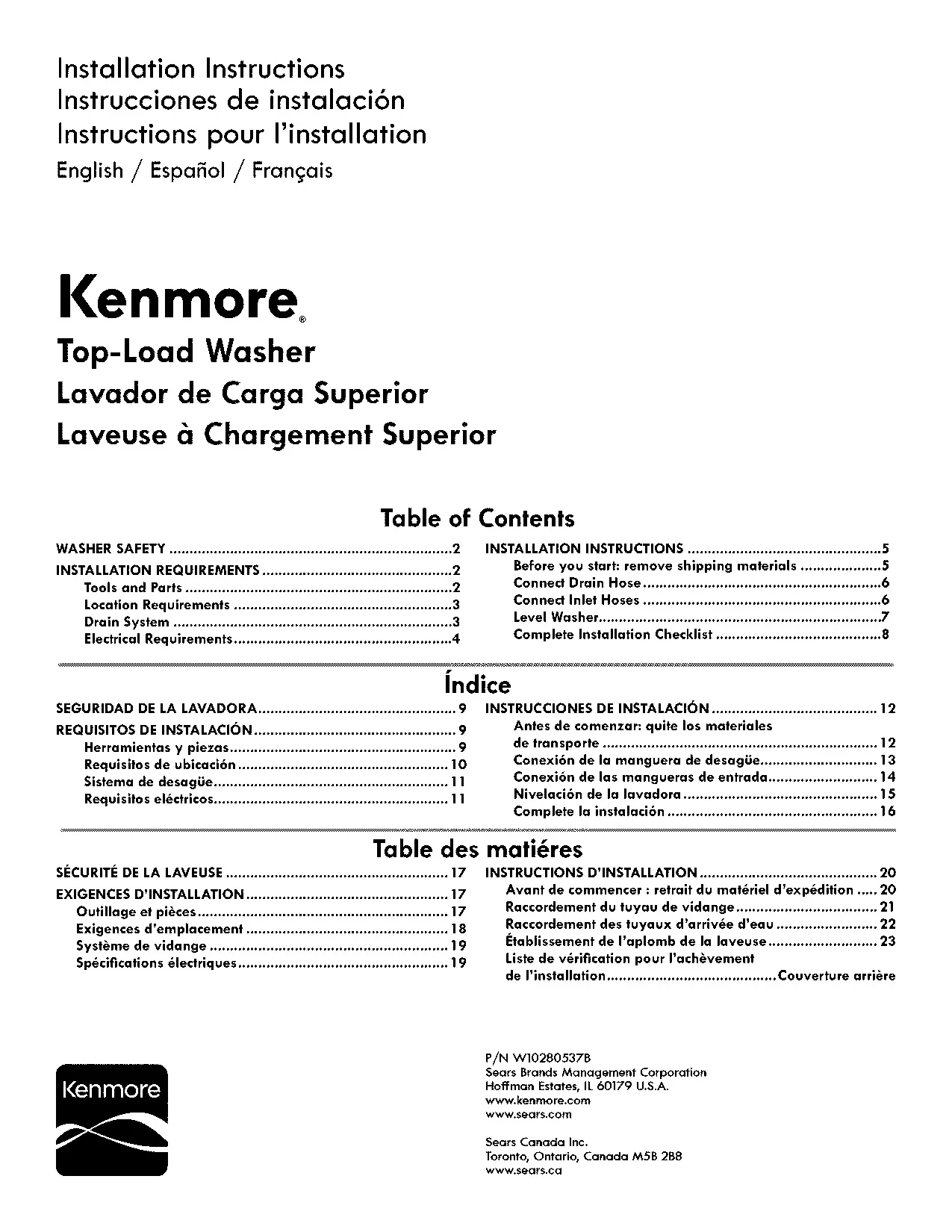

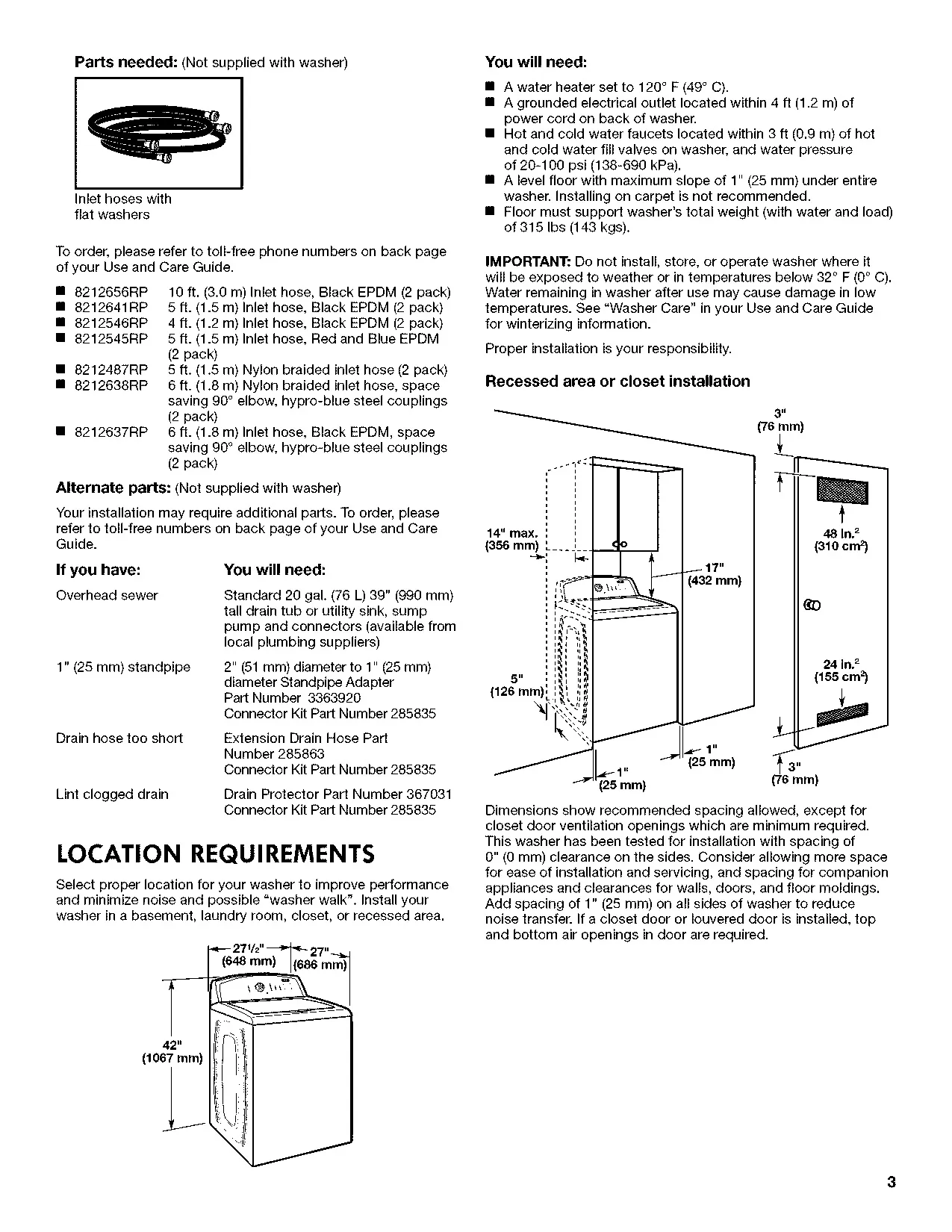

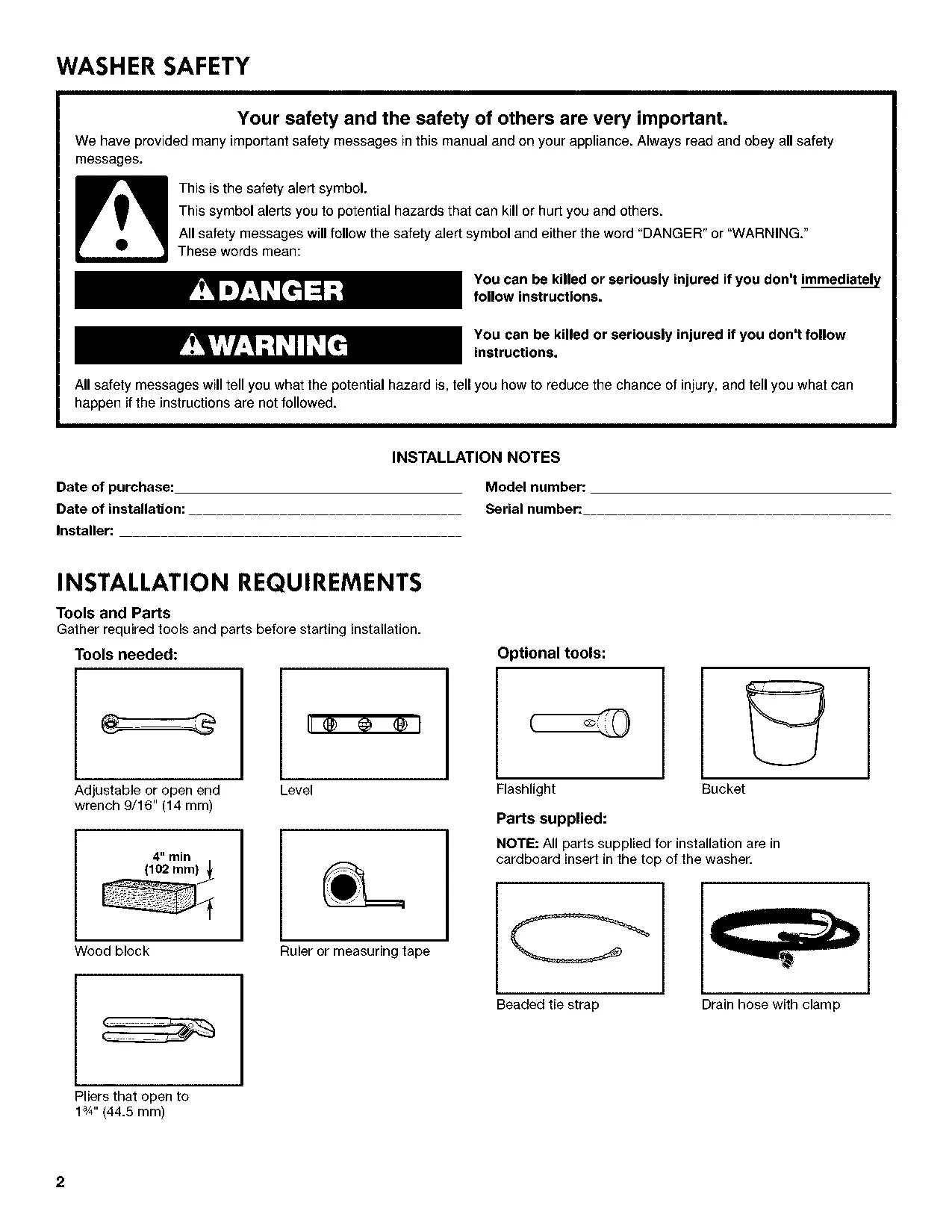

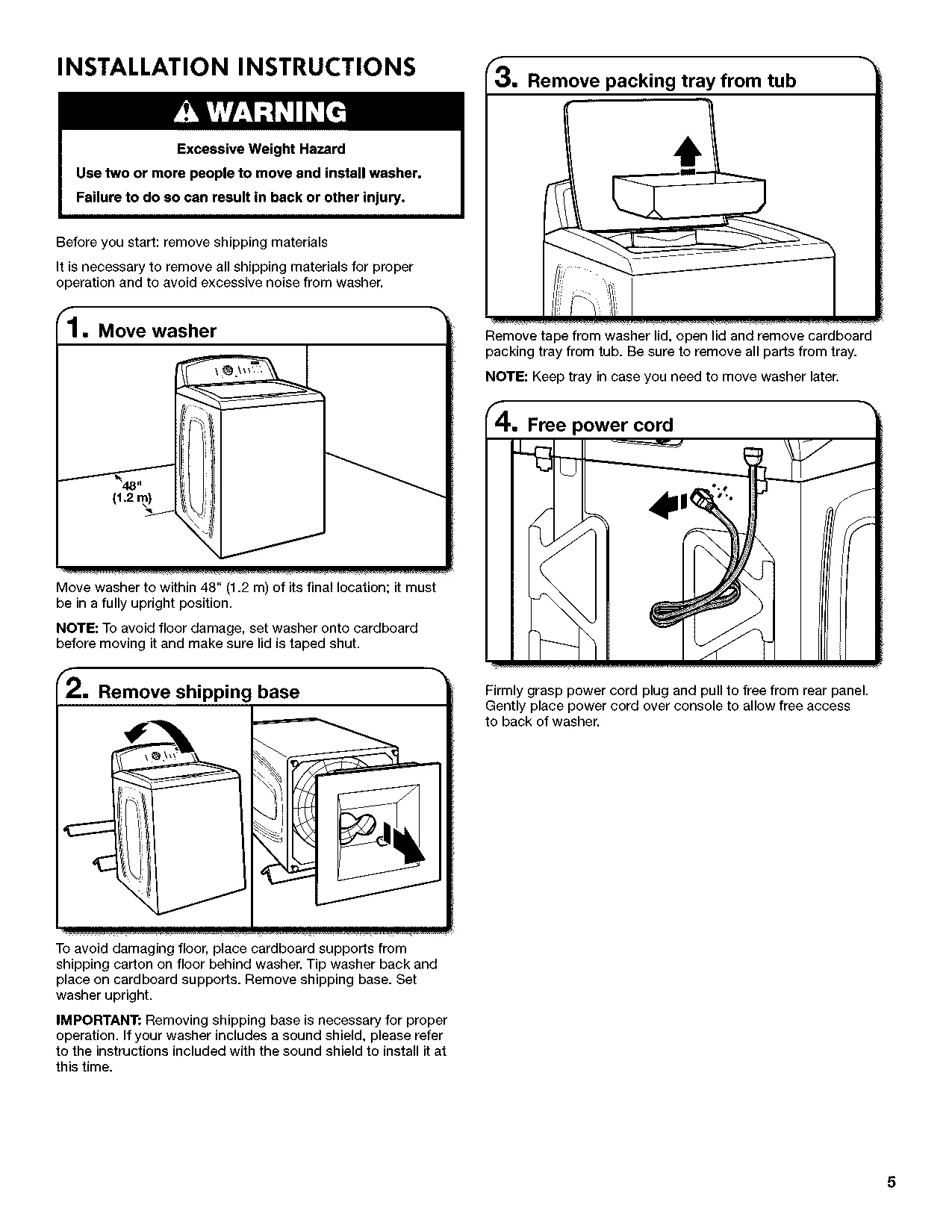

Installation Guide

8 pages

Kenmore 300 Series Washer Instructions

Here we offer the Kenmore 300 Series Washing Machine manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Kenmore 300 Series Washing Machine, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

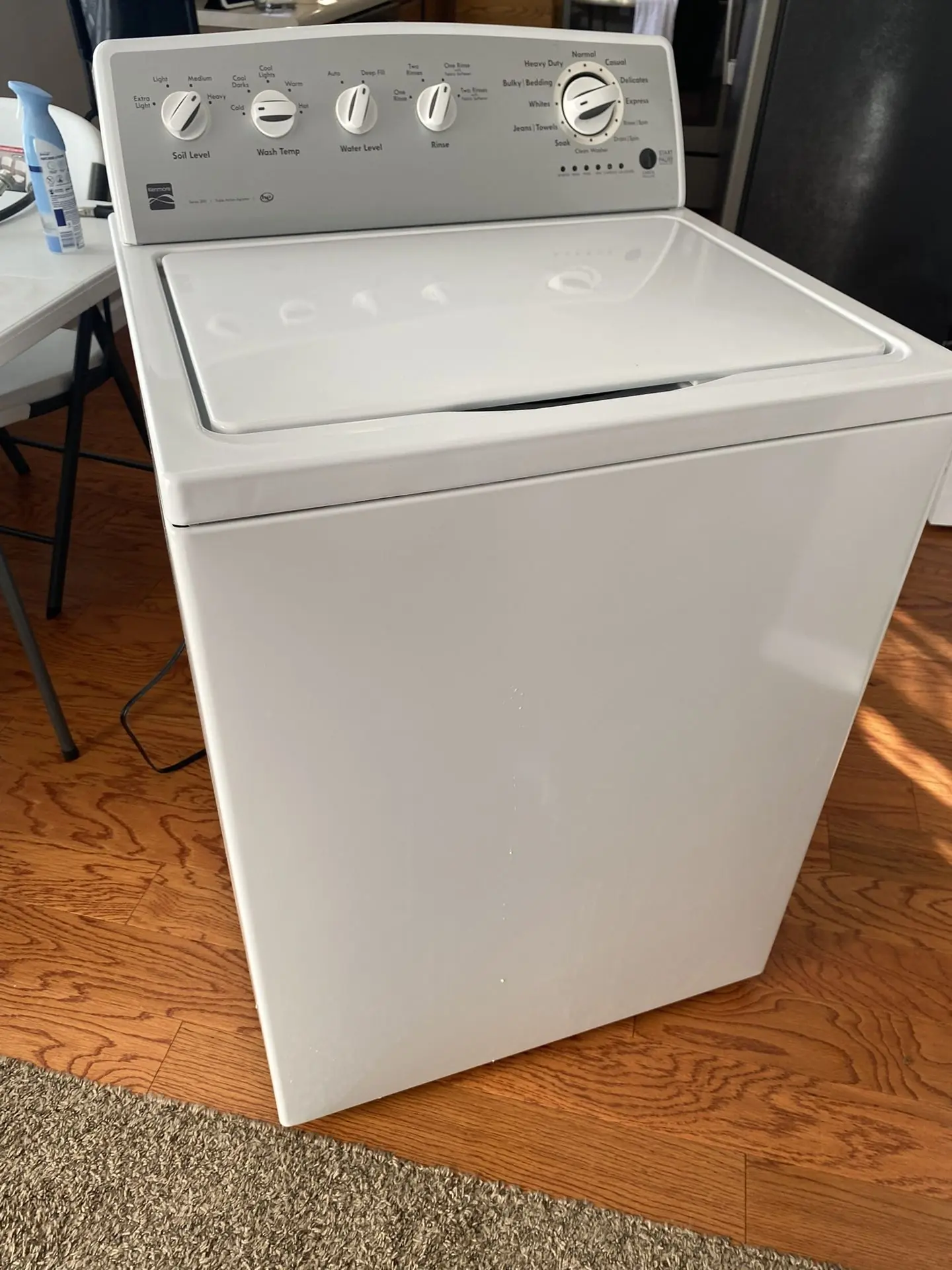

Product Images

Kenmore 300 Series Washing Machine Specifications

Feature	Description
Washer Type	High-Efficiency (HE) Low-Water Washer
Water Management	Automatic Load Sensing (senses load size and adds correct amount of water for optimal cleaning; load may not be completely submerged)
Detergent Compatibility	HE (High-Efficiency) Detergent Only
Maintenance Cycle	Clean Washer Cycle (recommended every 30 washes with liquid chlorine bleach; utilizes a higher water level for thorough cleaning)
Electrical Requirement	Grounded 3-Prong Outlet (do not use extension cords or adapters; ensure power to outlet)

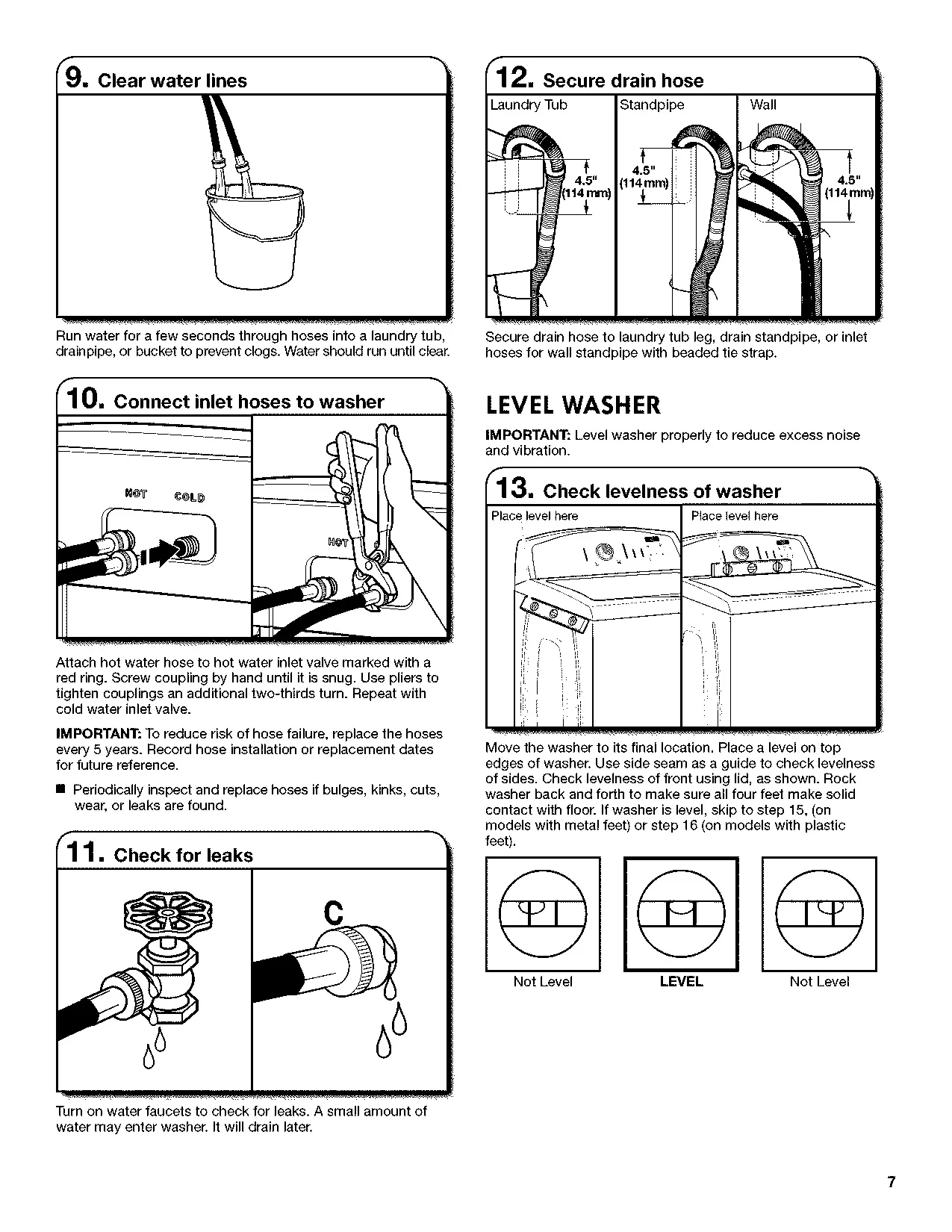

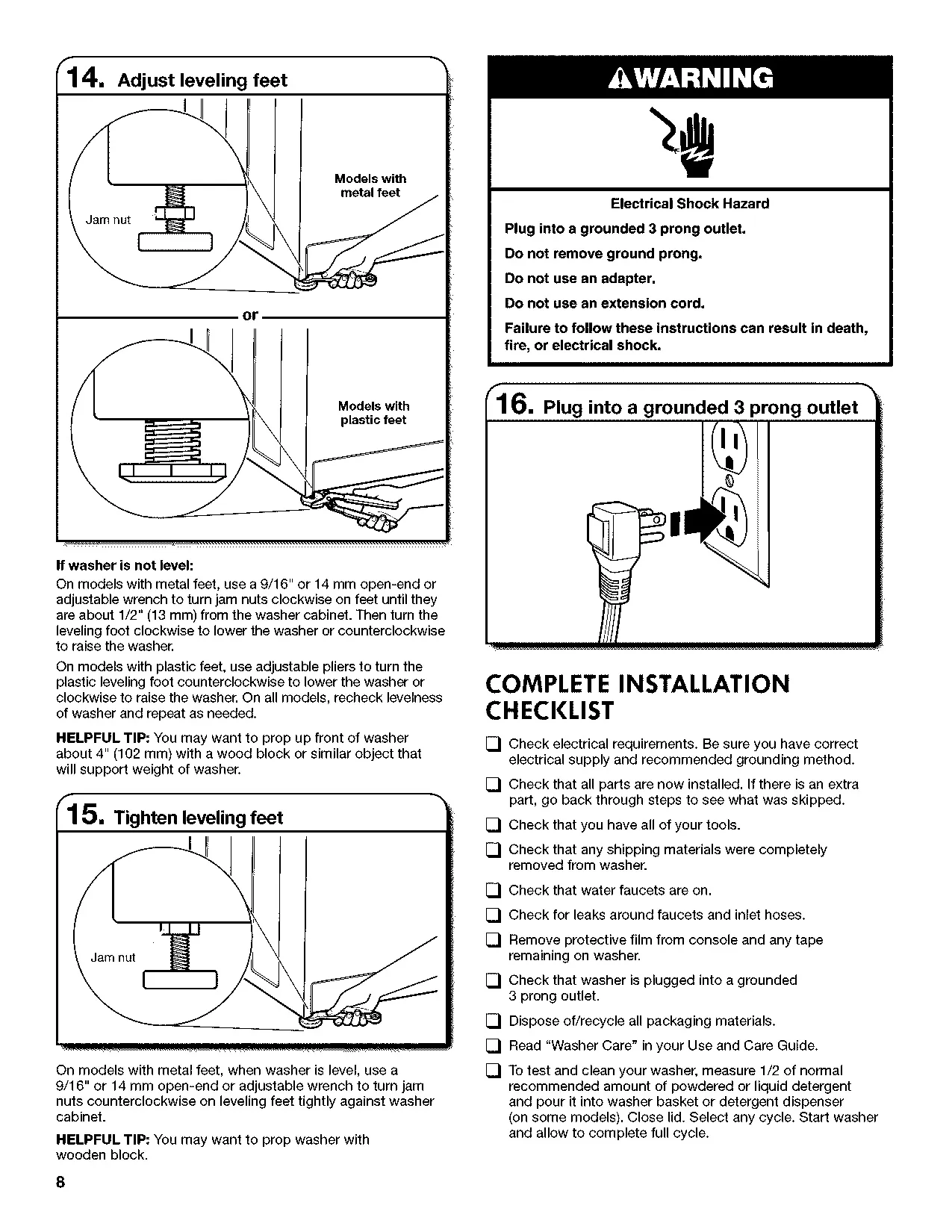

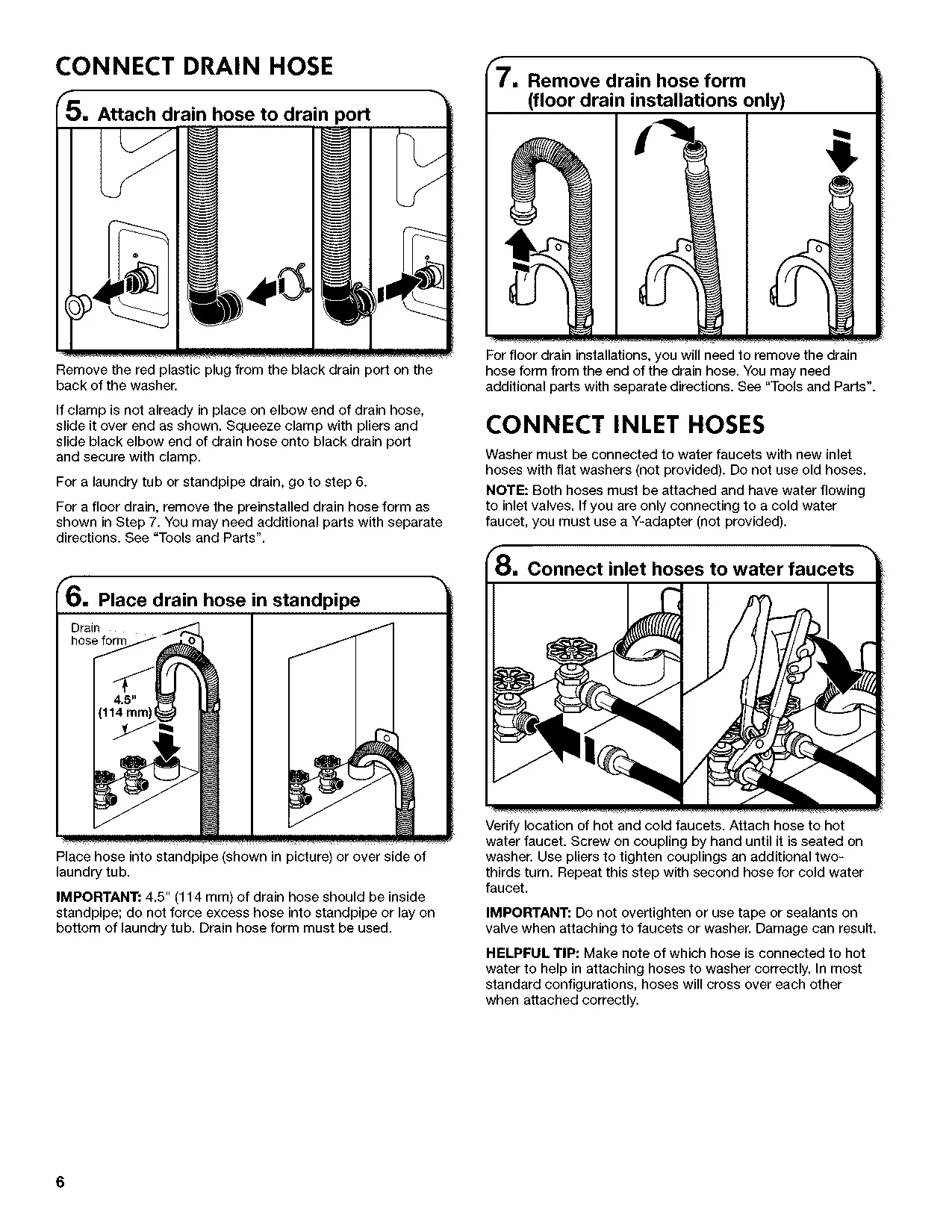

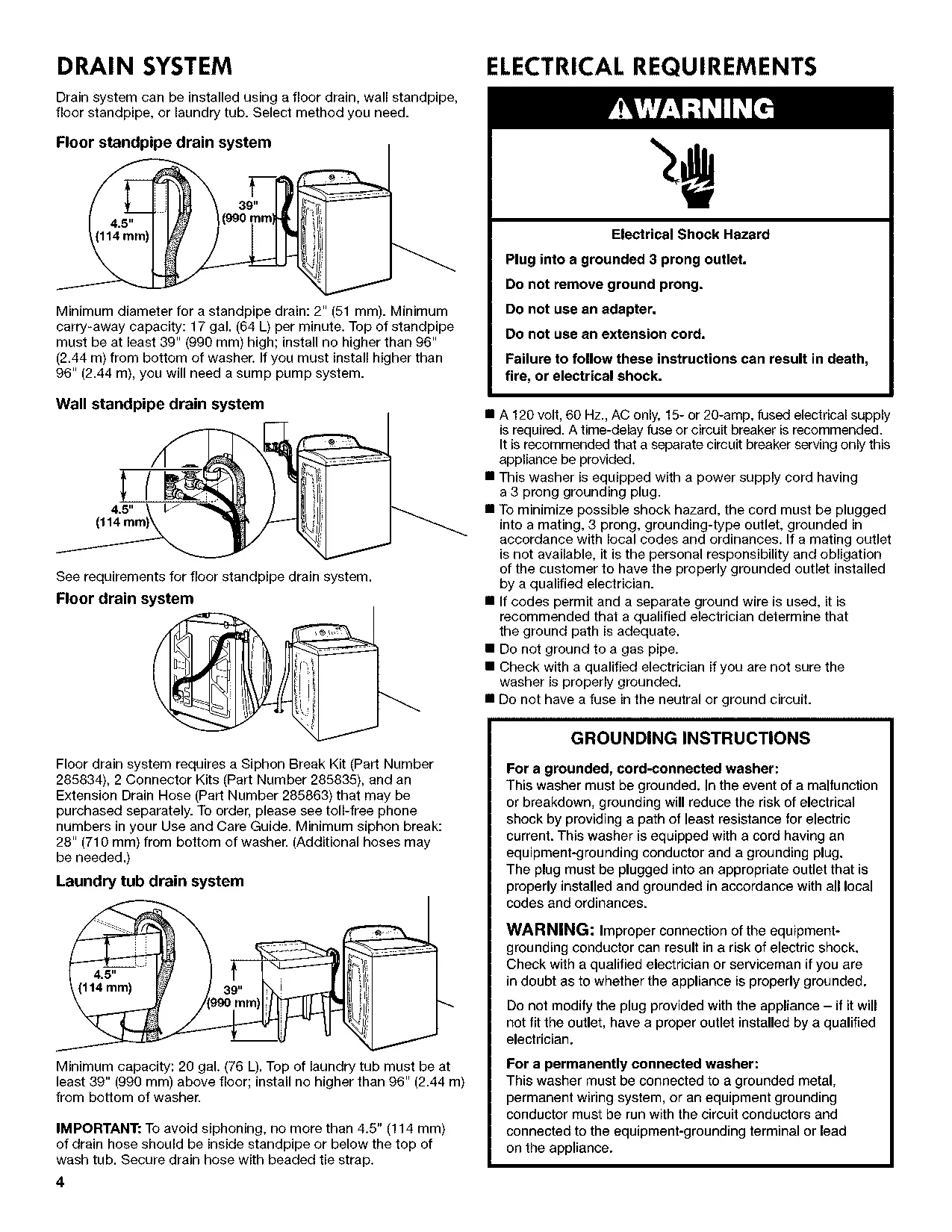

Drain Hose Installation	Maximum 4.5 inches (114 mm) insertion into standpipe; maximum 96 inches (2.4 m) height above the floor
Lid Operation	Automatic Lid Lock (locks during operation, unlocks after the basket has stopped spinning; lid must be closed for washer to run)
Temperature Control	ENERGY STAR® qualified (uses cooler wash and rinse water temperatures compared to traditional top-load washers for energy efficiency)

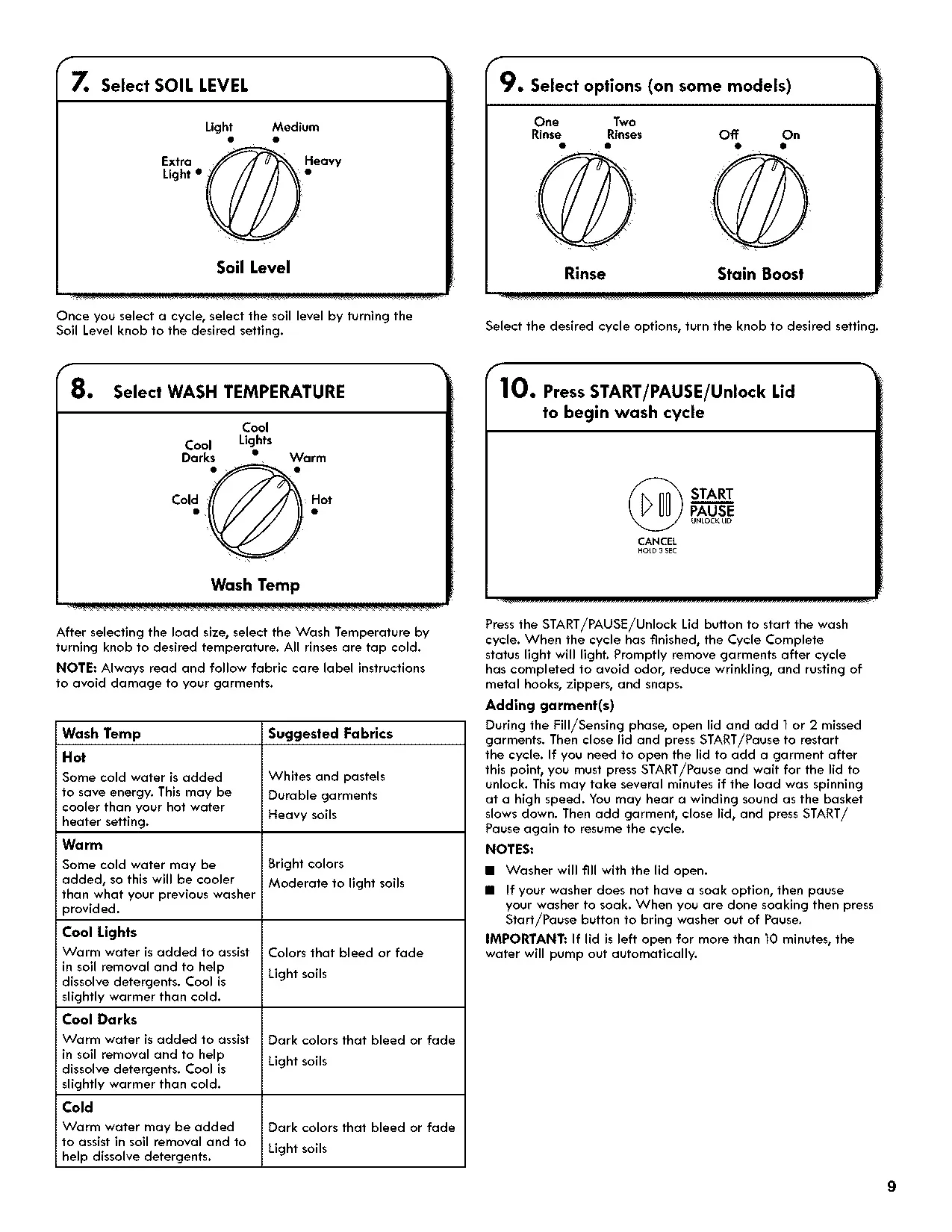

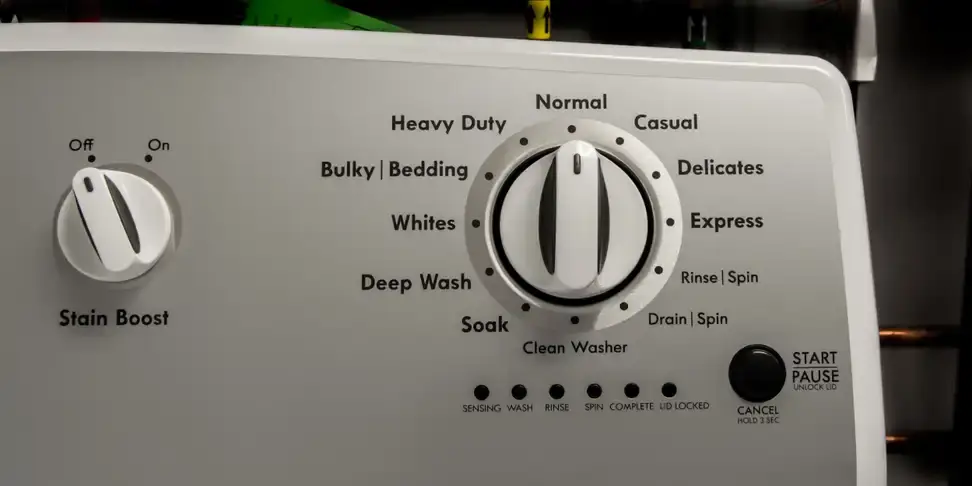

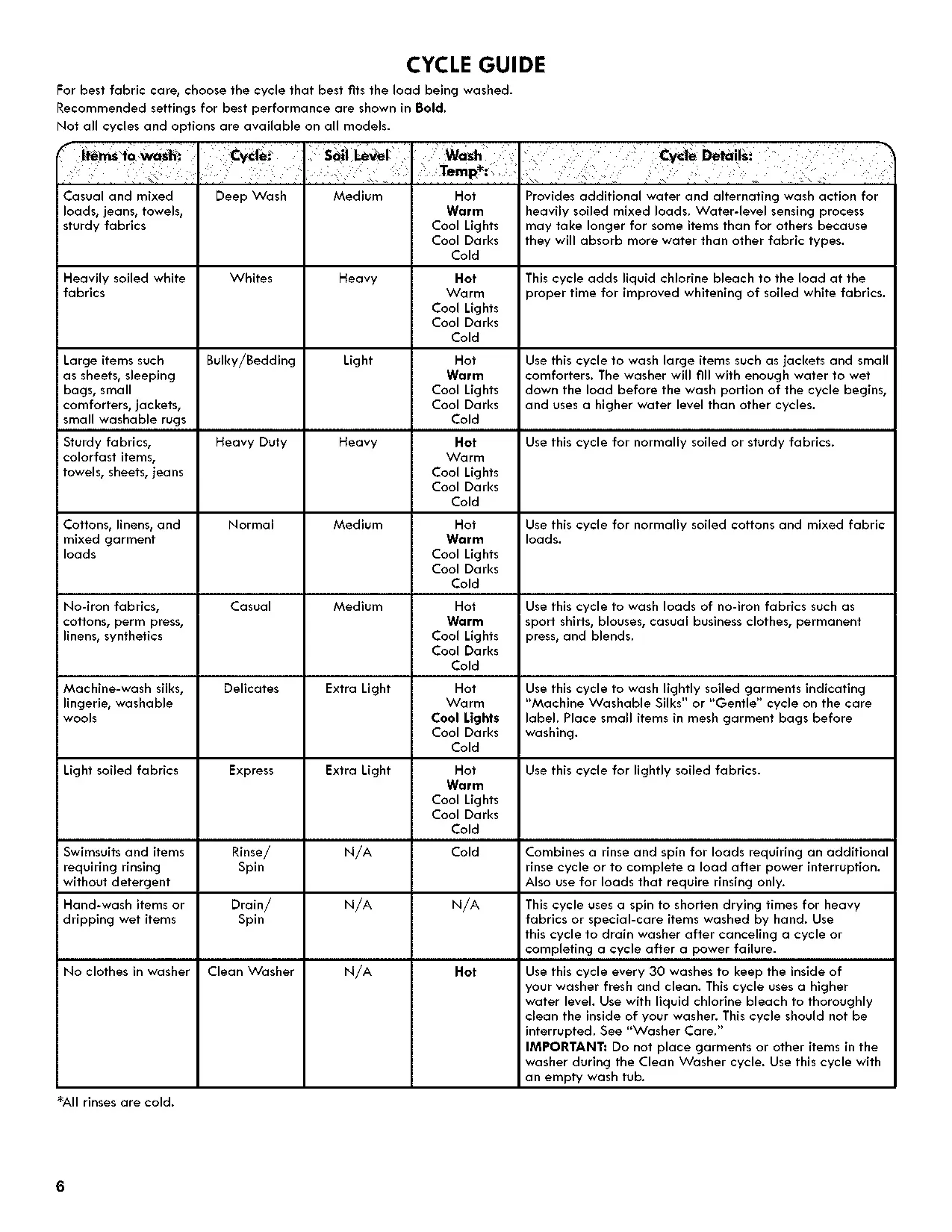

Available Wash Cycles	Casual, Whites, Bulky/Bedding, Heavy Duty, Normal, Delicates, Express, Rinse/Spin, Drain/Spin, Clean Washer
Temperature Options	Hot, Warm, Cool, Cold, Cool Lights, Cool Darks (options vary by selected cycle)
Water Level Options	Deep Wash (provides additional water and alternating wash action for heavily soiled mixed loads), Bulky/Bedding (uses a higher water level for large items)

Kenmore 300 Series Washer Details

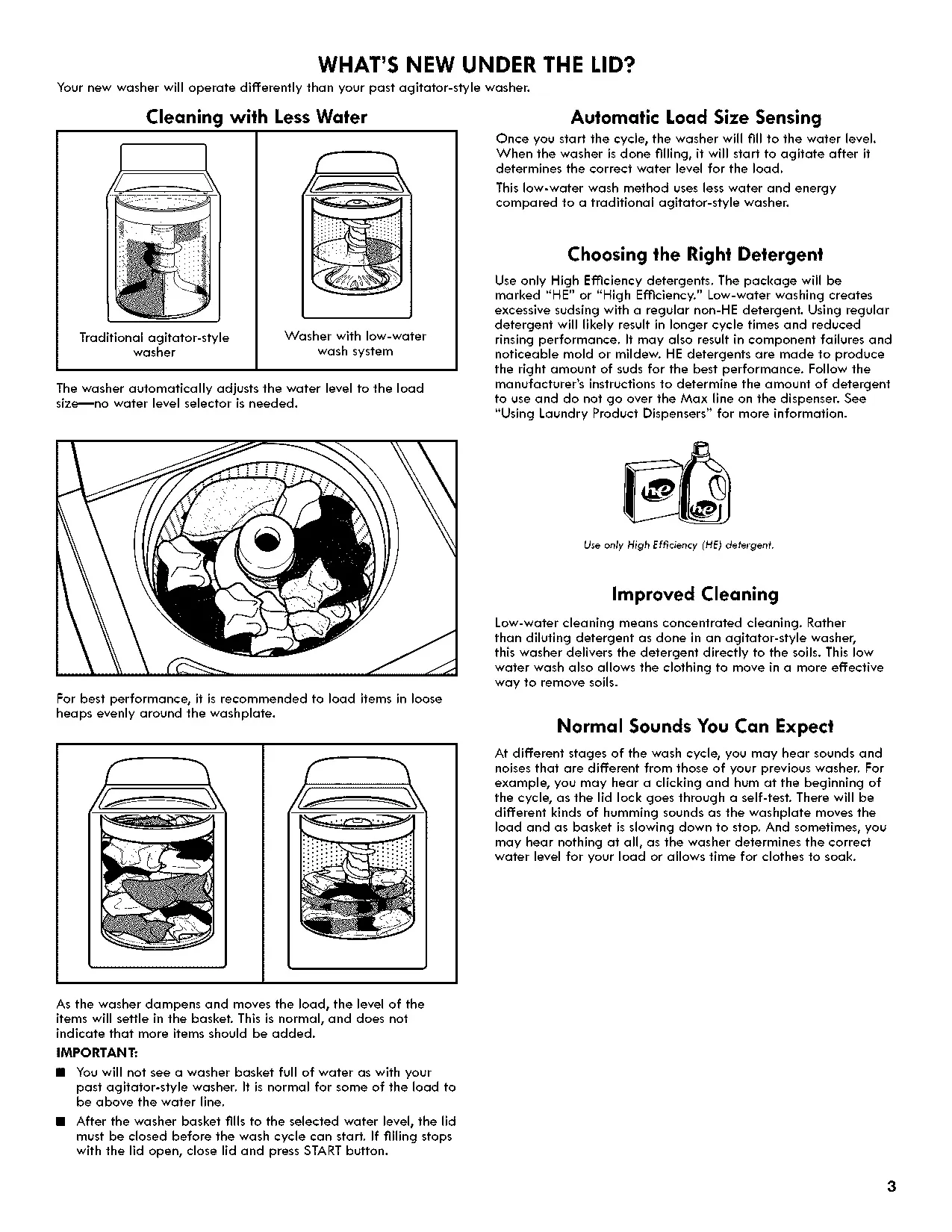

The Kenmore 300 Series Washing Machine is engineered for superior high-efficiency performance, strategically employing a low-water wash system to deliver exceptional cleanliness while significantly reducing water consumption. This intelligent appliance features automatic load sensing, precisely tailoring the water amount to each load for optimal cleaning without fully submerging the clothes. This innovative design is fundamental to its HE classification, ensuring resource conservation and effective garment care, a noticeable difference from older washing machine models.

This model boasts a diverse selection of wash cycles, meticulously crafted to accommodate various fabric types and levels of soiling, offering unparalleled flexibility for all your laundry tasks. Cycles like "Casual" are perfect for everyday items such as jeans and mixed loads, while "Whites" specifically caters to heavily soiled white fabrics, often integrating a bleach step. For more delicate garments, the "Delicates" cycle provides gentle care for silks and lingerie, ensuring fabric integrity. Furthermore, "Express" is designed for quick washing of lightly soiled items.

To tackle more challenging laundry, the Kenmore 300 Series integrates specialized functions. The "Bulky/Bedding" cycle, for instance, automatically utilizes a higher water level to ensure large items like comforters and jackets are thoroughly soaked and cleaned. Additionally, the "Deep Wash" option enhances cleaning power by providing both extra water and a vigorous alternating wash action, making it ideal for heavily soiled mixed loads that demand intensive treatment. These thoughtful features ensure comprehensive cleaning for all fabric types.

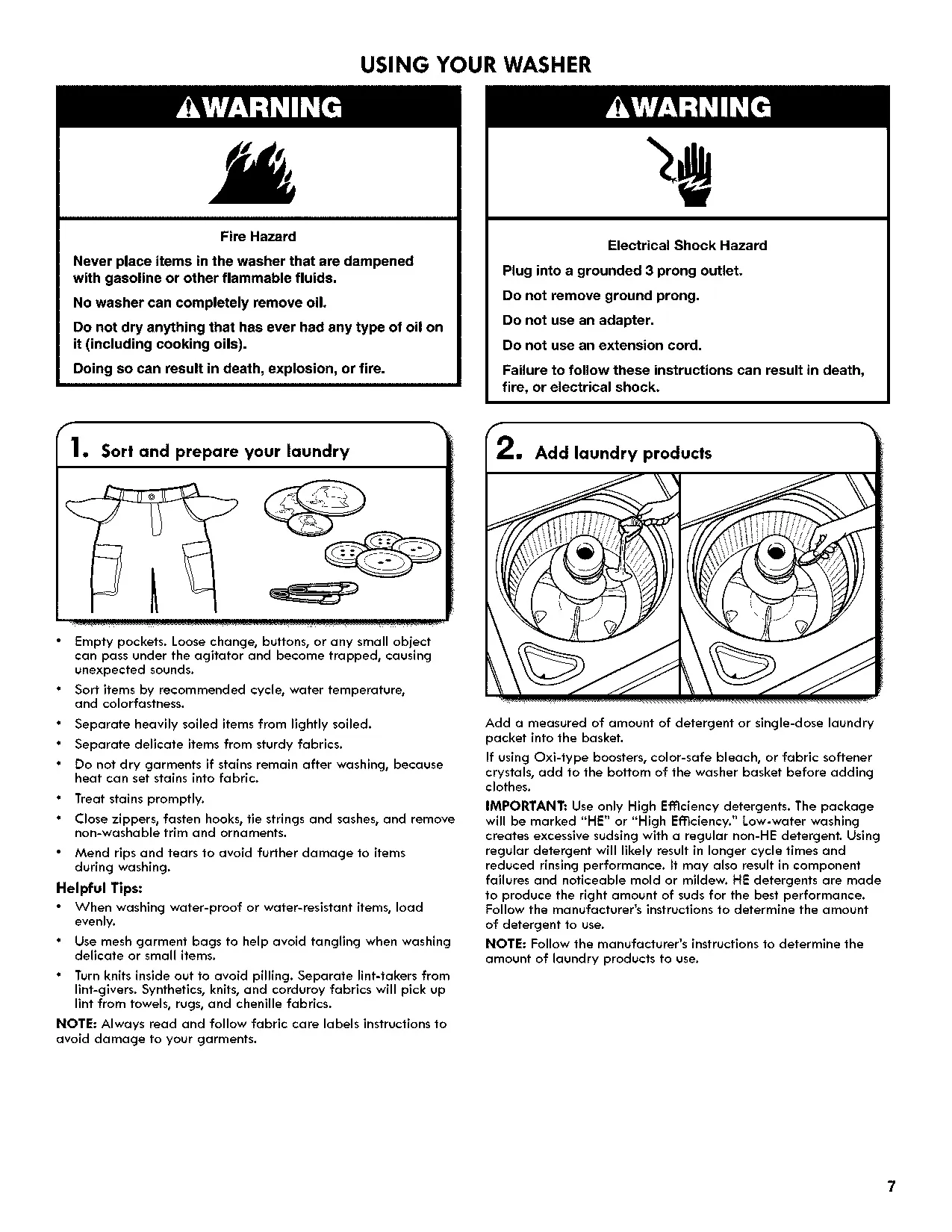

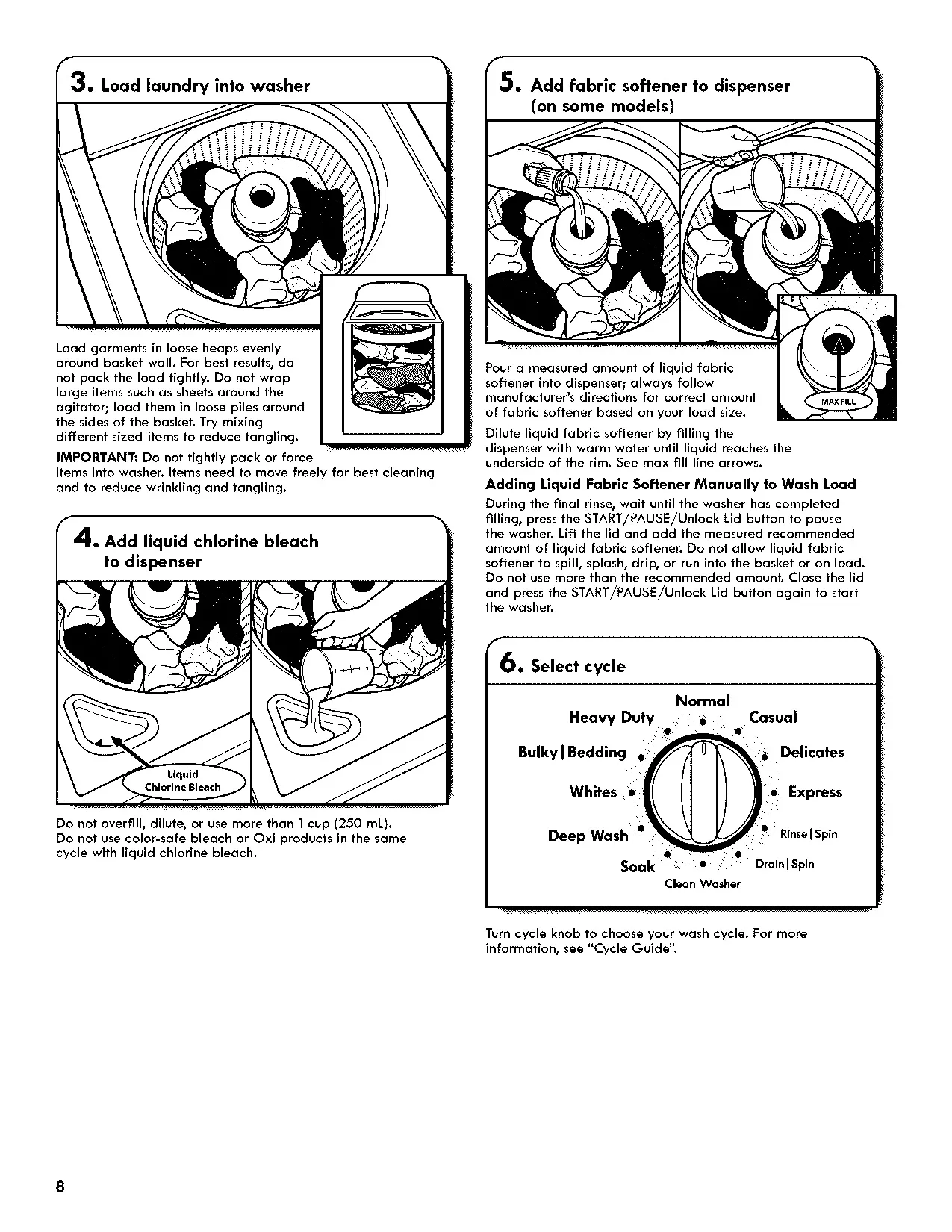

For optimal washing performance, it is imperative to use only HE (High-Efficiency) detergent, measuring the quantity accurately according to the specific load size and soil level. Proper loading technique is equally vital: garments should be placed in loose heaps, distributed evenly around the basket to facilitate thorough water circulation and wash action. The Kenmore 300 Series also includes dedicated dispensers for liquid chlorine bleach and fabric softener, which prevent direct contact with fabrics and ensure these additives are properly diluted and distributed.

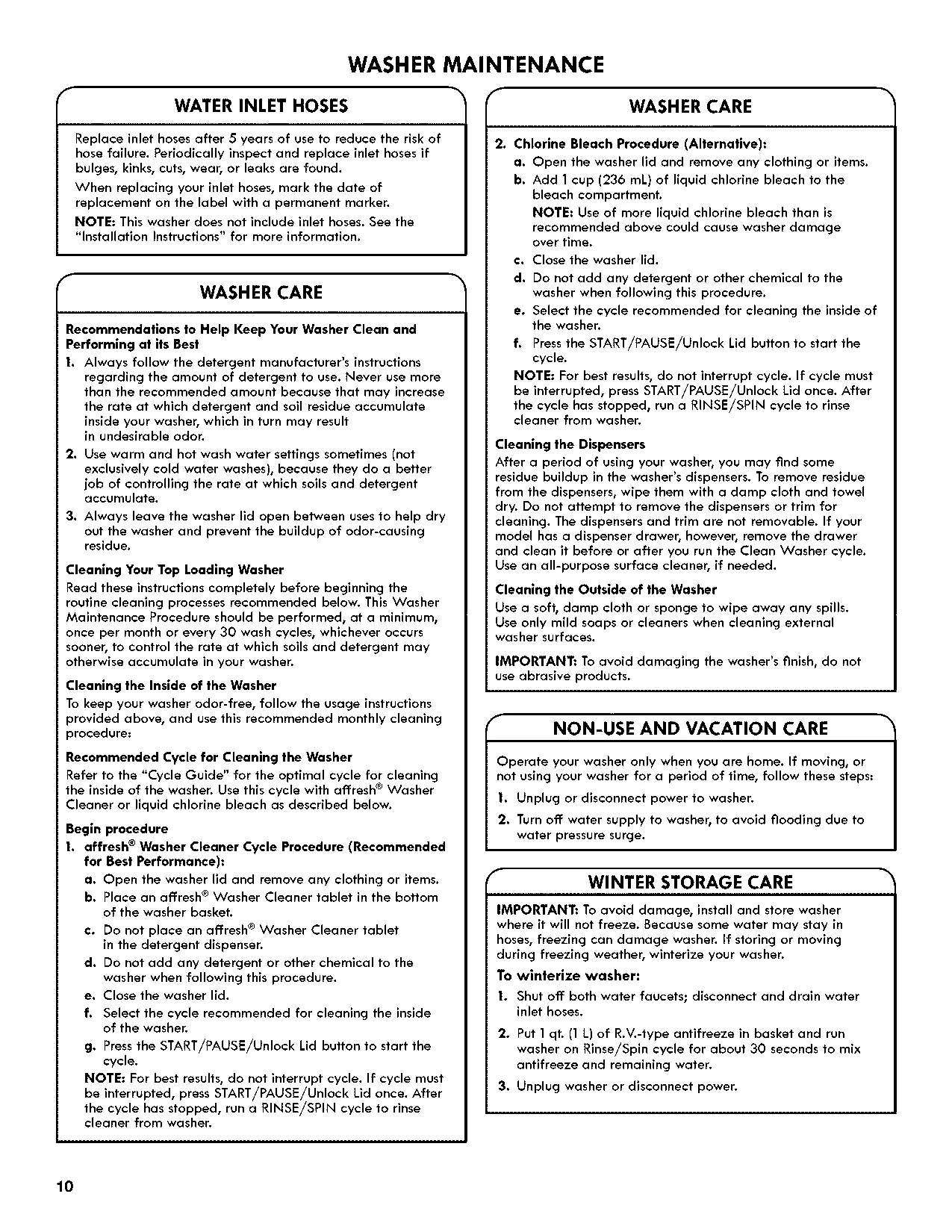

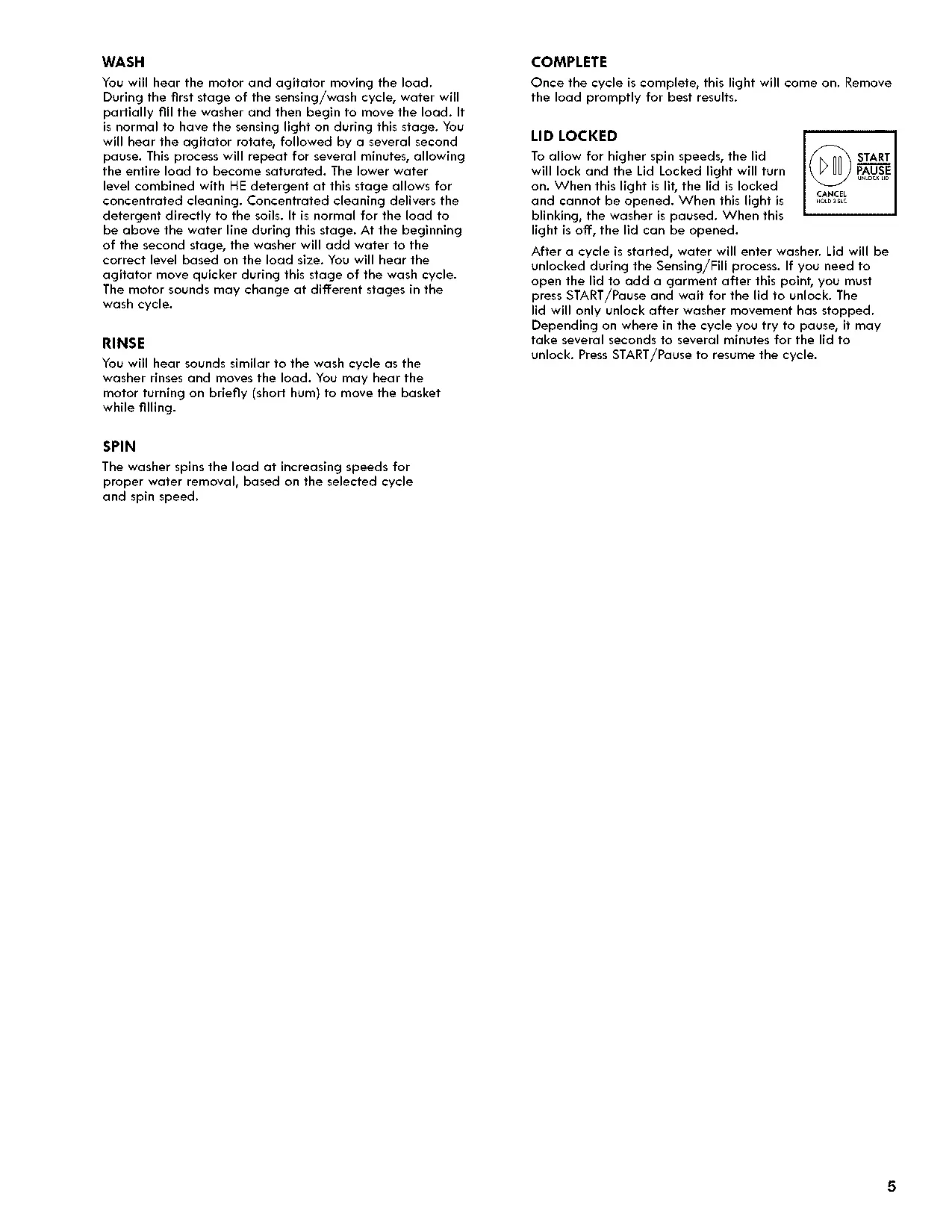

Understanding the operational characteristics of an HE washer contributes to a smooth user experience. It's normal for the machine to produce various sounds, such as the gentle hum during load sensing or the gurgling of the pump during draining; these are integral to its advanced functionality. Maintaining the washer's freshness and cleanliness is simplified with the "Clean Washer" cycle, recommended approximately every 30 washes. This cycle, run with an empty tub and liquid chlorine bleach, ensures long-term optimal performance and hygiene.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Kenmore 300 Series Washing Machine, and we answer them below.

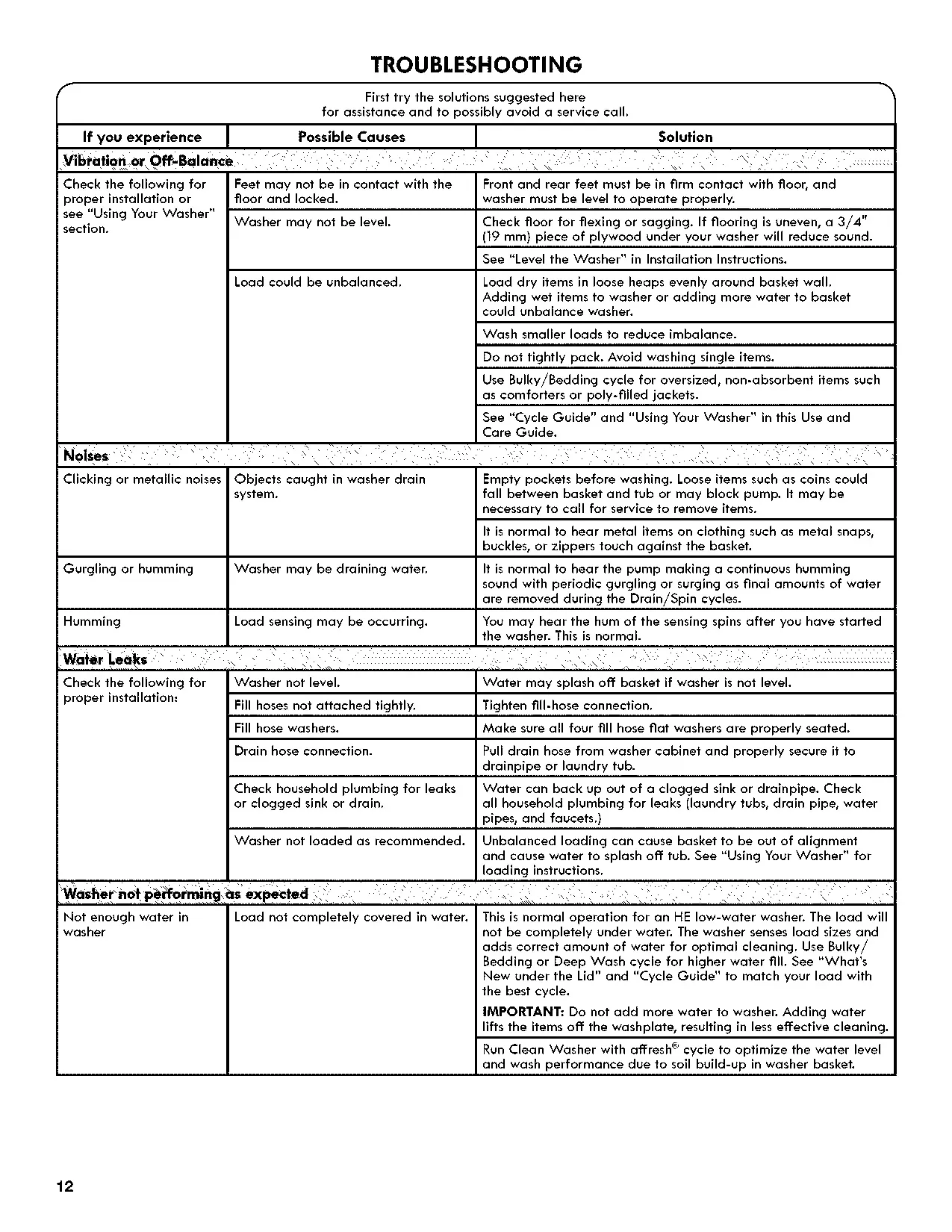

Why does my Kenmore 300 Series washer make unusual noises like clicking, gurgling, or humming?

The washer's operation includes normal sounds. Clicking or metallic noises might indicate objects caught in the drain system; check pockets before washing. Gurgling or humming is often the pump draining water, especially during Drain/Spin cycles, or the machine performing load sensing at the start.

What should I do if my washer is leaking water?

First, ensure the washer is level, as unevenness can cause splashing. Check that fill hoses are tightly connected with all washers properly seated and that the drain hose is securely attached to the drainpipe or laundry tub. Also, inspect household plumbing for leaks or clogs.

Why does it seem like there's not enough water in the washer during a cycle?

The Kenmore 300 Series is a High-Efficiency (HE) low-water washer. It automatically senses the load size and adds the correct amount of water, so the load will not be completely submerged. This is normal for optimal cleaning. For higher water fill, use the Bulky/Bedding or Deep Wash cycles. Do not add extra water manually.

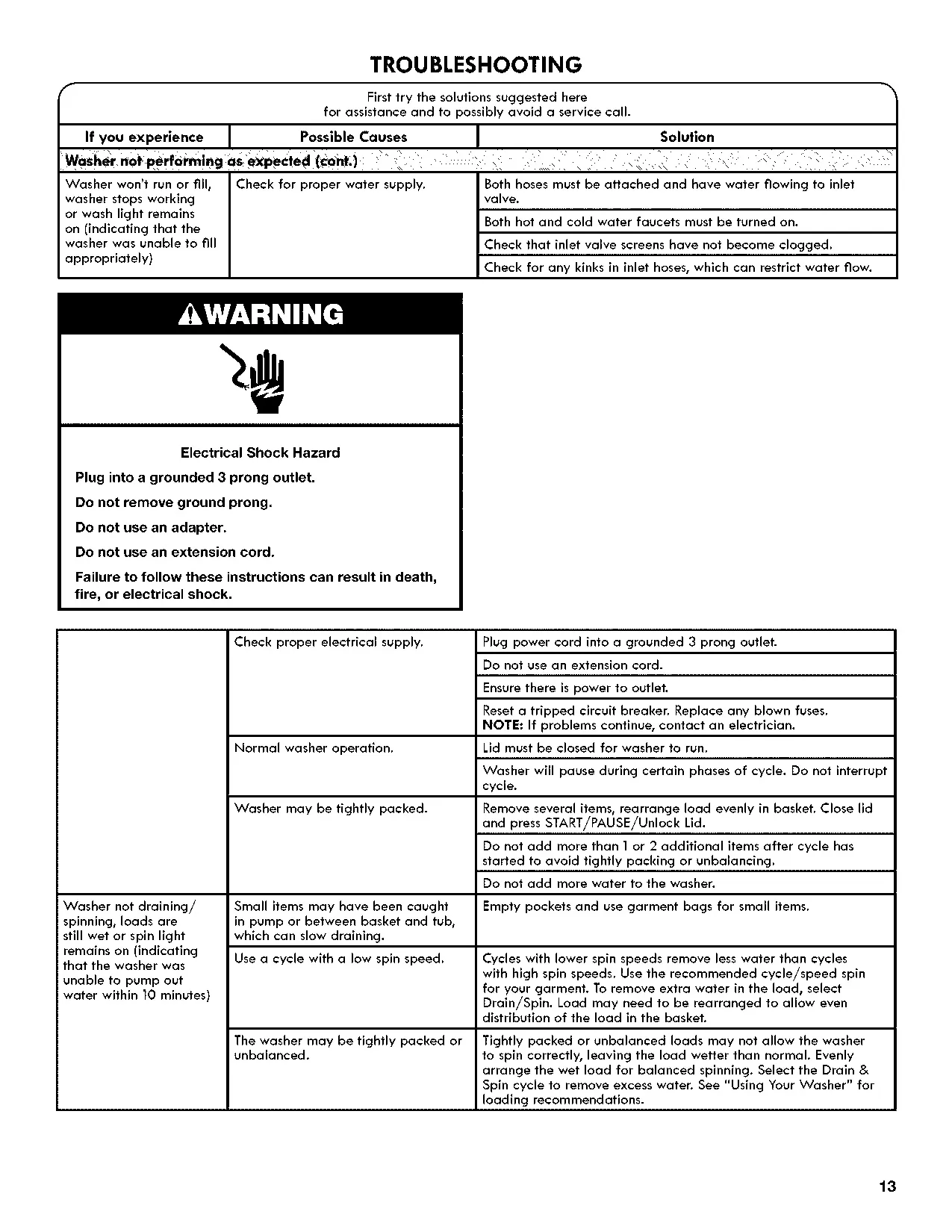

My Kenmore 300 Series washer won't start, run, or fill. What are the common causes?

Ensure both hot and cold water faucets are fully open and hoses are connected without kinks or clogged screens. Verify the power cord is plugged into a grounded 3-prong outlet and there's power to the outlet (check breakers/fuses). The lid must be closed for the washer to operate, and the washer may pause during certain cycle phases.

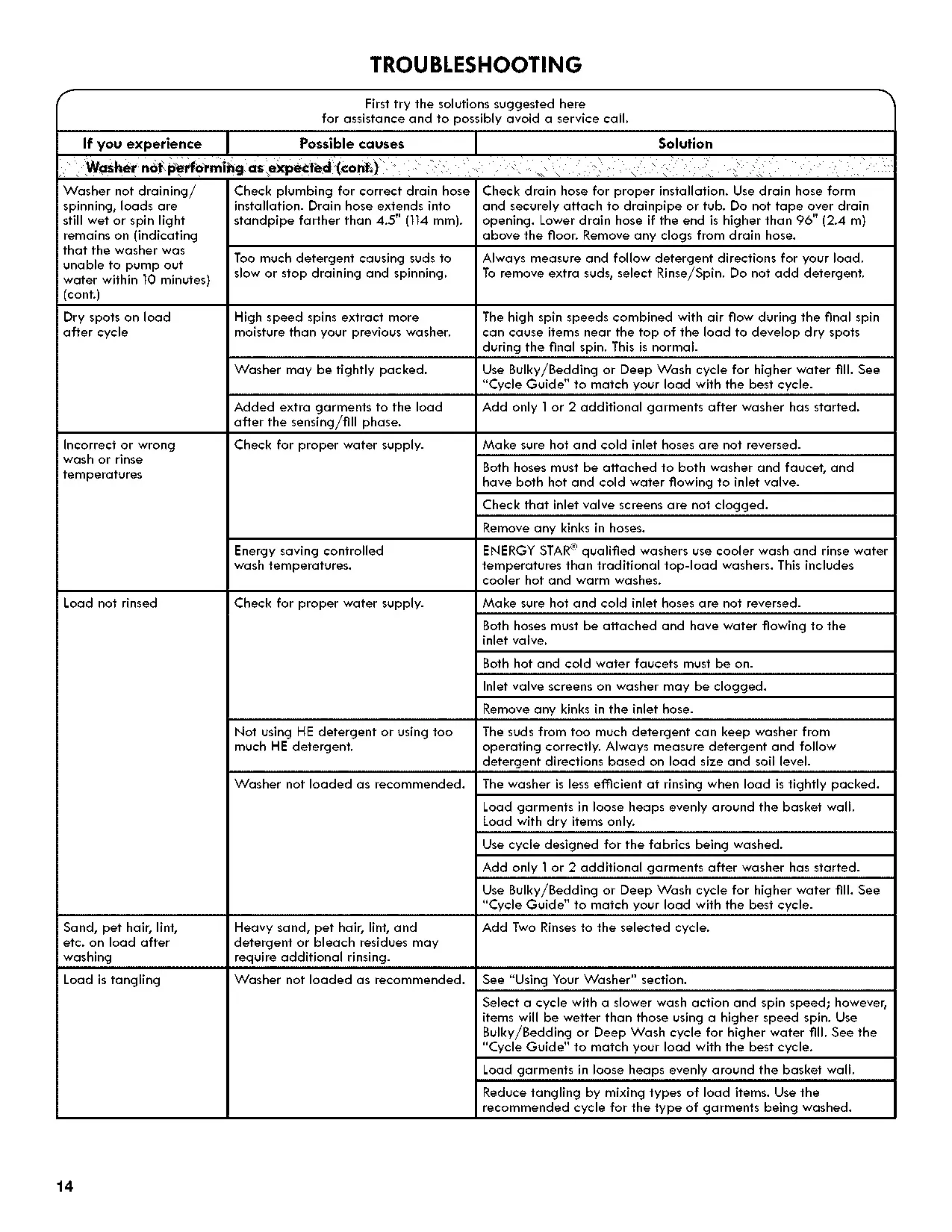

Why are my clothes still wet after the wash cycle, or why isn't the washer draining/spinning?

This can occur if small items are caught in the pump, or if the load is tightly packed or unbalanced, preventing proper spinning. Rearrange the load evenly in the basket, or select the Drain/Spin cycle to remove excess water. Ensure the drain hose is installed correctly, not inserted too far into the standpipe (max 4.5 inches/114 mm) and not too high (max 96 inches/2.4 m). Too much HE detergent can also cause excessive suds, hindering draining and spinning.

Why do my washed clothes have dry spots after the cycle is complete?

The high spin speeds of HE washers extract more moisture and, combined with air flow, can cause items near the top of the load to develop dry spots during the final spin. This is considered normal. Ensure the washer isn't tightly packed; use Bulky/Bedding or Deep Wash cycles for higher water fill if needed.

Why are the wash or rinse water temperatures incorrect (e.g., hot wash feels cool)?

Verify that the hot and cold inlet hoses are not reversed and that both faucets are on. ENERGY STAR® qualified washers, like the Kenmore 300 Series, use cooler wash and rinse water temperatures than traditional top-load washers, even for "hot" and "warm" settings, to save energy.

What causes load tangling, and how can I prevent it?

Tangling usually results from improper loading. Load garments in loose heaps evenly around the basket wall. Reduce tangling by mixing different types of load items and selecting a cycle with a slower wash action and spin speed. Refer to the "Using Your Washer" section for detailed loading recommendations.

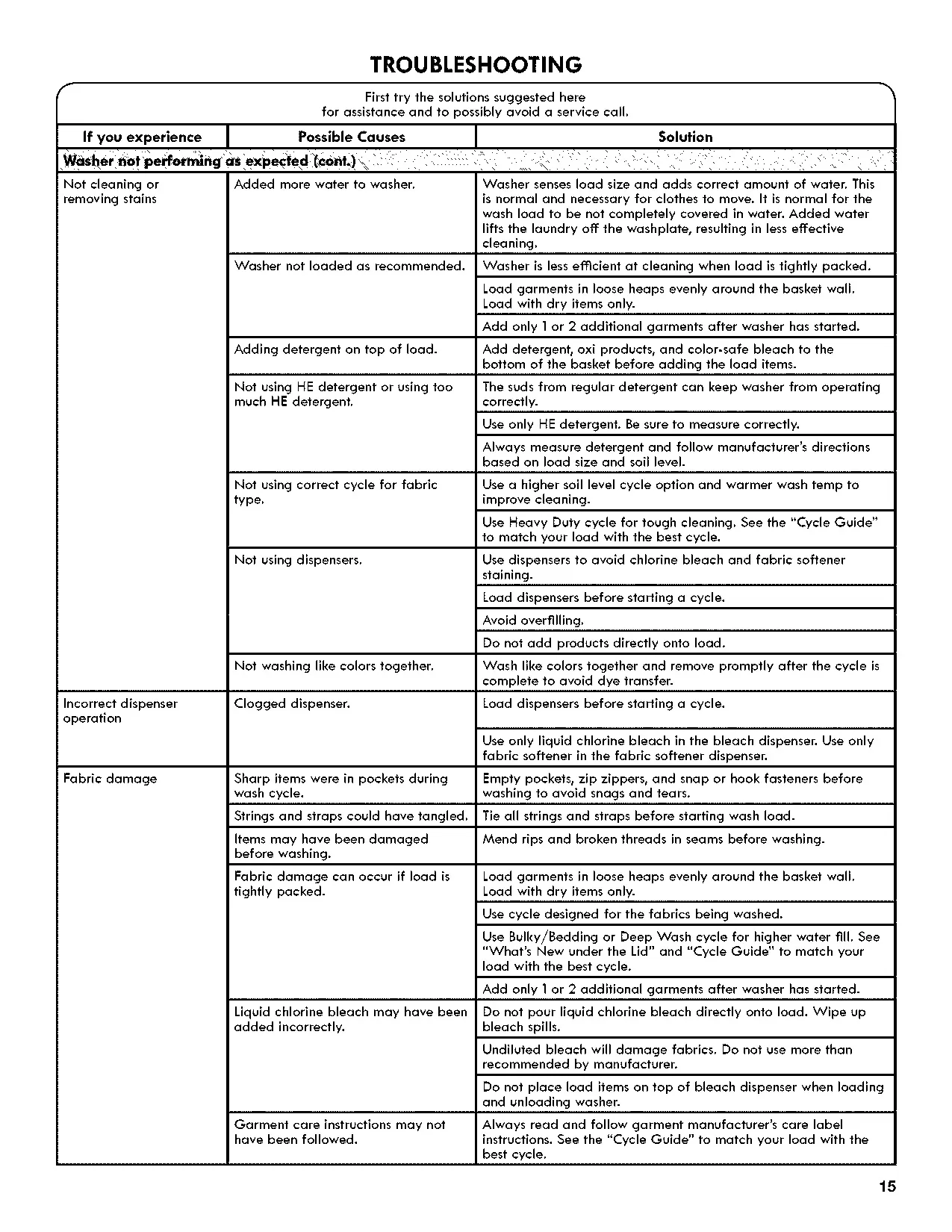

My clothes aren't getting clean, or stains aren't being removed effectively. What can I do?

Ensure you're using only HE detergent and measuring it correctly based on load size and soil level. Avoid tightly packing the washer; load garments in loose, even heaps. Add detergent/oxi products to the bottom of the basket before clothes, and use the dispensers for bleach and fabric softener. Select the correct cycle and a higher soil level option/warmer wash temperature for tough cleaning.

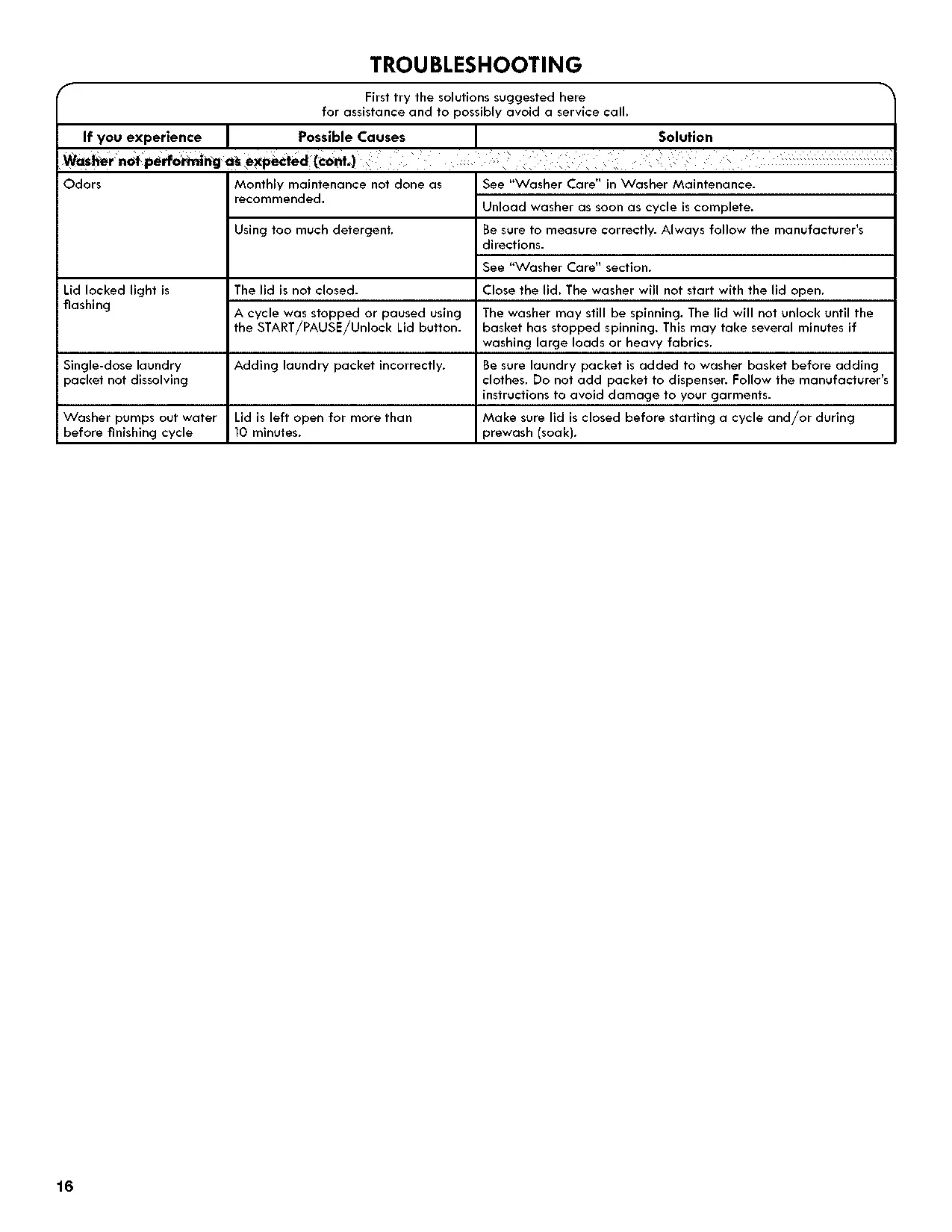

Why does my washer have an unpleasant odor?

Odors often develop if monthly maintenance (running the Clean Washer cycle every 30 washes) is not performed. Always unload the washer as soon as the cycle is complete, and ensure you're not using too much detergent, as residue can contribute to odors.

The 'Lid Locked' light is flashing, and the washer isn't operating. What does this mean?

The lid must be closed for the washer to start. If a cycle was stopped or paused, the lid will remain locked until the basket has completely stopped spinning, which can take several minutes, especially with large or heavy loads.
