Honeywell TP70WKN Dehumidifier

Honeywell TP70WKN Instructions

Here we offer the Honeywell TP70WKN Dehumidifier manual completely free and in English. We have cataloged this manual in the Dehumidifiers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell TP70WKN Dehumidifier, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

Honeywell TP70WKN Dehumidifier Specifications

Feature	Specification
Model	TP70WKN
Dehumidifier Type	Portable Dehumidifier
Operating Temperature Range	41°F (5°C) - 89°F (32°C)
Adjustable Relative Humidity (RH) Range	30% RH - 90% RH
Fan Speeds	High, Low
Timer Settings	0.5 - 24 hours (Auto-Off, Auto-On)
Refrigerant Type	R32 (Flammable A2L)
Refrigerant Charge	Specific amount varies; refer to rating label on unit (Max R32 0.918 kg based on UL60335-2-40)
Continuous Drain Tube (Included)	Inner Diameter: 0.47 inch; Length: 3.28 ft. (1 meter)
Recommended Clearance from Objects	At least 17.7 inches (45 cm)
Power / Capacity	Not specified for this individual model in the manual

Honeywell TP70WKN Dehumidifier Details

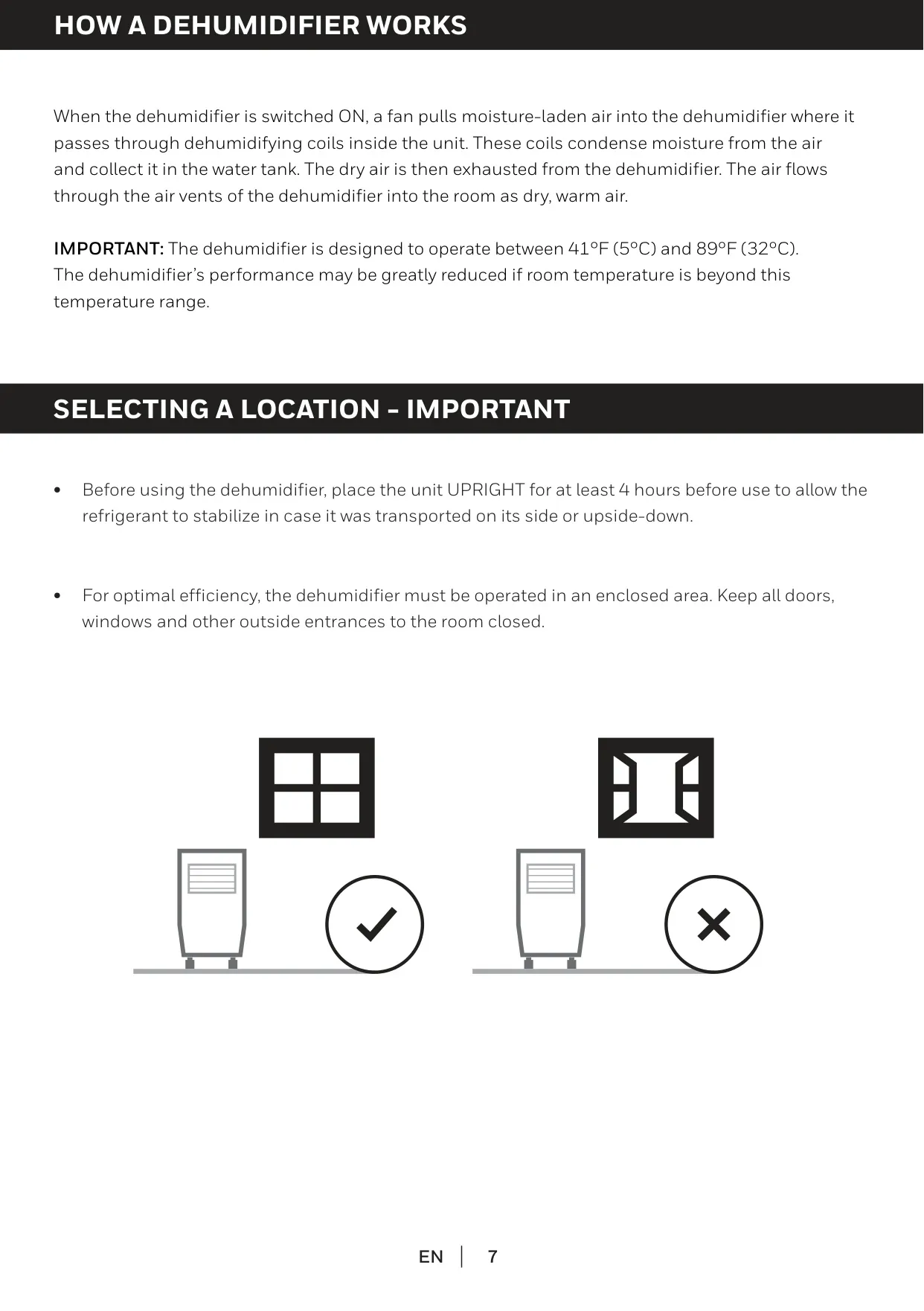

The Honeywell TP70WKN Portable Dehumidifier is engineered to efficiently reduce excess moisture in enclosed spaces, promoting a healthier and more comfortable indoor environment. Its operation involves a fan drawing in humid air, which then passes over internal cooling coils. This process condenses the moisture, collecting it in a removable water tank, while dry, warm air is expelled. For optimal performance, the unit should be placed upright for at least four hours before first use and operated within 41°F (5°C) to 89°F (32°C).

Central to its functionality is an intuitive Control Panel with an LED display showing current humidity. Users can easily adjust the desired Relative Humidity (RH) level between 30% and 90% in 5% increments. Once the set humidity is achieved, the compressor shuts off, and the fan runs briefly to cool the motor, enhancing energy efficiency. Operation automatically resumes when ambient humidity rises 5% above the target, ensuring consistent dehumidification.

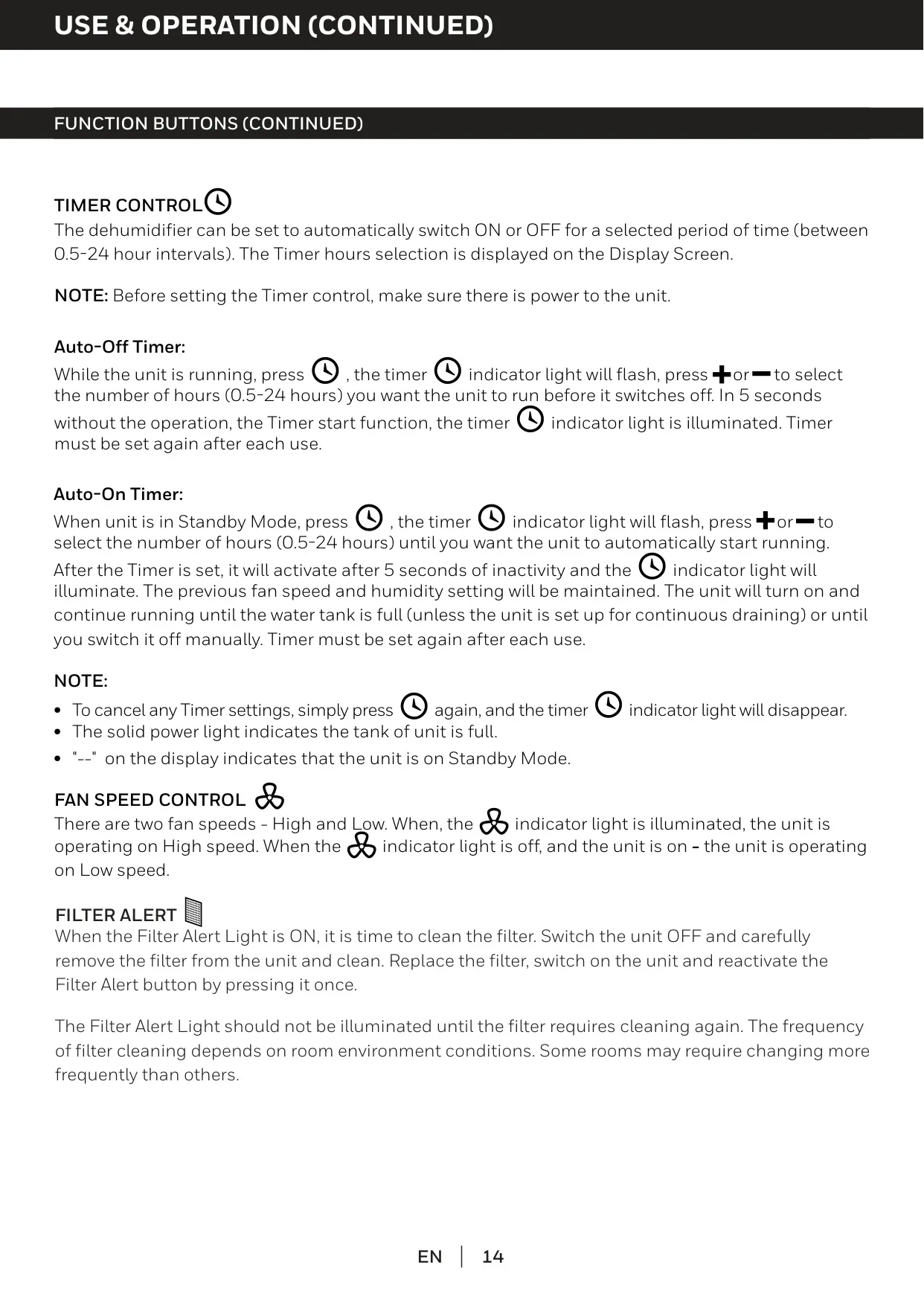

The TP70WKN offers versatile operational modes for user convenience. The Continuous Mode allows the unit to run non-stop, ideal for severely damp areas, overriding the set humidity level. For scheduled operation, the Timer Control enables both Auto-Off and Auto-On functions, programming the dehumidifier to run for 0.5 to 24 hours. This feature is perfect for managing humidity automatically, even when you are away from the unit.

User-friendly alerts enhance safety and maintenance. A prominent Water Tank Full Indicator Light illuminates and beeps when the tank requires emptying, pausing the unit's operation. Additionally, a Filter Alert Light signals when the washable dust filter needs cleaning, recommended every two weeks for optimal airflow and efficiency. The unit also includes a practical Sleep Mode to dim the LED display for an undisturbed night.

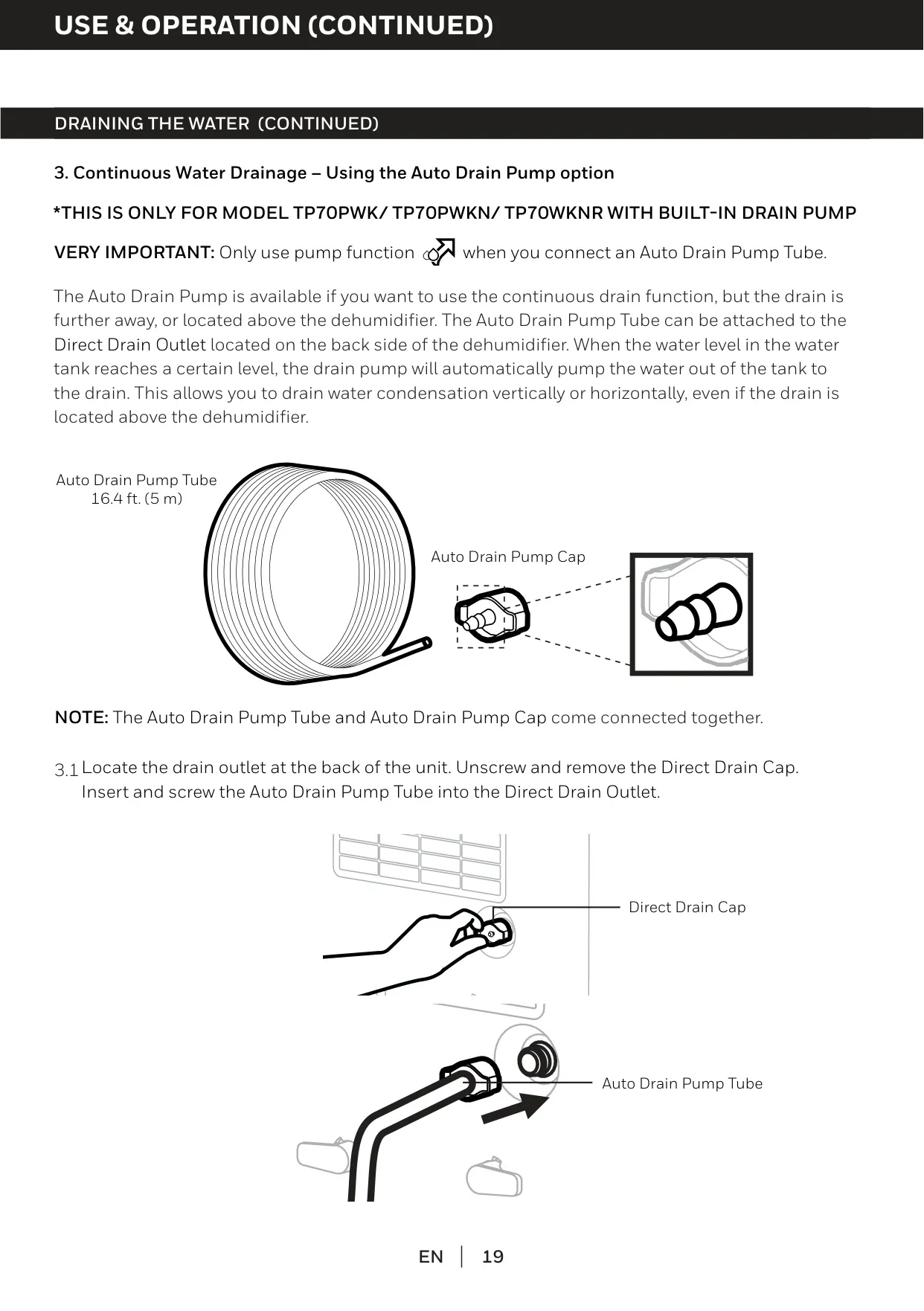

The dehumidifier provides multiple drainage options. For typical use, condensed water collects in the easily accessible front water tank, which includes a handle for emptying. For hands-free operation, a continuous water drain tube (included) can be connected to the direct drain outlet. This allows gravity-fed drainage to a nearby sink or floor drain, requiring the tube to be angled downwards and kept free of kinks to prevent blockages.

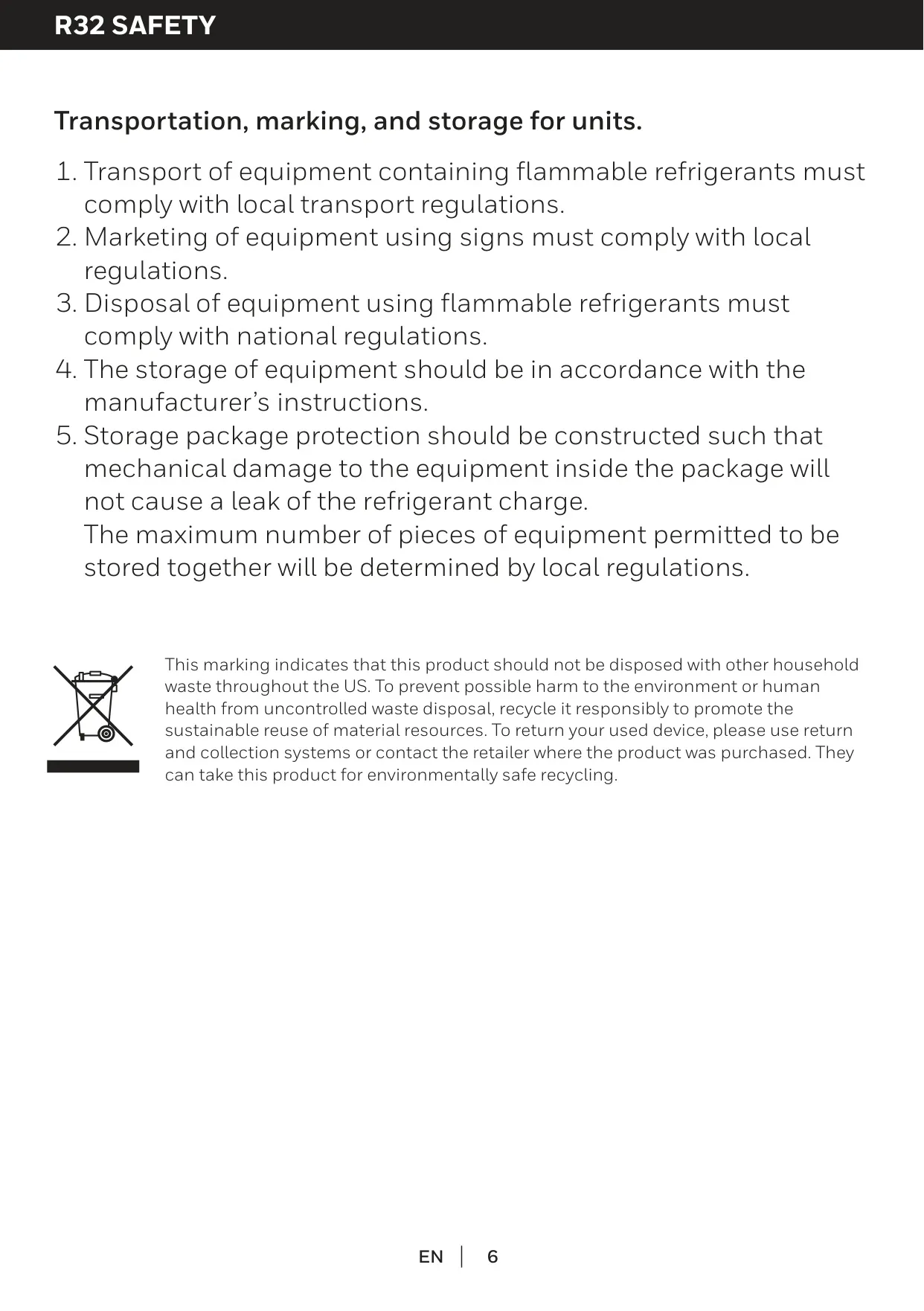

Safety is a core design principle for the TP70WKN. The manual outlines critical safety rules, emphasizing unplugging the unit before any cleaning or maintenance. It uses R32 refrigerant, requiring specific handling precautions as detailed by UL standards and qualified personnel for servicing. Furthermore, the unit incorporates an automatic defrost feature that detects and melts frost buildup on internal coils, ensuring reliable and continuous operation in cooler environments.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell TP70WKN Dehumidifier, and we answer them below.

Why isn't my Honeywell TP70WKN Dehumidifier starting?

Check for power, ensure the power cord is properly plugged in, and verify that the water tank is correctly positioned and secure in the unit. The dehumidifier will not operate if the tank is misaligned.

The unit is running, but the humidity level isn't decreasing. What should I do?

Ensure your humidity setting isn't too high. Check that all doors and windows to the outside are closed. Remove other humidity sources like boiling water. Confirm the room temperature is within the operating range of 41°F (5°C) to 89°F (32°C), as performance may reduce outside this range. Also, clean the dust filter and ensure no air inlets/outlets are blocked.

Why does the 'Water Tank Full' indicator light come on and beep when the tank isn't full?

This can happen if the water tank is not positioned correctly. Ensure it is securely placed in the unit. Also, check the foam float inside the water tank; it must be in the right place, level with the tank's top edge, for accurate water level sensing.

My dehumidifier is blowing cold air out of the top vent. Is this normal?

Yes, this is normal. The temperature of the air from the vent depends on the room environment and other factors. Its purpose is to distribute air into the room, and temperature fluctuations are expected during operation. No action is required.

I see frost on the internal coils. What does this mean?

Frost can occur, especially if the dehumidifier was recently turned on in low room temperatures (below 41°F/5°C). This triggers the automatic defrost function. Switch off the unit, let the frost melt completely, and ensure the room temperature is above 41°F (5°C) before turning it back on.

What does the 'EH' error code mean, and how can I resolve it?

The 'EH' error code indicates a possible humidity sensor misalignment, malfunction, or connection issue. To resolve, turn the dehumidifier OFF and unplug it from the power source for 24 hours, then turn it ON again. If the code reappears, contact customer support.

How often should I clean the dust filter on my TP70WKN?

It is recommended to clean the washable dust filter every two weeks. A dirty or blocked filter can reduce the dehumidifier's efficiency. When the Filter Alert Light is on, it's time to clean it.

Can I drink the water collected in the dehumidifier's tank?

No. The water collected from dehumidification is not clean and should never be used for drinking or consumption. Always drain and discard it responsibly.

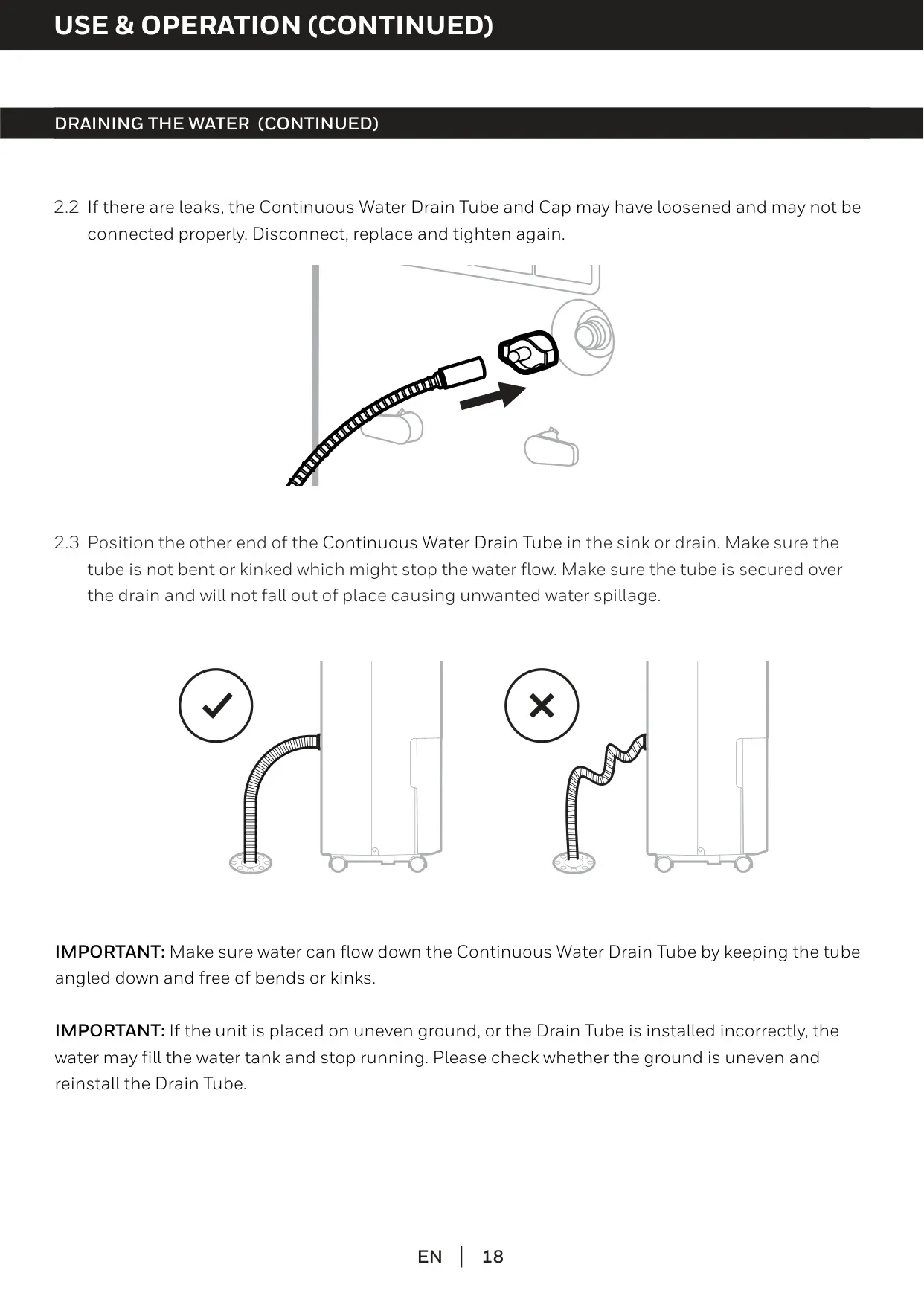

What should I do if water is leaking onto the floor from the continuous drain hose?

Check the connections between the drain hose and the direct drain outlet on the unit to ensure they are secure and tight. Also, make sure the hose is not bent or kinked, which could obstruct water flow and cause backups or leaks.

How much clearance does the dehumidifier need from walls or furniture?

For optimal airflow and efficiency, the dehumidifier must be placed at least 17.7 inches (45 cm) away from other objects such as curtains or furniture that could restrict air movement from the back or through the air vents.

What does it mean if the display shows '--'?

If the display shows '--', it indicates that the unit is currently in Standby Mode.
