Honeywell TH9421C1004 VisionPRO IAQ

User Manual

32 pages

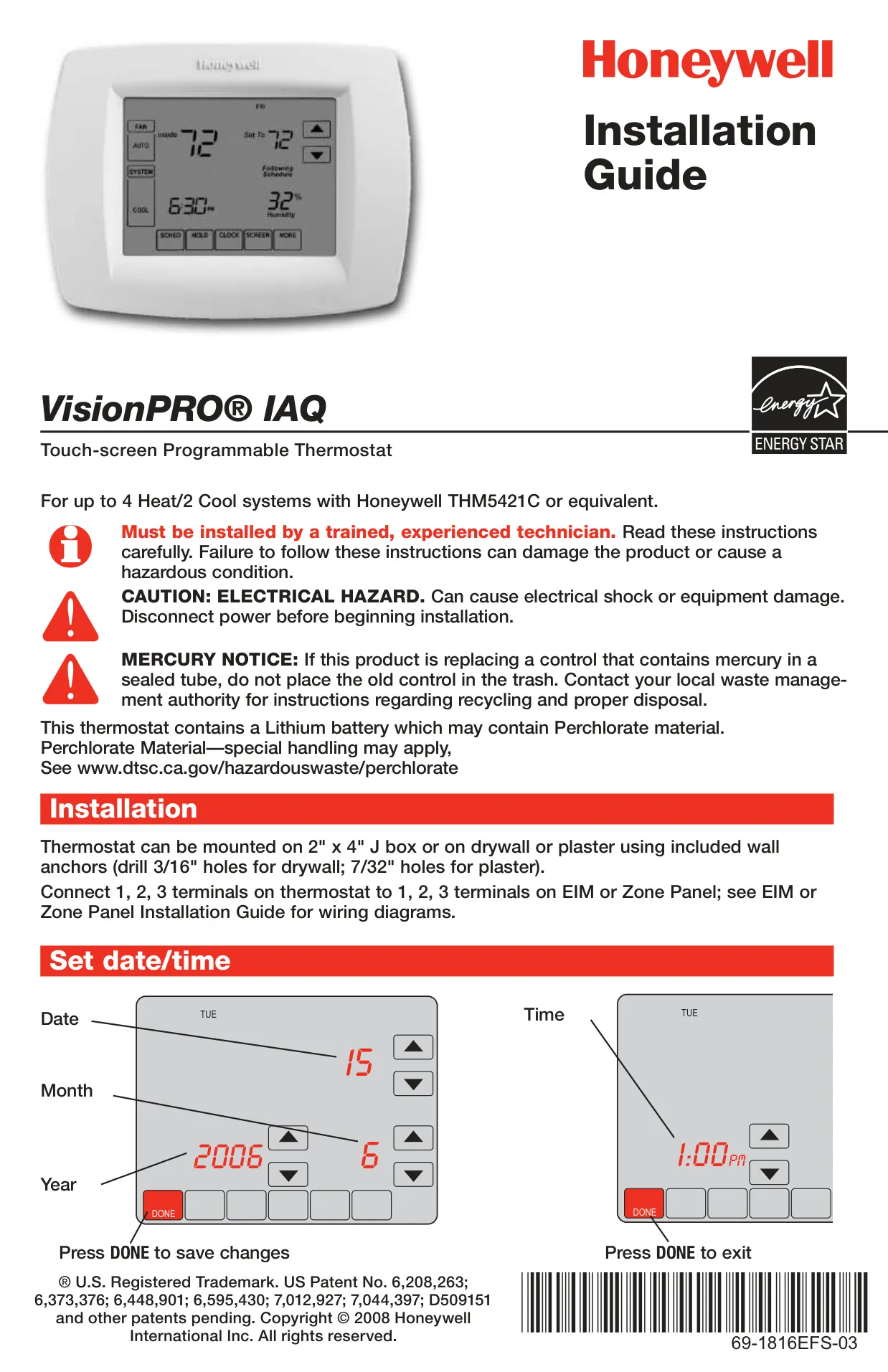

Installation Guide

8 pages

Honeywell TH9421C1004 Instructions

Here we offer the Honeywell TH9421C1004 VisionPRO IAQ manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Honeywell TH9421C1004 VisionPRO IAQ, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

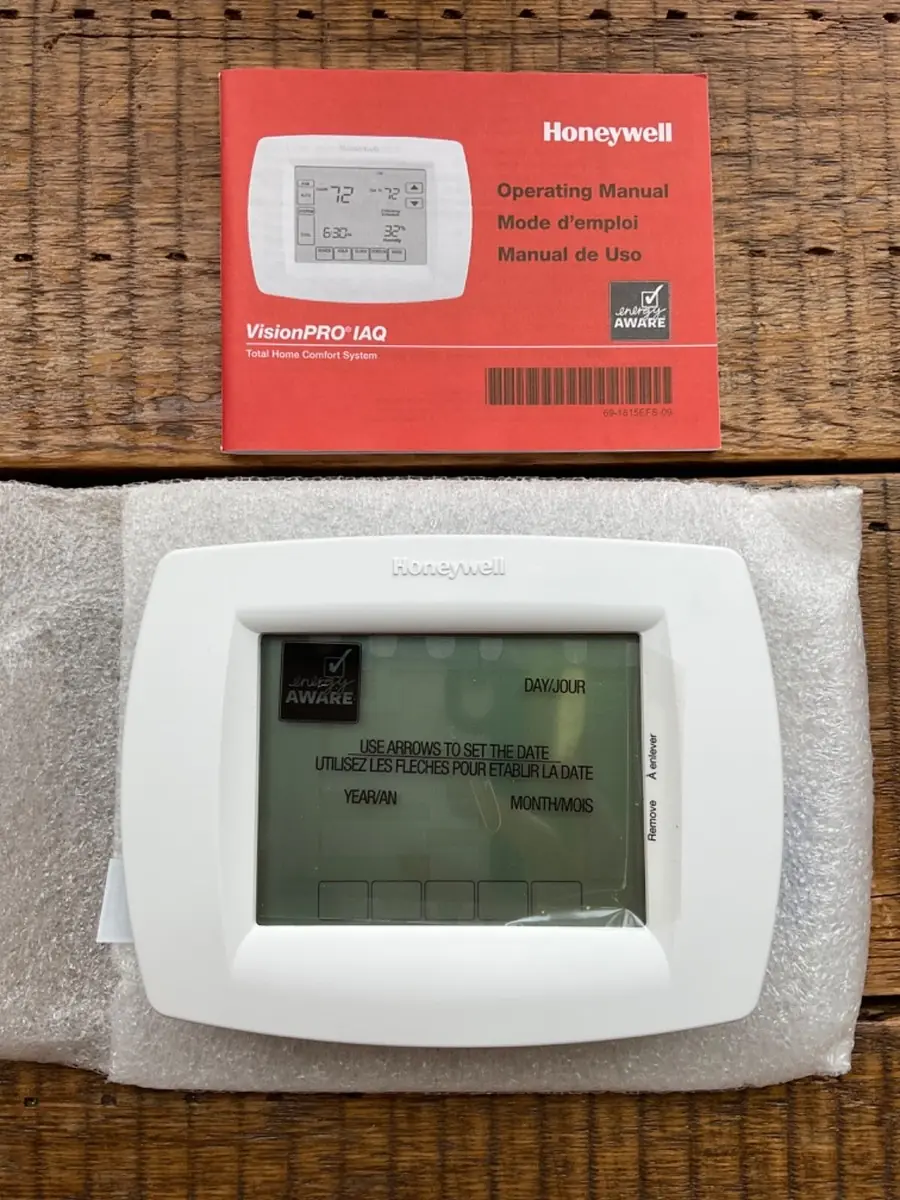

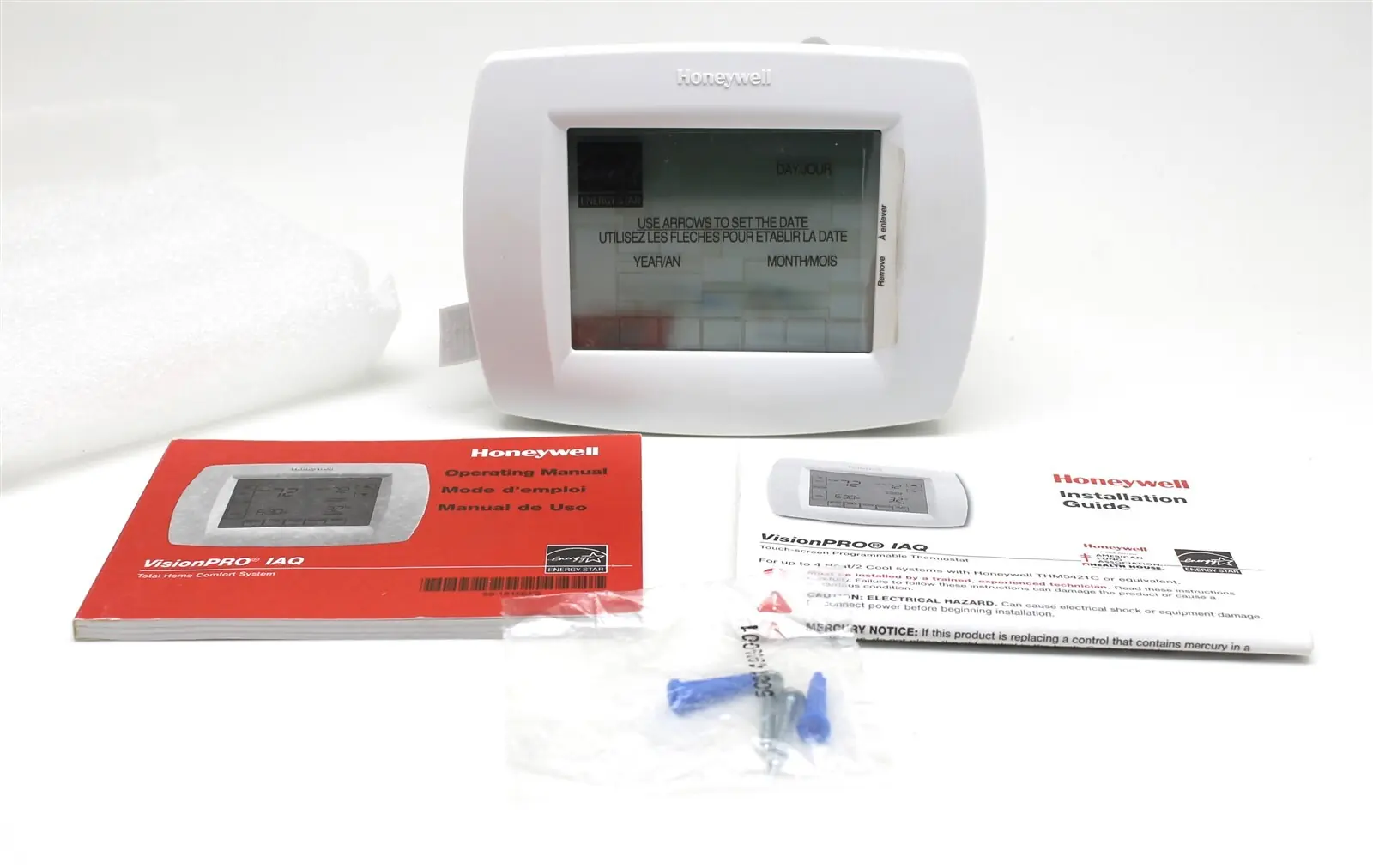

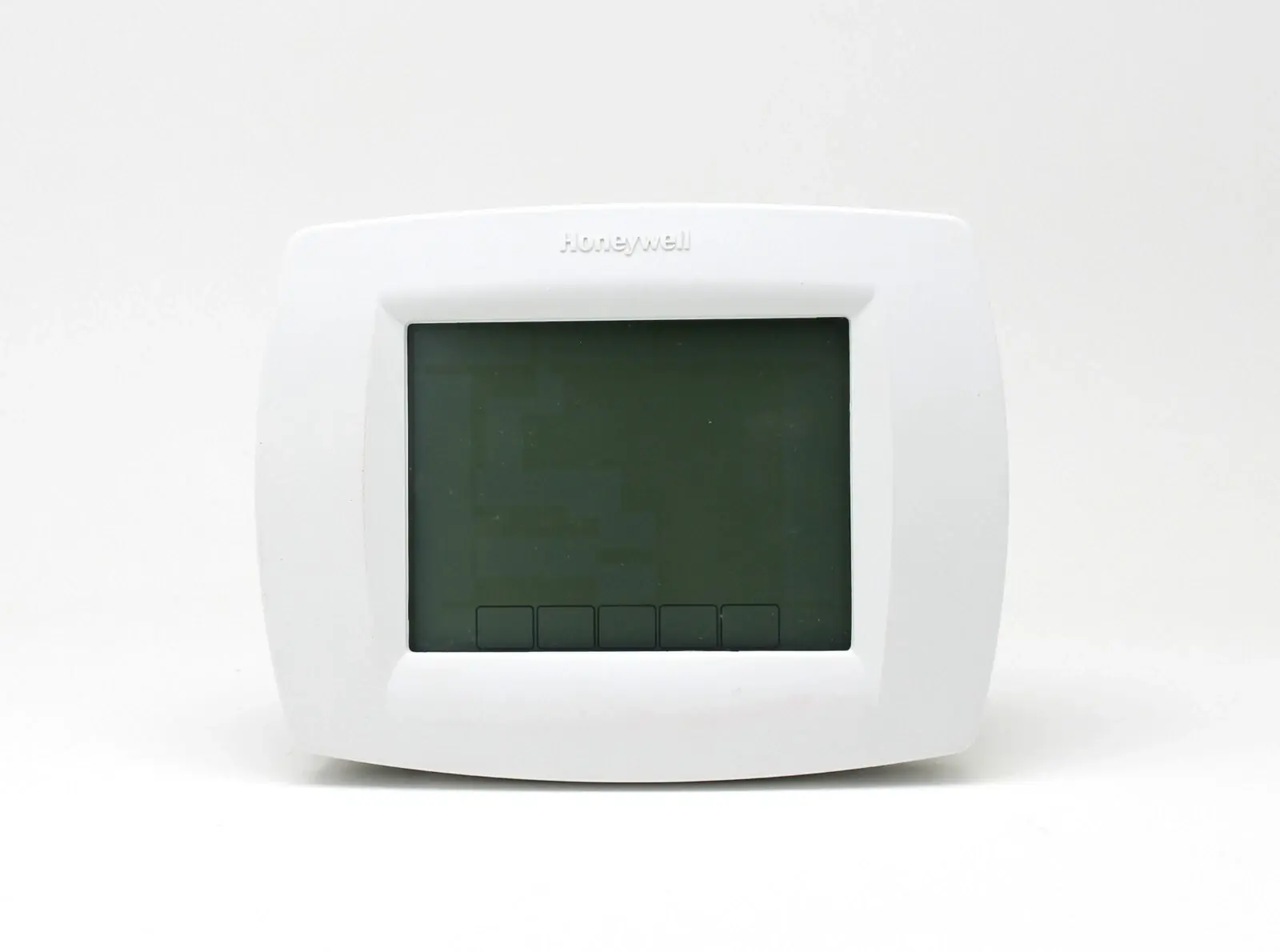

Product Images

Honeywell TH9421C1004 VisionPRO IAQ Thermostat Specifications

Feature	Specification
Product Model	TH9421C1004 VisionPRO IAQ
System Type Compatibility	Up to 4 Heat/2 Cool systems (with Honeywell THM5421C or equivalent)
Display Type	Touchscreen

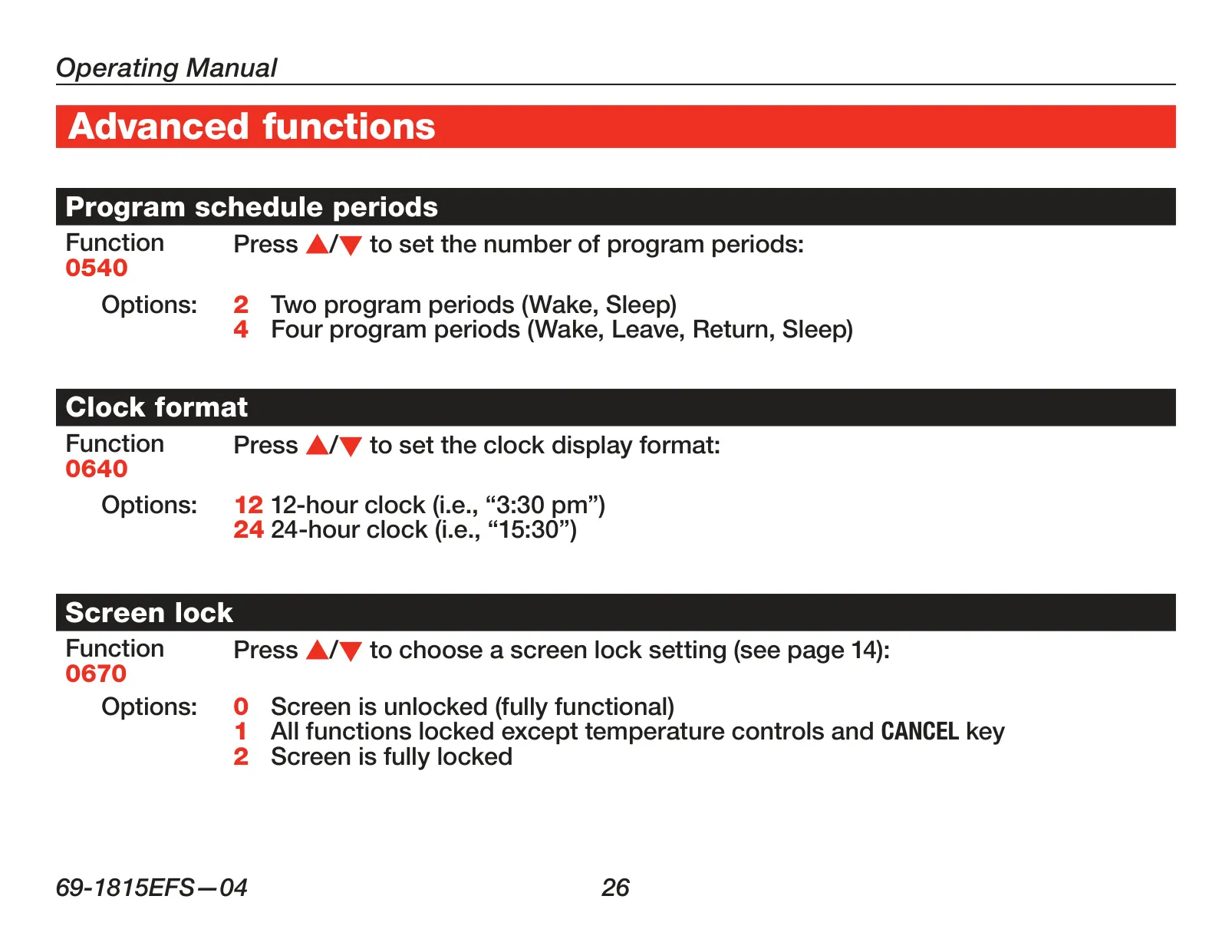

Programmability	7-day programmable (4 periods per day by default, configurable to 2 periods)
Temperature Control Range (Heat)	40°F to 90°F (4.5°C to 32°C)
Temperature Control Range (Cool)	50°F to 99°F (10°C to 37°C)
Temperature Display Format	Fahrenheit (°F) or Celsius (°C)
Clock Format	12-hour or 24-hour
Clock Type	Real-time clock with automatic Daylight Savings Time adjustment (configurable)
Fan Operation Modes	On, Auto, Circ (approximately 35% run time)
Humidity Control Range	Adjustable (specific range not explicitly stated, but configurable)

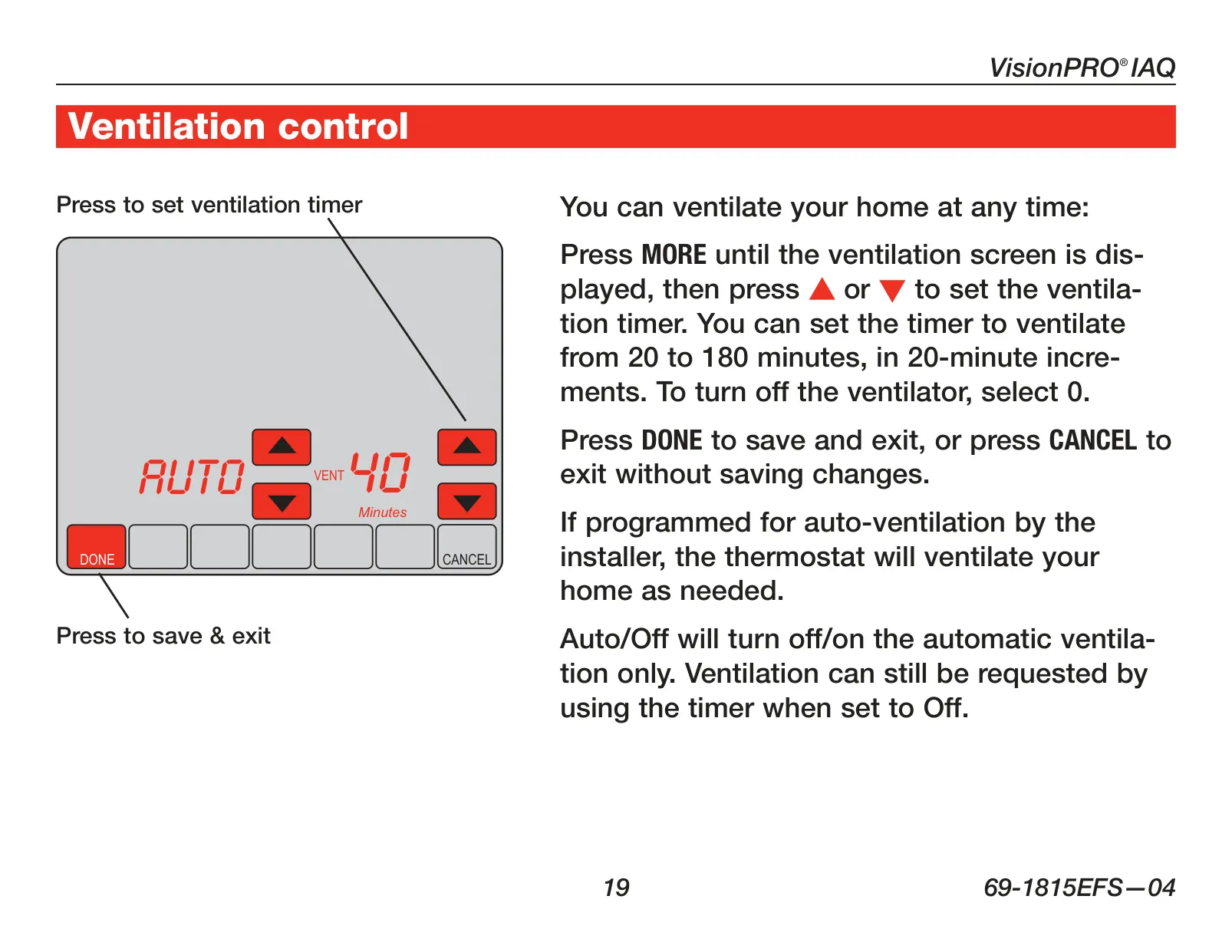

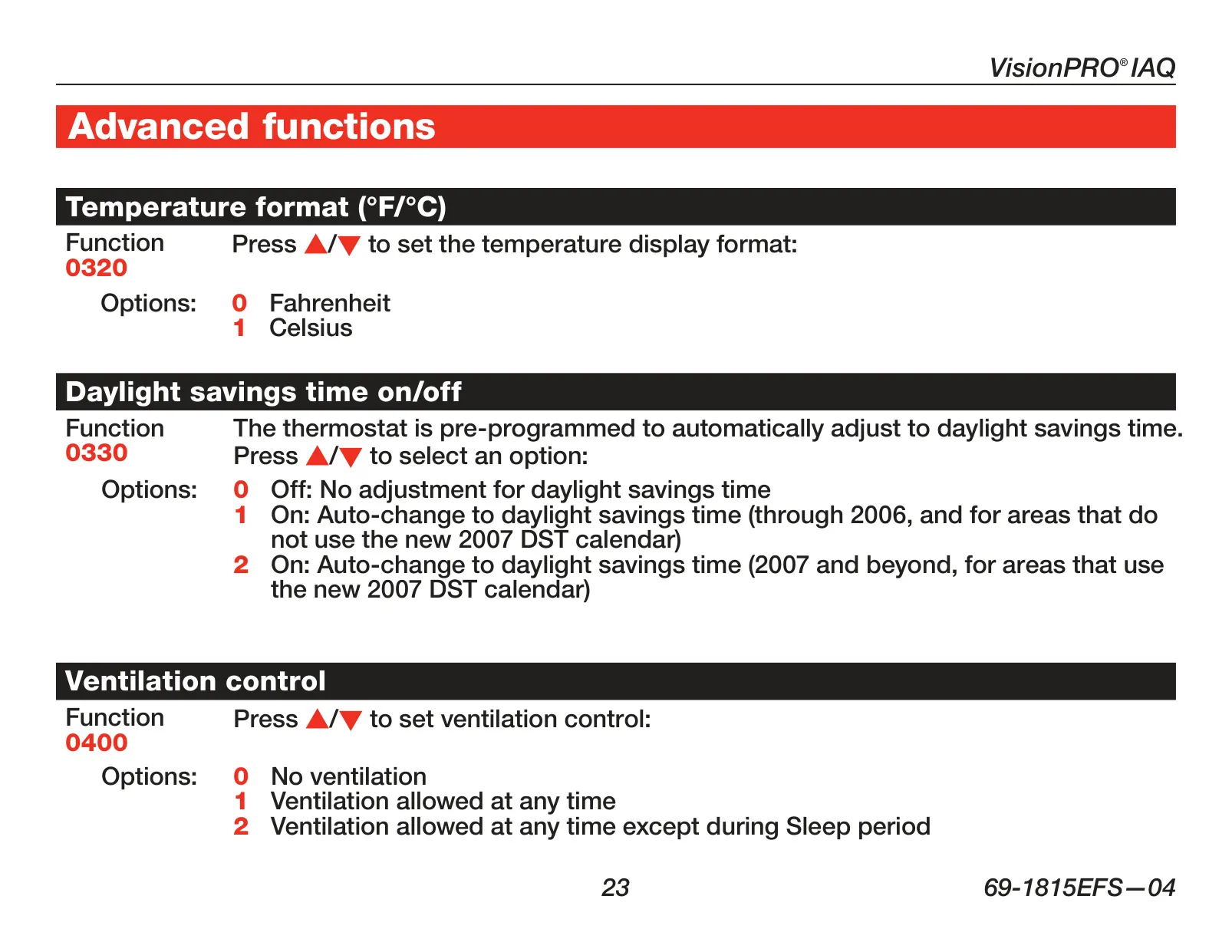

Ventilation Timer Range	20 to 180 minutes (in 20-minute increments), or Off (0)
Compressor Protection Delay	5 minutes (prevents equipment damage)

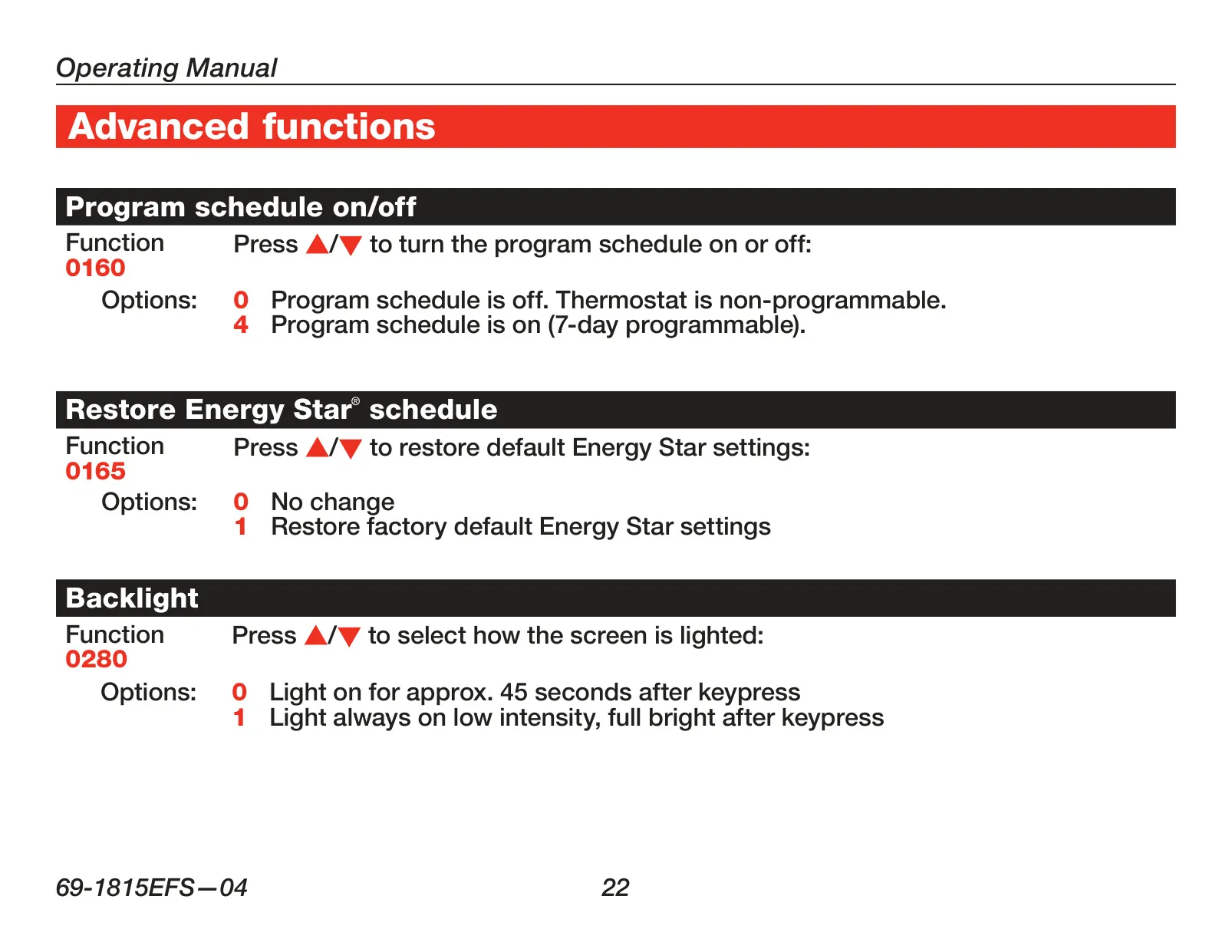

Backlight Options	On for approx. 45 seconds after keypress OR Always on low intensity (full bright after keypress)
Power Source	System power (Contains a Lithium battery)

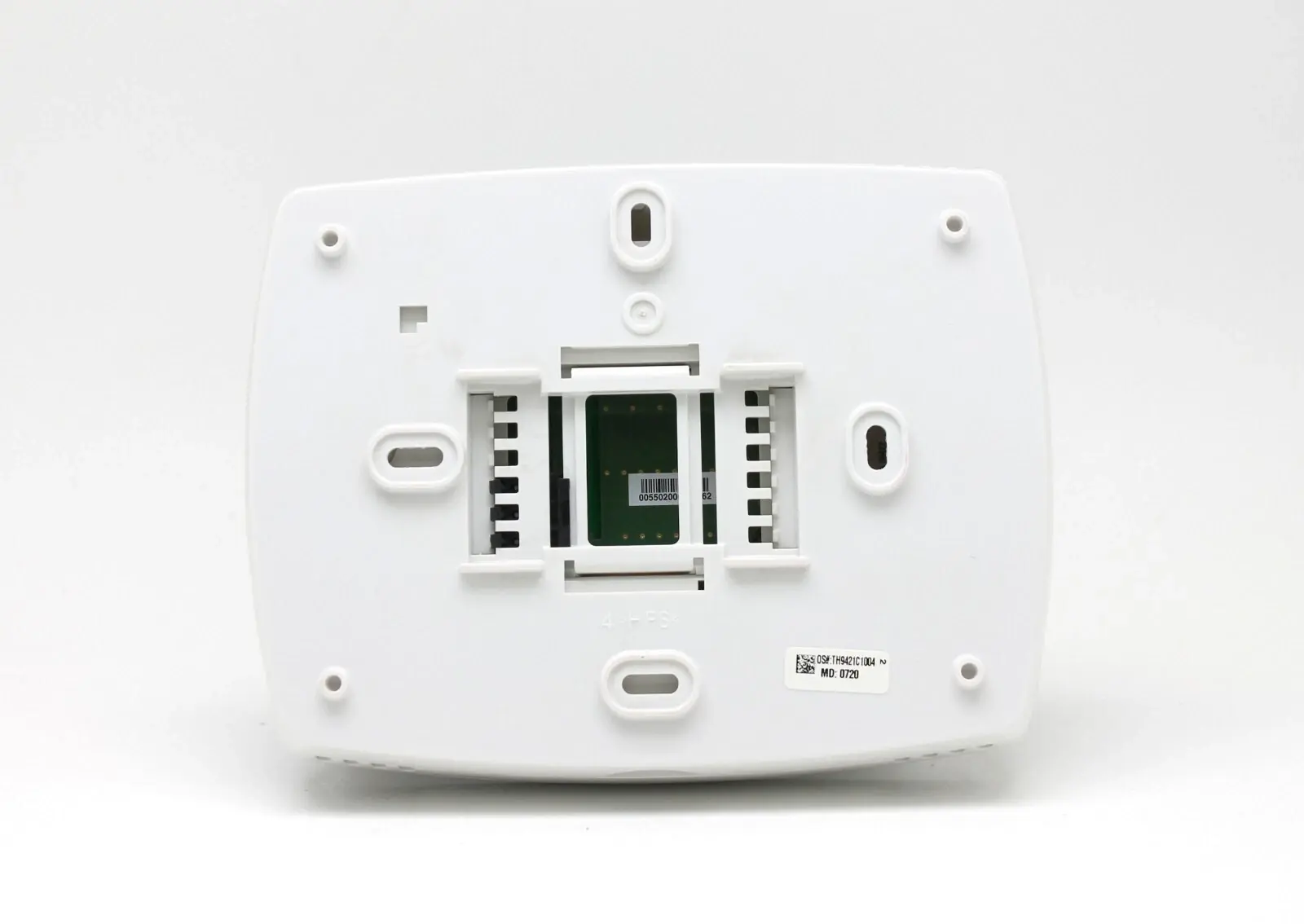

Mounting	2" x 4" J box, drywall (3/16" holes), or plaster (7/32" holes)
Warranty	5-year limited warranty (excluding battery)

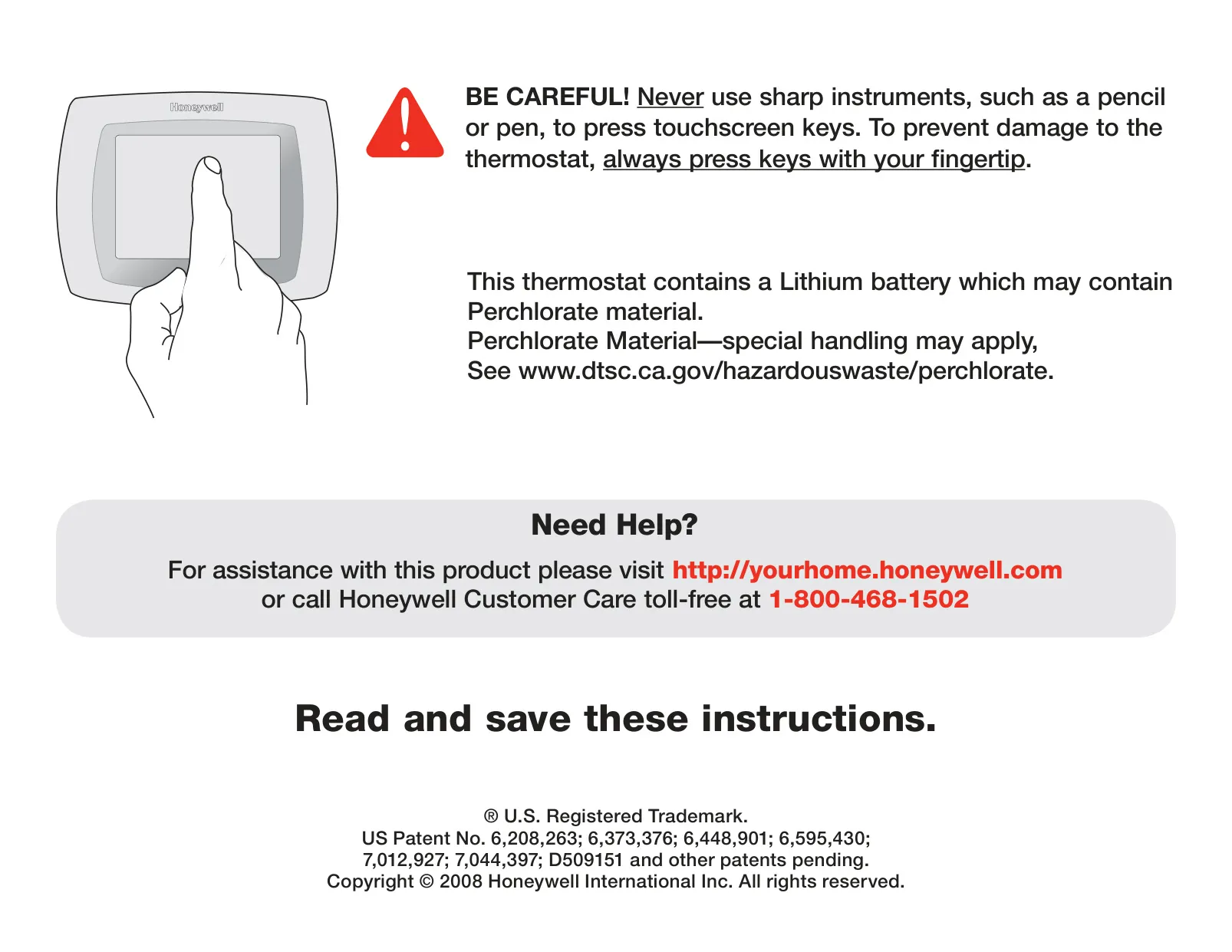

Compliance	Perchlorate Material notice (www.dtsc.ca.gov/hazardouswaste/perchlorate)

Honeywell TH9421C1004 Thermostat Details

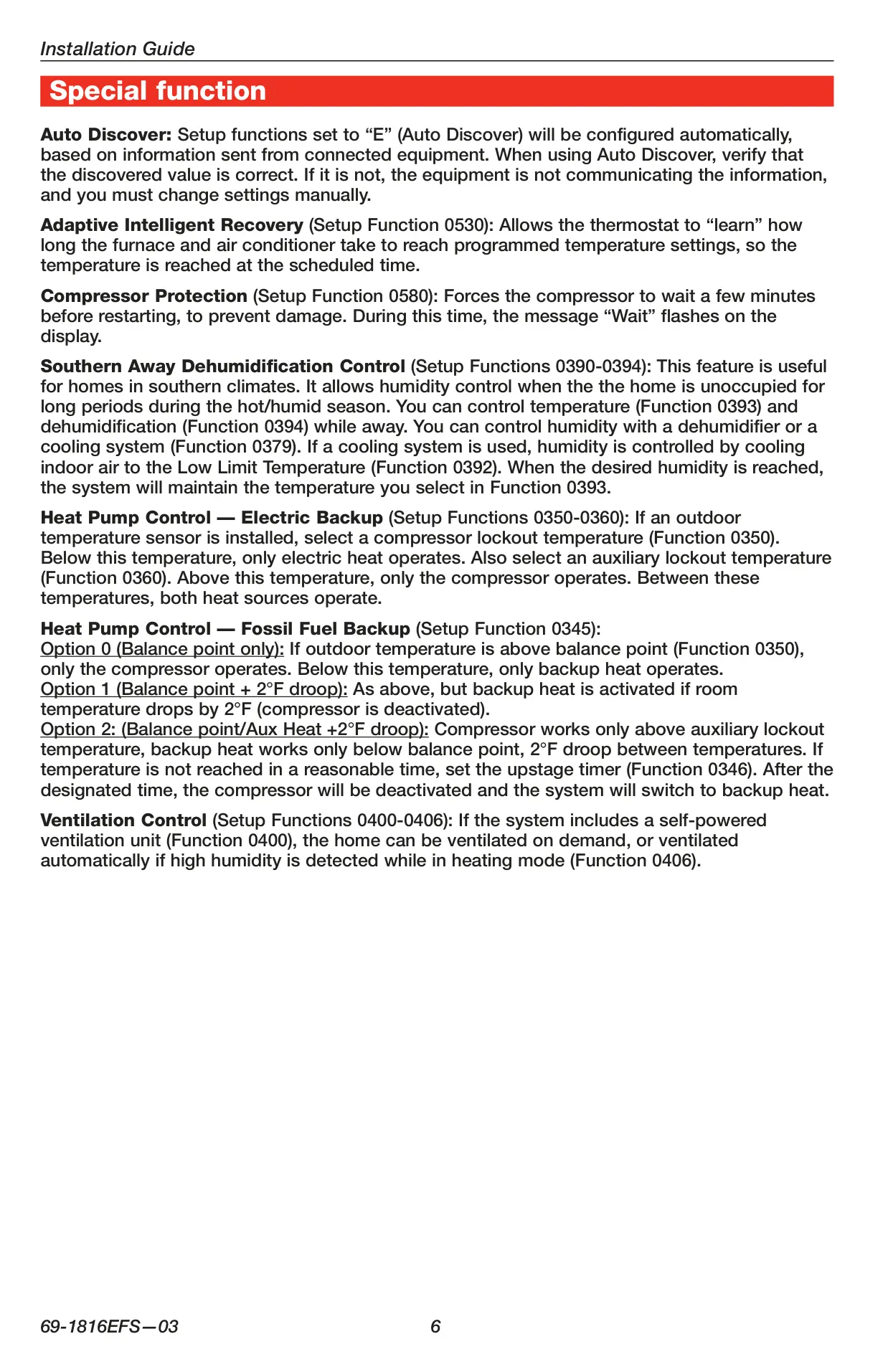

A standout feature is its Adaptive Intelligent Recovery. This intelligent function allows the thermostat to "learn" the optimal time required for your system to reach a desired temperature. It anticipates needs by initiating heating or cooling earlier, ensuring your space is comfortable precisely when your schedule demands, thus eliminating manual adjustments and enhancing comfort.

For enhanced connectivity, the TH8320R1003 can be paired with an optional RedLINK Internet Gateway. This accessory unlocks robust remote monitoring and control capabilities through the Total Connect Comfort app, accessible via smartphones or tablets. This functionality is invaluable for those who travel frequently, own multiple properties, or simply desire peace of mind by managing their comfort system from anywhere.

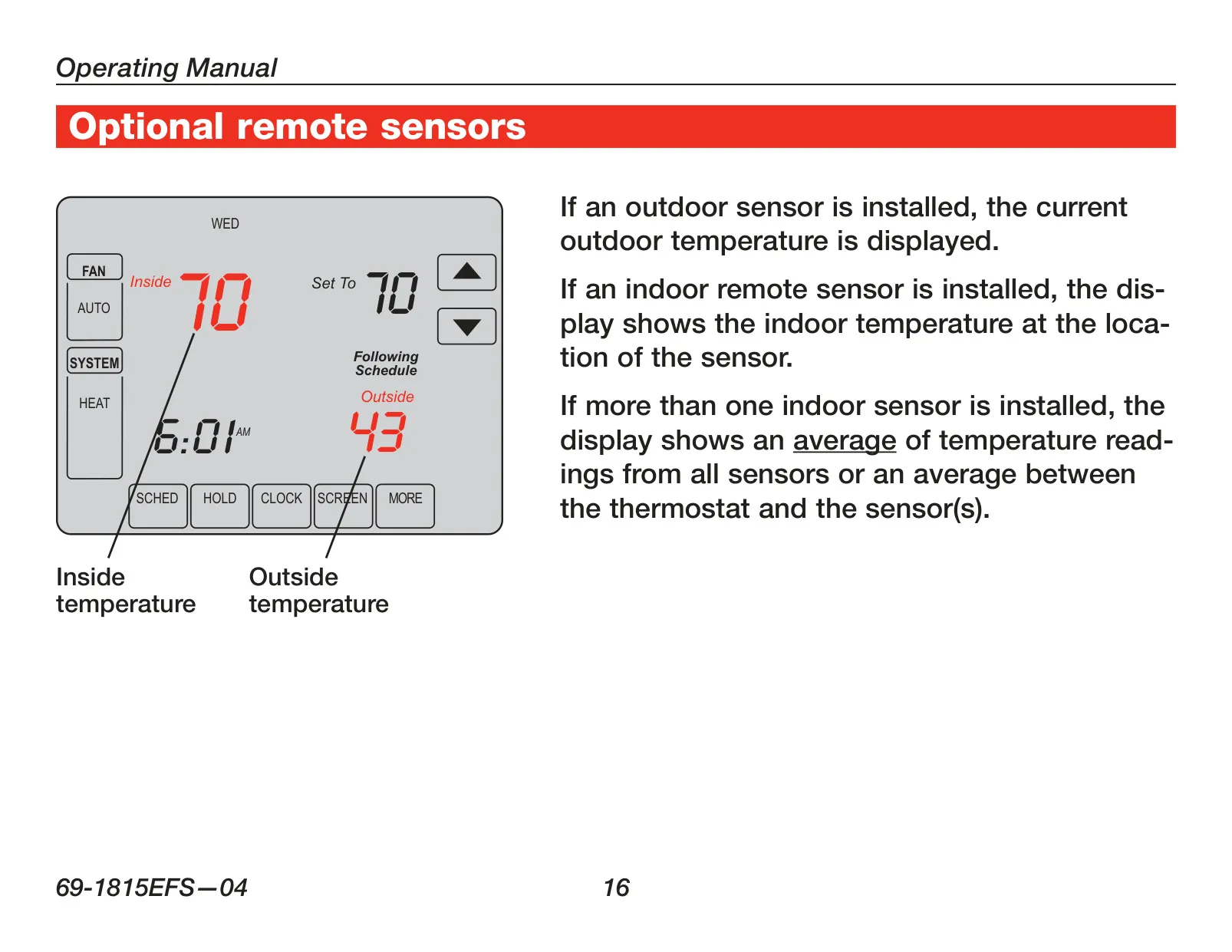

The thermostat's vibrant touch screen simplifies operation, providing clear access to settings and system status. While it doesn't feature an onboard humidity sensor, it can display outdoor temperature and humidity when an optional Wireless Outdoor Sensor (C7089R1013) is integrated, offering a comprehensive overview of environmental conditions.

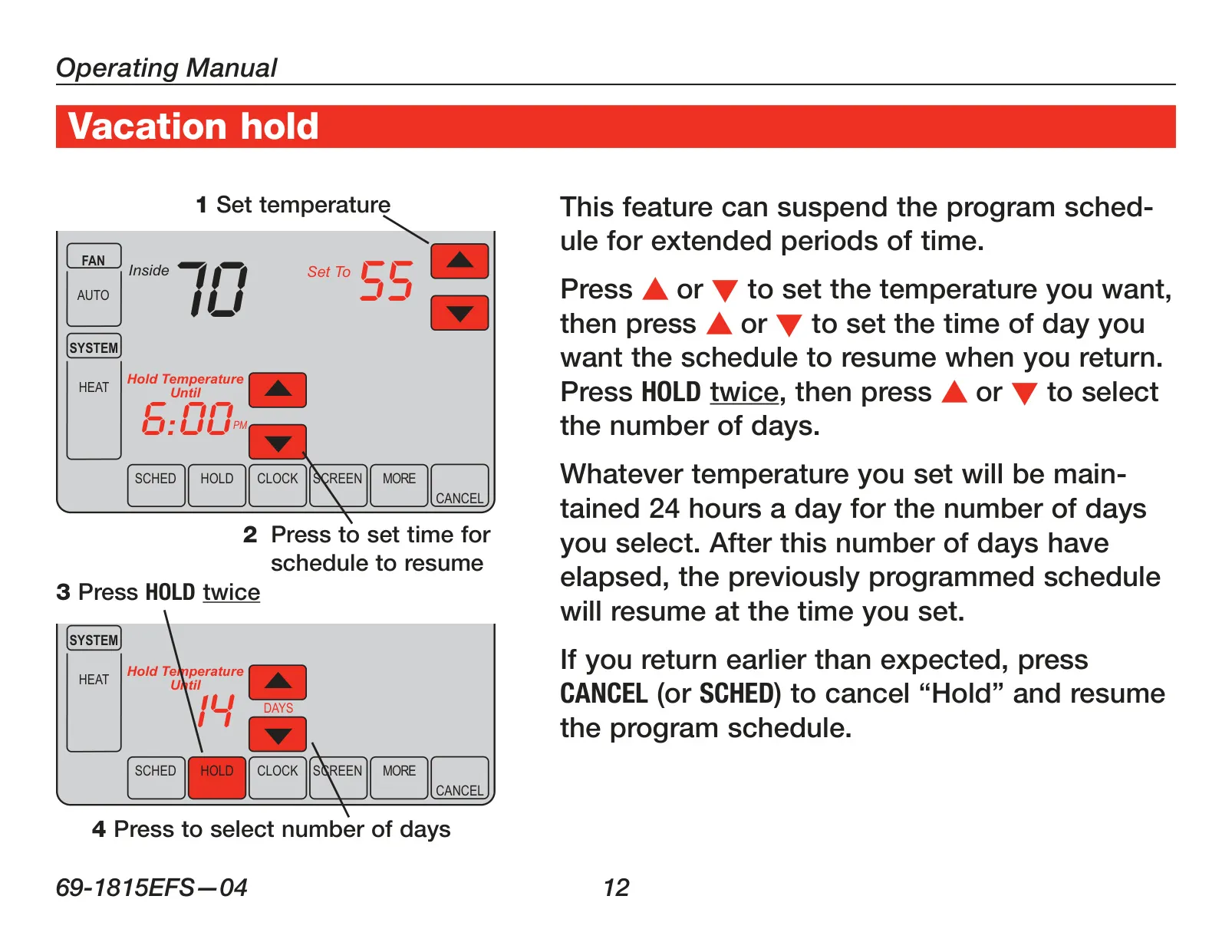

Security and energy efficiency are also key considerations. The TH8320R1003 includes vacation and holiday scheduling, enabling users to program energy-saving setback temperatures for extended periods away. For unauthorized access prevention, a keypad lockout feature is available, which is particularly useful in commercial settings or homes with inquisitive occupants.

Beyond basic temperature control, the thermostat provides detailed equipment status information, showing the real-time on/off operation of all connected HVAC components. Users can customize various operational aspects through a comprehensive Preferences menu, including filter reminders, temperature units (Fahrenheit/Celsius), clock display (12/24-hour), screen backlighting, and alert light options.

The inclusion of a microSD card port adds significant utility, allowing for easy loading of custom holiday schedules, dealer information, and software upgrades. This port also facilitates saving data logs for diagnostics. For quick cleaning, the Clean Screen option temporarily locks the display, preventing accidental setting changes while wiping it down.

Practical protection features include Compressor Protection, which delays restarts to safeguard HVAC equipment from damage, displaying a "Wait" message during this period. The TH8320R1003 also supports automatic adjustments for Daylight Saving Time, ensuring accuracy. For flexible system control, the U1/U1 terminals offer versatility, able to be configured for additional stages of heating/cooling, or even for humidification, dehumidification, or ventilation control when properly wired, expanding the system's adaptability.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Honeywell TH9421C1004 VisionPRO IAQ, and we answer them below.

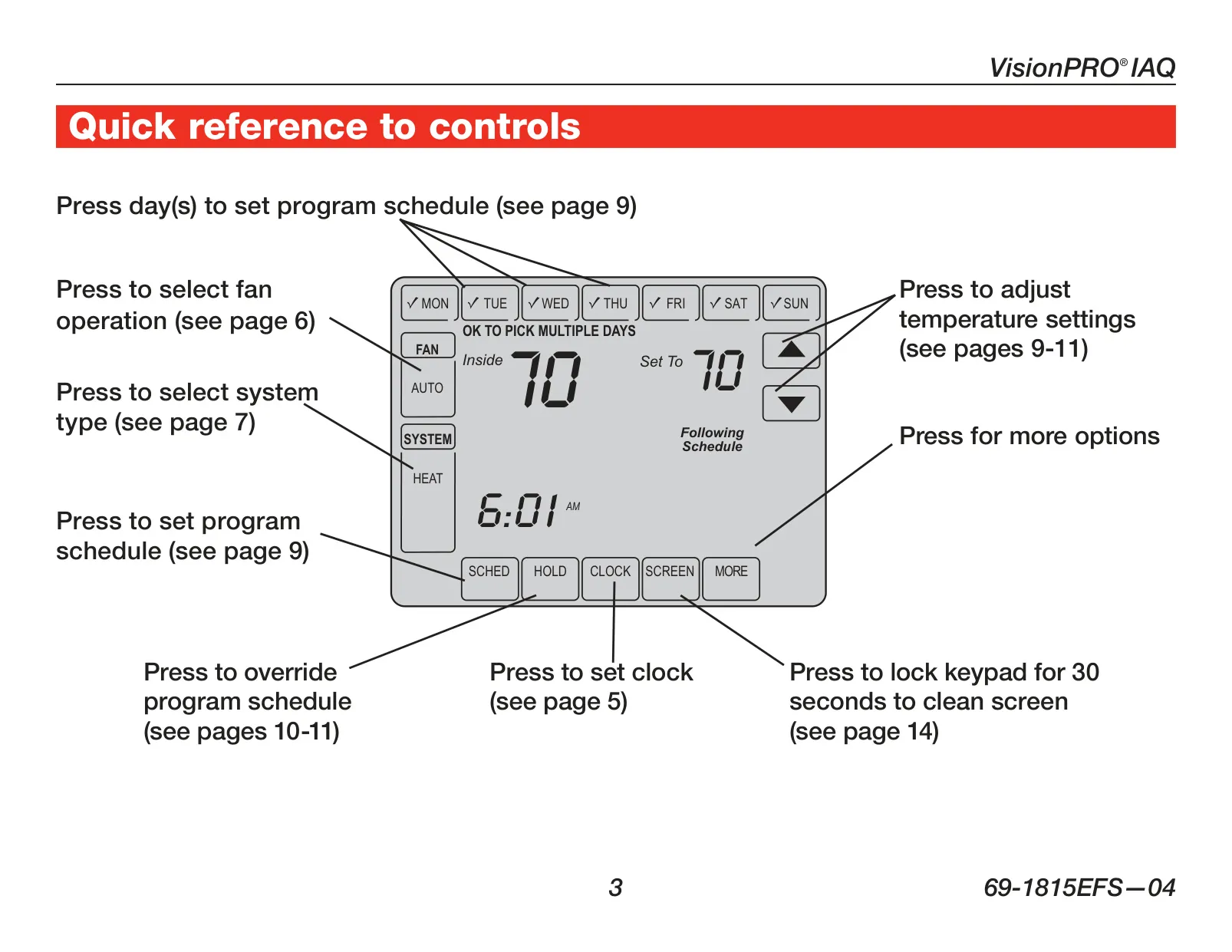

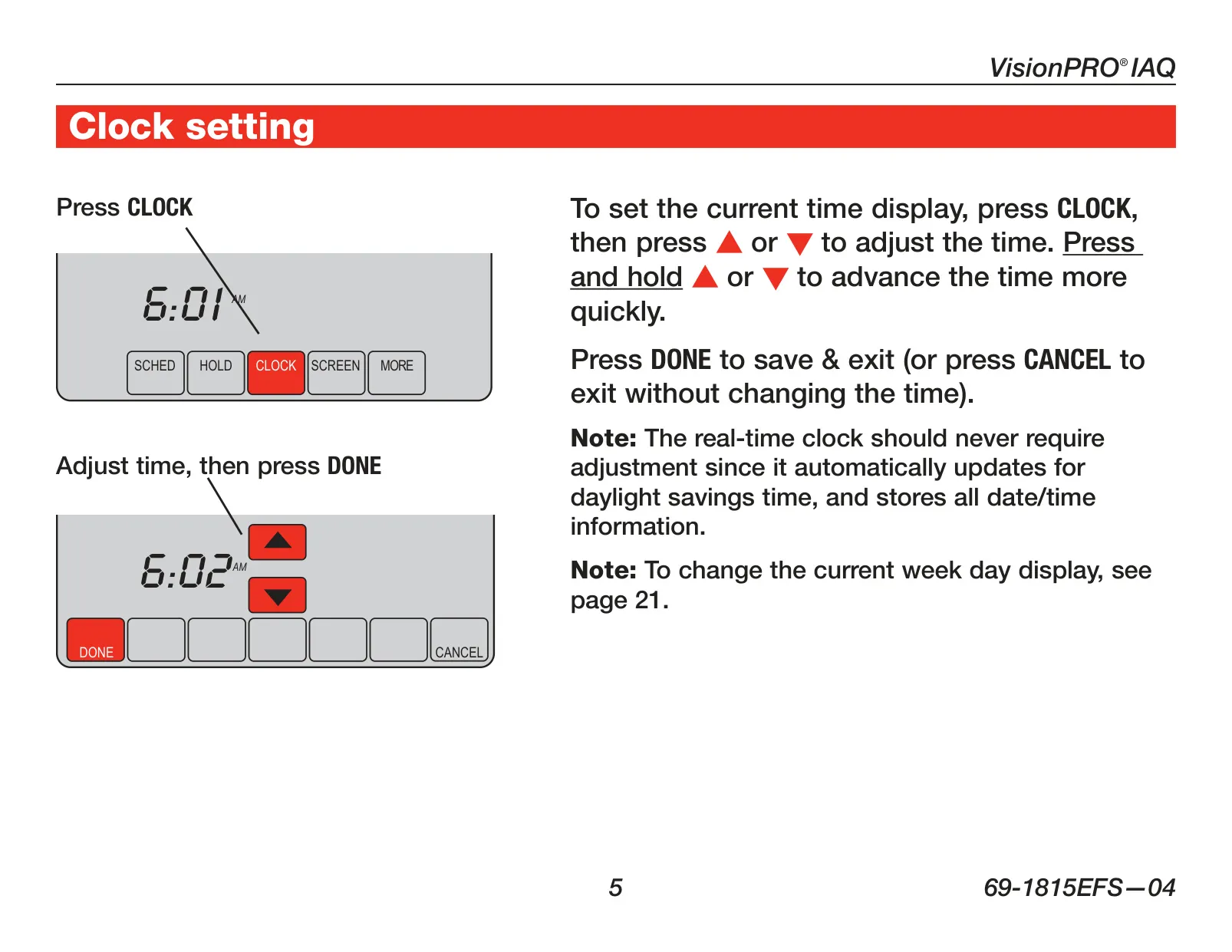

How do I set the current time and day on my VisionPRO IAQ thermostat?

Press the CLOCK button, then use the up or down arrows to adjust the time. Press and hold to advance more quickly. To save, press DONE. The real-time clock usually self-updates for daylight savings, so daily adjustments are rarely needed.

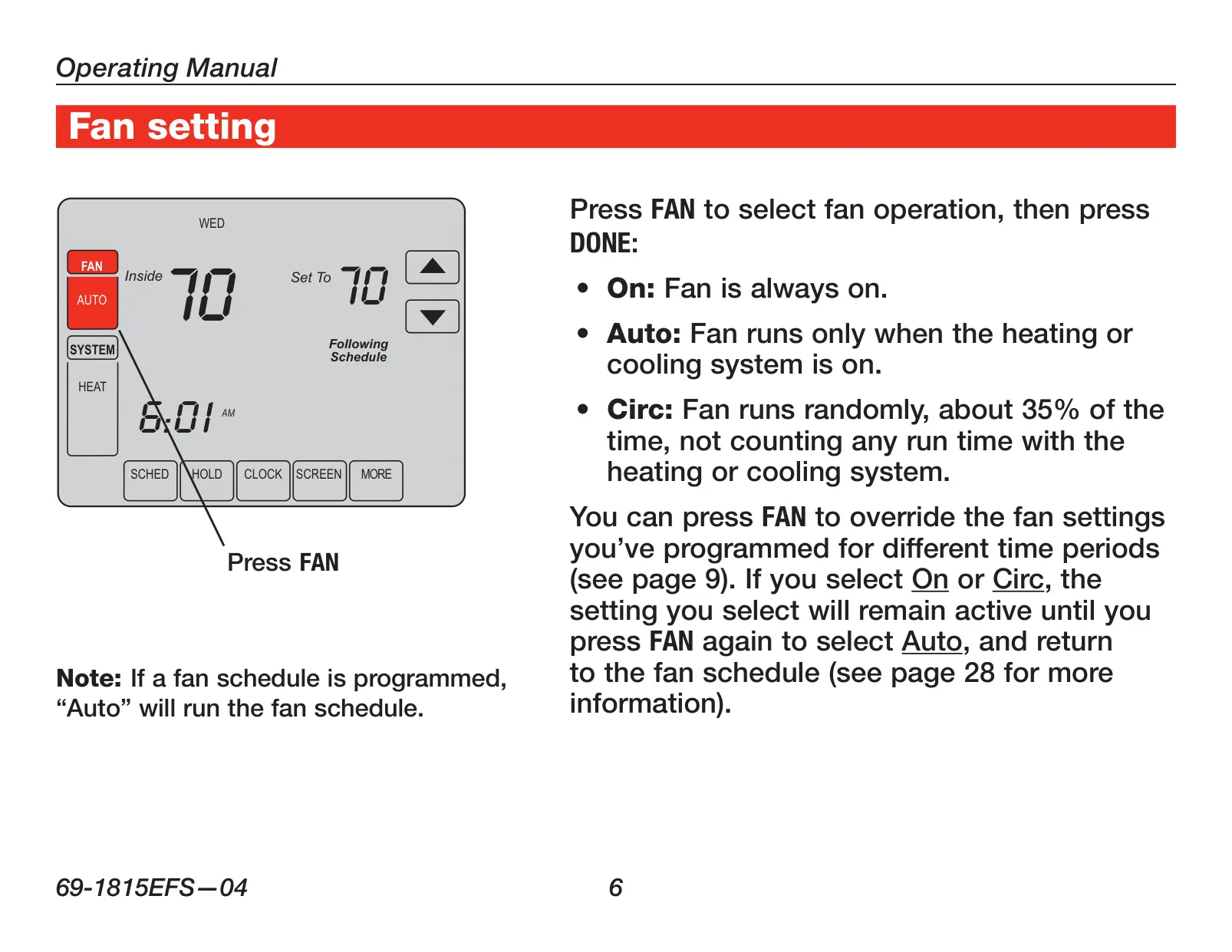

What do the fan settings 'On', 'Auto', and 'Circ' mean?

On means the fan runs continuously. Auto means the fan runs only when the heating or cooling system is actively operating. Circ makes the fan run randomly for approximately 35% of the time, in addition to any run time during heating or cooling cycles, helping to circulate air and even out temperatures.

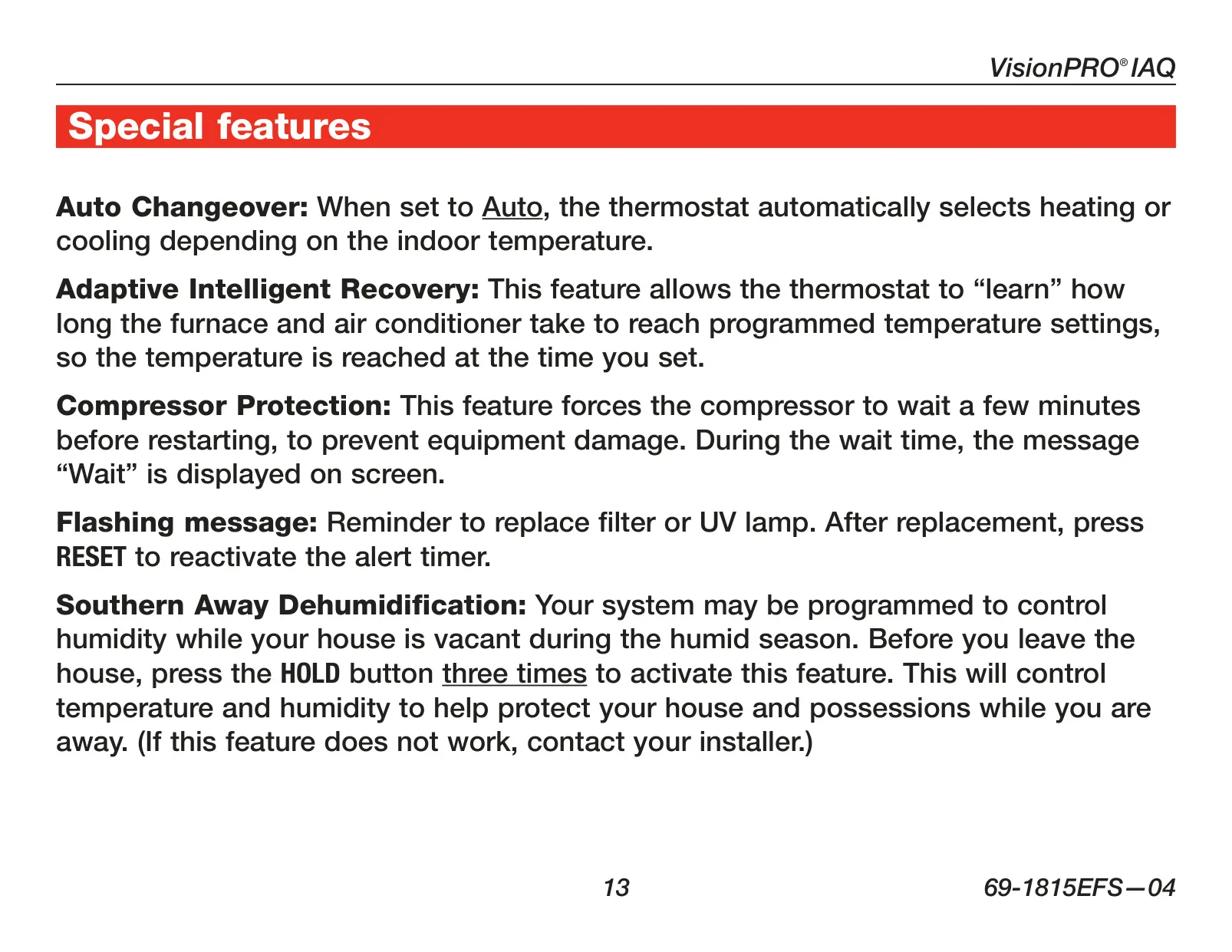

What is 'Adaptive Intelligent Recovery' and how does it work?

Adaptive Intelligent Recovery is a special feature that allows your thermostat to 'learn' how long it takes your heating and cooling system to reach programmed temperature settings. This ensures that the desired temperature is achieved precisely at the time you've set in your schedule, rather than just starting the system at that time.

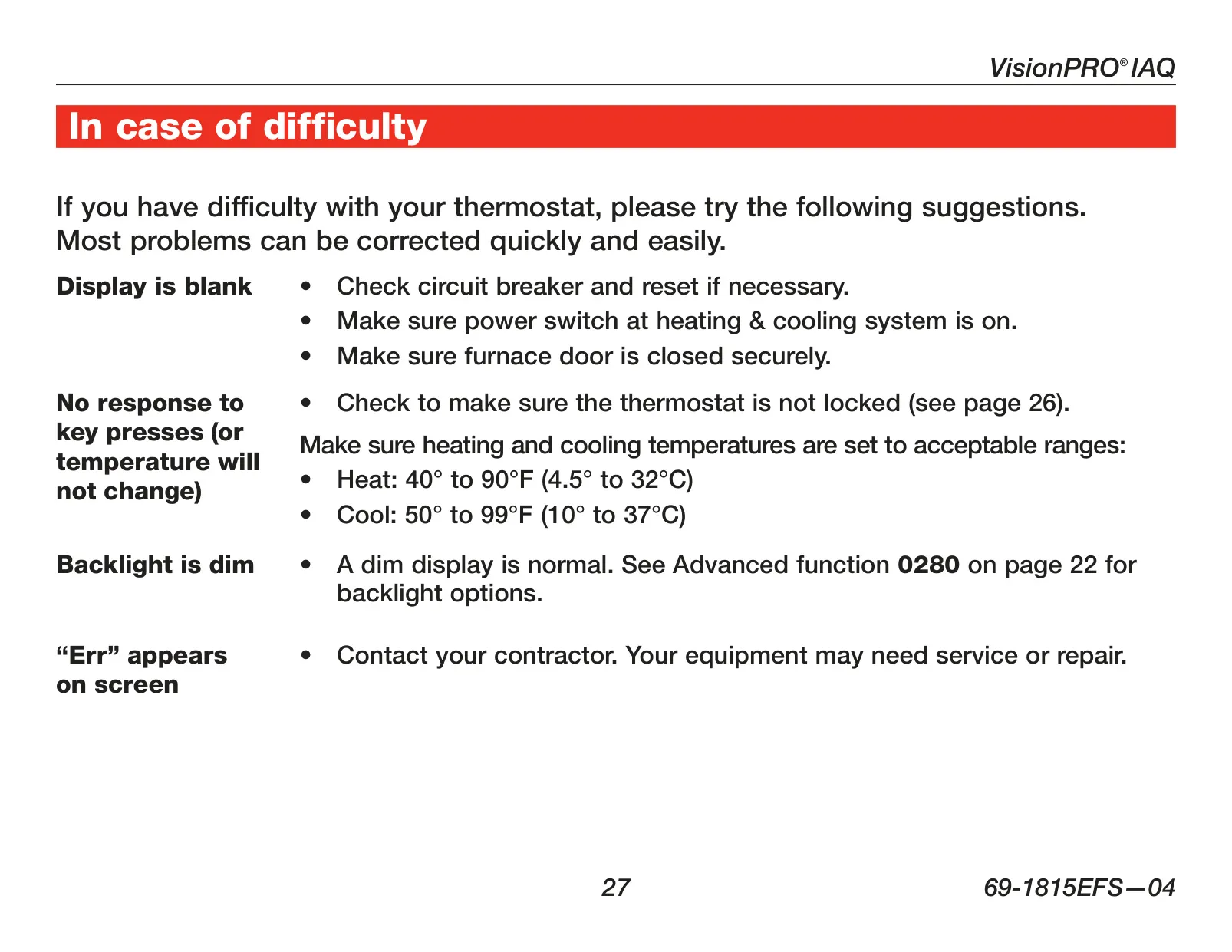

What should I do if my thermostat screen is blank?

First, check your circuit breaker and reset it if necessary. Ensure the power switch at your heating and cooling system is on, and that your furnace door is closed securely. If these steps don't resolve the issue, contact a qualified technician or Honeywell Customer Care.

Why does my thermostat display 'Wait' sometimes?

The 'Wait' message indicates that the compressor protection feature is active. This forces the compressor to pause for a few minutes before restarting, which helps prevent potential equipment damage. It's a normal function designed to protect your system.

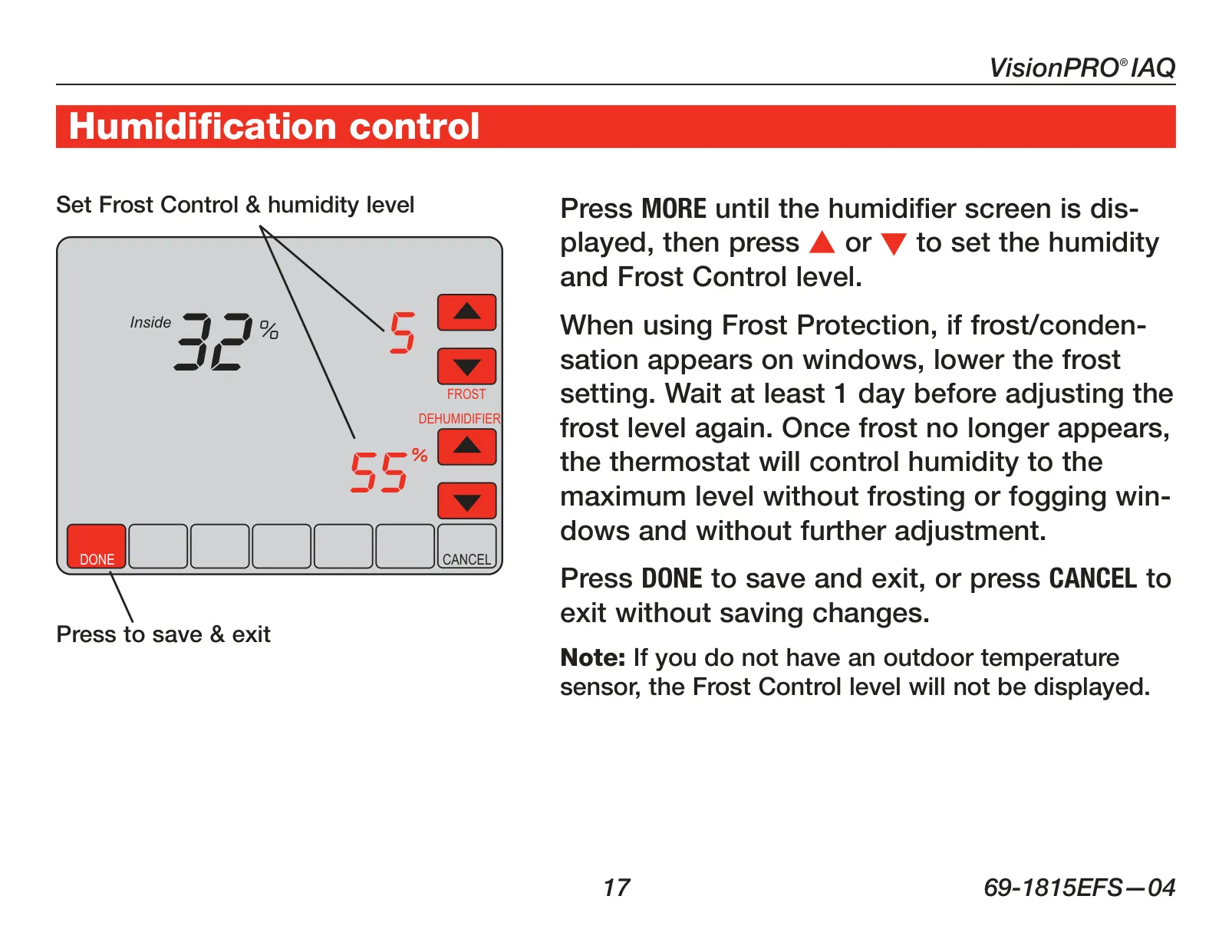

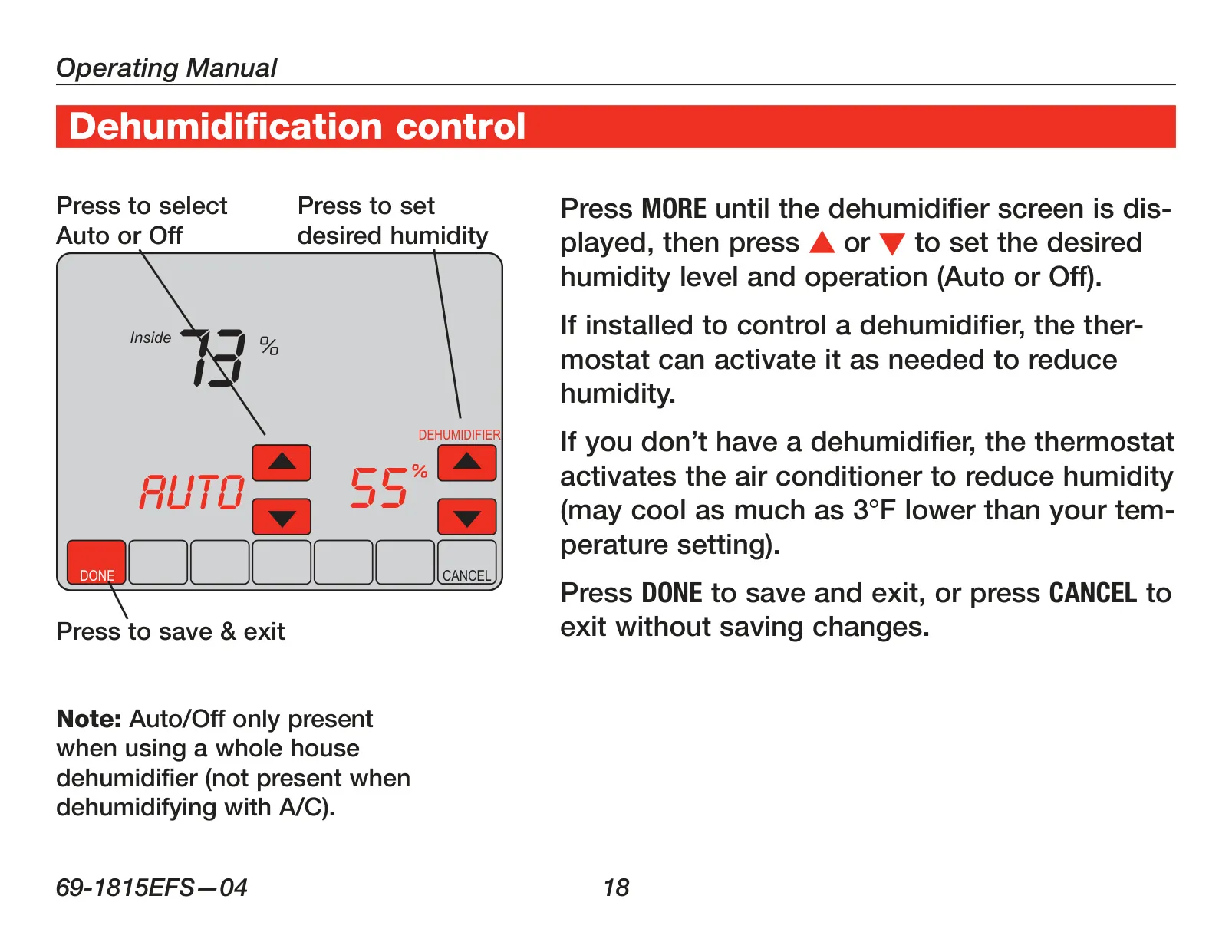

Can this thermostat control my home's humidity levels?

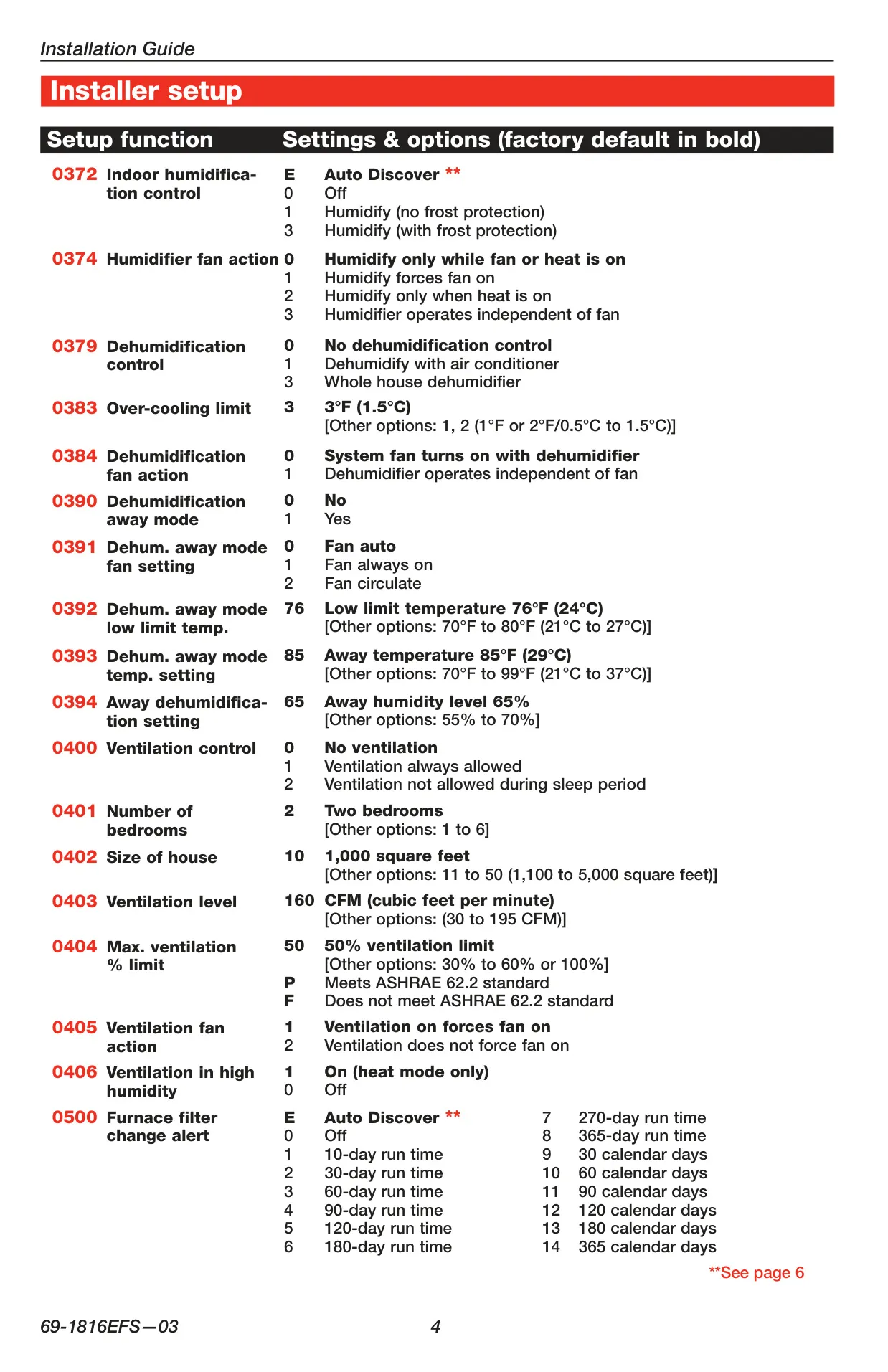

Yes, the VisionPRO IAQ offers both humidification and dehumidification control. It can activate a whole-house humidifier or dehumidifier, or use your air conditioning system for dehumidification (potentially cooling up to 3°F lower than your setting). It also features Frost Control for humidification, preventing window condensation.

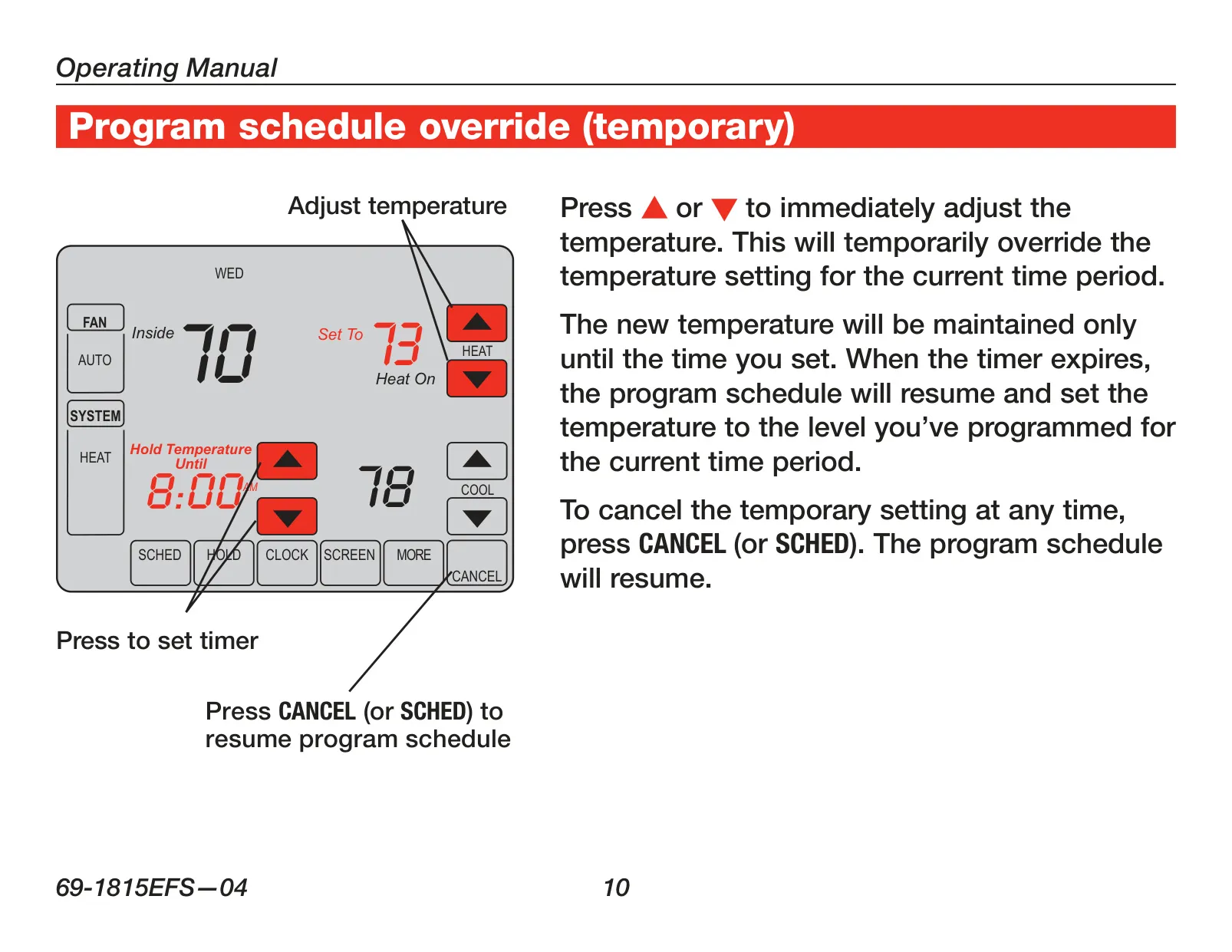

How do I temporarily override my program schedule without changing it permanently?

To temporarily adjust the temperature, simply press the up or down arrows. The new temperature will be maintained until the start of the next scheduled period. To cancel the temporary override at any time, press CANCEL or SCHED.

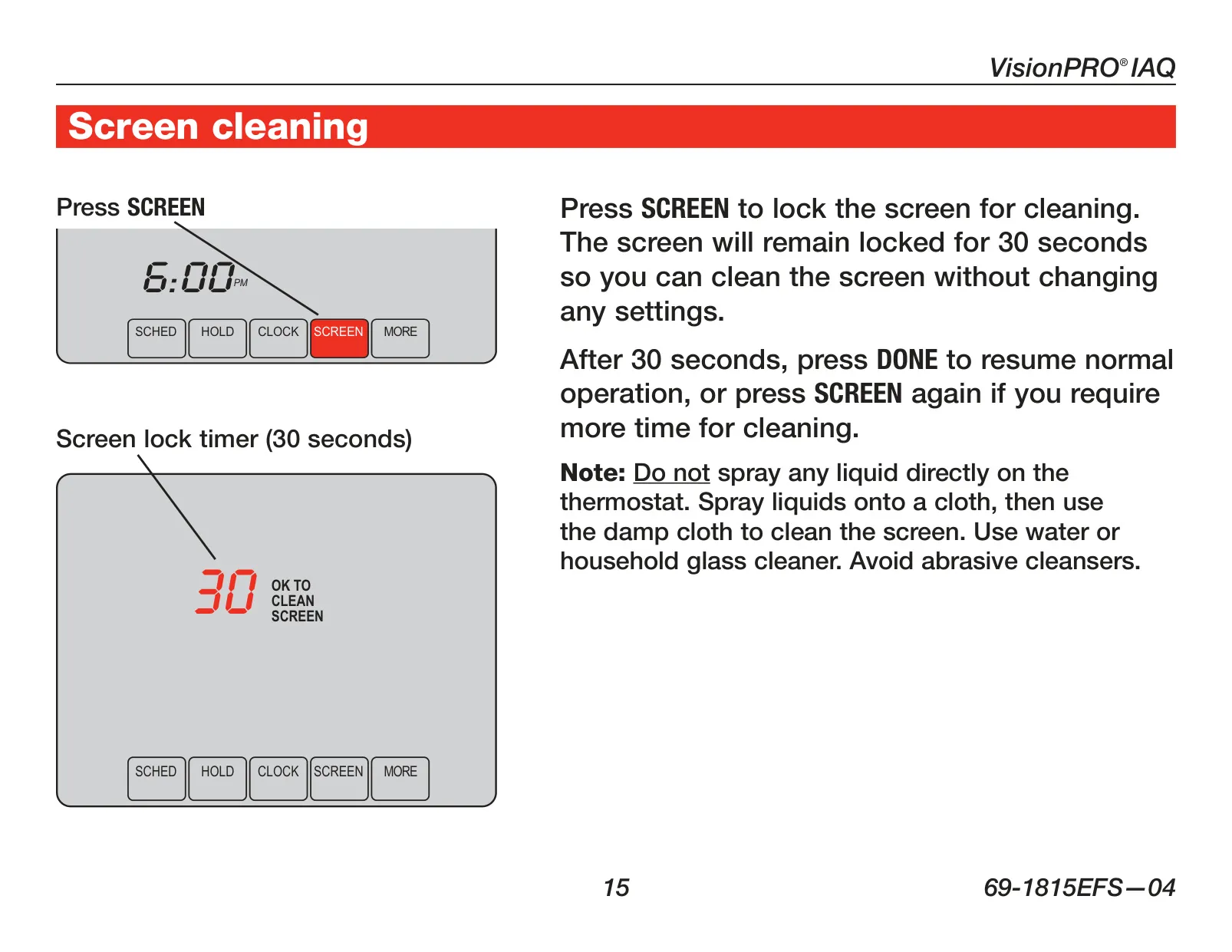

How do I clean the touchscreen without accidentally changing settings?

Press the SCREEN button. This will lock the screen for 30 seconds, allowing you to clean it without making any changes. After 30 seconds, you can press DONE or press SCREEN again for more cleaning time. Remember to spray liquid onto a cloth first, not directly onto the thermostat.

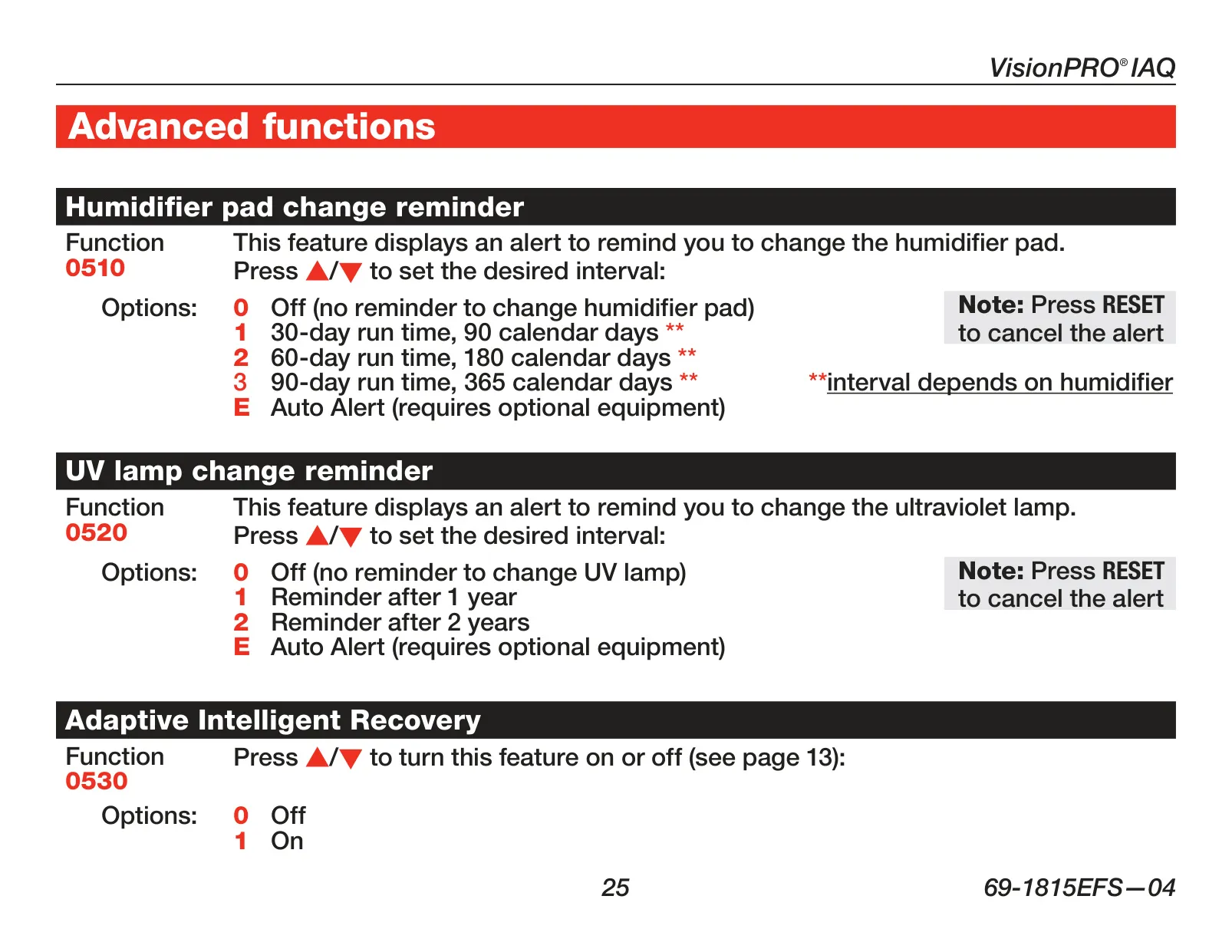

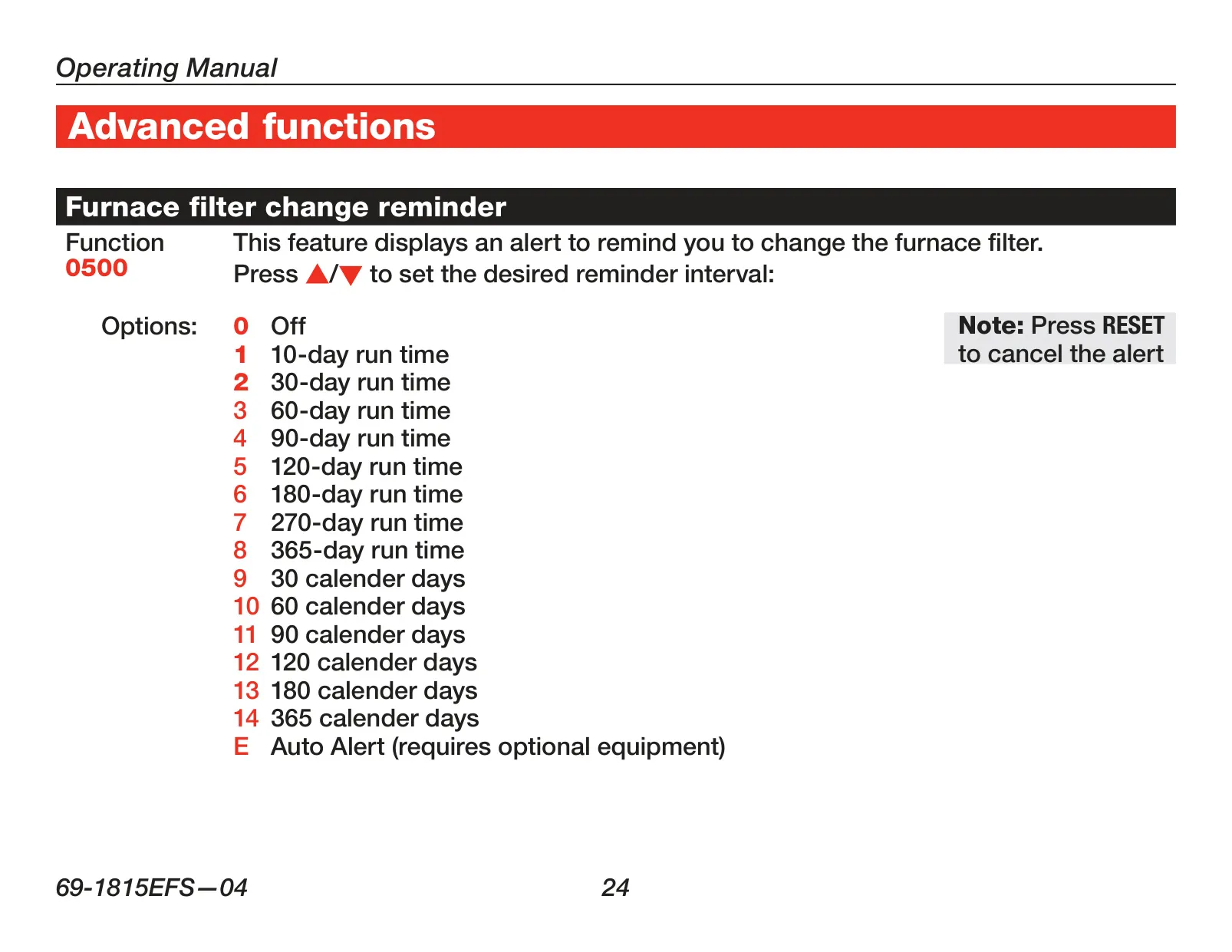

Does the Honeywell TH9421C1004 VisionPRO IAQ offer reminders for maintenance?

Yes, it provides customizable reminders for changing your furnace filter, humidifier pad, and UV lamp. You can set various intervals based on run time or calendar days. After replacement, press the RESET button to reactivate the alert timer.

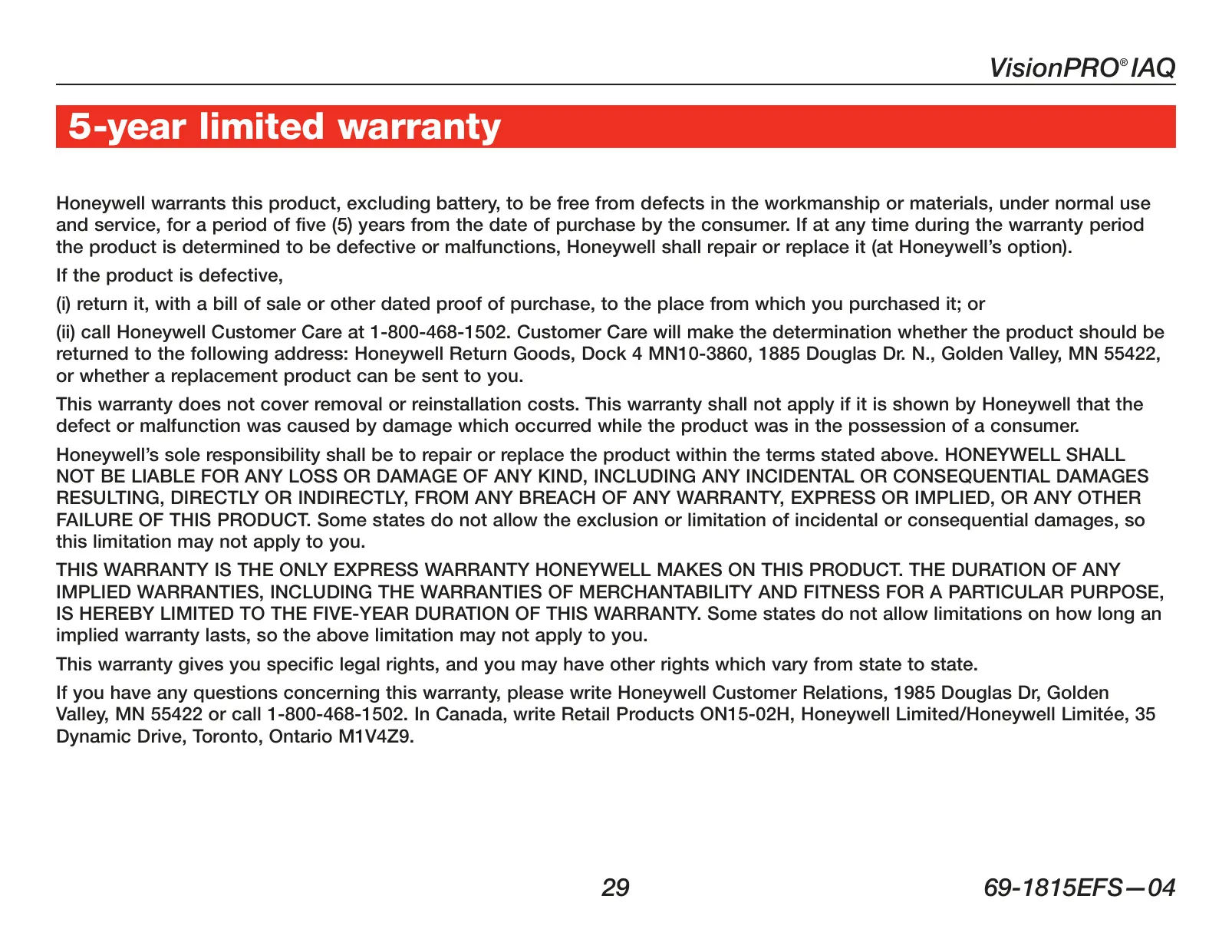

What is the warranty period for this VisionPRO IAQ thermostat?

Honeywell provides a 5-year limited warranty on this product, excluding the battery, covering defects in workmanship or materials under normal use and service.

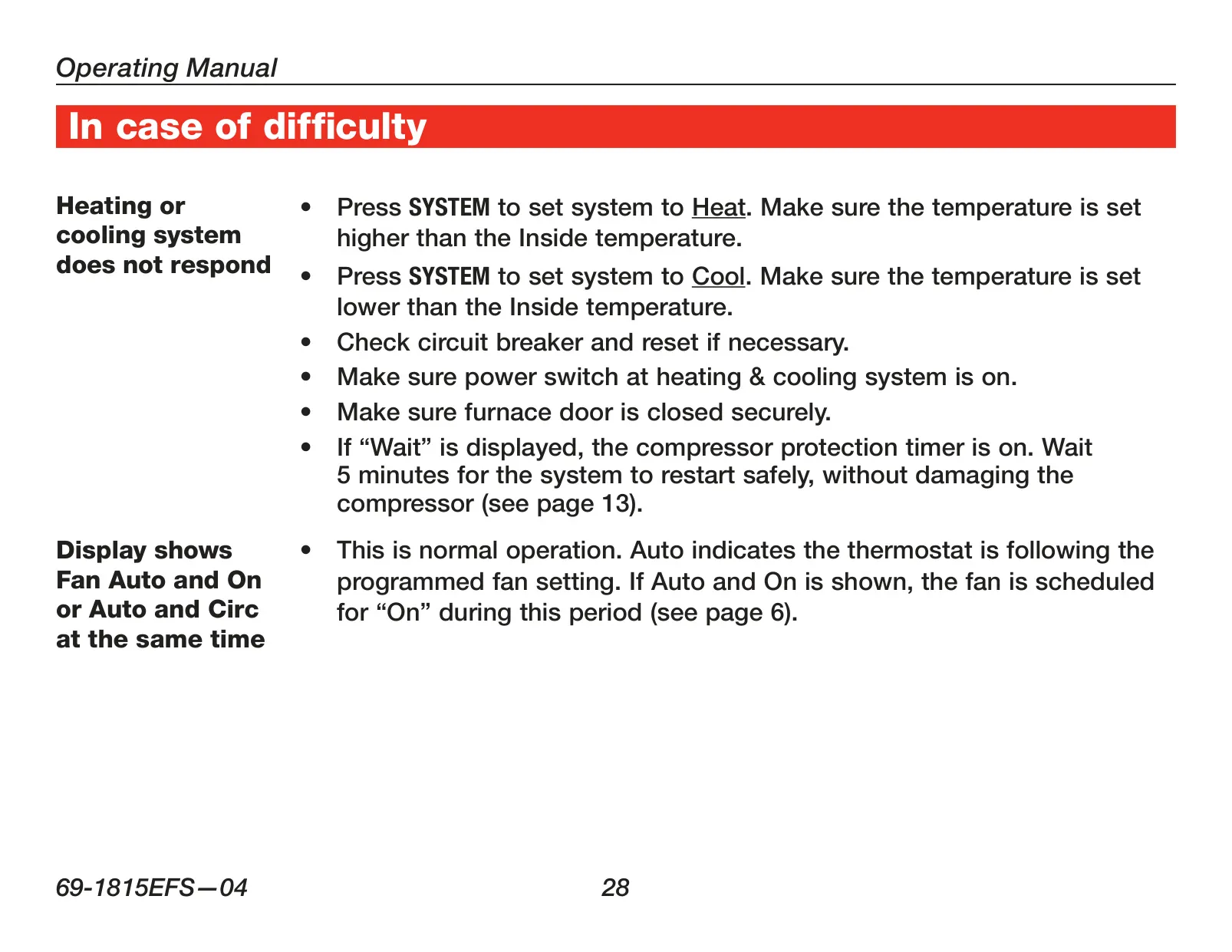

My heating or cooling system is not responding. What could be the problem?

Check that the system setting (Heat/Cool/Auto) is appropriate for your desired operation and that the set temperature is above (for heat) or below (for cool) the current indoor temperature. Verify circuit breakers and power switches are on. If 'Wait' is displayed, the compressor protection timer is active. Consult the troubleshooting section in the manual or contact support if issues persist.
