Dyson DC14 Vacuum Cleaner Instruction Manual
Dyson DC14 Vacuum Cleaner
Dyson DC14 Vacuum Cleaner Instructions
Here we offer the Dyson DC14 Vacuum Cleaner manual completely free and in English. We have cataloged this manual in the Vacuums section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Dyson DC14 Vacuum Cleaner, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

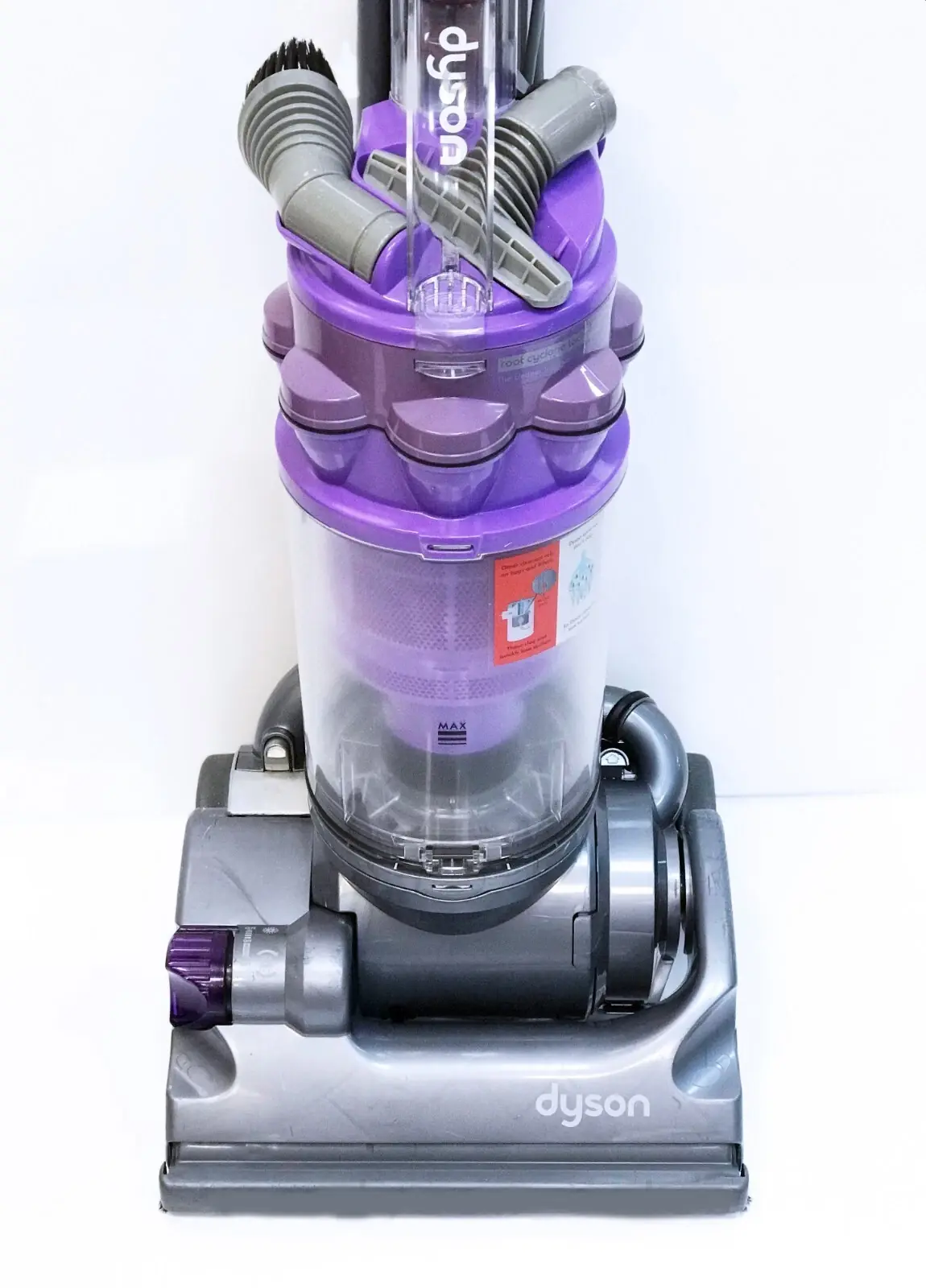

Product Images
Dyson DC14 Vacuum Cleaner Specifications
| Feature | Specification |
|---|---|
| Model | Dyson DC14 |
| Machine Type | Upright vacuum cleaner with Clear bin and cyclone pack |
| Intended Use | Household (domestic) use only, indoors |
| Plug Type | Polarized plug (one blade wider than the other) |
| Rating Plate Location | Base of the machine, between the wheels |
| Extension Cord | Not recommended |
| Cord Storage | Upper and lower cord hooks, wound counter-clockwise, secured with clip; quick-release rotating upper hook |
| Dust Collection | Clear bin (bagless) with MAX fill mark |
| Bin Emptying | Red bin emptying button releases bin base |

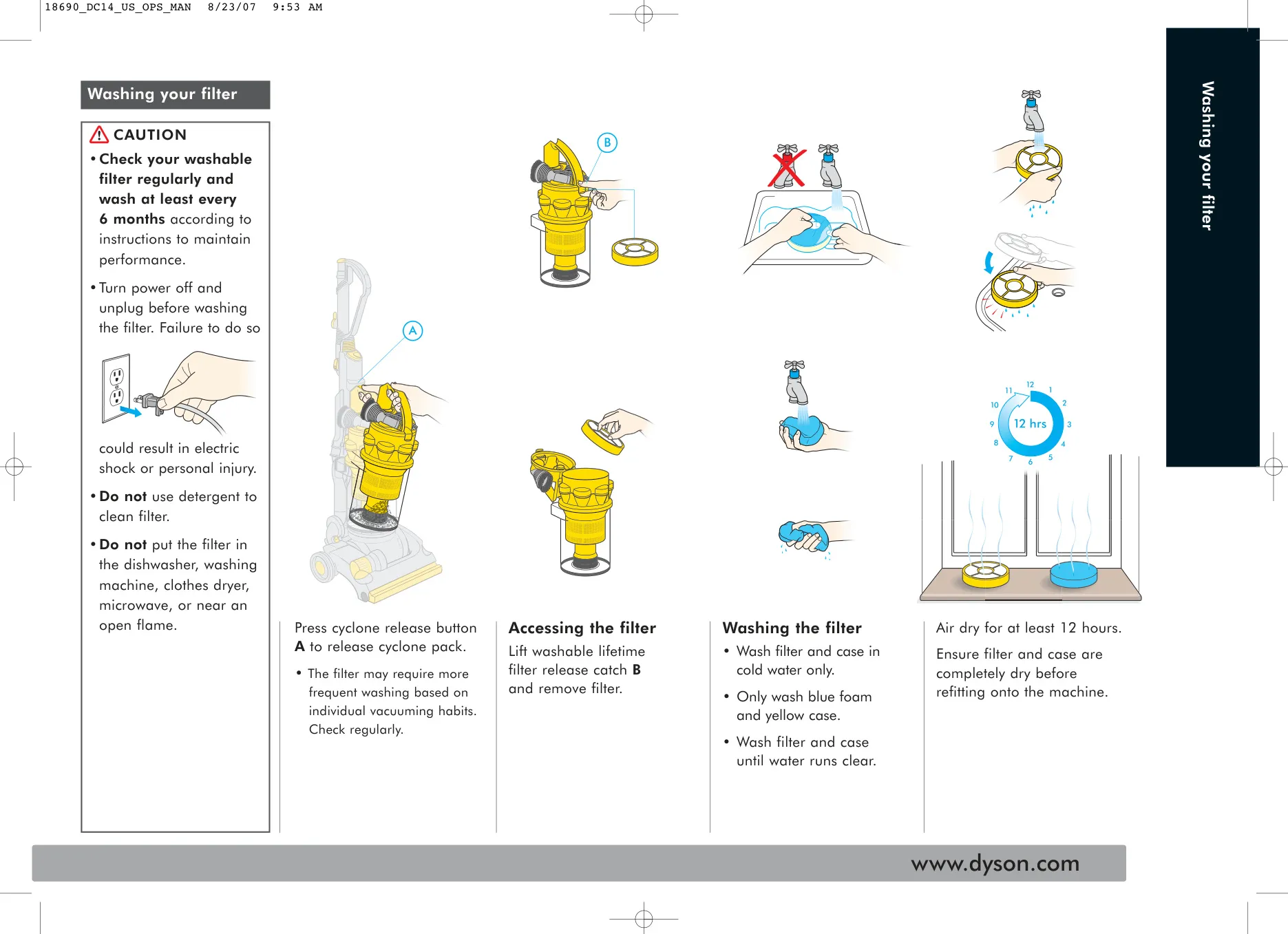

| Filter Type | Washable lifetime filter (blue foam in yellow case) |
| Filter Washing Interval | At least every 6 months (more often depending on use) |
| Filter Washing Method | Cold water only, no detergent, until water runs clear |
| Filter Drying Time | Air dry for at least 12 hours |
| Brush Control Modes | Bare floors (brushbar off) and Carpets (brushbar on) |
| Brushbar Activation | Spins only when handle is reclined |
| Thermal Protection | Automatic shut-off on overheating; cool-down of at least 60 minutes |
| Motor Protection | Motor protection valve |
| Belt Protection | Ratcheting clutch mechanism when brushbar is obstructed |
| Soleplate Removal | Fasteners undone with a coin |
| Inspection Points | Airway inspection valve, U-bend, wand, hose |
| Wand | Telescopic wand stored inside wand handle, with wand cap and wand release button |
| Included Tools | Stair tool, brush tool, crevice tool |

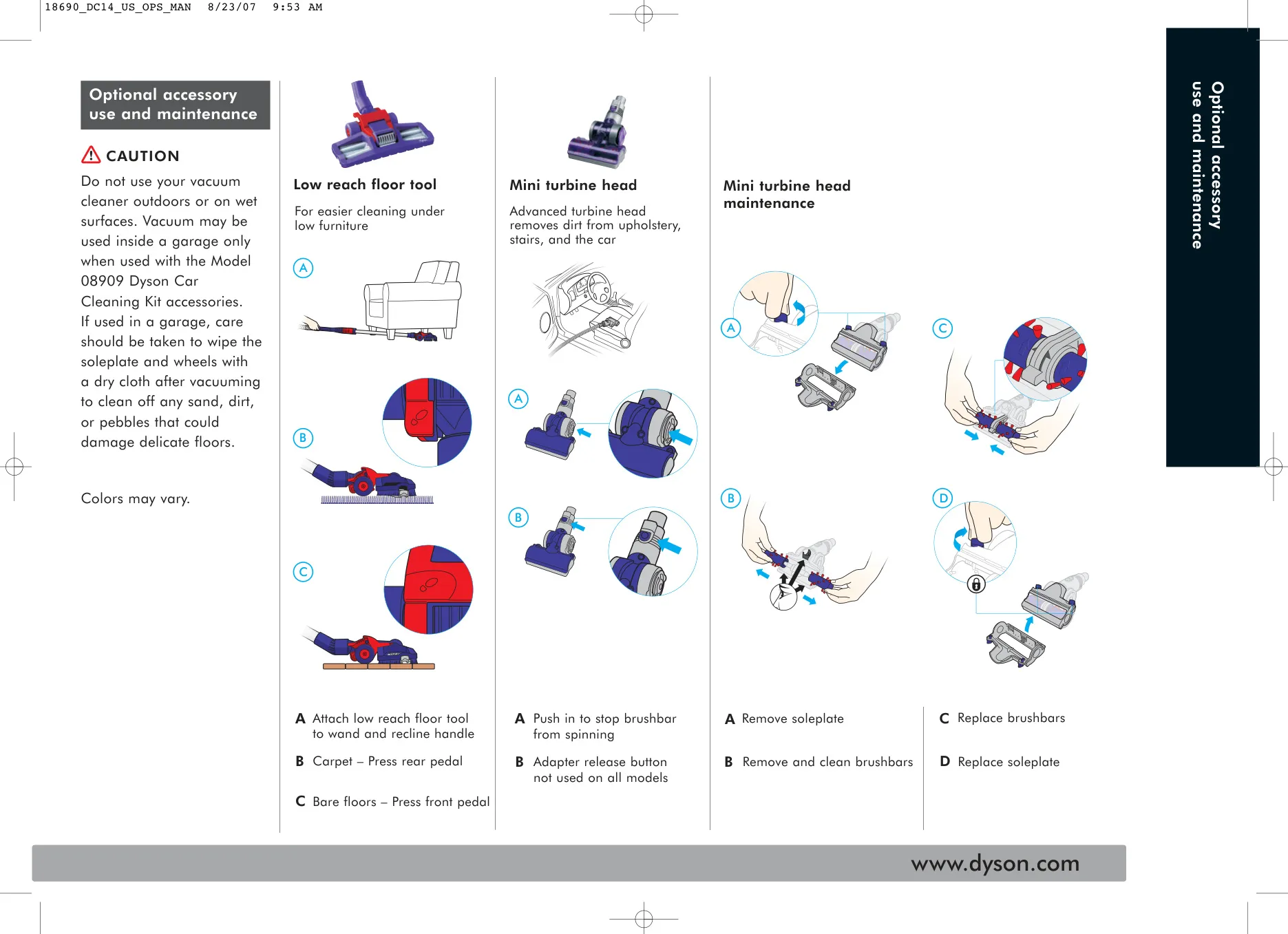

| Optional Accessories | Low reach floor tool, mini turbine head, advanced turbine head, flexi crevice tool, Zorb carpet powder (vary by model) |
| Garage Use | Only with Model 08909 Dyson Car Cleaning Kit accessories |
| Zorb Dwell Time | Wait 30 minutes before vacuuming |
| Allergy Certification | British Allergy Foundation Seal of Approval |
| Dyson Helpline | 1-866-693-9766 (open 7 days a week) |
| Manual Reference | 18690_DC14_US_OPS_MAN |
Dyson DC14 Vacuum Cleaner Details

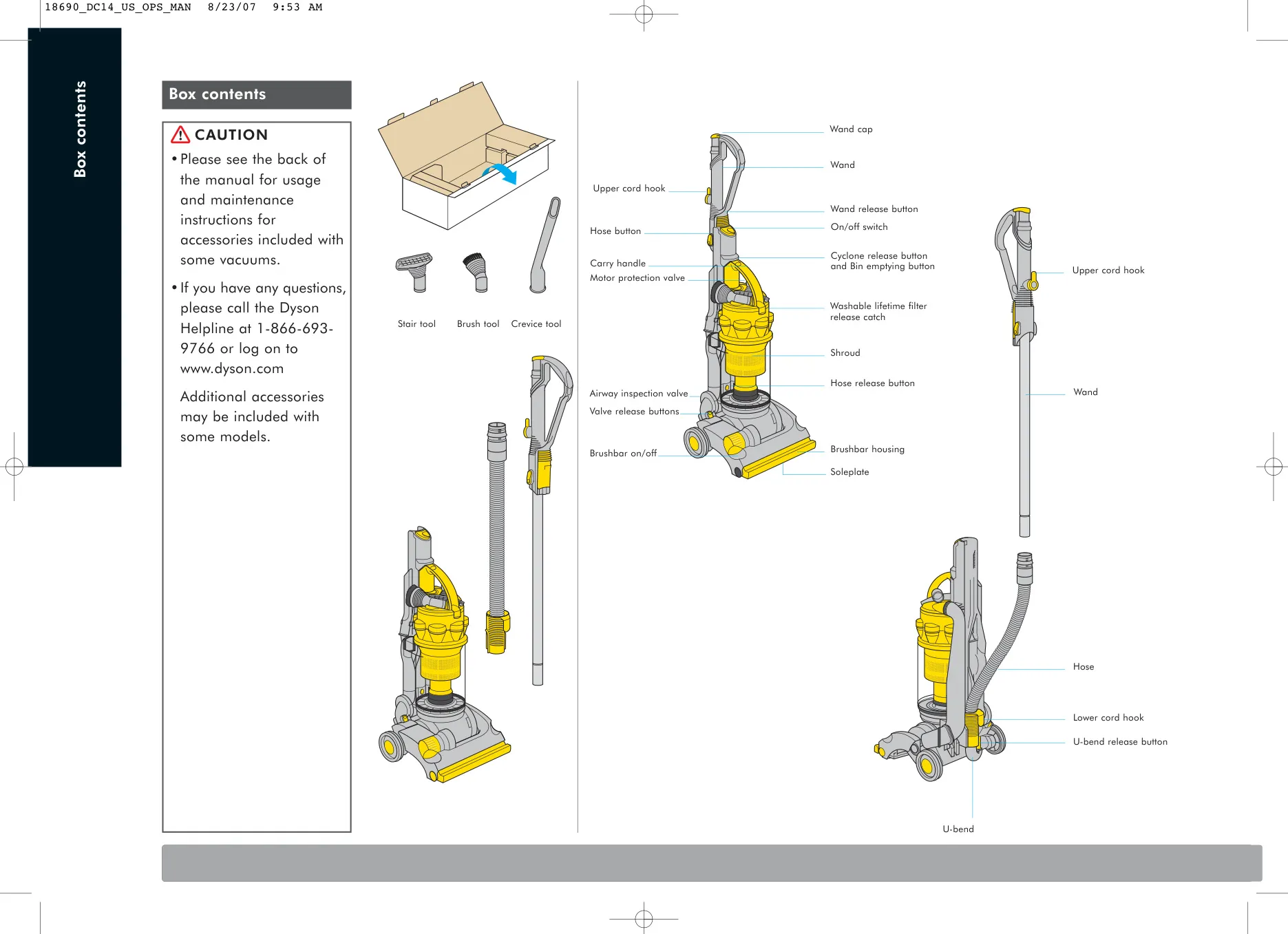

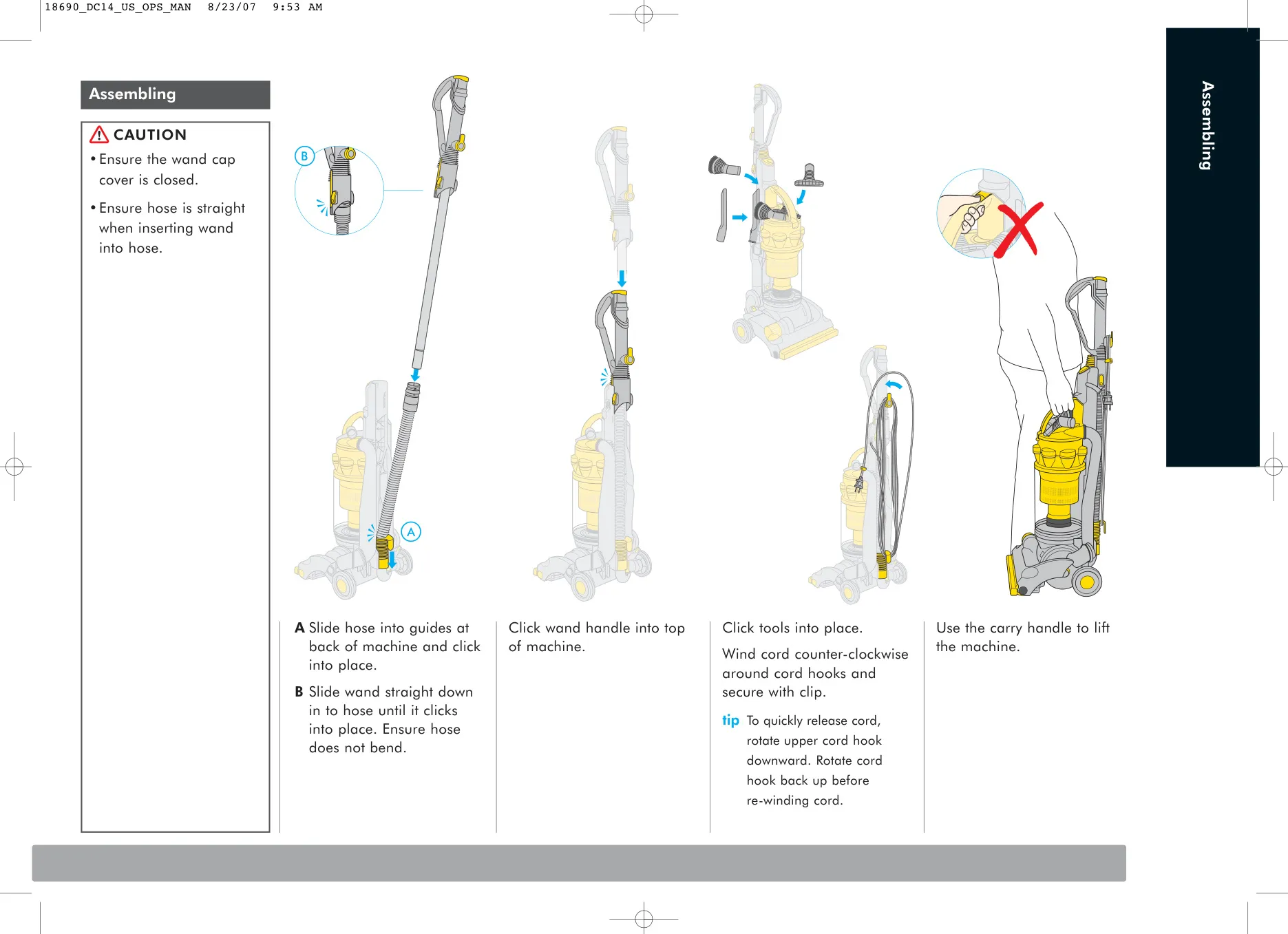

The Dyson DC14 is an upright bagless vacuum that is quick to assemble. You slide the hose into the guides at the back of the machine and click it into place. Then you slide the wand straight down into the hose until it clicks, keeping the hose straight so it does not bend. The wand handle clicks into the top of the machine, and the tools clip into their holders on the body. A carry handle lets you lift the machine safely. Before use, make sure the wand cap cover is closed.

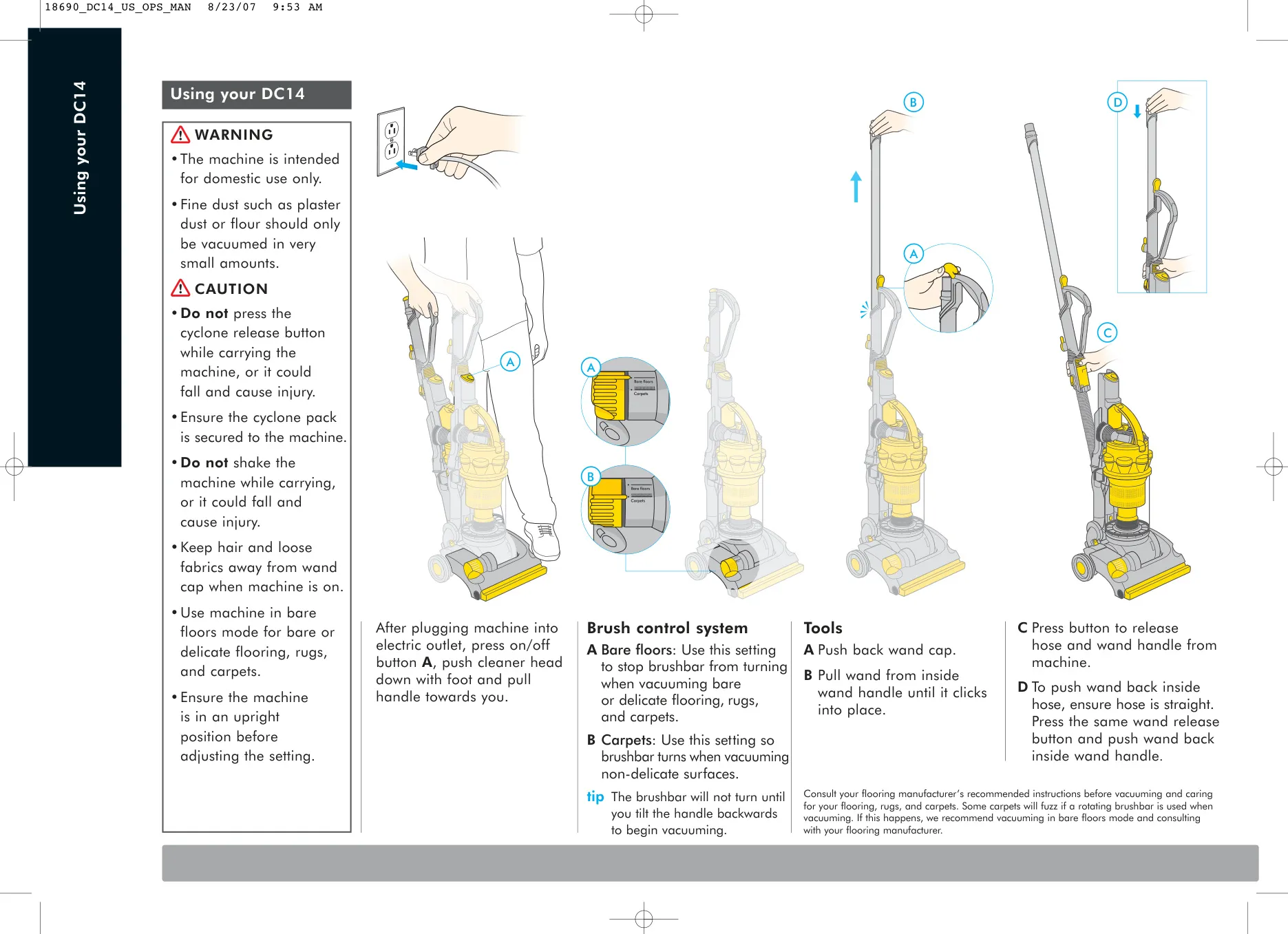

To start vacuuming, plug in the machine, press the on/off switch, hold the cleaner head down with your foot, and pull the handle towards you. Always make sure the machine is upright before you change the brush control setting. Bare floors mode is meant for delicate floors, rugs, and carpets that can fuzz under a spinning brushbar. Dyson recommends that you check your flooring manufacturer's care instructions first. Fine dust such as plaster or flour should only be vacuumed in very small amounts.

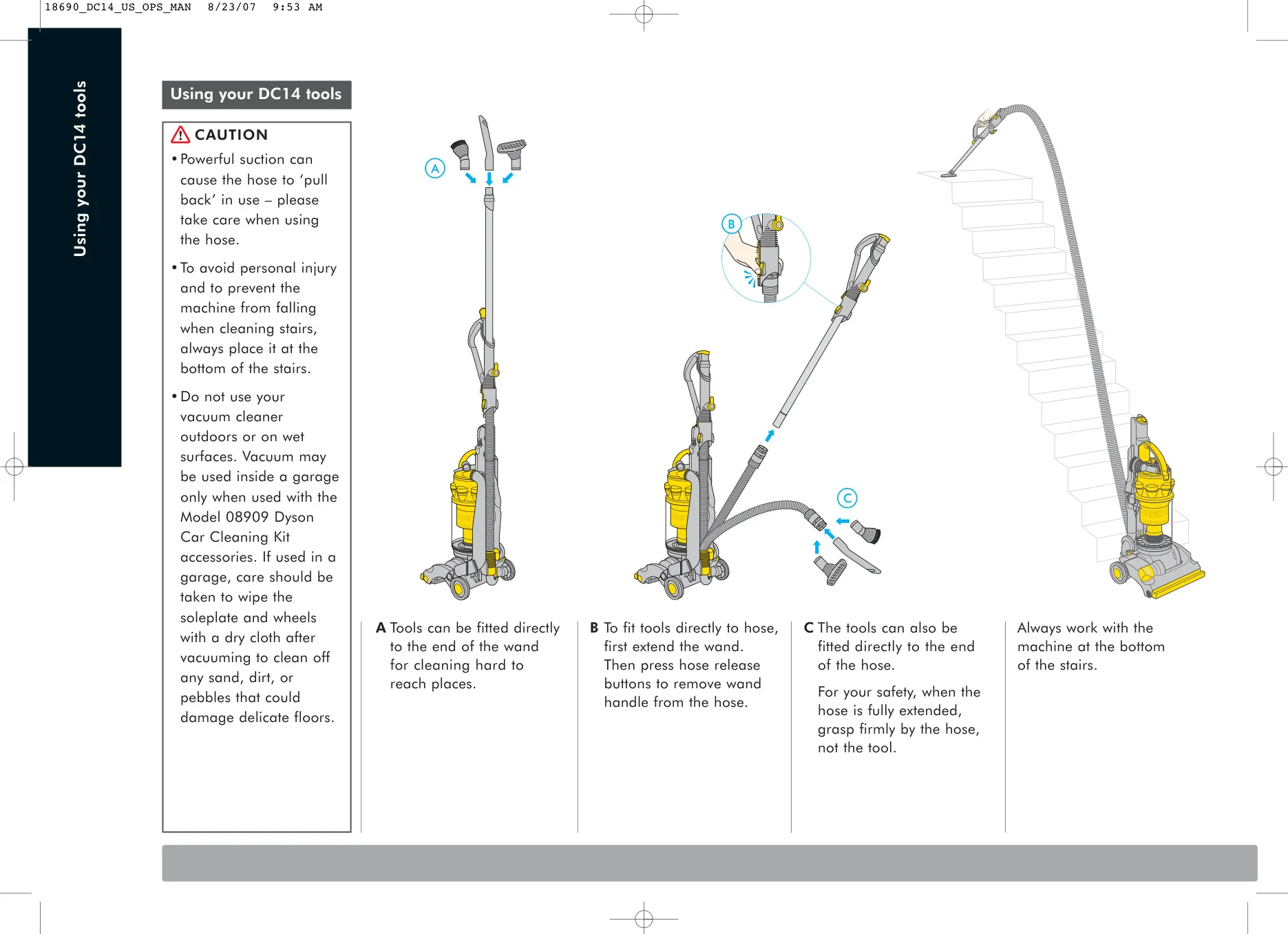

The cleaning tools are versatile. To use the wand, push back the wand cap, press the release button, and pull the wand out of the handle until it clicks. Tools can go on the end of the wand, or straight onto the hose once the wand handle is removed. The manual warns that strong suction can make the hose pull back, so hold the hose firmly when it is fully extended, not the tool. On stairs, always keep the machine at the bottom of the staircase so it cannot fall.

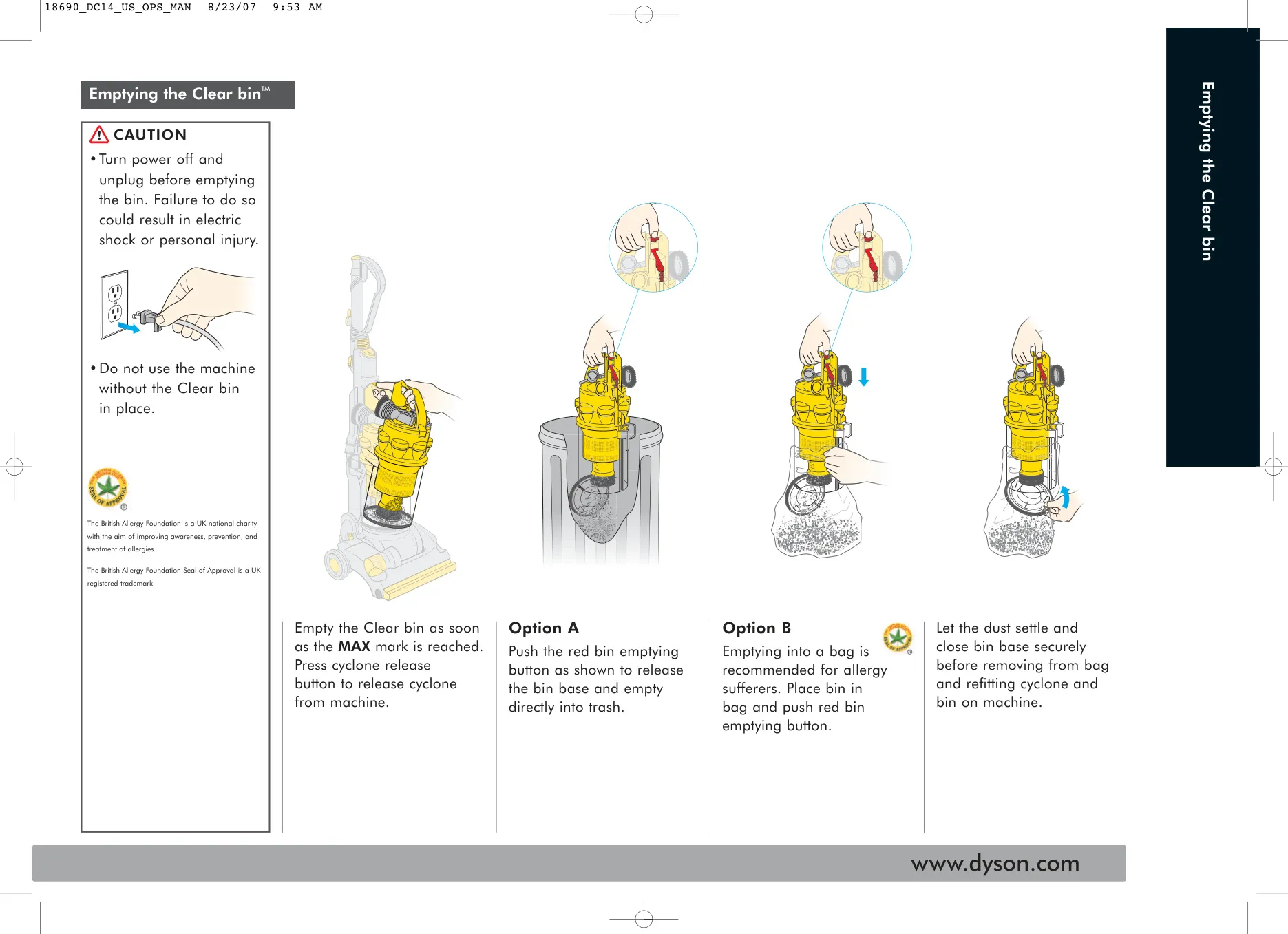

To empty the Clear bin, press the cyclone release button to lift the cyclone pack off the machine. Then press the red emptying button to drop the dirt straight into the trash. For allergy sufferers, Dyson recommends holding the bin inside a bag while emptying it. Let the dust settle, then close the bin base before taking it out. To clean the shroud, press the catch to separate the bin and wipe off lint with a cloth or small brush. Never use detergents, polishes, or air fresheners, and never put the cyclone in water.

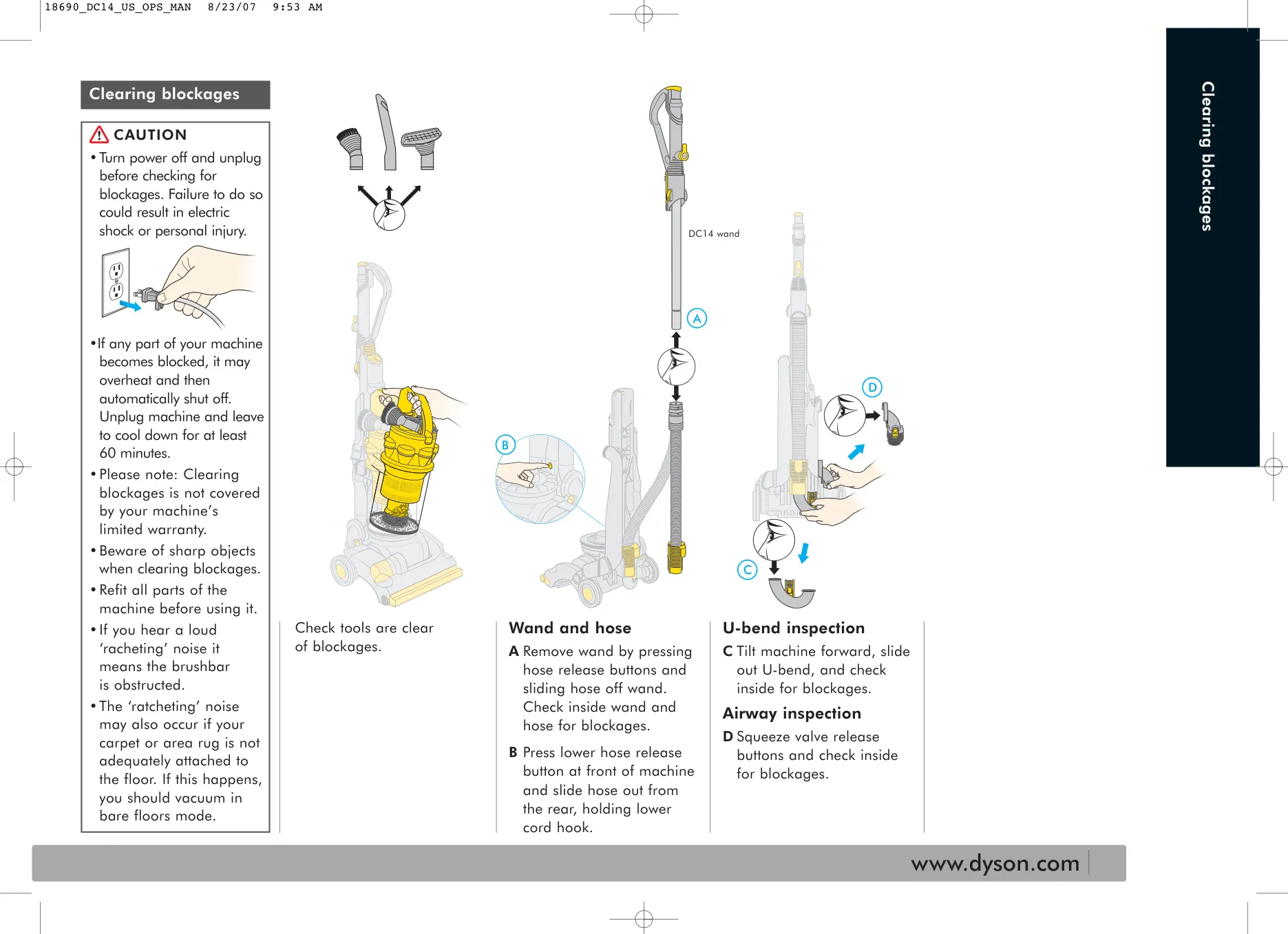

The manual gives clear steps for clearing blockages. First, check that the tools are clear. Then separate the wand and hose and check inside both. Tilt the machine forward and slide out the U-bend to look inside. To check the airway inspection valve, squeeze its release buttons. A loud ratcheting noise means the brushbar is blocked and the belt is being protected. The same noise can come from loose rugs or tassels, and it does not damage the machine. Clearing blockages is not covered by the limited warranty.

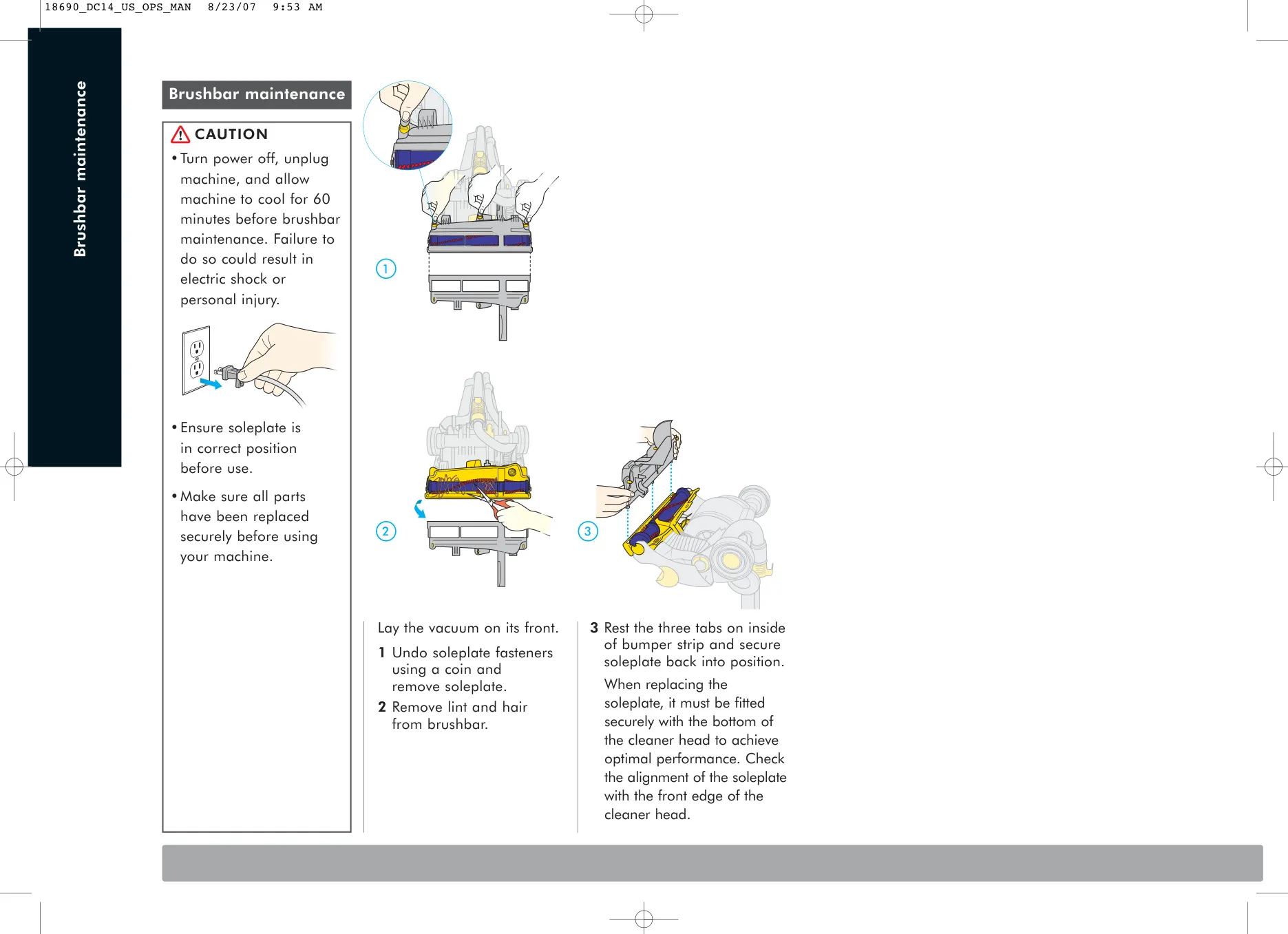

For brushbar maintenance, lay the vacuum on its front, take off the soleplate, and remove hair and lint. When you refit the soleplate, rest its three tabs inside the bumper strip and make sure it sits flush with the cleaner head. The troubleshooting section also explains how to fix a unit that will not stand upright. Hold the handle at 45 degrees, remove the airway inspection valve, and push the square plastic piece upward until it snaps into place. Optional accessories such as the turbine heads and flexi crevice tool extend cleaning to upholstery, stairs, and car interiors.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Dyson DC14 Vacuum Cleaner, and we answer them below.
