Dyson V8 Vacuum Cleaner Instruction Manual
Dyson V8 Vacuum Cleaner
Dyson V8 Vacuum Cleaner Instructions
Here we offer the Dyson V8 Vacuum Cleaner manual completely free and in English. We have cataloged this manual in the Vacuums section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Dyson V8 Vacuum Cleaner, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Dyson V8 Vacuum Cleaner Specifications
| Feature | Specification |
|---|---|
| Product type | Cordless stick vacuum, convertible to handheld |
| Power modes | Powerful mode (longer run time) and MAX mode (stronger suction) |
| Power mode control | Slide switch on top of the machine, between the bin and the filter (left = Powerful, right = MAX) |
| Operation | Trigger-operated (hold the trigger to clean) |
| Full charge time | Approximately 5 hours |
| Charging methods | Charger plugged straight into the machine, or through the wall dock |
| Charging point location | Back of the vacuum, at the bottom of the handle |
| Charger | One-piece unit with plug, connector end and cable |
| Wall dock | Rectangular dock that screws to the wall, for storage and charging |
| Battery level indicator | 3 blue LEDs on the side of the battery |
| Fault indicators | One flashing red LED (battery fault); one LED flashing red and blue in turn (charger fault) |
| Minimum operating and charging temperature | 5°C (41°F) |
| Bin fill indicator | MAX level mark on the bin |
| Bin emptying | Bin release catch on the cyclone; pulling it opens the bin base |
| Filters | Two washable filters: Filter A (top of the cyclone) and Filter B (rear, twist-off) |
| Filter drying time | At least 24 hours |
| Blockage protection | Automatic cut-out (the motor pulses when there is a blockage) |

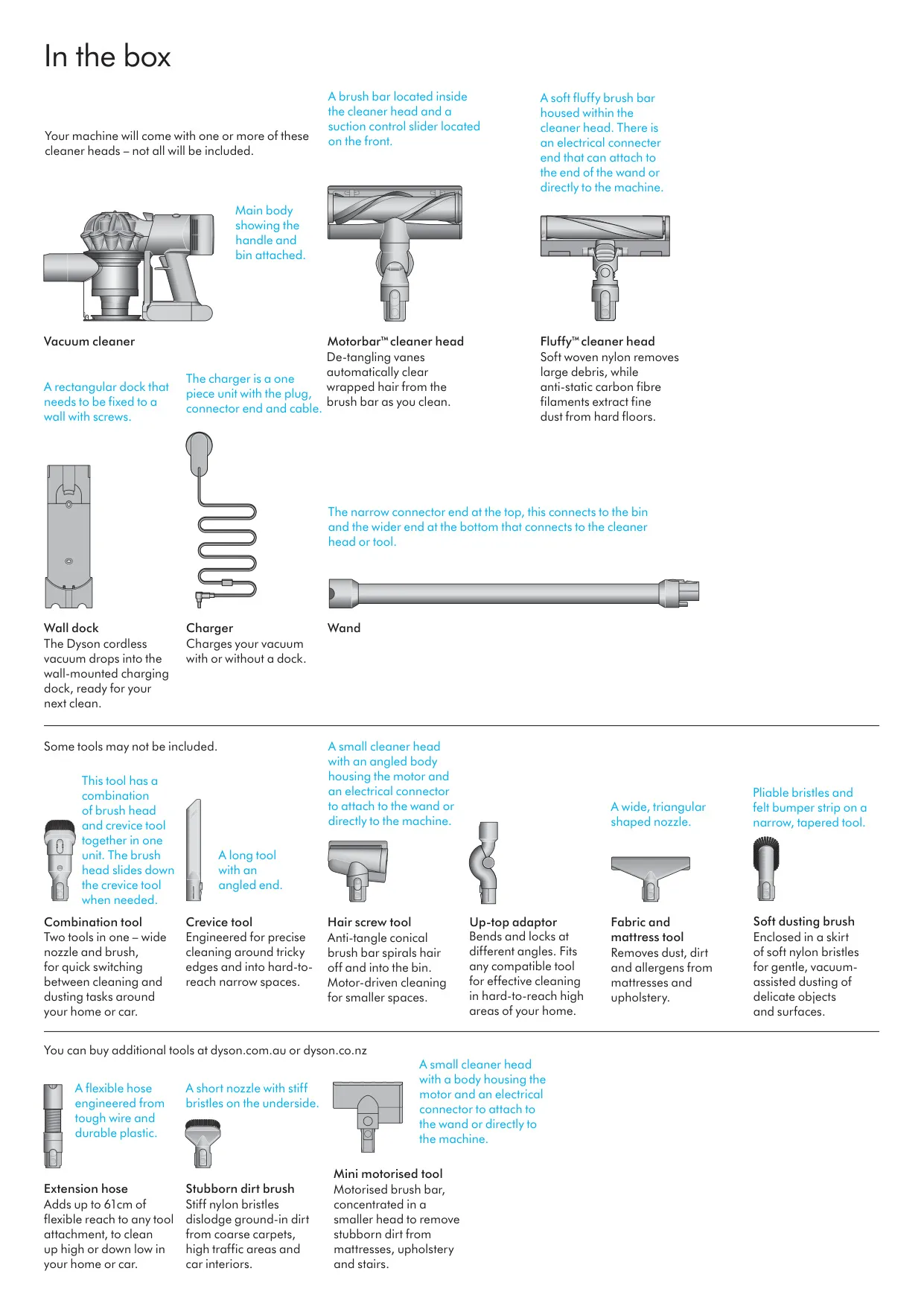

| Wand | Removable, with quick-release connection to cleaner heads and tools |
| Cleaner heads (vary by model) | Motorbar™ cleaner head, Fluffy™ cleaner head |
| Motorised tools (vary by model) | Hair screw tool, Mini motorised tool |
| Non-motorised tools (vary by model) | Combination tool, Crevice tool, Fabric and mattress tool, Soft dusting brush, Stubborn dirt brush, Up-top adaptor, Extension hose |
| Extension hose reach | Up to 61 cm |
| Serial number location | Bottom of the machine; also found on the battery and the charger |
| Support websites | www.dyson.com.au / www.dyson.co.nz |
Dyson V8 Vacuum Cleaner Details

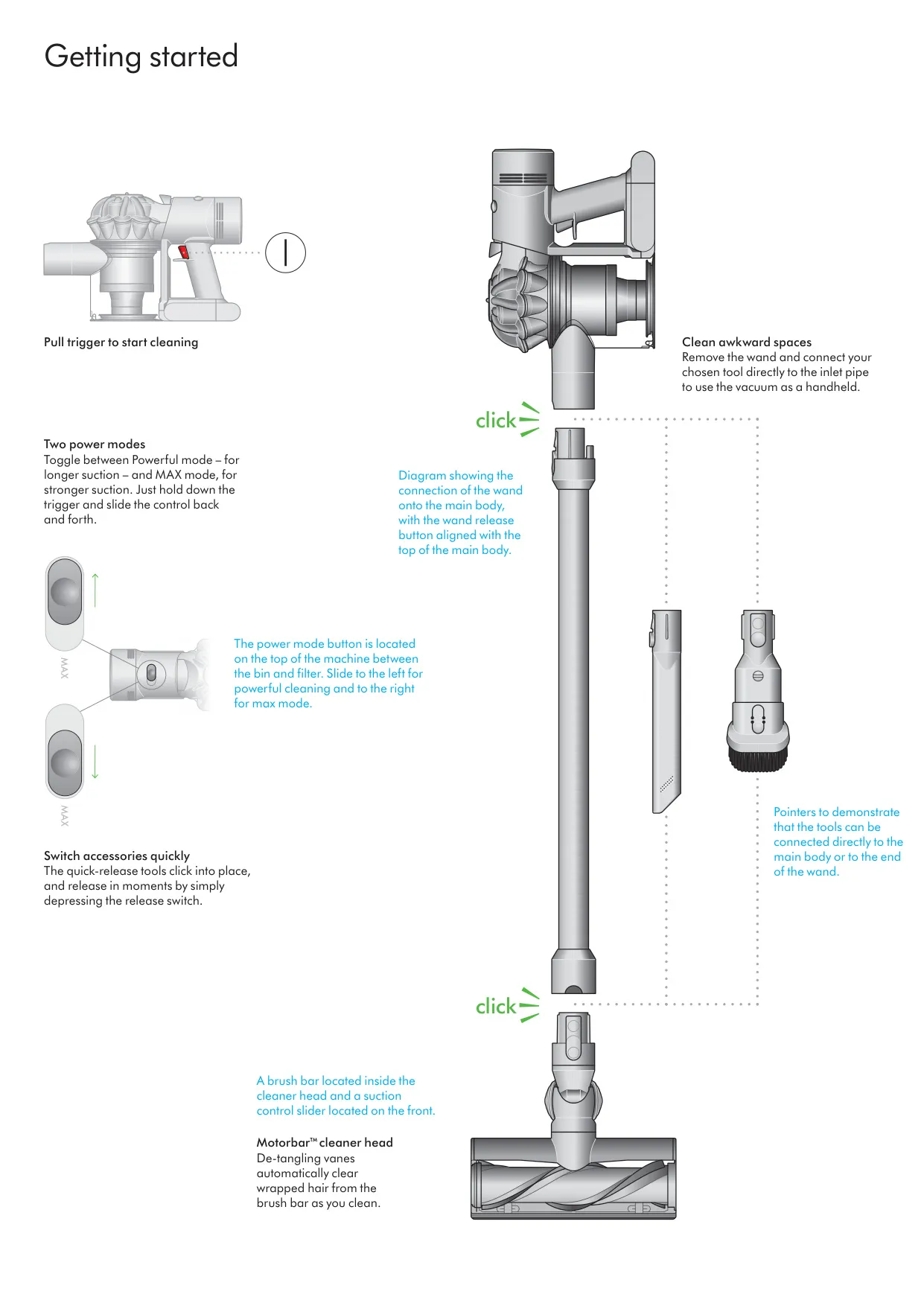

The Dyson V8 can be used as a full-length stick vacuum or as a handheld. To switch to handheld mode, take off the wand and click any tool straight onto the inlet. Every attachment uses a quick-release connection: it clicks into place and comes off when you press the release switch. This makes it quick to move from floors to stairs, upholstery, car interiors or high shelves without stopping the clean.
Each cleaner head suits a different surface. The Motorbar™ cleaner head has de-tangling vanes that clear wrapped hair from the brush bar while you clean. The Fluffy™ cleaner head combines soft woven nylon, which picks up large debris, with anti-static carbon fibre filaments that pull fine dust from hard floors. The Hair screw tool has a conical, anti-tangle brush bar that spirals hair off the bar and into the bin.
The manual gives clear advice on floor care. Before cleaning rugs, carpets or other flooring, check the manufacturer's recommended cleaning instructions. Also check that the underside of the cleaner head is free of objects that could scratch the floor. Some rugs may fuzz under a rotating brush bar. If this happens, Dyson recommends vacuuming without the motorised floor tool and contacting the flooring manufacturer.
Empty the bin as soon as dirt reaches the MAX mark. Using the machine with a bin that is too full reduces performance and means the filters need washing more often. To limit dust contact, Dyson suggests covering the bin tightly with a dustproof bag while you empty it, then sealing the bag before throwing it away. To clean the bin fully, remove the cyclone with the release button behind it, then release the red catch to slide the bin off.

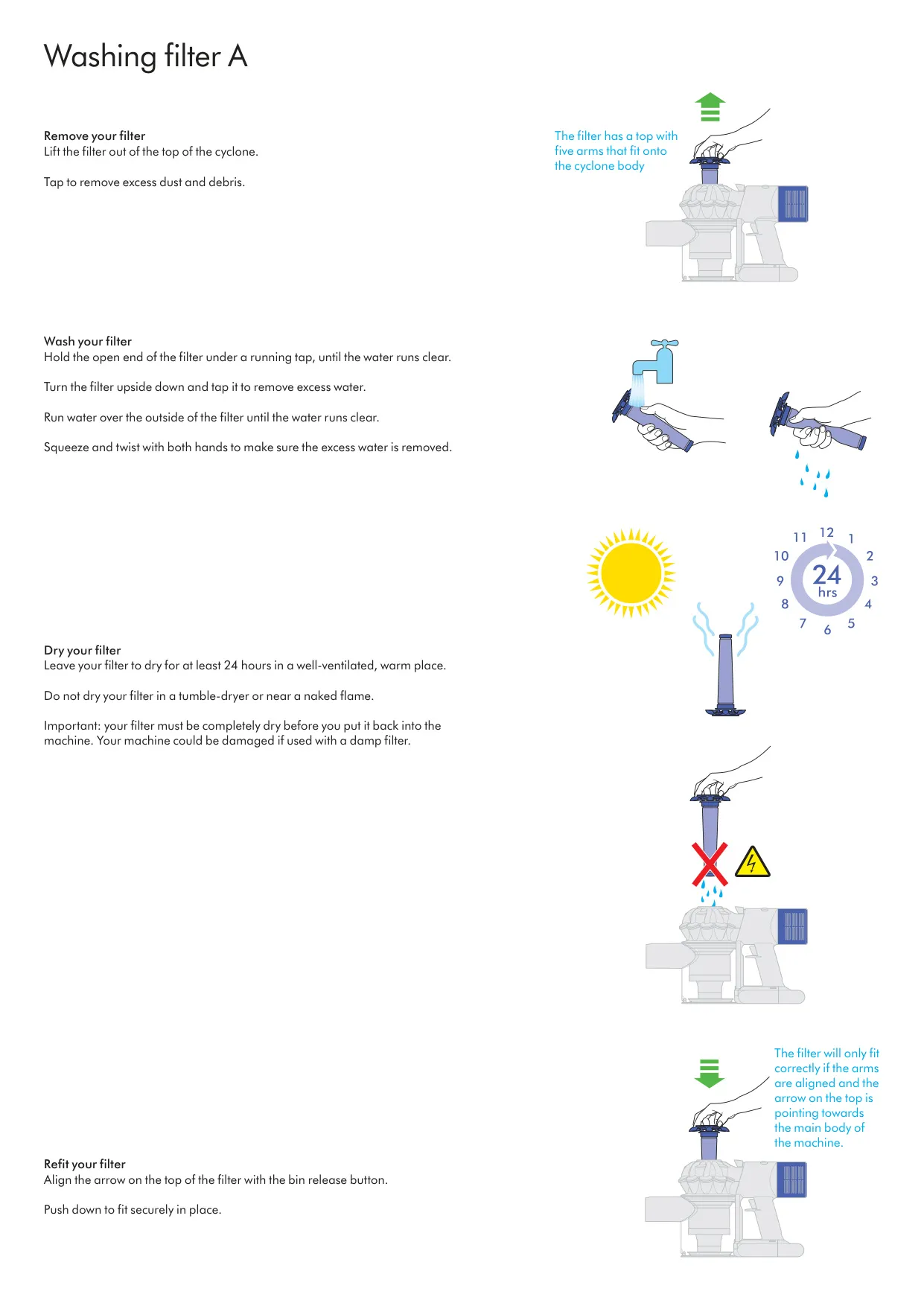

Clean the bin only with a damp, lint-free cloth. Never put it in a dishwasher, and do not use detergents, polishes or air fresheners. Both filters can be washed in cold water until the water runs clear. Filter A only fits when its five arms line up and the arrow points towards the main body. Filter B twists off anti-clockwise and clicks back clockwise. Do not dry either filter in a tumble-dryer or near a naked flame.
Of the brush bars, only the Fluffy™ brush bar is washable. Dry it upright with the closed end at the top. The Motorbar™ and Mini motorised tool brush bars come out after you unlock their end caps with a coin. These parts must only be wiped, never washed. The Hair screw tool comes apart into three parts using a red locking lever. You should never wash any end cap.
The battery LEDs show the charge level in two ways. During use, three, two or one solid blue LED means high, medium or low charge, and one flashing LED means the battery is empty. While charging, one to three flashing LEDs show the charge building up, and all the lights go off once charging is complete. For the longest battery life, Dyson recommends using Powerful mode for most cleaning.

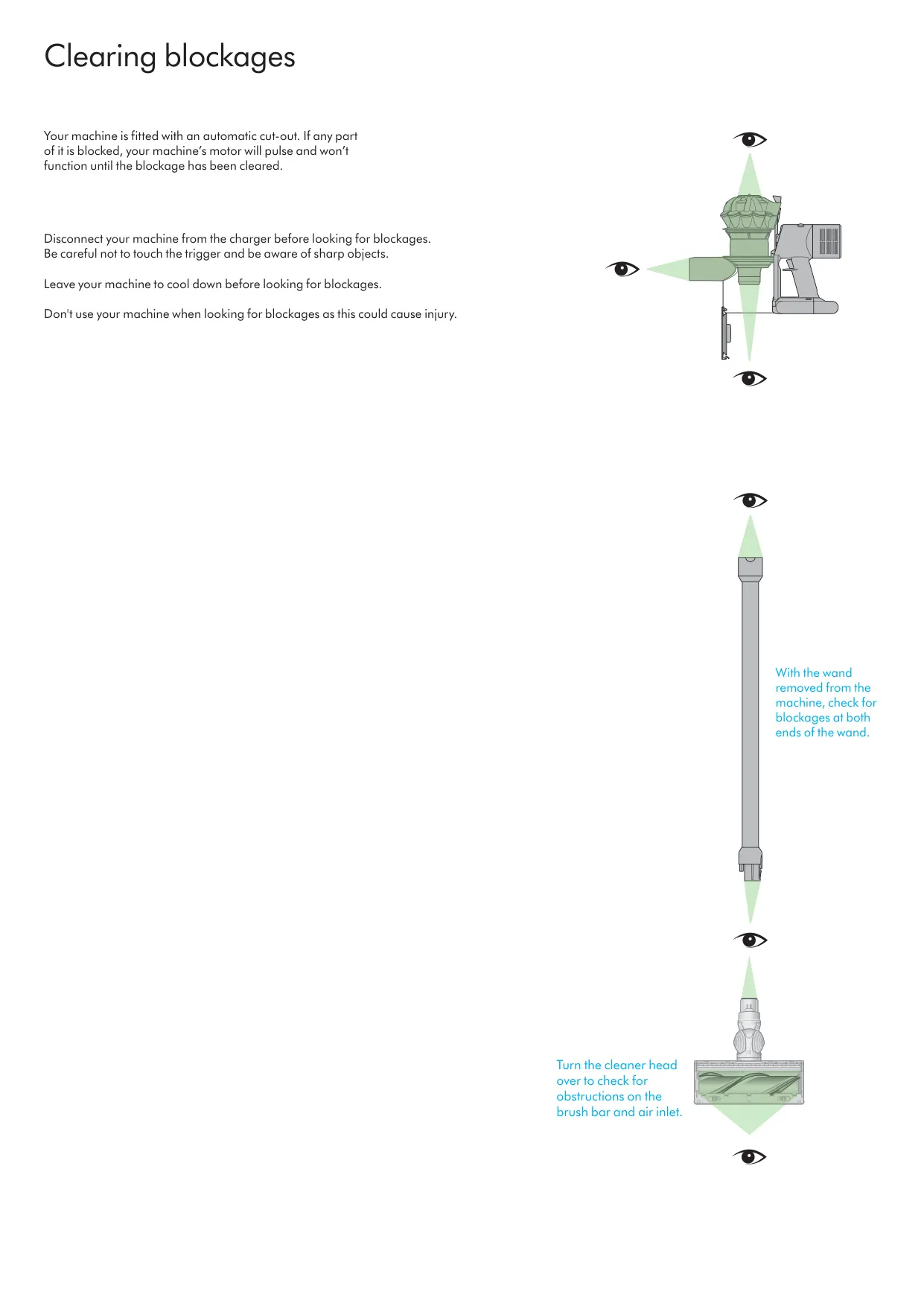

Before checking for blockages, always disconnect the machine from the charger and let it cool. Avoid touching the trigger and watch out for sharp objects. Check both ends of the wand, the brush bar and the air inlet of the cleaner head. Register the machine using the serial number on its underside.
