Dyson V6 Vacuum Cleaner Instruction Manual
Dyson V6 Vacuum Cleaner
Dyson V6 Vacuum Cleaner Instructions
Here we offer the Dyson V6 Vacuum Cleaner manual completely free and in English. We have cataloged this manual in the Vacuums section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Dyson V6 Vacuum Cleaner, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Dyson V6 Vacuum Cleaner Specifications
| Feature | Specification |
|---|---|
| Model | Dyson V6 (SV03) |
| Appliance type | Cordless battery-powered vacuum cleaner with clear bin |
| Intended use | Household use only, domestic indoor and car use |
| Power modes | Powerful suction (light off) and Max mode (Max button lit solid blue) |
| Run time, Powerful suction | 20 minutes / 17 minutes (depending on configuration shown in the manual) |
| Run time, Max mode | 6 minutes |
| Mode memory | Retains the last mode used |
| Filter | One washable filter, removed from the top of the appliance |
| Filter wash interval | At least every month, cold water only |
| Filter drying time | Minimum 24 hours |
| Dust container | Clear bin with MAX fill mark, released with the red button |
| Floor tool | Motorised brush bar with carbon fibre brushes, removable base plate and coin-release fastener |
| Protection | Automatic cut-out when a blockage is detected |
| Charging and storage | Wall-mounted docking station |
| Minimum operating and storage temperature | 3°C (37.4°F) |
| Maximum battery temperature | Do not heat above 60°C (140°F) |
| Minimum distance from a pool | 3 metres (10 feet) |
| Diagnostics | LED indicators on the main body and the battery |

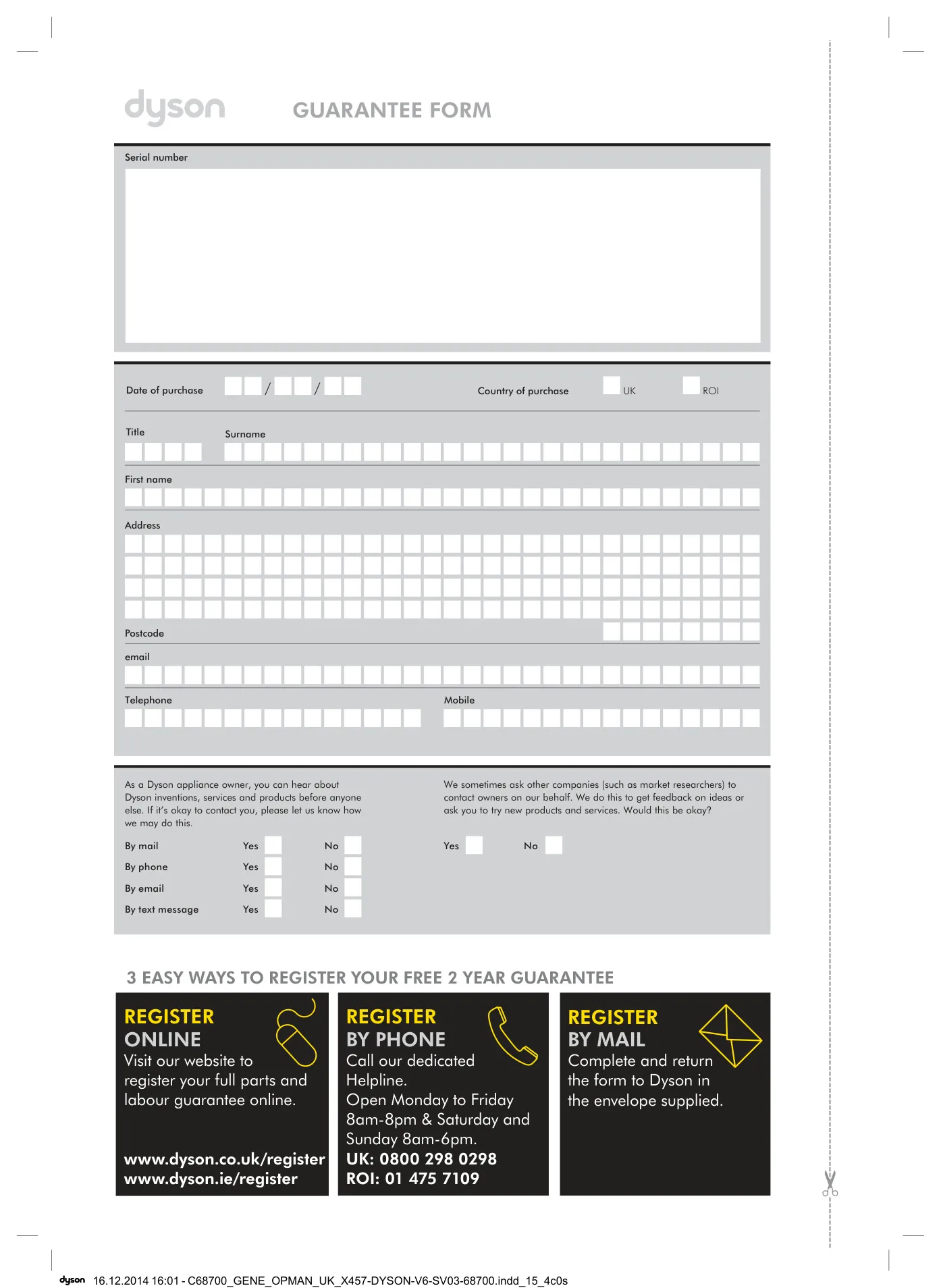

| Guarantee | 2 years parts and labour, free with registration |
| Dyson Helpline | UK: 0800 298 0298 / ROI: 01 475 7109 |
| Helpline hours | Monday to Friday 8am-8pm, Saturday and Sunday 8am-6pm |
| Manual part number | PN.208652-06-02 (JN.68700, 16.12.14) |
Dyson V6 Vacuum Cleaner Details
The Dyson V6 (SV03) has two diagnostic systems: one on the main body and one on the battery. On the main body, a solid blue light means Max mode is on, flashing blue means the battery is low, and fast flashing blue means there is no power because of a temporary fault, such as a dirty filter or a blockage. On the battery, flashing amber means a temporary fault, often because it is too hot or too cold. Flashing red means a fault that needs the Dyson Helpline.
The battery lights also show the charging status. Solid blue means the battery is charging. Flashing blue means it is not charging, and you should refit the charger or try another socket. Solid amber means charging has stopped for a temporary reason, usually temperature. To make the battery last longer, the manual says not to recharge it straight after a full discharge. Let it cool for a few minutes first. Also avoid running the appliance with the battery flat against a surface, so it stays cooler.
To empty the bin, first disconnect the appliance from the charger and remove the wand and floor tool. Press the red button once to open the bin base. Press it again to release the clear bin from the main body. To limit contact with dust and allergens, put the bin inside a plastic bag before emptying it. Clean the bin with a damp cloth only. Never use detergents, polishes or a dishwasher. Clean the cyclone shroud with the brush on the combination tool.
To wash the filter, lift it out of the top of the appliance. Run cold water over the outside until the water runs clear. Then squeeze and twist it with both hands to remove the excess water. Lay it on its side to dry for at least 24 hours. Never put it in a washing machine, tumble dryer, oven or microwave. You may need to wash it more often if you vacuum fine dust or mostly use Powerful suction mode.
If the cleaner becomes blocked, the automatic cut-out makes the motor pulse on and off before it shuts down. Let the appliance cool, disconnect it and check for sharp objects. To reach blockages in the floor tool, use a coin to undo the padlock-marked screw on the base plate. You can remove the brush bar the same way. The carbon fibre brushes may irritate the skin, so wash your hands after touching them. The guarantee does not cover clearing blockages.
On floors, check the flooring manufacturer's cleaning advice first, because a rotating brush bar can make some carpets fuzz. Before cleaning polished wood or lino, check that nothing is stuck under the floor tool that could leave marks. Do not leave the cleaner head in one place on delicate floors. Do not press down too hard on it. Some carpets can build up small, harmless static charges in the bin or wand.
The battery is a sealed unit. If it ever leaks, do not touch the liquid. If it gets on your skin, wash with soap and water. If it gets in your eyes, rinse them for at least 15 minutes and get medical help. Before you dispose of the appliance, remove the battery and recycle it under local rules. The 2-year guarantee does not cover reduced battery run time caused by age or use. It also does not cover normal wear, such as the brush bar, or using the cleaner on rubble, ash or plaster.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Dyson V6 Vacuum Cleaner, and we answer them below.
