Weil-Mclain Ultra 310 Serie 1 Boiler Instruction Manual
Weil-Mclain Ultra 310 Serie 1 Boiler
Weil-Mclain Ultra 310 Serie 1 Boiler
Weil-Mclain Ultra 310 Serie 1 Instructions
Here we offer the Weil-Mclain Ultra 310 Serie 1 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Weil-Mclain Ultra 310 Serie 1 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

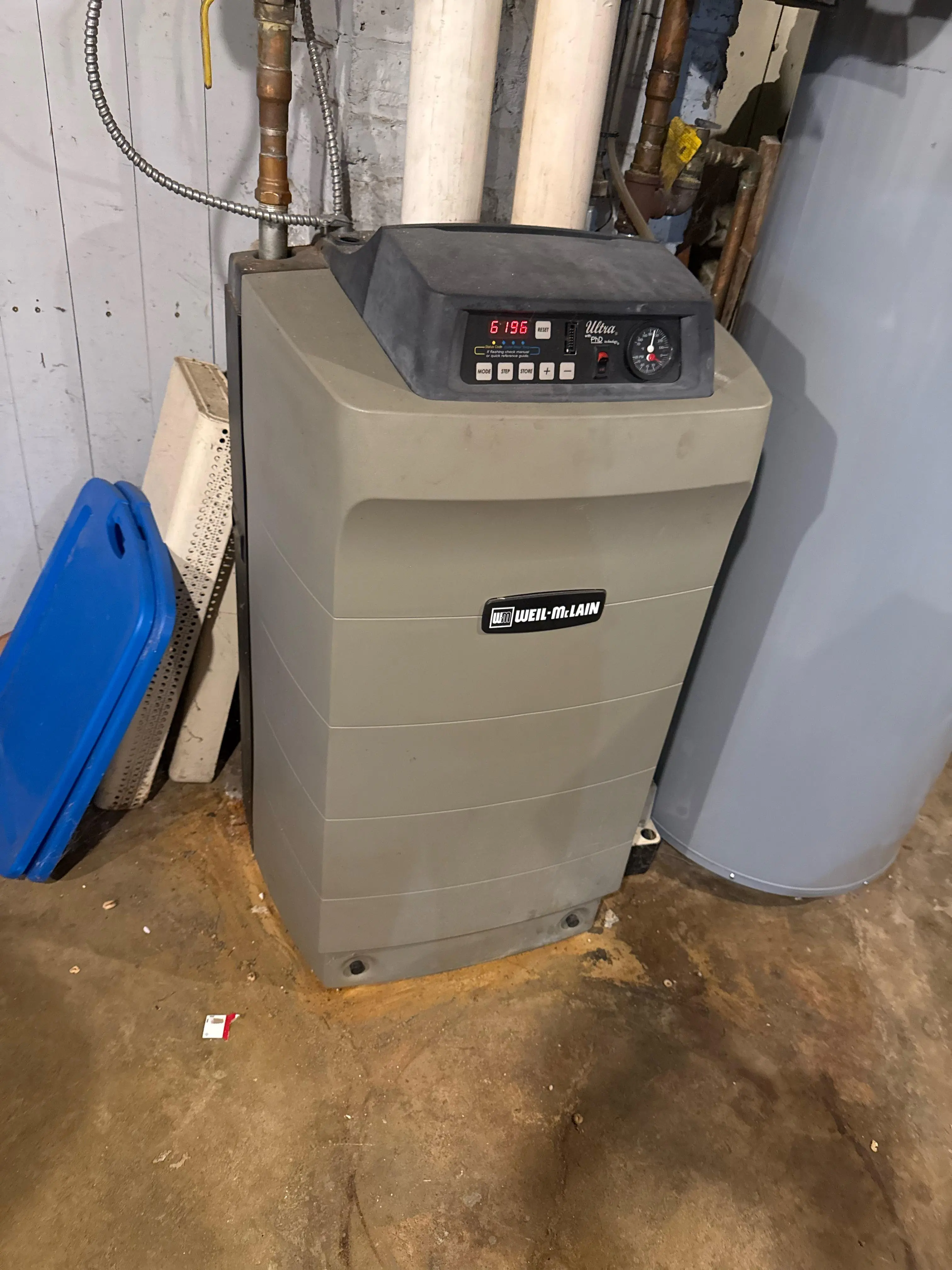

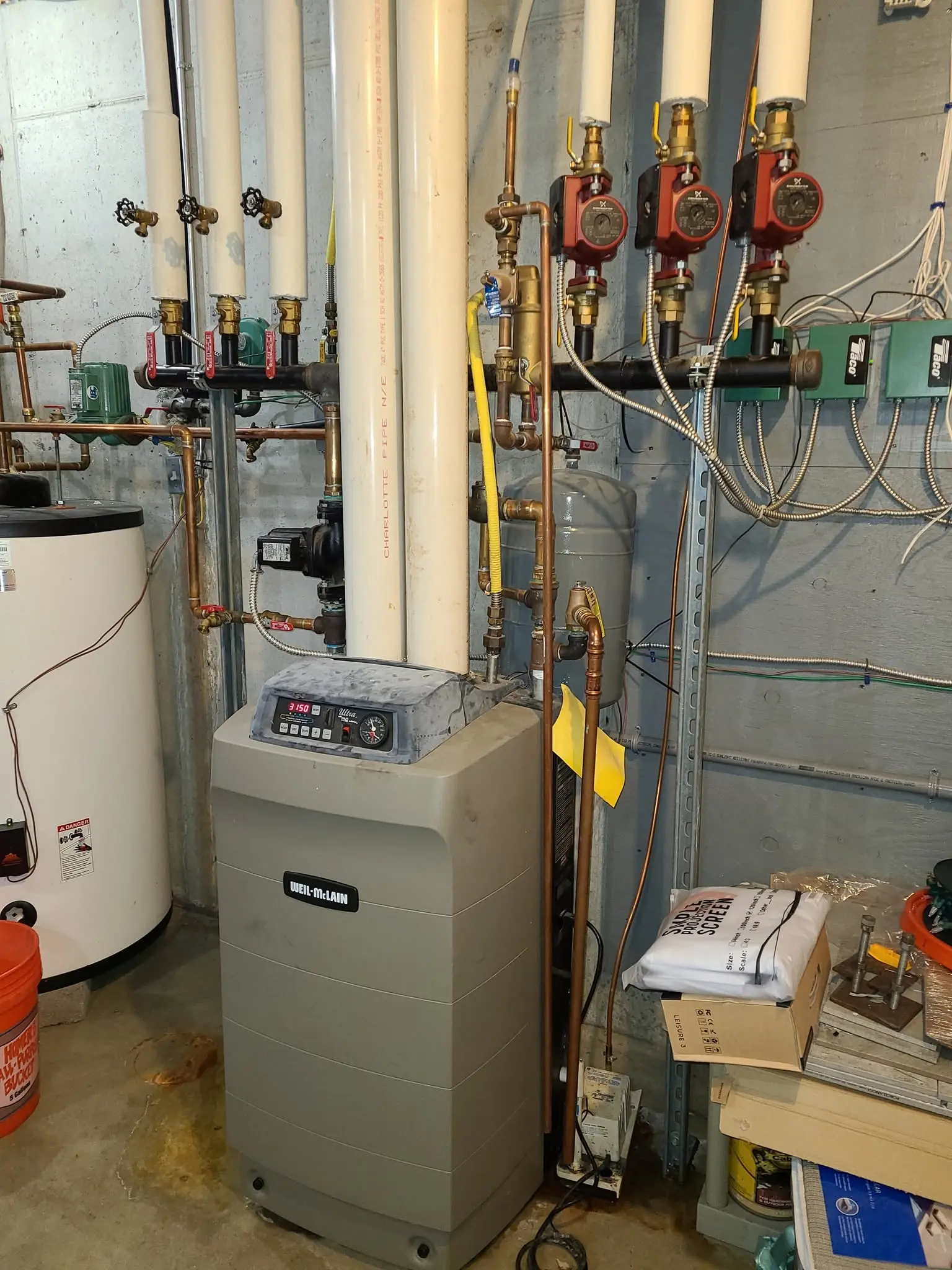

Product Images

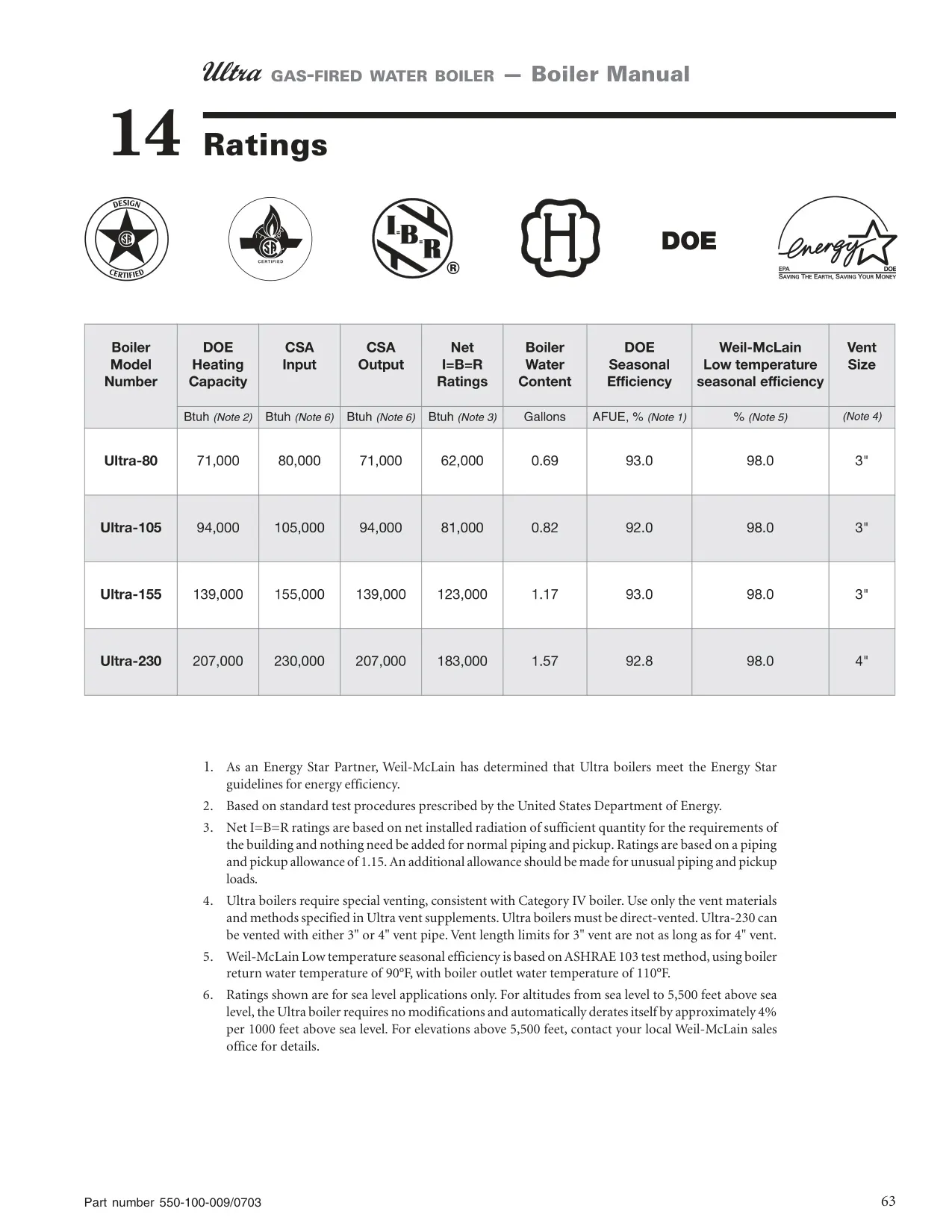

Weil-Mclain Ultra 310 Serie 1 Boiler Specifications
| Specification | Value (Ultra 310) |
|---|---|
| Model Series | Ultra 310 Serie 1 |
| Boiler Type | Gas-fired Water Boiler |
| Maximum Input (MBH) | 310 |
| DOE Heating Capacity (MBH) | 287 |
| Net I=B=R Rating (MBH) | 249 |
| Annual Fuel Utilization Efficiency (AFUE) | 92.2% |
| Water Content (Gallons) | 1.8 |
| Shipping Weight (lbs) | 201 |
| Operating Weight (lbs) | 216 |

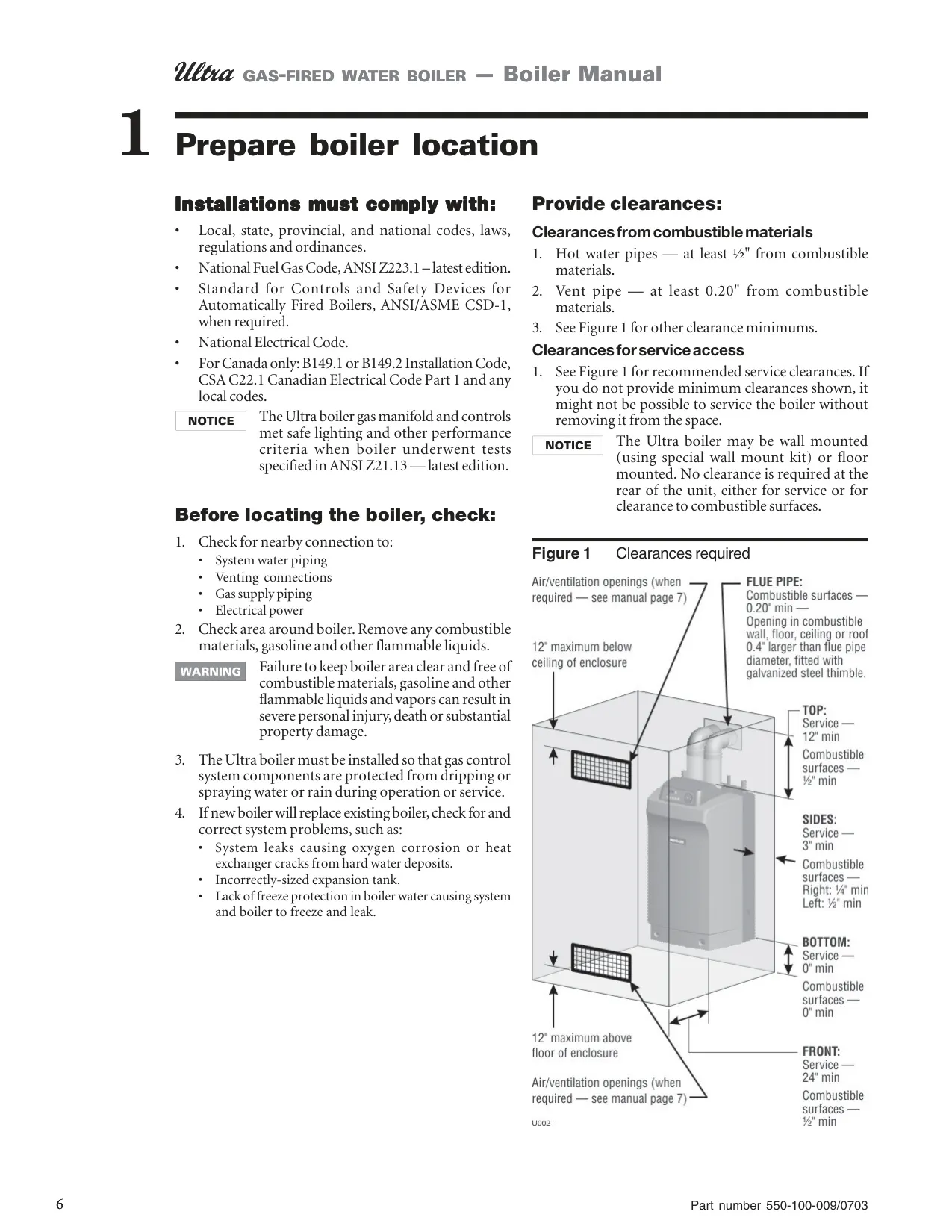

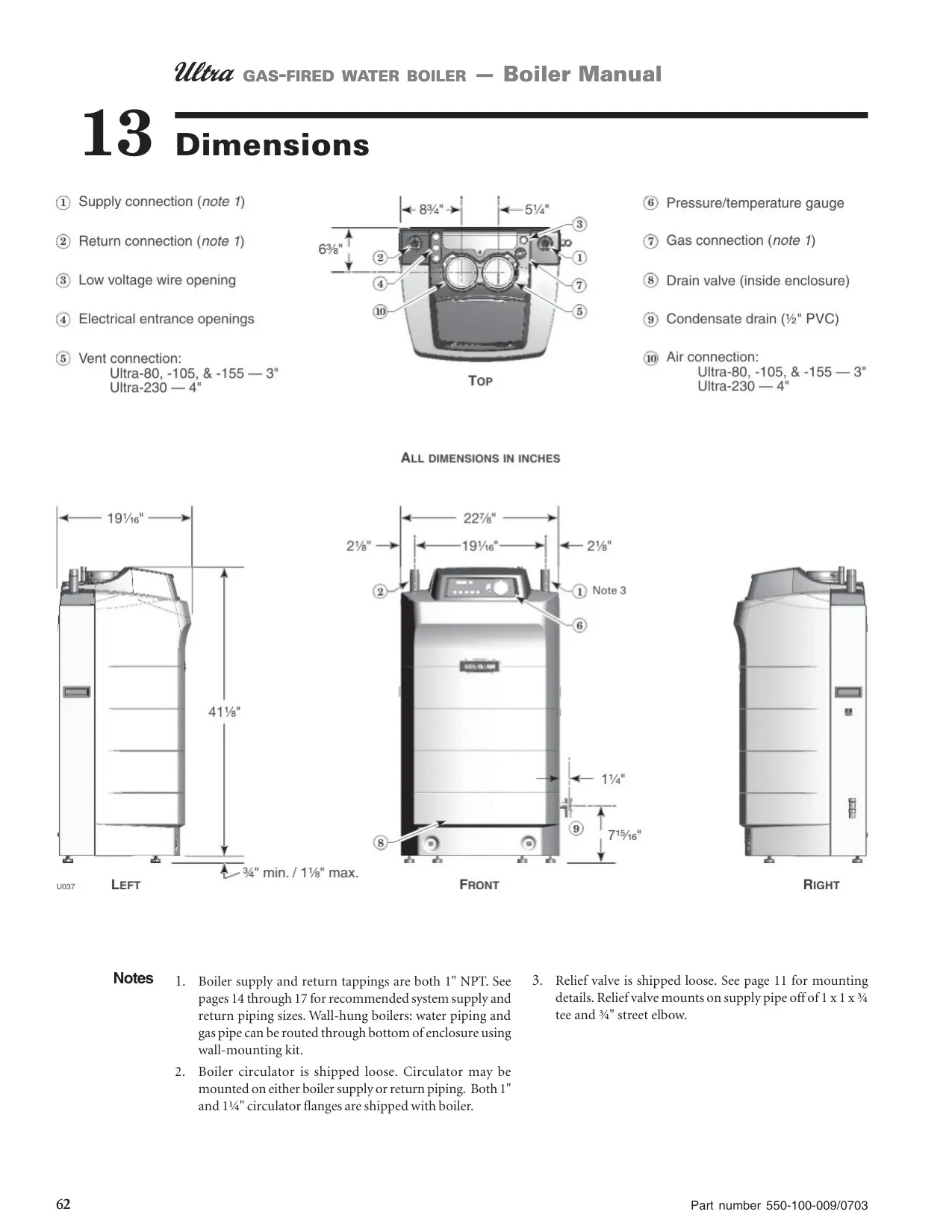

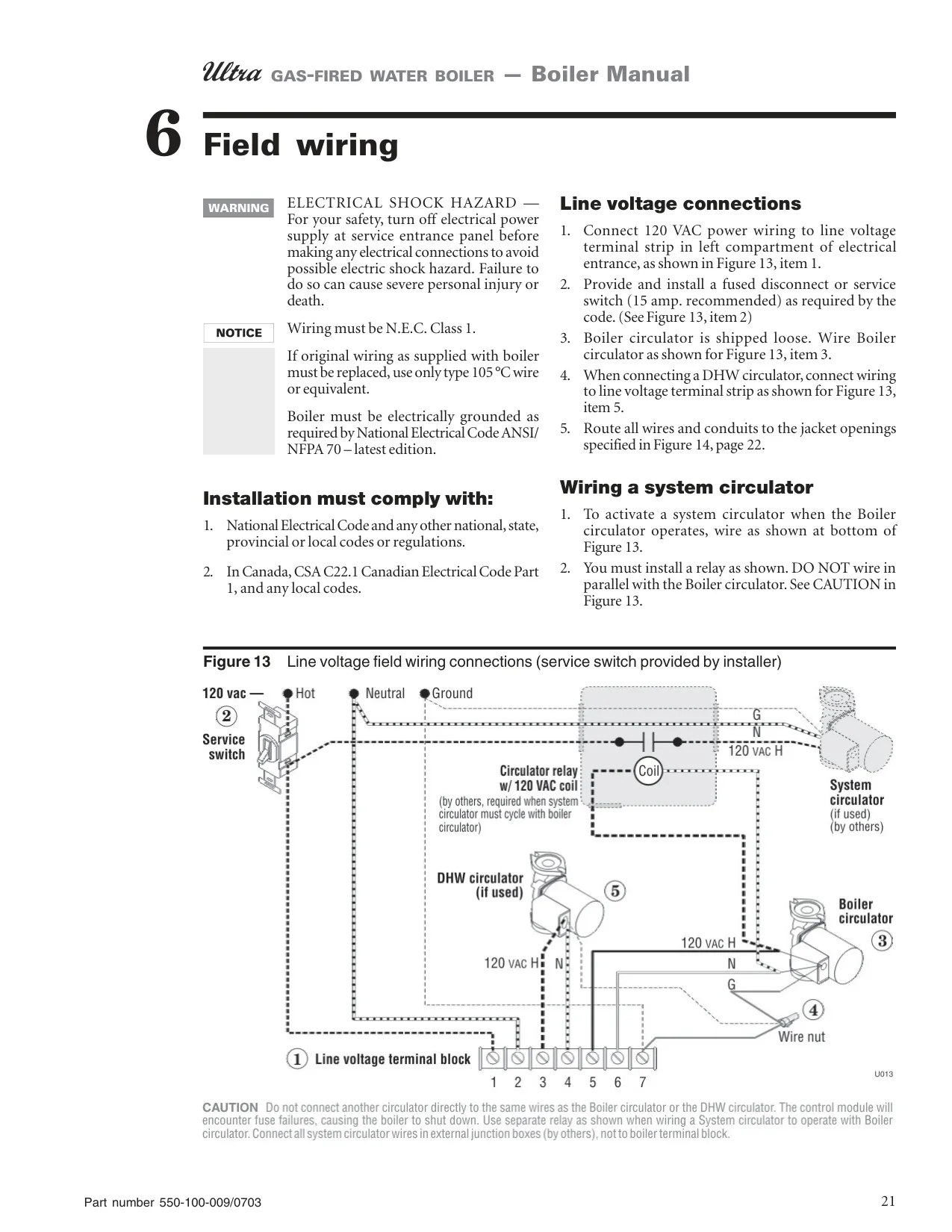

| Minimum Side Clearance (inches) | 0 |
| Minimum Front Clearance (inches) | 24 (for service) |
| Minimum Top Clearance (inches) | 6 |
| Minimum Rear Clearance (inches) | 0 |
| Minimum Vent Pipe Clearance (inches) | 0.20 |
| Minimum Hot Water Pipes Clearance (inches) | 0.5 |
| Vent Pipe Diameter | 3" or 4" (dependent on length) |
| Boiler Supply and Return Tappings (NPT) | 1.25" |
| Gas Connection Size (NPT) | 3/4" |
| Electrical Supply | 120 VAC / 60 HZ |
| Electrical Demand | 10 VA |
| Low Temperature Seasonal Efficiency (ASHRAE 103) | 90.9% |

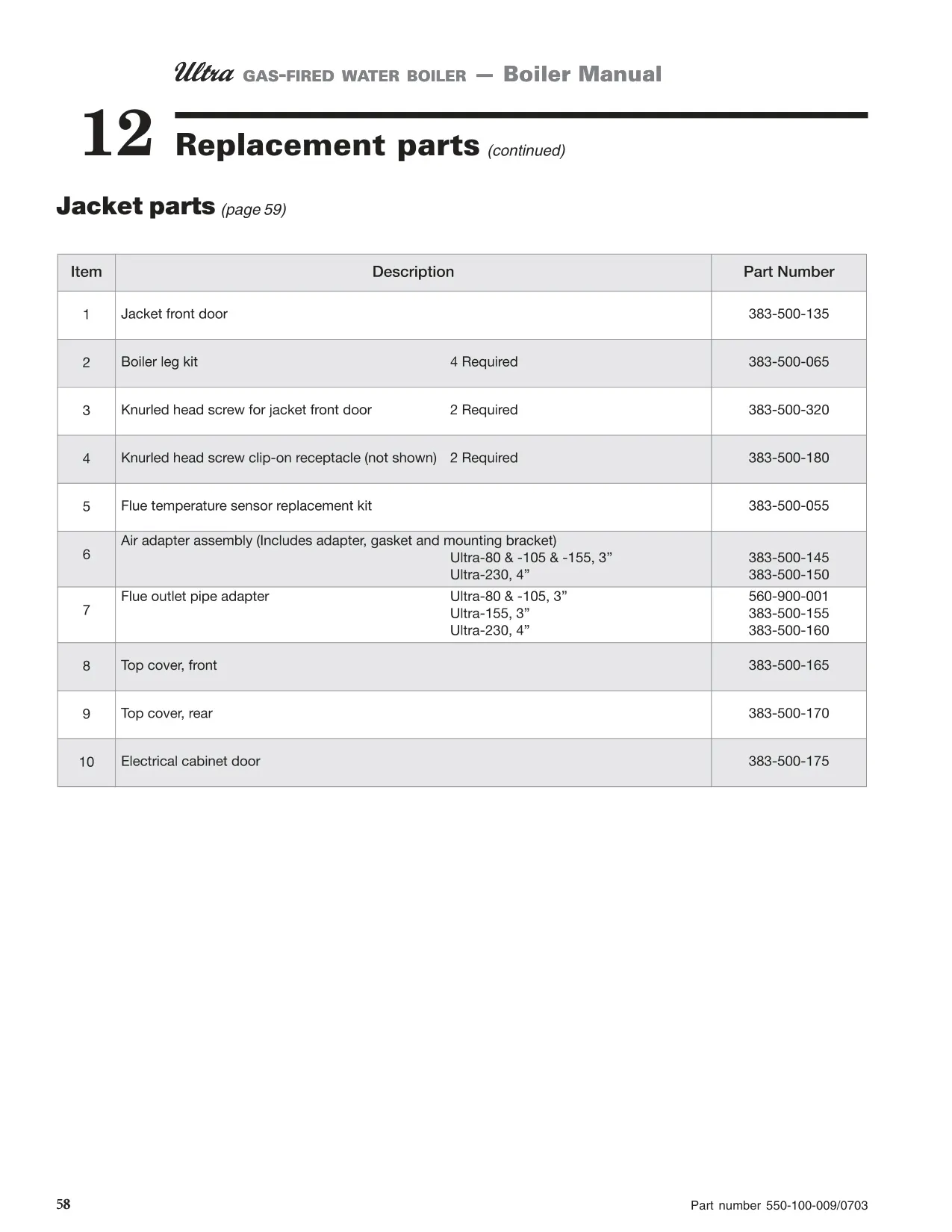

Weil-Mclain Ultra 310 Serie 1 Boiler Details

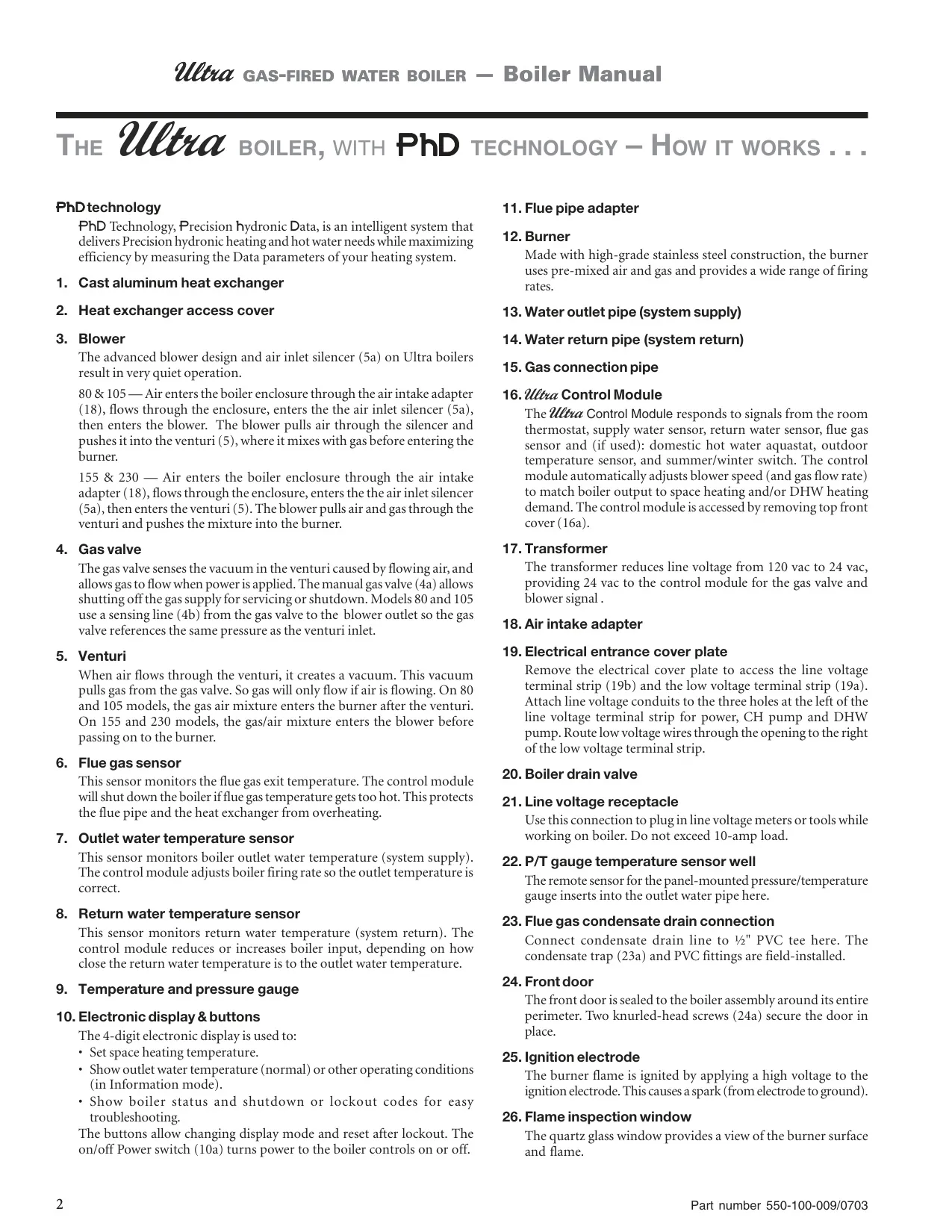

The Weil-Mclain Ultra 310 Serie 1 Boiler incorporates sophisticated PhD Technology (Precision hydronic Data). This intelligent system continuously measures heating system parameters to optimize hydronic heating and hot water delivery, thereby maximizing operational efficiency. It ensures precise temperature control and adaptable performance for diverse heating demands.

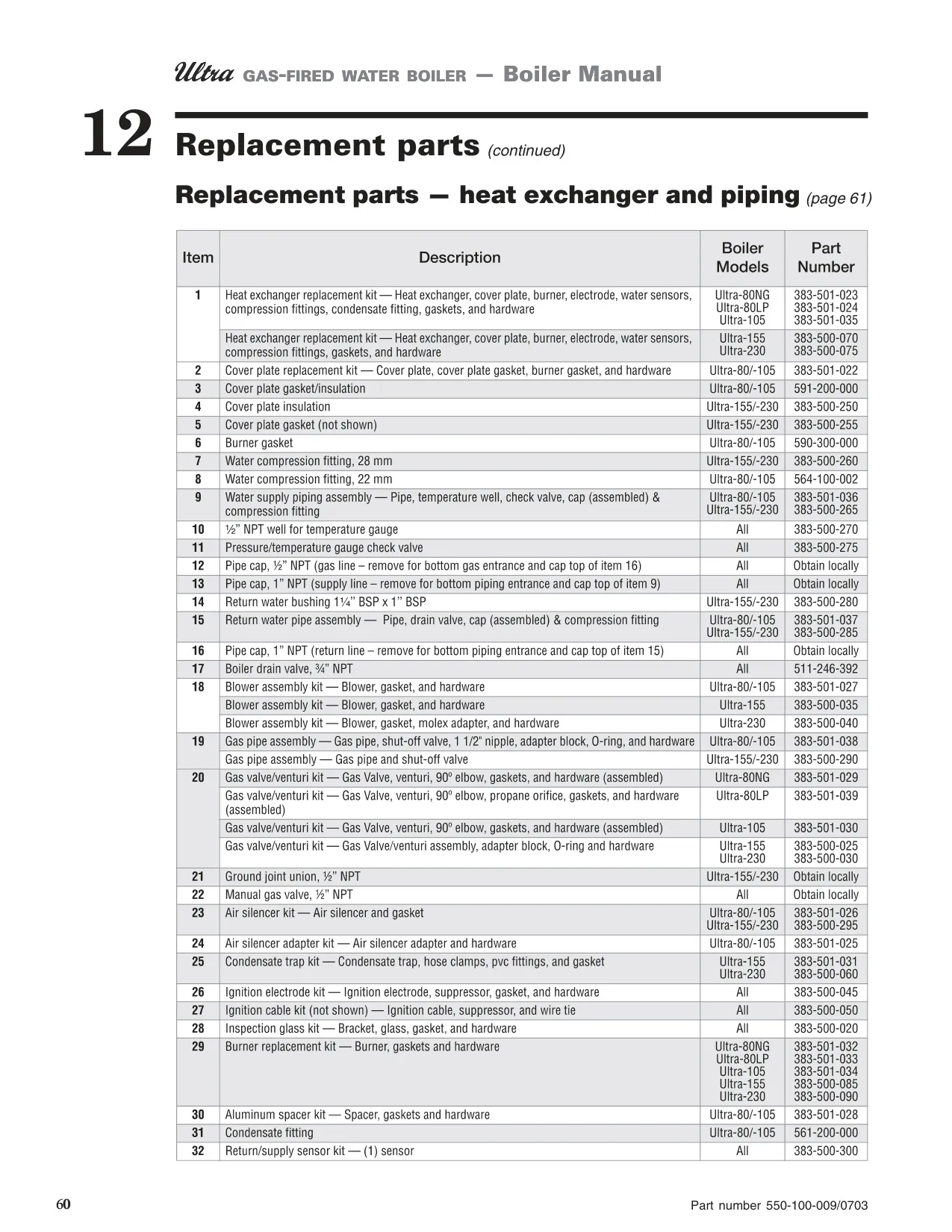

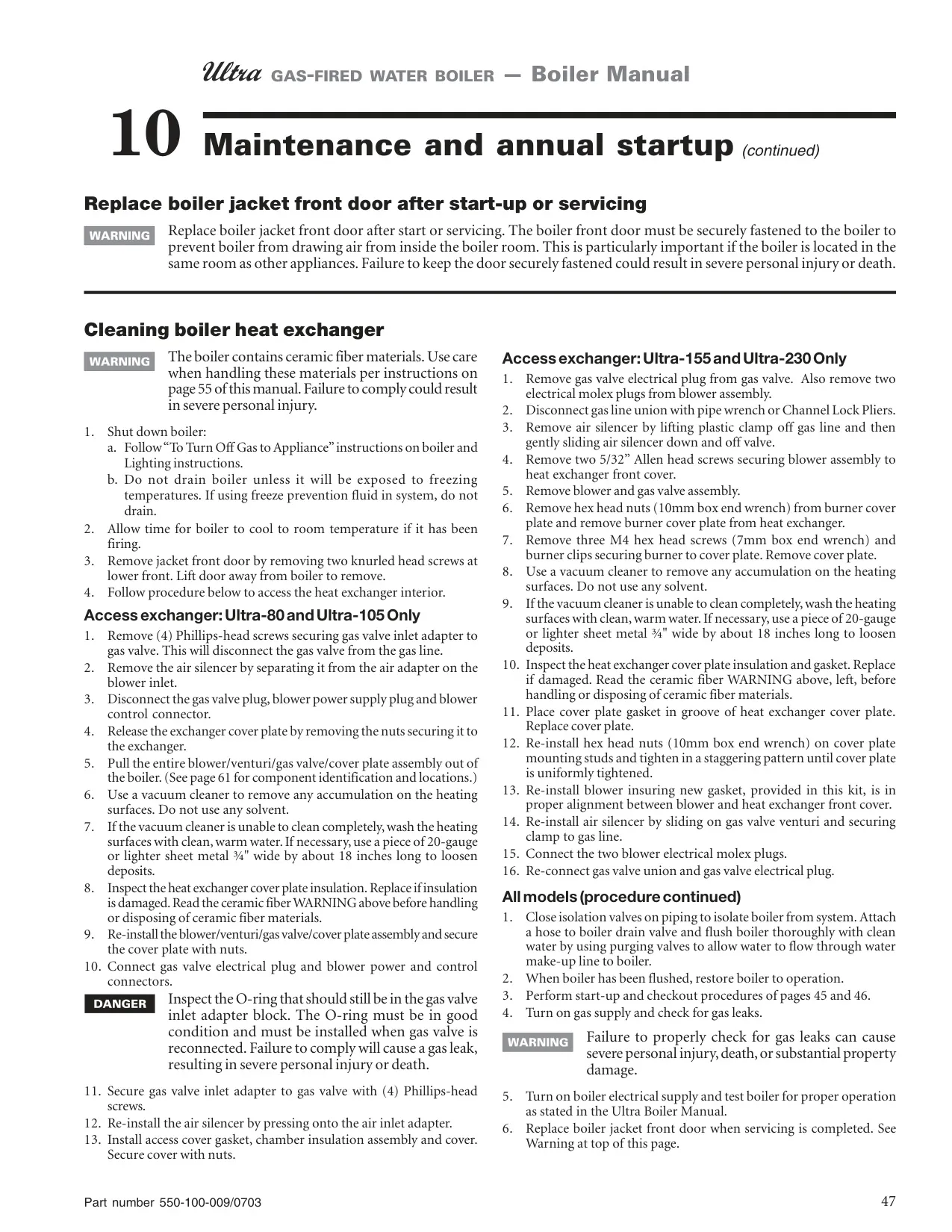

Key to its performance is the durable cast aluminum heat exchanger, designed for superior heat transfer and longevity. An advanced blower design, coupled with an air inlet silencer, contributes to the boiler's remarkably quiet operation, a significant advantage in residential or noise-sensitive environments.

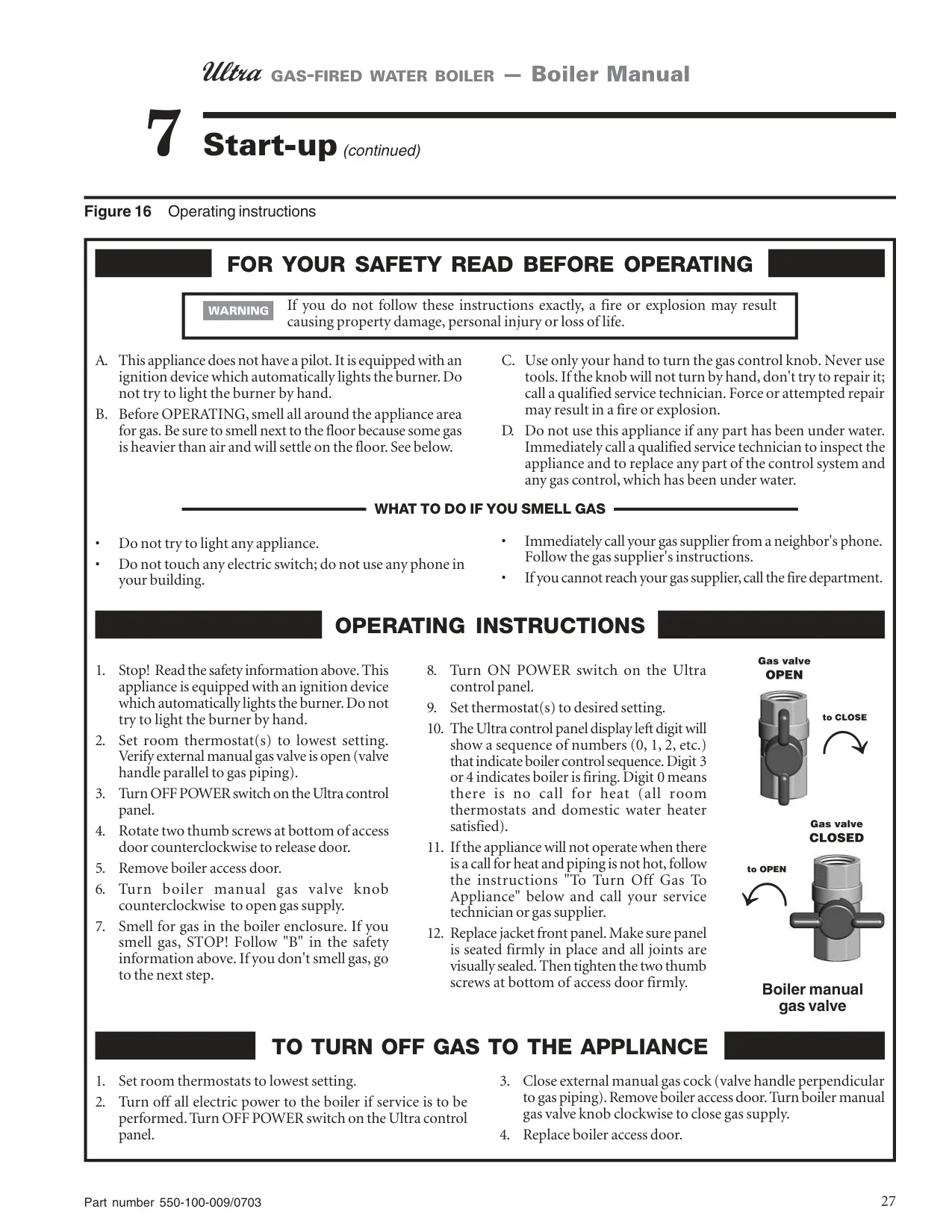

The boiler features a smart gas valve that precisely controls gas flow by sensing the vacuum created in the venturi by the moving air. The venturi itself is crucial for pre-mixing air and gas before combustion, ensuring an efficient and clean burn. This integrated system allows for fine-tuned fuel delivery.
Temperature monitoring is extensive, with sensors for flue gas exit temperature, boiler outlet water, and return water. The flue gas sensor protects against overheating, while the water sensors allow the control module to constantly adjust the boiler's firing rate to meet demand and maintain target temperatures, optimizing comfort and energy use.

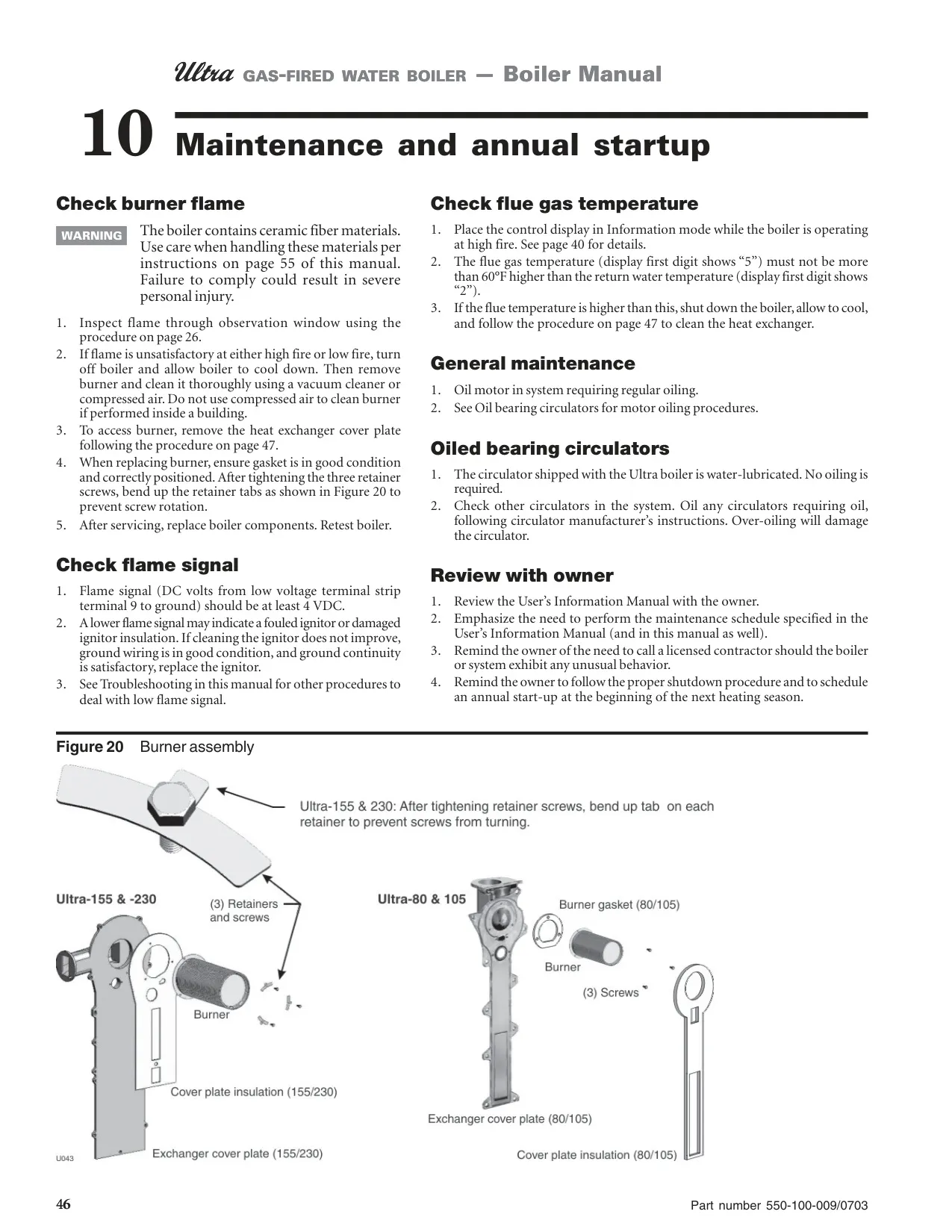

A high-grade stainless steel burner is employed, utilizing a pre-mixed air and gas combustion process. This design provides a wide range of firing rates, enabling the boiler to modulate its output from low fire to high fire to precisely match the heating load, leading to reduced fuel consumption and extended component life.

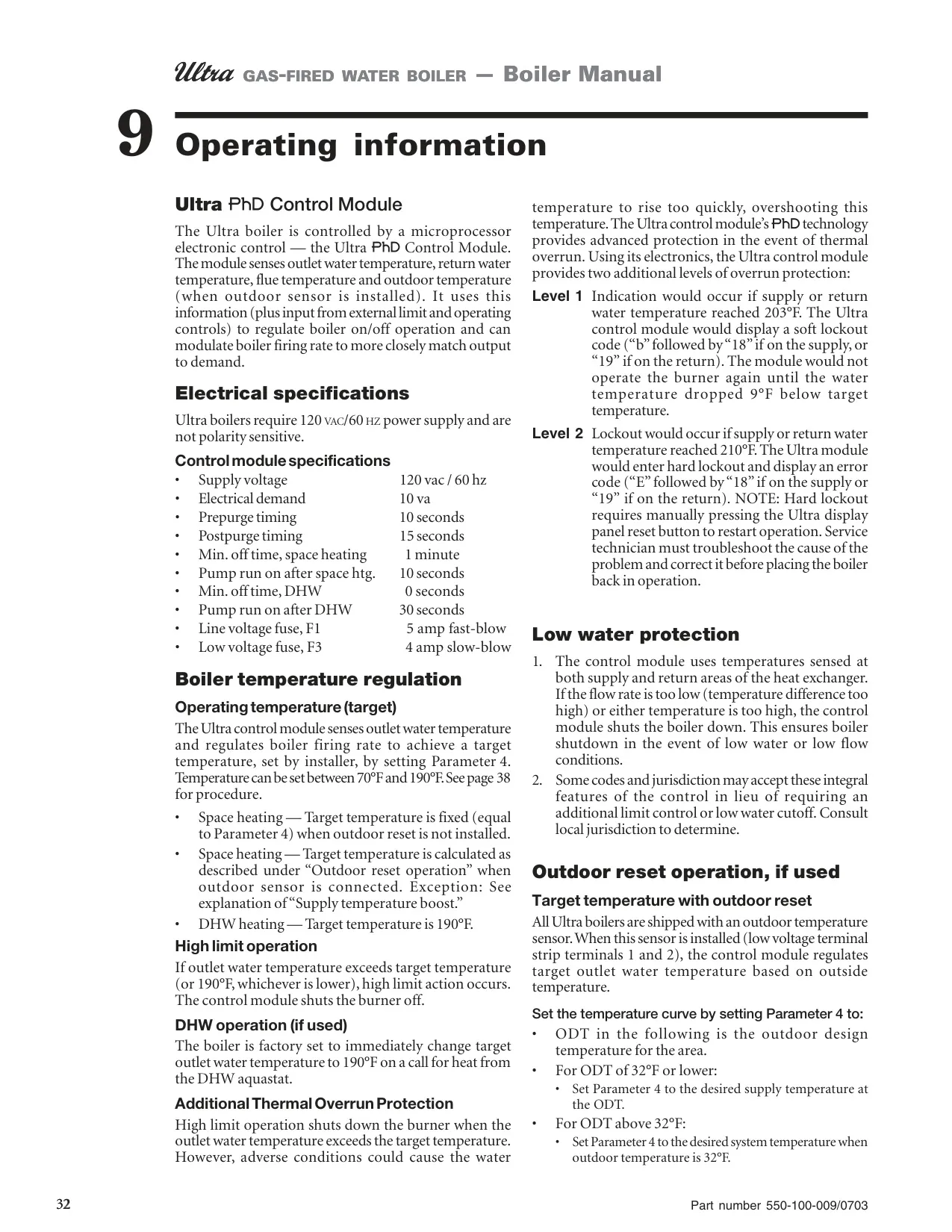

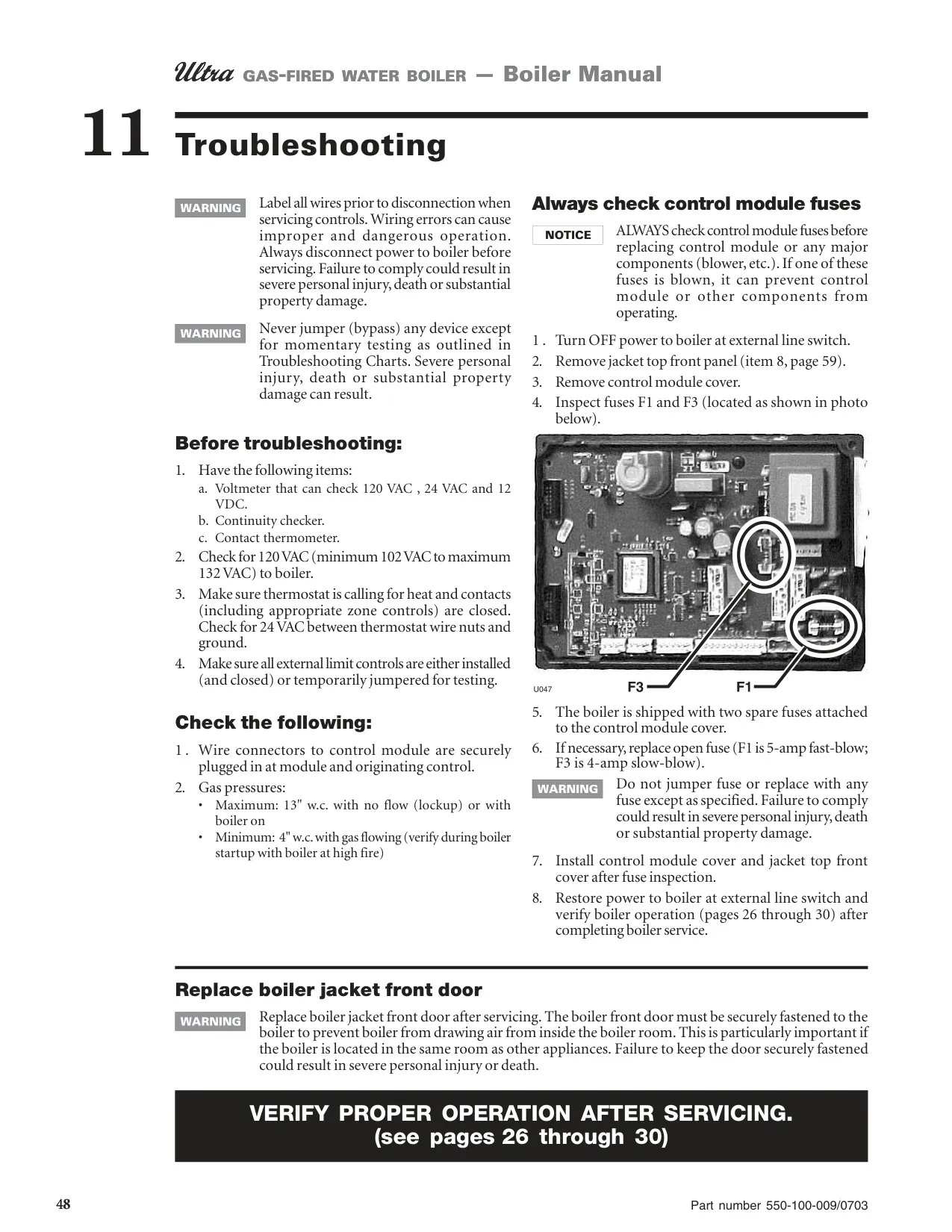

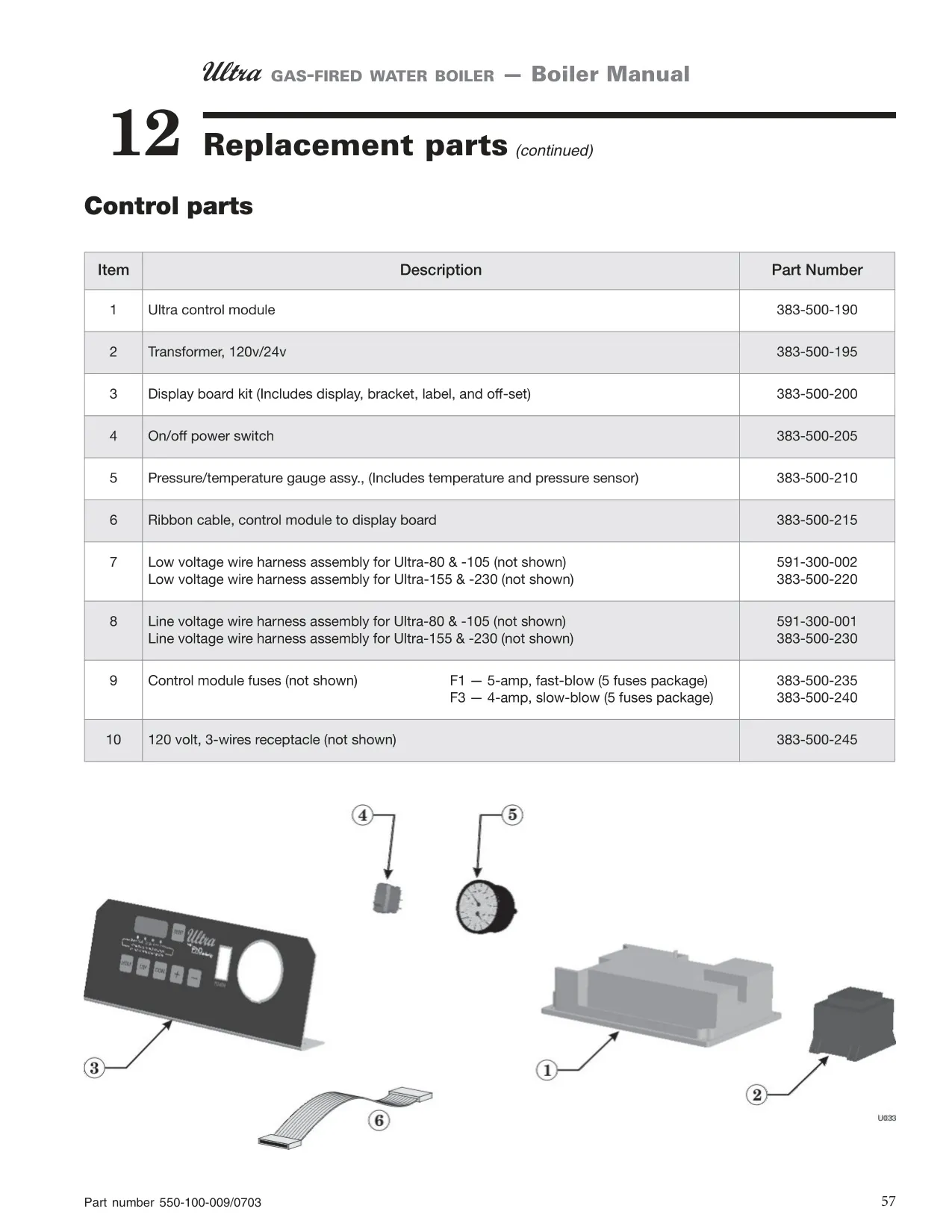

The advanced Control Module acts as the central brain, processing signals from room thermostats, water sensors, and optional outdoor temperature sensors. It intelligently adjusts blower speed and gas flow to match space heating and Domestic Hot Water (DHW) demands. This microprocessor-based control facilitates modulated operation and comprehensive system management.

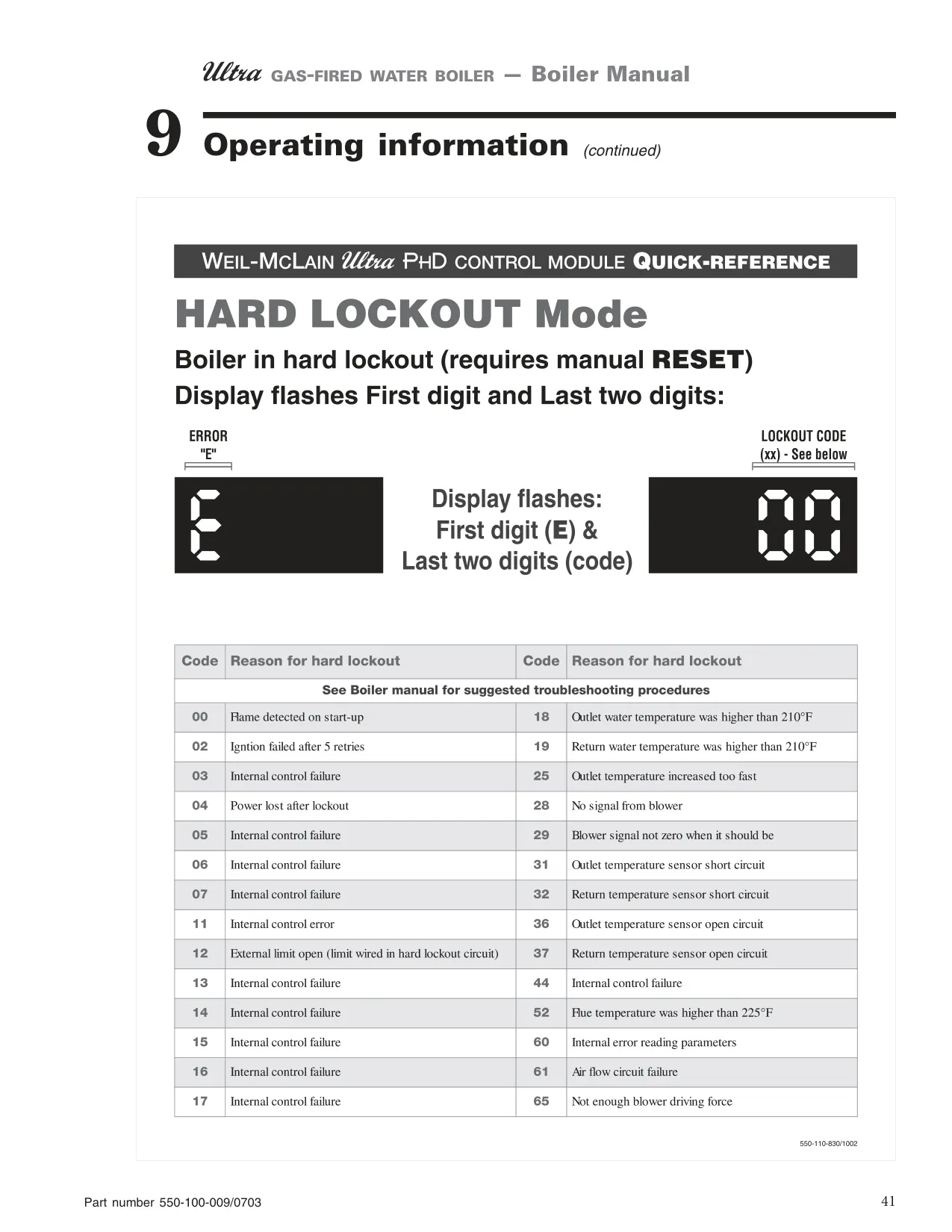

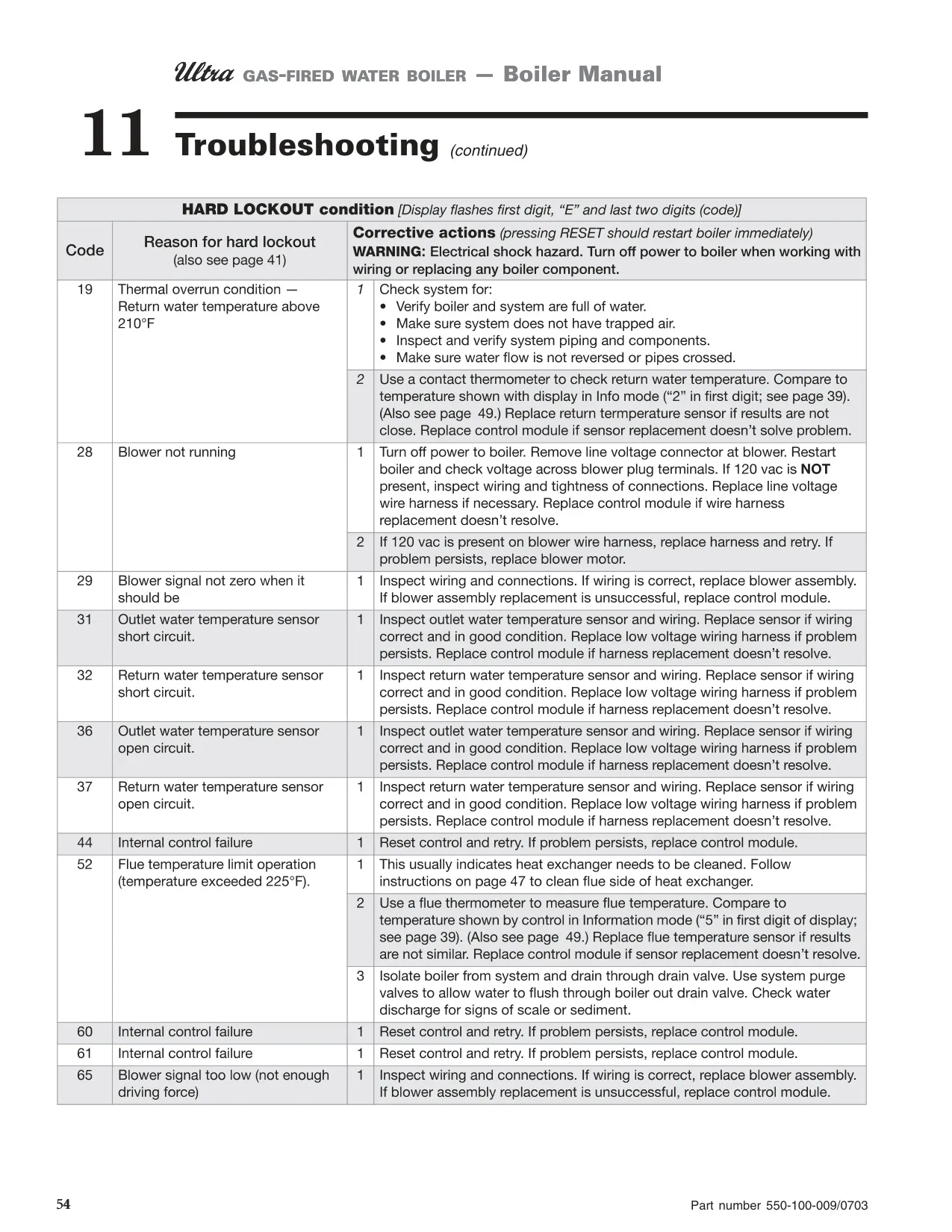

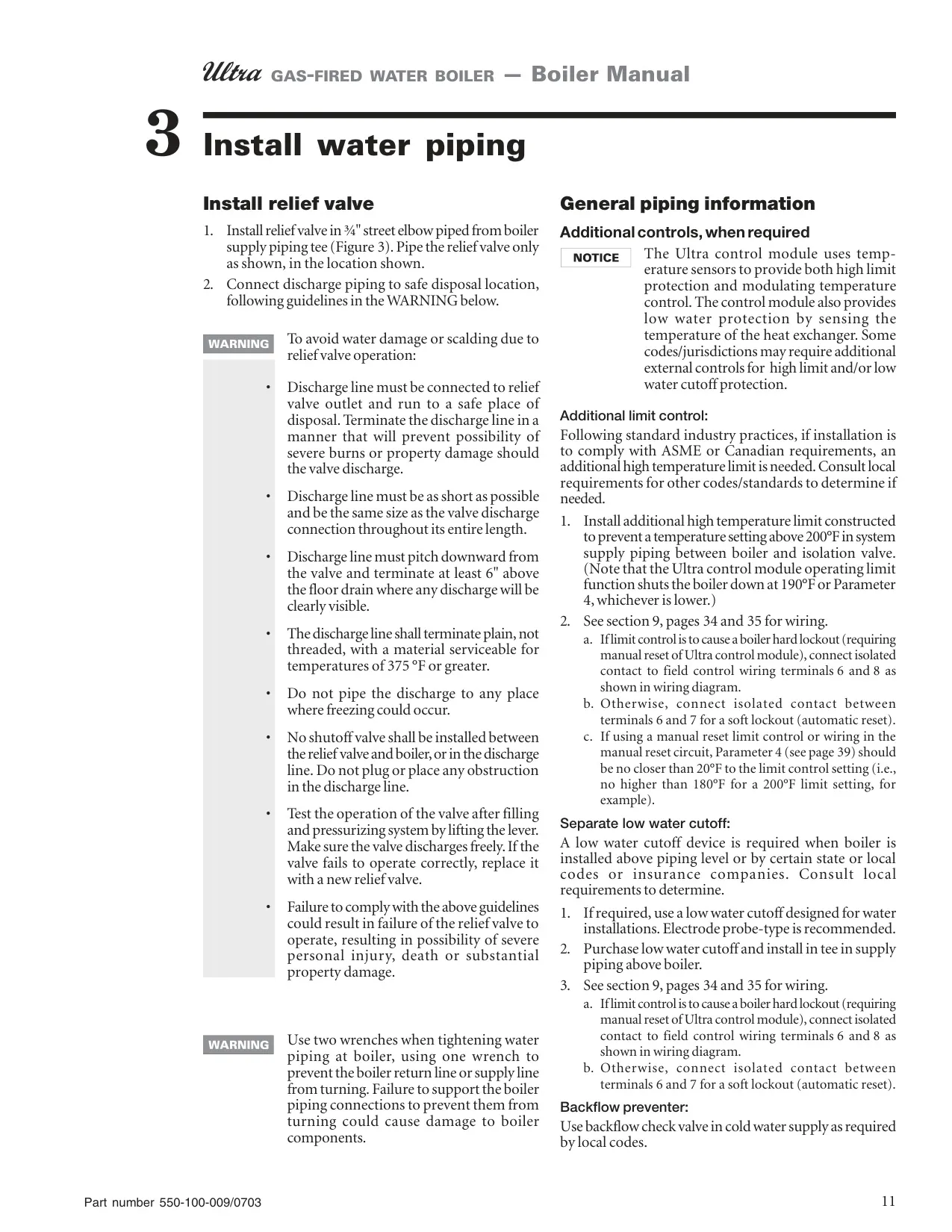

For enhanced safety and control, the Ultra 310 includes multiple protection mechanisms. It offers integral low water protection by monitoring heat exchanger temperatures, shutting down if flow rates are too low or temperatures too high. Additionally, two levels of thermal overrun protection prevent excessive water temperatures, ranging from soft lockouts to hard lockouts requiring manual resets.

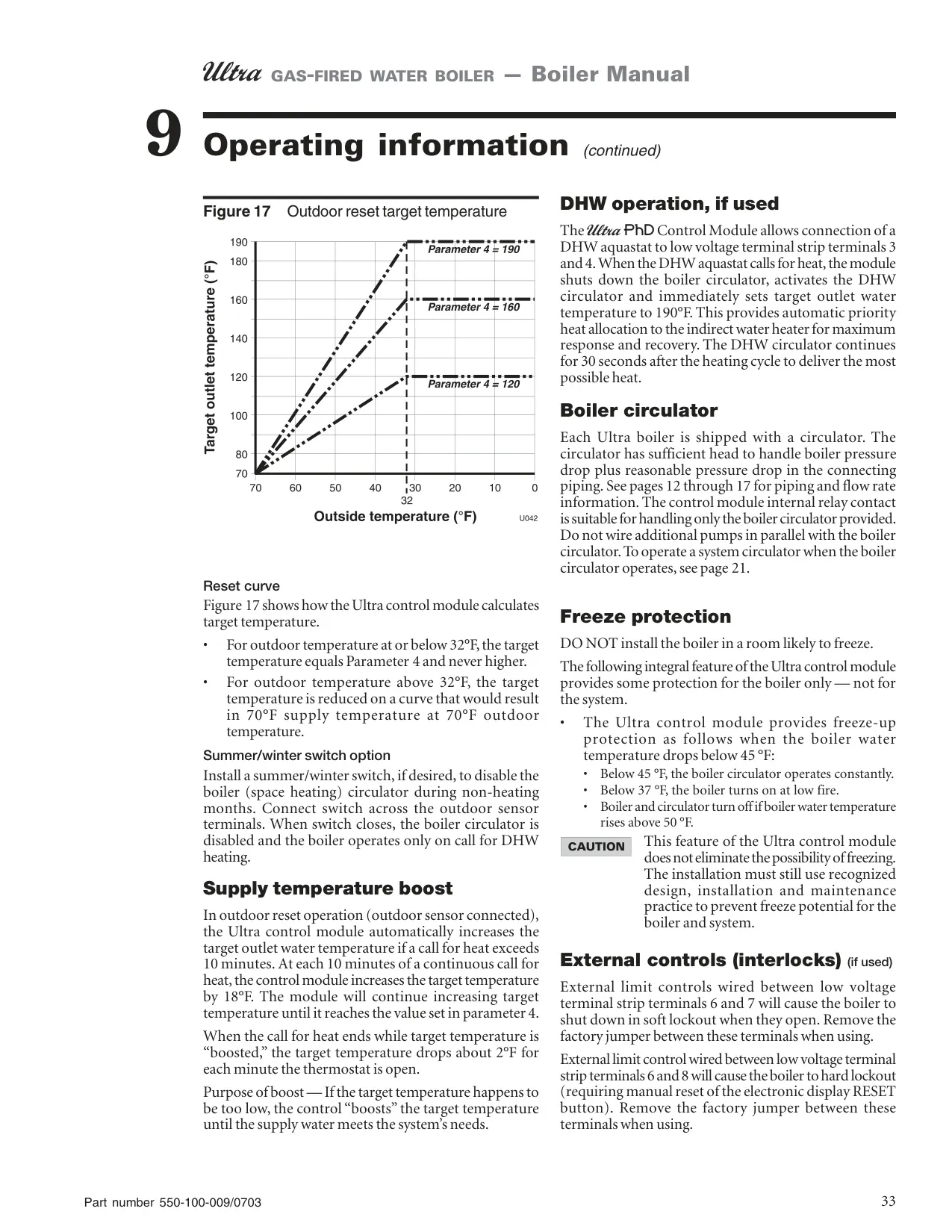

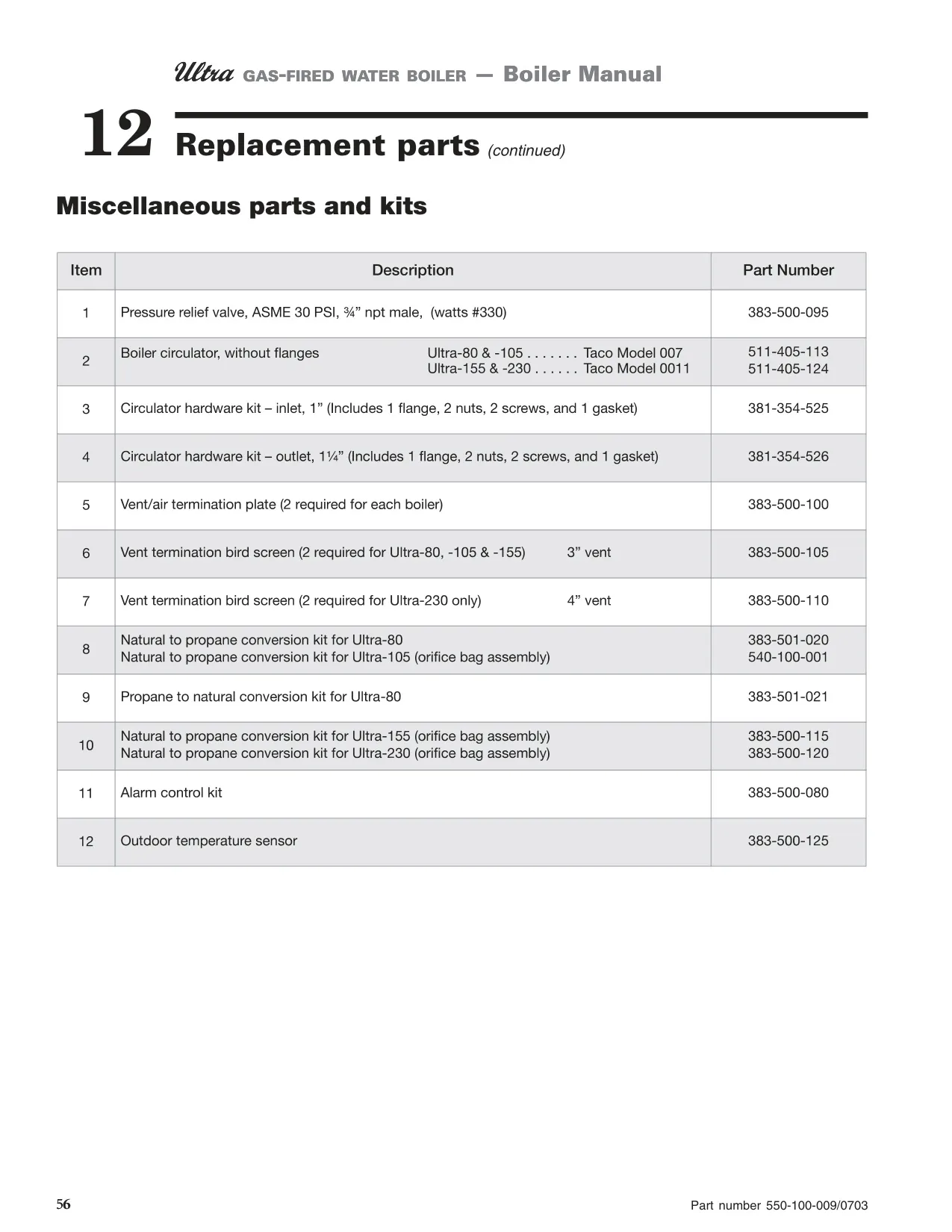

The boiler is equipped for outdoor reset operation, a feature that automatically adjusts the target supply water temperature based on ambient outdoor conditions, further increasing efficiency. A "supply temperature boost" mechanism can temporarily increase the target temperature during prolonged heat calls, ensuring comfort even when the initial reset curve might be too conservative.

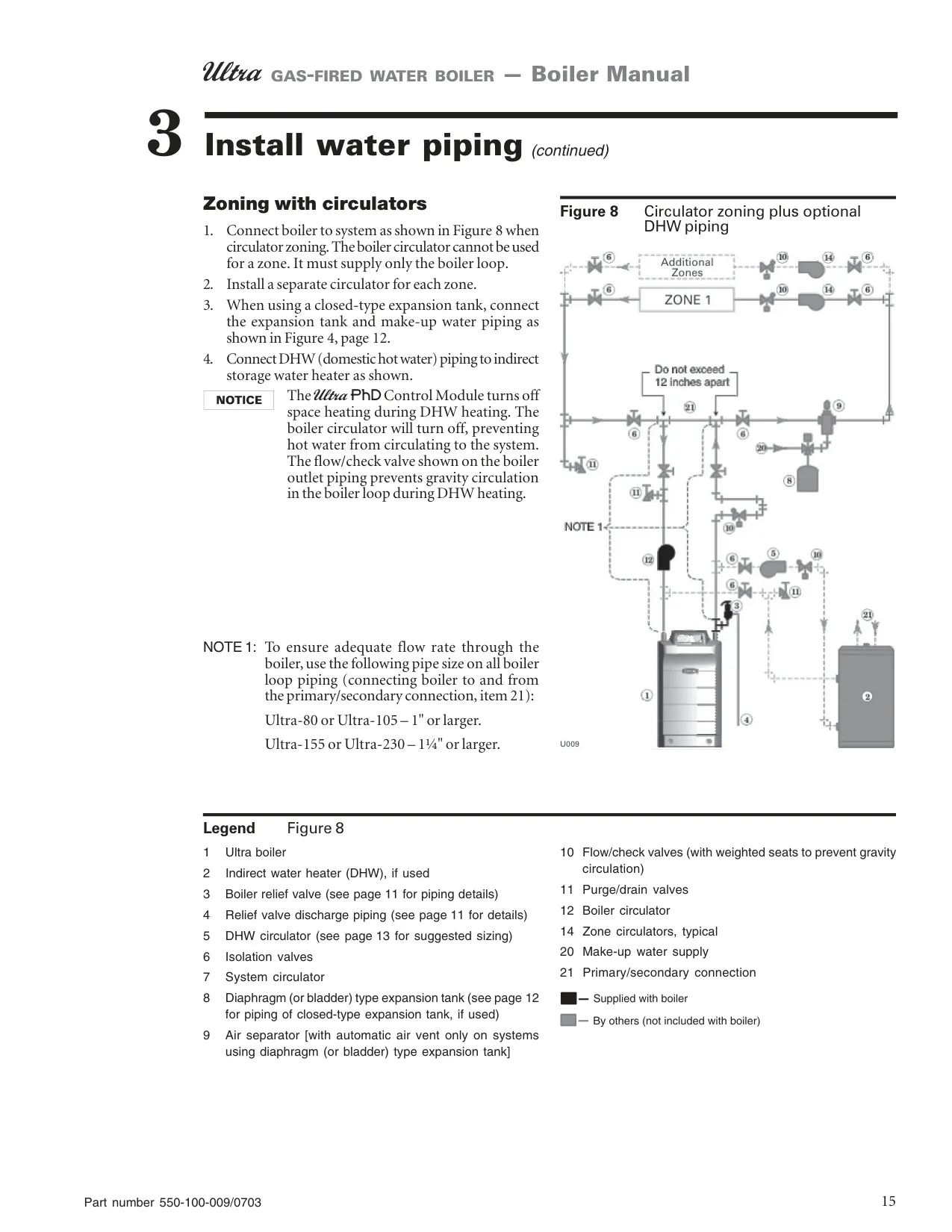

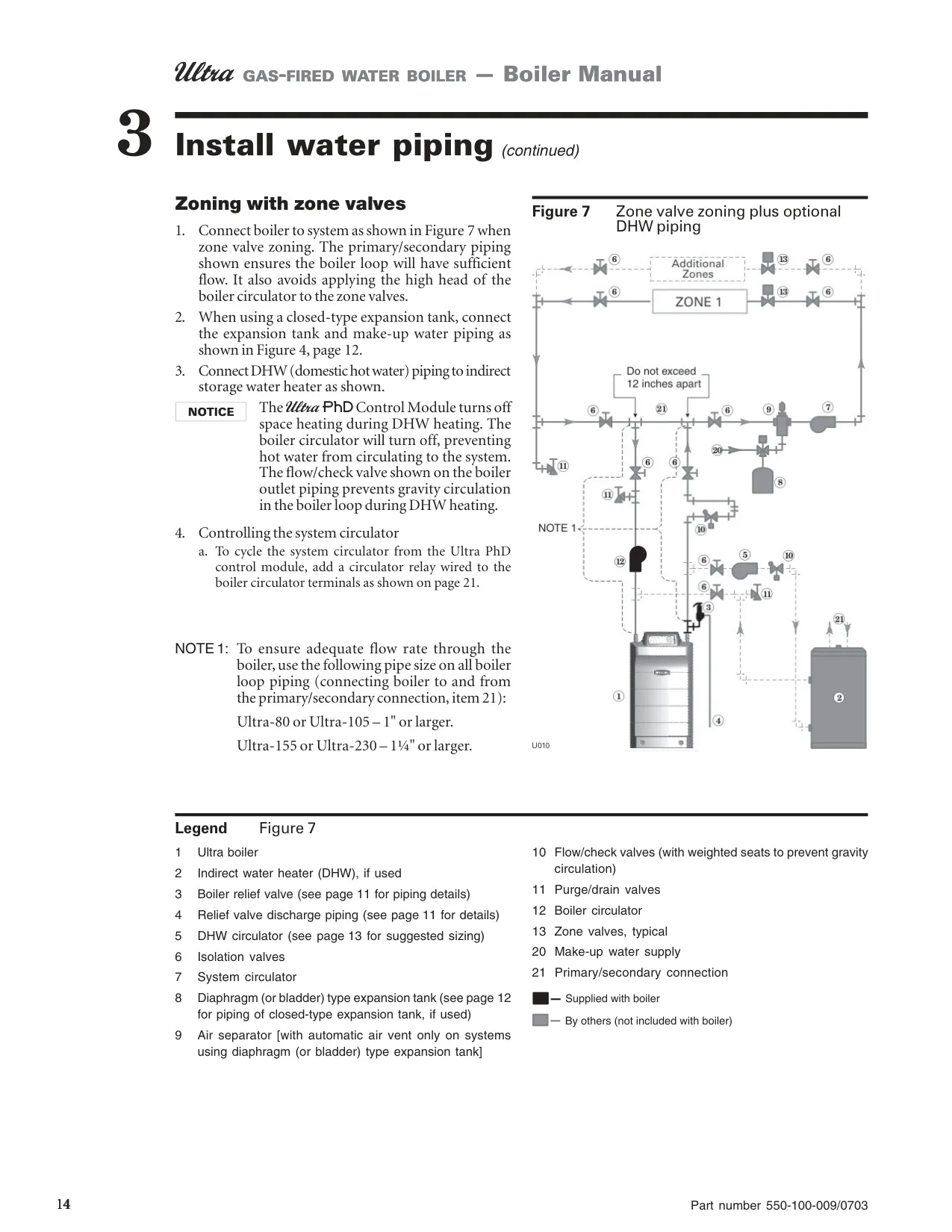

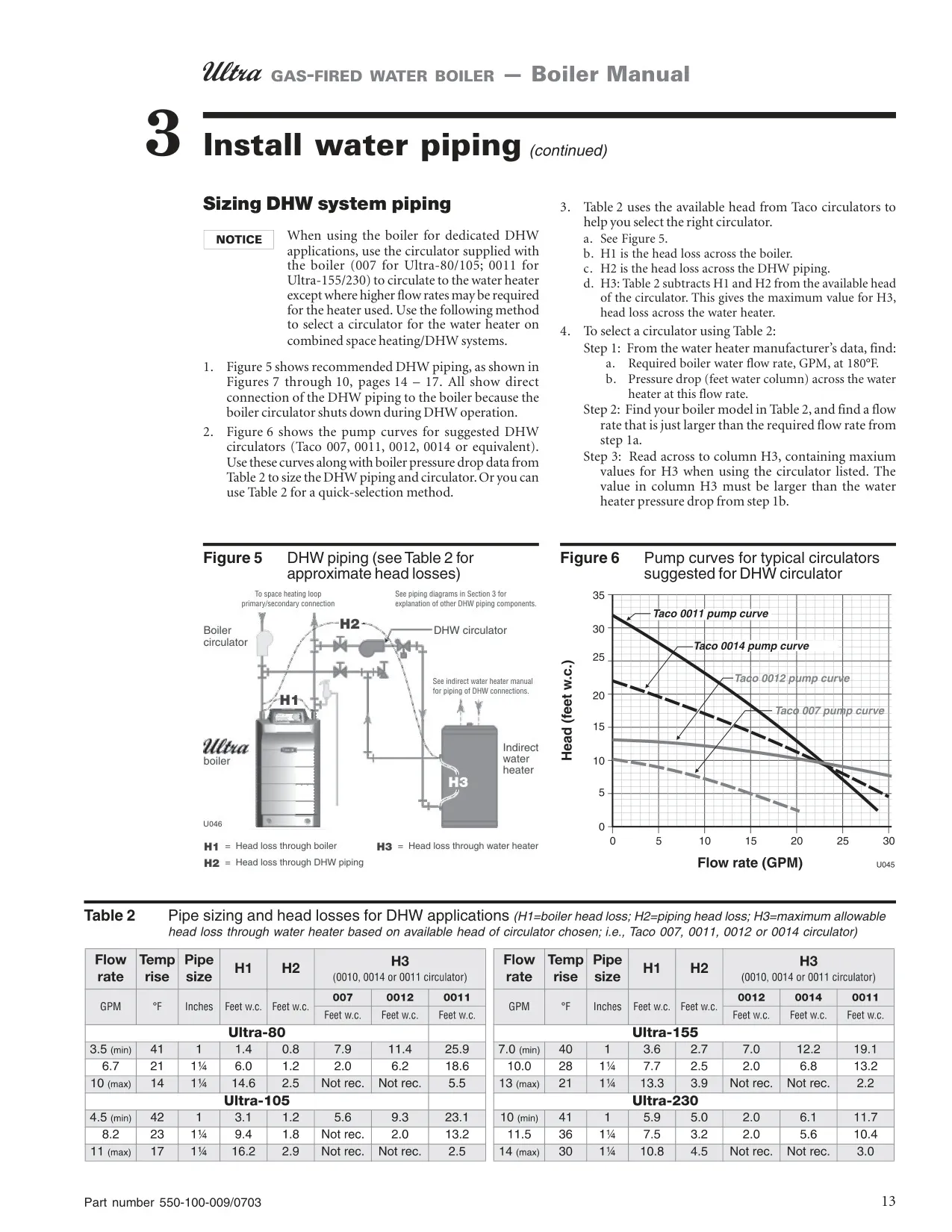

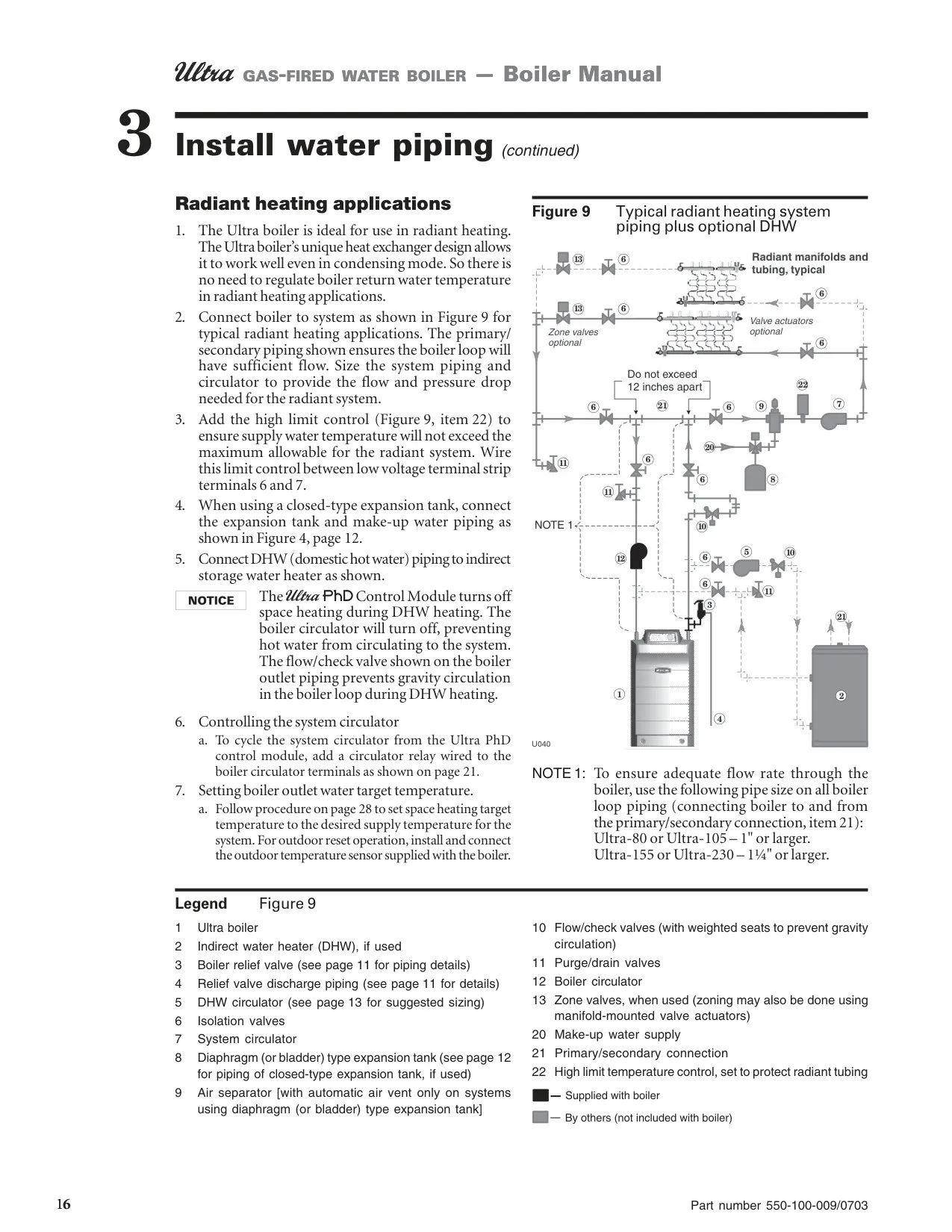

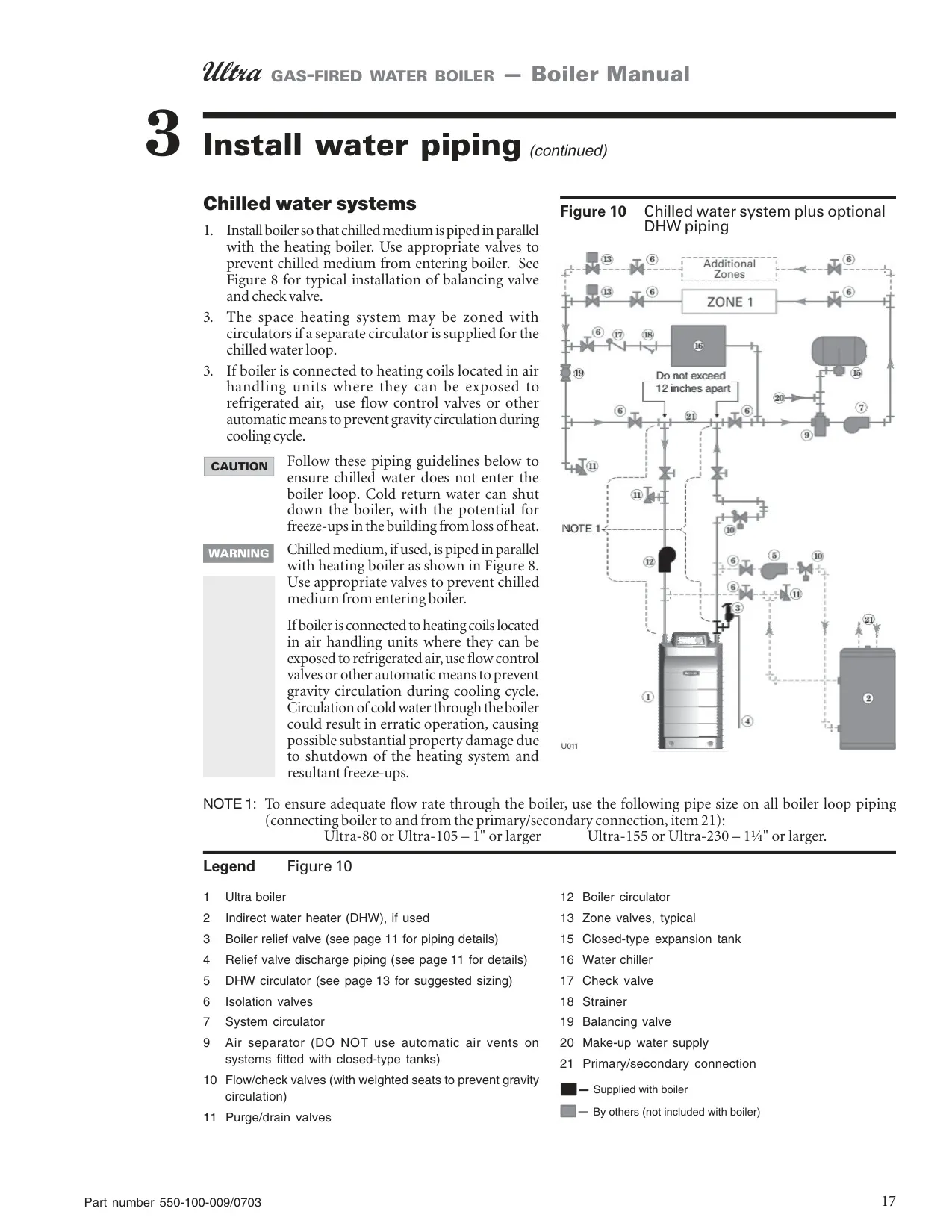

The system prioritizes DHW heating. Upon a call from the DHW aquastat, the control module immediately switches the target outlet water temperature to 190°F and activates the DHW circulator, temporarily suspending space heating. This ensures rapid recovery for domestic hot water.

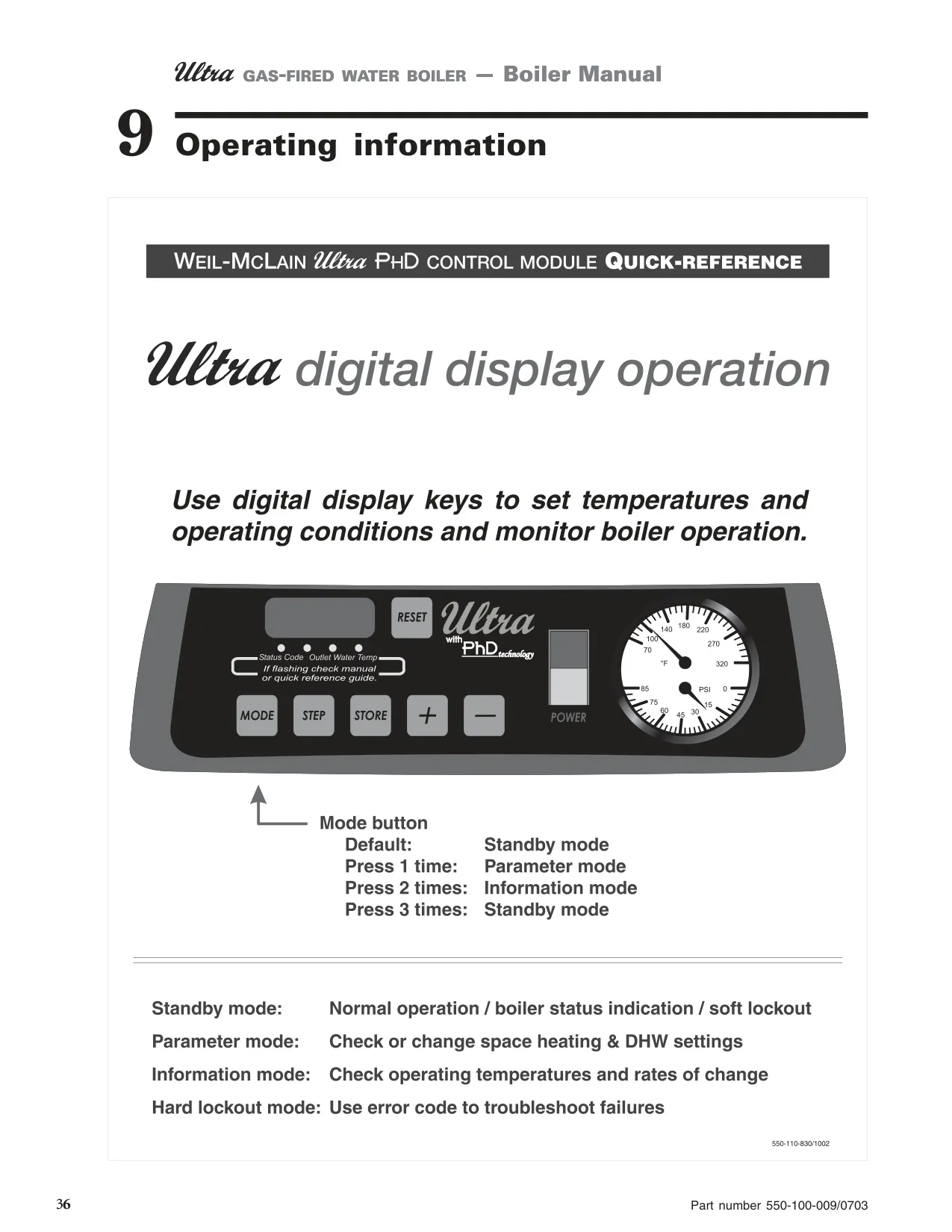

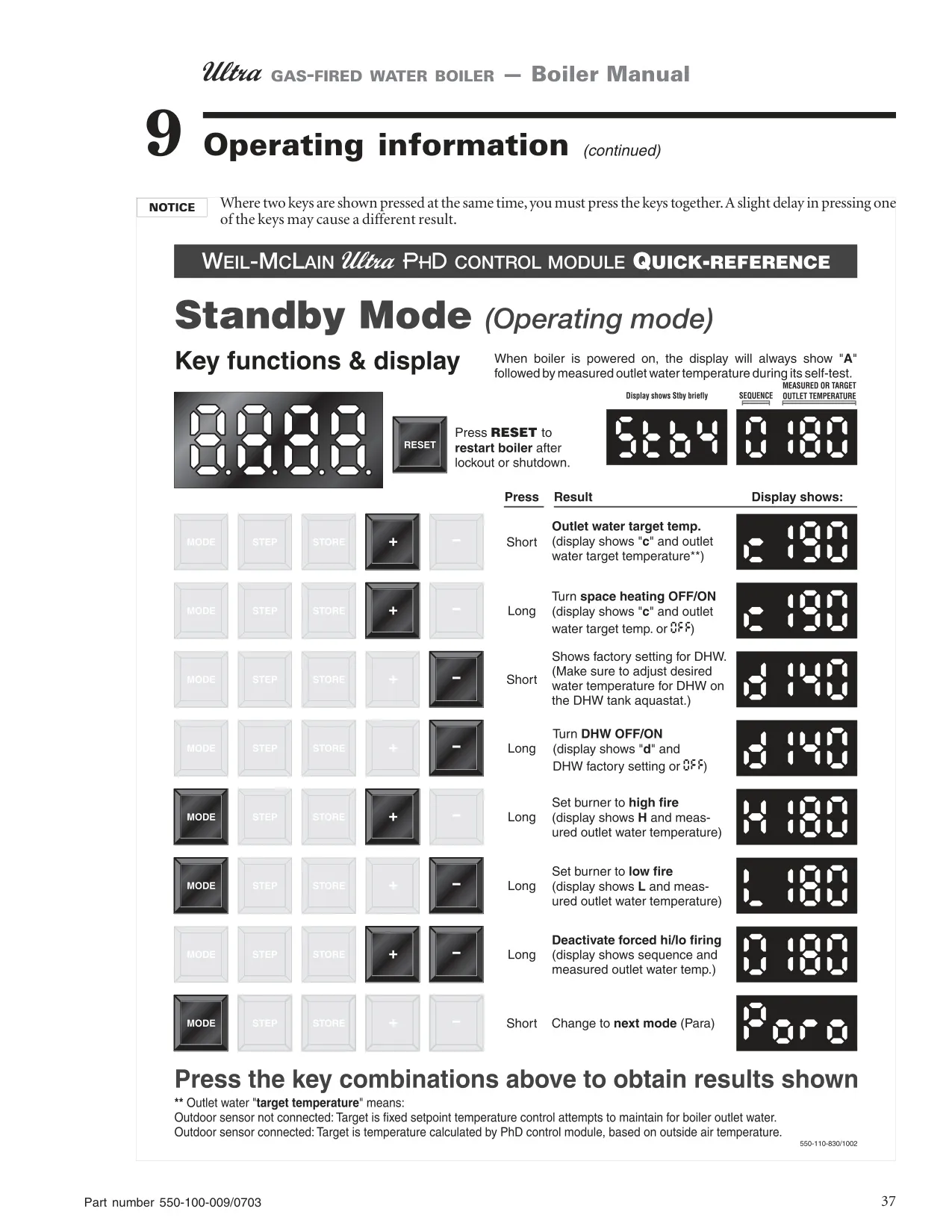

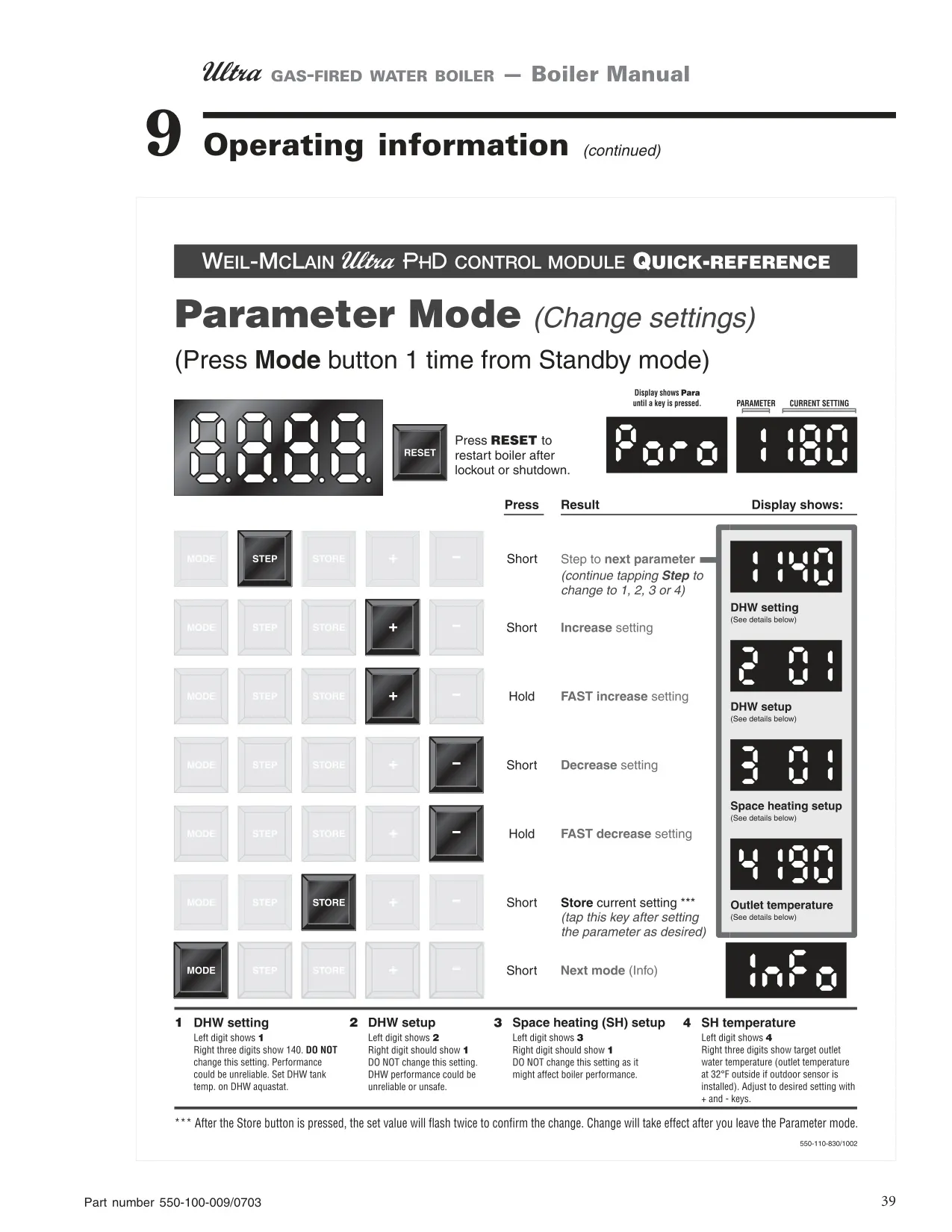

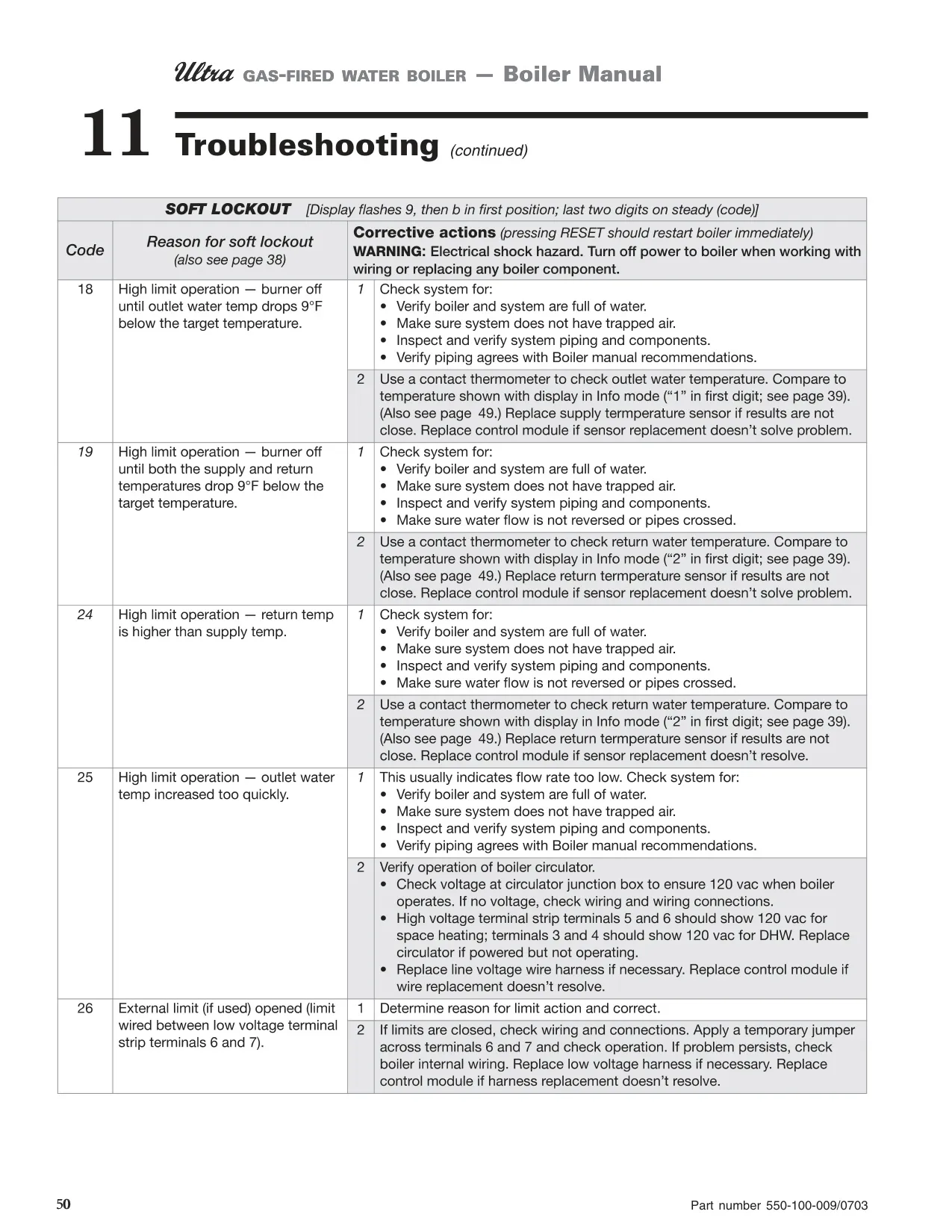

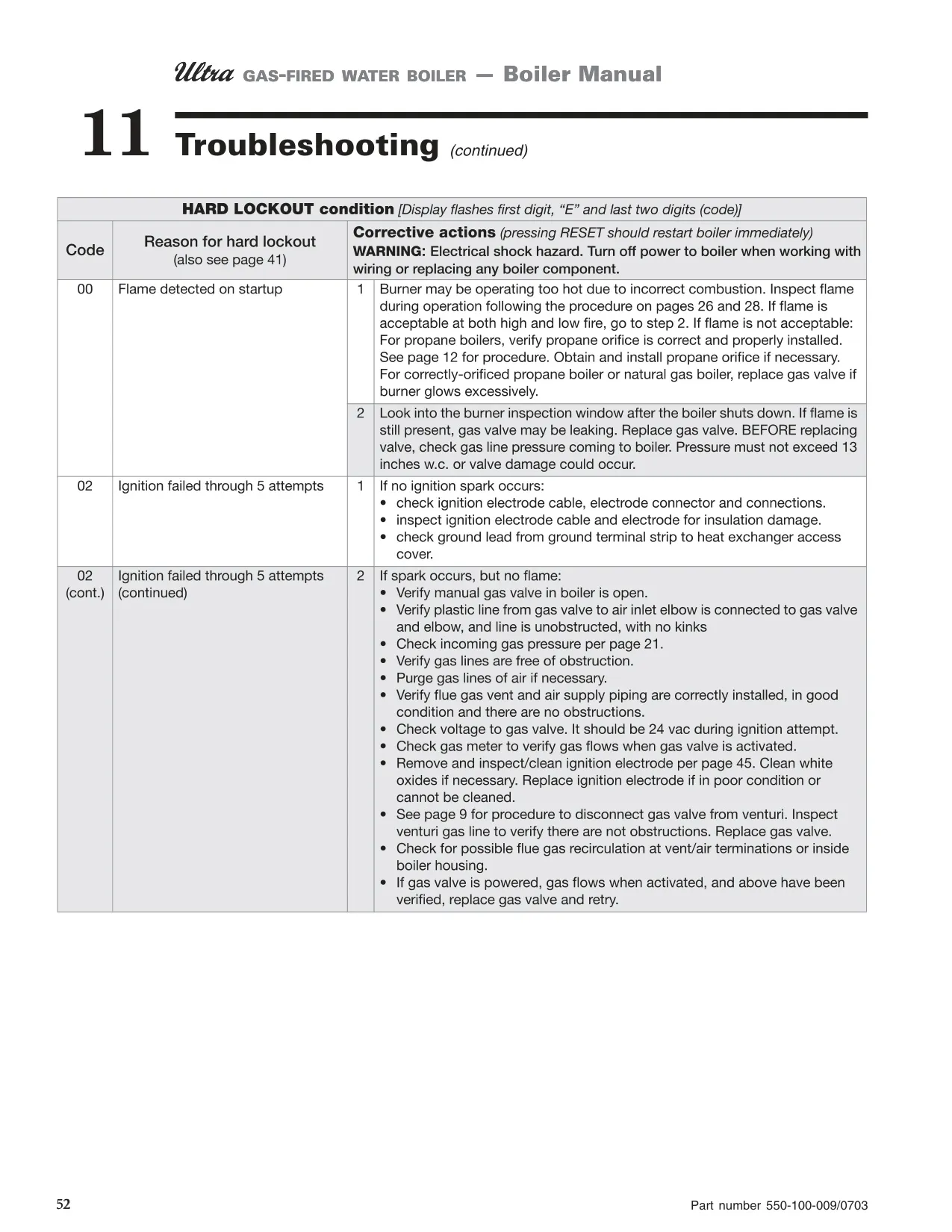

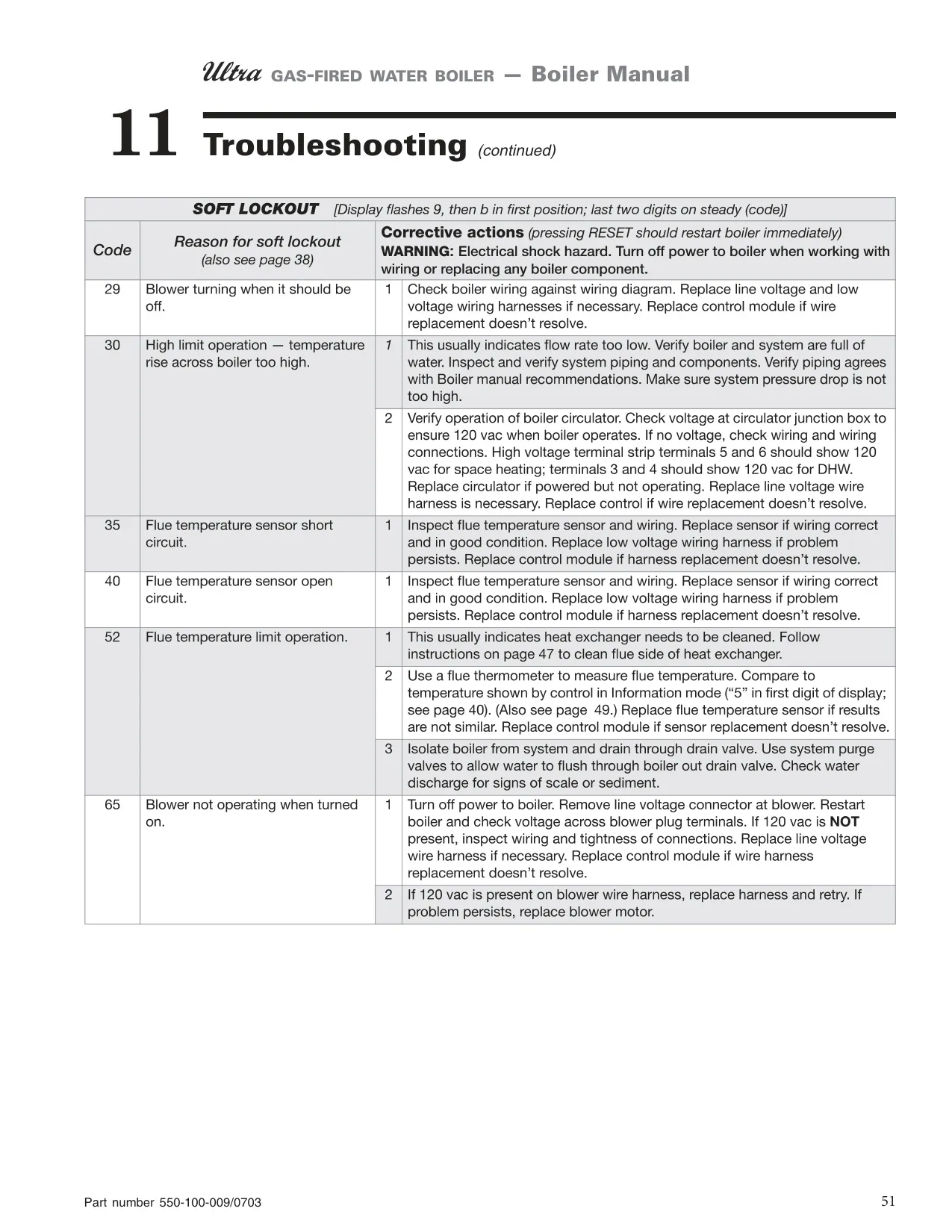

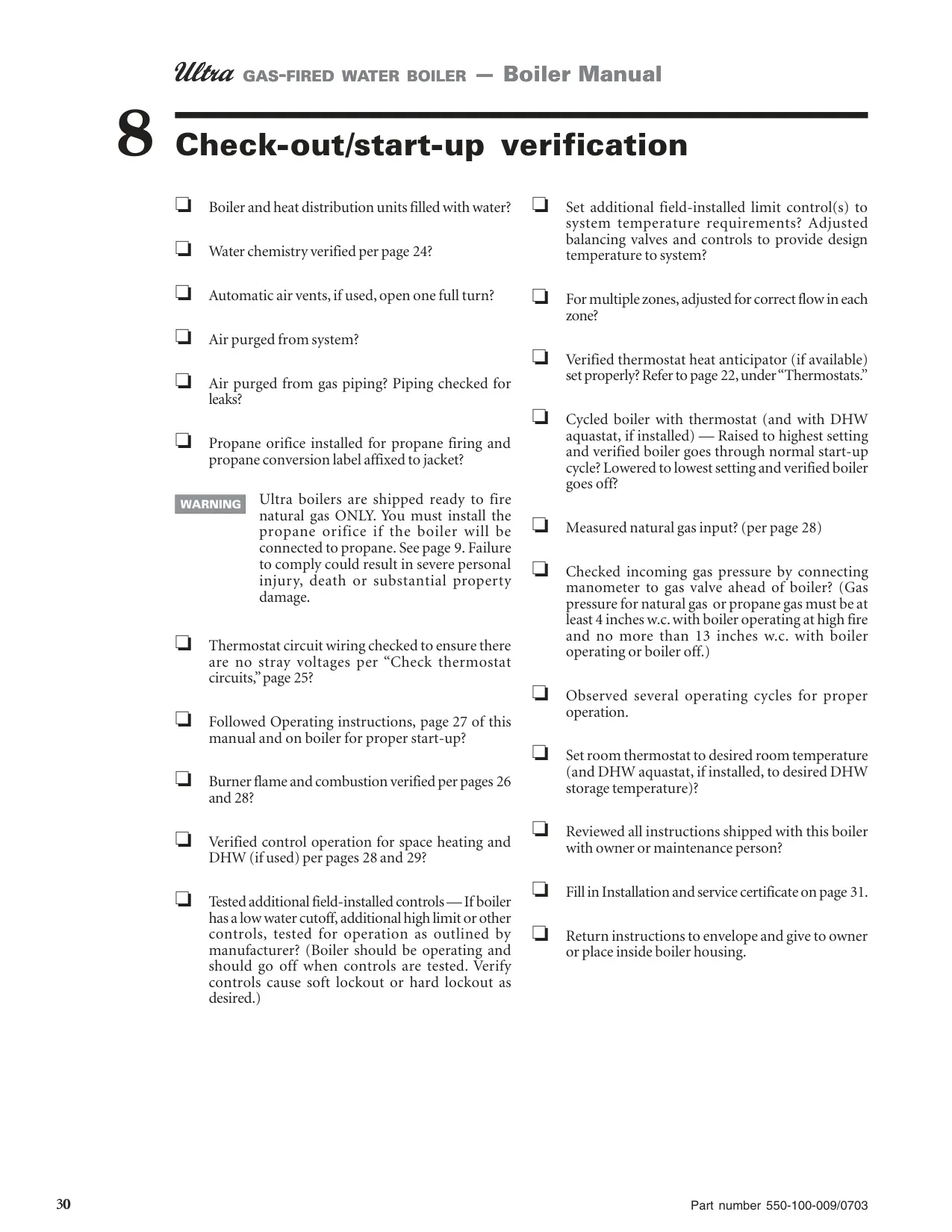

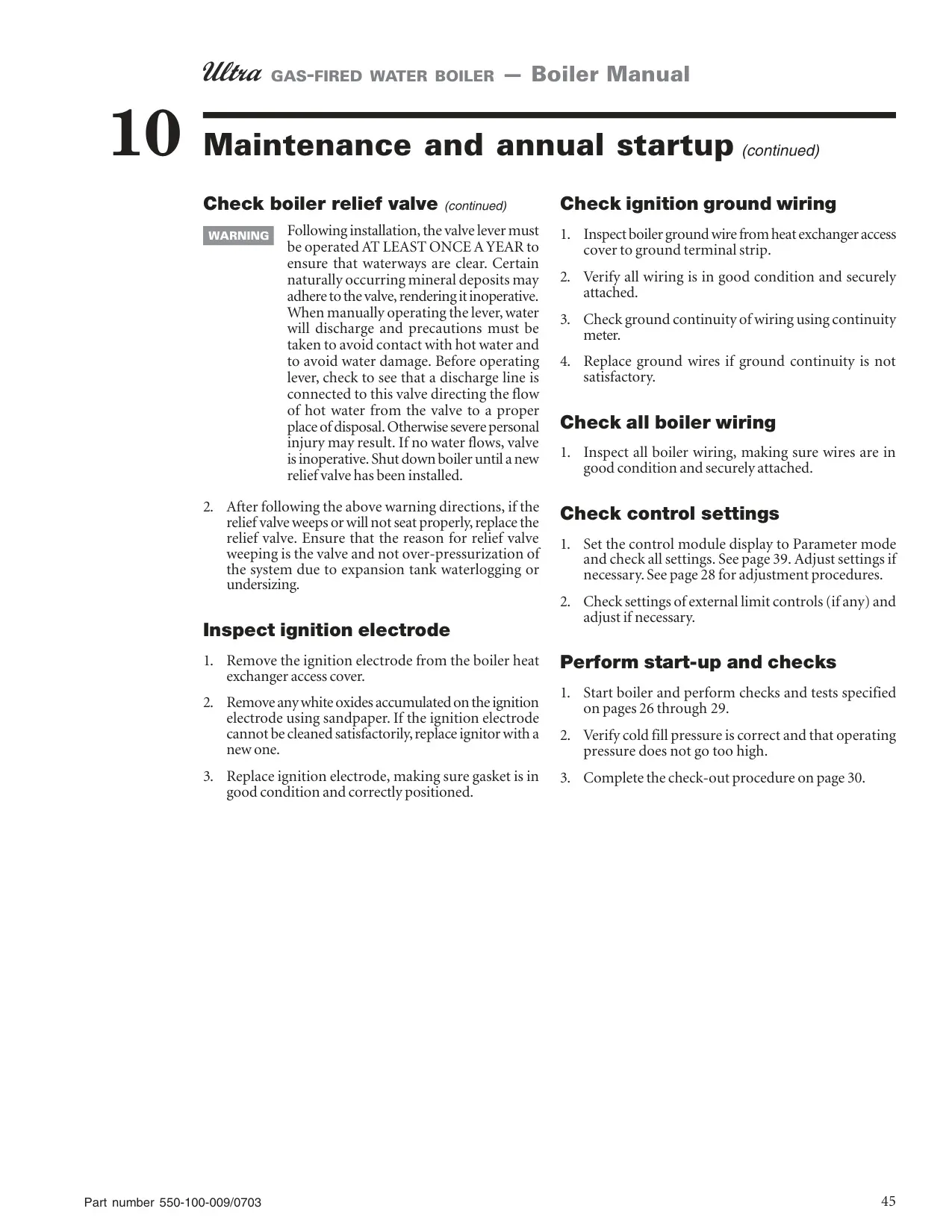

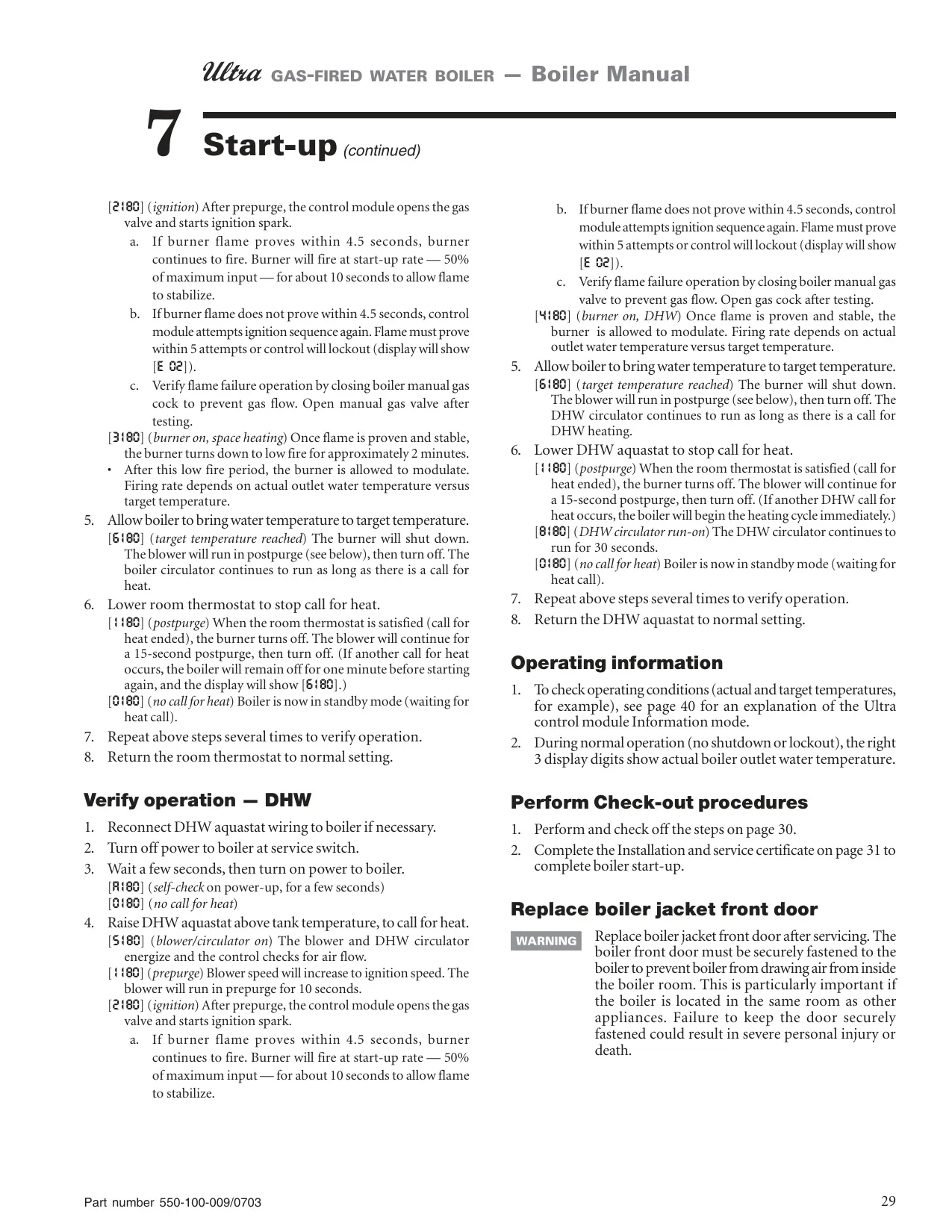

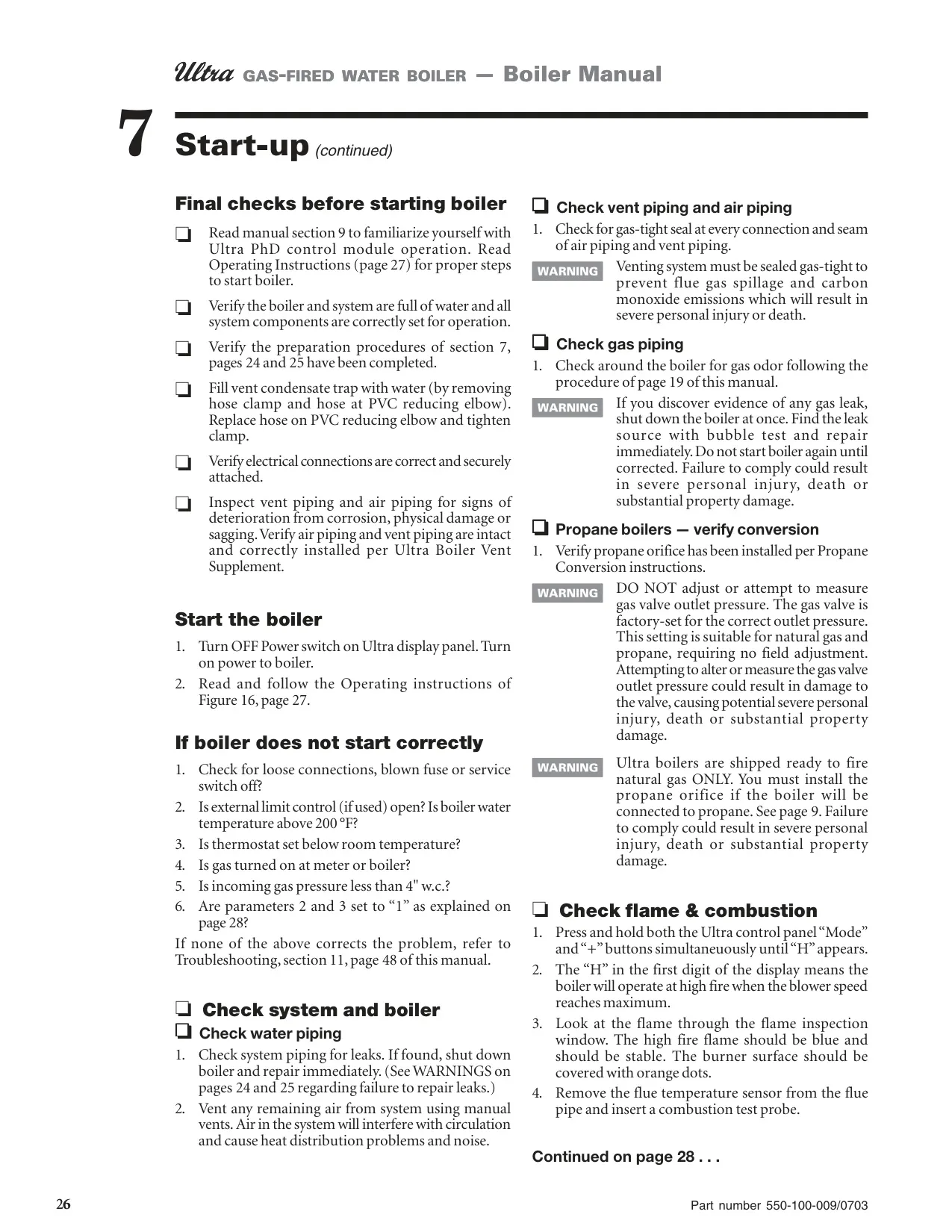

For installer convenience, the boiler includes an intuitive 4-digit electronic display and buttons for setting temperatures, showing operational status, and displaying troubleshooting codes. This simplifies setup, diagnostics, and routine adjustments, reducing service time.

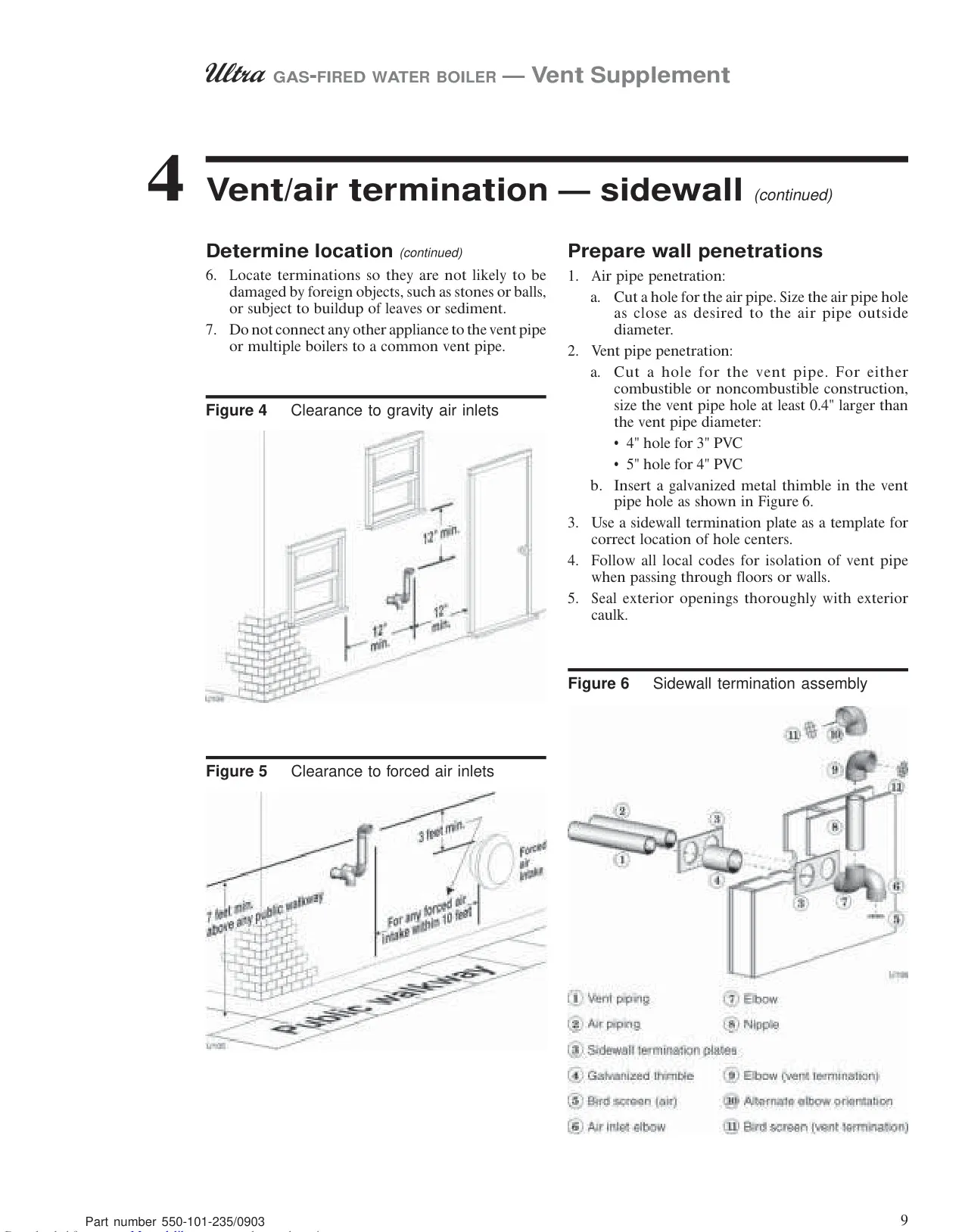

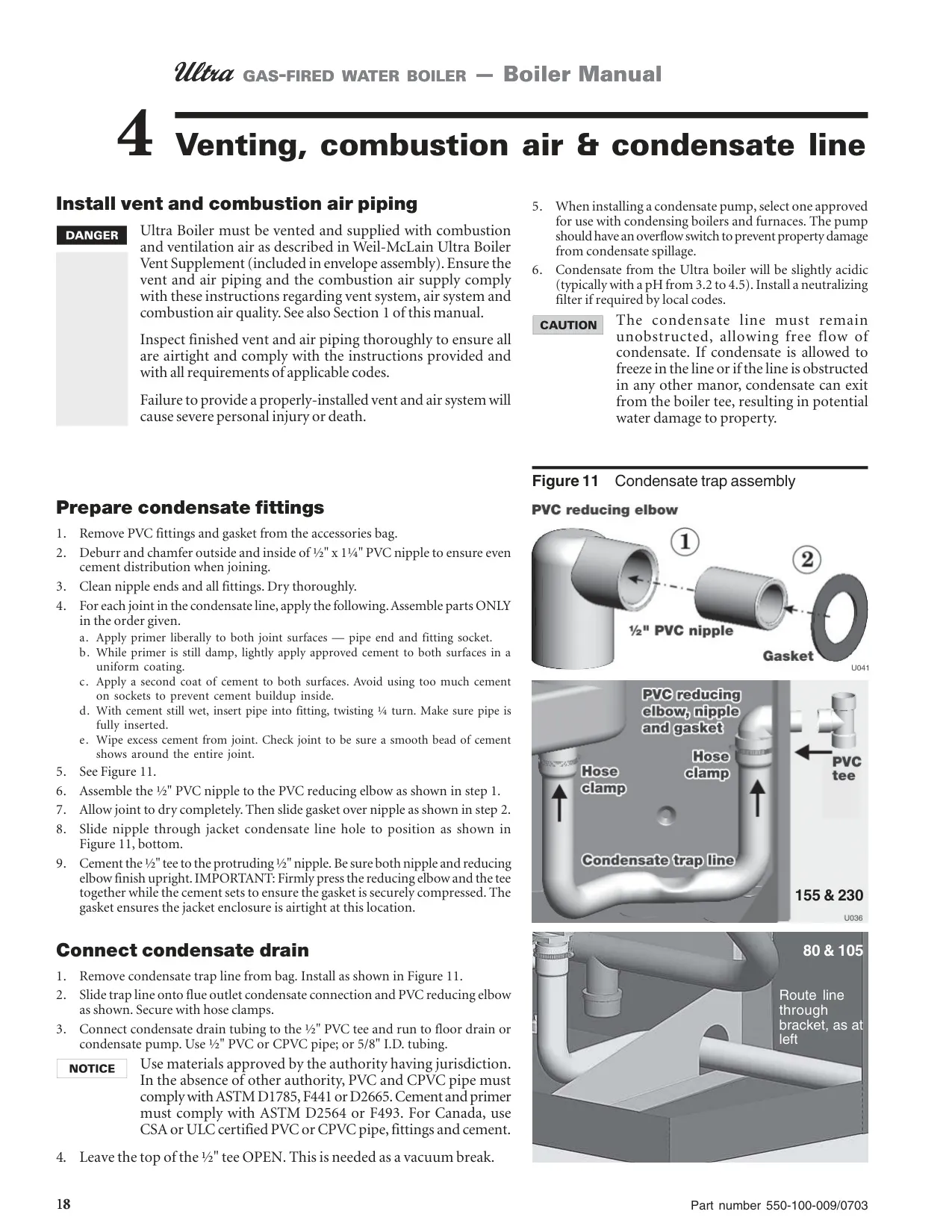

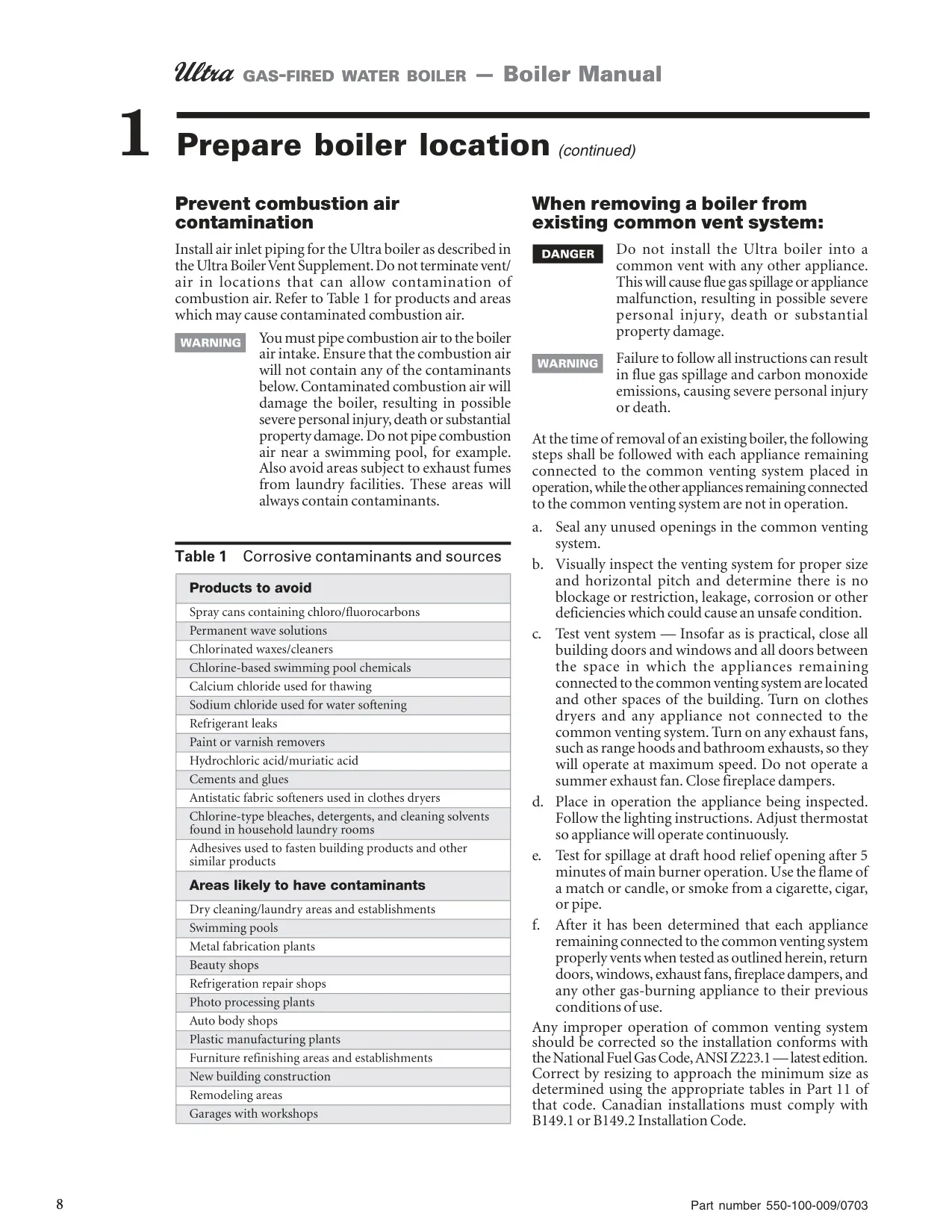

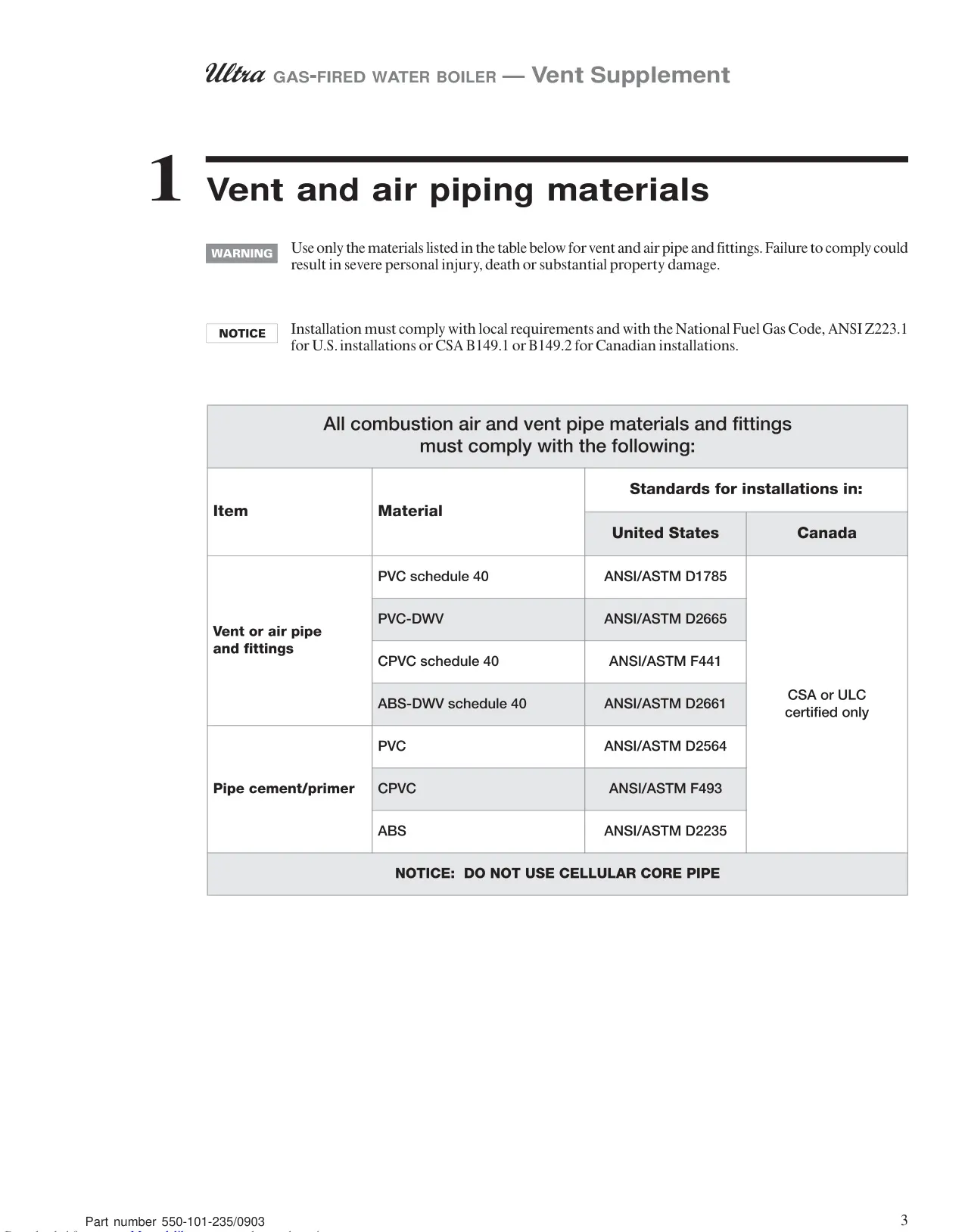

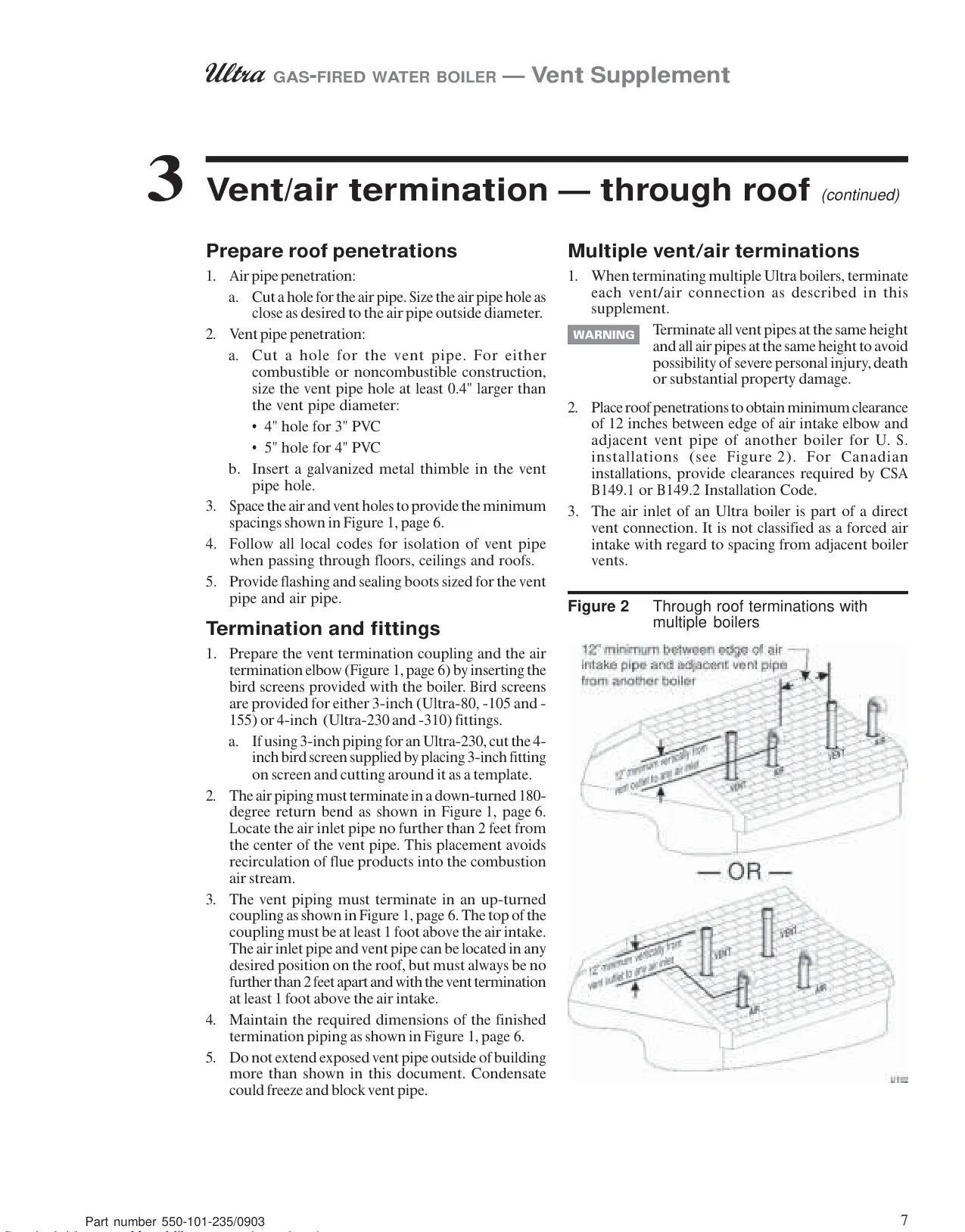

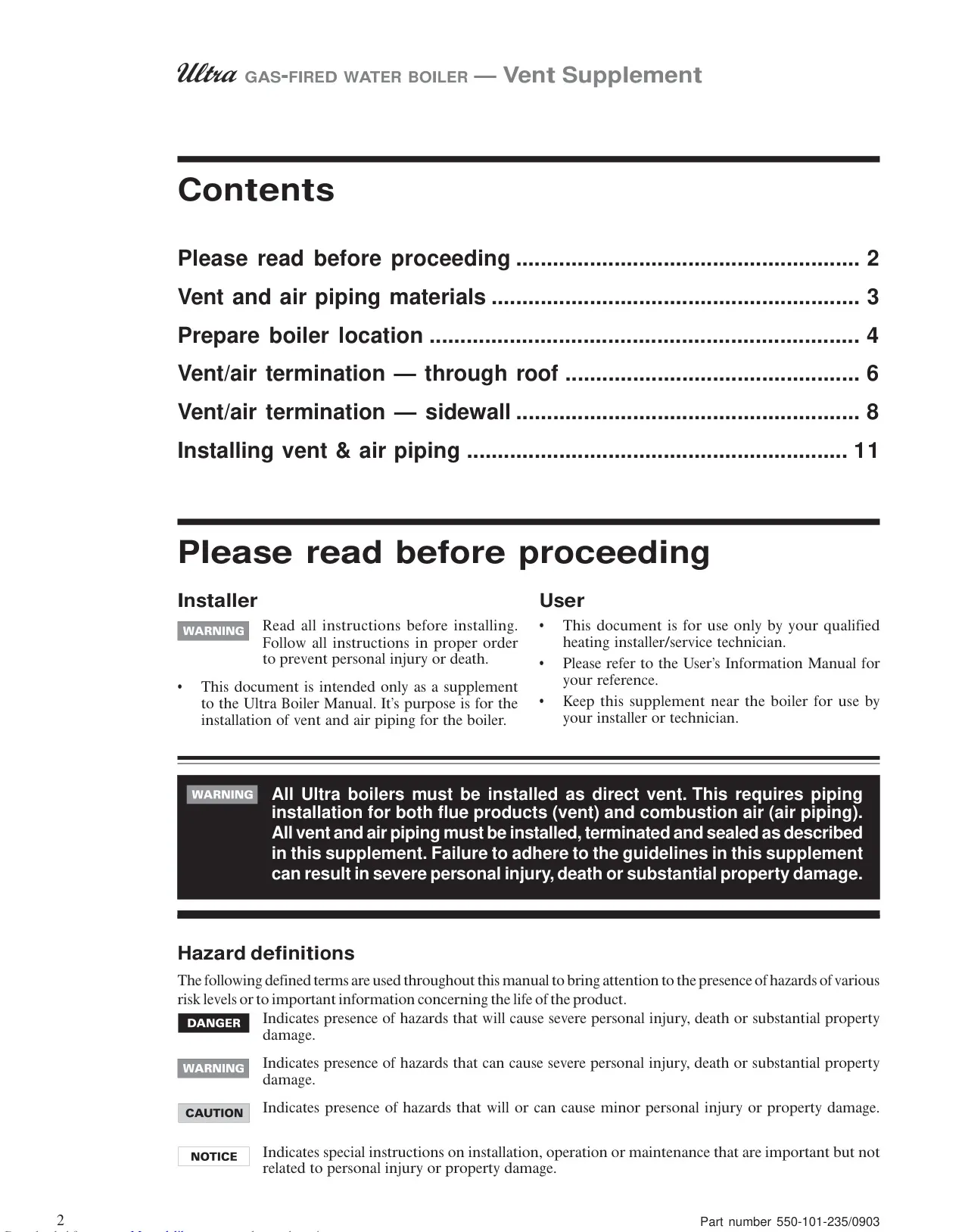

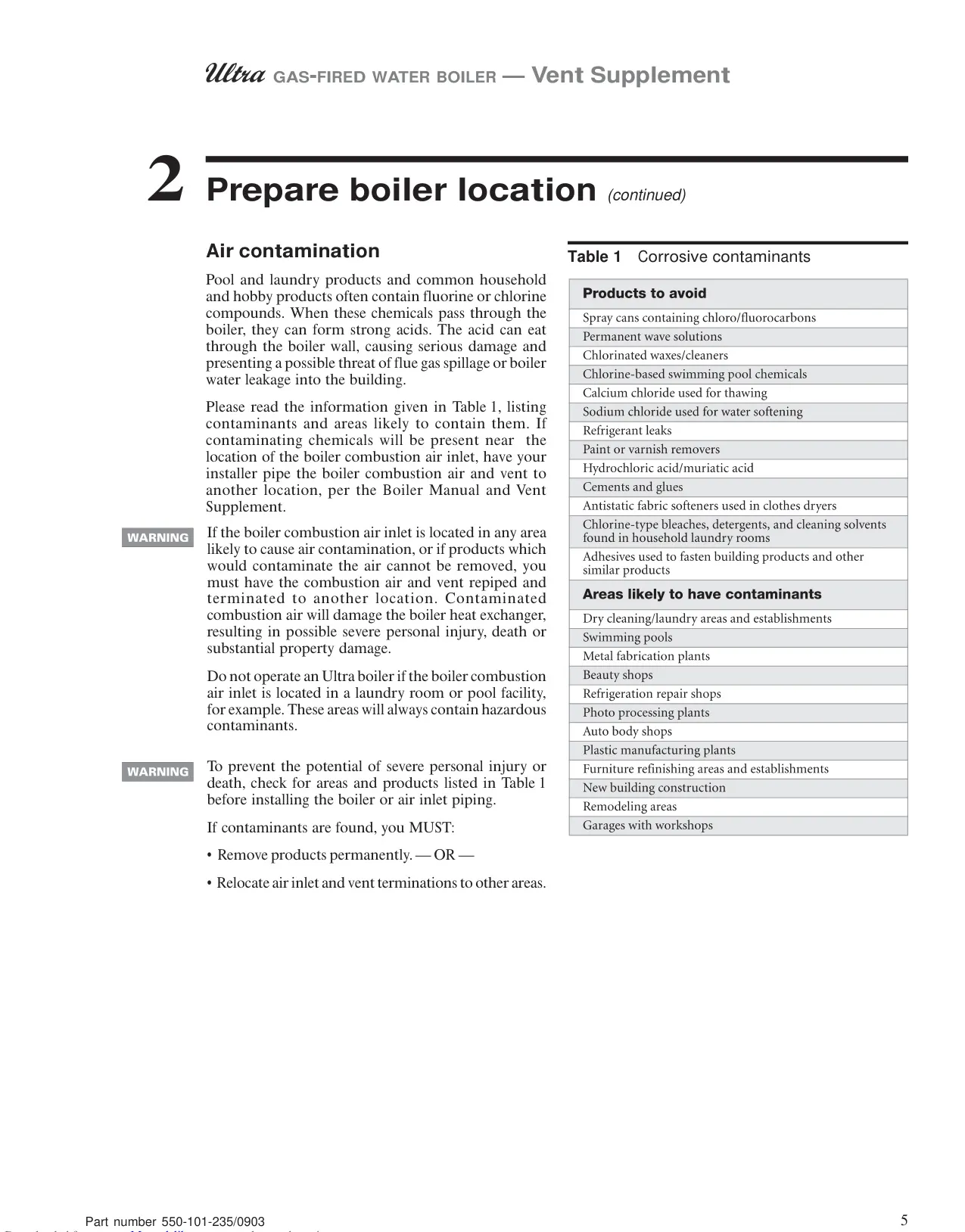

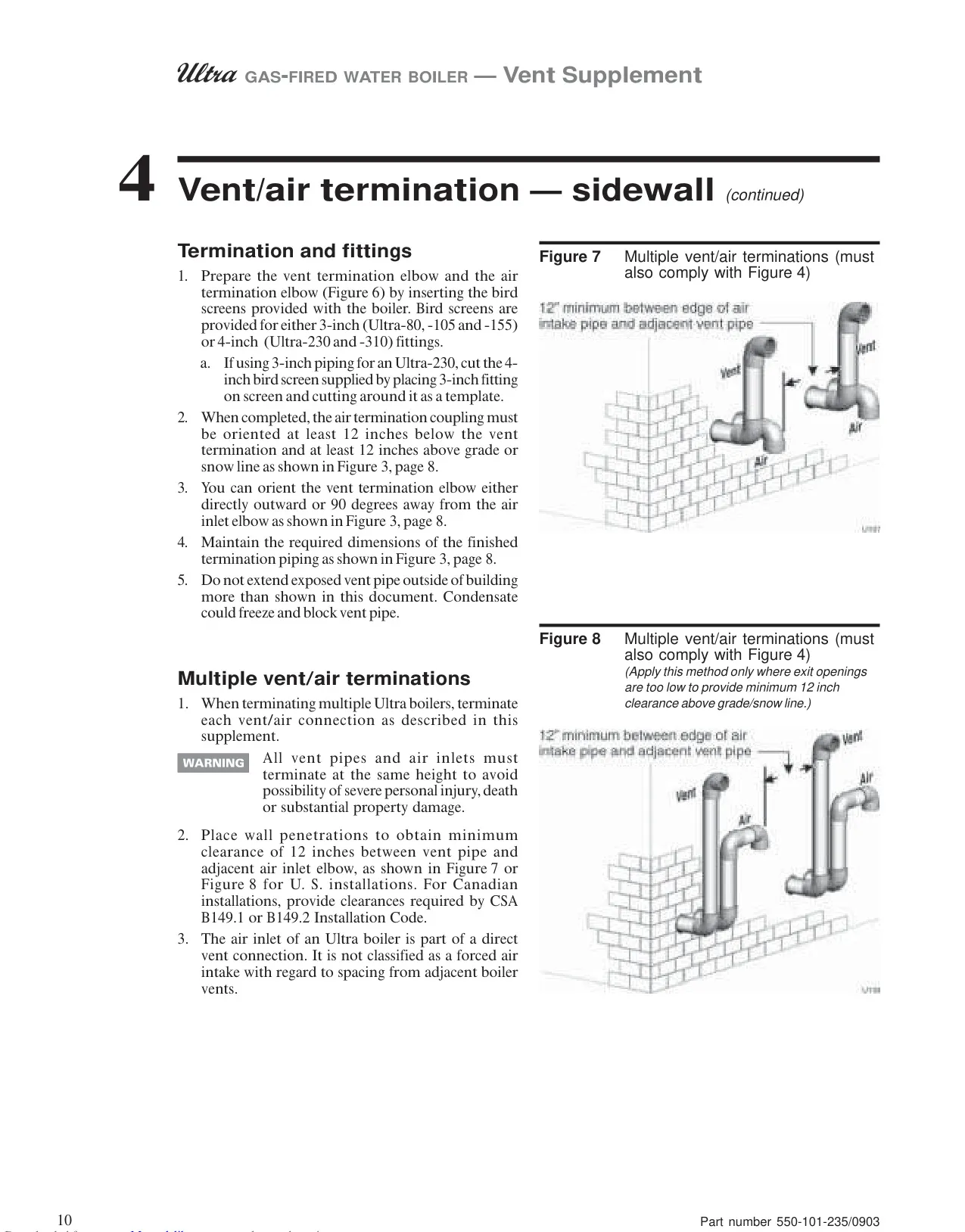

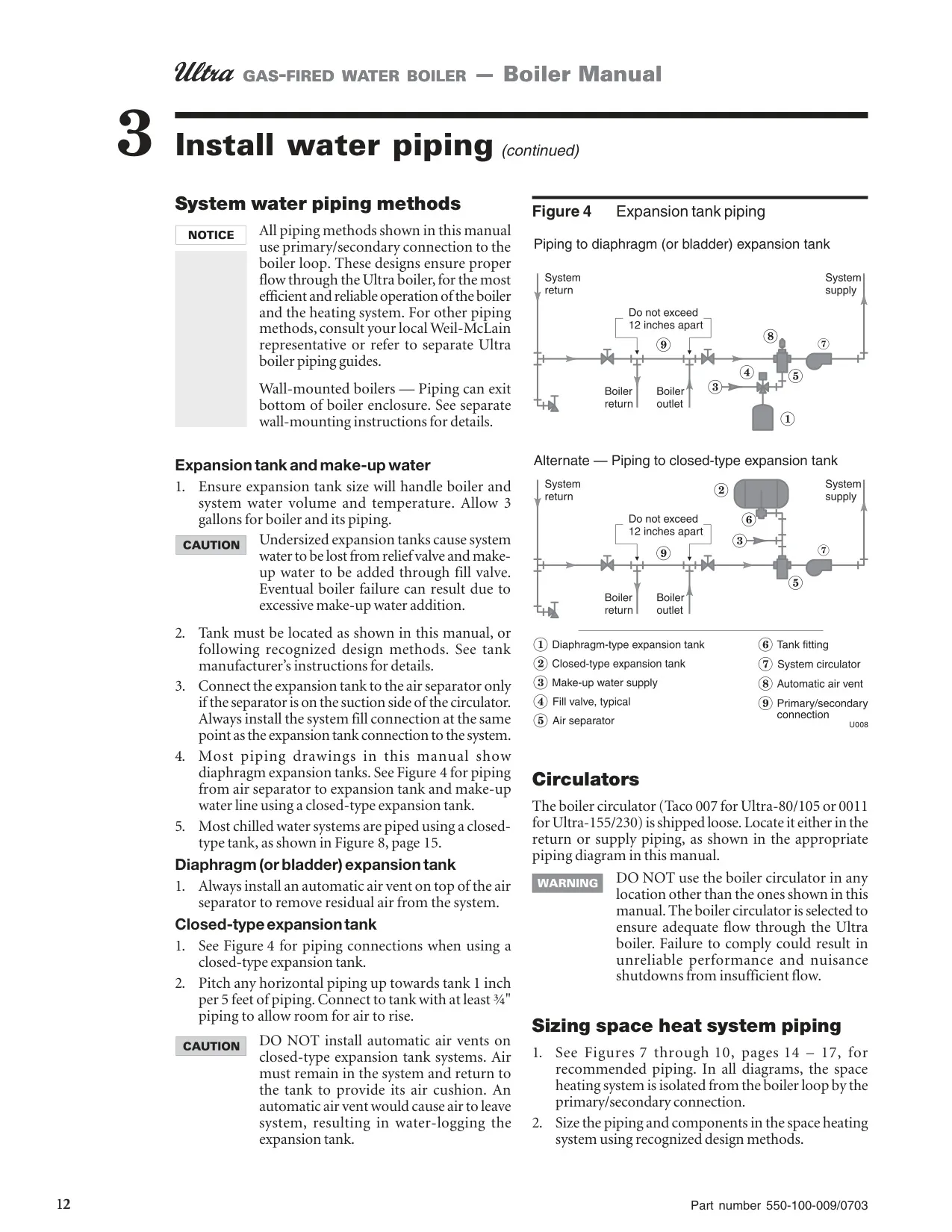

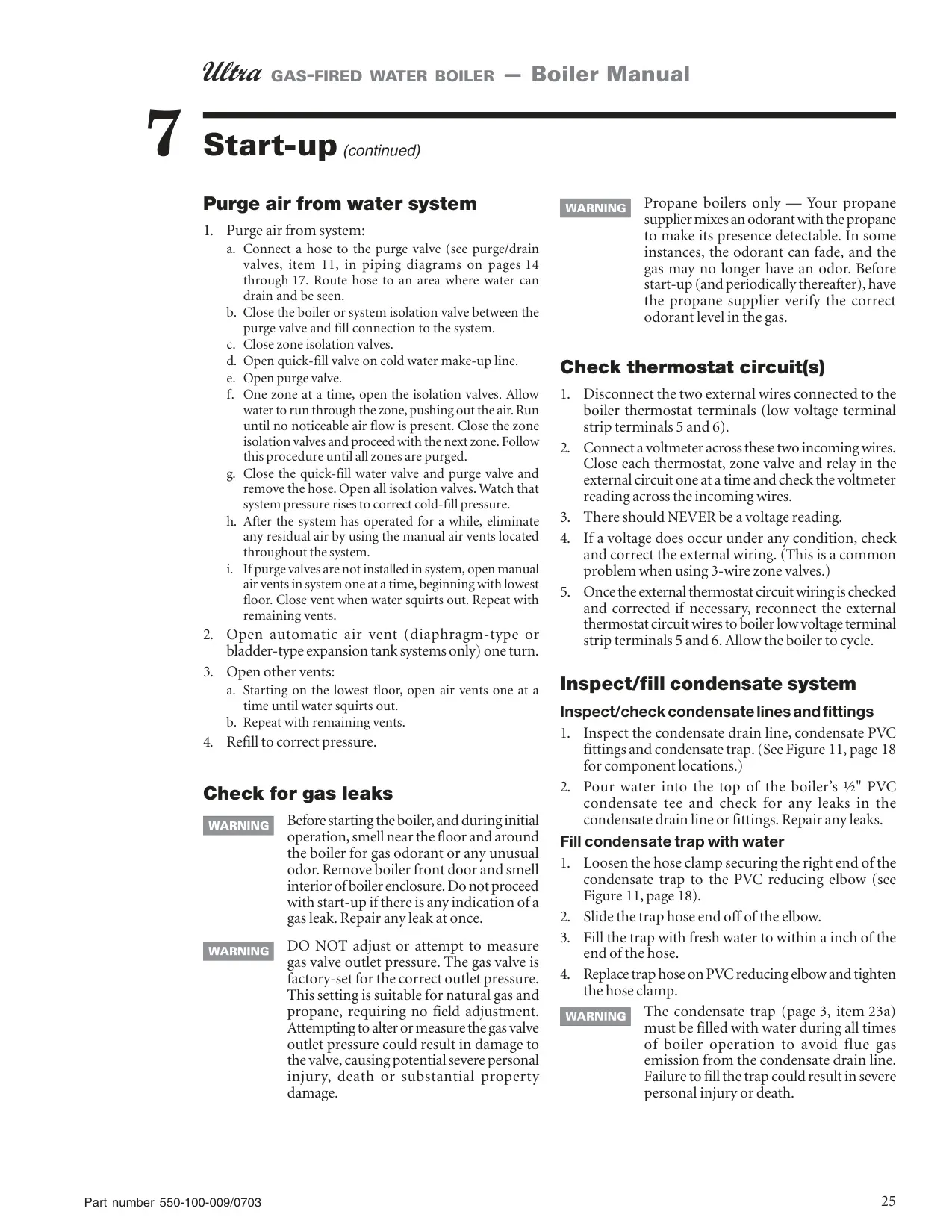

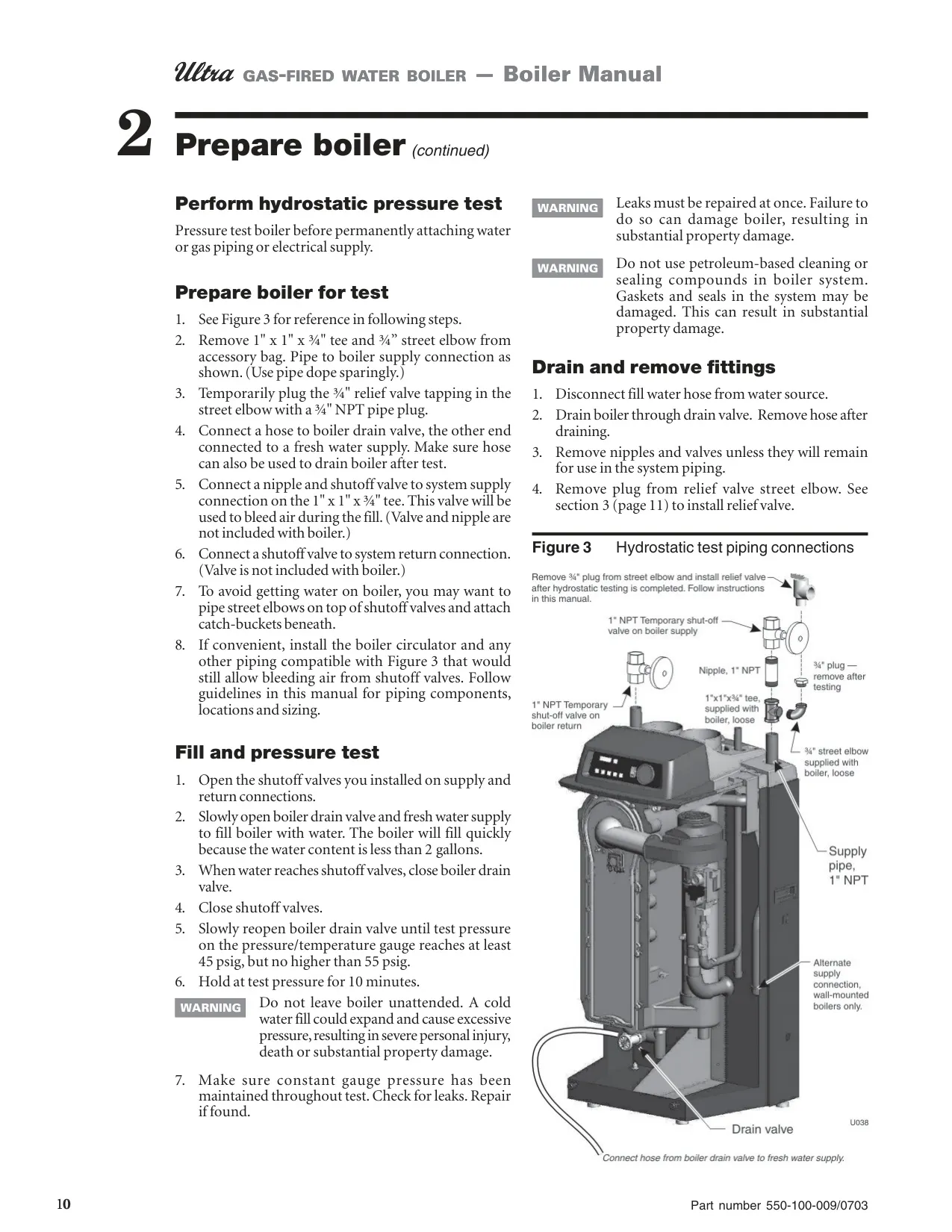

Installation flexibility is provided, with options for either floor or wall mounting (with a separate kit). Strict guidelines are provided for vent and air piping, emphasizing direct venting and preventing combustion air contamination from common household products like chlorine, ensuring safe and efficient operation.

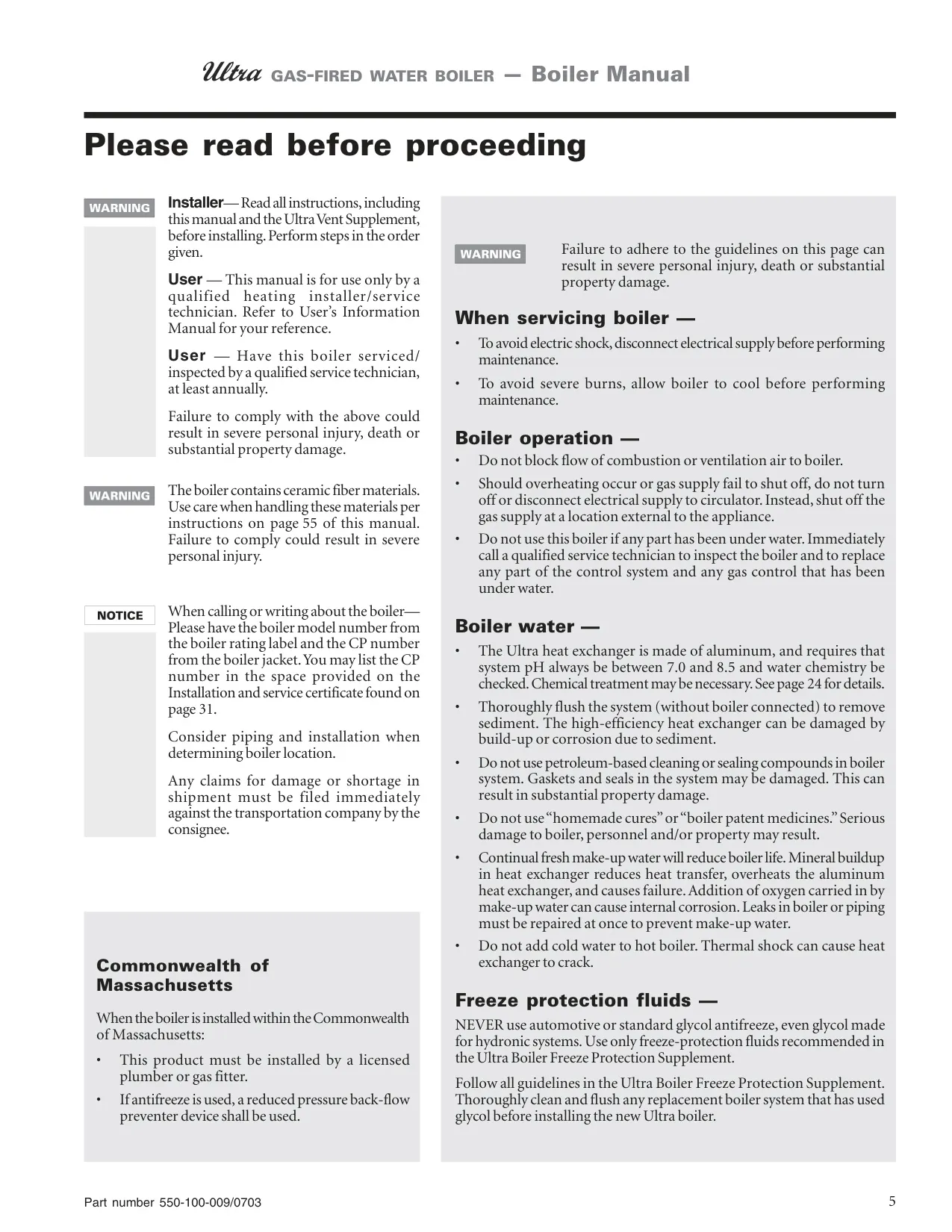

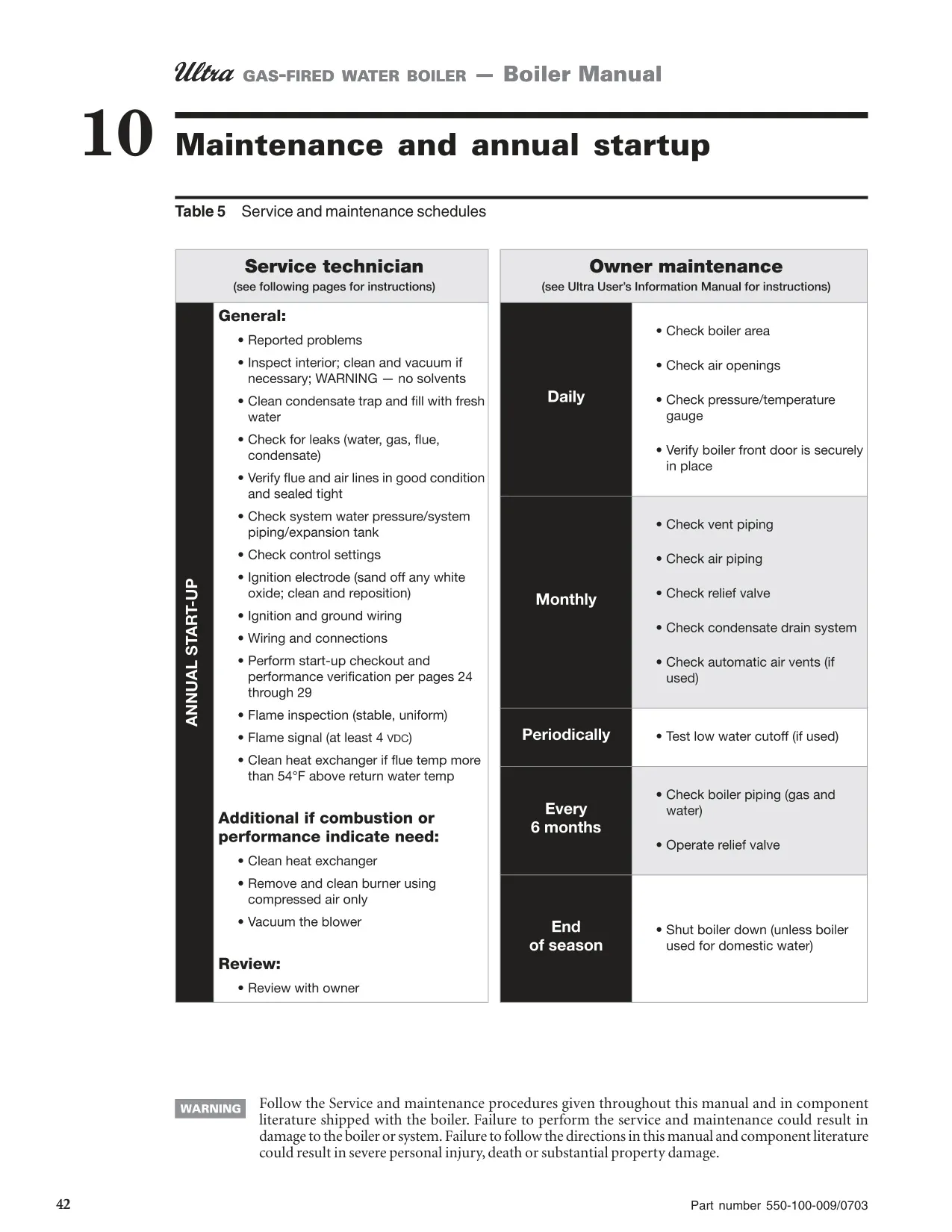

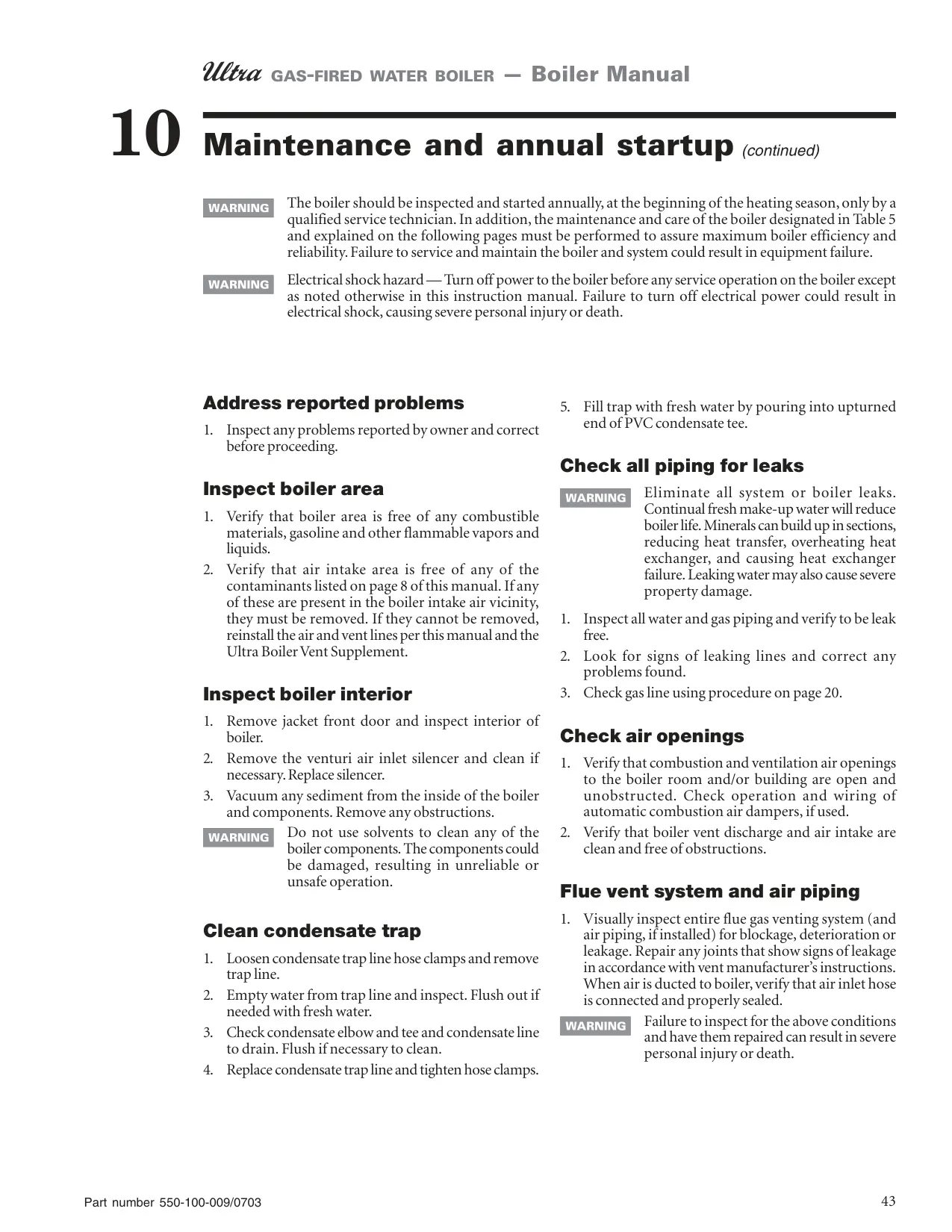

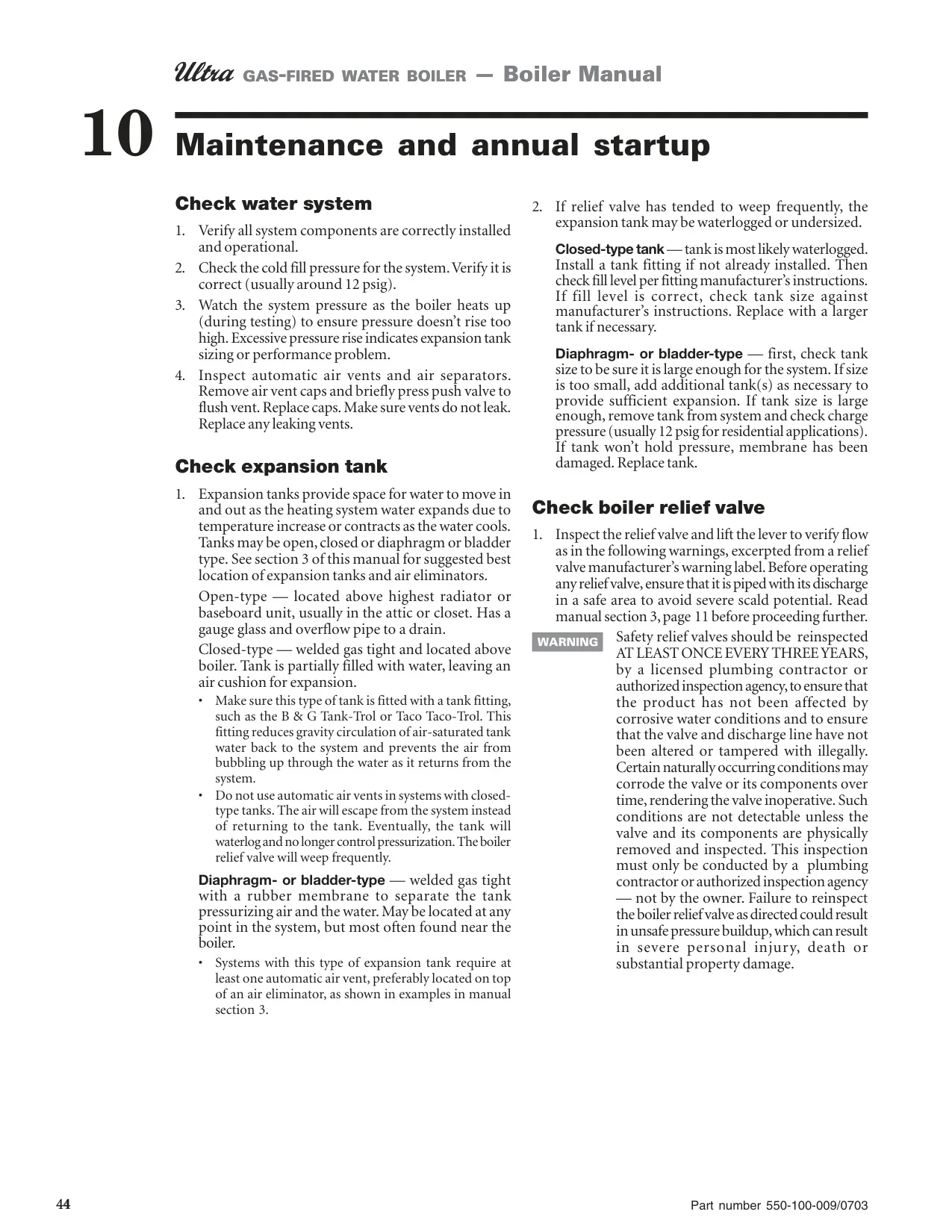

Water chemistry is critical for the aluminum heat exchanger. The manual stresses maintaining boiler water pH between 7.0 and 8.5, and hardness below 7 grains. It also strictly prohibits automotive or standard glycol antifreeze, recommending only approved freeze-protection fluids with proper system flushing to prevent damage and ensure longevity.
