Weil-Mclain Ultra 299 Serie 3 Boiler Instruction Manual
Weil-Mclain Ultra 299 Serie 3 Boiler
Weil-Mclain Ultra 299 Serie 3 Boiler
Weil-Mclain Ultra 299 Serie 3 Boiler
Weil-Mclain Ultra 299 Serie 3 Boiler

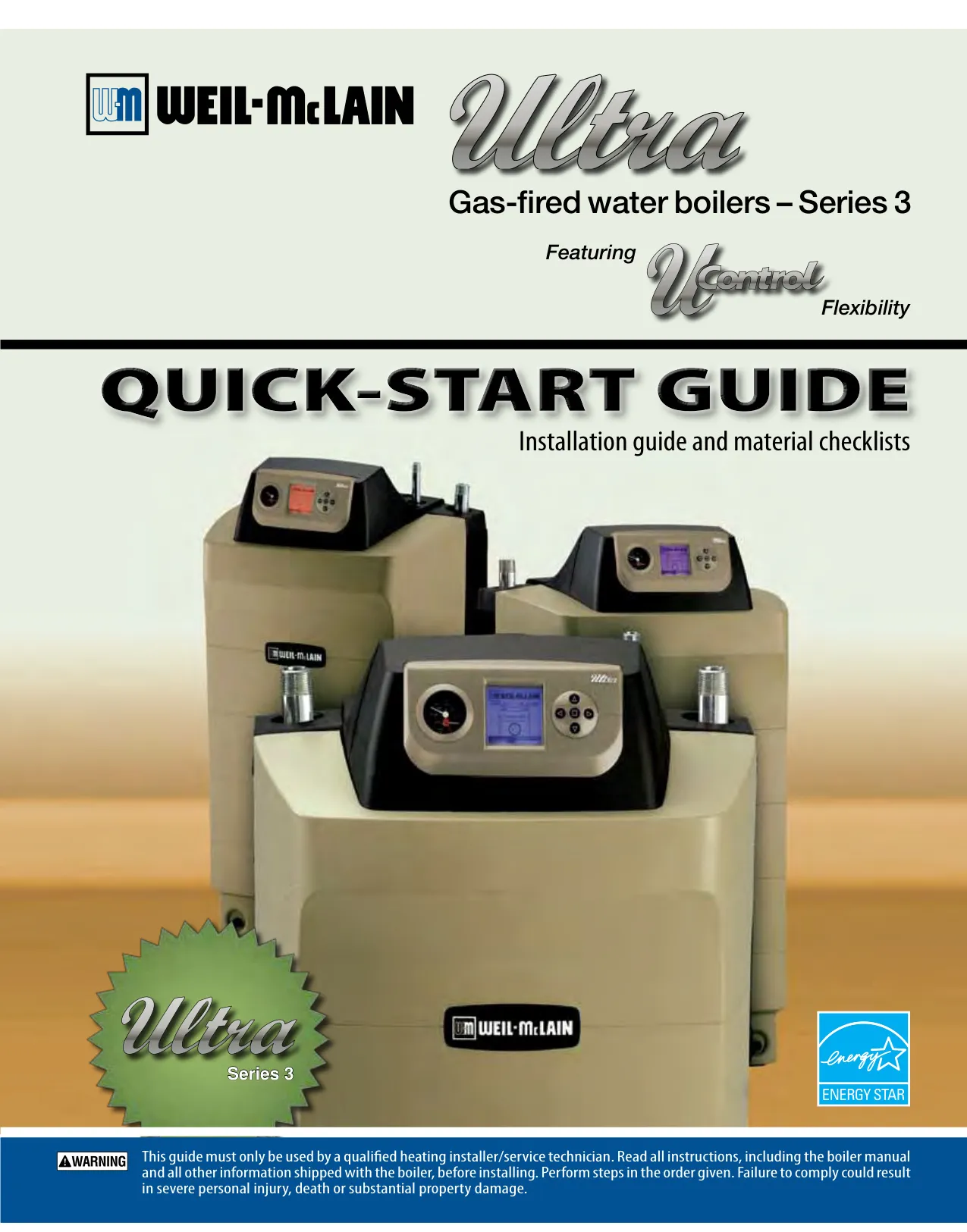

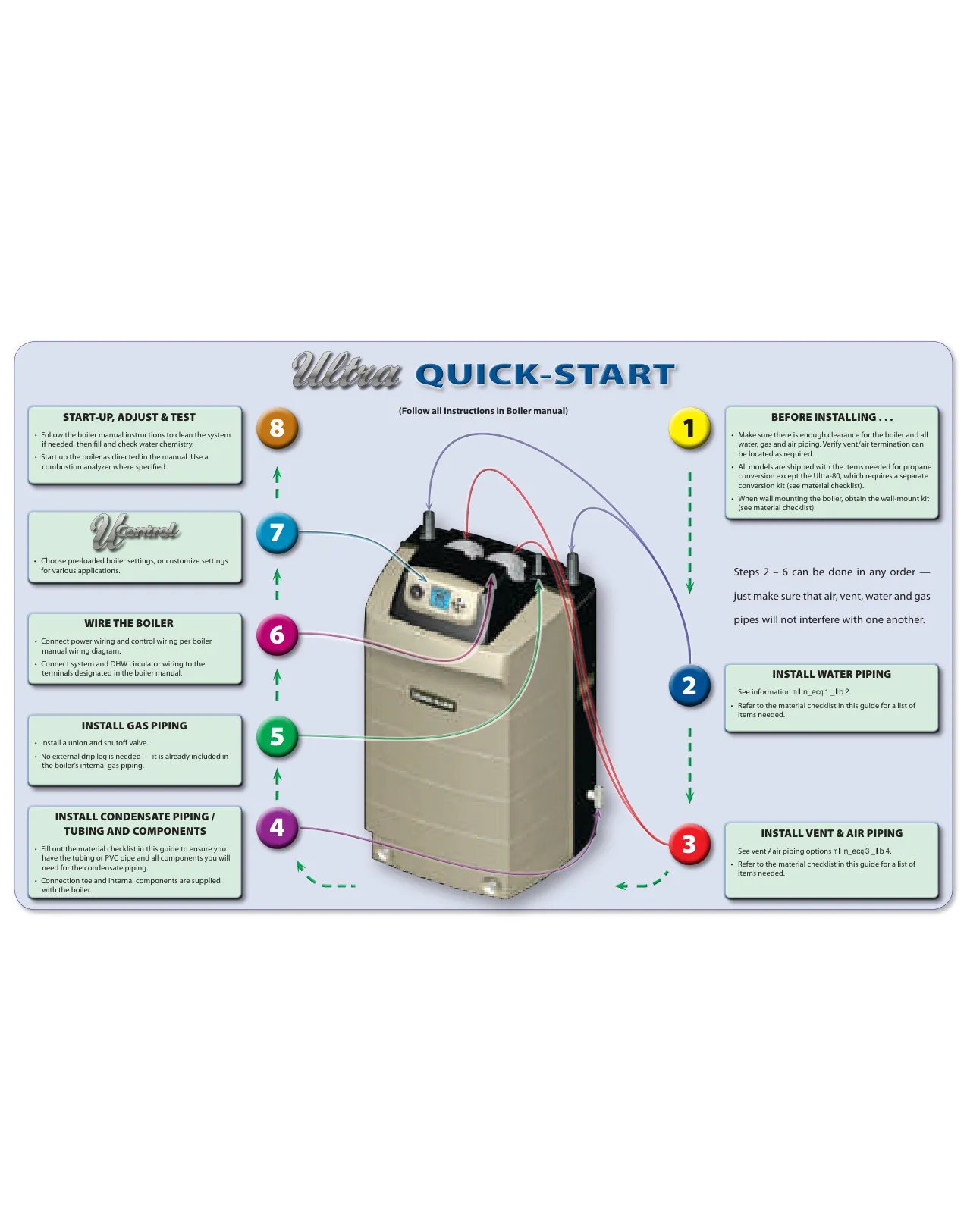

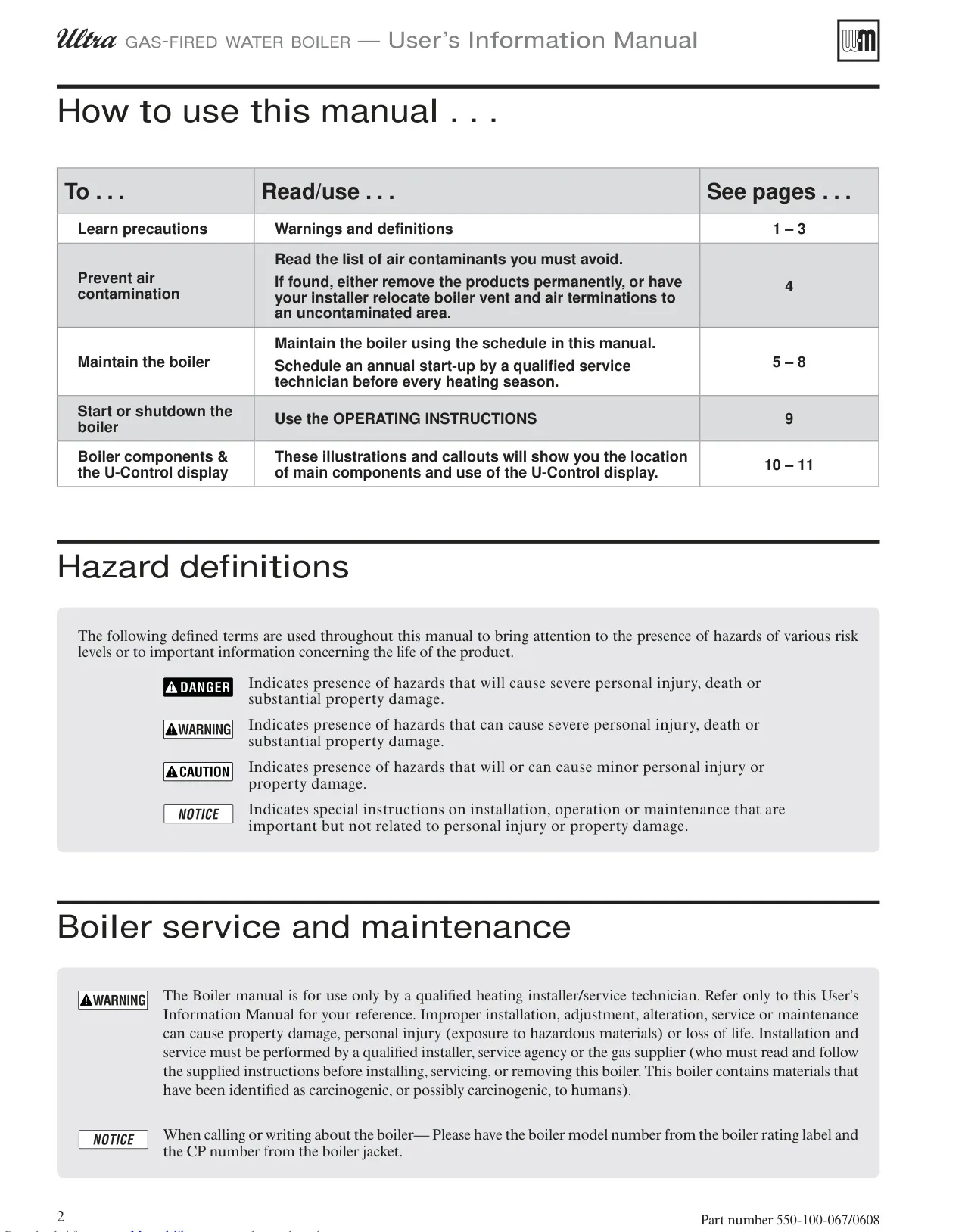

Weil-Mclain Ultra 299 Serie 3 Instructions
Here we offer the Weil-Mclain Ultra 299 Serie 3 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Weil-Mclain Ultra 299 Serie 3 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

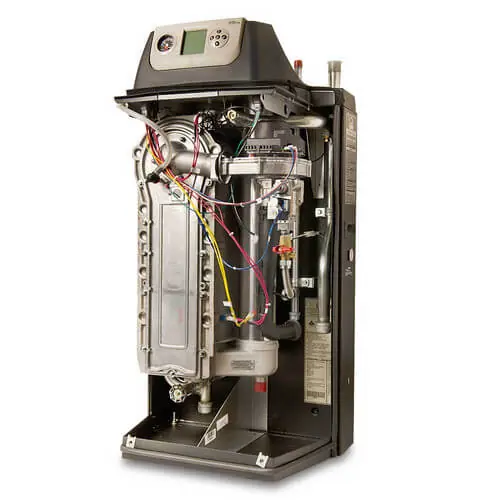

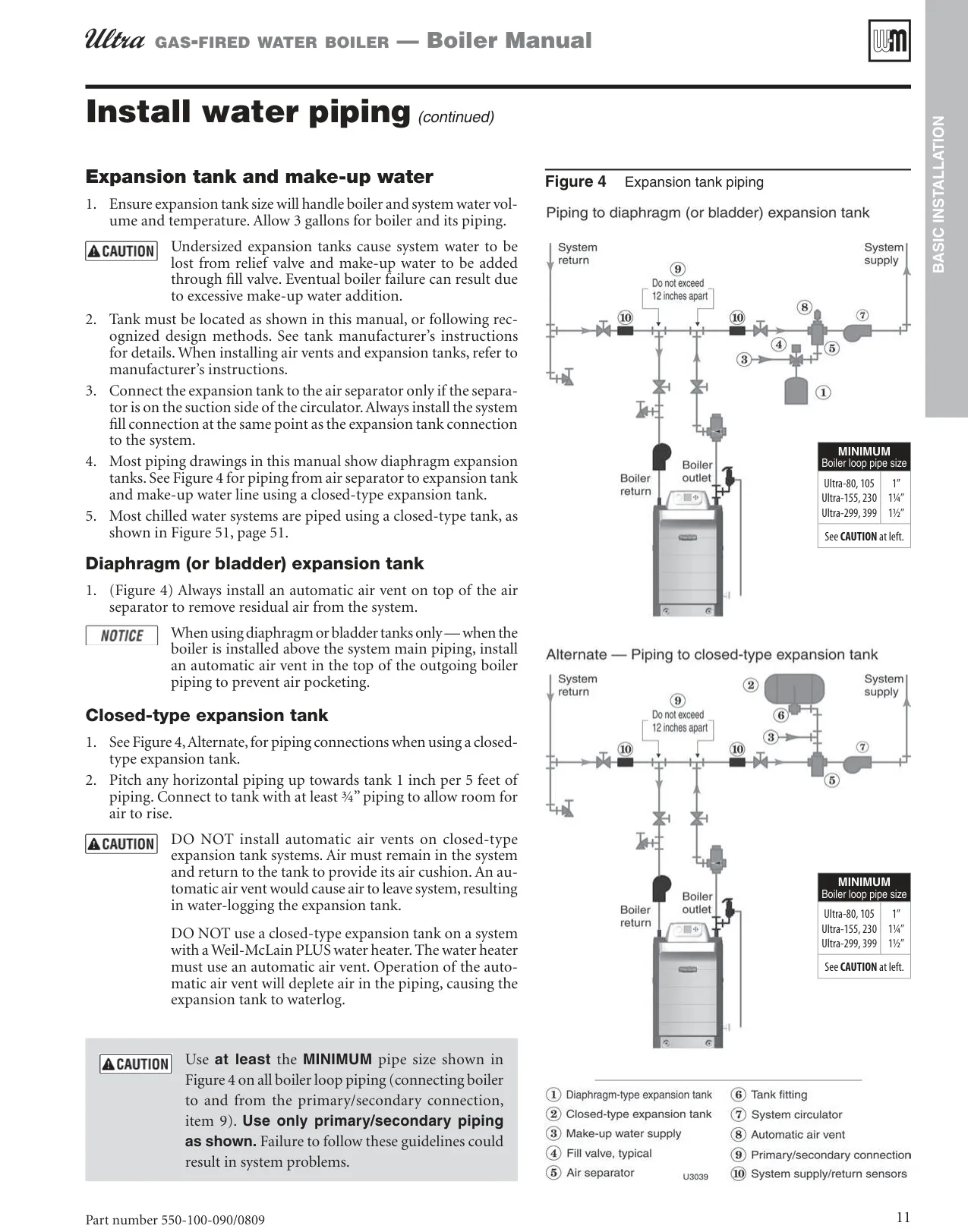

Product Images

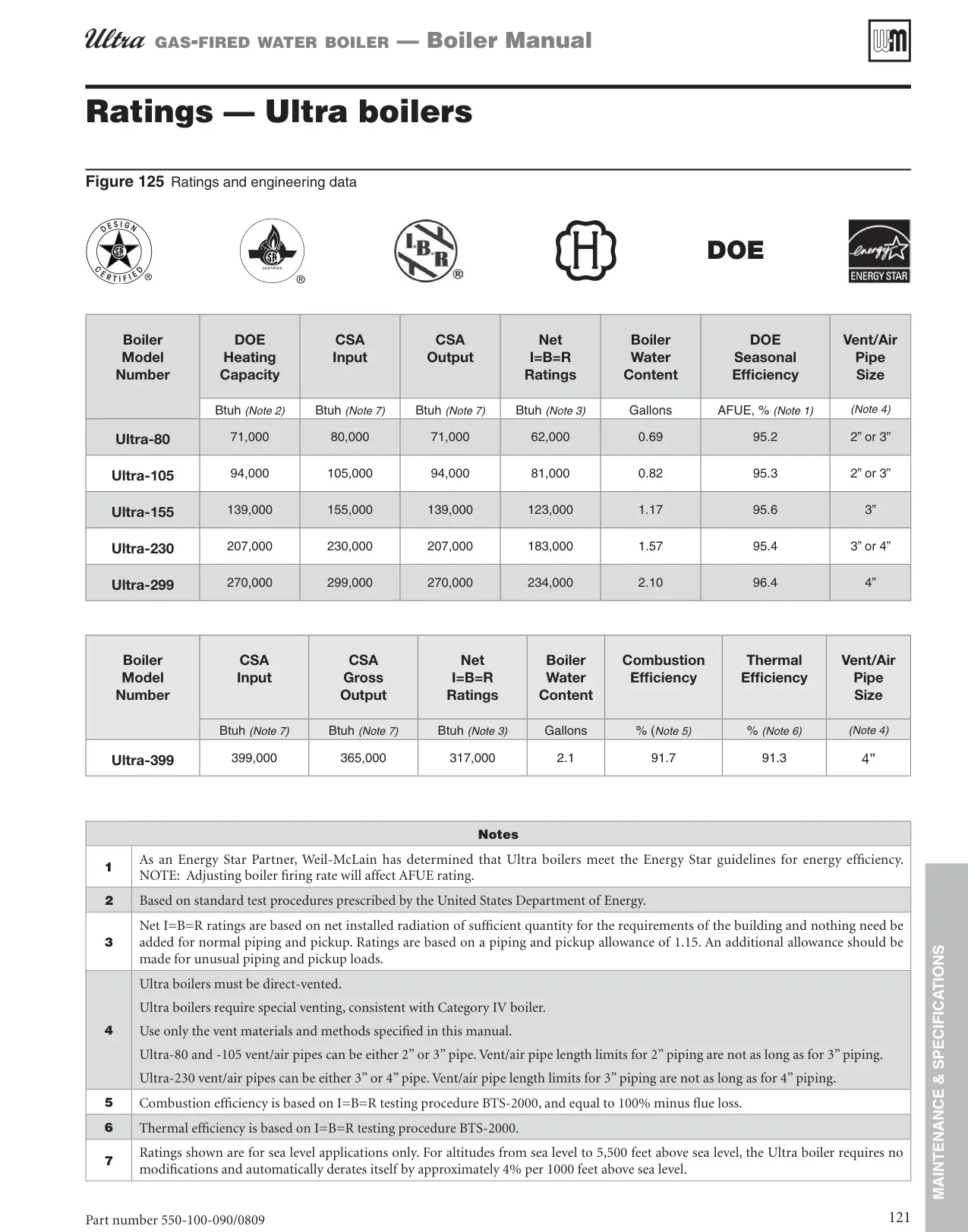

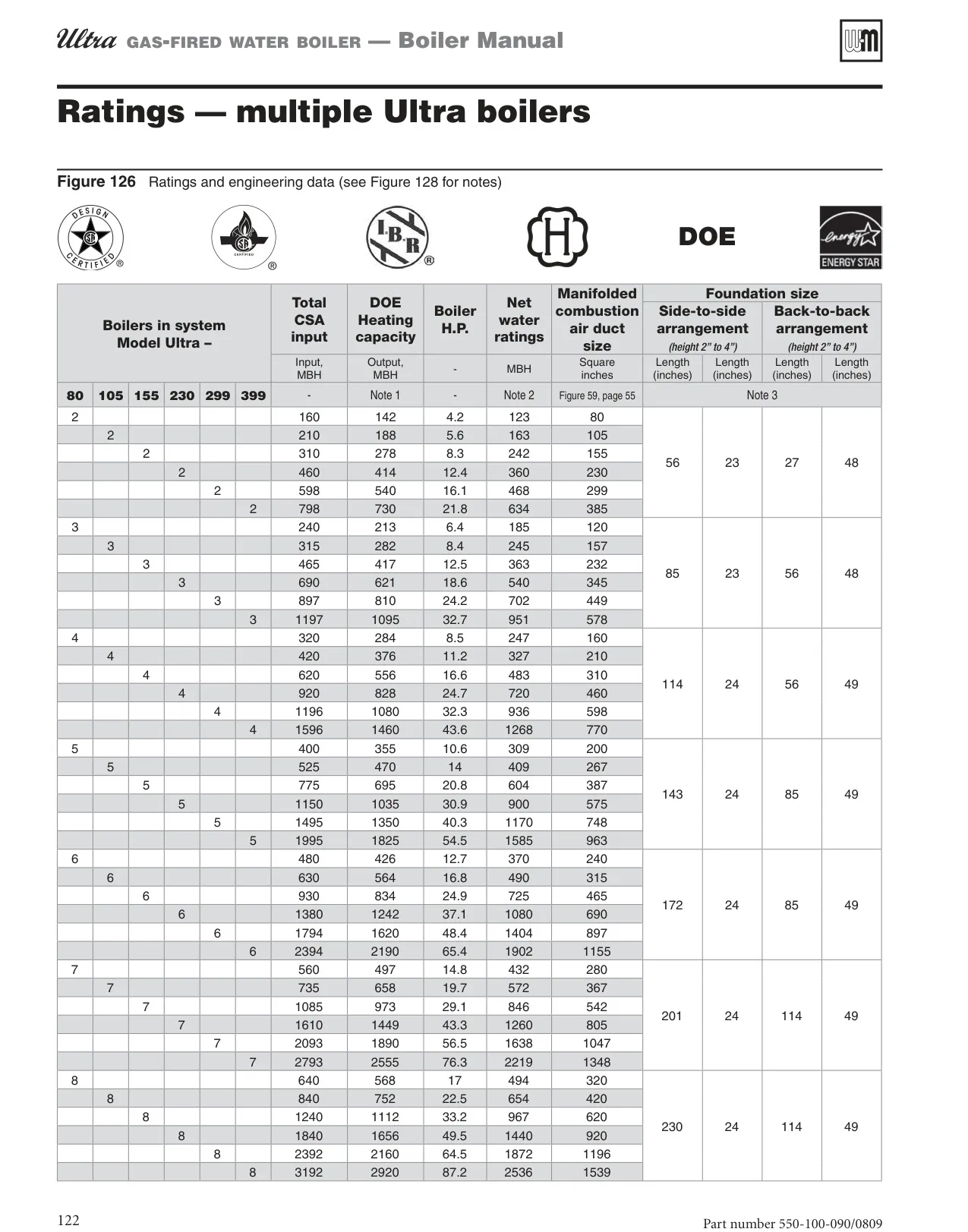

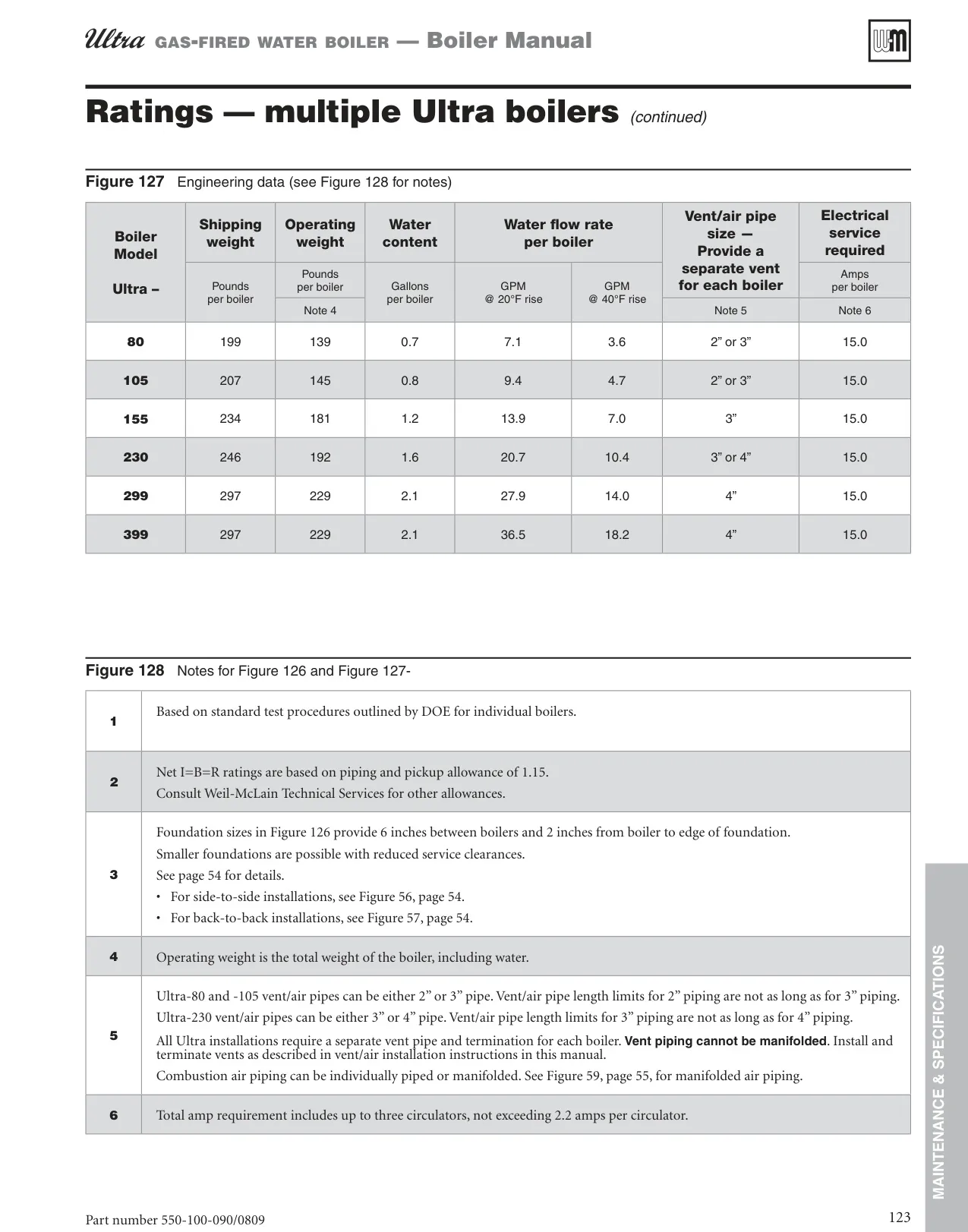

Weil-Mclain Ultra 299 Serie 3 Boiler Specifications
| Specification | Value (Ultra-299) |
|---|---|
| Model Number | Ultra-299 |
| DOE Heating Capacity | 270,000 Btuh |
| CSA Input | 299,000 Btuh |
| CSA Output | 270,000 Btuh |
| Net I=B=R Capacity | 234,000 Btuh |
| Boiler Water Content | 2.10 Gallons |
| DOE Seasonal Efficiency (AFUE) | 96.4% |
| Vent/Air Pipe Size | 4” |
| Shipping Weight | 297 Pounds |
| Operating Weight | 229 Pounds |
| Electrical Service Required | 15.0 Amps |

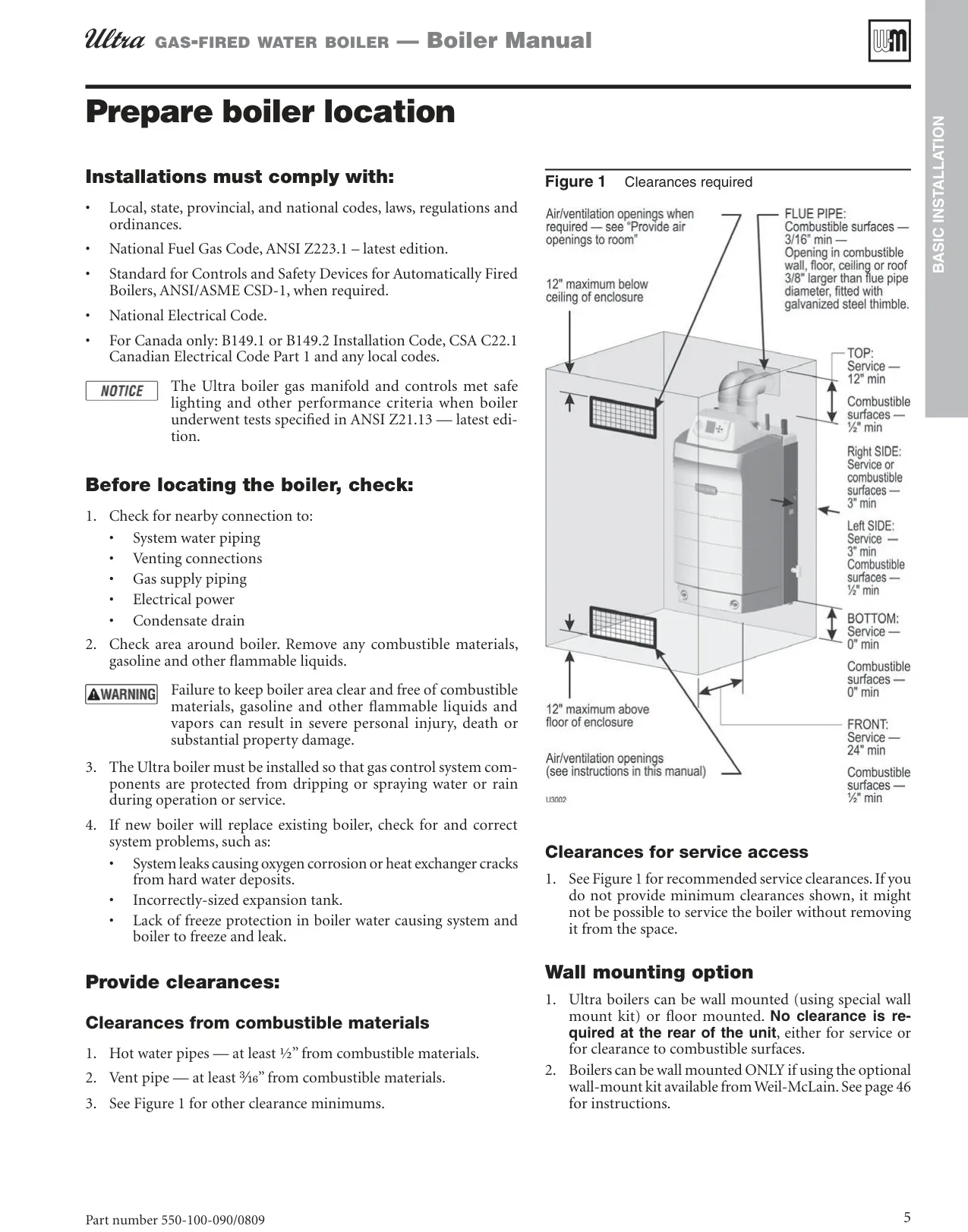

Weil-Mclain Ultra 299 Serie 3 Boiler Details

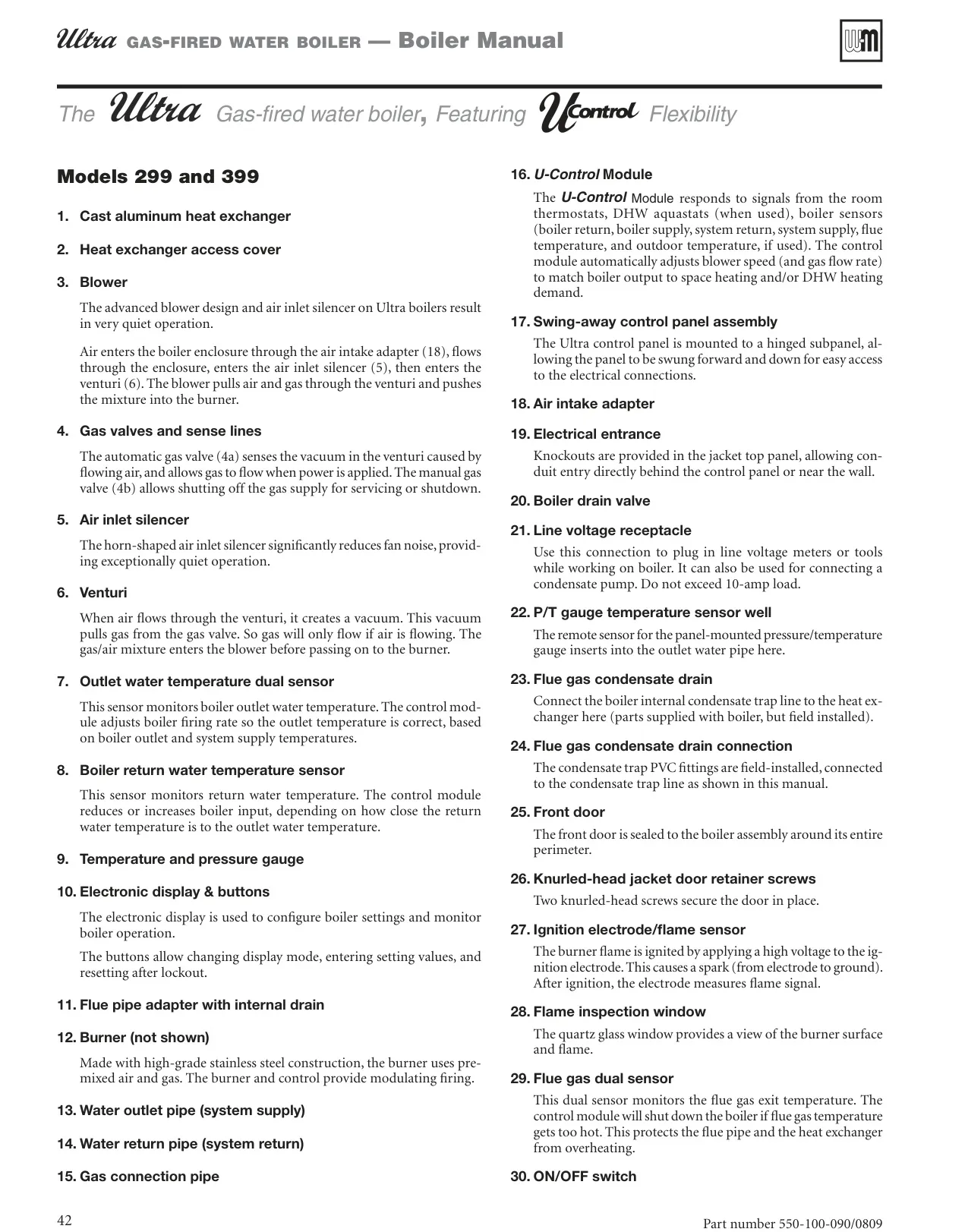

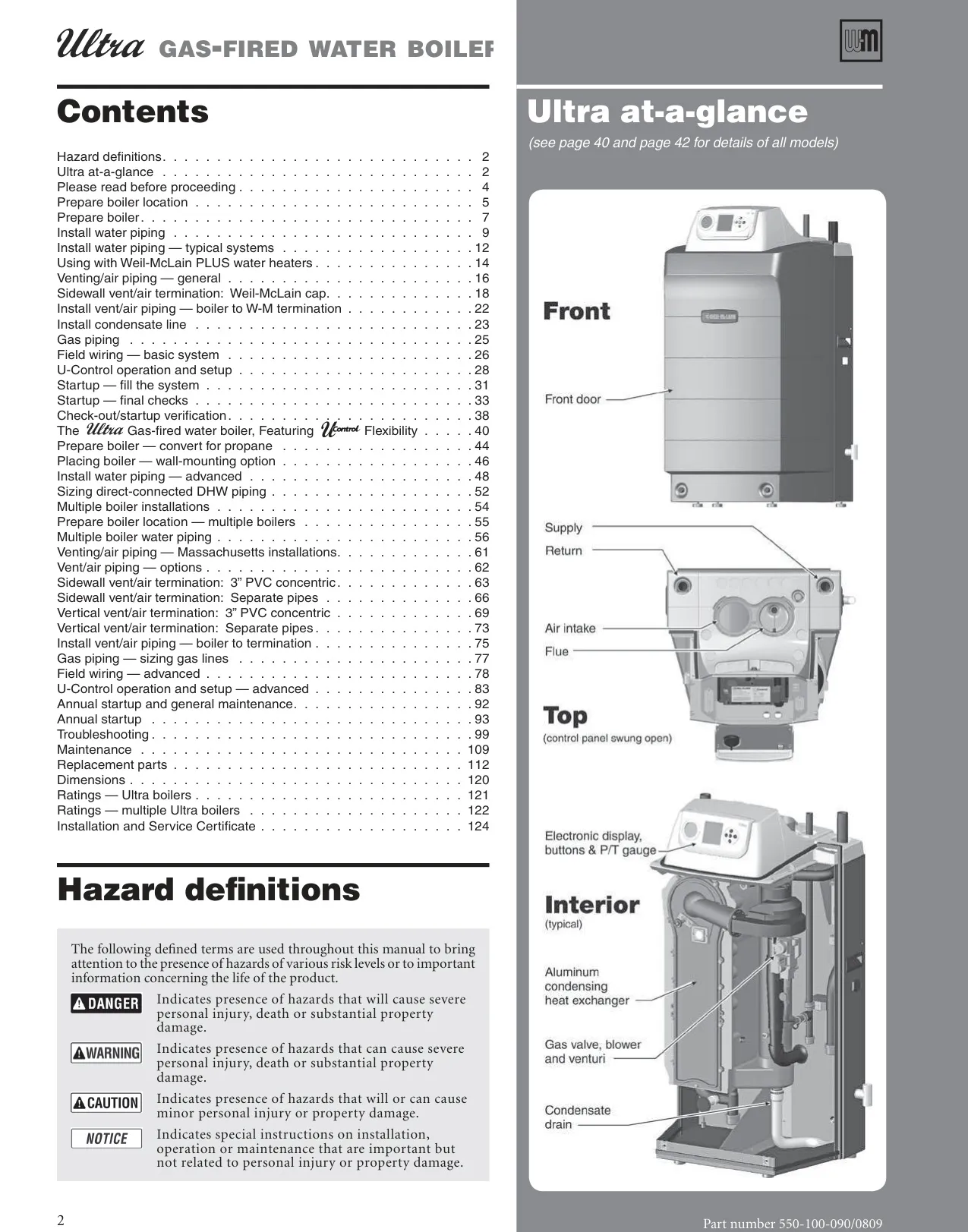

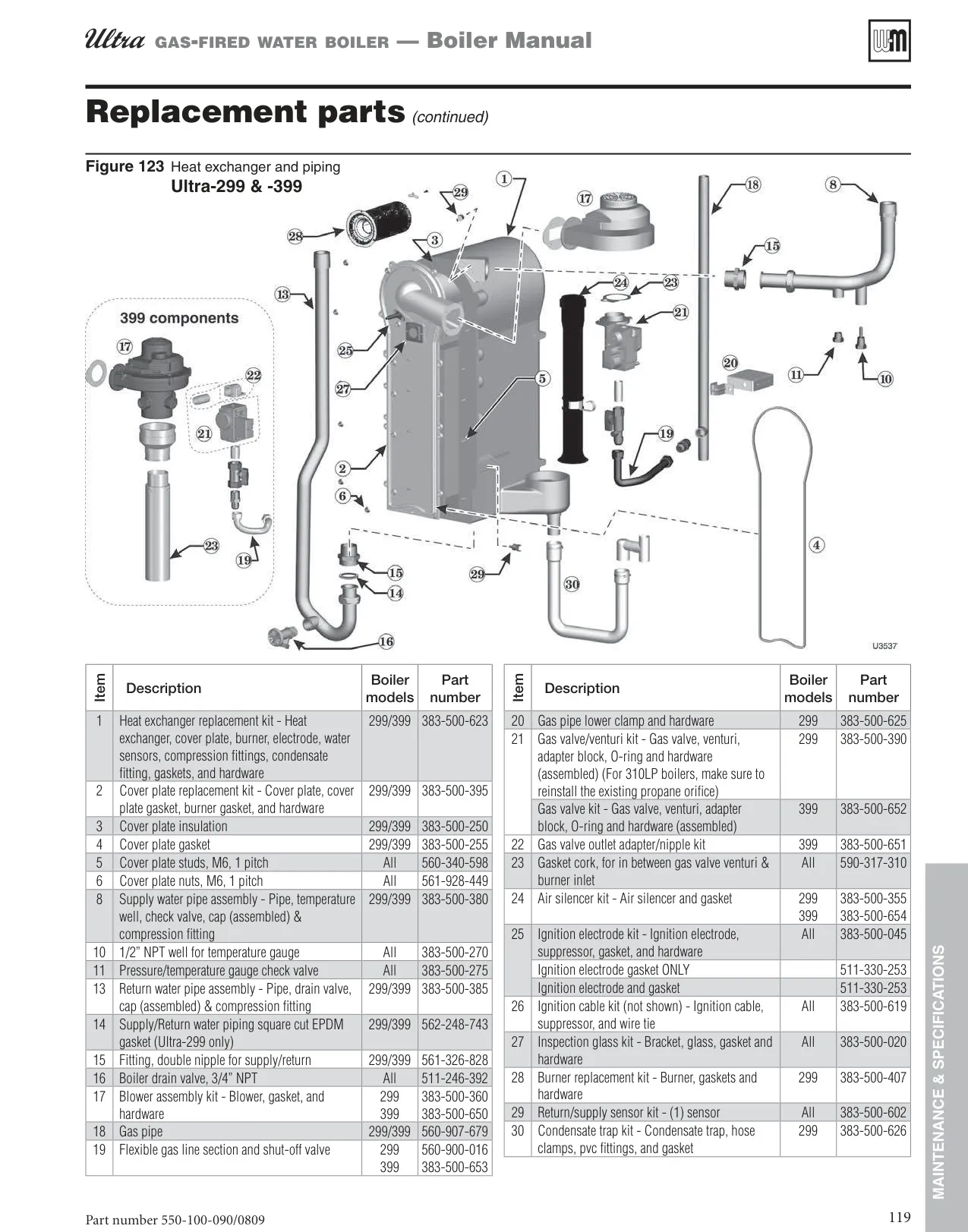

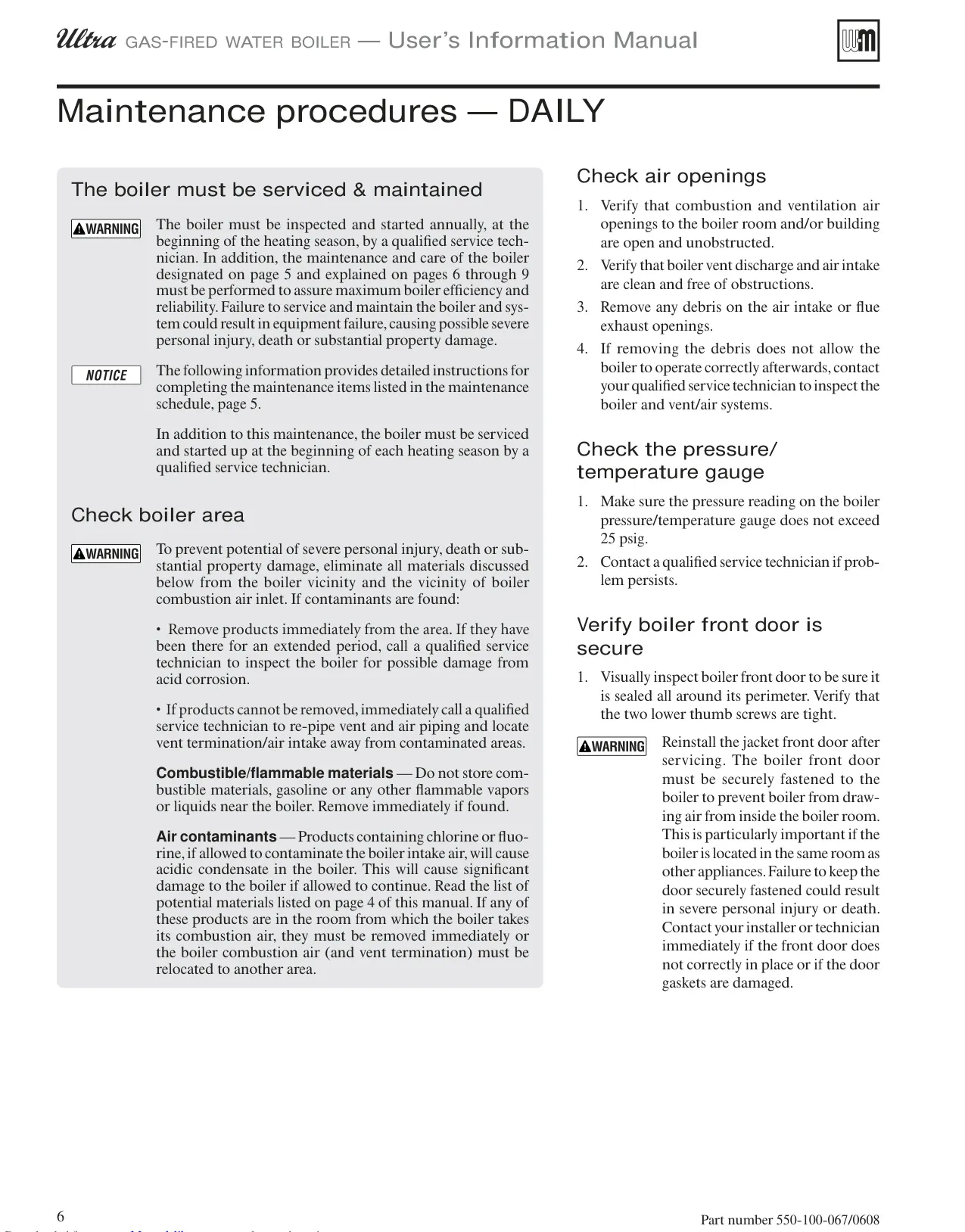

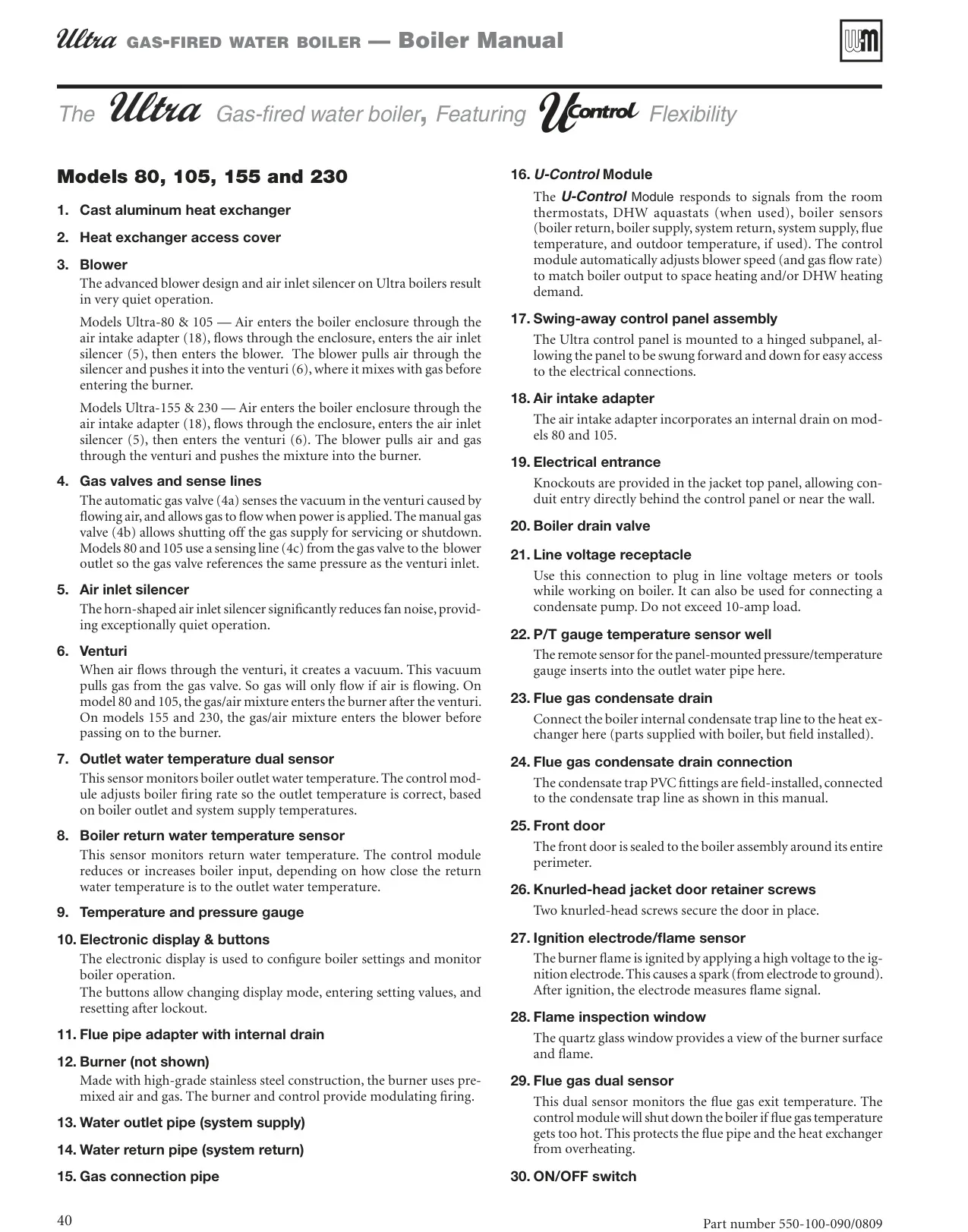

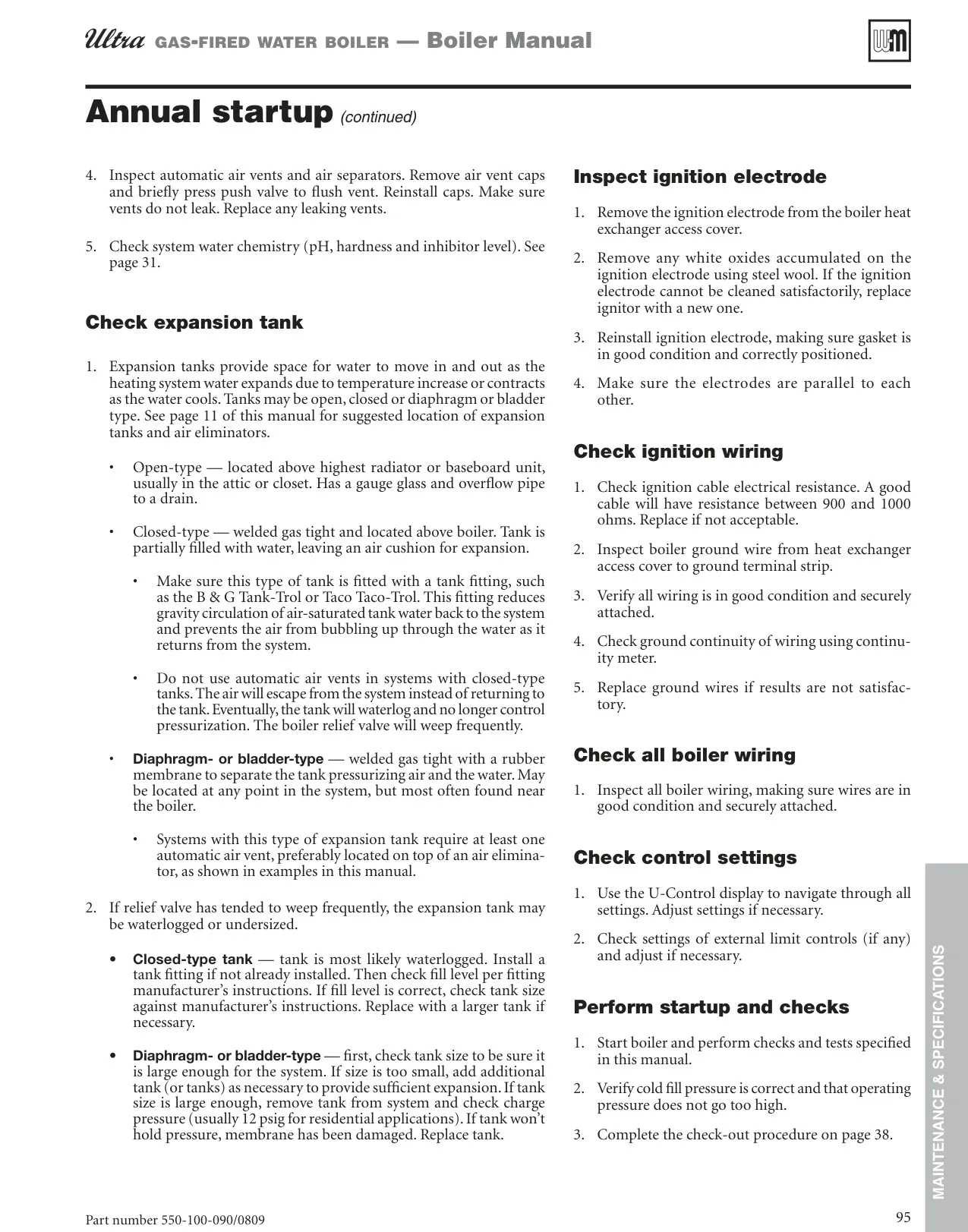

The Weil-Mclain Ultra 299 Serie 3 Boiler features a highly efficient cast aluminum heat exchanger, renowned for its superior heat transfer characteristics and lightweight design. This advanced construction also necessitates specific water chemistry requirements to prevent corrosion and scale buildup, ensuring long-term reliability and performance. Regular monitoring of pH, hardness, and inhibitor levels is crucial for optimal operation.

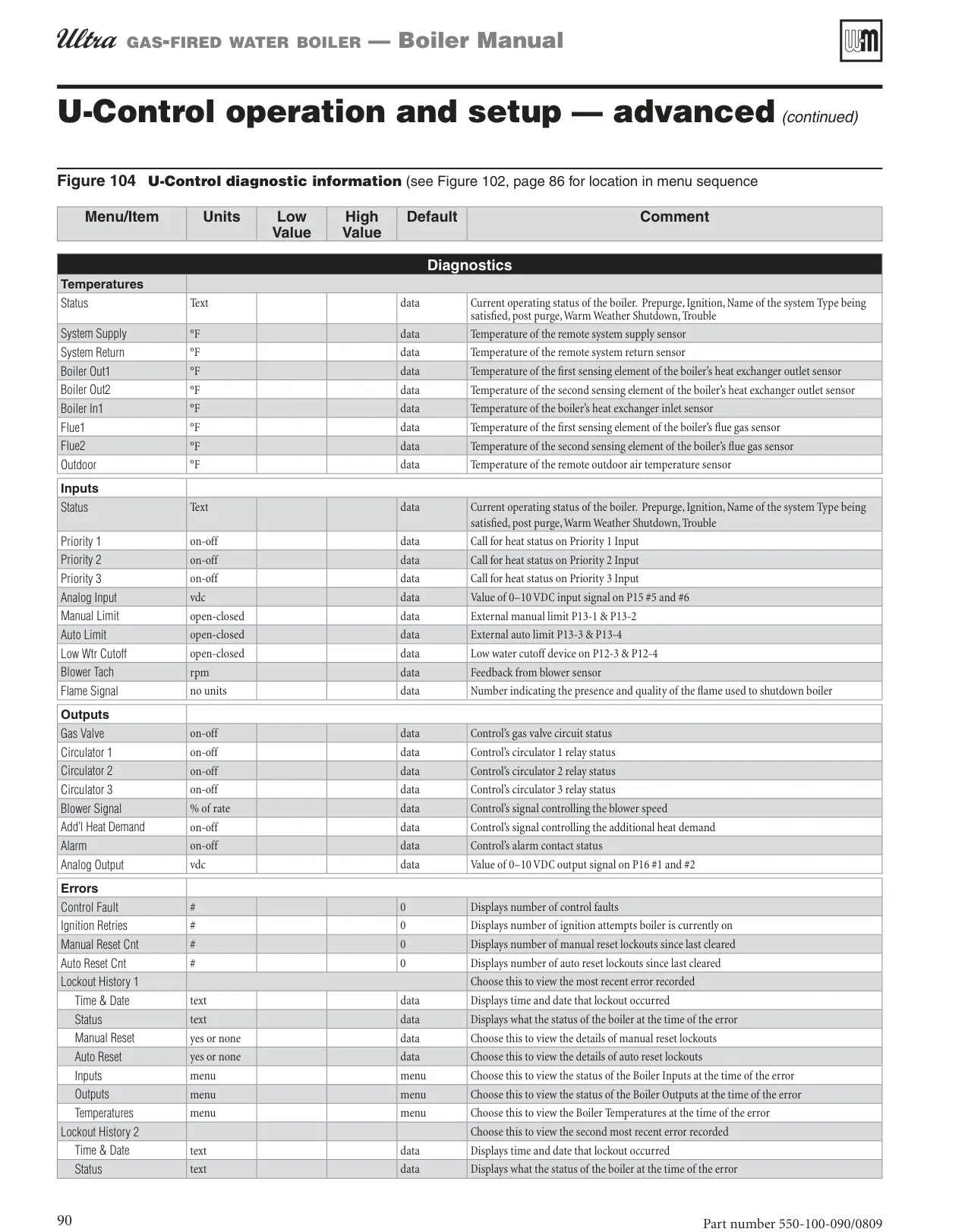

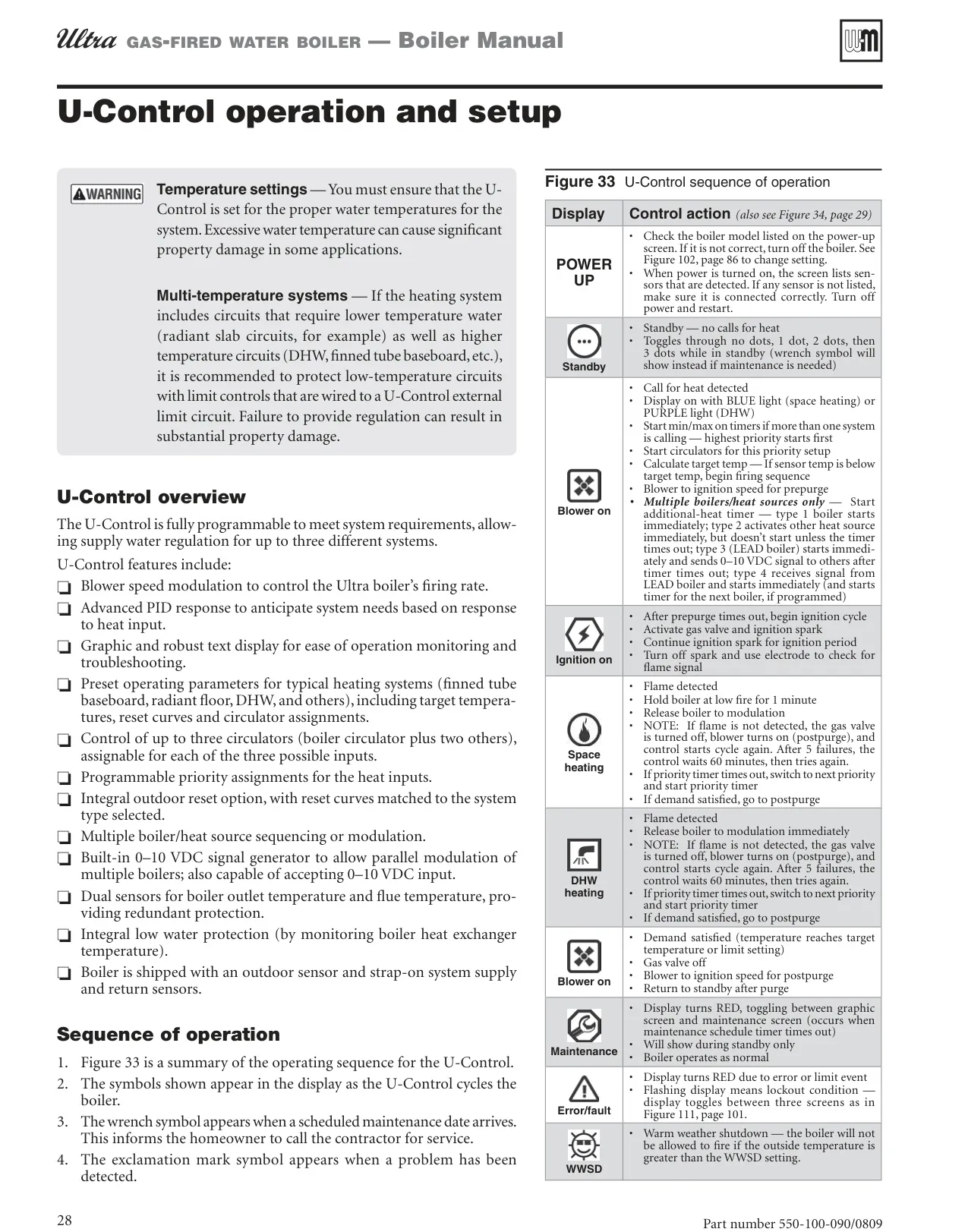

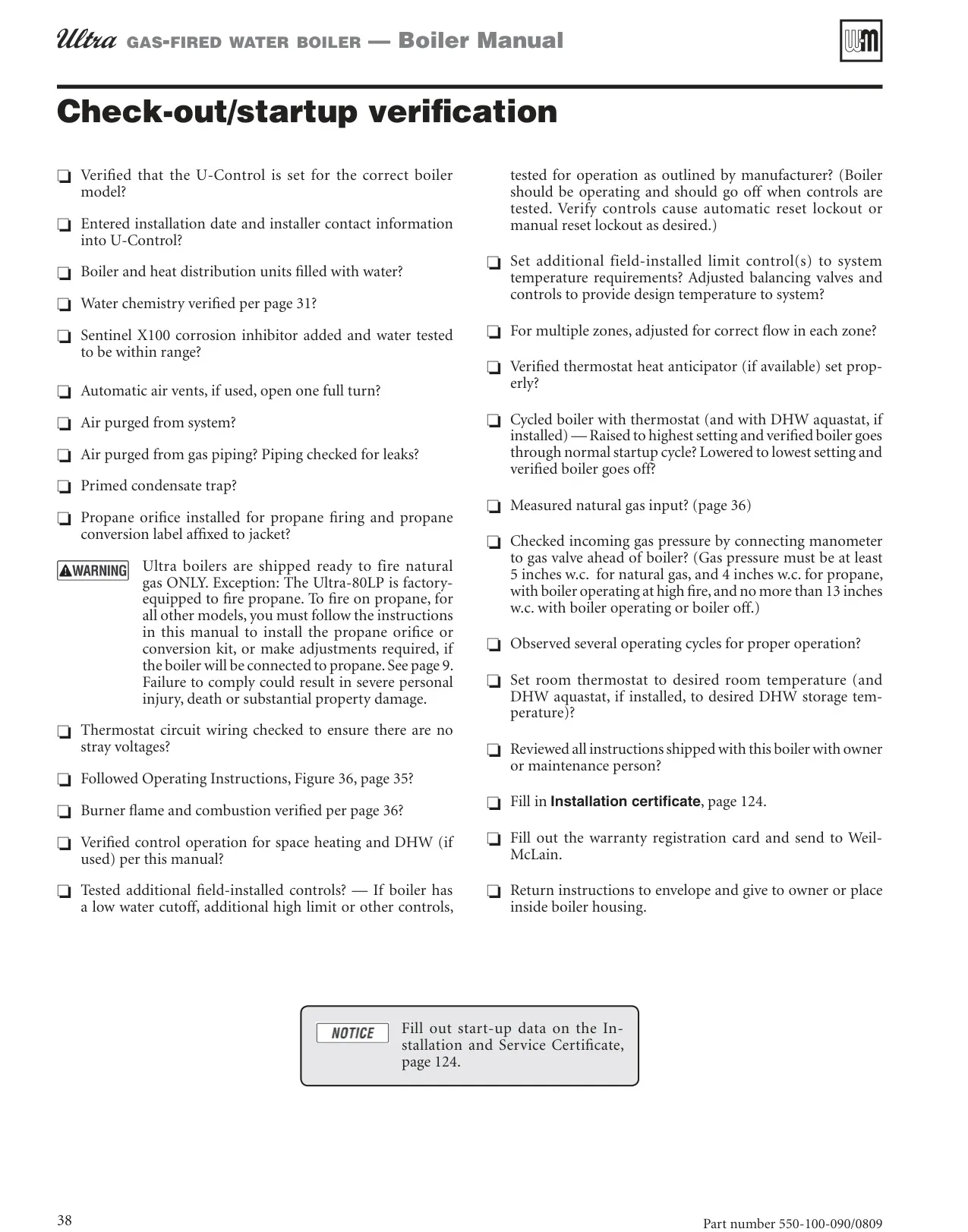

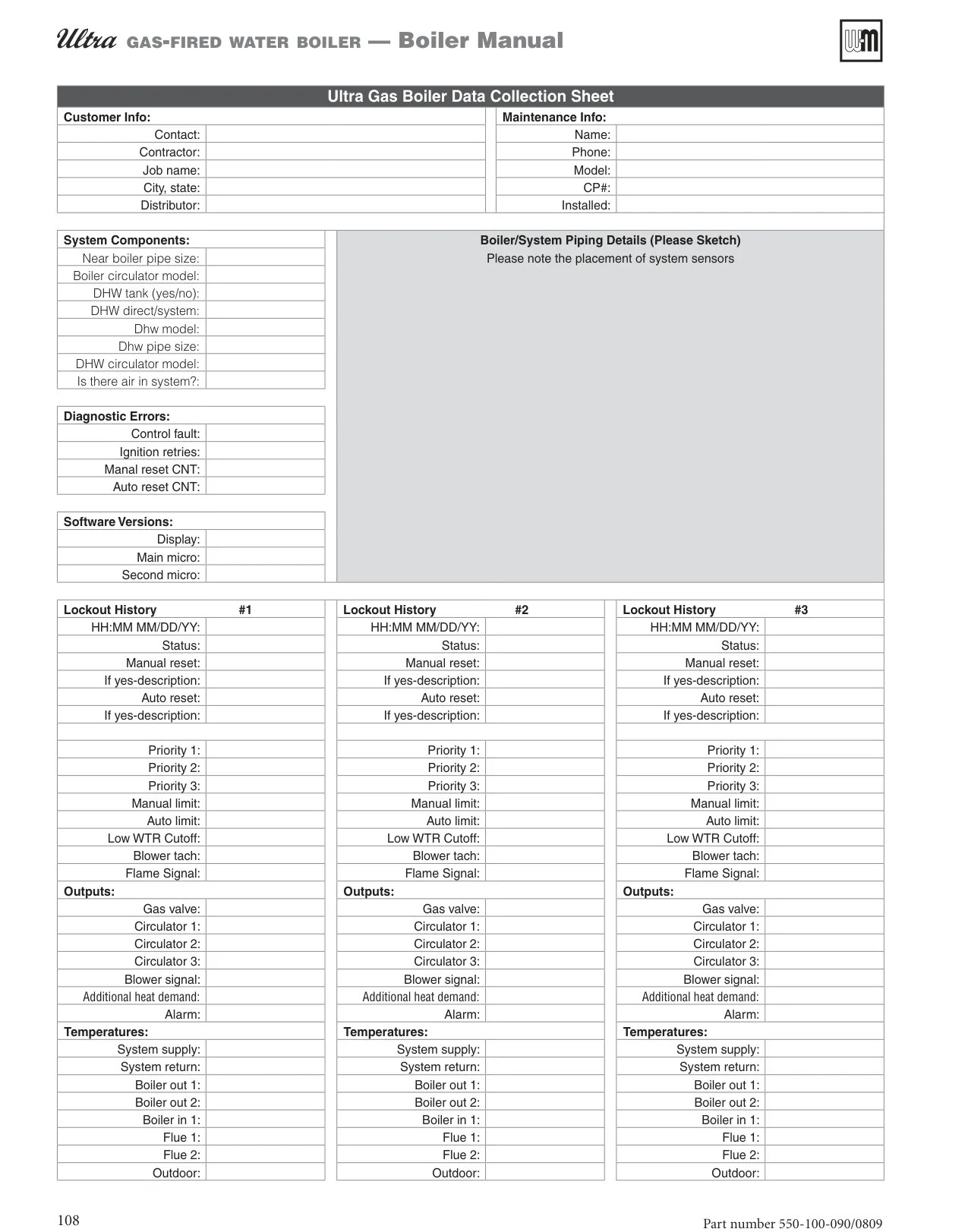

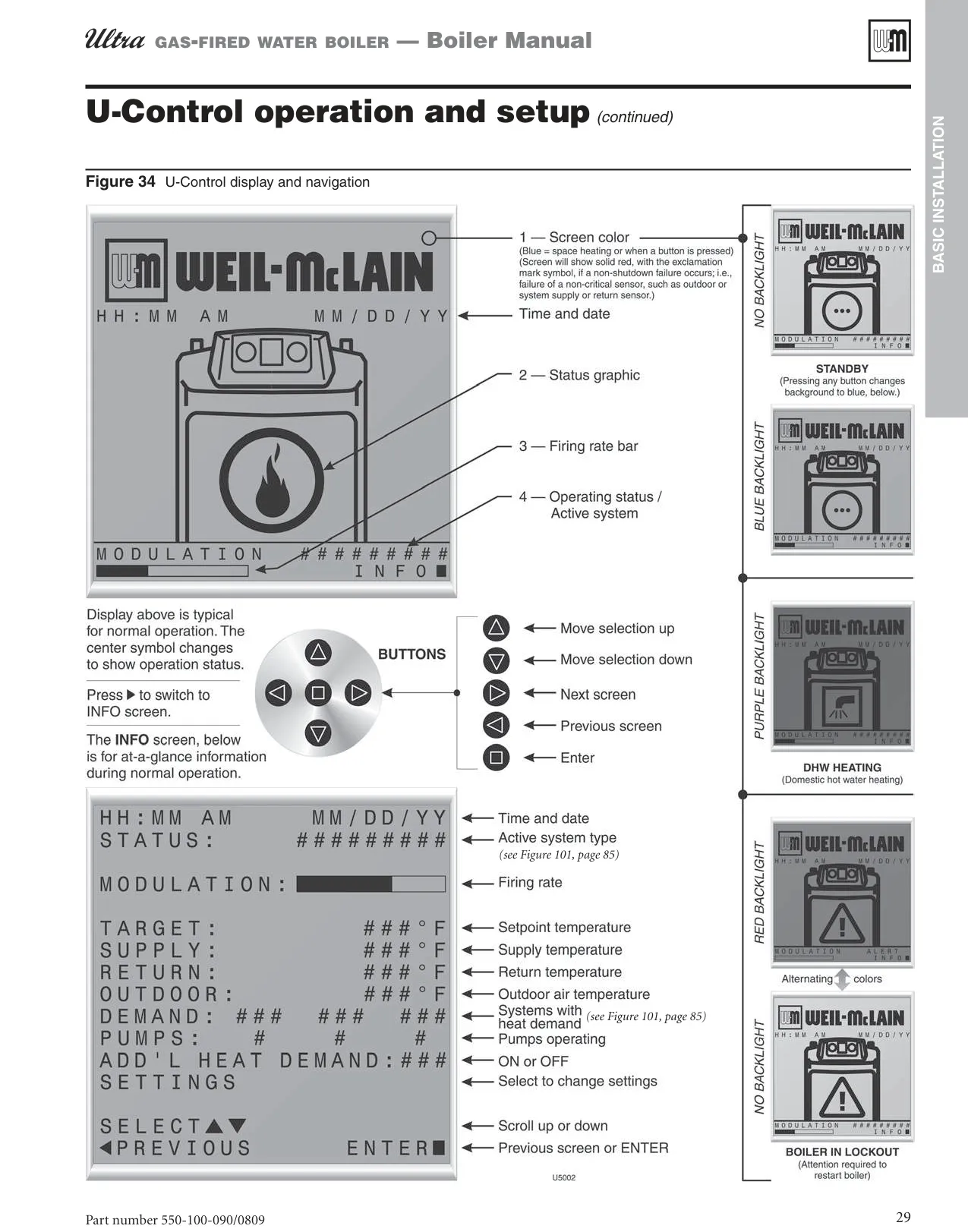

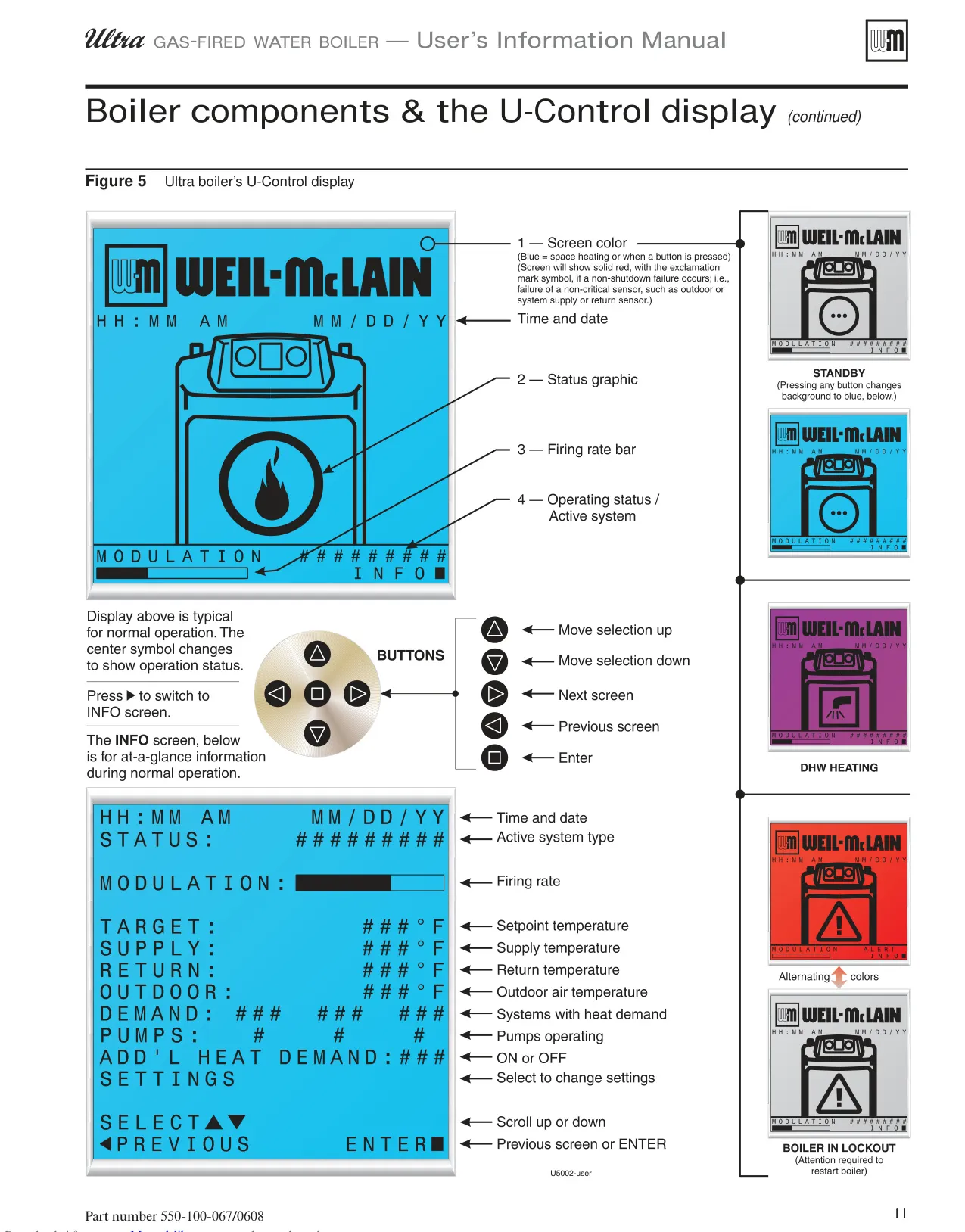

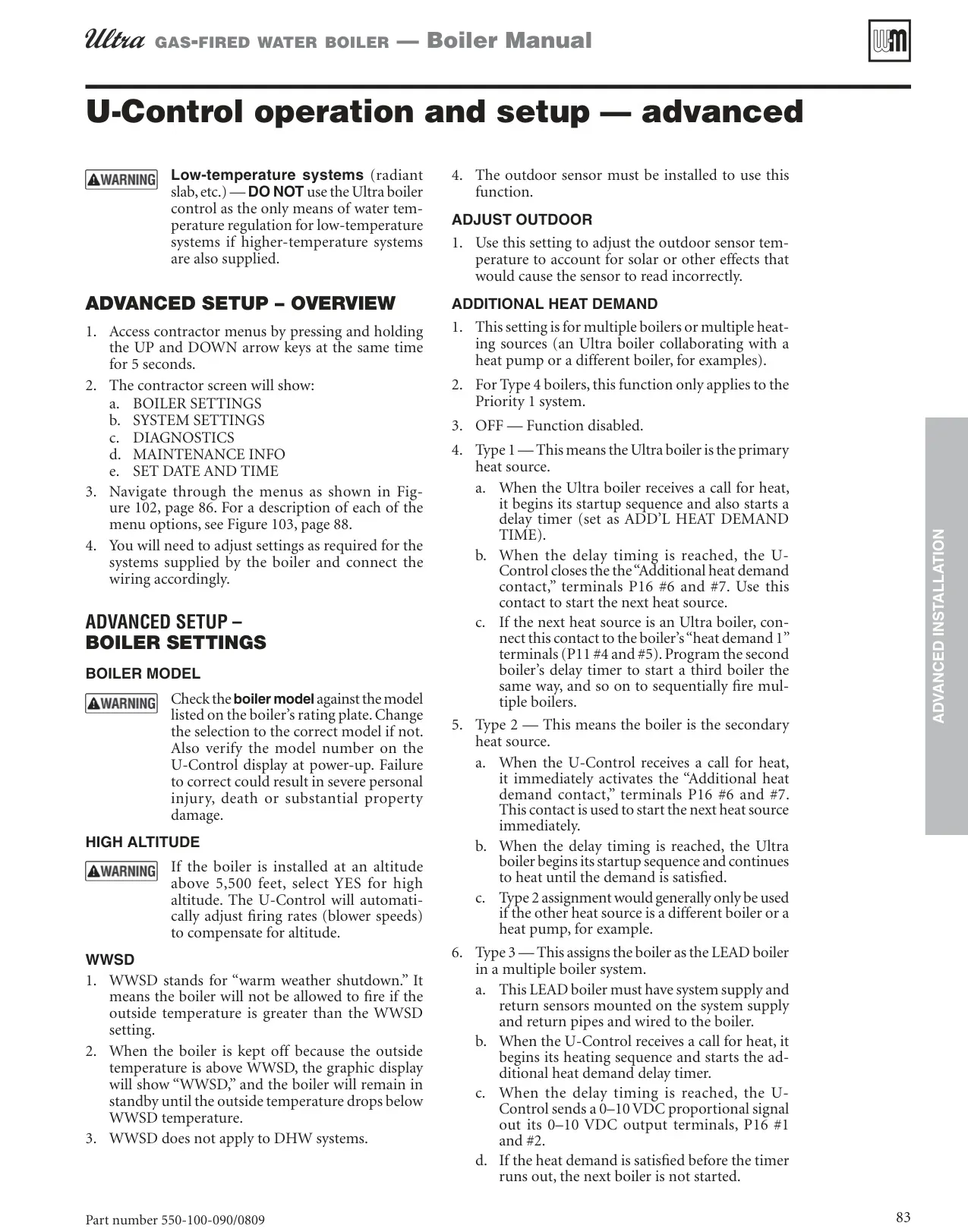

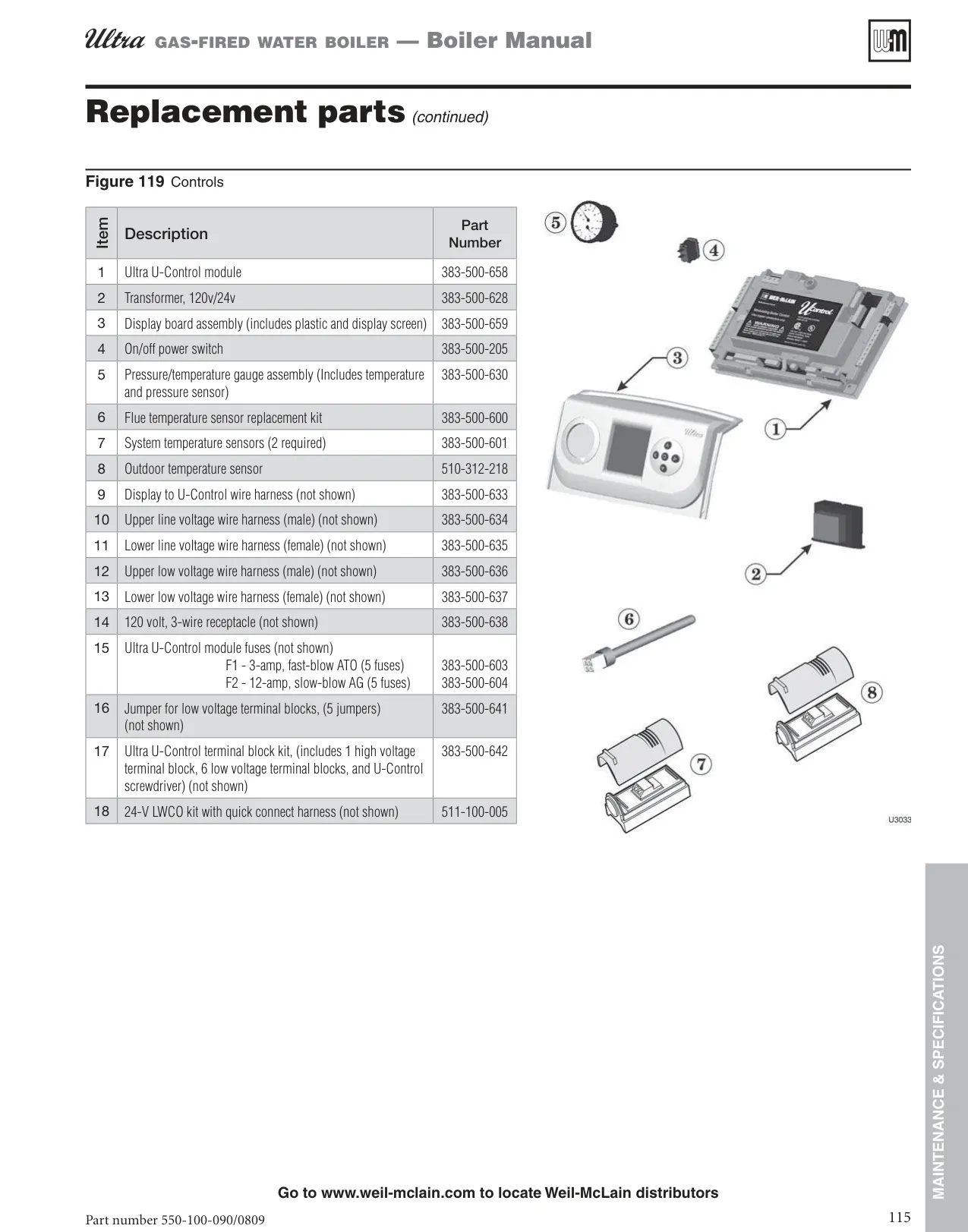

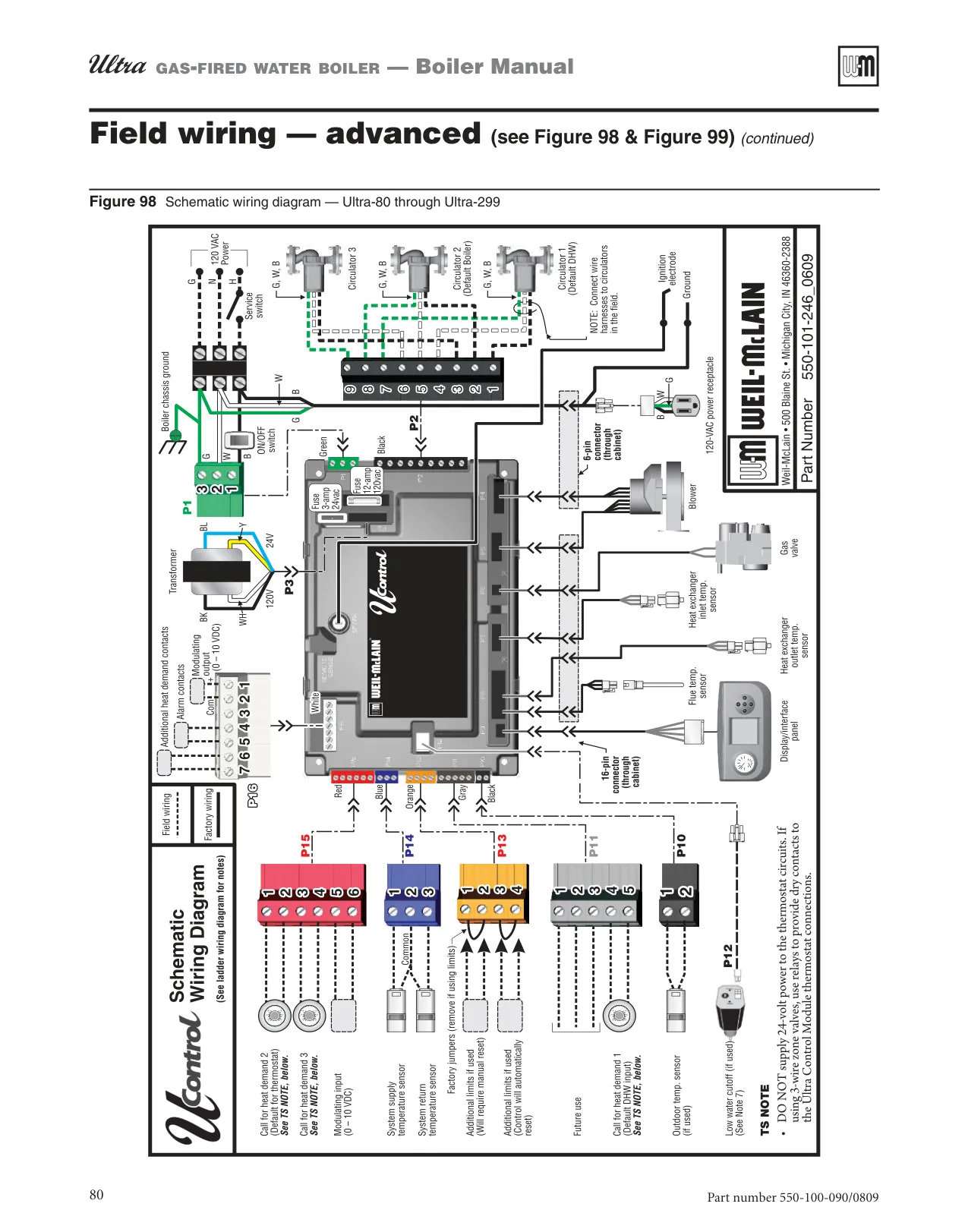

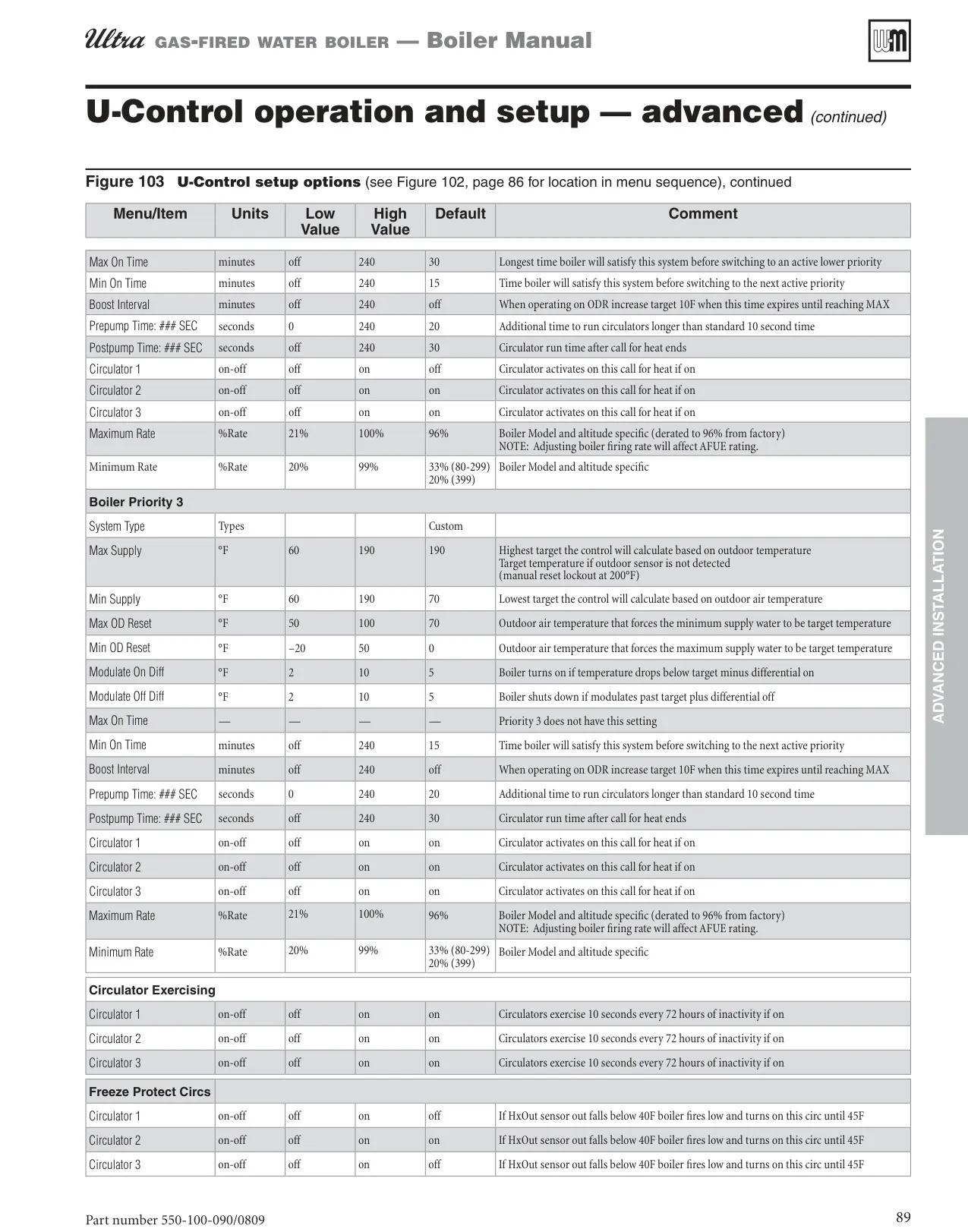

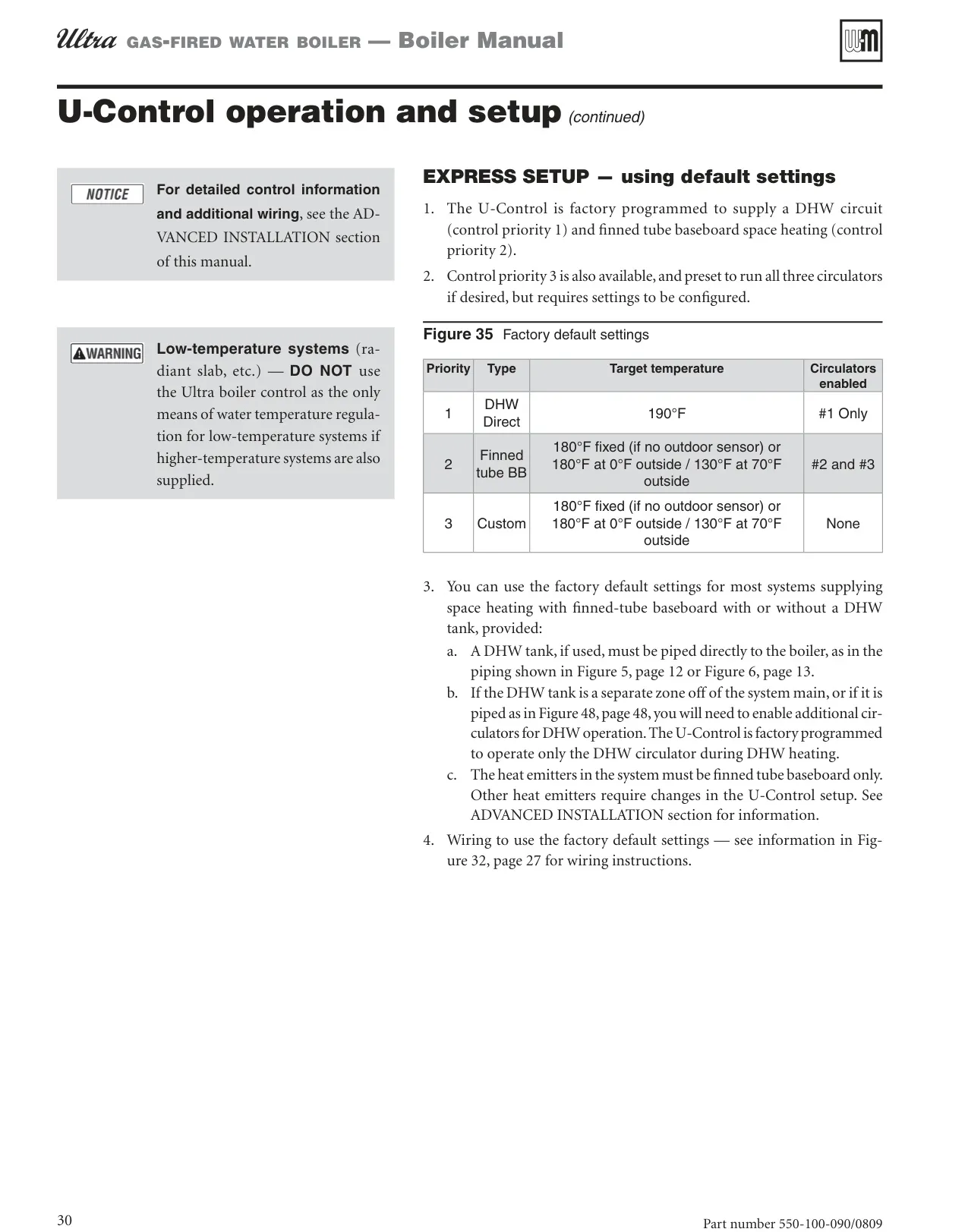

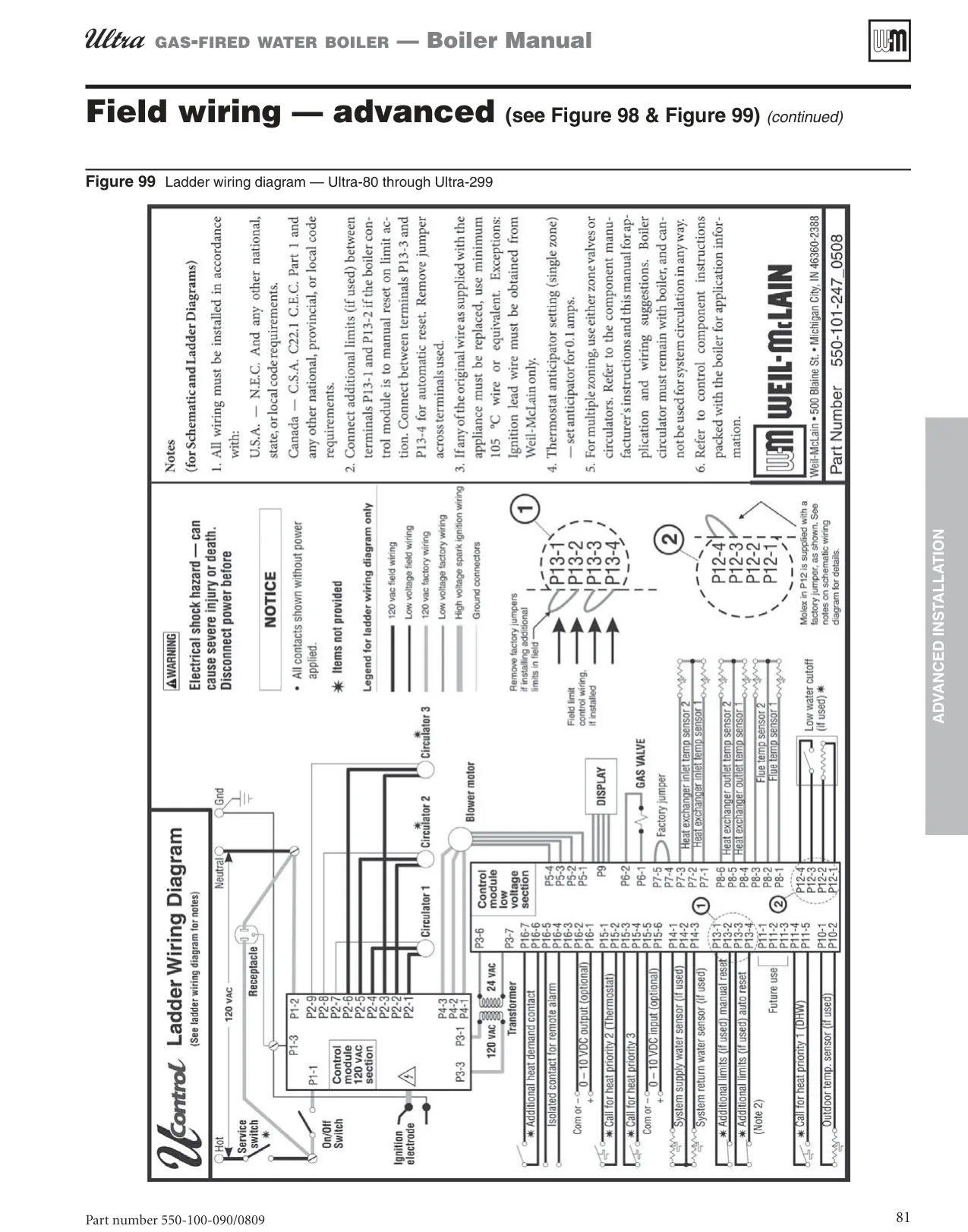

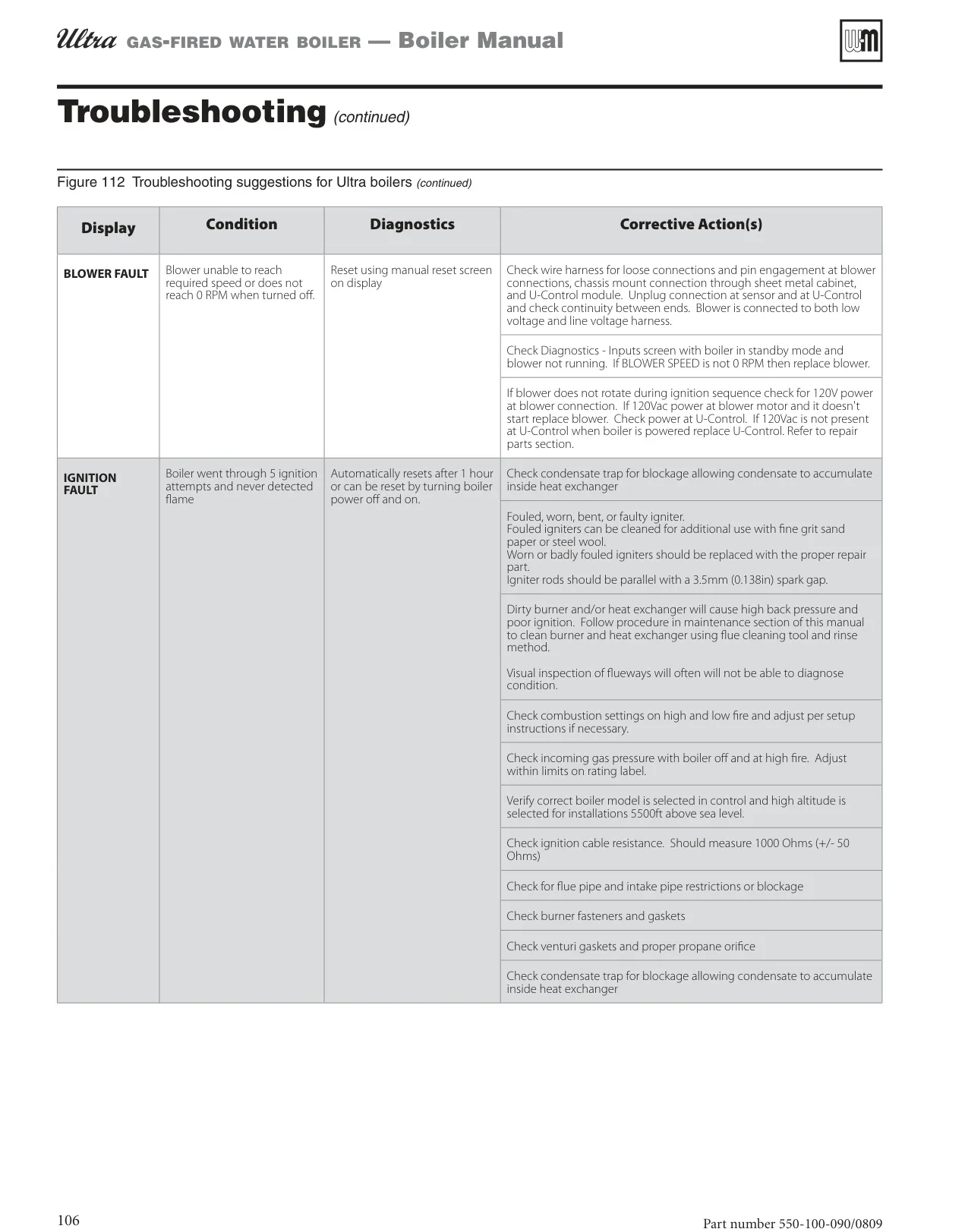

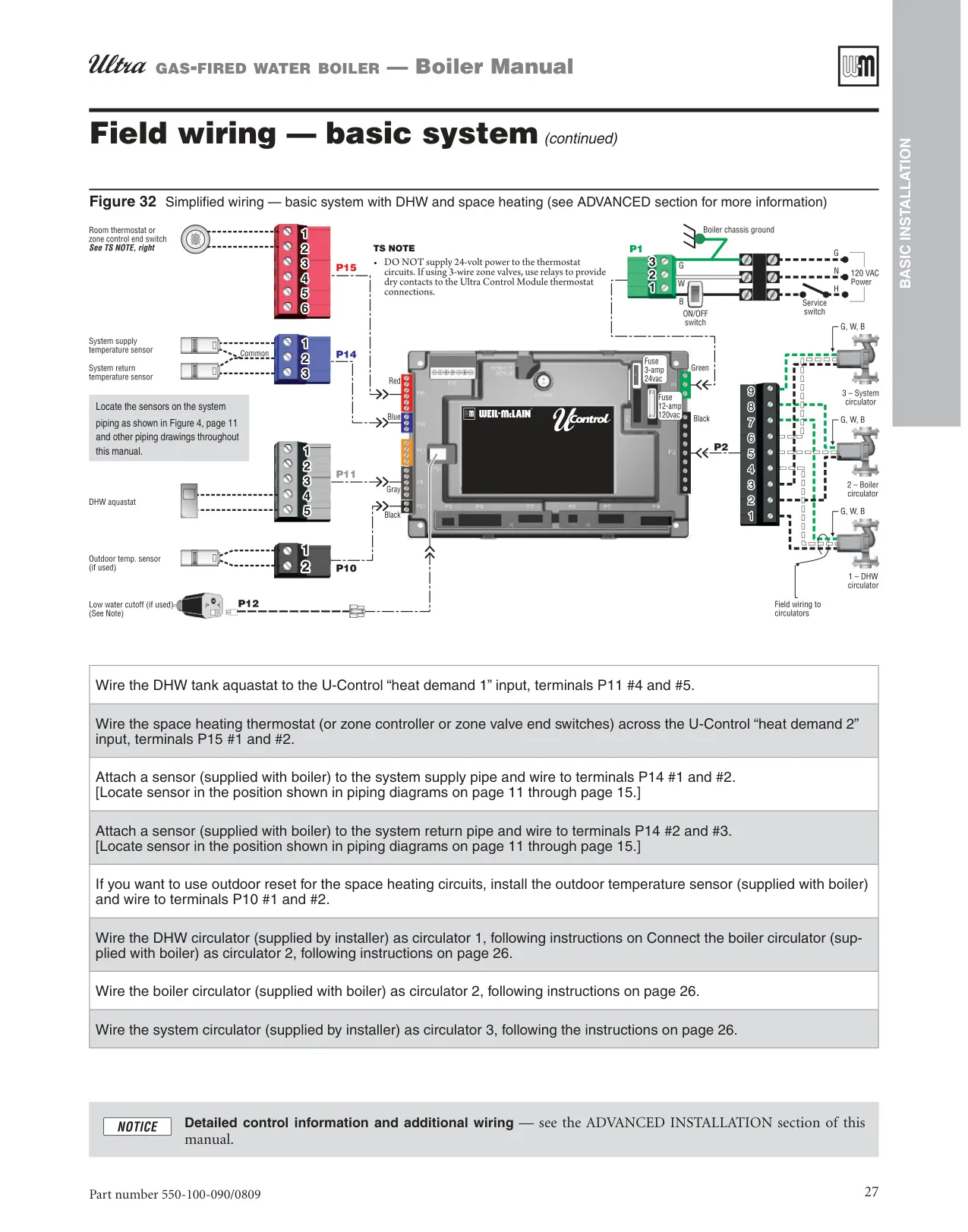

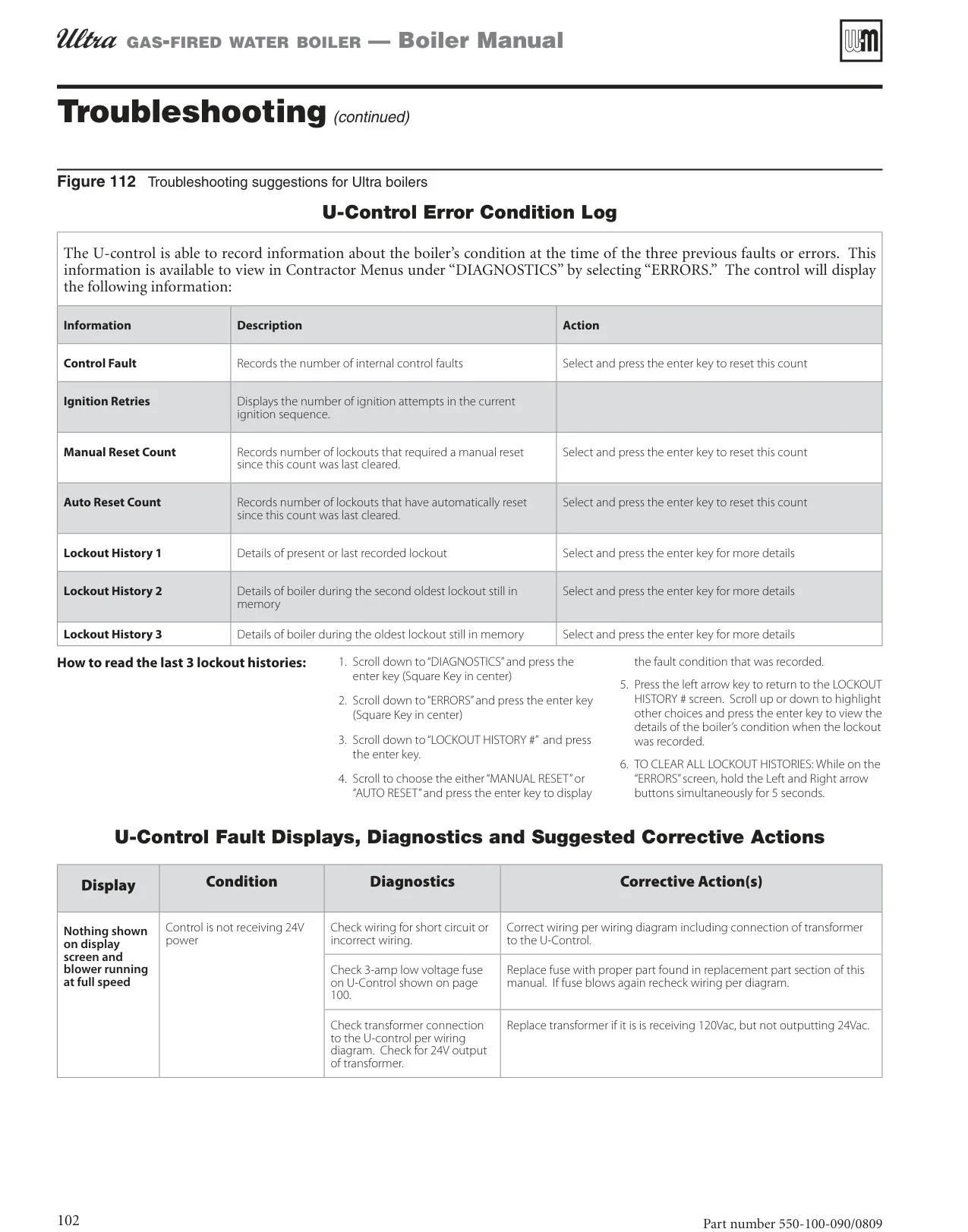

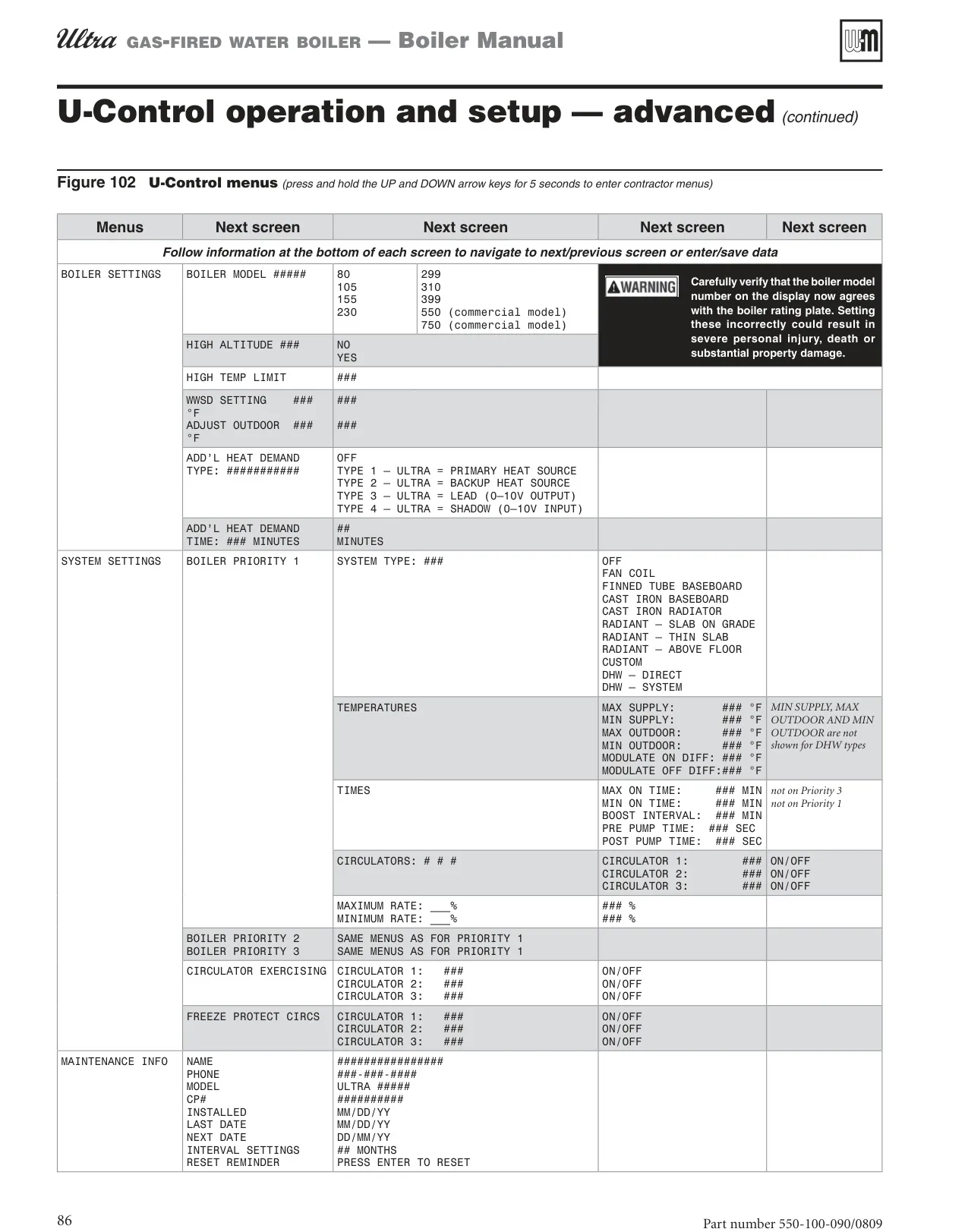

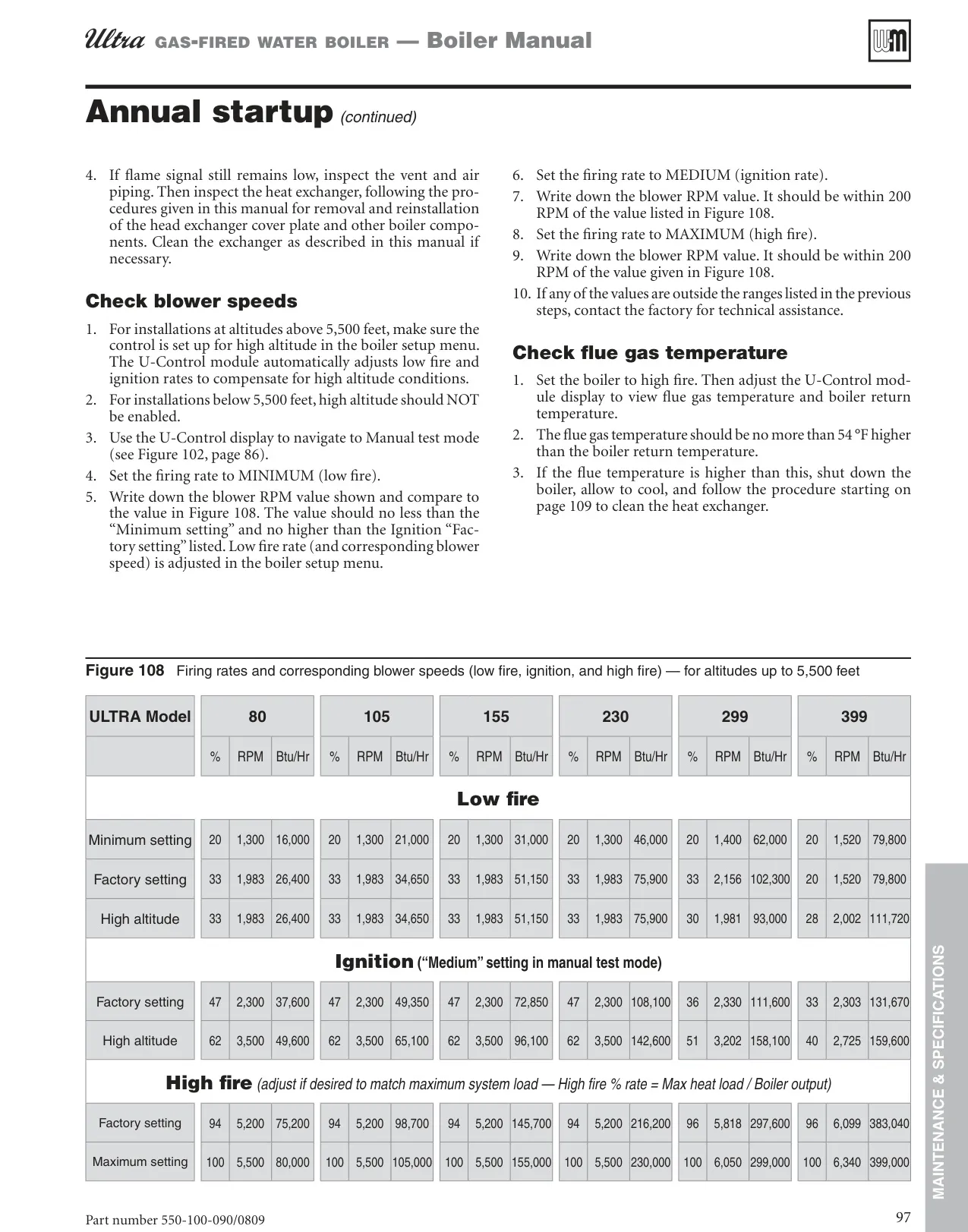

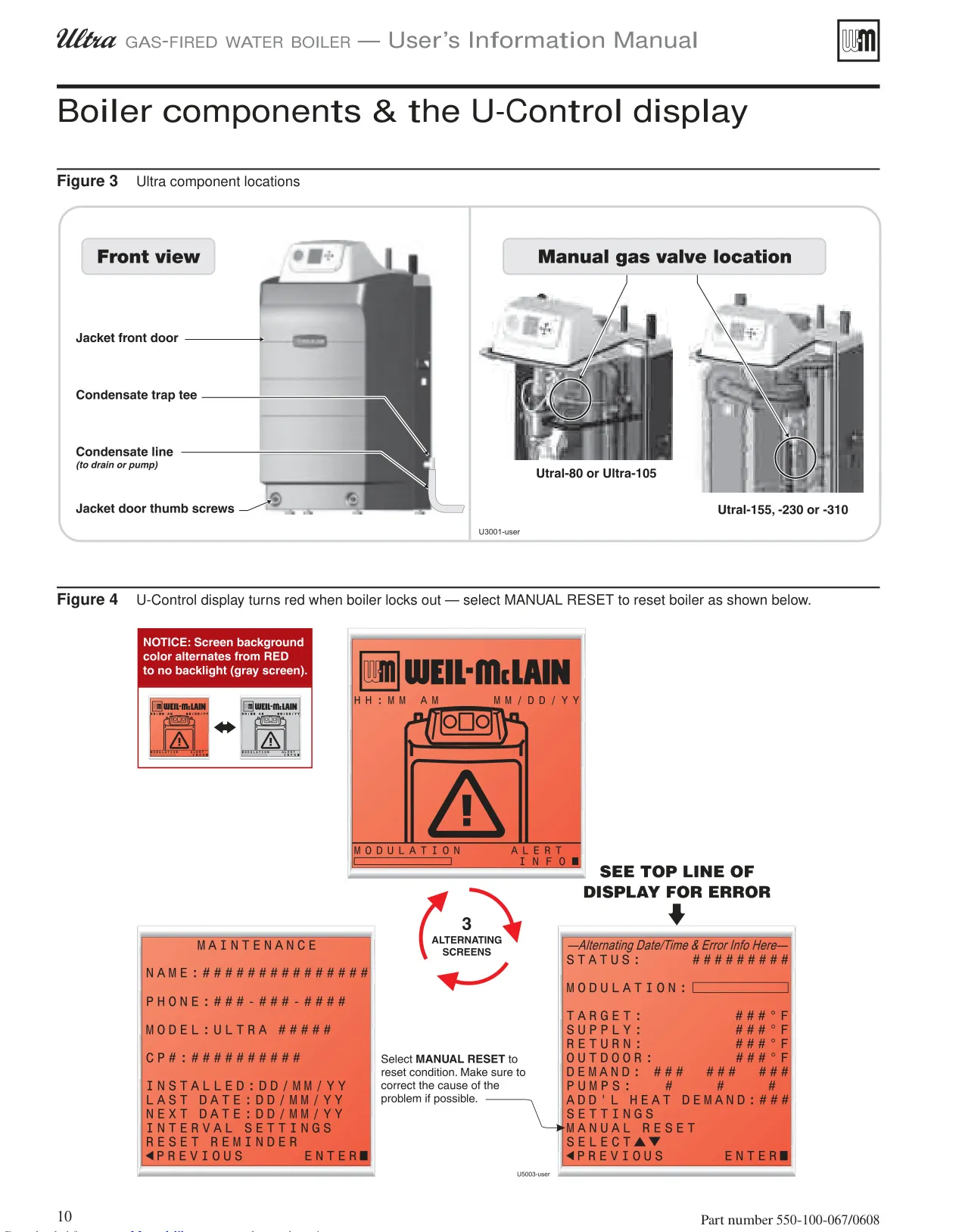

At the heart of its intelligence is the U-Control Module, a fully programmable system that manages the boiler's operations. This module orchestrates blower speed modulation to fine-tune firing rates, incorporates advanced PID response for proactive system management, and provides intuitive graphic and text displays for monitoring and troubleshooting.

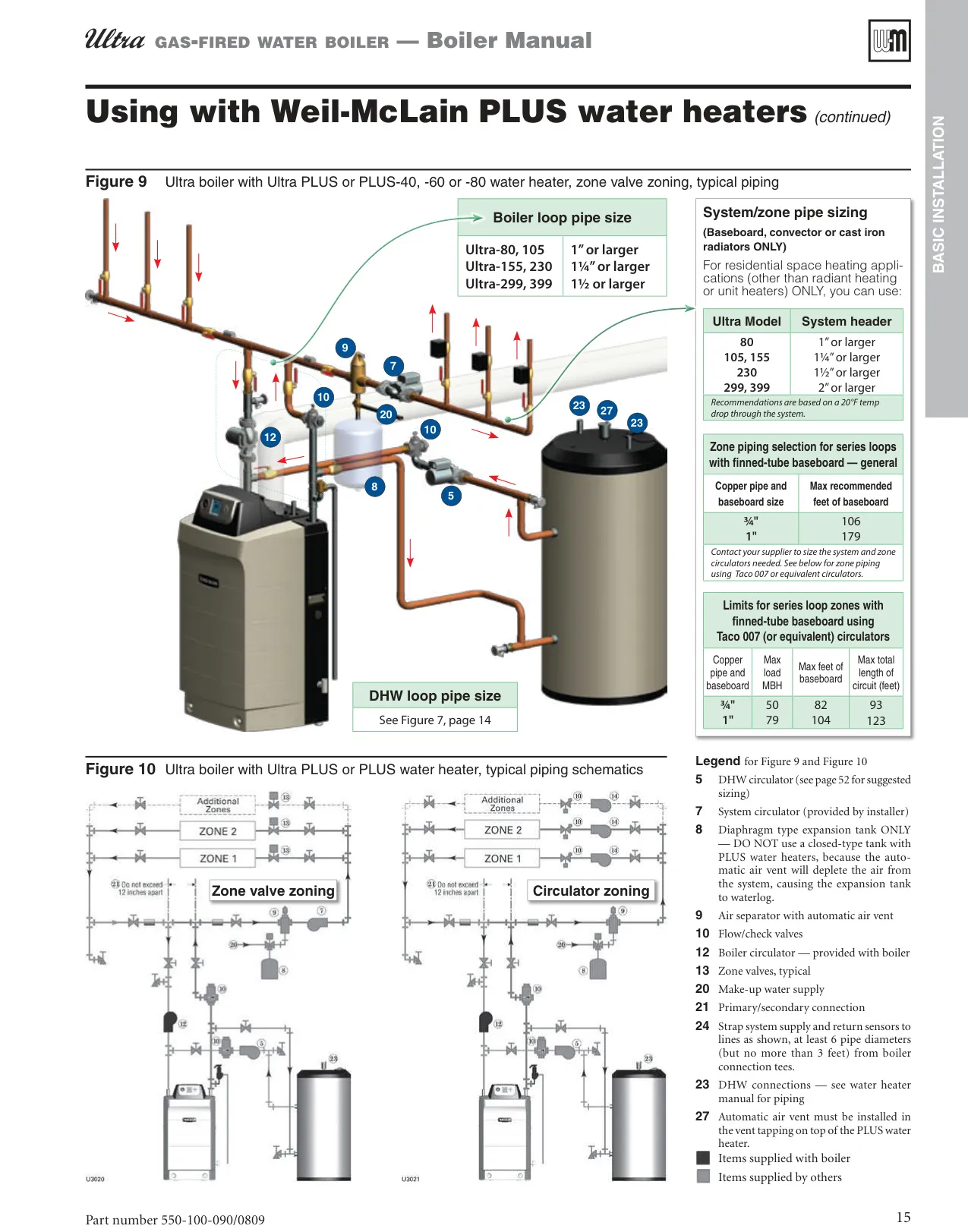

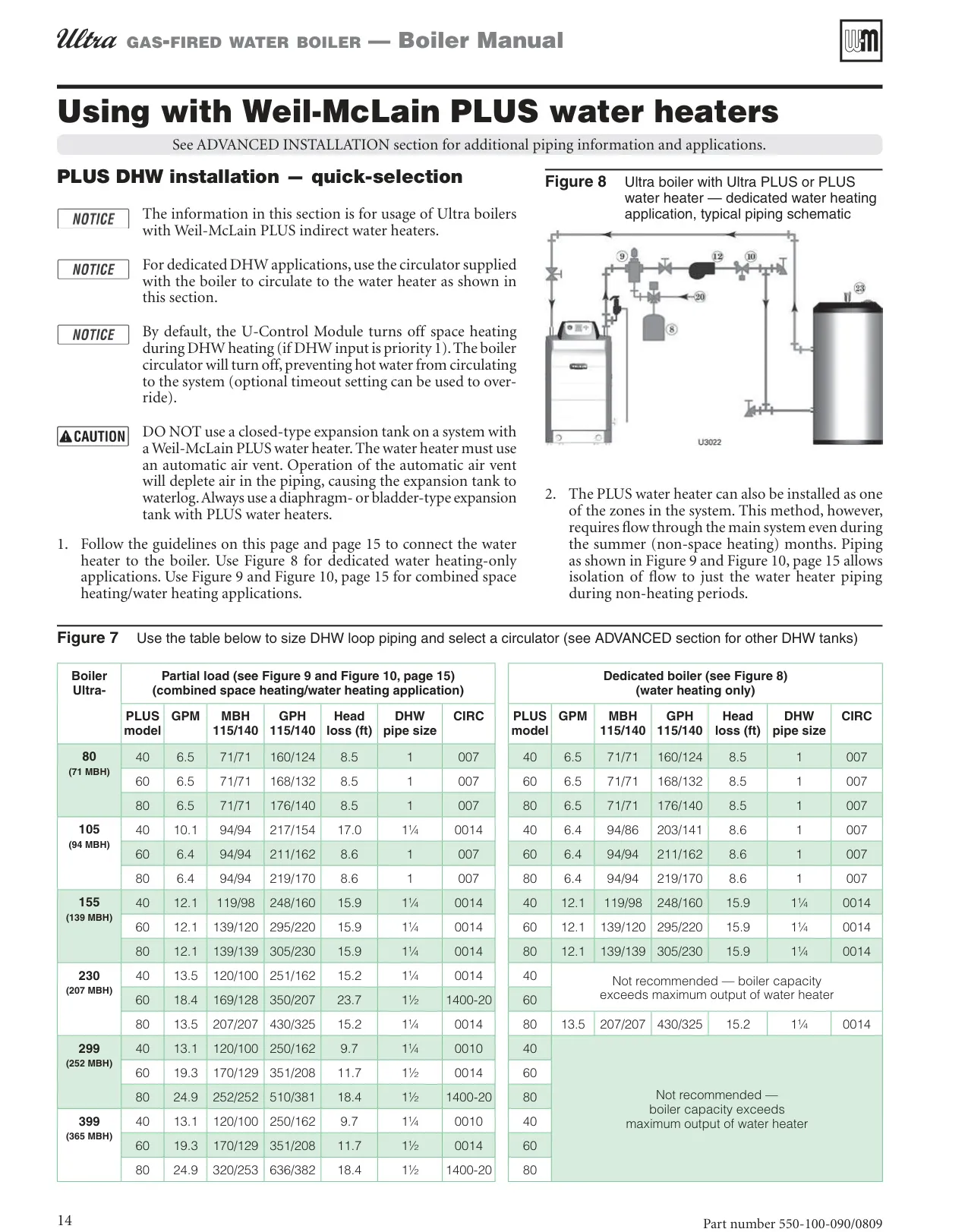

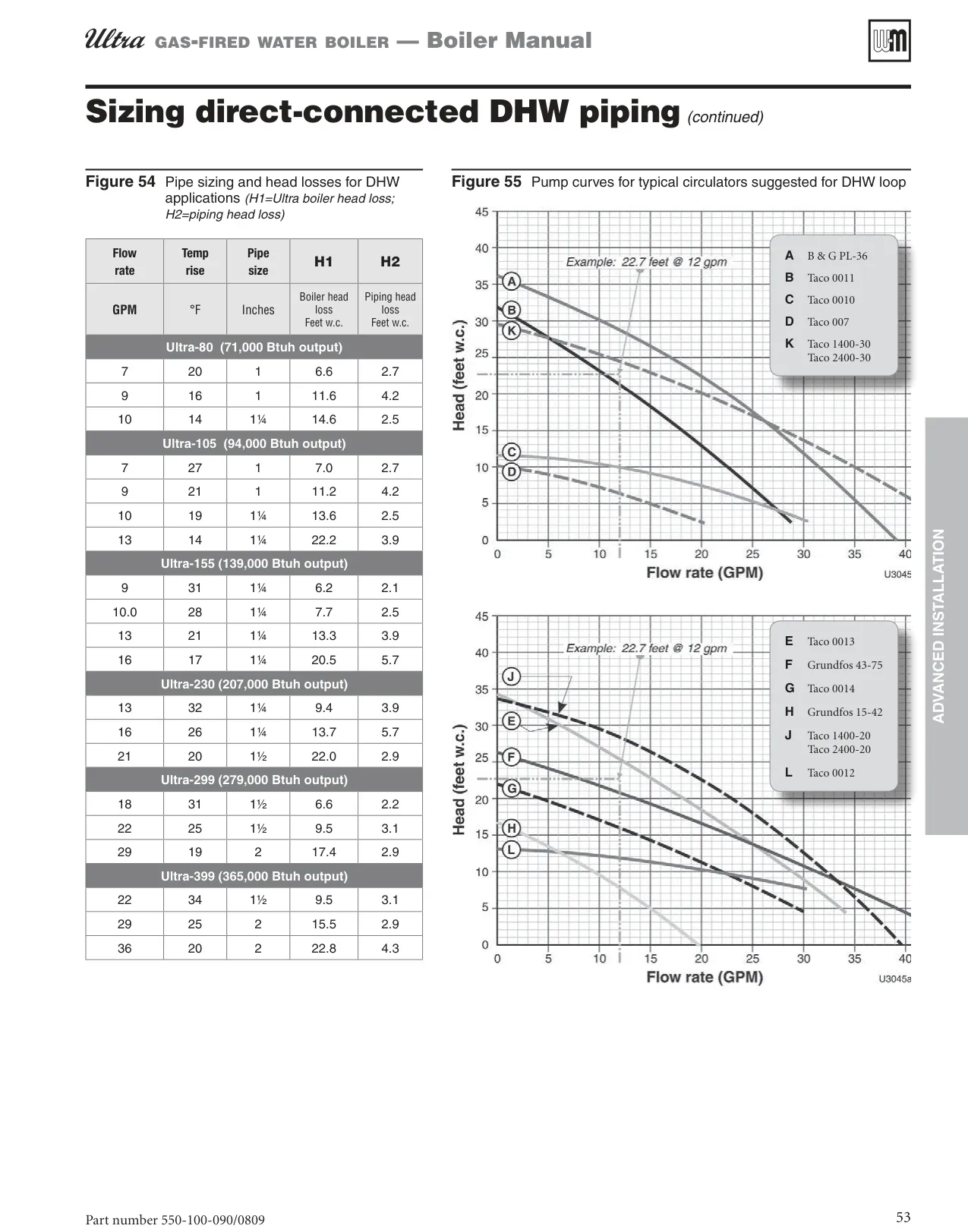

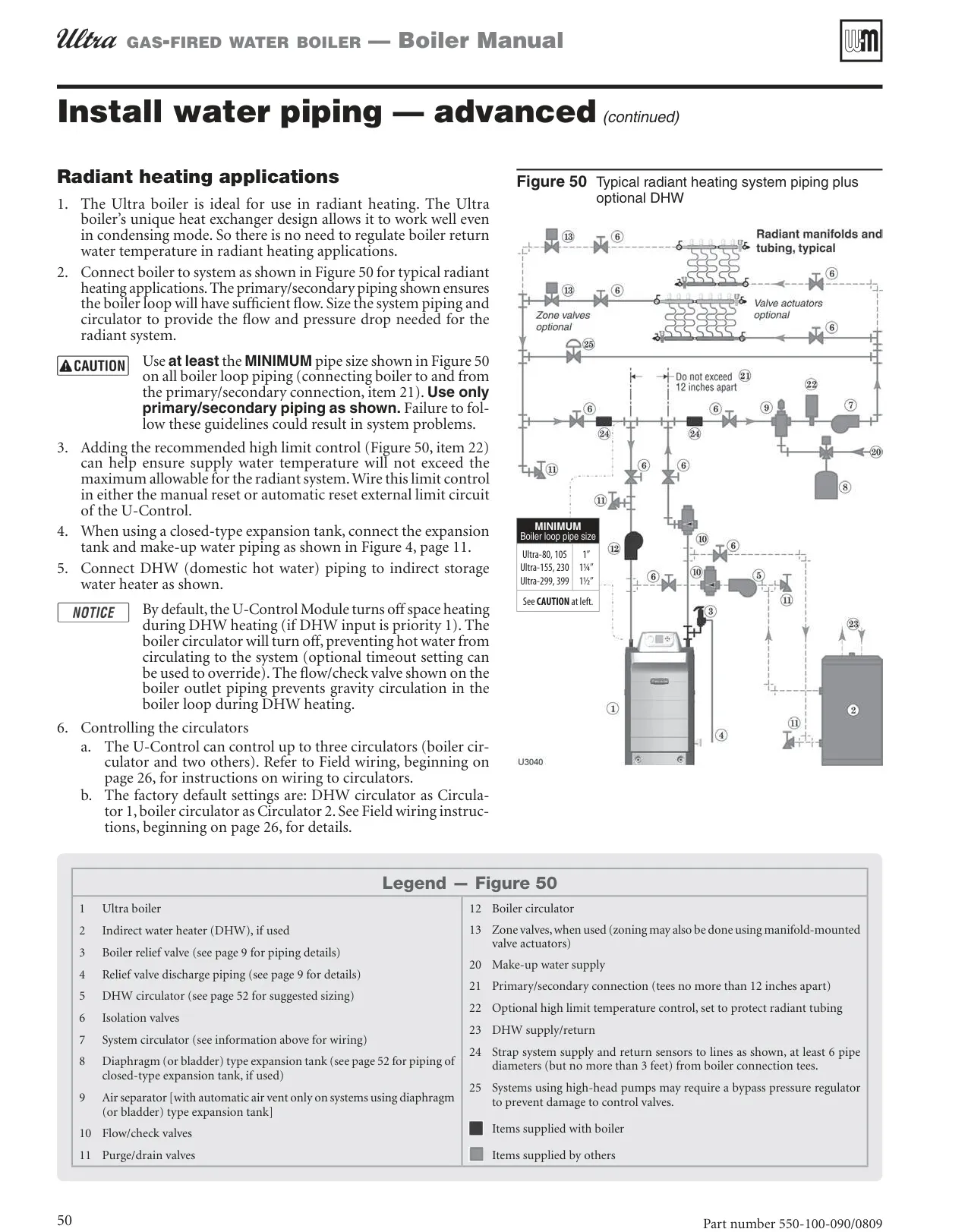

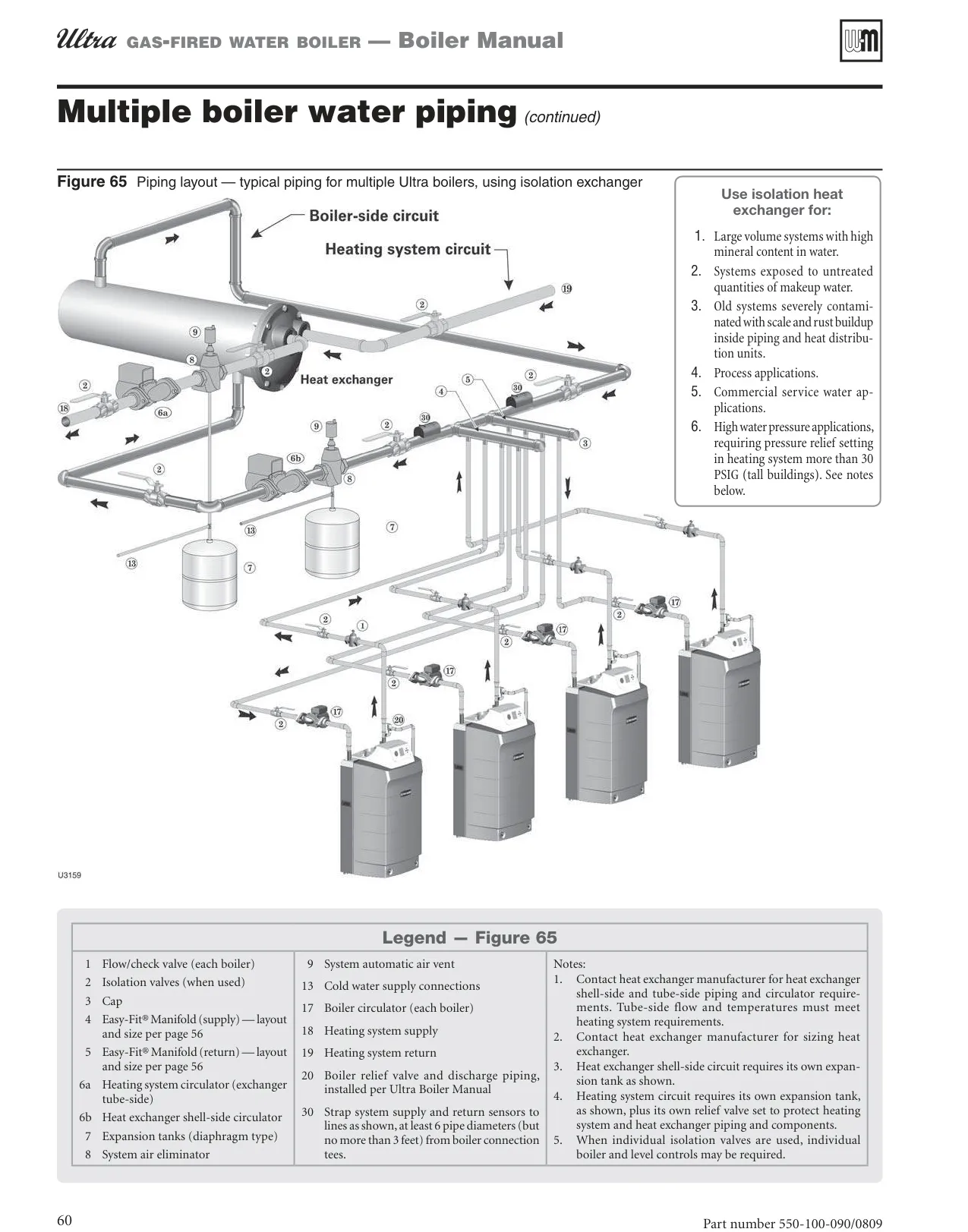

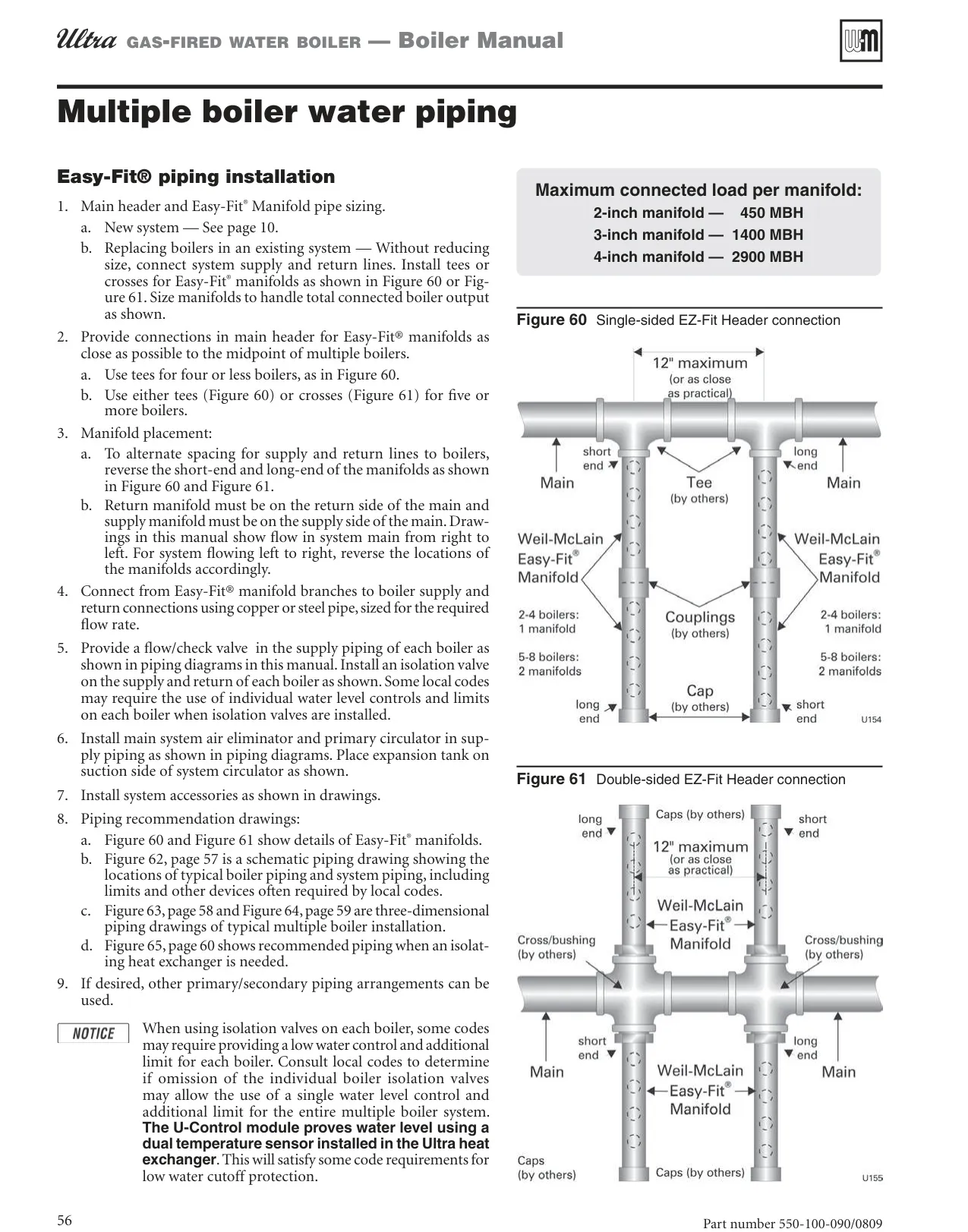

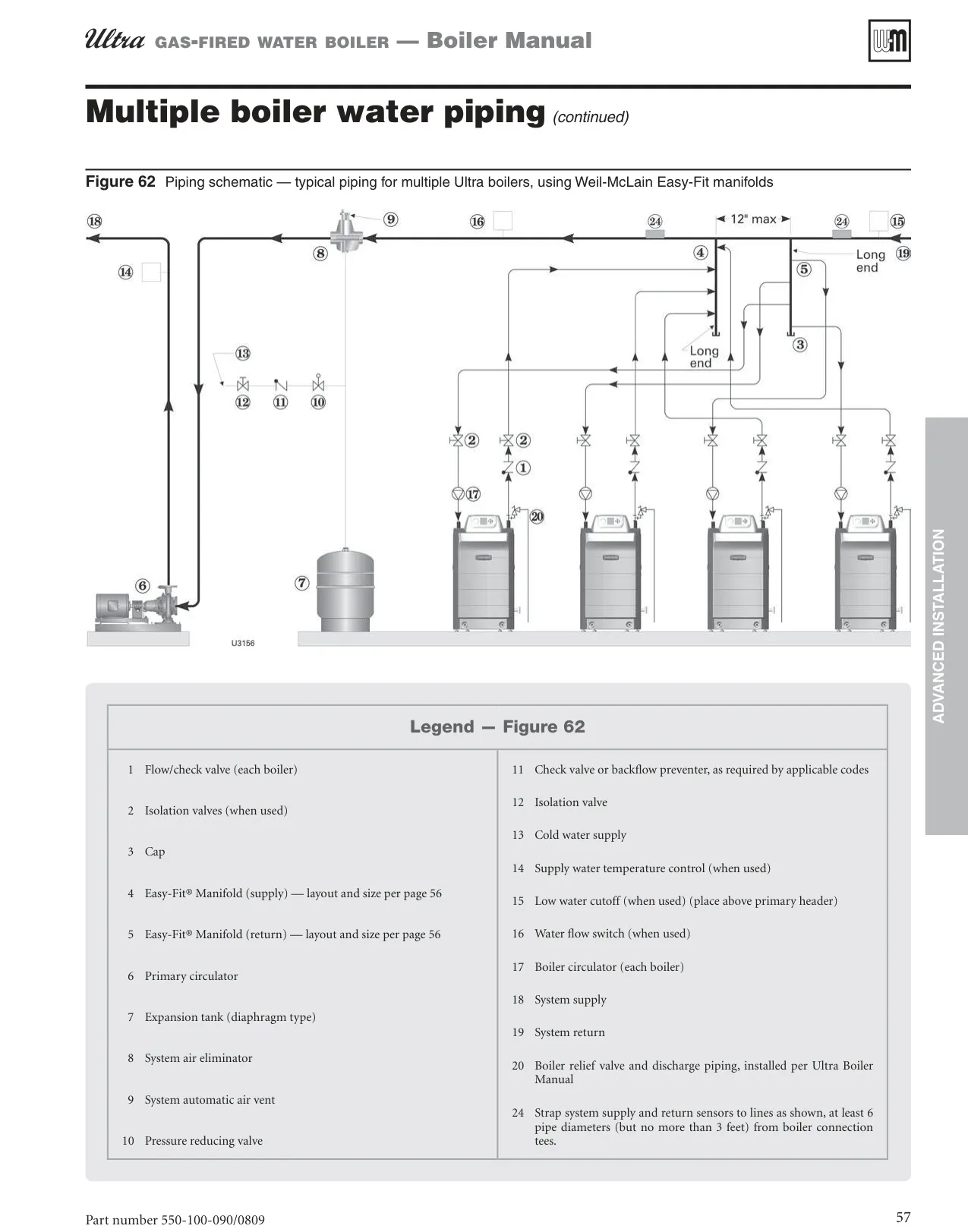

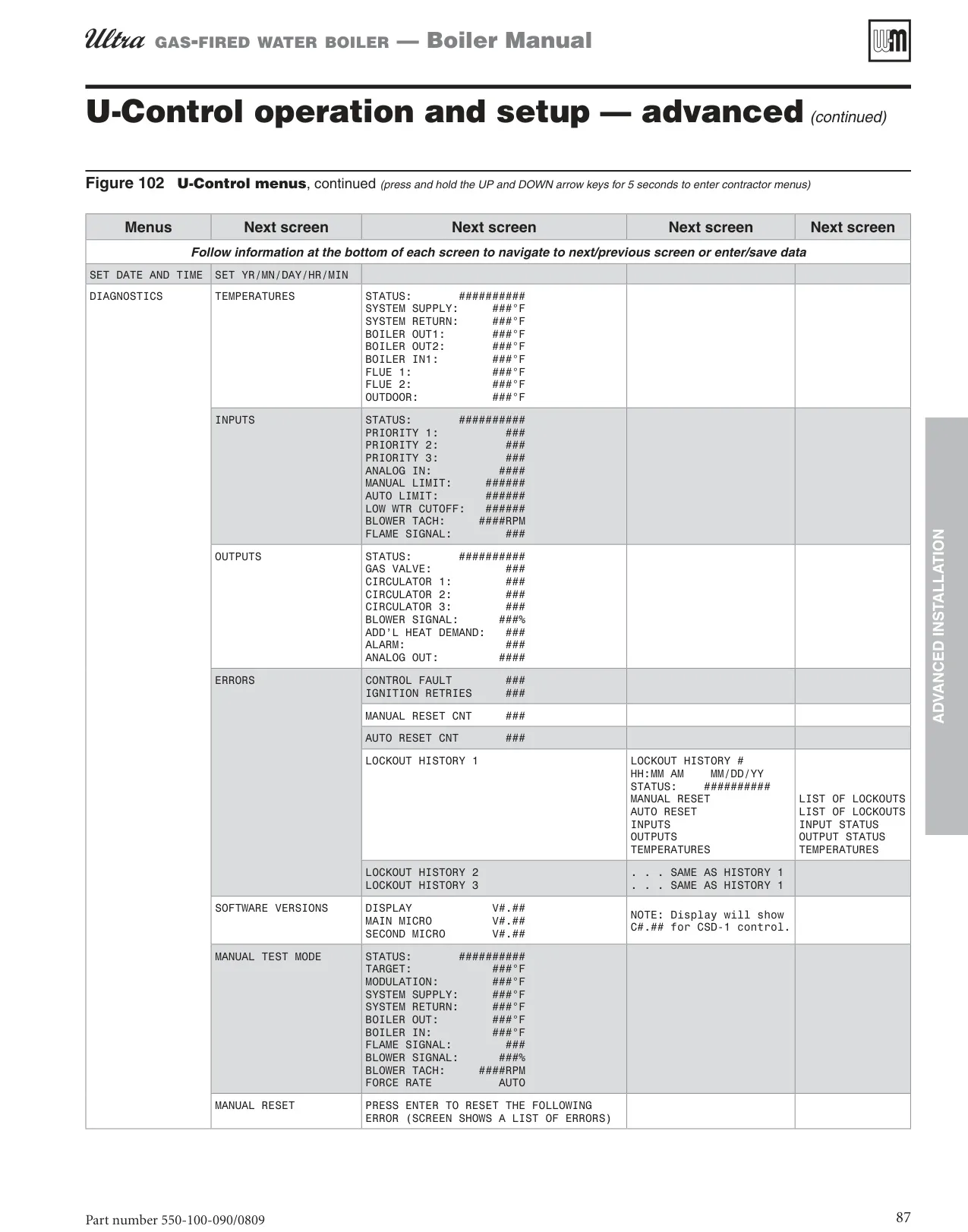

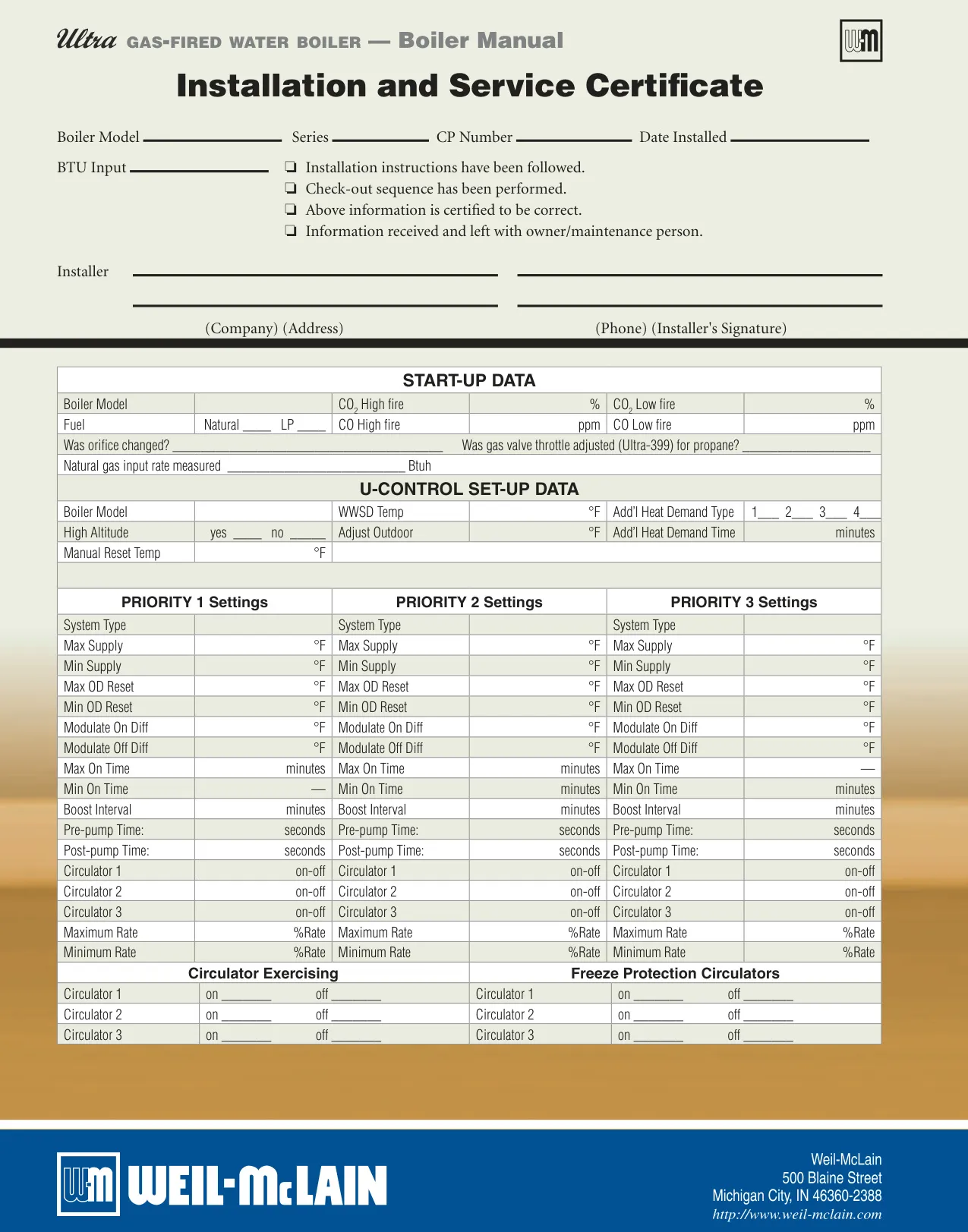

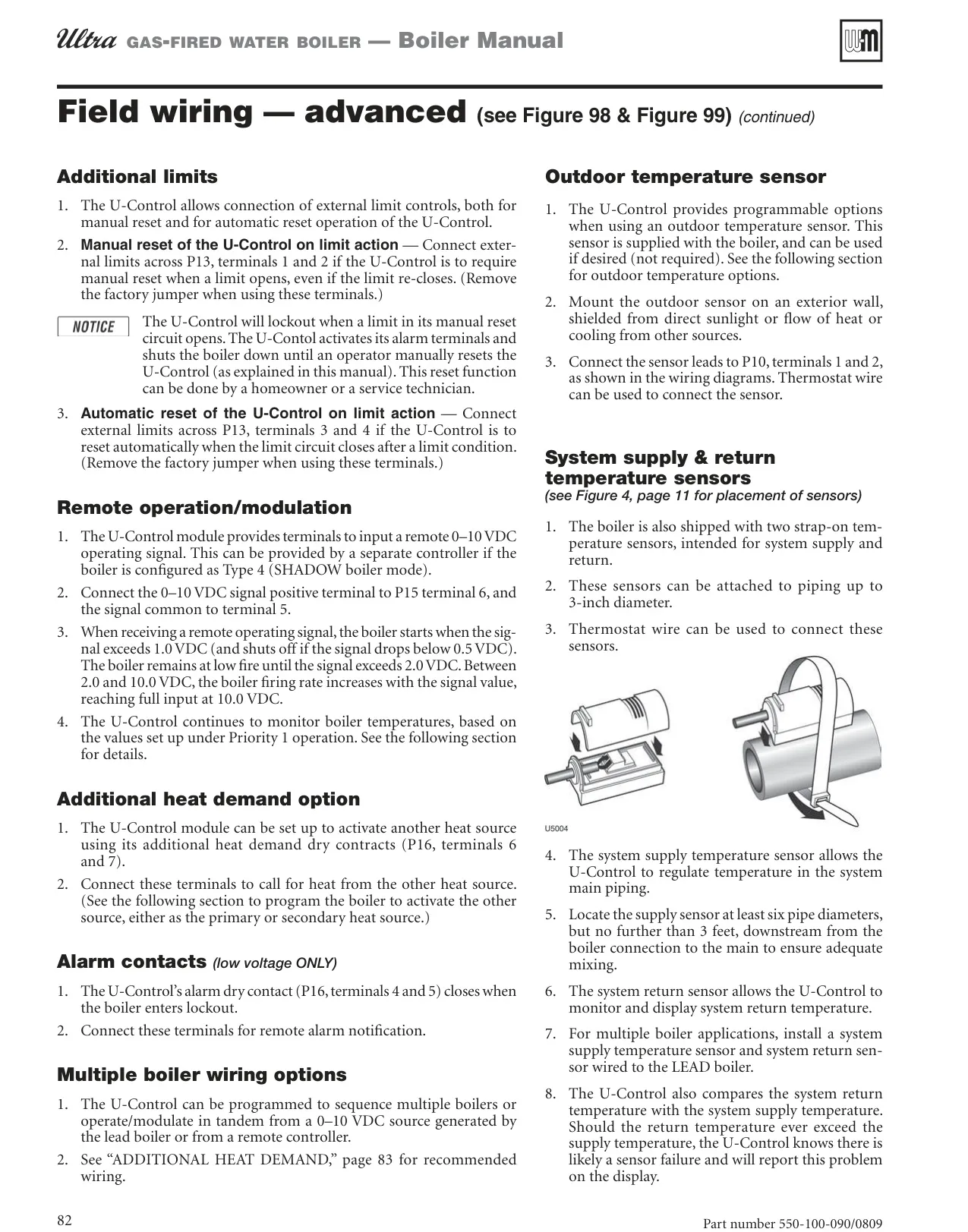

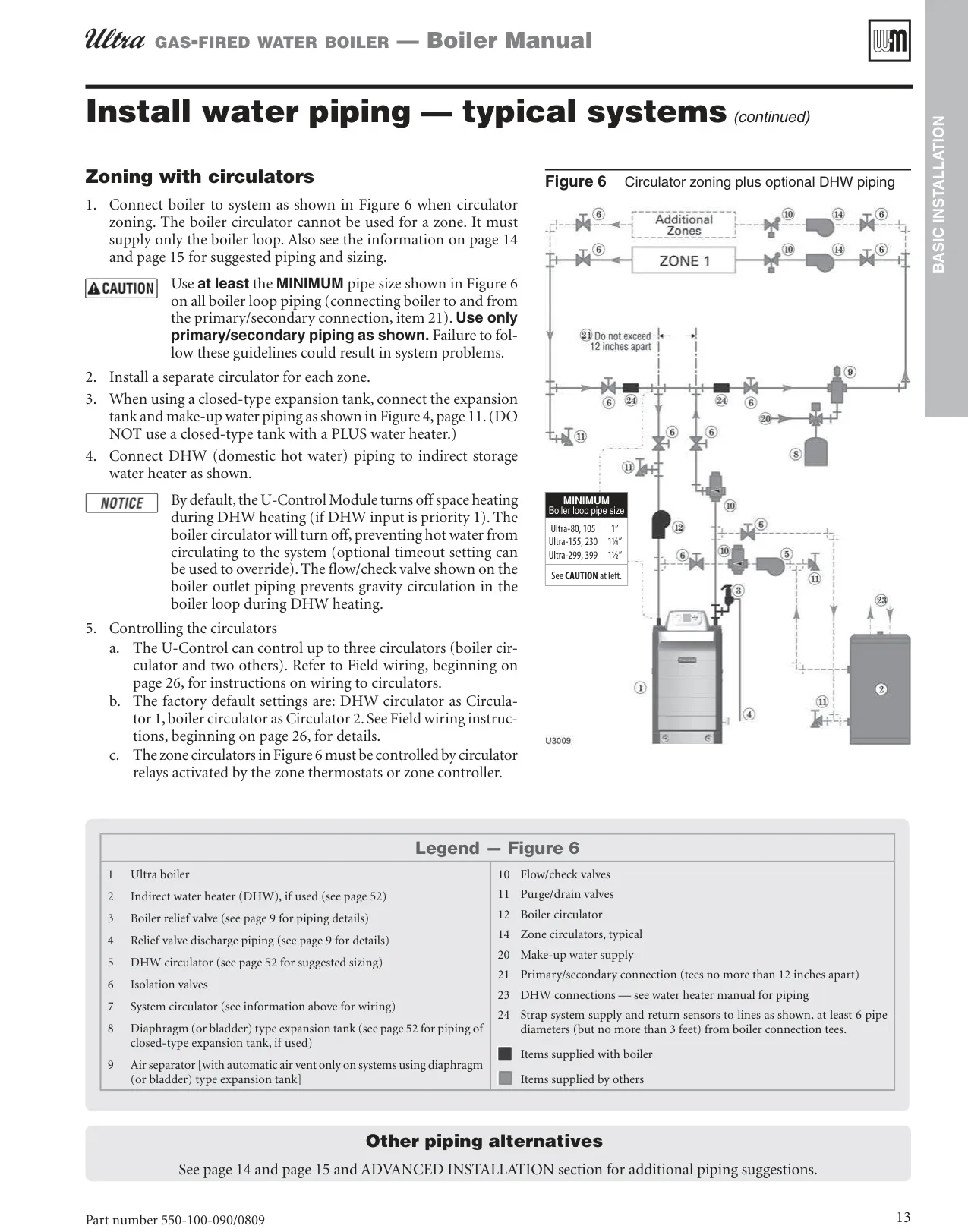

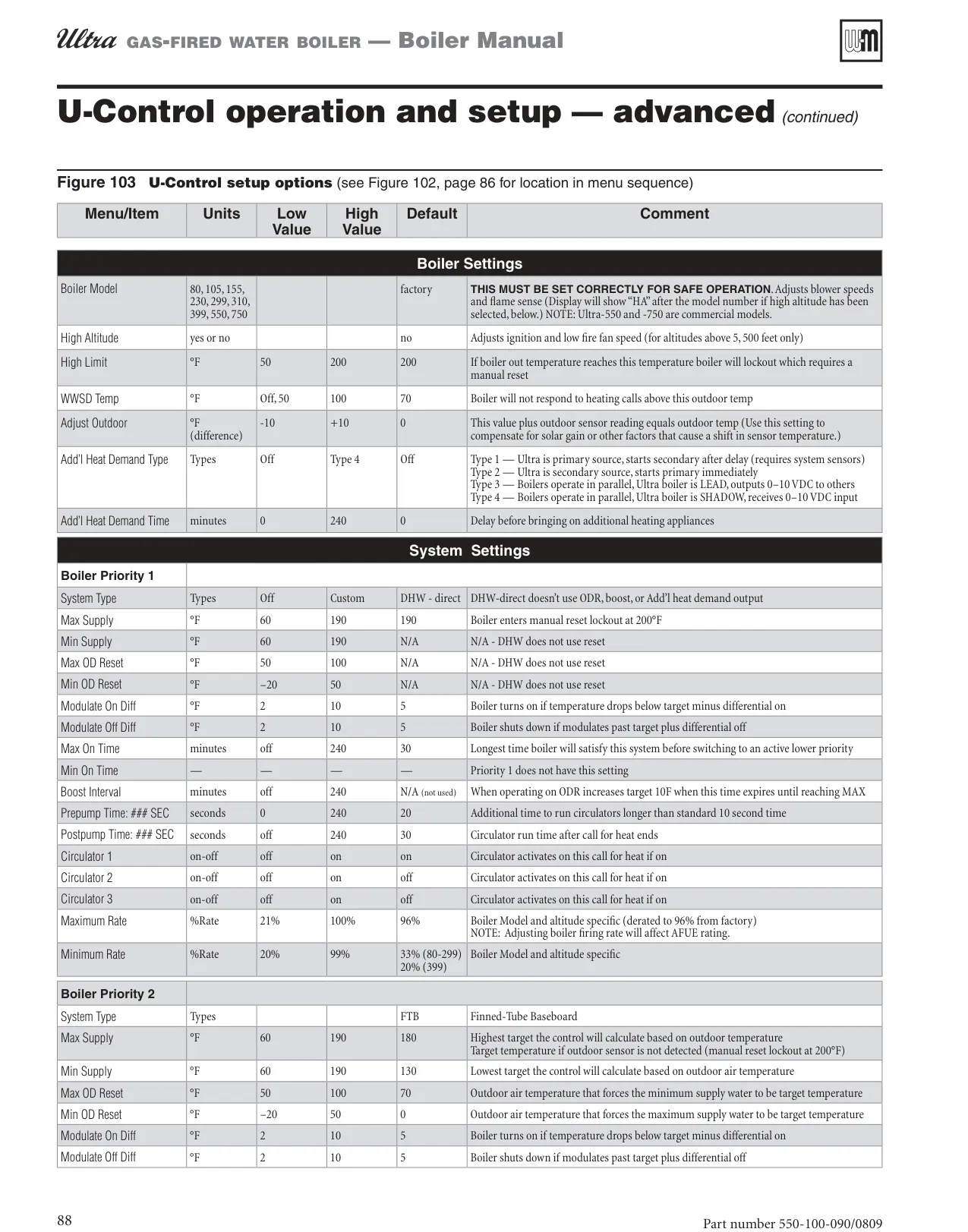

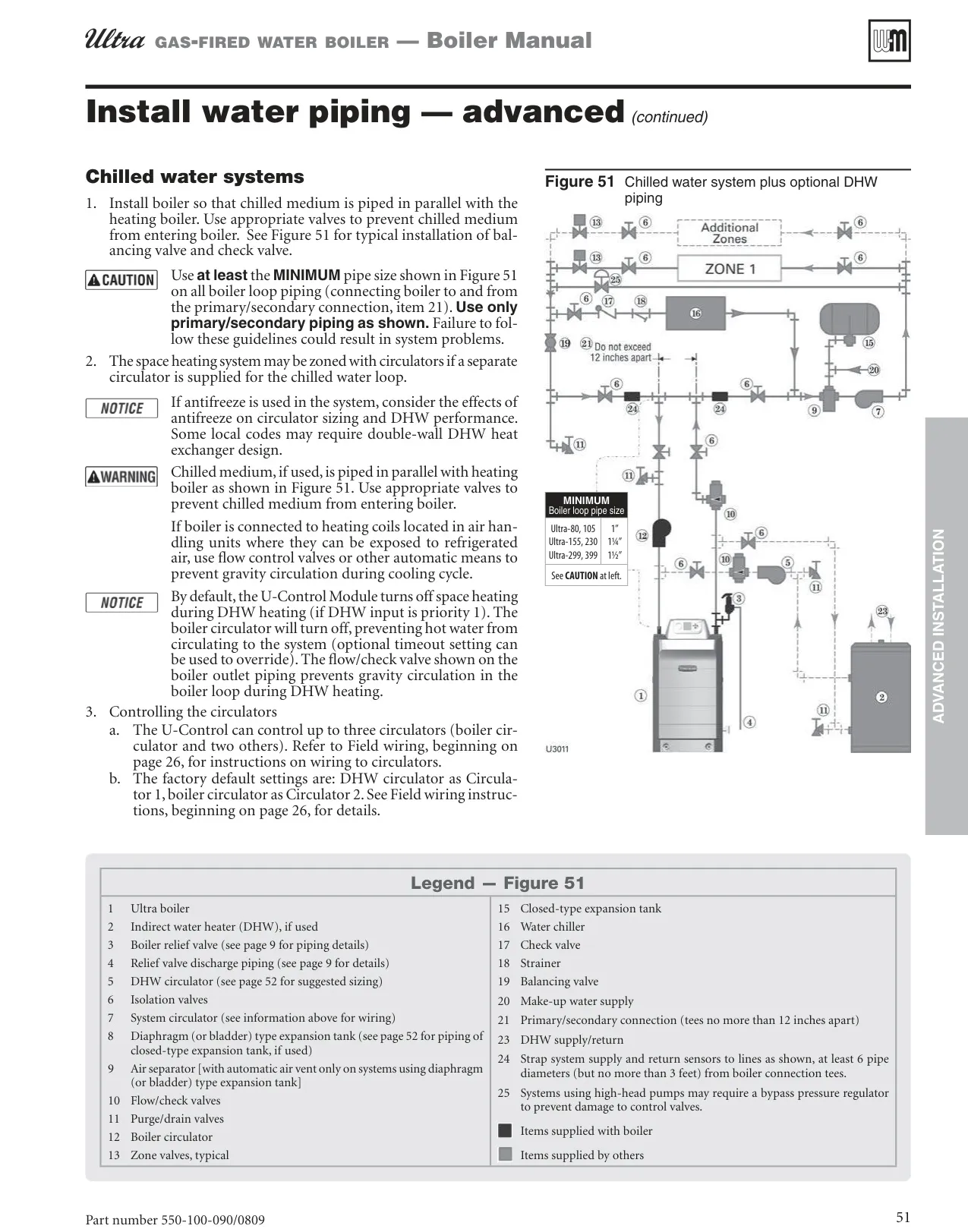

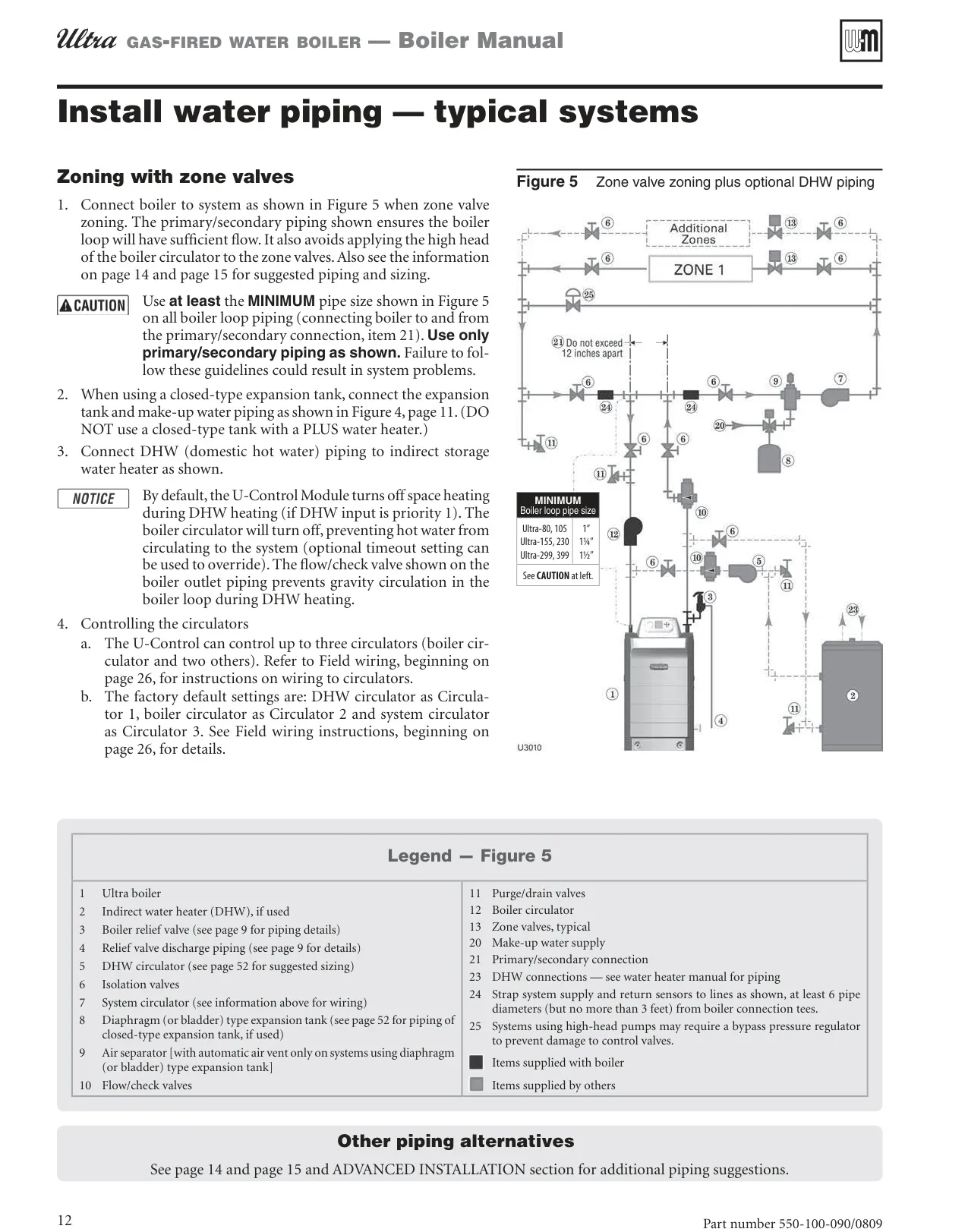

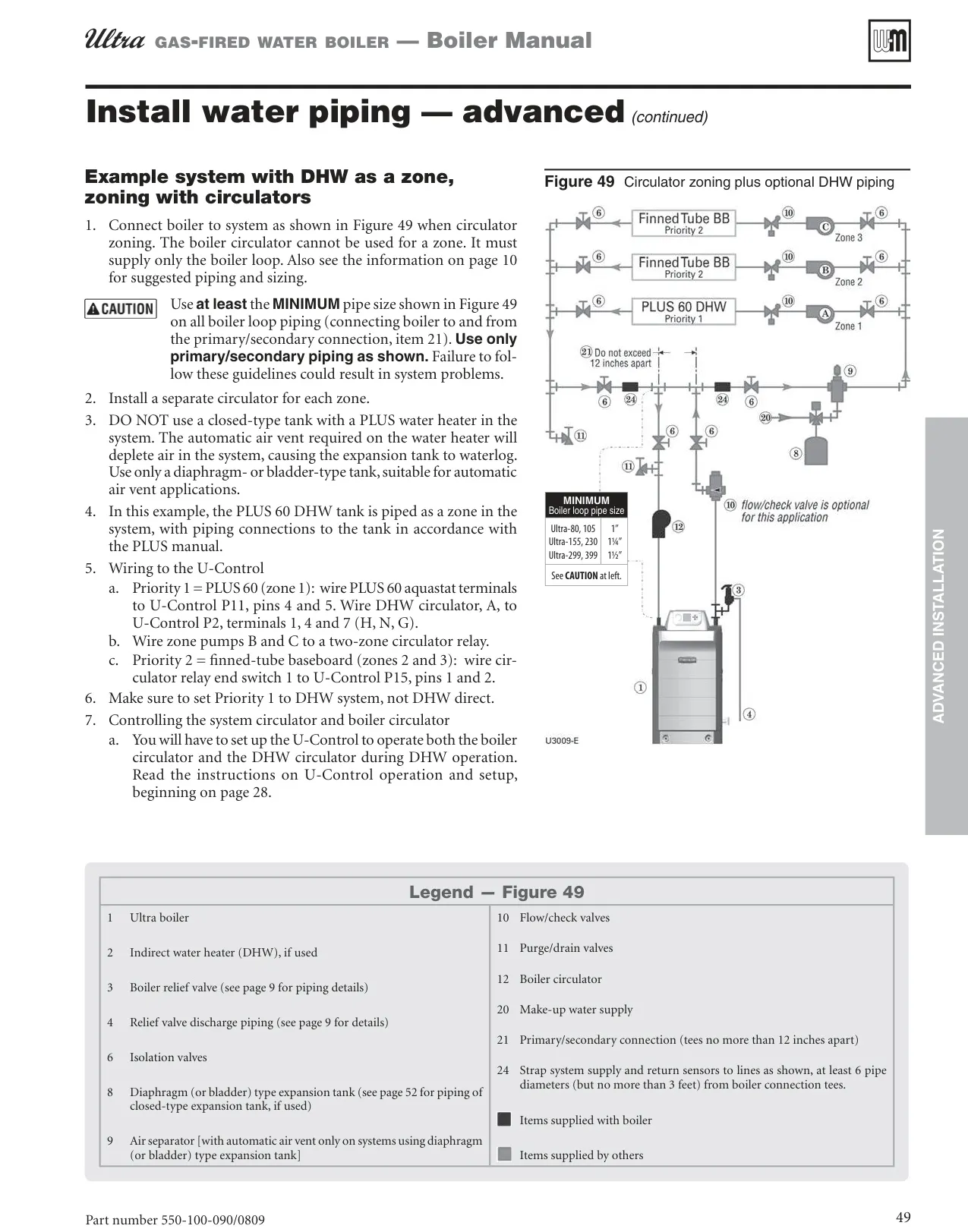

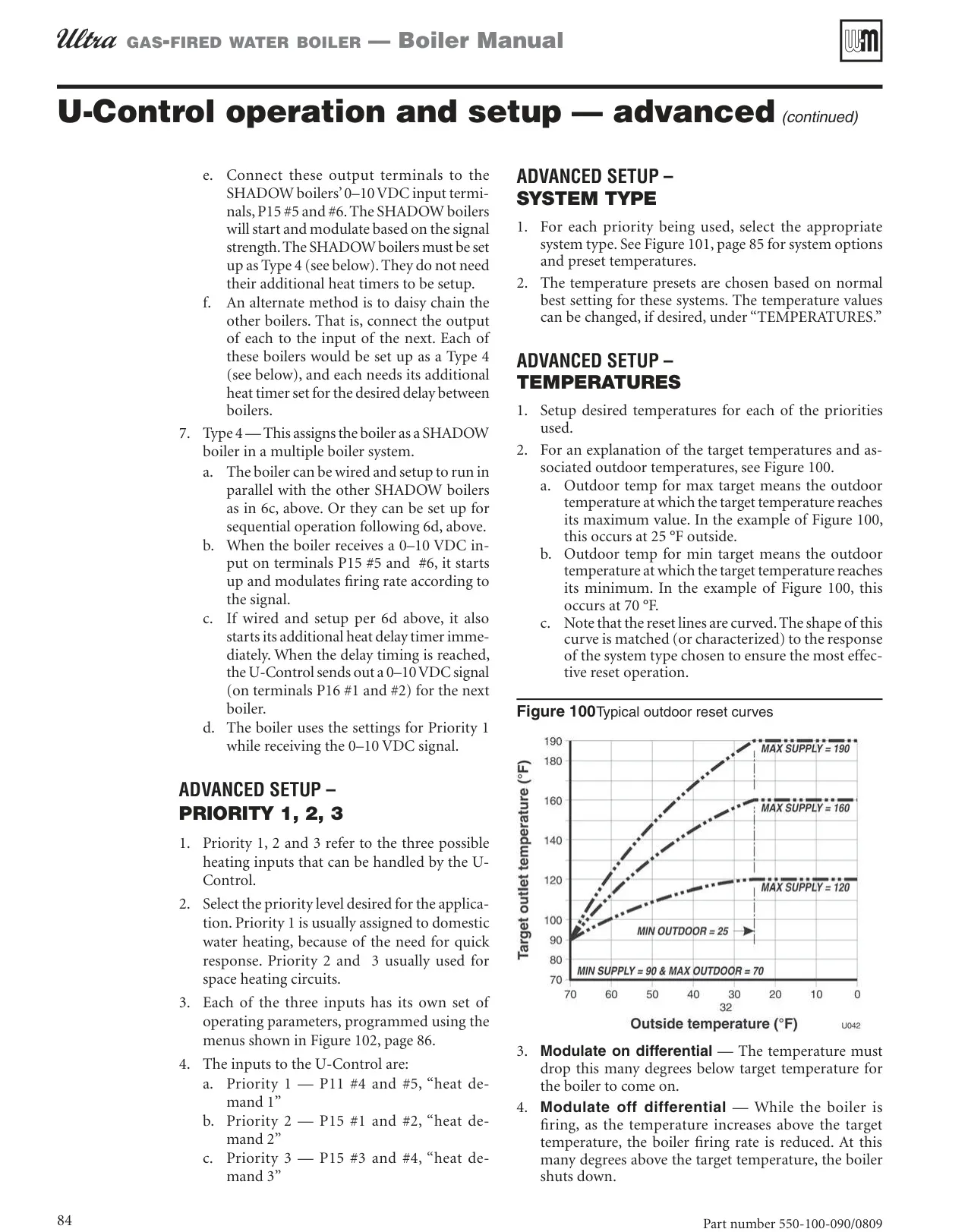

The U-Control also offers extensive flexibility in system configuration, allowing for the management of up to three independent heating systems. It supports programmable priority assignments for heat inputs and integrates an outdoor reset option, adapting output based on external temperature to maximize efficiency. This intelligent control ensures the boiler delivers heat precisely when and where it's needed.
The boiler's advanced blower design, coupled with a horn-shaped air inlet silencer, results in exceptionally quiet operation, a significant advantage for residential installations. This meticulous design detail ensures comfort extends beyond just heating, minimizing operational noise within the living space.

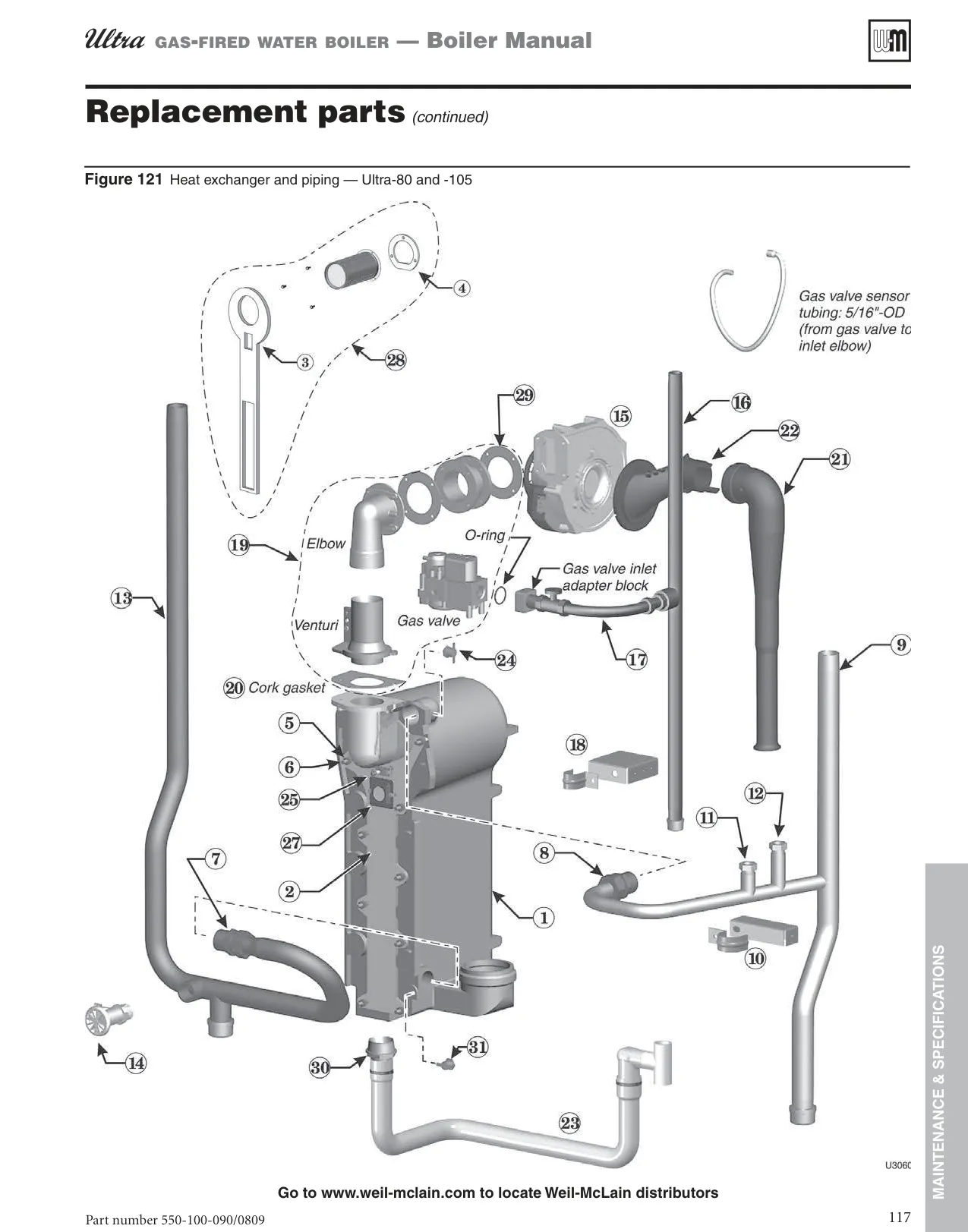

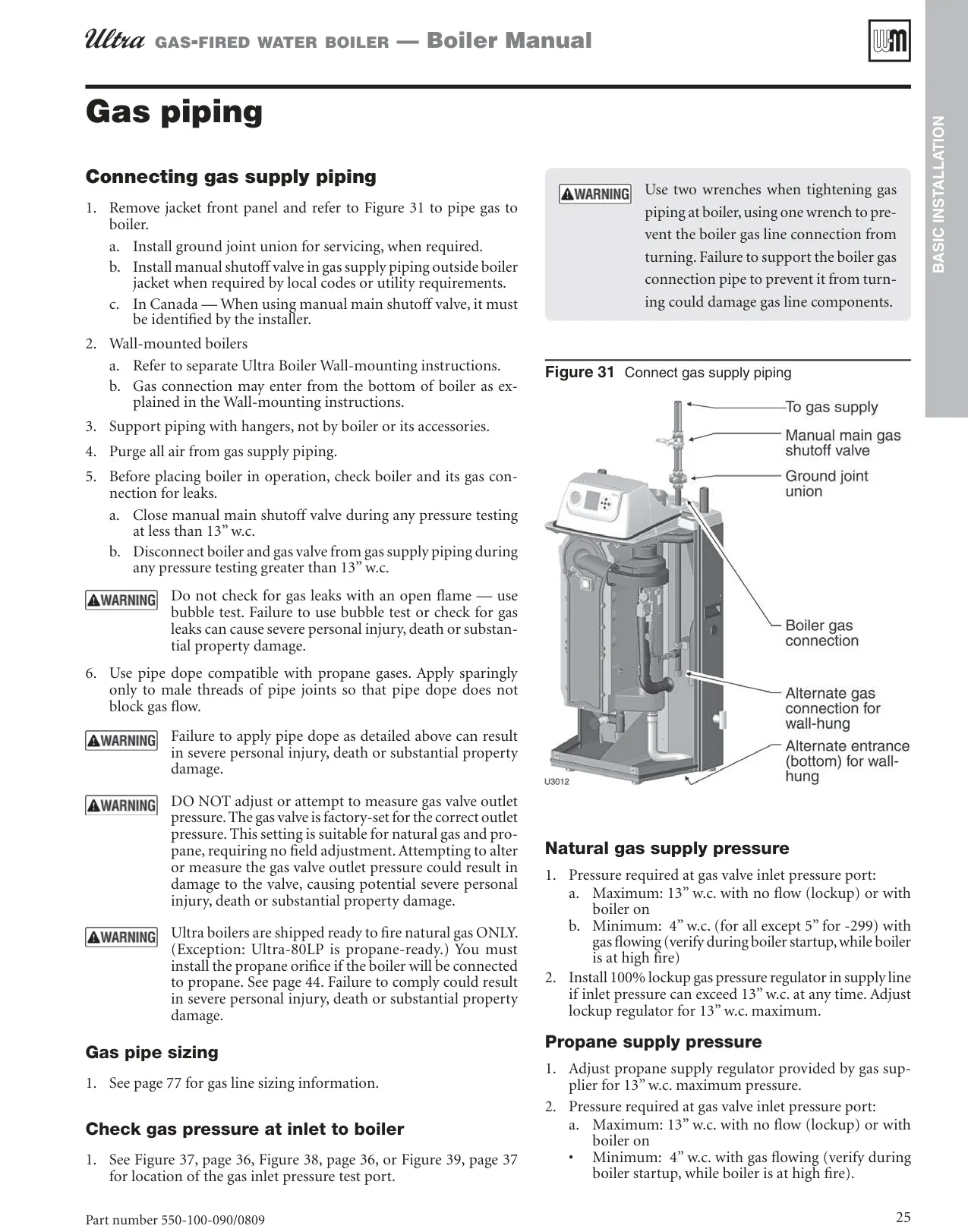

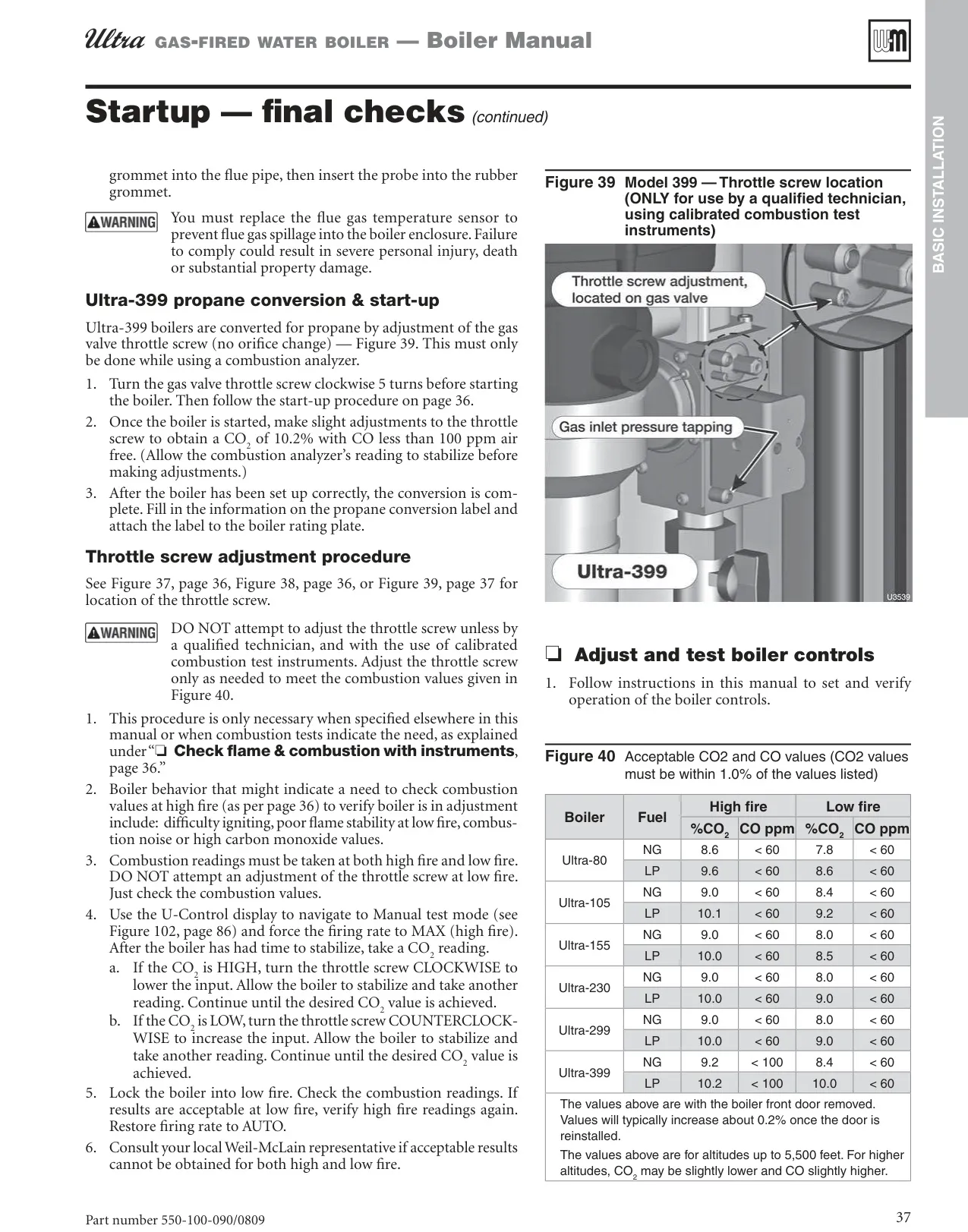

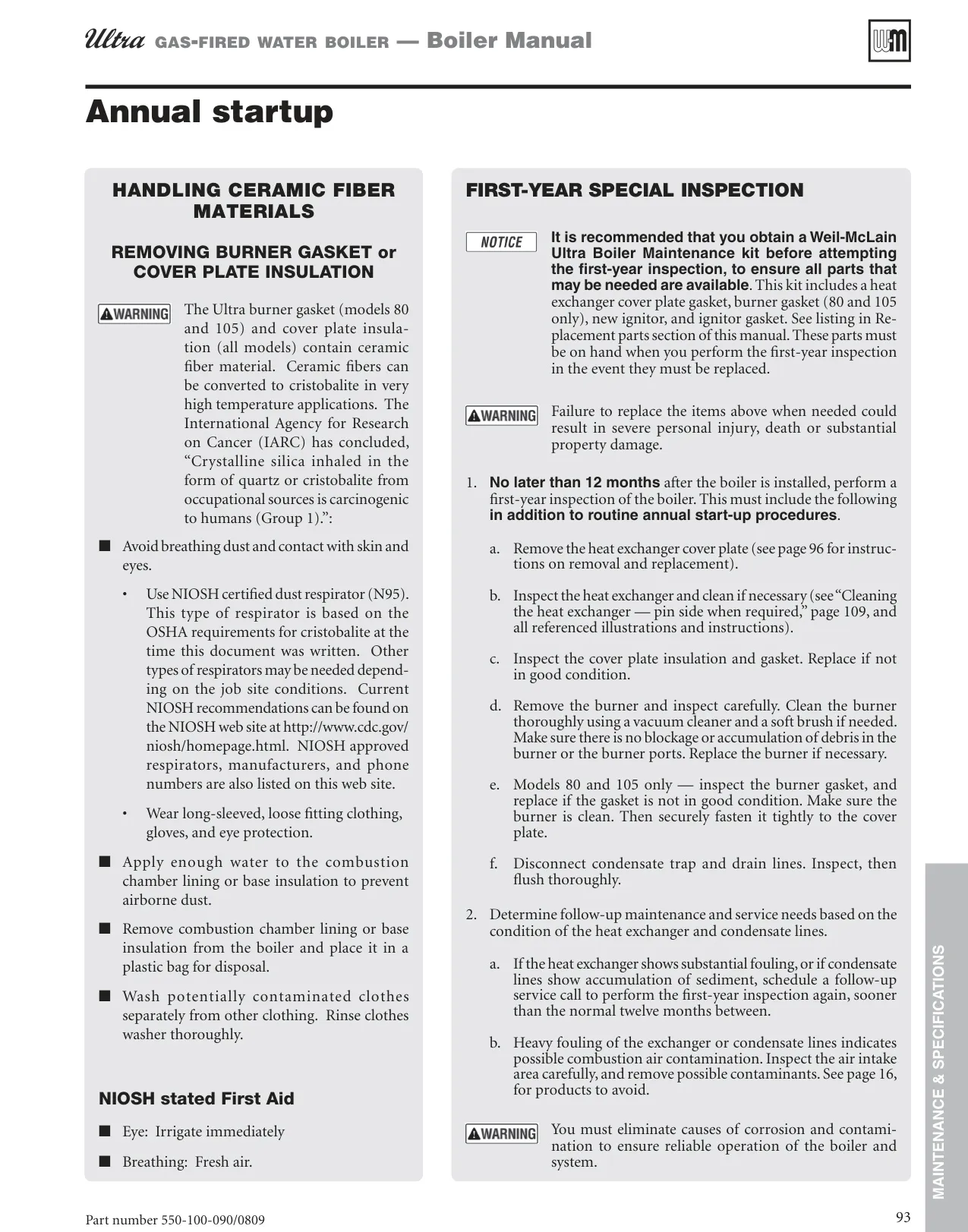

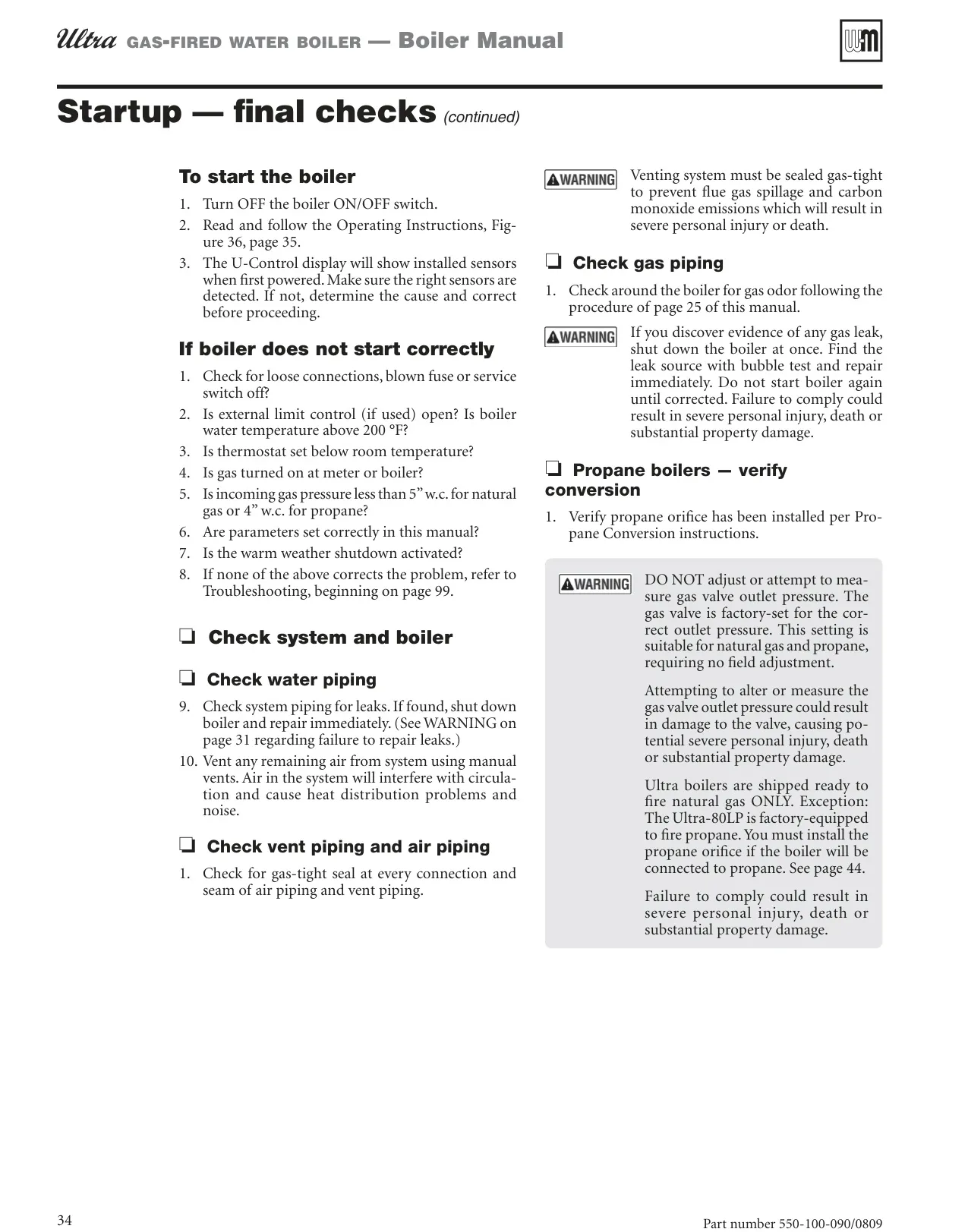

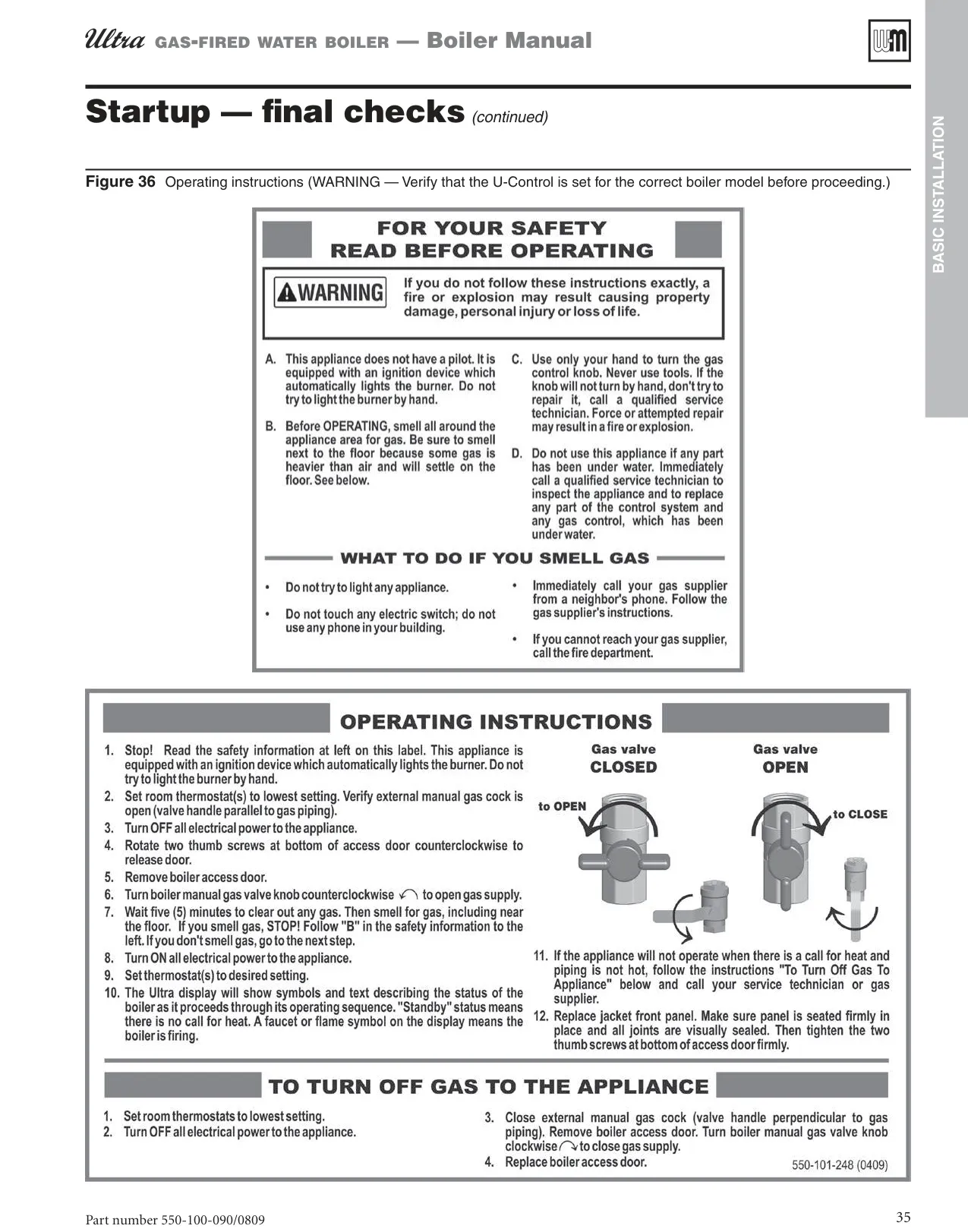

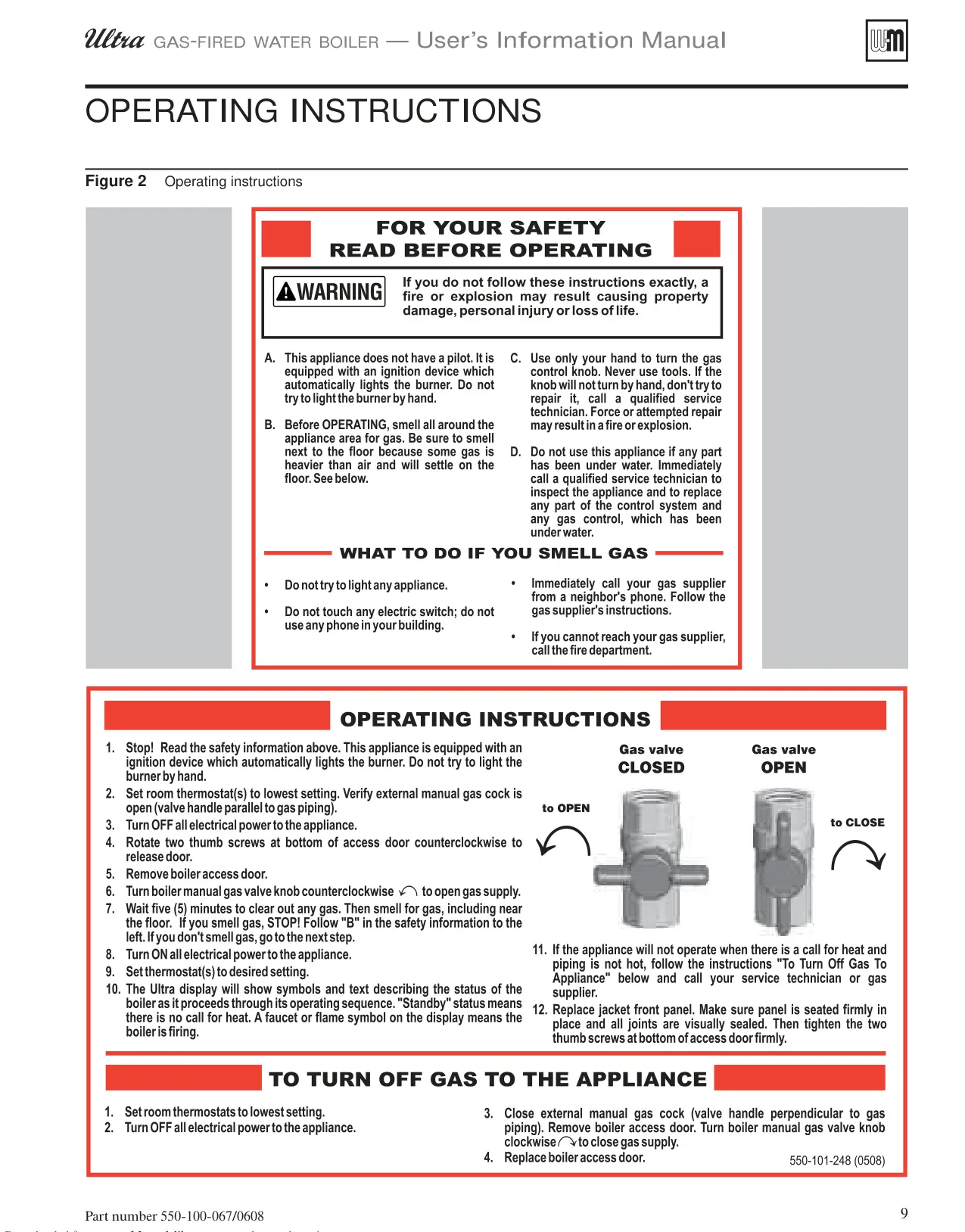

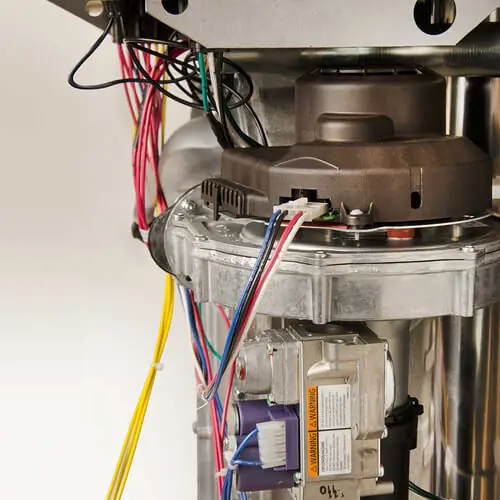

Combustion is managed by a high-grade stainless steel burner, employing a premixed air and gas system that allows for precise modulating firing. The inclusion of an automatic gas valve, which senses the vacuum created by air flow in the venturi, ensures that gas is supplied only when air is actively flowing, enhancing safety and control.

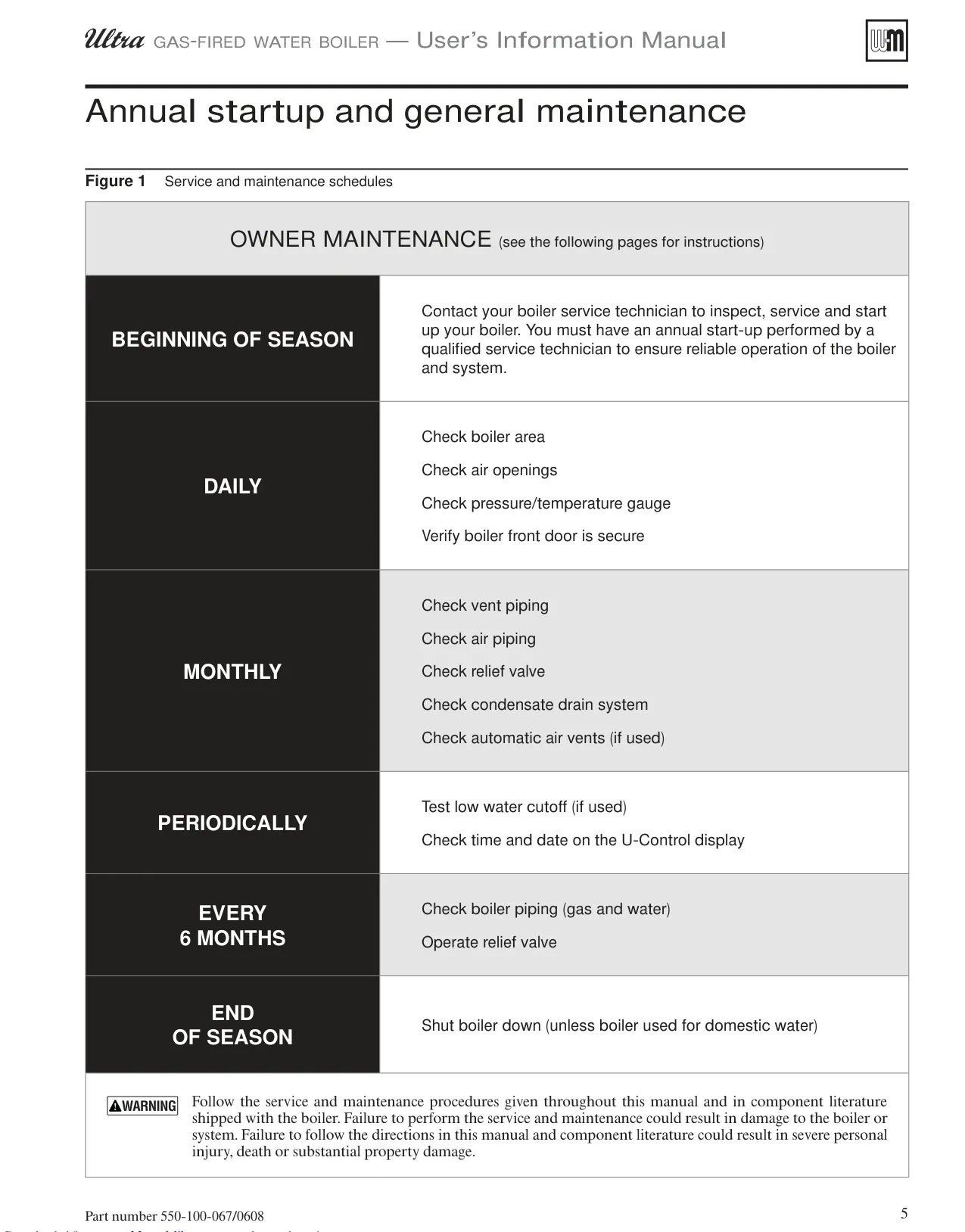

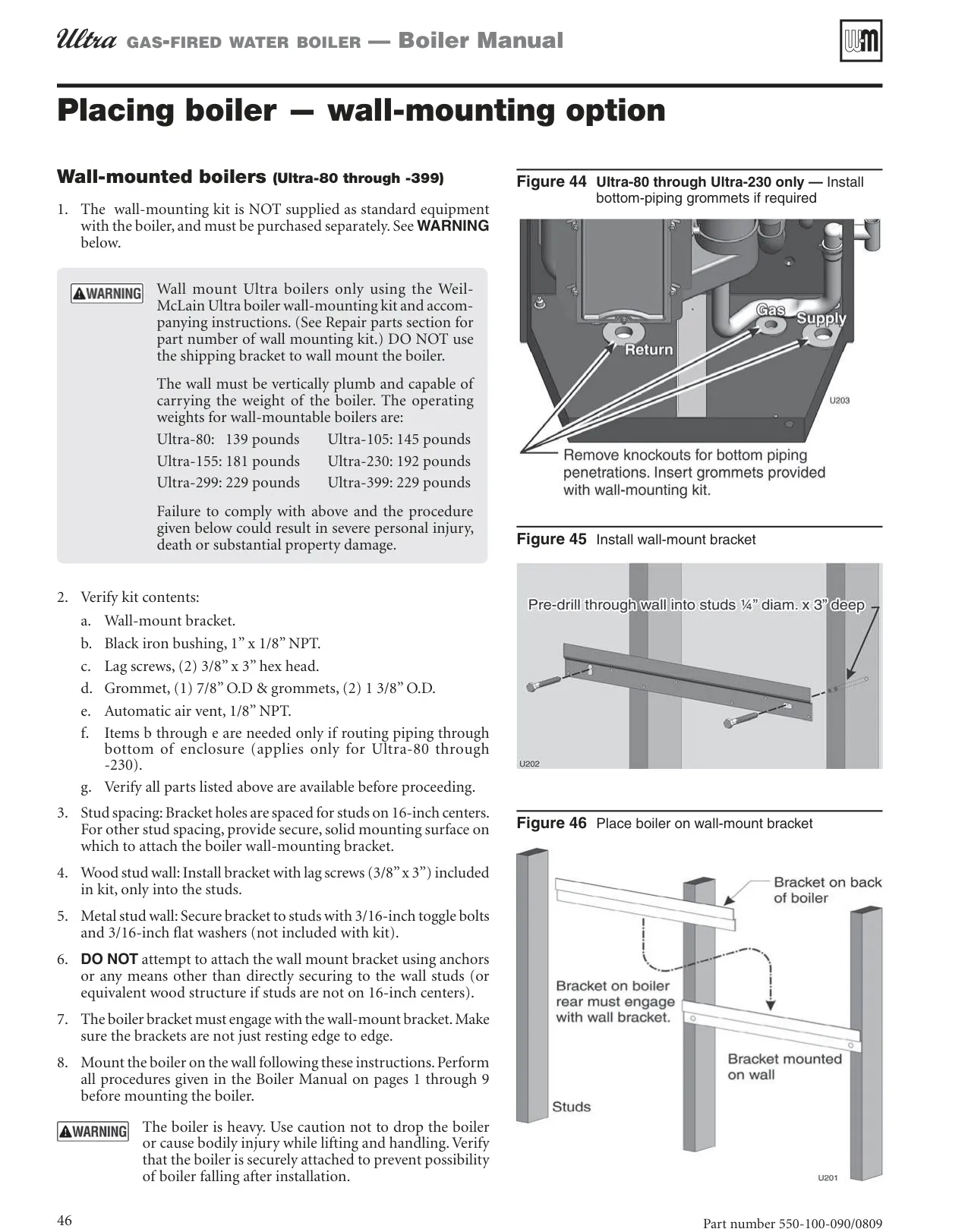

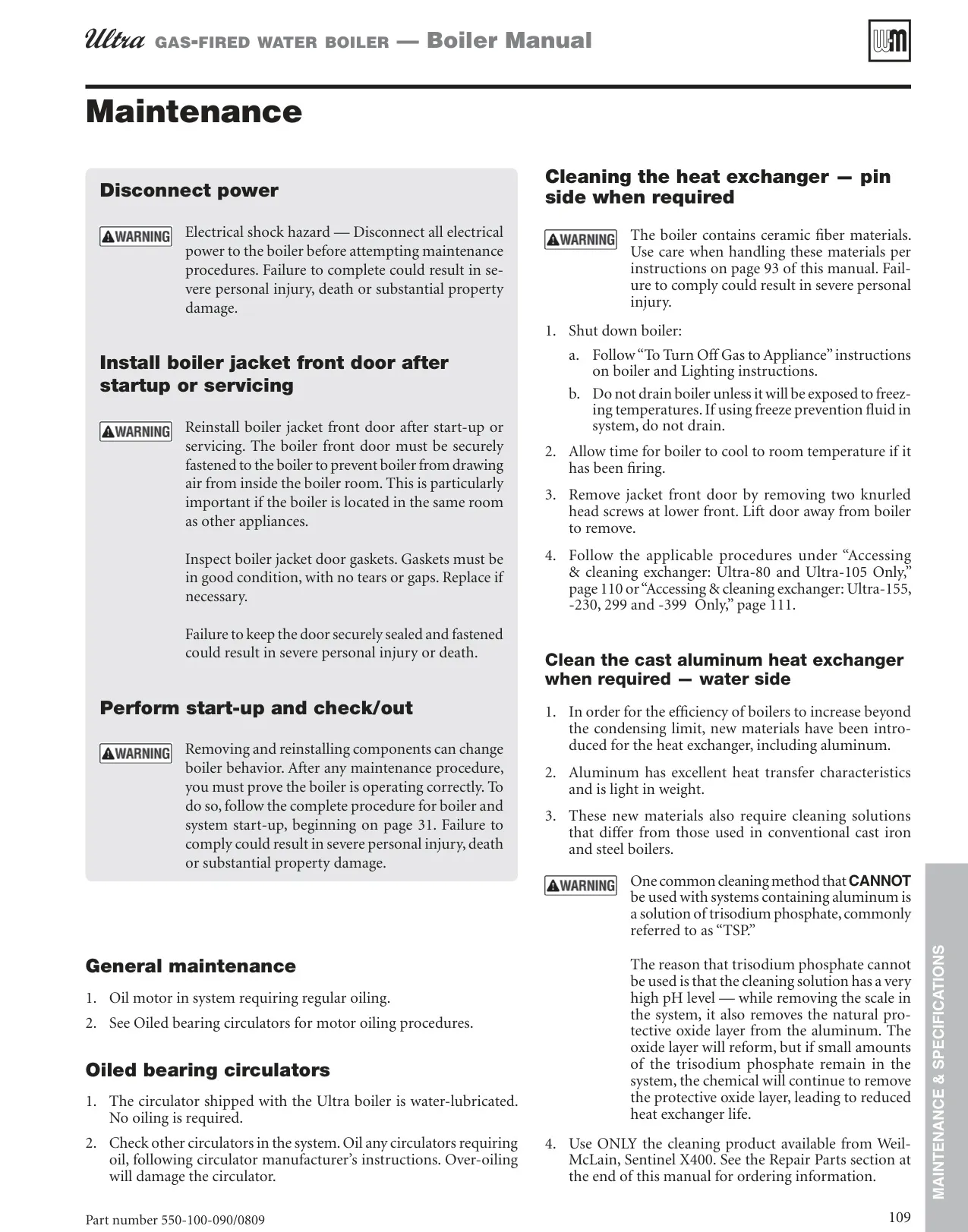

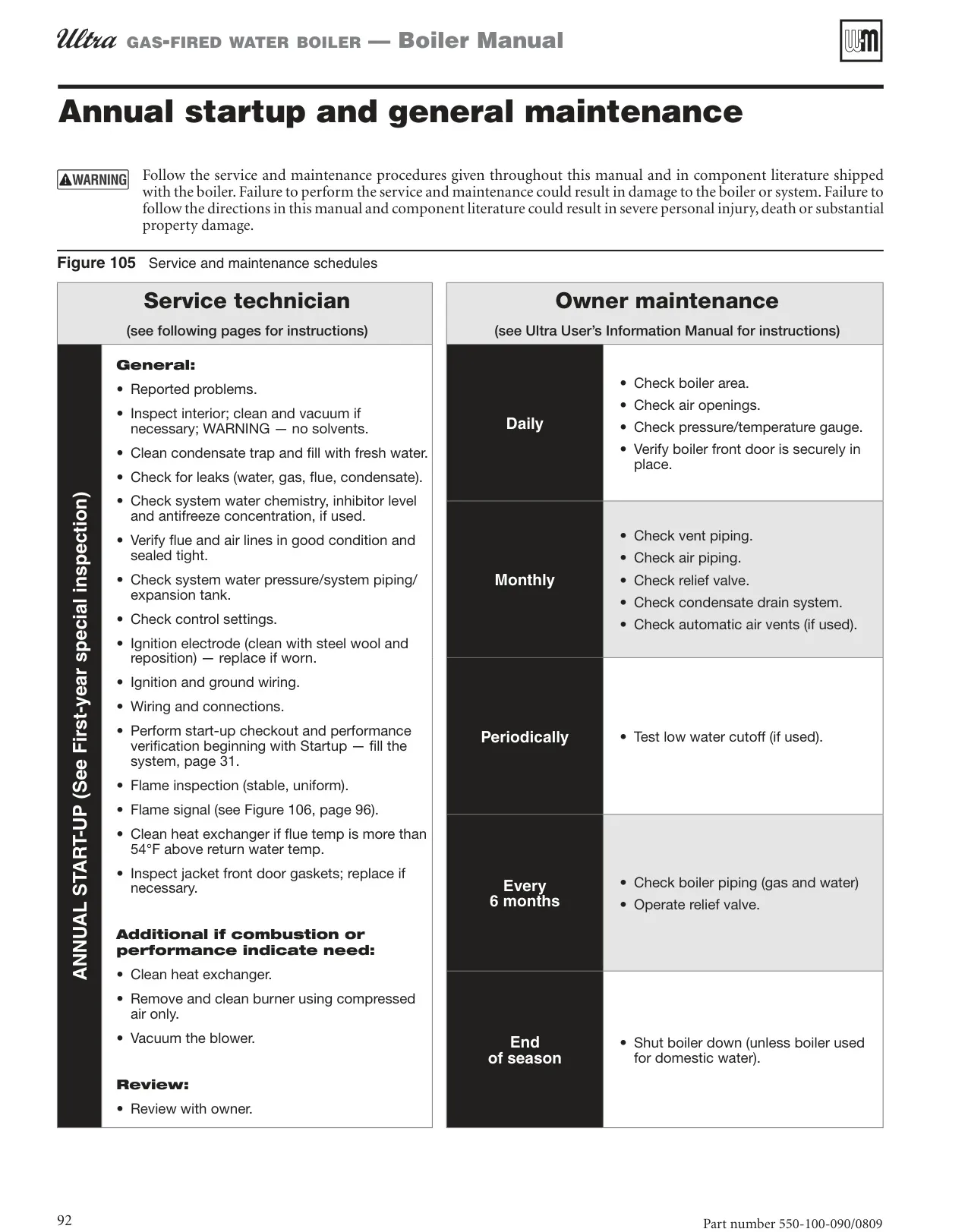

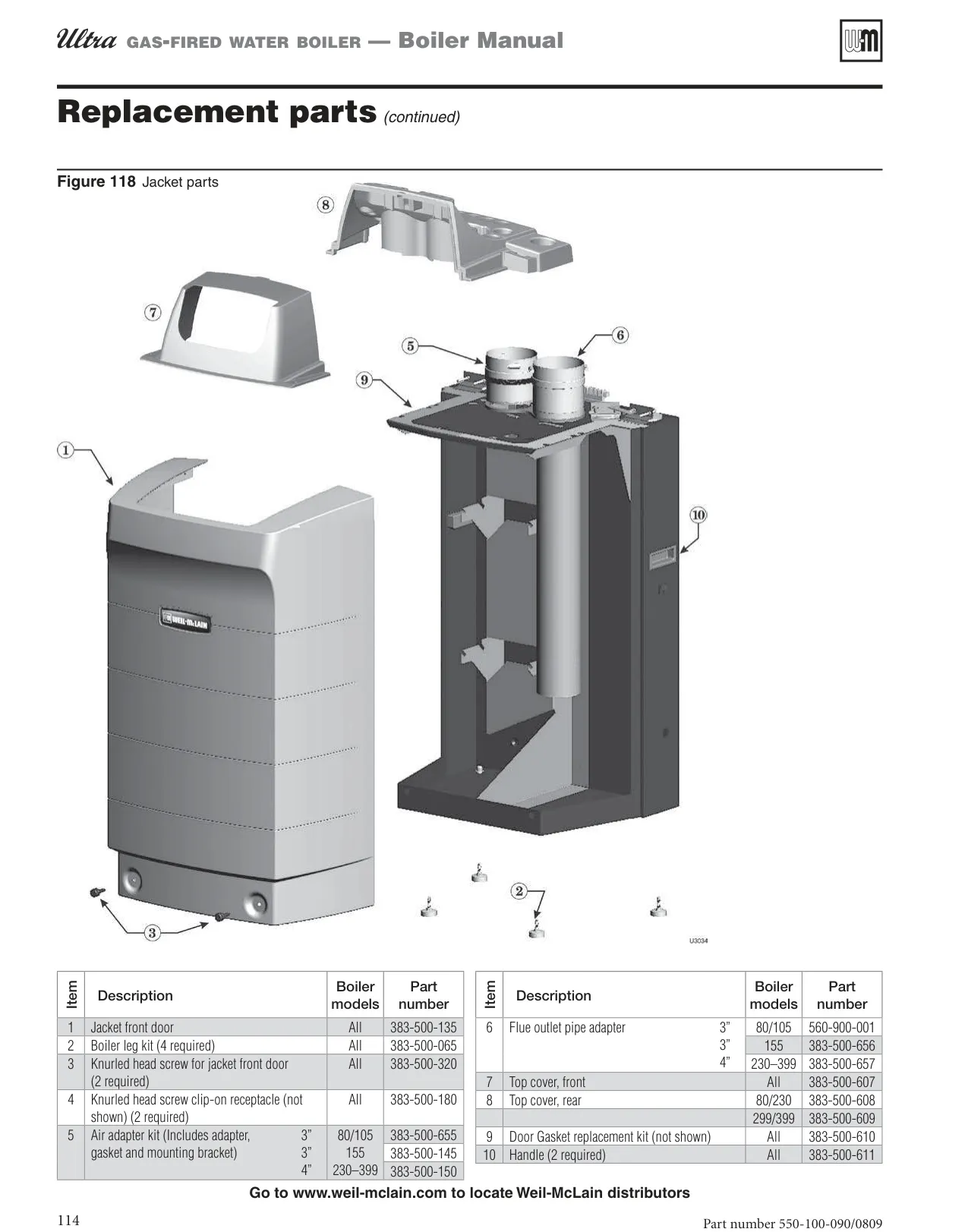

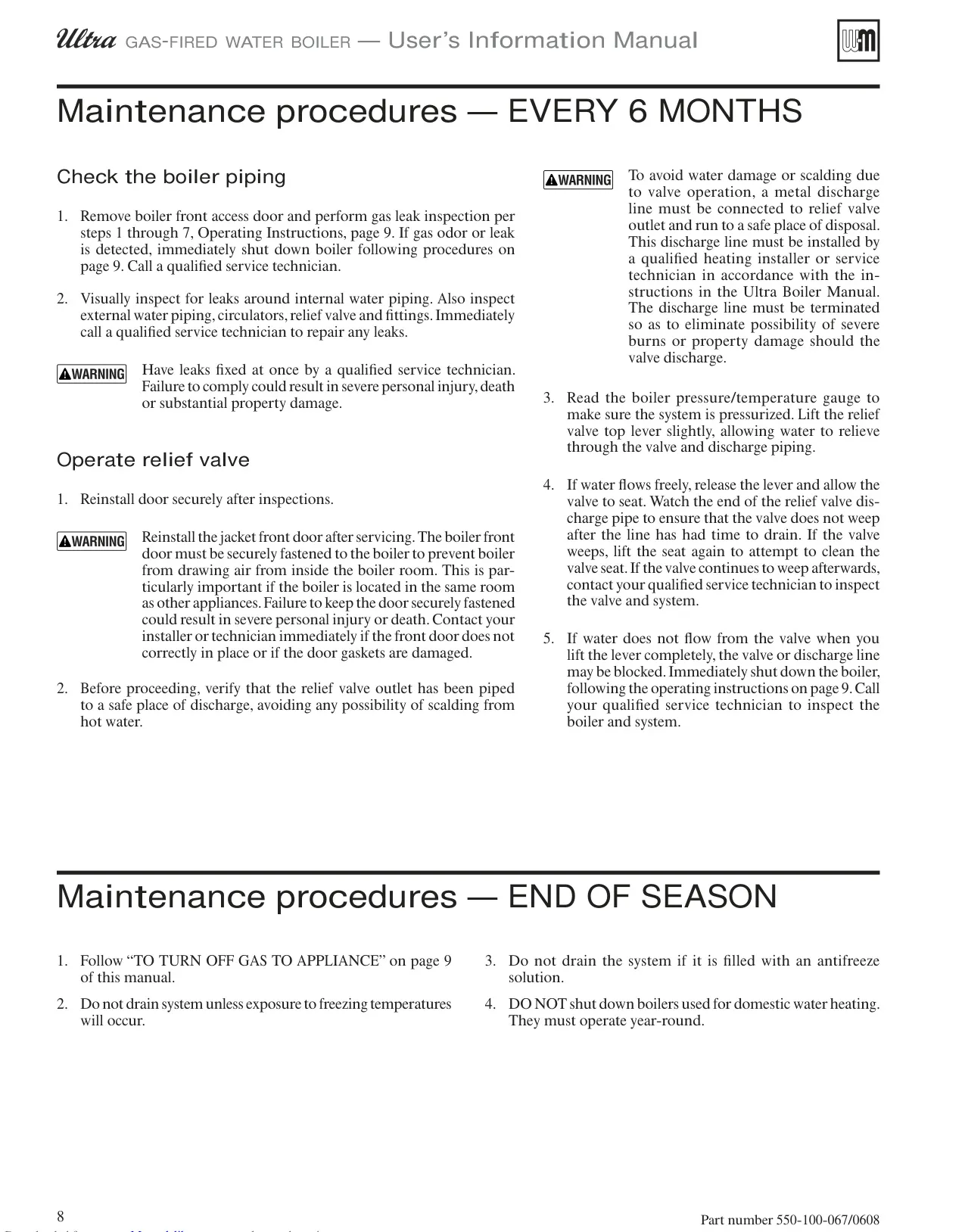

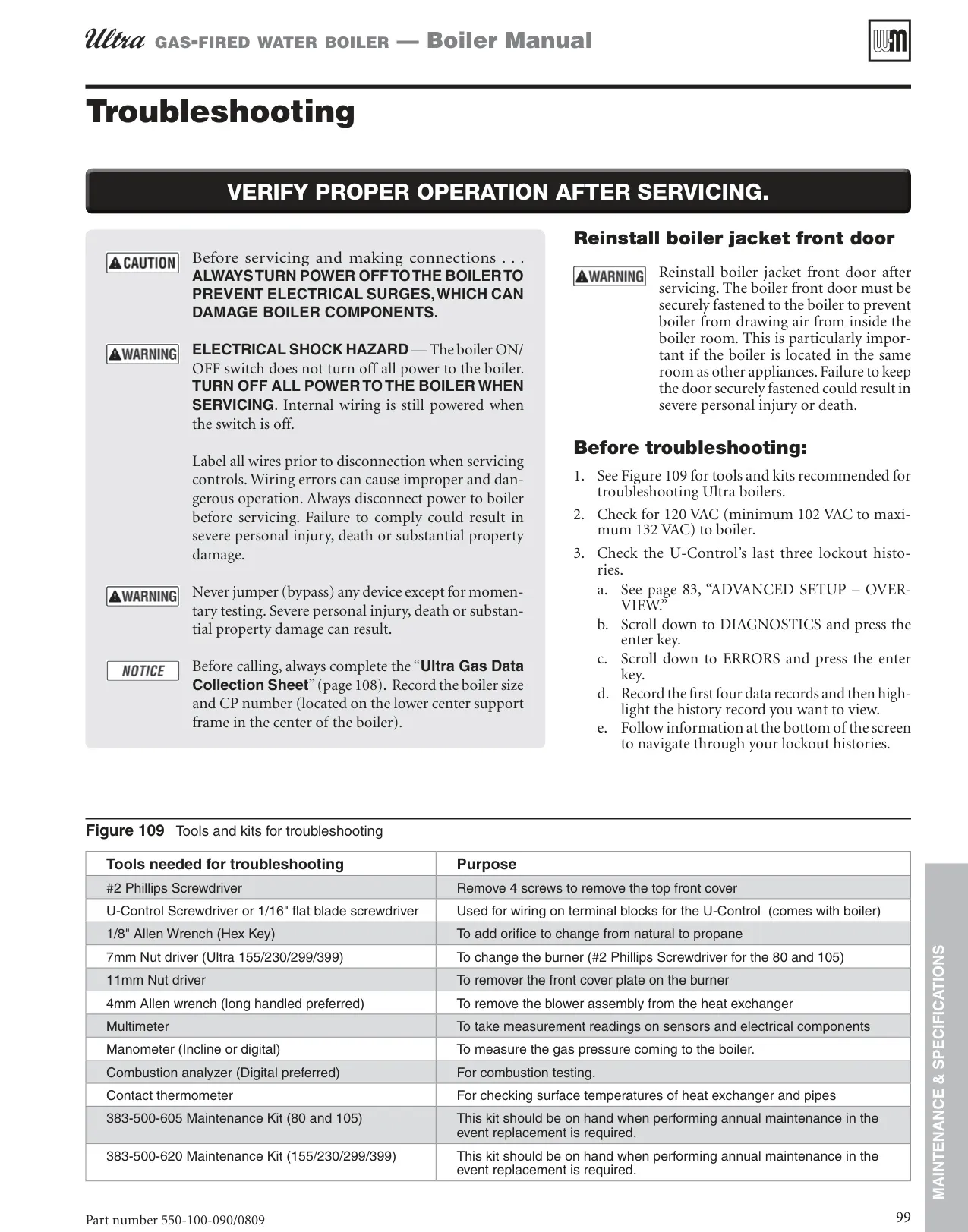

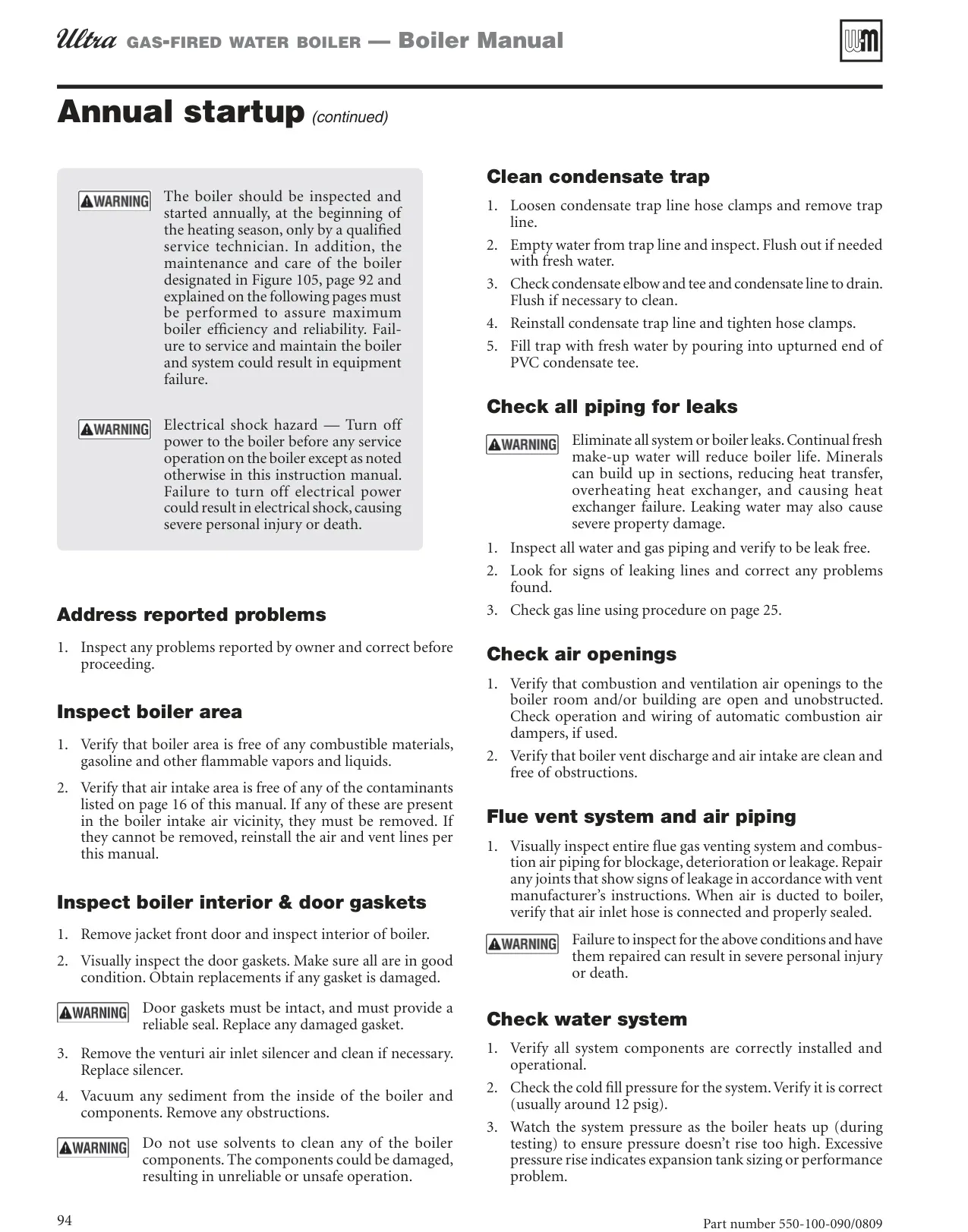

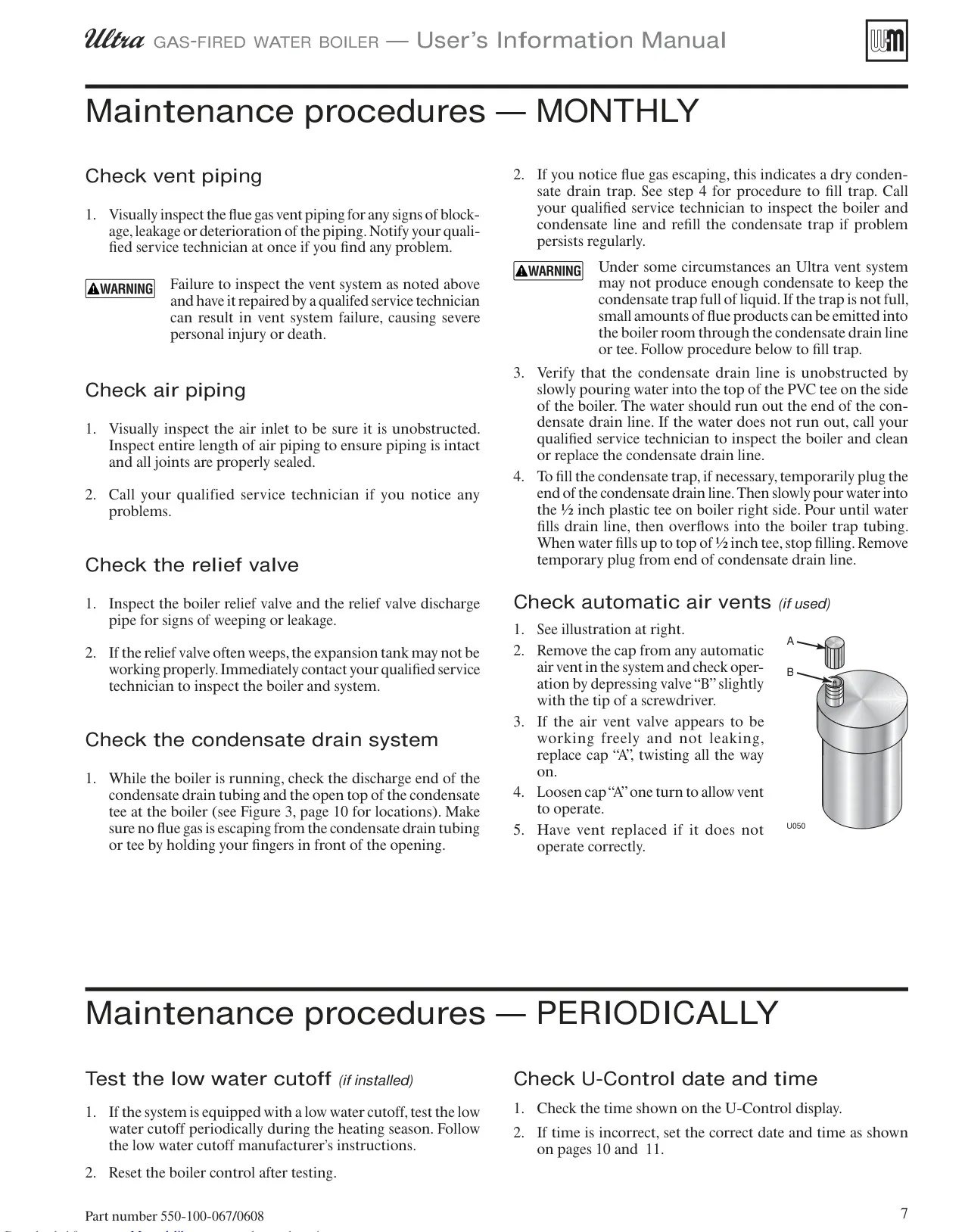

For enhanced accessibility during maintenance and servicing, the boiler incorporates a swing-away control panel assembly. This thoughtful design element permits the panel to pivot forward and downward, providing unrestricted access to the electrical connections and internal components, streamlining service procedures.

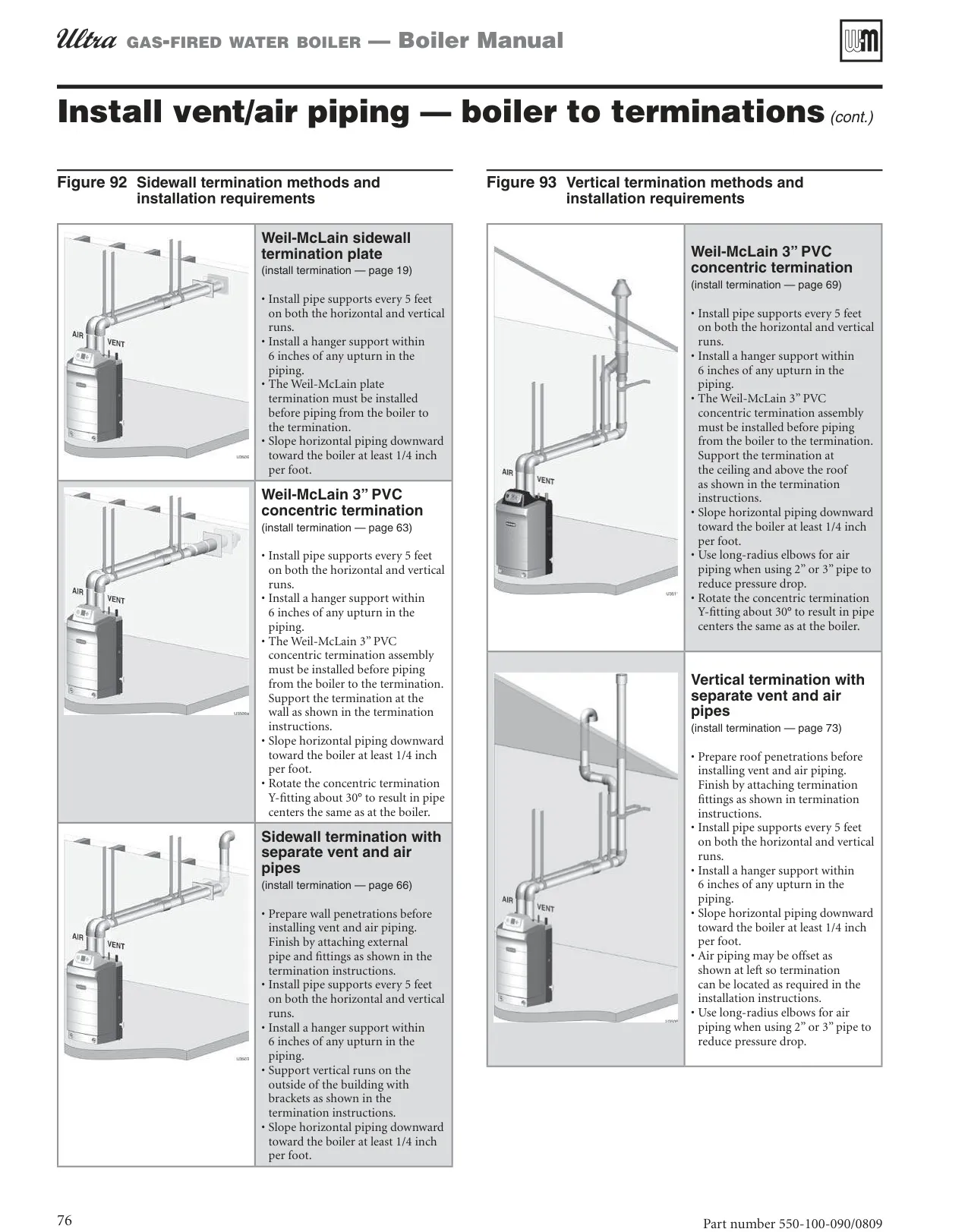

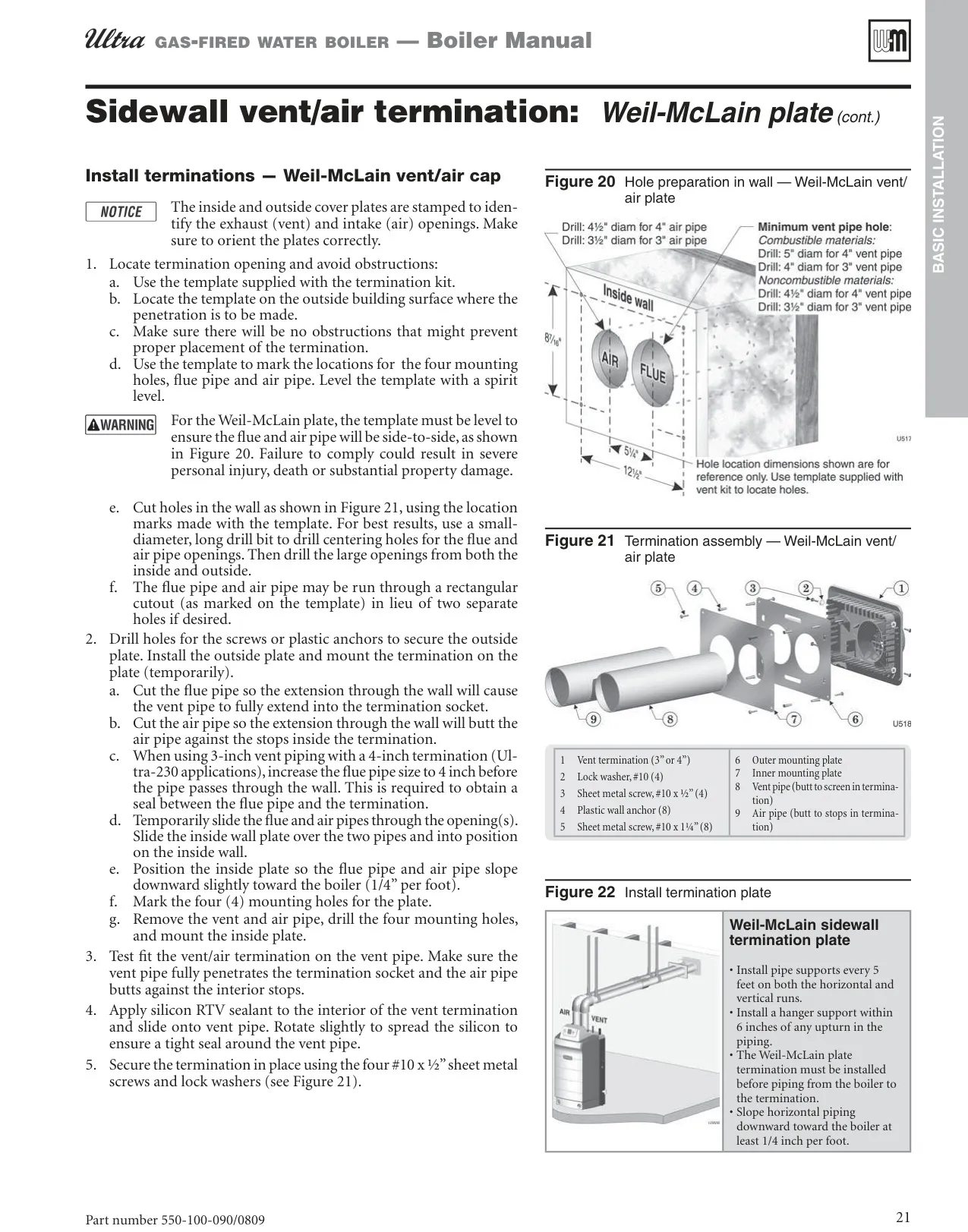

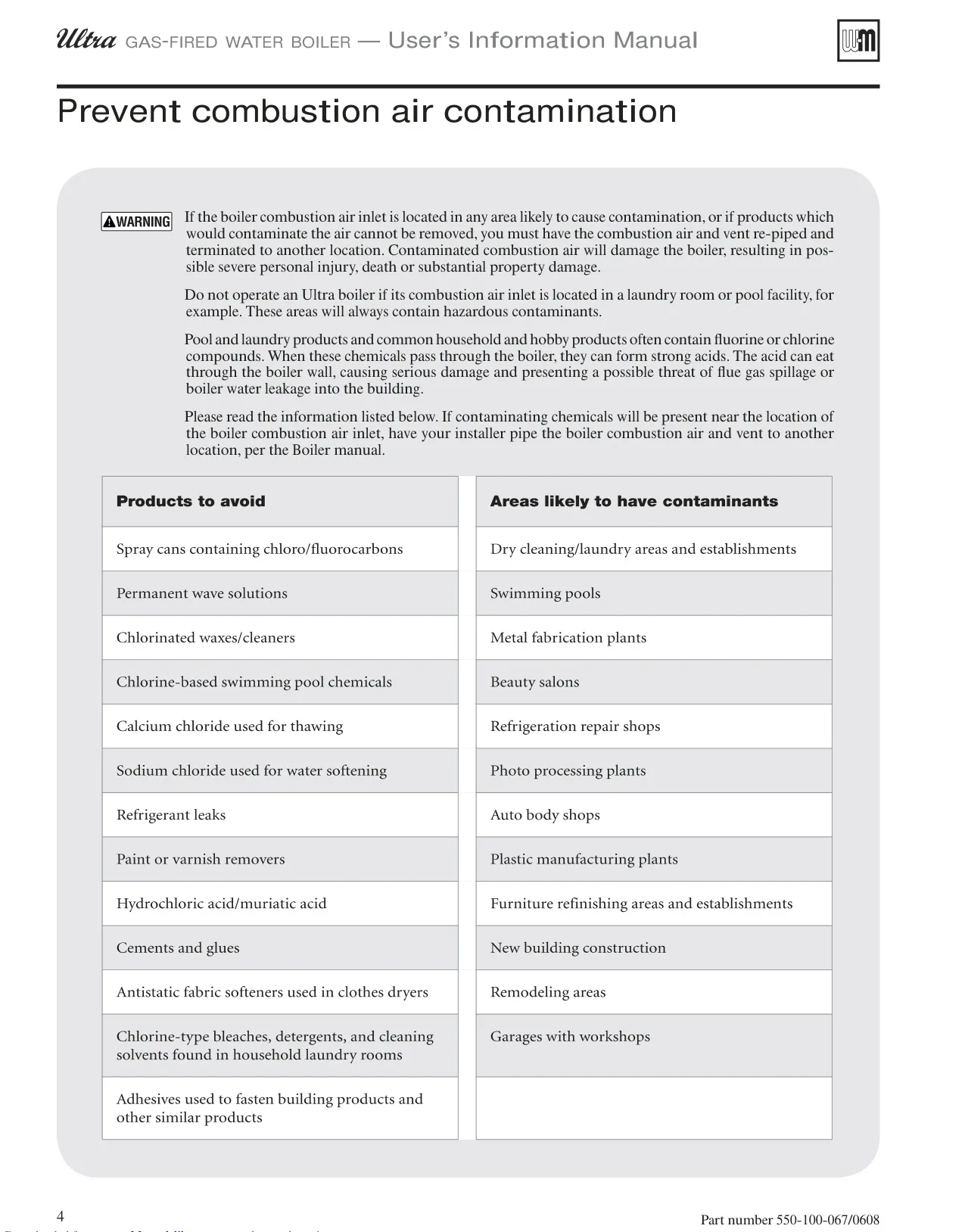

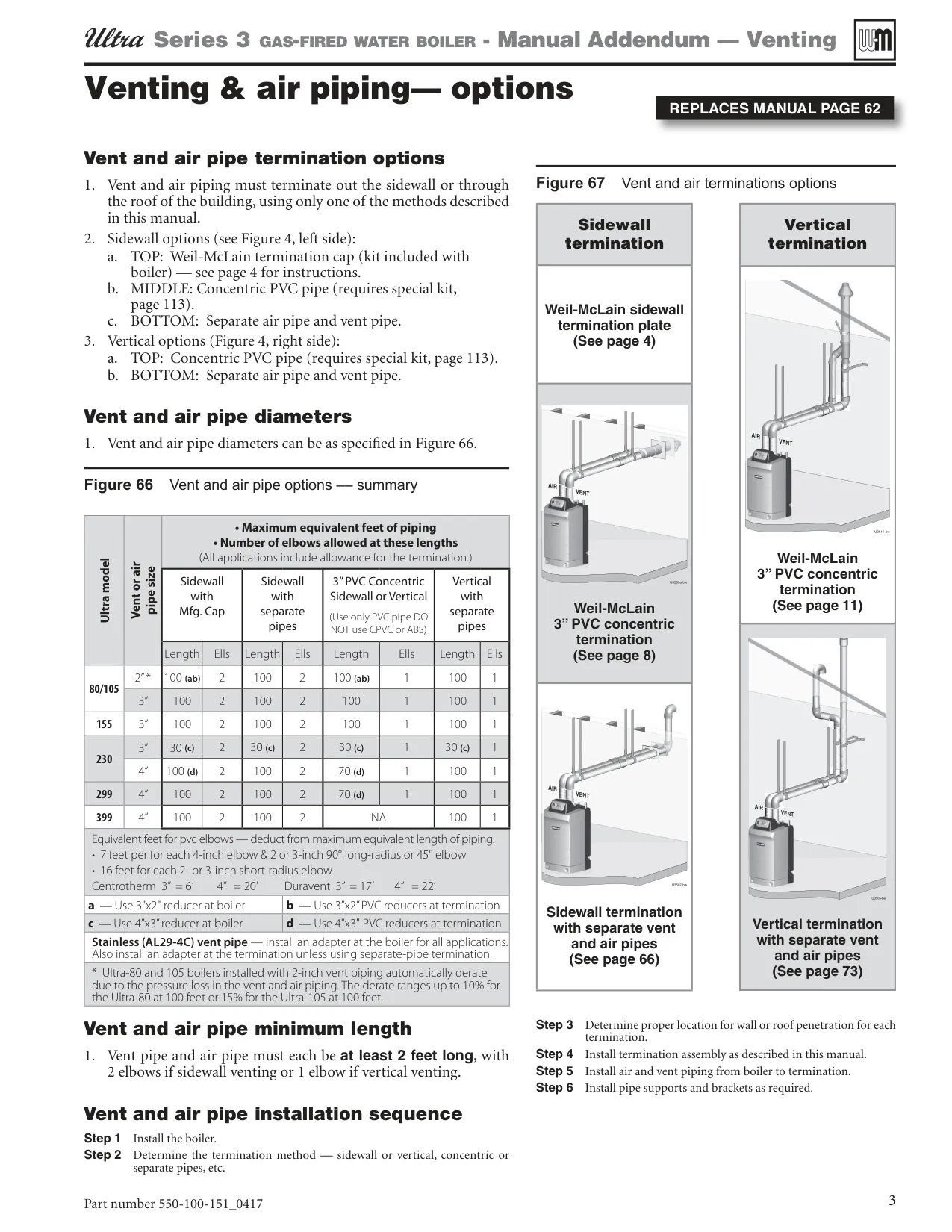

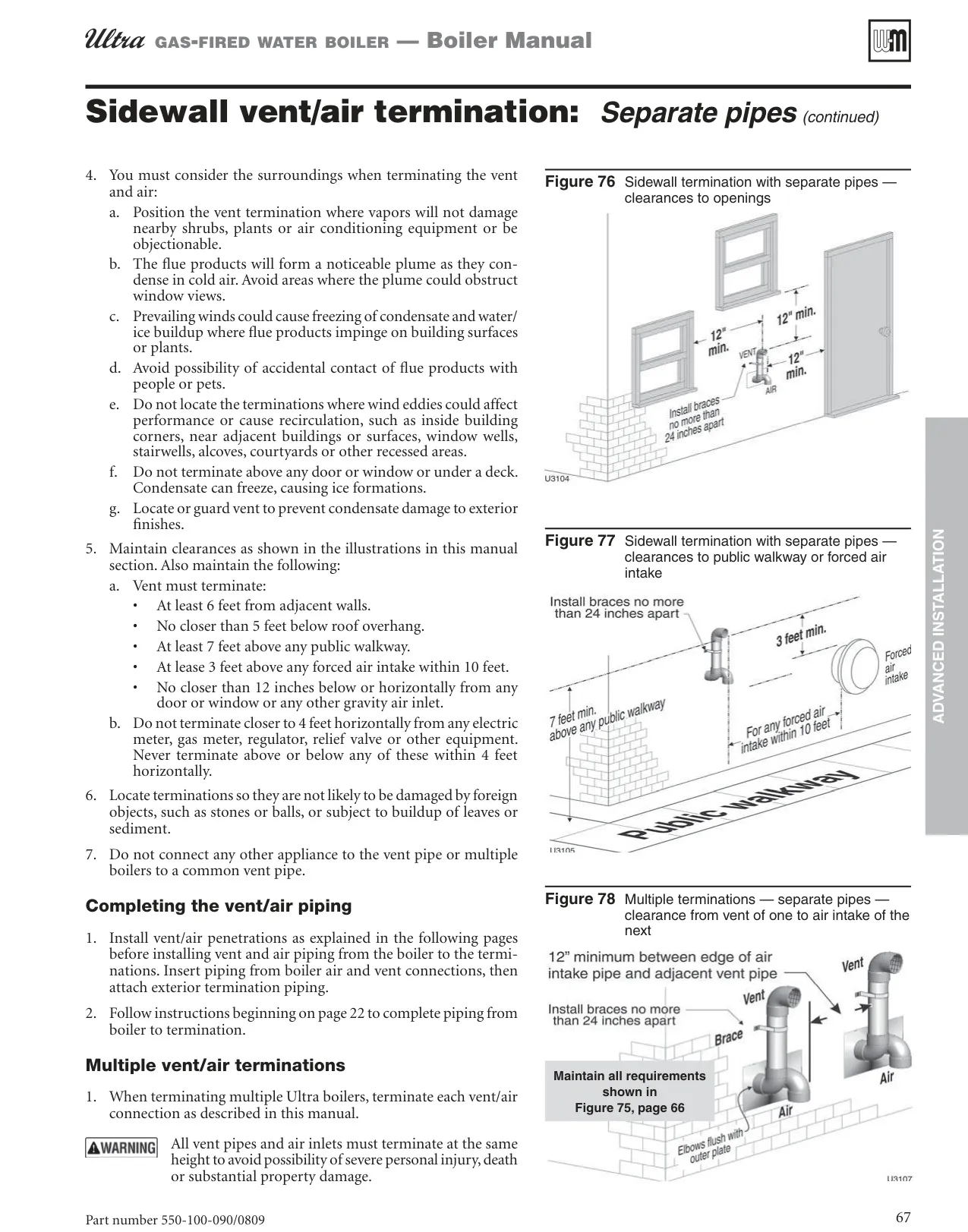

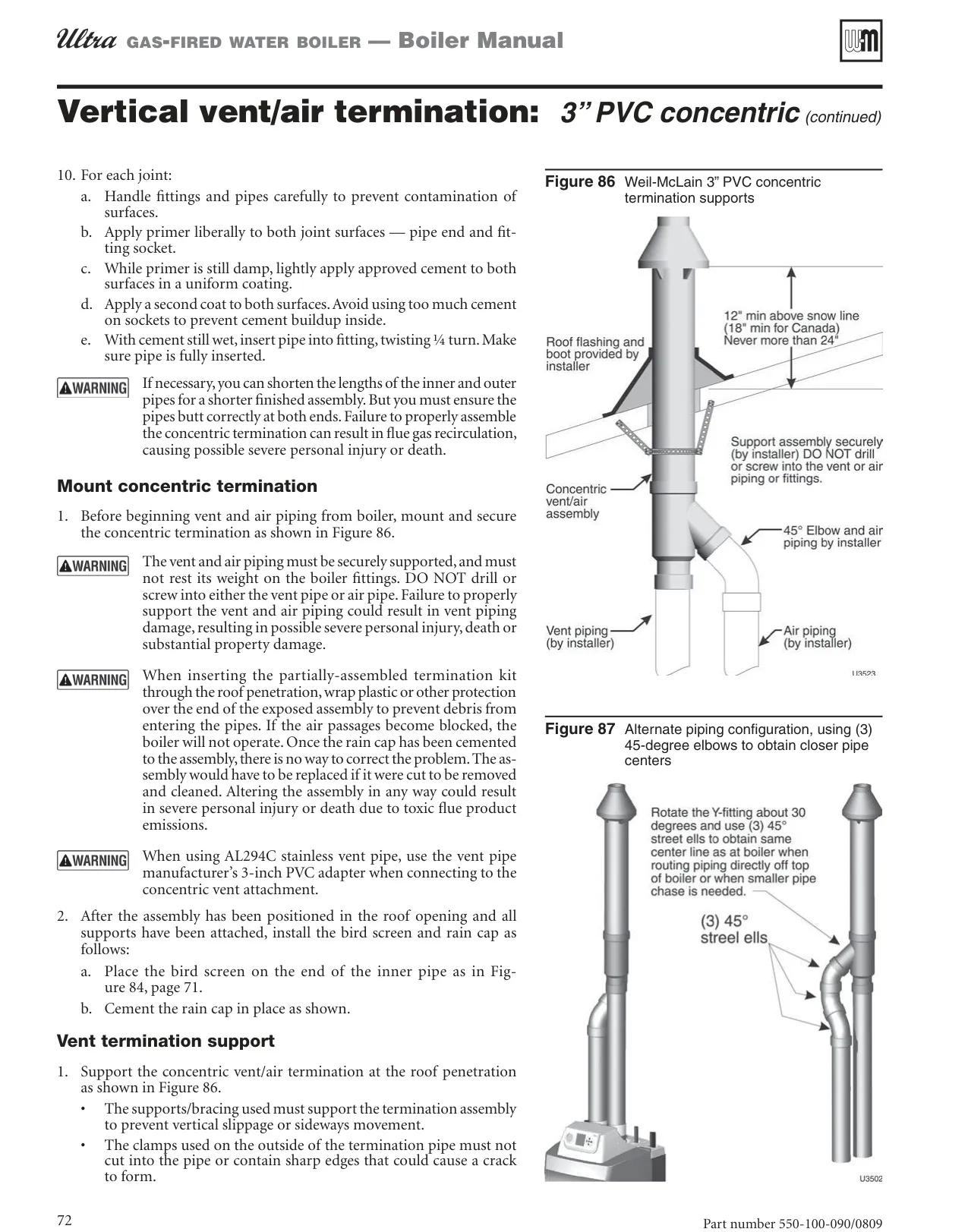

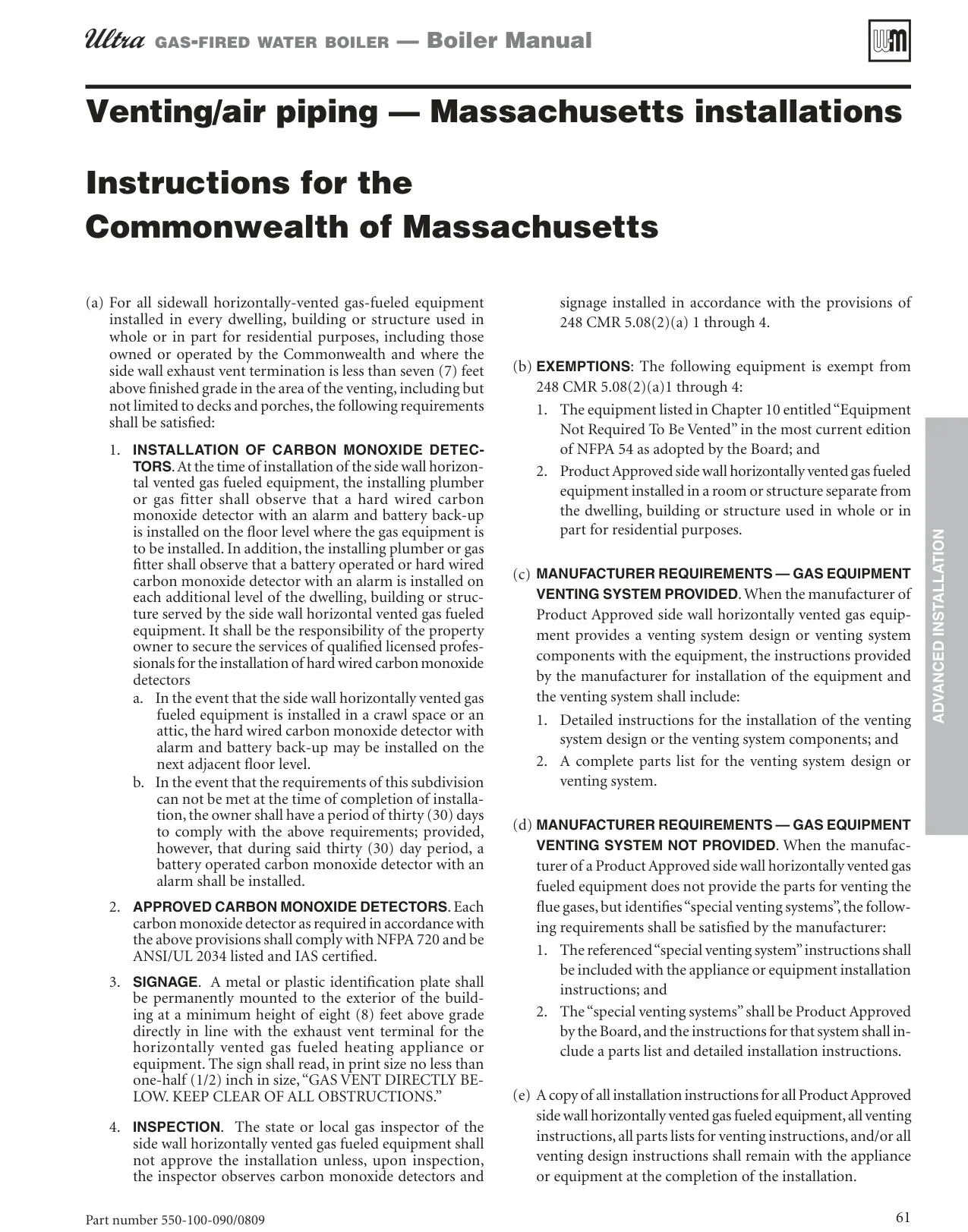

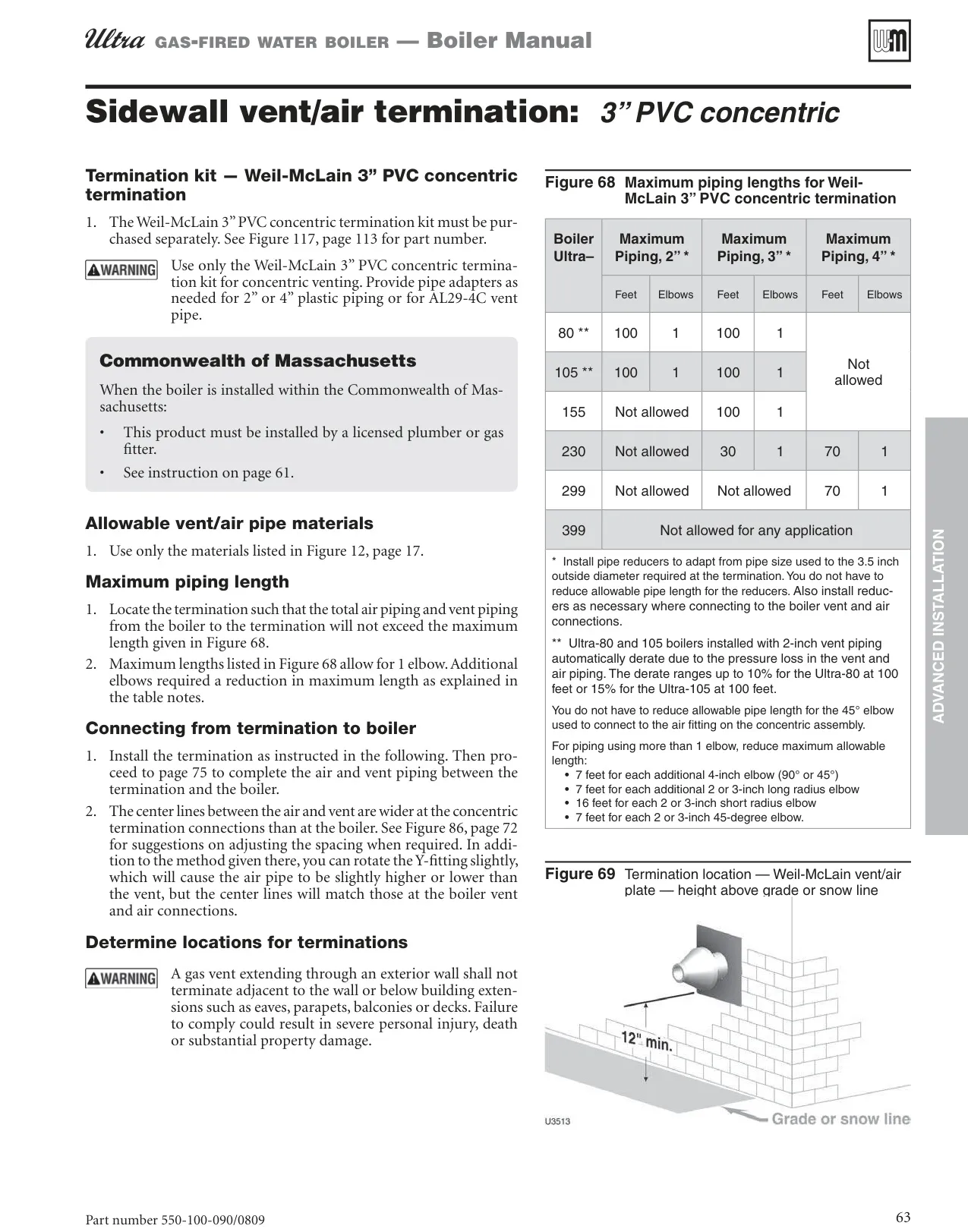

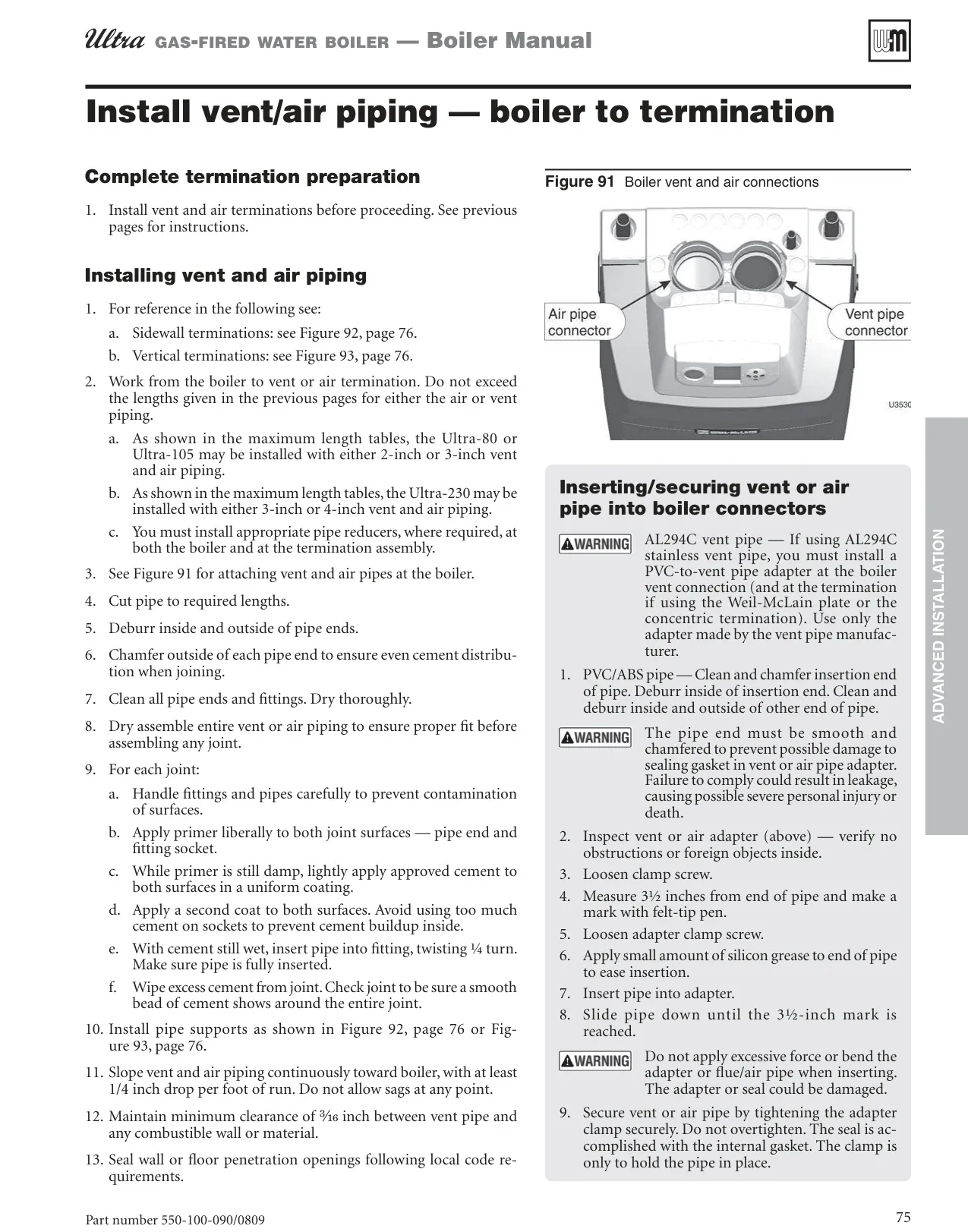

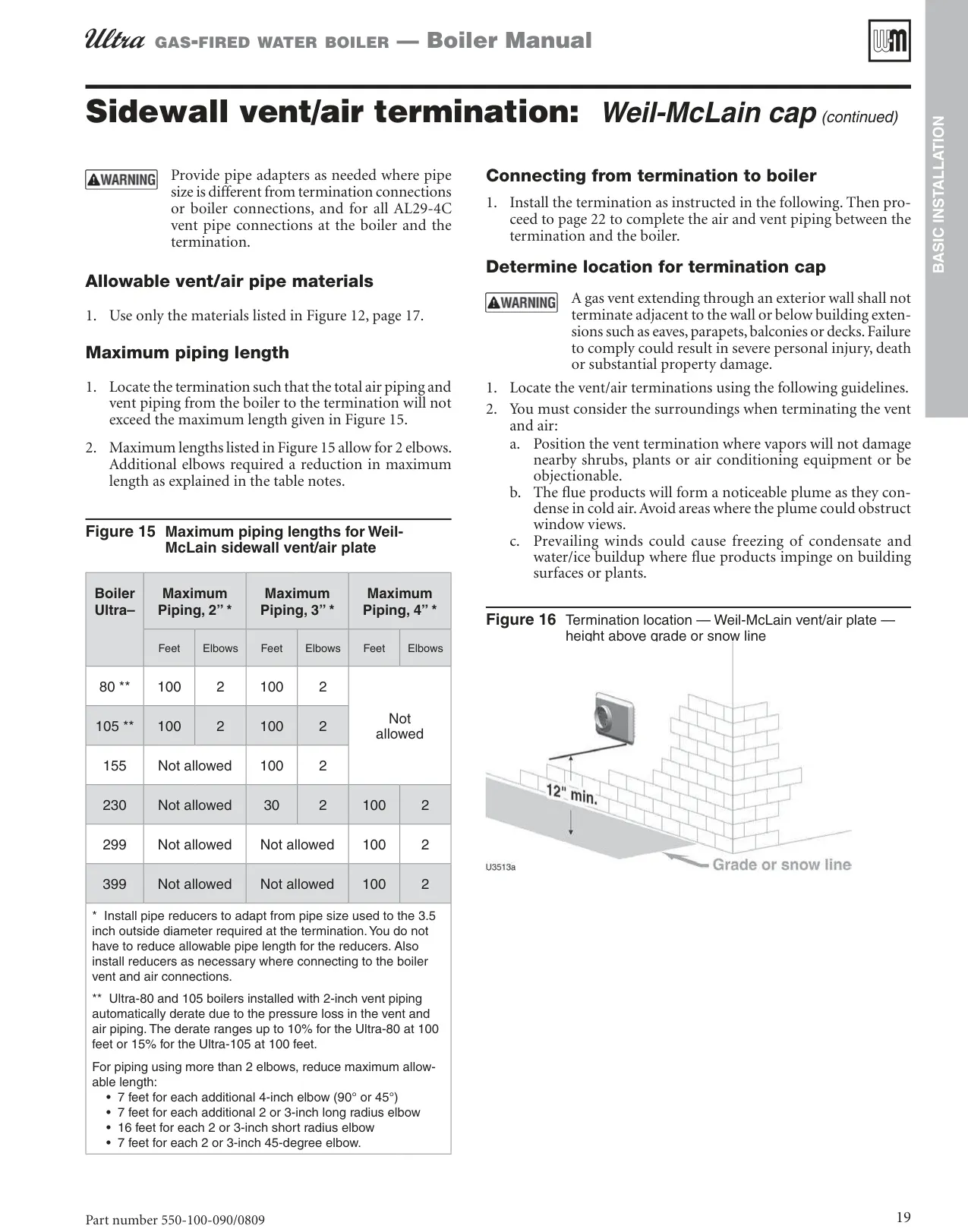

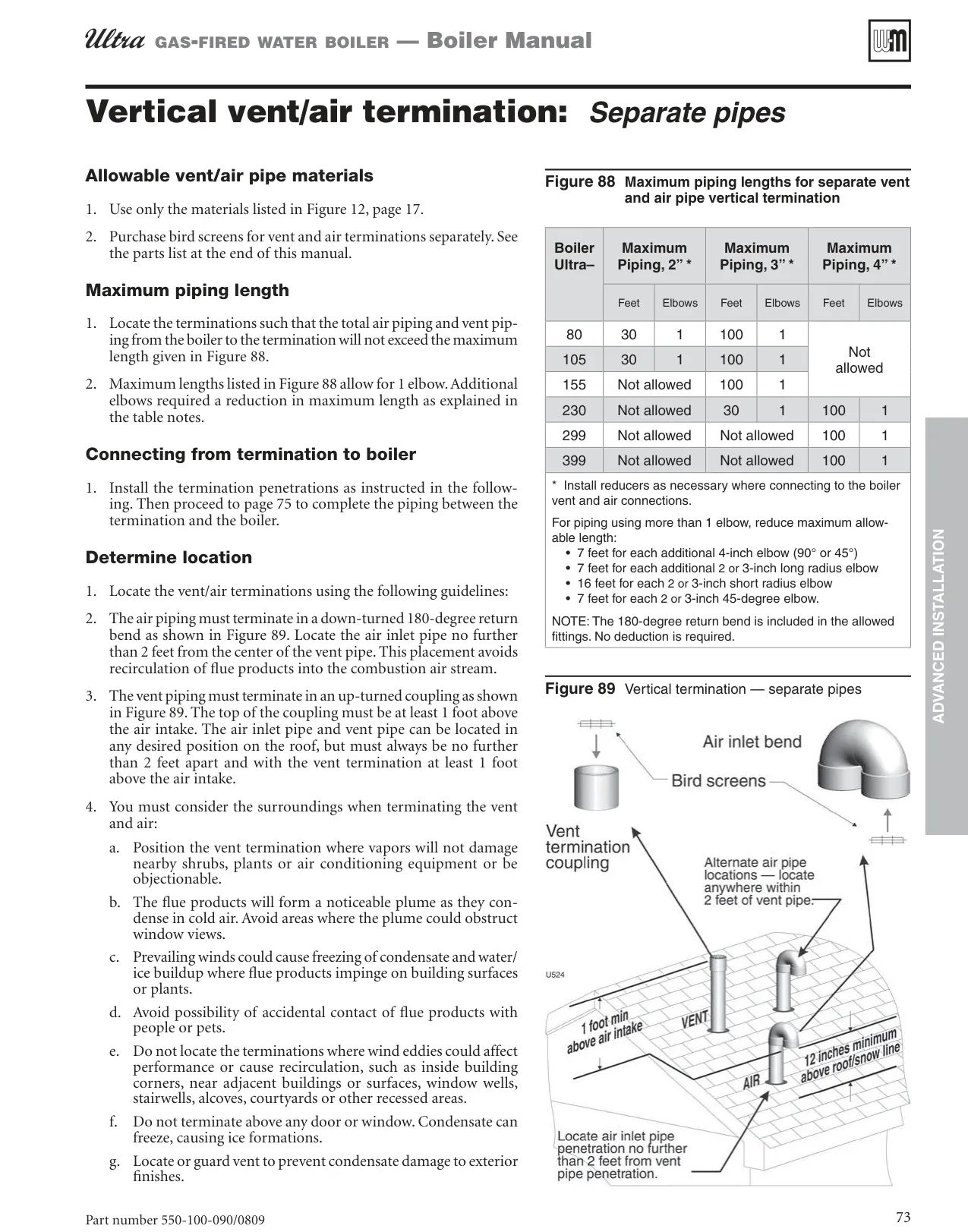

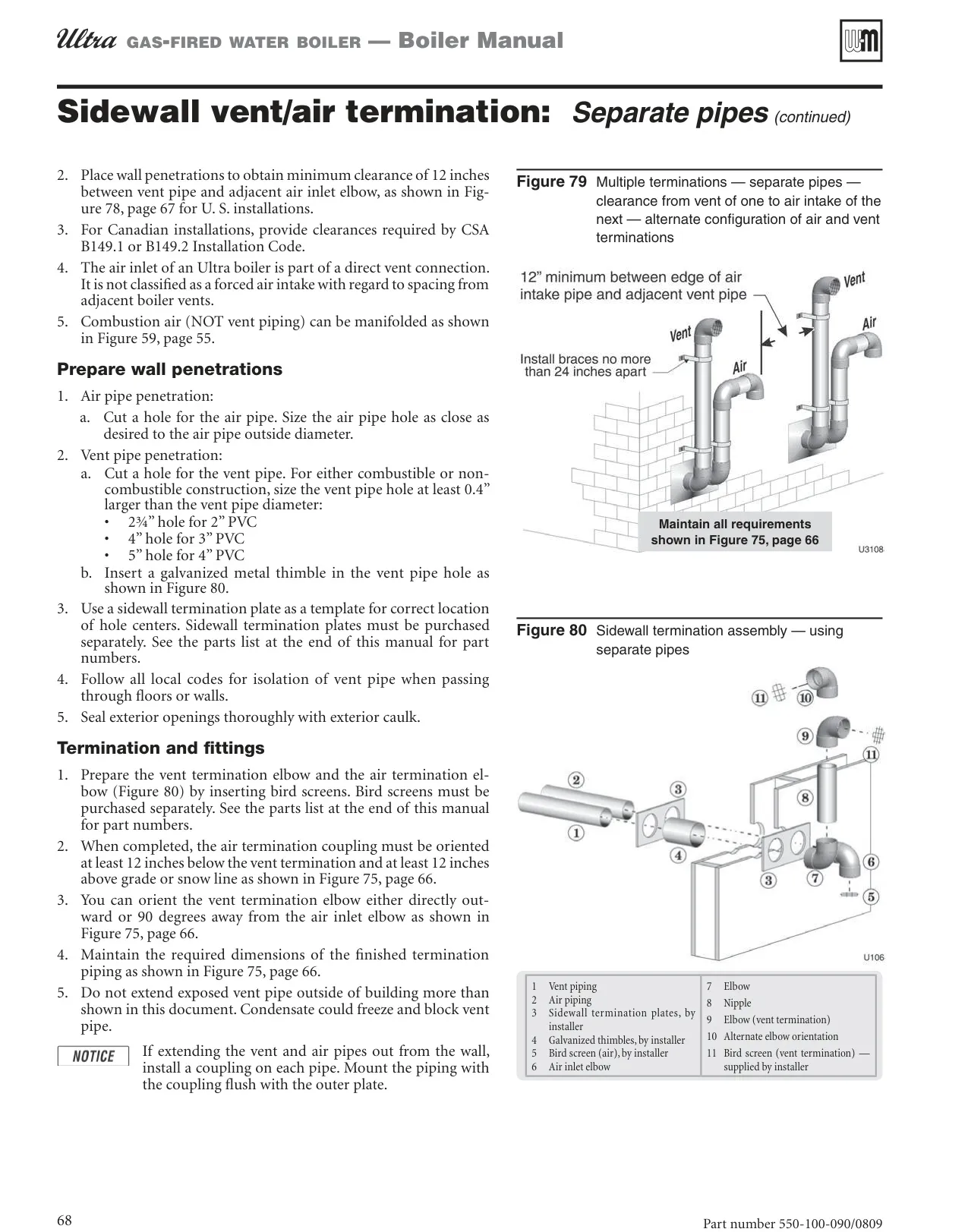

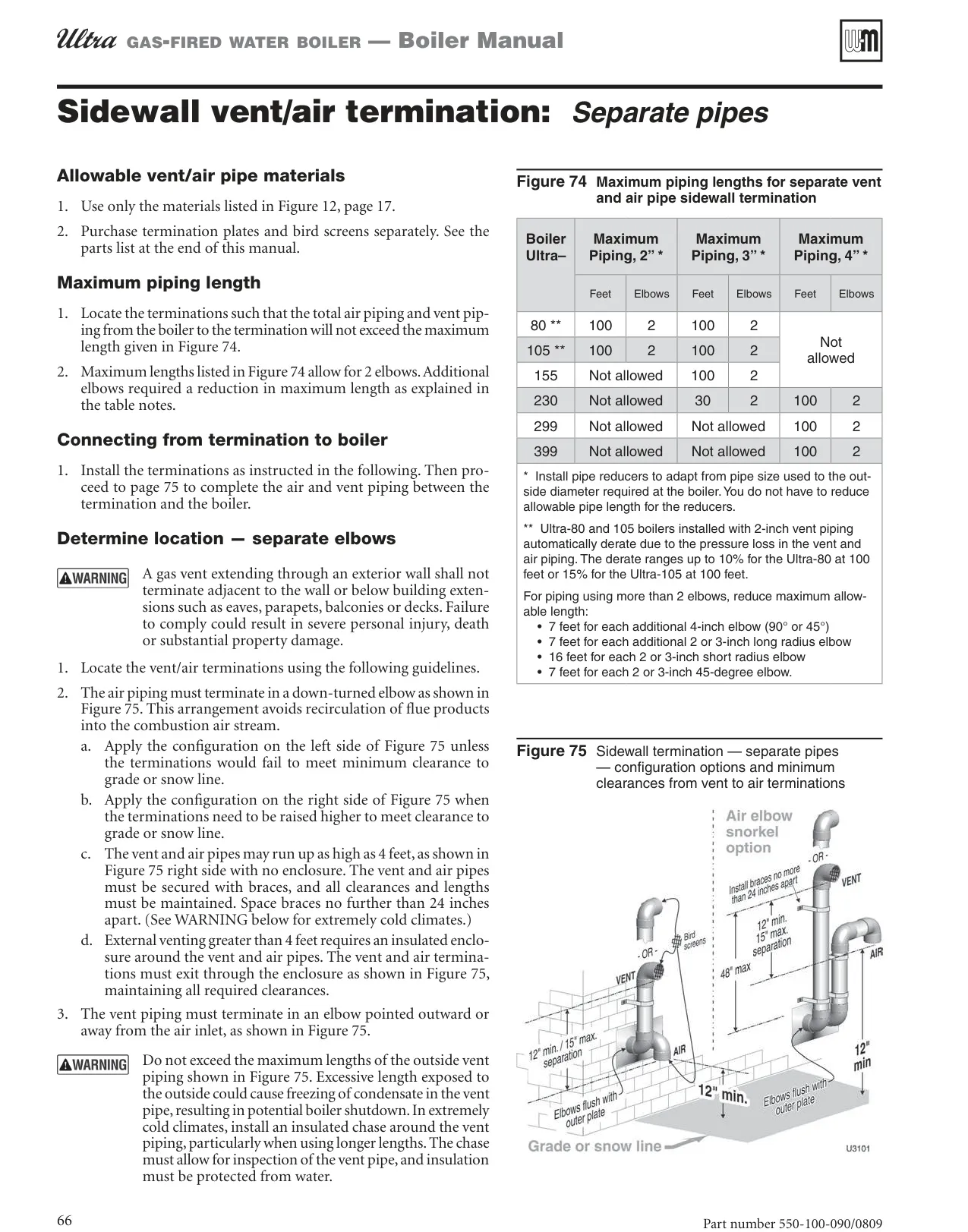

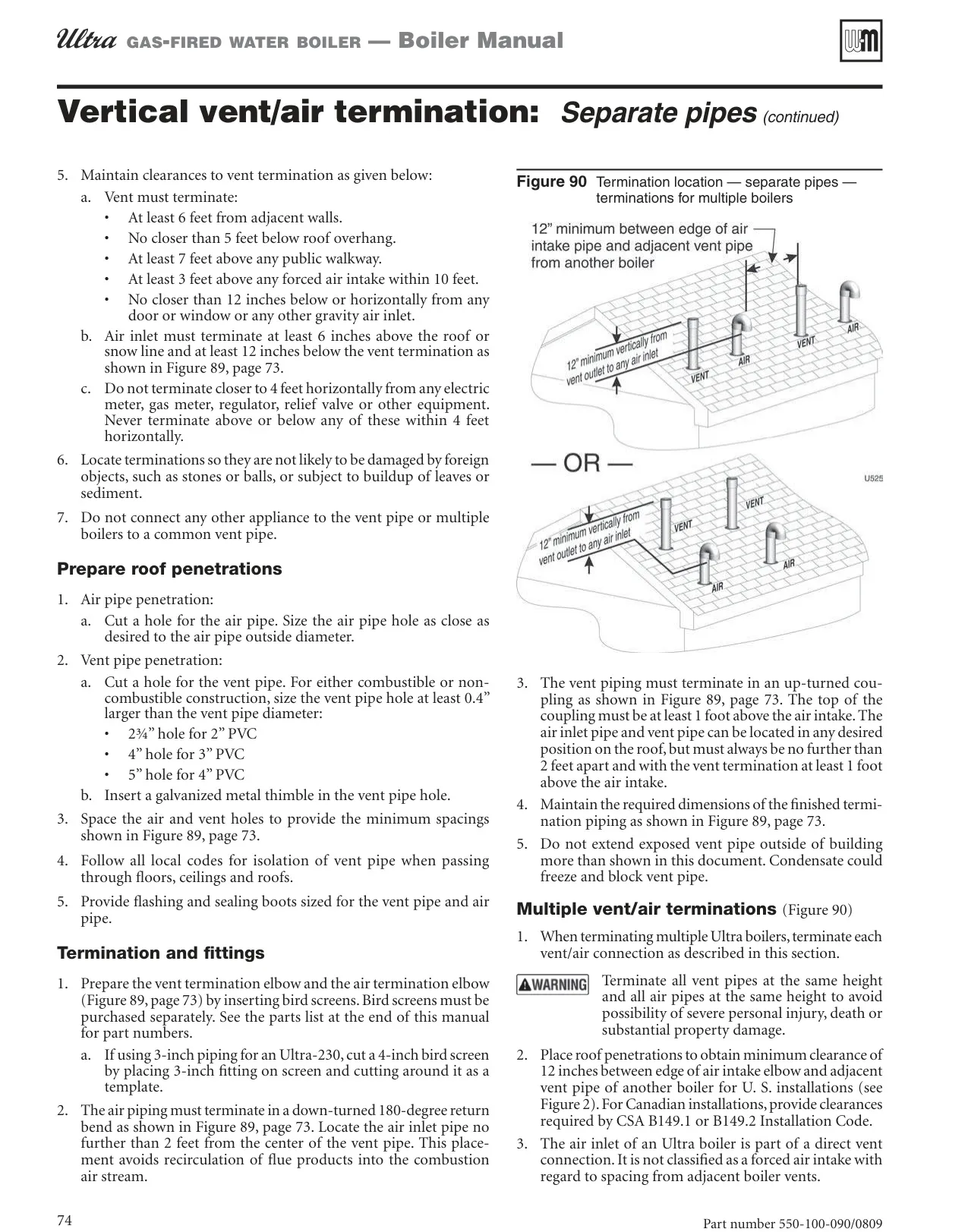

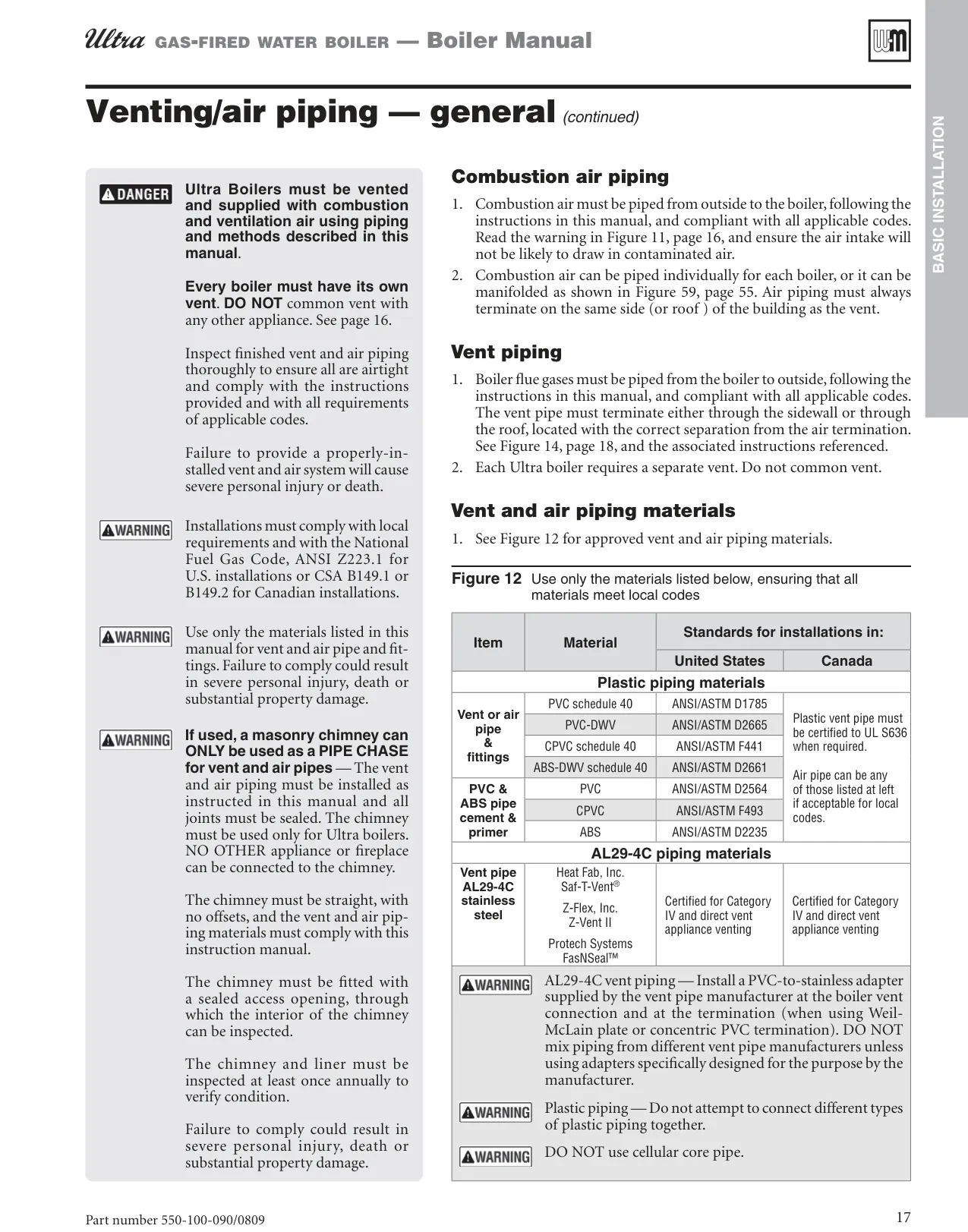

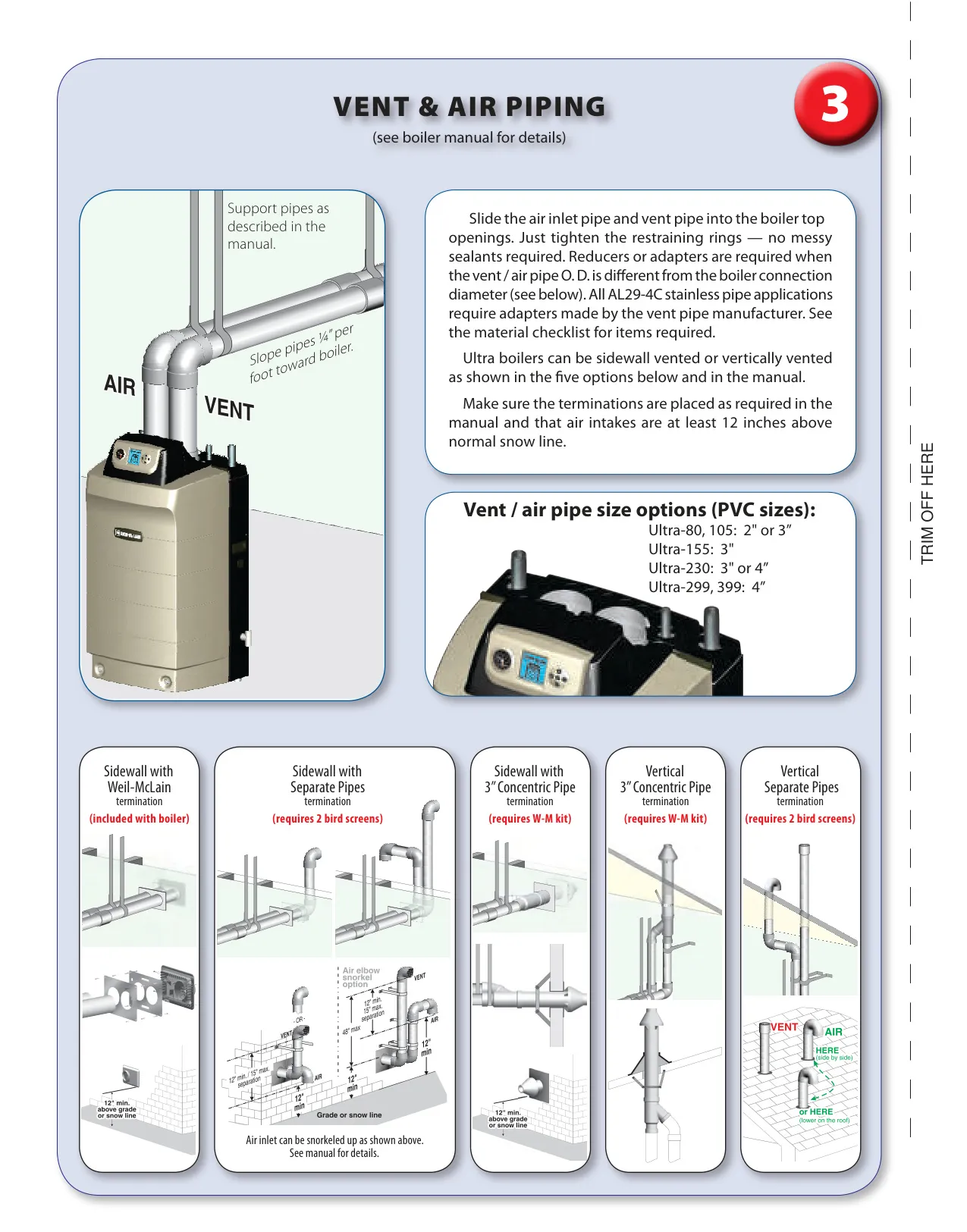

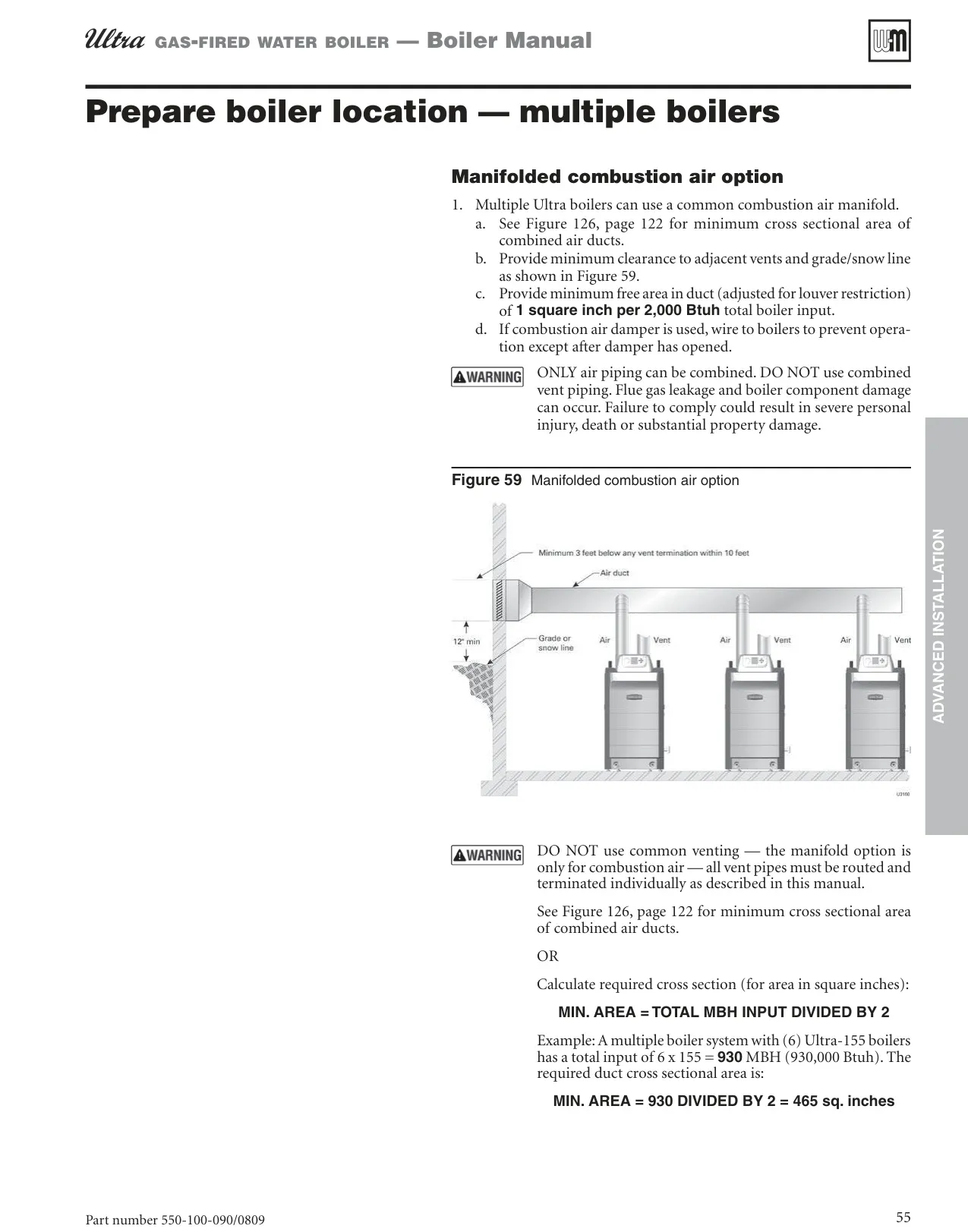

Venting for the Ultra 299 Serie 3 is categorized as ANSI Z21.13 Category IV, indicating a pressurized vent system prone to condensation. It requires a dedicated, direct vent (sealed combustion) setup, with specific piping materials and termination guidelines outlined to prevent flue gas spillage and ensure safe operation.

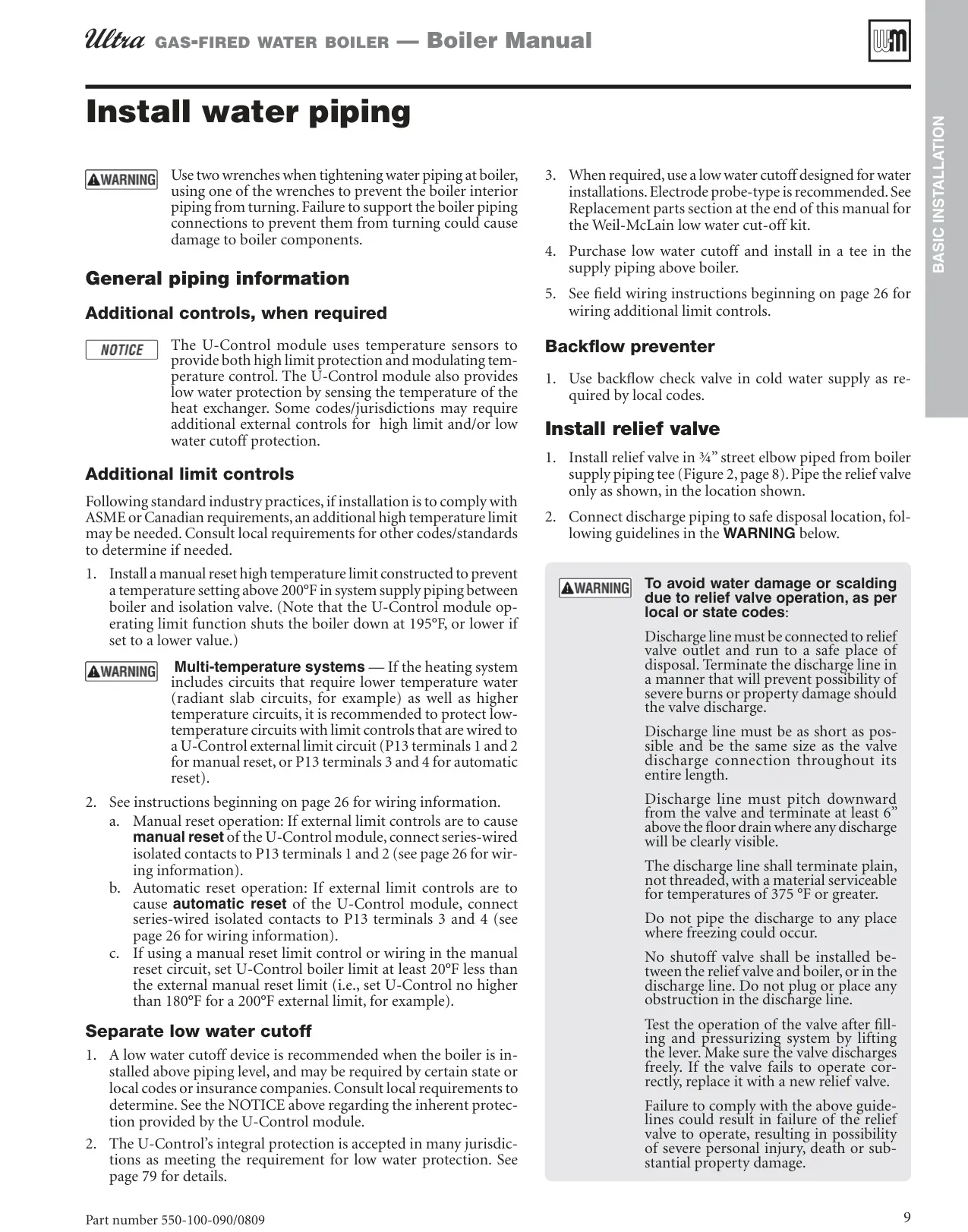

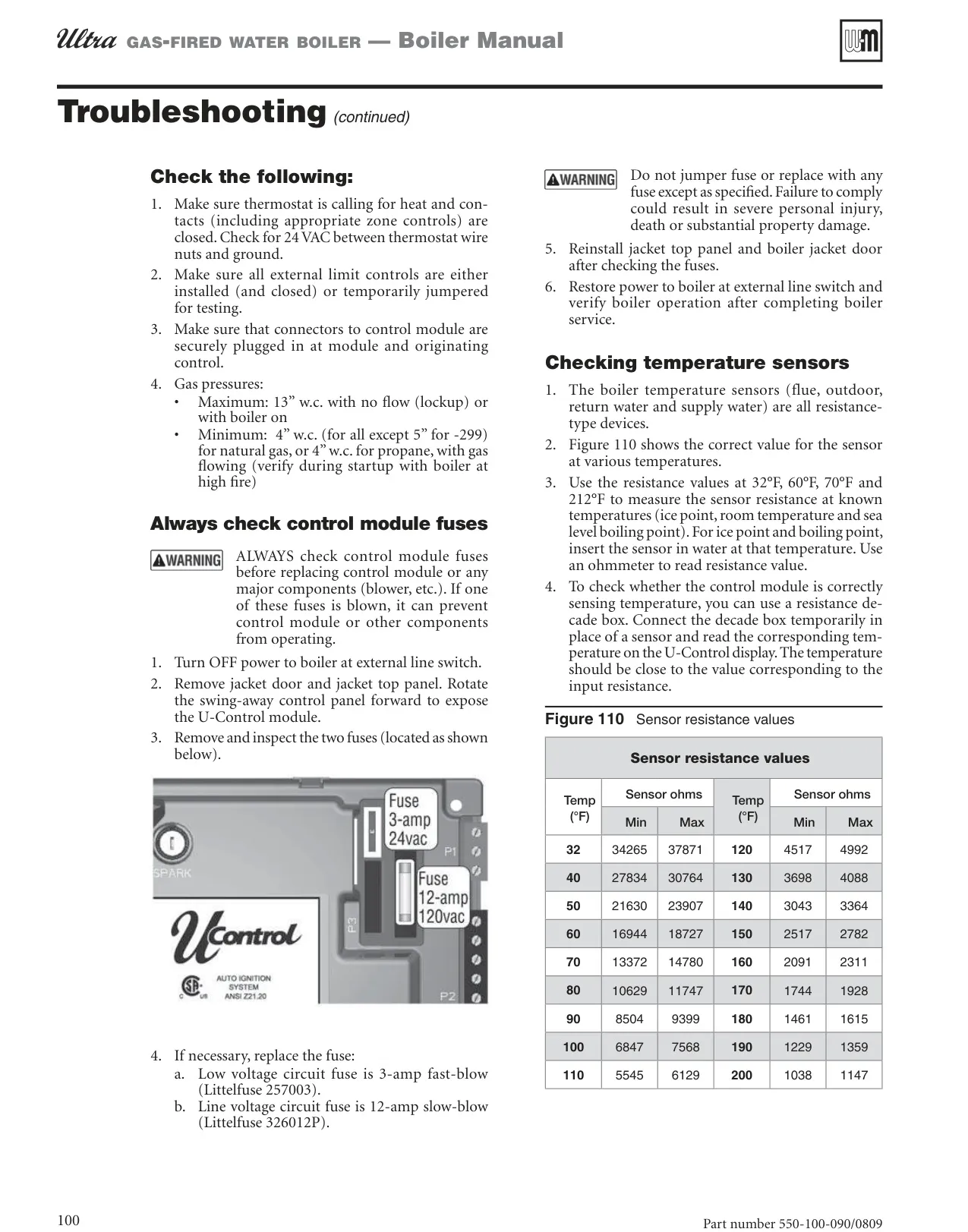

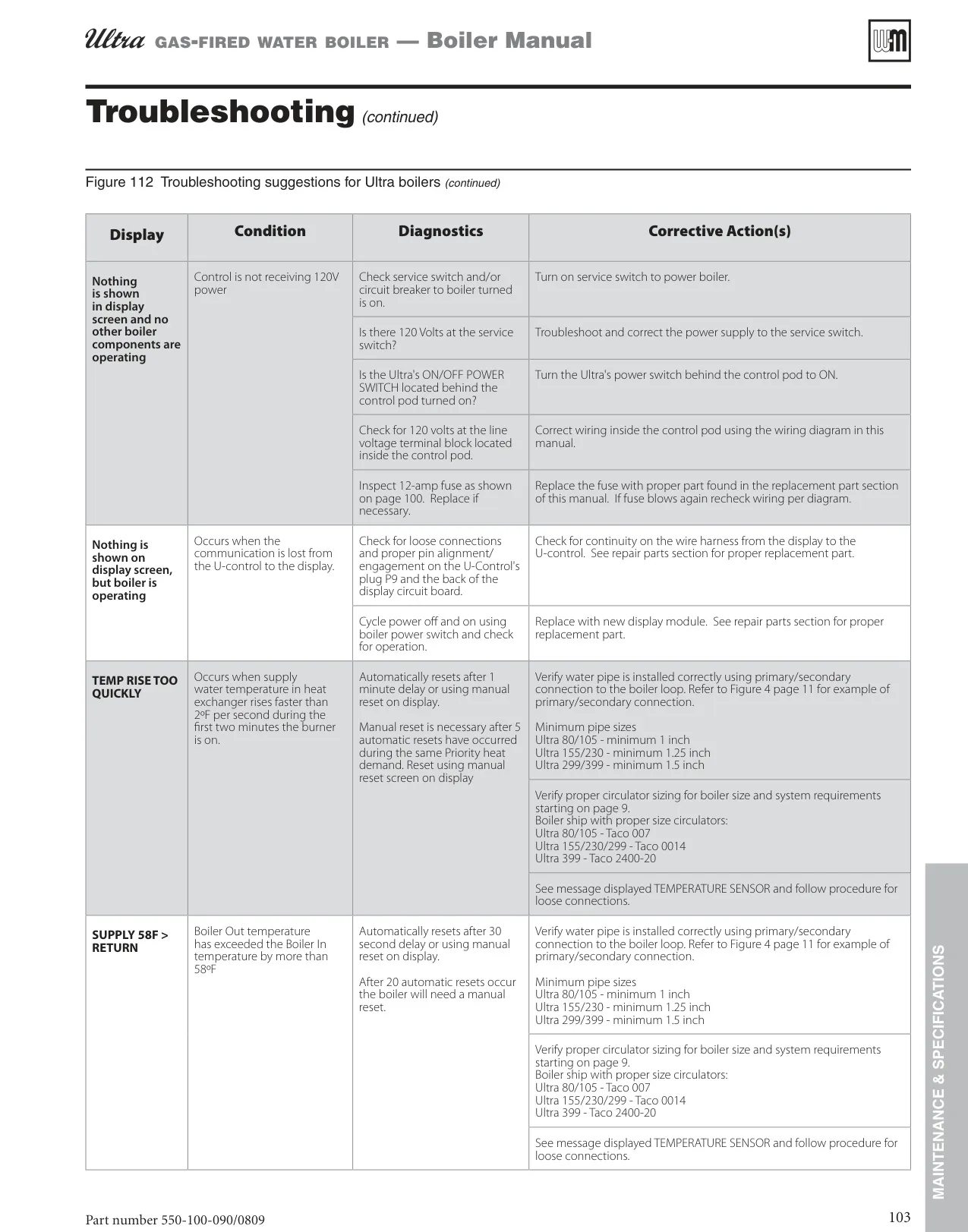

The boiler is designed with an integral low water protection system, utilizing dual temperature sensors within the heat exchanger. This internal safeguard continuously monitors temperatures to prevent dry firing, enhancing safety and extending the lifespan of the heat exchanger, although external low water cut-offs may be required by local codes.

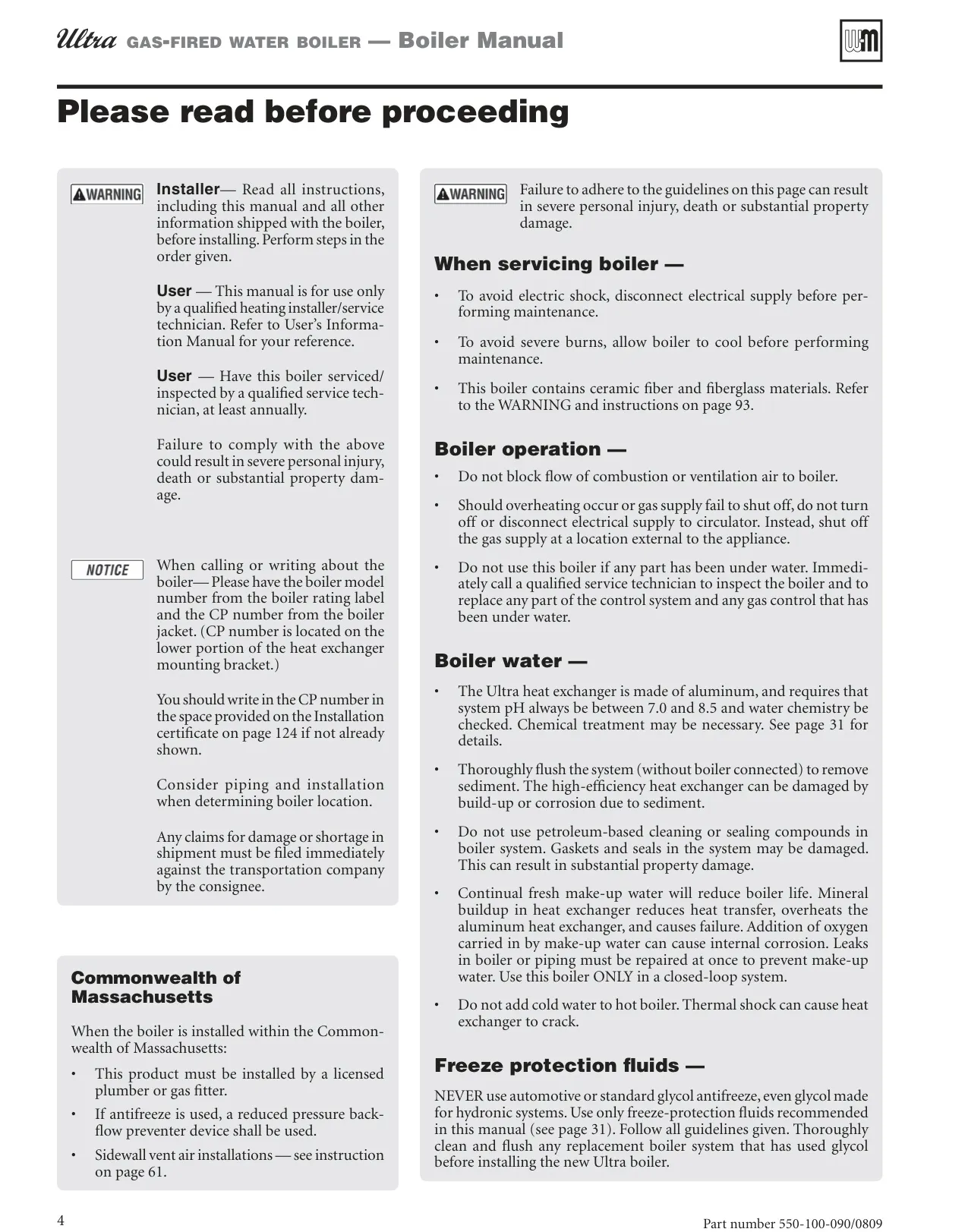

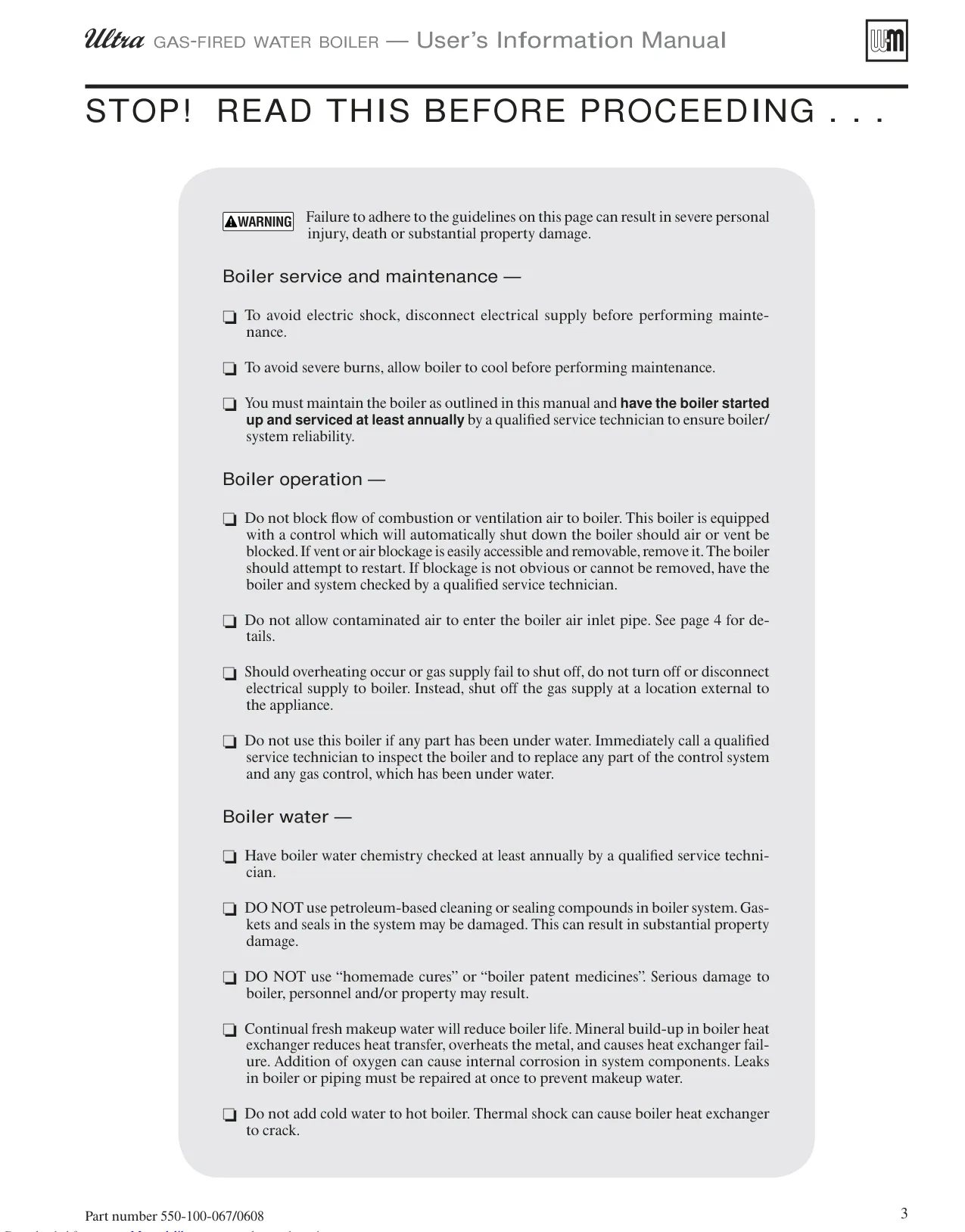

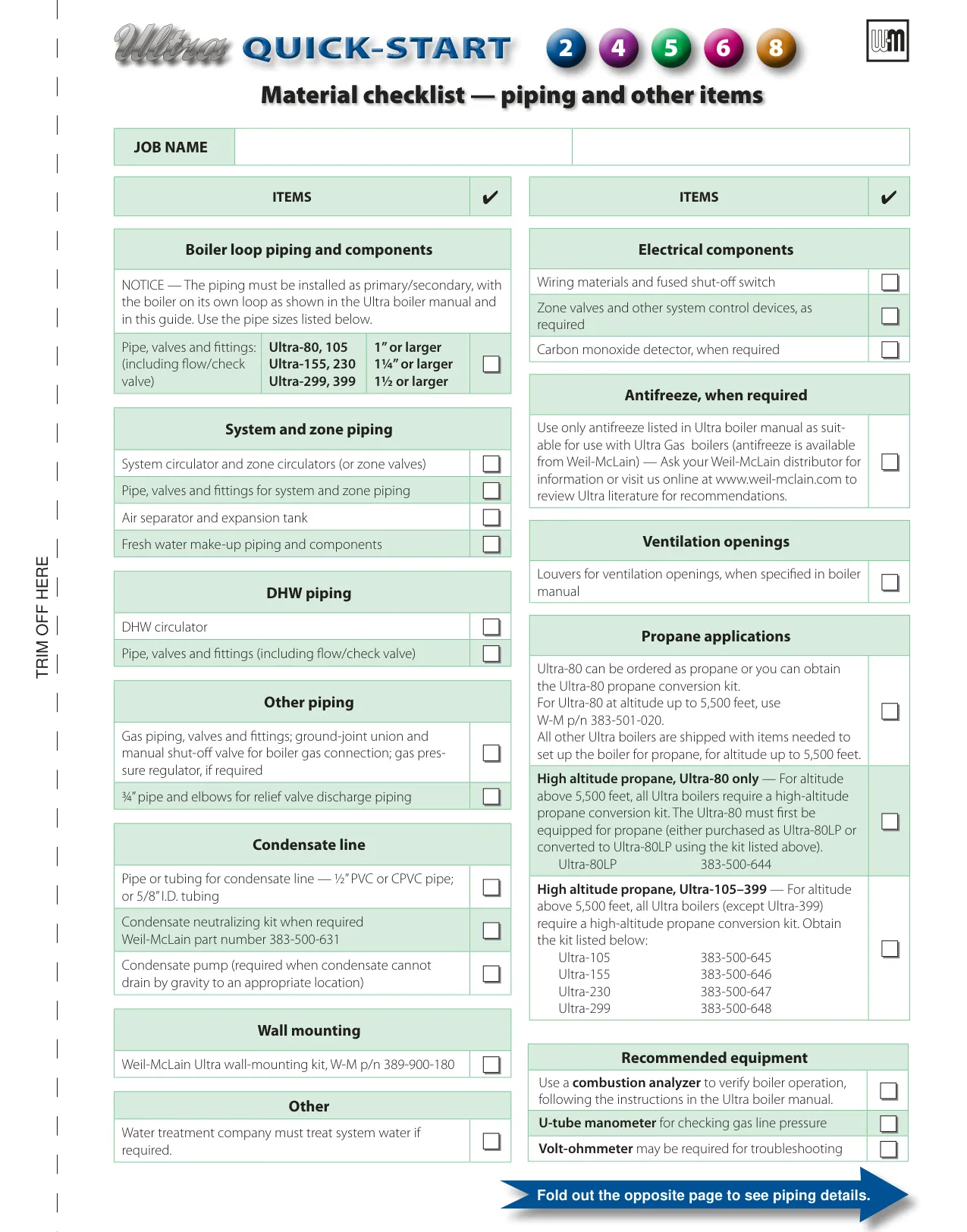

For freeze protection, the manual strictly advises against using automotive or standard glycol antifreeze. Only specific, Weil-McLain approved freeze-prevention fluids are permitted, with a maximum concentration of 50% by volume. Adherence to these guidelines is critical to prevent damage to the aluminum heat exchanger and system components.

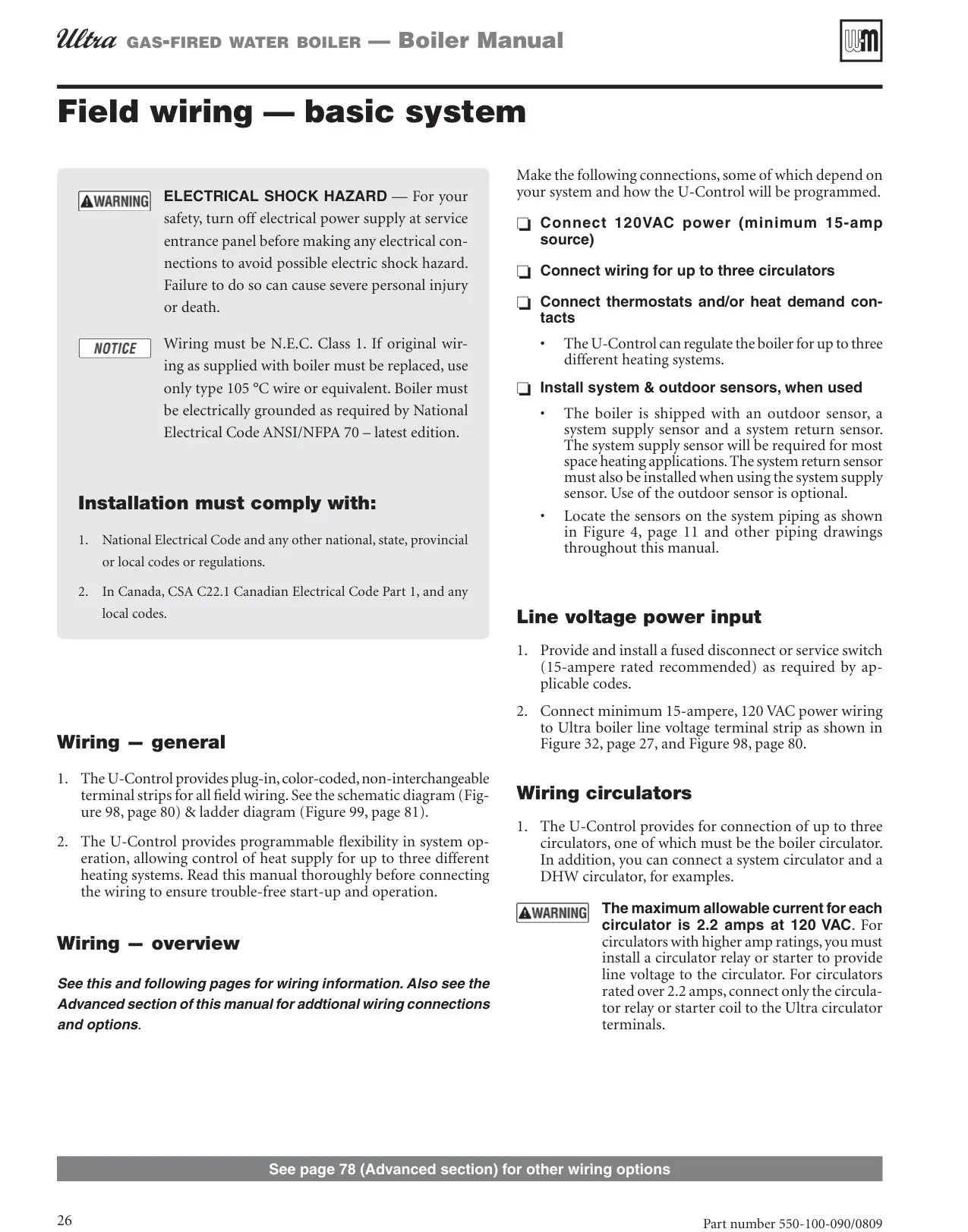

The boiler includes a convenient line voltage receptacle, offering a maximum 10-amp load capacity. This feature allows for temporary power connections for service tools or the direct connection of a condensate pump, adding practical utility during installation and maintenance tasks.
