Vaillant EcoTEC Plus 610 Instructions
Here we offer the Vaillant EcoTEC Plus 610 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Vaillant EcoTEC Plus 610 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

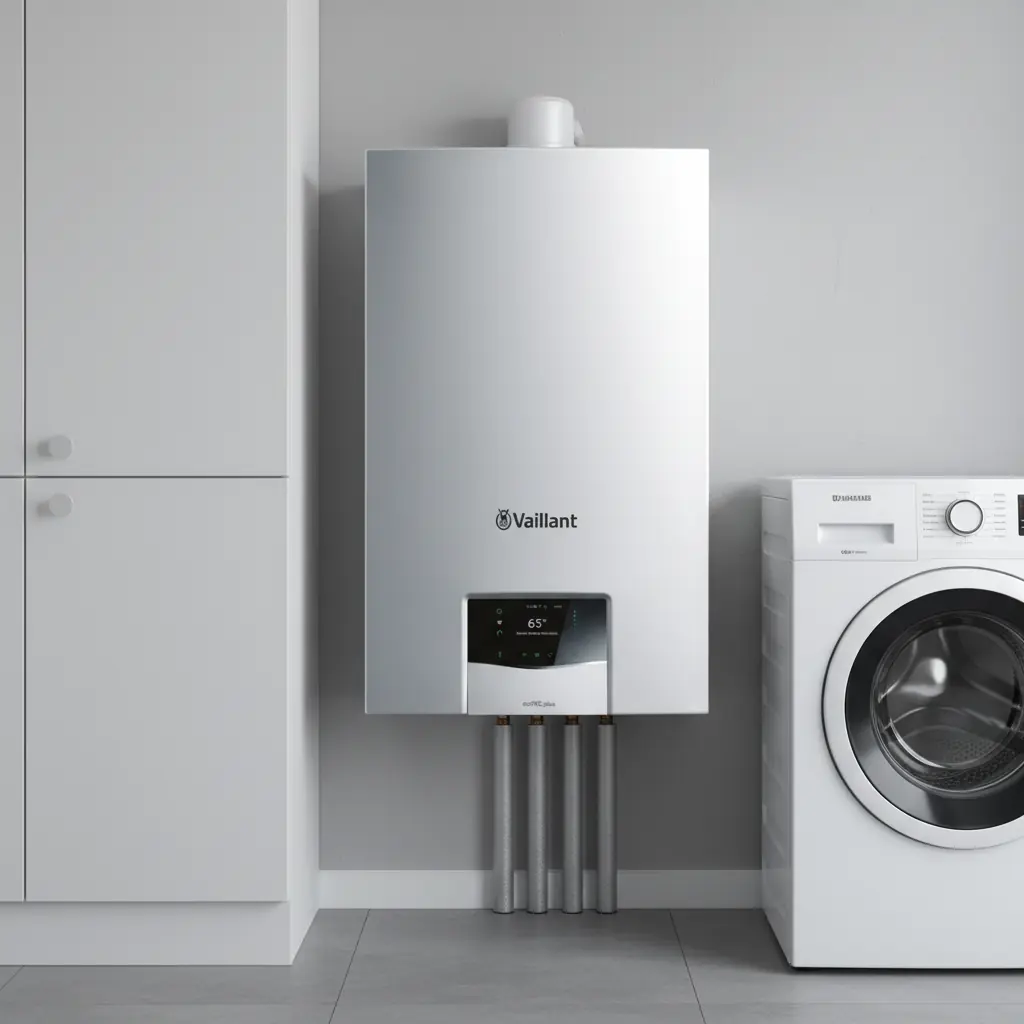

Product Images
Vaillant EcoTEC Plus 610 Boiler Specifications
| Feature | Specification (Natural Gas G20) | Specification (Liquefied Petroleum Gas G31) |
|---|---|---|
| General | ||
| Product Article Number | 0010036009 | |
| Gas Council Number | 41-694-45 | |
| Designated Country | GB, IE | |
| Permitted Gas Boiler Category | II2H3P | |
| CE / UKCA PIN | 0063CU3910 | |
| Gas Connection, Boiler Side | 15 mm | |
| Flow/Return Heating Connections | G 3/4 ″ | |
| Expansion Relief Valve Connection | 15 mm | |
| Condensate Discharge Hose Connection | 19 mm | |
| Air/Flue Pipe Connection | 60/100 mm | |
| Capacity of Heating Expansion Vessel | 10 l | |
| Pre-charge Pressure of Heating Expansion Vessel | 70 kPa (700 mbar) | |
| Min. Flue Gas Temperature | 35 ℃ | |
| Max. Flue Gas Temperature | 85 ℃ | |
| Approved Gas Boiler Types | C13, C33, C43, C53 | |
| NOx Class | 6 | |
| Empty Weight of Product | 32 kg | |
| Weight Ready for Operation (Filled) | 37 kg | |
| Performance (Natural Gas G20) | ||
| Gas Connection Pressure | 2.0 kPa (20.0 mbar) | |
| NOx Emission (Weighted, EN 15502-2-1) | 35.70 mg/kWh | |
| 30% Efficiency | 108.2 % | |
| Max. Gas Volume Flow (DHW Generation) | 2.16 m³/h | |
| Nominal Heat Output Range (40/30 °C) | 2.9 to 10.9 kW | |
| Nominal Heat Output Range (50/30 °C) | 2.8 to 10.6 kW | |
| Nominal Heat Output Range (60/40 °C) | 2.6 to 10.1 kW | |
| Nominal Heat Output Range (80/60 °C) | 2.5 to 9.9 kW | |
| Nominal Heat Input Range for Heating (Hi) | 2.7 to 10.2 kW | |
| Max. Heat Output for Domestic Hot Water | 22.6 kW | |
| Heating Adjustment Range | 10.2 kW (auto) | |
| Performance (Liquefied Petroleum Gas G31) - Convertible | ||
| Gas Connection Pressure | 3.7 kPa (37.0 mbar) | |
| NOx Emission (Weighted, EN 15502-2-1) | 35.46 mg/kWh | |
| Max. Gas Mass Flow (DHW Generation) | 1.6 kg/h | |
| Nominal Heat Output Range (40/30 °C) | 5.5 to 10.7 kW | |
| Nominal Heat Output Range (50/30 °C) | 5.4 to 10.3 kW | |
| Nominal Heat Output Range (60/40 °C) | 5.1 to 9.9 kW | |
| Nominal Heat Output Range (80/60 °C) | 5.0 to 9.9 kW | |
| Nominal Heat Input Range for Heating (Hi) | 5.2 to 10.2 kW | |
| Max. Heat Output for Domestic Hot Water | 22.2 kW | |
| Heating Adjustment Range | 10.2 kW (auto) | |
| Heating System | ||
| Max. Flow Temperature | 85 ℃ | |
| Flow Temperature Adjustment Range | 30 to 80 ℃ (Factory setting: 75 °C) | |
| Permissible Operating Pressure, Heating | 0.25 MPa (2.50 bar) | |
| Nominal Circulation Water Volume (ΔT = 20 K, 80/60 °C) | 439 l/h | |
| Approx. Condensate Rate (pH 3.5-4.0, 50/30 °C) | 1.0 l/h | |
| Remaining Pump Head at Nominal Circulation Water Volume | 0.025 MPa (0.250 bar) | |
| Electrical | ||
| Rated Voltage | 230 V~ | |
| Mains Frequency | 50 Hz | |
| Permissible Connected Voltage | 190 to 253 V~ | |
| Built-in Fuse (Slow-Blow) | 4 A | |
| Max. Power Consumption in Heating Mode | 55 W | |
| Max. Power Consumption in Domestic Hot Water Mode | 96 W | |
| Electrical Standby Energy Consumption | < 2 W | |
| IP Rating | IPX5D | |
Vaillant EcoTEC Plus 610 Boiler Details
The Vaillant EcoTEC Plus 610 boiler features an intuitive and user-friendly operating concept. Its display provides clear information, with colour-lit controls guiding users through selections and adjustments via a convenient scrollbar. To conserve energy, the display dims after a period of inactivity, reverting to a concise status overview. Accessing menus reveals various functions, with available settings adapting based on whether a system control is connected, ensuring a tailored user experience.
At its core, the boiler integrates Sitherm Pro™ technology, an advanced combustion regulation system based on adaptive Siemens optimization. This intelligent feature means the gas-air ratio does not require manual adjustment within the same gas family, simplifying installation and ensuring consistent, efficient performance. The technology continually adapts to optimize combustion, reflecting Vaillant's commitment to cutting-edge heating solutions.
Safety is paramount, with multiple integrated features protecting both the appliance and the household. The boiler includes robust overheating protection, where software triggers a shutdown to prevent damage, easily reset with a button press. A crucial built-in frost protection device activates the pump if boiler water drops below 12°C, and even the burner if it falls to 5°C, safeguarding against freezing in colder conditions.
Furthermore, the EcoTEC Plus 610 boasts advanced system integration capabilities. It is fully compatible with Vaillant's sensoROOM pure (VRT 50/2) room temperature control, an eBUS-enabled device that allows for precise time-based heating schedules and comprehensive room temperature management directly from the control. This seamless compatibility extends to other eBUS controls and weather-compensated systems, providing flexible heating solutions for diverse home environments.
For enhanced transparency, the boiler offers detailed energy monitoring. Users can view approximate energy consumption, energy yields, and efficiencies for both heating and domestic hot water generation across various timeframes, from "Today" to "Total". These extrapolated values, accessible via the display or a connected app, provide valuable insights into usage patterns, though they are not intended for precise energy billing.
Vaillant's commitment to quality and service is underscored by its participation in the Benchmark Scheme and membership in the Hot Water Association. The Benchmark scheme ensures high standards for installation, commissioning, and servicing, with a mandatory checklist for installers, crucial for warranty validation. The Hot Water Association membership guarantees fit-for-purpose products that meet stringent industry and regulatory standards, backed by comprehensive technical support.
Maintaining optimal water quality is vital for the boiler's longevity and efficiency. The manual provides clear guidelines on checking heating water for sediment, magnetite, and pH levels. Proper water treatment, including softening or stabilization if water hardness exceeds recommendations, is essential to prevent scale deposition and corrosion, thereby protecting internal components and ensuring reliable operation.
Regular maintenance is crucial, with an annual inspection by a competent person highly recommended. The boiler signals when service is due via maintenance messages (I.XXX codes) on the display, ensuring timely attention. Service intervals can be configured based on operating hours or specific dates, providing flexibility for homeowners and installers to proactively manage boiler health and upkeep.
