Vaillant Ecofit Pure 430 Boiler Instruction Manual

Name: Vaillant Ecofit Pure 430 Boiler Instruction Manual
Brand: Manualverse
Availability: InStock
Rating: 5 (1 reviews)

Vaillant Ecofit Pure 430 Boiler Instruction Manual

5/5 (1👤)

📕 Manual PDF 📄 48 Pages

★Rate It★

📖 Manual 📋 Specifications 📝 Summary 💬 FAQs

Vaillant Ecofit Pure 430 Boiler

Vaillant Ecofit Pure 430 Boiler Instructions

Here we offer the Vaillant Ecofit Pure 430 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Vaillant Ecofit Pure 430 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

Product Images

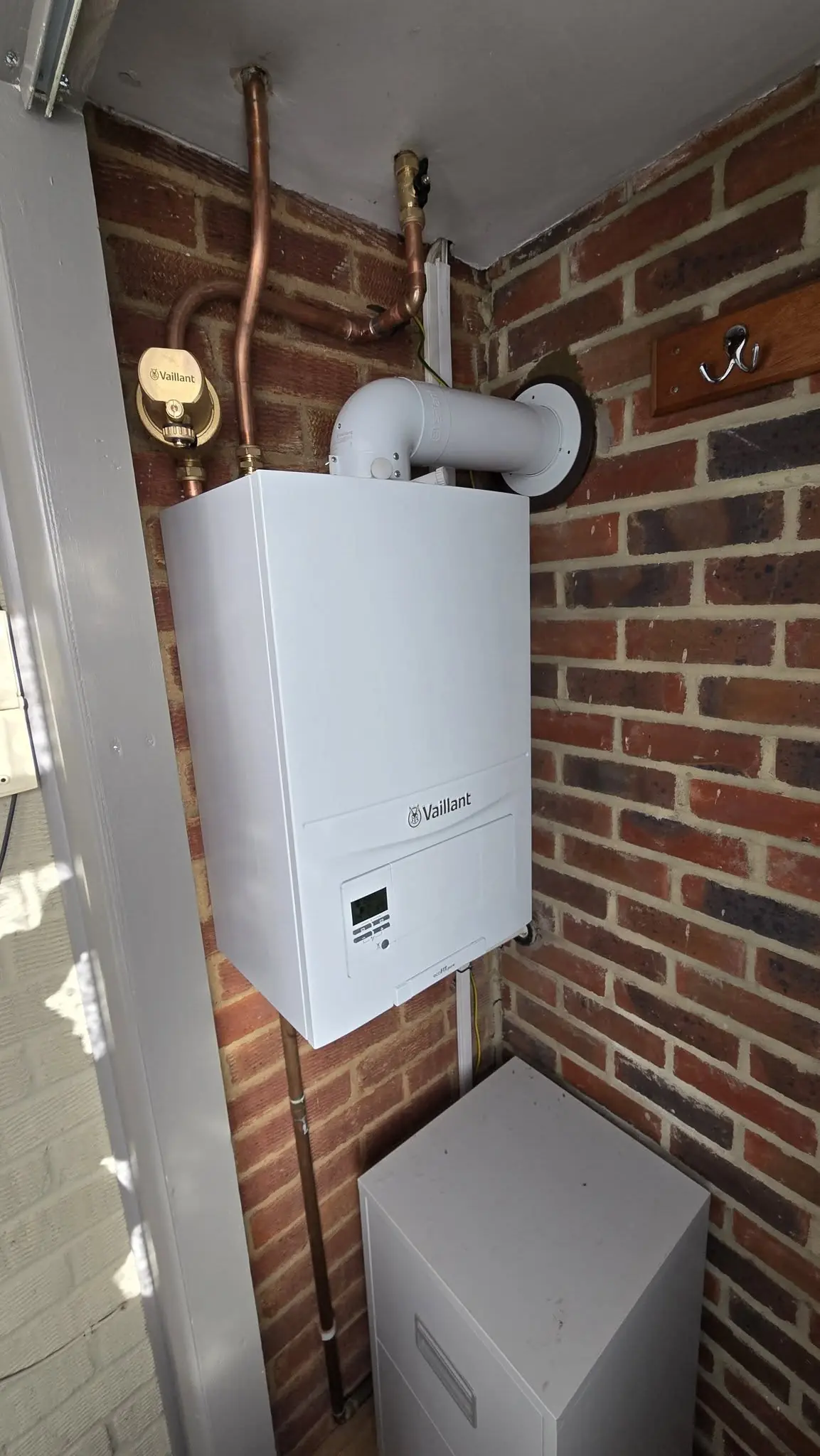

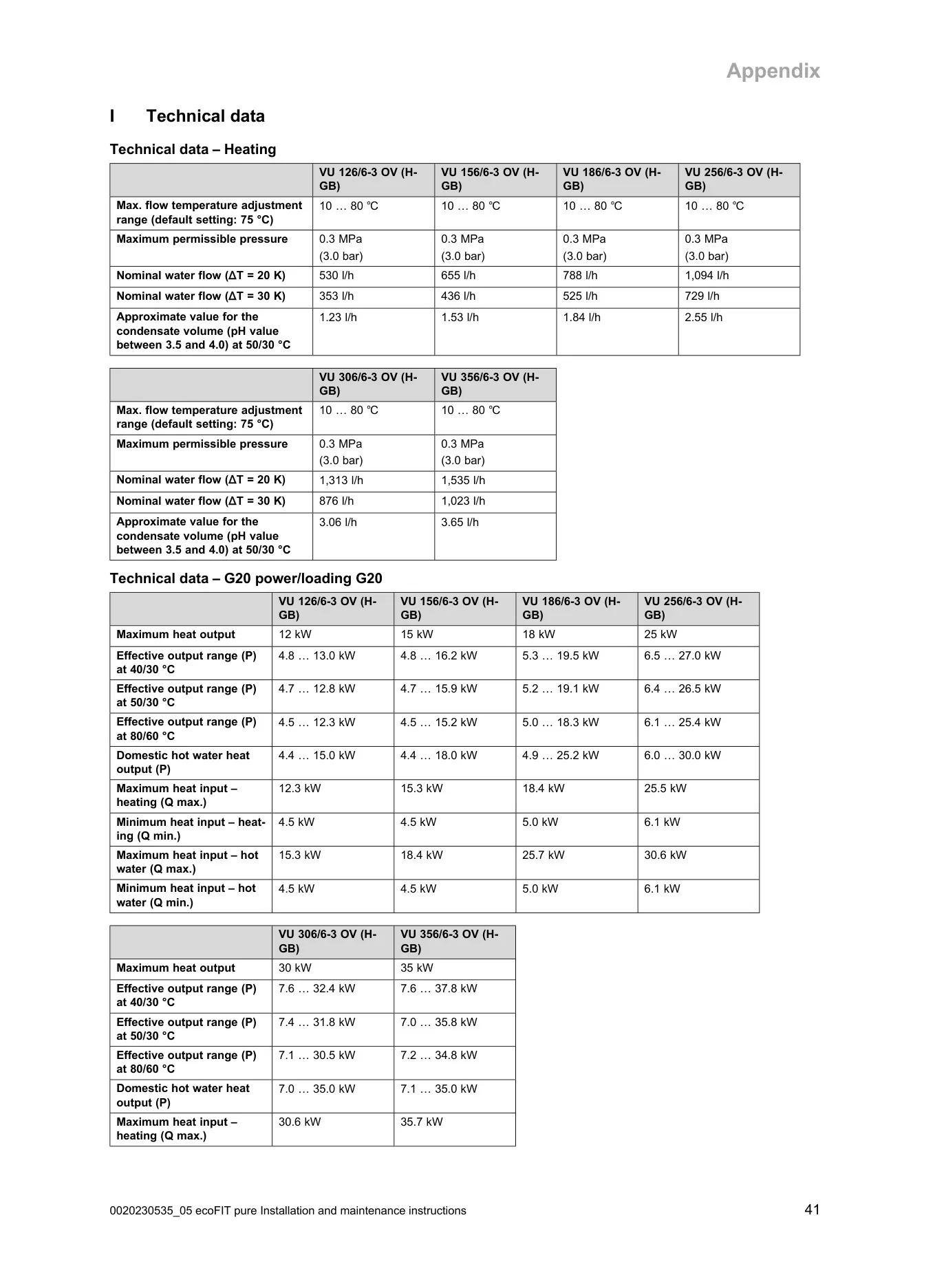

Vaillant Ecofit Pure 430 Boiler Specifications

Specification Category	Attribute	Vaillant Ecofit Pure 430 (VU 306/6-3 OV (H-GB))
General & Dimensions	Article Number	0010020404
	Gas Council Number	41-694-12
	Width	375 mm
	Depth	295 mm
	Height	602 mm
	Net Weight	22 kg
	Weight (filled with water)	27 kg
Heating Performance	Max. Flow Temperature Adjustment Range	10 … 80 ℃ (Default: 75 ℃)
	Maximum Permissible Pressure	0.3 MPa (3.0 bar)
	Nominal Water Flow (ΔT = 20 K)	1,313 l/h
	Nominal Water Flow (ΔT = 30 K)	876 l/h
	Approx. Condensate Volume (50/30 ℃)	3.06 l/h (pH 3.5-4.0)
G20 Power/Loading	Maximum Heat Output	30 kW
	Effective Output Range (P) at 40/30 ℃	7.6 … 32.4 kW
	Effective Output Range (P) at 50/30 ℃	7.4 … 31.8 kW
	Effective Output Range (P) at 80/60 ℃	7.1 … 30.5 kW
	Domestic Hot Water Heat Output (P)	7.0 … 35.0 kW
	Maximum Heat Input – Heating (Q max.)	30.6 kW
	Minimum Heat Input – Heating (Q min.)	7.1 kW
	Maximum Heat Input – Hot Water (Q max.)	35.7 kW
	Minimum Heat Input – Hot Water (Q min.)	7.1 kW
Connections & Fuel	Gas Category	I2H
	Diameter of Gas Pipe	1/2 inch
	Diameter of Heating Connections	3/4 inch
	Expansion Relief Valve Connector (min.)	15 mm
	Condensate Drain Pipework (min.)	21.5 mm
	G20 Gas Supply Pressure	2.0 kPa (20.0 mbar)
	Gas Flow at P max. – Hot Water (G20)	3.8 m³/h
	Gas Flow at P max. – Heating Mode (G20)	3.2 m³/h
	Gas Flow at P min. (G20)	0.756 m³/h
	CE Number (PIN)	CE-0063CP3646
Efficiency & Emissions	NOx Class	5
	Nominal Efficiency at 80/60 ℃	99.2 %
	Nominal Efficiency at 50/30 ℃	104.0 %
	Nominal Efficiency at 40/30 ℃	106.0 %
	Nominal Efficiency (Partial Load, 30%) at 40/30 ℃	109.8 %
	Released System Types	C13, C33, C43, C53
Electrical Data	Electric Connection	230 V / 50 Hz
	Built-in Fuse (Slow-Blow)	T2/2A, 250V
	Max. Electrical Power Consumption	44 W
	Standby Electrical Power Consumption	2 W
	Level of Protection	IPX4D

Vaillant Ecofit Pure 430 Boiler Details

The Vaillant Ecofit Pure 430 boiler is a highly efficient condensing appliance designed for closed heating installations and hot water generation, specifically catering to the Great Britain and Ireland markets. This model, identified by article number 0010020404 and Gas Council Number 41-694-12, adheres to the stringent Benchmark Scheme standards, ensuring proper installation, commissioning, and servicing by competent professionals. Its design prioritises energy efficiency and compliance with relevant building regulations.

A key feature of the Ecofit Pure 430 is its room-sealed operation, which means the combustion air is not drawn from the installation room. This significantly enhances safety by preventing flue gas from escaping into the living space, a crucial consideration, especially in damp environments. The product's compact dimensions (375 mm width, 295 mm depth, 602 mm height) allow for flexible installation in various residential settings.

The boiler incorporates a sophisticated operating concept accessible via a user-friendly interface. For installers and service technicians, a dedicated installer level provides access to detailed diagnostic codes and check programmes. These tools facilitate precise adjustments and troubleshooting, ensuring optimal performance. The "Live Monitor" feature displays current operating status codes, offering immediate insights into the boiler's functionality.

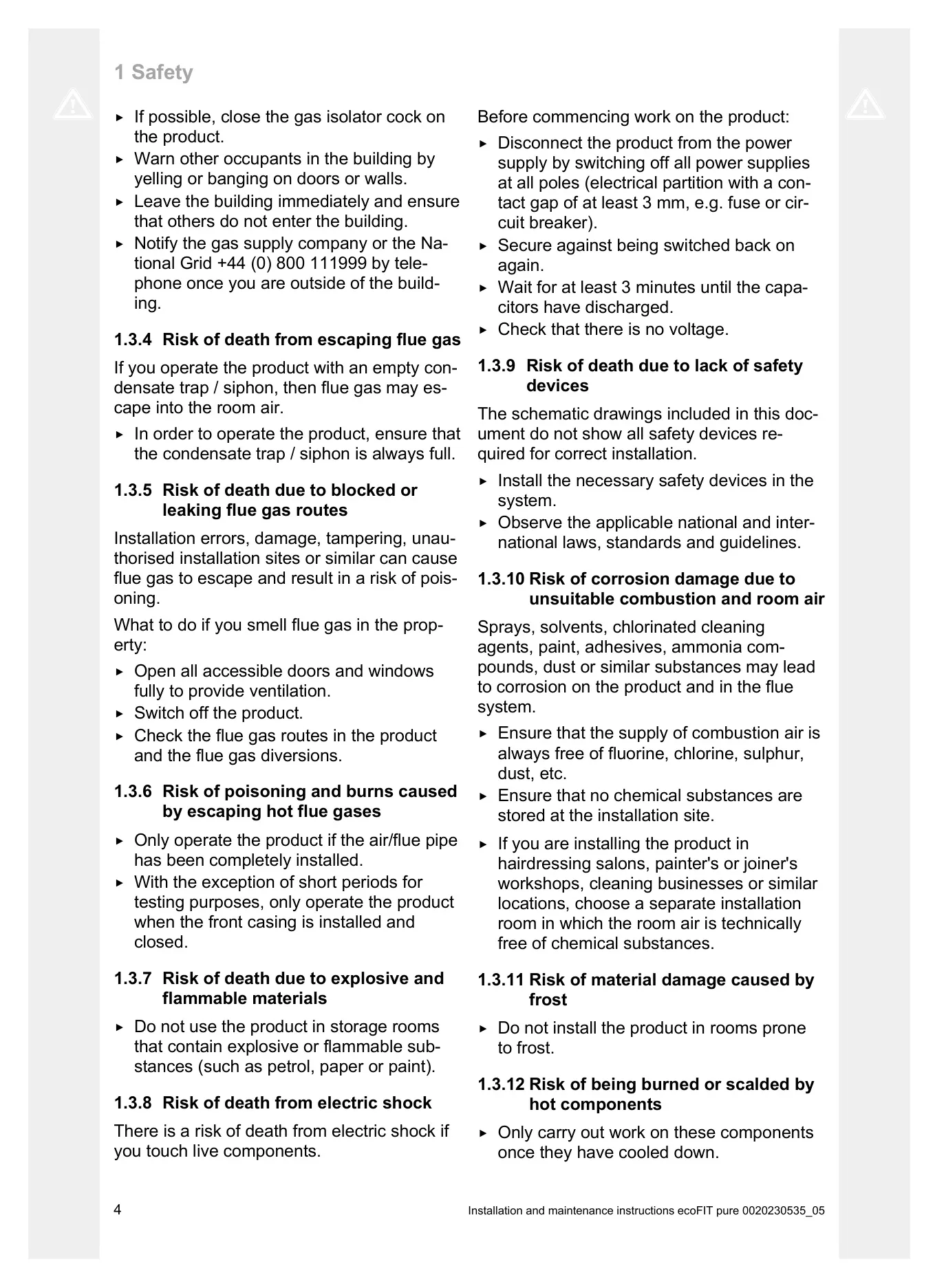

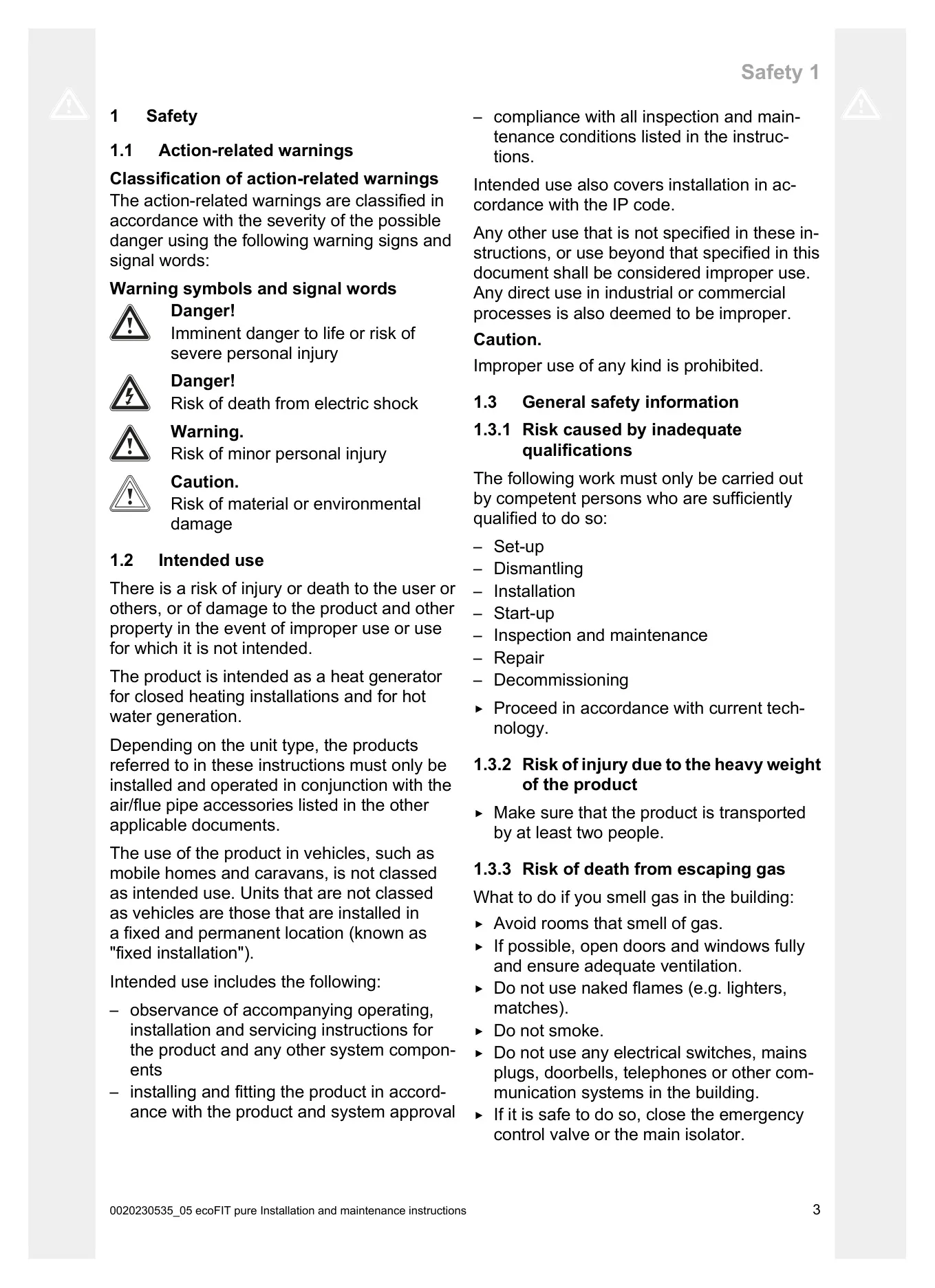

Safety is paramount, with the Ecofit Pure 430 featuring multiple protective measures. These include warnings against improper use, risks from escaping gas or flue gas, and electric shock hazards. The condensate trap/siphon must always be full to prevent flue gas escape, highlighting the importance of regular maintenance. Frost protection functions are also integrated to prevent material damage in cold conditions.

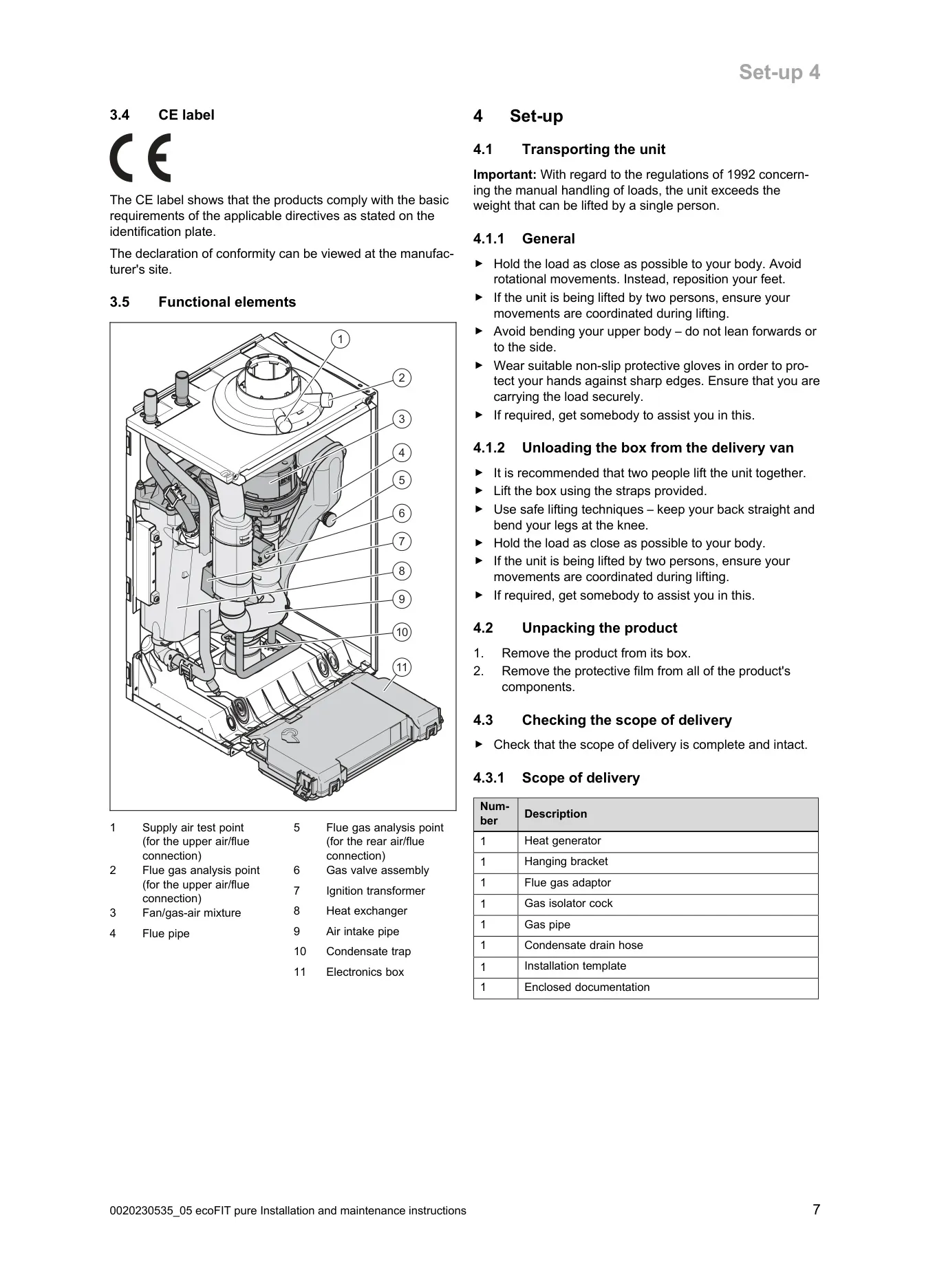

The internal components are designed for durability and ease of maintenance. The gas-air mixture unit, consisting of the ventilator, gas valve, and burner cover, can be removed for inspection and cleaning. The heat exchanger can be cleaned with water, with the condensate draining through a dedicated tray. An electronic restart lockout, known as burner anti-cycling time, prevents frequent on/off cycling of the burner, which in turn reduces energy losses and extends the product's lifespan.

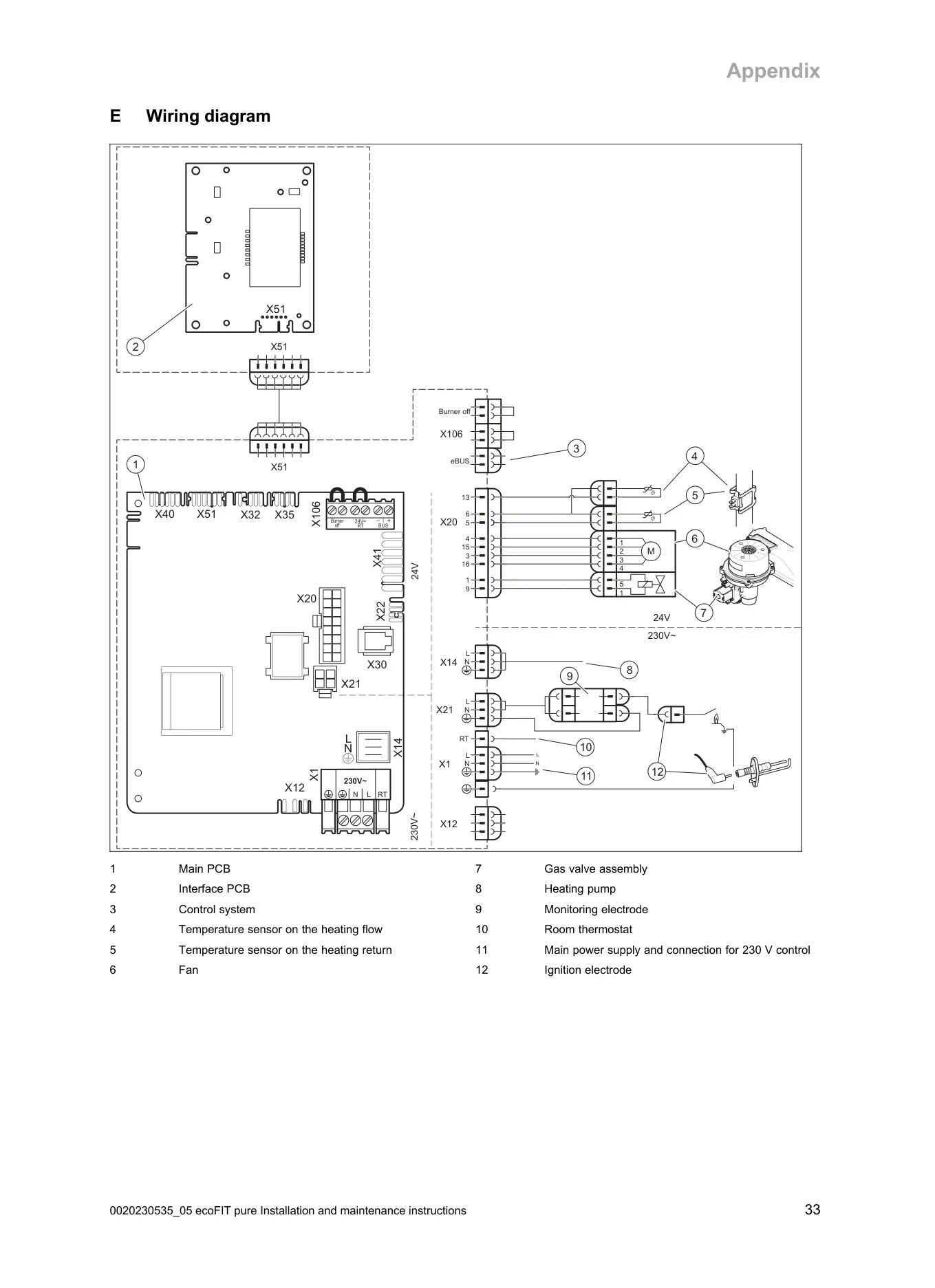

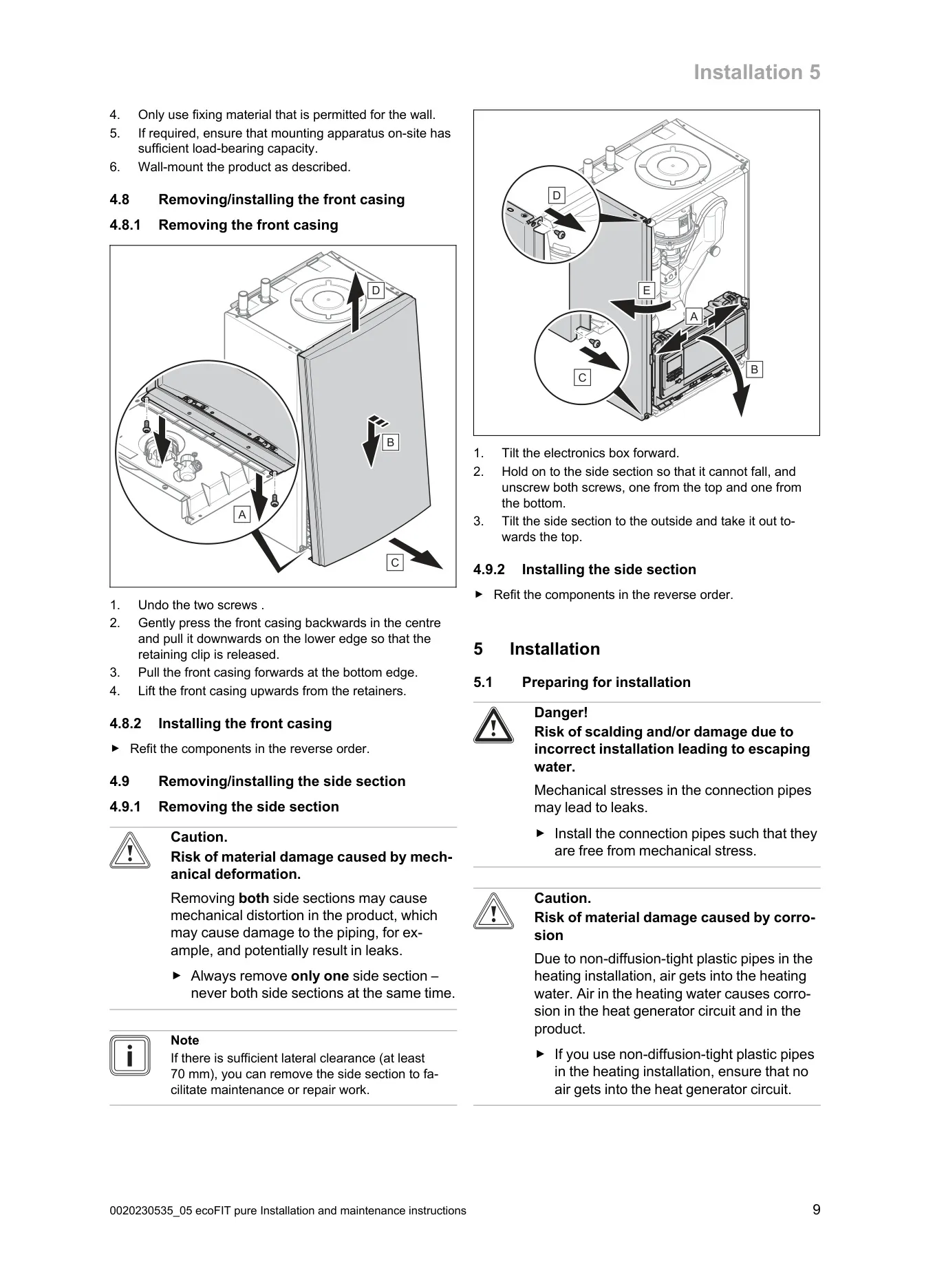

The boiler's electronics box is designed for clear cable routing, separating 230V and 24V/eBUS connections to prevent interference. It also features a main PCB and an interface PCB, both replaceable if necessary. The system supports various control connections, including 24V eBUS and 230V options, providing adaptability to different heating setups, including underfloor heating.

For continuous operational integrity, the manual strongly recommends regular inspection and maintenance intervals, with a comprehensive checklist provided. This ensures that the boiler's combustion, leak-tightness, and overall condition are regularly verified, complying with manufacturer guidelines and national standards like BS 6798. The use of specific additives for heating water treatment is also detailed to prevent corrosion and damage.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Vaillant Ecofit Pure 430 Boiler, and we answer them below.

What is the Vaillant Ecofit Pure 430 boiler primarily designed for?

The Vaillant Ecofit Pure 430 is primarily intended as a heat generator for closed heating installations and for domestic hot water generation.

Does the Ecofit Pure 430 require compartment ventilation?

No, compartment ventilation is not required. These boilers are very high efficiency appliances with low casing heat loss and are certified only for concentric flue systems.

How do I access the installer level on the boiler?

To access the installer level, press the and "i" buttons simultaneously. Then set the code value to "17" and confirm.

What should I do if I smell gas in the building where the boiler is installed?

Immediately avoid rooms with gas, open doors/windows for ventilation, do not use naked flames or electrical switches, and if safe, close the emergency gas control valve. Leave the building and notify the gas supply company or National Grid from outside.

What is the purpose of the burner anti-cycling time?

The burner anti-cycling time is an electronic restart lockout activated for a specific period after the burner switches off. This prevents frequent on/off cycling, reducing energy losses and wear on the burner, and is active only for heating mode.

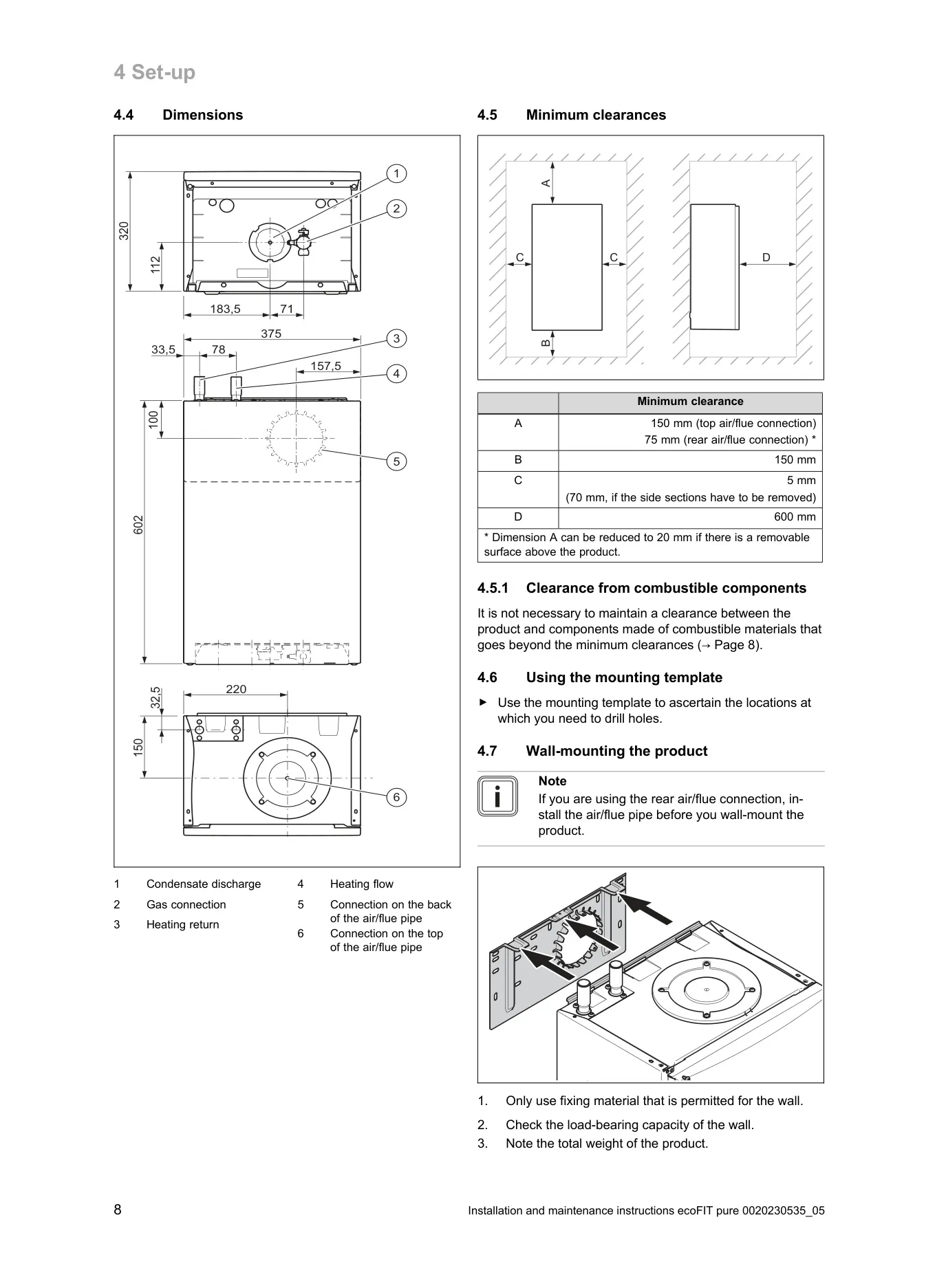

What are the minimum clearances required around the boiler for installation and maintenance?

Minimum clearances are 150 mm (top, 75 mm for rear flue), 150 mm (front), 5 mm (sides, or 70 mm if side sections are removed for maintenance), and 600 mm (bottom).

Is it necessary to treat the heating water in the system?

Yes, it is crucial to check and treat the heating water if its quality is poor (e.g., contains sedimentary materials, magnetite, or has a pH value outside 6.5-8.5). Unsuitable water can cause corrosion and damage.

How do I perform an initial start-up of the boiler?

Initial start-up must be carried out by a customer service technician or an authorised competent person using the first-commissioning-checklist provided in the manual's appendix.

What is the maximum permissible water pressure in heating mode for the Ecofit Pure 430?

The maximum permissible pressure in heating mode is 0.3 MPa (3.0 bar).

What electrical protection level does this boiler have?

The Vaillant Ecofit Pure 430 has an electrical protection level of IPX4D.

Where can I find the serial number and production date for the boiler?

The serial number, which includes the year and week of production, is located on the identification plate mounted on the underside of the product.

What are the consequences of using non-original spare parts for repairs?

Using non-original, non-certified, or unauthorised parts may void the product's conformity, meaning it will no longer comply with applicable standards and could lead to unsafe operation.

How do I check the CO₂ content of the flue gas?

Start the boiler in check programme P.01, wait 5 minutes for stability, unscrew the cover from the flue gas analysis point, and measure the CO₂ content. The target value for G20 natural gas is 9.2 ±1 %.

What is the maximum heat output of the Vaillant Ecofit Pure 430 for heating?

The maximum heat output for heating is 30 kW.

What should be done when handing the product over to the end user?

Attach the supplied sticker (in the end user's language) to the product cover, explain how safety devices work, inform them about product handling and required maintenance intervals, and detail combustion air supply and flue system measures.
