Vaillant ecoTEC Plus 415 Boiler

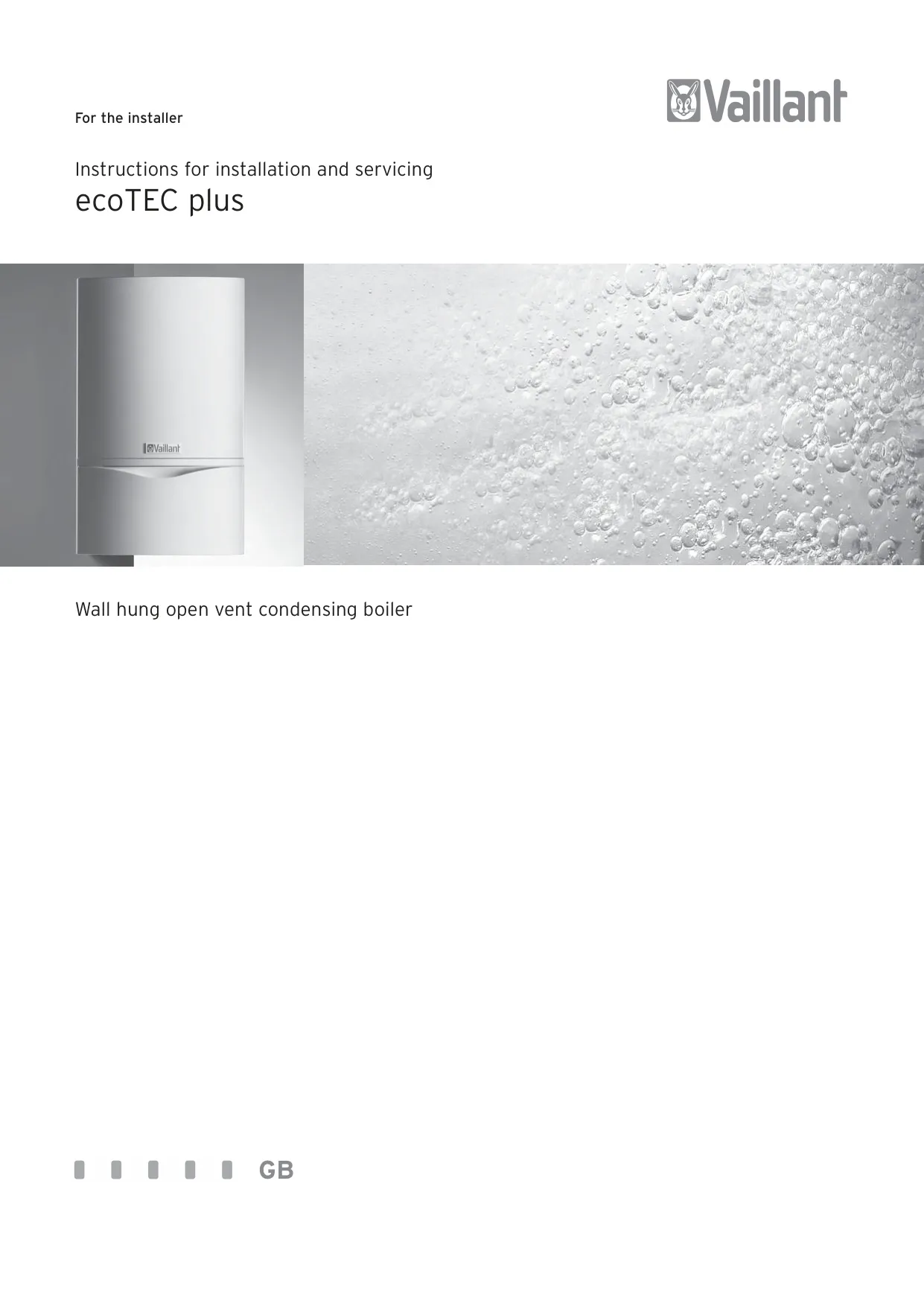

Vaillant ecoTEC Plus 415 Boiler Instructions

Here we offer the Vaillant ecoTEC Plus 415 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Vaillant ecoTEC Plus 415 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

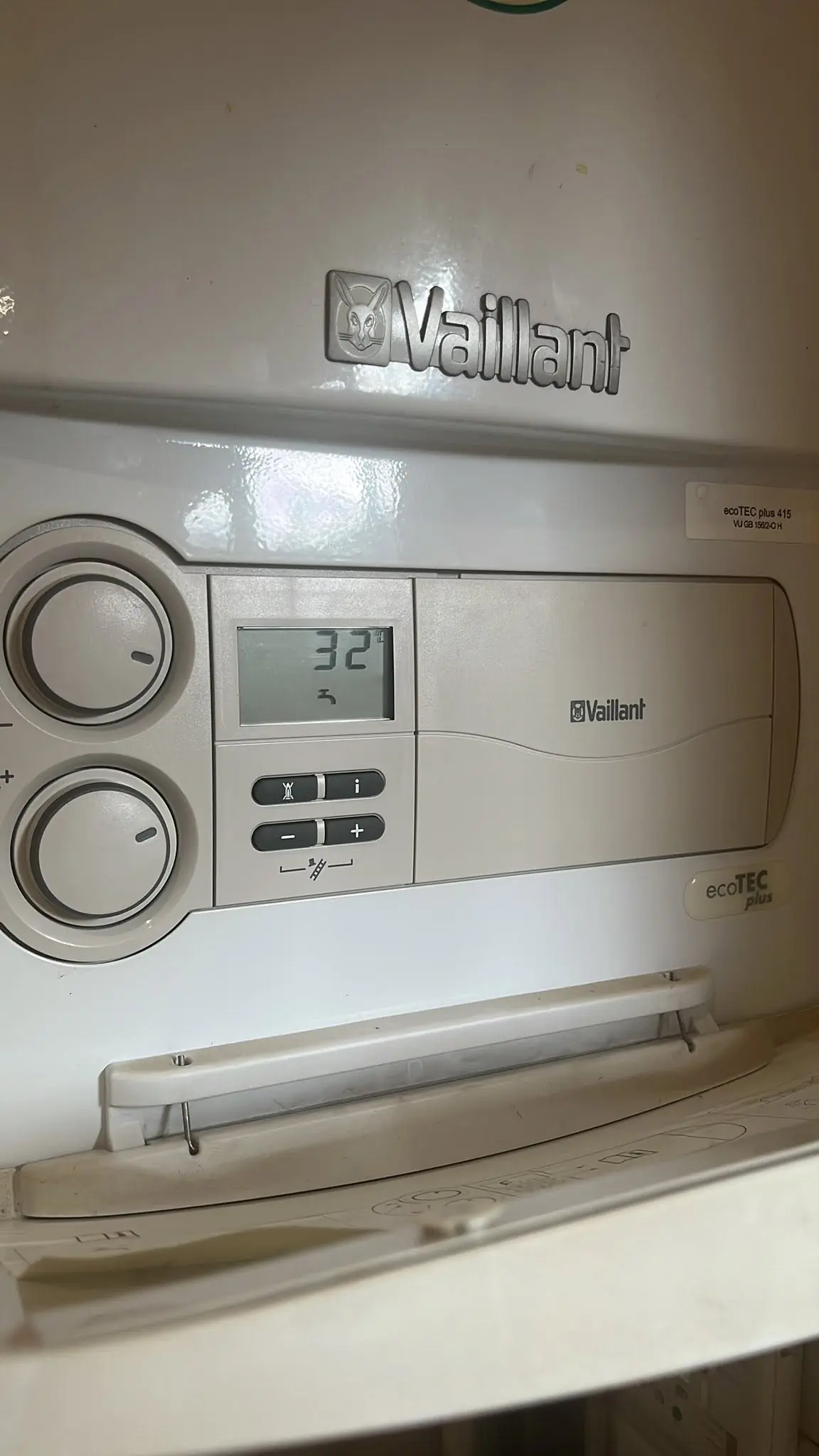

Product Images

Vaillant ecoTEC Plus 415 Boiler Specifications

Description	Unit	ecoTEC plus 415
Maximum CH heat input (net)	kW	15.3
CH heat output (80/60 °C)	kW	5.0 - 15.0
CH heat output (50/30 °C)	kW	5.3 - 16.2
SEDBUK Band		A
SAP Seasonal Efficiency	%	90.5
NOx Class		5
"lP rating"		IPX4D
Inlet gas working pressure required (natural gas)	mbar	20
Gas supply (G20) Gross CV (s.t.)	MJ/m³	37.8
Maximum gas rate	M³/h	1.61
Minimum gas rate	M³/h	0.53

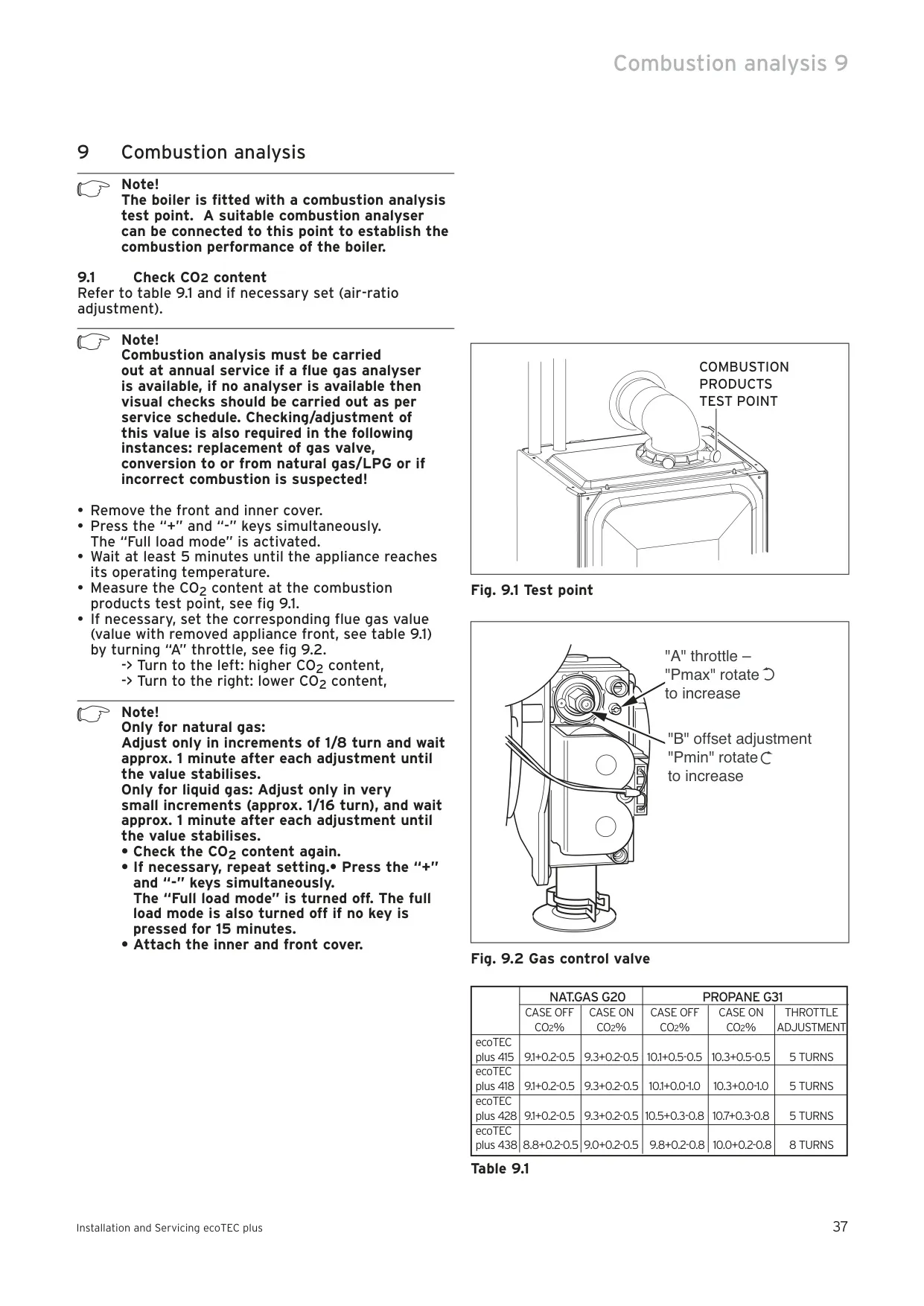

Burner % CO₂ (Case on)	%	9.3 + 0.2 - 0.5
Gas connection (compression)	mm	15
Water connections (compression)	mm	22
Condensate drain (internal diameter)	mm	19 min.
Fuse ratings fan supply PCB	A	3.15 AT
Main PCB	A	125 mAT
Minimum flow rate of water through the boiler	L/min.	10.8
Weight	kg	3.1
Electrical supply	V~/HZ	230/~50
External fuse	A	3
Power input	W	60
Case height	mm	600
Case width	mm	375
Case depth	mm	334

Vaillant ecoTEC Plus 415 Boiler Details

The ecoTEC plus 415 is a wall-hung open vent condensing boiler designed for central heating systems. It offers flexibility for installation in both fully pumped open-vented or sealed water systems. This appliance is factory-set for Natural Gas (G20) but can be field-adjusted for use on LPG (propane G31) by a competent person, enhancing its adaptability for various domestic energy requirements. The boiler operates automatically once controls are set, offering straightforward management for homeowners, including an adjustable central heating water temperature.

A key feature is its built-in frost protection programme, which activates the burner and system pump when the internal boiler temperature drops to 3°C, provided electricity and gas supplies remain on. The ecoTEC plus 415 is a high-efficiency appliance, evident by its Class 'A' SEDBUK rating, reflecting economical and environmentally conscious operation. Its condensing technology means it produces a plume of water vapour from the flue terminal, a normal indication of efficient performance, even if it may increase in wet weather.

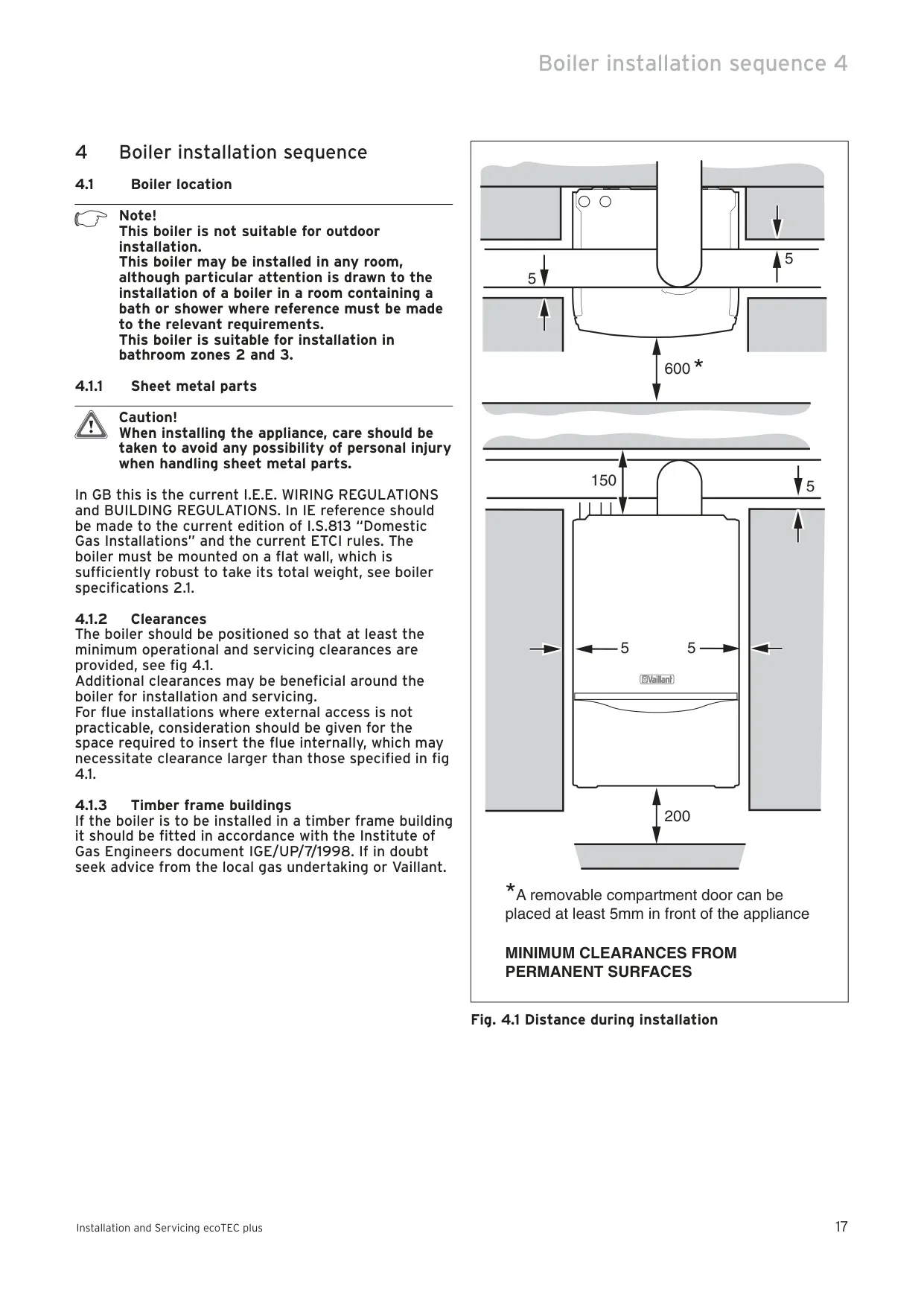

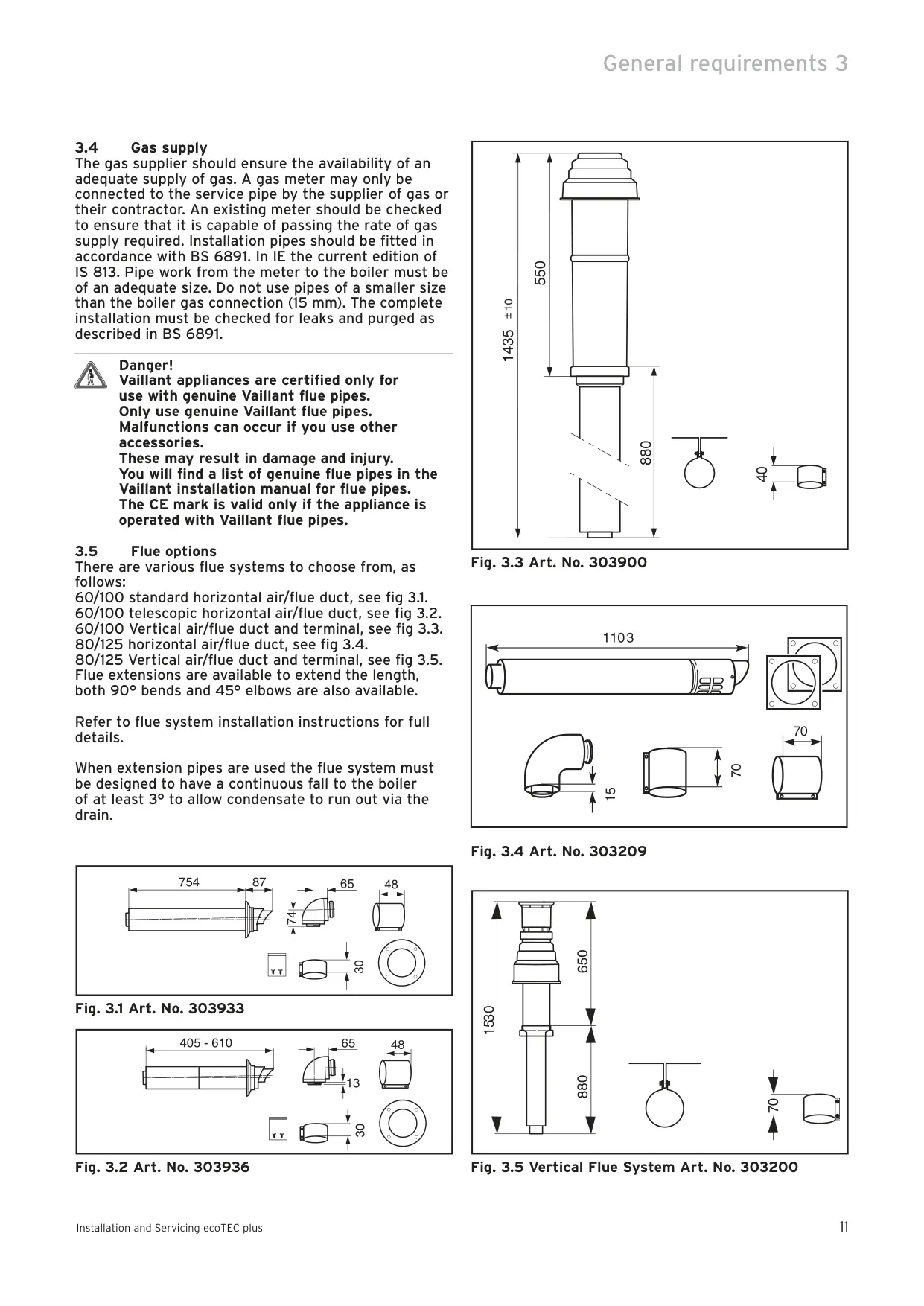

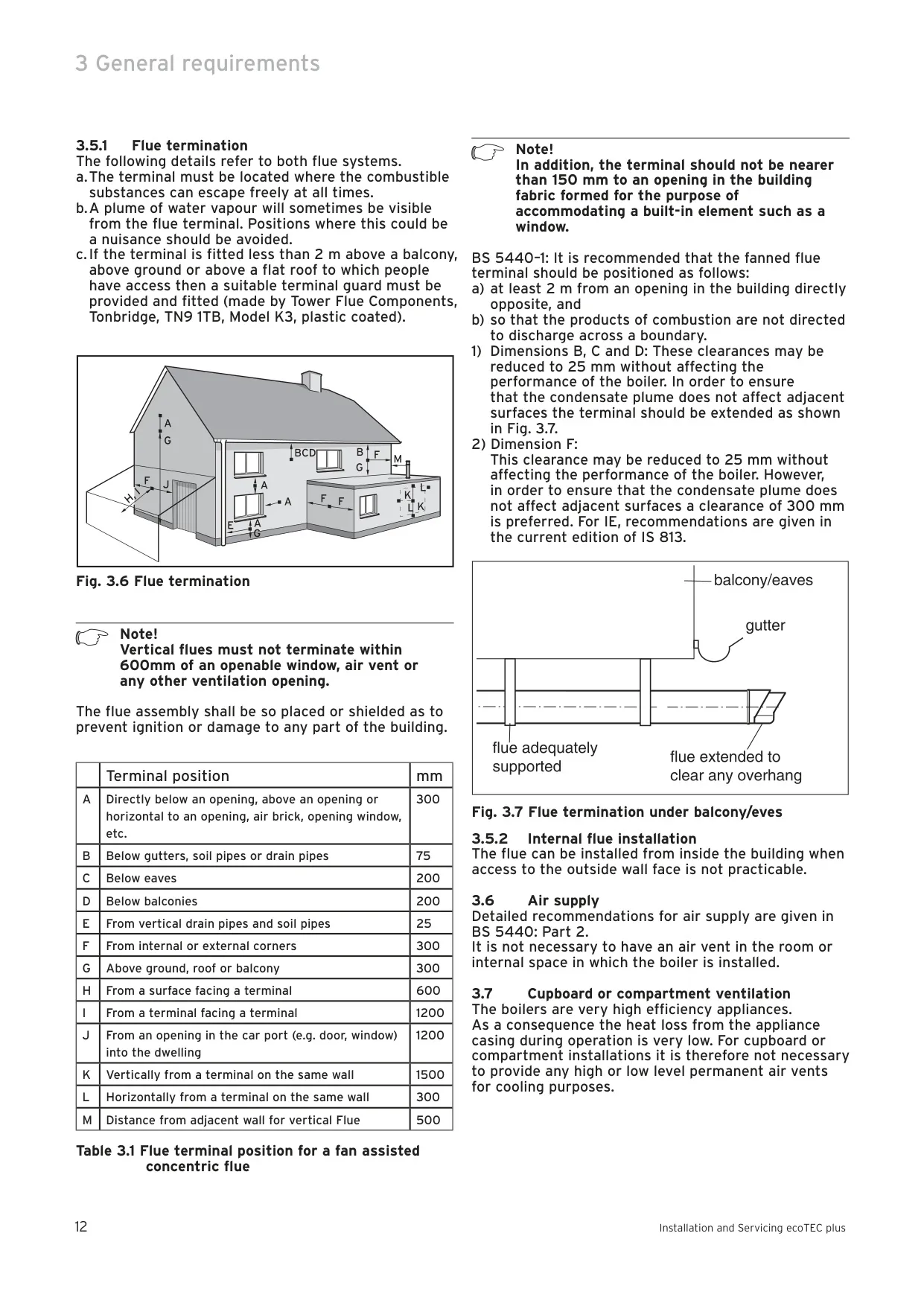

Installation versatility is provided through various flue system options, including standard and telescopic horizontal, as well as vertical air/flue ducts. Extensions and additional bends are available, allowing for flexible siting within properties while ensuring a continuous fall to the boiler for condensate drainage. The boiler features a comprehensive built-in diagnostic system that displays operational status, fault codes (e.g., F.28, F.29 for ignition issues), and diagnostic information, greatly assisting commissioning and troubleshooting for installers.

The appliance is robustly constructed, having been fully tested and assembled for easy wall mounting on any flat, vertical wall capable of supporting its weight. User convenience and safety are paramount; the boiler requires no ventilation openings if installed in a compartment or cupboard, though these spaces should not be used for storage. It is crucial to note that due to certain component weights, manual handling guidance recommends caution and assistance during installation or part replacement.

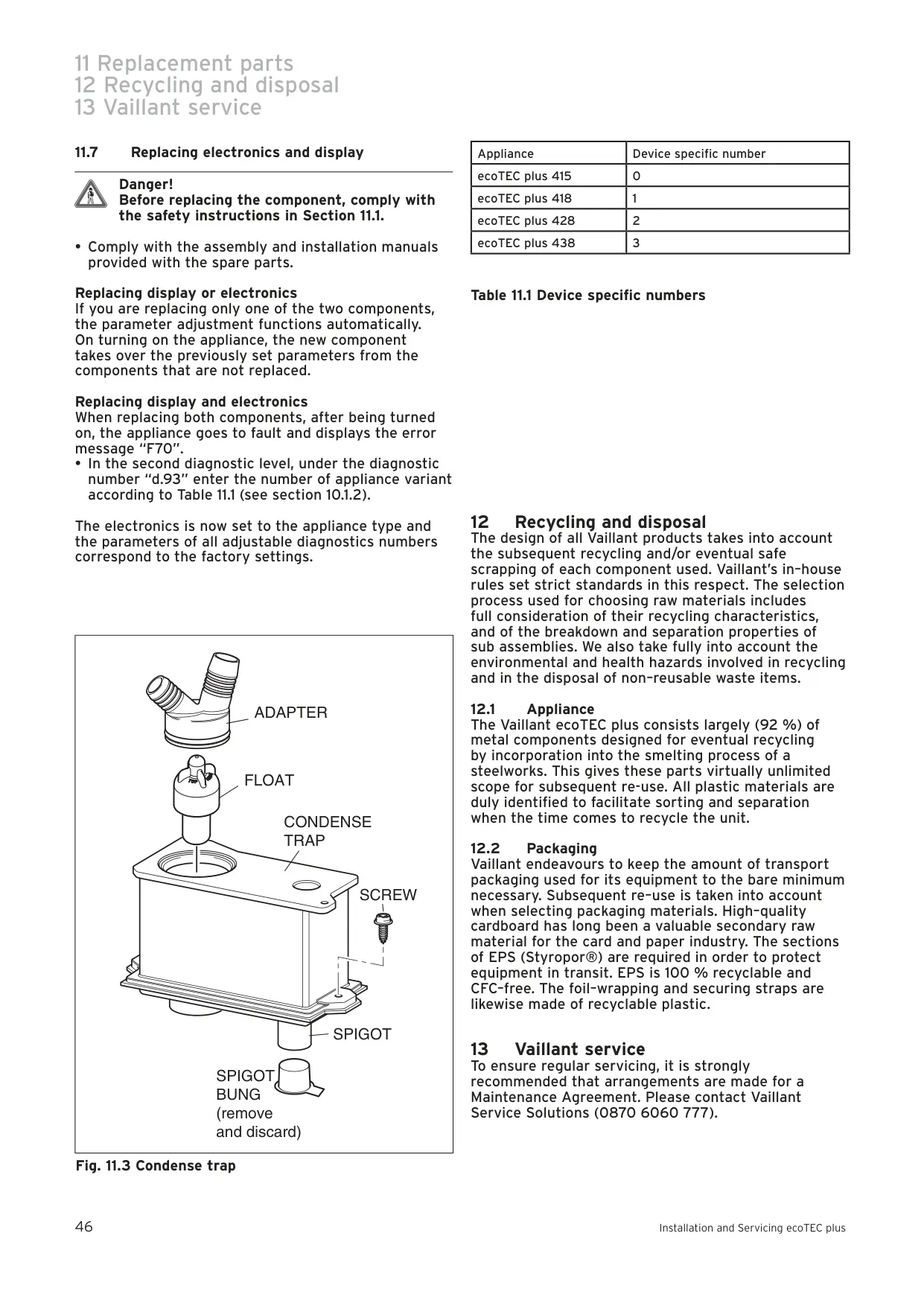

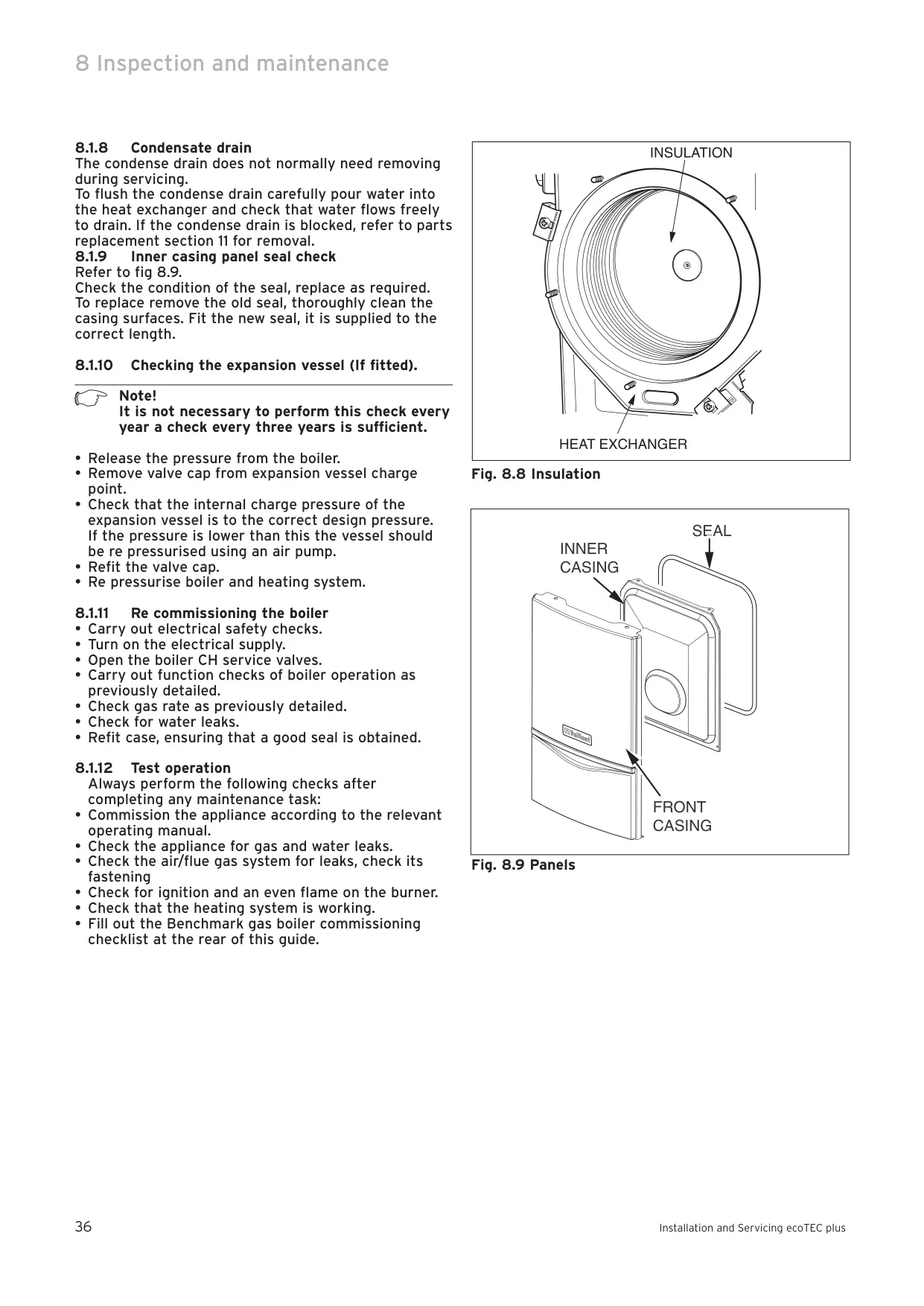

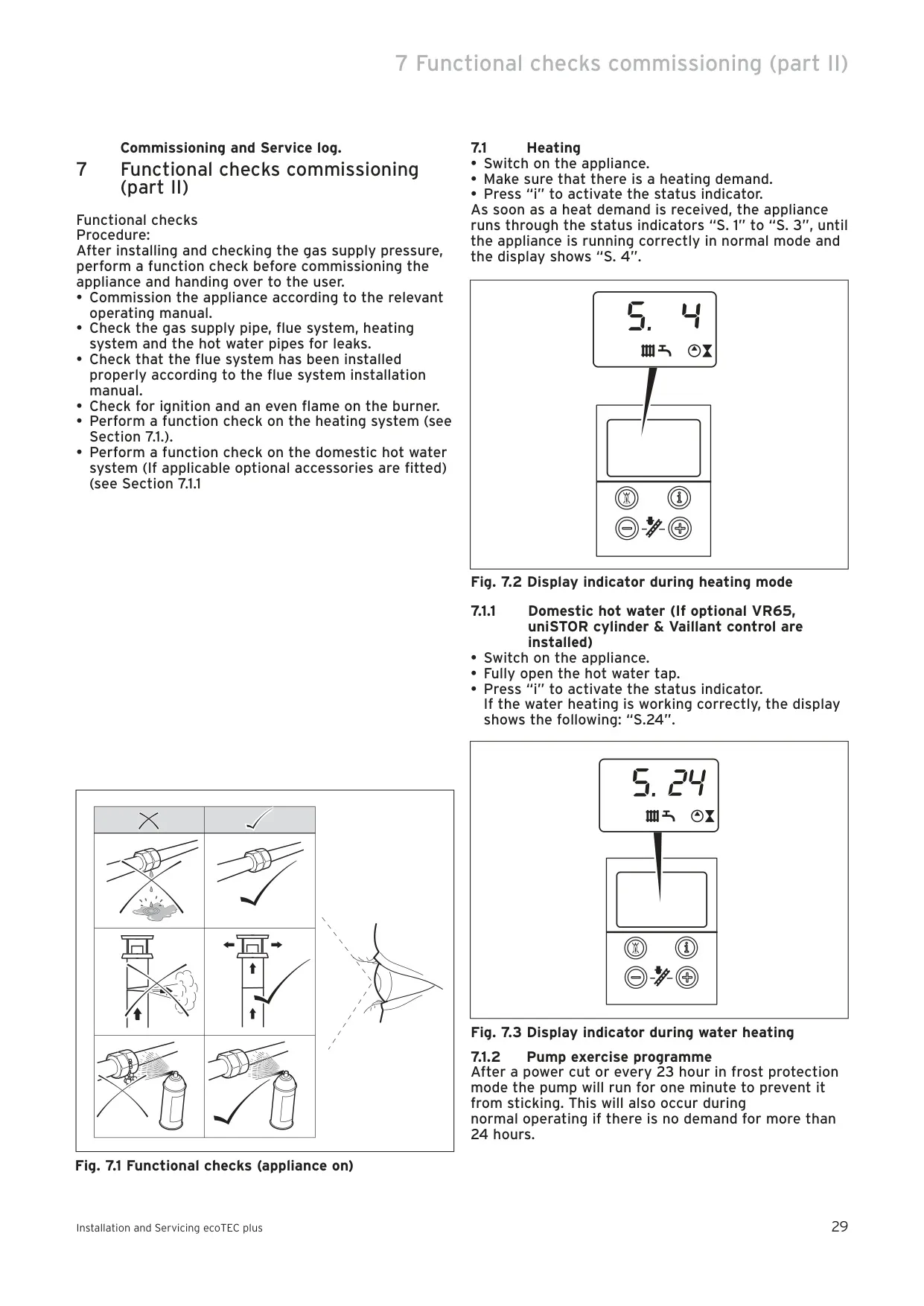

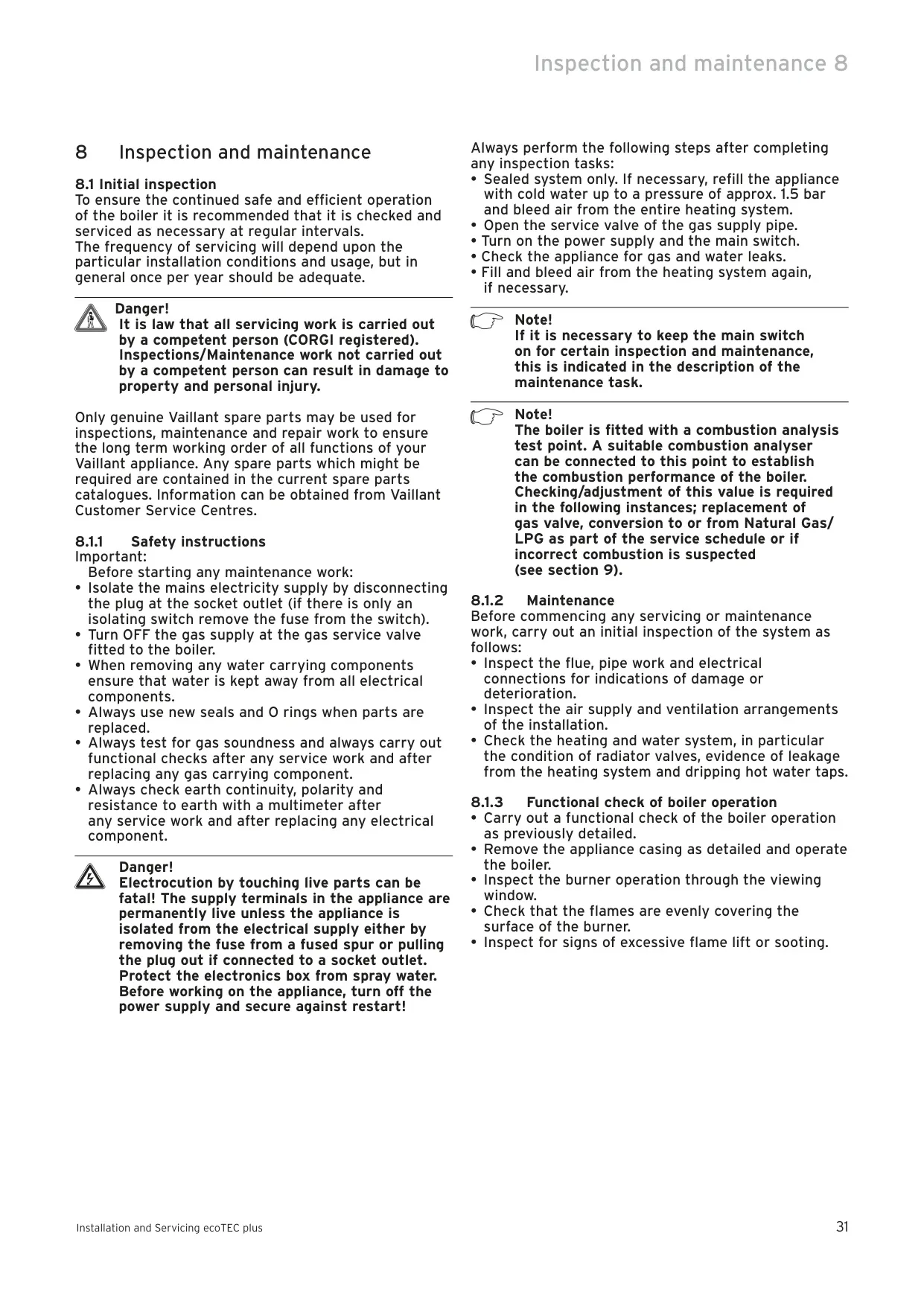

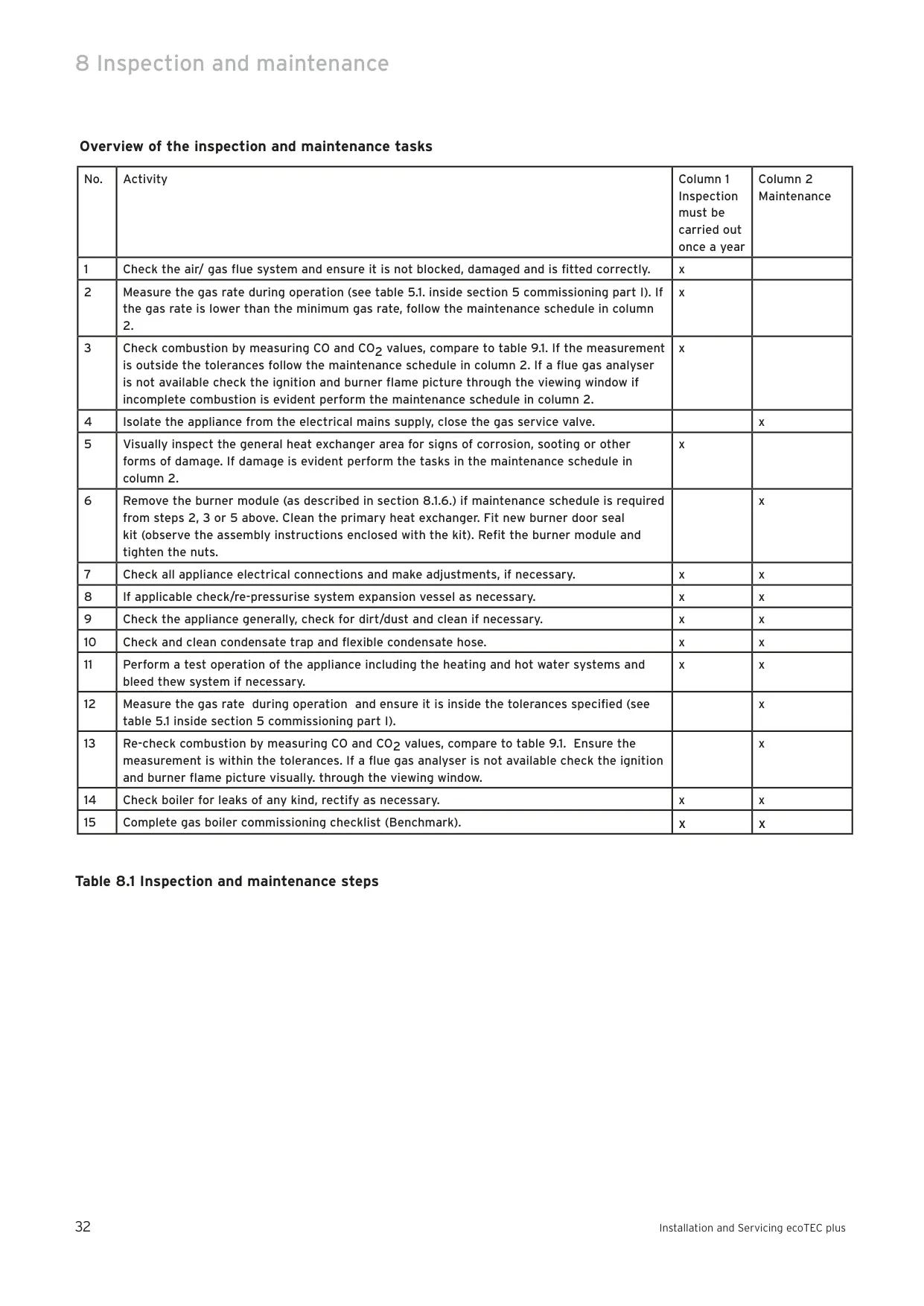

Maintenance is simplified with accessible components, and annual servicing by a competent person is strongly recommended to ensure continued efficient and safe operation. The boiler also includes a "pump exercise programme" to prevent sticking after power cuts or periods of inactivity, enhancing longevity.

For water systems, the ecoTEC plus 415 must be connected to a double feed fully indirect coil type domestic hot water cylinder. It is also compatible with Vaillant's uniSTOR unvented cylinders and relevant controls, allowing for domestic hot water temperature adjustment directly on the boiler. Emphasizing adherence to regulations, Vaillant underscores that installations must be carried out by CORGI registered installers in the UK, ensuring compliance with safety standards and validating the full two-year parts and labour warranty.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Vaillant ecoTEC Plus 415 Boiler, and we answer them below.

Who can install the Vaillant ecoTEC Plus 415 boiler?

The boiler must be installed and serviced by a competent person in accordance with the Gas Safety (Installation and Use) Regulations 1998. In the UK, CORGI registered installers undertake this work to safe and satisfactory standards.

What should I do if I smell gas or suspect a gas leak?

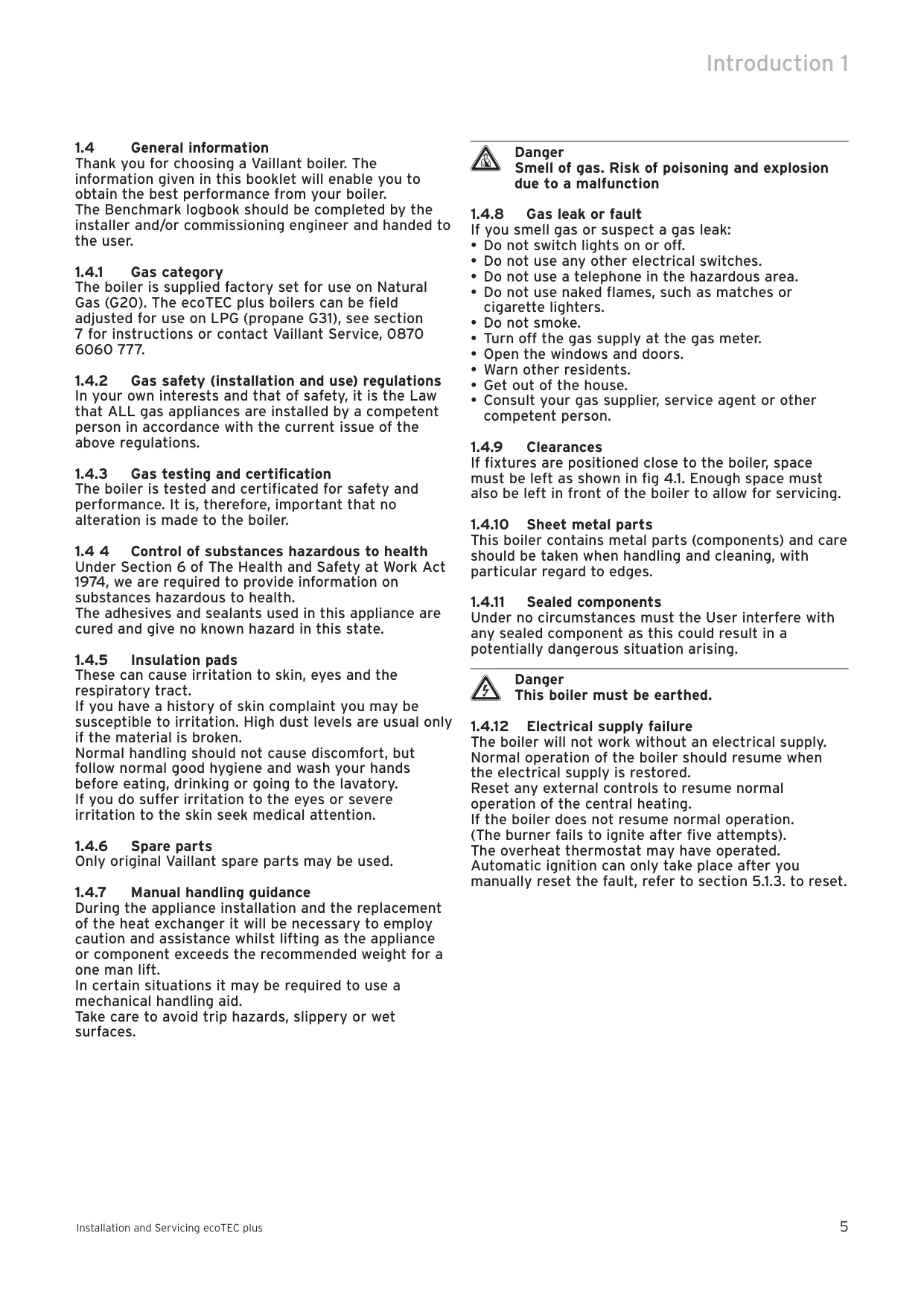

Immediately do not switch lights or any electrical switches on or off, do not use a telephone in the hazardous area, avoid naked flames, do not smoke. Turn off the gas supply at the meter, open windows and doors, warn others, and evacuate the house. Then consult your gas supplier or a competent person.

Does the ecoTEC Plus 415 have frost protection?

Yes, the boiler has a built-in frost protection program. As long as the electricity and gas are left switched on, the device operates the burner and system pump when the temperature inside the boiler falls to 3°C.

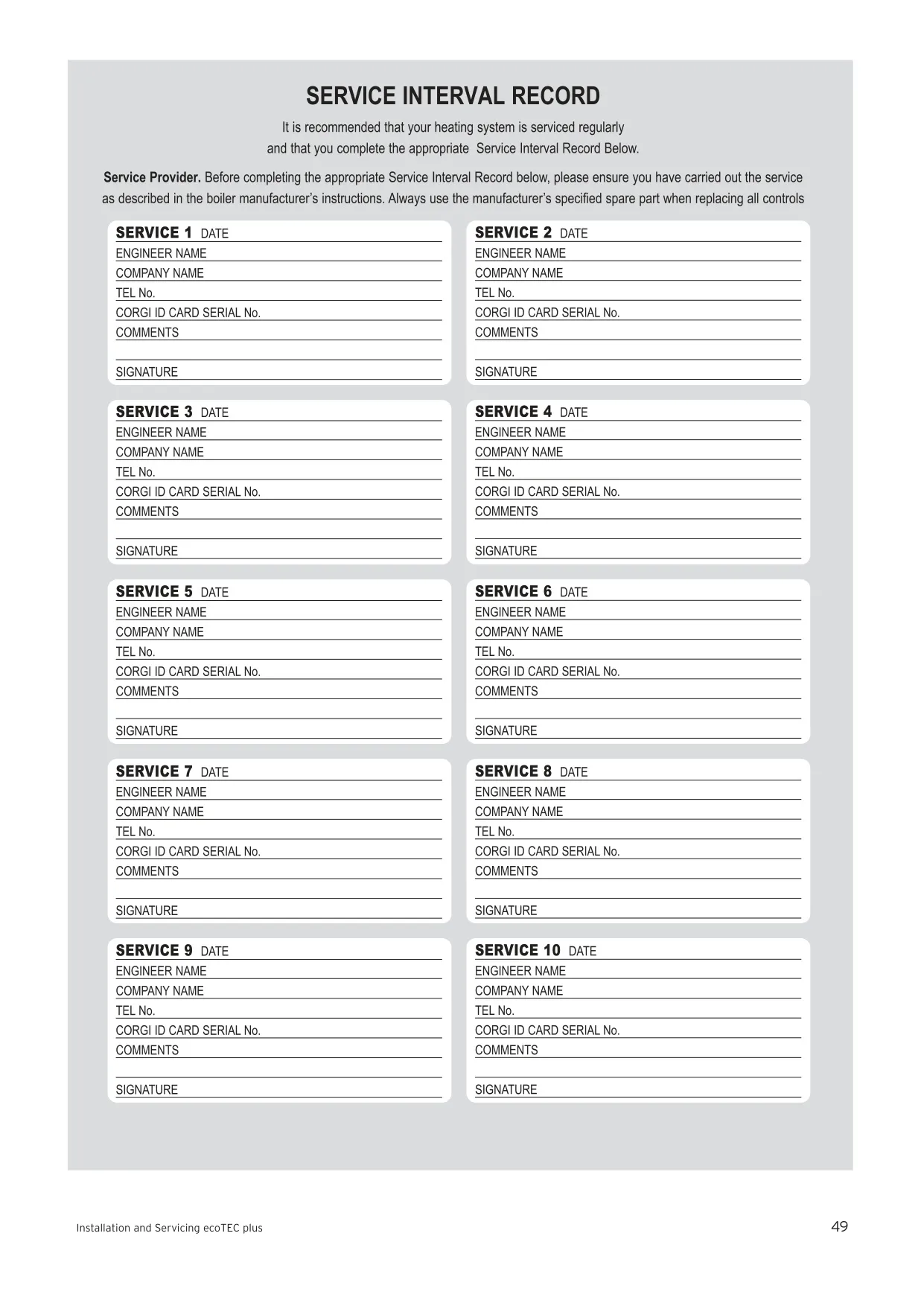

How often should my Vaillant ecoTEC Plus 415 boiler be serviced?

For continued efficient and safe operation, it is recommended that the boiler is checked and serviced at regular intervals. Generally, once a year should be adequate, though frequency can depend on installation conditions and usage.

What do fault codes F.28 or F.29 mean on the display?

F.28 indicates that the appliance did not start, with ignition attempts failing during startup. F.29 means the flame went off during operation, and subsequent ignition attempts also failed. Both require a manual reset by pressing the reset button, but if they persist after three attempts, consult the troubleshooting section or a service engineer.

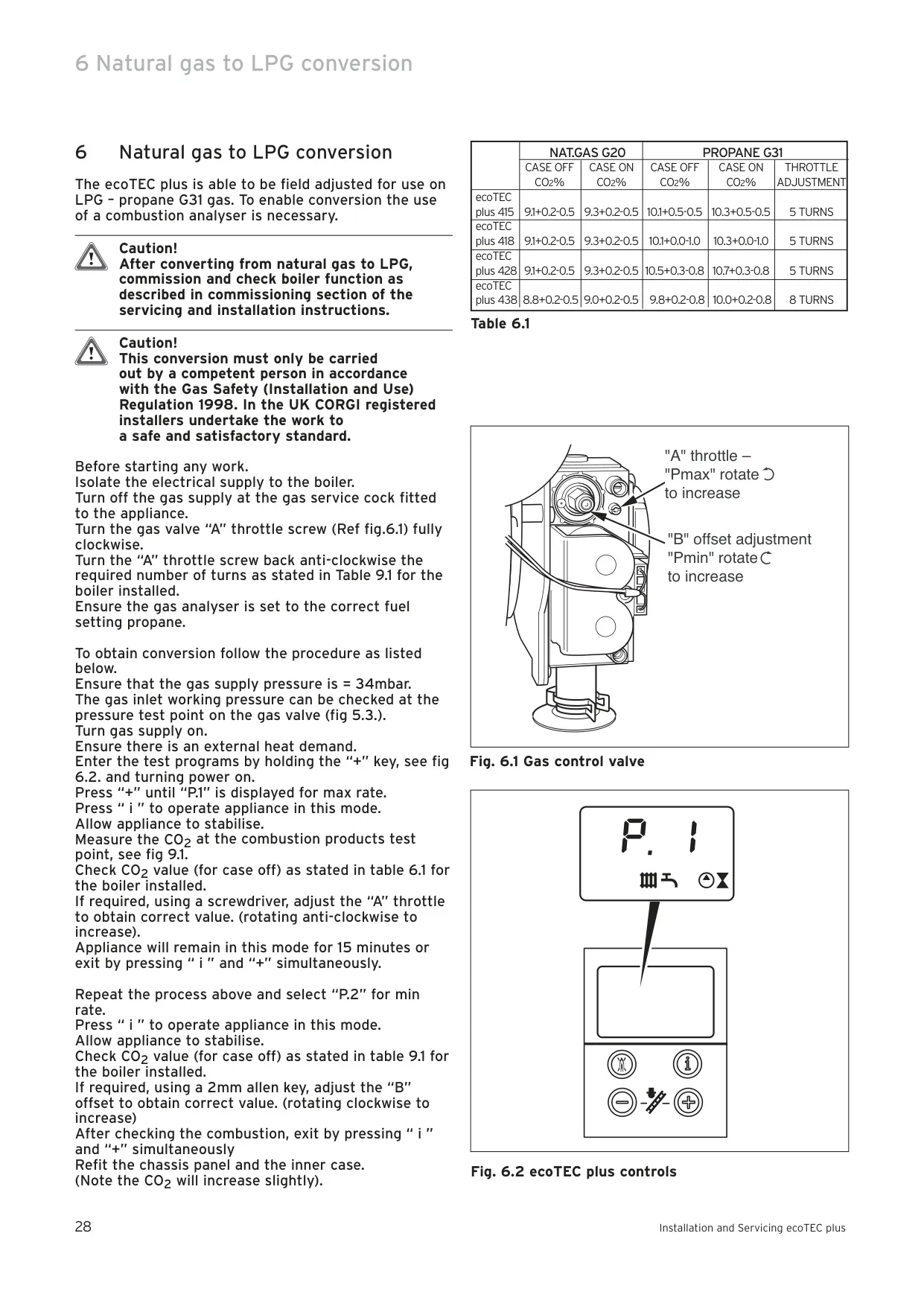

Can the ecoTEC Plus 415 be converted to run on LPG?

Yes, all ecoTEC plus boilers, including the 415 model, are supplied factory-set for Natural Gas (G20) but can be field-adjusted for use on LPG (propane G31) by a competent person using a combustion analyser.

Is it normal to see a plume of water vapour from the flue terminal?

Yes, all condensing boilers produce a plume of water vapour from the flue terminal. This is due to their high efficiency and low flue gas temperature. It may increase in wet, damp weather but is completely normal and indicates correct operation.

What type of hot water cylinder is compatible with this boiler?

The domestic hot water cylinder must be a double feed fully indirect coil type. Single feed indirect cylinders are not suitable. Vaillant also offers uniSTOR unvented cylinders which are compatible.

What is the warranty period for the Vaillant ecoTEC Plus 415?

Vaillant provides a full two-year parts and labour warranty for this appliance, provided it is installed and commissioned by a competent person according to manufacturer's instructions and regulations.

How should I clean the boiler casing?

The boiler casing can be cleaned using a mild liquid detergent with a damp cloth, then polished with a dry cloth. Do not use any form of abrasive or solvent cleaner, as this may damage the paintwork.
