Vaillant EcoTEC Plus 837 Boiler Instruction Manual
Vaillant EcoTEC Plus 837 Boiler
Vaillant EcoTEC Plus 837 Boiler
Vaillant EcoTEC Plus 837 Instructions
Here we offer the Vaillant EcoTEC Plus 837 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Vaillant EcoTEC Plus 837 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

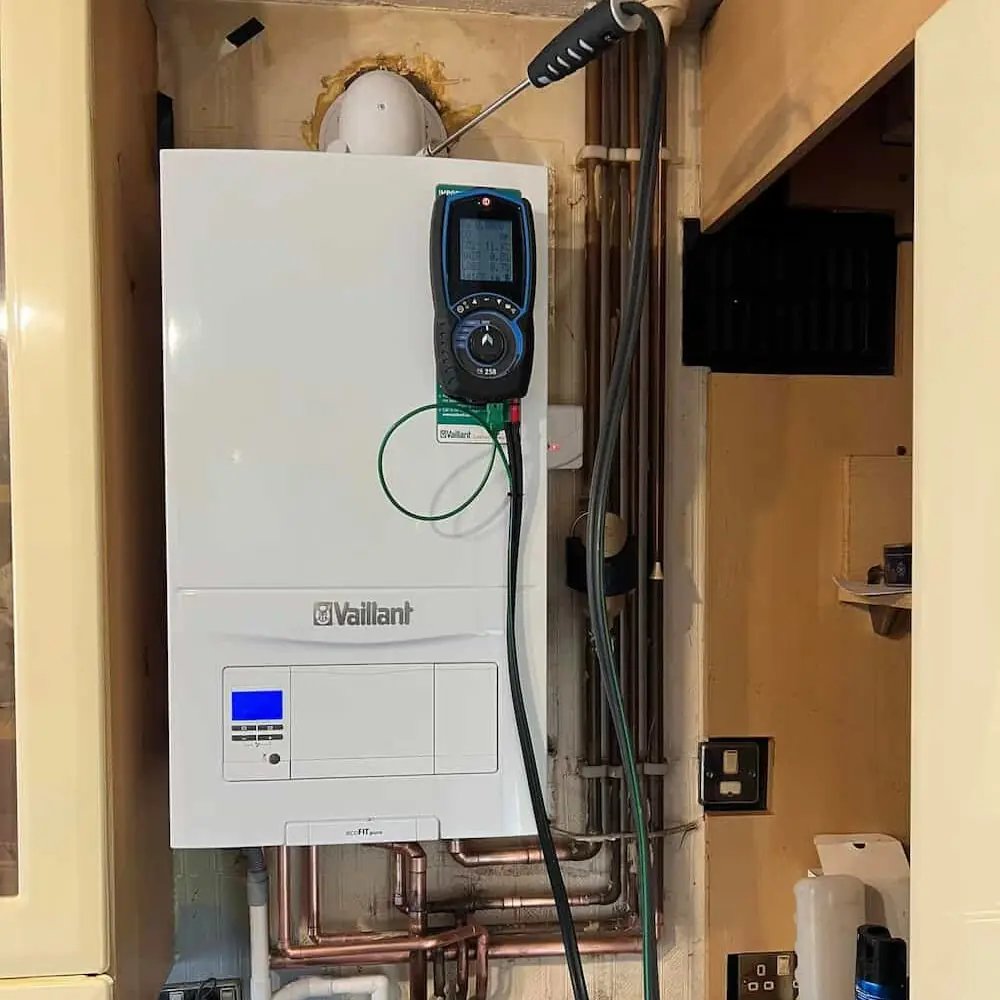

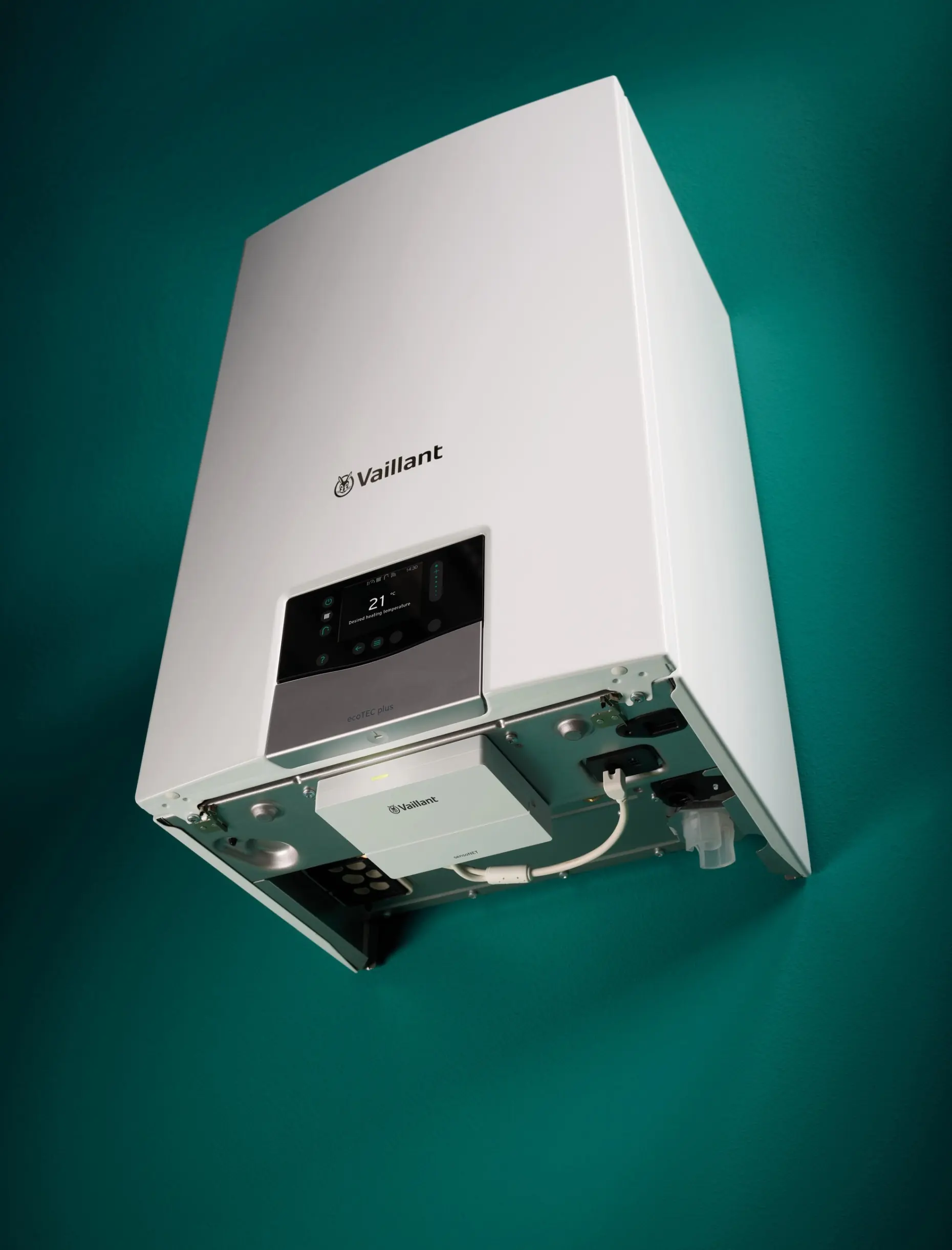

Product Images
Vaillant EcoTEC Plus 837 Boiler Specifications
| Specification | Value |
|---|---|
| Model Type | Wall-hung, Room-sealed, Fan-assisted Condensing Combination Boiler |
| CH Heat Output Range (80°C/60°C) | 12.0 – 28.0 kW |
| CH Heat Output Range (60°C/40°C) | 12.3 – 28.9 kW |
| Maximum DHW Output | 37 kW |
| Maximum Output for Heating | 28 kW |
| Minimum Output | 12 kW |
| SEDBUK Band | A |
| SAP Seasonal Efficiency | 91.1 % |
| Inlet Gas Working Pressure (Natural Gas G20) | 20 mbar |
| Connected Load (Natural Gas G20) | 4.0 m³/h |
| Exhaust Mass Rate (Min Load) | 5.7 g/s |
| Exhaust Mass Rate (Max Load) | 17.1 g/s |
| NOx Class | 5 |
| Protection Class | IP X4D |
| Max. Flow Temperature | 85 °C |
| Adjustable Flow Temperature | 30 – 85 °C (Default max. 75 °C) |
| Maximum CH System Pressure | 3.0 bar |
| Circulation Water Volume (ΔT=20 K) | 1204 l/h |
| Approx. Condensation Volume (50°C/30°C) | 2.9 l/h |
| Minimum DHW Flow Rate | 1.5 l/min |
| DHW Flow Rate (ΔT=35 K Rise) | 15.2 l/min |
| Approx. DHW Flow Rate (ΔT=42 K) | 12.6 l/min |
| Permitted DHW Overpressure | 10 bar |
| Mains Water Pressure Required (Max Flow) | 0.75 bar |
| Hot Water Discharge Temperature Range | 35 – 65 °C |
| Exhaust Flue Diameter | 60/100 mm |
| Expansion Vessel Pre-charge Pressure | 0.75 bar (10 L vessel) |
| Heating Flow/Return Connections | 22 mm |
| Gas Inlet Connection | 22 mm |
| Condensate Drain (Min. Internal) | 19 mm |
| Dimensions (H x W x D) | 720 x 440 x 403 mm |
| Weight (Boiler Only) | 44.5 kg |
| Electrical Supply Voltage | 230/50 V~/Hz |
| Power Input | 140 W |
| Gas Council Number | 47-044-33 |
Vaillant EcoTEC Plus 837 Boiler Details
The Vaillant EcoTEC Plus 837 is a high-efficiency, wall-mounted, room-sealed, fan-assisted condensing combi boiler designed for optimal home comfort. This advanced appliance simultaneously provides both central heating and instantaneous domestic hot water, eliminating the need for a separate hot water cylinder or cold water tank. It features an intelligent control system that automatically adjusts its operation to meet heating and hot water demands in the most economical way possible, contributing to energy efficiency and lower running costs.
Central to the EcoTEC Plus 837's ease of use is its sophisticated digital information and analysis system. The intuitive display continuously shows the current heating flow temperature, typically around 45°C during normal operation, or an error code if a fault occurs. This detailed feedback keeps users informed about the boiler's status. Navigation is straightforward, utilizing 'i' for information, '+' and '-' buttons for scrolling, and a 'Reset' button for fault clearance.
Beyond basic temperature settings, the boiler offers granular control. Dedicated knobs allow precise adjustment of both maximum radiator temperature and domestic hot water temperature. A standout feature is the Warmstart function, which proactively maintains the hot water heat exchanger at a pre-selected temperature. This ensures hot water is available immediately when a tap is opened, enhancing convenience and comfort without delay, a noticeable improvement over traditional instantaneous systems.
The EcoTEC Plus 837 is designed for intelligent heating. Users can set the maximum radiator temperature according to seasonal needs, with recommended guidance for spring/autumn, mild winter, and cold winter conditions. For summer, the heating function can be switched off entirely while maintaining domestic hot water supply. The boiler is fully compatible with external room thermostats and outdoor temperature controllers, enabling highly accurate and economically optimized room temperature management.
Enhancing its efficiency, the boiler incorporates several smart controls. An anti-cycling economiser control intelligently prevents wasteful short on/off cycles during central heating operation, conserving energy. Importantly, this feature does not affect the continuous availability of hot water. Additionally, the Automatic Pump Spin (APS) control ensures the internal circulating pump and diverter valve operate once every 23 hours, proactively preventing component seizure during periods of inactivity.
Safety and longevity are paramount. The EcoTEC Plus 837 includes an integral frost thermostat that protects the boiler itself by initiating a heating cycle if the internal water temperature drops below 5°C. However, it is crucial to remember this only protects the boiler; additional measures are advised for the wider heating system. Furthermore, an automatic system by-pass valve is integrated, making the boiler ideal for systems incorporating thermostatic radiator valves (TRVs) without requiring an external by-pass.
Proper installation and regular maintenance are key to the boiler's performance and lifespan. Vaillant strongly recommends professional annual inspections and maintenance at least every five years, emphasizing the exclusive use of genuine Vaillant spare parts to uphold certified performance and safety. The boiler features a comprehensive diagnostic system, providing status codes and fault codes that greatly assist installers and service engineers in efficient troubleshooting and fault resolution.
