Trane TCONT803AS32DAA Thermostat Instruction Manual
Trane TCONT803AS32DAA Thermostat
Trane TCONT803AS32DAA Thermostat
Trane TCONT803AS32DAA Instructions
Here we offer the Trane TCONT803AS32DAA Thermostat manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Trane TCONT803AS32DAA Thermostat, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

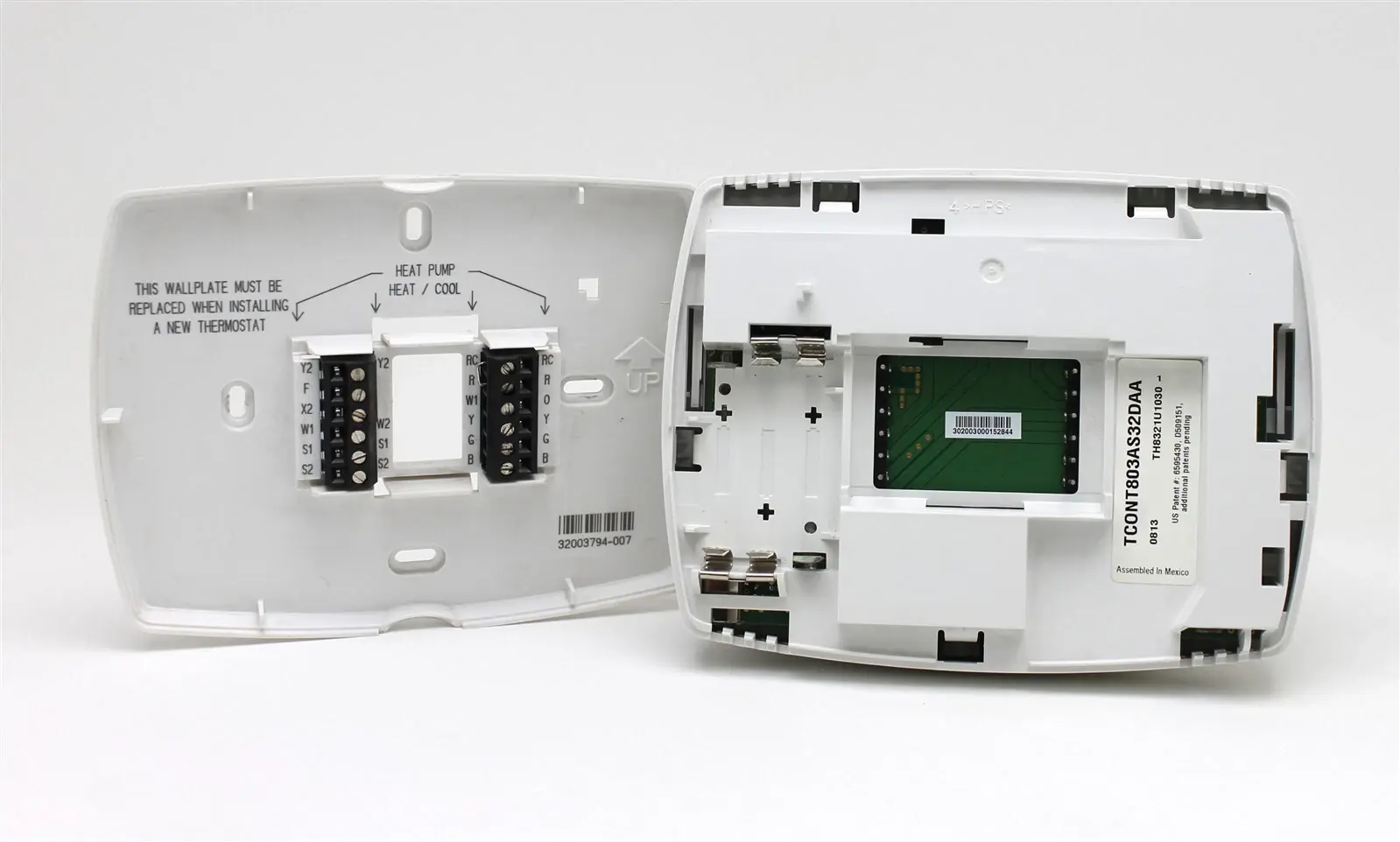

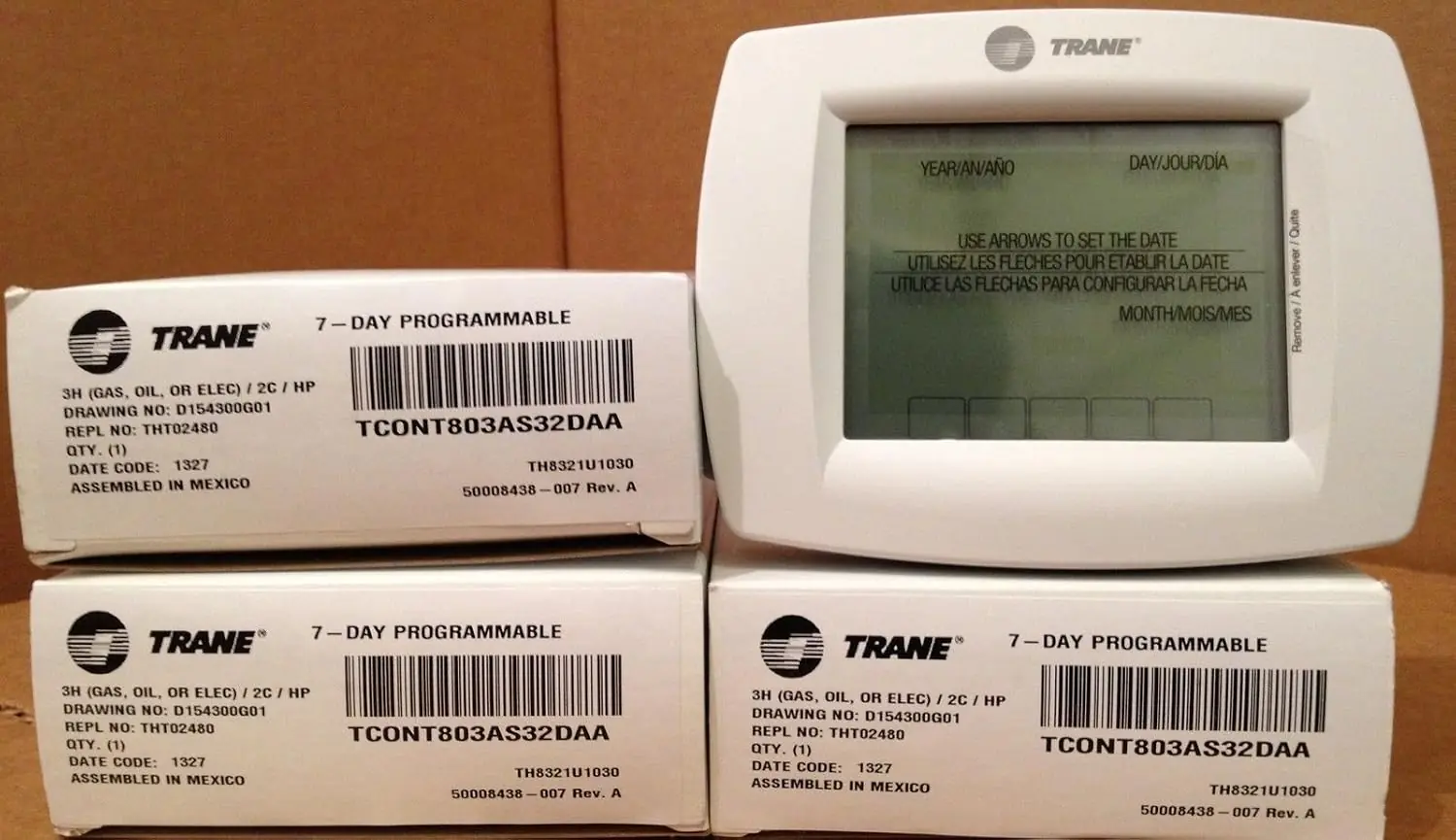

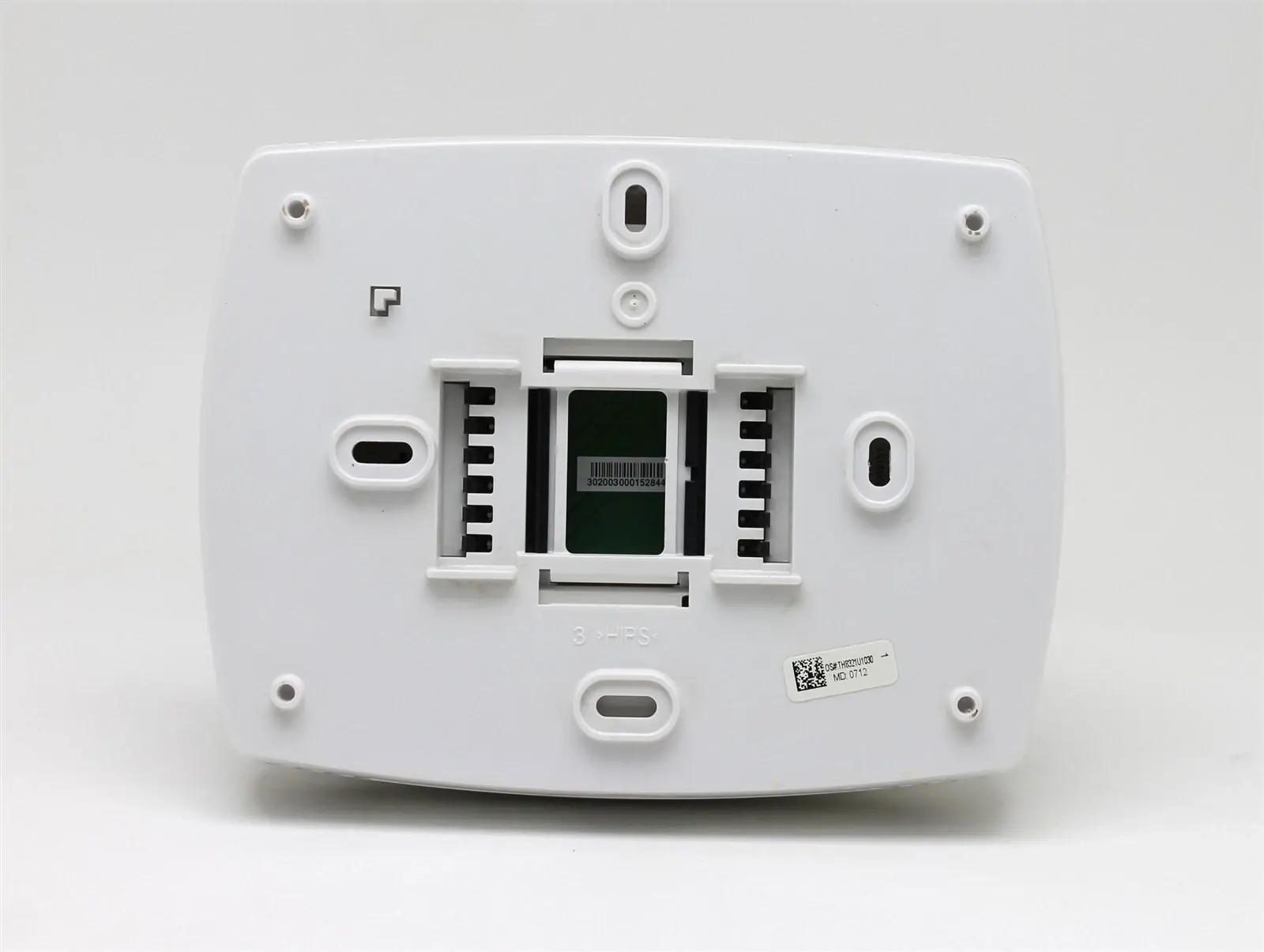

Product Images
Trane TCONT803AS32DAA Thermostat Specifications
| Feature | Specification |
|---|---|
| Model Number | Trane TCONT803AS32DAA |
| Product Type | Touch Screen Programmable Comfort Control |
| Power Supply | 24 Vac Common Wire (recommended), 3x AAA Alkaline Batteries (optional for armchair programming) |
| Temperature Control Precision | +/- 1°F |
| Adjustable Heat Temperature Range | 40°F to 90°F (4.5°C to 32°C) |
| Adjustable Cool Temperature Range | 50°F to 99°F (10°C to 37°C) |
| Programming Modes | 7-Day Programmable (up to 4 periods/day), or 2 periods/day, or Non-Programmable (selectable) |
| Schedule Intervals | 15-minute increments |
| Fan Operation Modes | Auto, On, Circ (Circulates air approximately 35% of time) |
| System Operation Modes | Heat, Off, Cool, Auto, Em. Heat (for heat pump systems) |
| Real-Time Clock | Yes (Battery backup for up to 10 years, automatic Daylight Savings adjustment) |
| Display | Large, Clear, Backlit Touch Screen |
| Humidity Sensor | Yes (Built-in, for Dehumidification Control) |
| Dehumidification Control | Yes (Adjustable setpoint, can run AC up to 3°F below setpoint) |
| Outdoor Temperature Sensor | Optional (for display or system control on select models) |
| Remote Indoor Temperature Sensor | Optional (for display or averaging on select models) |
| Warranty | Limited Five-Year Warranty (Parts Only) |
| Installation | Wall-mounted, fits standard 4 in. x 2 in. (101.6 mm x 50.8 mm) wiring box |
| Wiring Requirement | 18 gauge comfort control wire |
| Minimum Compressor Off Time | 5 minutes (default, adjustable) |
| Keypad Lockout Functions | Unlocked, Partially Locked, Fully Locked (selectable) |
Trane TCONT803AS32DAA Details

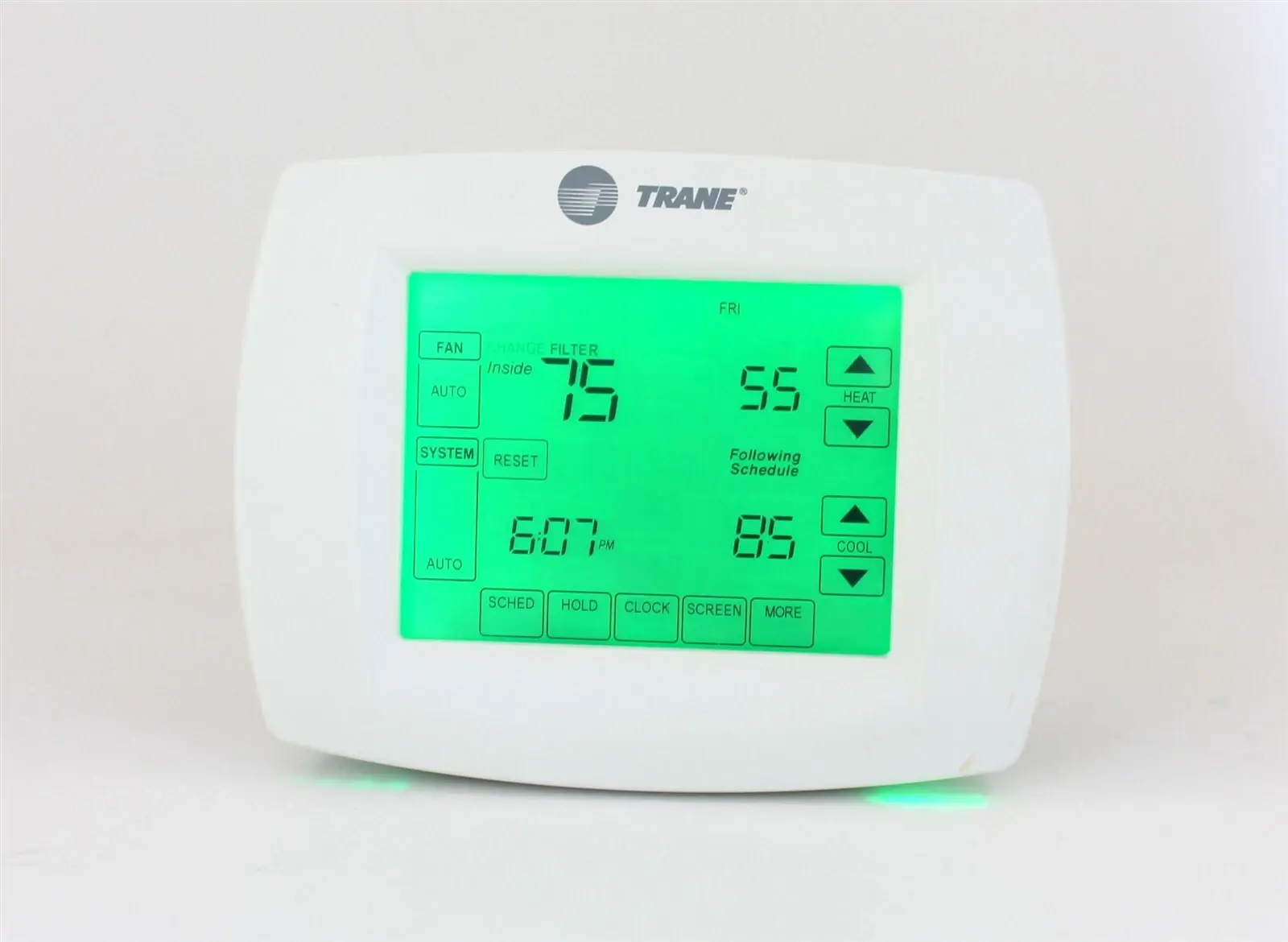

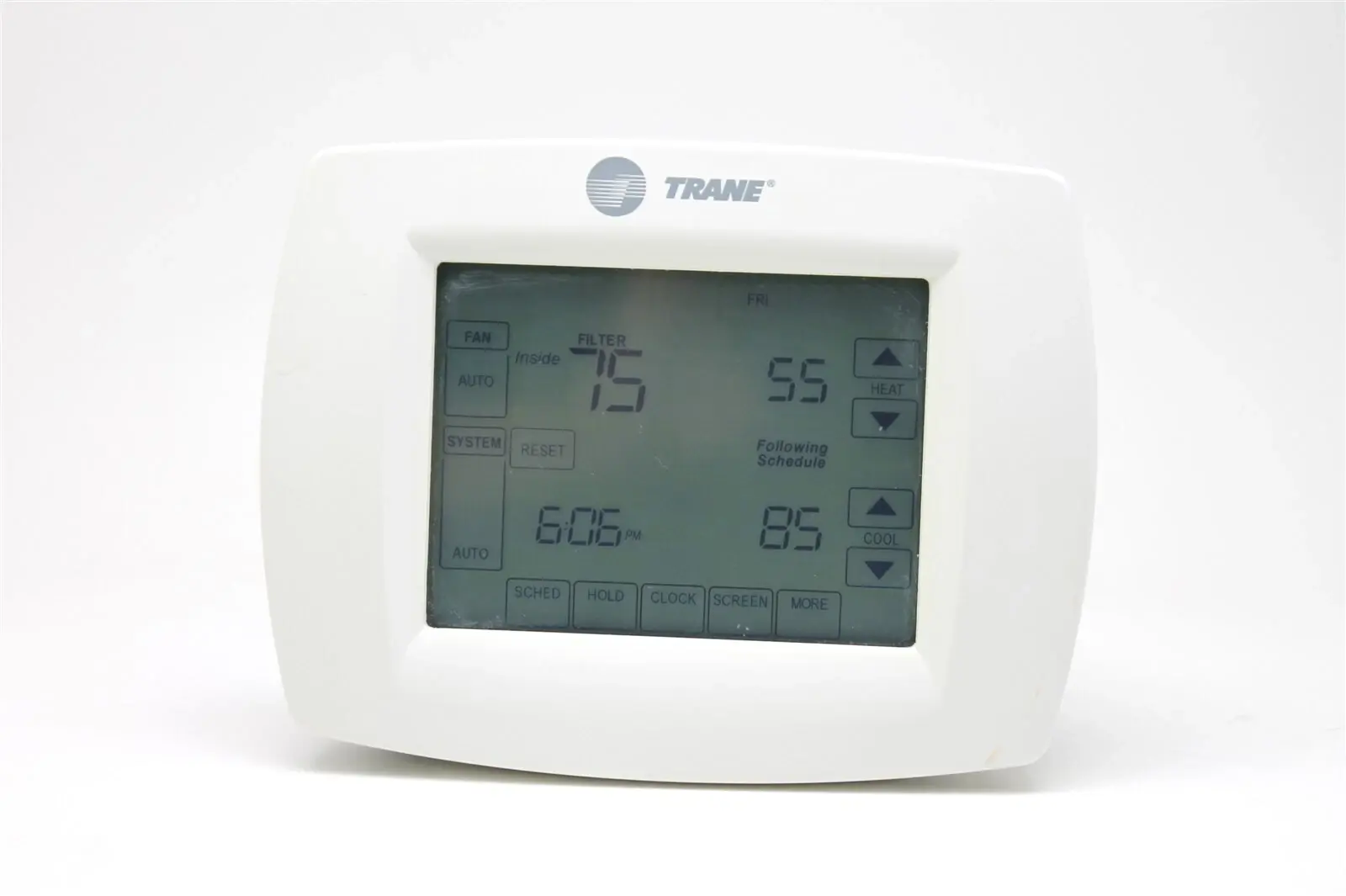

The Trane TCONT803AS32DAA Thermostat elevates home climate management with its intuitive and advanced features. Its large, clear, and backlit touch screen display ensures that the current temperature, set temperature, and time are always easy to read. Programming is simplified through a Menu Driven Programming interface, guiding users with only necessary information, and allowing customization for multiple days or specific schedules in 15-minute intervals. The unique Armchair Programming feature enables detachment of the unit from the wall for convenient schedule setup using its optional AAA battery power.
Beyond precise temperature control of +/- 1°F, this thermostat offers flexible temperature override options to suit any situation. Users can implement a temporary "Hold Temperature Until" the next scheduled period, engage a "Permanent Hold" for indefinite temperature maintenance, or activate a "Vacation Hold" to maintain energy-saving settings for a designated number of days while away. These options provide complete command over your home's climate, adapting effortlessly to your lifestyle changes.
The Trane TCONT803AS32DAA provides comprehensive fan management with programmable settings for each schedule period: Auto, On, or Circulate. The "Circ" option is particularly useful, running the fan randomly for approximately 35% of the time, which significantly enhances air quality when combined with a whole-house air cleaner. Users can also manually override the fan schedule at any time, ensuring optimal air circulation and comfort precisely when needed.
Maintenance is made simple with built-in Change Reminders, alerting you when it's time to service or replace your air filter or humidifier pad. A convenient "LO Battery" indicator flashes in the display approximately one month before the batteries are completely depleted, ensuring you have ample time to replace them with three fresh AAA alkaline batteries, preventing any unexpected power interruptions.
A standout feature of the TCONT803AS32DAA model is its integrated dehumidification control. Equipped with an indoor humidity sensor, the thermostat can actively manage the humidity level in your home. In conditions of extremely high humidity, it can keep the air conditioner running for up to 3°F below your temperature setpoint, effectively balancing temperature and humidity for enhanced comfort and air quality.
The thermostat also incorporates Adaptive Intelligent Recovery™, an advanced learning algorithm that eliminates guesswork in scheduling. Over approximately a week, the system learns your home's heating and cooling characteristics and local weather patterns. It then automatically activates your HVAC system at the optimal time to ensure your desired comfort temperature is reached precisely by the start of your programmed schedule period, displaying "Recovery" during this process.
For homes with heat pump systems, the TCONT803AS32DAA offers sophisticated features, particularly when paired with an optional outdoor temperature sensor. This enables intelligent management of compressor and/or backup heat lockout based on outside temperatures. For instance, auxiliary heat might only engage below a specific "balance point," optimizing the efficiency of your heat pump system and minimizing energy consumption during milder weather.
Further customization is available through extensive Advanced Settings, accessible via a simple key sequence. Here, users can fine-tune calendar and time settings, adjust the temperature display scale (°F or °C), enable or disable daylight savings adjustments, modify cycles per hour for various stages of heating and cooling, set continuous backlight options, and even configure keypad lockout functions for security or to prevent accidental changes. The thermostat operates primarily on 24 Vac common power, complemented by a convenient LED indicator for emergency heat or system alerts.
