Lowrance Hook Reveal 7x TS Fishfinder Instruction Manual
Lowrance Hook Reveal 7x TS Fishfinder
Lowrance Hook Reveal 7x TS Fishfinder
Lowrance Hook Reveal 7x TS Fishfinder
Lowrance Hook Reveal 7x TS Instructions

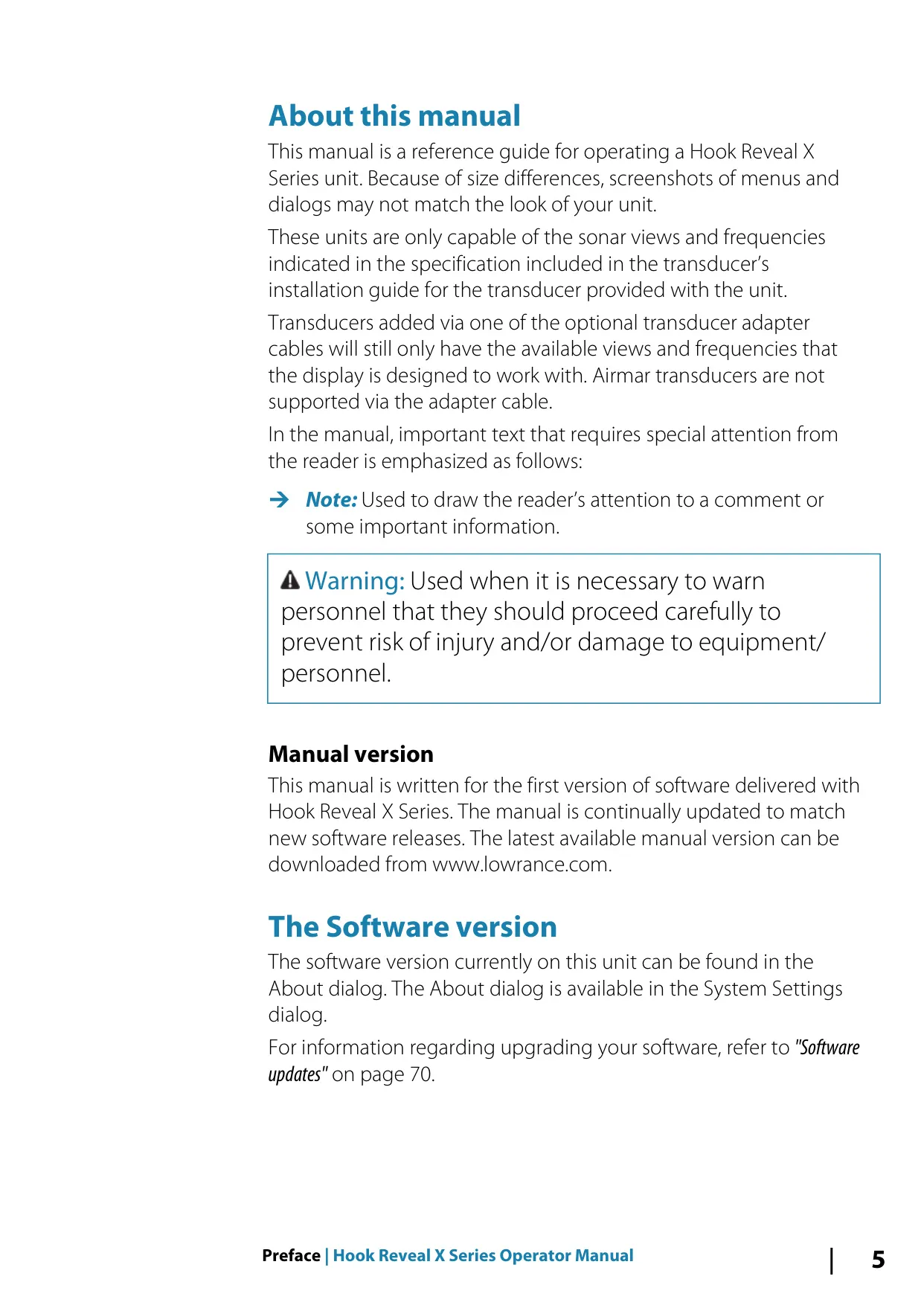

Here we offer the Lowrance Hook Reveal 7x TS Fishfinder manual completely free and in English. We have cataloged this manual in the Fishfinders section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Lowrance Hook Reveal 7x TS Fishfinder, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Lowrance Hook Reveal 7x TS Fishfinder Specifications
| Feature | Specification |
|---|---|
| Product family | Lowrance Hook Reveal X Series (GPS plotter model) |
| Model designation | 7x TS (7-inch class, TripleShot transducer configuration) |
| Sonar channels (TripleShot) | Traditional Sonar, DownScan Imaging, SideScan |
| SideScan frequencies | 455 kHz (range and image quality) and 800 kHz (higher detail in shallow water) |
| DownScan frequencies | 455 kHz (best range) and 800 kHz (highest resolution) |
| SideScan views | Left, right, or left and right at the same time |
| Sonar operating modes | Auto, Custom, Ice Fishing |
| Sonar split-screen modes | Zoom, Bottom lock, Flasher |
| Split-screen zoom | Default 2x, adjustable up to 8x |
| Fish ID display options | Traditional fish arches, fish symbols, fish symbols with depth indication, optional Fish ID beeps |
| Imaging technologies | DownScan Imaging, DownScan Overlay, FishReveal, StructureMap, Genesis Live |
| Genesis Live accuracy | Up to 20 knots |
| Water temperature calibration | -9.9° to +9.9° (default 0°) |
| Depth offset | Negative value for lowest point of vessel, positive value for waterline, 0 for depth below transducer |
| Card reader | microSD (on the side or front, depending on model) |
| Chart card support | Not supported (cannot read chart cards) |
| Sonar log file formats | .slg (Sonar only), .xtf (Structure only), .sl2 (Sonar and Structure) |
| StructureMap file format | .smf (standard or high resolution) |
| Recommended log size | 100 MB or less for faster StructureMap conversion |
| Log storage destinations | Internal memory or memory card |
| Custom pages | Maximum 9 pages, up to 4 panels per page |
| Front controls | 7 keys: Pages, Zoom in/out, Arrows, Exit (X), Menu/Enter, Cursor/Waypoint, Power |

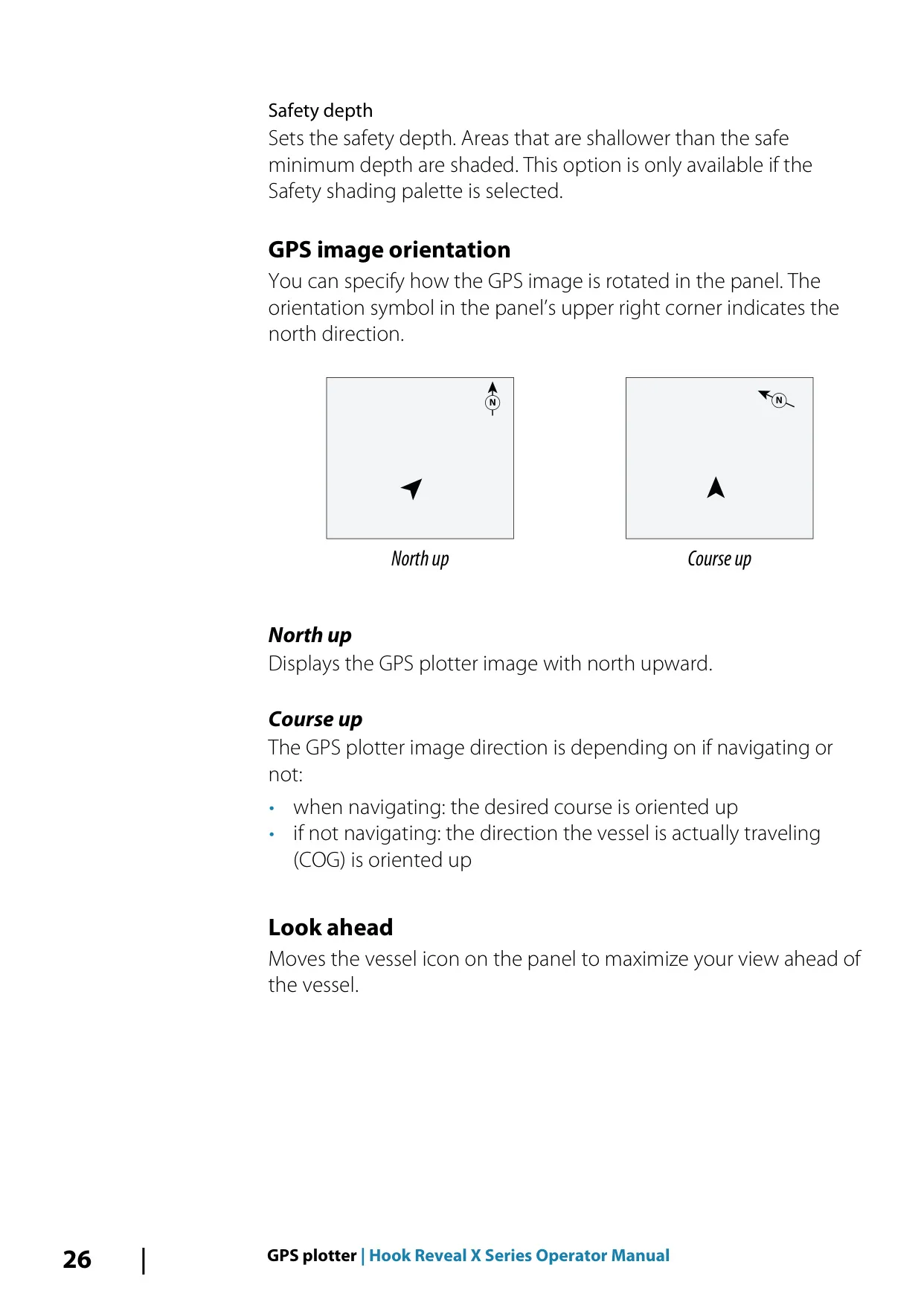

| GPS plotter orientation | North up, Course up |
| Trail logging types | Auto (course change), Distance, Time |
| Navigation settings | Arrival radius, XTE limit, XTE alarm |
| Default datum | WGS84 (user-selectable) |
| Magnetic variation | Auto or Manual |
| Alarm levels | 5 color codes: Red (critical), Orange (important), Yellow (standard), Blue (warning), Green (lite warning) |
| User data export formats | User Data File versions 2, 3, 4, 5, 6 and GPX |
| Custom wallpaper formats | .jpg and .png |
| Service report attachment limit | 20 MB |
| Device registration | From an internet-connected smart device or over the phone |
| Compliance (Europe) | CE under RED 2014/53/EU |
| Compliance (Australia/New Zealand) | Level 2 devices, Radiocommunications (EMC) standard 2017 |
| Quick Guide document number | 988-12656-001 |
Lowrance Hook Reveal 7x TS Details
The Lowrance Hook Reveal 7x TS is built around a keypad interface and a customizable Home page with a Tools panel, application page icons and a Customize option. A short press on the Power key opens the System Controls dialog, which gives quick access to backlight, Night mode, data overlay, sonar logging and panel split adjustment. Active functions show an orange bar above their icon. Repeated short presses on the Power key cycle through the preset brightness levels.

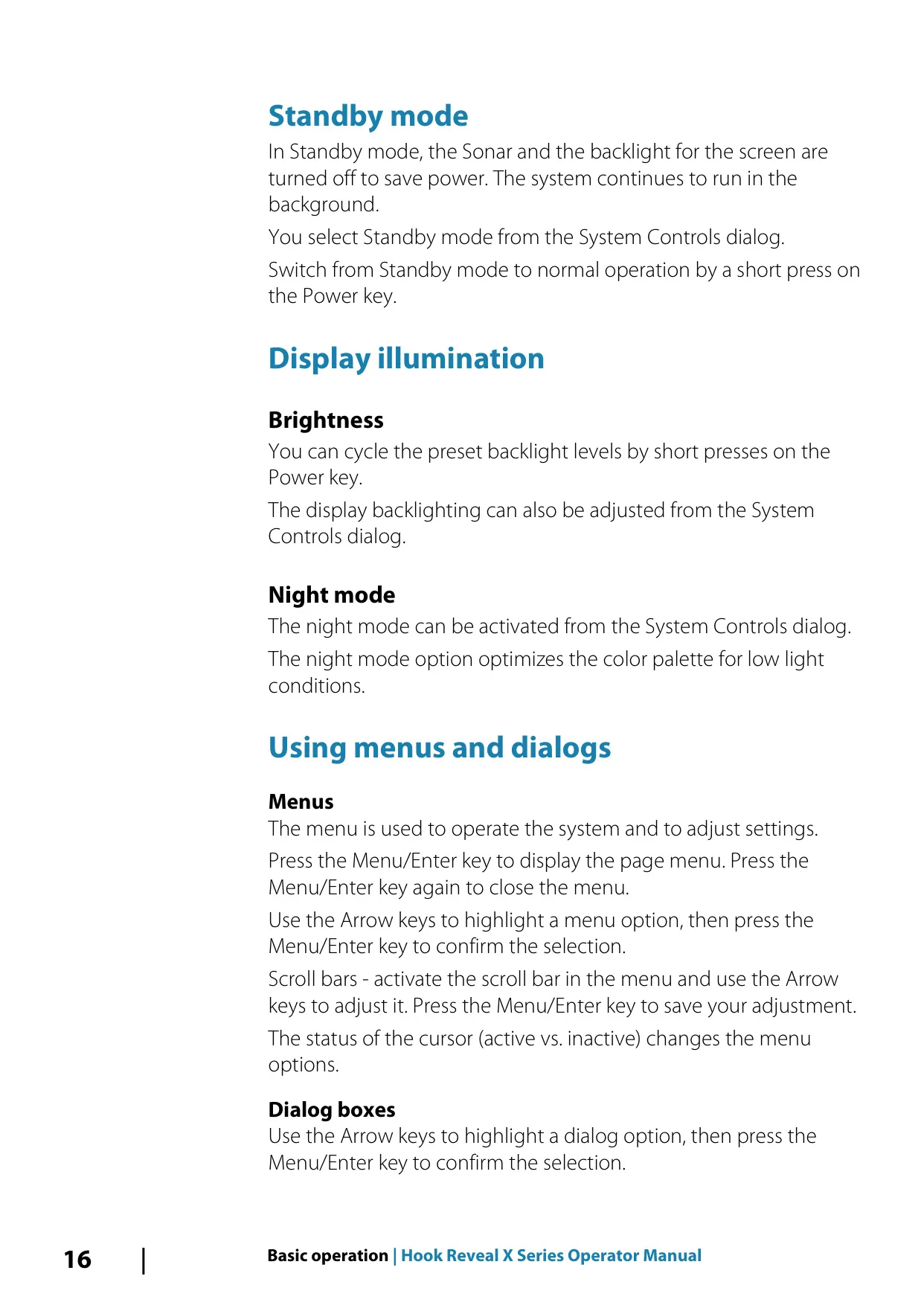

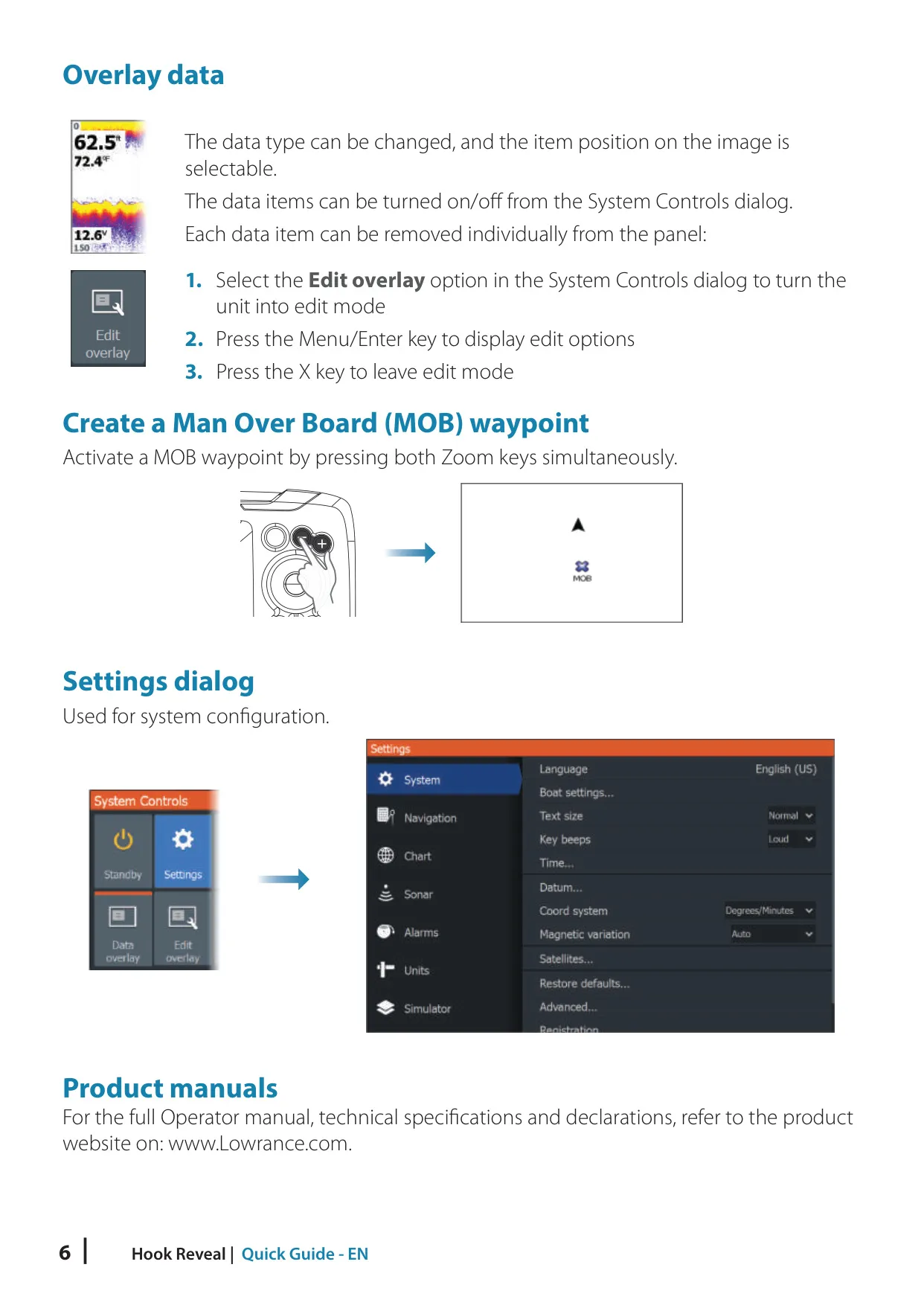

To save energy, Standby mode turns off the sonar and the screen backlight while the system keeps running in the background. A short press on the Power key returns the unit to normal operation. In an emergency, pressing both Zoom keys creates a Man Overboard waypoint. The display then switches to a zoomed panel centered on the vessel and shows navigation information back to the first MOB point. You can create more MOB waypoints, but navigation to later ones must be started manually.
Genesis Live builds real-time depth contour maps from live sonar soundings recorded to the memory card. More passes over an area produce better maps. Users can adjust transparency and contour interval, and choose a Navigation, Depth shading, Paper chart or Safety shading palette. Safety shading highlights water shallower than a defined safety depth. The feature turns itself off if the card is removed or full, and its data is not adjusted for tidal offset.

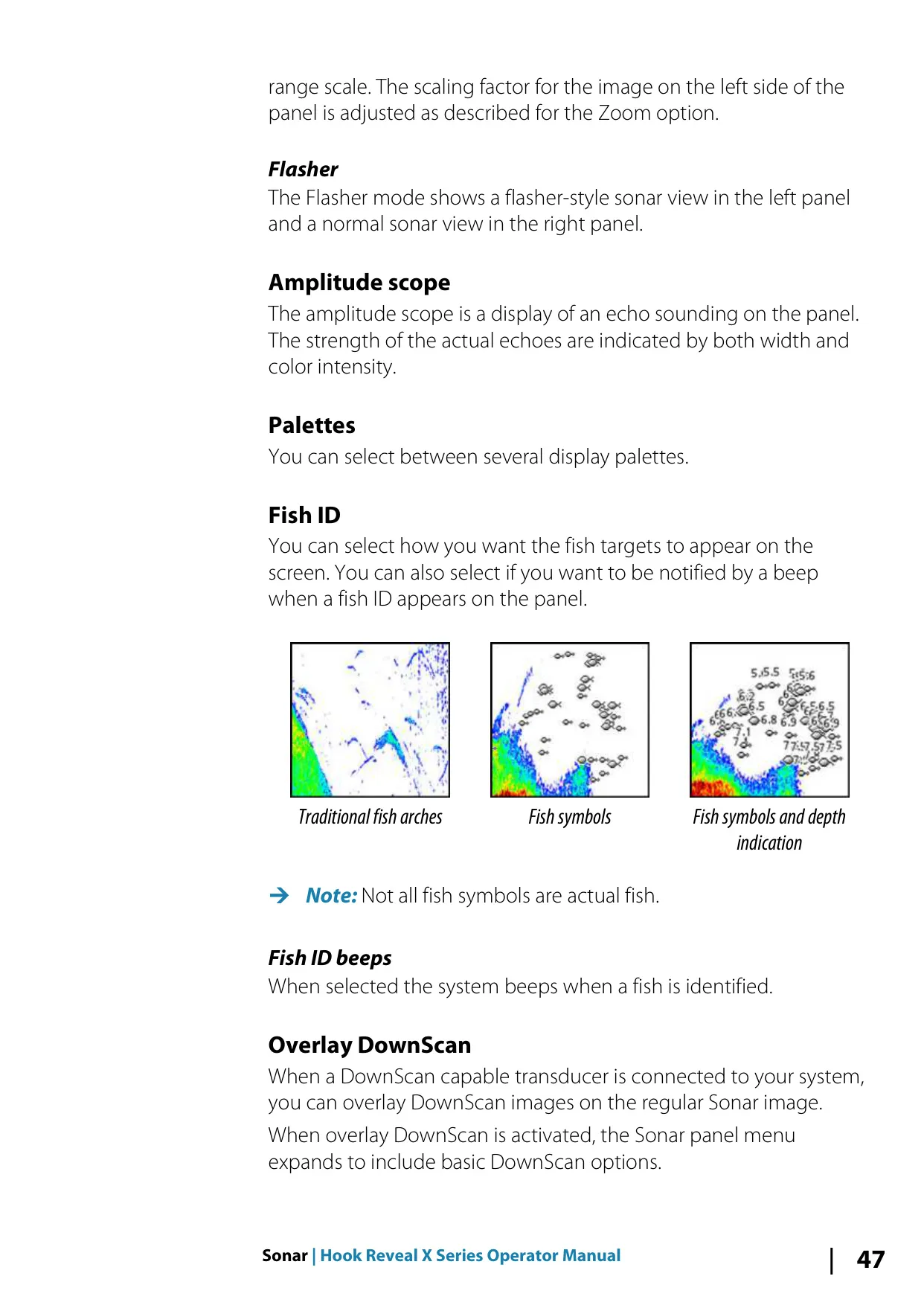

In the DownScan view, FishReveal adds fish arches to the high-resolution image. It has its own Sensitivity, Colorline, Surface clarity and Palette controls. On the traditional sonar view, the Custom and Ice Fishing modes offer Ping speed, Scroll speed, Noise rejection, Surface clarity and Colorline. These help reduce clutter from bilge pumps, engine vibration, wakes and temperature inversions. The Amplitude scope shows echo strength by width and color intensity, and DownScan images can be overlaid on the regular sonar view.

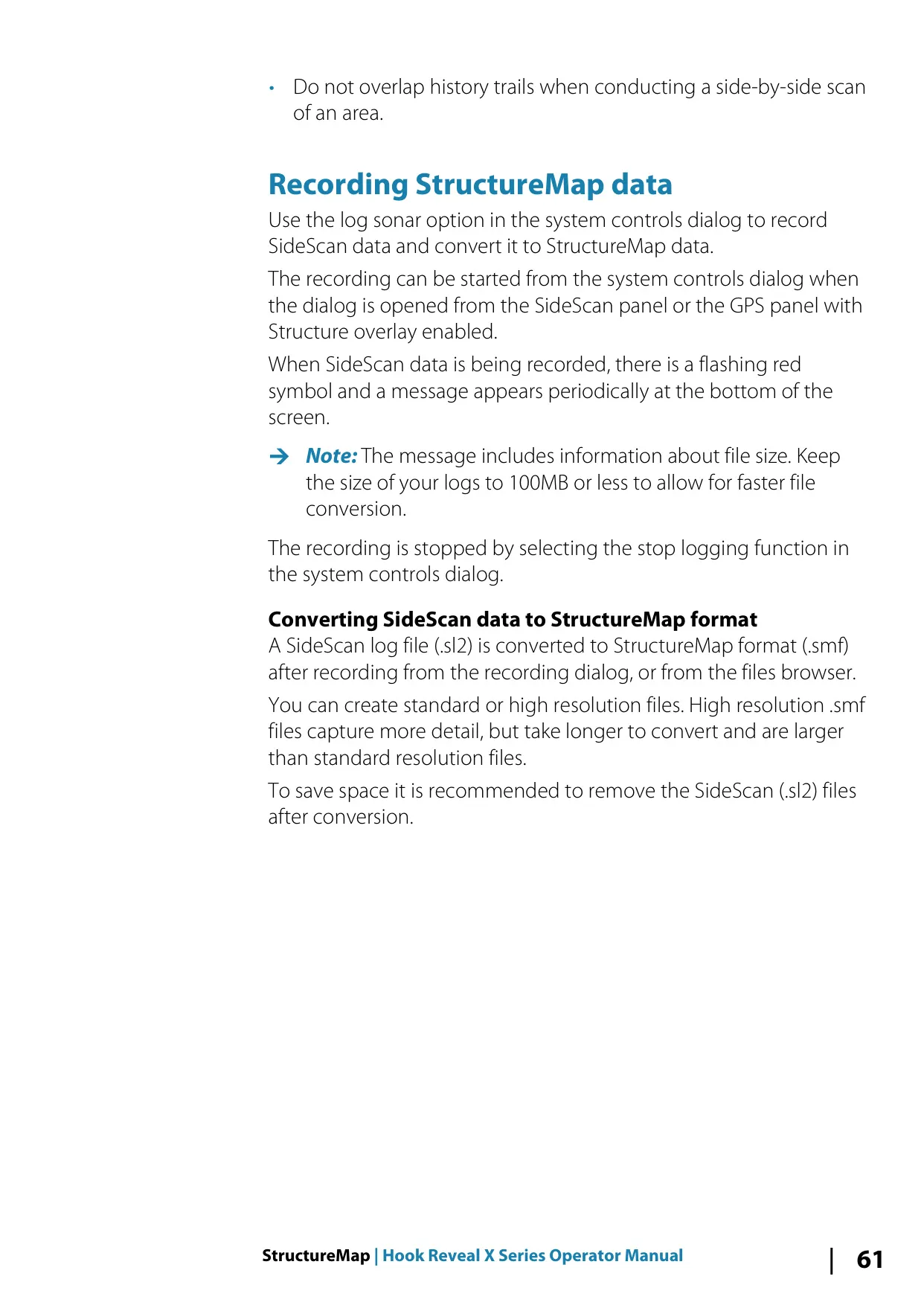

StructureMap places SideScan imagery on the GPS plotter, with settings for transparency, palette, contrast, water column and clearing live history. For the best images, Lowrance recommends steering so that tall structures such as wrecks pass to one side of the boat rather than directly underneath. You should also avoid overlapping history trails when scanning an area side by side. The water column option shows bait schools, but it can reduce how accurately the image is placed on the map.
The alarm system checks for dangerous situations and system faults continuously. Alarms have no time-out: they stay active until you acknowledge them with Close or Disable, or until the cause is fixed. For maintenance, the unit has no field-serviceable parts. Rinse the screen with fresh water, then dry it with a microfiber or soft cotton cloth. Do not use solvents, pressure washers or car washes. A protective sun cover is sold separately.
The built-in Service assistant creates a support report on a memory card. The report includes the software version, the serial number and data from the settings file. Software updates are downloaded from lowrance.com to a non-mapping card and installed at power-up. A Simulator with a retail demo mode and your own sonar source files lets you practice onshore. The Sun/Moon and Trip info tools add useful planning data.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Lowrance Hook Reveal 7x TS Fishfinder, and we answer them below.
