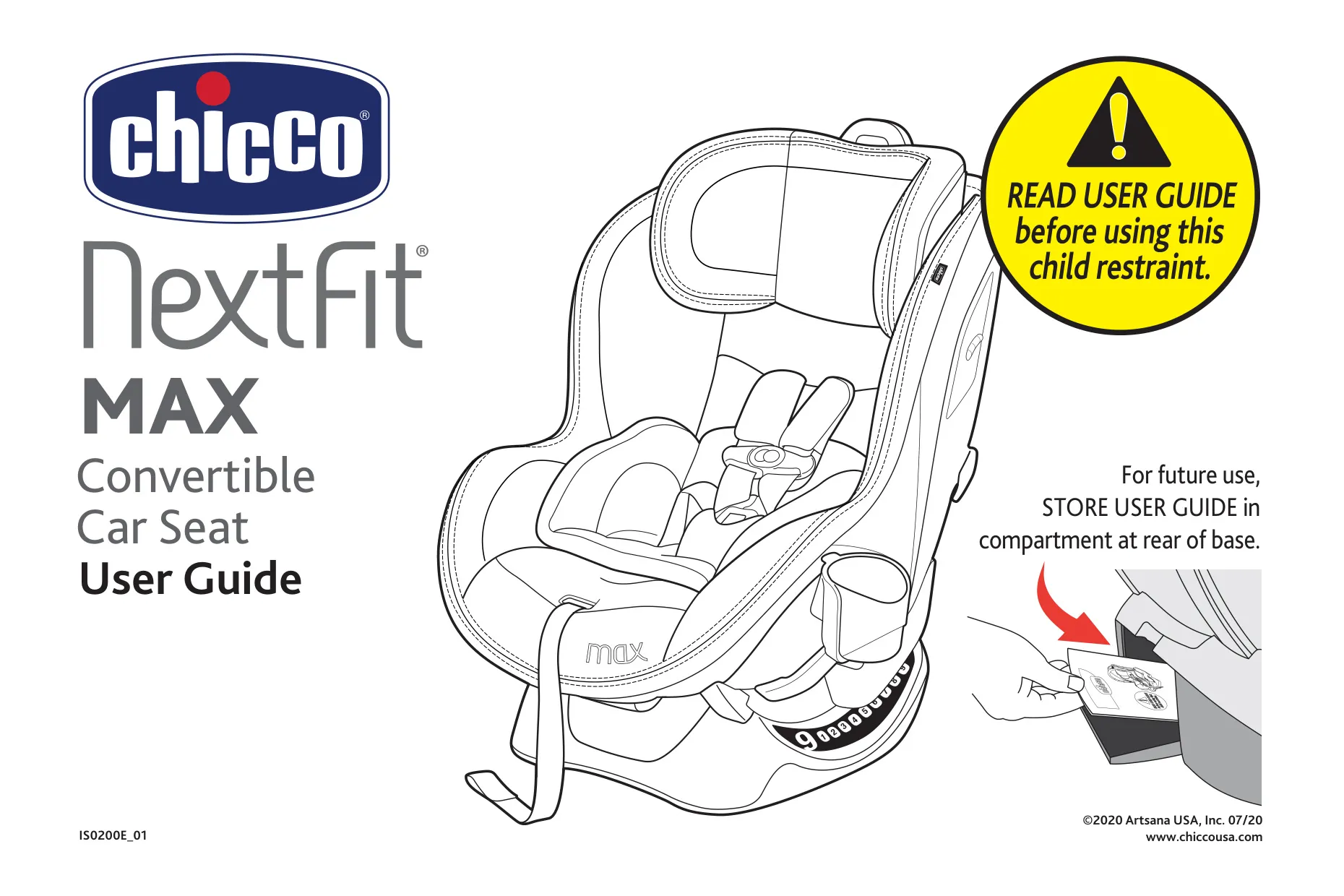

Chicco Nextfit MAX Car Seat Instruction Manual
Chicco Nextfit MAX Car Seat
Chicco Nextfit MAX Car Seat Instructions
Here we offer the Chicco Nextfit MAX Car Seat manual completely free and in English. We have cataloged this manual in the Infant Seats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Chicco Nextfit MAX Car Seat, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images

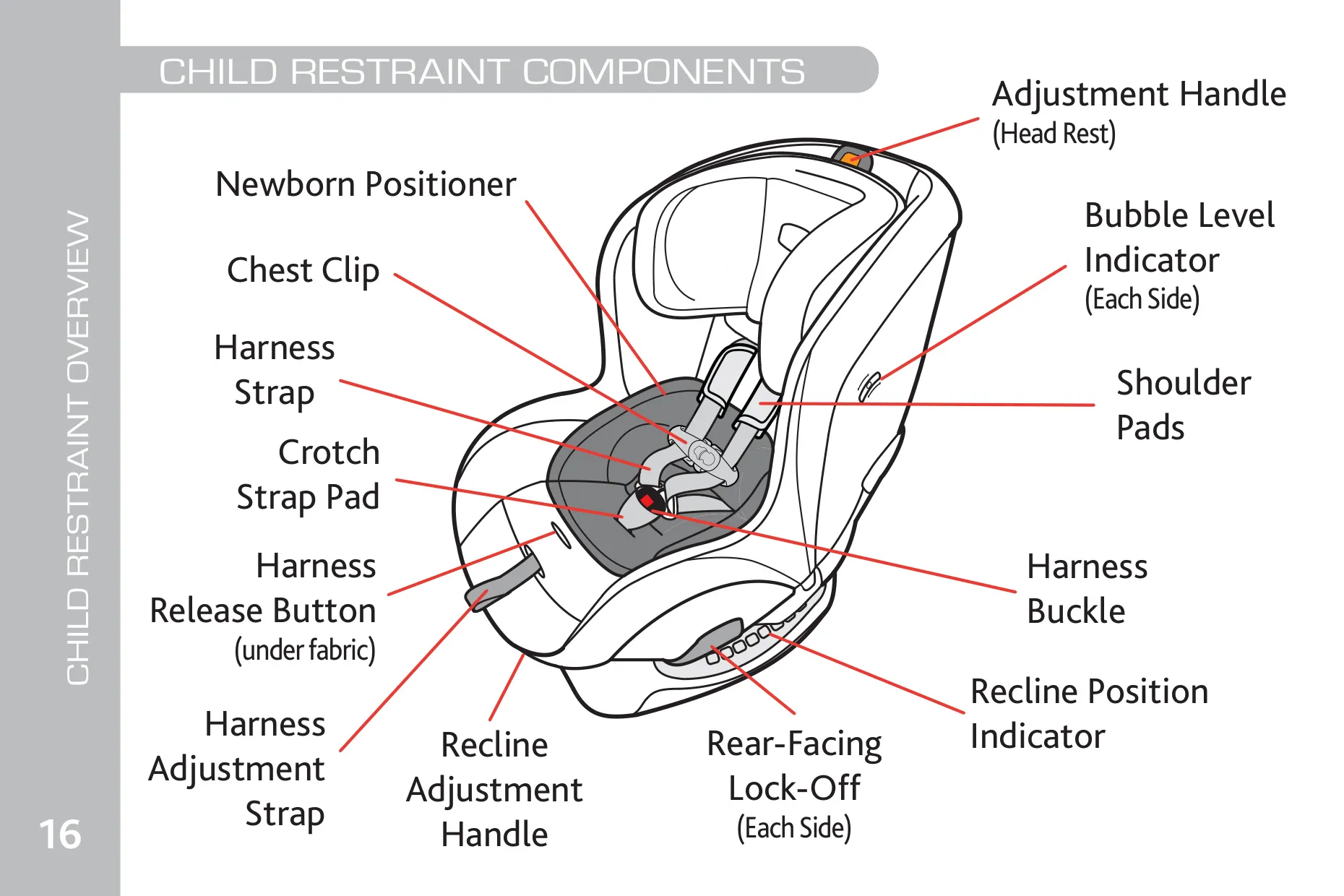

Chicco Nextfit MAX Car Seat Specifications
| Feature | Specification |
|---|---|
| Product Type | Convertible Car Seat (Child Restraint) |
| Manufacturer | Artsana USA, Inc., Lancaster, PA 17601 |
| User Guide Code | IS0200E_01 (07/20) |

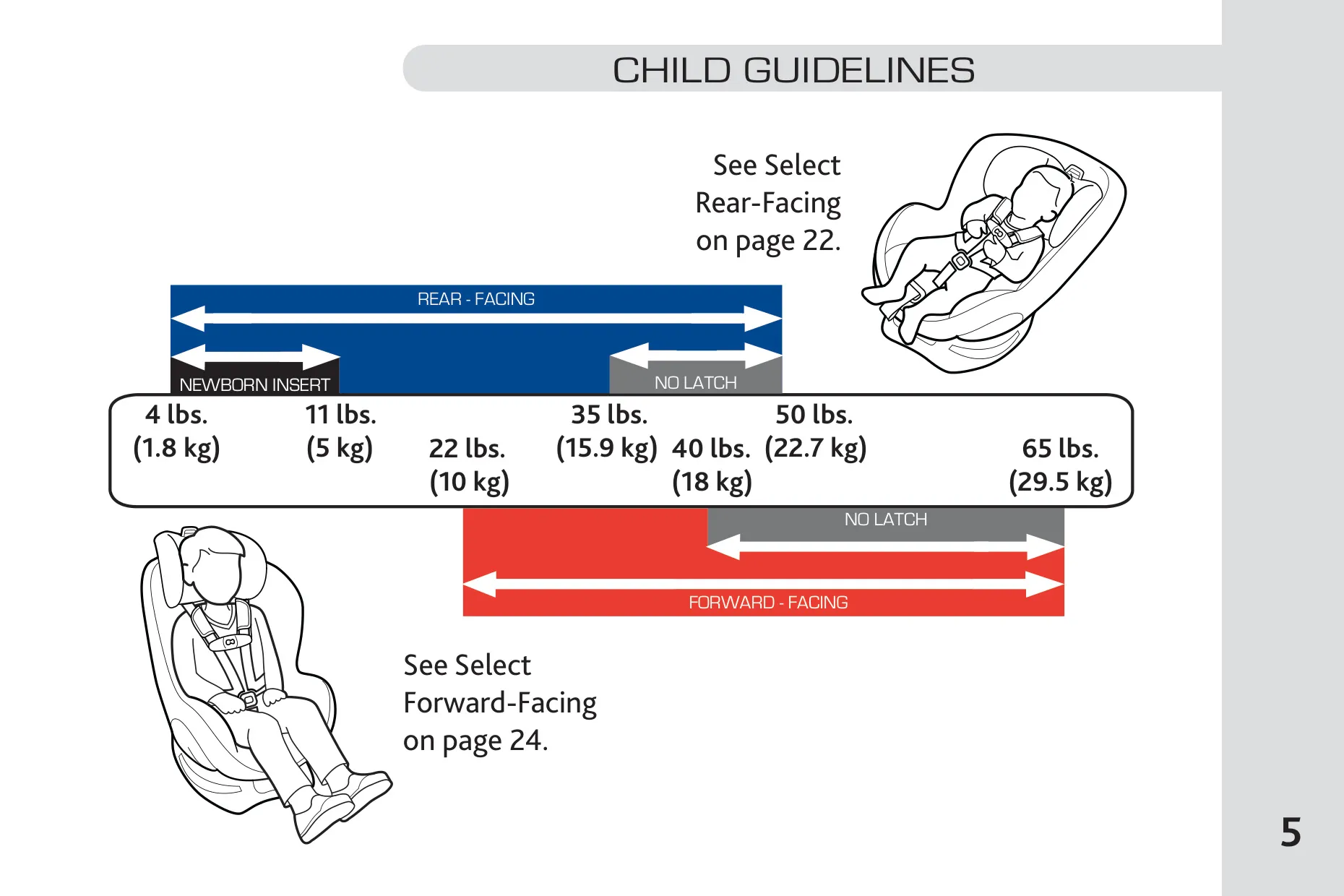

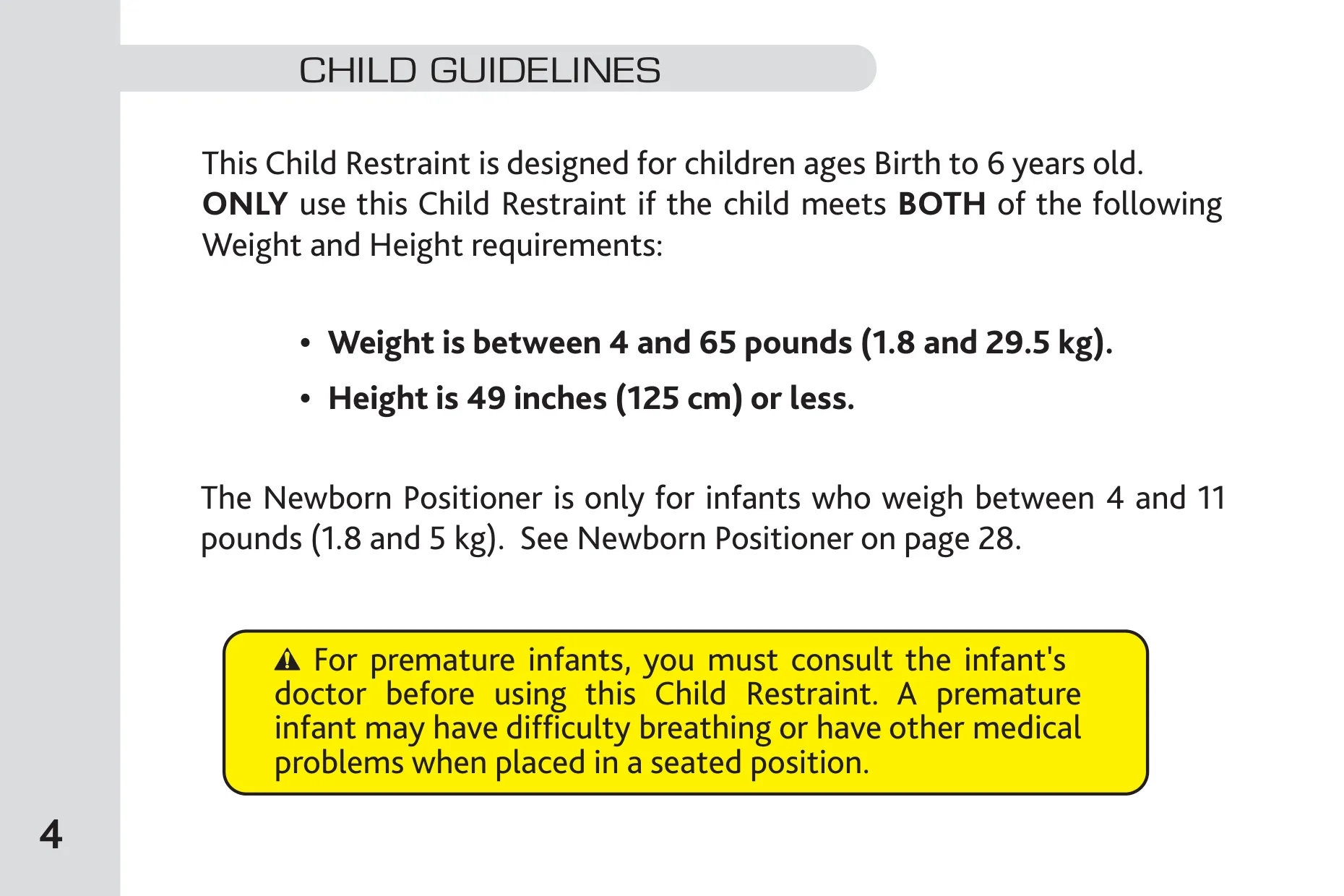

| Child Age Range | Birth to 6 years |

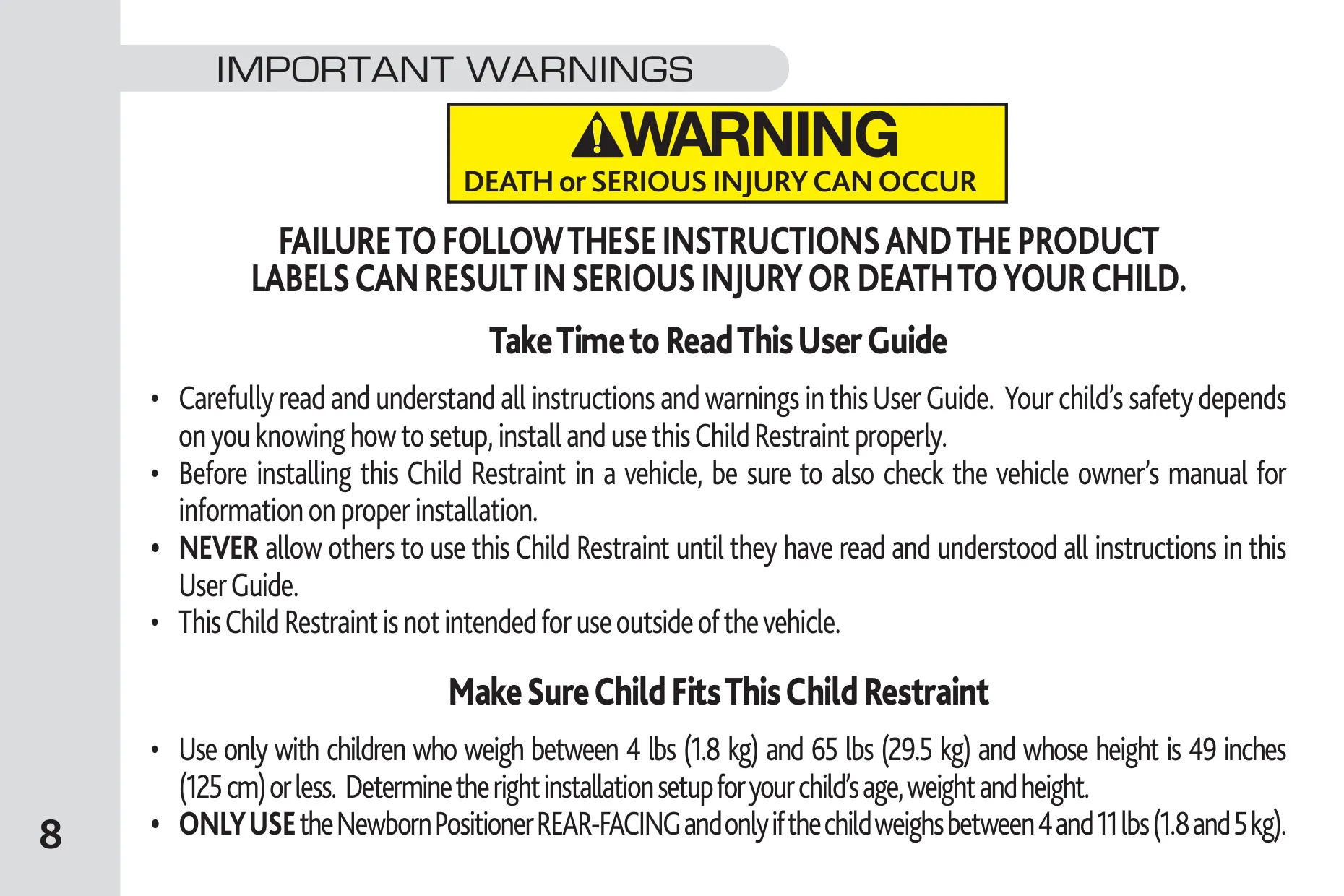

| Overall Child Weight Range | 4 – 65 lbs (1.8 – 29.5 kg) |
| Maximum Child Height | 49 in (125 cm) |

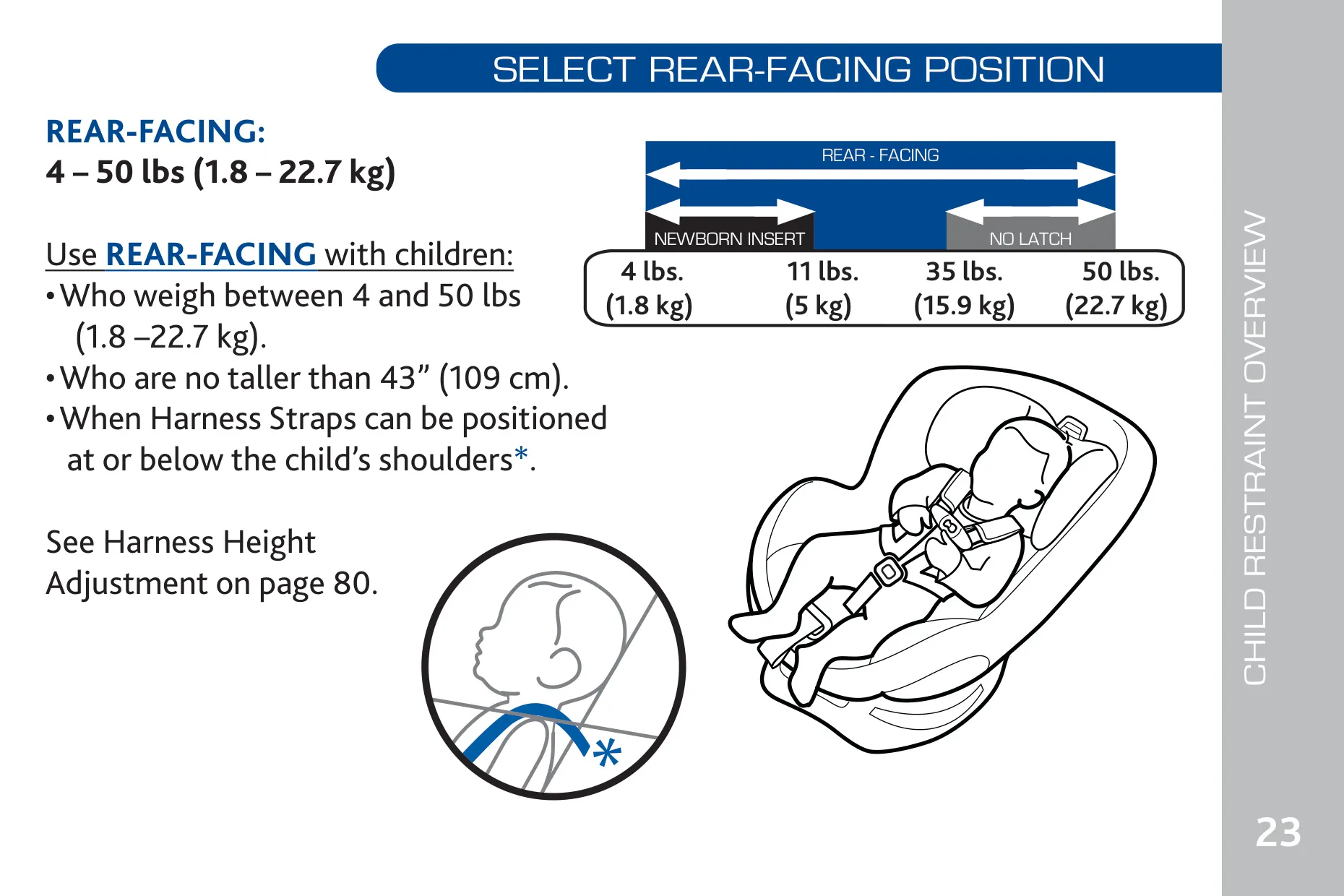

| Rear-Facing Weight Range | 4 – 50 lbs (1.8 – 22.7 kg) |
| Rear-Facing Maximum Height | 43 in (109 cm) |

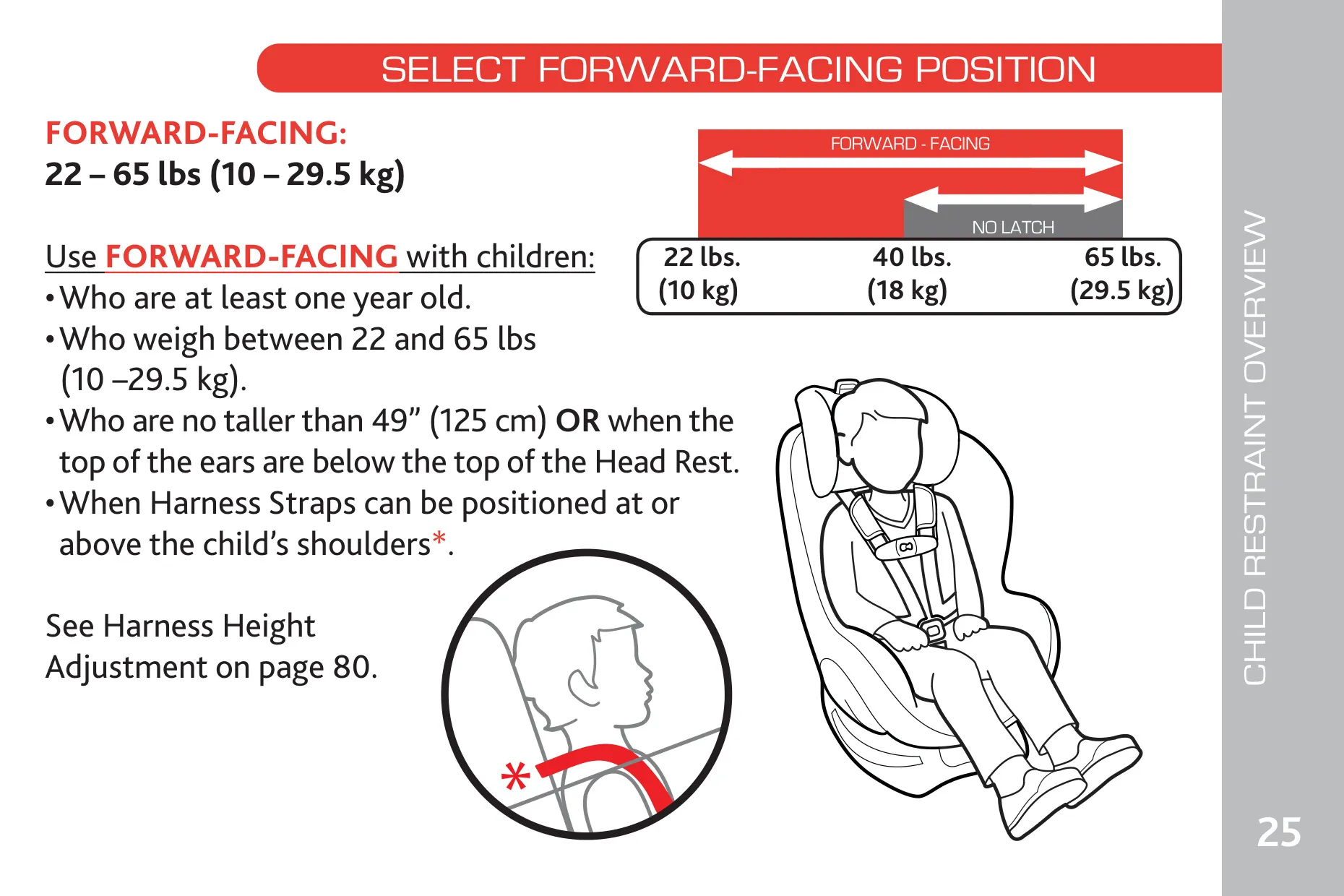

| Forward-Facing Weight Range | 22 – 65 lbs (10 – 29.5 kg) |

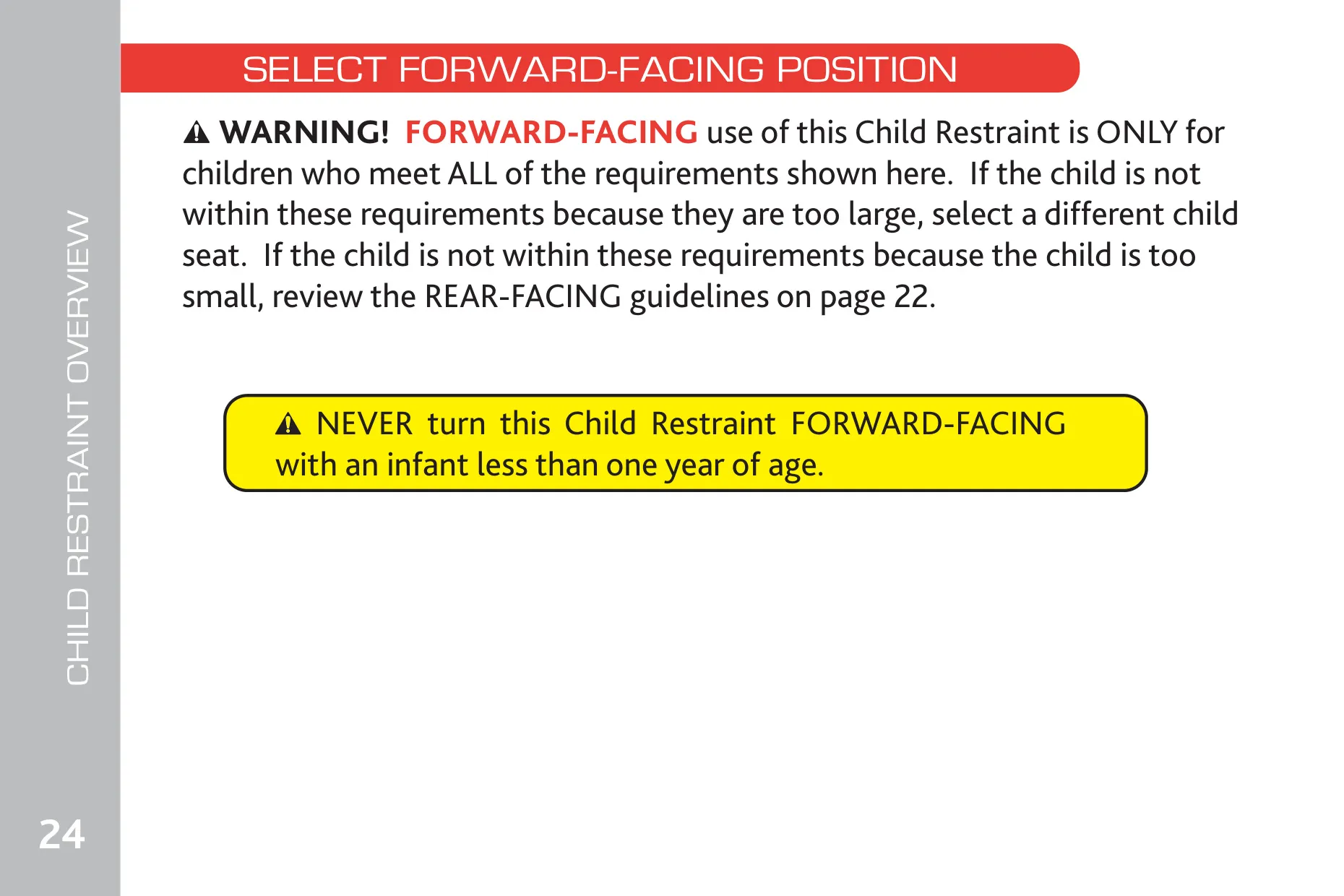

| Forward-Facing Minimum Age | 1 year |
| Forward-Facing Maximum Height | 49 in (125 cm) or until top of ears reaches top of Head Rest |
| Newborn Positioner Weight Range | 4 – 11 lbs (1.8 – 5 kg), rear-facing only |
| LATCH Limit Rear-Facing | Child weight up to 35 lbs (15.9 kg) |
| LATCH Limit Forward-Facing | Child weight up to 40 lbs (18 kg) |
| Lower Anchor Spacing | Standard 11 in (28 cm) only |

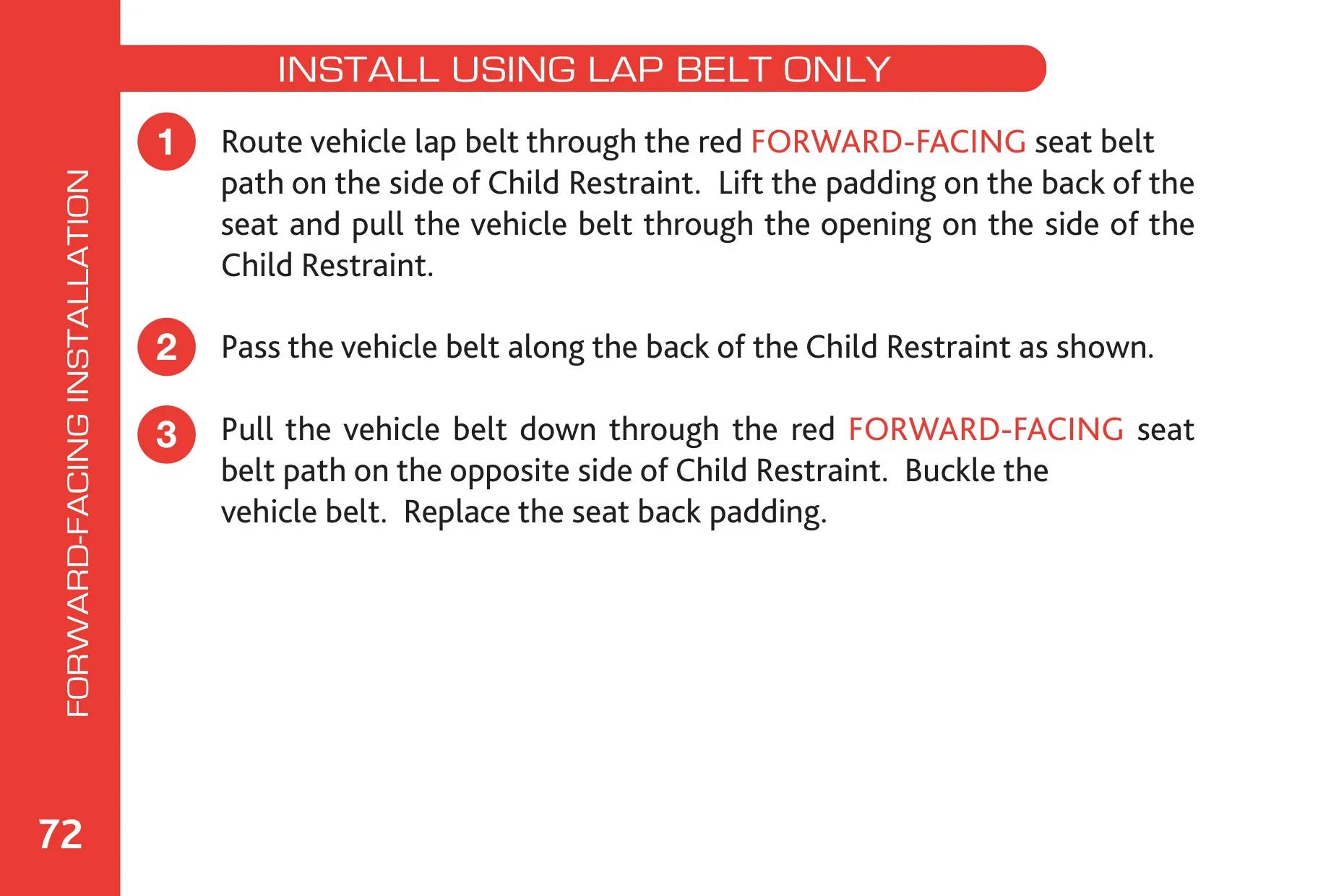

| Installation Methods | LATCH, lap-shoulder belt, lap belt only |

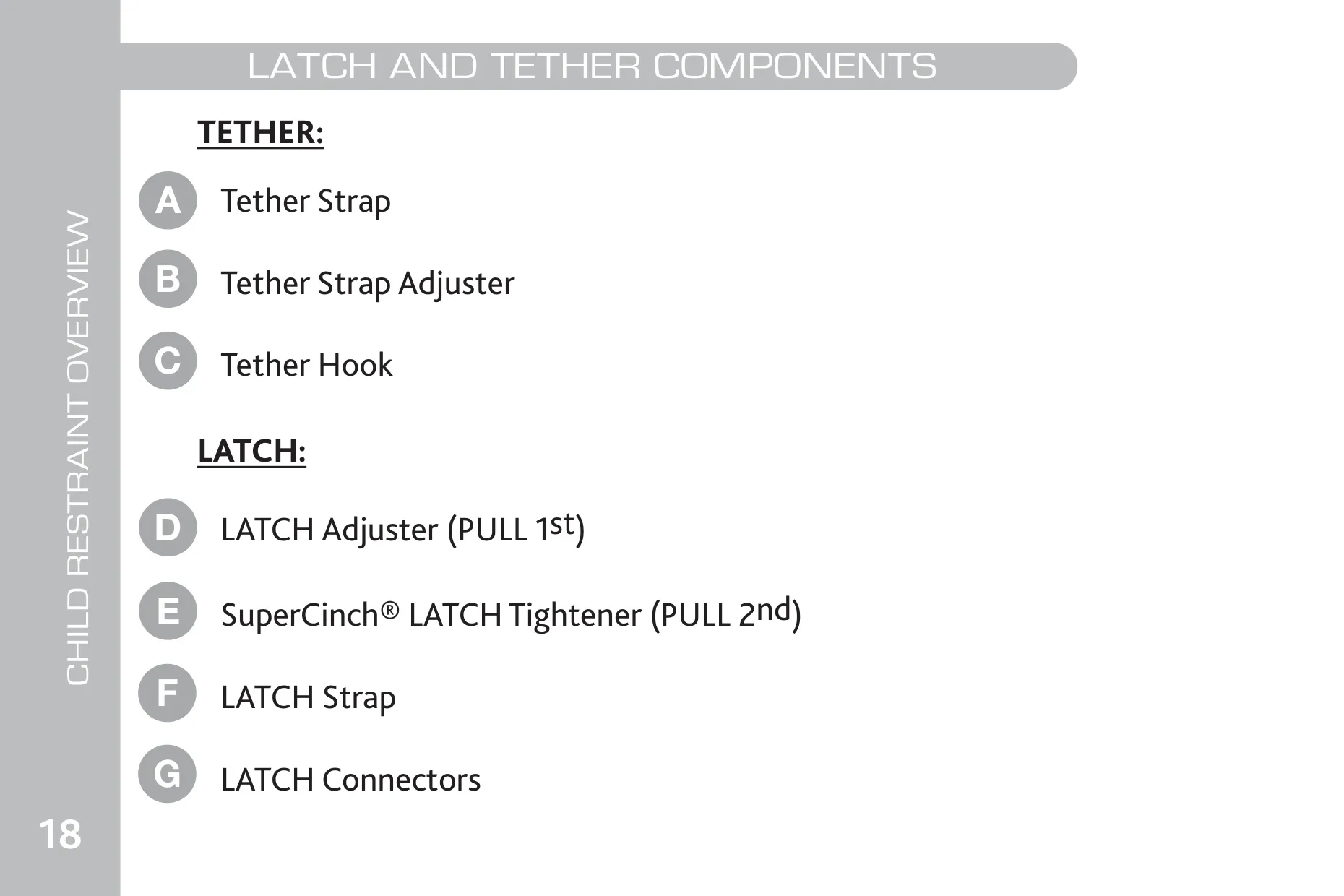

| LATCH Tightening System | LATCH Adjuster (Pull 1st) + SuperCinch® LATCH Tightener (Pull 2nd) |
| Top Tether | Forward-facing only; never used rear-facing |
| Belt Path Color Coding | Blue = rear-facing, Red = forward-facing |
| Belt Lock-Offs | Rear-facing and forward-facing lock-offs (each side) |

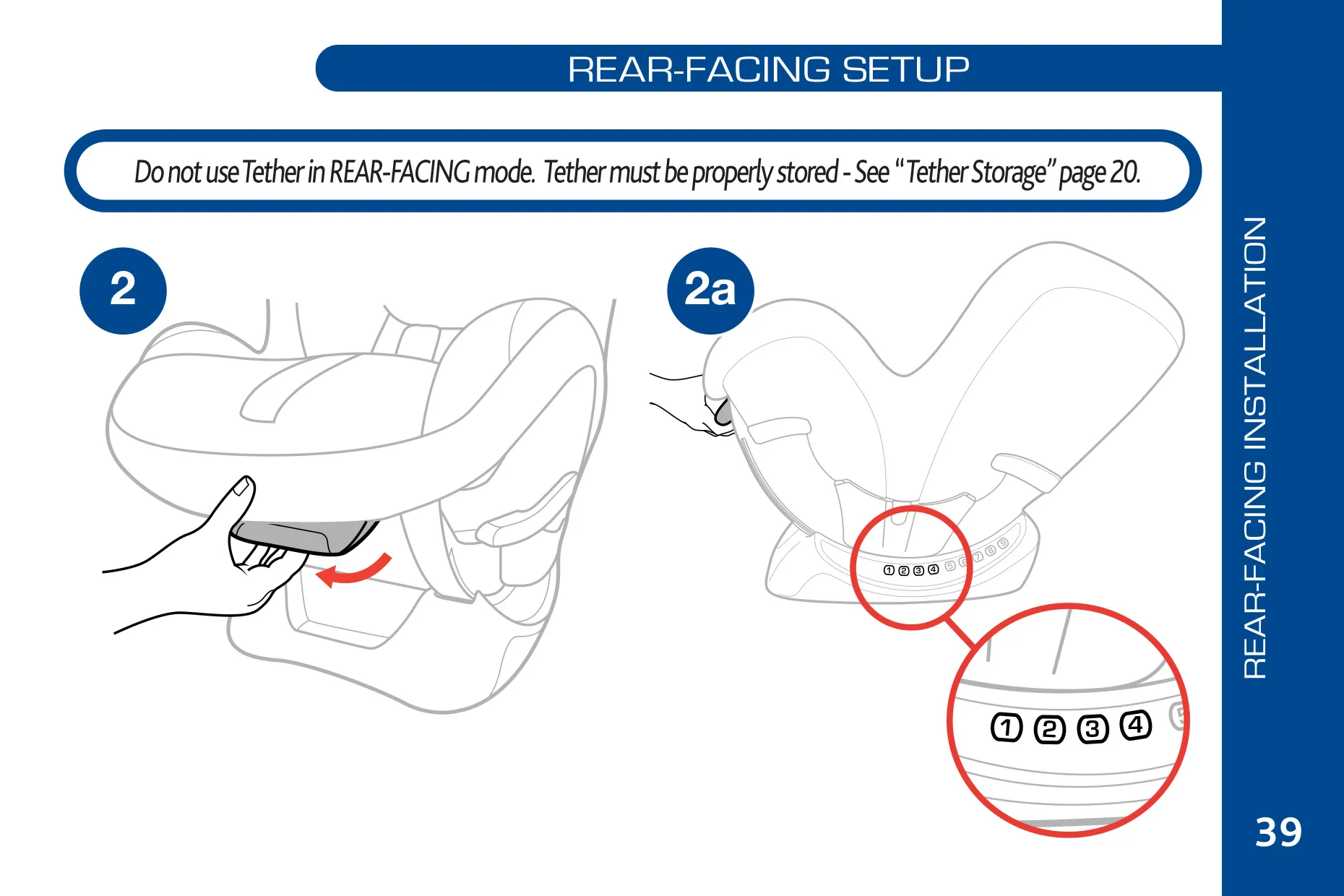

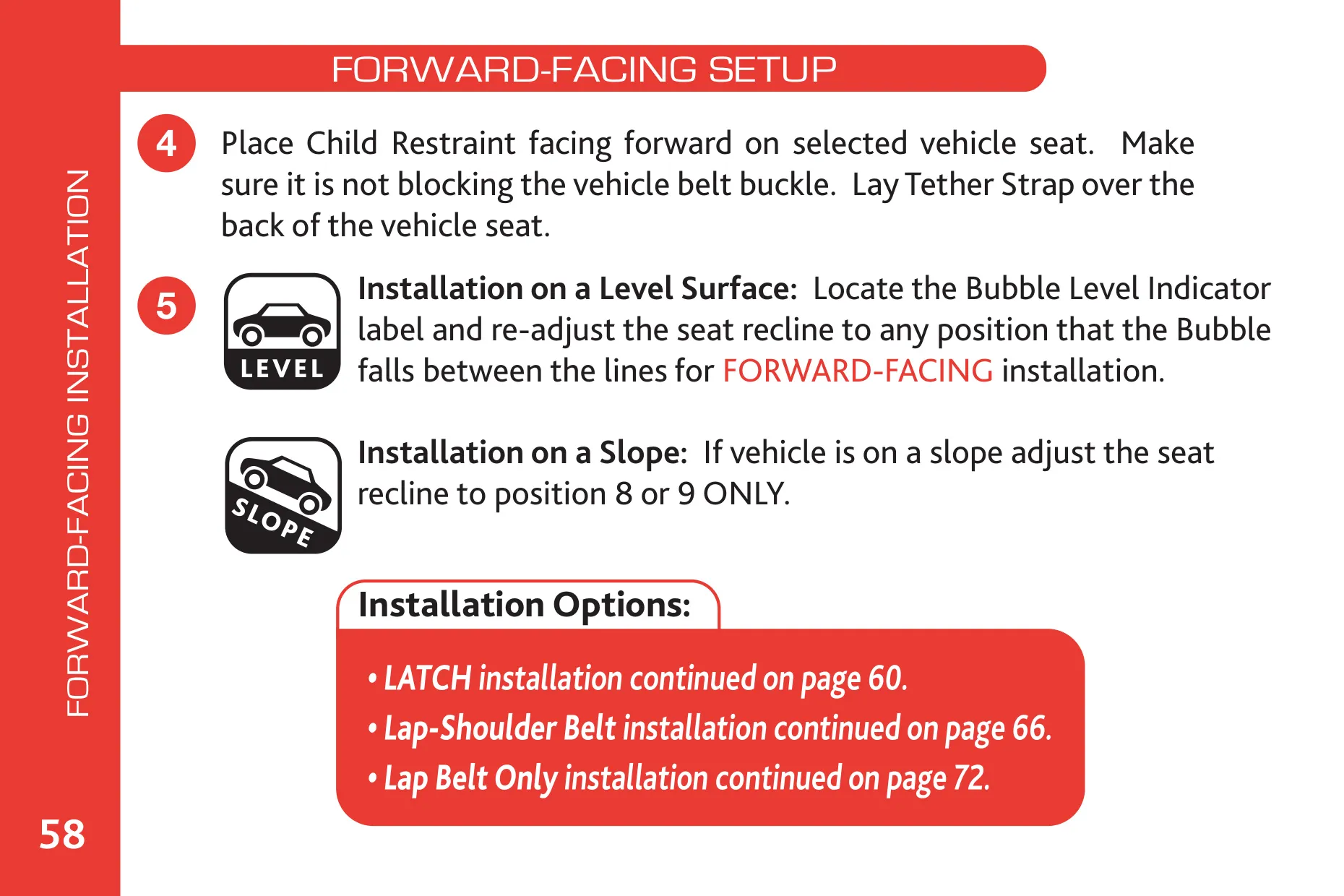

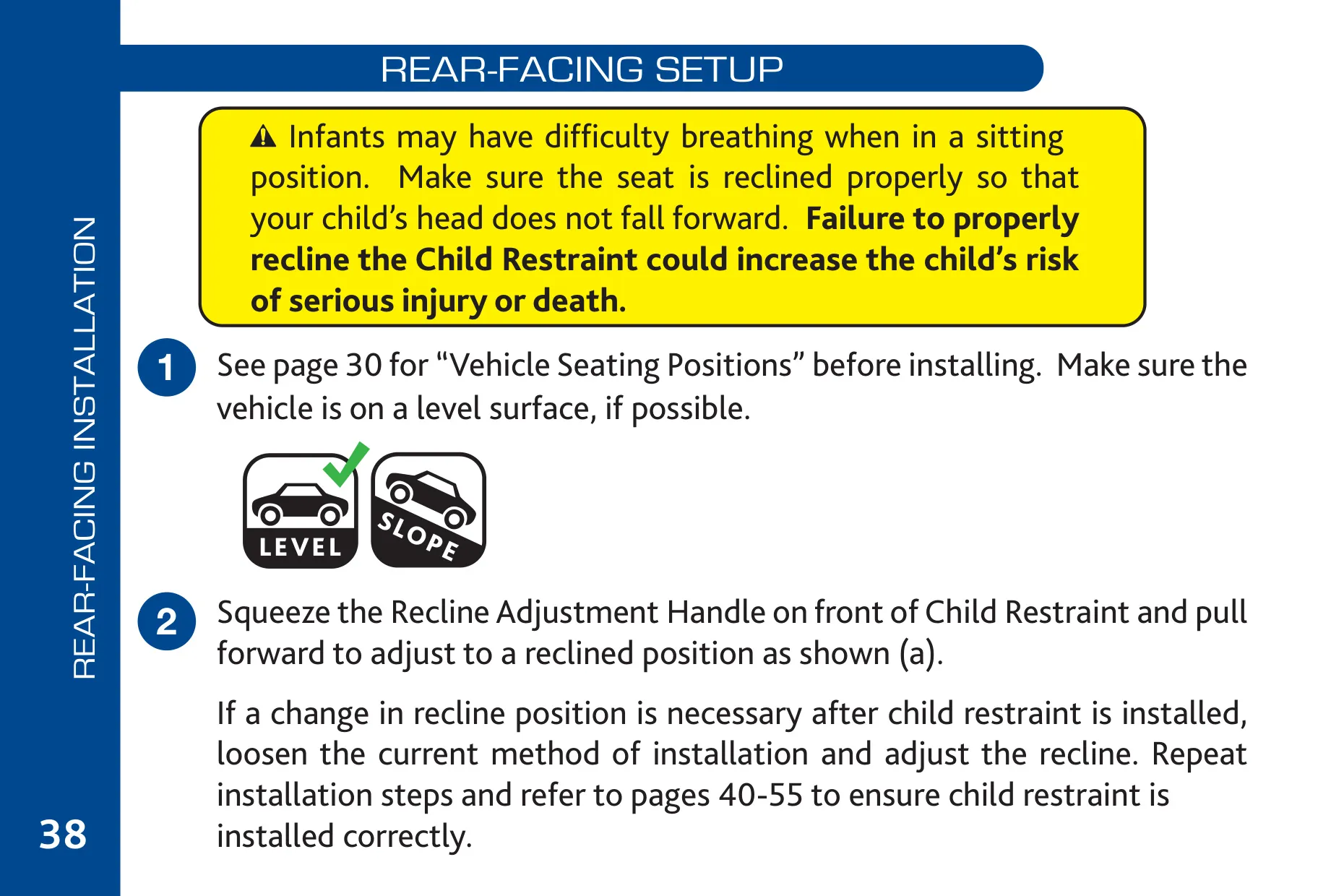

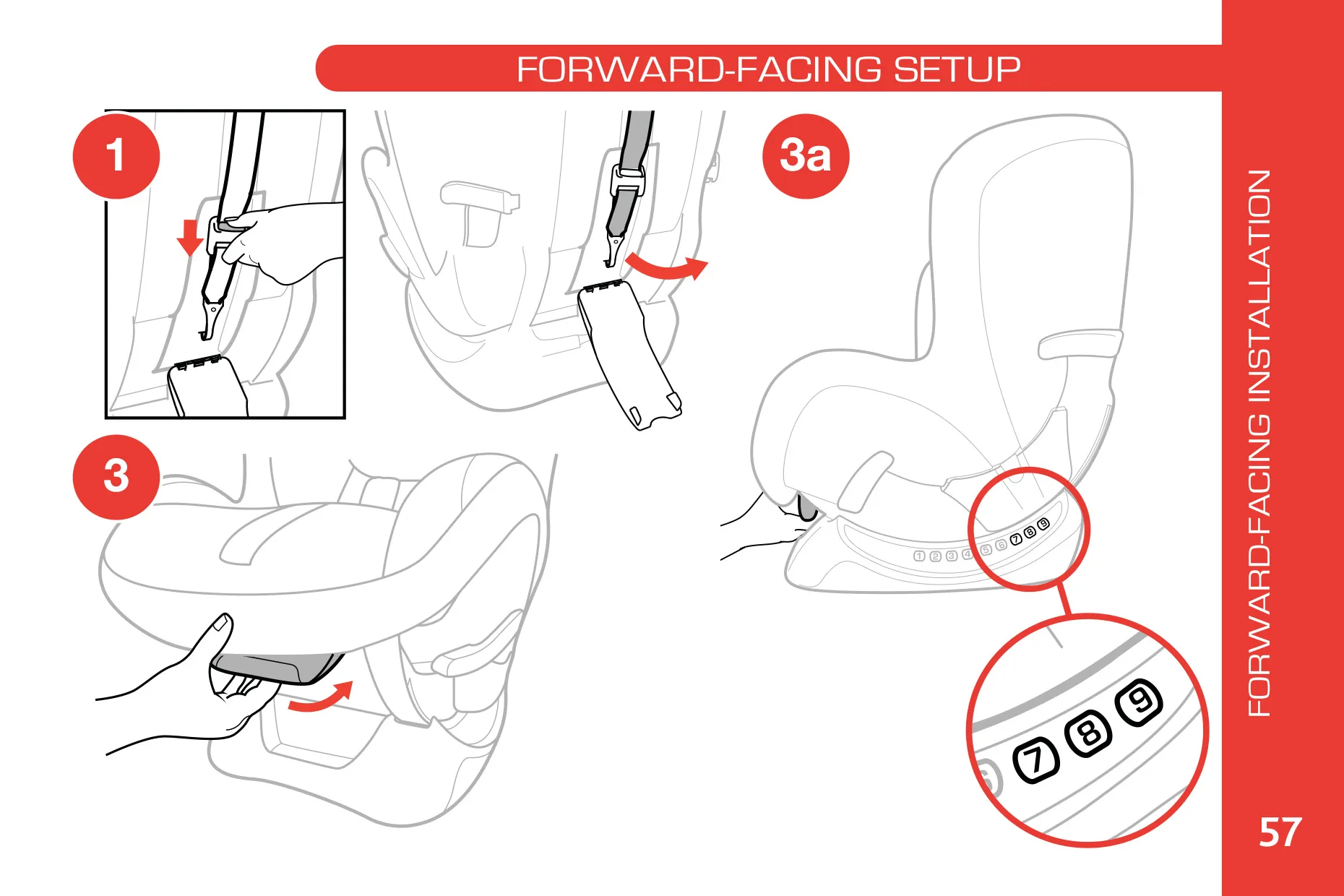

| Recline Positions | 9 positions (1 = full recline); positions 8 or 9 only for forward-facing on a slope |
| Recline Indicator | Bubble Level Indicator plus level line on blue label for slopes |
| Harness Type | 5-point harness with no-rethread Head Rest height adjustment |

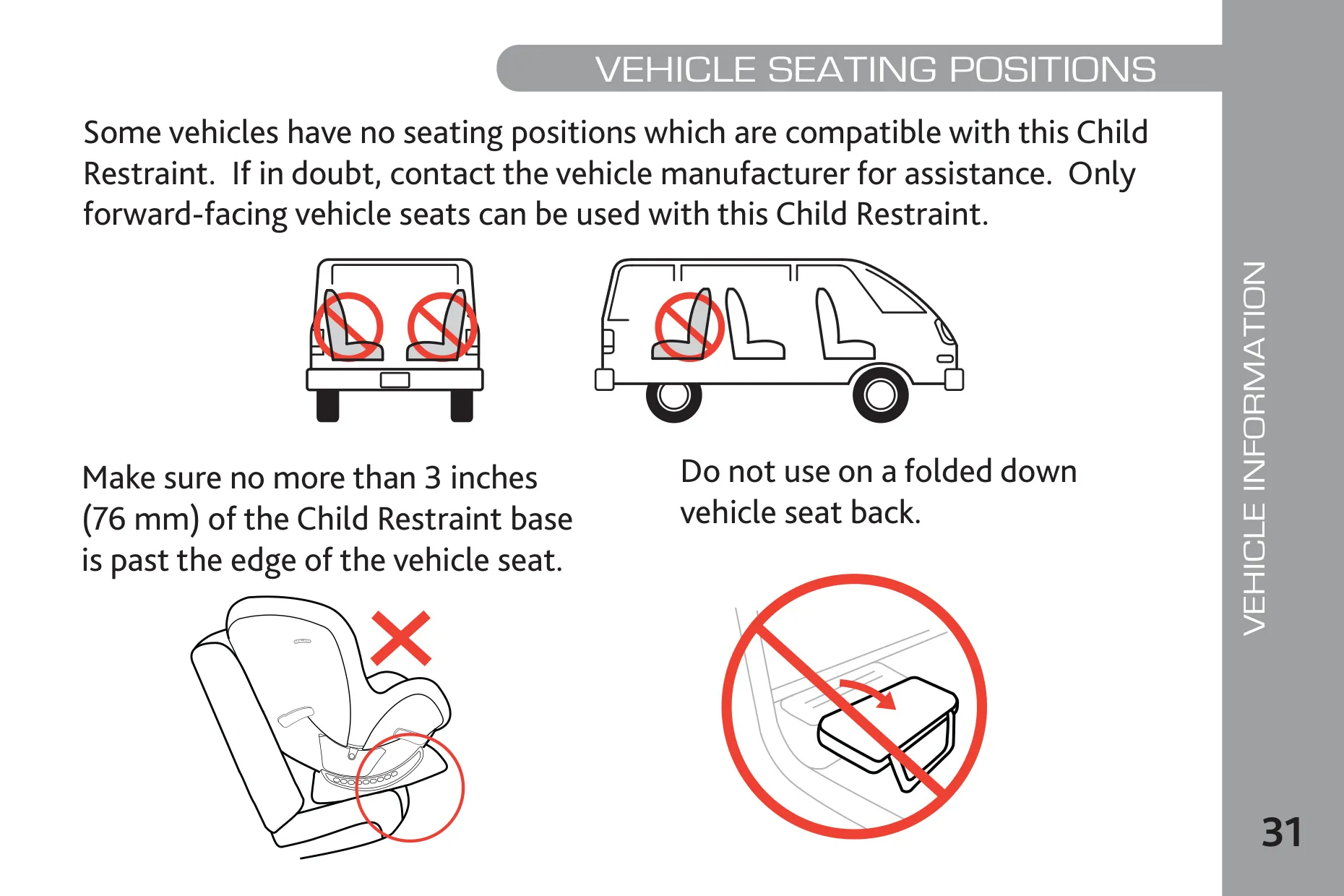

| Maximum Base Overhang | 3 in (76 mm) past front edge of vehicle seat |

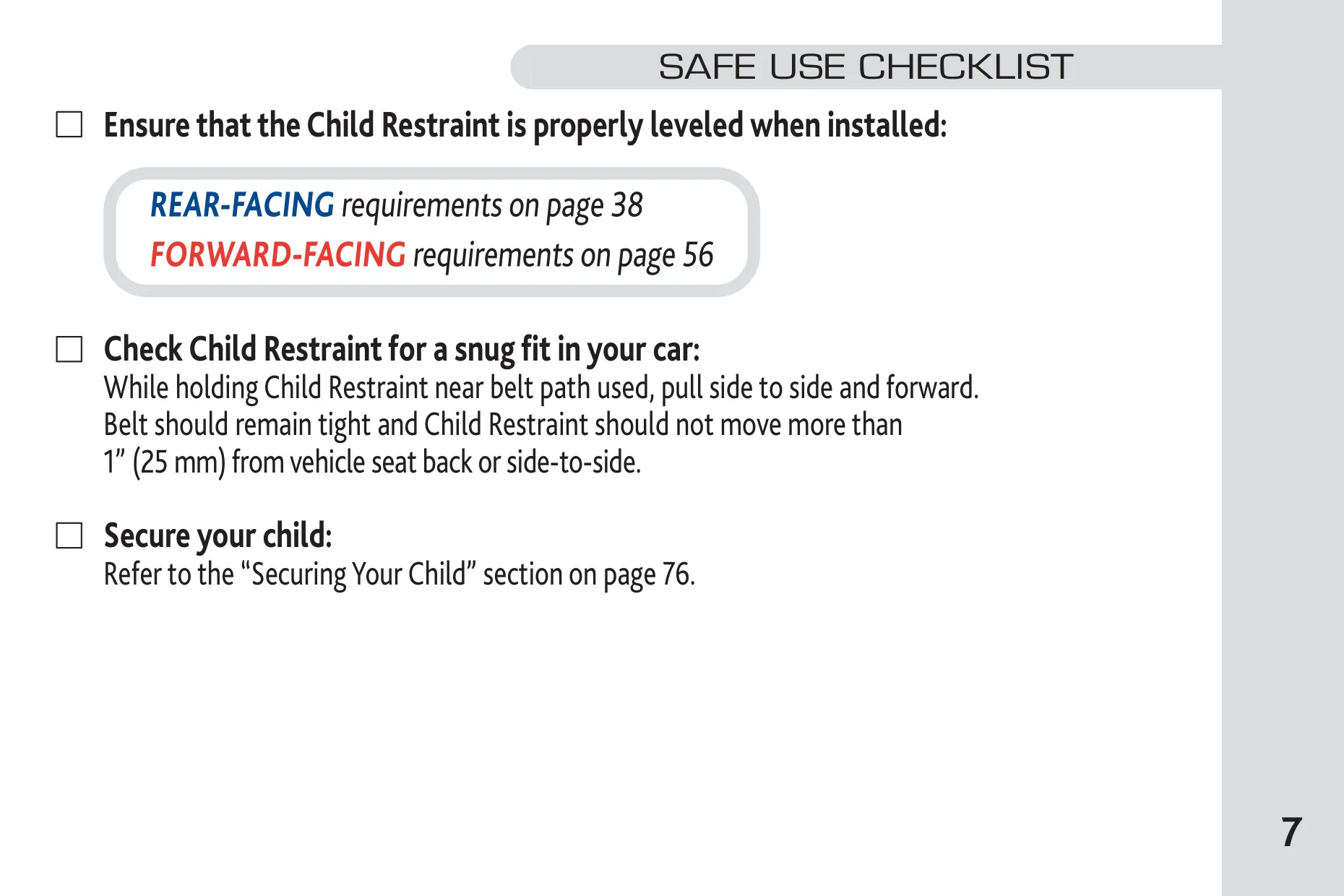

| Installation Tightness Limit | Max. 1 in (25 mm) movement at belt path |

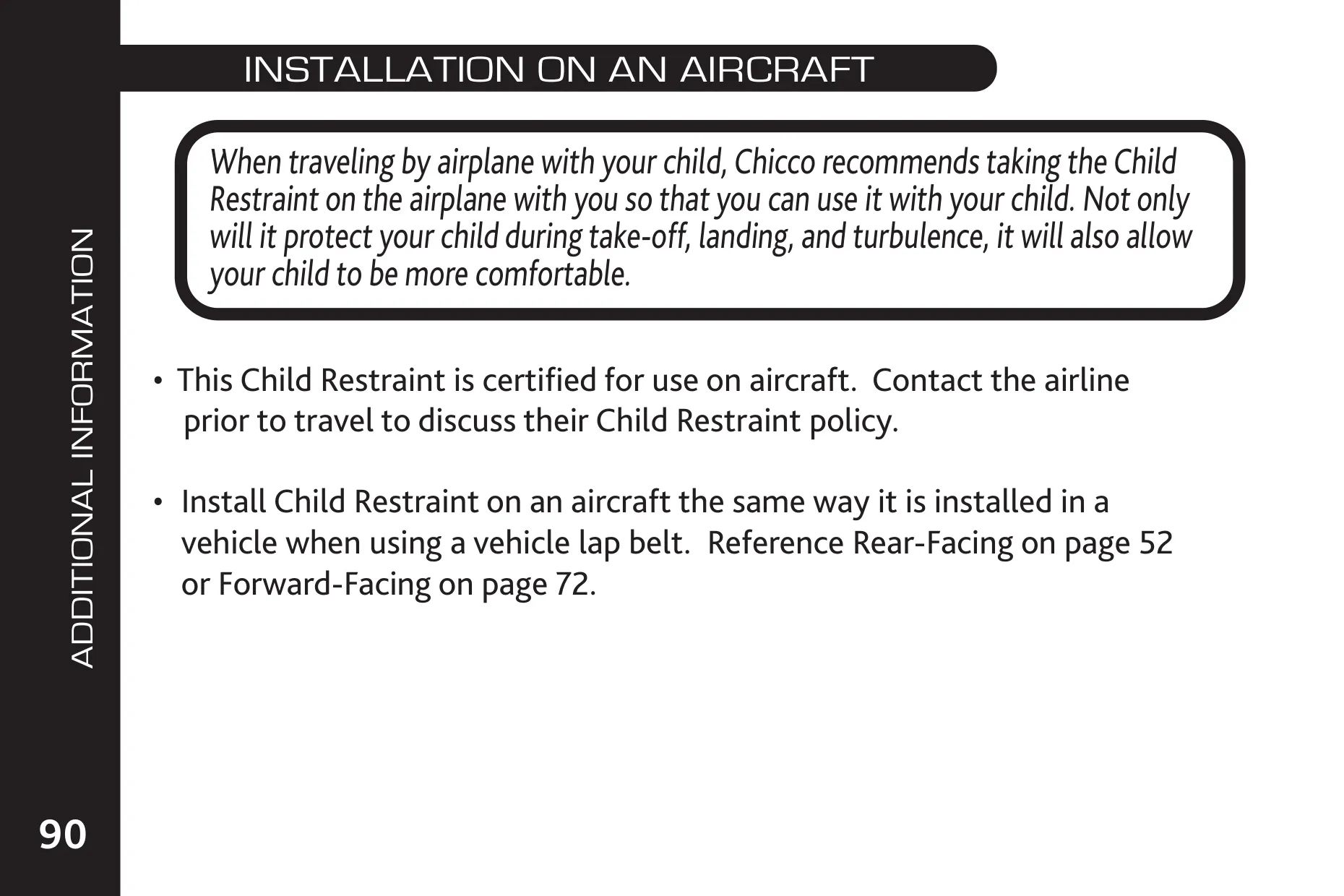

| Aircraft Use | Certified for use on aircraft (lap belt installation) |
| Cup Holder Capacity | Less than 12 oz (355 ml), plastic containers only |

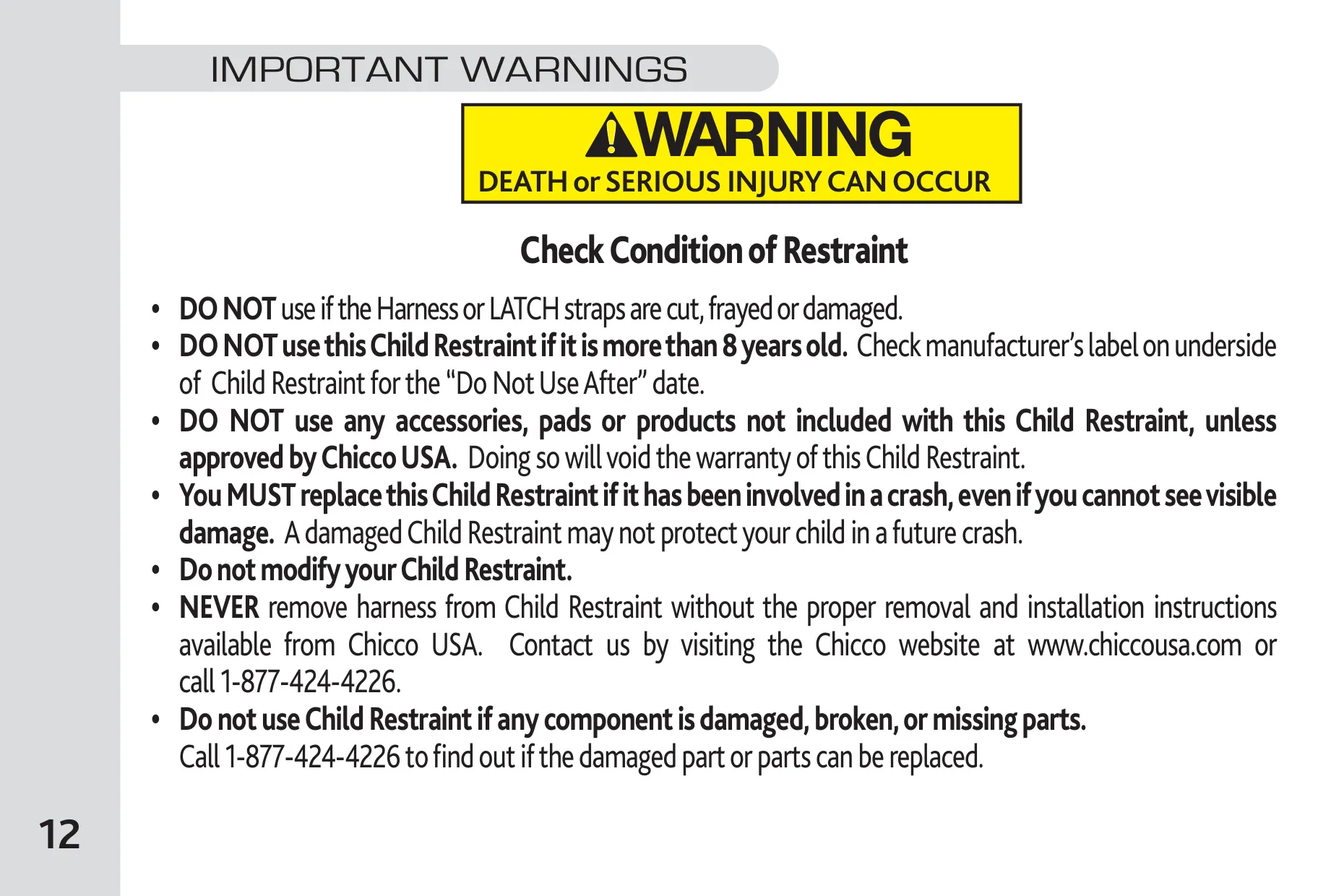

| Useful Life | 8 years ("Do Not Use After" date on underside label) |
| Customer Service | 1-877-424-4226 |
Chicco Nextfit MAX Car Seat Details

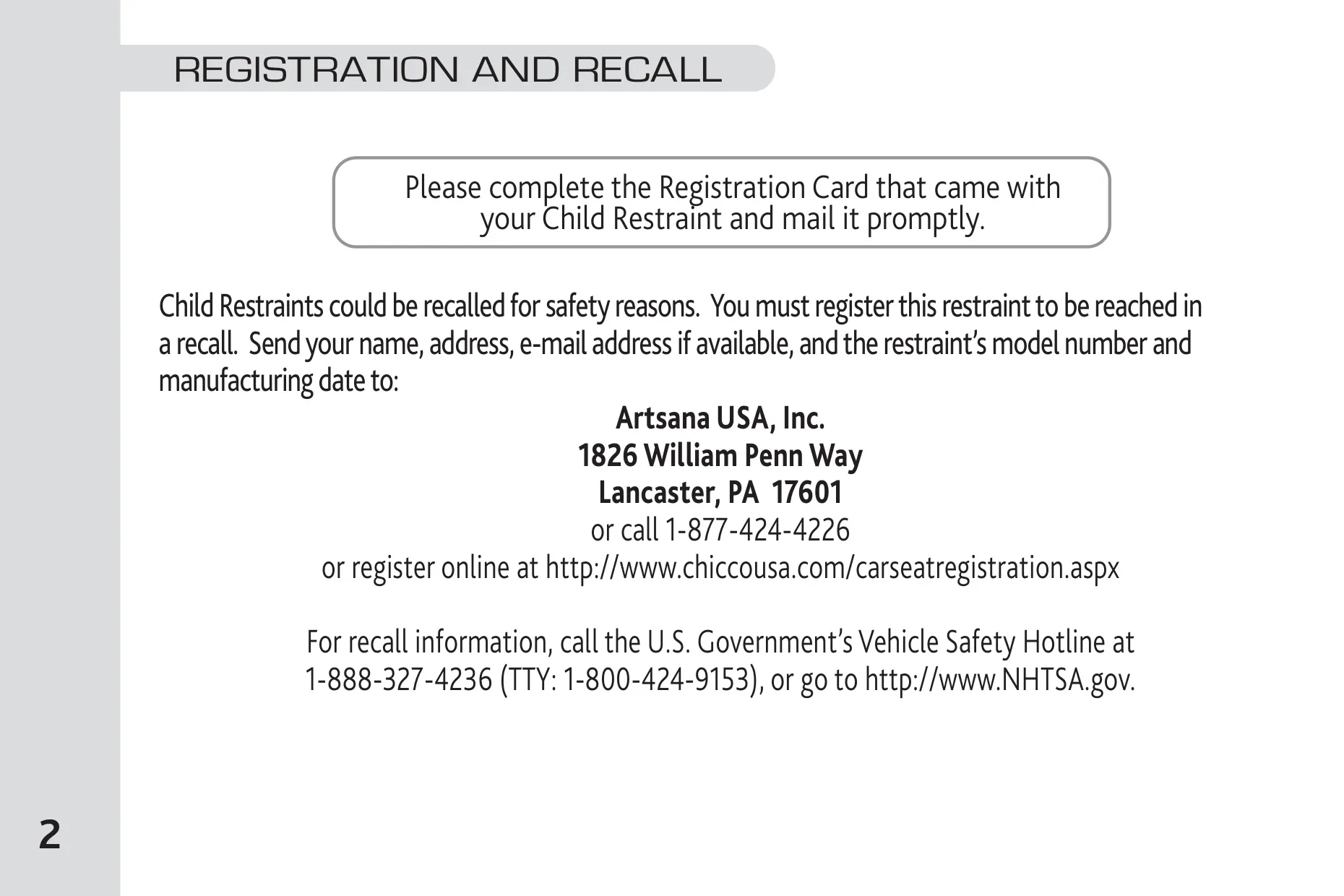

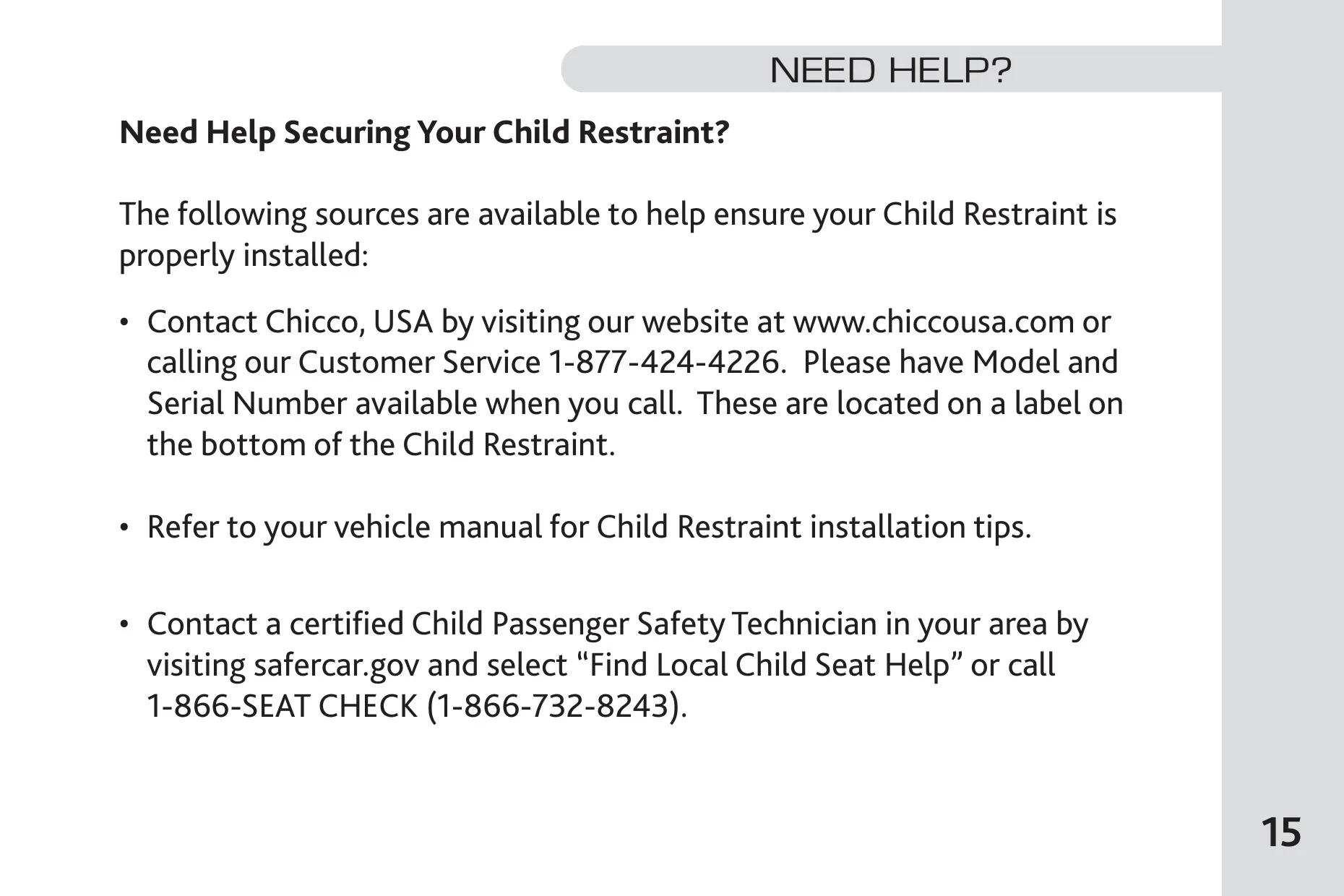

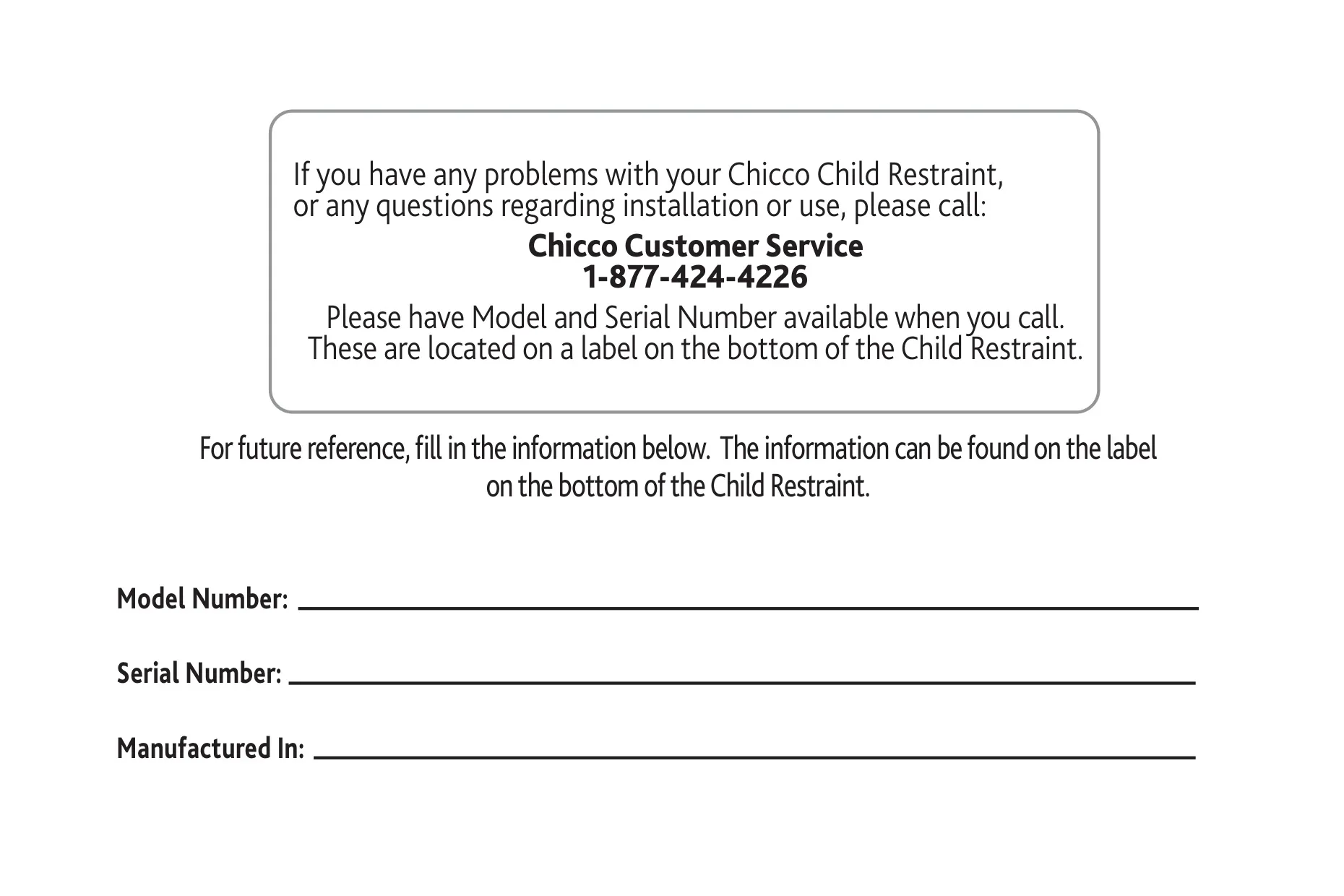

The Chicco Nextfit MAX is a convertible car seat meant to stay with a child from the first ride home until the preschool years. The manual stresses that safety starts with registration: owners should mail the included card or register online so they can be contacted in case of a recall. The model and serial numbers are printed on a label underneath the seat, and they should be ready whenever you call customer service.

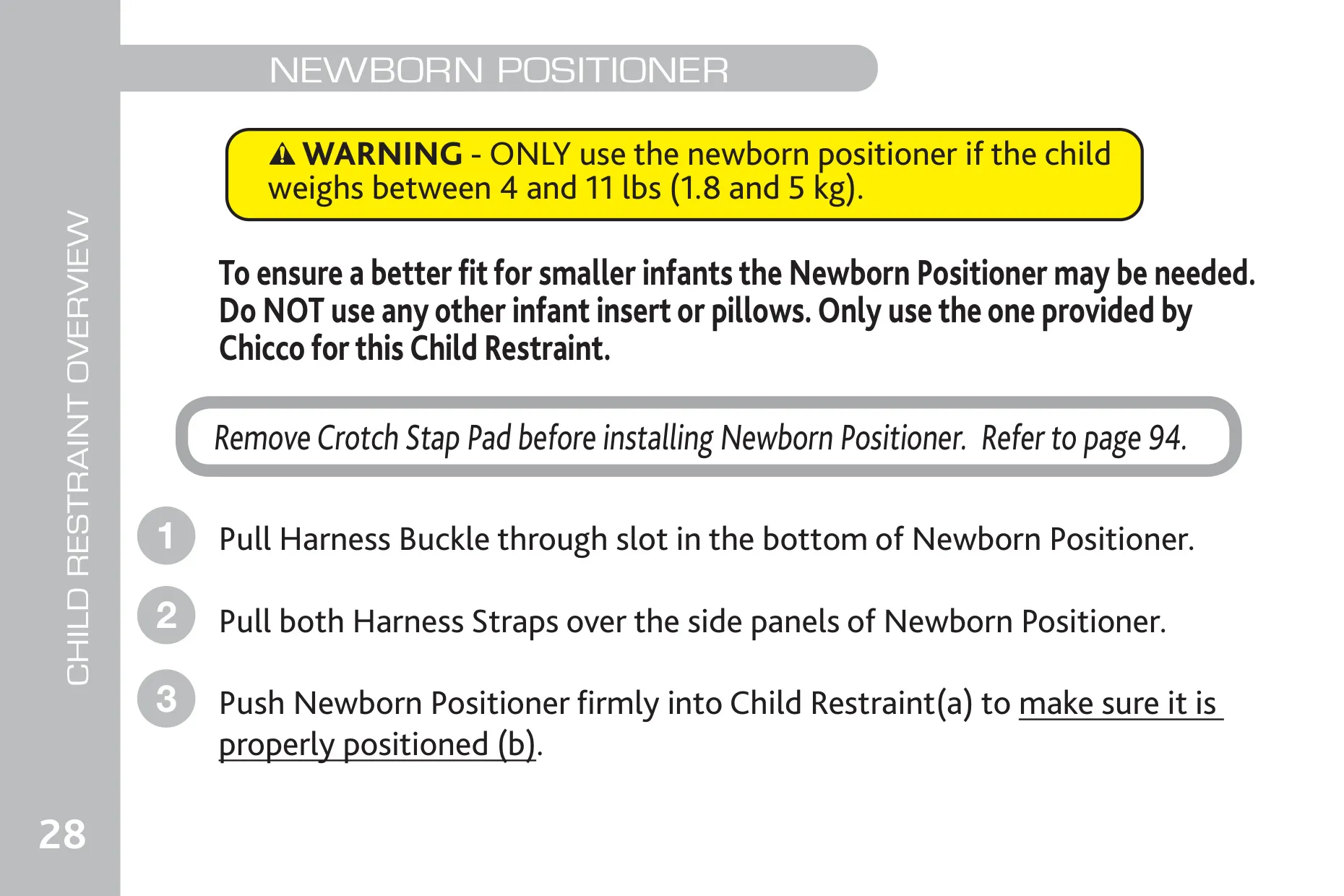

The seat ships with a Newborn Positioner for small infants. To install it, first remove the crotch strap pad, then pull the harness buckle through the slot at the bottom of the positioner. Next, route both harness straps over its side panels and press it firmly into the seat. Chicco warns against using any other infant insert, pillow or extra padding under or behind the child. Parents of premature babies should talk to the infant's doctor before using the seat.

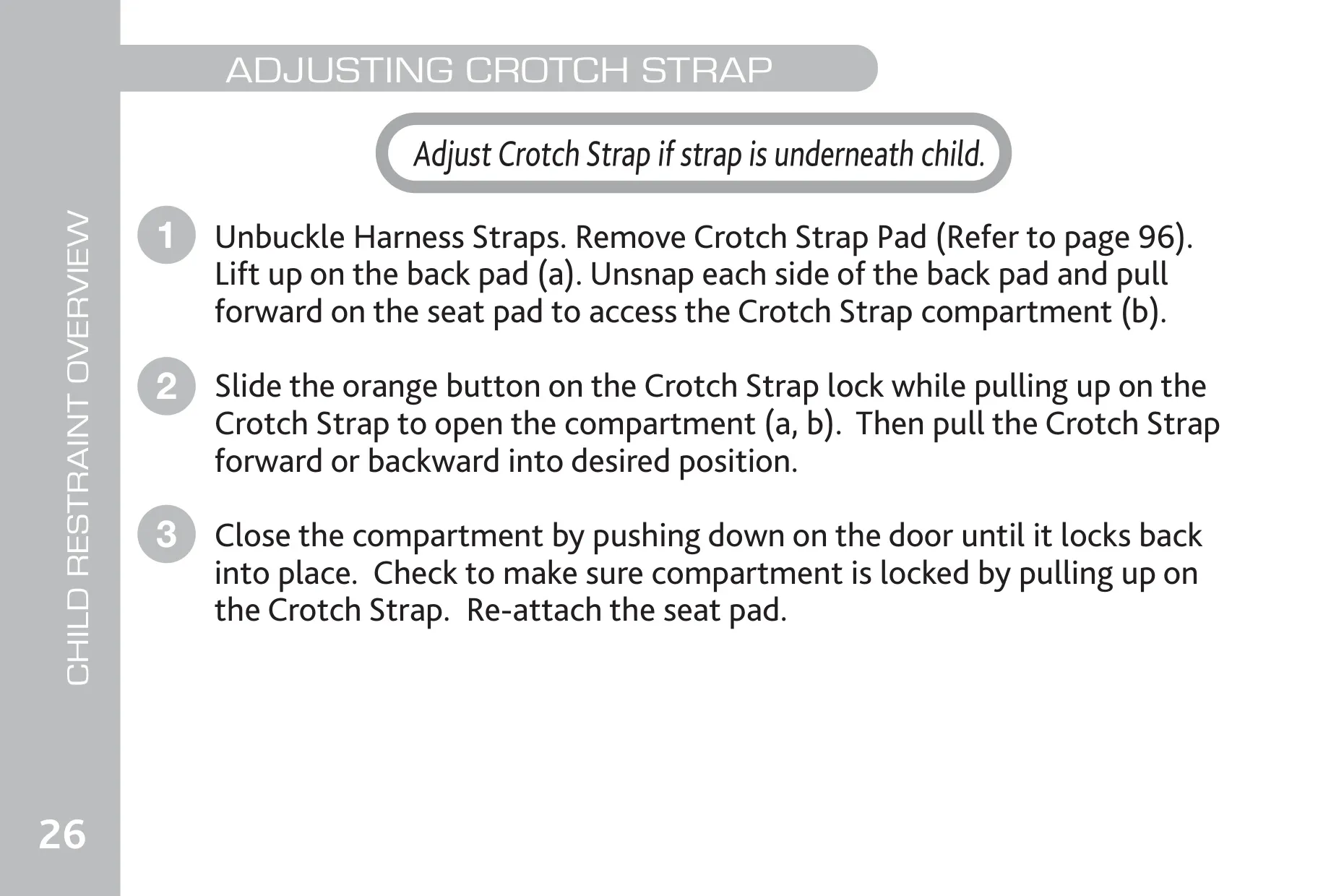

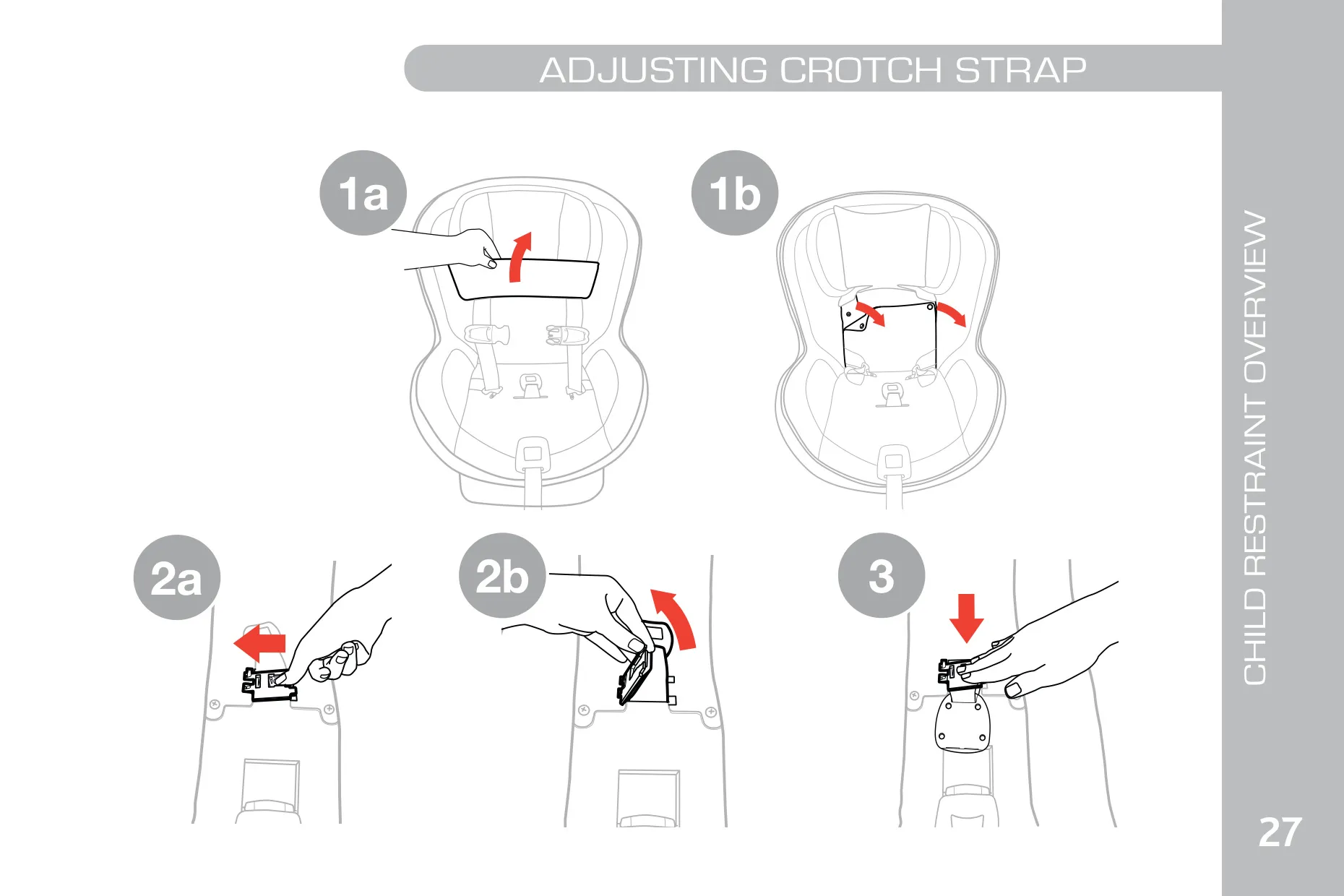

The crotch strap can be moved if it ends up underneath the child. After unbuckling the harness, lifting the back pad and unsnapping the seat pad, you reach a compartment inside the seat. Slide the orange button on the crotch strap lock to free the strap, move it forward or backward, and then push the door down until it locks. Pulling up on the strap confirms it is secured.

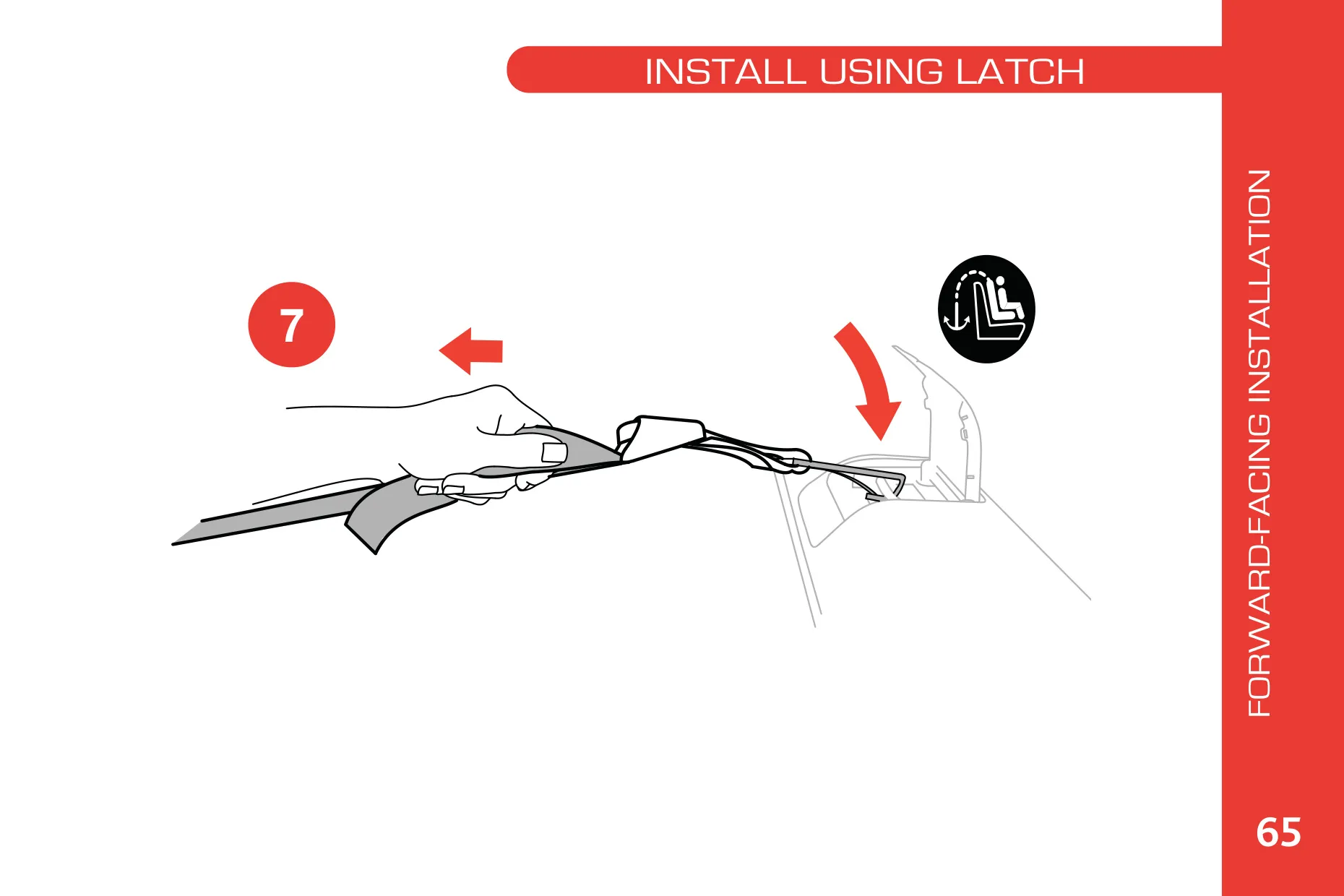

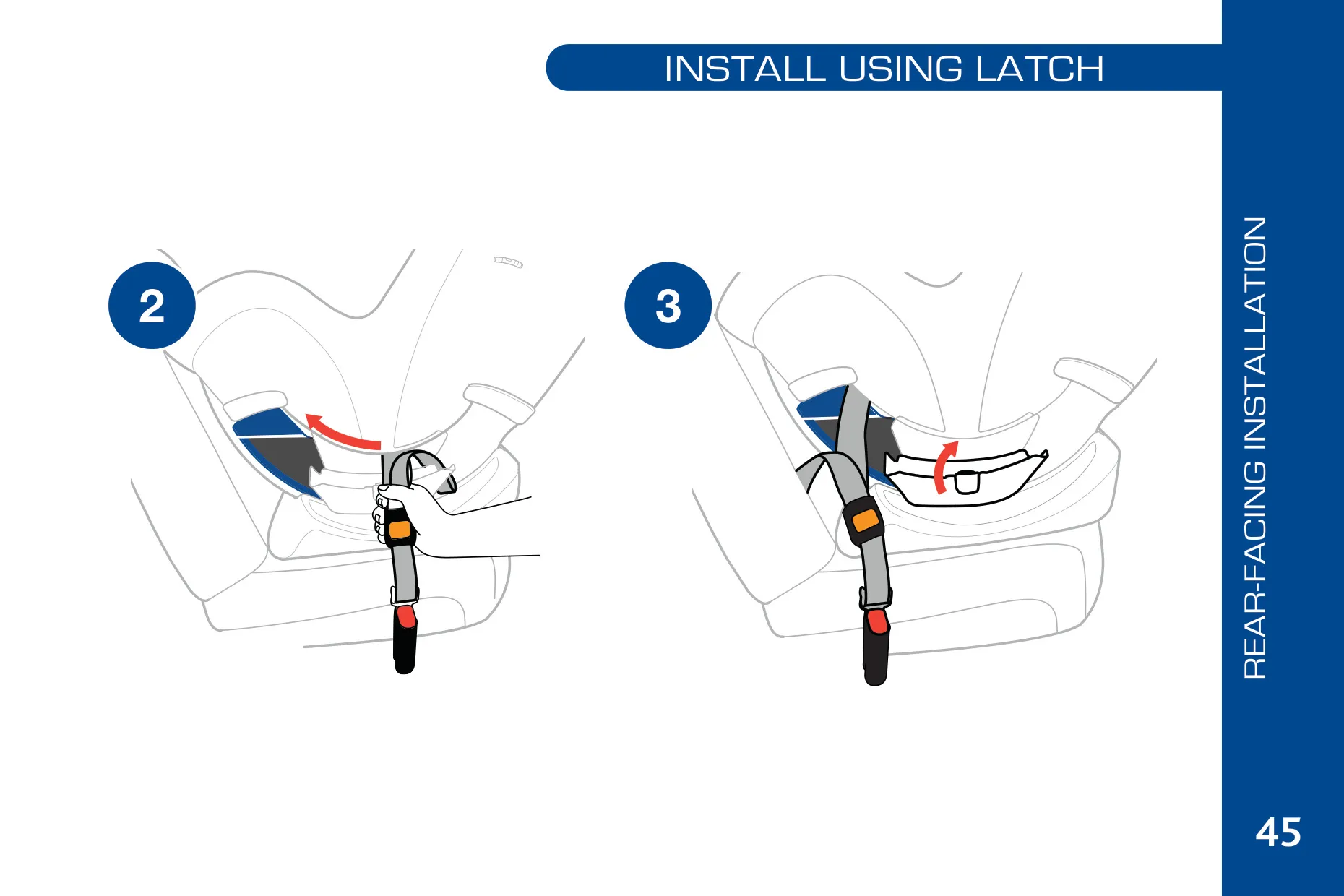

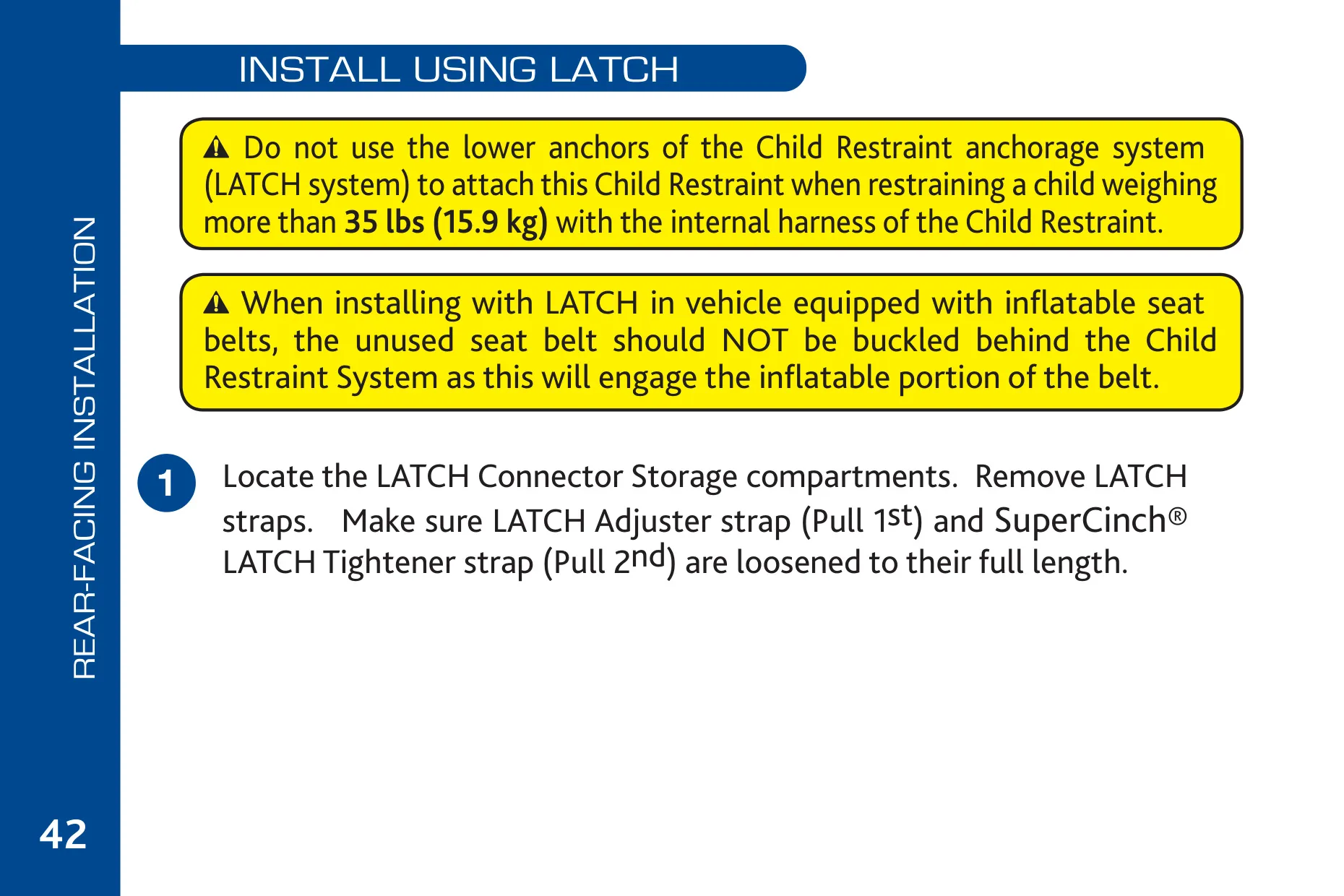

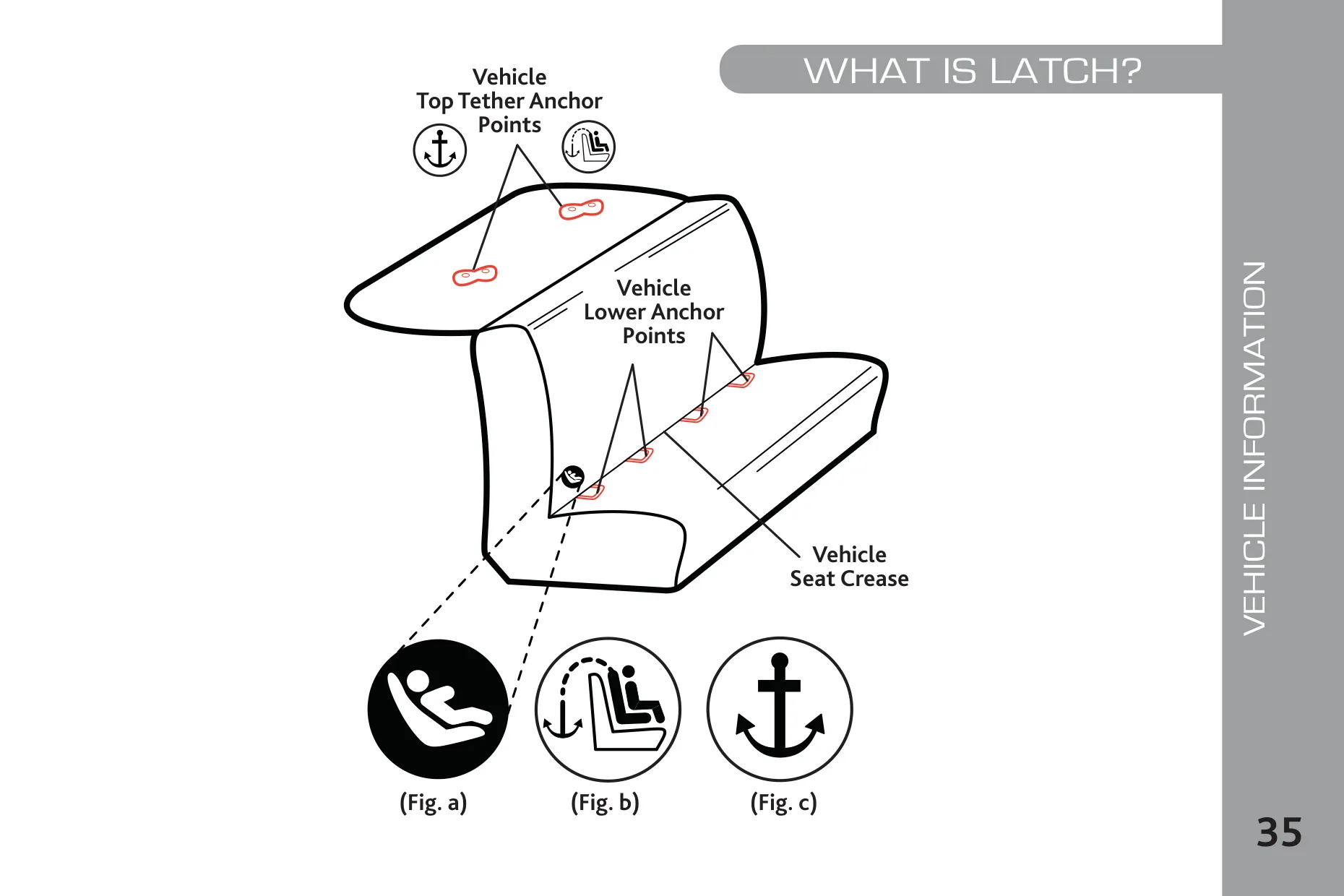

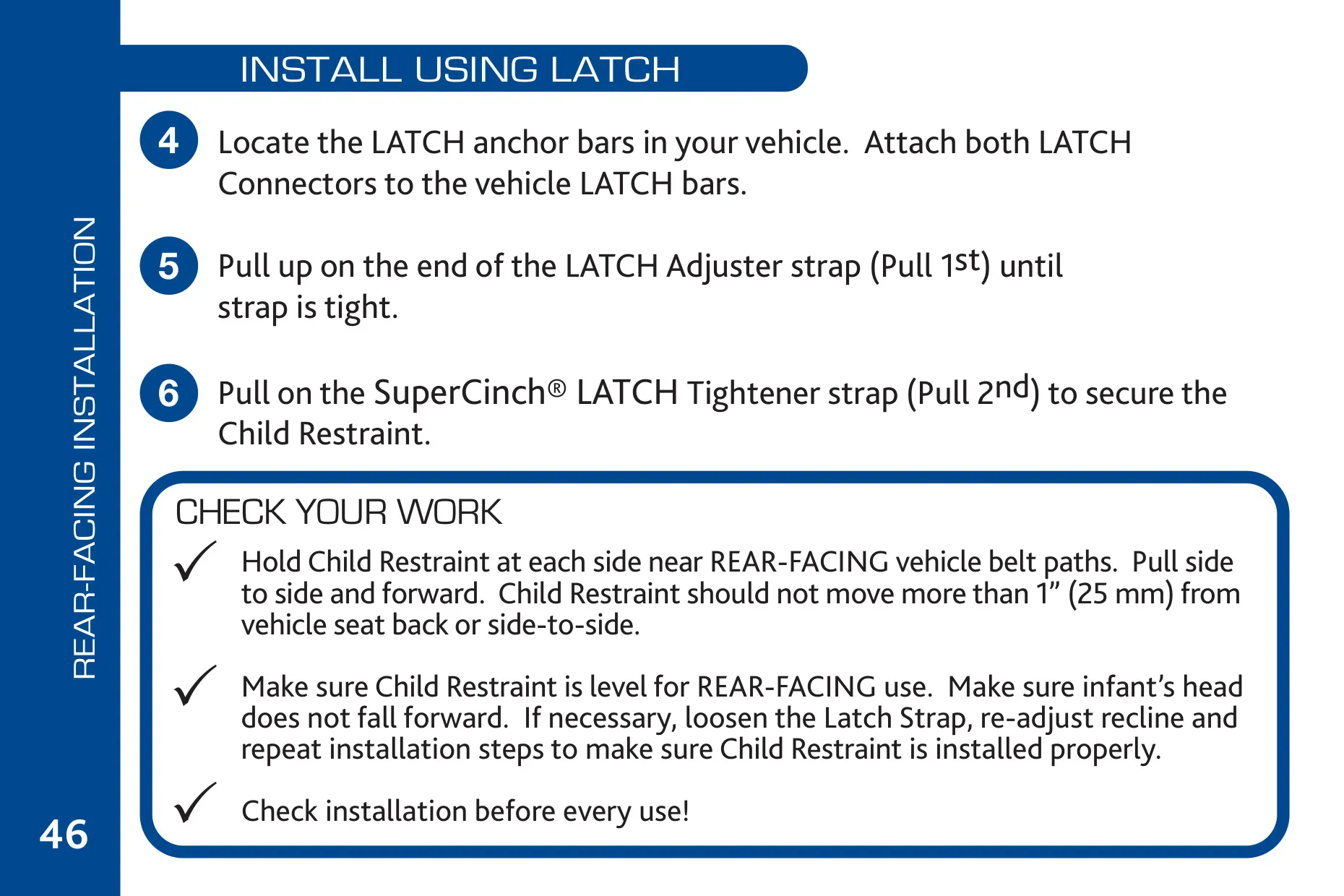

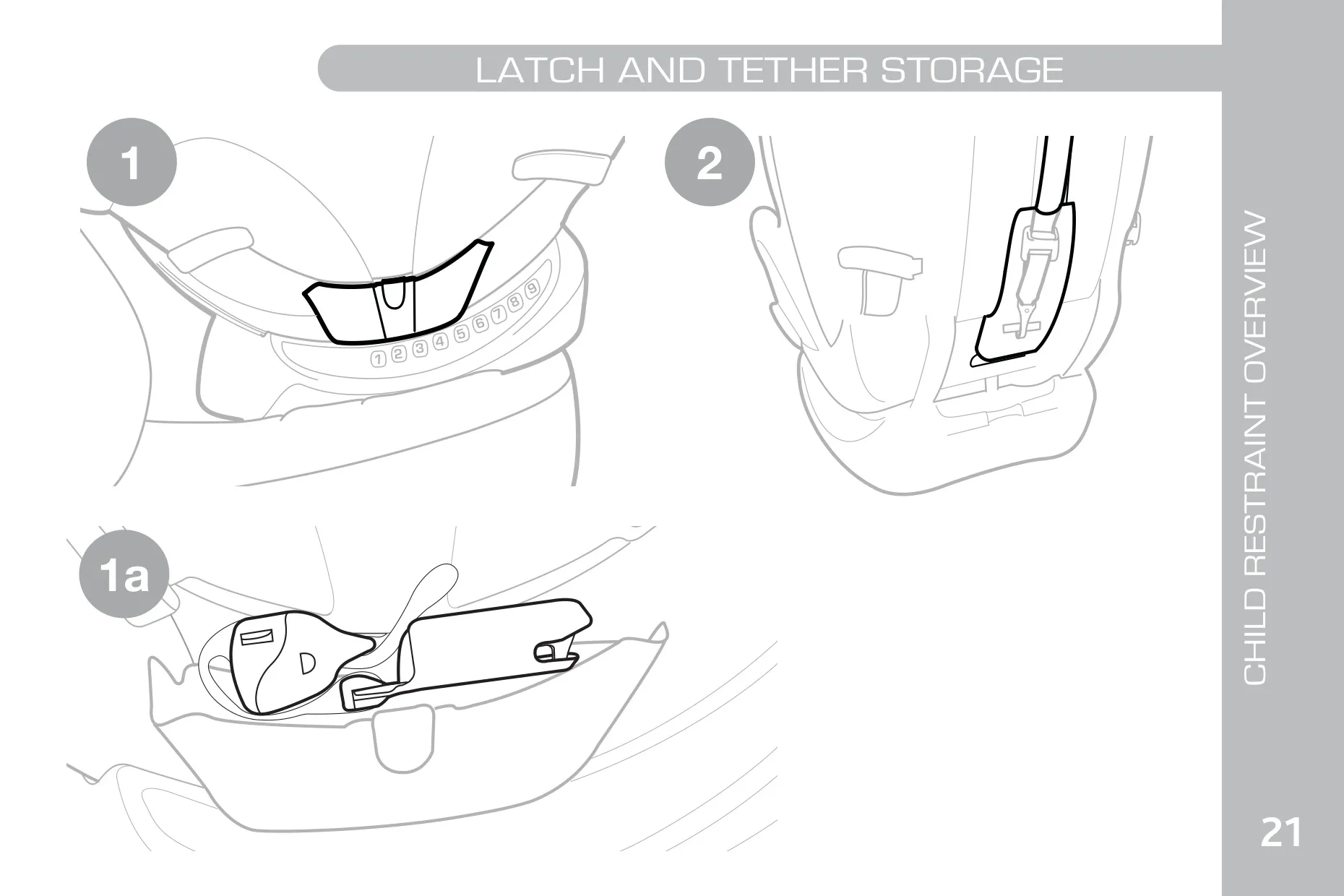

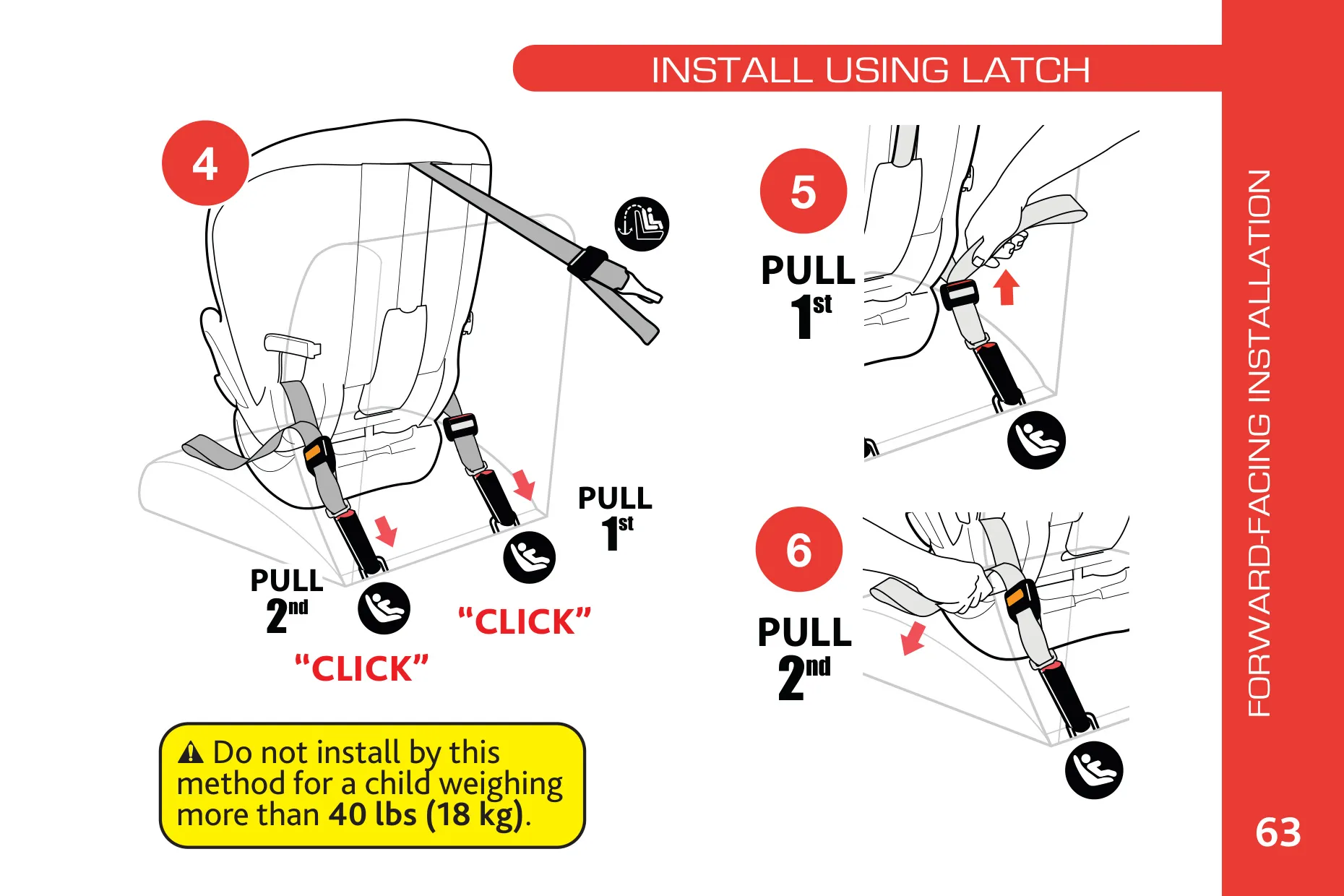

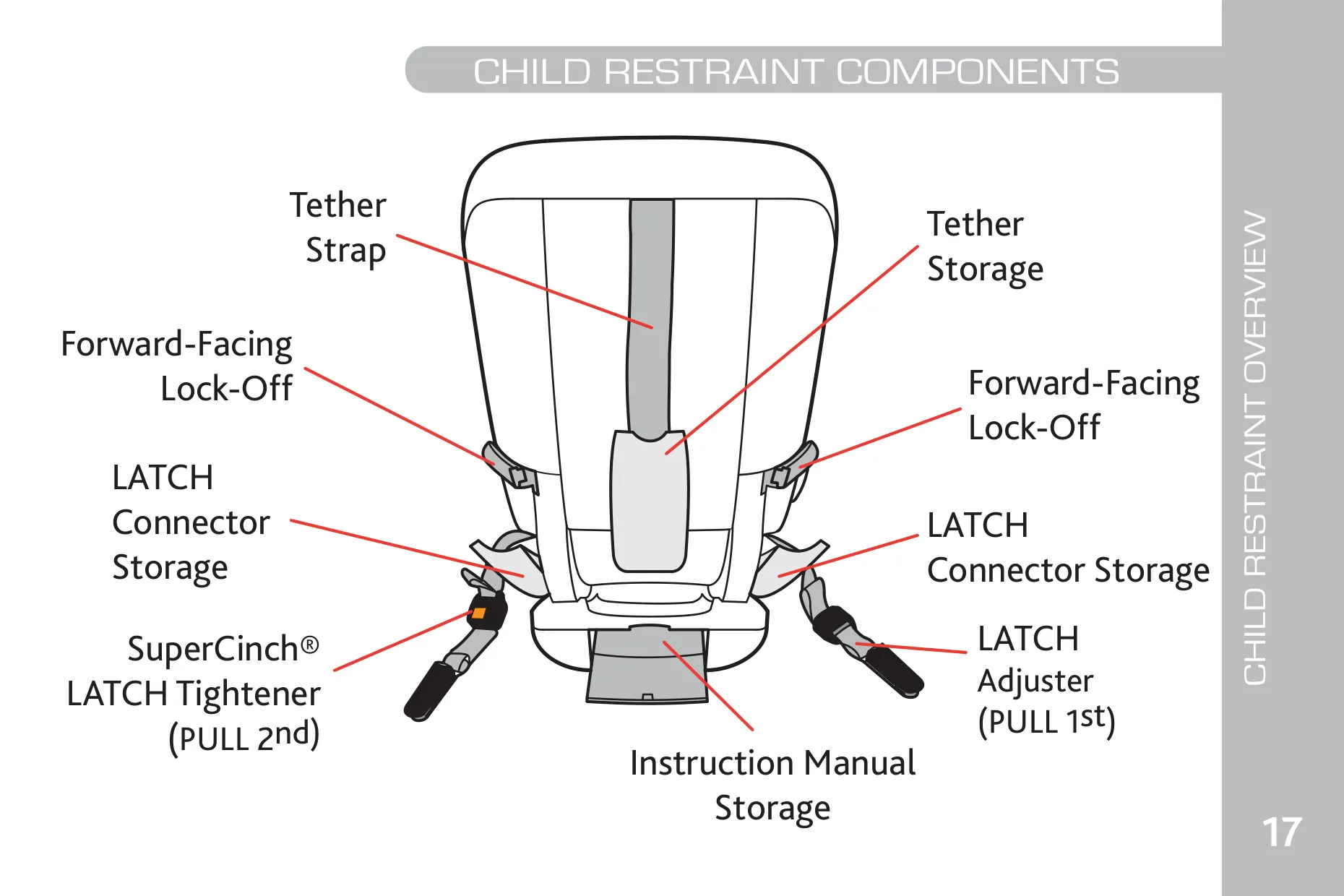

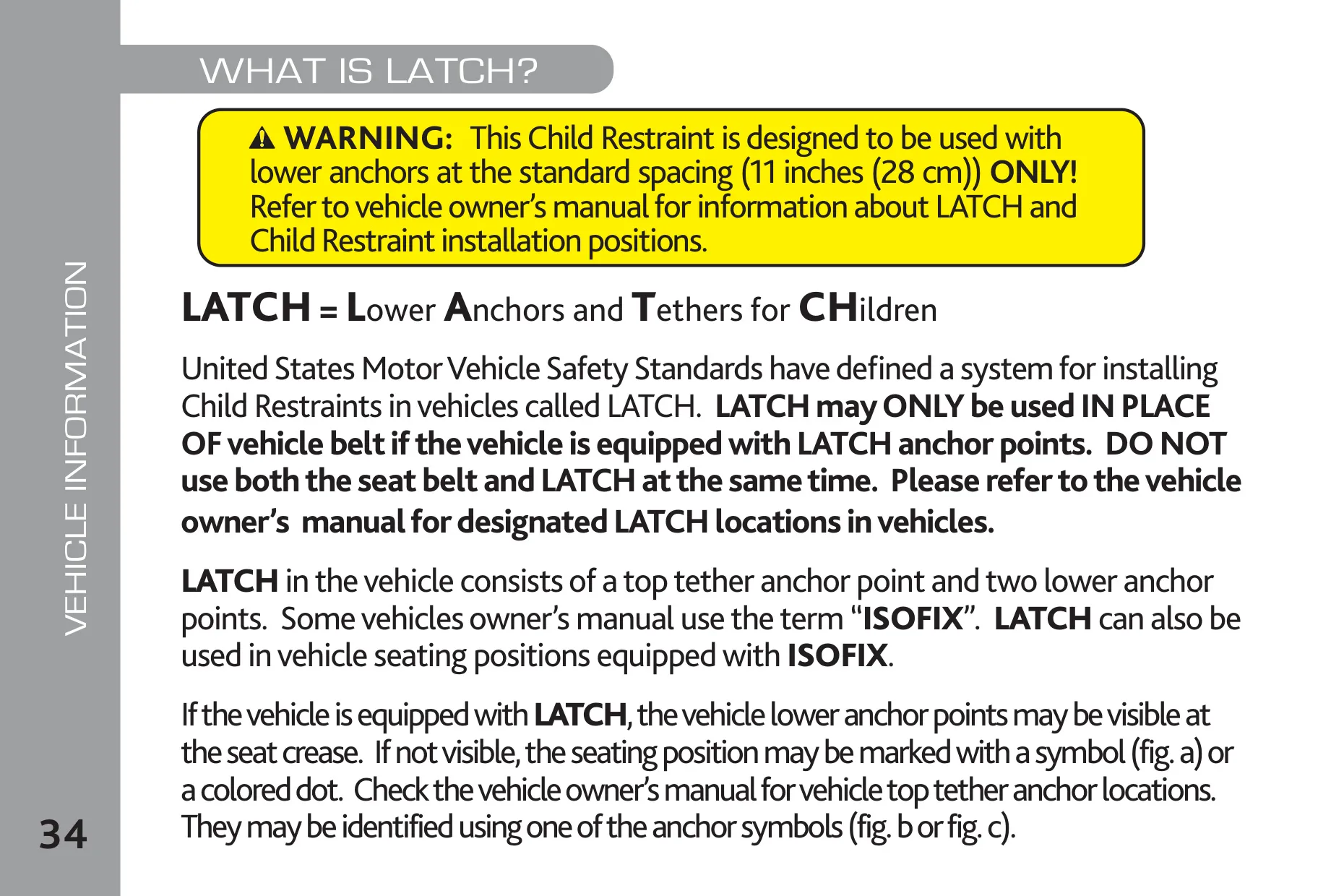

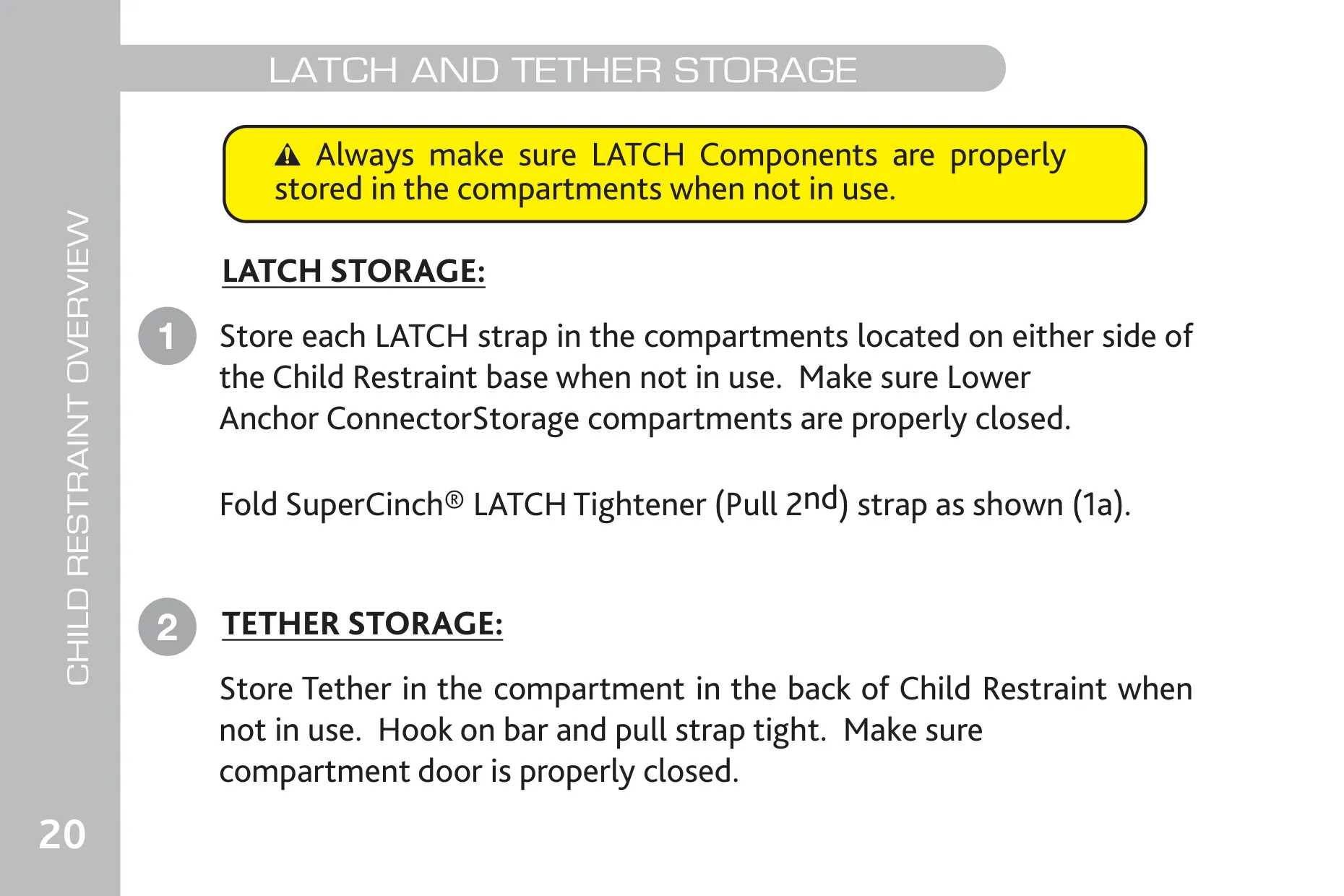

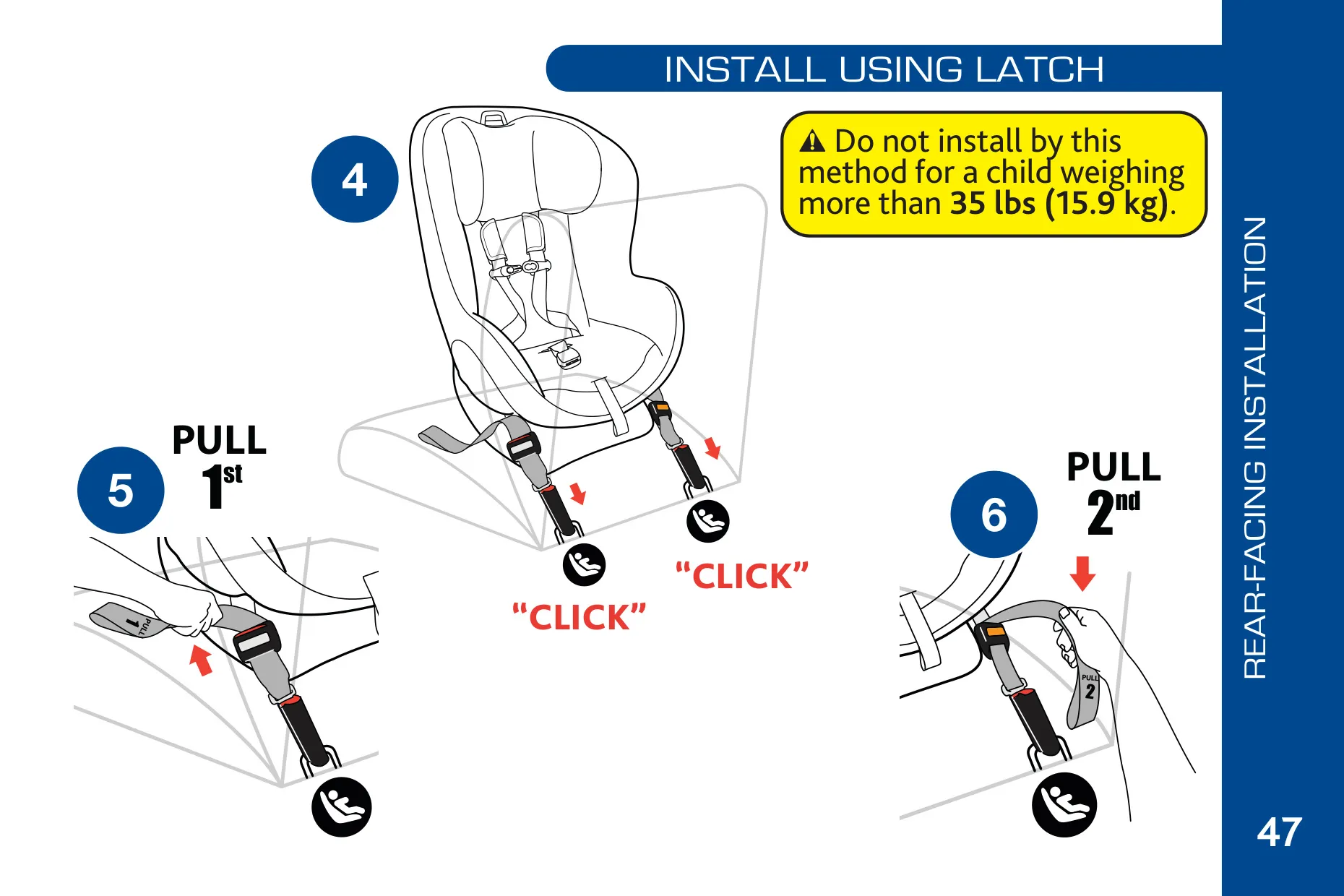

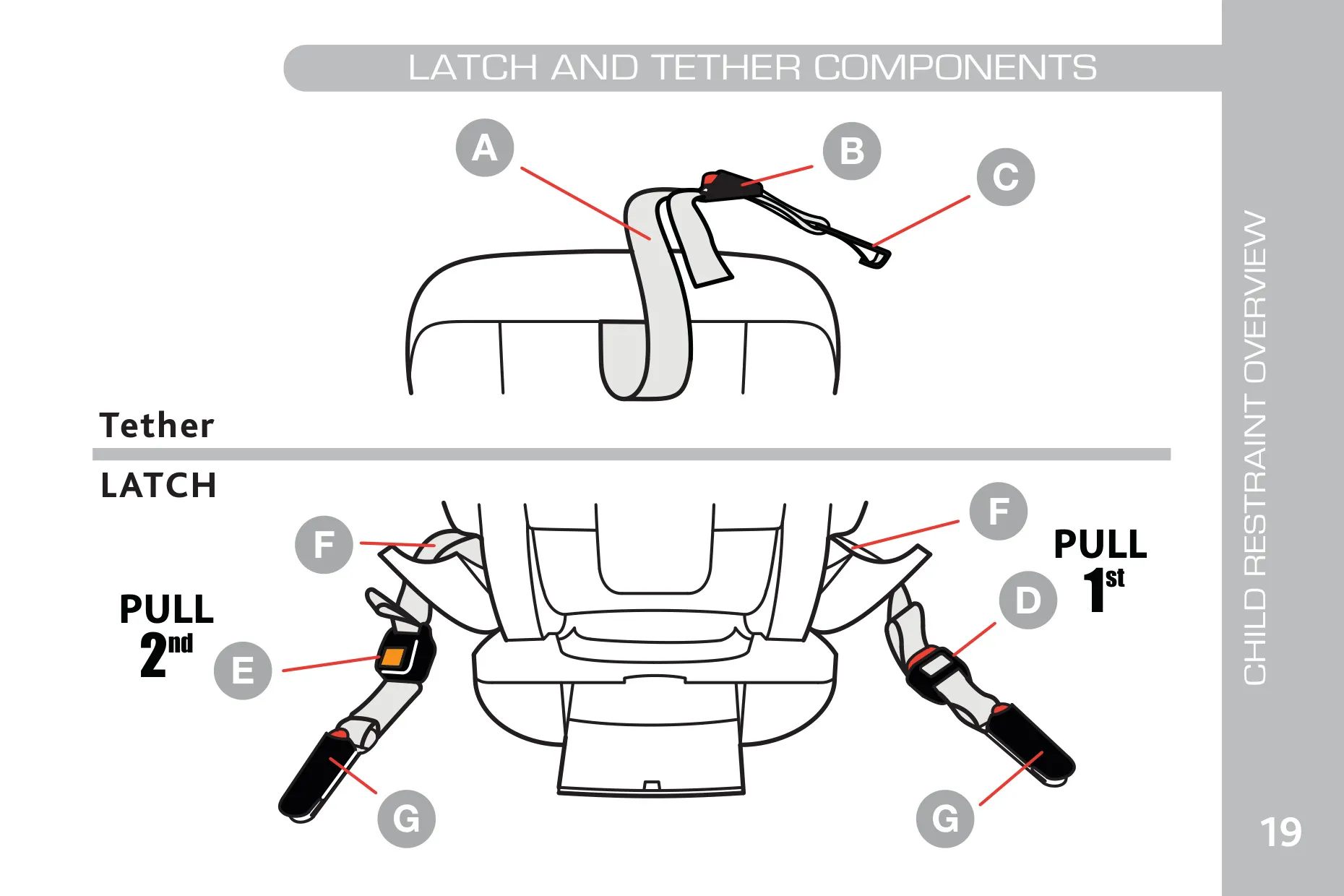

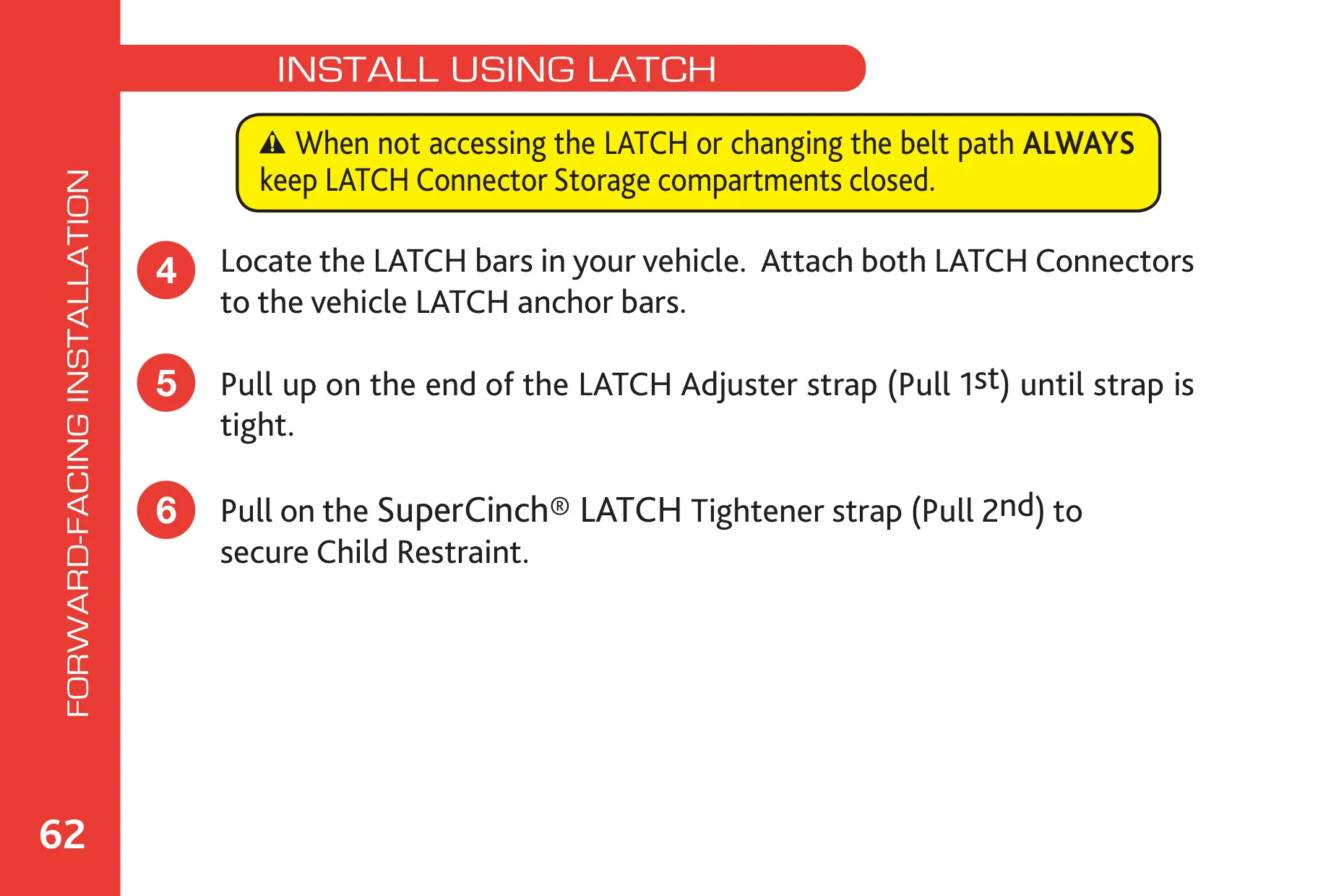

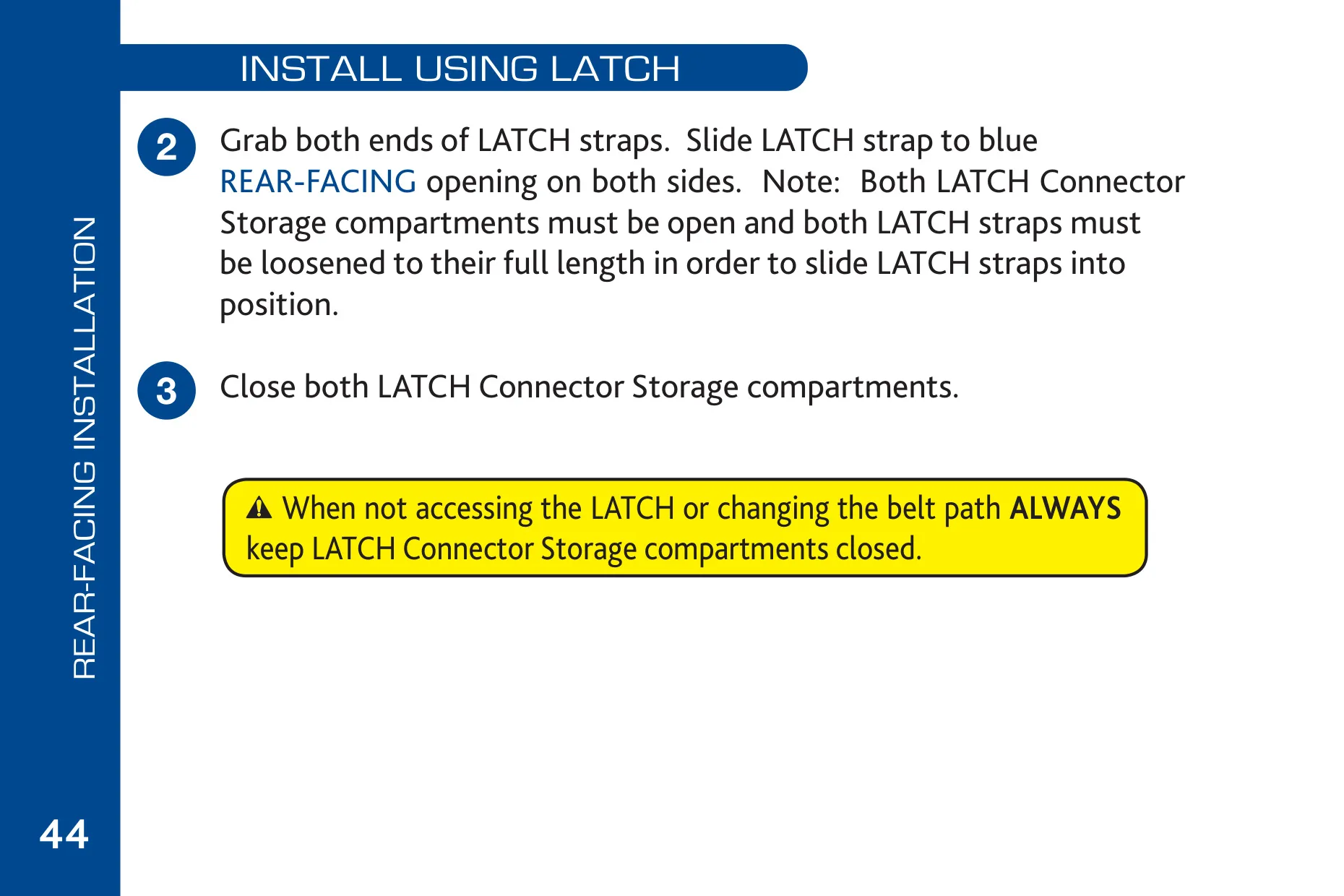

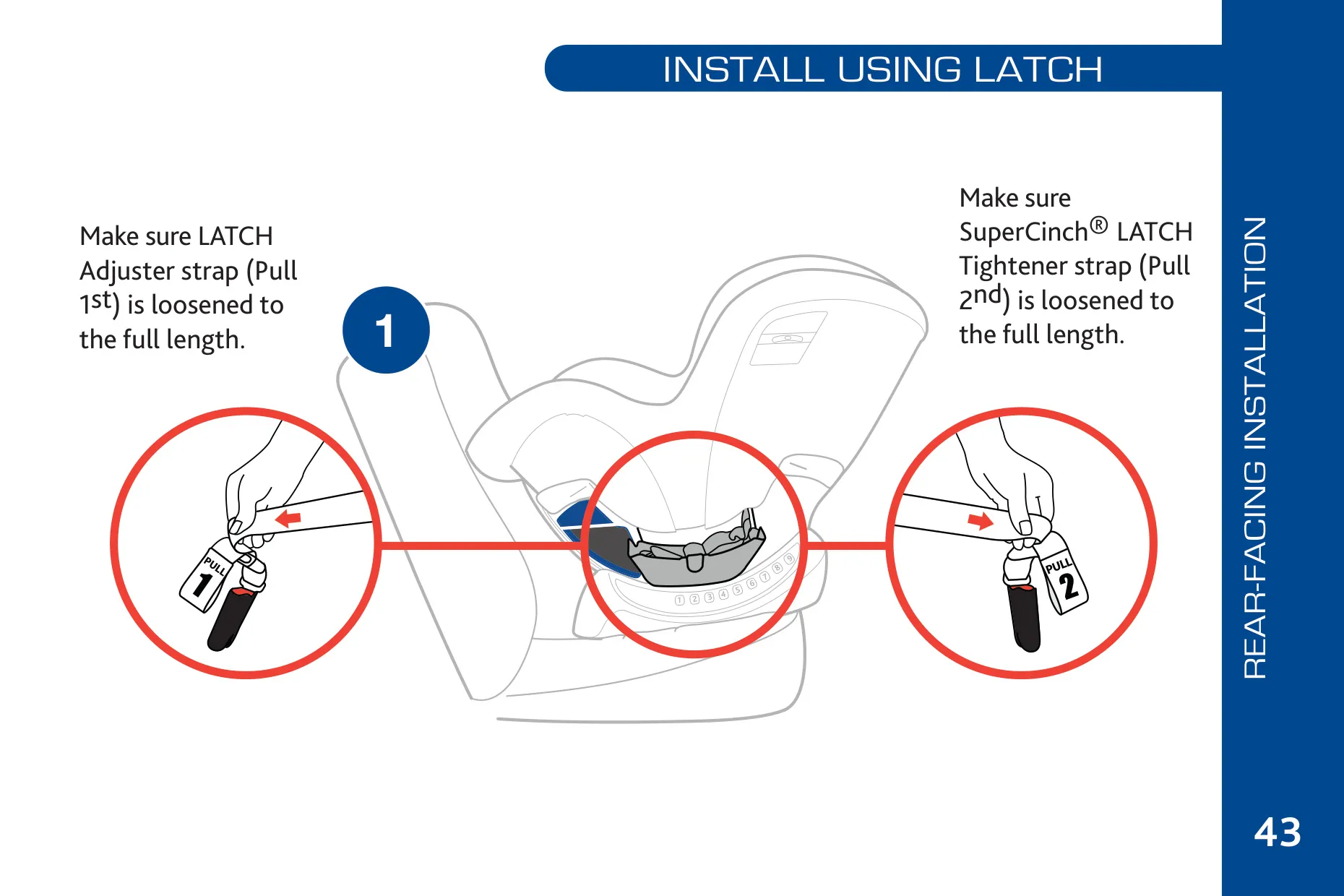

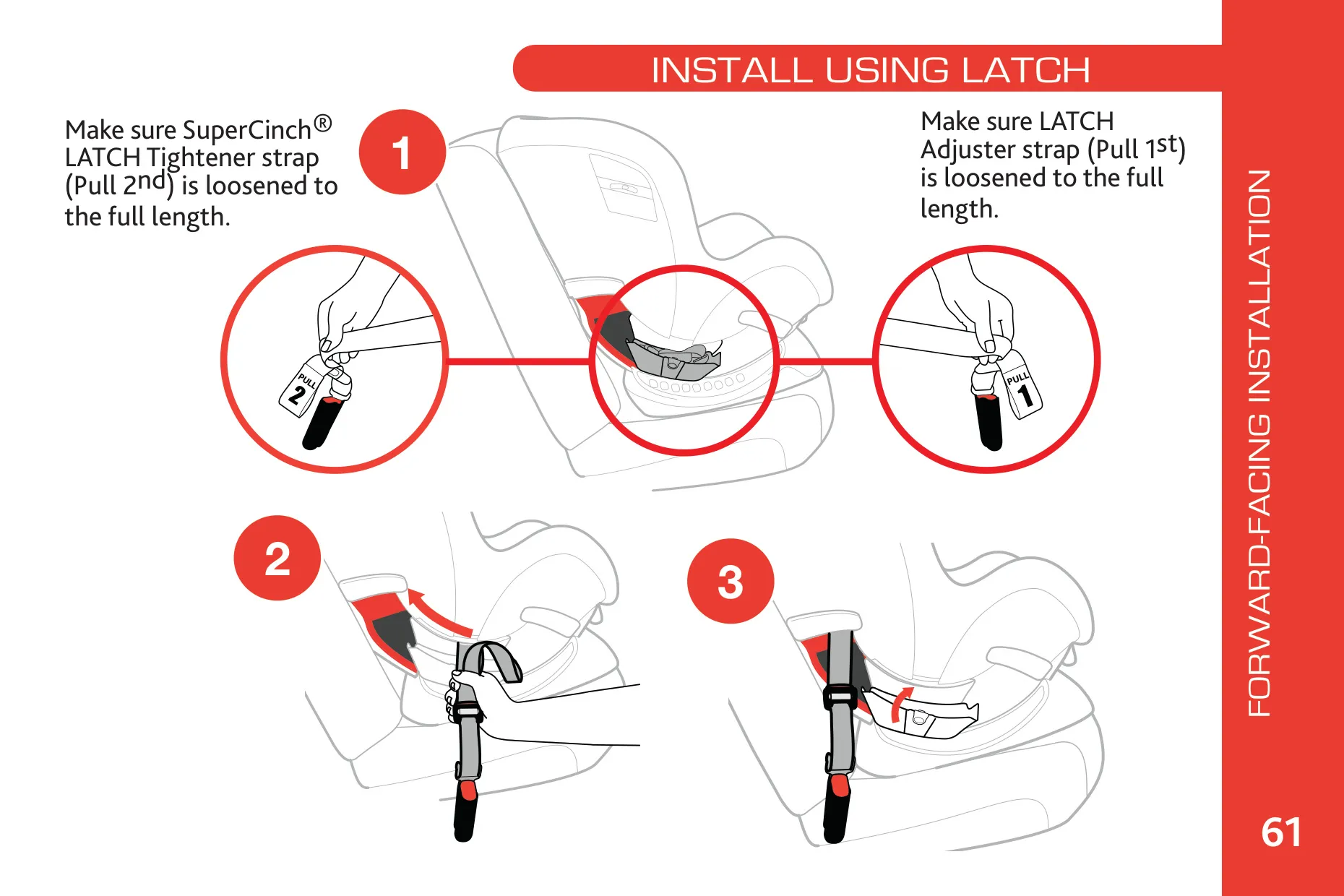

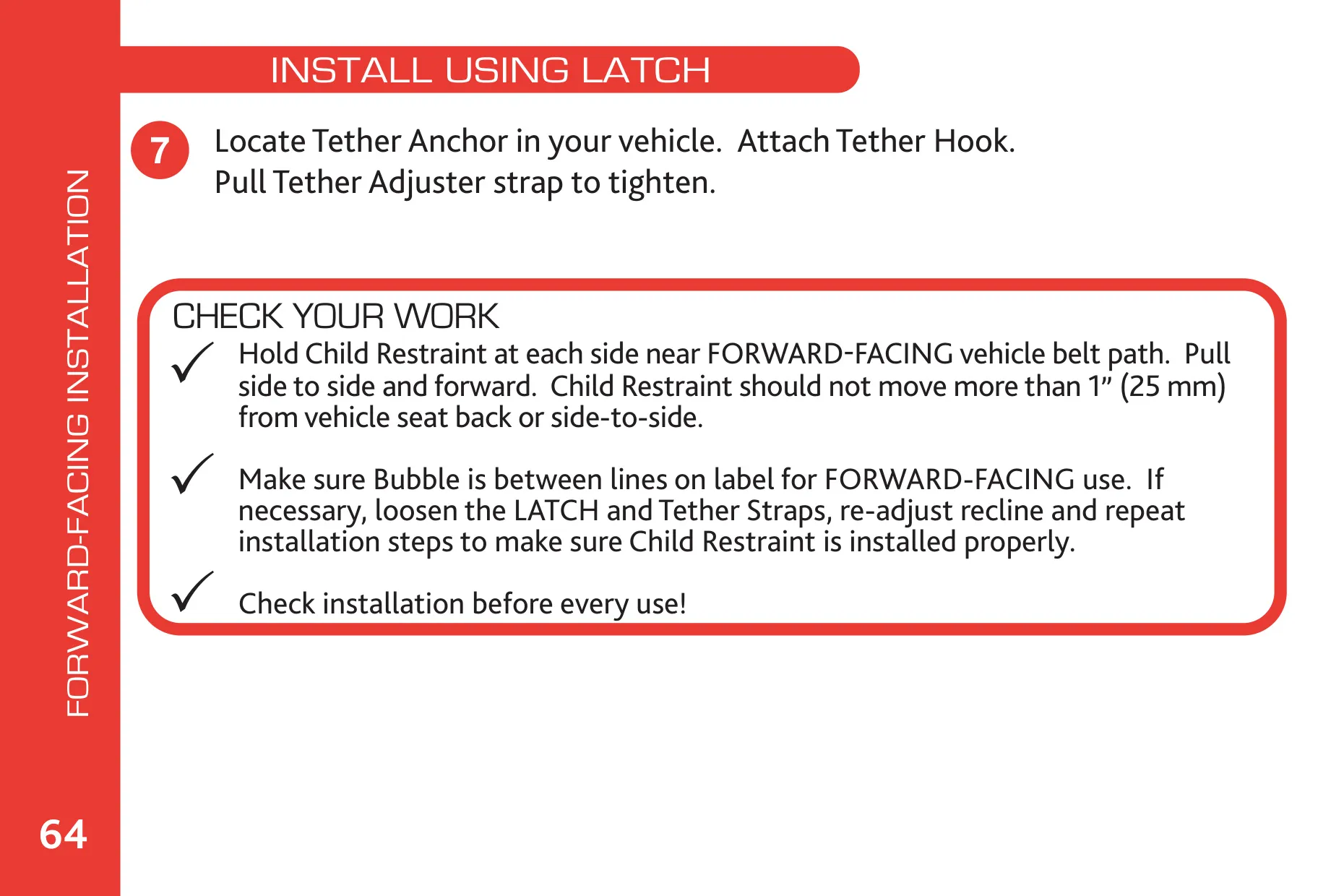

Before LATCH installation, both straps must be fully loosened and moved to the correct colored opening while the storage compartments are open. Once the connectors click onto the vehicle anchor bars, you tighten the system with the two-stage pull sequence. When the LATCH system is not in use, the straps fold into storage compartments on each side of the base. The tether hooks onto a bar inside a rear compartment, and the user guide has its own storage slot at the back of the base.

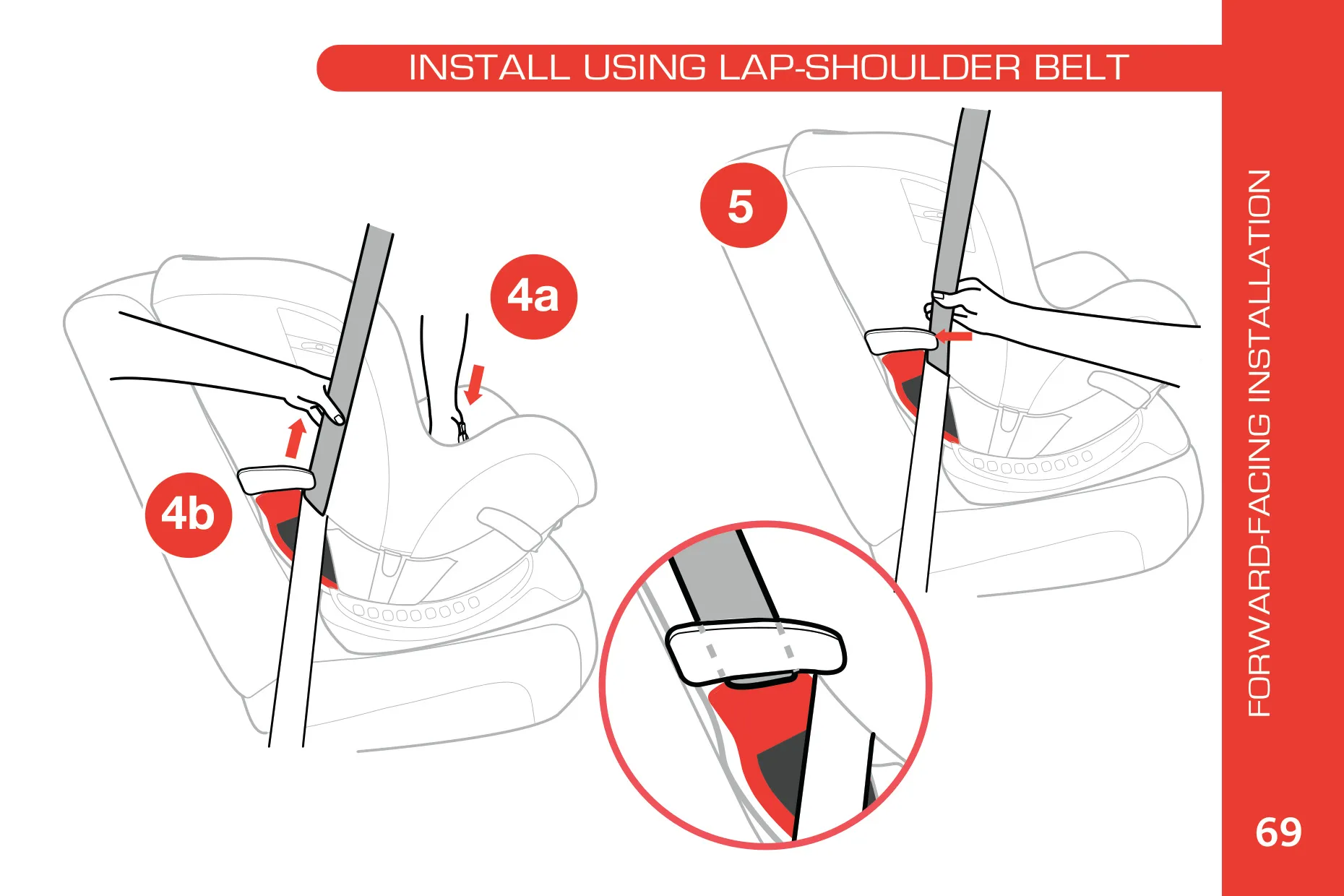

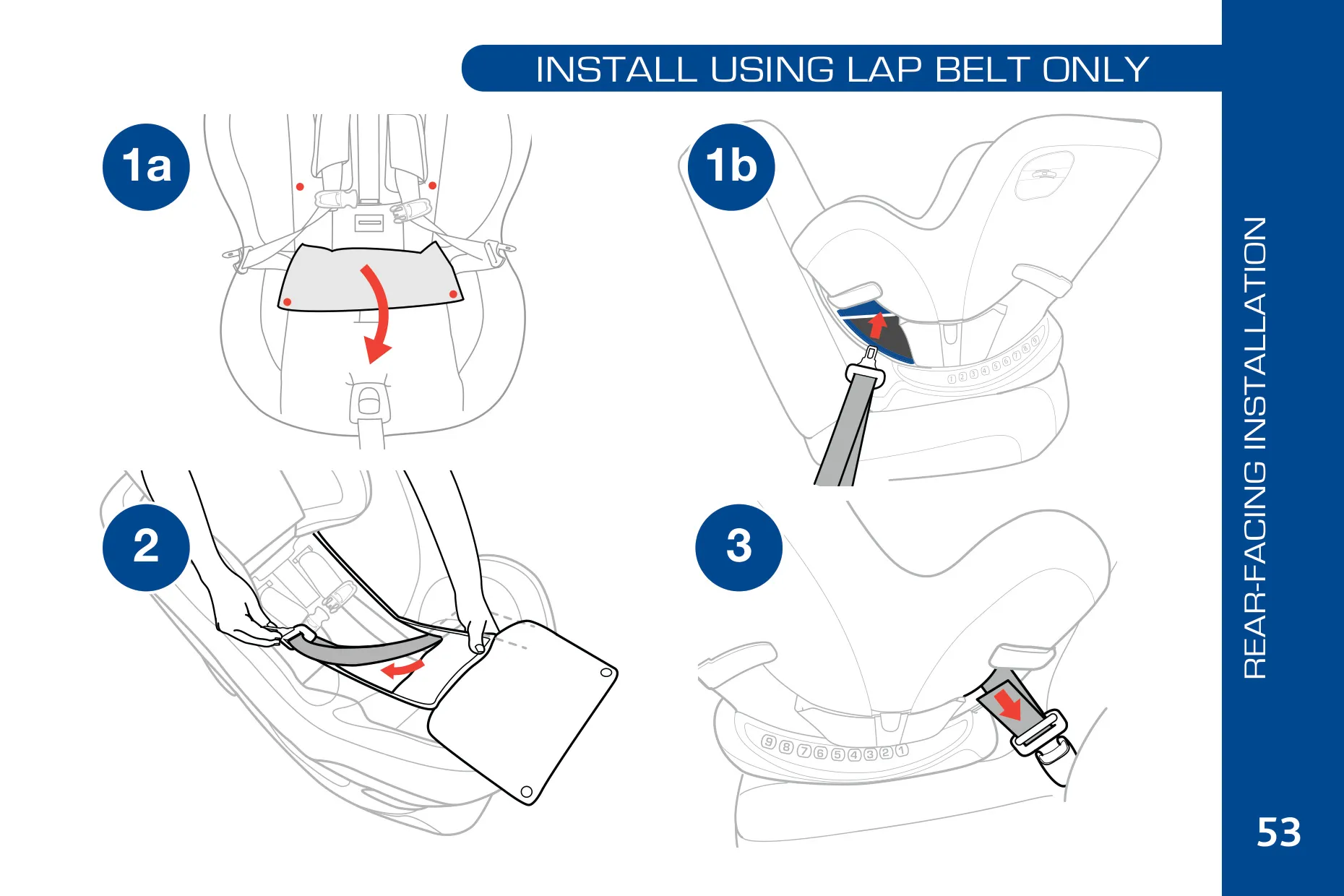

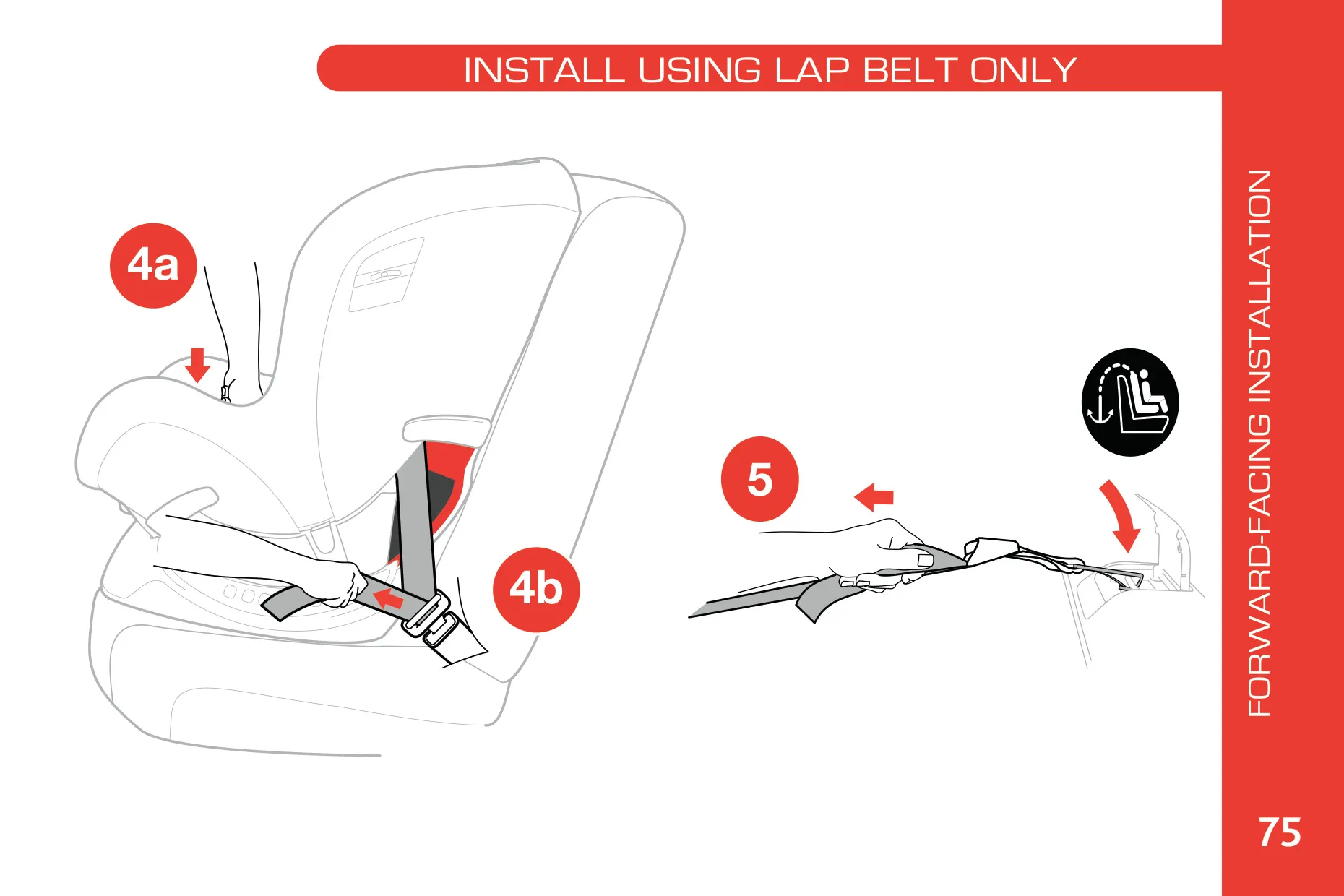

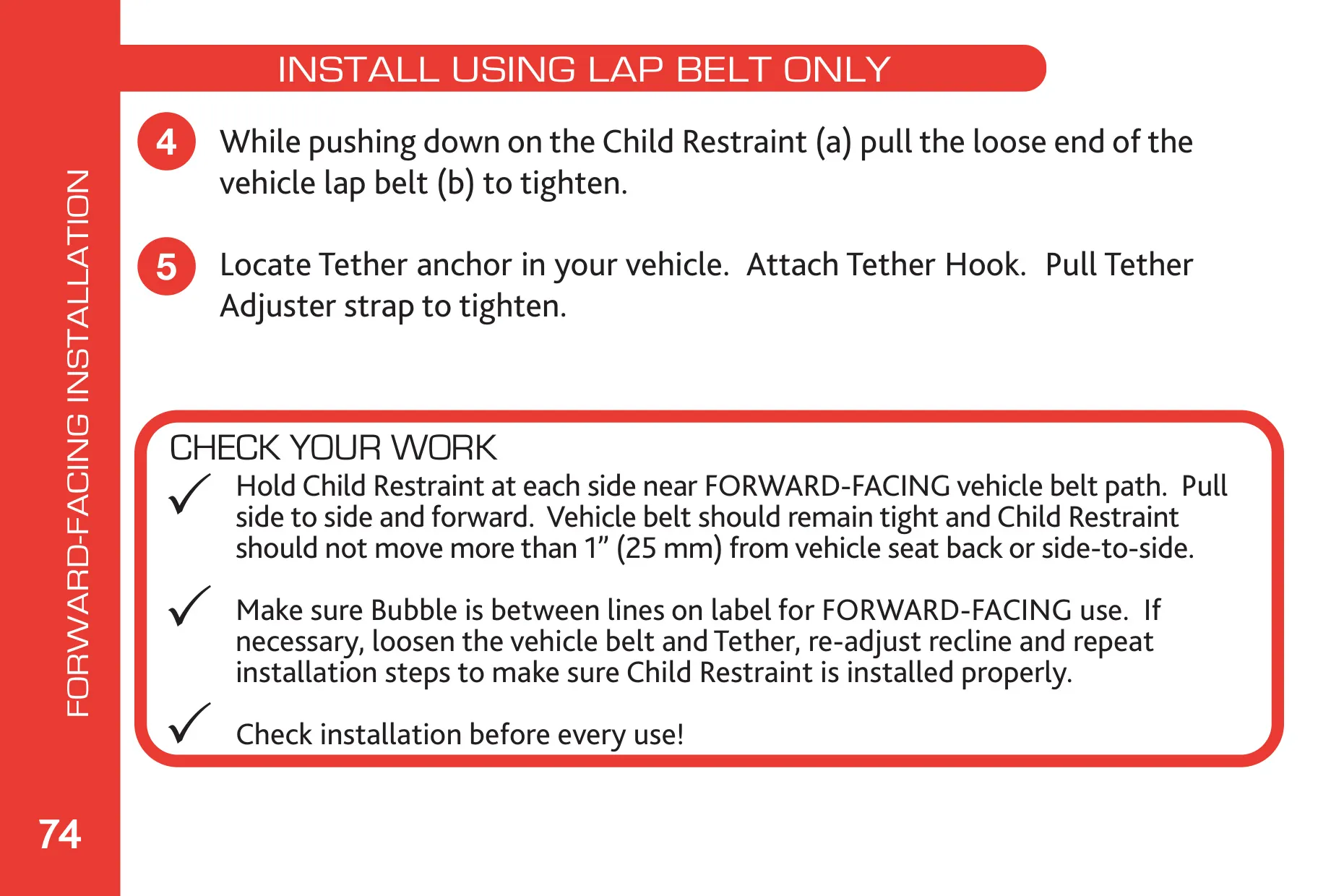

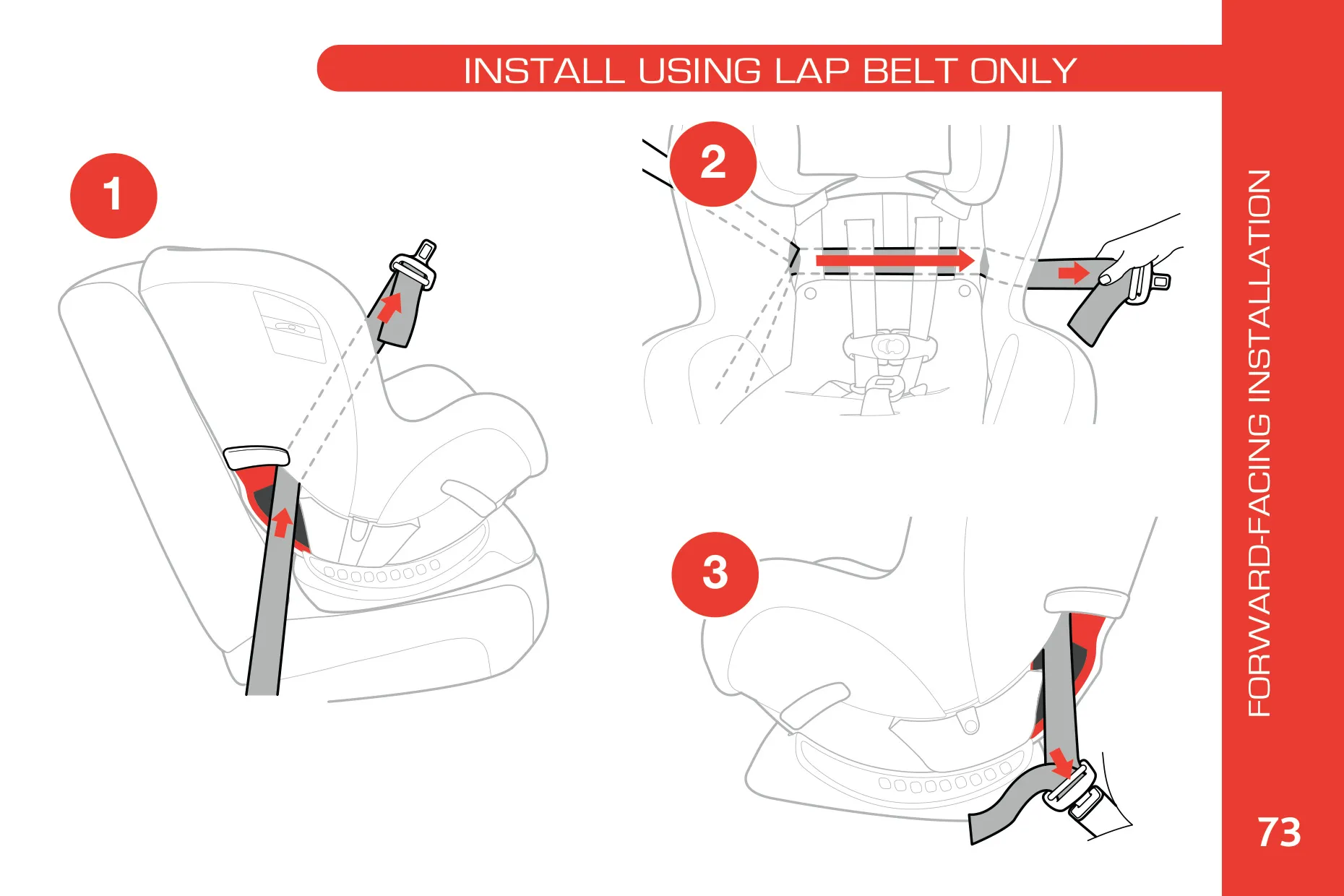

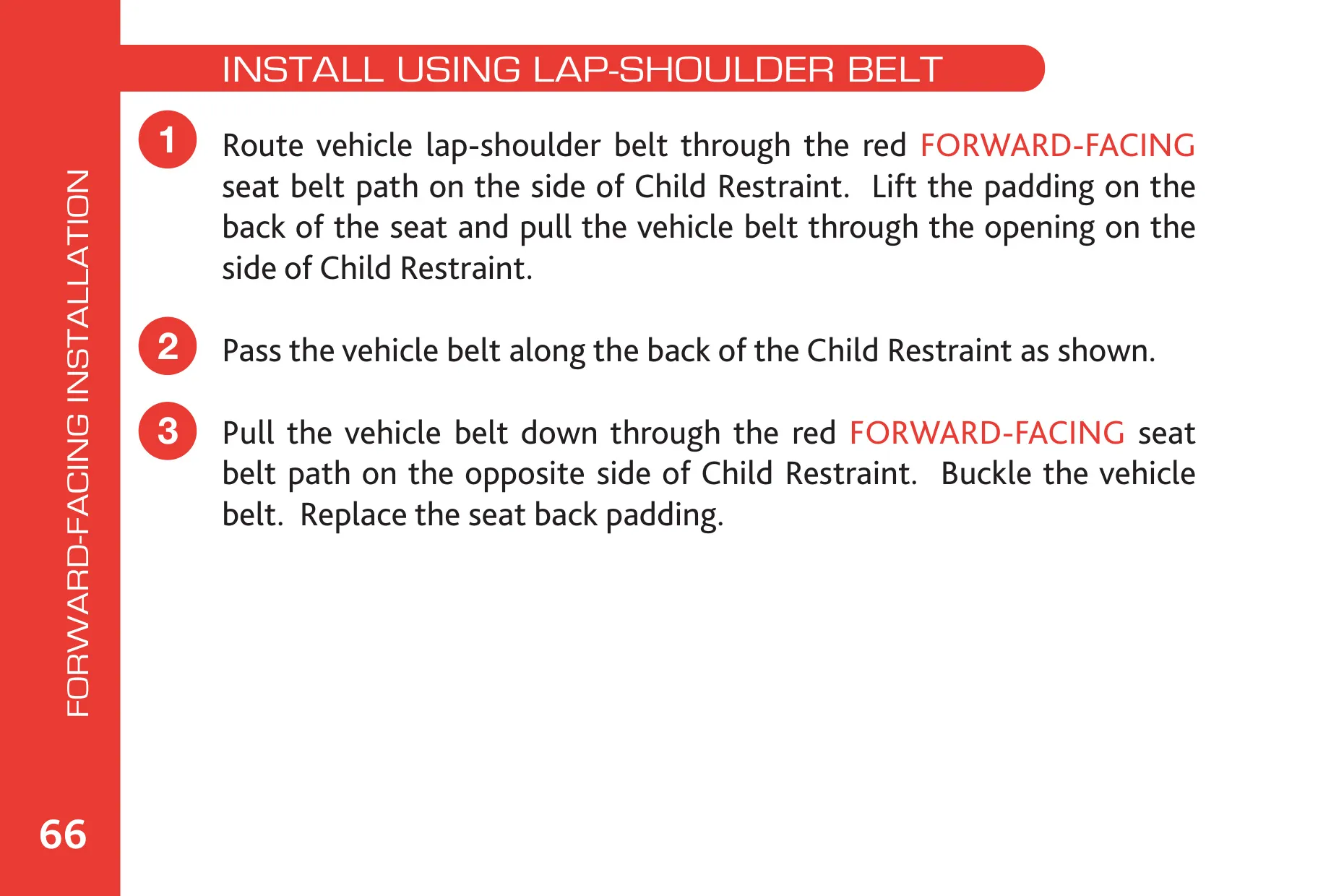

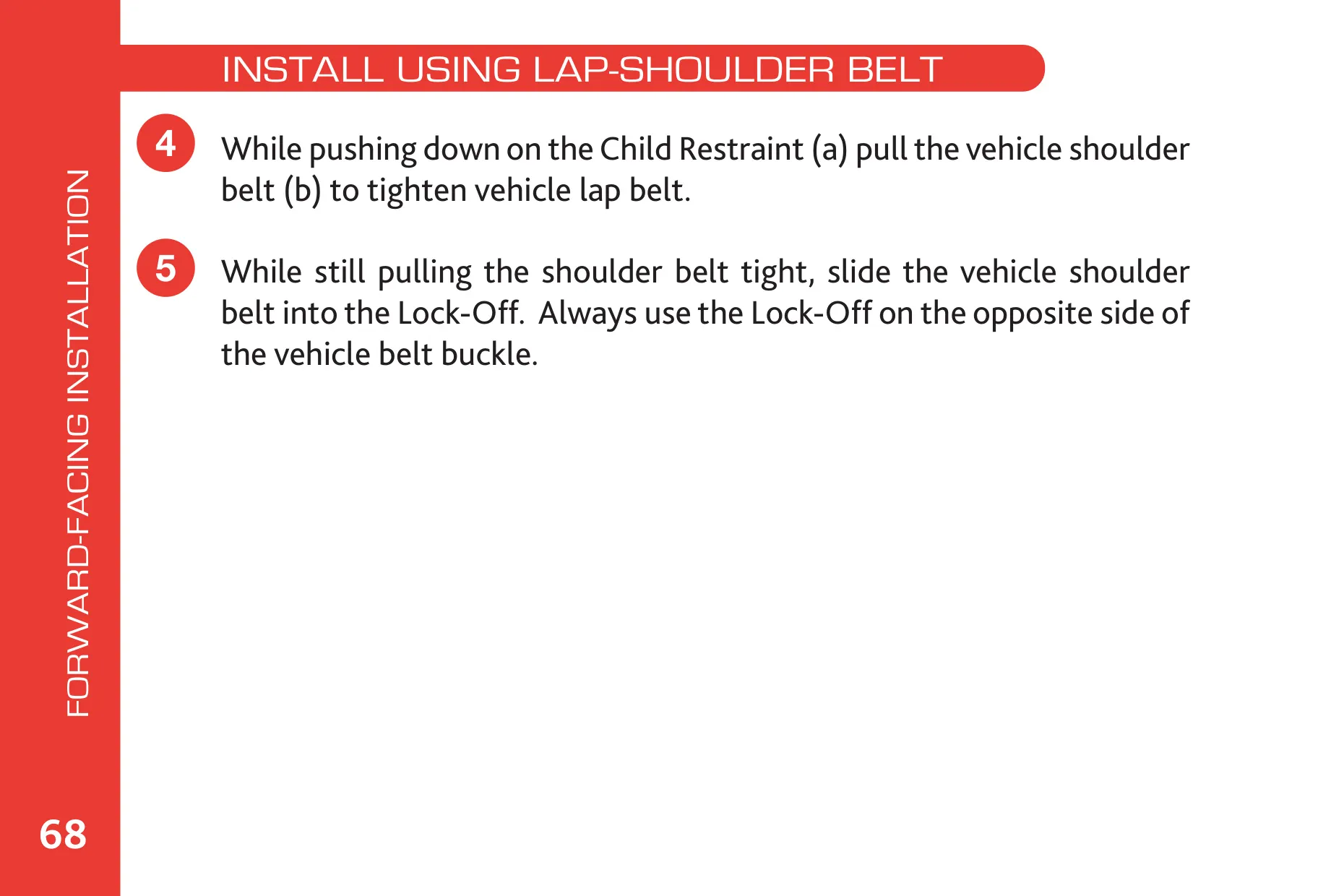

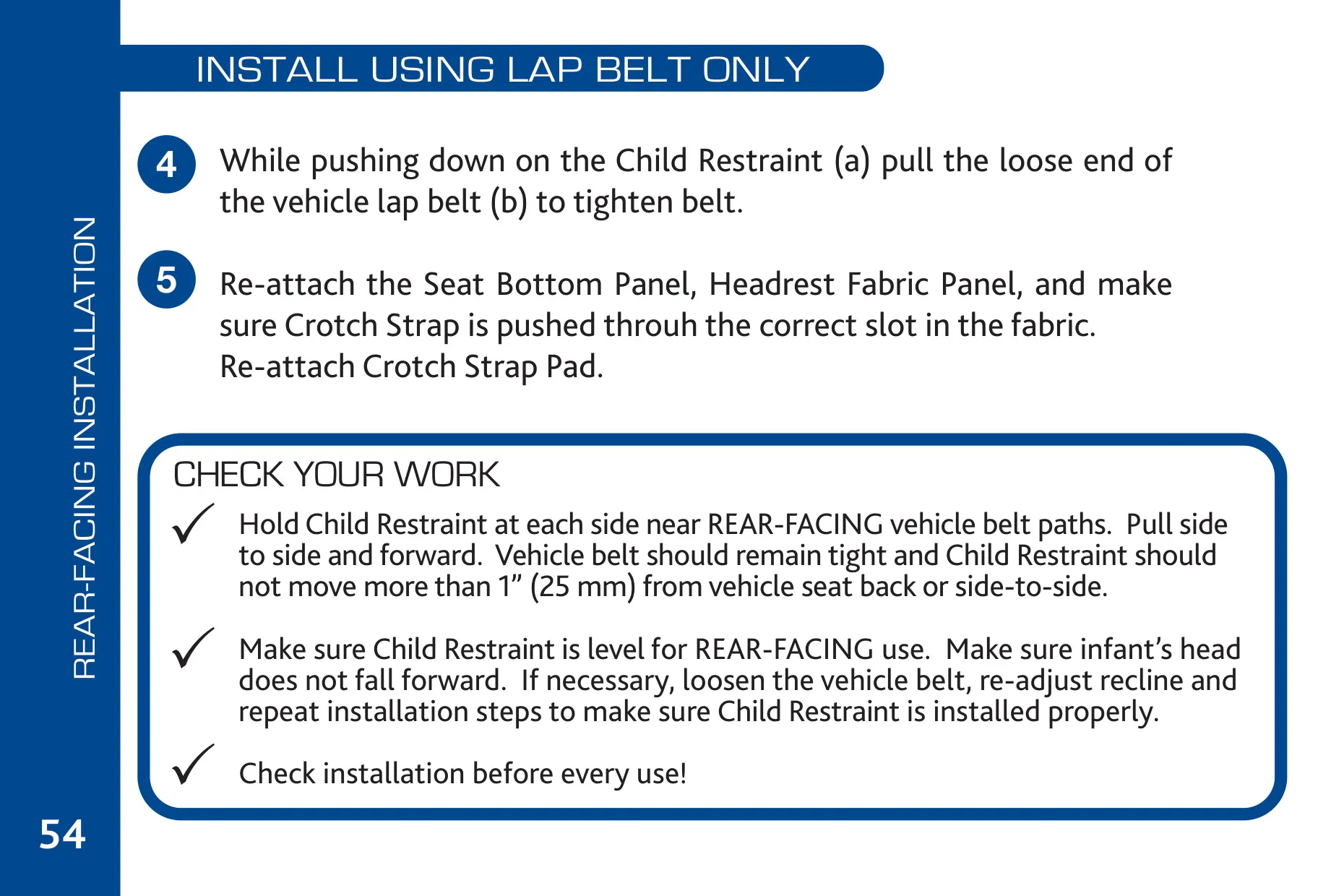

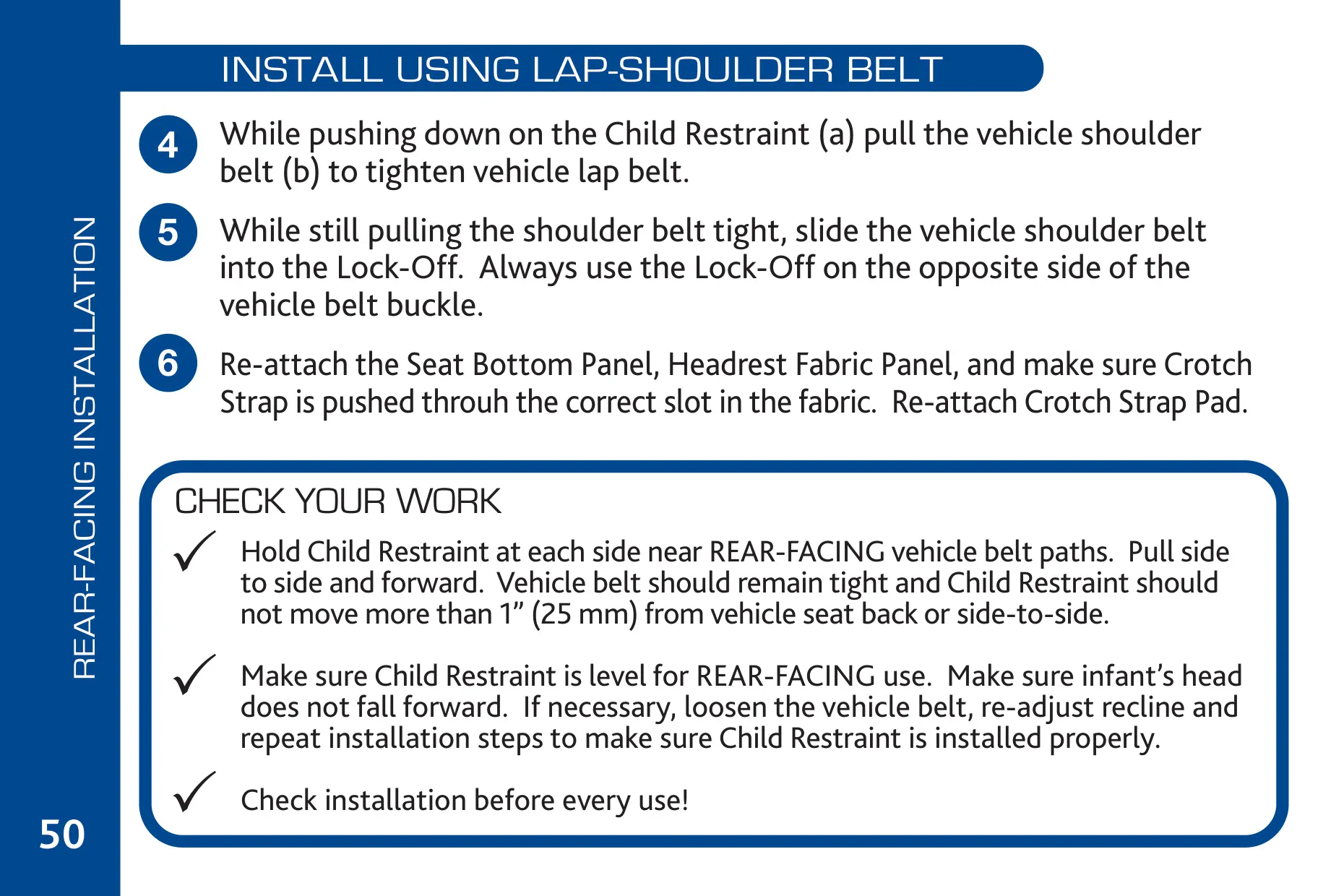

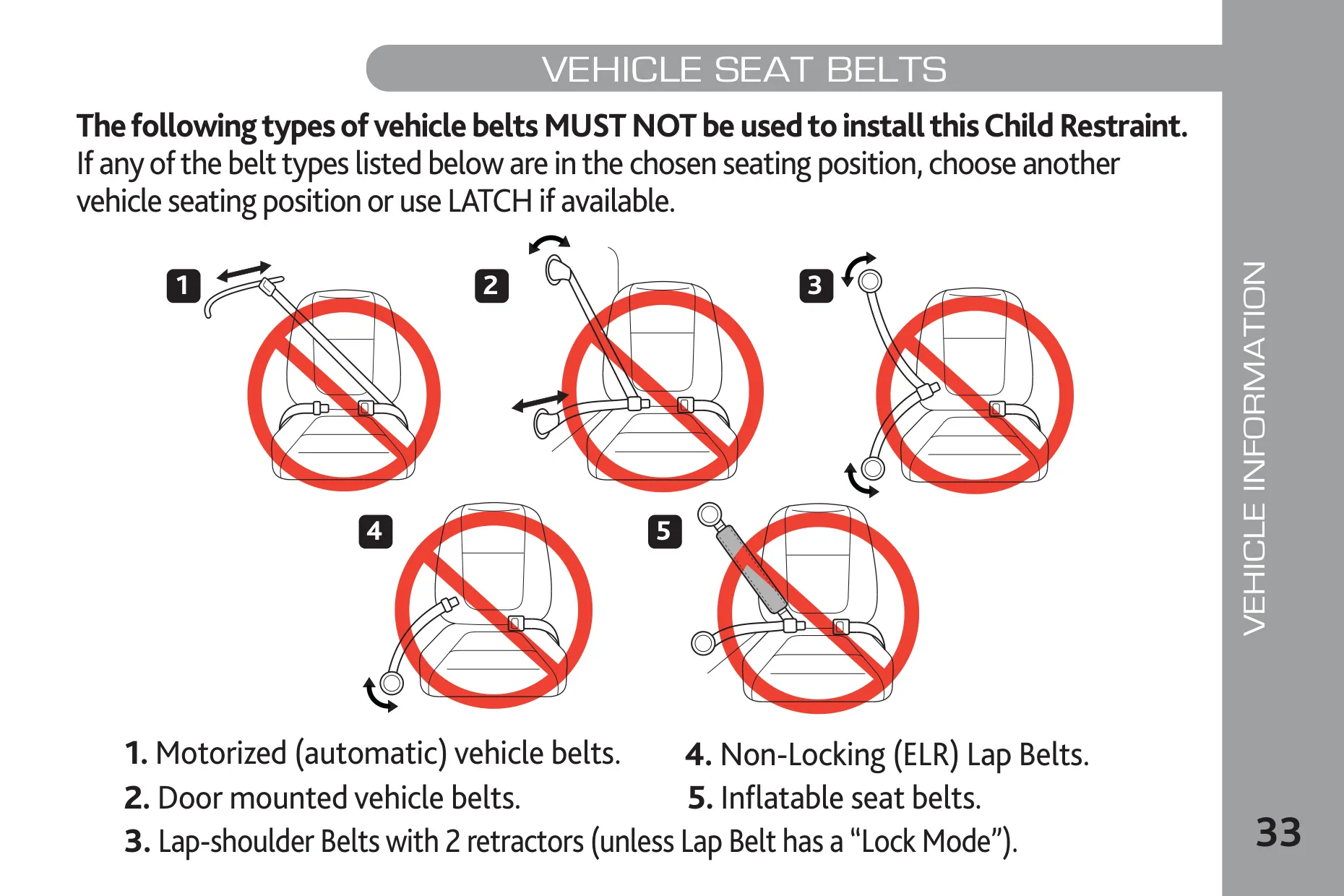

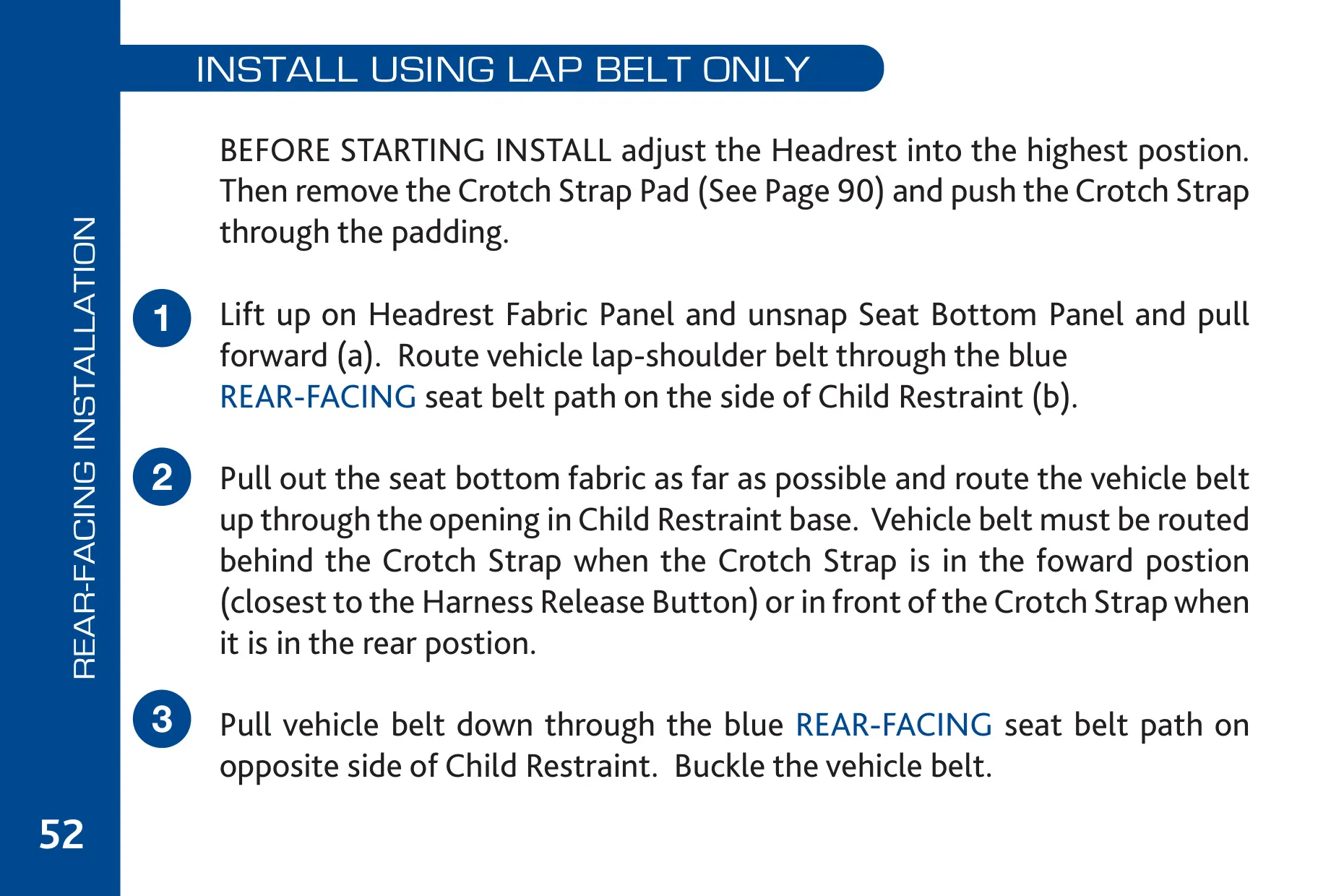

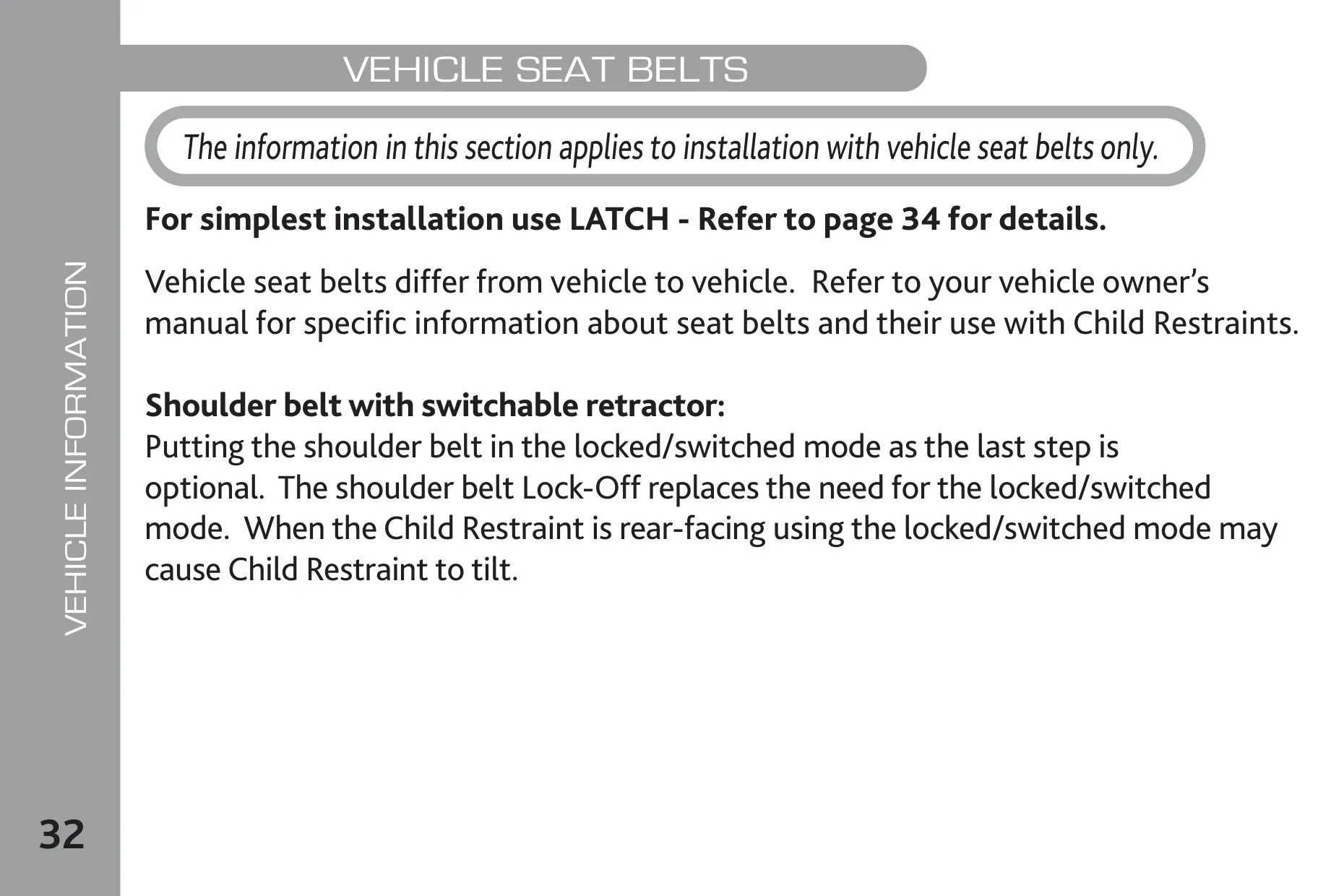

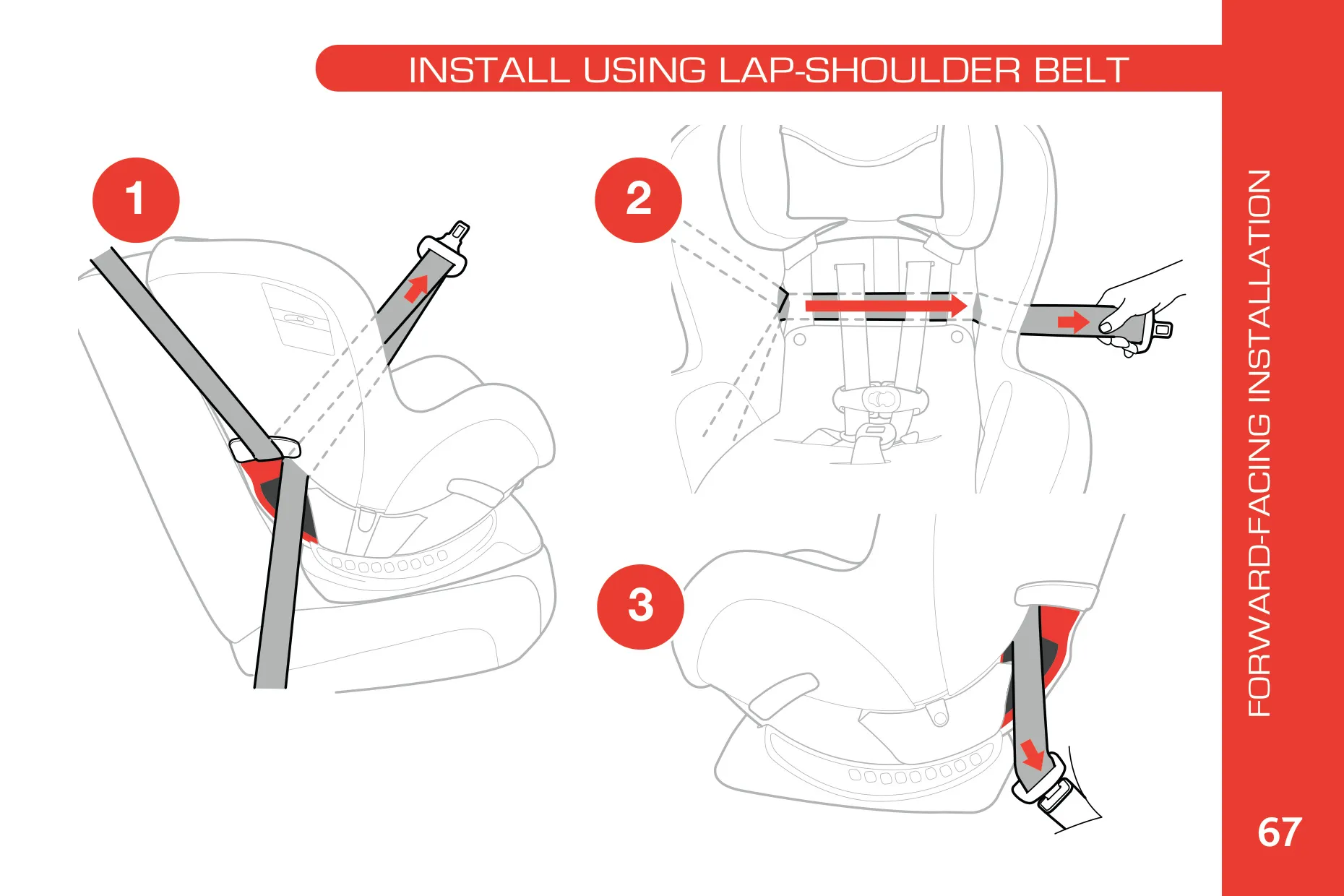

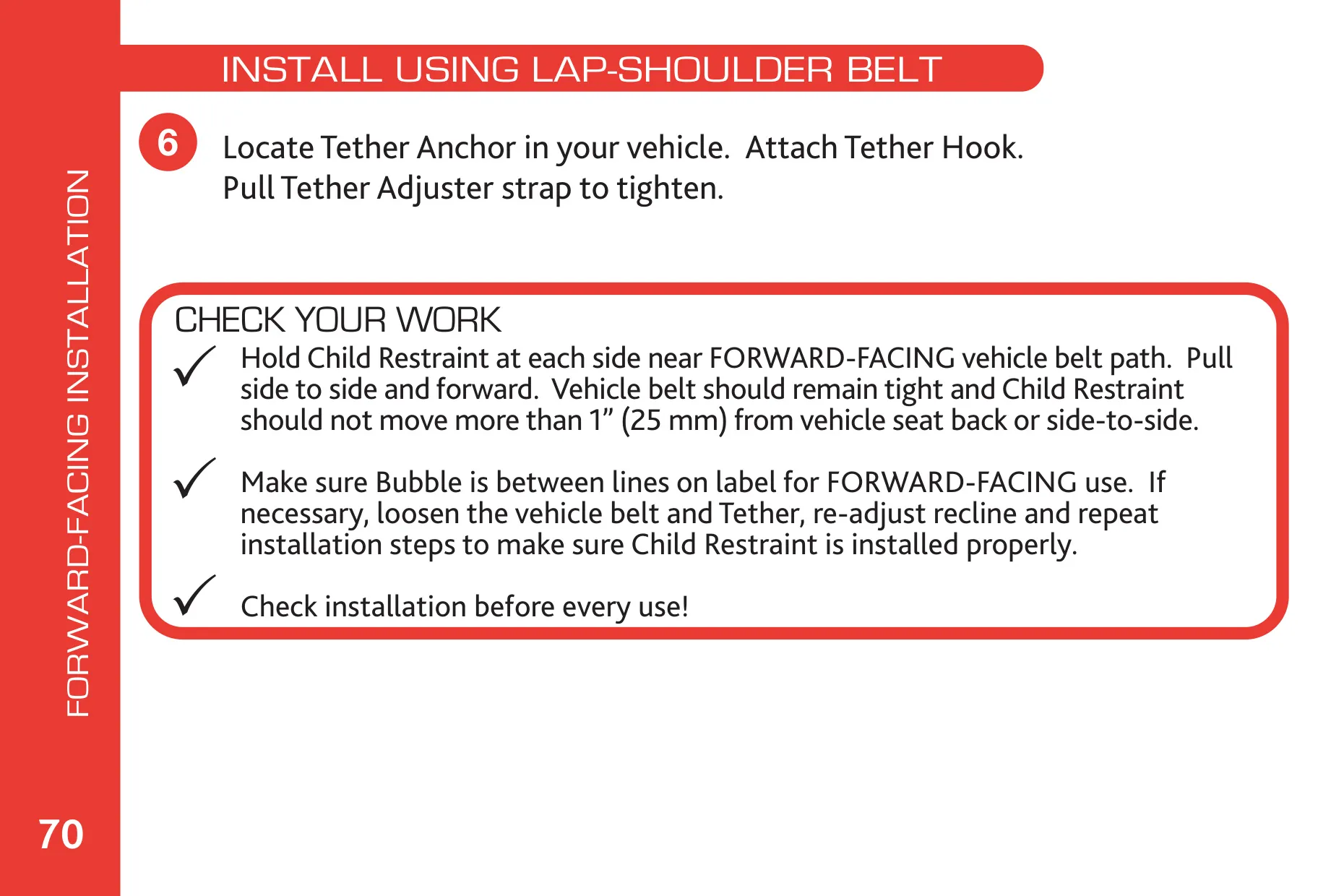

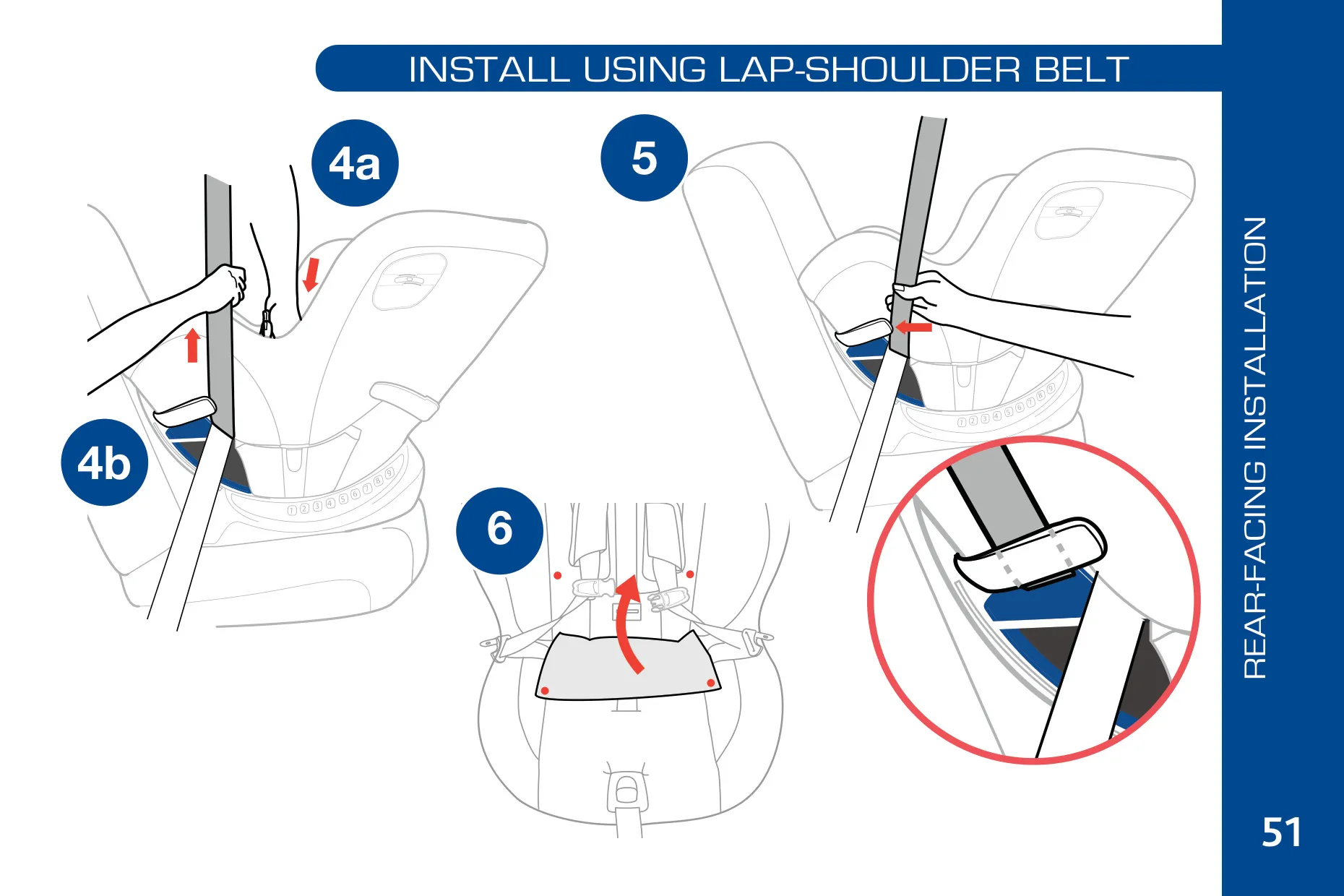

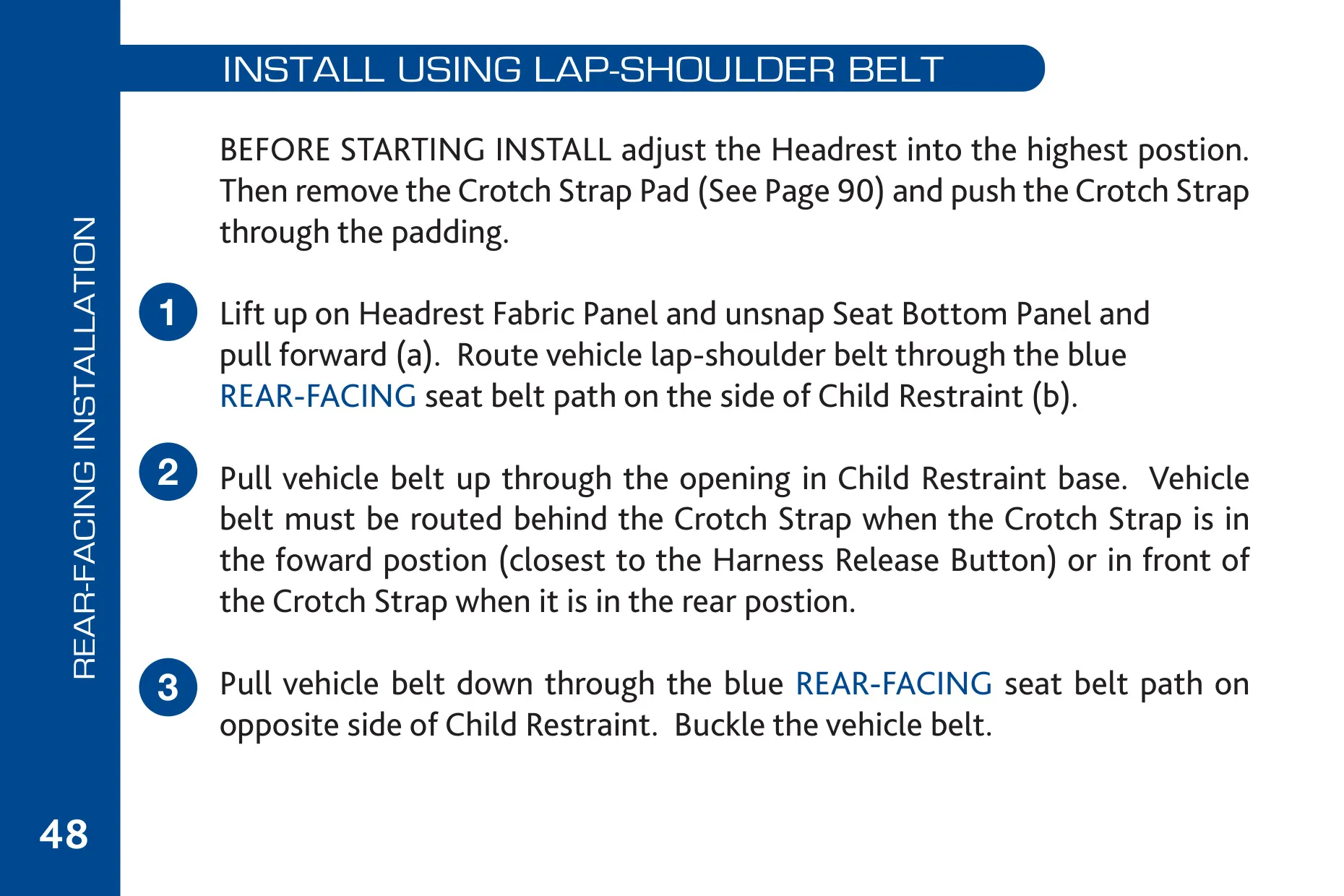

Belt installations rely on built-in lock-offs, so you do not need to switch the vehicle's retractor into locking mode. Always use the lock-off on the side opposite the vehicle buckle. When rear-facing, the belt runs behind or in front of the crotch strap depending on where the strap sits. The manual lists belts that must never be used: motorized, door-mounted, non-locking lap belts, inflatable belts, and lap-shoulder belts with two retractors.

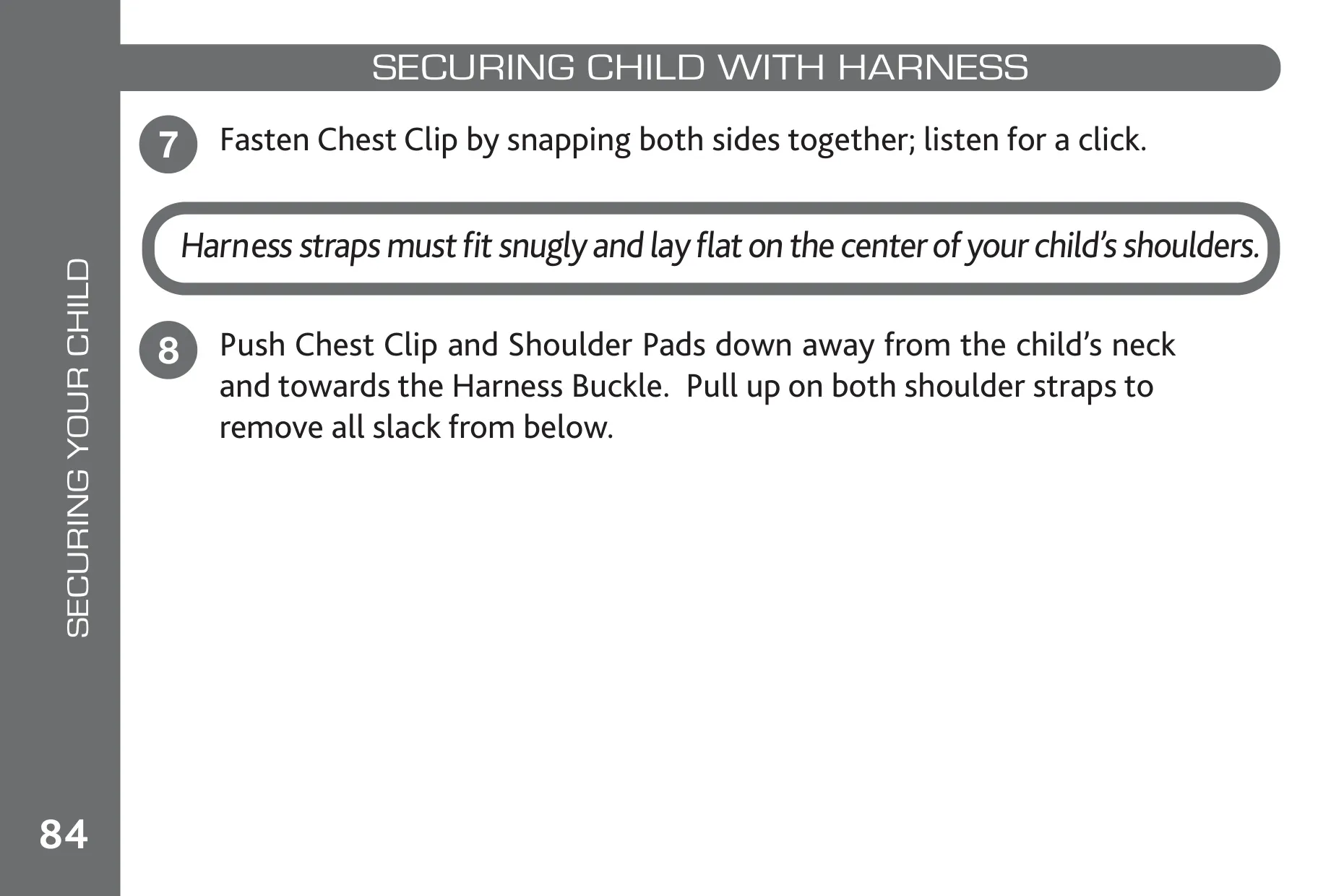

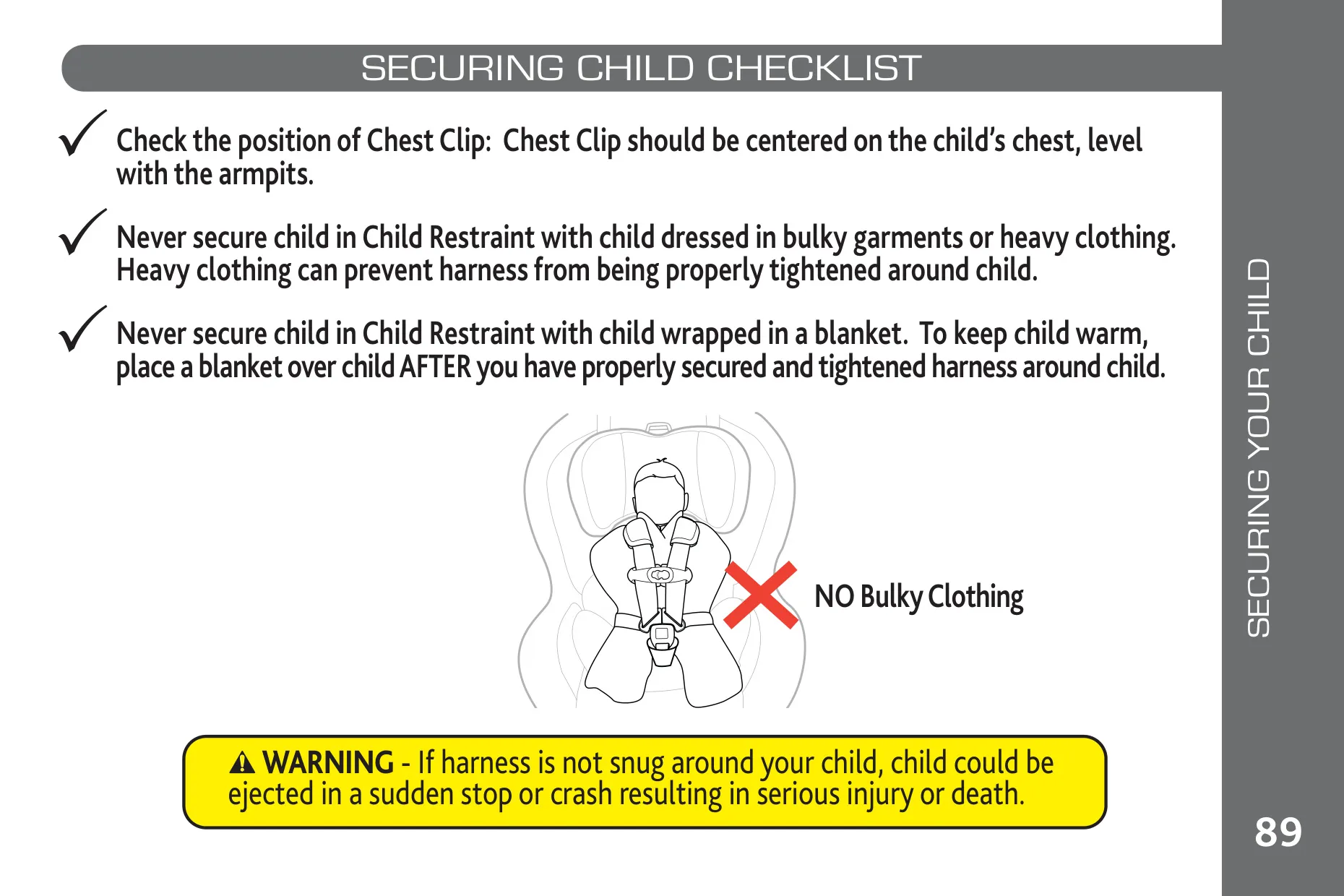

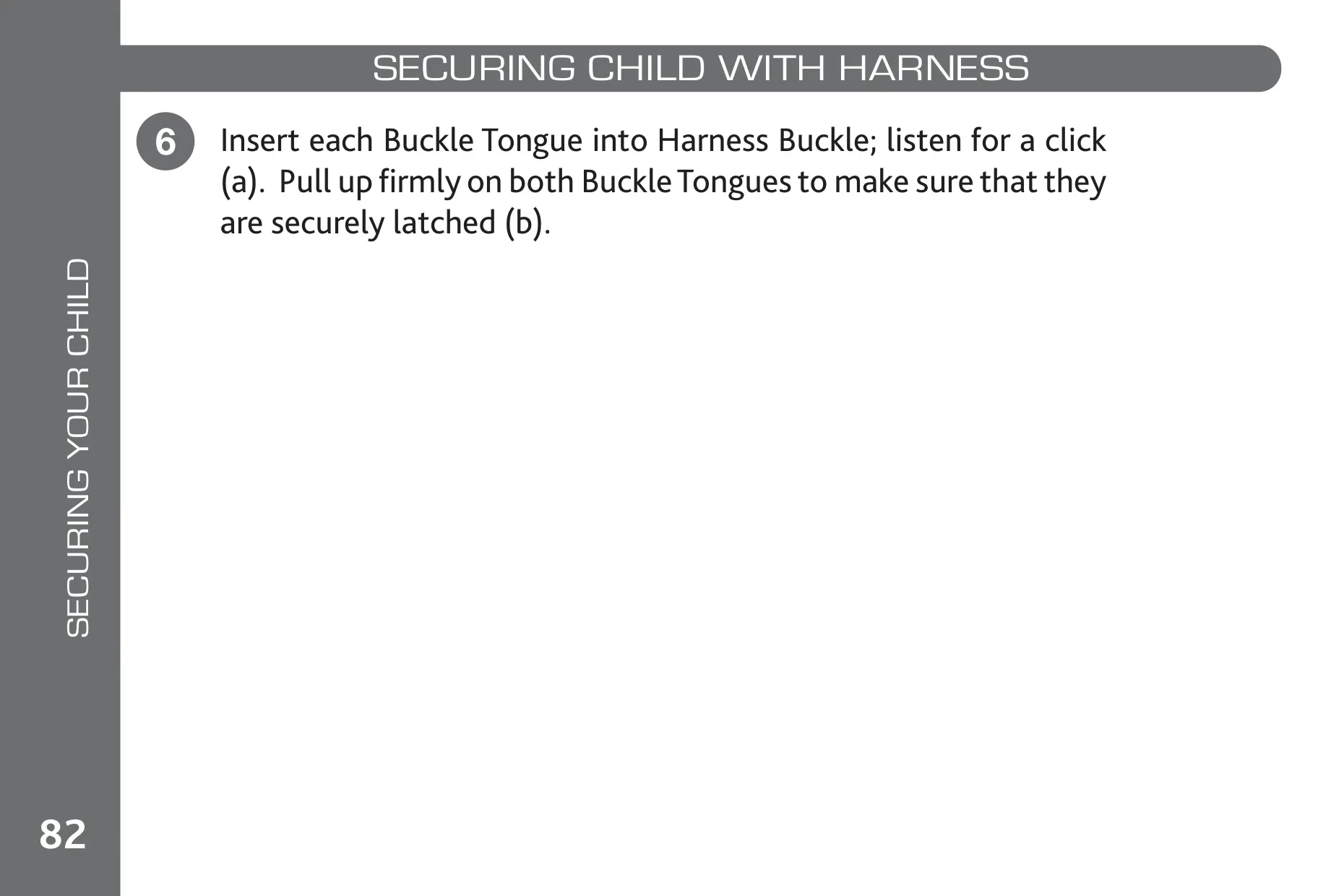

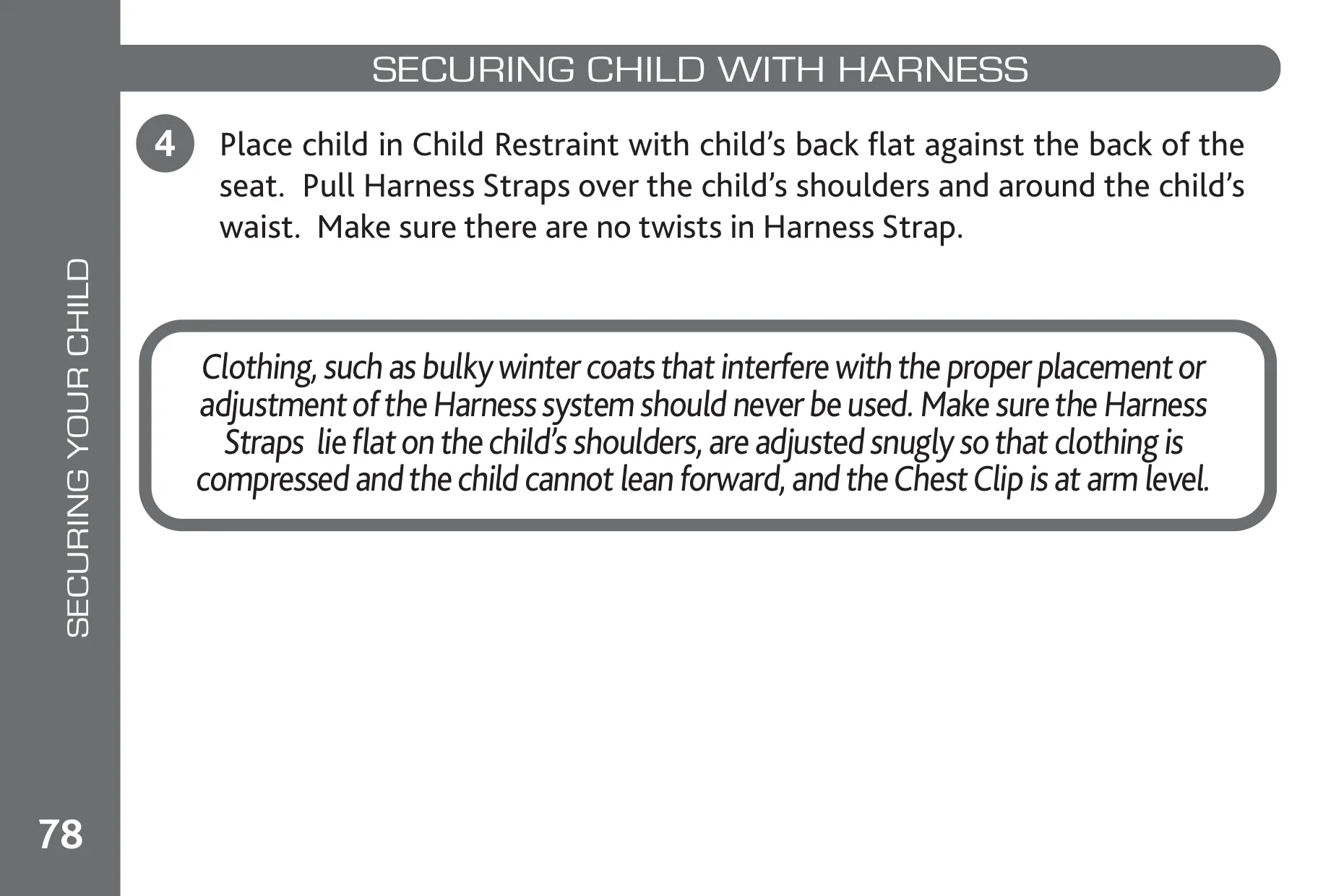

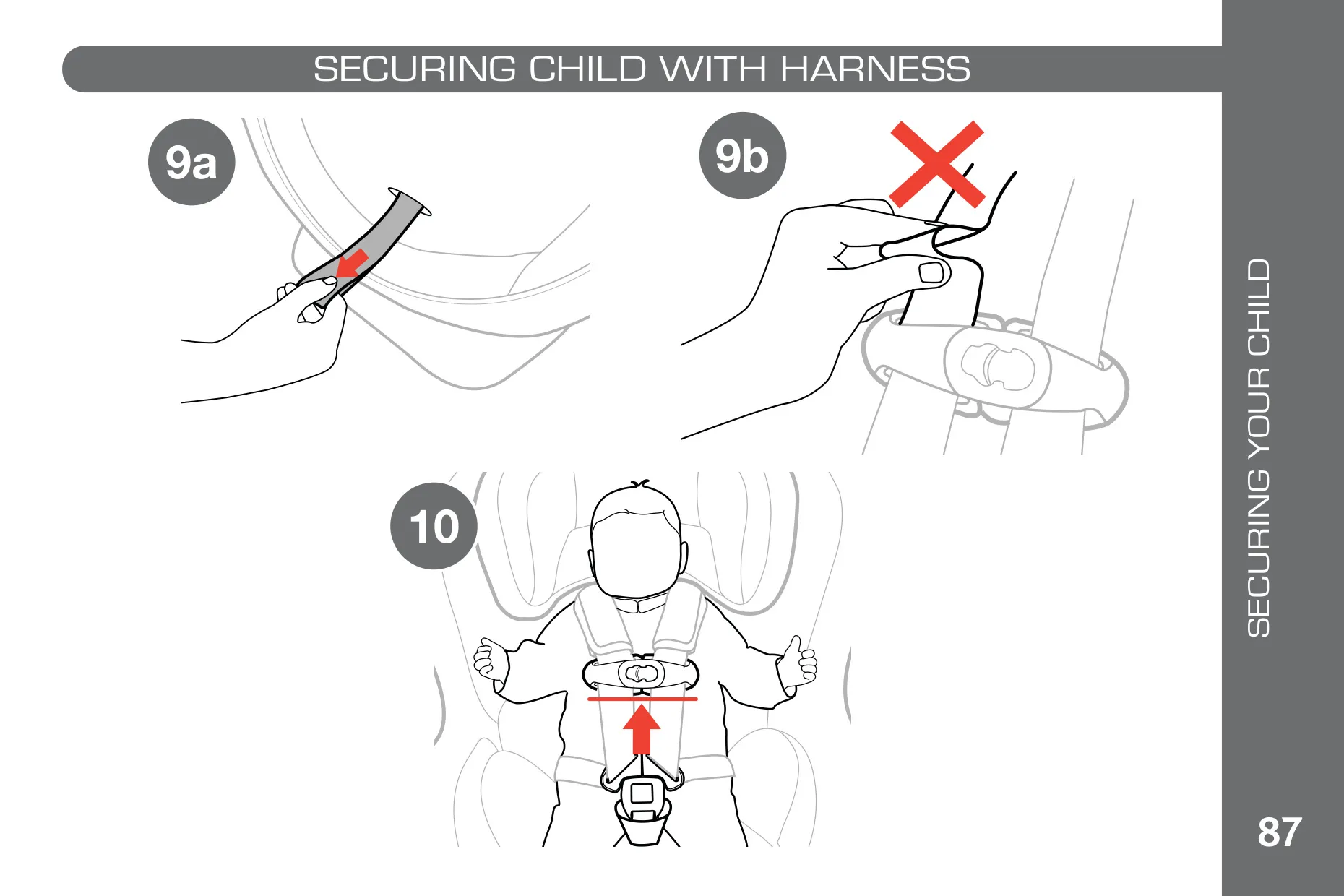

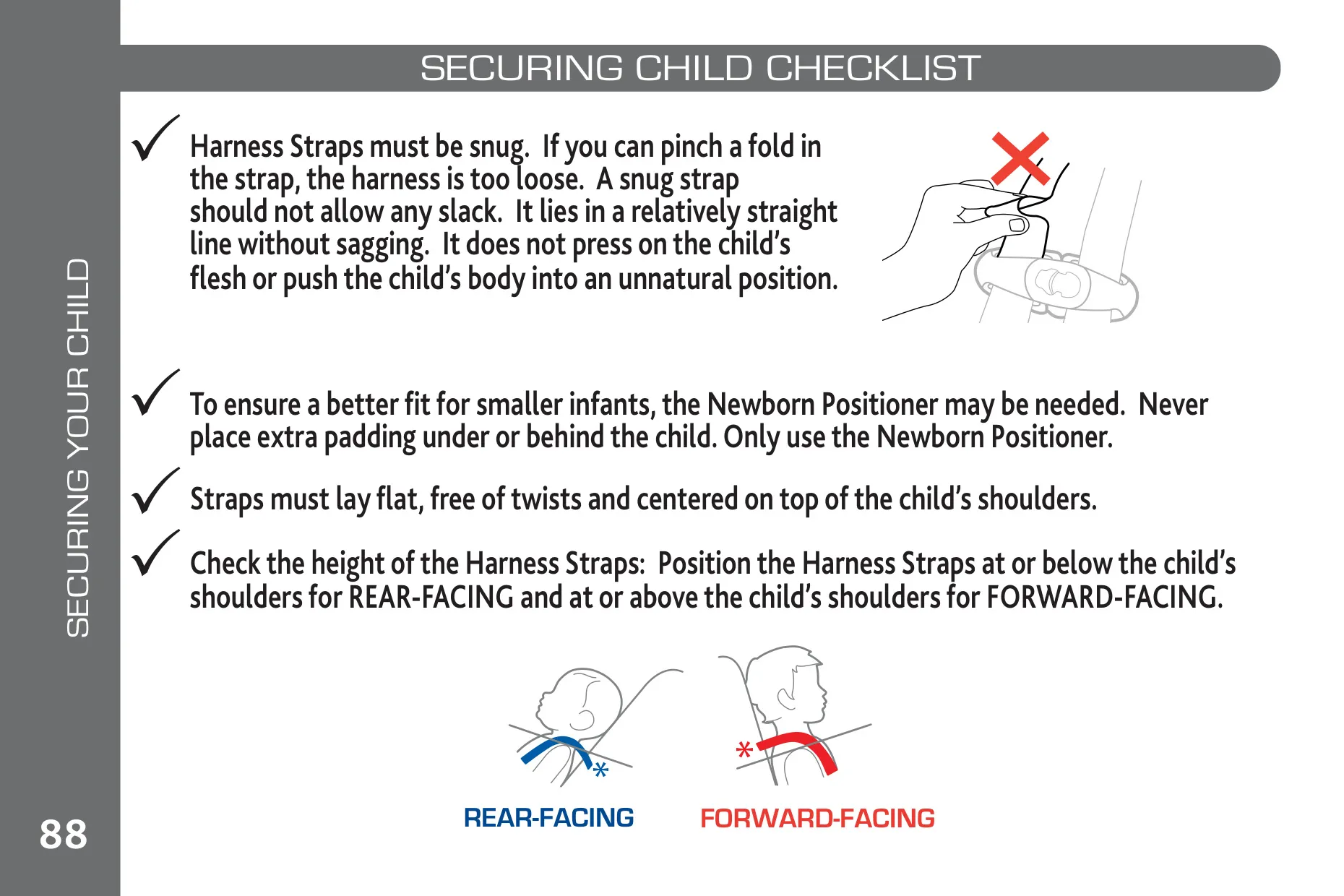

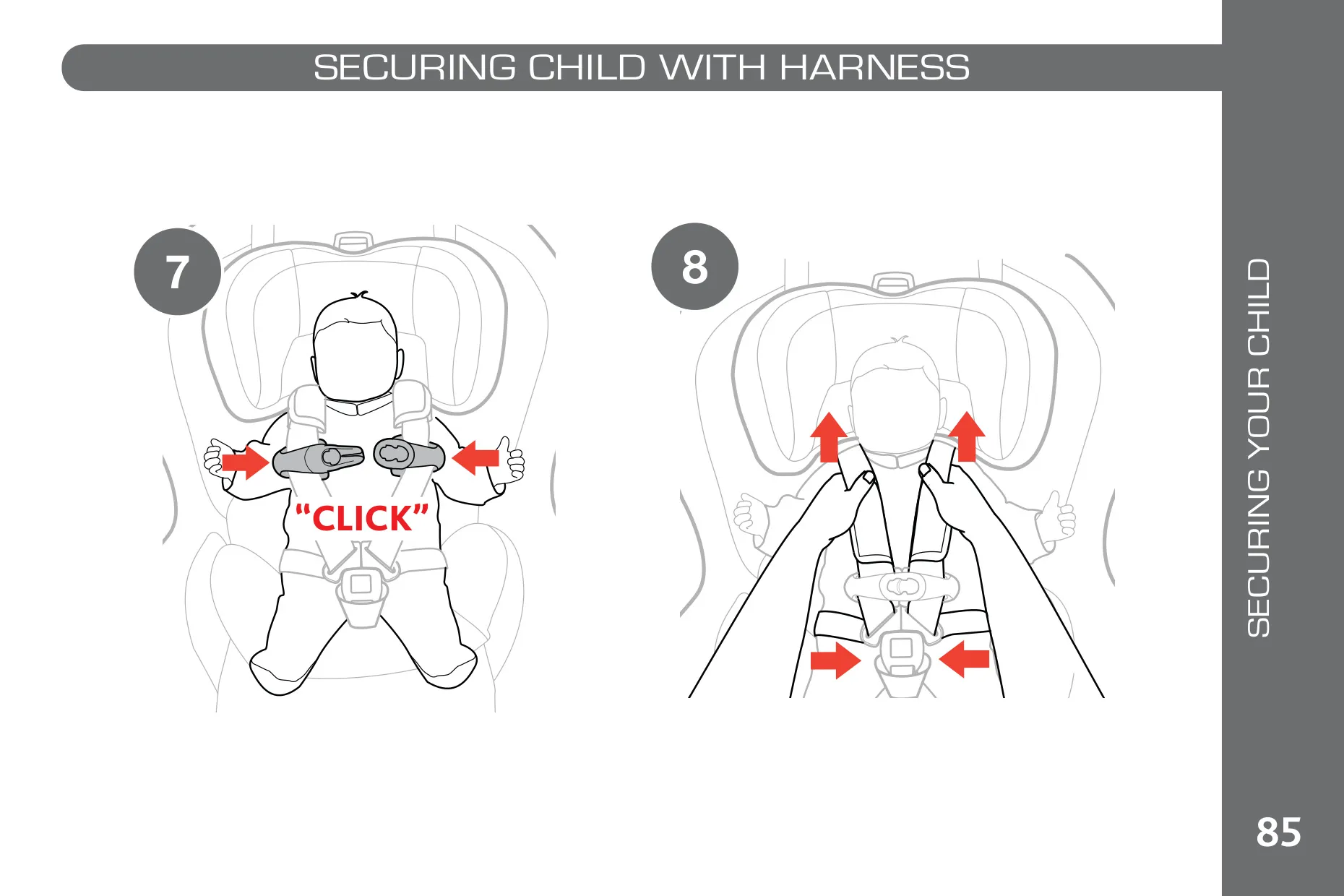

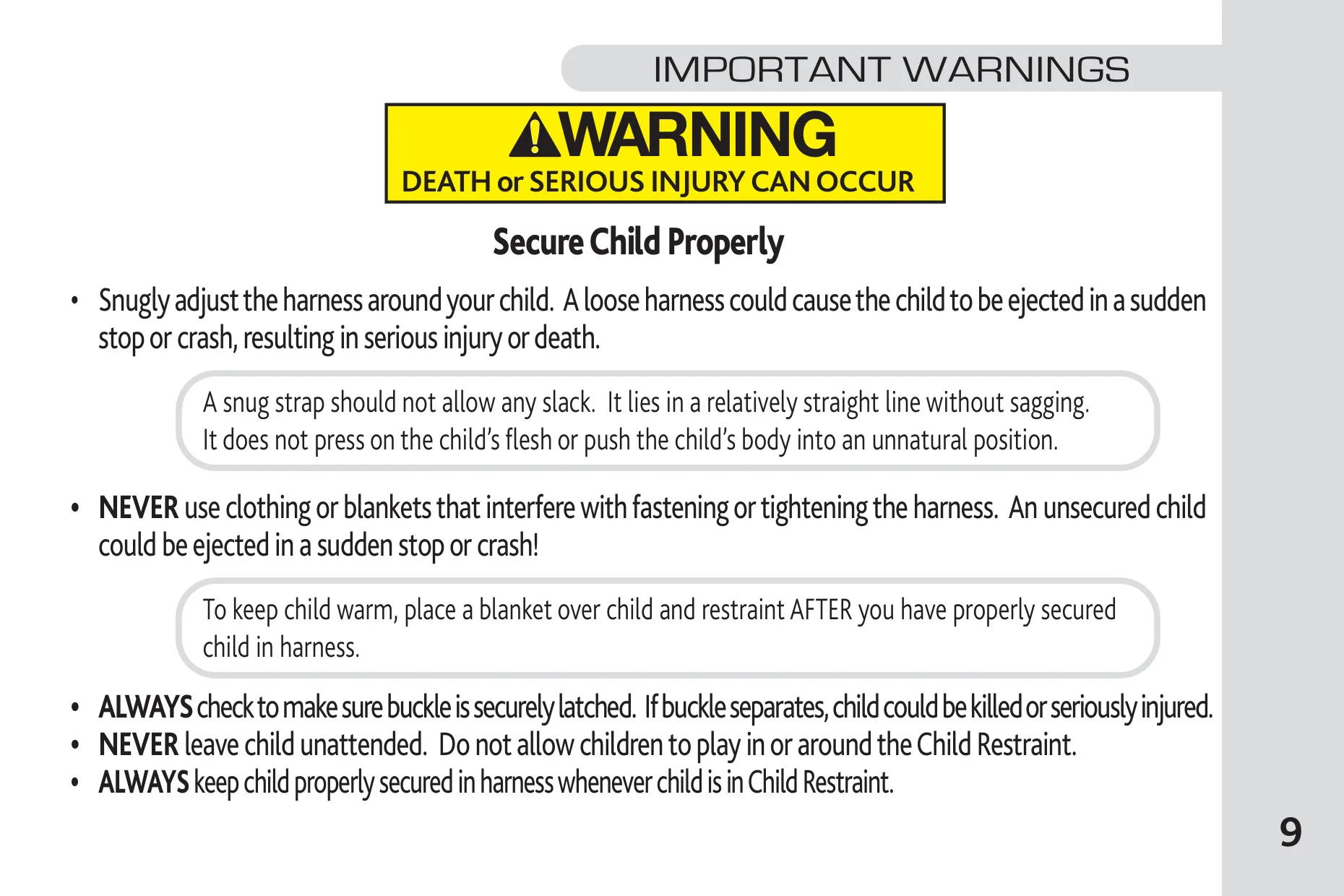

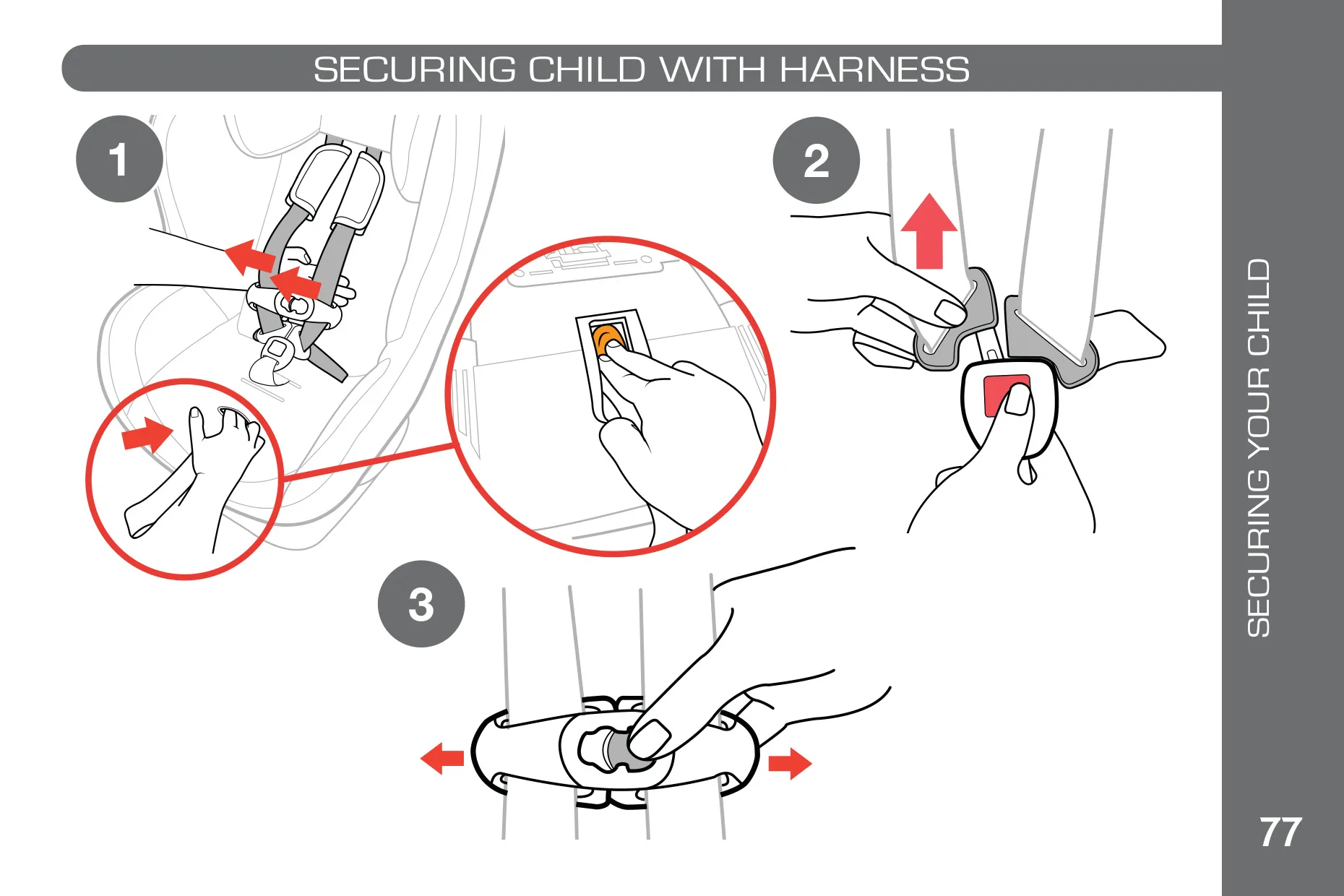

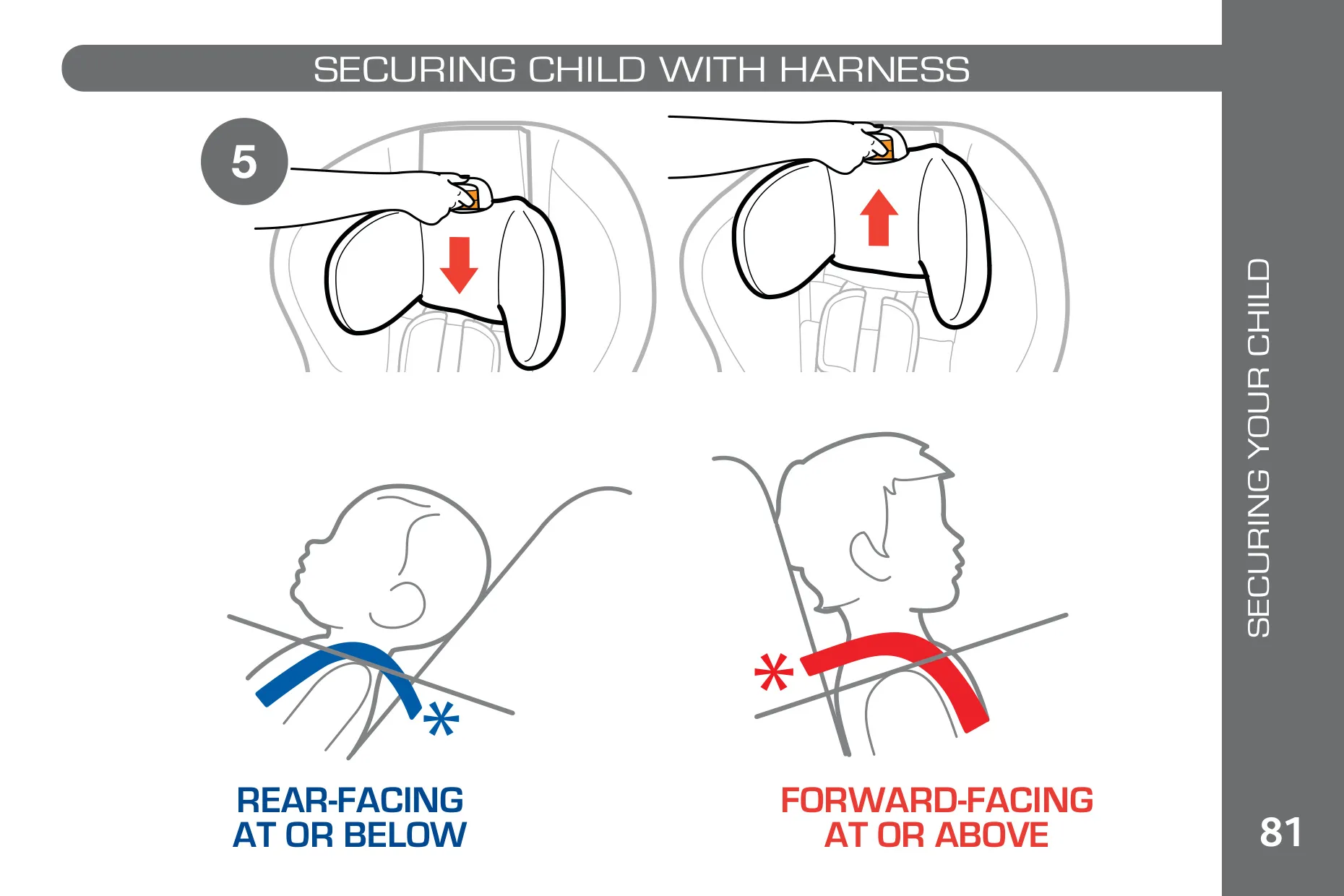

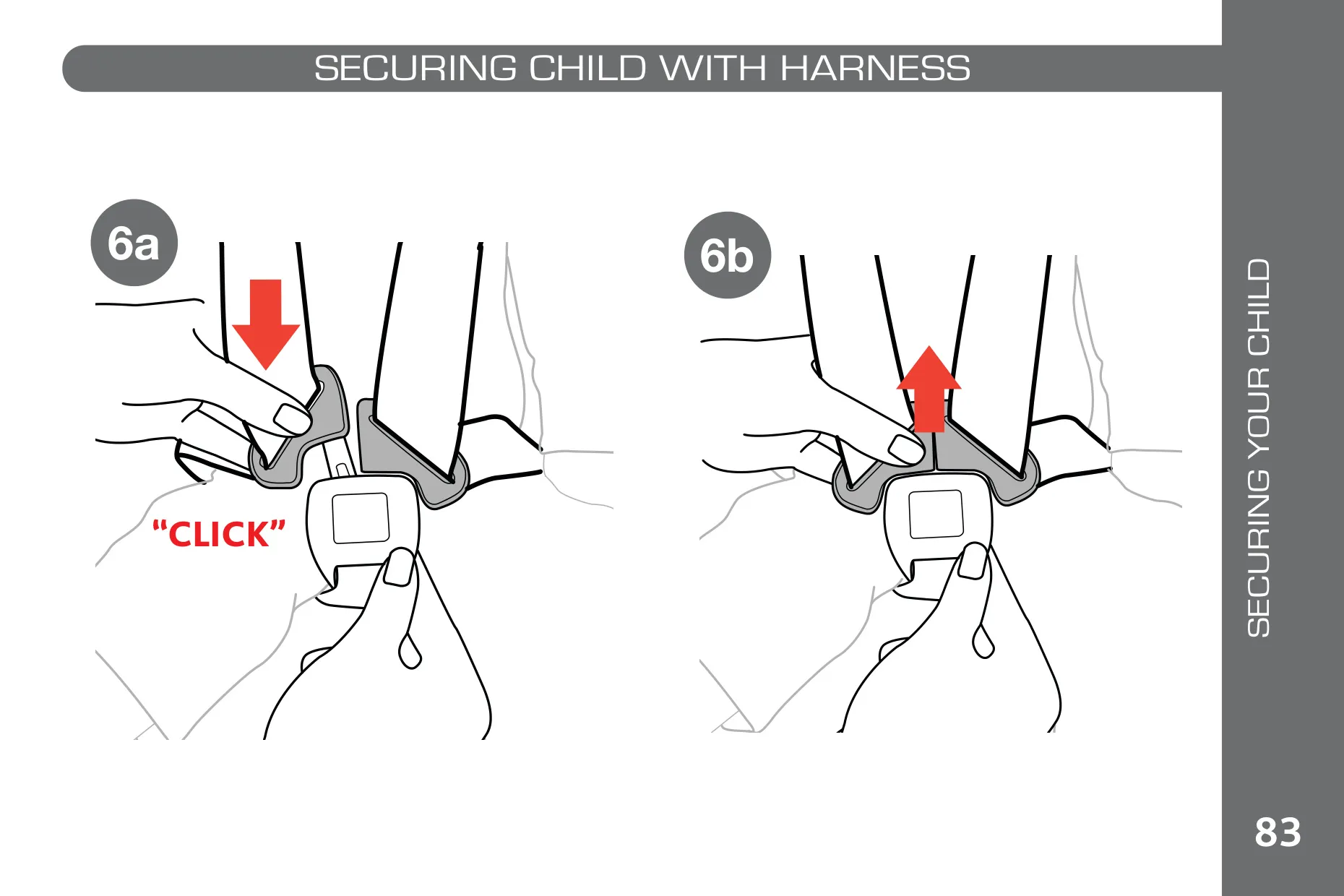

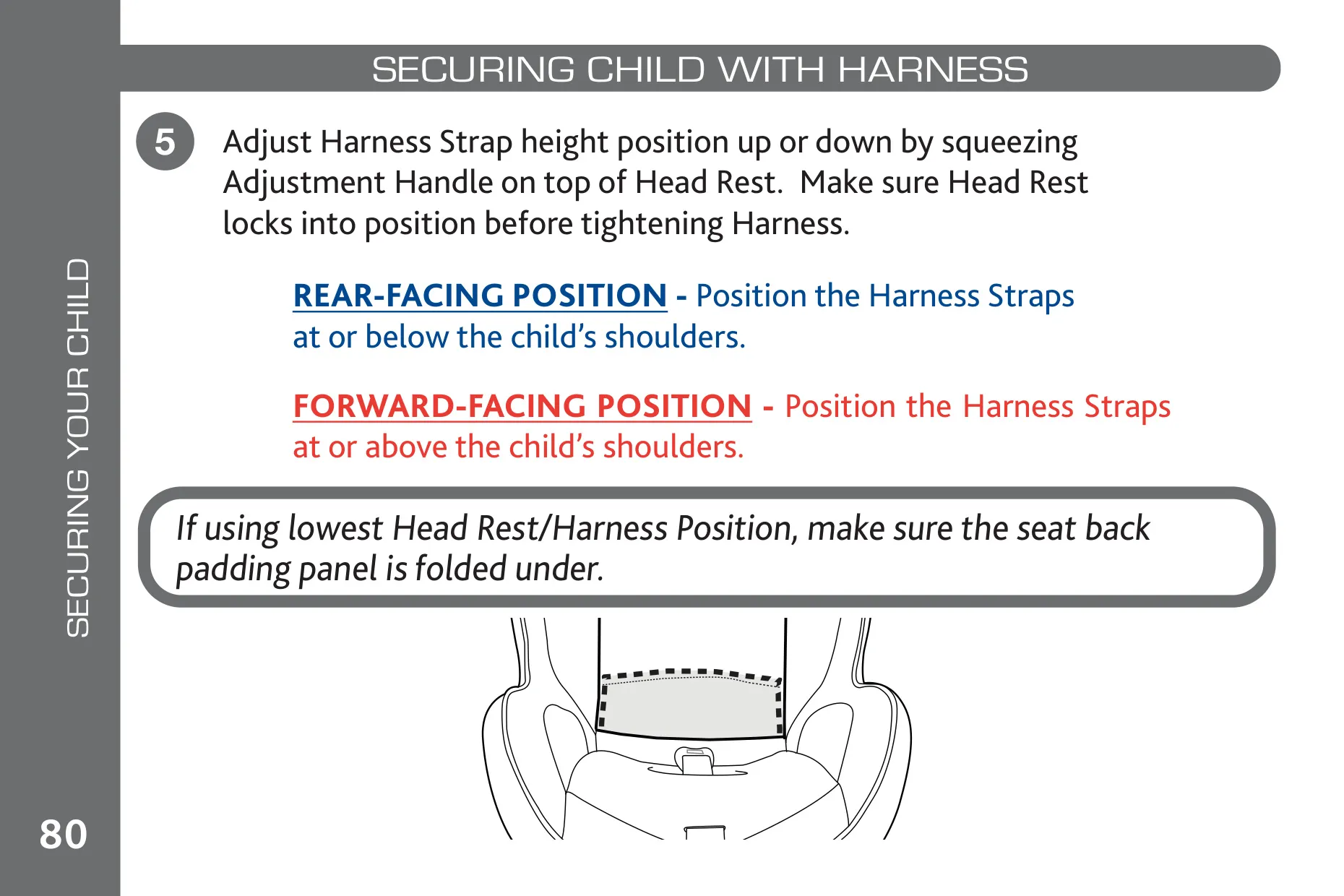

To secure the child, press the harness release button under the fabric and pull the straps forward. Squeezing the handle on top of the head rest raises or lowers the harness height together with the head rest. Buckle both tongues until you hear a click, then tighten by pulling the harness adjustment strap. Finally, slide the chest clip up to armpit level. If you can pinch a fold of strap at the shoulder, the harness is still too loose.

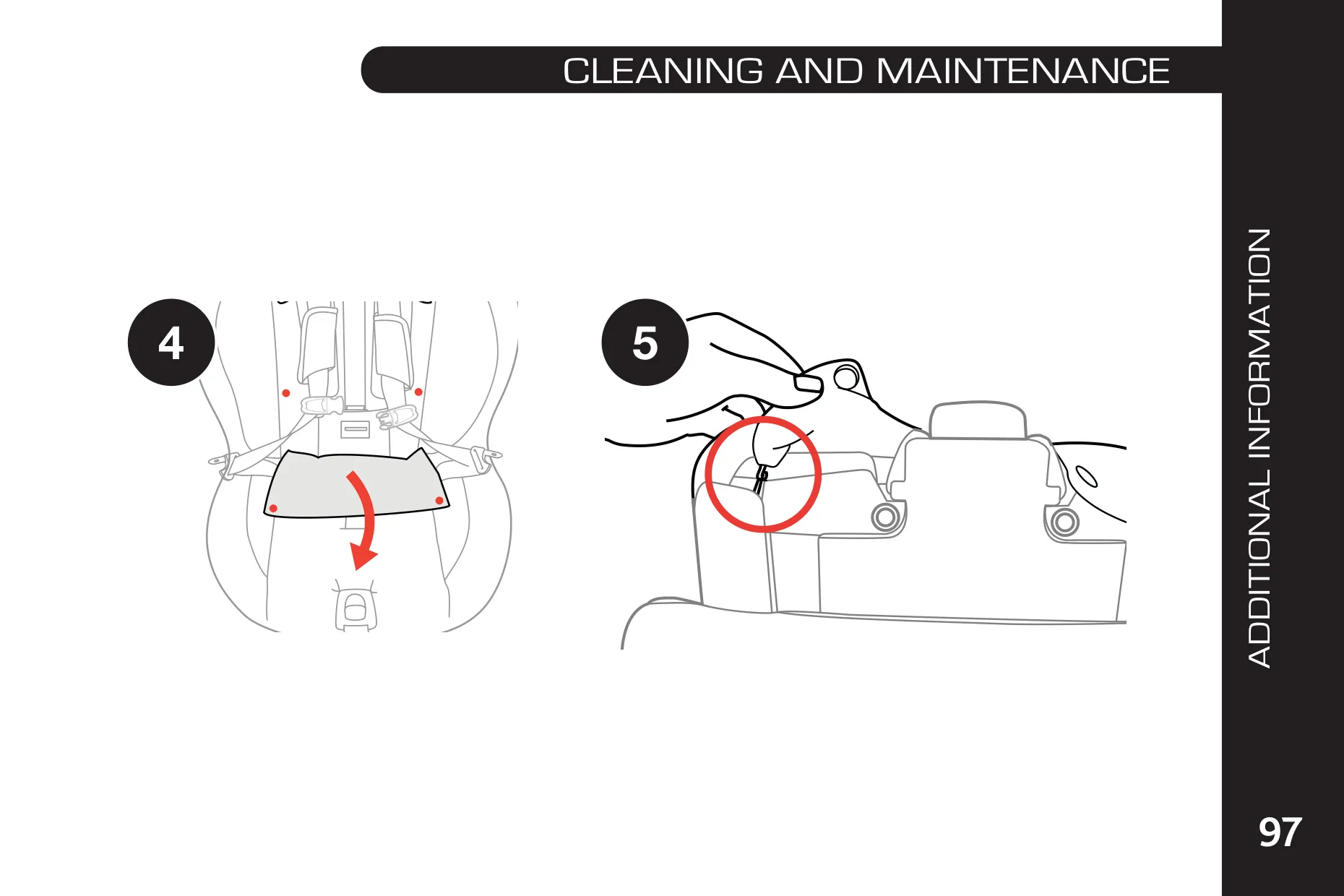

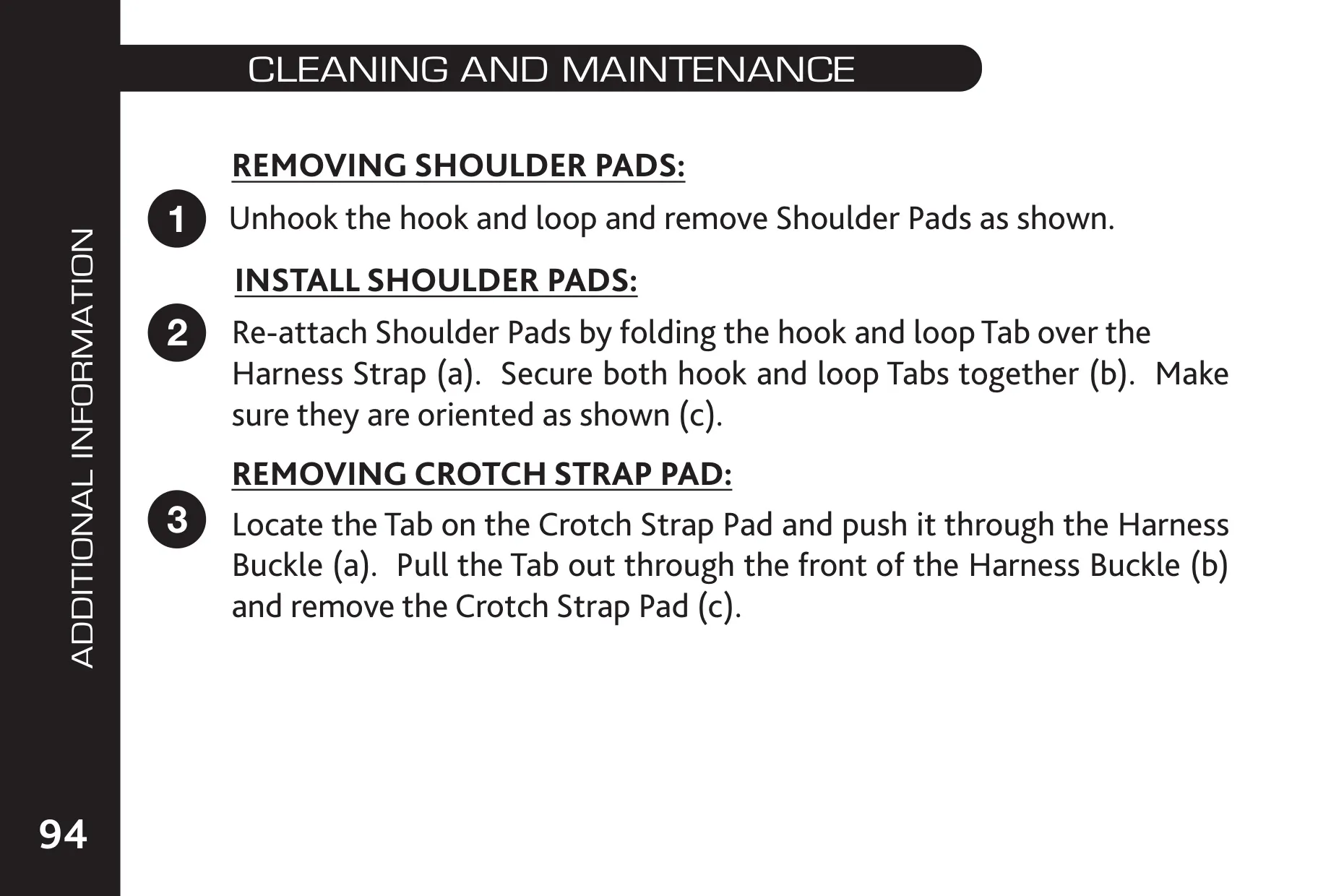

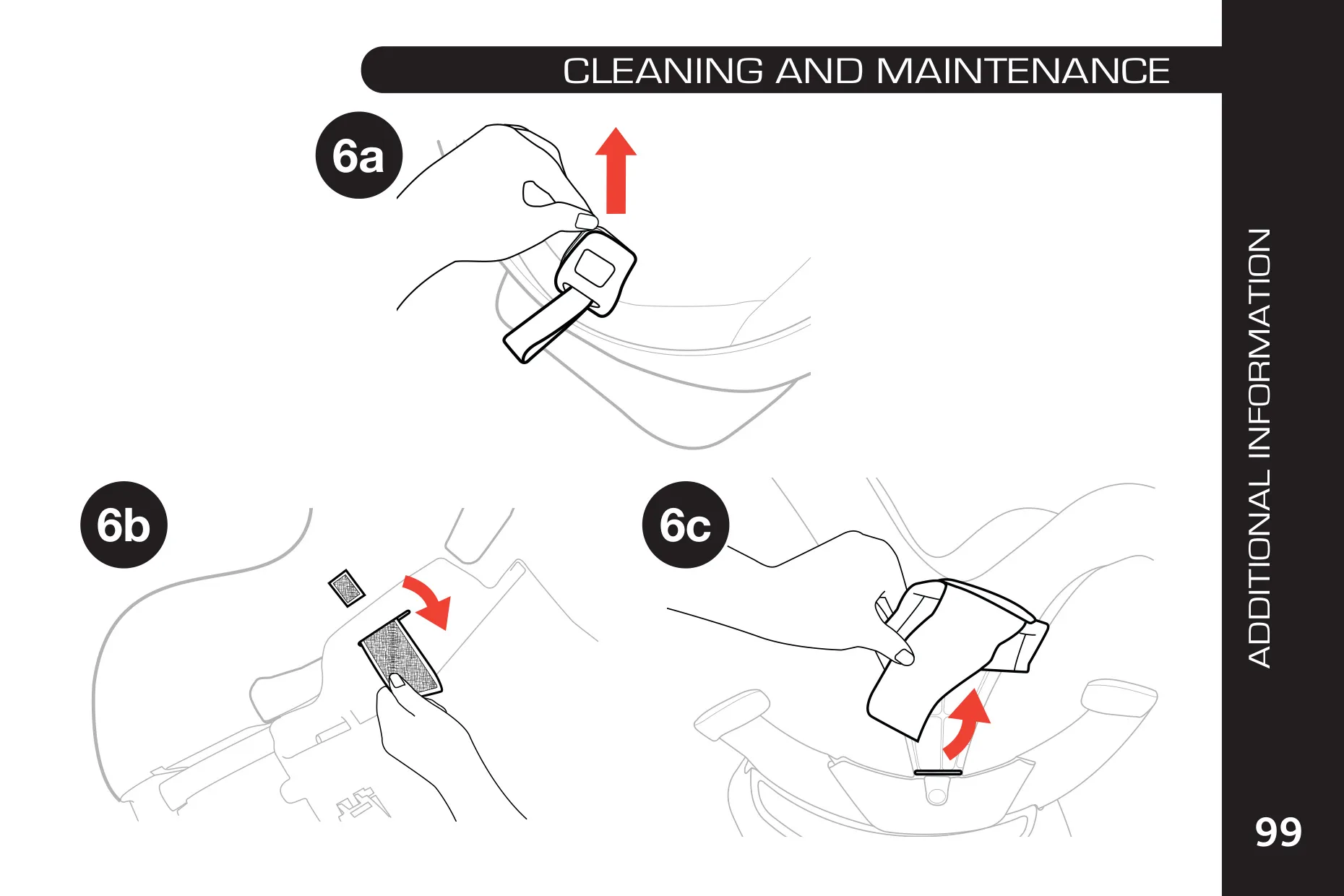

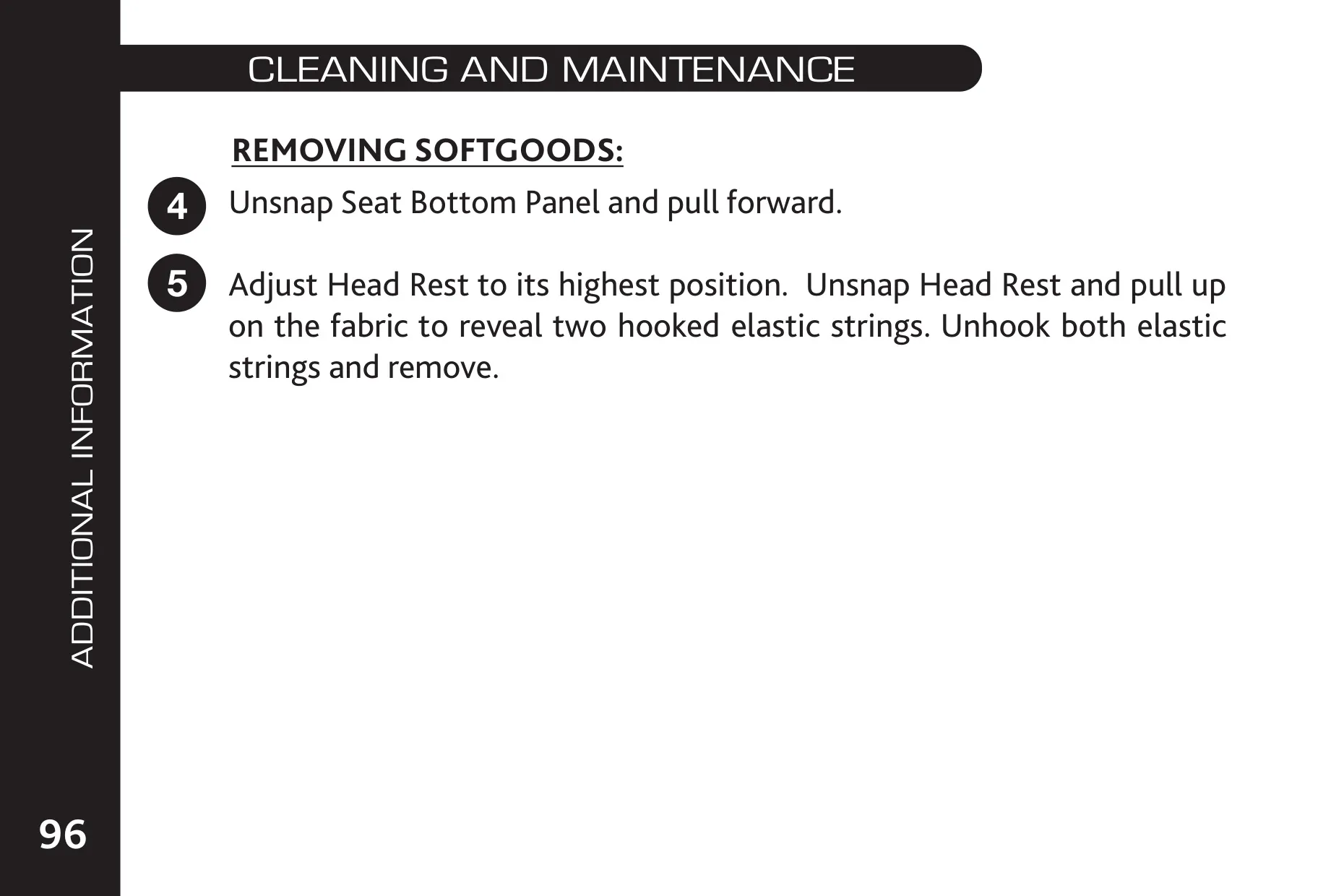

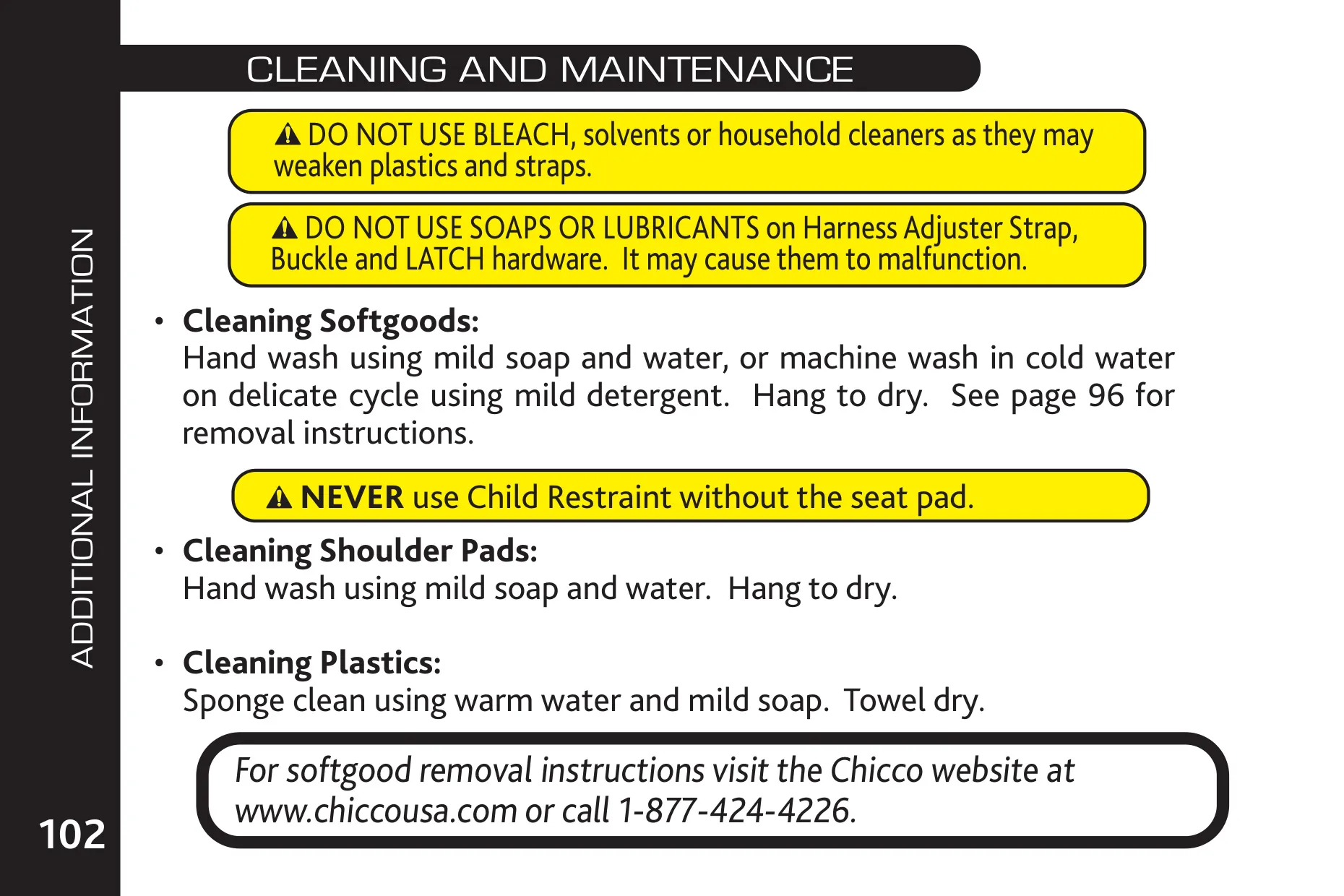

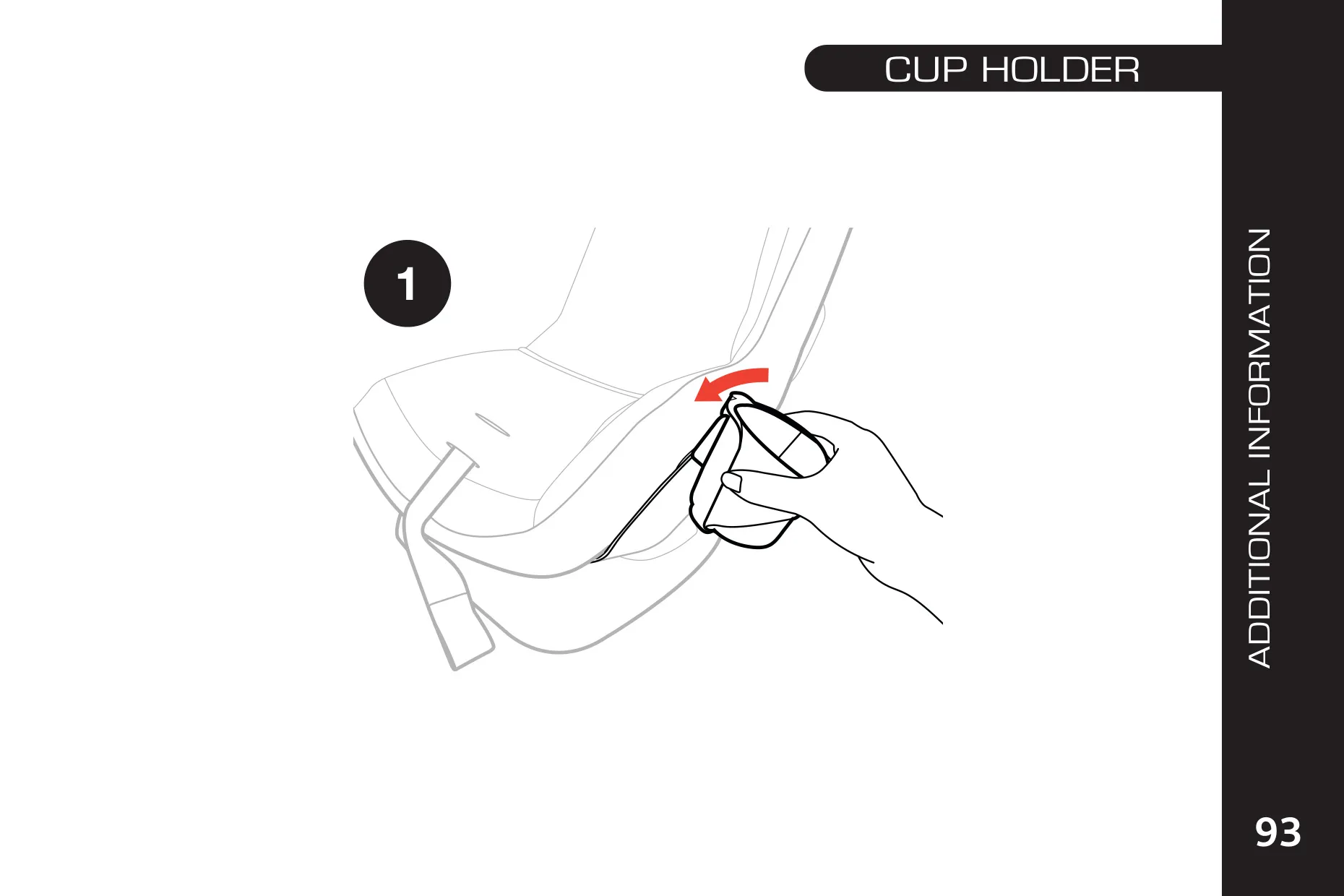

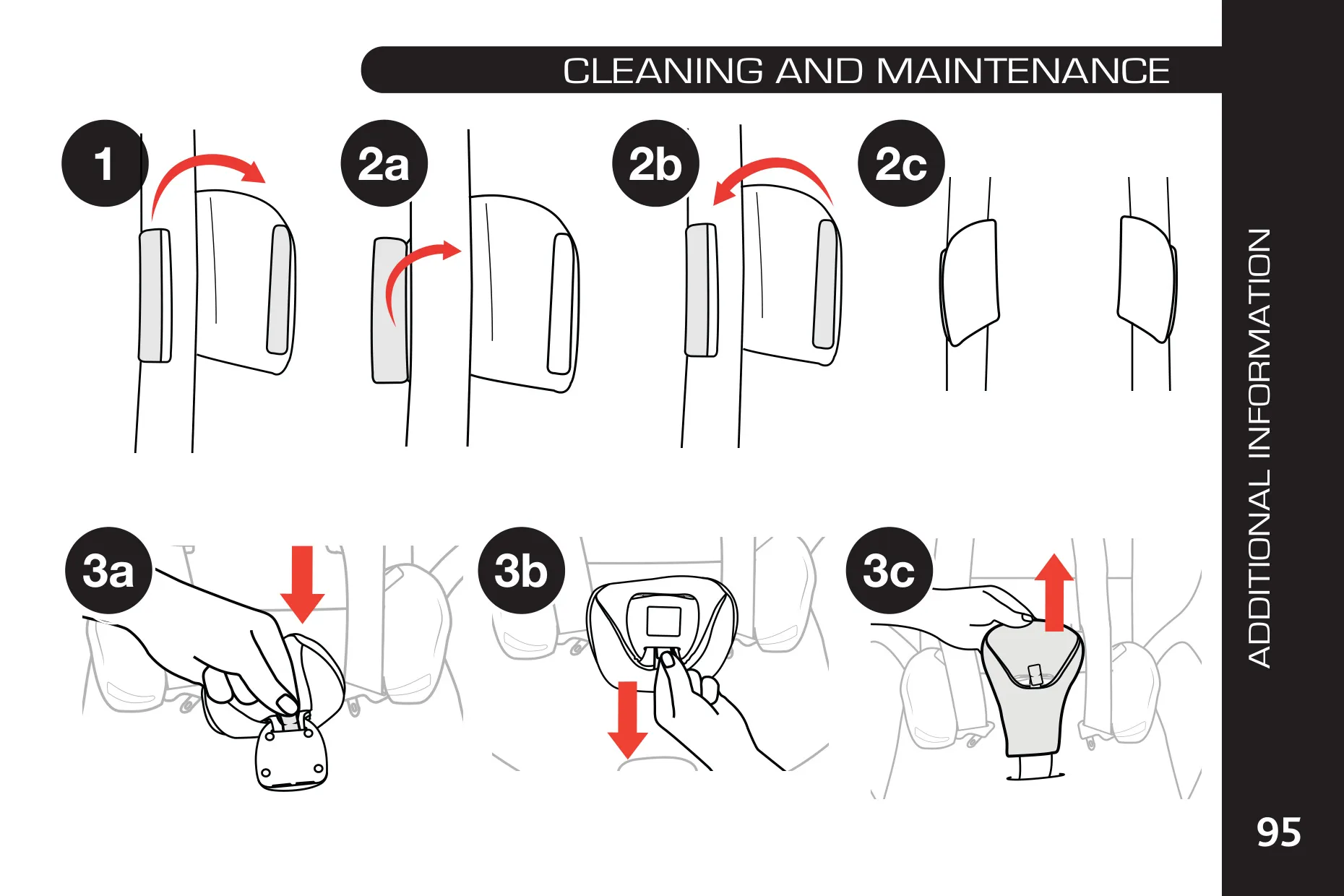

For care, you can machine wash the softgoods in cold water on a delicate cycle and hang them to dry. Shoulder pads should be hand washed. Wipe the harness, buckle and LATCH hardware with warm water only and do not use soaps or lubricants on them. The cup holder fits on either side and can go in the top rack of the dishwasher. Never use the seat without its pad or its crotch strap installed.
