Chicco Nextfit Car Seat Instruction Manual
Chicco Nextfit Car Seat
Chicco Nextfit Car Seat Instructions
Here we offer the Chicco Nextfit Car Seat manual completely free and in English. We have cataloged this manual in the Infant Seats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Chicco Nextfit Car Seat, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Chicco Nextfit Car Seat Specifications
| Feature | Specification |
|---|---|
| Product Type | Convertible car seat (rear-facing and forward-facing) |
| User Guide Reference | IS0122.2E |
| Manufacturer | Artsana USA, Inc., 1826 William Penn Way, Lancaster, PA 17601 |

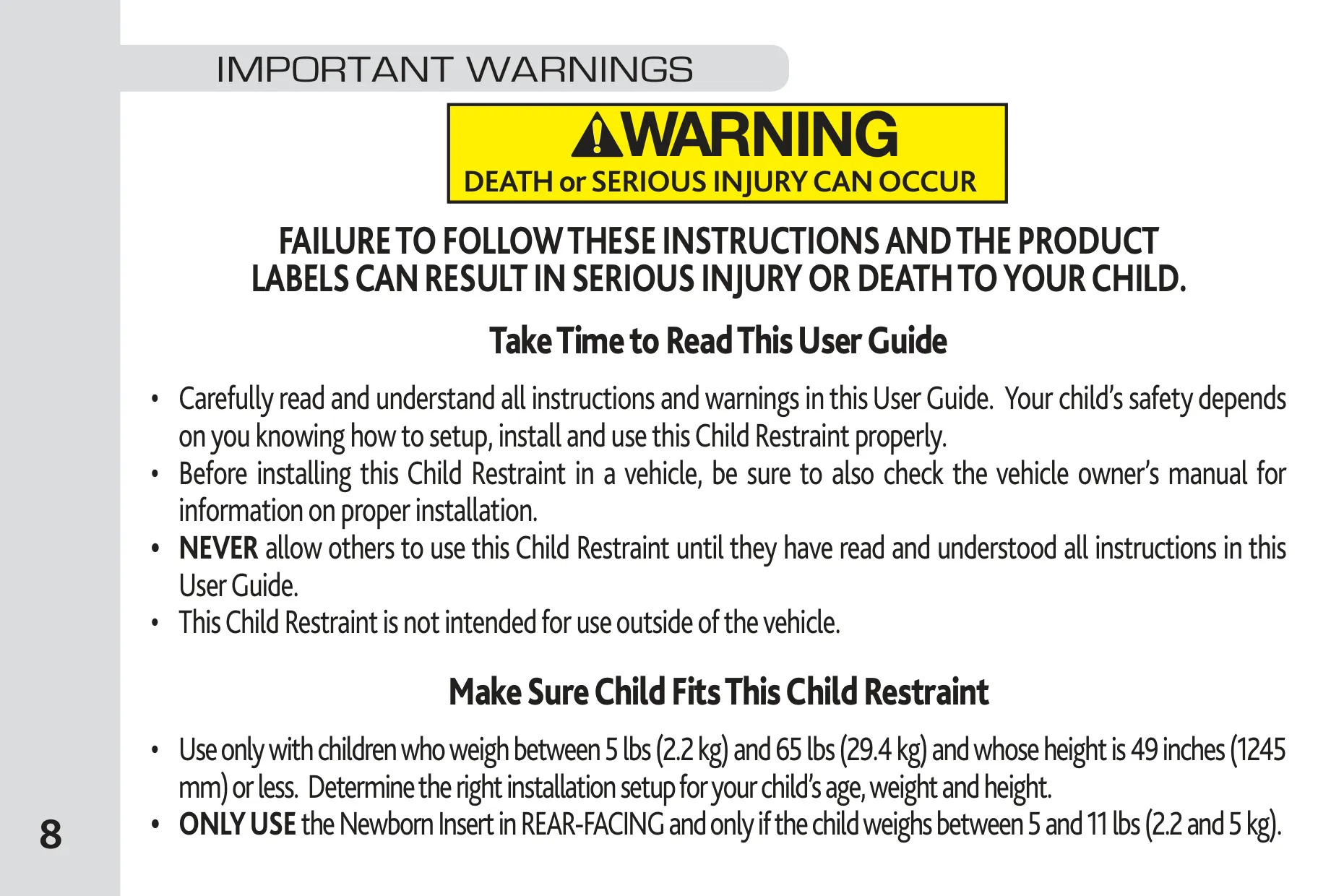

| Child Age Range | Birth to 6 years |
| Overall Child Weight Range | 5 to 65 lbs (2.2 to 29.4 kg) |
| Maximum Child Height | 49 in (1245 mm) or less |
| Rear-Facing Weight Range | 5 to 40 lbs (2.2 to 18 kg), harness straps at or below shoulders |
| Forward-Facing Weight Range | 22 to 65 lbs (10 to 29.4 kg), minimum age 1 year, harness straps at or above shoulders |
| Forward-Facing Height Limit | 49 in (1245 mm), or until the tops of the ears reach the top of the Head Rest |
| Newborn Insert | 5 to 11 lbs (2.2 to 5 kg), rear-facing only |
| LATCH Weight Limit (Rear-Facing) | Child weight up to 35 lbs (16 kg) |
| LATCH Weight Limit (Forward-Facing) | Child weight up to 40 lbs (18 kg) |
| LATCH Lower Anchor Spacing | Standard 11 in only (ISOFIX positions compatible) |

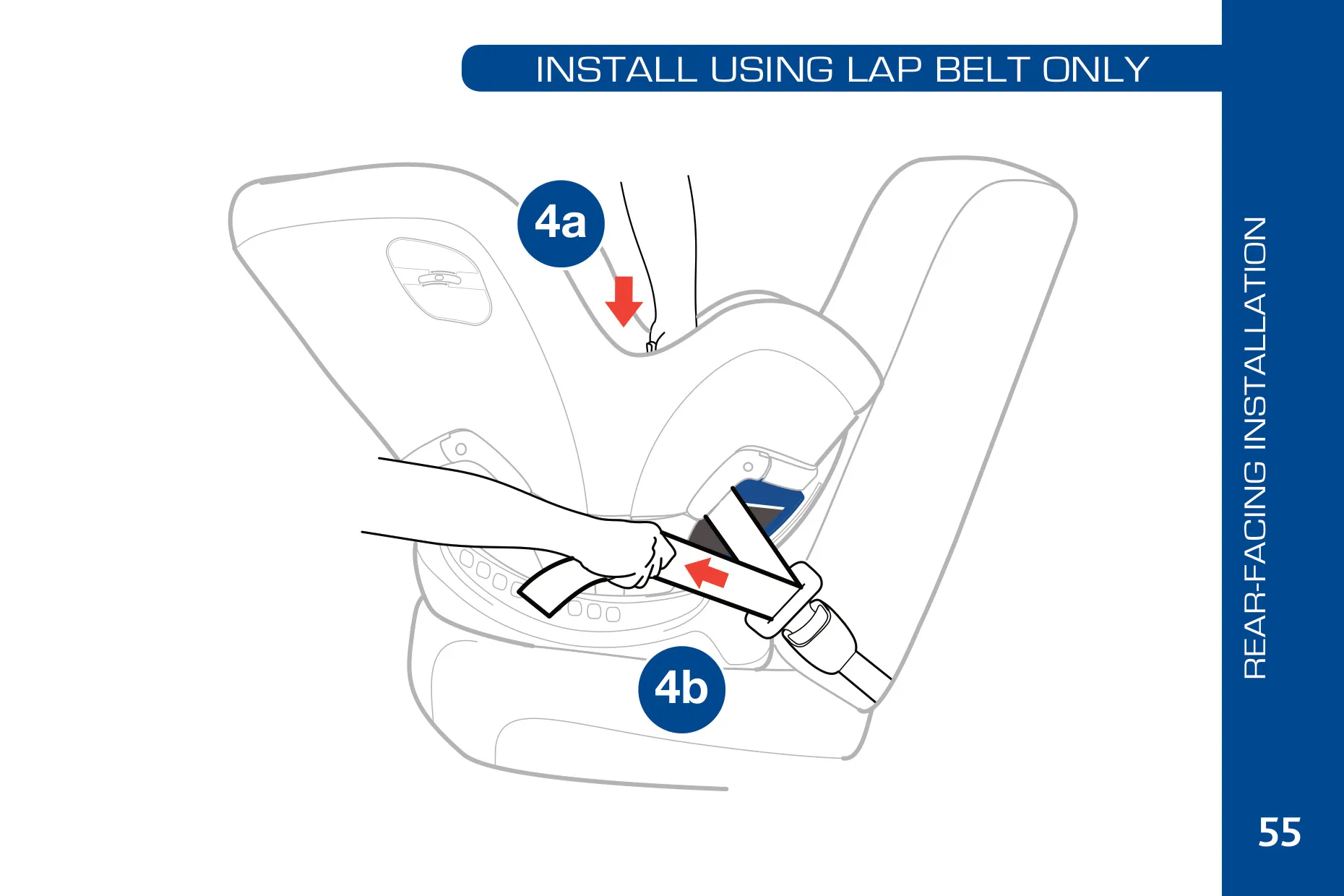

| Installation Methods | LATCH, lap-shoulder belt, lap belt only |
| LATCH Tightening System | LATCH Adjuster (Pull 1st) and SuperCinch LATCH Tightener (Pull 2nd) |
| Belt Path Color Coding | Blue for rear-facing, red for forward-facing |
| Belt Lock-Offs | Rear-facing and forward-facing lock-offs on each side |
| Top Tether | Required for forward-facing if a vehicle anchor is available; not used rear-facing |
| Recline Positions | 9 positions (1 = fully reclined); forward-facing on a slope: positions 8 or 9 only |
| Recline Indicator | Bubble Level Indicator plus level line for sloped installs |
| Maximum Installed Movement | 1 in (25 mm) side-to-side or forward at the belt path |
| Maximum Base Overhang | 3 in past the edge of the vehicle seat |
| Aircraft Use | Certified for aircraft, forward-facing aircraft seats only, installed with lap belt |
| Cup Holder | Removable, fits either side; plastic cups under 12 oz only |
| Product Useful Life | 8 years (see "Do Not Use After" date on underside label) |
| Customer Service | 1-877-424-4226 |
Chicco Nextfit Car Seat Details

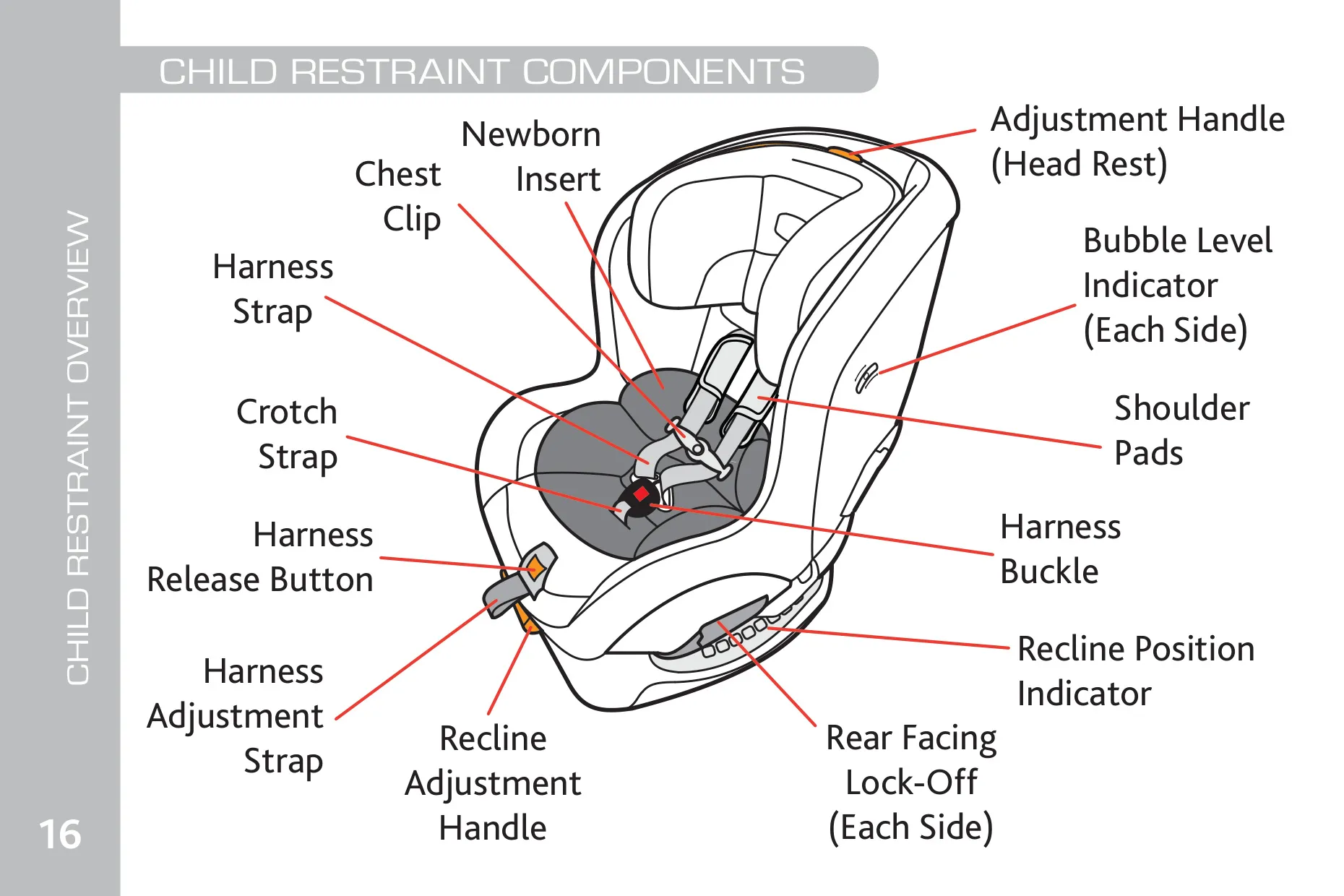

The Chicco NextFit has an integrated harness, and you change its height from the top of the seat. Squeezing the Adjustment Handle on the Head Rest moves the Head Rest and the harness together, so you never need to rethread the straps by hand. The manual says to make sure the Head Rest locks into position before you tighten anything. If you use the lowest Head Rest position, fold the seat back padding panel under so the straps sit correctly.
To secure a child, press the Harness Release Button on the front of the shell and pull both straps forward to loosen them. Press the buckle button to free both tongues. The chest clip opens with a center button. After you seat the child, insert each tongue until it clicks, then pull up firmly to check it is latched. Pull the slack up from below, then tighten with the Harness Adjustment Strap until you can no longer pinch a fold of webbing at the shoulders.

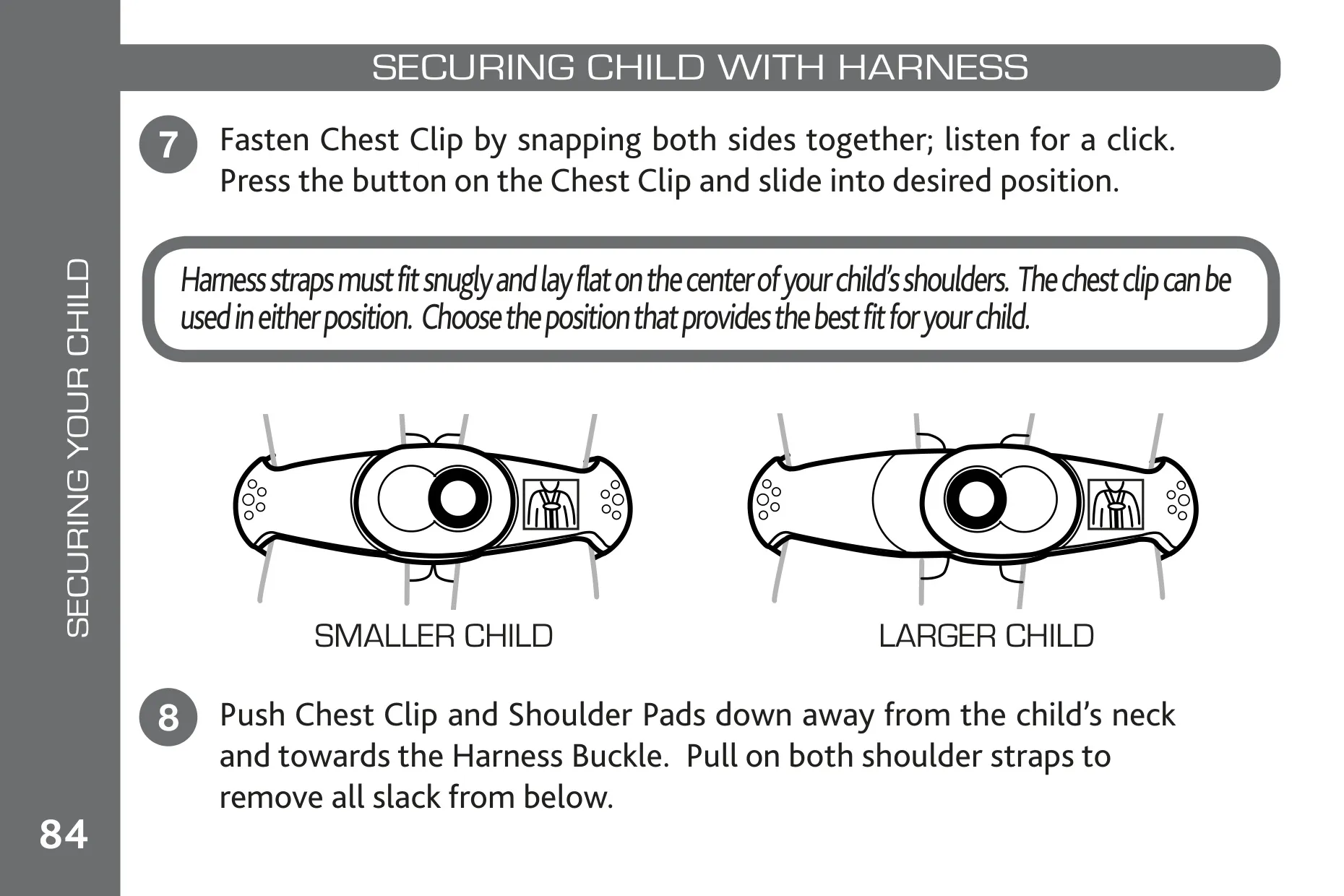

Place the Chest Clip at the center of the chest, level with the armpits. It can be used in either of two orientations, one for a smaller child and one for a larger child. Hook-and-loop fasteners hold the shoulder pads on the straps. You can move the pads down toward the buckle while tightening, then slide them back up to the shoulders. The manual adds a caution about winter clothing: the harness must compress any bulky garment so the child cannot lean forward.
The Crotch Strap can sit in a forward or rearward position. You reach it by lifting the back padding, unsnapping the seat padding and opening a locking compartment with a slide button. After you move it, push the door down until it locks, then pull up on the strap to confirm. To remove the strap completely, fully recline the seat, then turn the metal anchor bar underneath so it passes through its slot. Never use the seat without the crotch strap installed.
The seat has several built-in storage areas. Each LATCH strap stows in a closable compartment on either side of the base, and the SuperCinch strap folds into place. The top tether stores in a rear compartment: hook it onto the bar and pull the strap tight before closing the door. A separate compartment at the rear of the base holds the user guide. Keep the LATCH compartments closed except when you are moving the straps between belt paths.

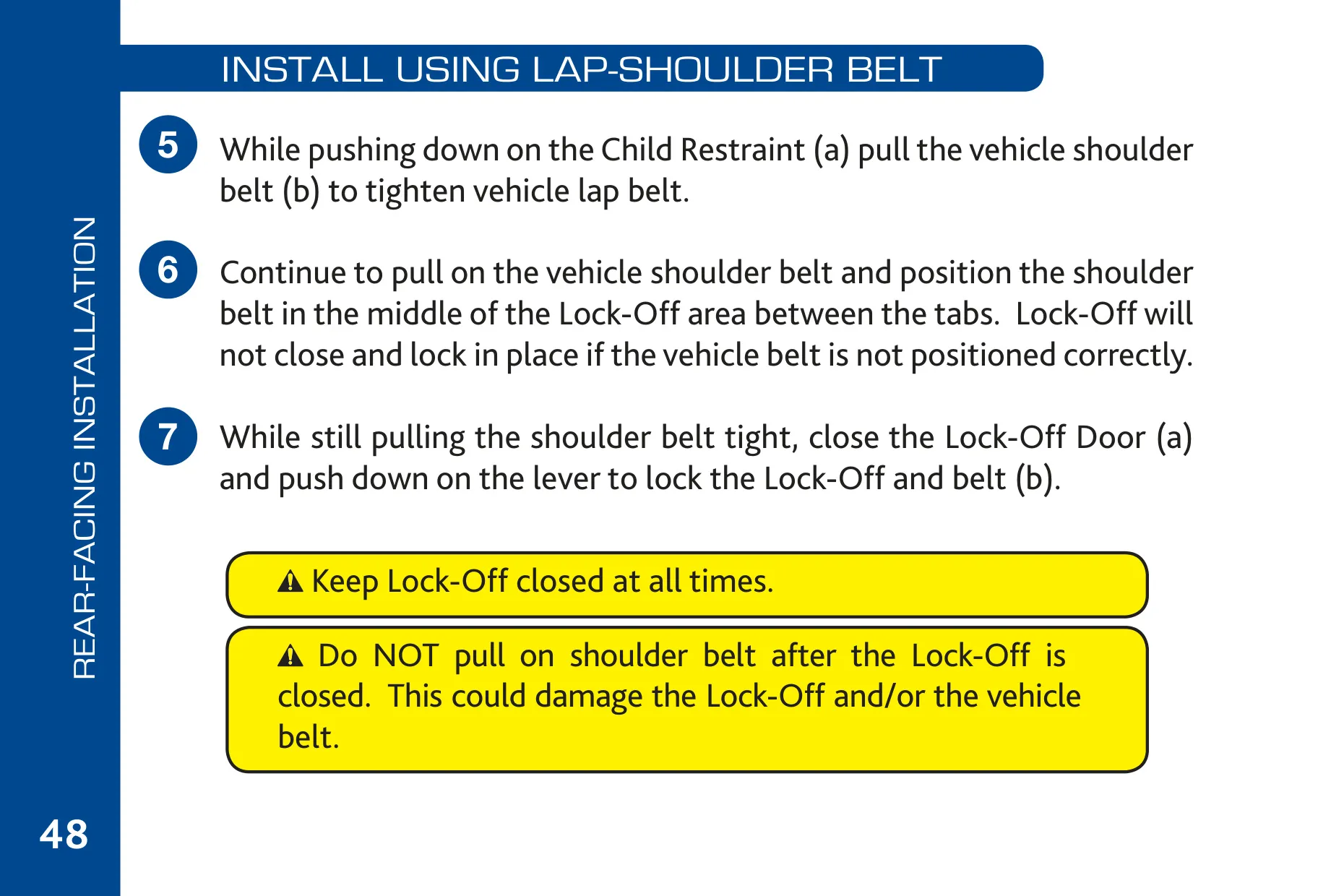

The manual lists vehicle belts that must never be used with this seat: motorized automatic belts, door-mounted belts, lap-shoulder belts with two retractors (unless the lap belt has a lock mode), non-locking ELR lap belts and inflatable belts. Because the integrated lock-off holds the belt, locking a switchable retractor is optional. Rear-facing, locking it may even tilt the seat. Never use LATCH and the seat belt together. When installing with LATCH, do not buckle the unused belt behind the seat.
Fabrics can be hand washed, or machine washed in cold water on a delicate cycle with mild detergent, then hung to dry. Shoulder pads are hand wash only. The harness and LATCH straps are sponge-clean only and must never go in a machine. The LATCH straps cannot be replaced. If debris gets into the buckle, rinse it in a cup of warm water. Never use bleach, solvents or household cleaners. Keep soap and lubricants away from the buckle and LATCH hardware.
You must replace the seat after any crash, even if you cannot see damage. Only use pads or accessories that Chicco USA has approved, because anything else voids the warranty. In sunlight, cover the seat and check plastic and metal parts for heat before seating the child. To keep the child warm, put a blanket over them only after the harness is tightened.
