Triangle Tube Prestige Solo 80 Instructions
Here we offer the Triangle Tube Prestige Solo 80 manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Triangle Tube Prestige Solo 80, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

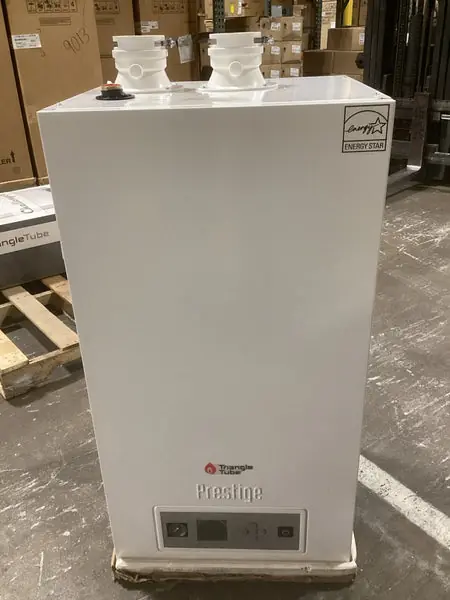

Product Images

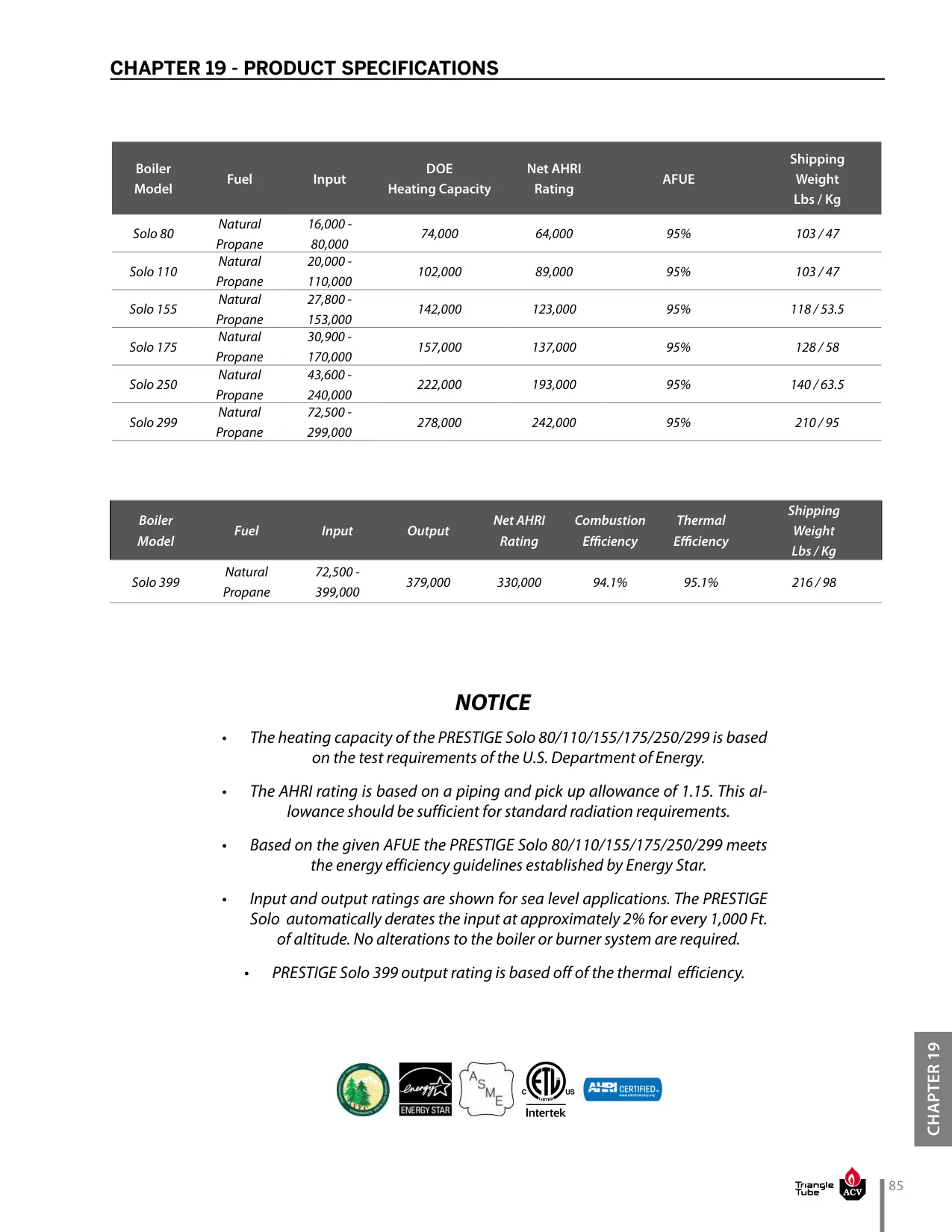

Triangle Tube Prestige Solo 80 Specifications

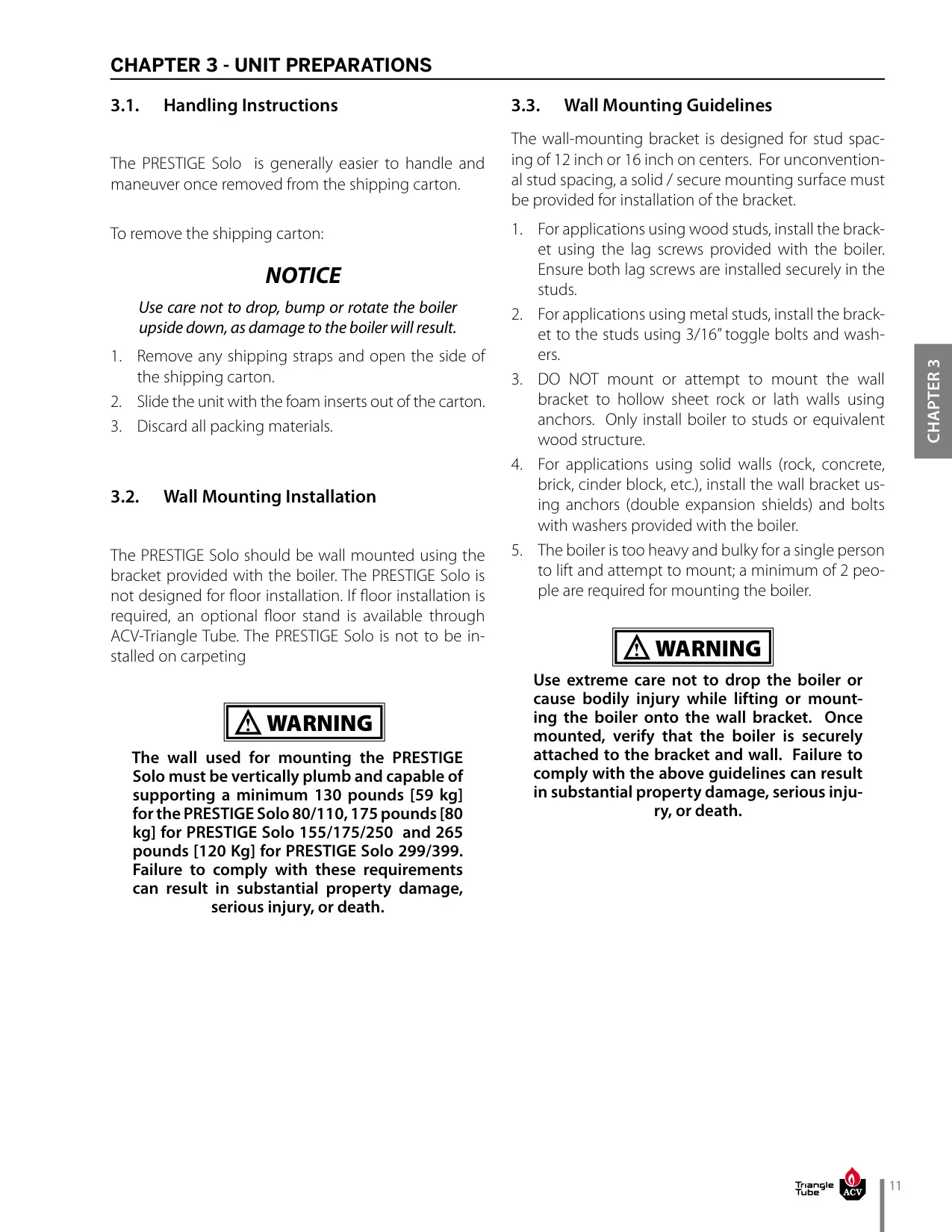

| Characteristic | Specification |
|---|---|
| Fuel Type | Natural Gas / Propane |
| Input (BTU/hr) | 16,000 - 80,000 |
| DOE Heating Capacity (BTU/hr) | 74,000 |
| Net AHRI Rating (BTU/hr) | 64,000 |
| AFUE | 95% |
| Shipping Weight (Lbs / Kg) | 103 / 47 |

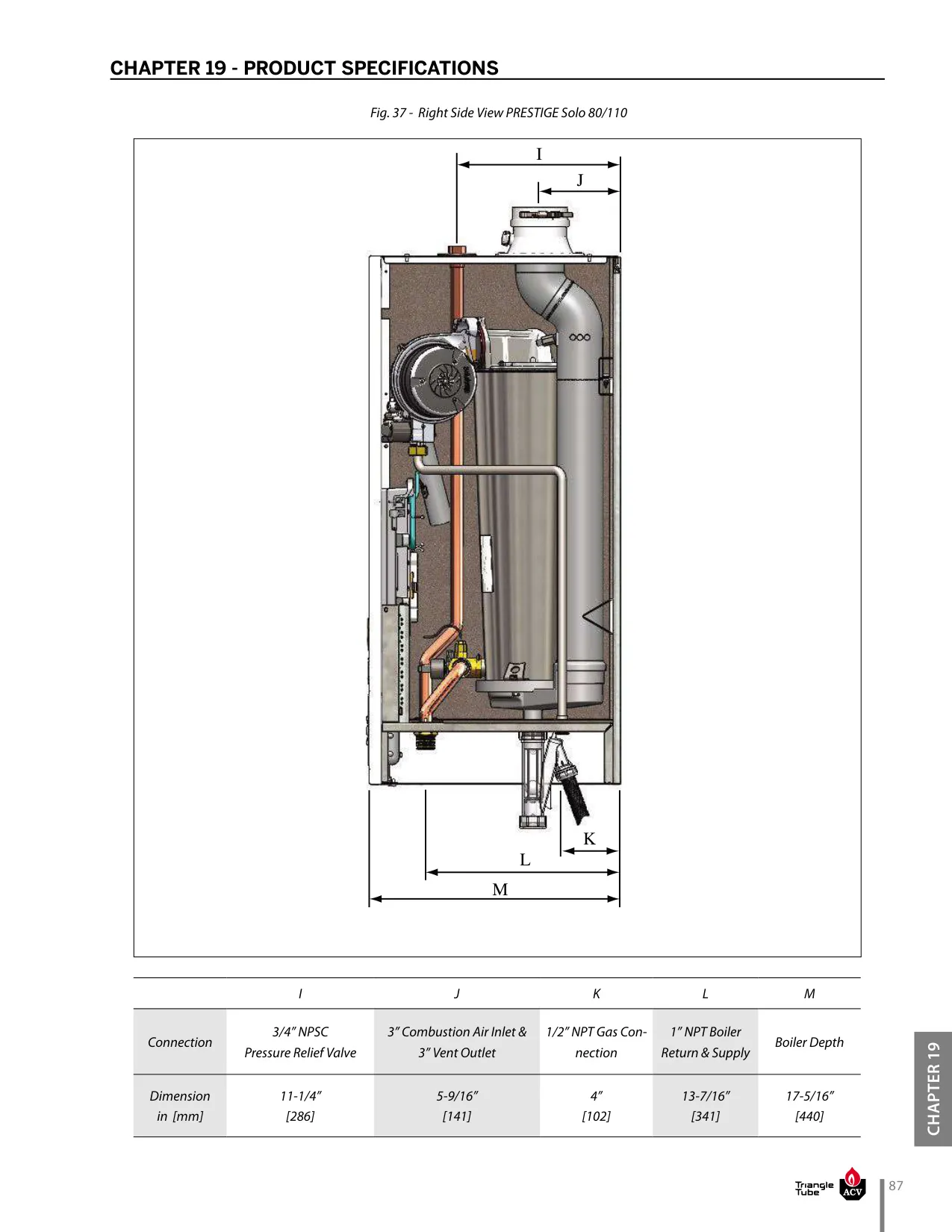

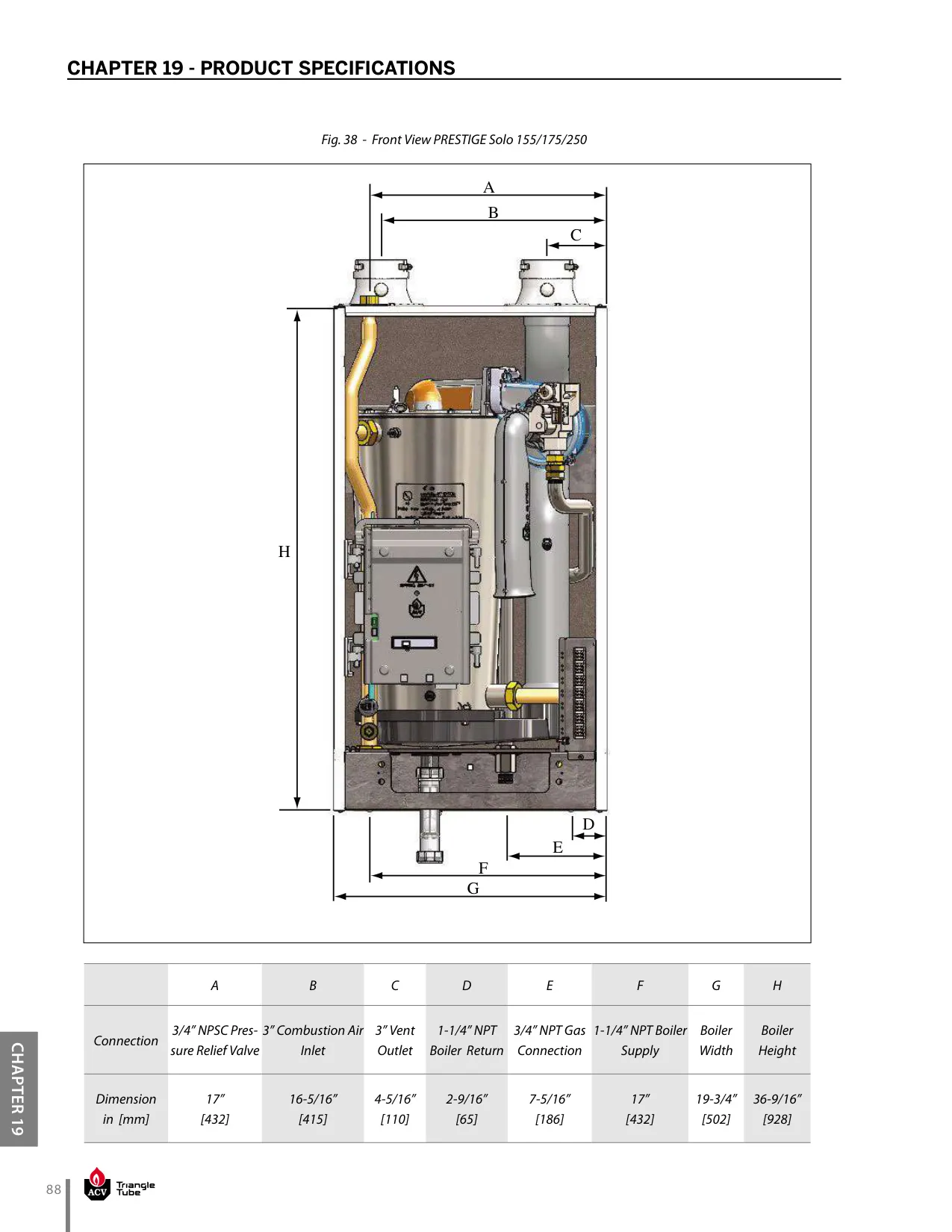

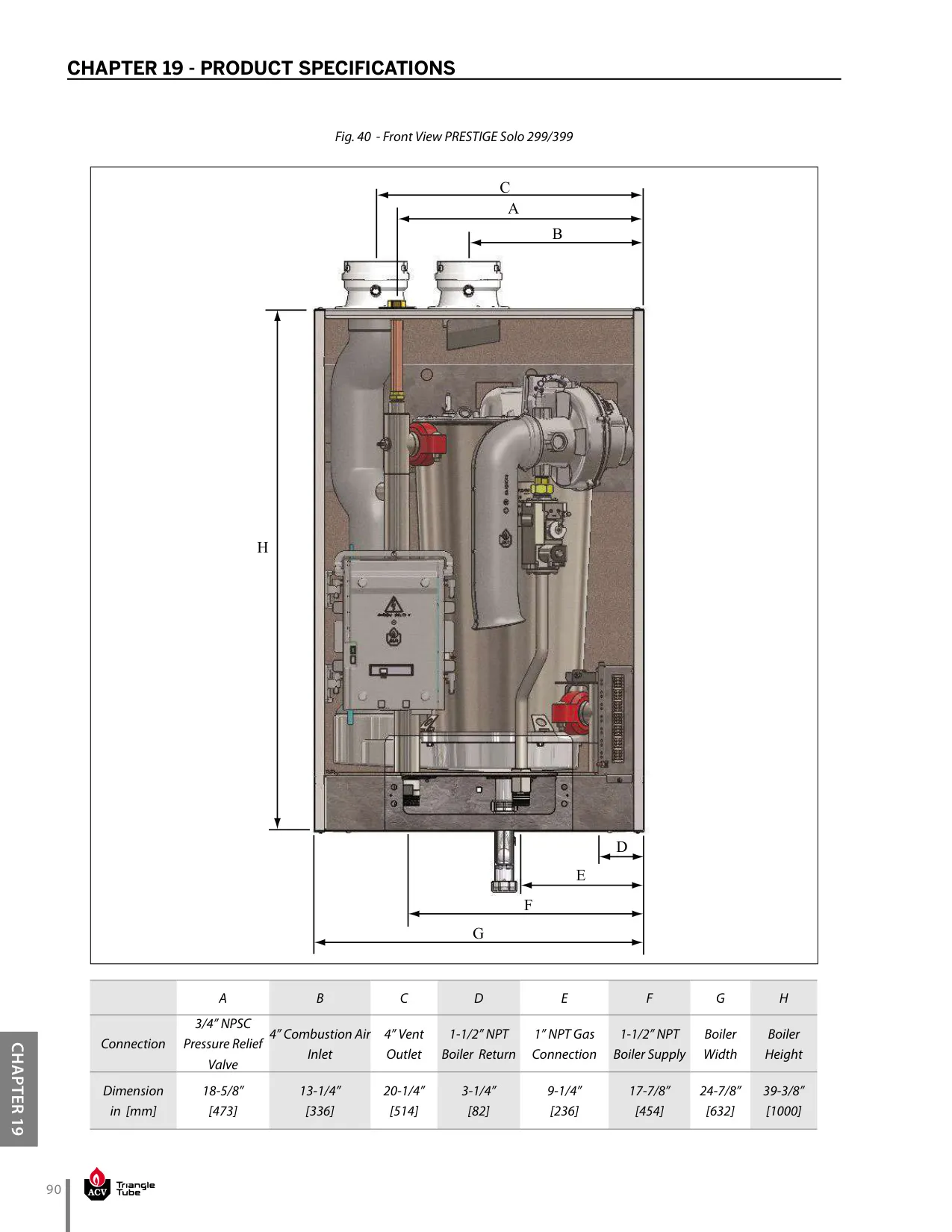

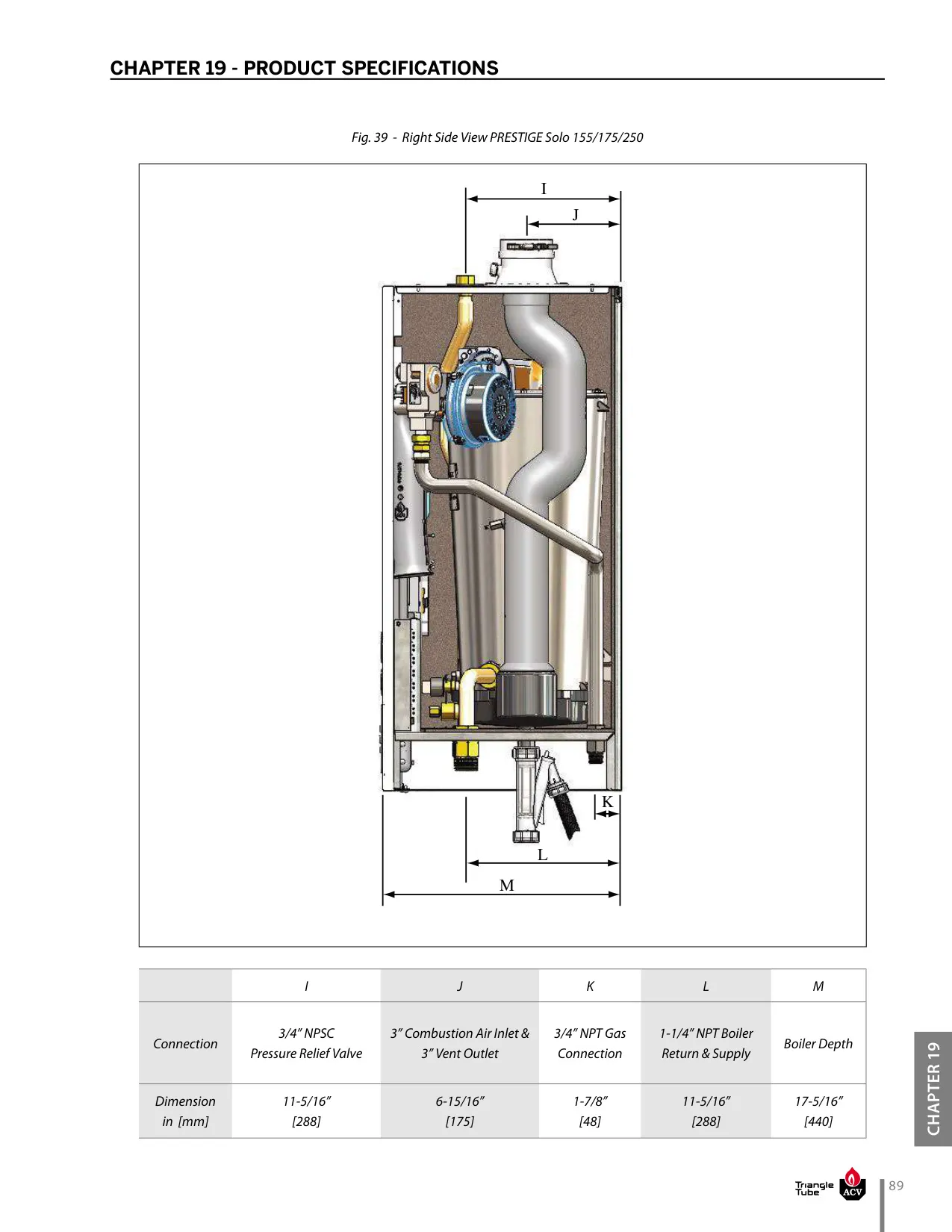

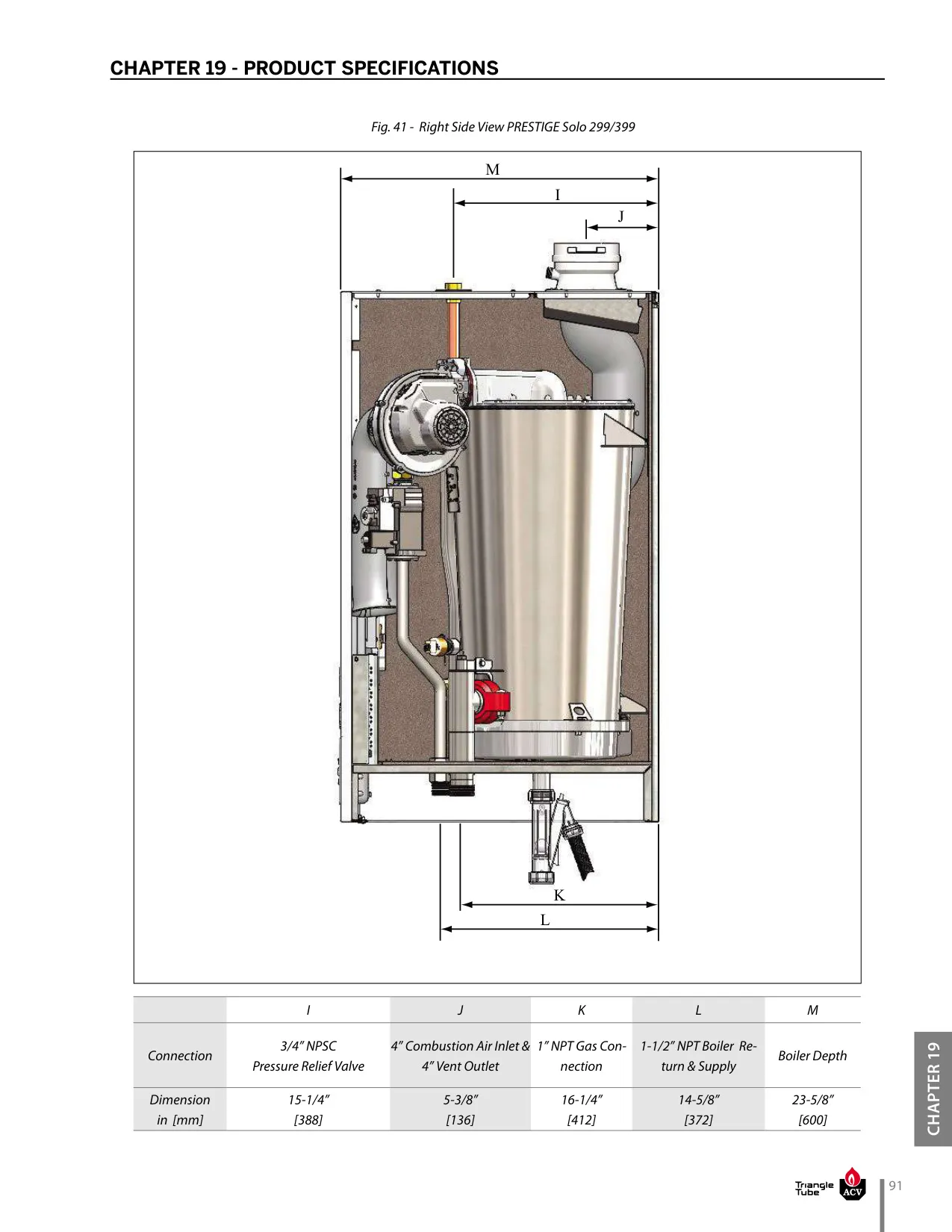

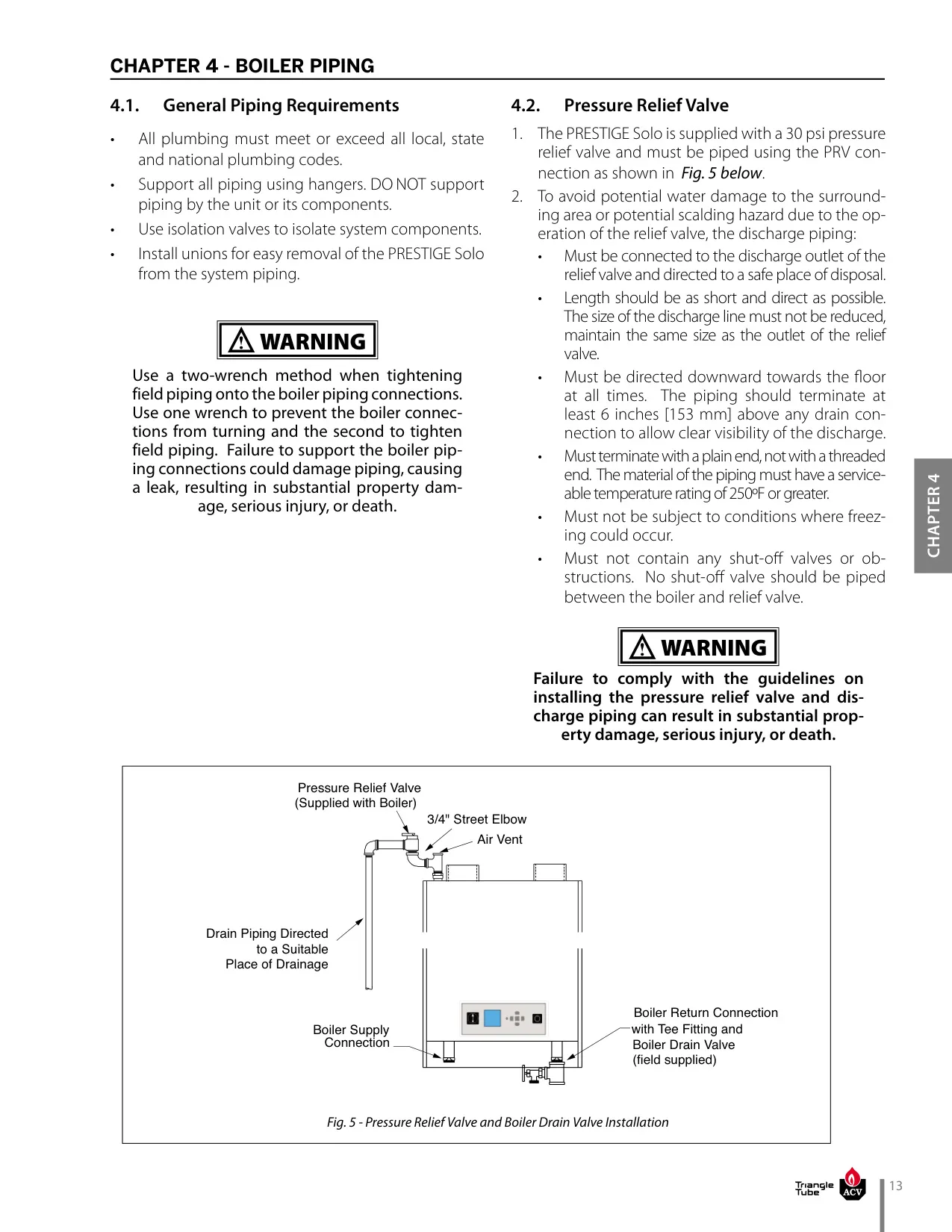

| Boiler Width (in / mm) | 19-3/4" / 502 mm |
| Boiler Height (in / mm) | 36-9/16" / 928 mm |
| Boiler Depth (in / mm) | 17-5/16" / 440 mm |
| Boiler Volume (gallons / L) | 3 gallons / 12 L |
| Combustion Air Inlet Connection | 3" |
| Vent Outlet Connection | 3" |
| Boiler Supply Connection | 1" NPT |
| Boiler Return Connection | 1" NPT |
| Gas Connection | 1/2" NPT |
| Pressure Relief Valve Connection | 3/4" NPSC |

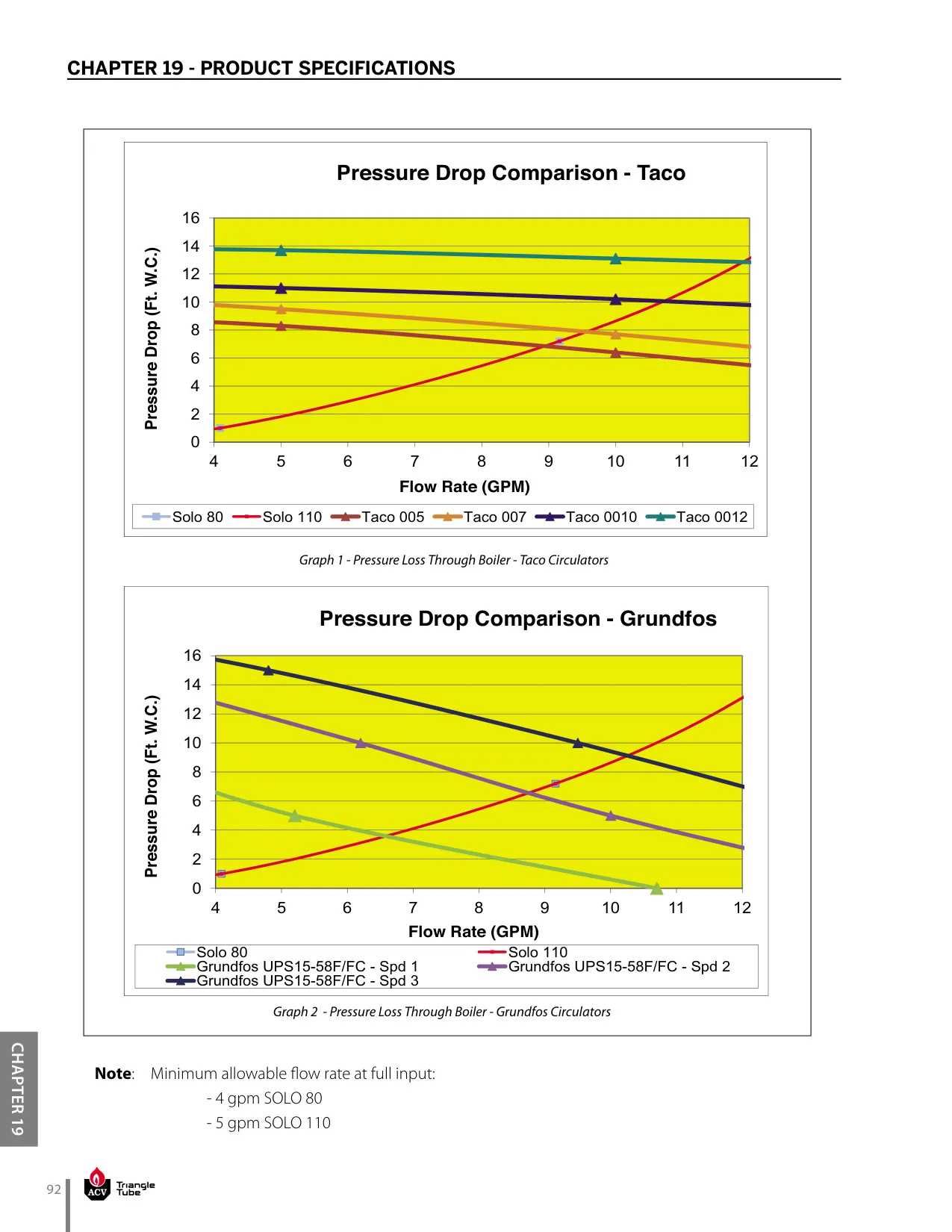

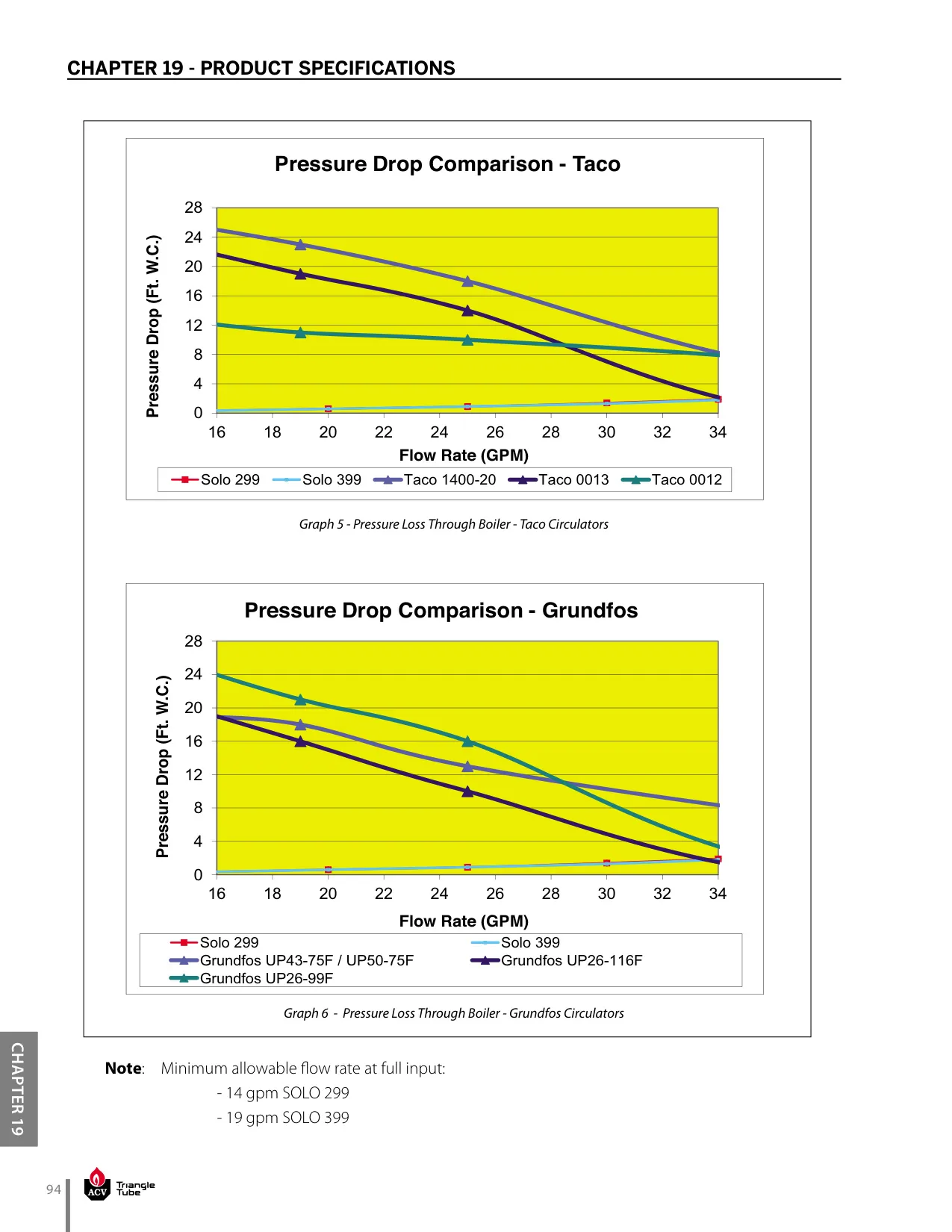

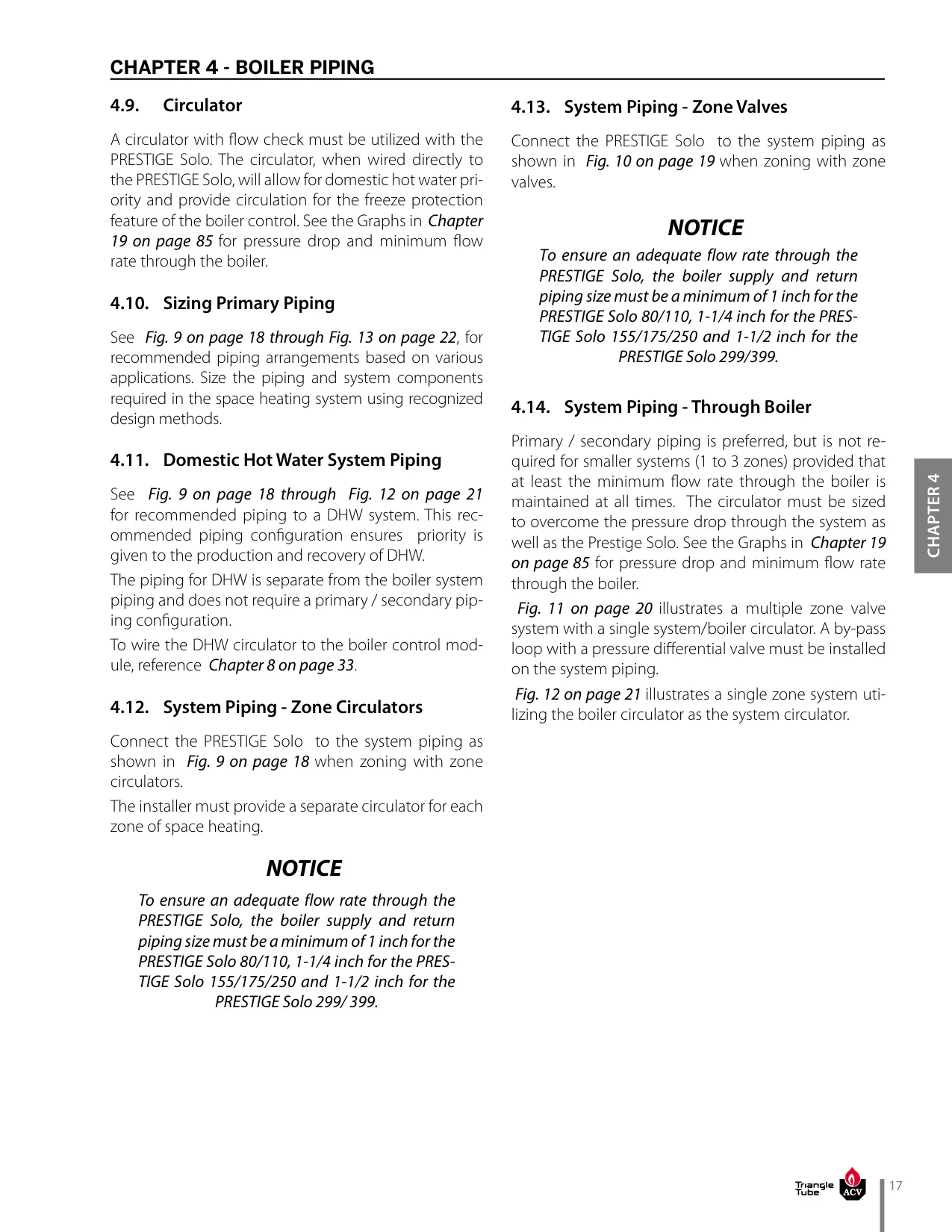

| Minimum Allowable Flow Rate at Full Input | 4 GPM |
| Maximum Operating Pressure | 25 psig |
| Minimum Operating System Pressure | 10 psig |

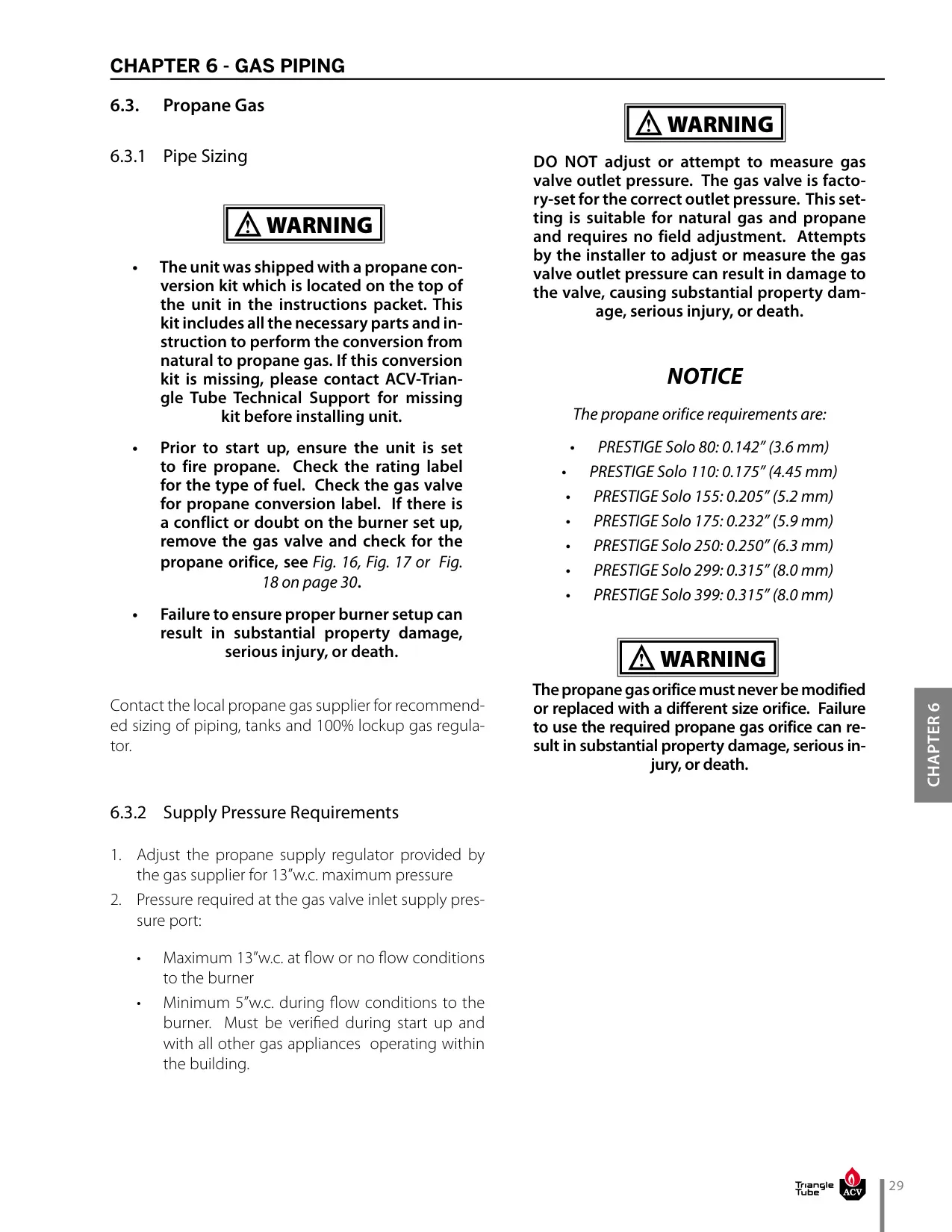

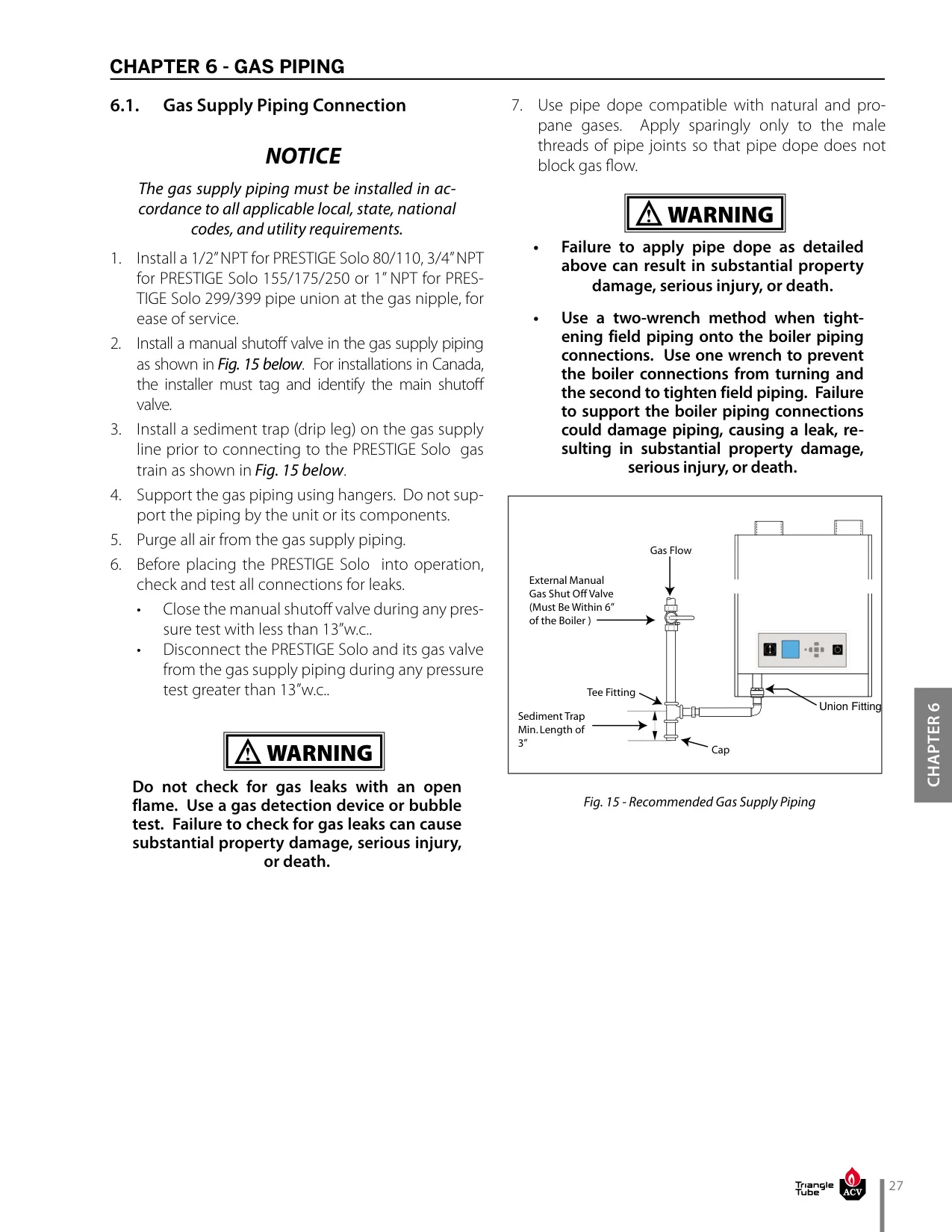

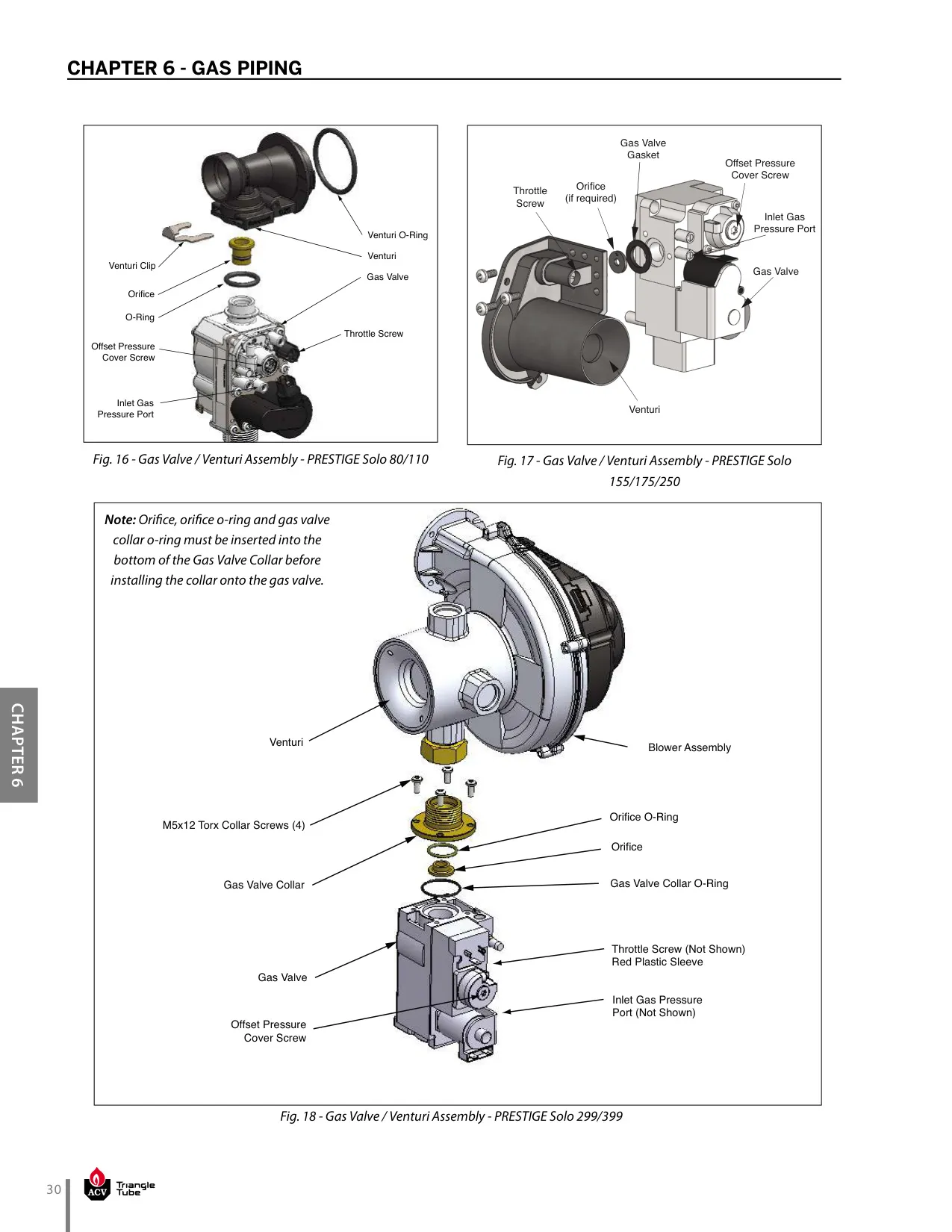

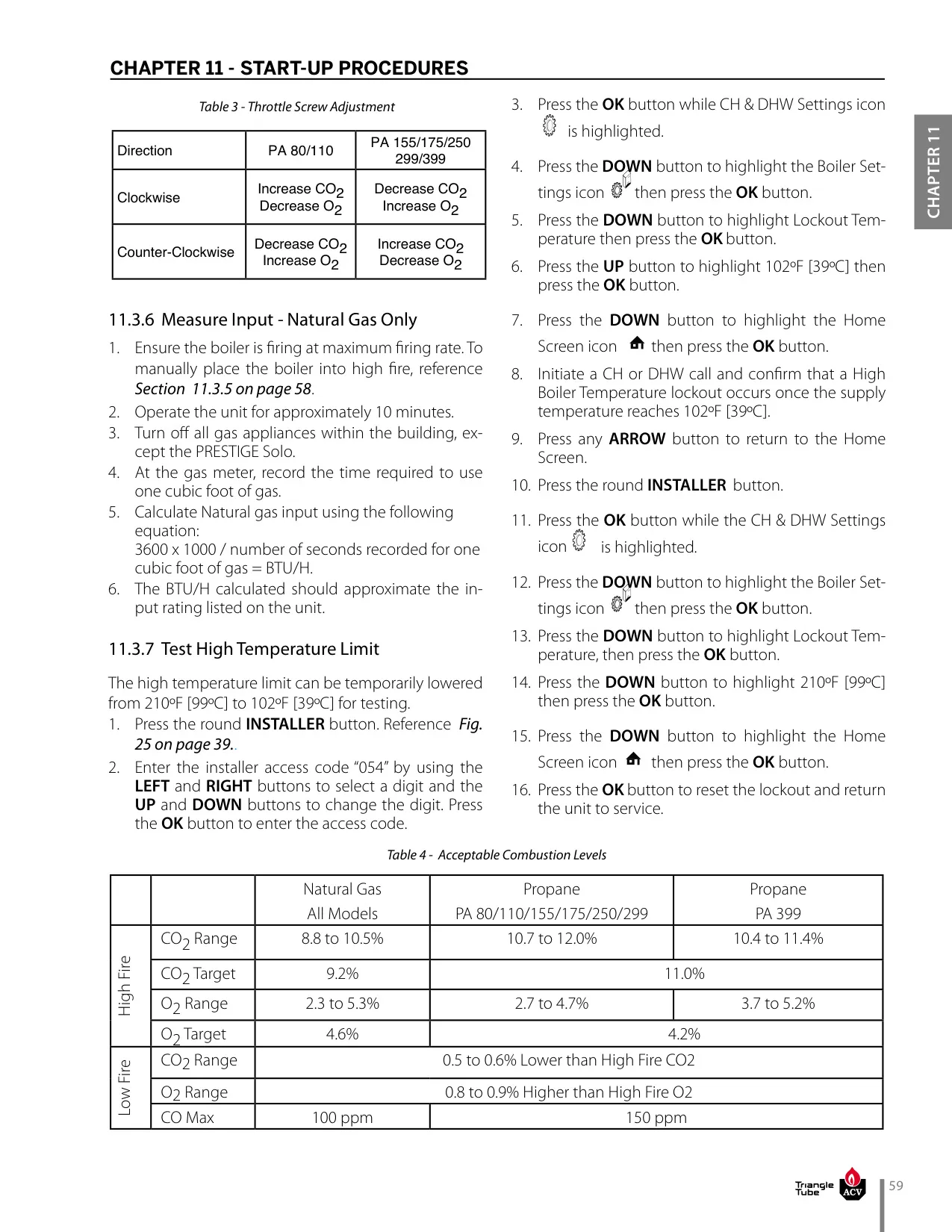

| Maximum Inlet Gas Pressure (Natural Gas / Propane) | 13"w.c. |
| Minimum Inlet Gas Pressure (Natural Gas / Propane) | 5"w.c. |

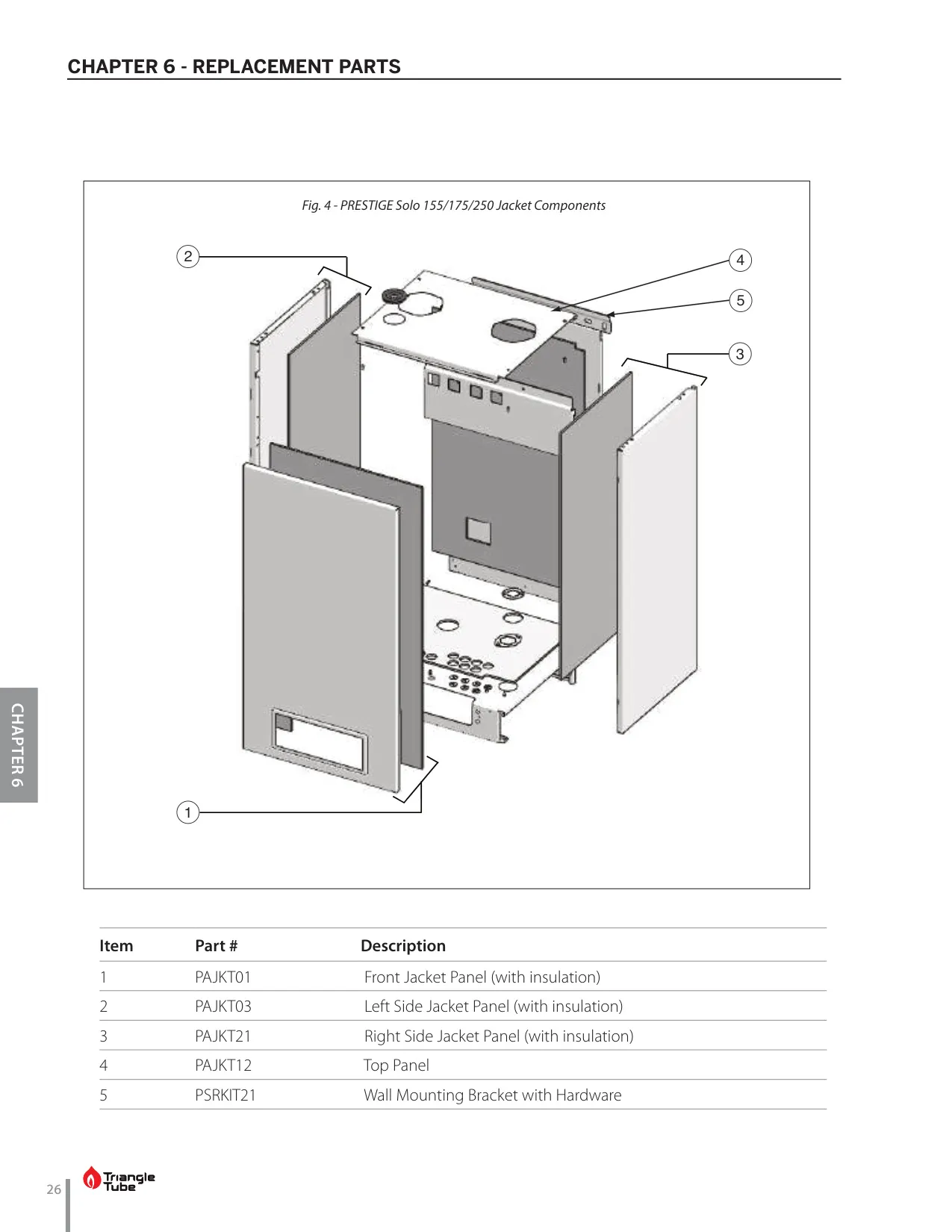

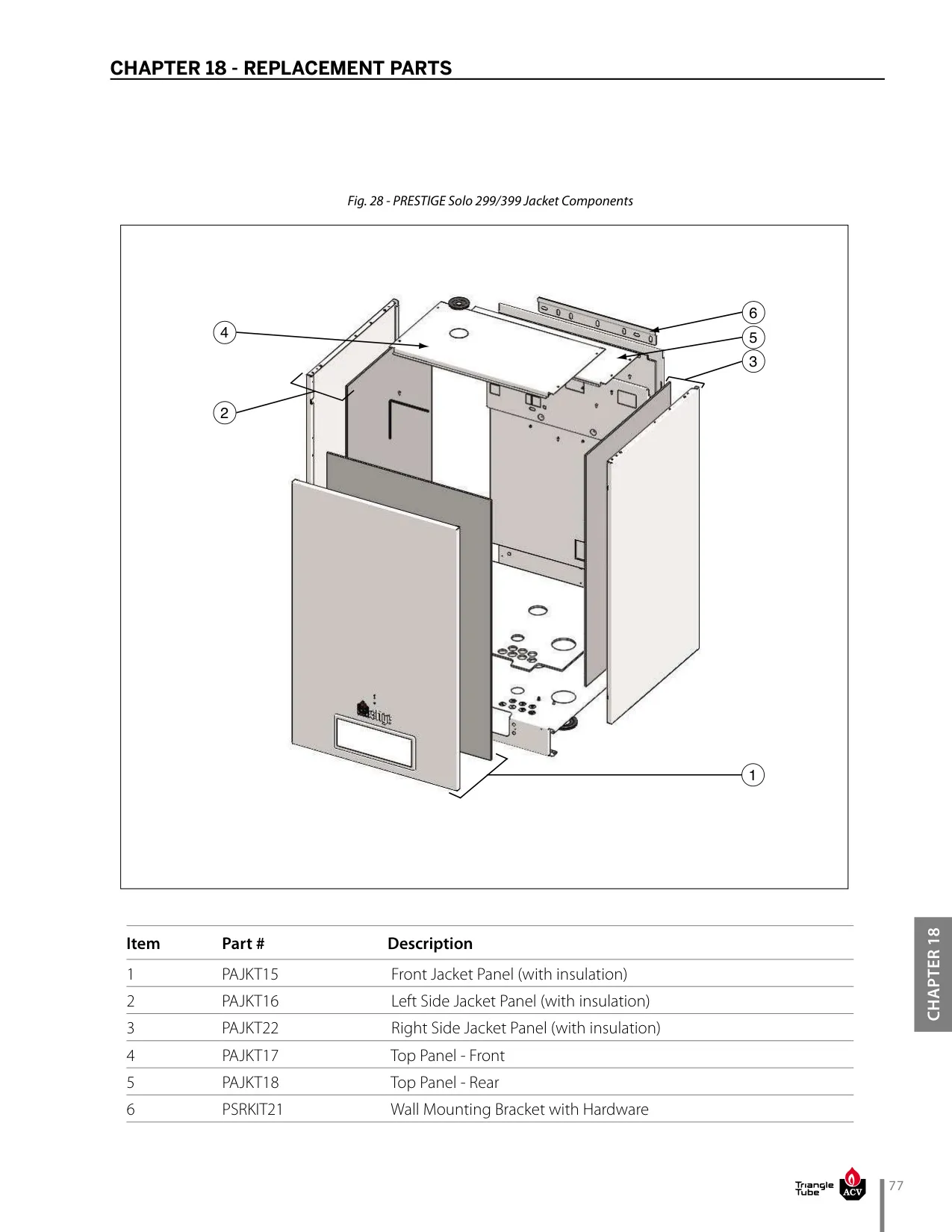

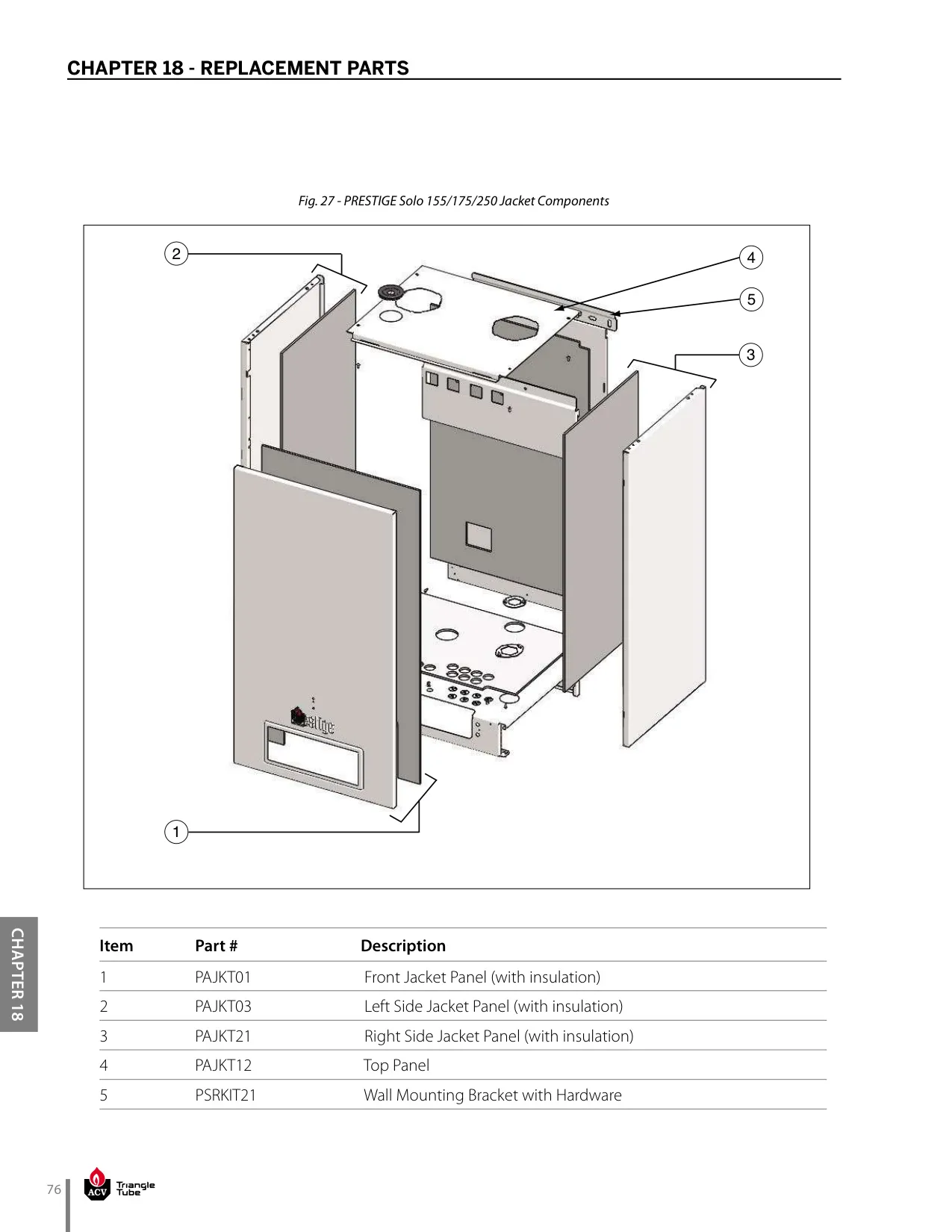

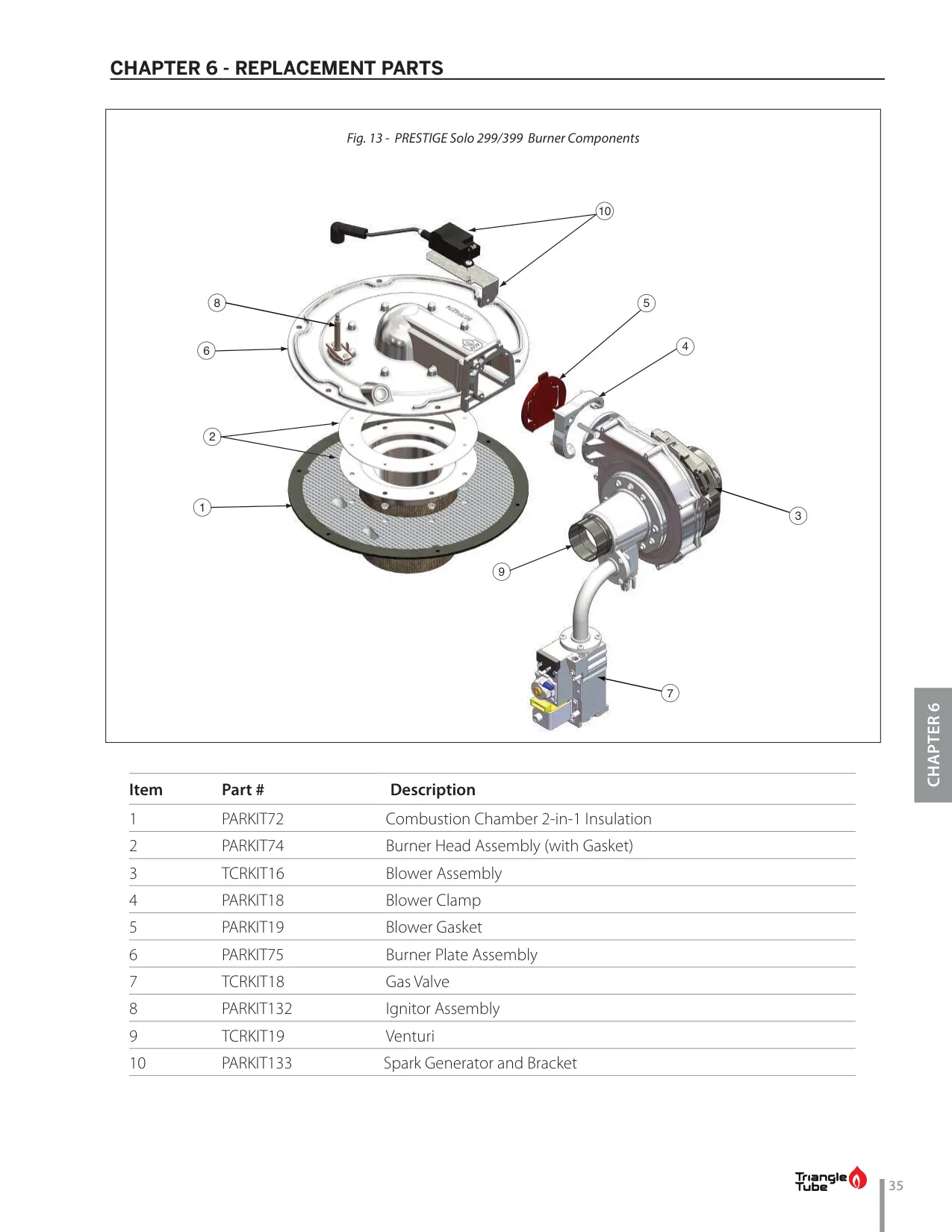

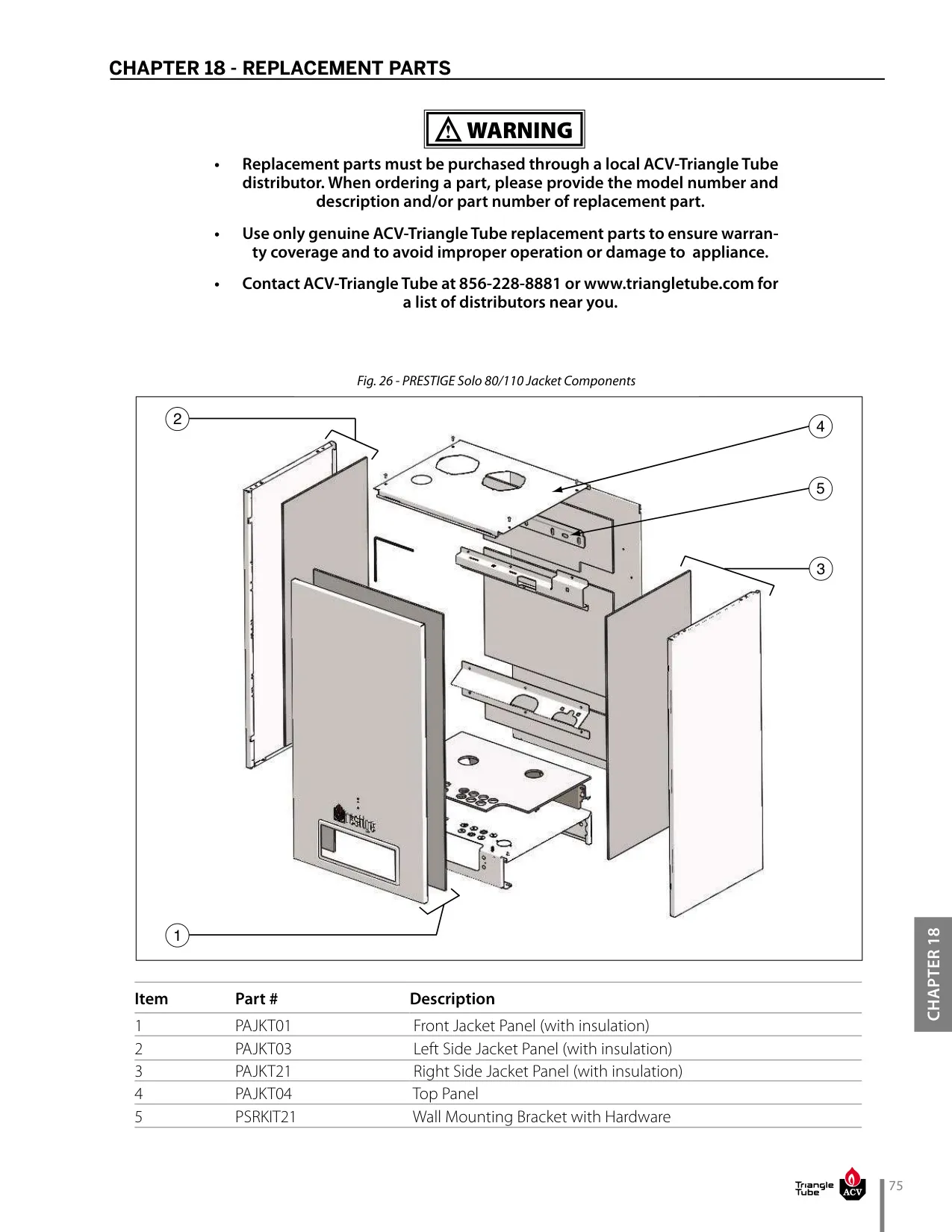

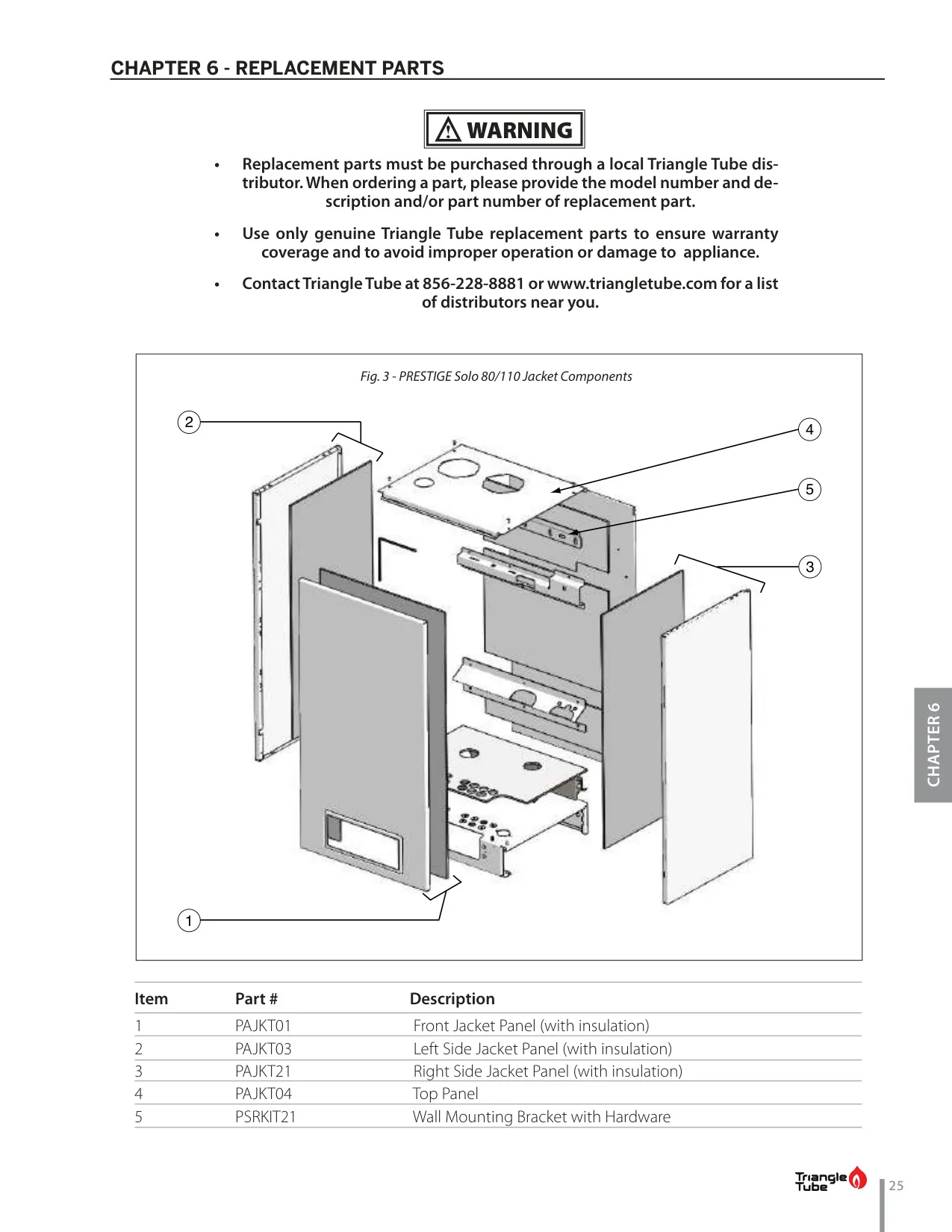

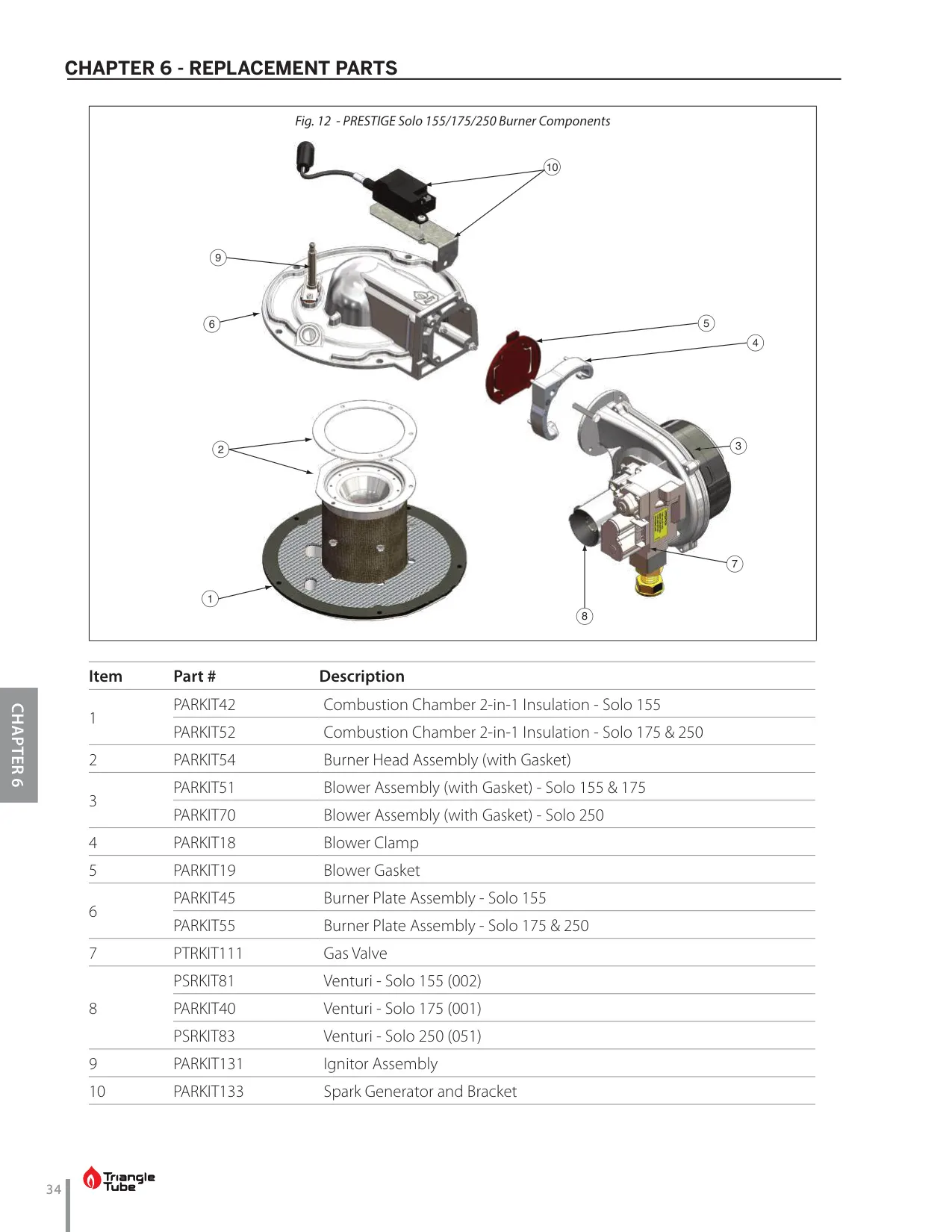

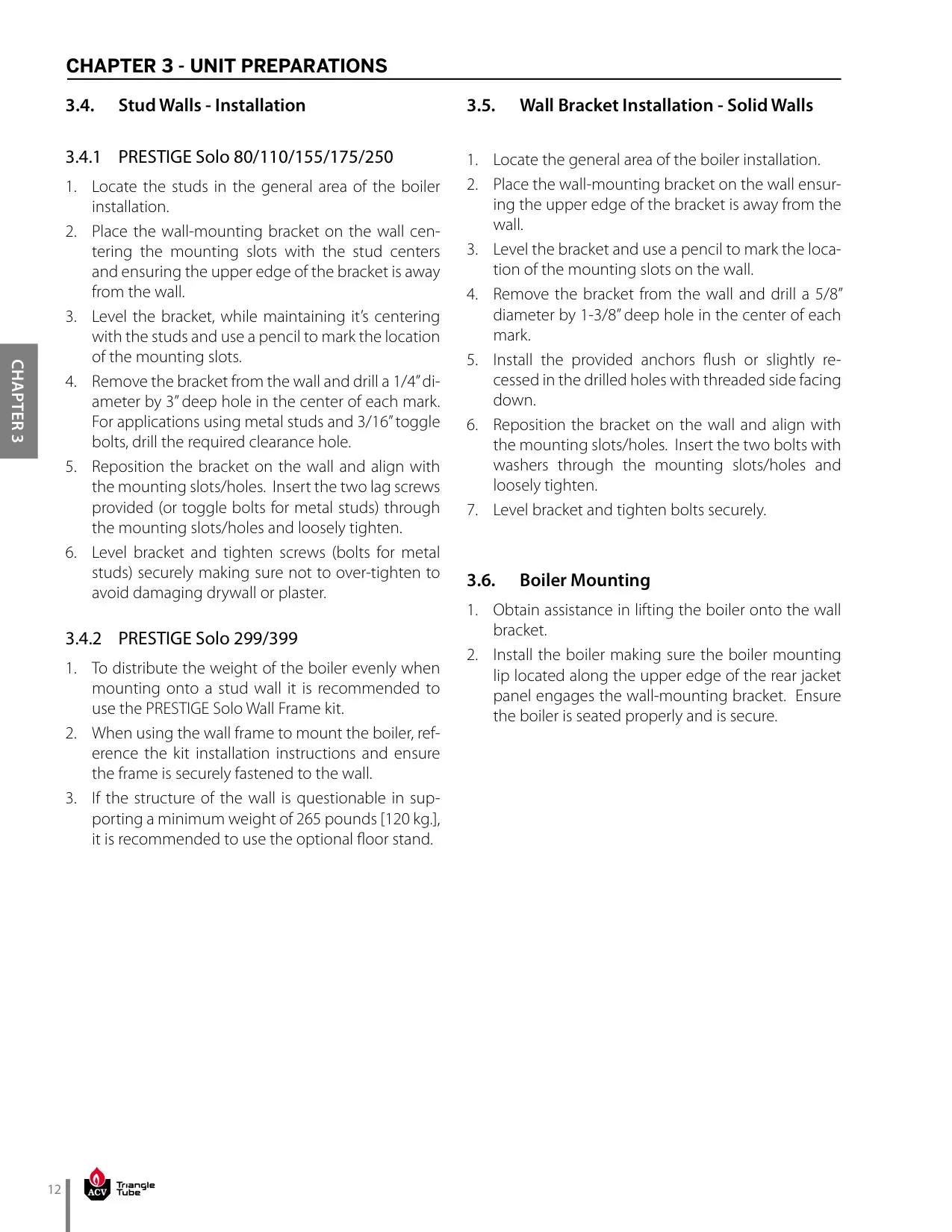

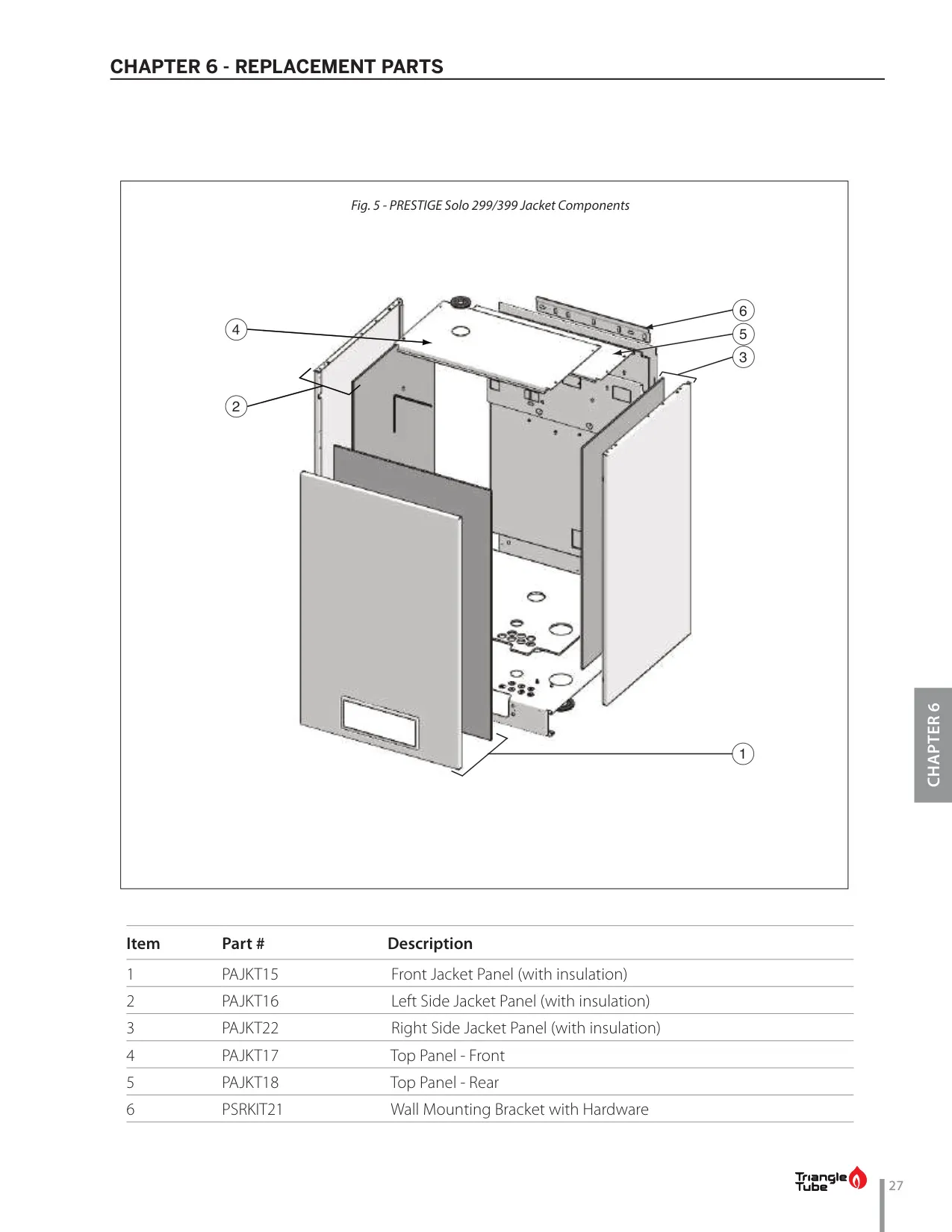

Triangle Tube Prestige Solo 80 Boiler Details

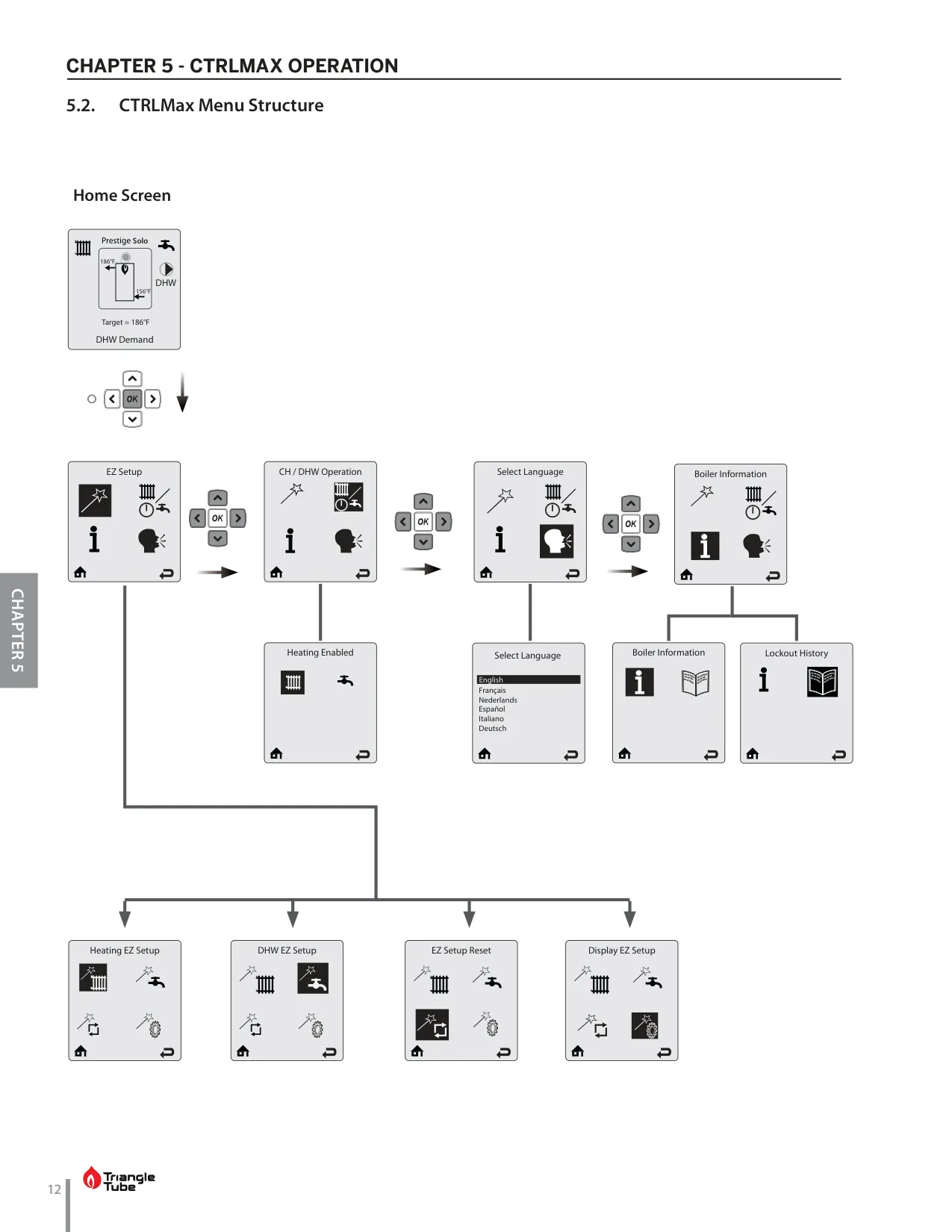

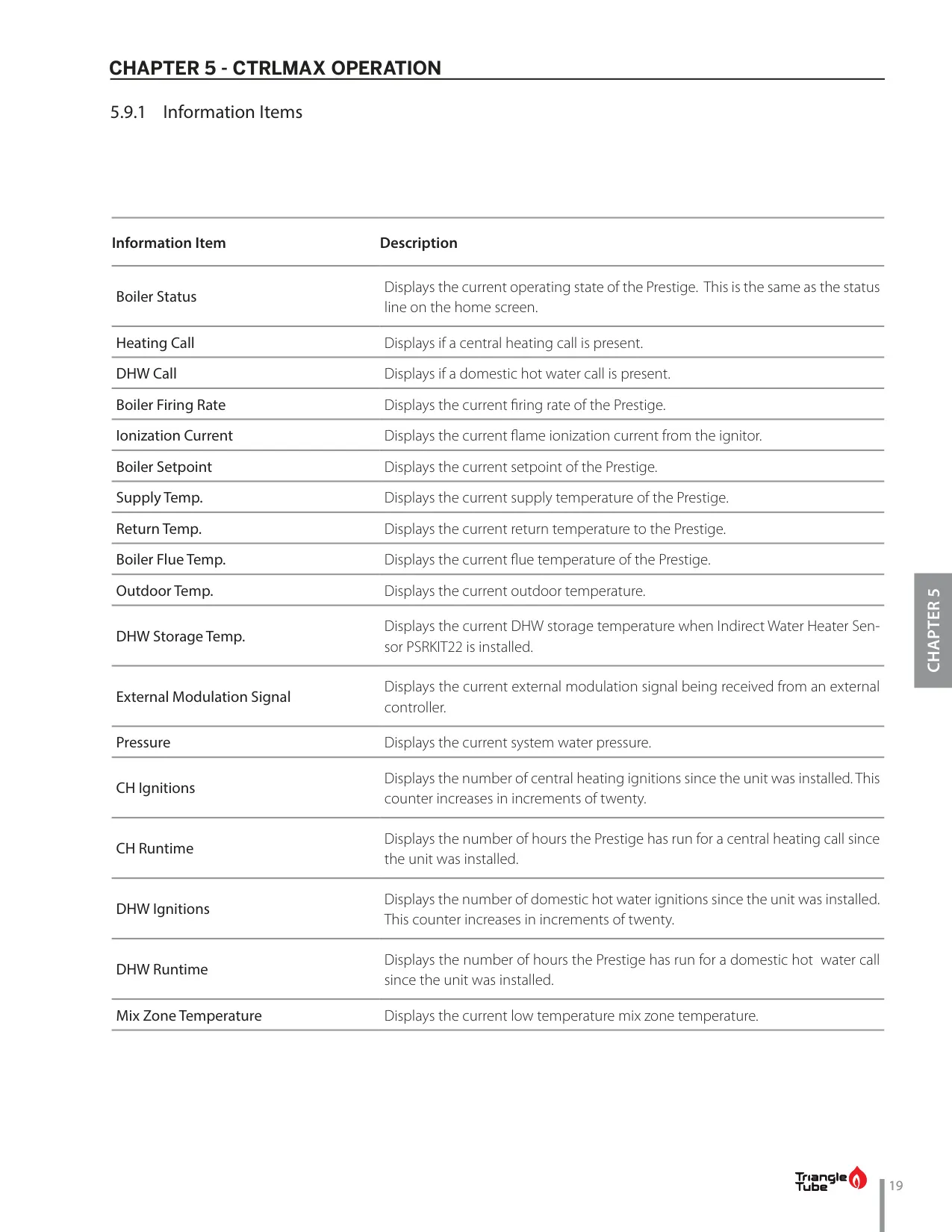

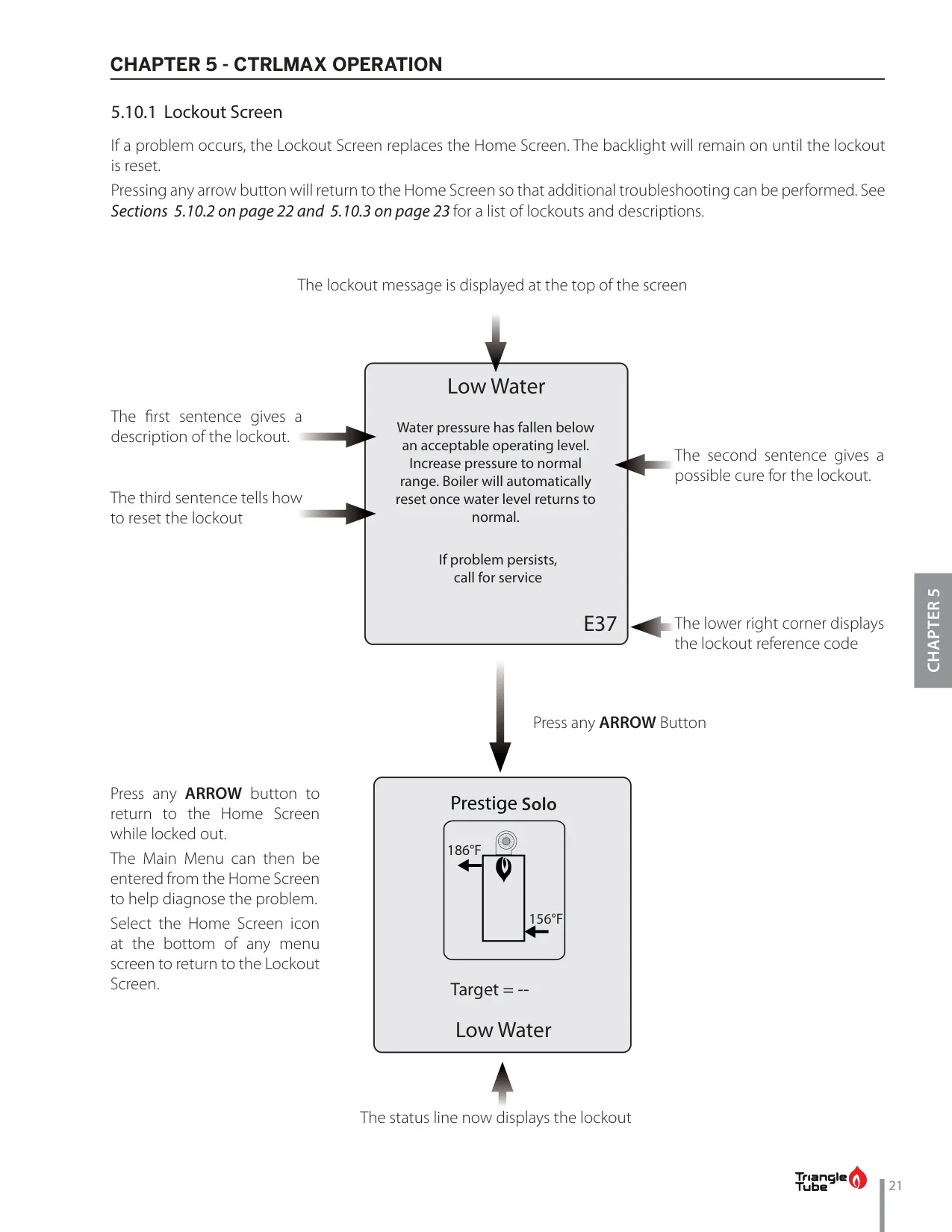

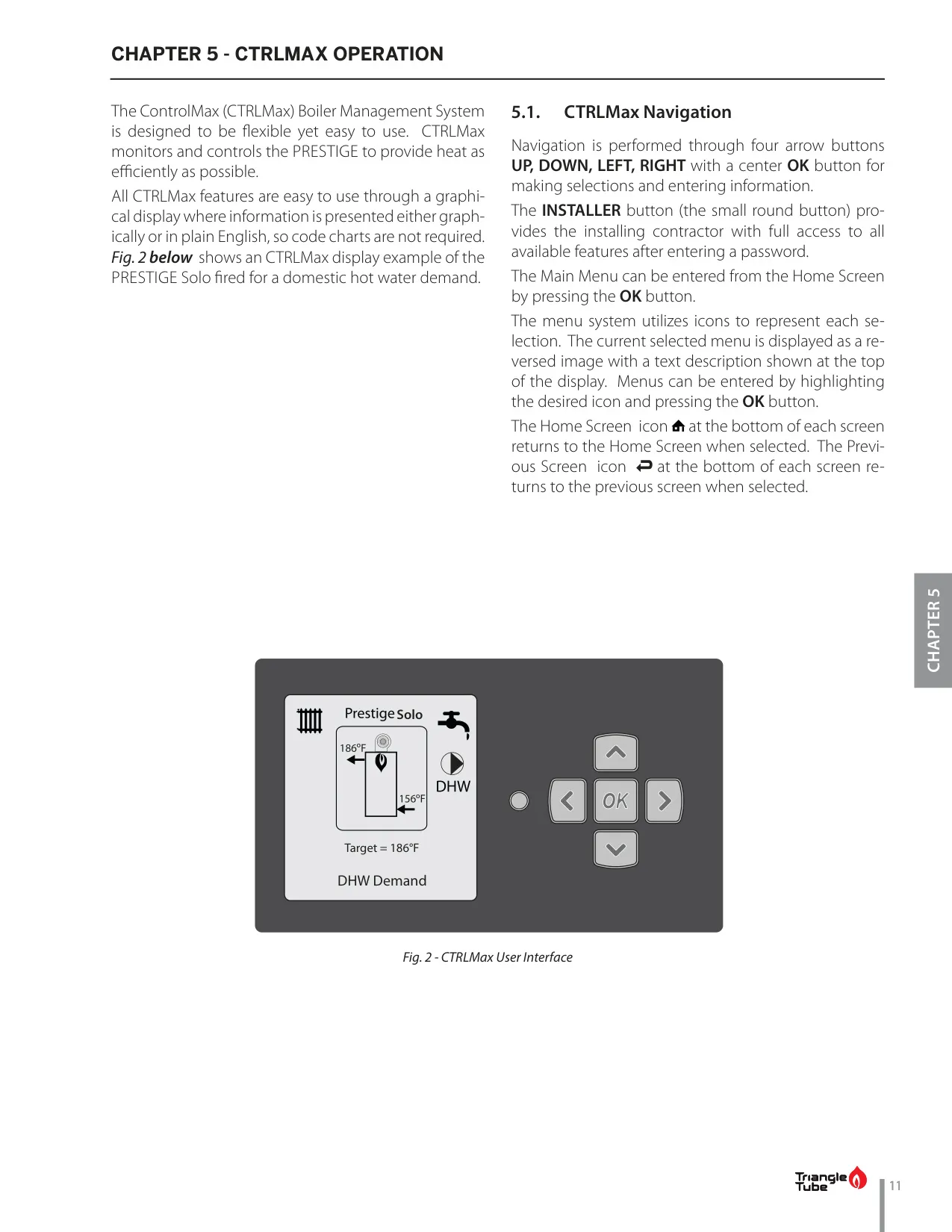

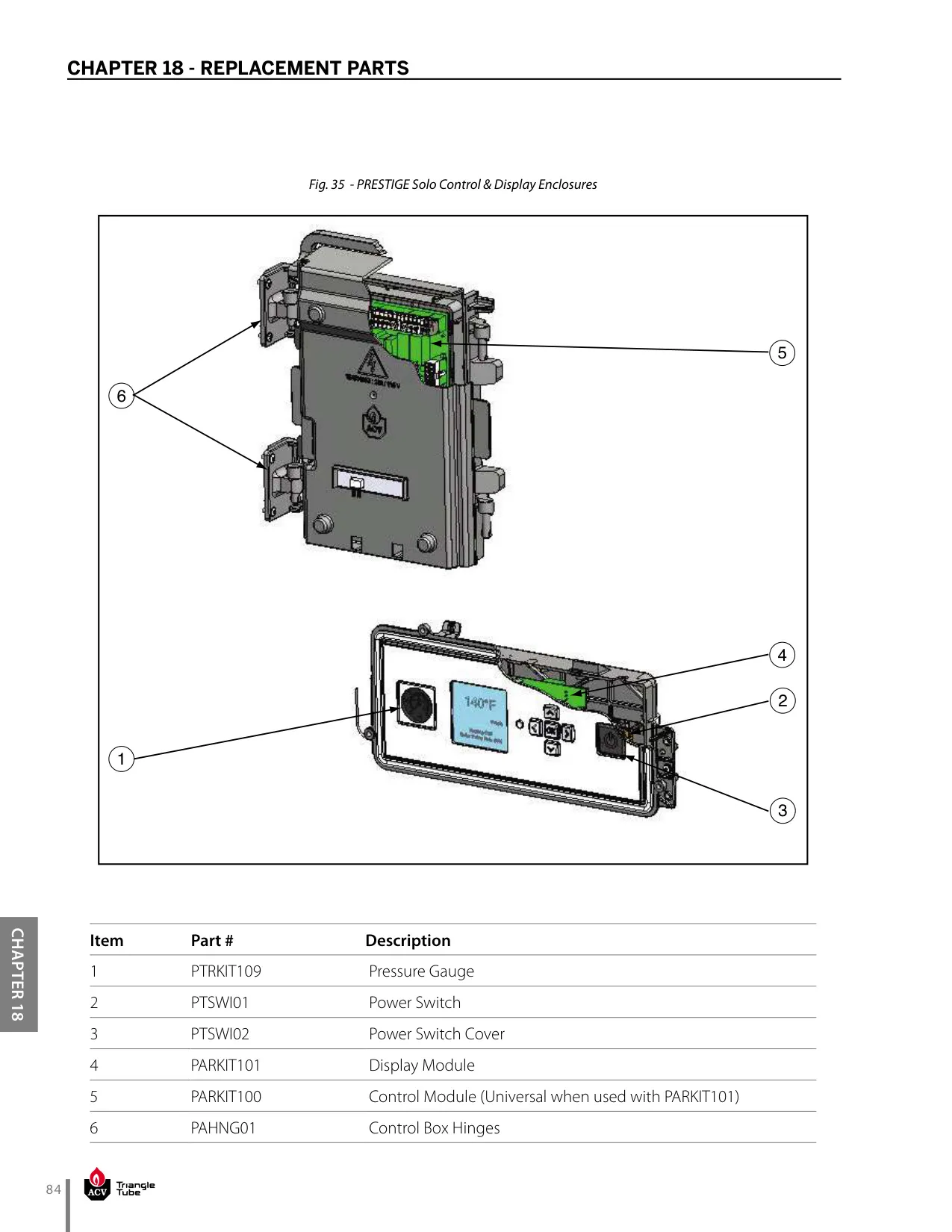

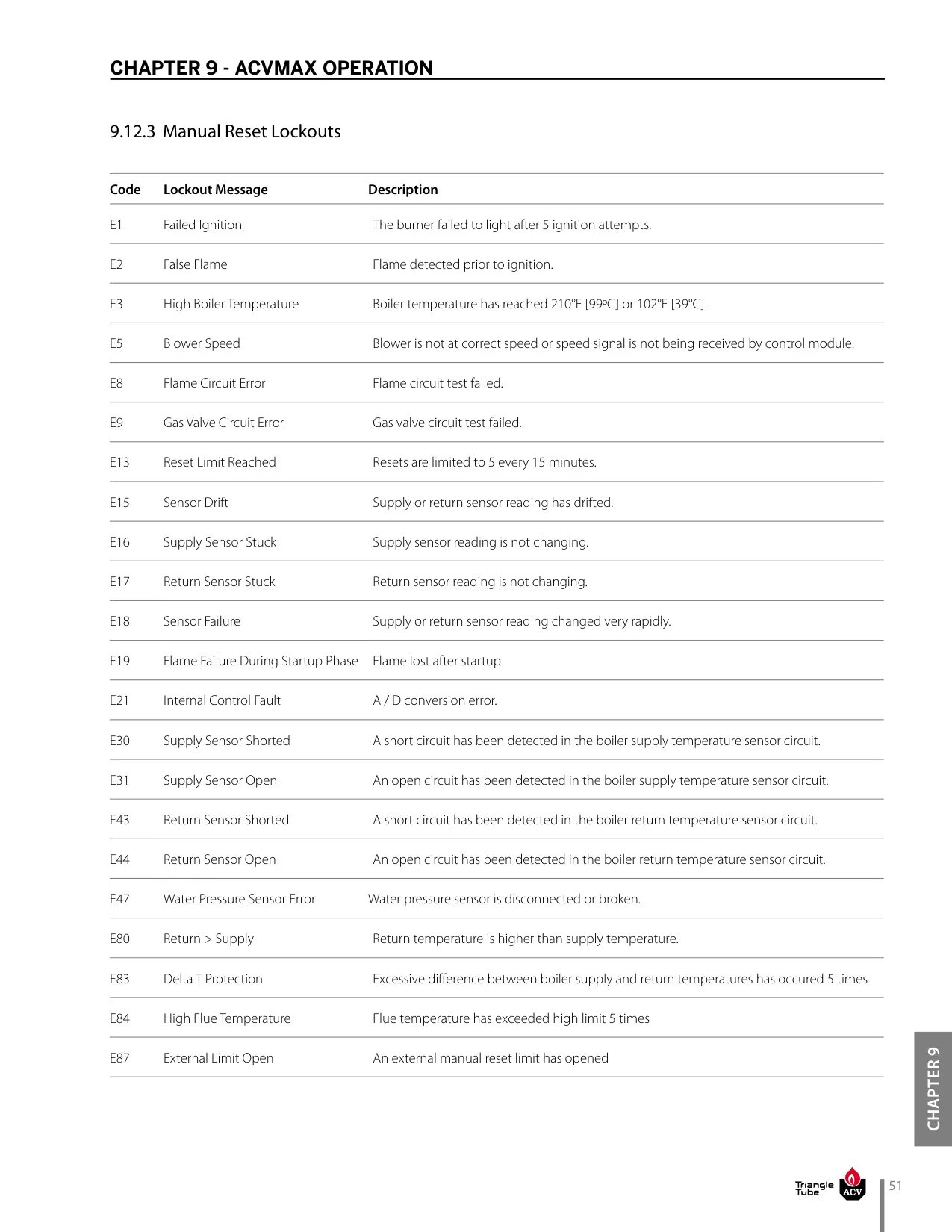

The Triangle Tube Prestige Solo 80 boiler features an advanced CTRLMax Boiler Management System, designed for both flexibility and ease of use. This sophisticated system constantly monitors and controls the boiler to ensure optimal heating efficiency for your home. Its graphical display presents information clearly, using plain English and intuitive icons, eliminating the need for complex code charts.

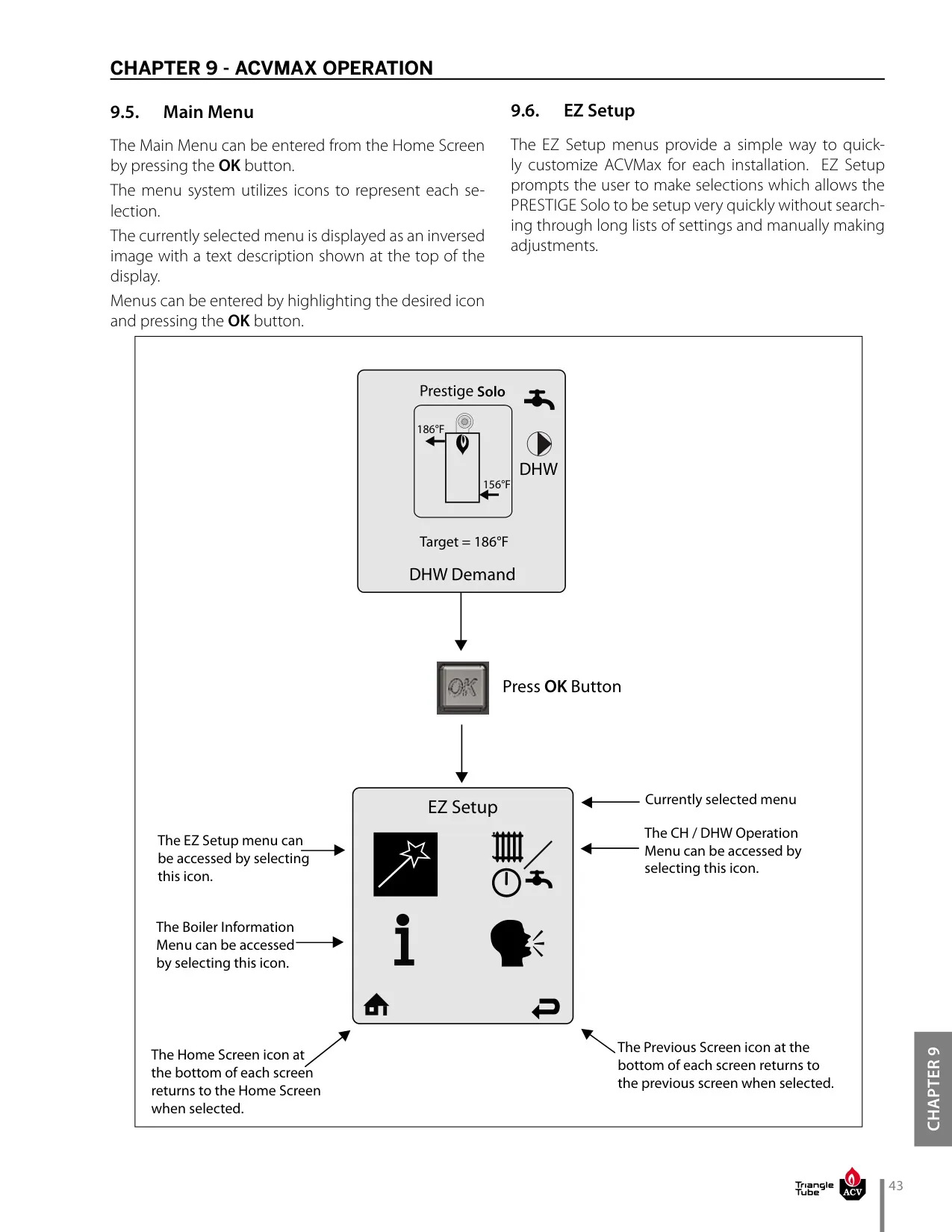

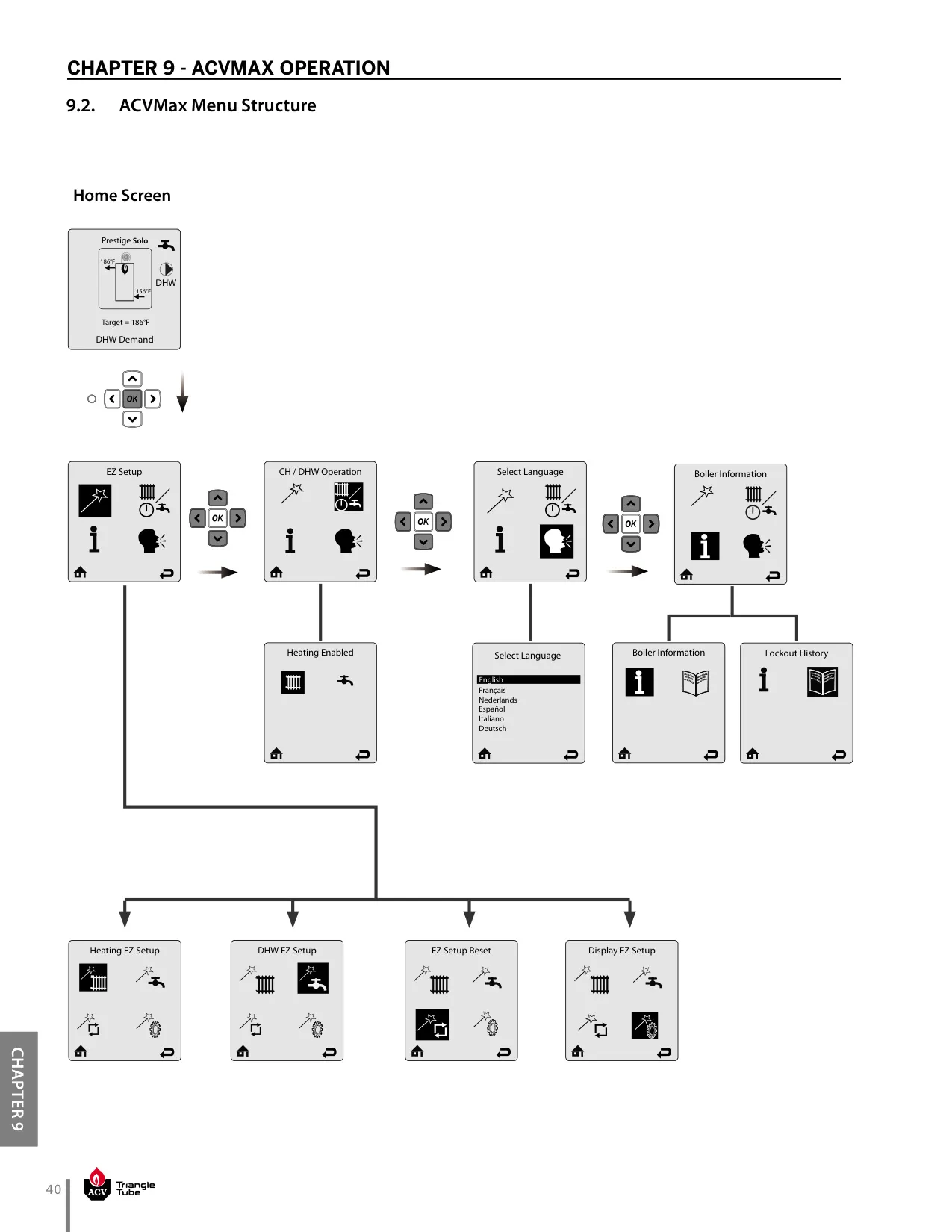

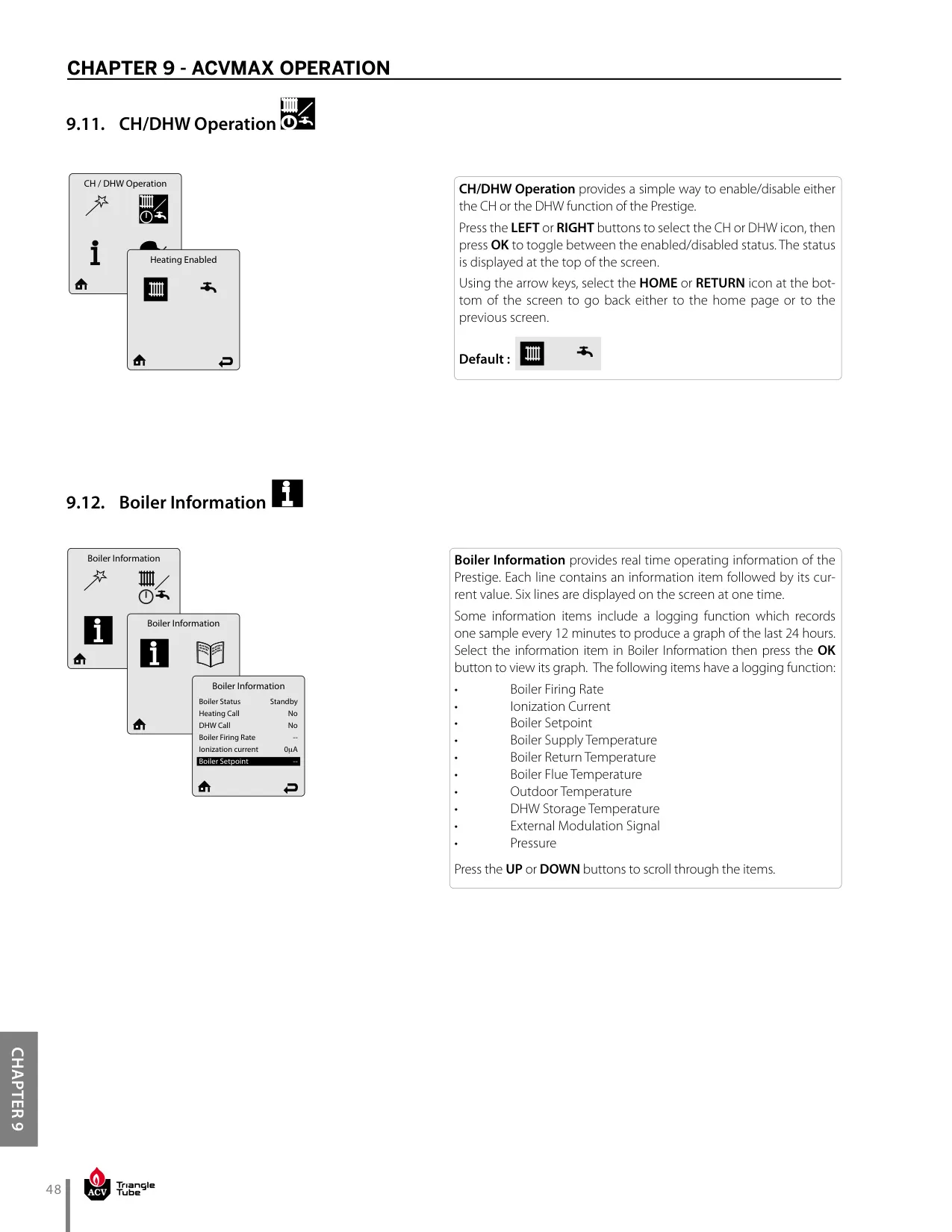

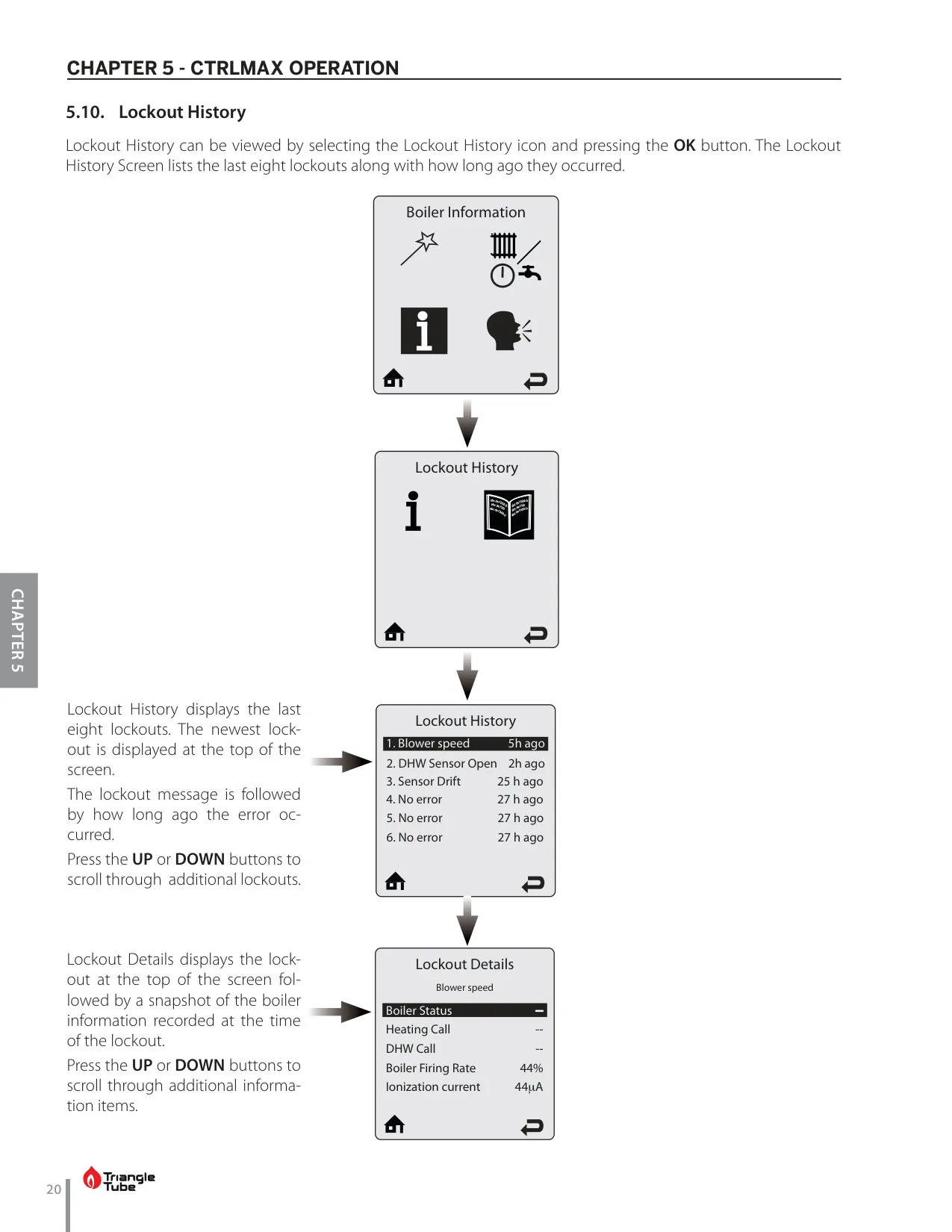

Navigation through the CTRLMax system is straightforward, utilizing four arrow buttons (UP, DOWN, LEFT, RIGHT) and a central OK button for selections. An "INSTALLER" button grants qualified contractors full access to all features via a password, allowing for detailed system configuration. The main menu is easily accessible from the home screen, providing icons for various functions.

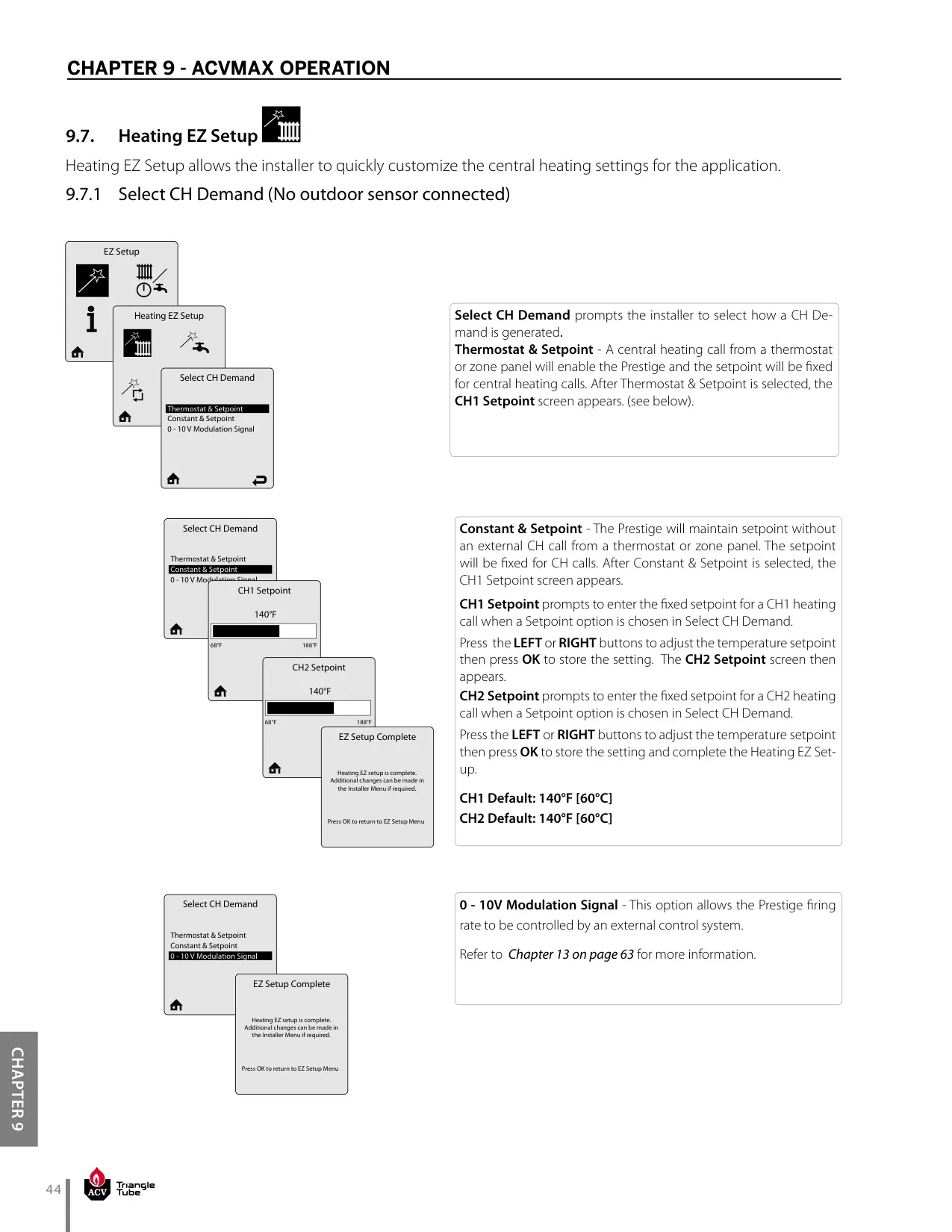

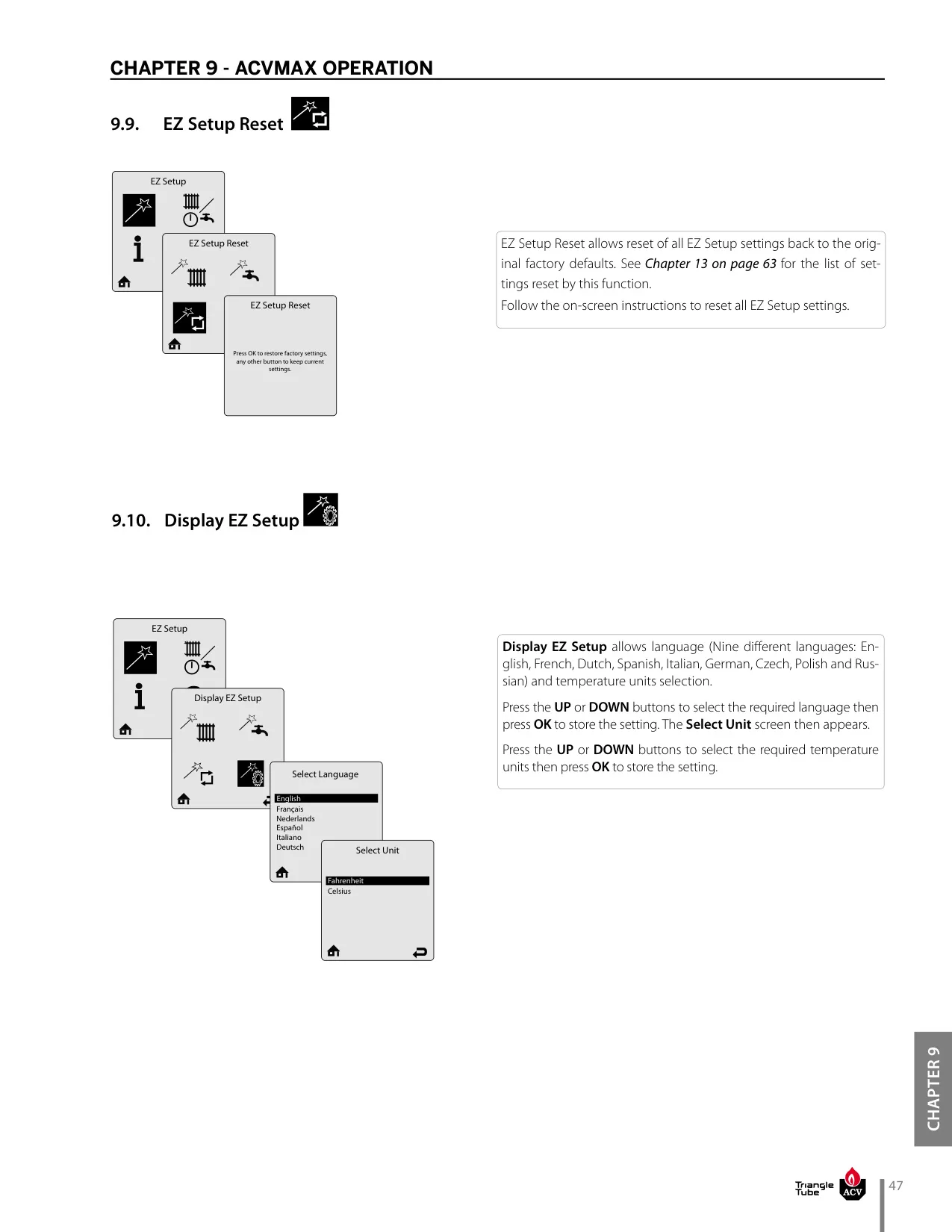

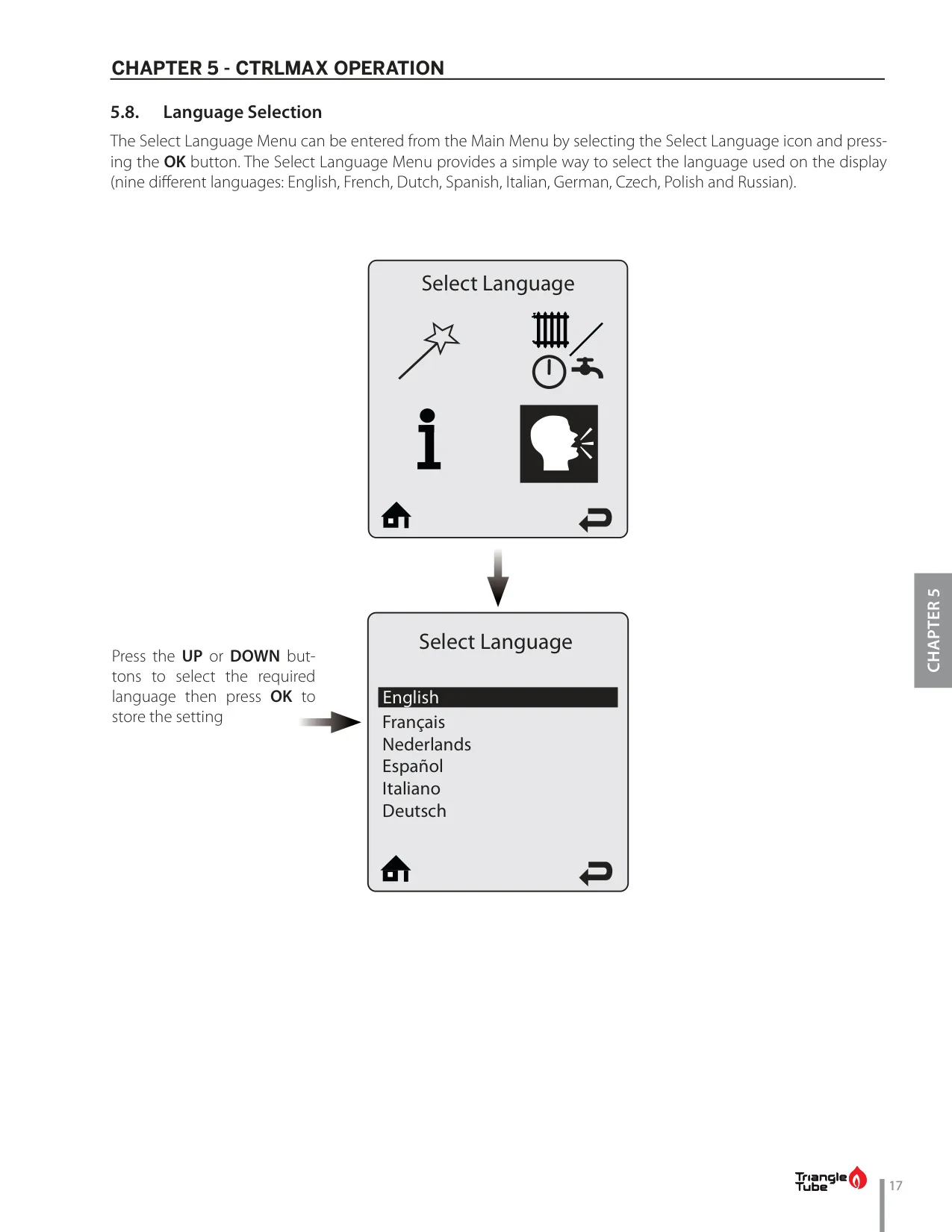

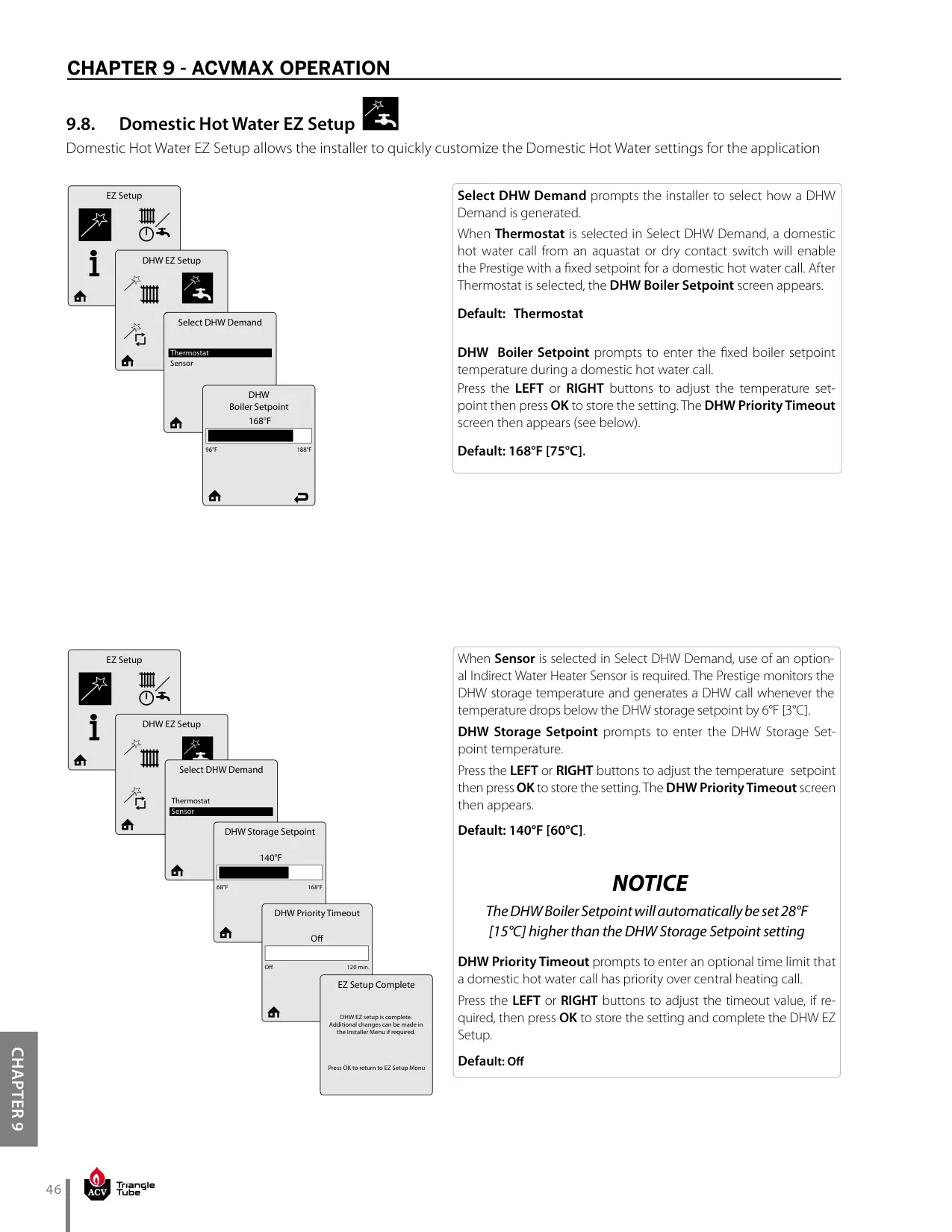

Key features include an EZ Setup mode, which simplifies the customization process by guiding the user through essential settings without extensive manual browsing. This allows for rapid configuration tailored to specific installation needs. The system also supports multiple language selections, enhancing user accessibility across different regions.

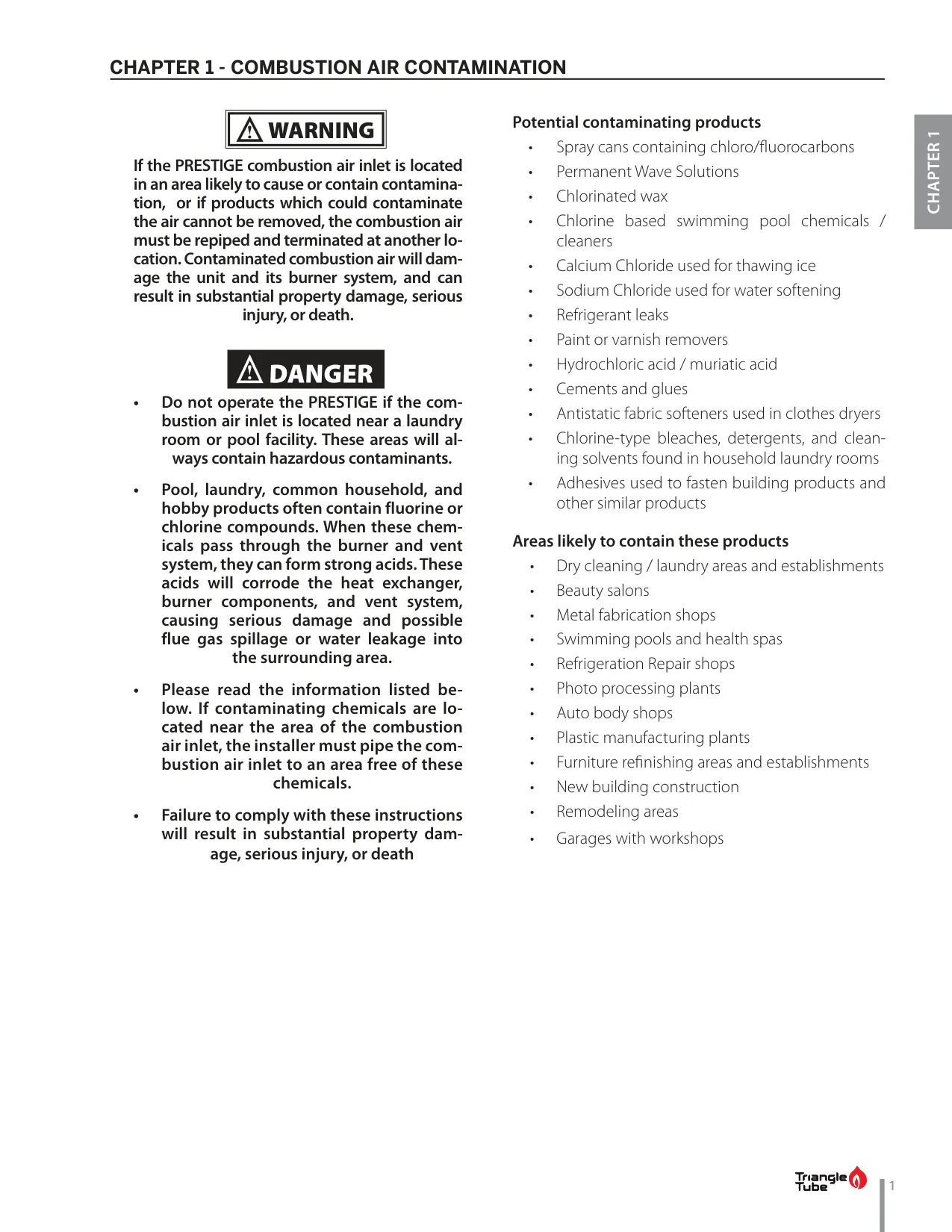

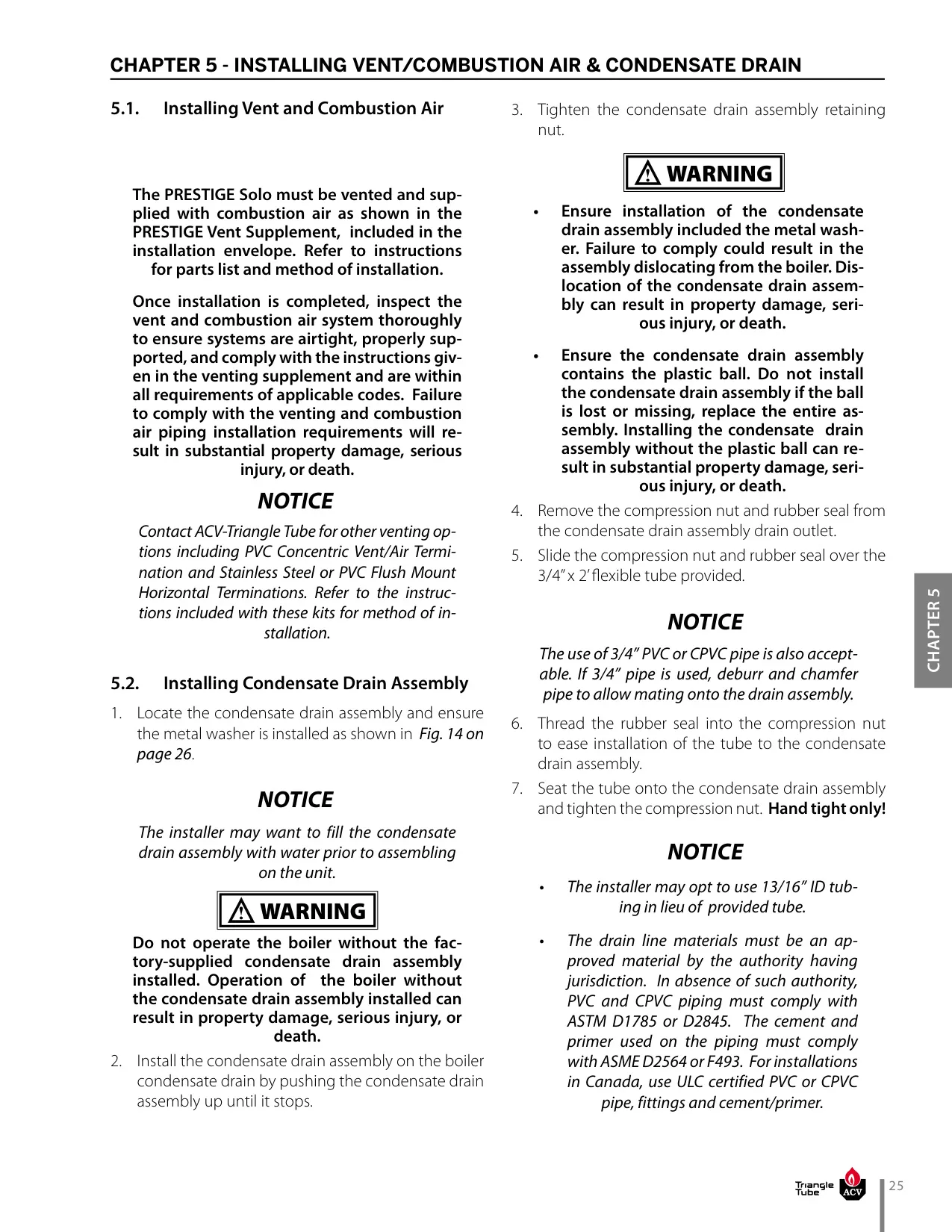

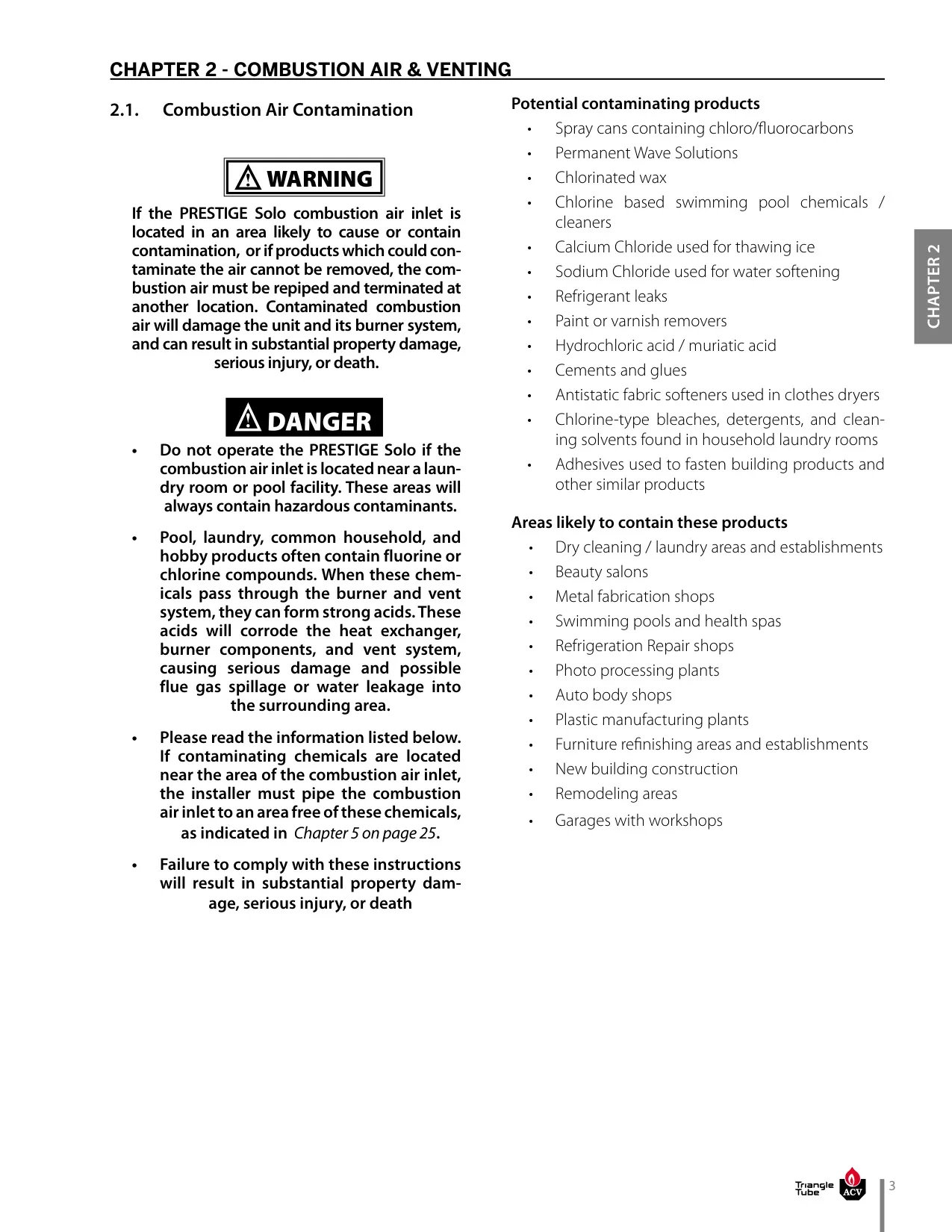

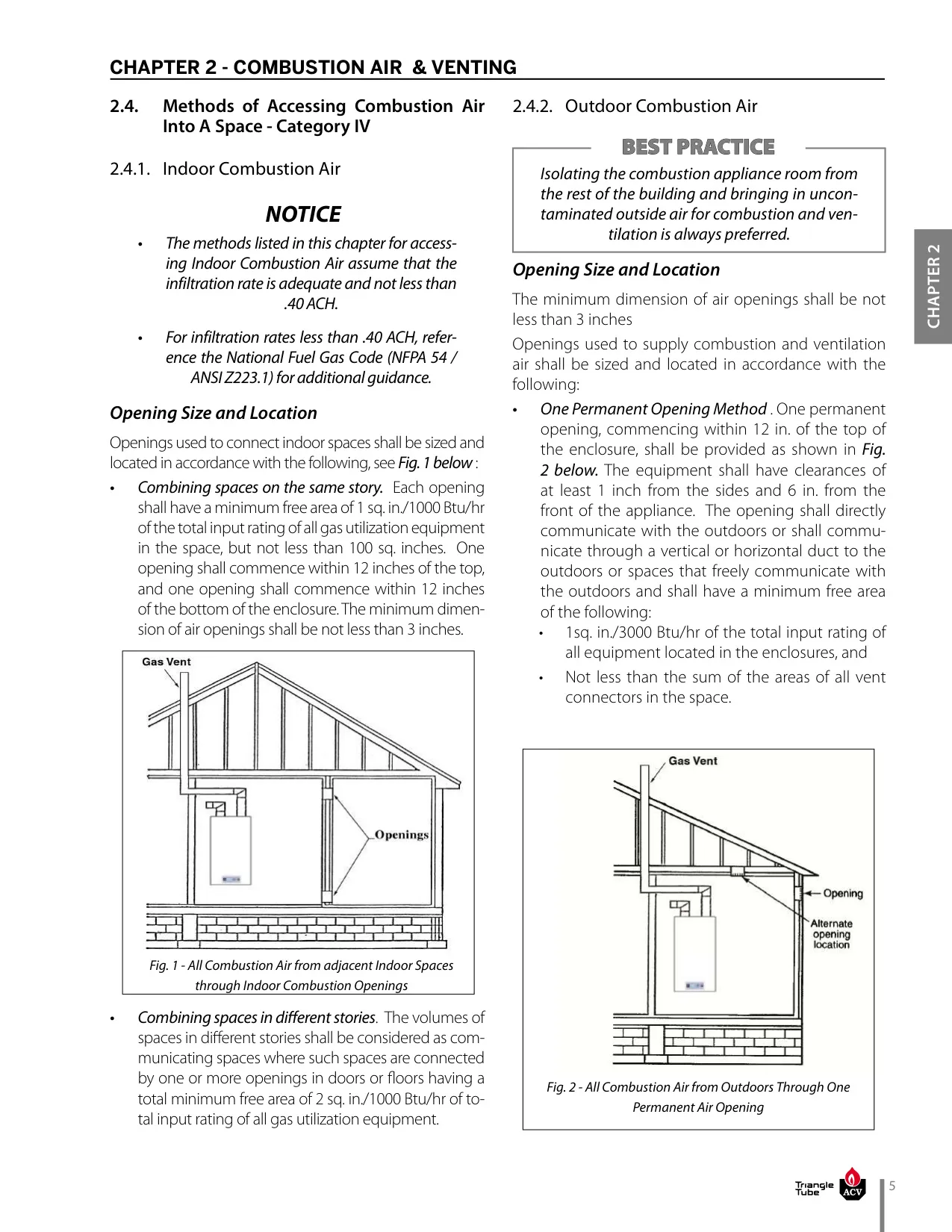

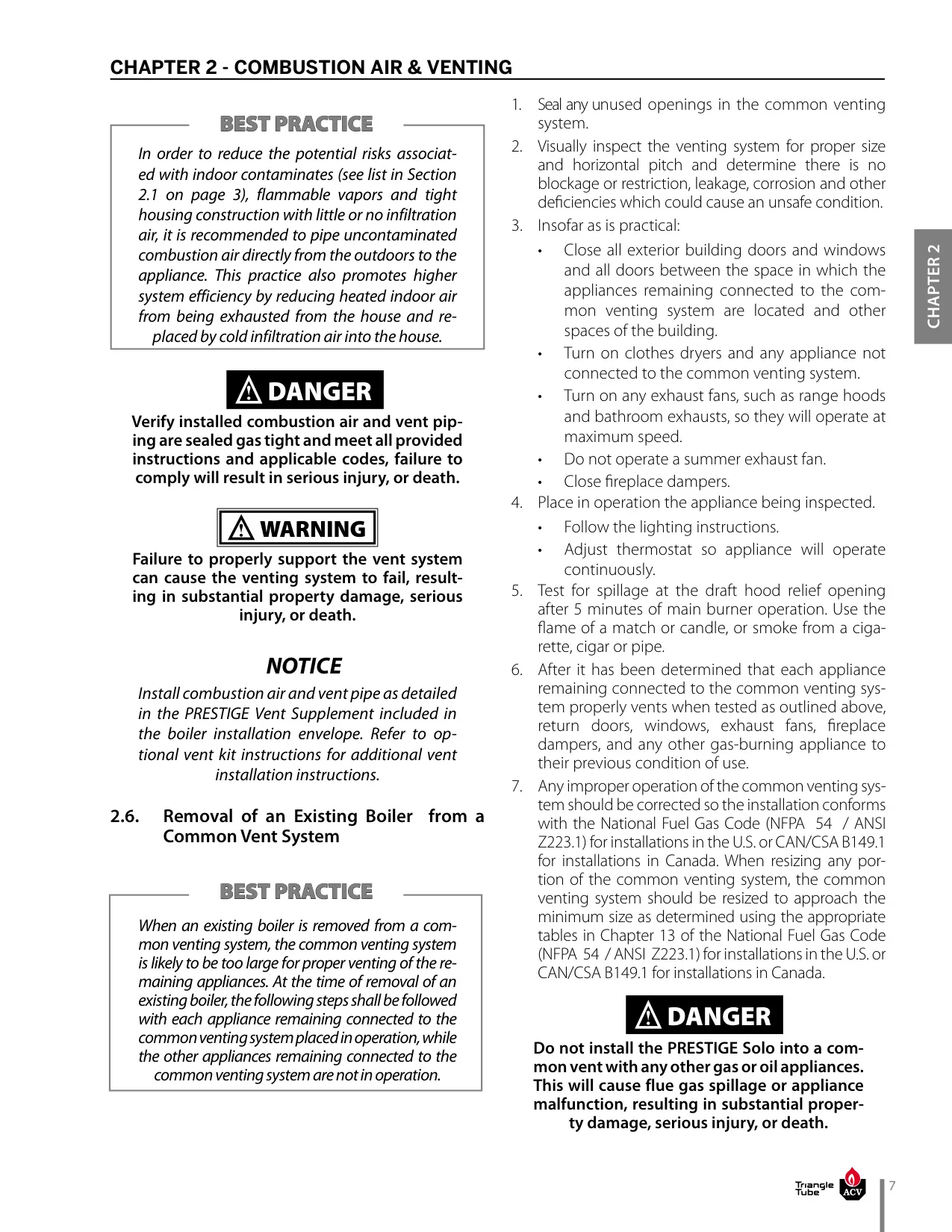

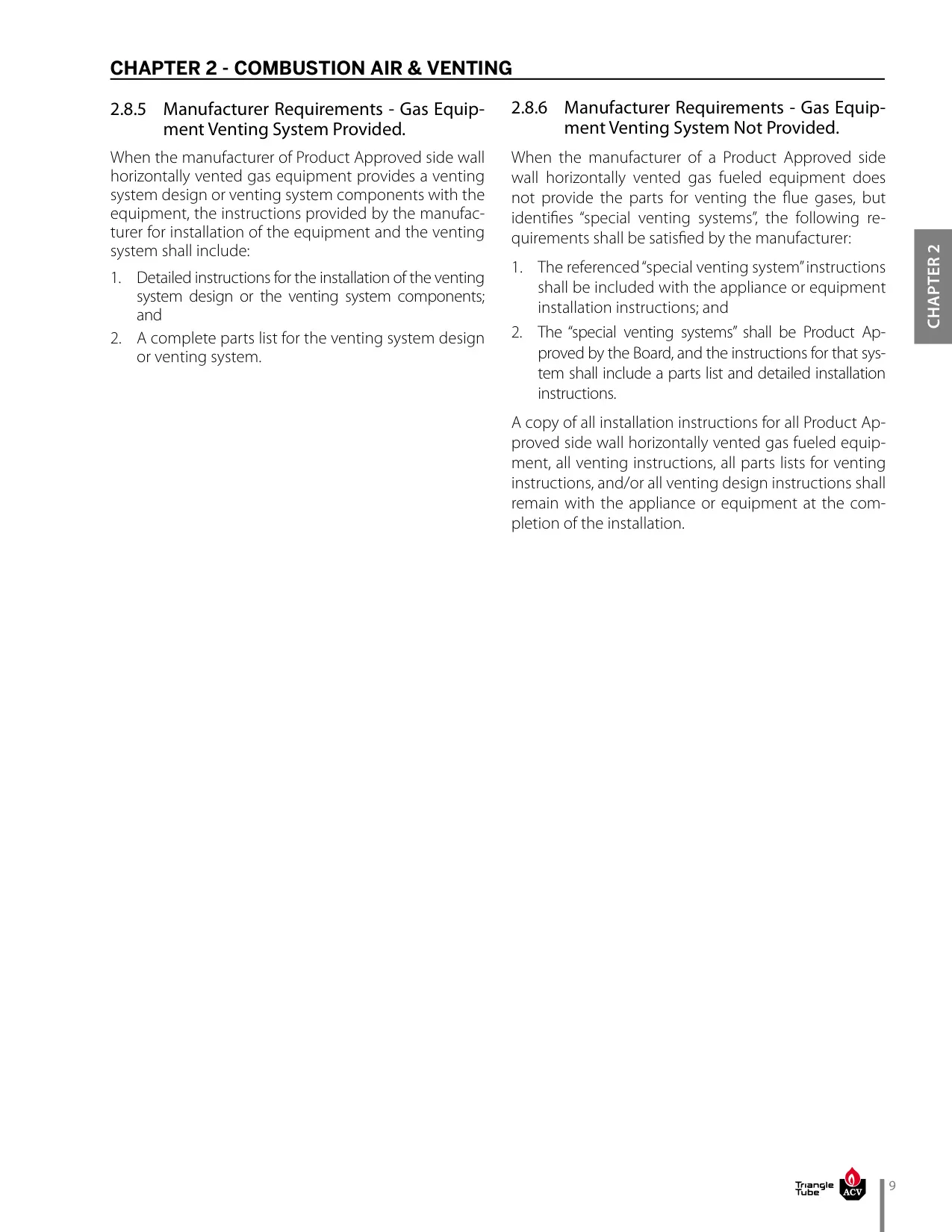

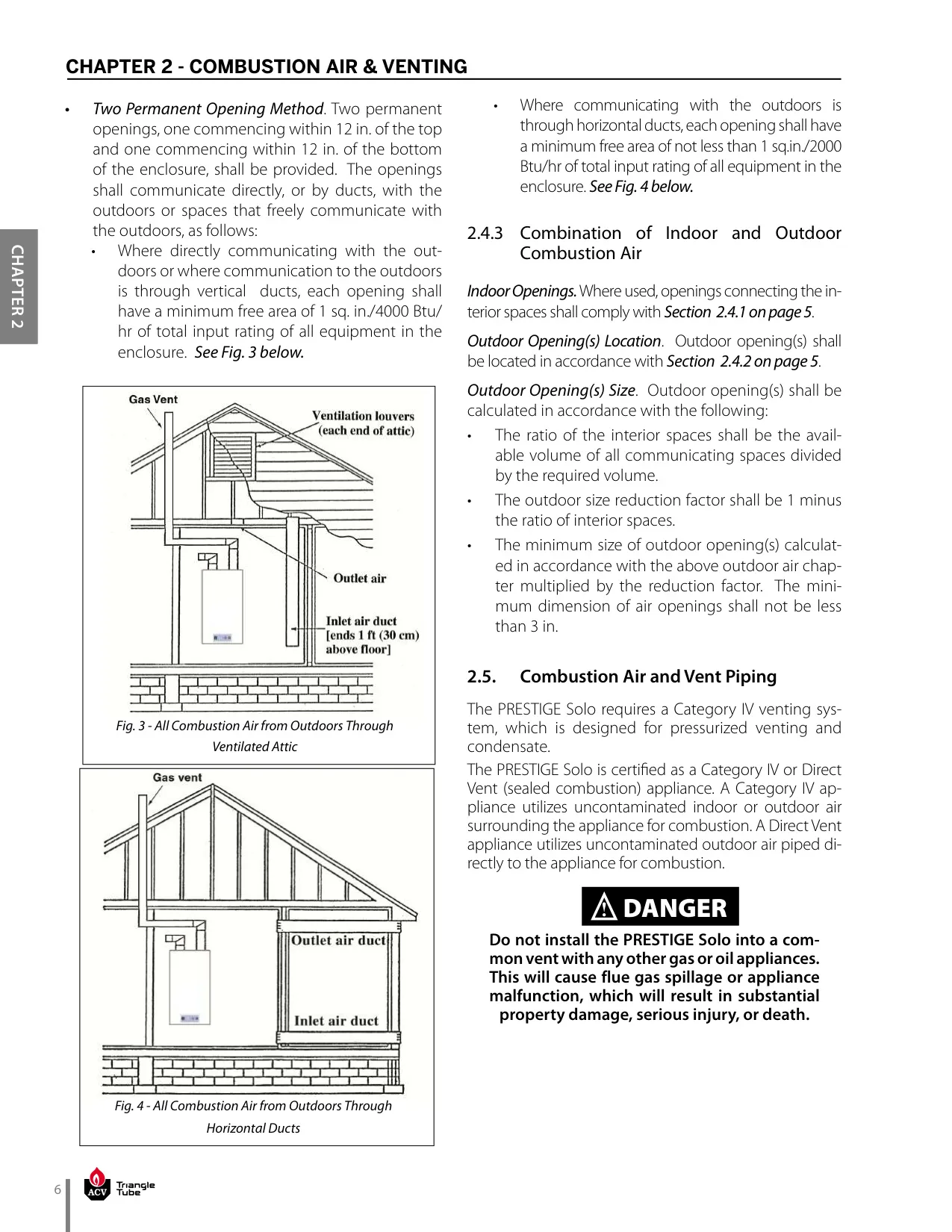

The Prestige Solo 80 is a Category IV or Direct Vent appliance, meaning it is certified for pressurized venting and condensate systems. It can draw uncontaminated outdoor air directly for combustion, which is recommended to mitigate risks associated with indoor contaminants and promote higher system efficiency. This design ensures that heated indoor air is not exhausted unnecessarily.

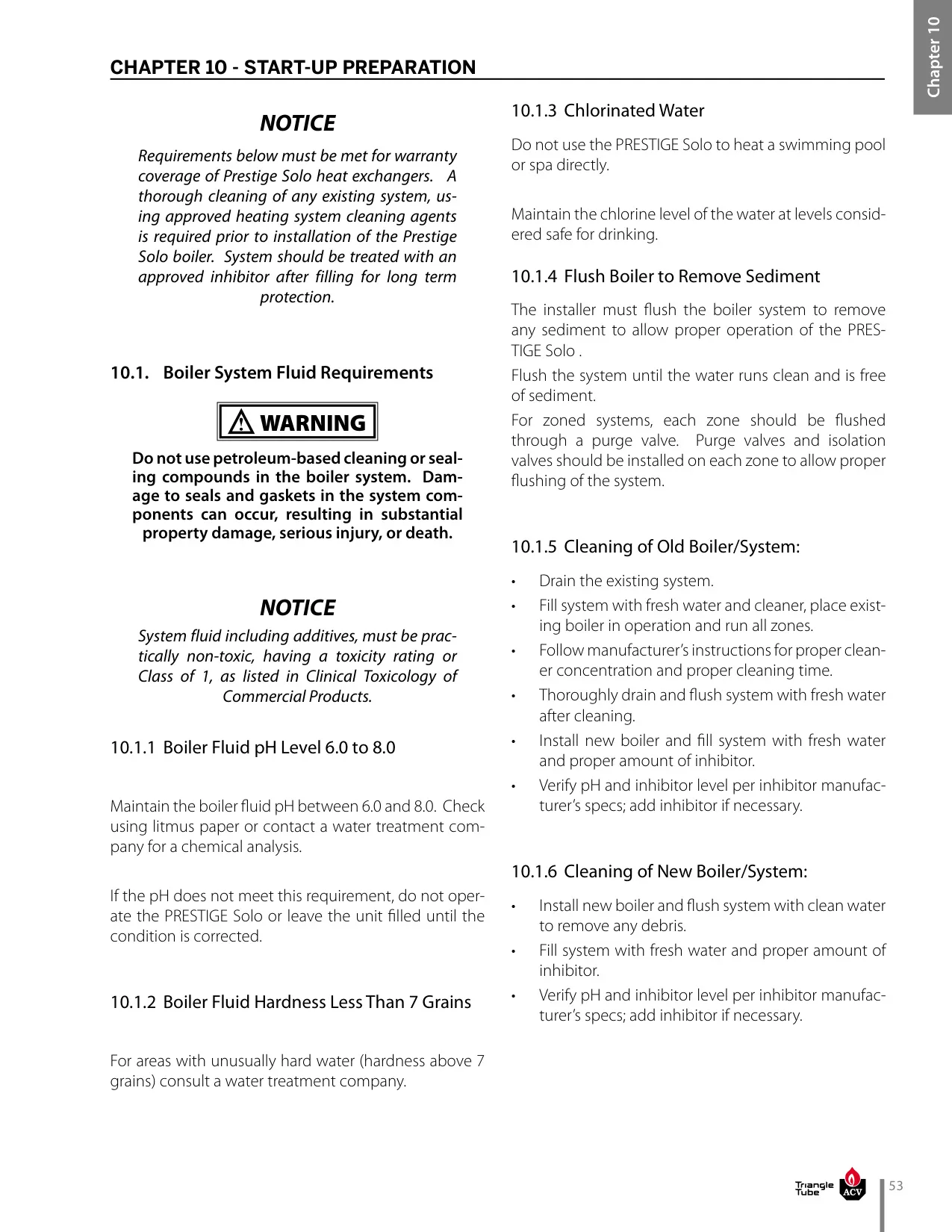

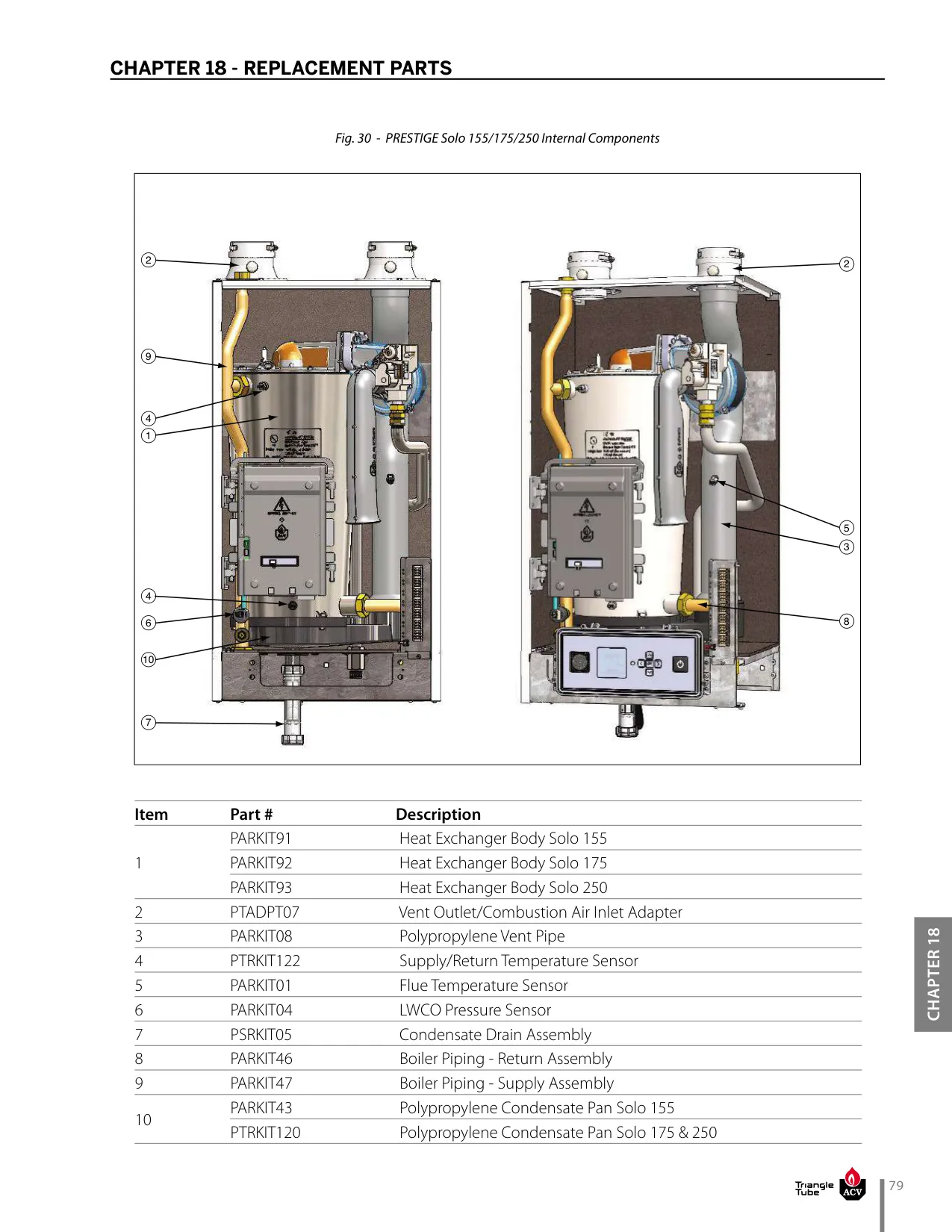

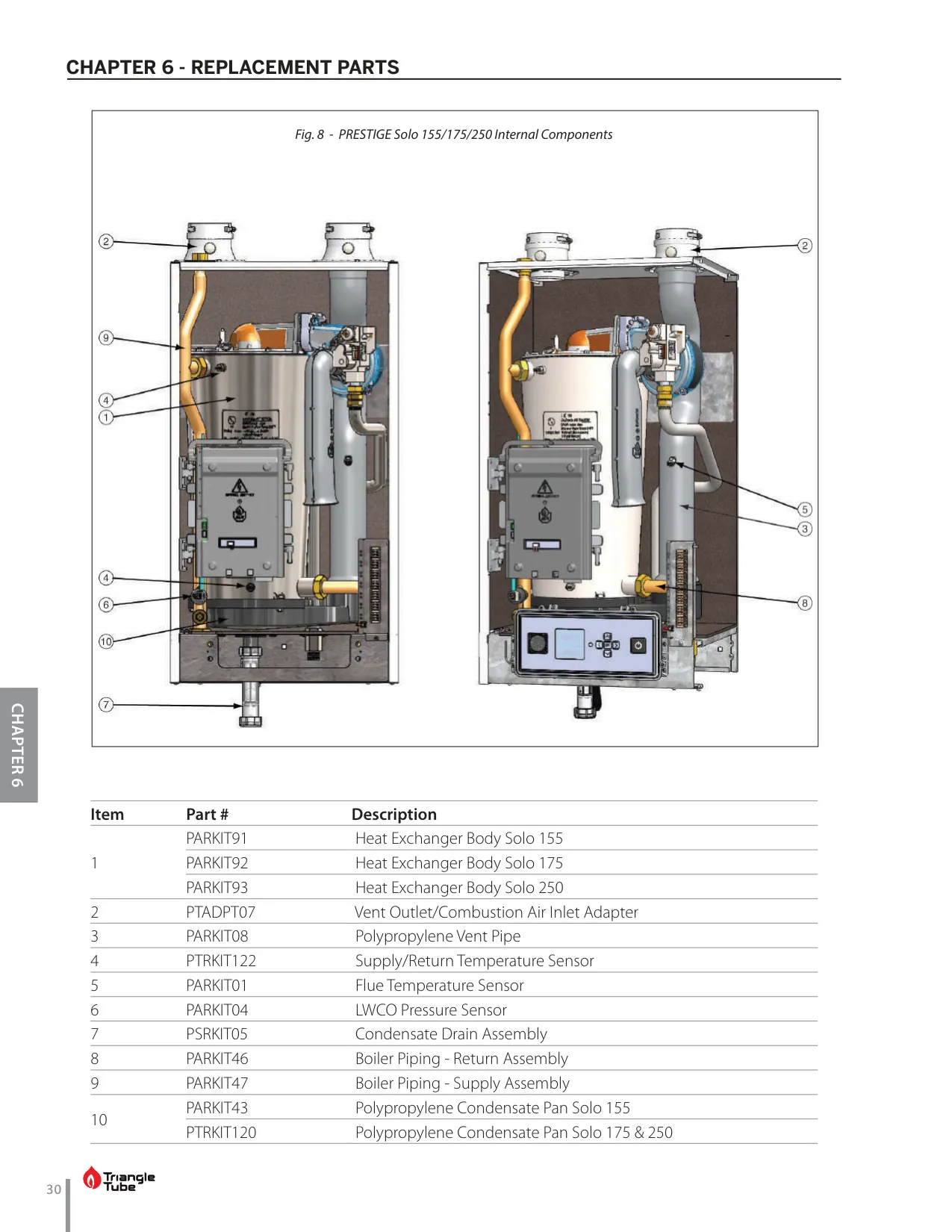

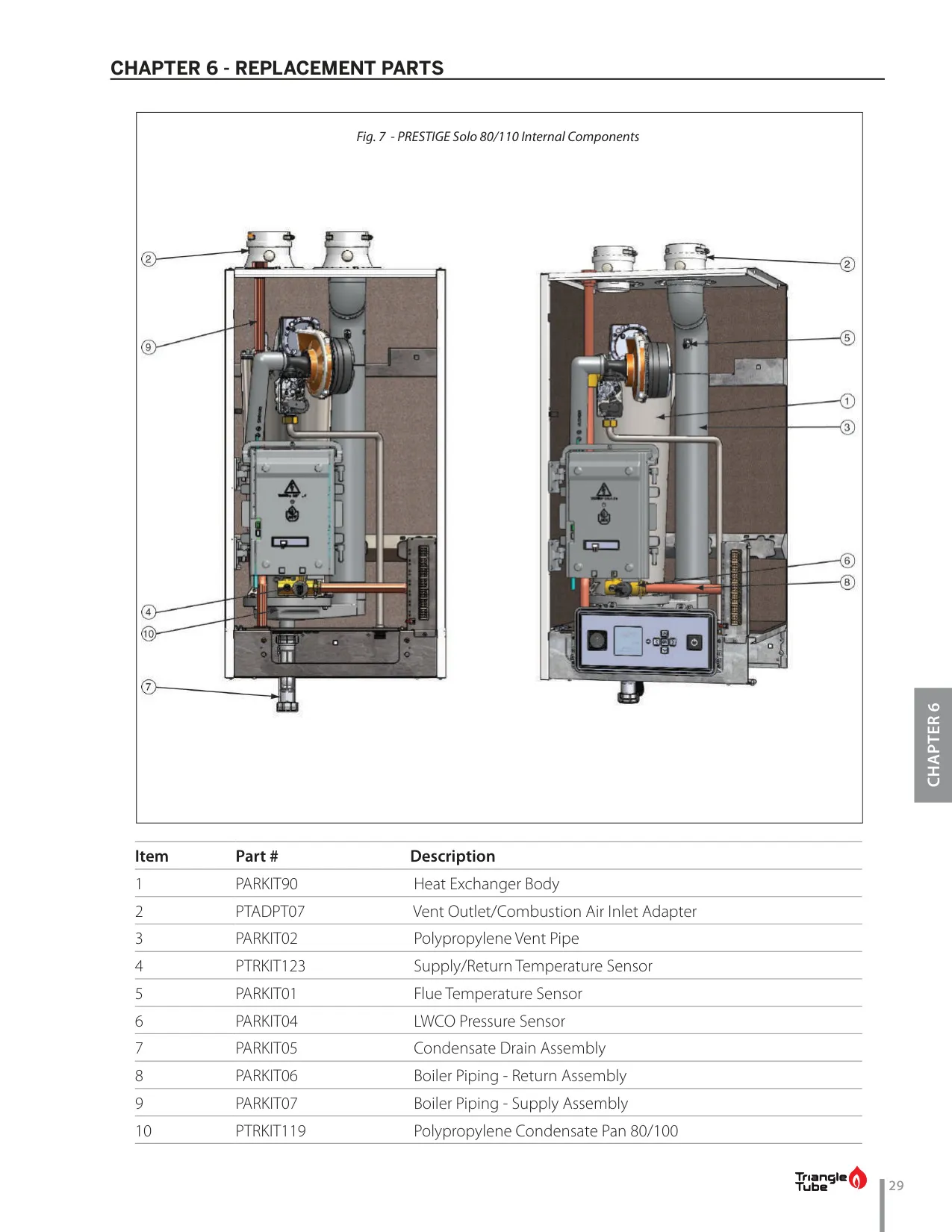

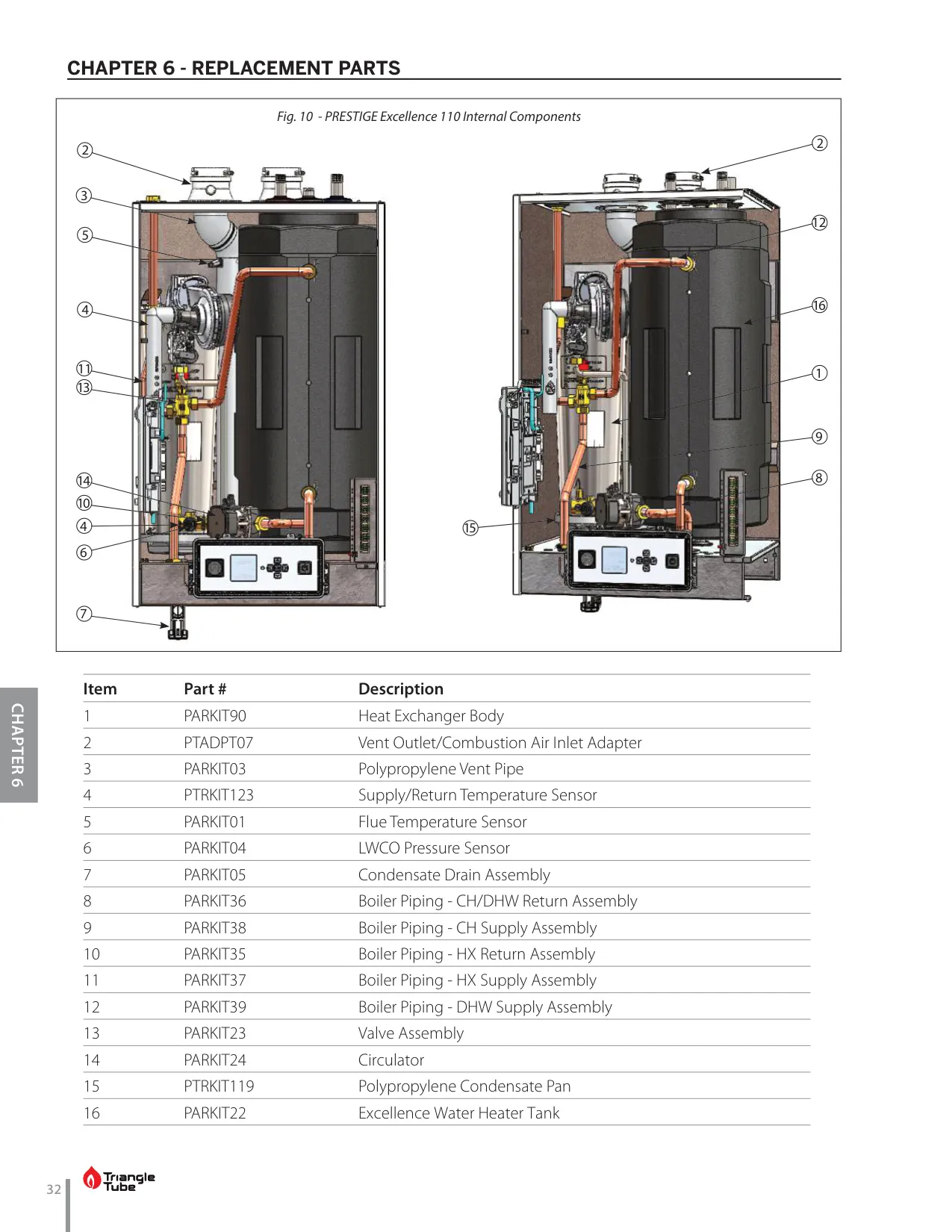

The unit’s heat exchanger is specifically engineered for condensing mode operation. This allows for the boiler to operate with lower return water temperatures, a benefit particularly in radiant heating applications, and potentially removing the need for additional mixing systems if zones require similar temperatures. The heat exchanger also supports installation with non-oxygen barrier tubing, offering versatility for various heating systems.

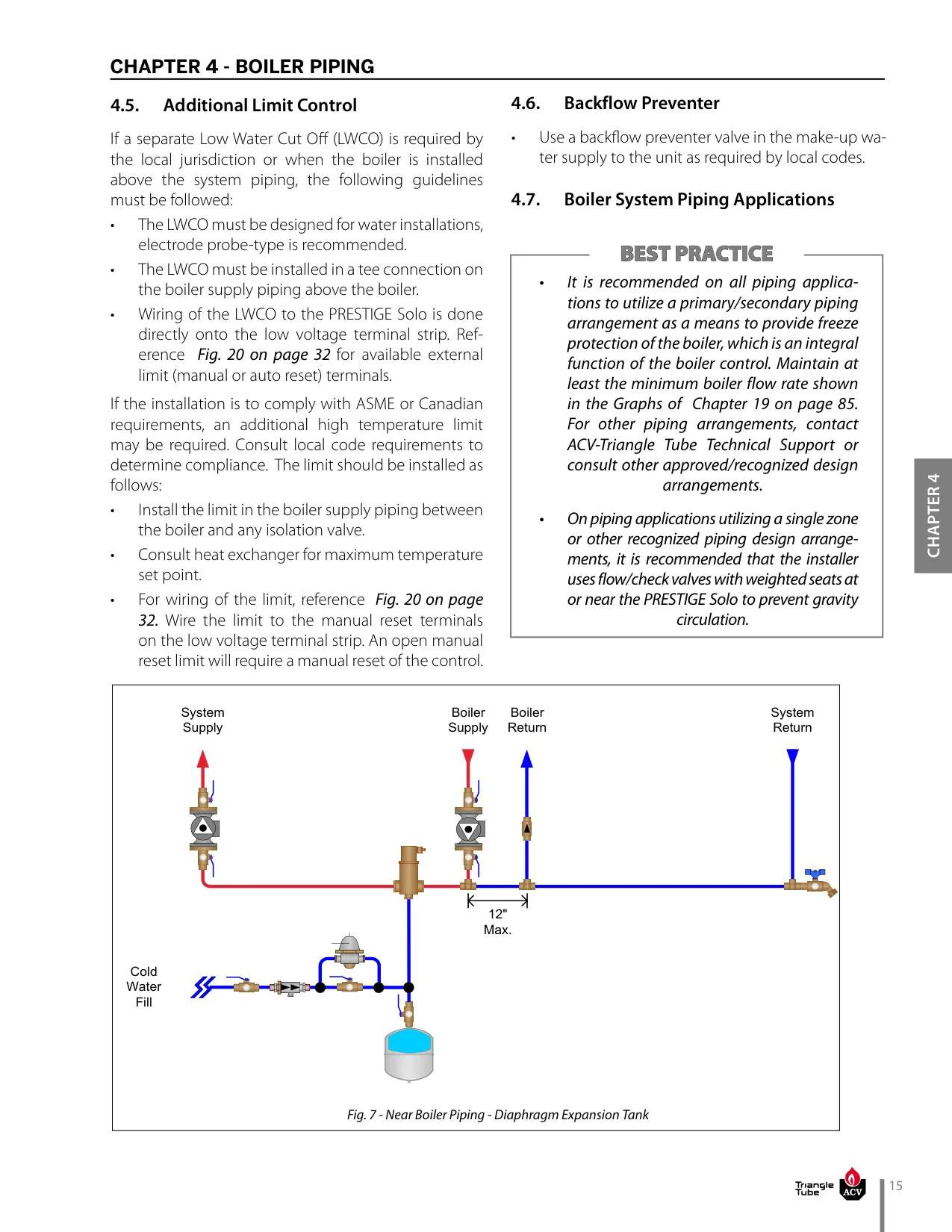

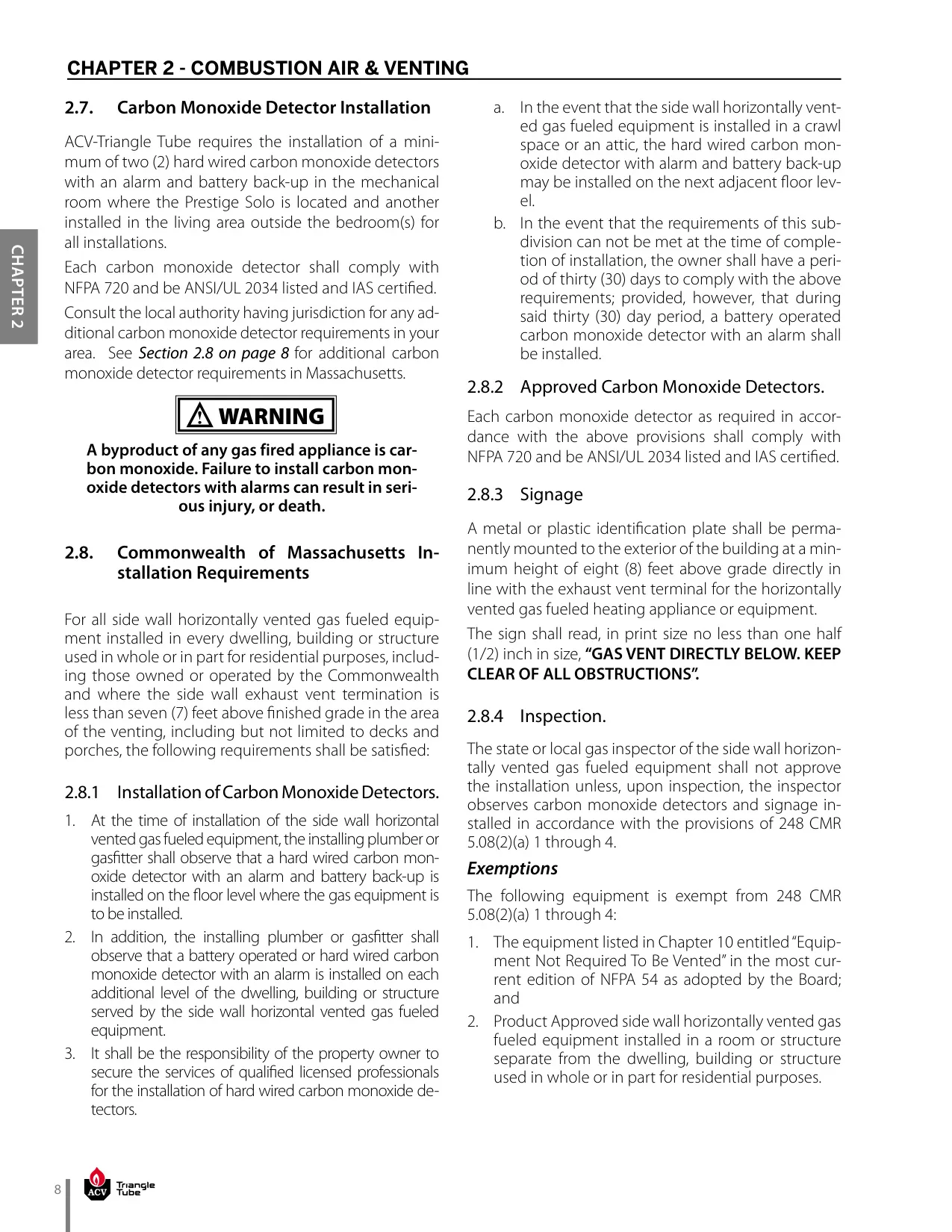

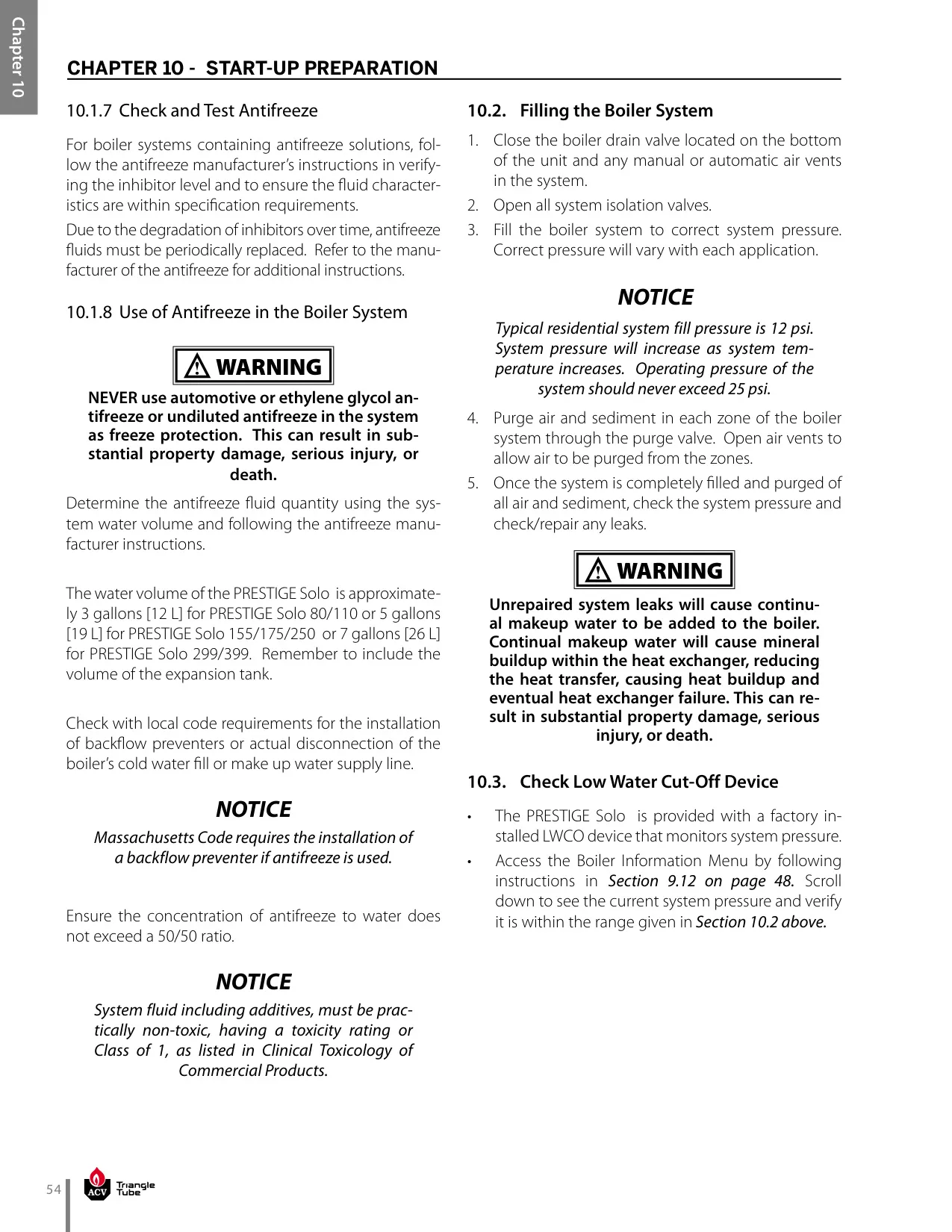

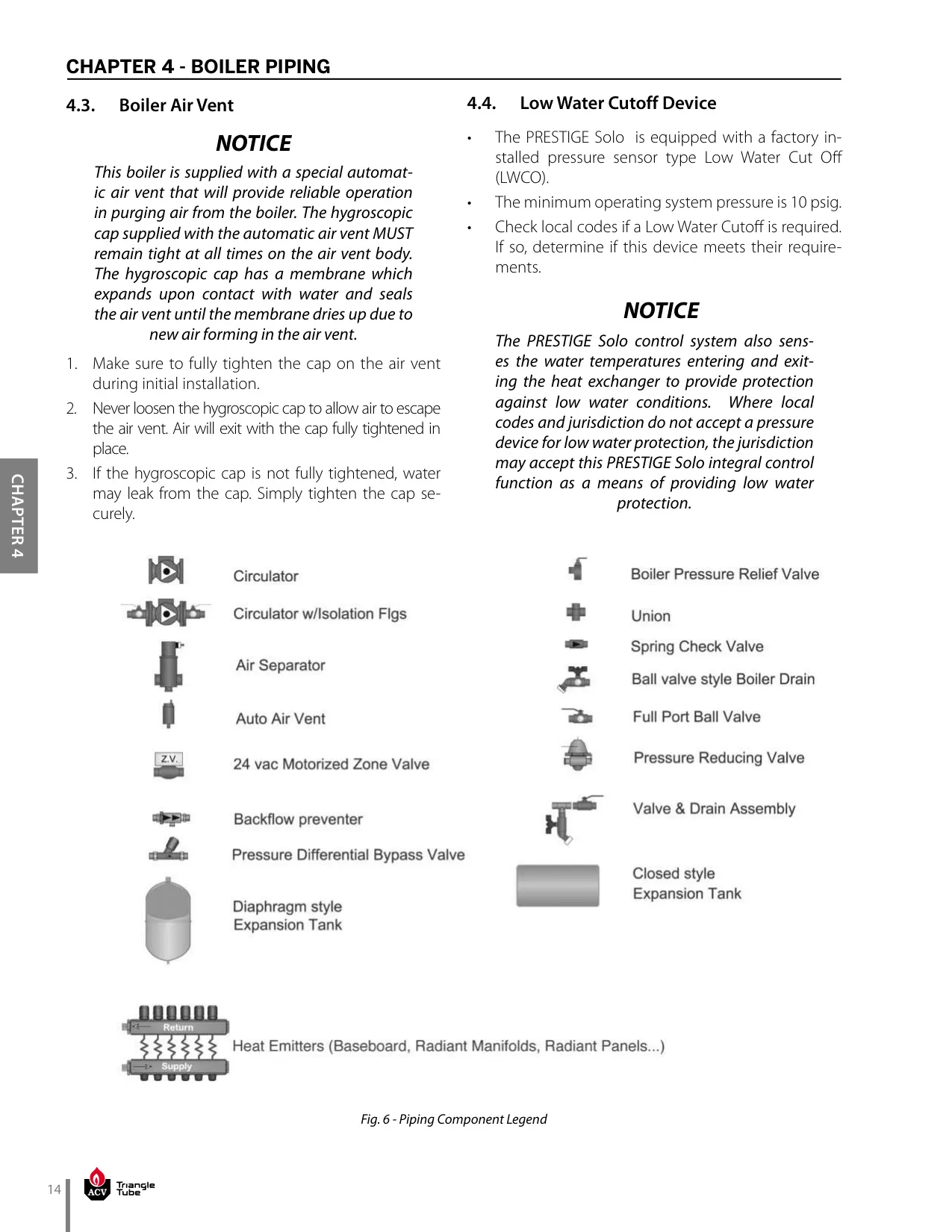

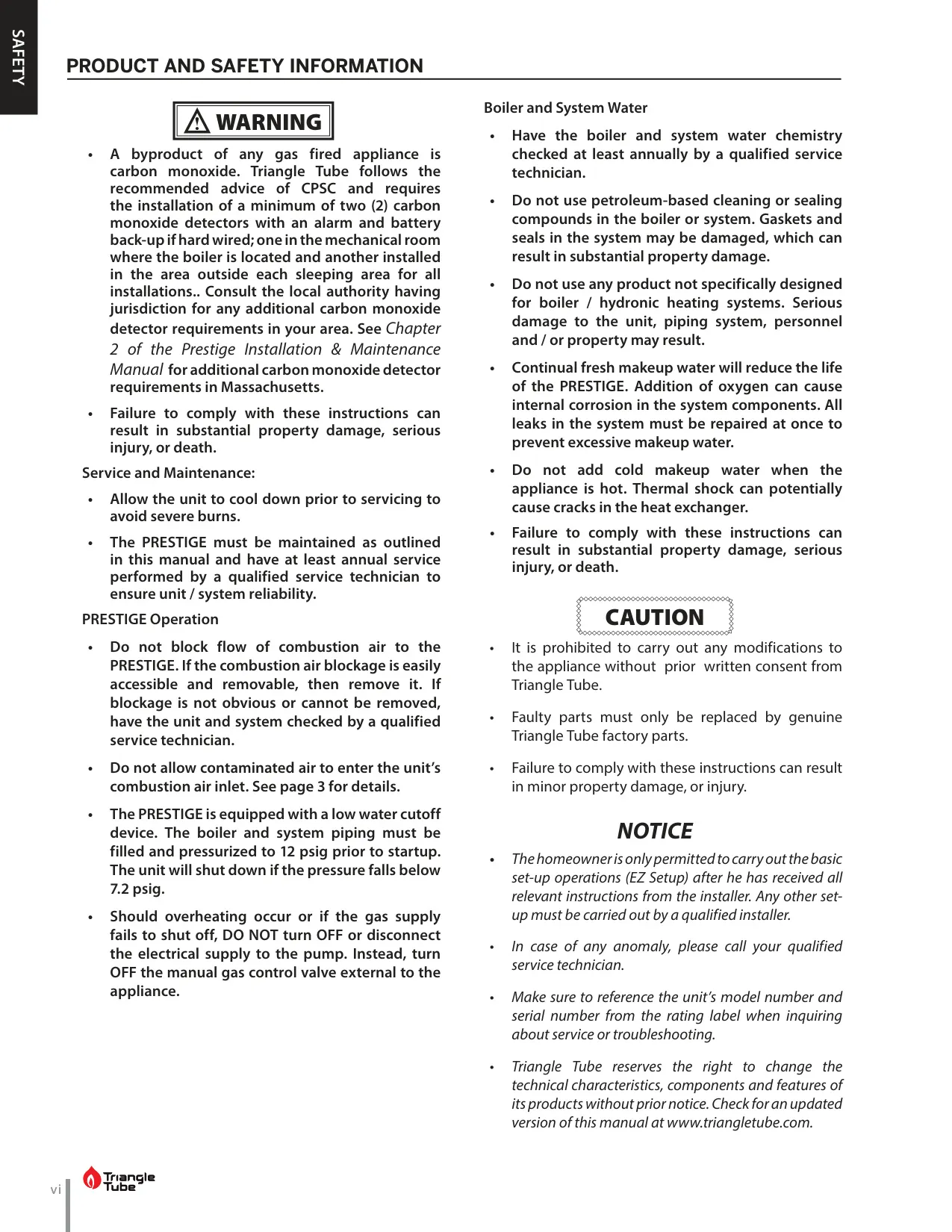

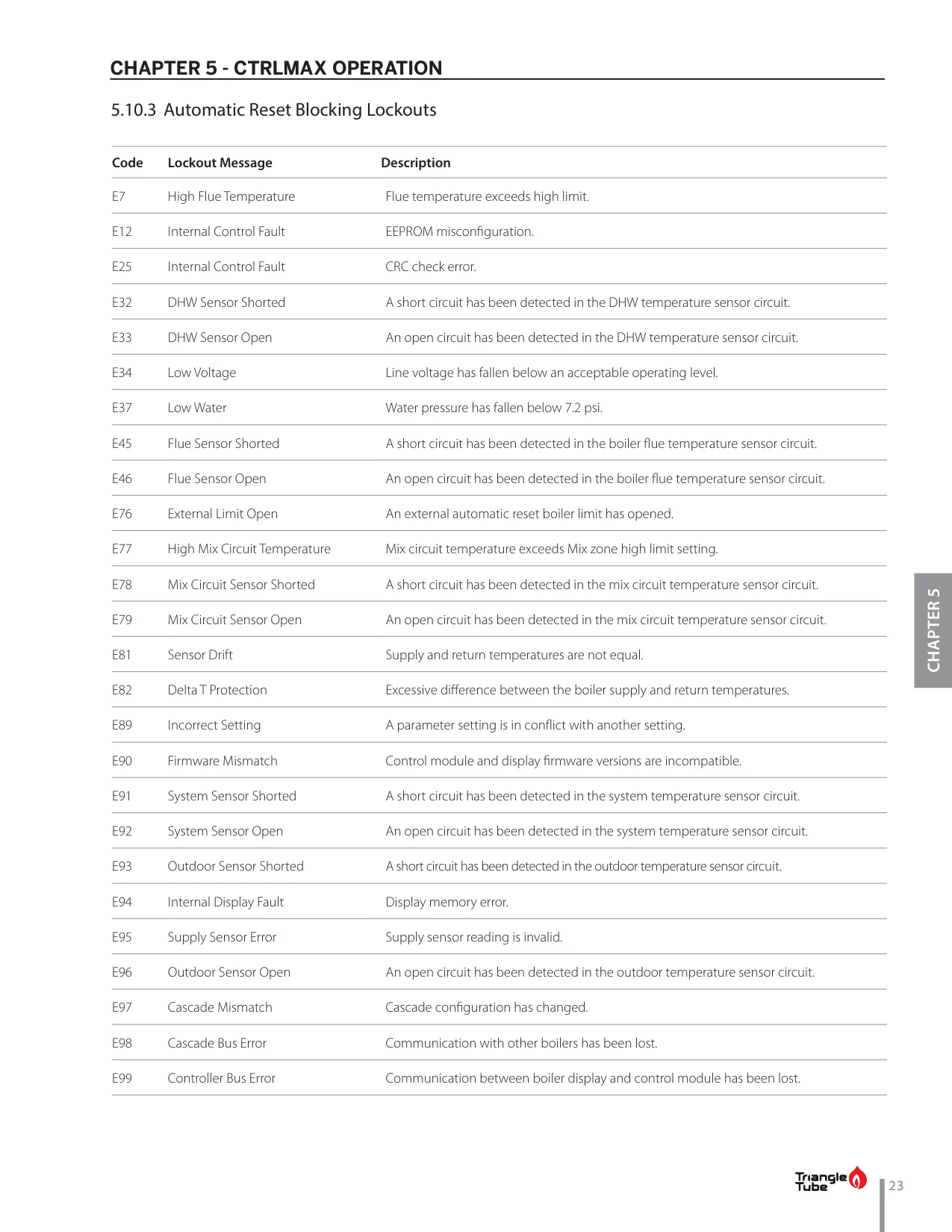

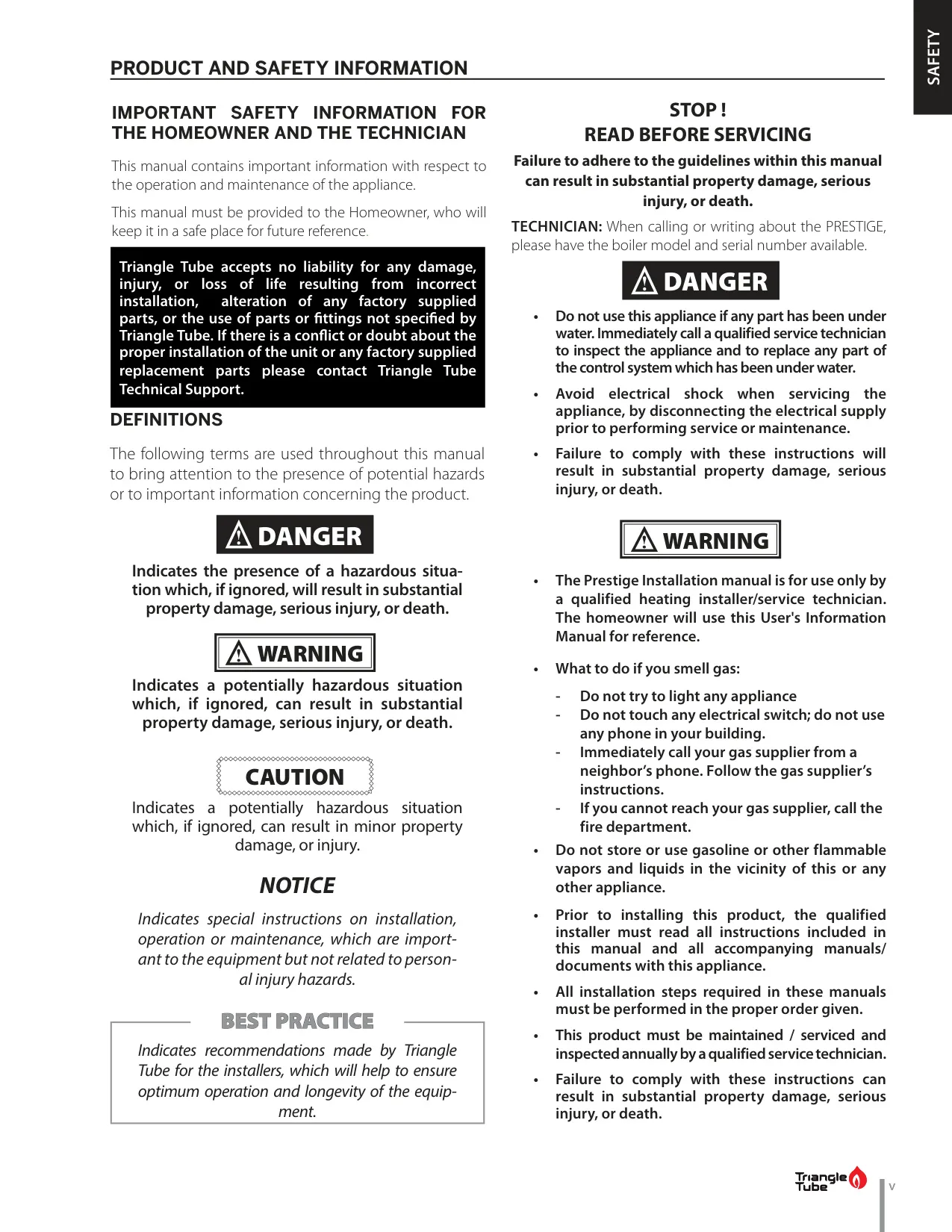

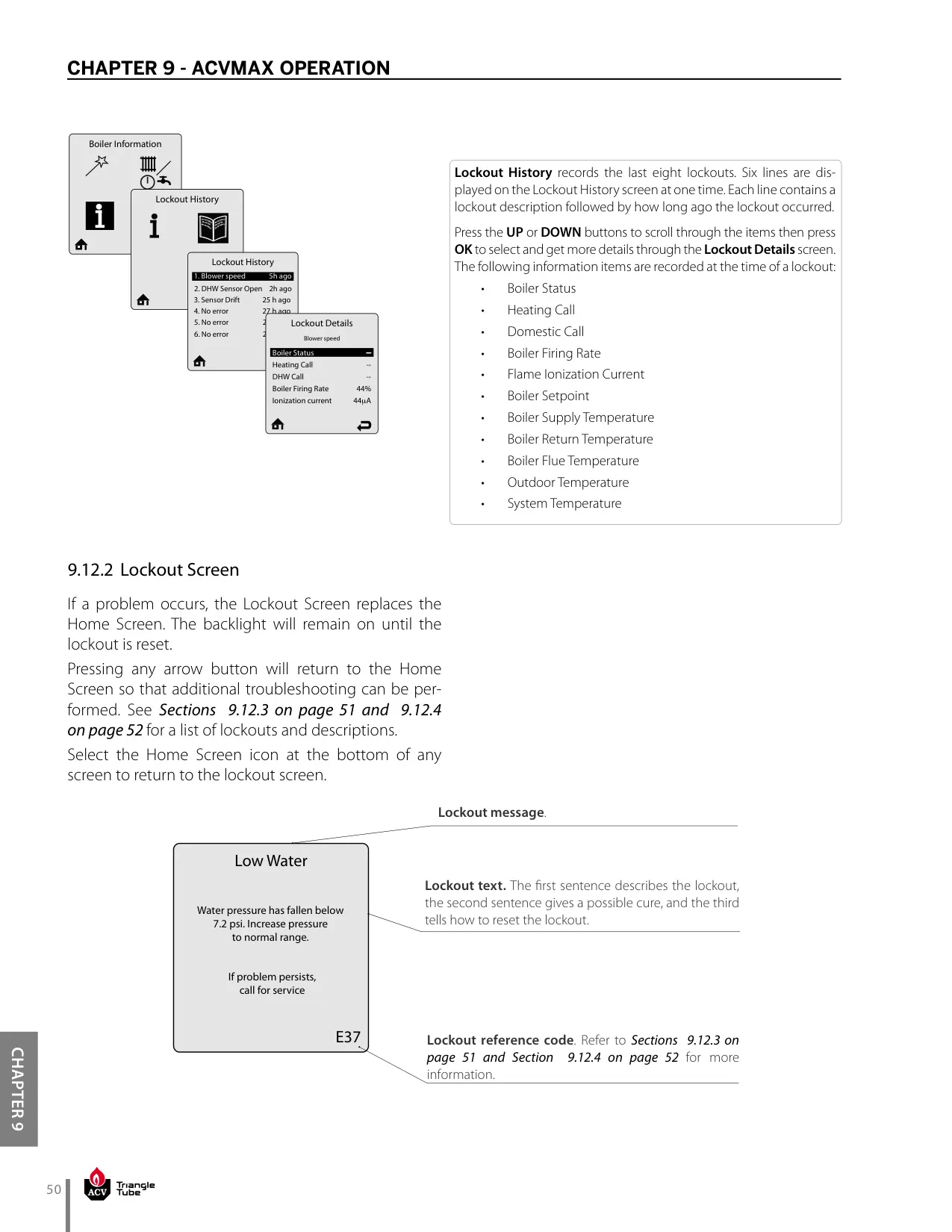

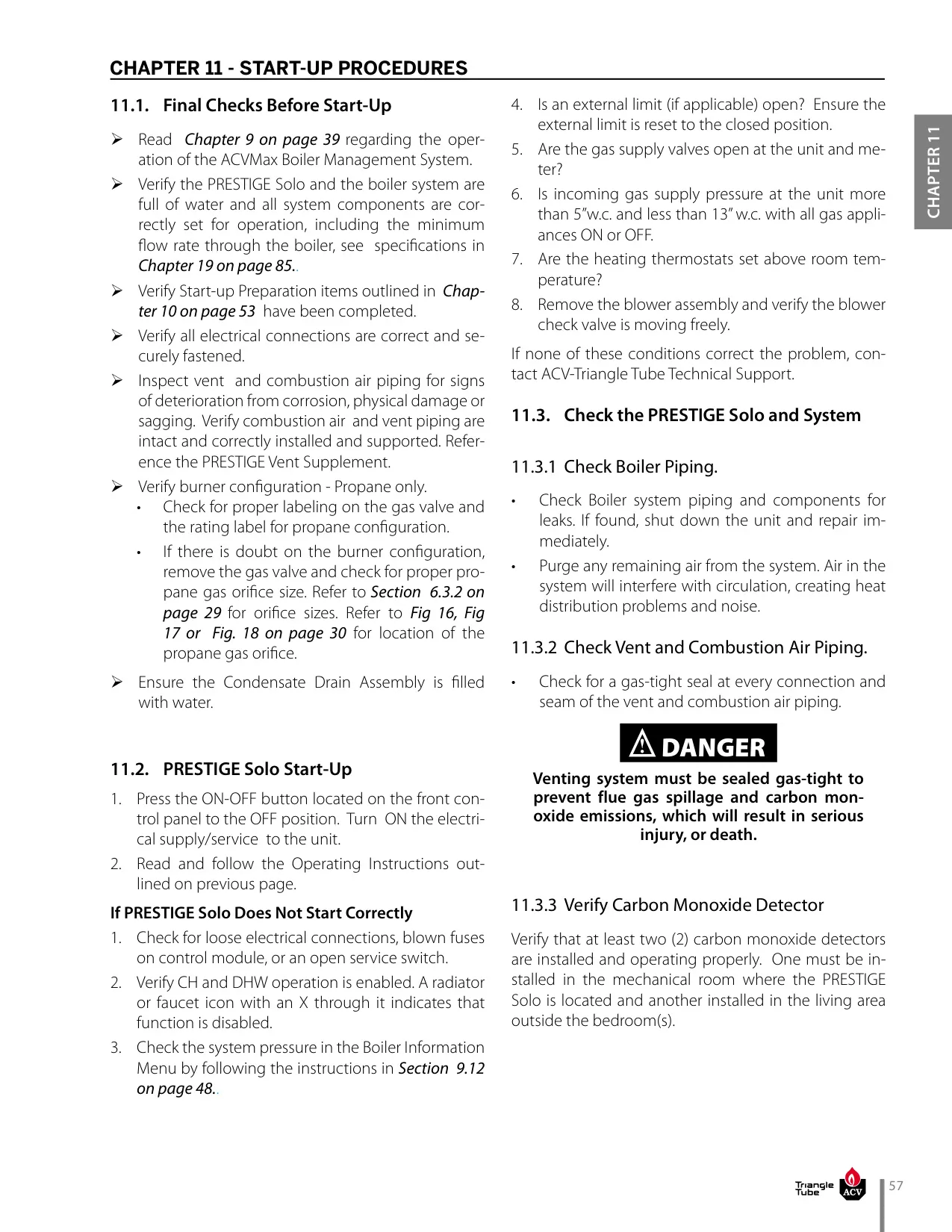

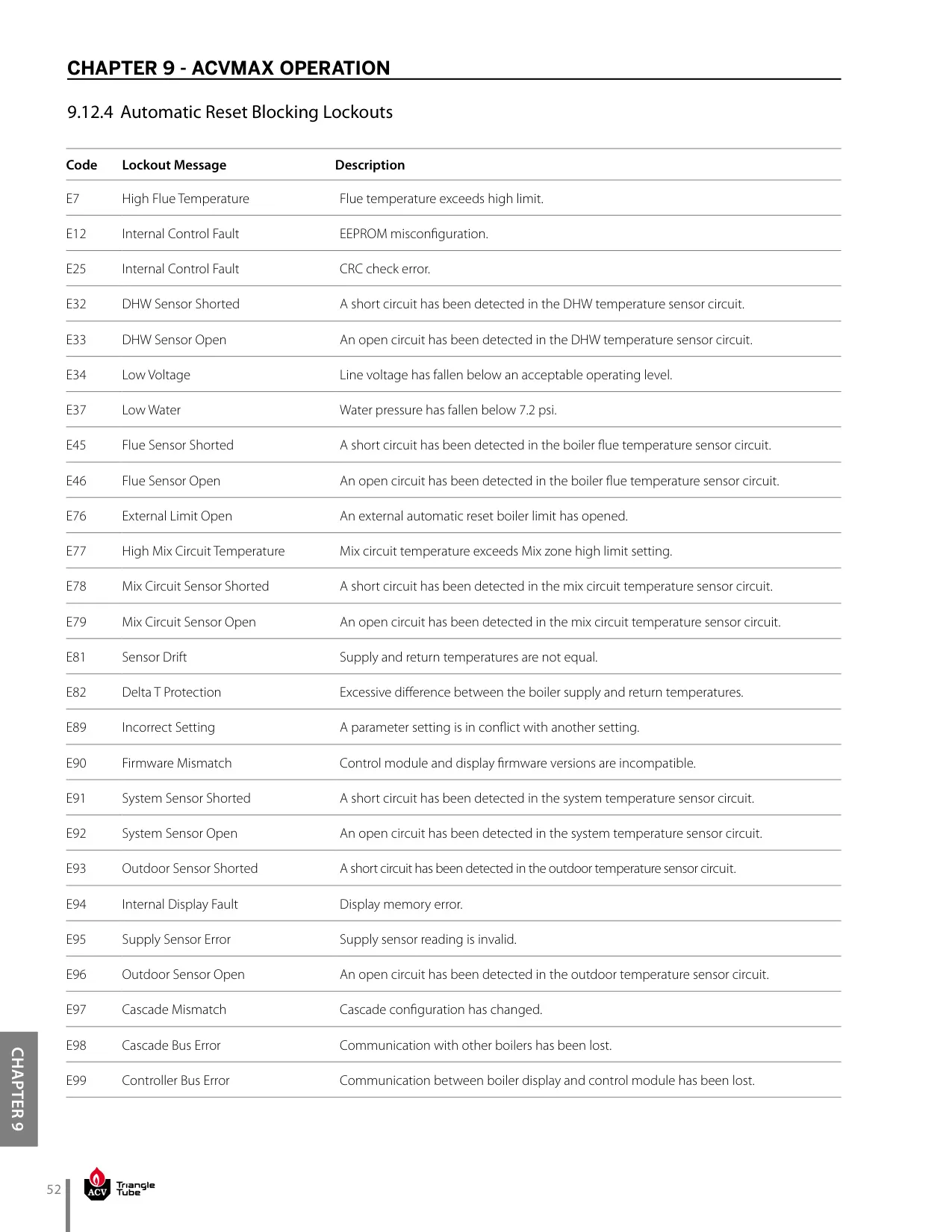

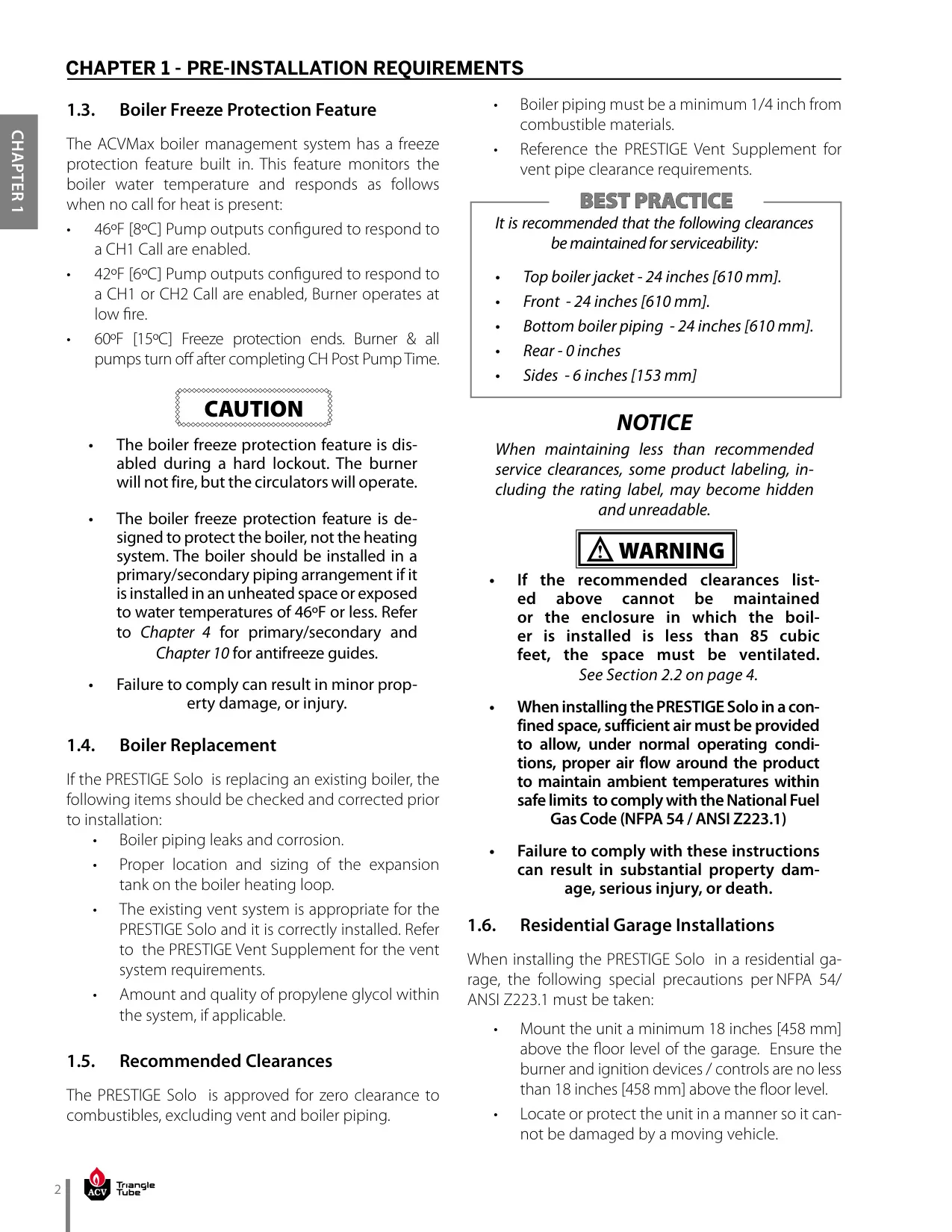

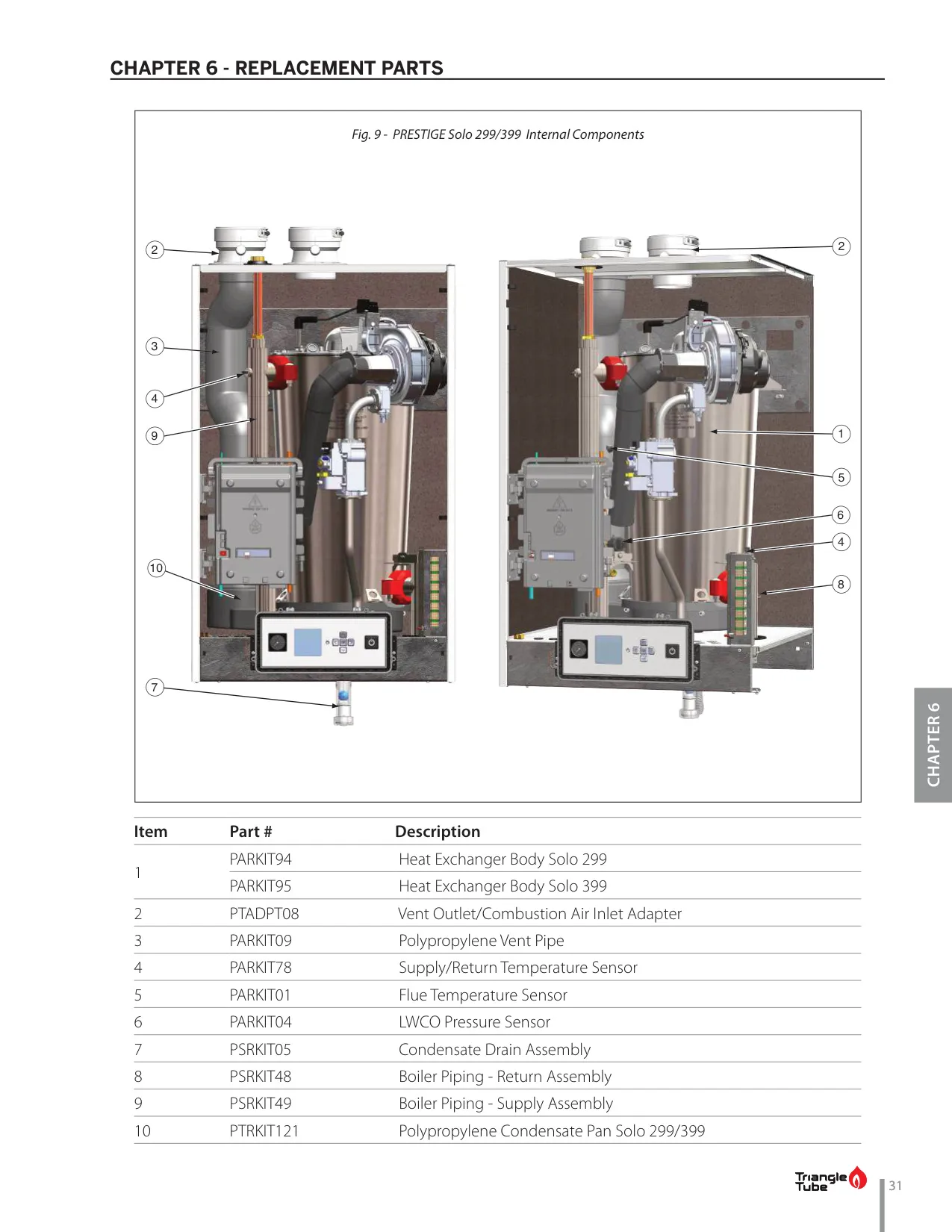

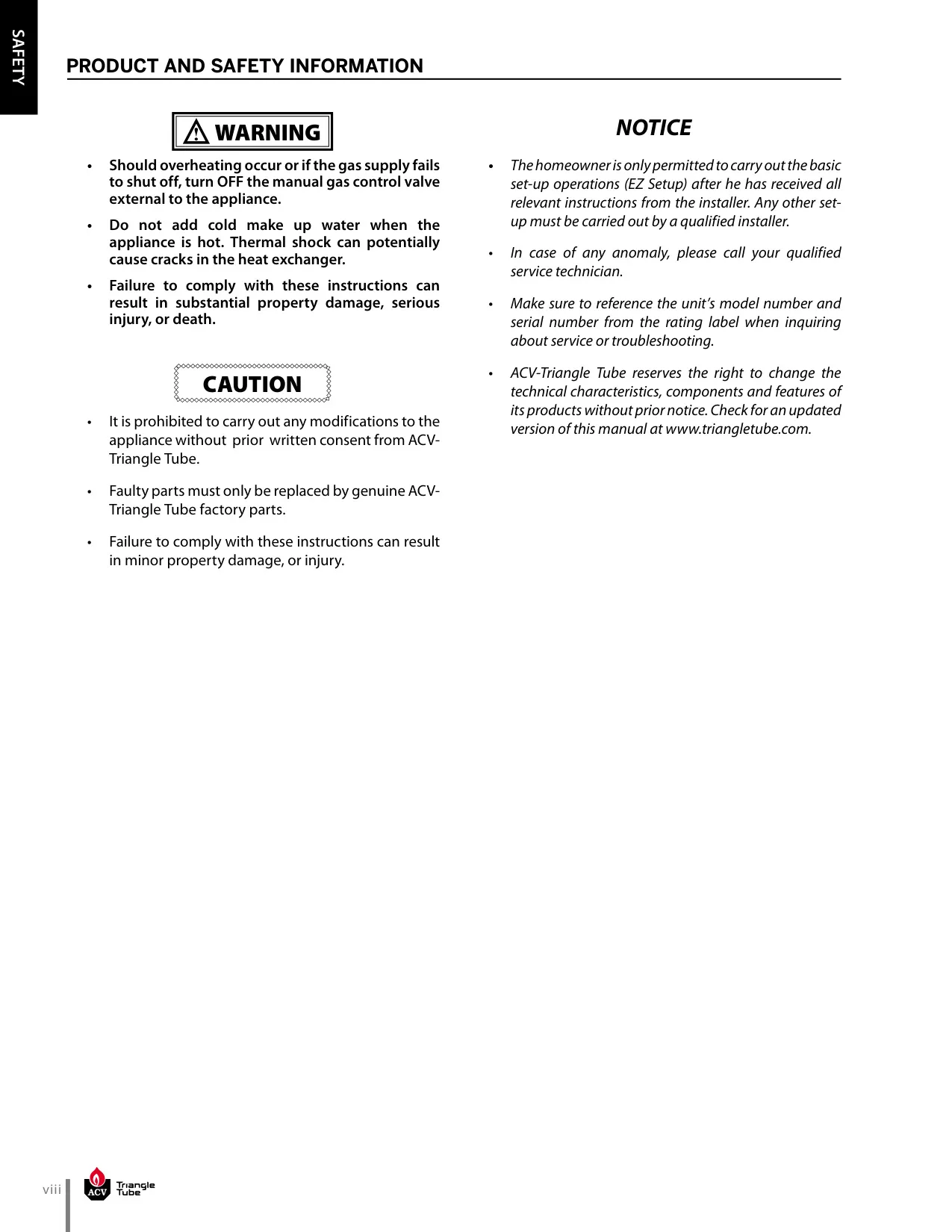

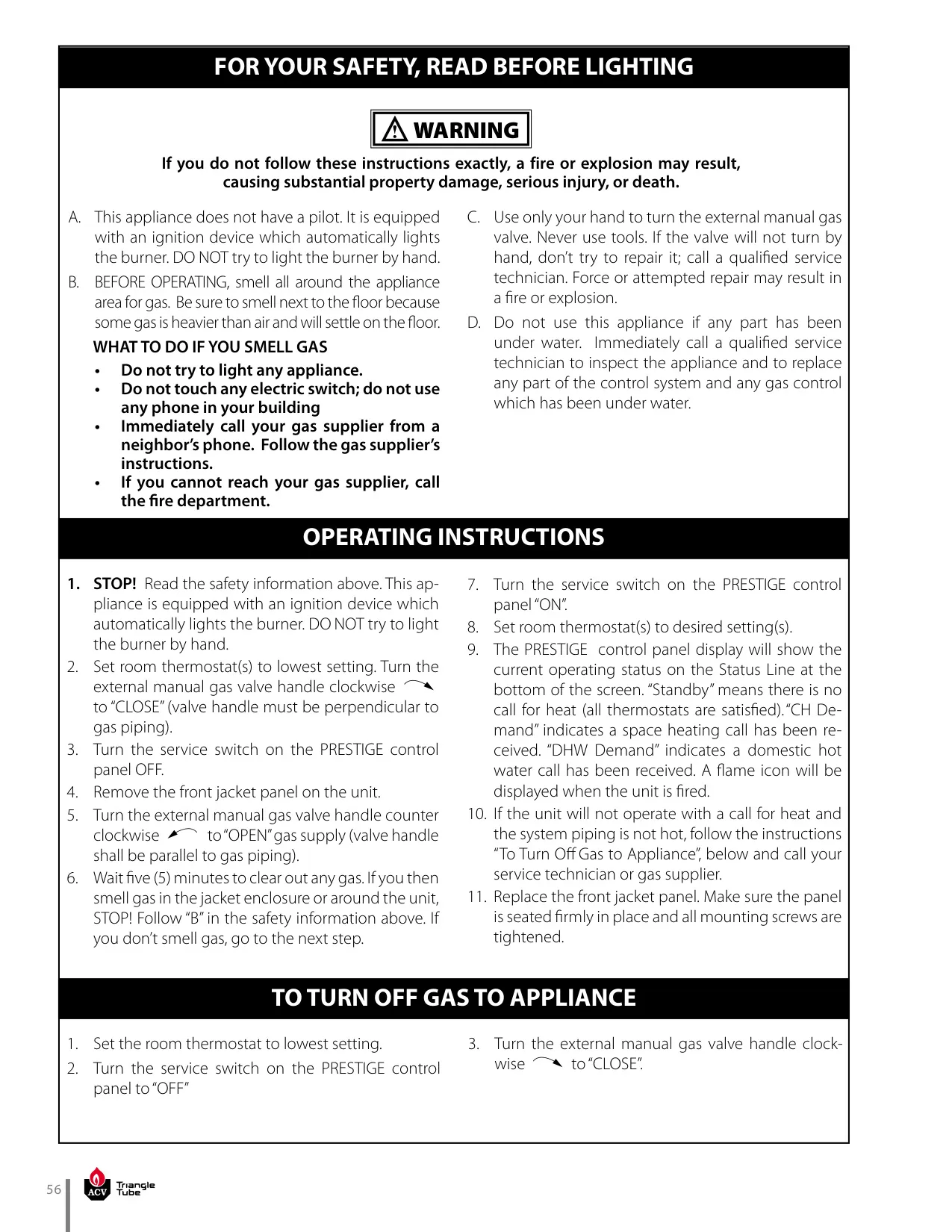

Safety is paramount with the Prestige Solo 80. It incorporates a factory-installed pressure sensor for low water cutoff (LWCO), which will shut down the unit if pressure falls below 7.2 psig. The manual emphasizes the critical importance of installing at least two hard-wired carbon monoxide detectors with alarms and battery backup in the mechanical room and sleeping areas. Regular homeowner and technician maintenance schedules are provided to ensure unit reliability and safety.

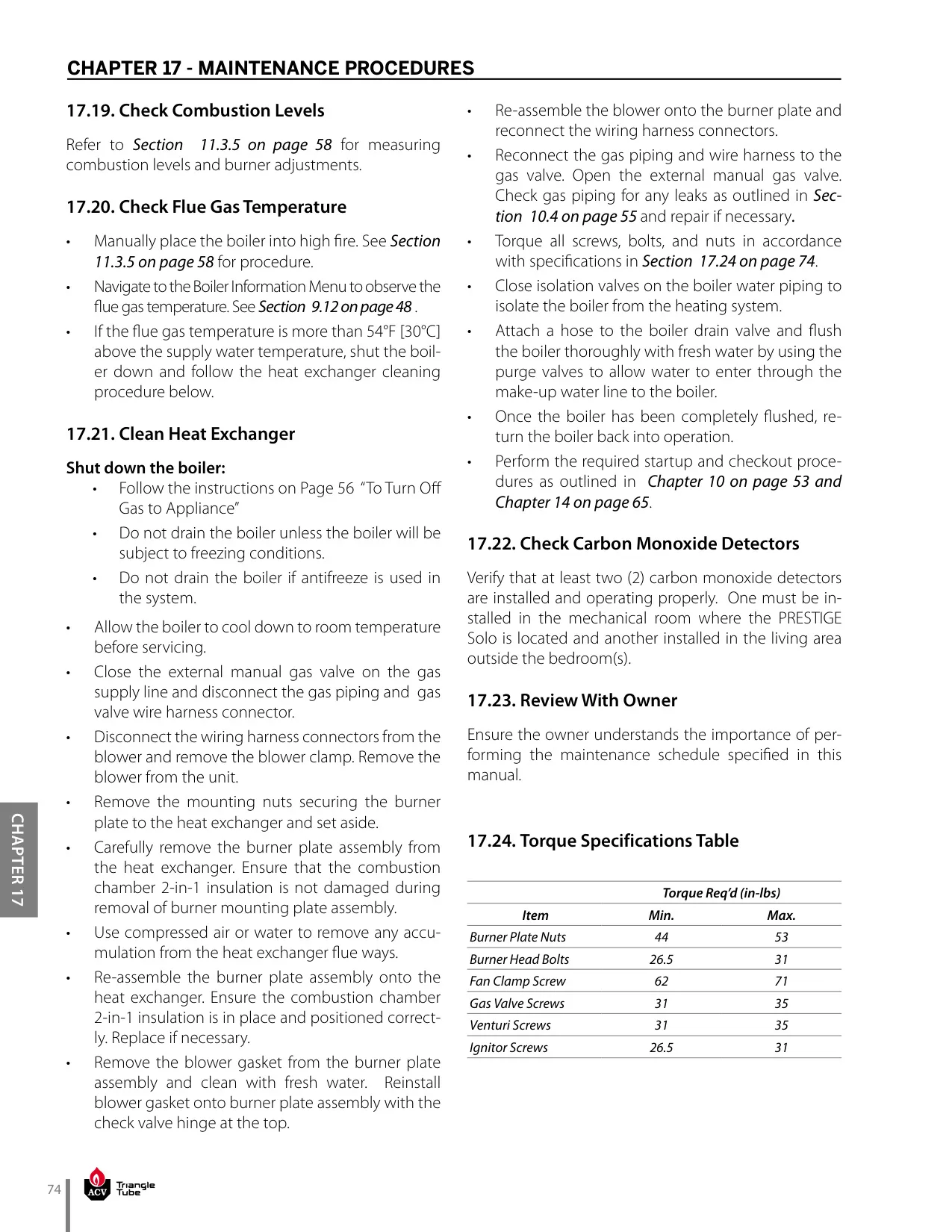

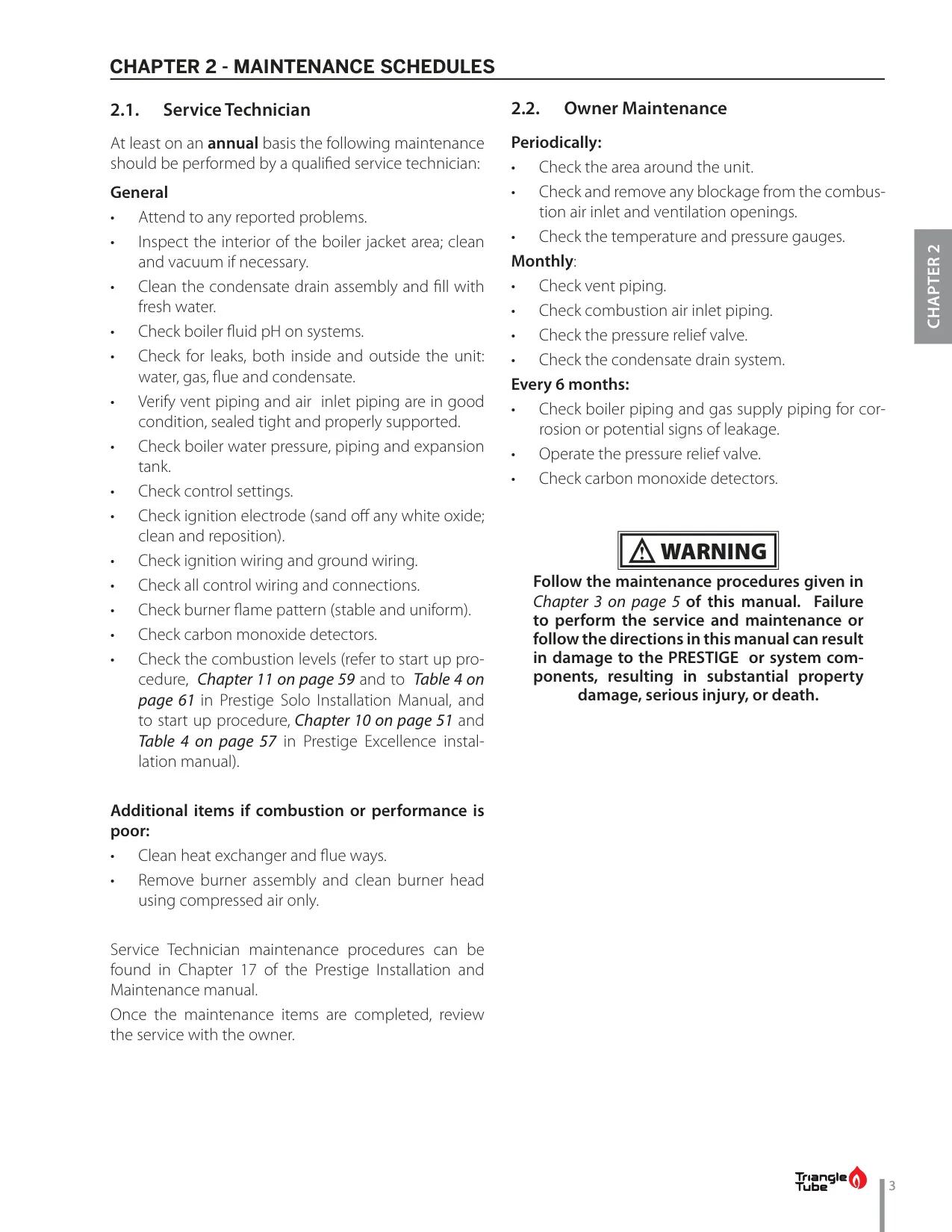

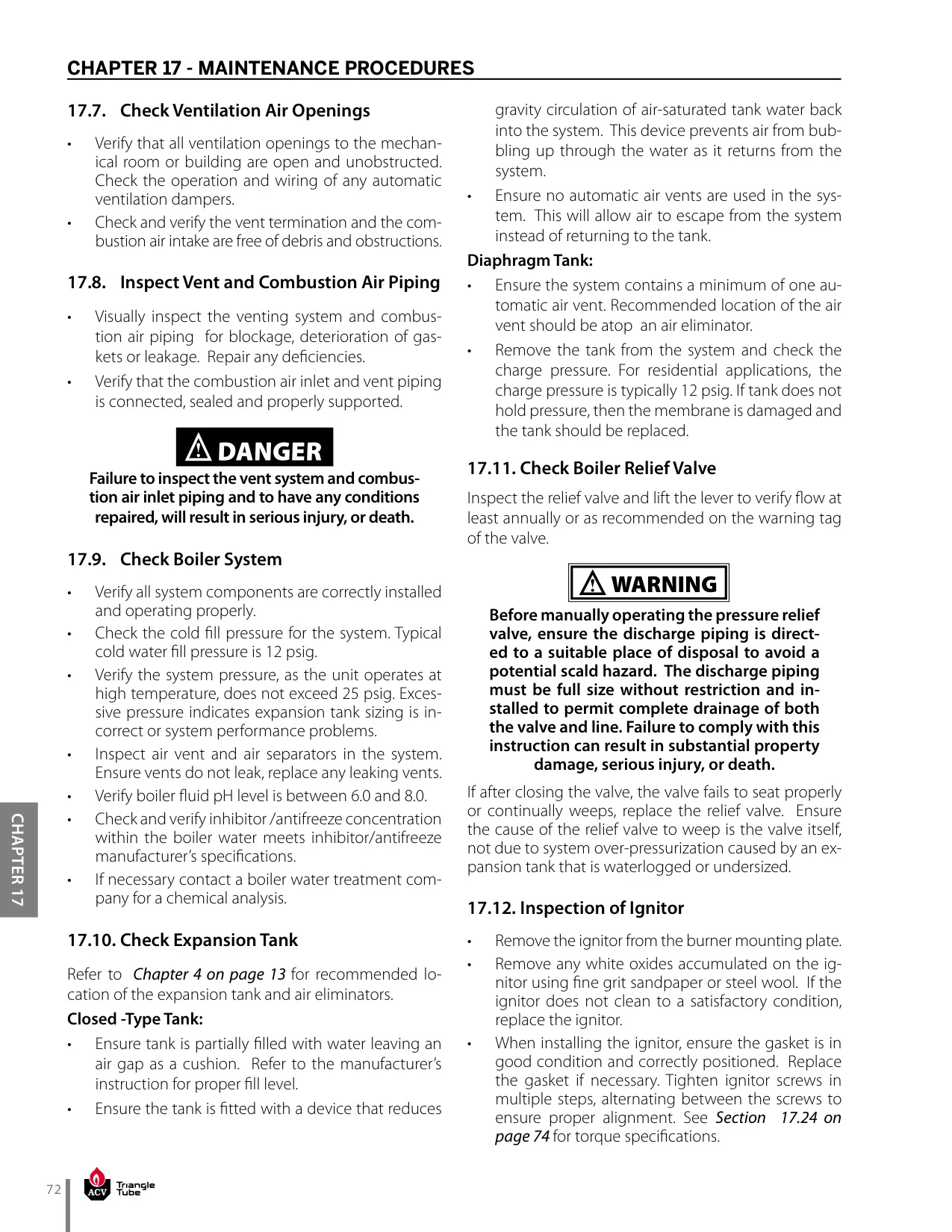

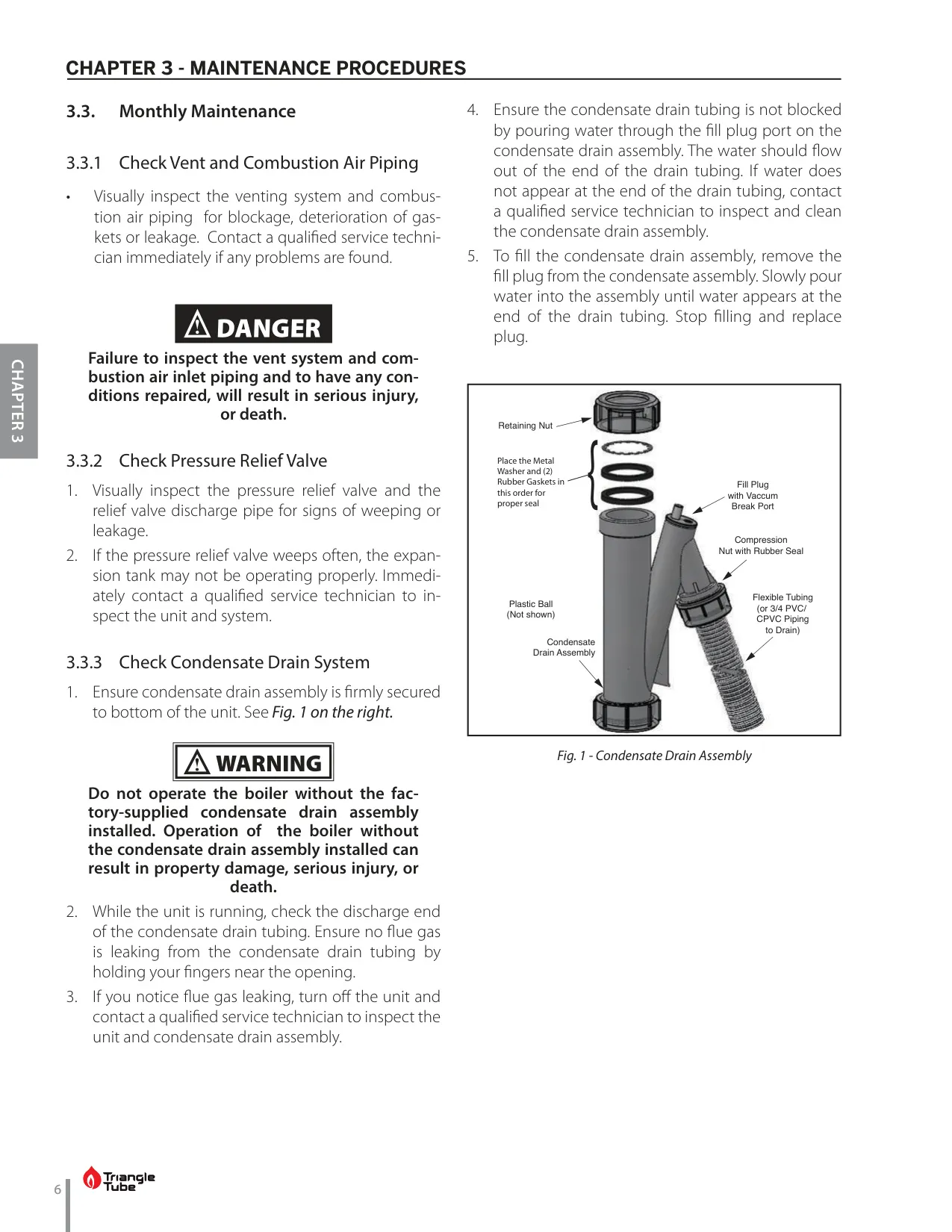

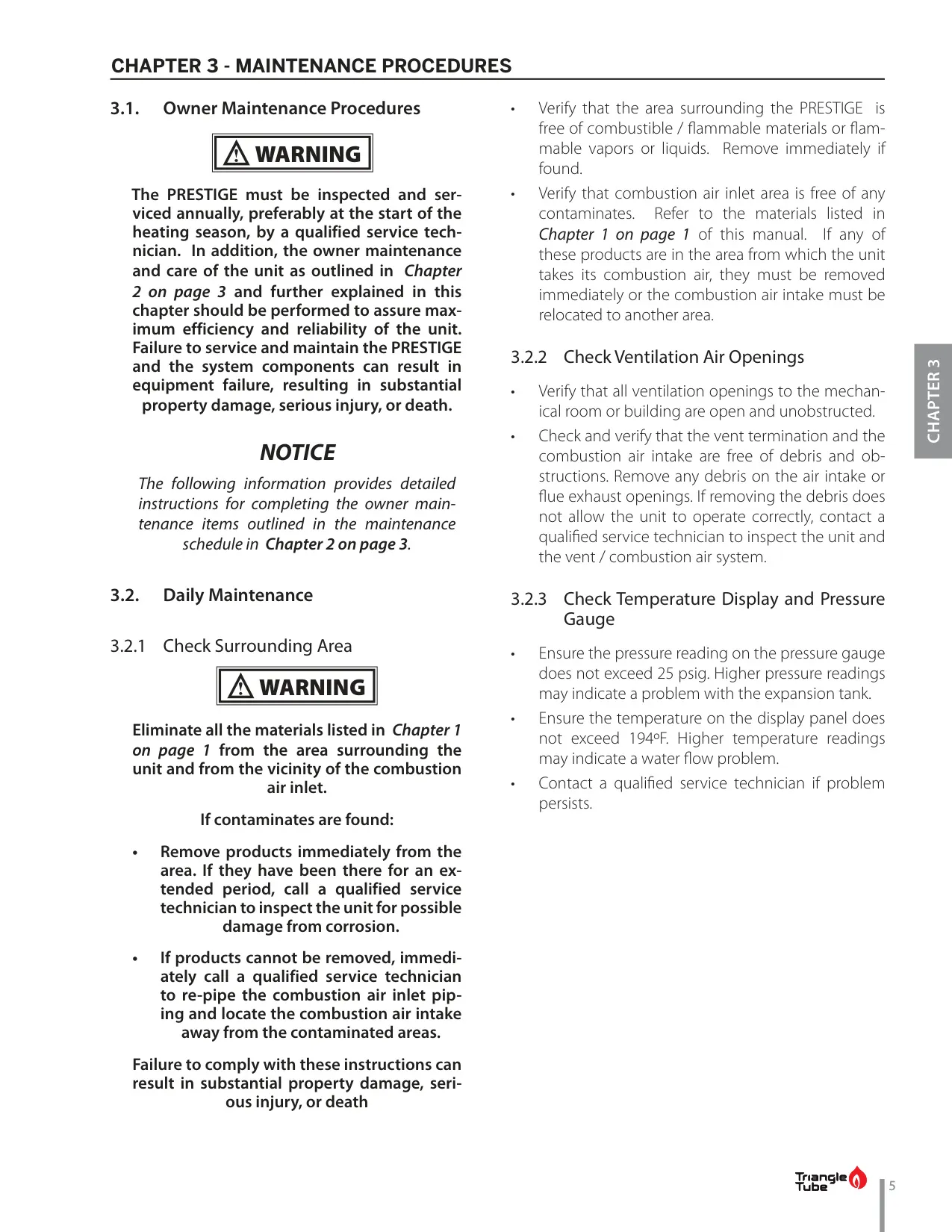

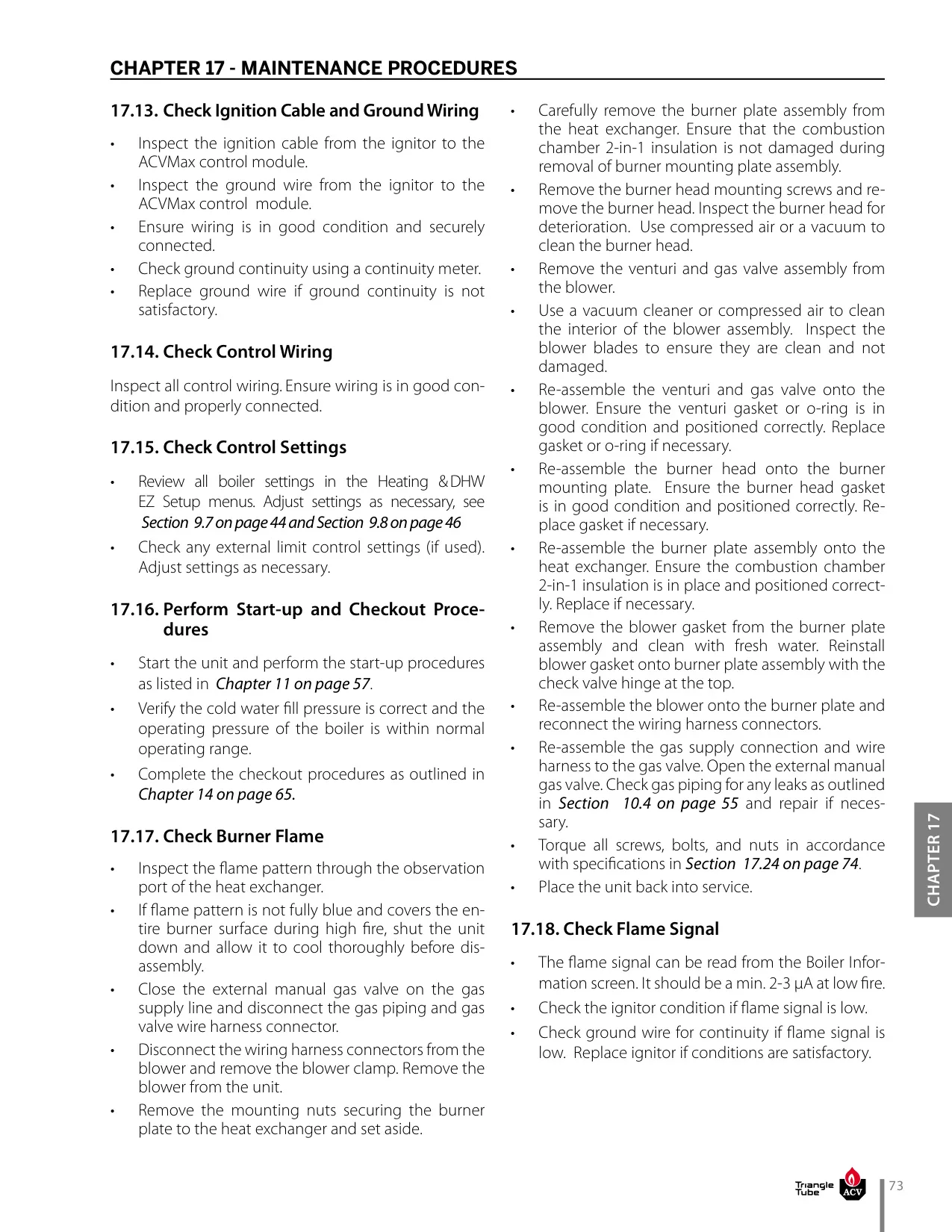

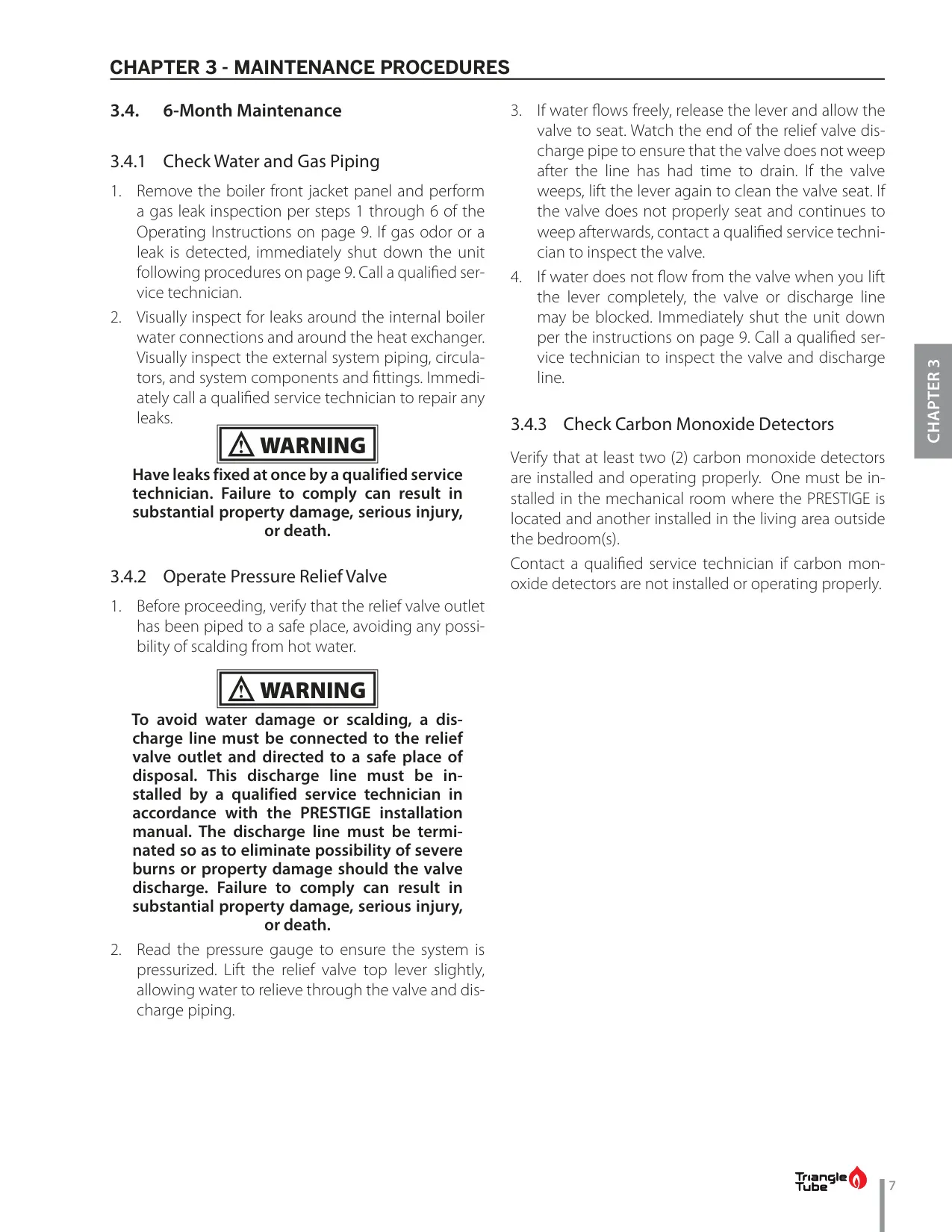

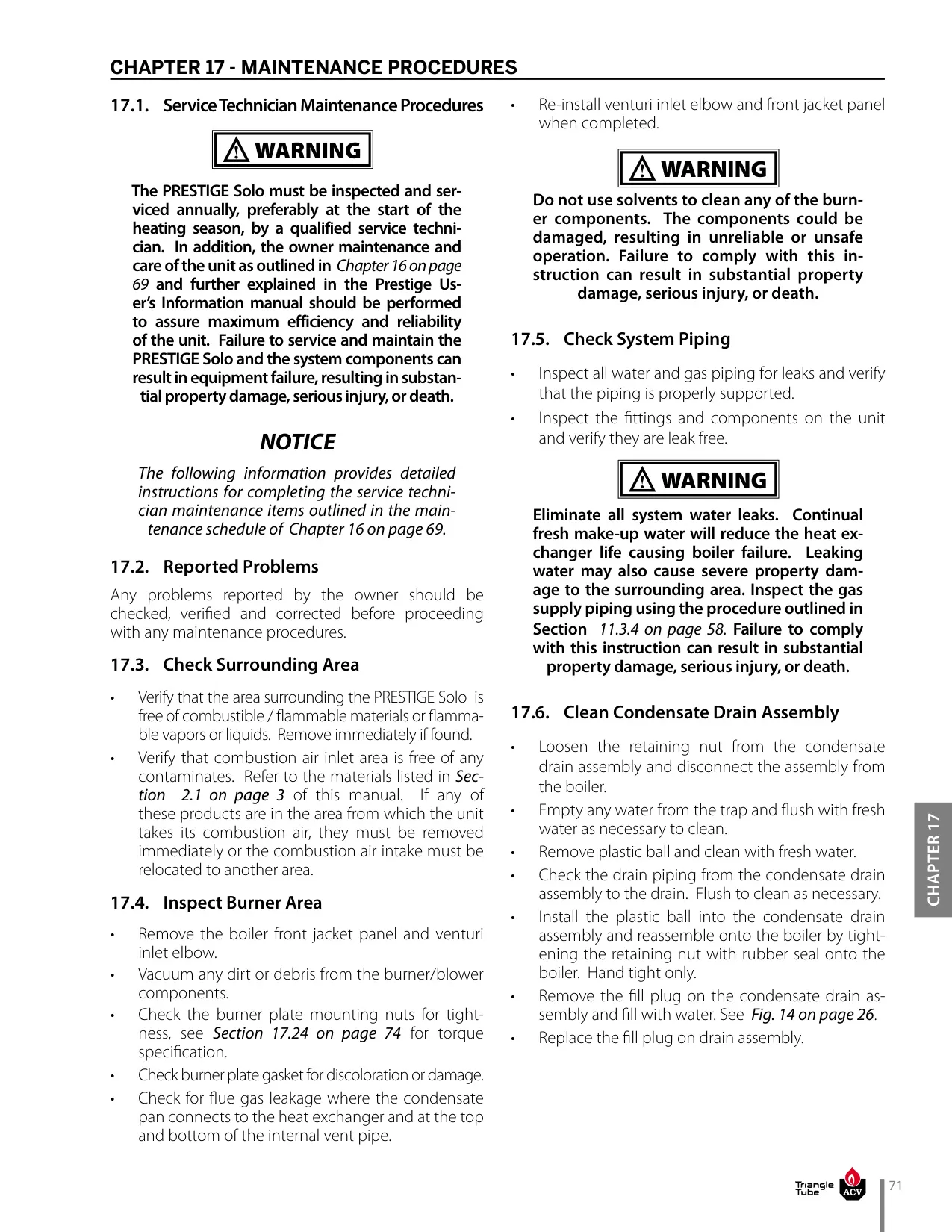

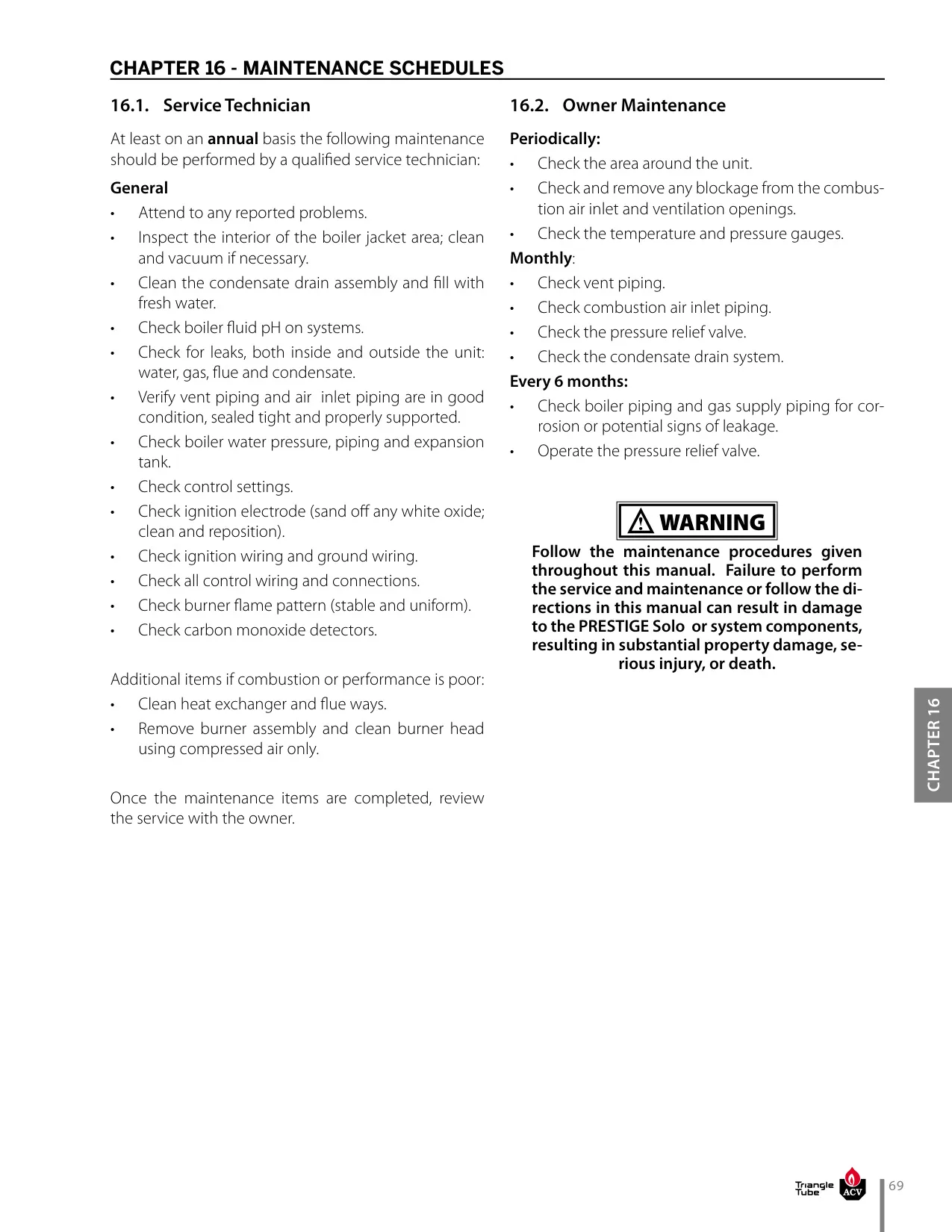

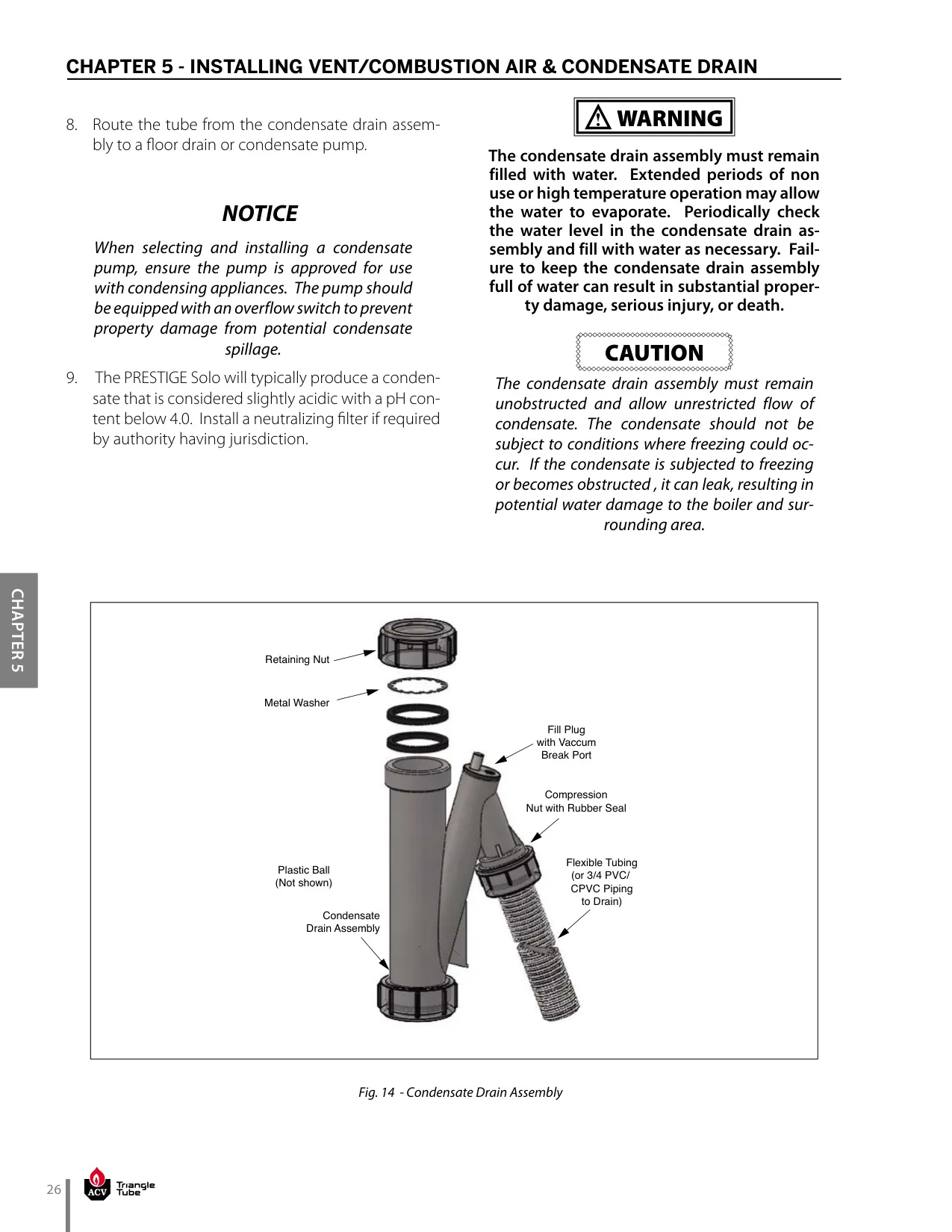

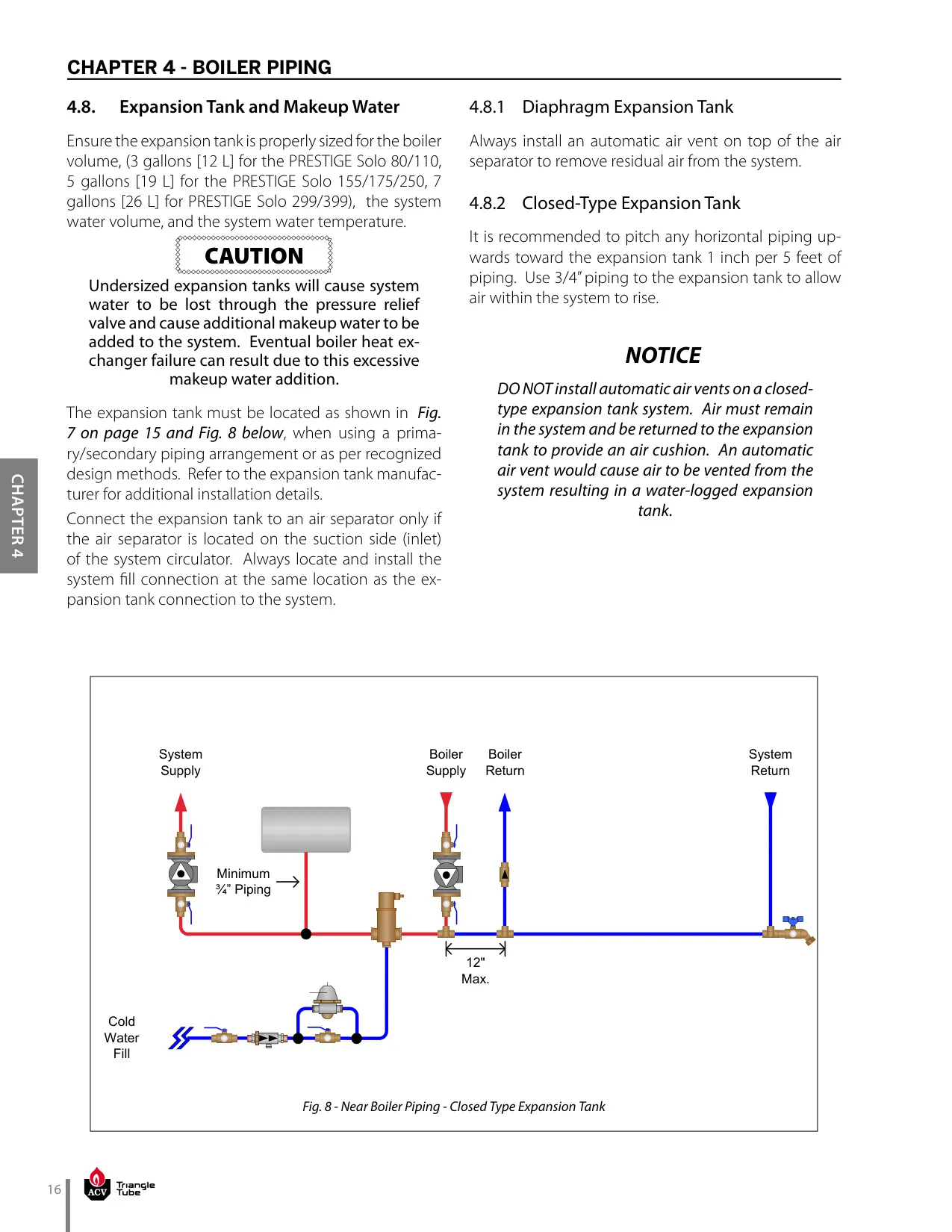

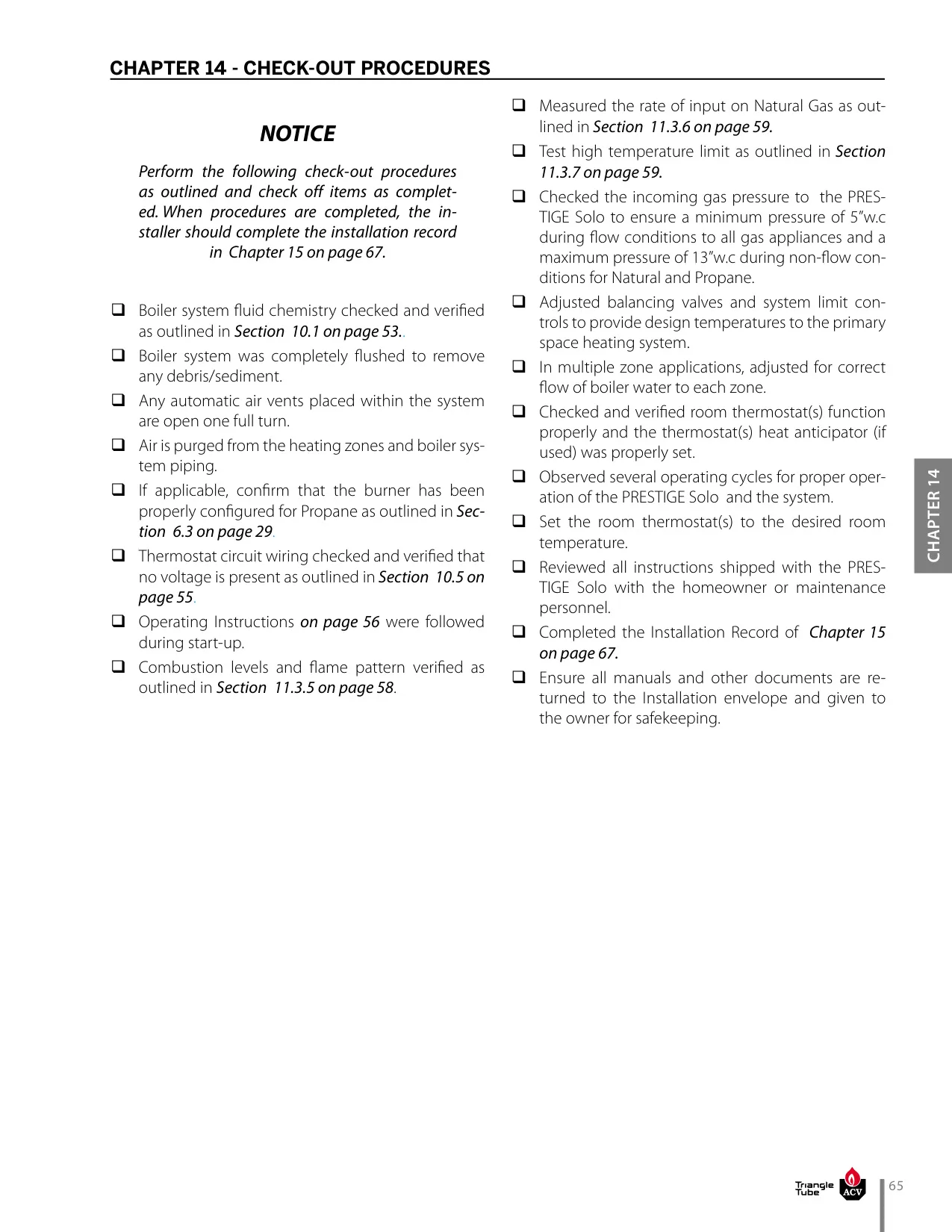

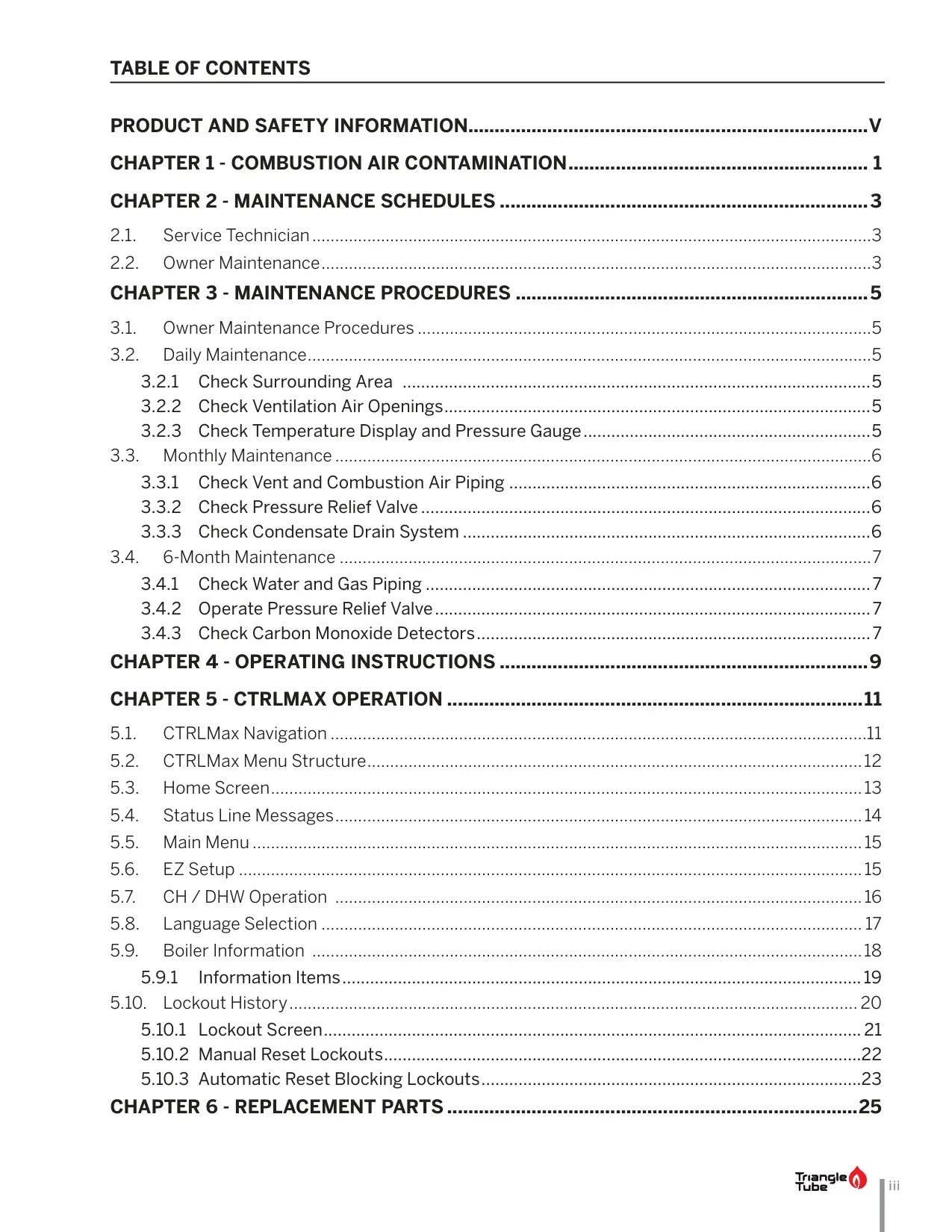

Maintenance includes daily checks of the surrounding area for flammable materials and ensuring ventilation openings are clear. Monthly tasks involve inspecting vent and combustion air piping, along with the condensate drain system, which must always be filled with water. Every six months, homeowners should check water and gas piping for leaks and operate the pressure relief valve to ensure proper function.

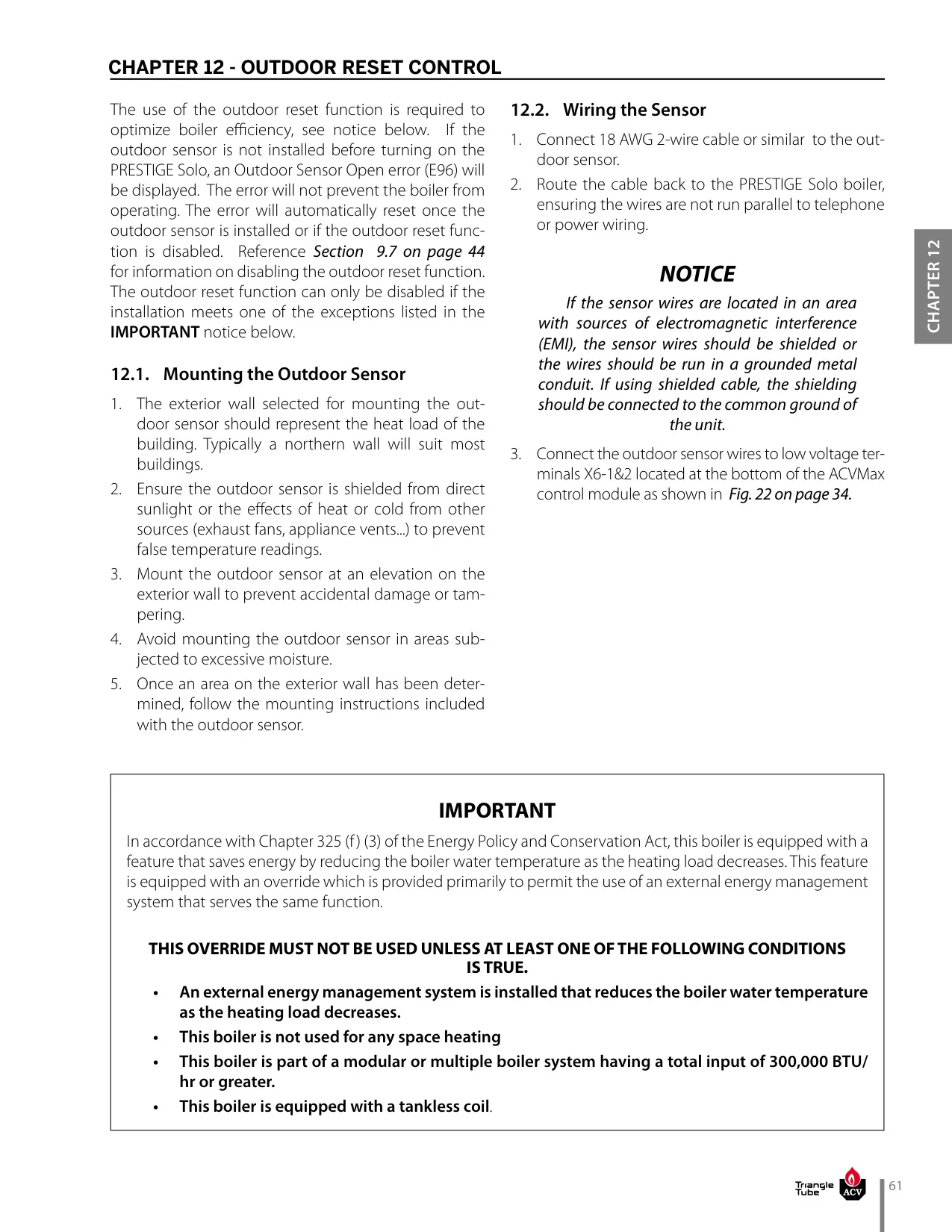

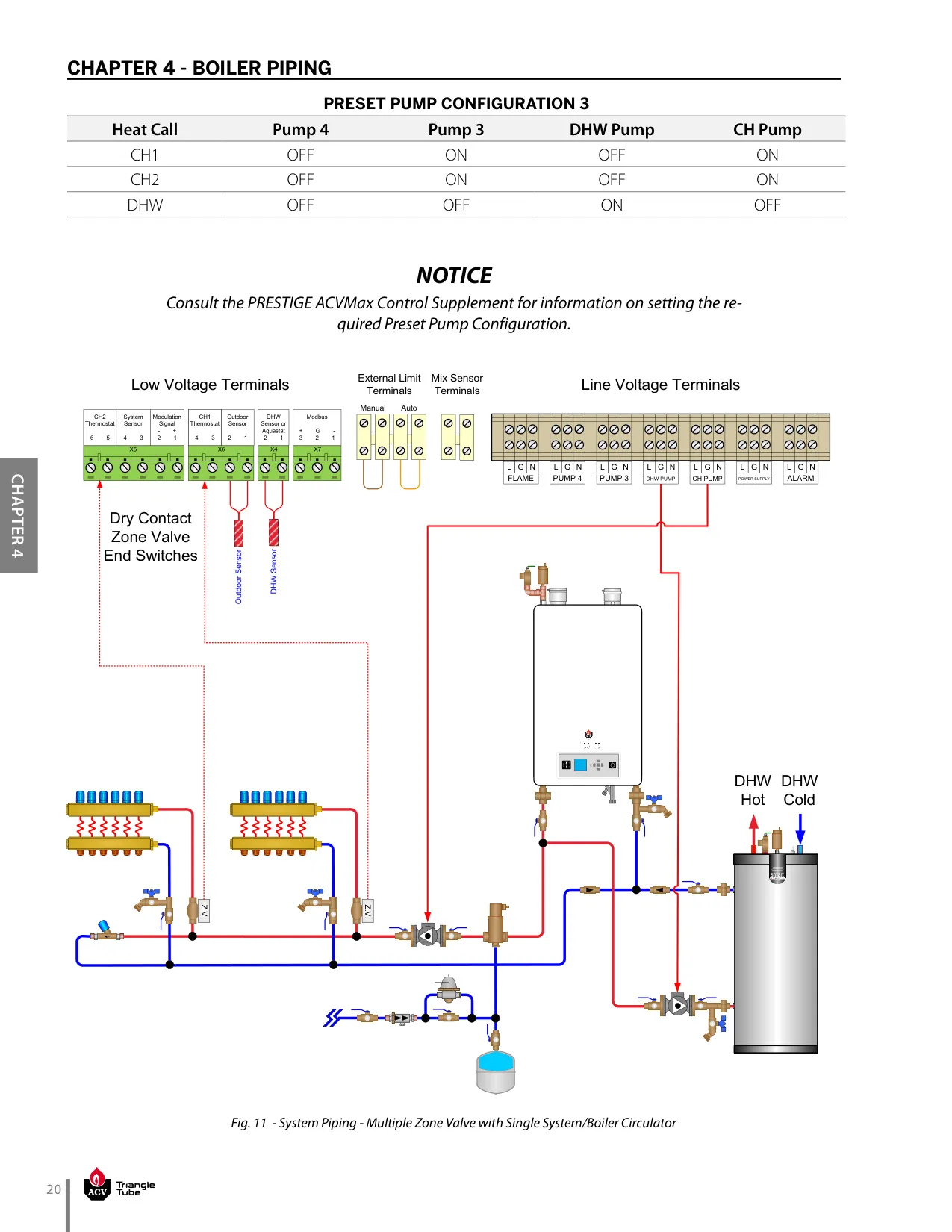

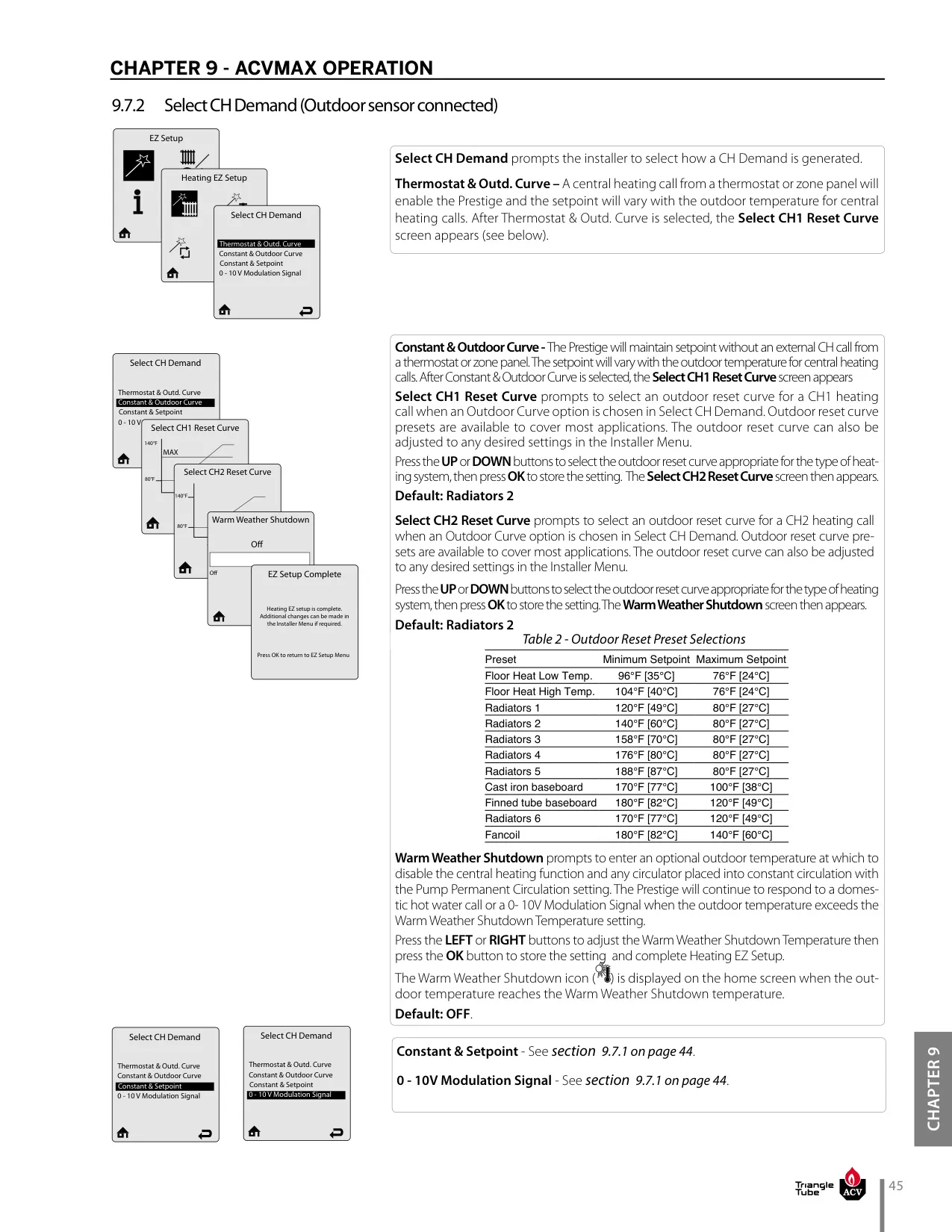

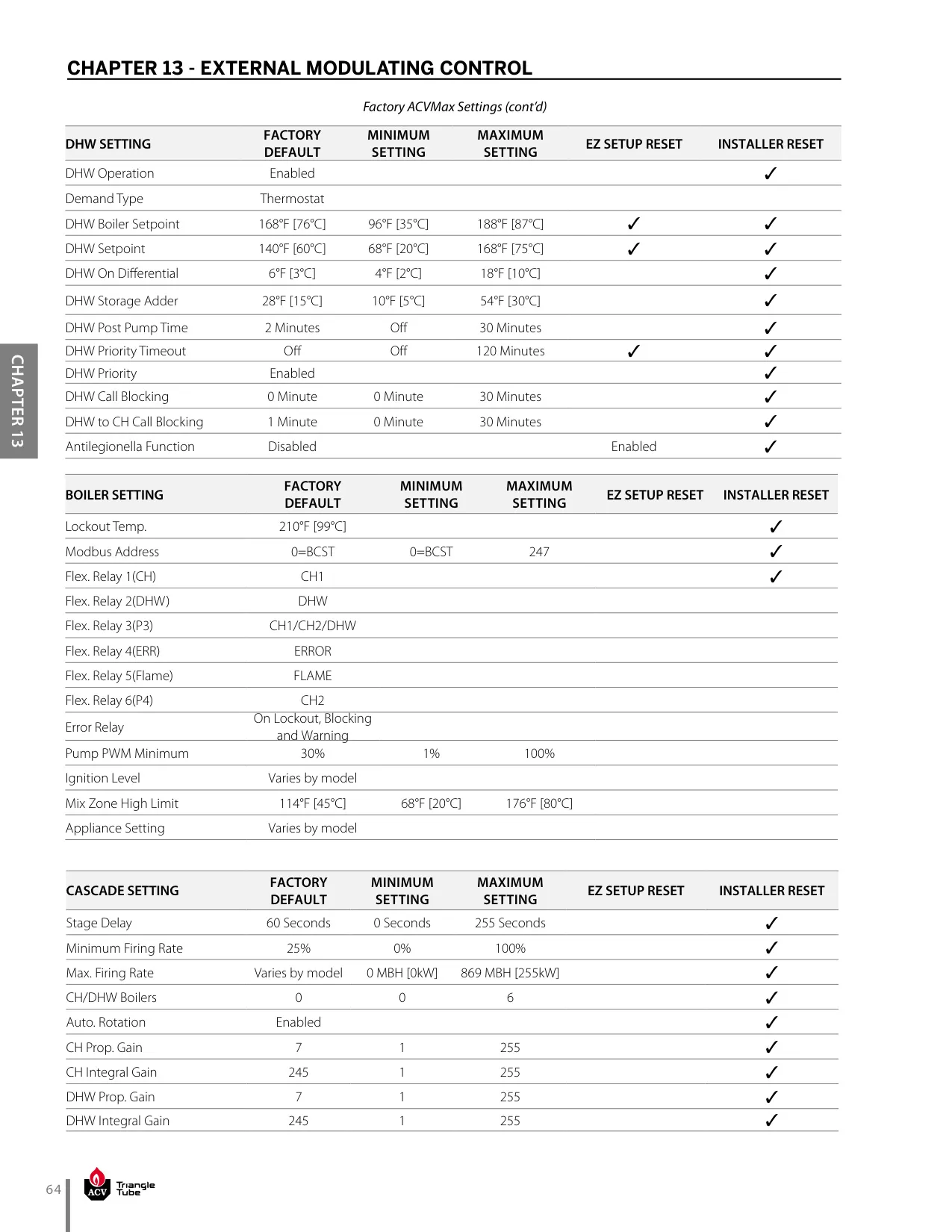

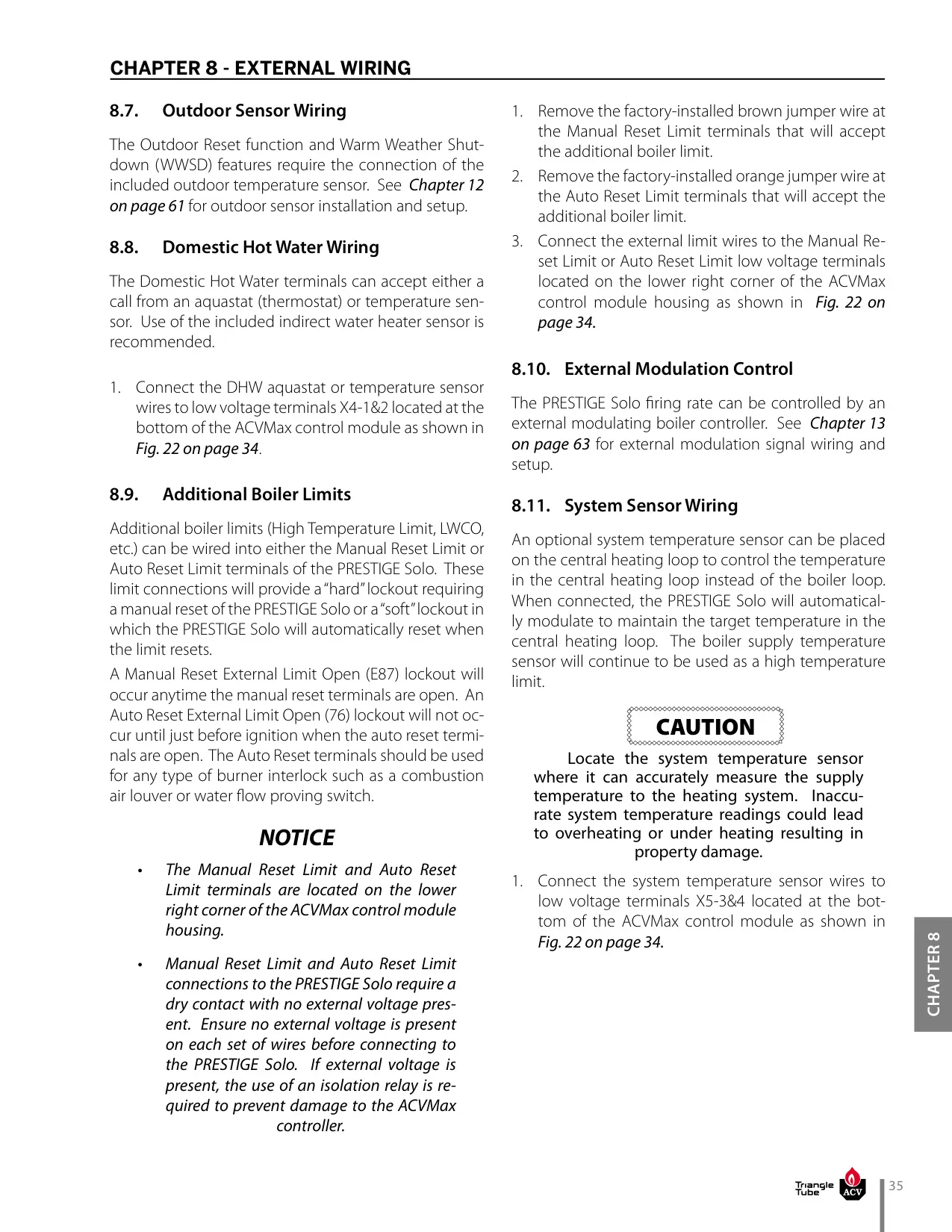

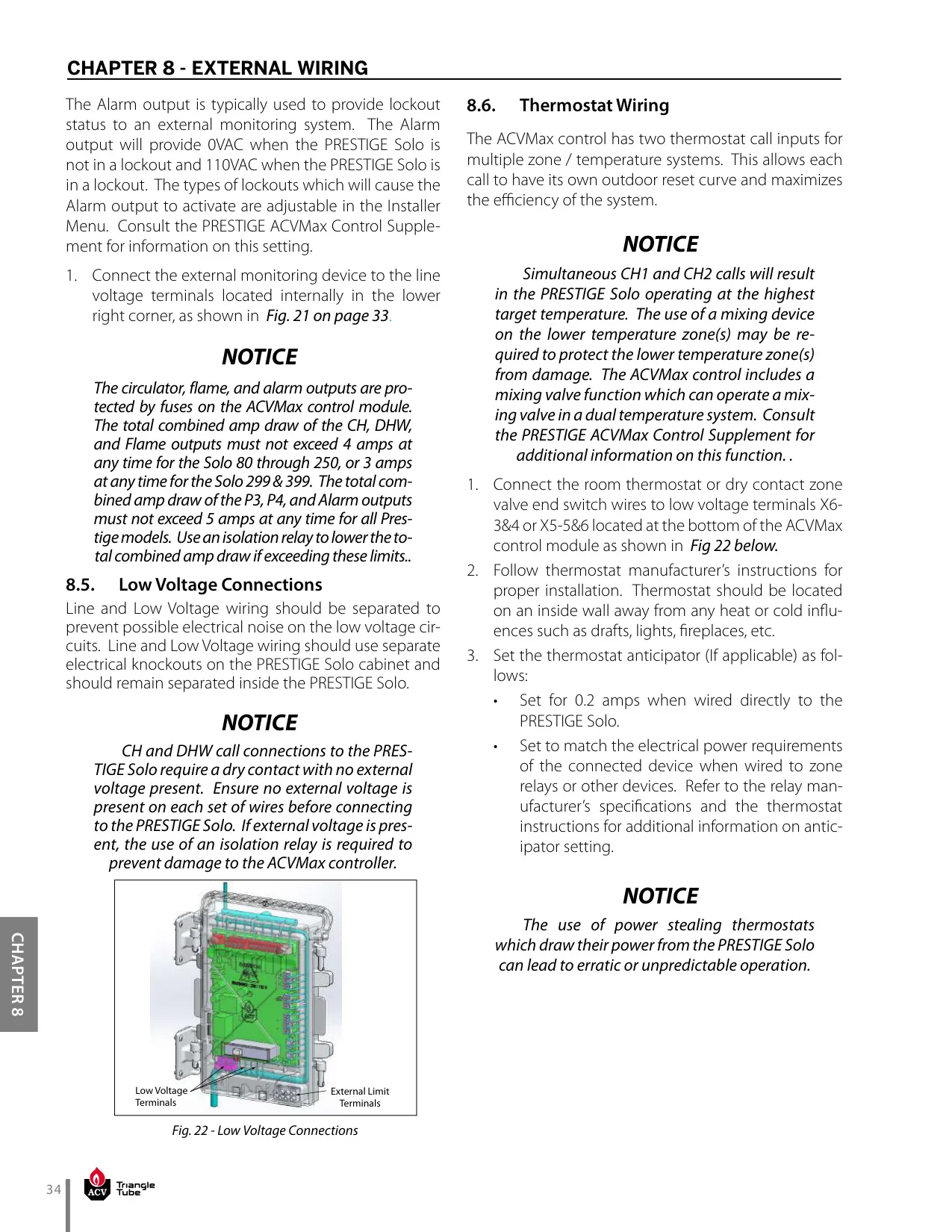

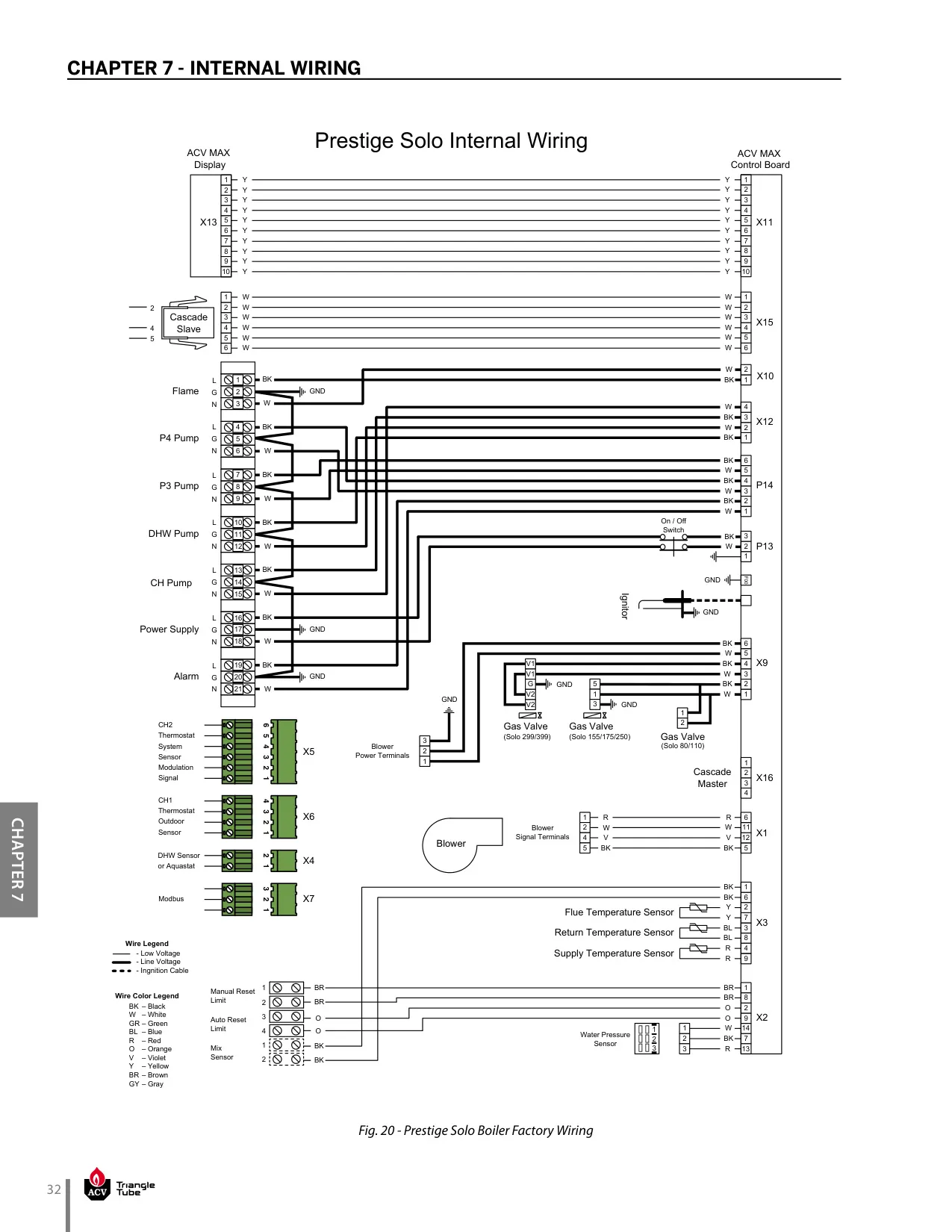

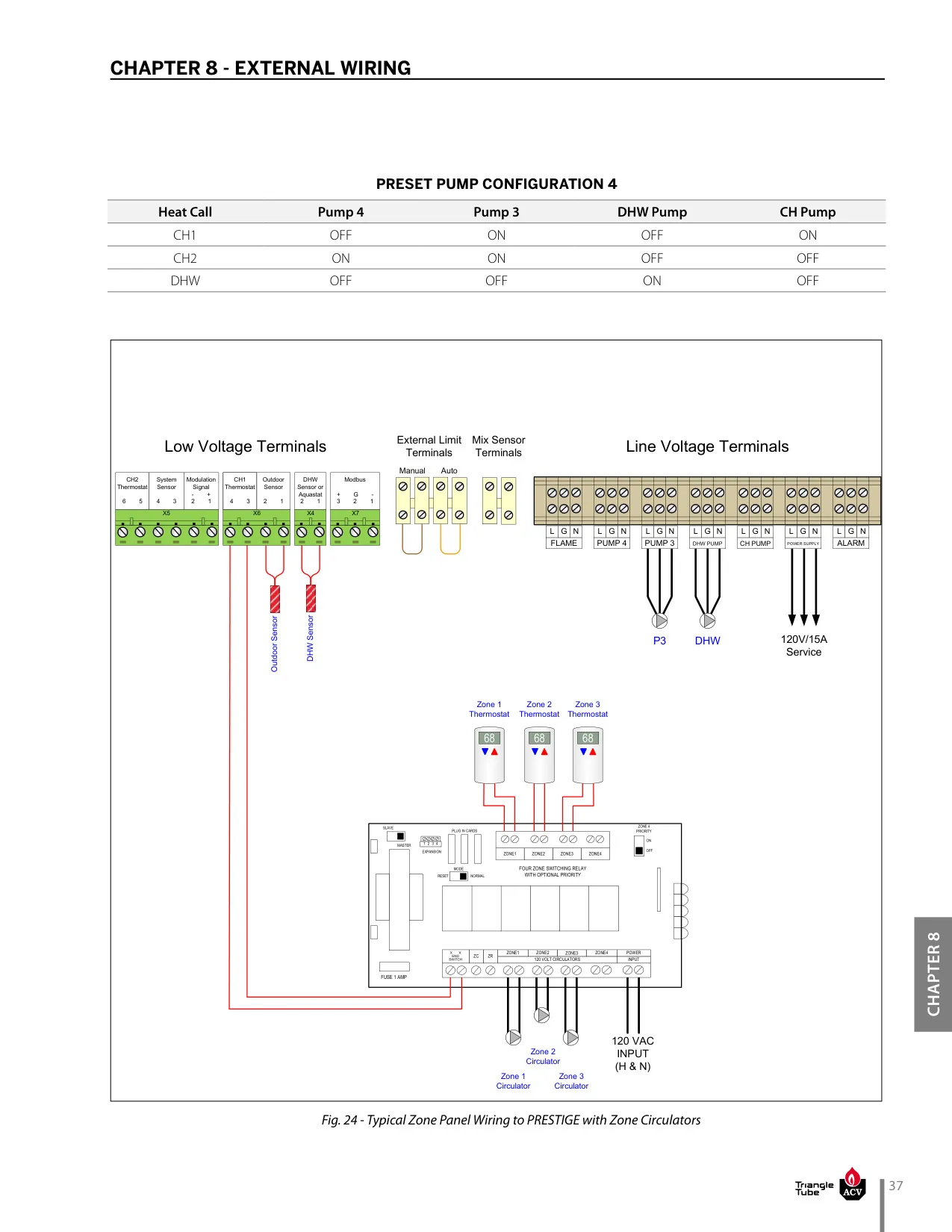

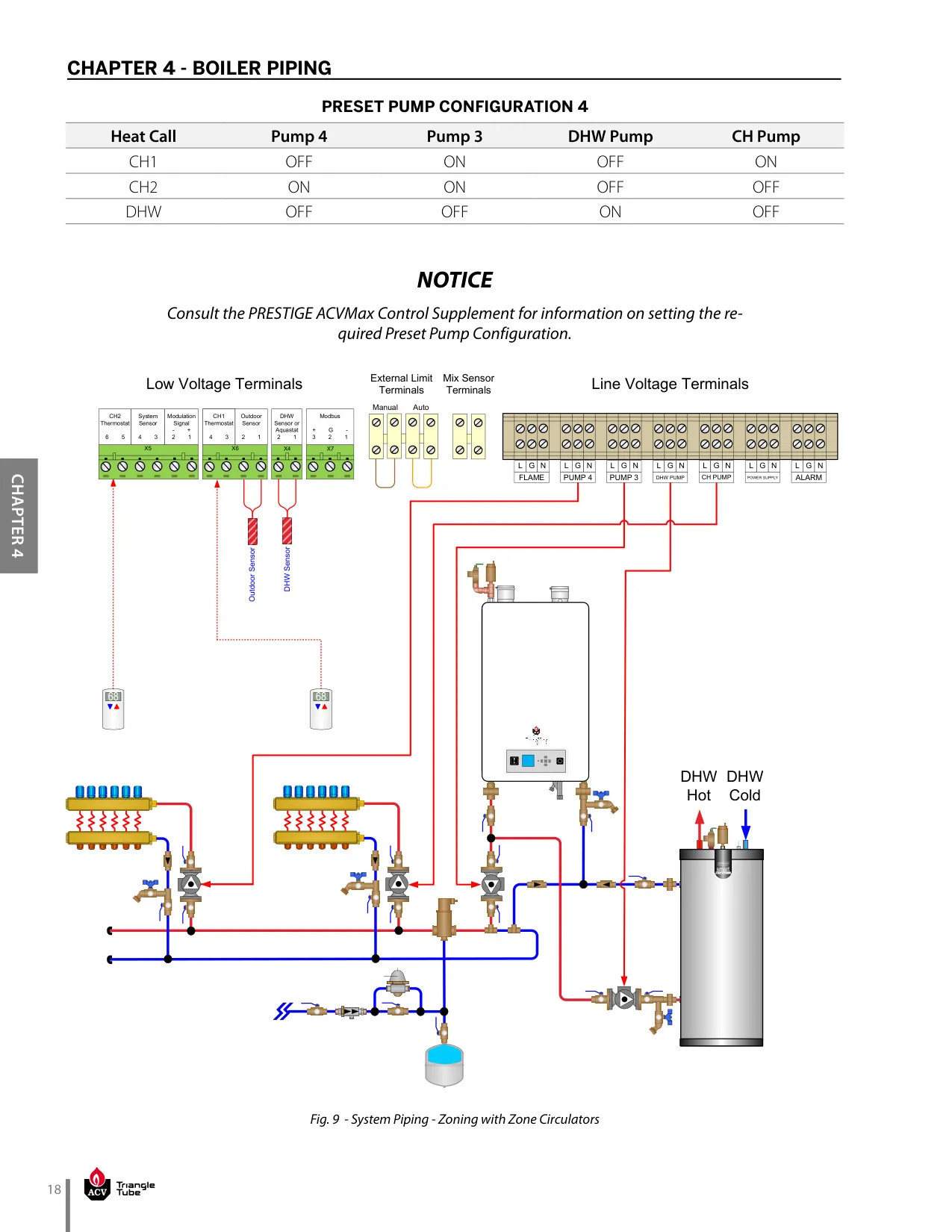

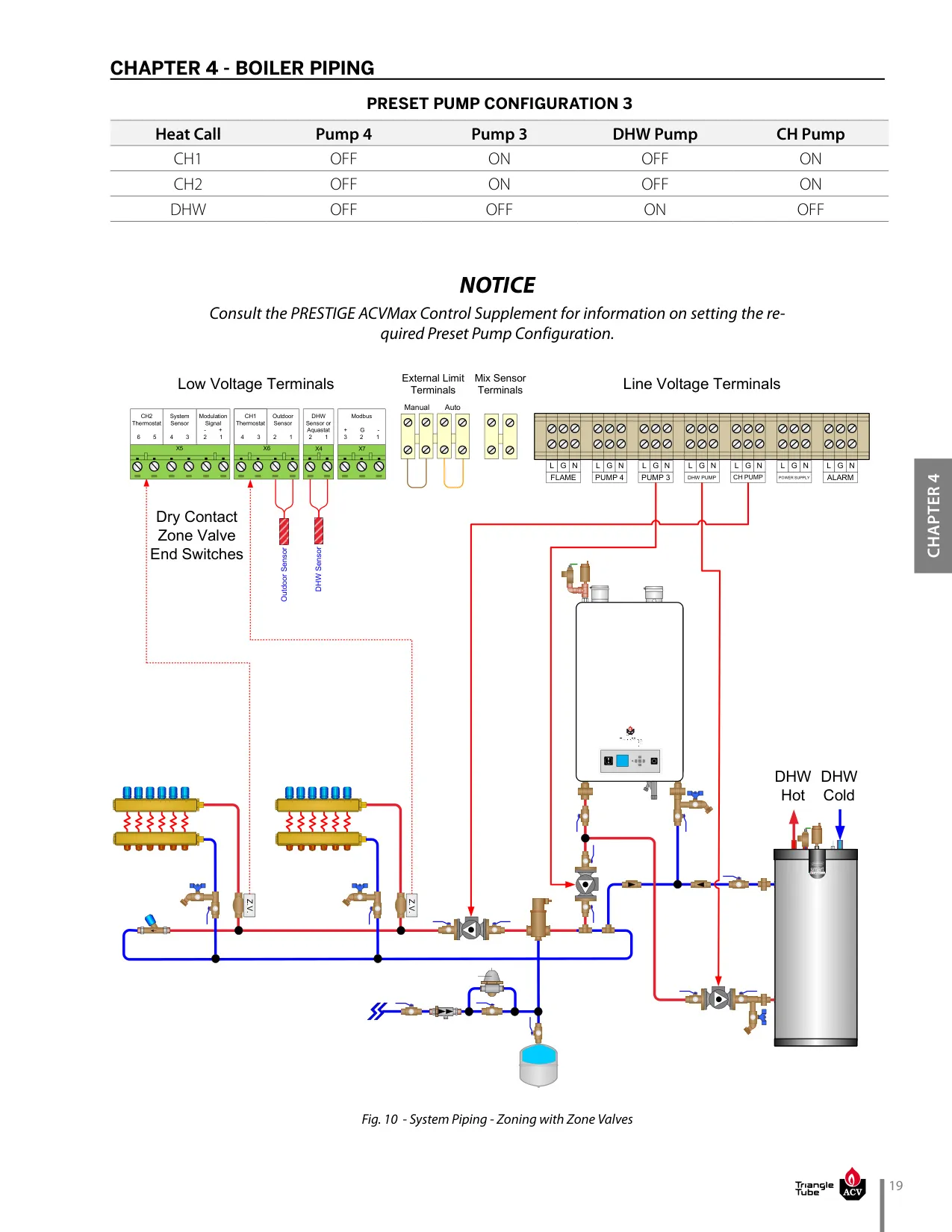

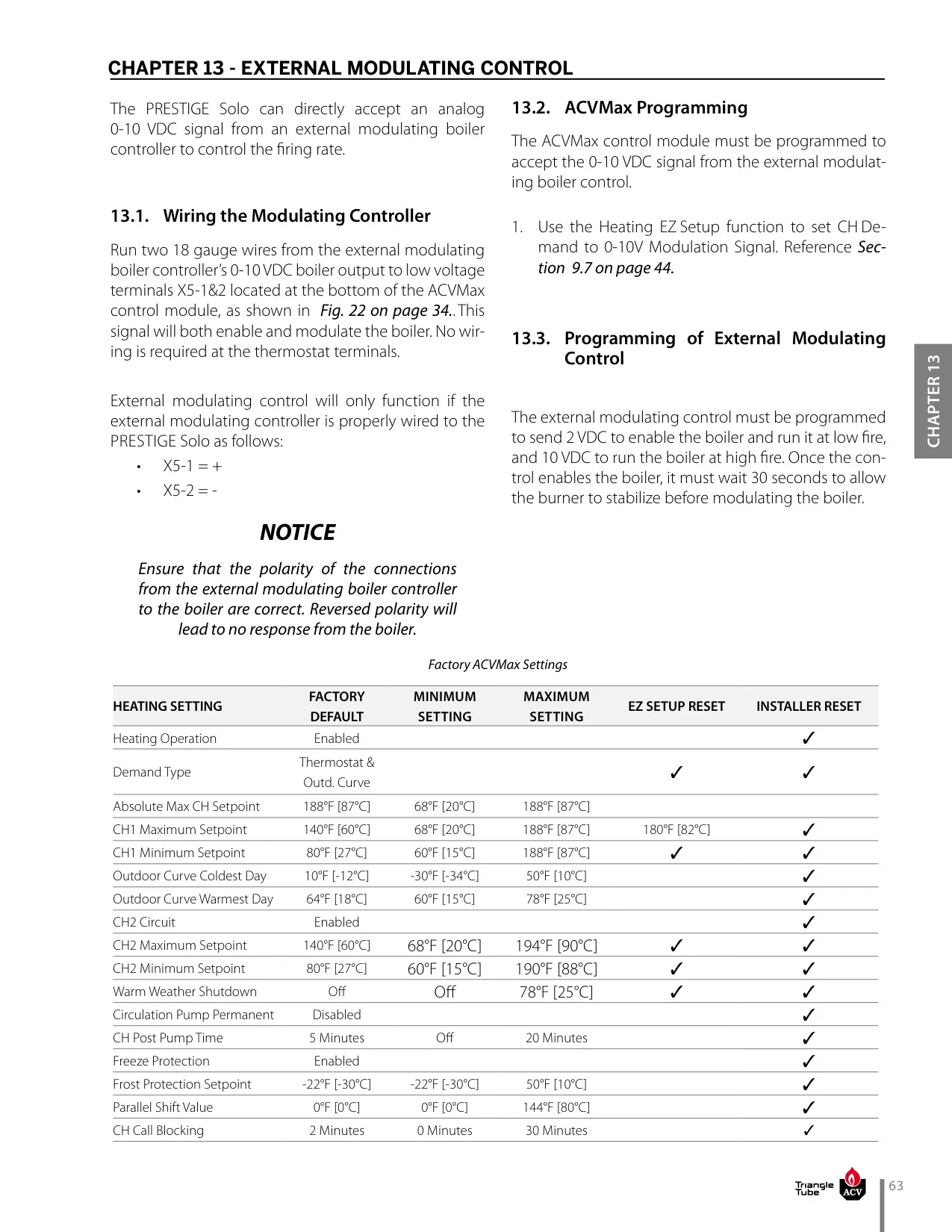

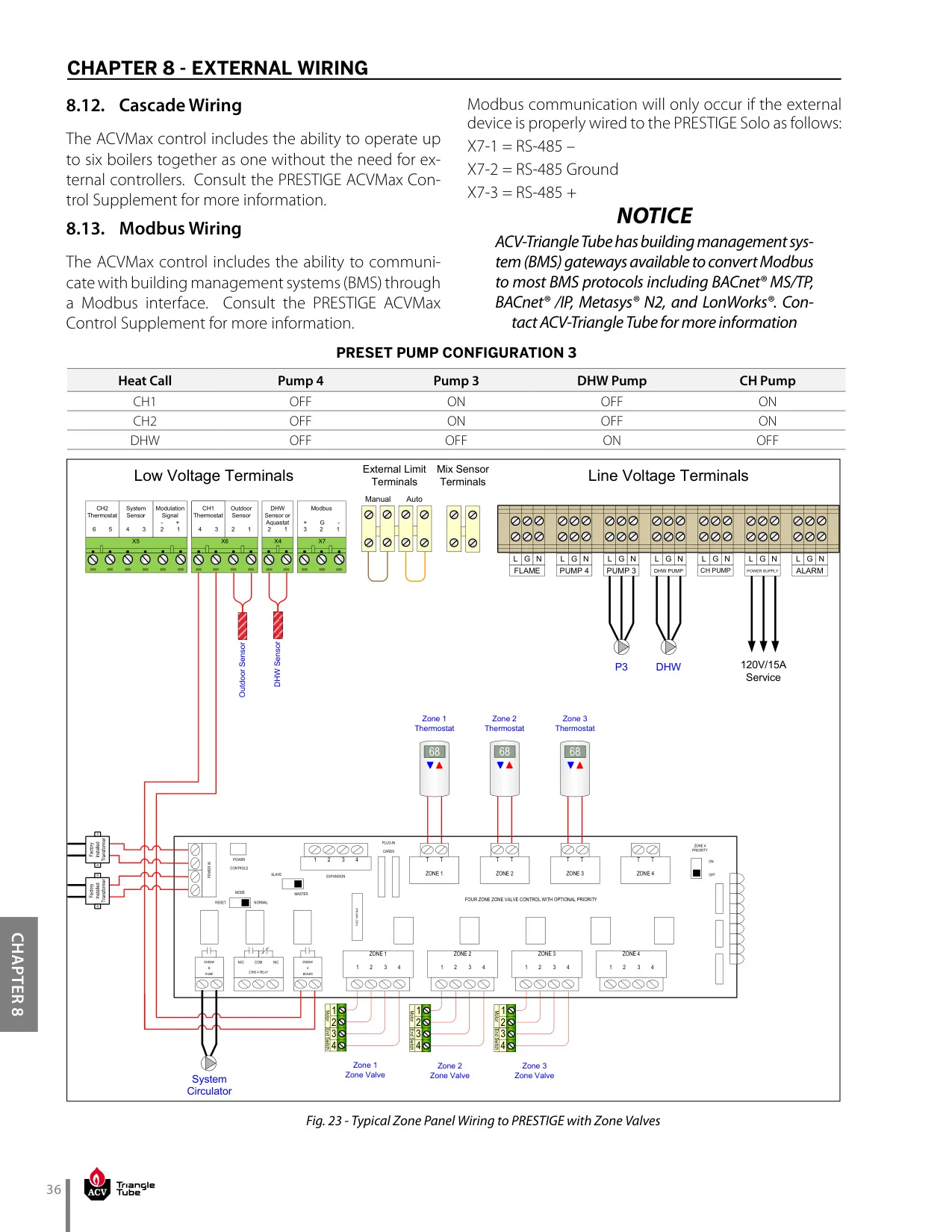

For enhanced control, the system offers two central heating (CH) call inputs, each capable of having separate outdoor reset curves for maximizing efficiency. It also supports domestic hot water (DHW) calls, with an optional priority setting that can temporarily prioritize hot water production over space heating. The boiler can even integrate with external modulating controllers and building management systems (BMS) via Modbus for advanced automation.
