Predator 5000 Generator Inverter Instruction Manual
Predator 5000 Generator Inverter
Predator 5000 Generator Instructions
Here we offer the Predator 5000 Generator Inverter manual completely free and in English. We have cataloged this manual in the Generators section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Predator 5000 Generator Inverter, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

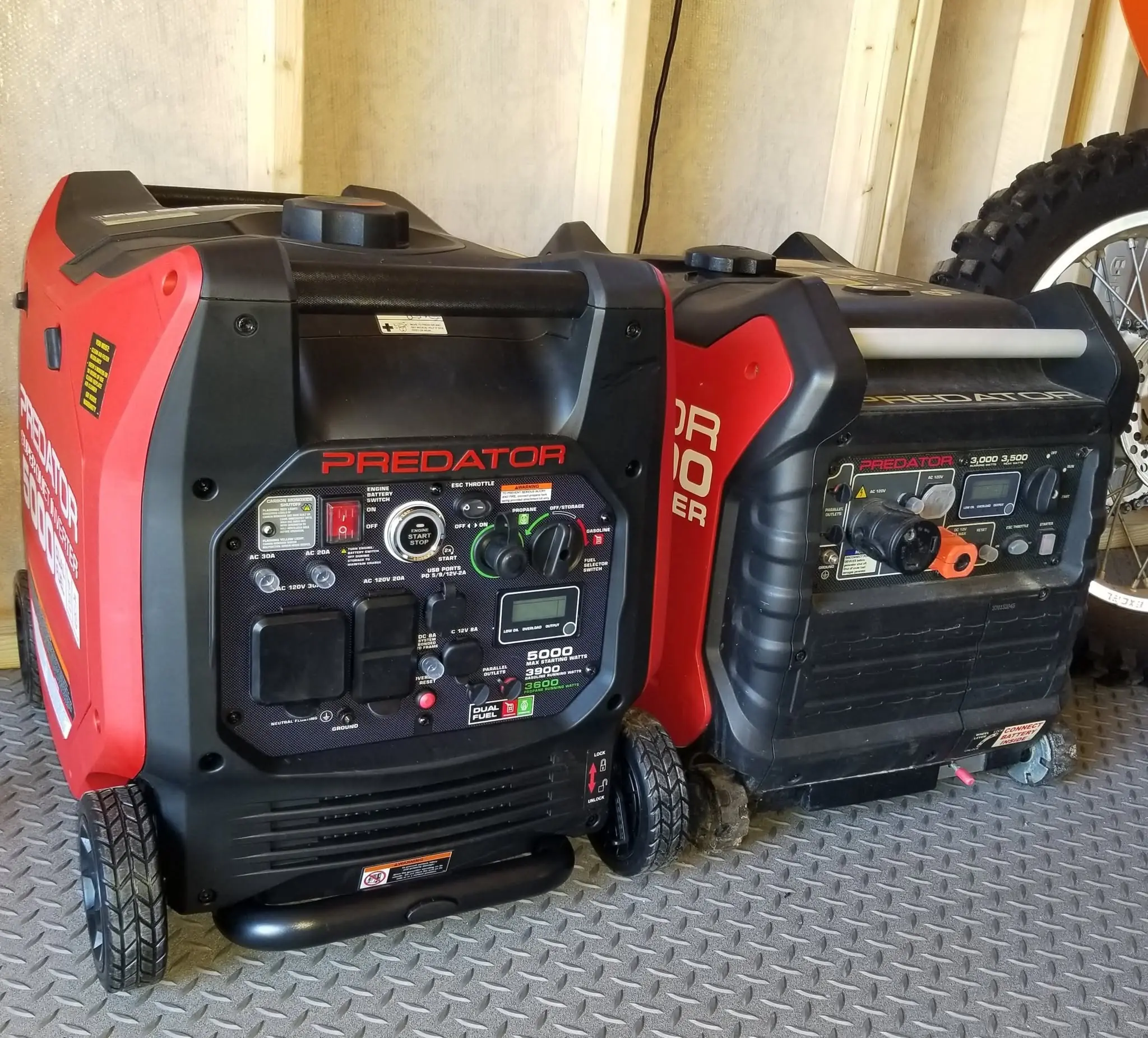

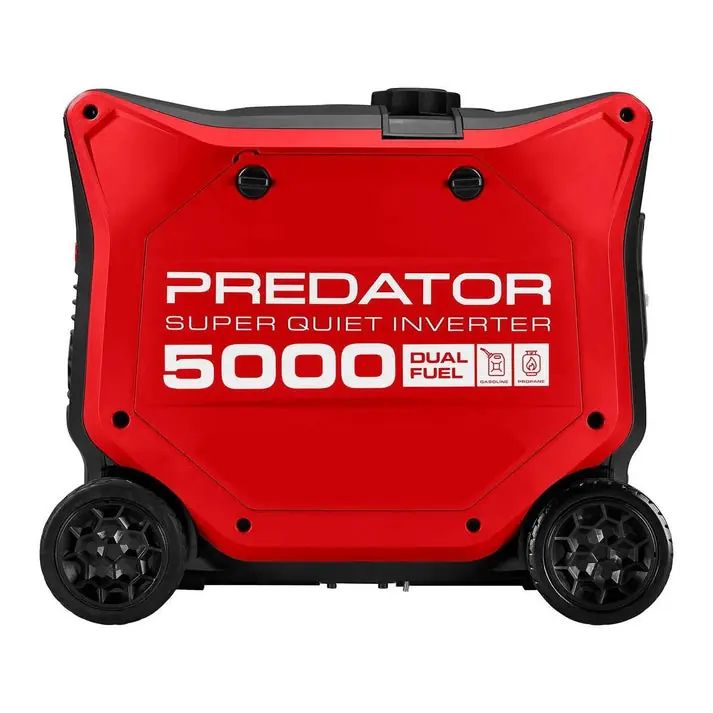

Product Images

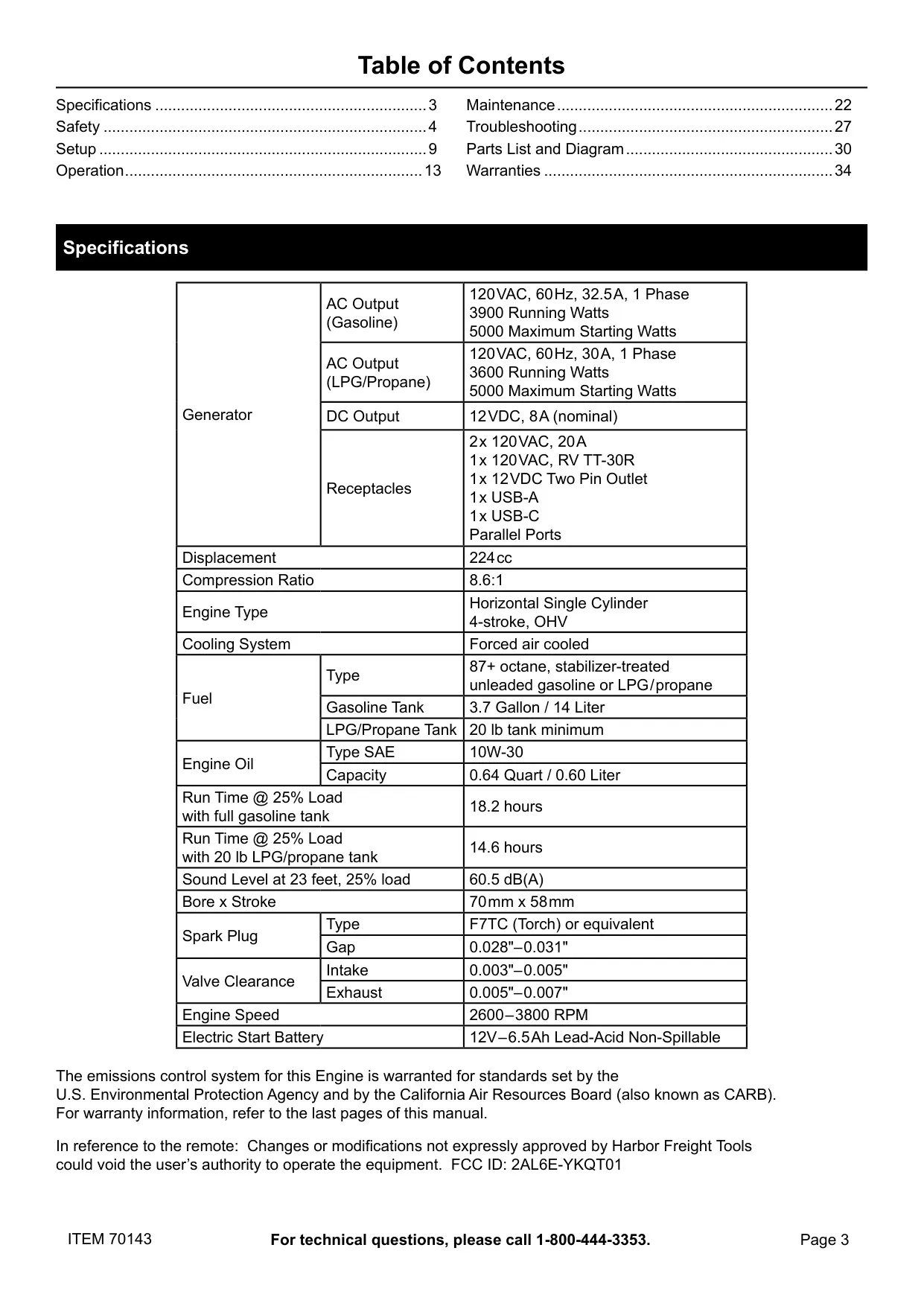

Predator 5000 Generator Inverter Specifications
| Category | Specification | Value |
|---|---|---|
| Generator Output | AC Output (Gasoline) | 120 VAC, 60 Hz, 32.5 A, 1 Phase |
| Gasoline Running Watts | 3900 Watts | |
| Gasoline Max Starting Watts | 5000 Watts | |
| AC Output (LPG/Propane) | 120 VAC, 60 Hz, 30 A, 1 Phase | |
| LPG Running Watts | 3600 Watts | |
| LPG Max Starting Watts | 5000 Watts | |
| DC Output | DC Output | 12 VDC, 8 A (nominal) |
| Receptacles | 120 VAC, 20 A | 2 outlets |
| 120 VAC, RV TT-30R | 1 outlet | |
| 12 VDC Two Pin Outlet | 1 outlet | |
| USB-A | 1 port | |
| USB-C | 1 port | |
| Parallel Ports | Yes | |
| Engine Details | Displacement | 224 cc |
| Compression Ratio | 8.6:1 | |
| Engine Type | Horizontal Single Cylinder, 4-stroke, OHV | |
| Cooling System | Forced air cooled | |
| Engine Speed | 2600 – 3800 RPM | |
| Fuel Specifications | Fuel Type | 87+ octane, stabilizer-treated unleaded gasoline or LPG/propane |
| Gasoline Tank Capacity | 3.7 Gallon / 14 Liter | |
| LPG/Propane Tank (Minimum) | 20 lb tank | |
| Engine Oil | Oil Type | SAE 10W-30 |
| Oil Capacity | 0.64 Quart / 0.60 Liter | |
| Run Time (at 25% load) | Gasoline Run Time | 18.2 hours (with full gasoline tank) |
| LPG/Propane Run Time | 14.6 hours (with 20 lb LPG/propane tank) | |
| Noise Level | Sound Level (23 feet, 25% load) | 60.5 dB(A) |
| Spark Plug & Valves | Bore x Stroke | 70 mm x 58 mm |

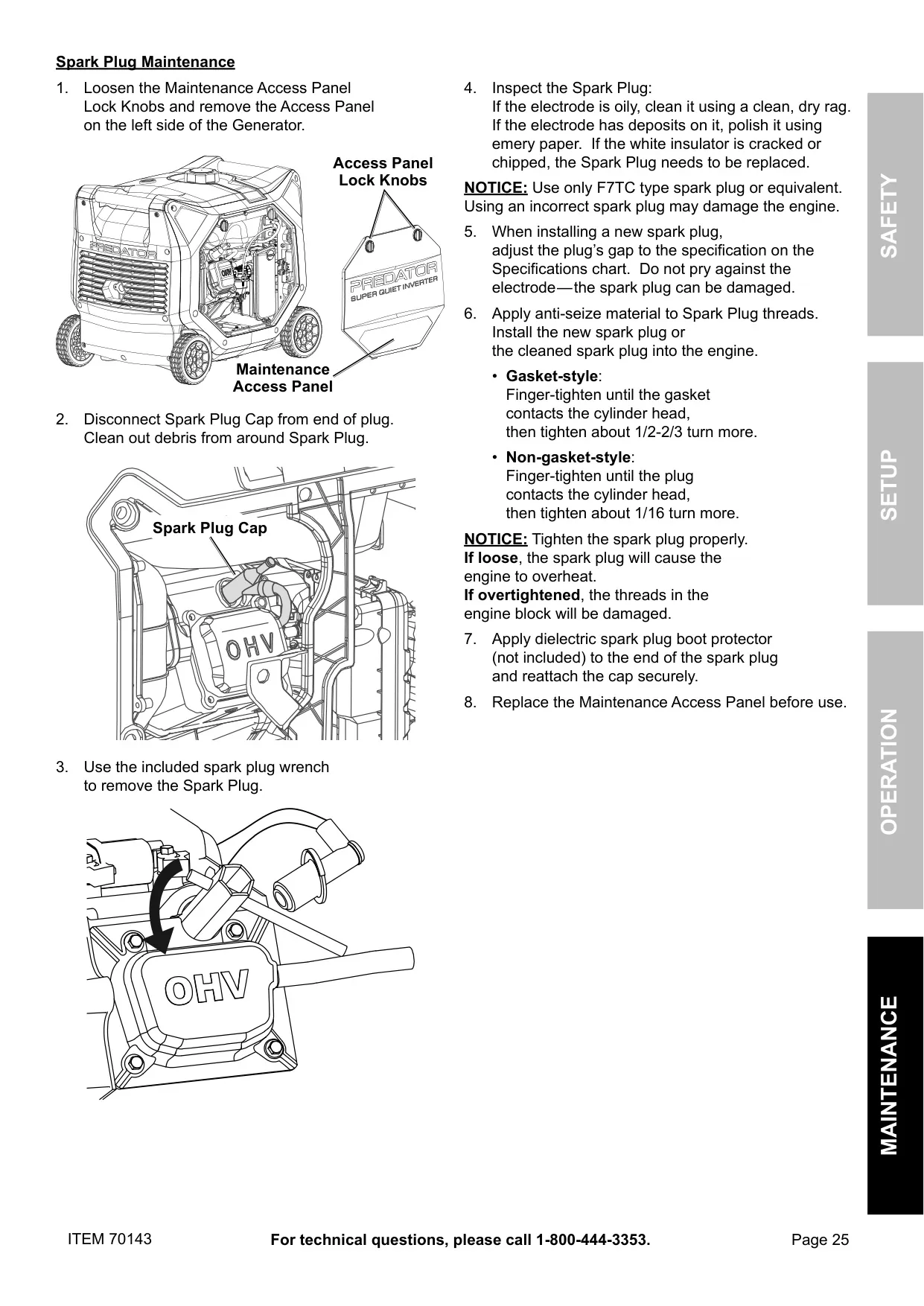

| Spark Plug Type | F7TC (Torch) or equivalent | |
| Spark Plug Gap | 0.028" – 0.031" | |
| Valve Clearance (Intake/Exhaust) | Intake: 0.003"– 0.005", Exhaust: 0.005"– 0.007" | |
| Starting System | Electric Start Battery | 12V – 6.5 Ah Lead-Acid Non-Spillable |
Predator 5000 Generator Inverter Details
The Predator 5000 Generator Inverter stands out with its Super Quiet operation, rated at just 60.5 dB(A) at 25% load, making it suitable for noise-sensitive environments. Its advanced inverter technology delivers clean, stable power, essential for safeguarding sensitive electronics like laptops, smartphones, and medical devices from power fluctuations. This dual-fuel powerhouse offers versatility, running efficiently on both gasoline and LPG/propane, a convenient feature for extended use or when one fuel type is scarce.

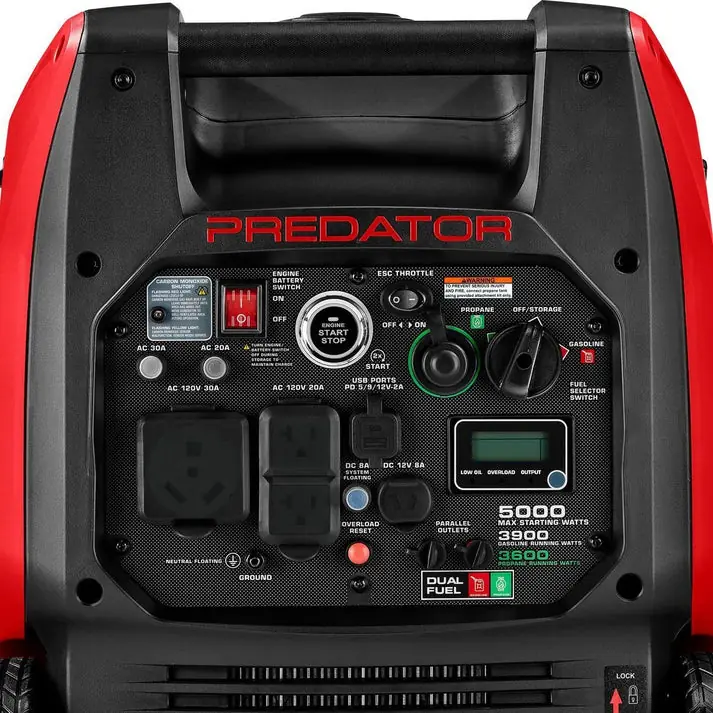

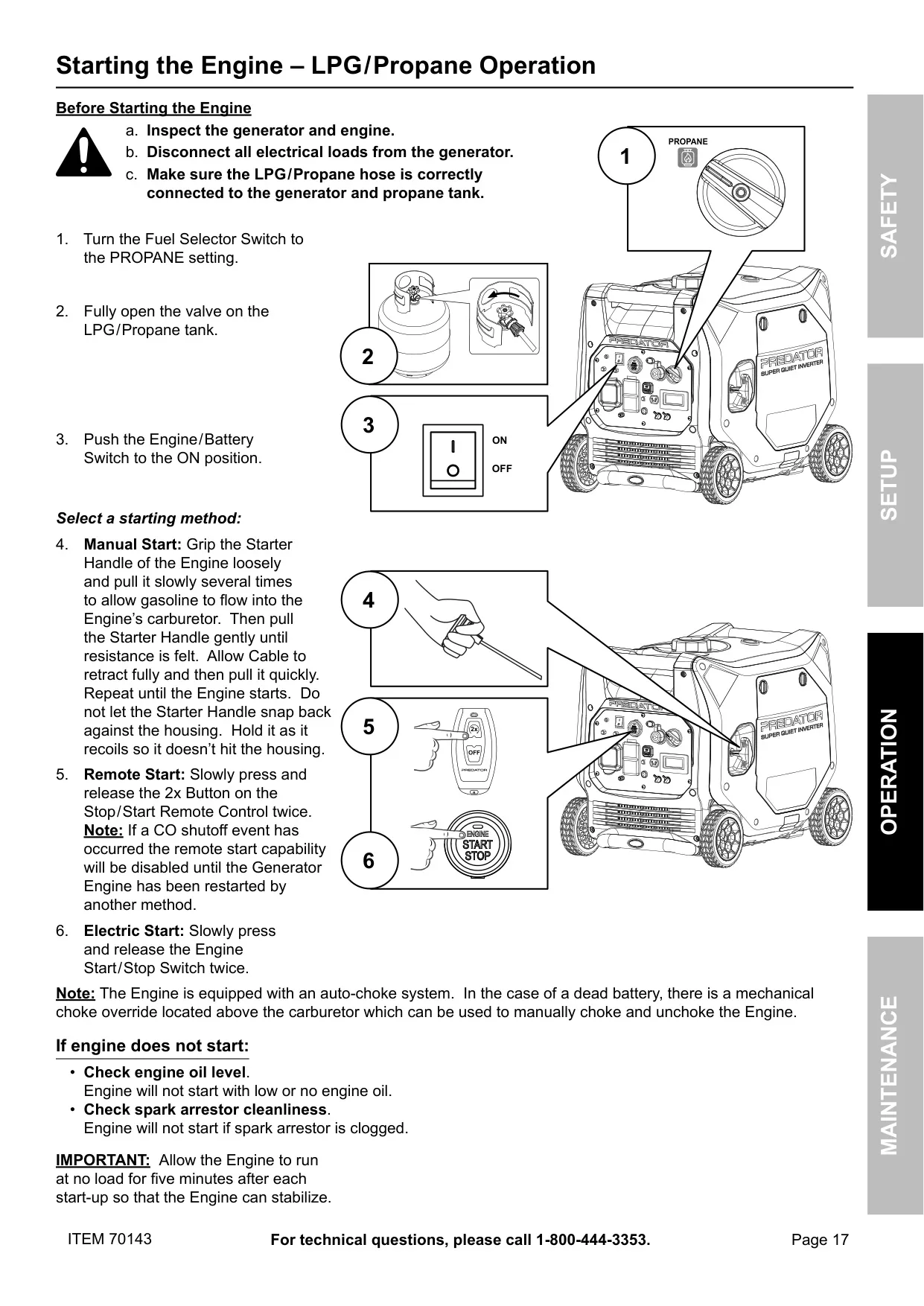

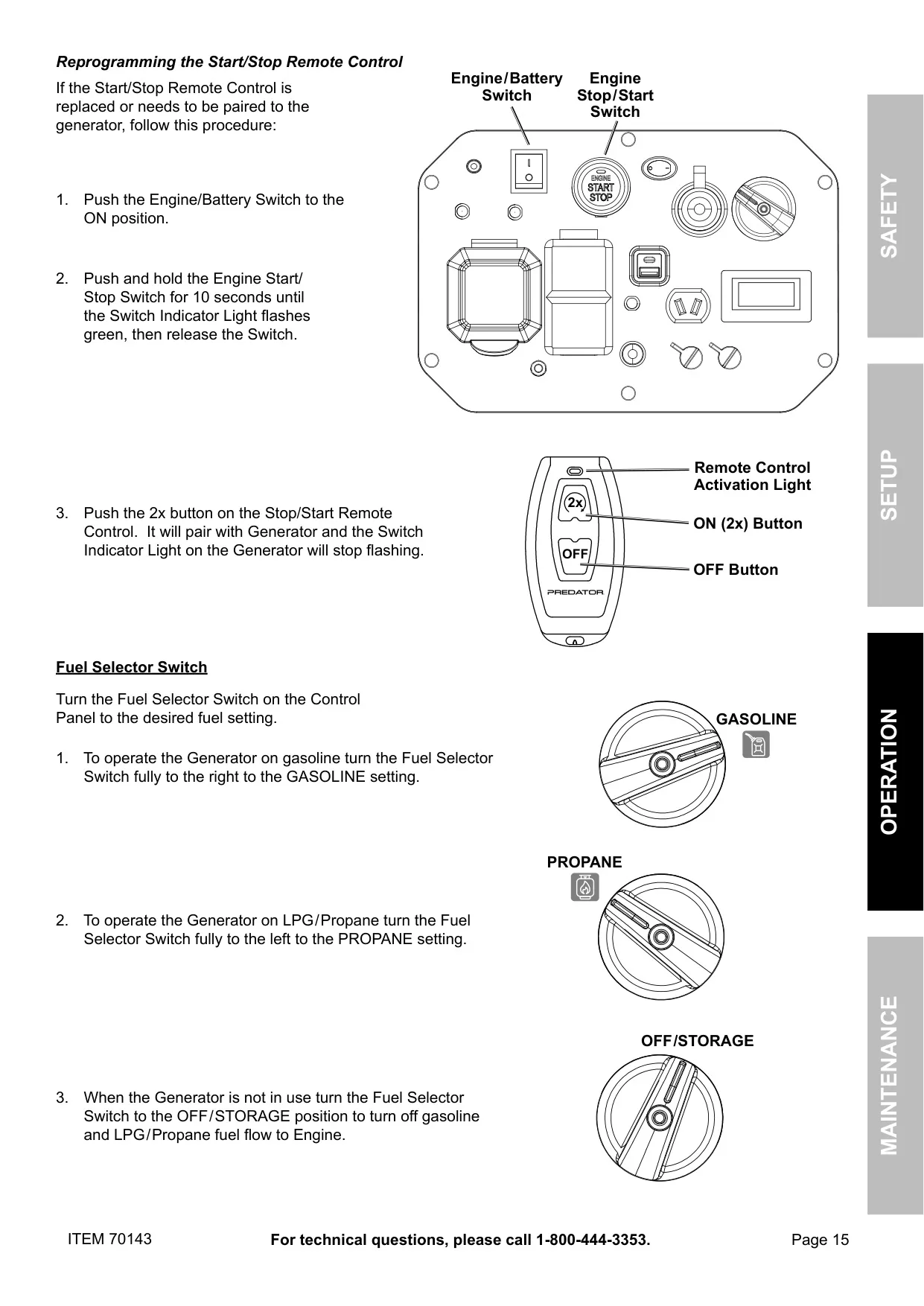

Starting the generator is made effortless through multiple options: a traditional manual pull start, a convenient electric start, and a state-of-the-art remote control. The remote start/stop feature functions up to 100 feet away, providing unparalleled convenience, especially in adverse weather conditions. For simplified operation, the generator incorporates an auto-choke system, reducing user intervention during startup. Users will appreciate the integrated digital display screen, offering real-time monitoring of critical parameters like voltage, amperage, wattage, and accumulated run time.

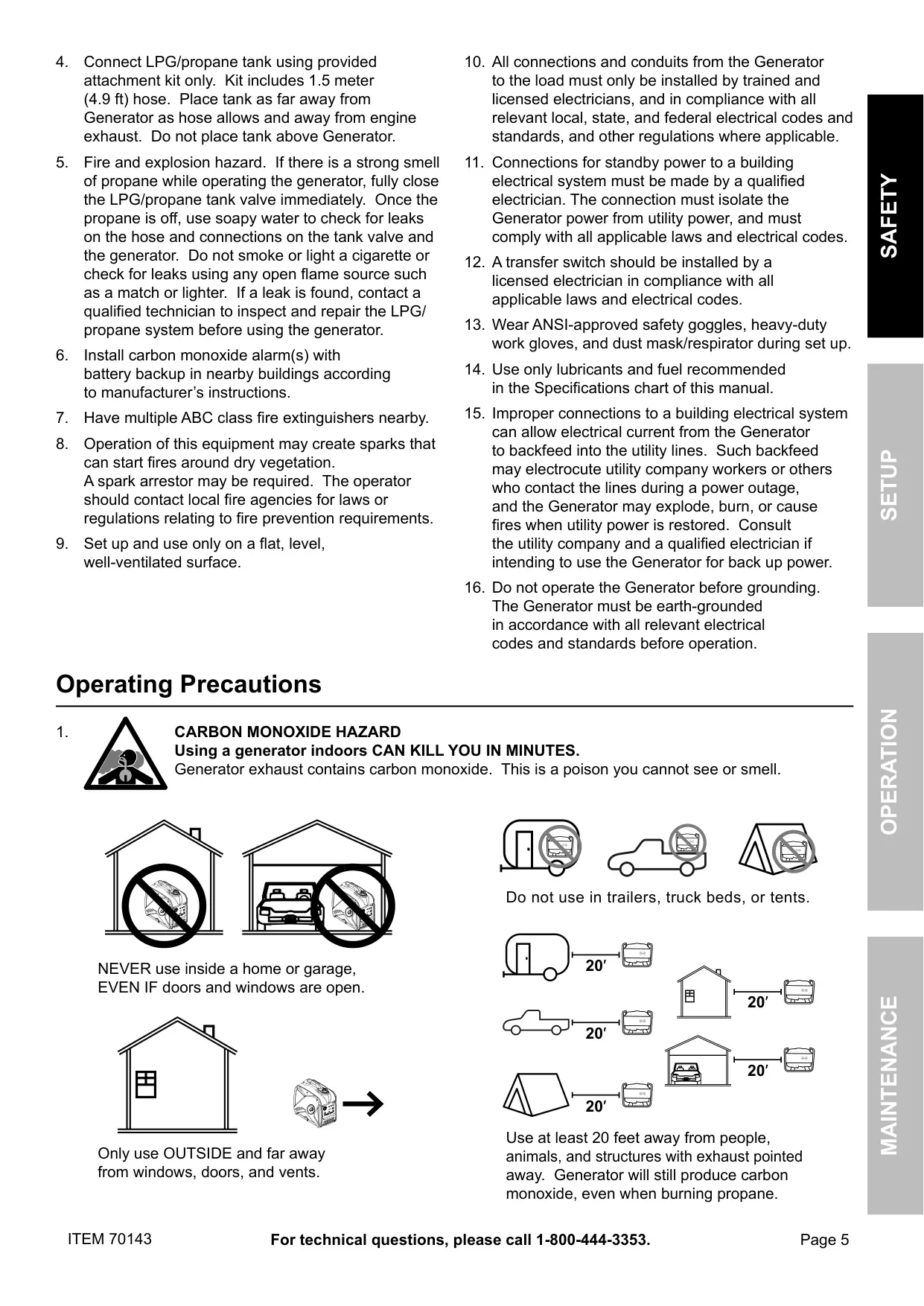

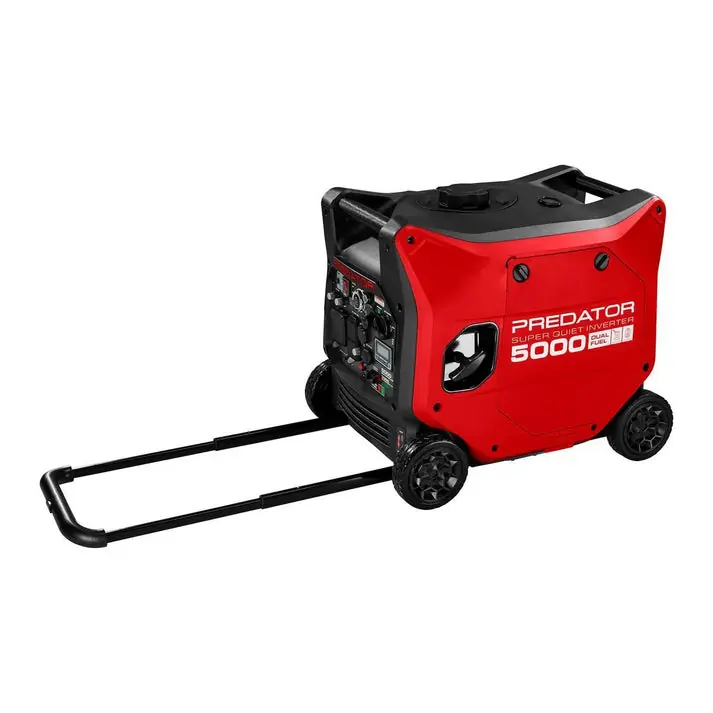

Safety is paramount with the inclusion of a sophisticated Carbon Monoxide (CO) sensor. This crucial feature automatically shuts down the generator if dangerous levels of CO are detected, indicated by a flashing red light, significantly reducing the risk of CO poisoning. A flashing yellow light signals a sensor malfunction, requiring immediate attention. The generator is designed for portability with a telescopic handle and robust wheels, ensuring easy transport and setup across various terrains.
For enhanced fuel efficiency and reduced noise during lighter loads, the Economy (ESC) Switch allows the engine to run at a lower RPM. When higher demand or 12 VDC output is needed, simply switch it off for full power. The generator is equipped with comprehensive overload protection, which automatically cuts power if the connected load exceeds its capacity, preventing damage to both the generator and your appliances. A low oil shutdown feature further protects the engine from potential harm by automatically stopping it if oil levels are insufficient.

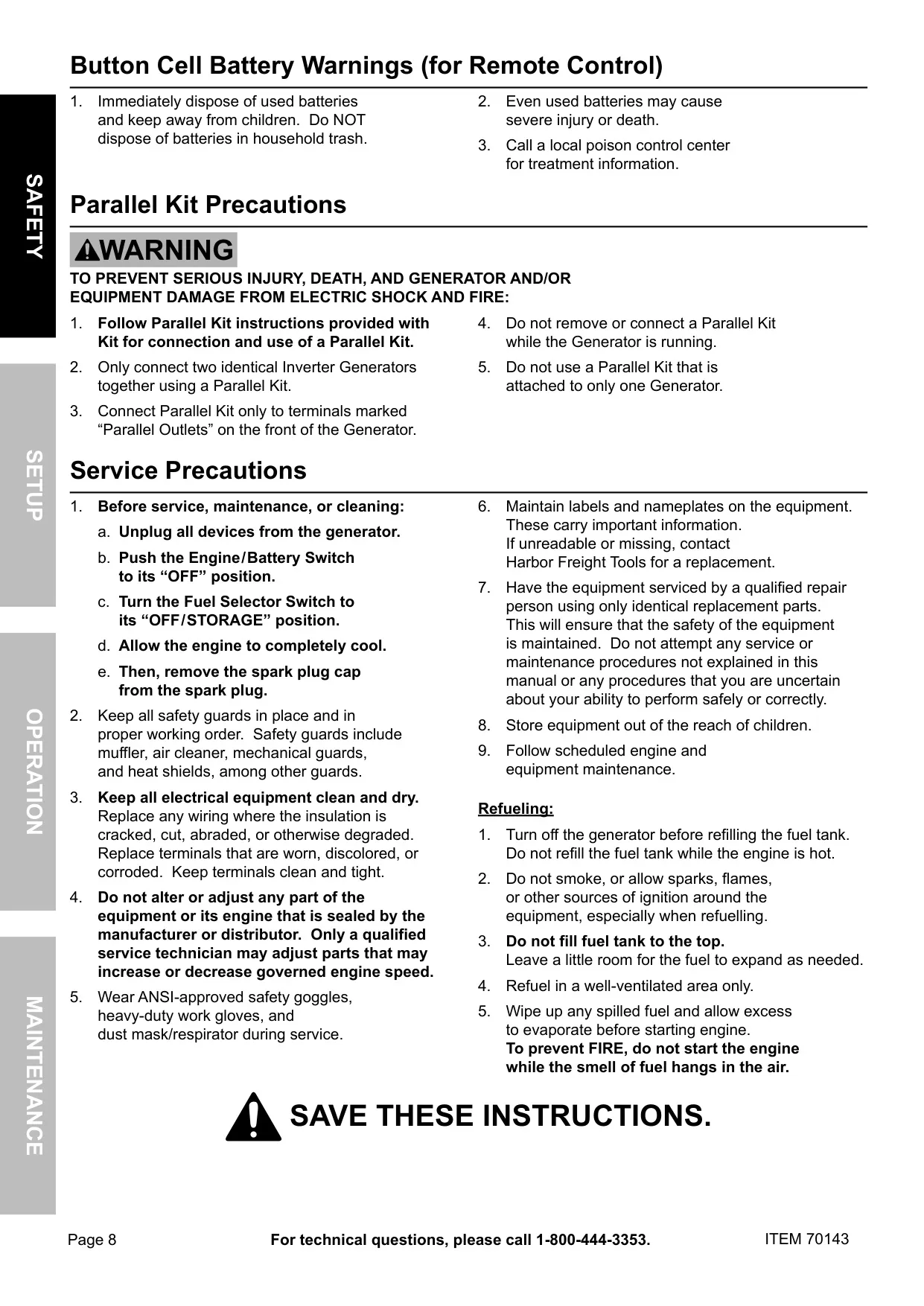

Expanding power capabilities is straightforward with built-in parallel ports, enabling the connection of two identical Predator inverter generators using a separately sold Parallel Kit. This allows users to double their power output for larger tasks. The unit's design also incorporates various receptacles, including USB-A and USB-C ports, alongside standard AC and RV outlets, catering to a wide range of charging and power needs. These thoughtful features ensure both reliability and user-friendly operation.
