Indesit IWDC6125 Washer-Dryer Instruction Manual
Indesit IWDC6125 Washer-Dryer
Indesit IWDC6125 Instructions
Here we offer the Indesit IWDC6125 Washer-Dryer manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Indesit IWDC6125 Washer-Dryer, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images

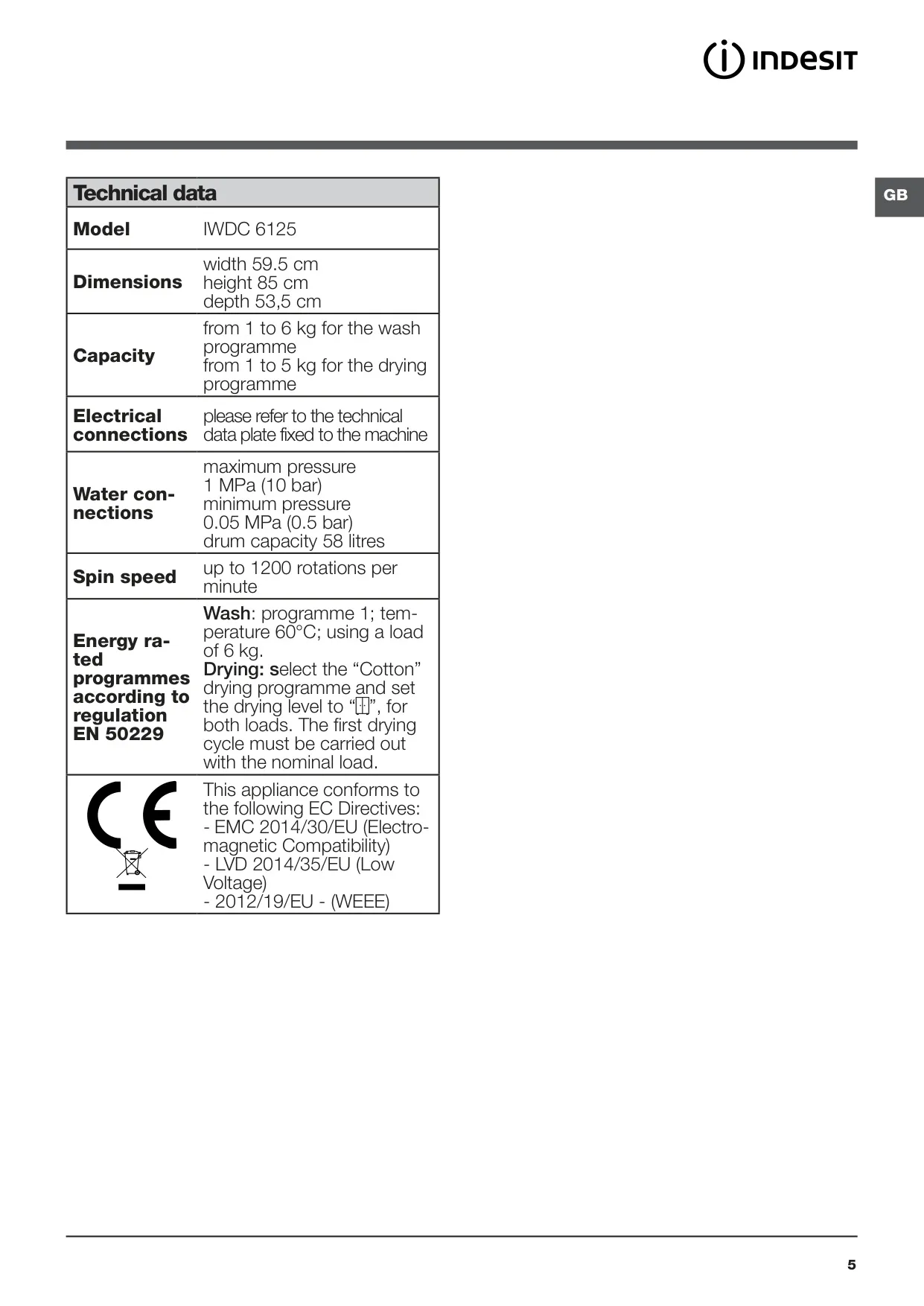

Indesit IWDC6125 Washer And Dryer Specifications
| Feature | Specification |
|---|---|
| Model | IWDC 6125 |
| Appliance Type | Freestanding washer-dryer, domestic use only |
| Width | 59.5 cm |
| Height | 85 cm |
| Depth | 53.5 cm |
| Wash Capacity | 1 to 6 kg |
| Drying Capacity | 1 to 5 kg |
| Drum Capacity | 58 litres |
| Maximum Spin Speed | Up to 1200 rpm |
| Maximum Water Pressure | 1 MPa (10 bar) |
| Minimum Water Pressure | 0.05 MPa (0.5 bar) |
| Water Inlet Connection | Cold water only, 3/4 gas threaded connection |
| Drain Hose Height | 65 to 100 cm from the floor |
| Maximum Drain Hose Extension | 150 cm, same diameter as original hose |
| Maximum Standpipe Insertion Depth | 15 cm (6 inches) |
| Maximum Floor Inclination | 2° |
| Electrical Connection | See the technical data plate on the machine |
| Plug | 13 amp fused plug (BS 1363), 13 amp ASTA fuse to BS 1362 |
| Off-Mode Power Consumption | 0.5 W |
| Left-On Power Consumption | 8 W |
| Automatic Standby | After approximately 30 minutes with no activity |
| Number of Programmes | 13 plus Rinse, Spin and Drain partial cycles |
| Maximum Wash Temperature | 90°C (White Cotton) |
| Timed Drying Range | 40 to 180 minutes |
| Dryness Levels | Iron dry, Hanger dry, Cupboard dry |
| Delay Timer | Up to 9 hours |
| Express Wash & Dry | 0.5 kg in 30 minutes |
| Energy Rated Programme (EN 50229) | Wash: programme 1 at 60°C with 6 kg; Drying: Cotton programme |
| EC Directives | EMC 2014/30/EU, LVD 2014/35/EU, WEEE 2012/19/EU |

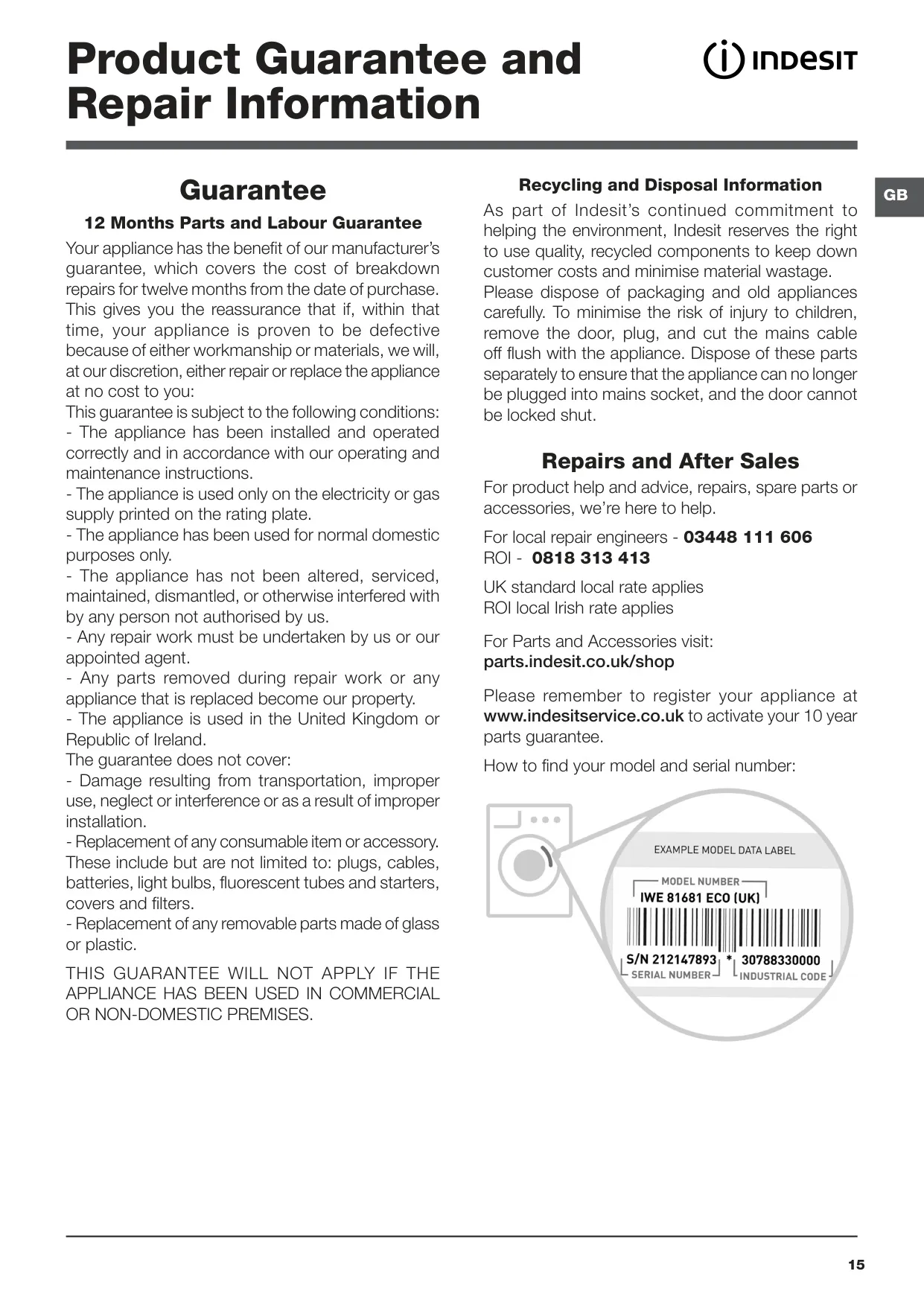

| Guarantee | 12 months parts and labour (10-year parts guarantee on registration) |
Indesit IWDC6125 Washer-Dryer Details
The Indesit IWDC6125 is a freestanding washer-dryer. Its control panel has an ON/OFF button, a WASH CYCLE knob, a TEMPERATURE knob, a DRYING knob, function buttons with indicator lights, and a START/PAUSE button with its own indicator. A row of indicator lights shows the progress of each phase: Wash, Rinse, Spin/Drain, Drying and End of cycle. The same lights also count down the remaining delay when a delayed start has been set.
The programme list is split into groups. The Daily group covers White Cotton at 90°C, 60°C or 40°C, plus Cotton, Coloured Cotton and Synthetics (4.5 kg, 1000 rpm). The Special group has Wool (2 kg, 800 rpm), which is suitable even for hand-wash-only garments, and Silk/Curtains (1 kg, no spin). The Sport group has Sport Intensive, Sport Light and a Special Shoes cycle for up to two pairs of fabric shoes.
The Jeans programme washes up to 4 kg at 40°C in about 80 minutes. Turn garments inside out and use a liquid detergent. Two dry-only programmes, Cotton (5 kg) and Synthetics (4 kg), can be combined with the DRYING knob to set either a time or a dryness level. The manual lists guideline drying times of 255 minutes for a full cotton load and 180 minutes for synthetics when drying to Cupboard dry.

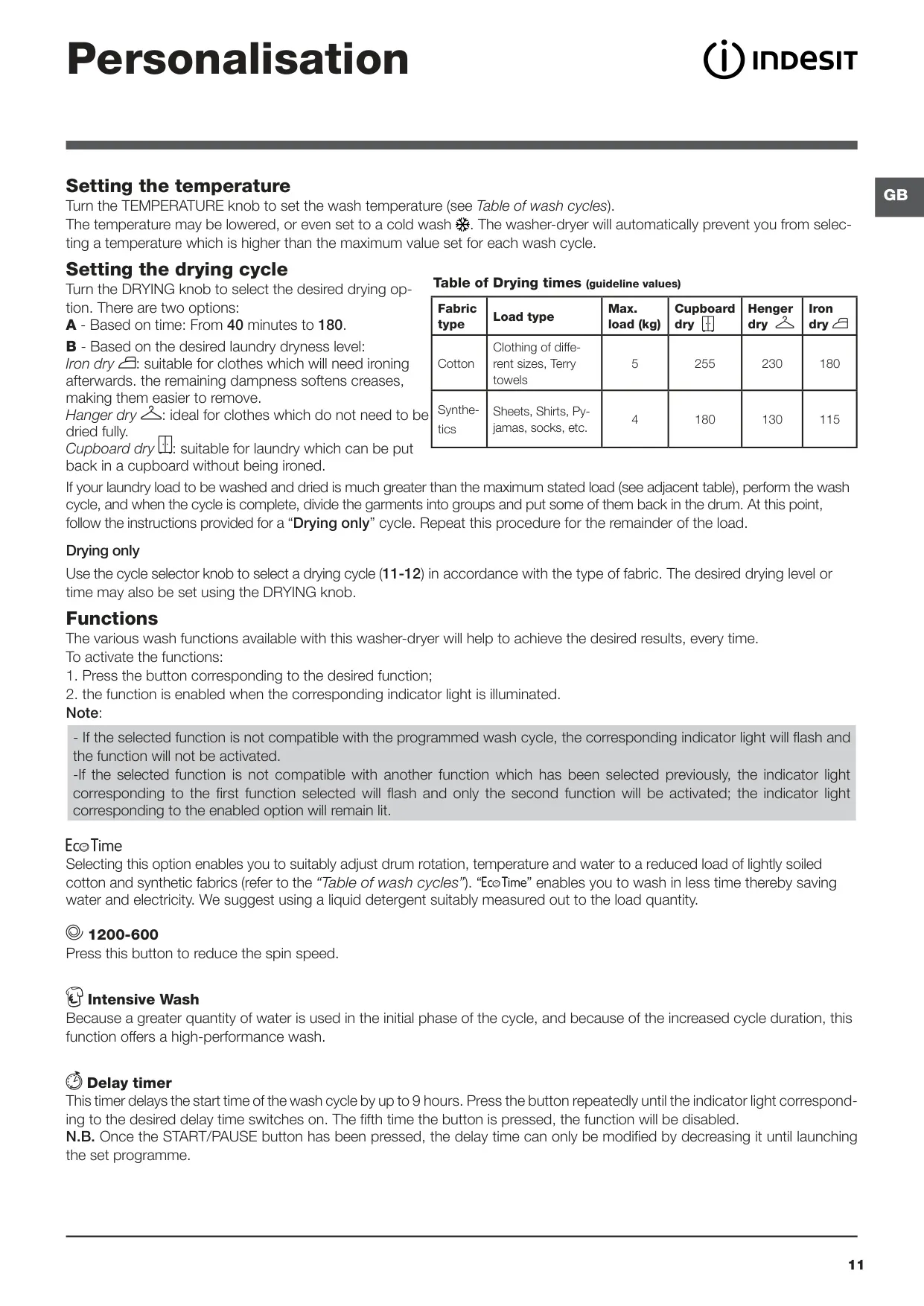

The function buttons add more control. The 1200-600 button lowers the spin speed. Intensive Wash uses more water at the start and runs a longer cycle for tougher soiling. A quick-wash option adjusts drum rotation, temperature and water to small, lightly soiled loads, which saves time, water and electricity. If you choose a function that is not compatible with the selected cycle or another function, its indicator light flashes to show it has not been activated.
A load balancing system runs before each spin. The drum turns slightly faster than its wash speed to spread the laundry evenly. If the load stays unbalanced after several attempts, the machine spins at a lower speed or skips the spin and keeps redistributing. The manual recommends mixing small and large items. A single heavy item such as a duvet can cause repeated balancing attempts.

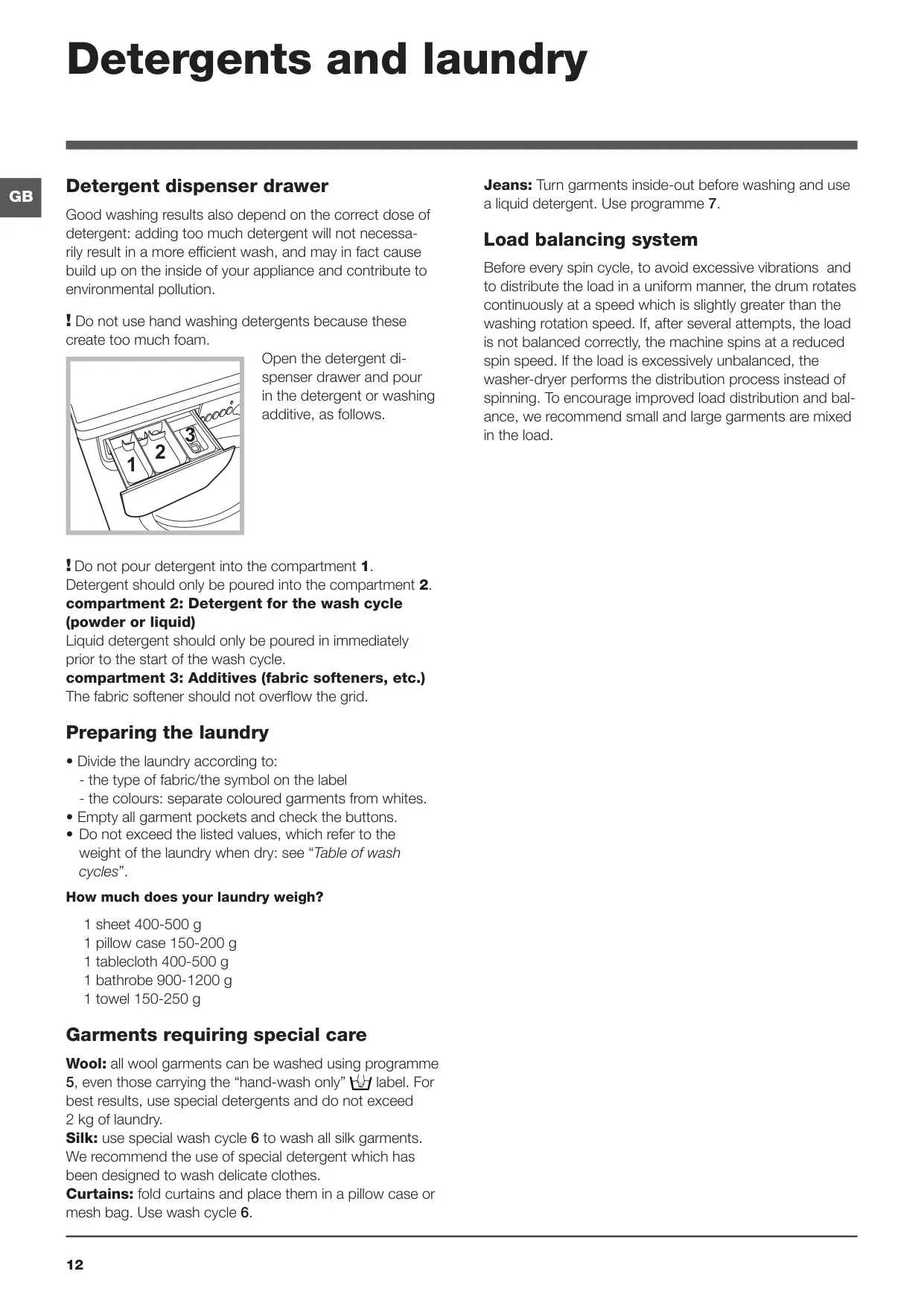

The detergent drawer has three compartments. Nothing goes into compartment 1. Compartment 2 is for powder or liquid wash detergent, and compartment 3 is for fabric softener and other additives, which must not overflow the grid. Hand-wash detergents are not suitable because they produce too much foam. Each drying cycle ends with a cool-down phase without heat to protect the fabrics. The water tap must stay on during drying.
Maintenance is simple. The pump cleans itself, but a pre-chamber behind the lower front panel catches coins and buttons and can be opened for cleaning. The detergent drawer lifts out to be rinsed. The inlet hose should be checked once a year, and the door should be left ajar after use to prevent odours. The door lock has its own indicator light, and the door opens about 3 minutes after the cycle ends.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Indesit IWDC6125 Washer-Dryer, and we answer them below.
