Robertshaw RS3110 Thermostat Instruction Manual
Robertshaw RS3110 Thermostat
Robertshaw RS3110 Instructions
Here we offer the Robertshaw RS3110 Thermostat manual completely free and in English. We have cataloged this manual in the Thermostats section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Robertshaw RS3110 Thermostat, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

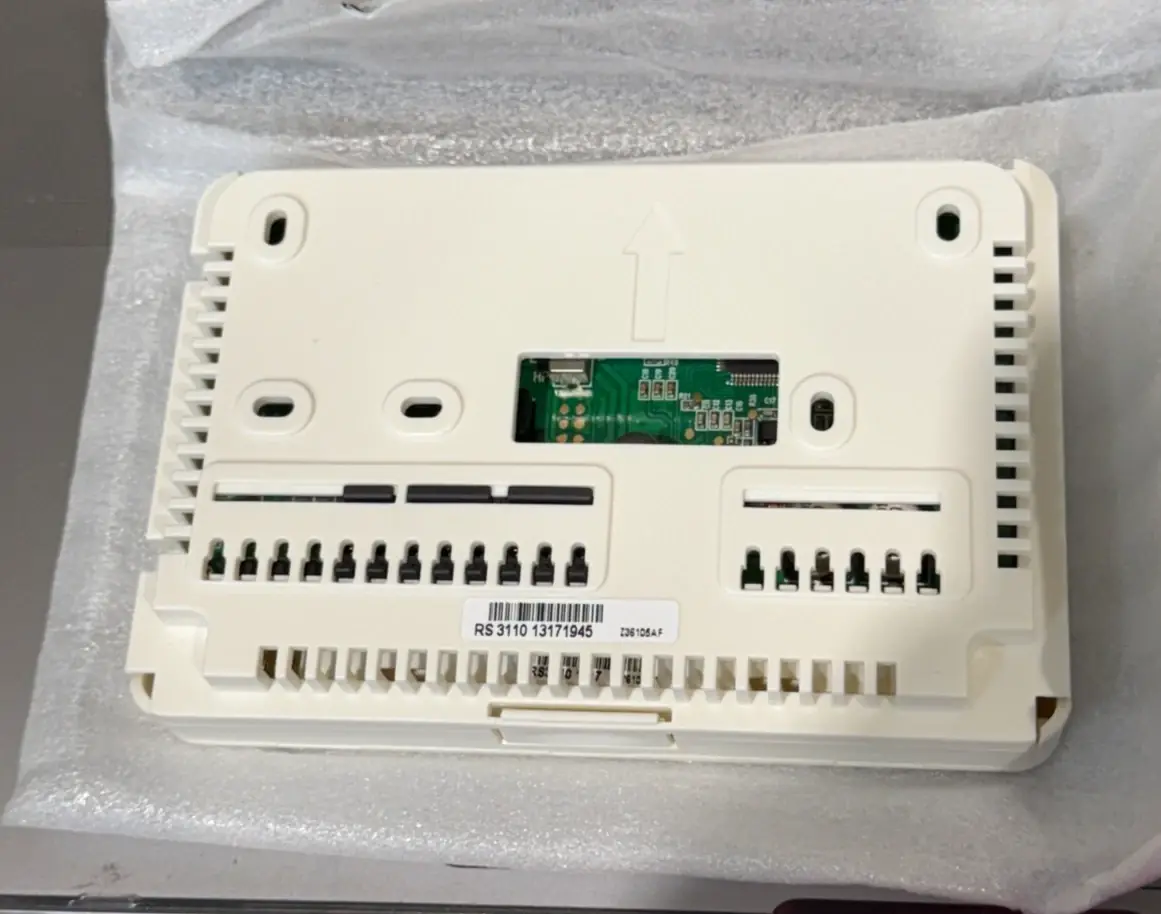

Product Images
Robertshaw RS3110 Thermostat Specifications
| Feature | Specification |
|---|---|
| Model | Robertshaw RS3110 |
| System Type | 1-Stage Heat Pump or Conventional System |
| Power Supply | 24 VAC (common and hot) or 2 AA Batteries |
| Temperature Scale | Fahrenheit (°F) / Celsius (°C) selectable |
| Heating Differential (1st Stage) | 1°F (0.5°C) |
| Temperature Offset | 0 (Adjustable) |
| Programmability | 7-Day Programmable, 4 periods per day (Morn, Day, Eve, Nite) |
| Compressor Protection Delay | 4-minute delay |
| Fan Operation Modes | Auto / On |
| Reversing Valve Control | O (Cool) or B (Heat) |
| Emergency Heat Control | Yes (via E/W1 terminal in HP configuration) |
| Primary Heat Terminal | E/W1 (1st stage heat / Emergency heat connection) |
| Primary Cooling Terminal | Y1 (1st stage compressor connection) |
| Auxiliary/Second Stage Heat Terminal | W2 (Second stage heat connection heating) |
| Fault Output Monitoring | L (24VAC compressor fault output) |
| Indoor Fan Control | G (Indoor fan connection) |
Robertshaw RS3110 Thermostat Details

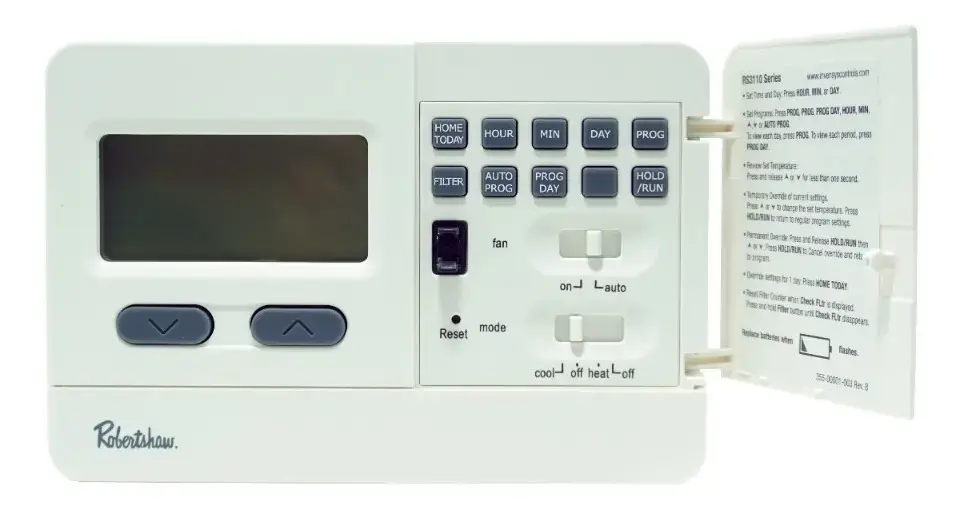

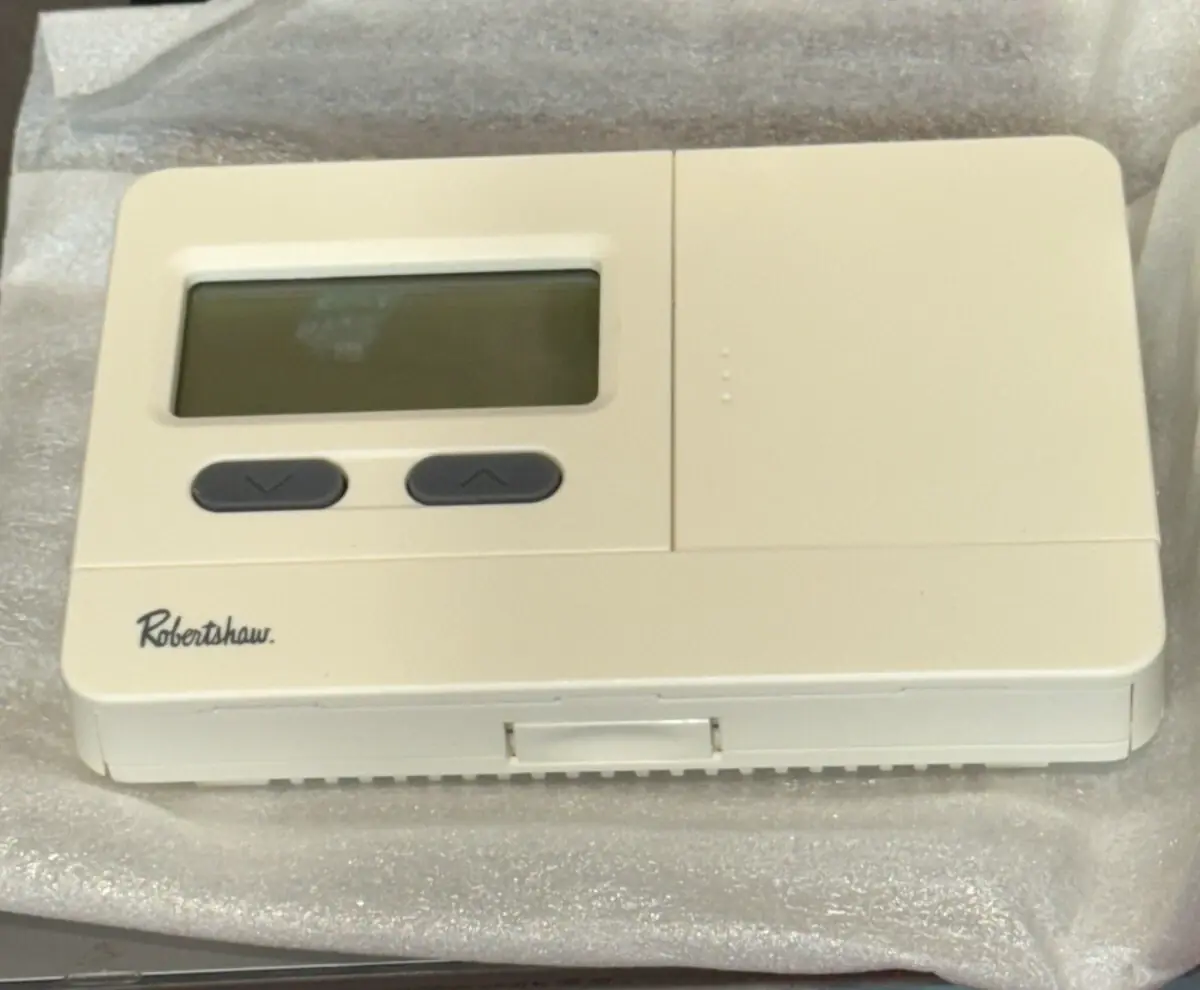

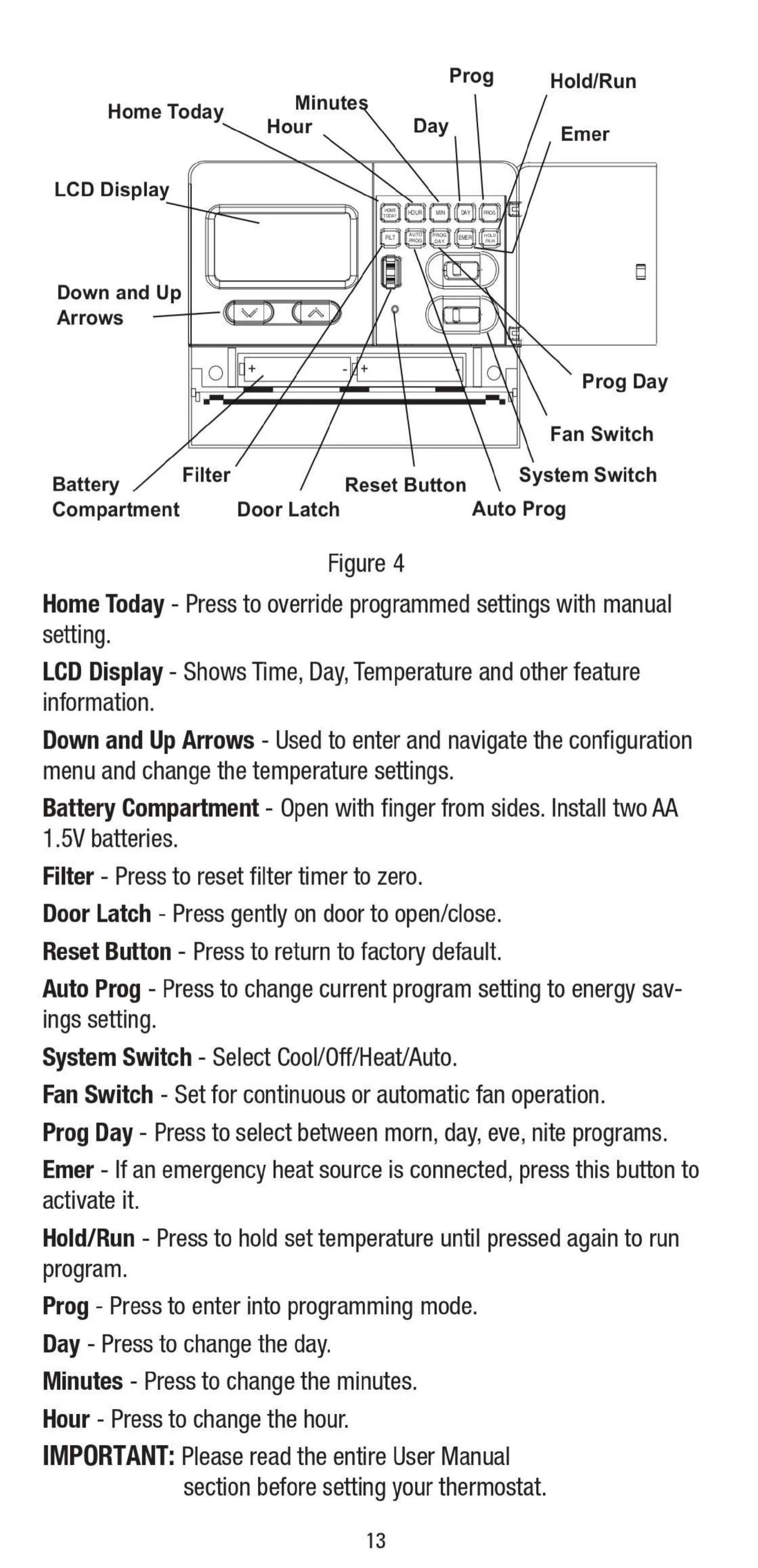

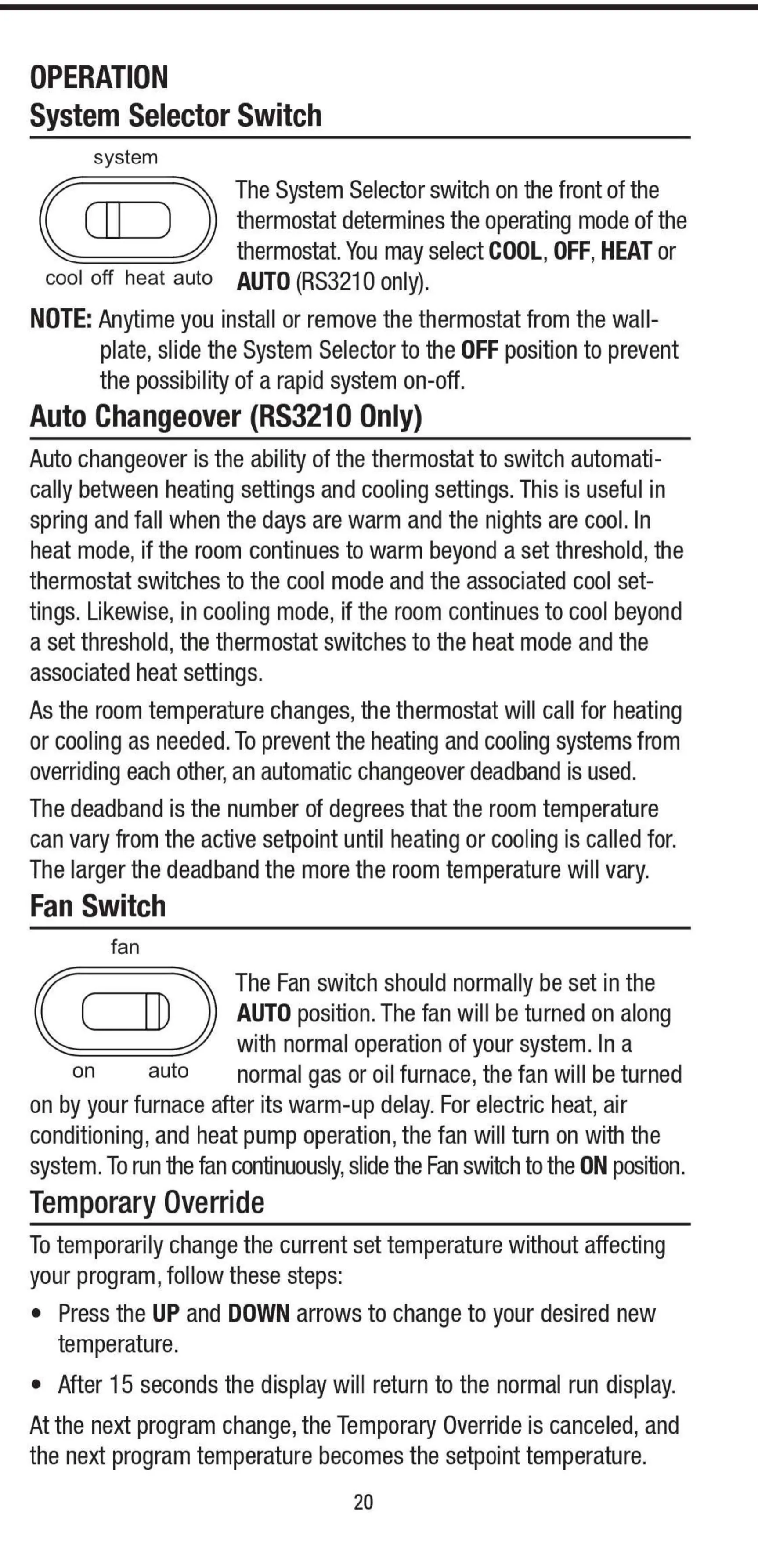

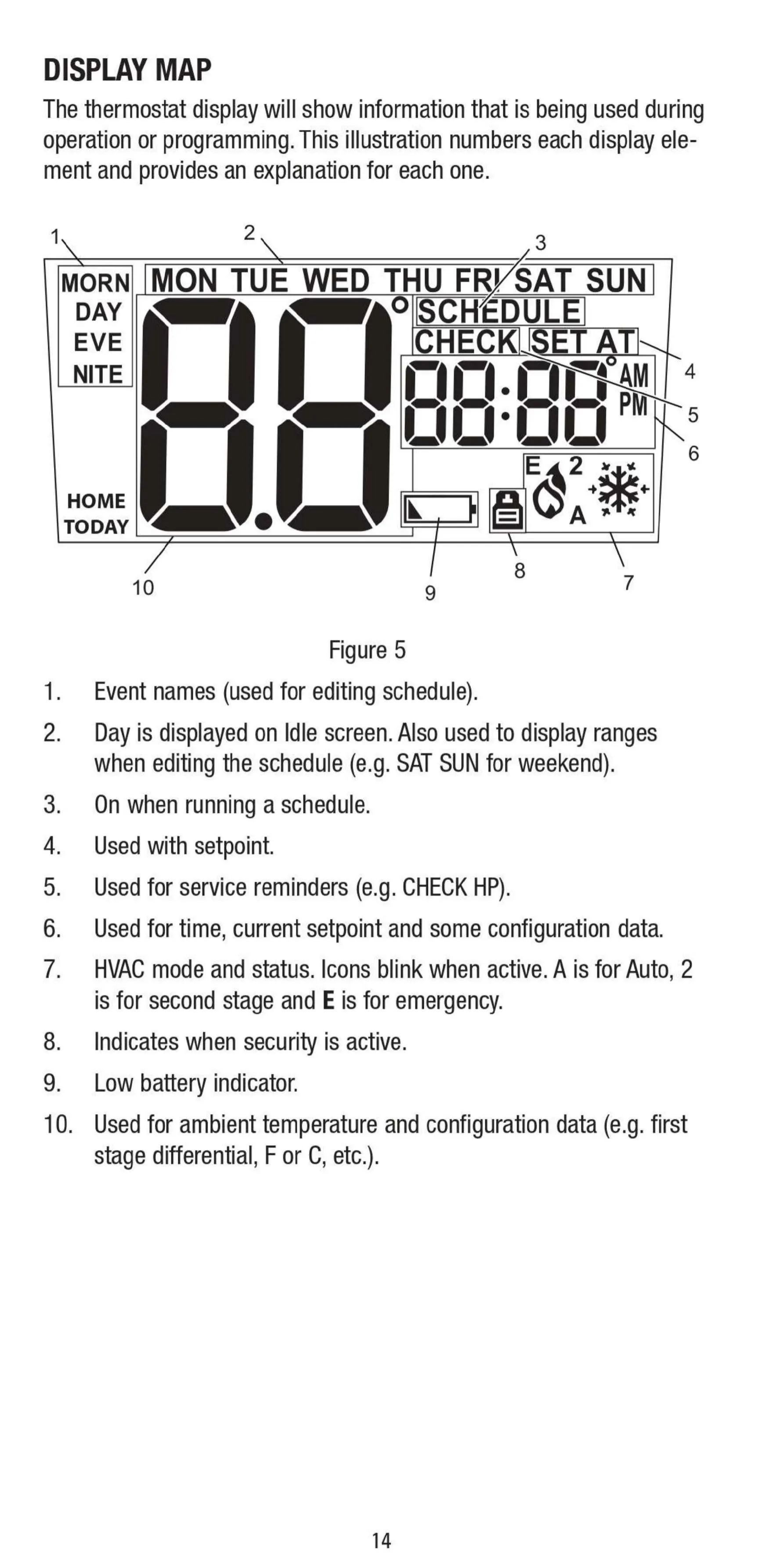

The Robertshaw RS3110 thermostat features an intuitive and user-friendly interface designed for simplicity and efficiency. Its clear LCD screen provides essential information at a glance, including the current temperature, desired setpoint, active system mode (Heat, Cool, Off), and fan status (Auto, On). Navigating the thermostat's settings and programming schedules is straightforward, utilizing easily identifiable buttons for temperature adjustment and mode selection. This focus on display clarity and ease of access ensures users can make quick and informed adjustments to their home comfort.

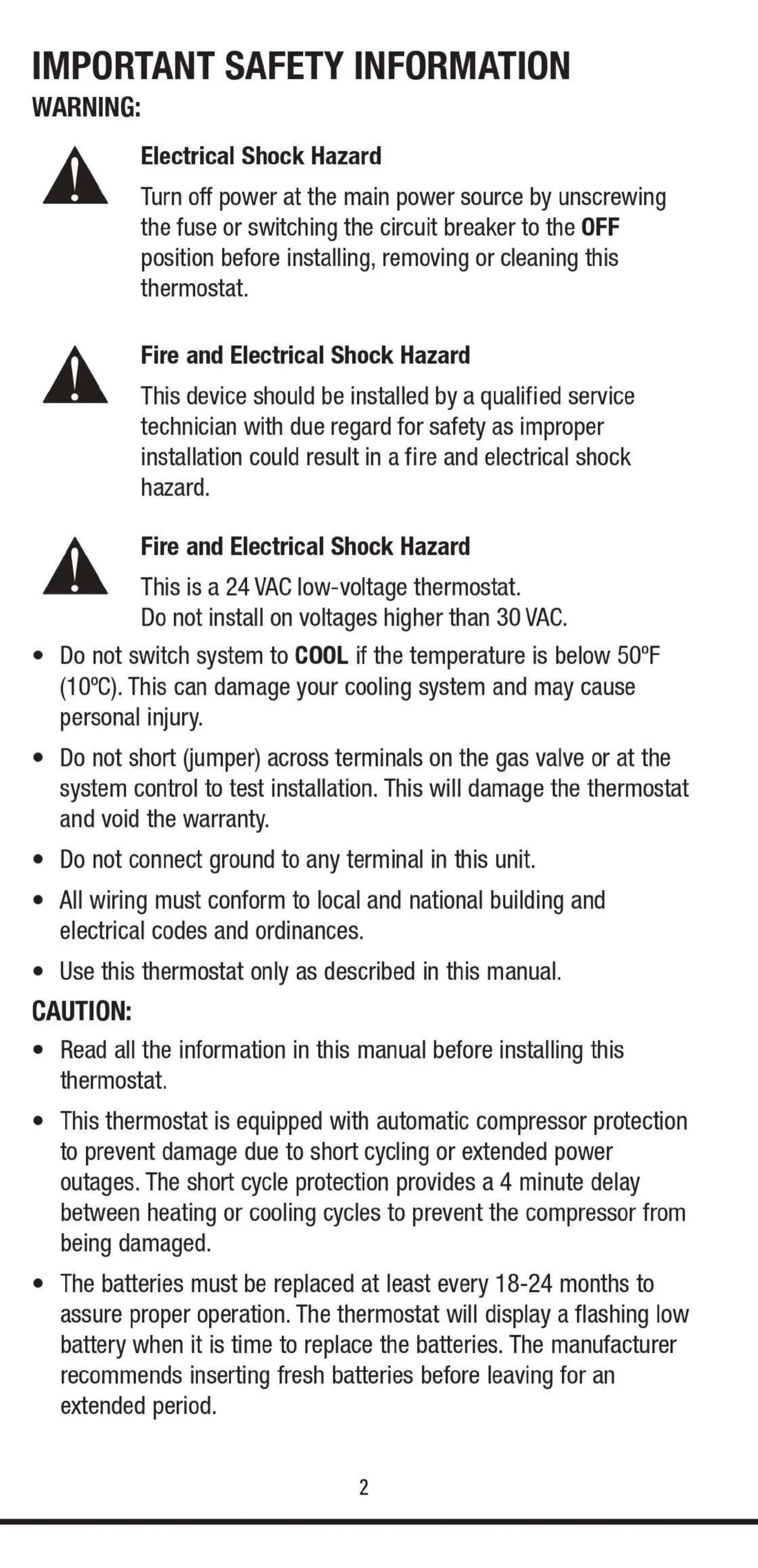

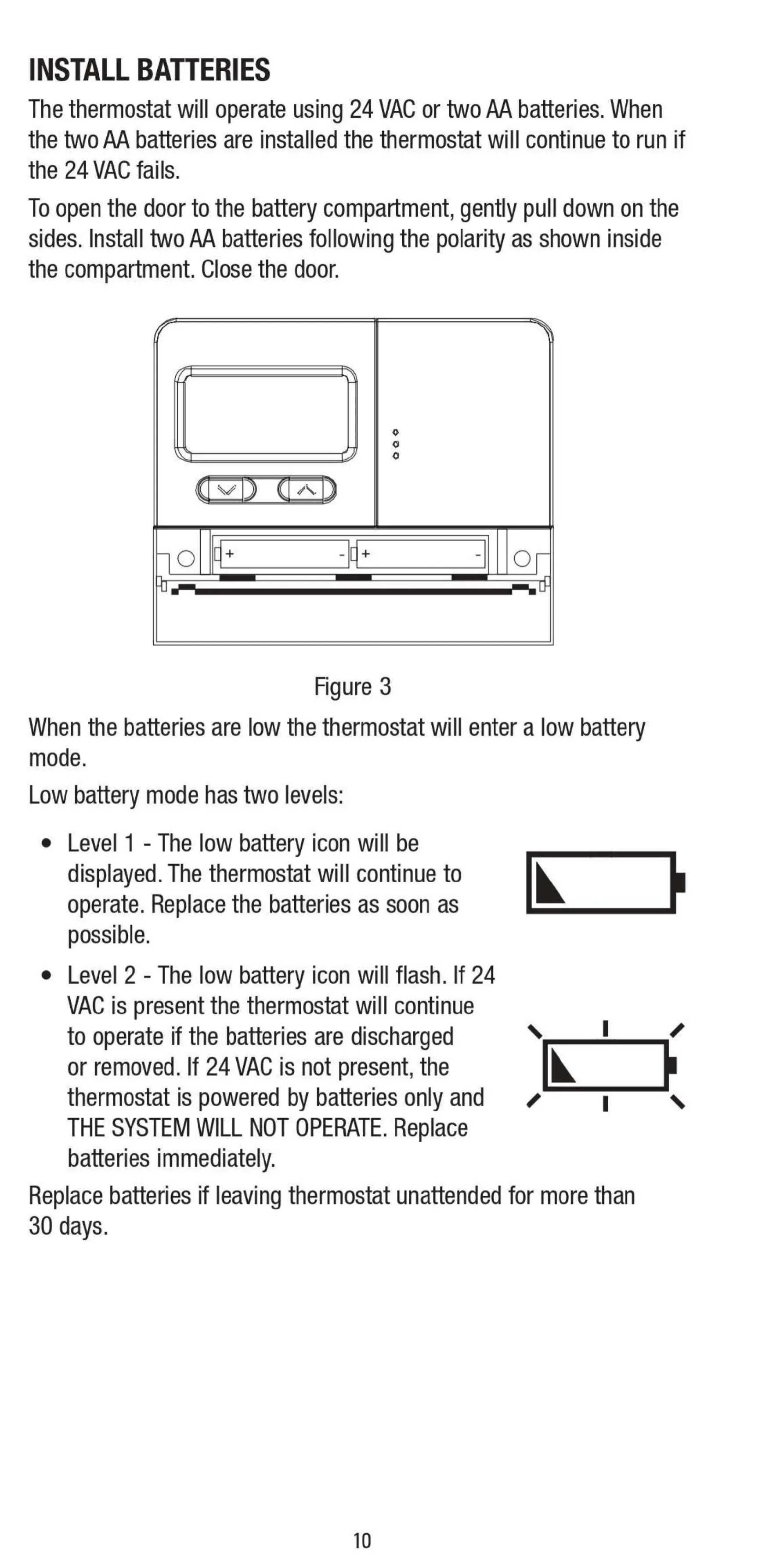

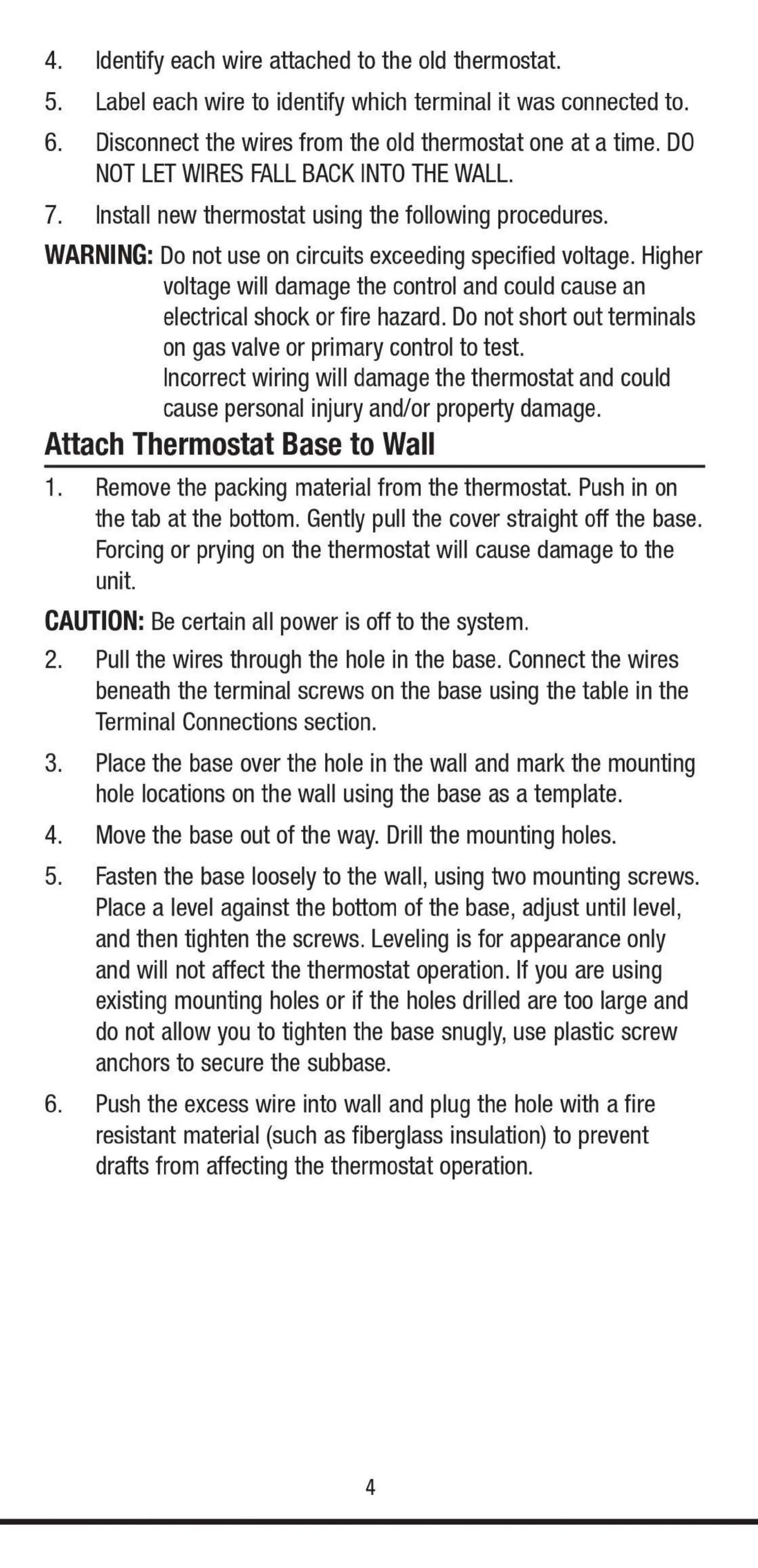

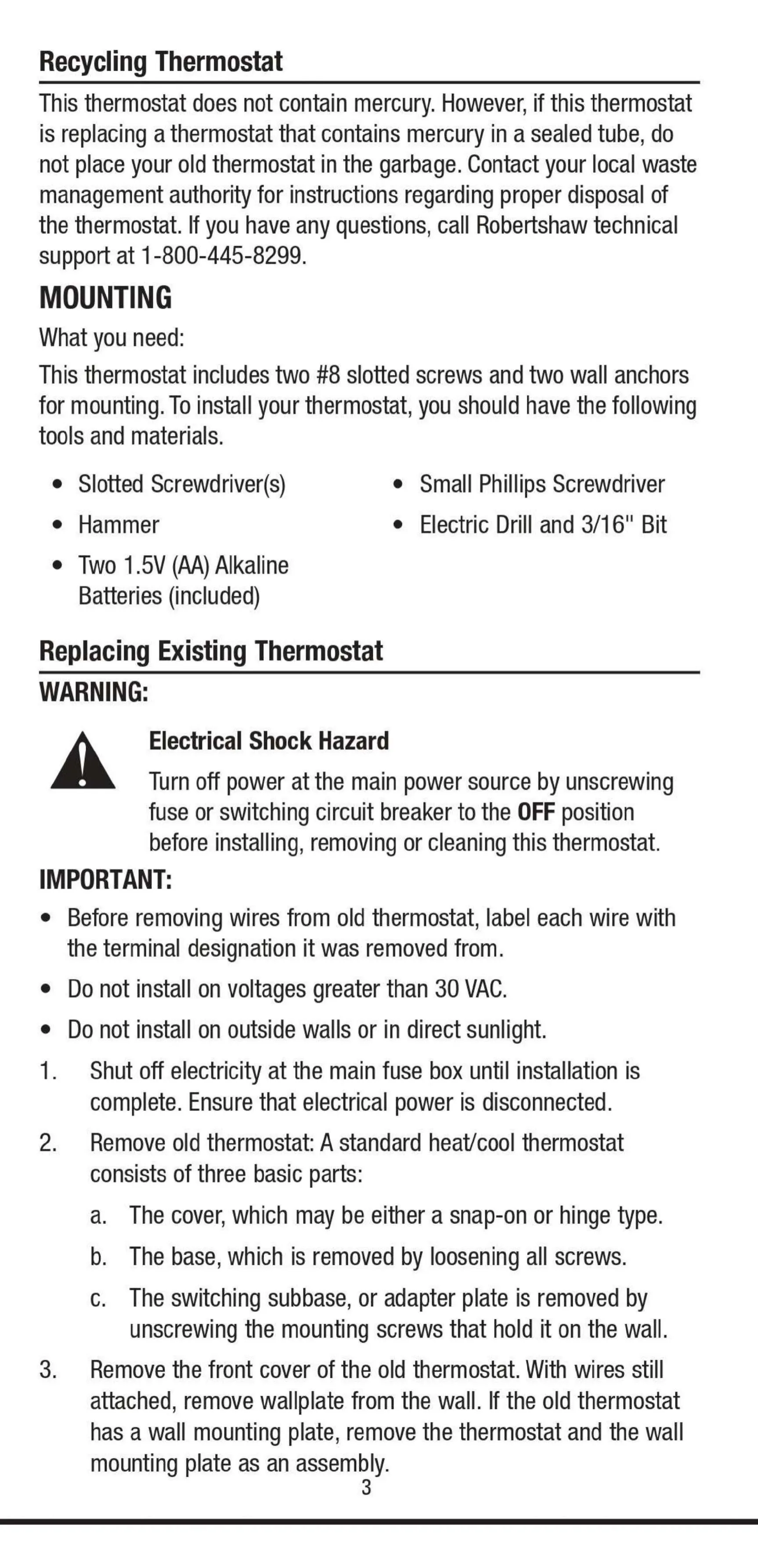

This thermostat offers impressive power versatility, operating on either a standard 24 VAC common connection from your HVAC system or two AA batteries. This dual-power capability guarantees continuous operation, even in the event of a power outage or if a common wire is not present in the existing wiring. Installation is simplified through clearly labeled terminal connections for various system components, including the transformer, indoor fan, compressor, and reversing valves. Proper wiring is essential, and the manual provides detailed guidance for both conventional and heat pump setups.

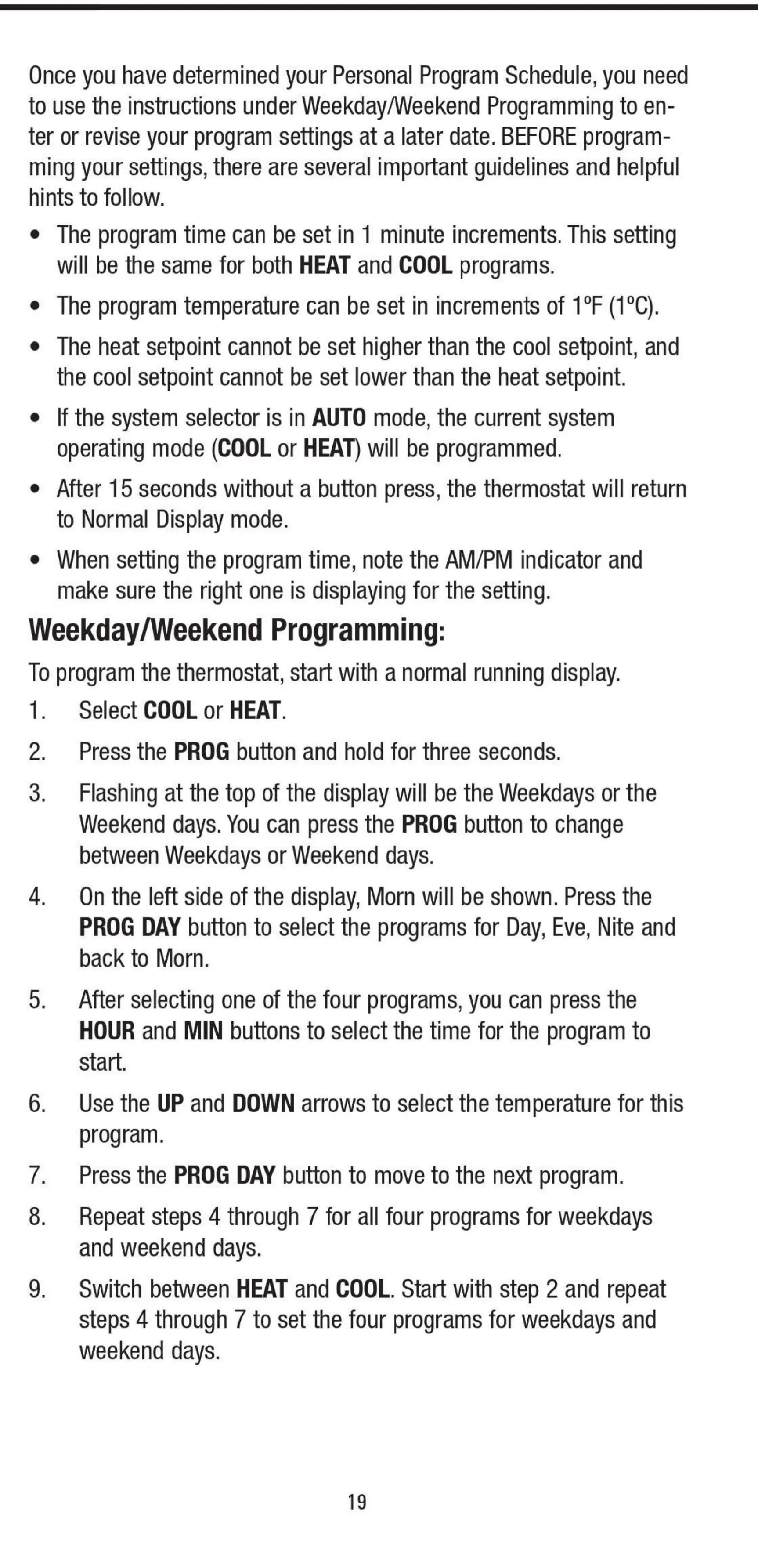

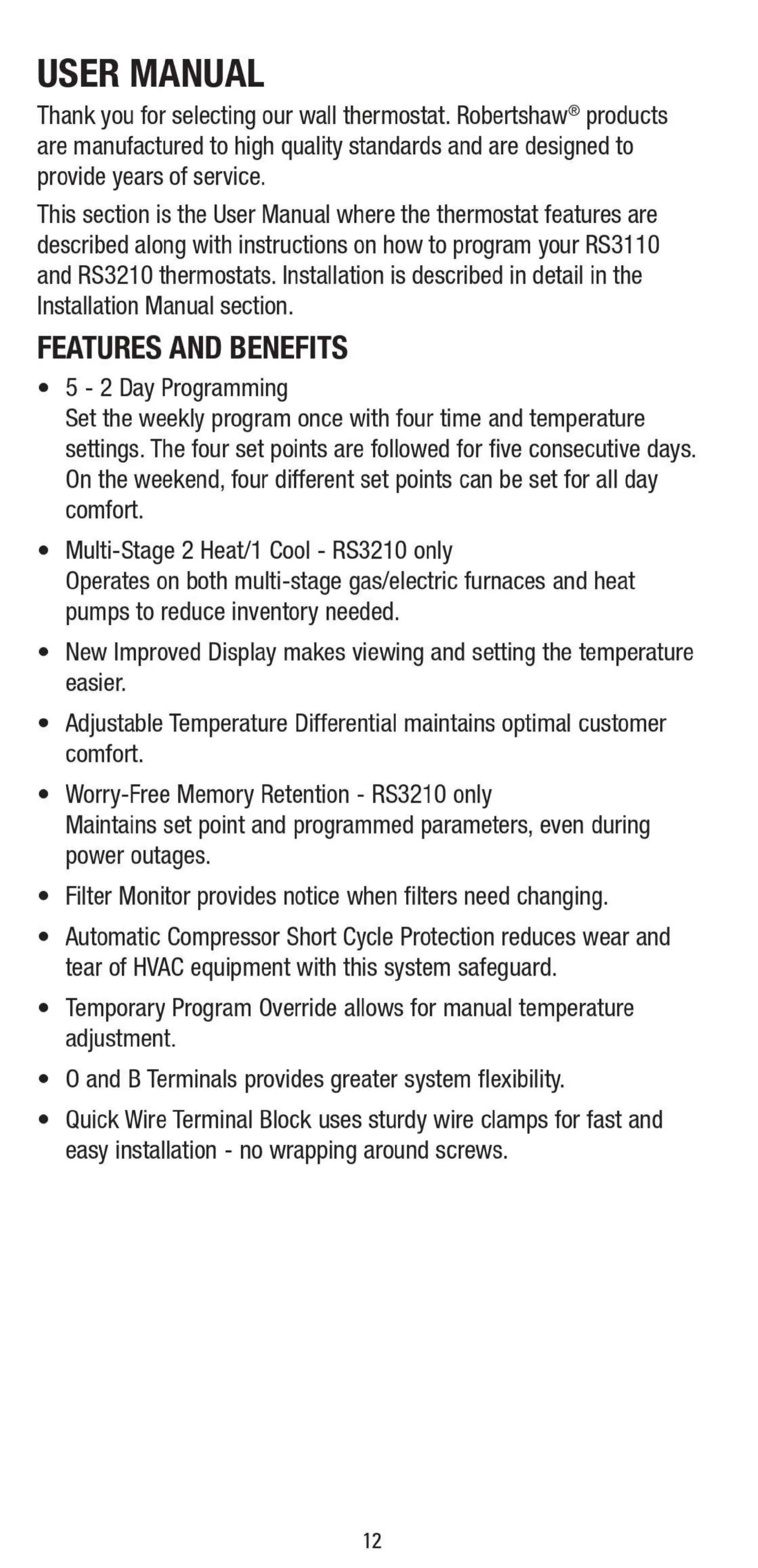

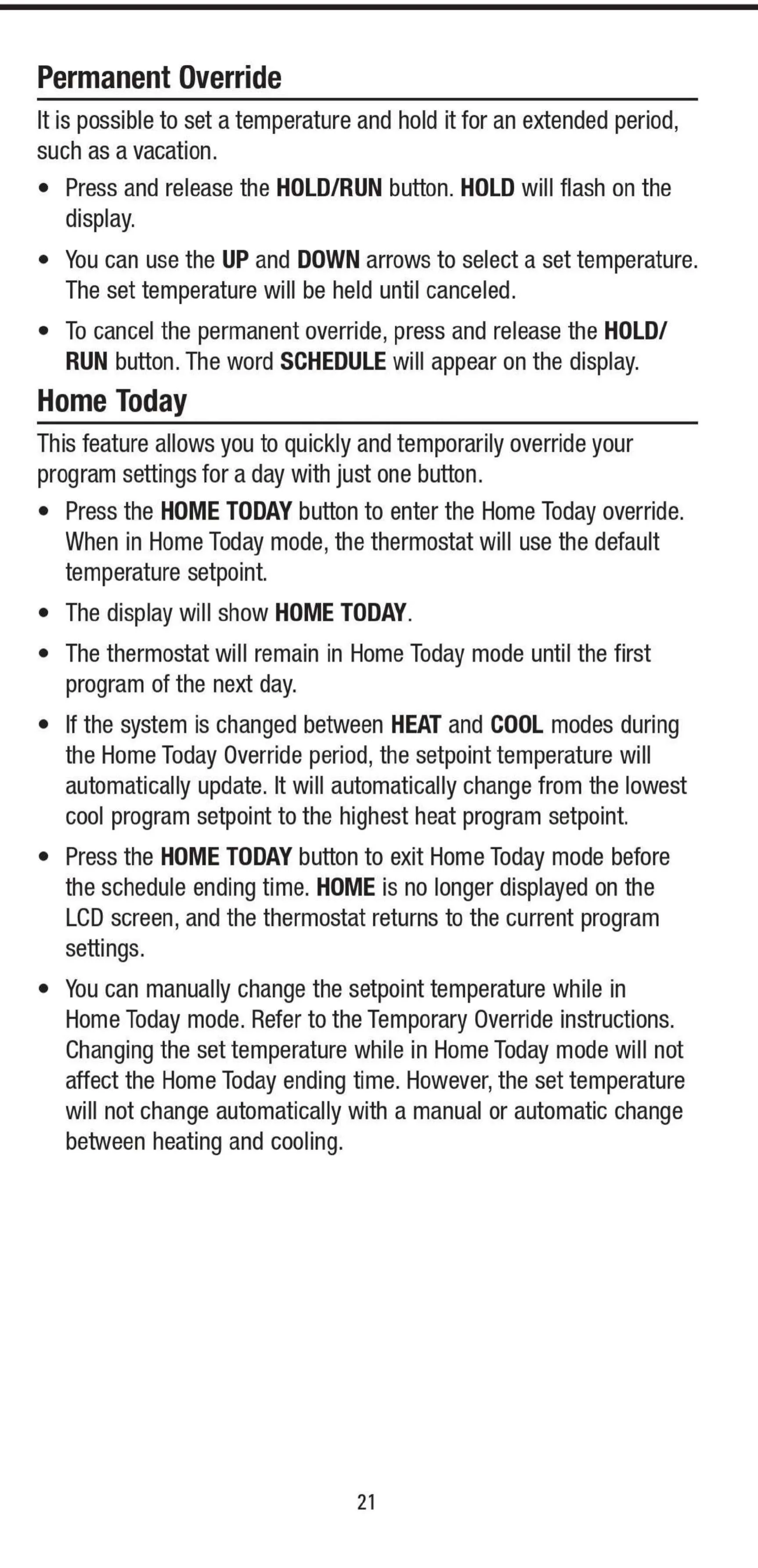

The RS3110 boasts robust 7-day programmable scheduling, allowing homeowners to customize temperature settings for optimal comfort and energy savings throughout the week. Users can define up to four distinct temperature periods each day—Morn, Day, Eve, and Nite—for both heating and cooling cycles. This granular control empowers users to align their HVAC usage with their daily routines, reducing energy consumption during unoccupied hours and ensuring a comfortable environment when needed. Default programs are provided, which can be used as is or easily modified to suit your personal preferences and daily routines.

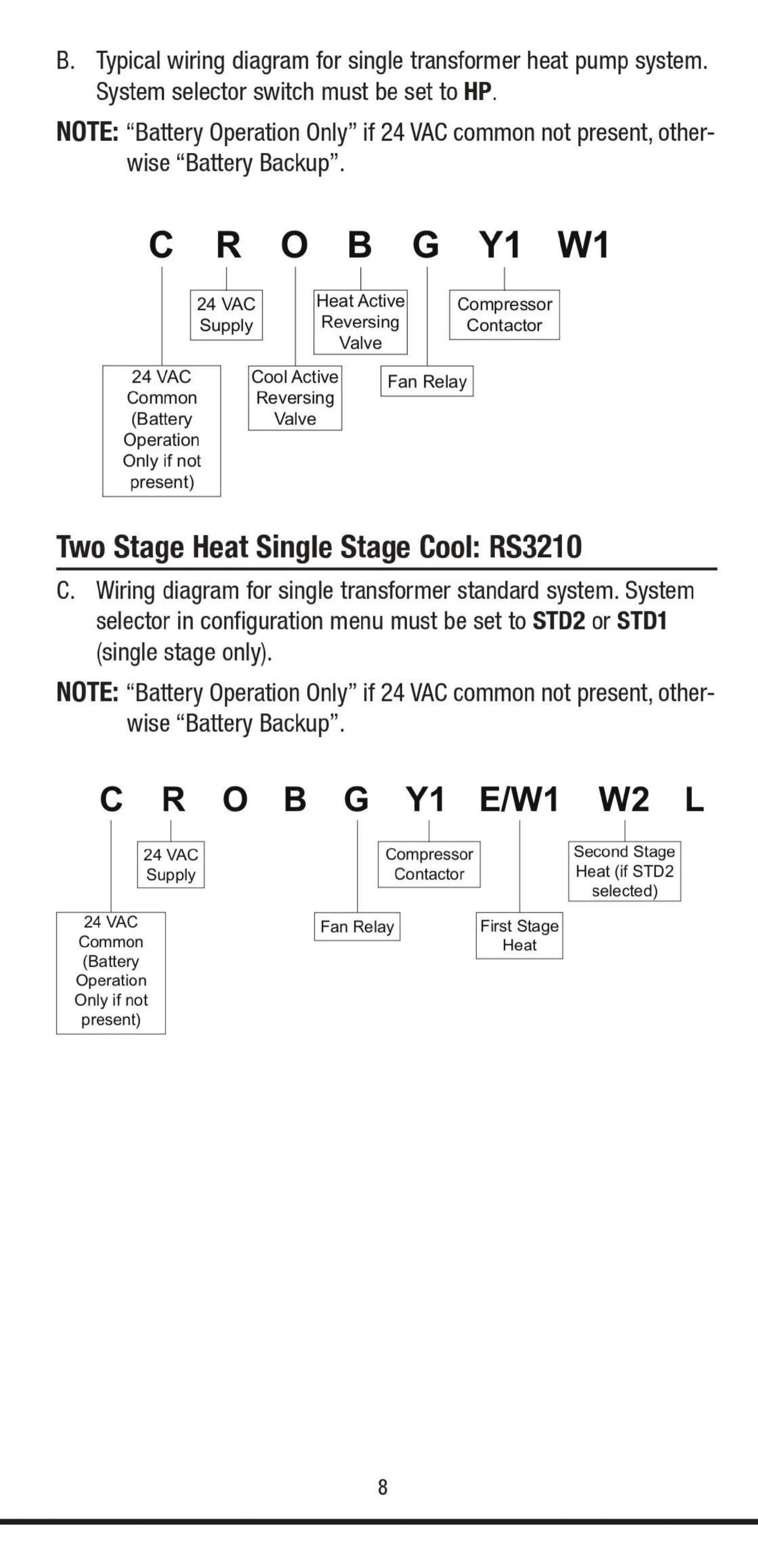

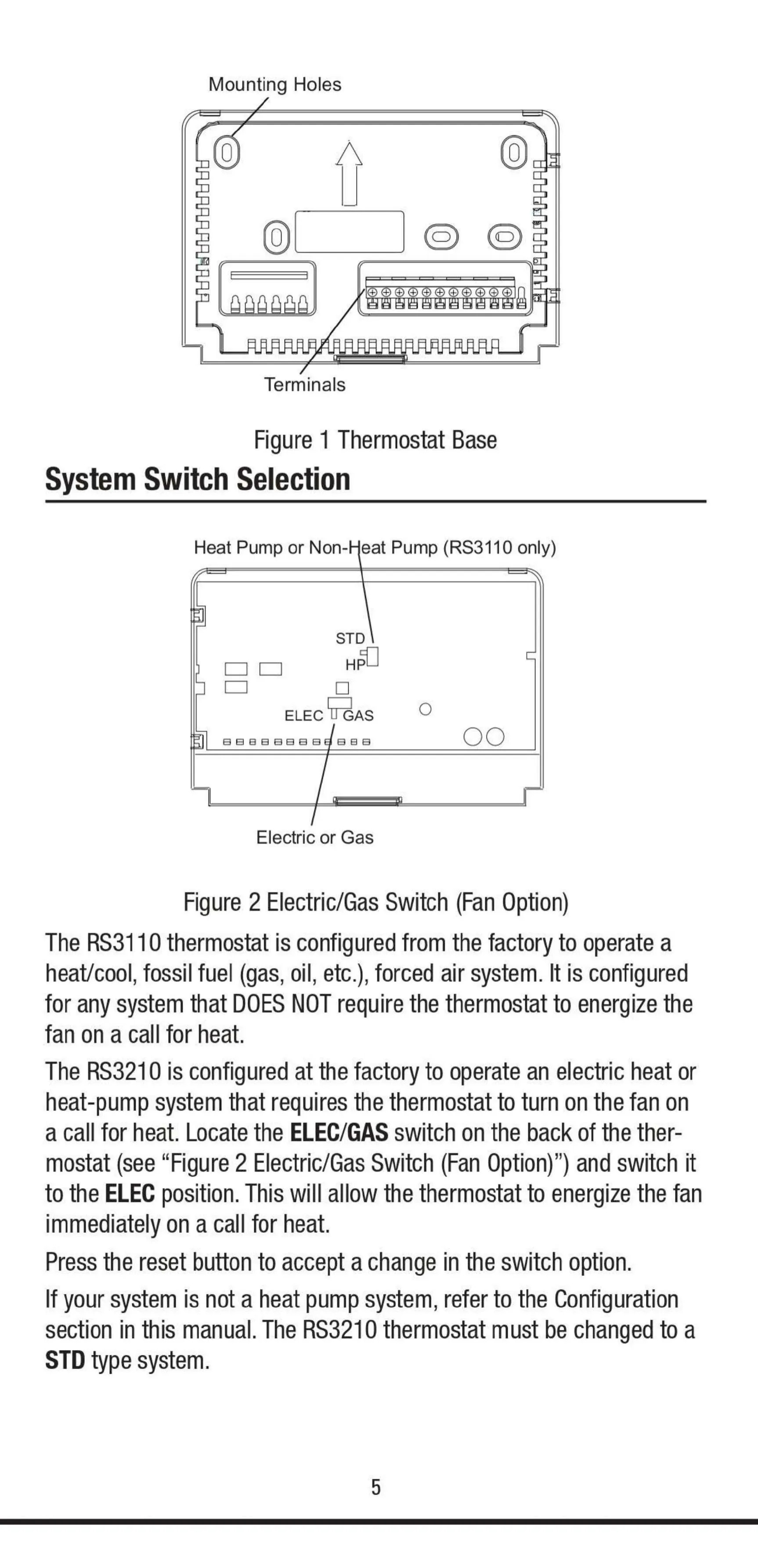

Designed to be highly adaptable, the Robertshaw RS3110 seamlessly integrates with a variety of HVAC systems. It is engineered for one-stage conventional systems (gas, electric furnace) as well as one-stage heat pump configurations. The thermostat intelligently manages connections for the first stage of heating and cooling, along with dedicated terminals for heat pump reversing valves (O or B). Additionally, it supports emergency heat functions via the E/W1 terminal when configured for a heat pump, providing reliable operation in diverse climate control scenarios.

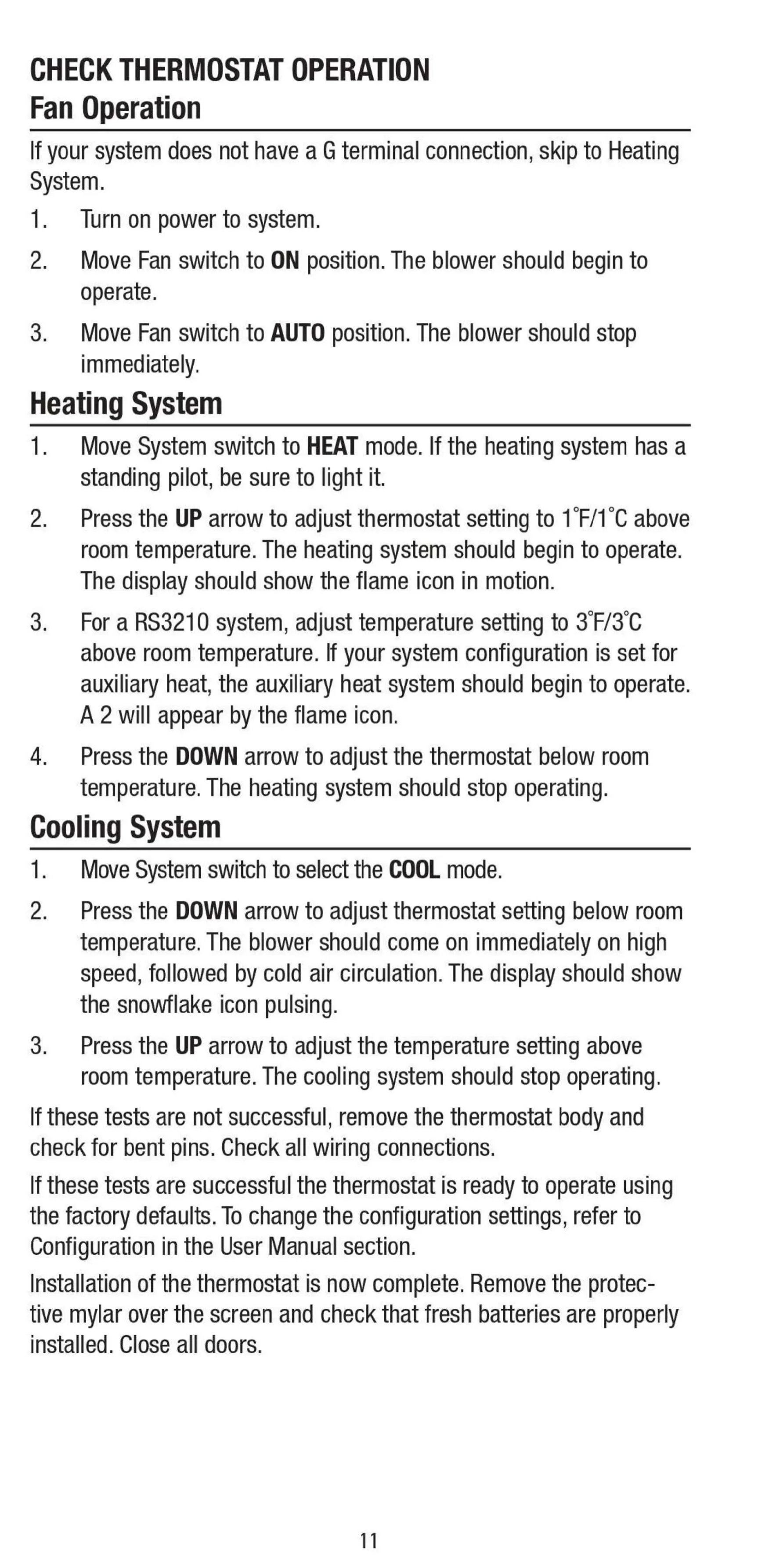

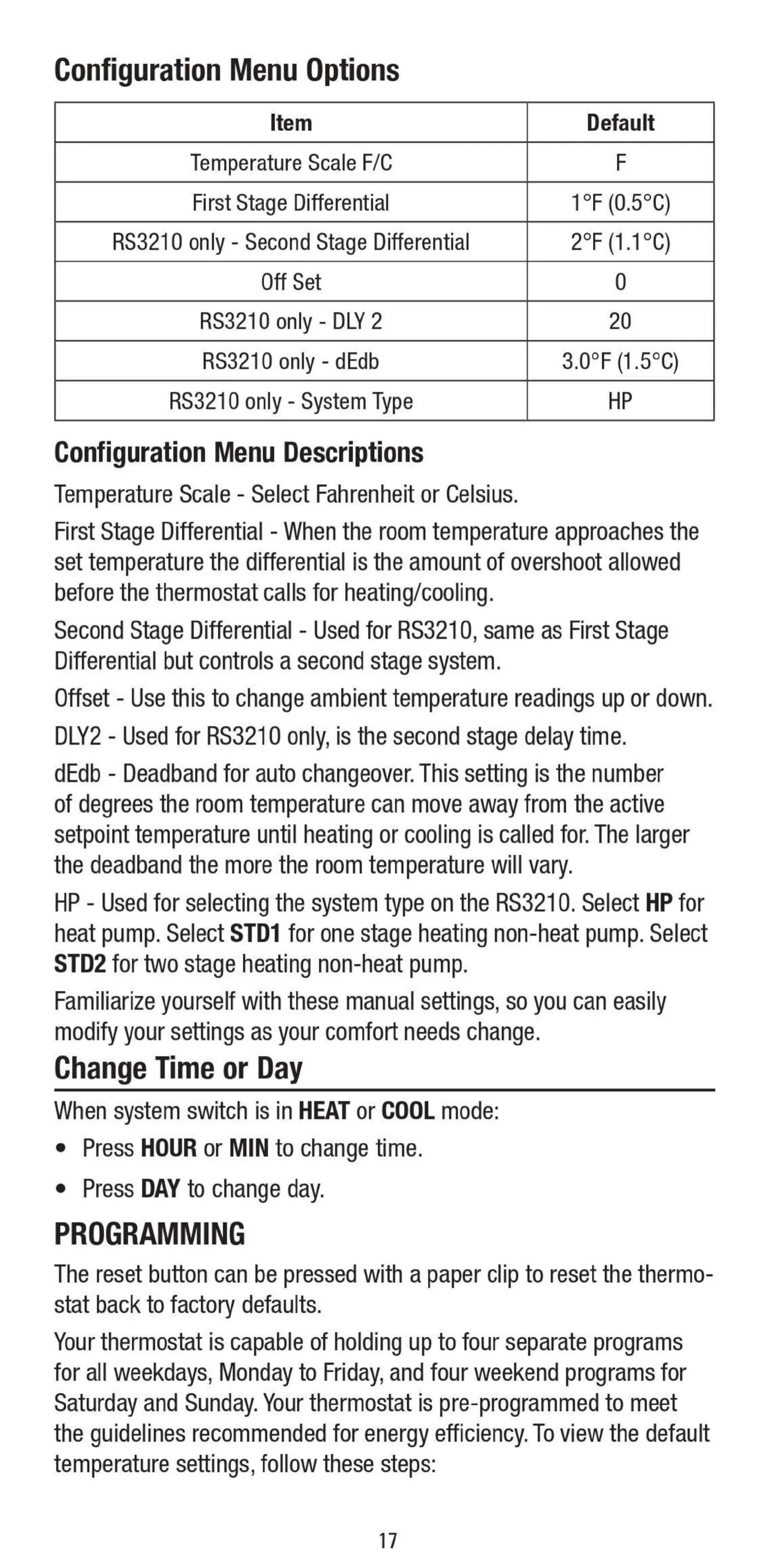

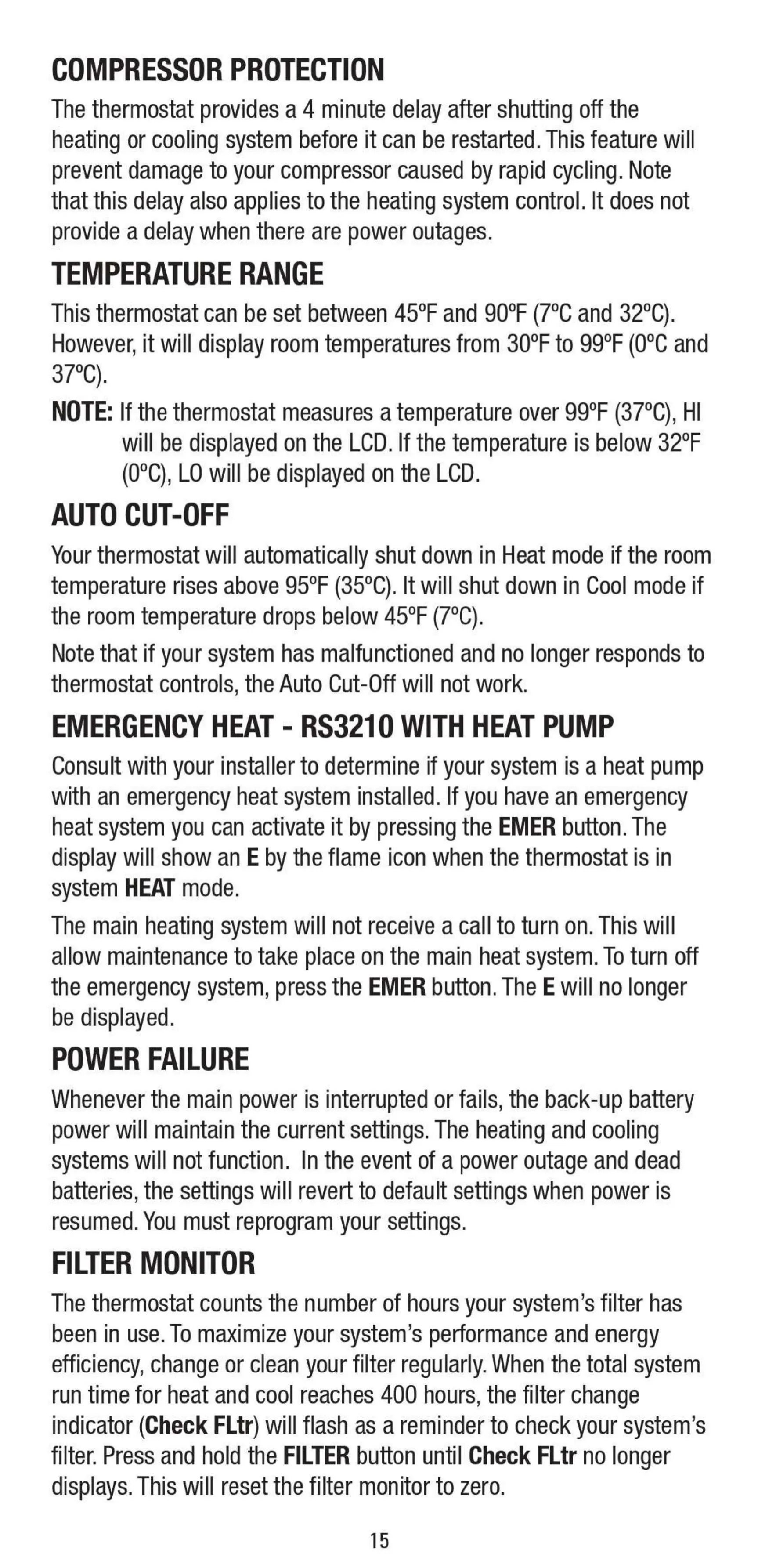

Beyond basic operation, the RS3110 includes a user-friendly configuration menu for fine-tuning performance. Users can select their preferred temperature scale (°F or °C), adjust the first-stage differential for precise temperature control, and apply a temperature offset if needed. Crucially, it incorporates a 4-minute compressor protection delay, safeguarding your HVAC equipment from short cycling and extending its lifespan. This thoughtful feature helps maintain the integrity and efficiency of your heating and cooling system.

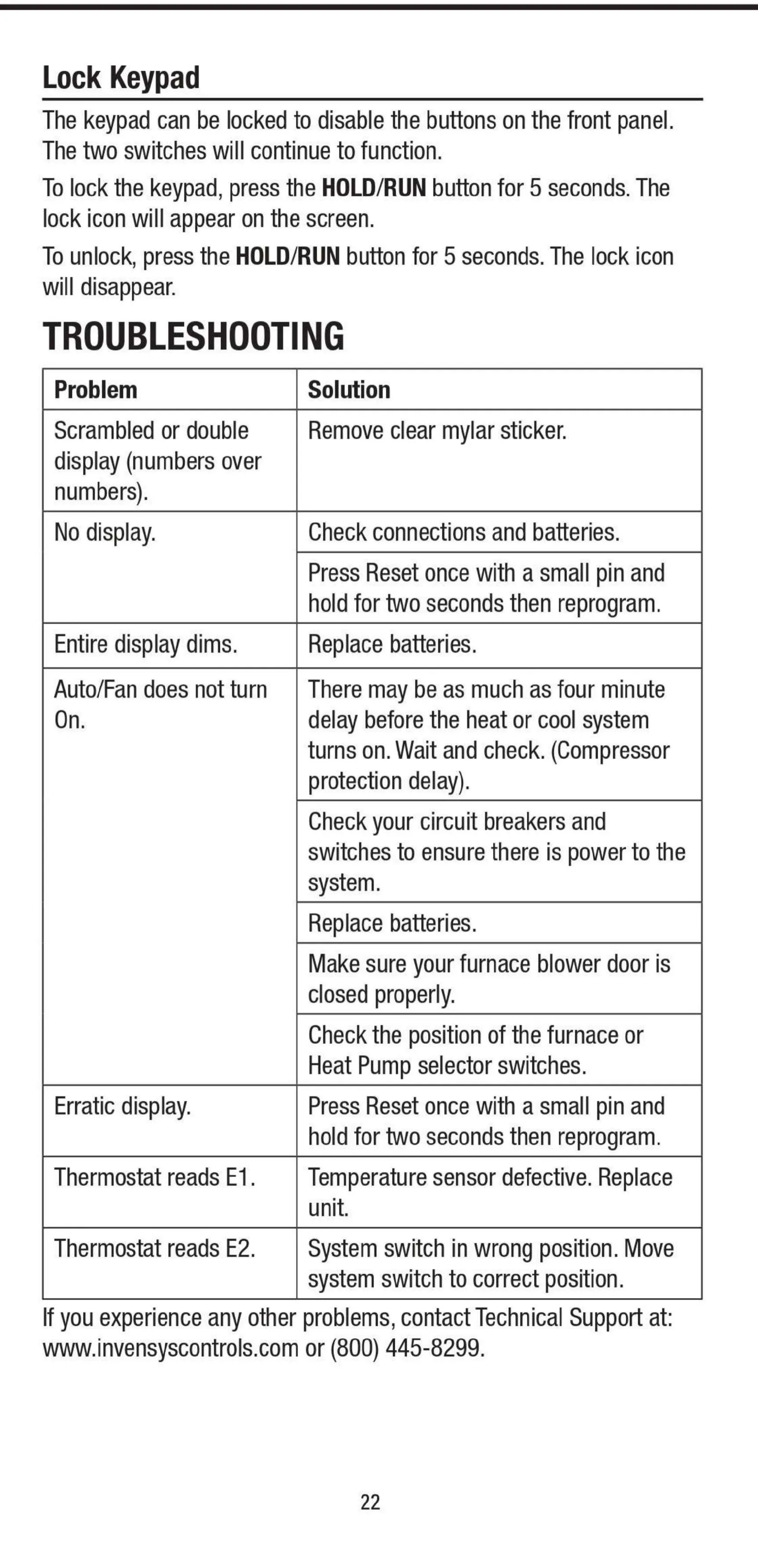

The thermostat is designed with user convenience in mind, even when issues arise. Its built-in diagnostic capabilities provide clear error codes, such as "E1" indicating a defective temperature sensor or "E2" for an incorrect system switch position. These direct error messages simplify the troubleshooting process, allowing users to quickly identify and address common problems. The manual also offers a comprehensive troubleshooting guide for common operational glitches, ensuring reliable and continuous performance.
