Redarc Tow Pro Elite Trailer Brake Controller Instruction Manual
Redarc Tow Pro Elite Trailer Brake Controller
Redarc Tow Pro Elite Instructions

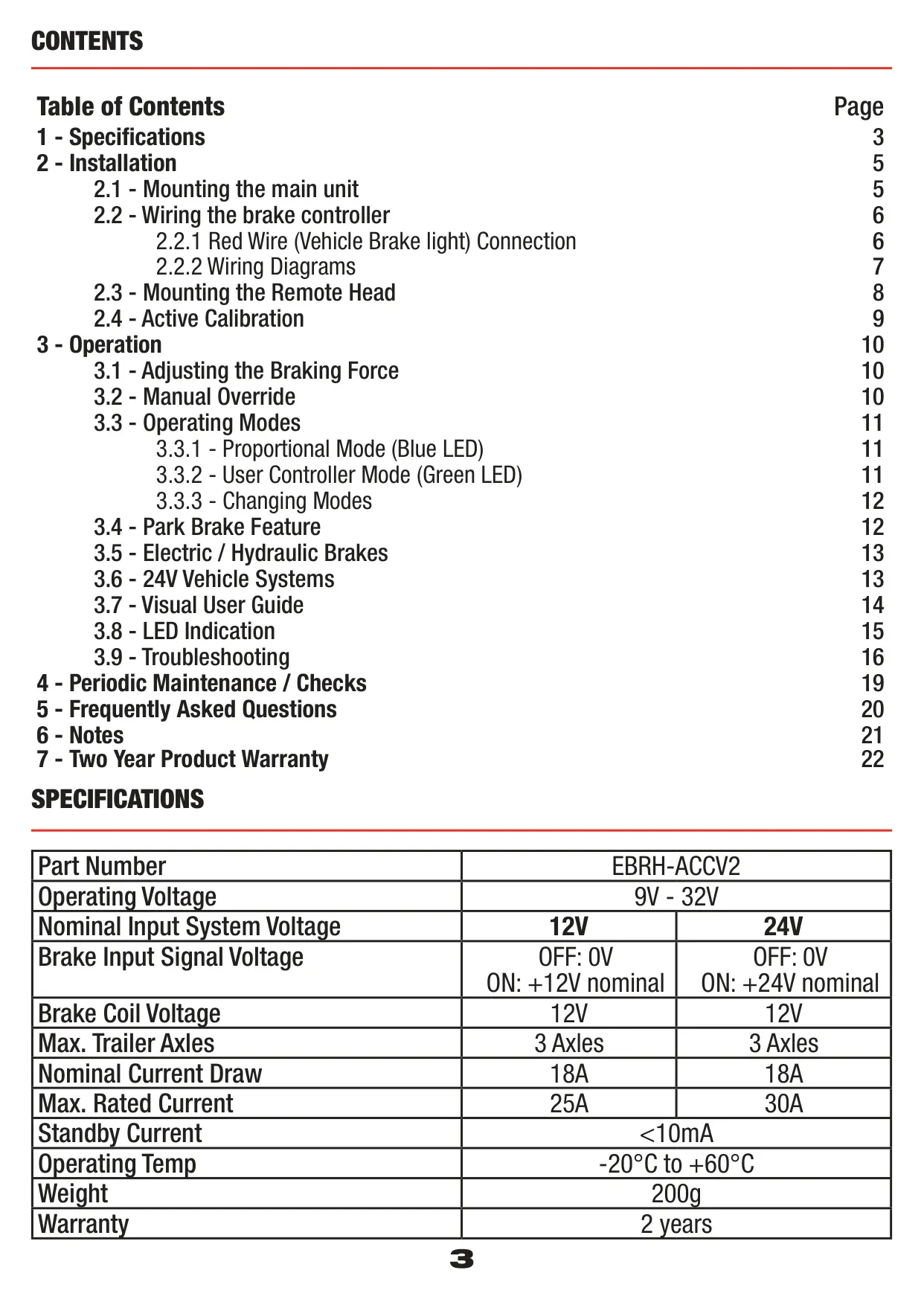

Here we offer the Redarc Tow Pro Elite Trailer Brake Controller manual completely free and in English. We have cataloged this manual in the Trailer Brake Controllers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Redarc Tow Pro Elite Trailer Brake Controller, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Redarc Tow Pro Elite Trailer Brake Controller Specifications
| Specification | 12V System | 24V System |
|---|---|---|
| Part Number | EBRH-ACCV2 | EBRH-ACCV2 |
| Operating Voltage | 9V-32V | |
| Nominal Input System Voltage | 12V | 24V |
| Brake Input Signal Voltage | OFF: 0V, ON: +12V nominal | OFF: 0V, ON: +24V nominal |
| Brake Coil Voltage | 12V | |
| Max. Trailer Axles | 3 Axles | |
| Nominal Current Draw | 18A | |
| Max. Rated Current | 25A | 30A |
| Standby Current | <10mA | |
| Operating Temp | -20°C to +60°C | |
| Weight | 200g | |
| Warranty | 2 years | |
Redarc Tow Pro Elite Details

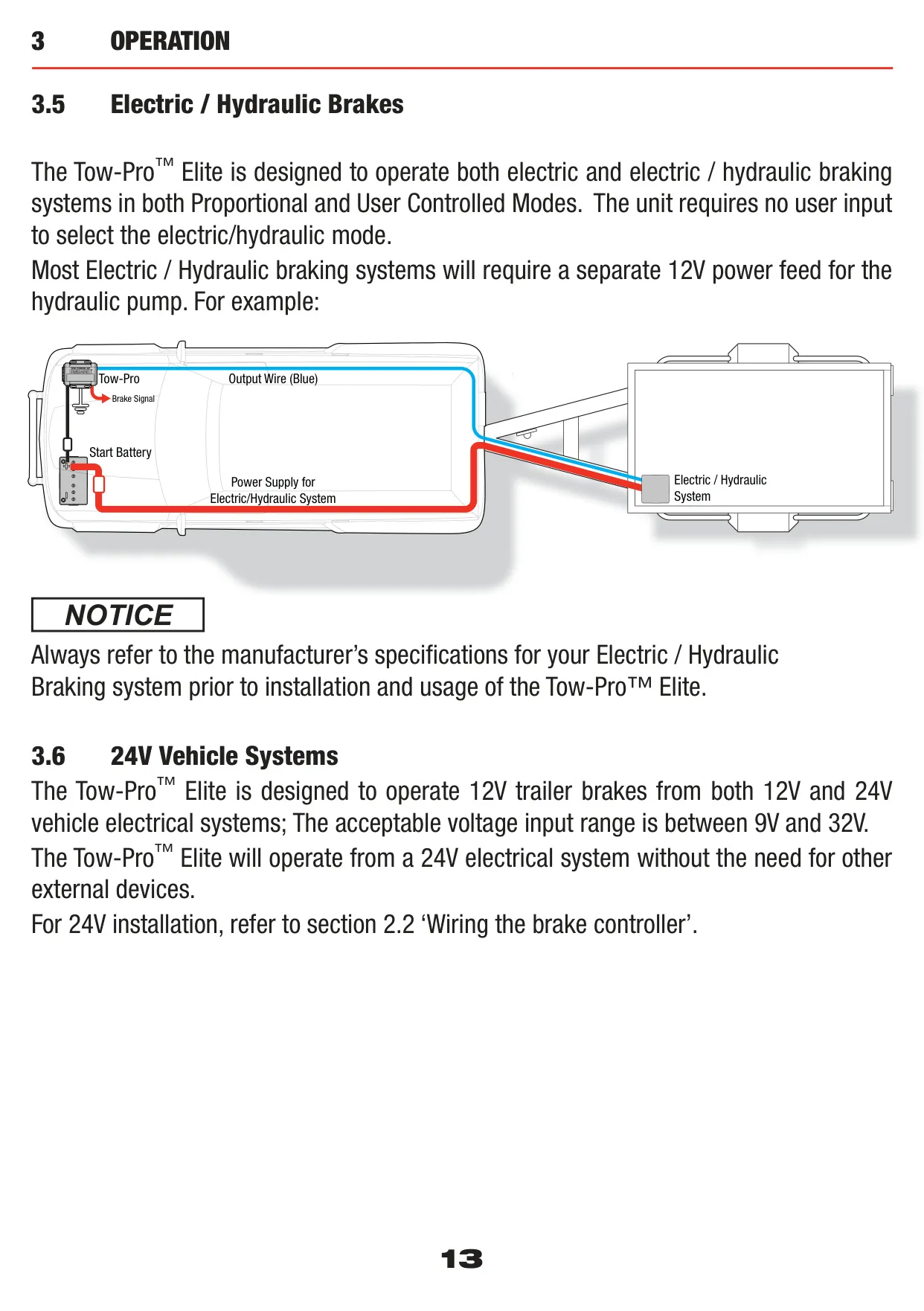

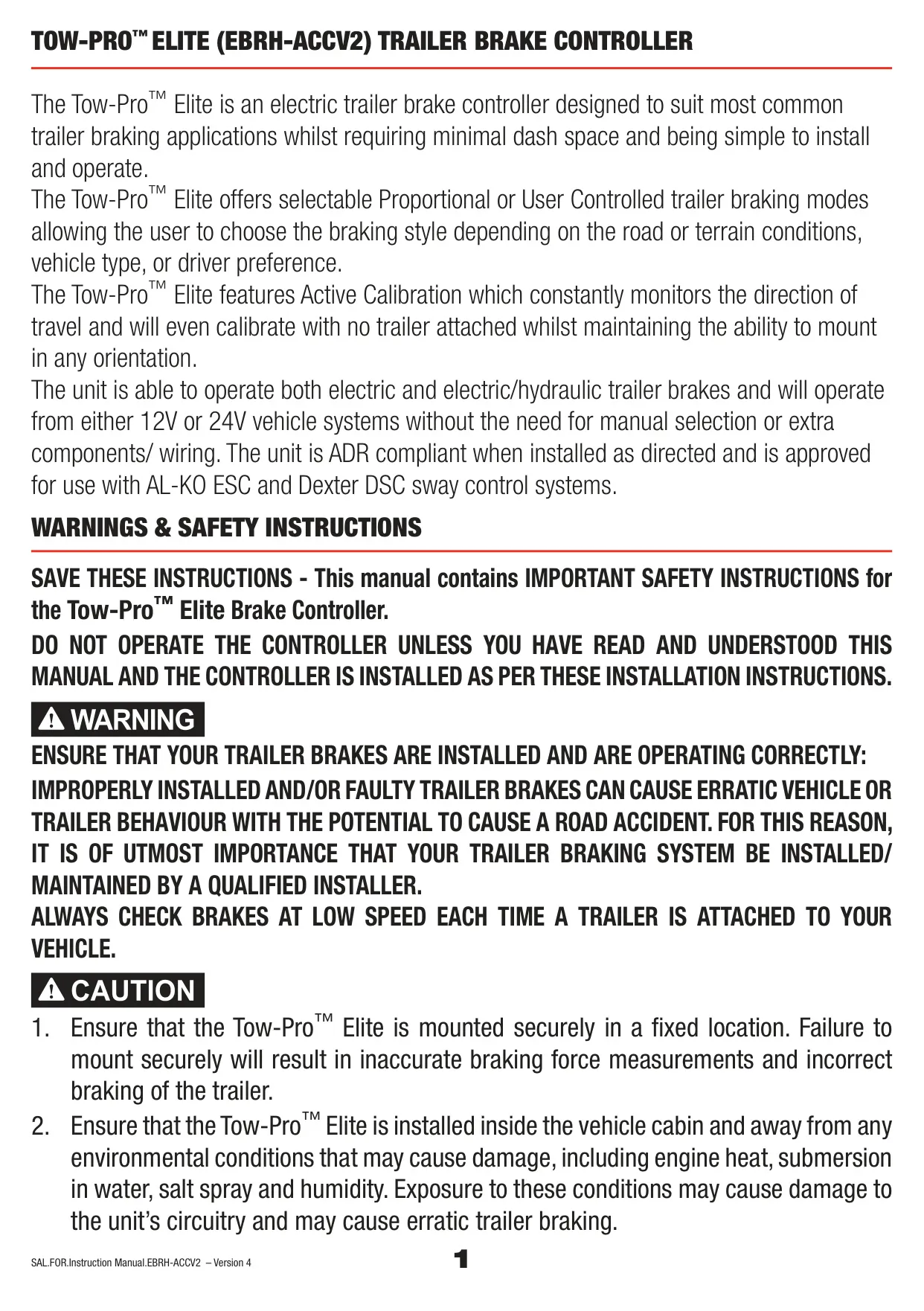

The Redarc Tow-Pro™ Elite (EBRH-ACCV2) is an advanced electric trailer brake controller engineered for versatility and ease of use. It effectively manages most common trailer braking applications while minimizing dashboard clutter. This unit supports both electric and electric/hydraulic trailer braking systems, seamlessly adapting to either 12V or 24V vehicle power without requiring any manual adjustments or additional components. Its design prioritizes a straightforward installation and user-friendly operation, making it ideal for a wide range of towing setups.

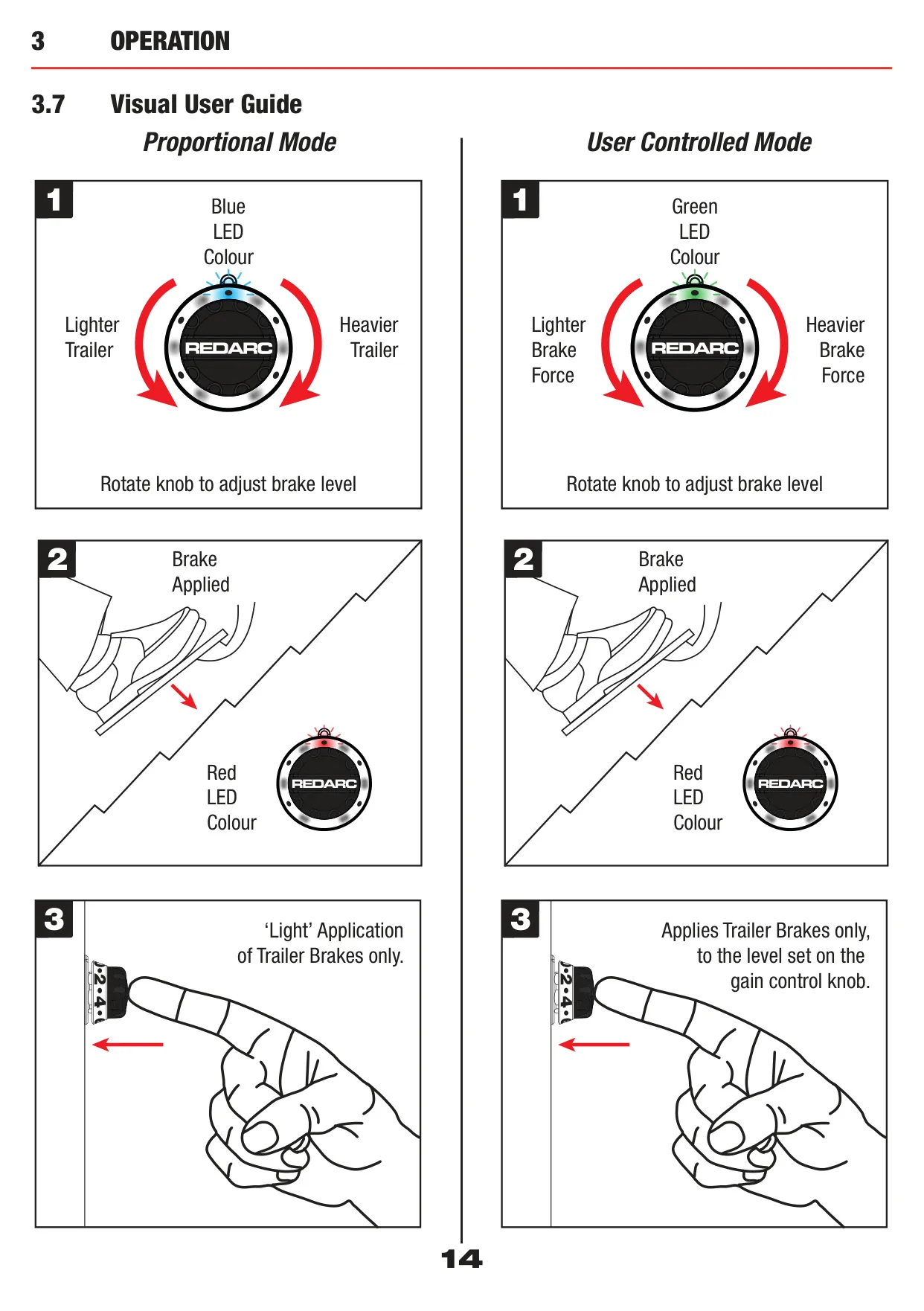

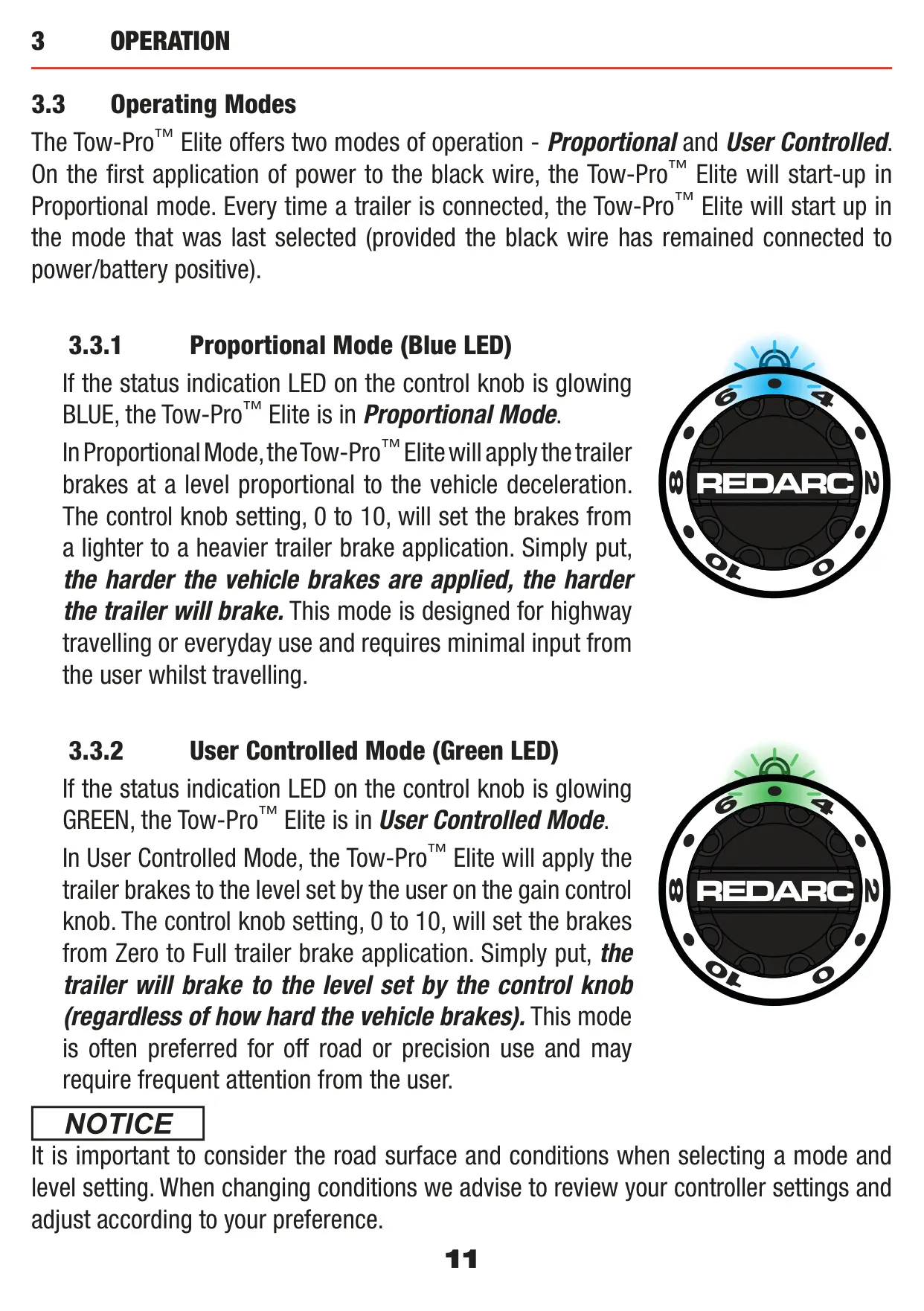

A standout feature of the Tow-Pro™ Elite is its dual operating modes: Proportional Mode (indicated by a blue LED) and User Controlled Mode (signified by a green LED). Proportional Mode automatically applies trailer brakes relative to vehicle deceleration, perfect for highway driving. User Controlled Mode allows the driver to set a fixed braking level via the control knob, regardless of vehicle braking force, often preferred for off-road or precise maneuvering. Users can easily switch between these modes based on road conditions, vehicle type, or personal preference.
The innovative Active Calibration system ensures optimal performance by constantly monitoring the vehicle's direction of travel. This allows the Tow-Pro™ Elite to 'learn' and confirm its mounting orientation, even calibrating without a trailer connected. This intelligent feature means the main unit can be securely mounted in any orientation within the vehicle cabin, enhancing installation flexibility and ensuring accurate braking force measurements. A flashing Blue/Green LED indicates calibration in progress, turning solid blue once complete.
Drivers can precisely adjust the braking force using a control knob on the remote head, with settings ranging from 0 to 10. Turning the knob clockwise increases braking force, while anti-clockwise reduces it. The manual override function, activated by pressing the control knob, applies trailer brakes independently of the vehicle brakes. This is particularly useful for correcting trailer sway. In Proportional mode, override applies light braking, whereas in User Controlled mode, it applies the preset level.

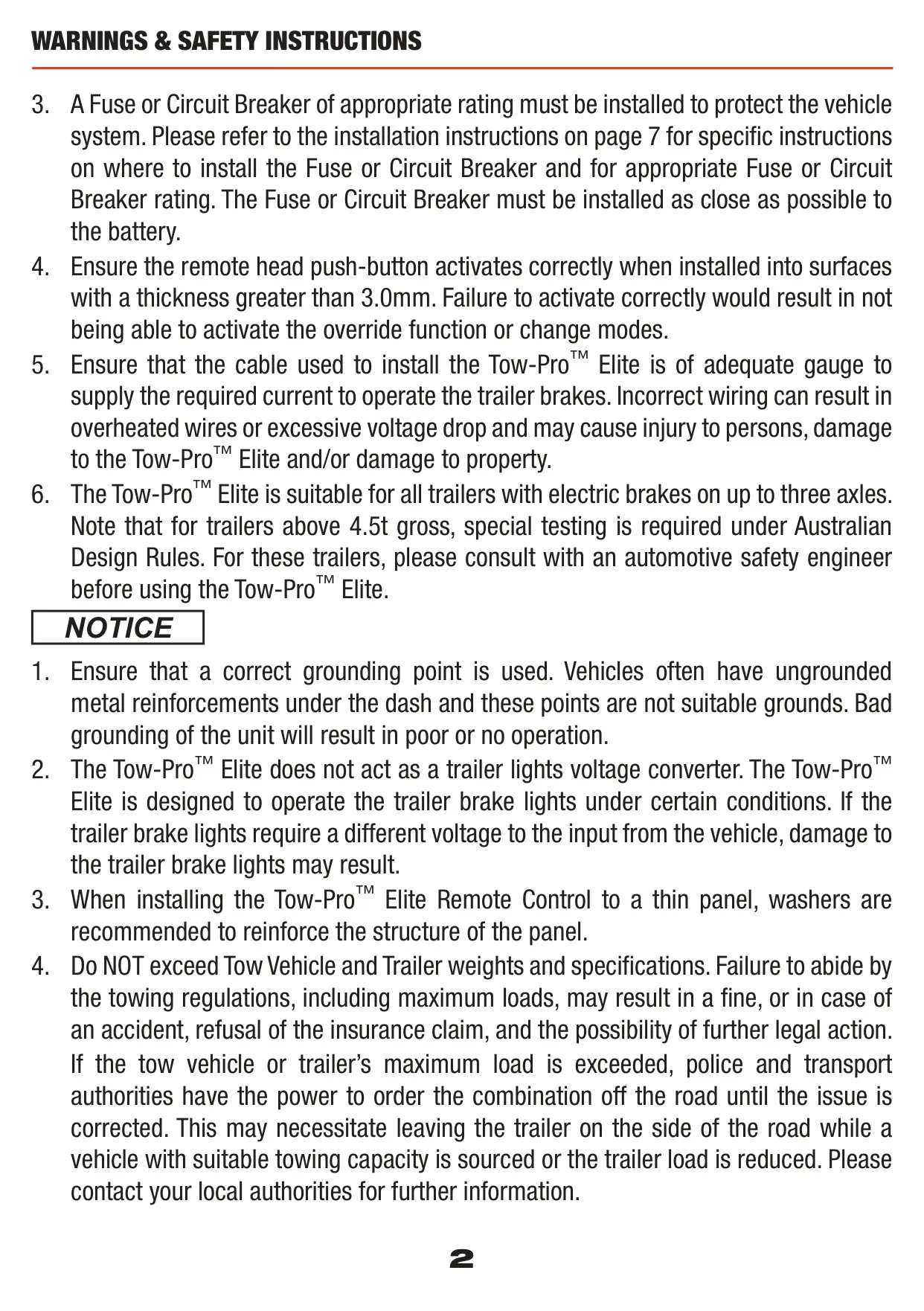

The Tow-Pro™ Elite integrates several safety features and adheres to strict standards, including ADR compliance and approval for use with AL-KO ESC and Dexter DSC sway control systems. It features a Park Brake Feature which intelligently applies trailer brakes when the vehicle is stationary for over three seconds, reducing driver effort. Furthermore, the unit incorporates sophisticated diagnostics, using various LED flash patterns to alert the driver to wiring faults or operational issues, ensuring continuous safe towing. The remote head's compact design complies with ADR 21.

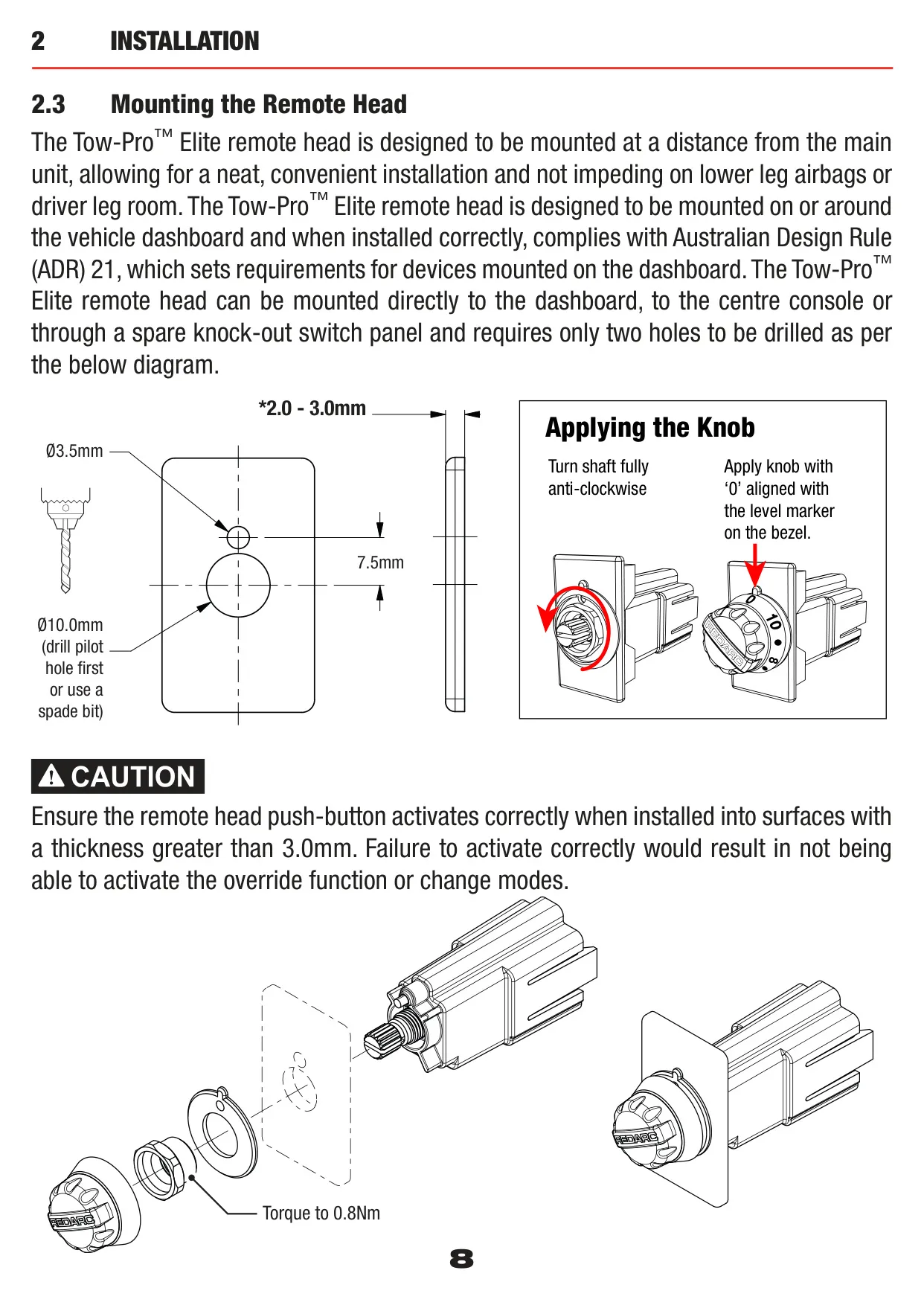

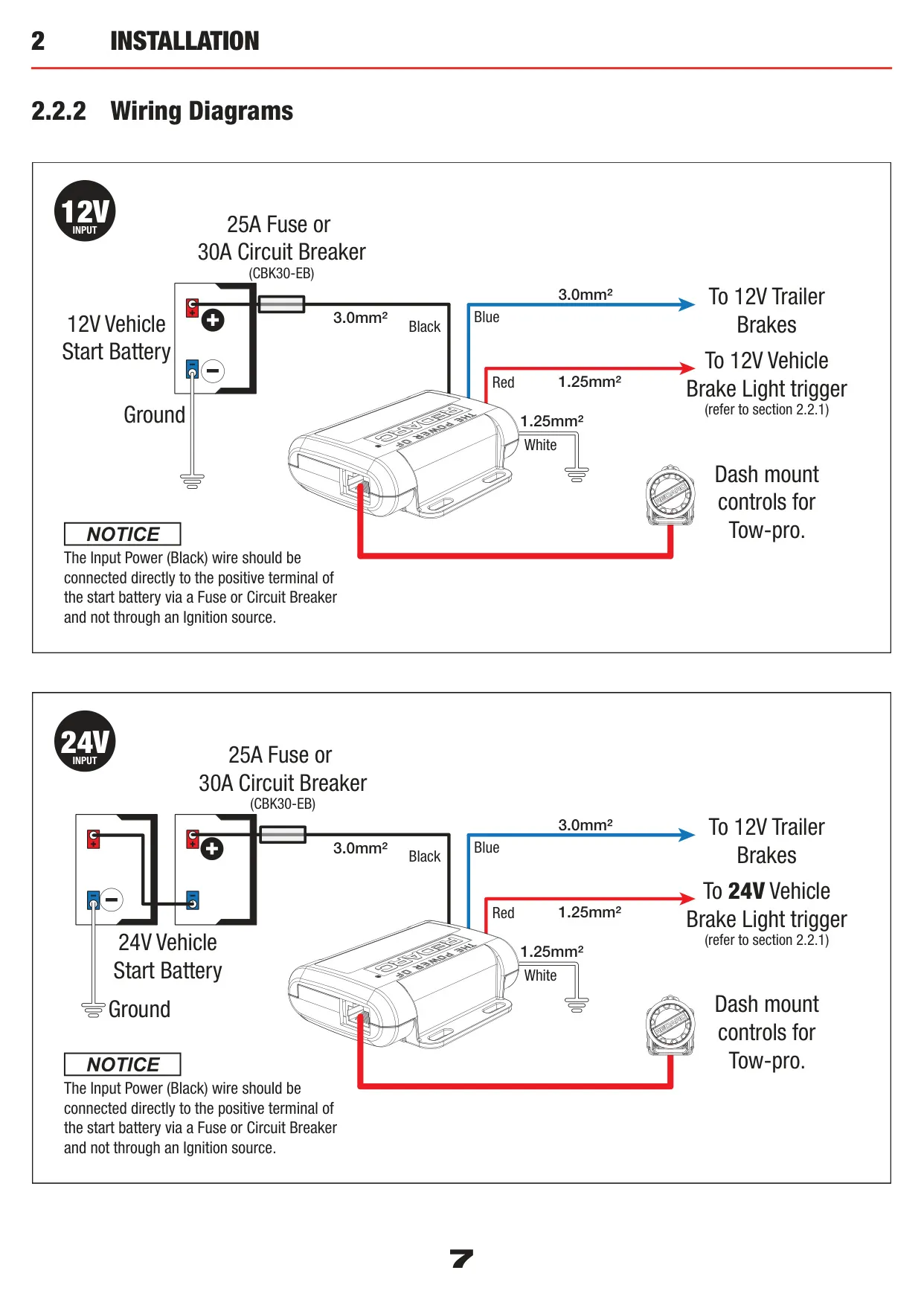

The product kit includes essential components for installation: a Remote Head Assembly, the Main Unit, a Remote Head Nut, Knob, and Bezel, a 1-meter RJ45 Remote Head Cable, and 0.5-meter Main Unit Wires with a connector. The remote head cable is a standard RJ45 network cable, which can be extended up to 5 meters using an off-the-shelf cable, though a ferrite bead is recommended for longer lengths to ensure signal integrity. This modular approach allows for a clean, customized installation.
