Mastertemp 400K Pool And Spa Heater Instruction Manual
Mastertemp 400K Pool And Spa Heater
Mastertemp 400K Pool Heater Instructions
Here we offer the Mastertemp 400K Pool And Spa Heater manual completely free and in English. We have cataloged this manual in the Pool Heaters section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Mastertemp 400K Pool And Spa Heater, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

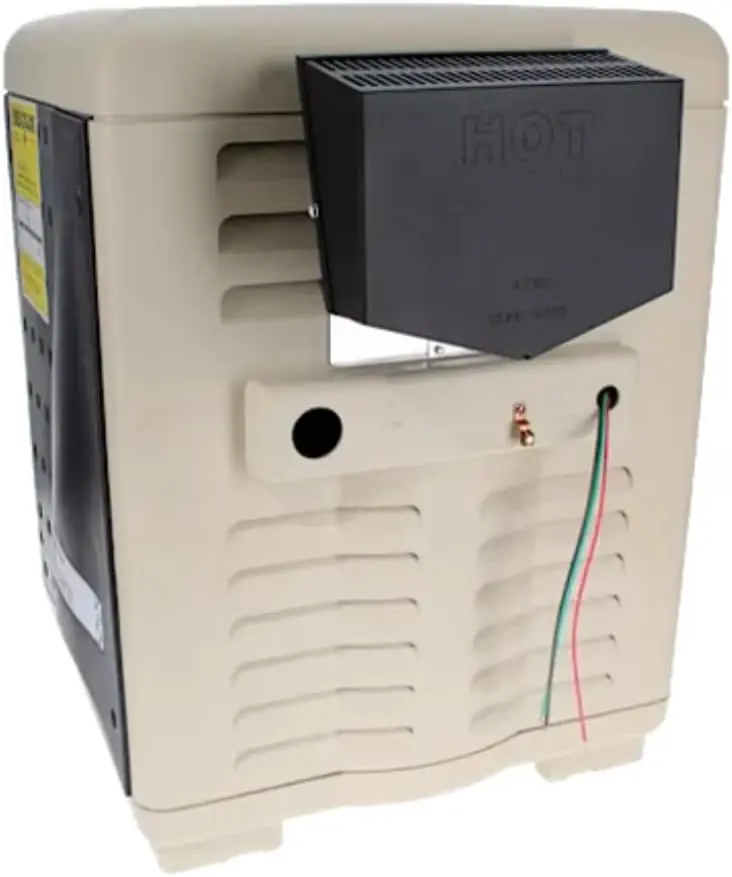

Product Images
Mastertemp 400K Pool And Spa Heater Specifications

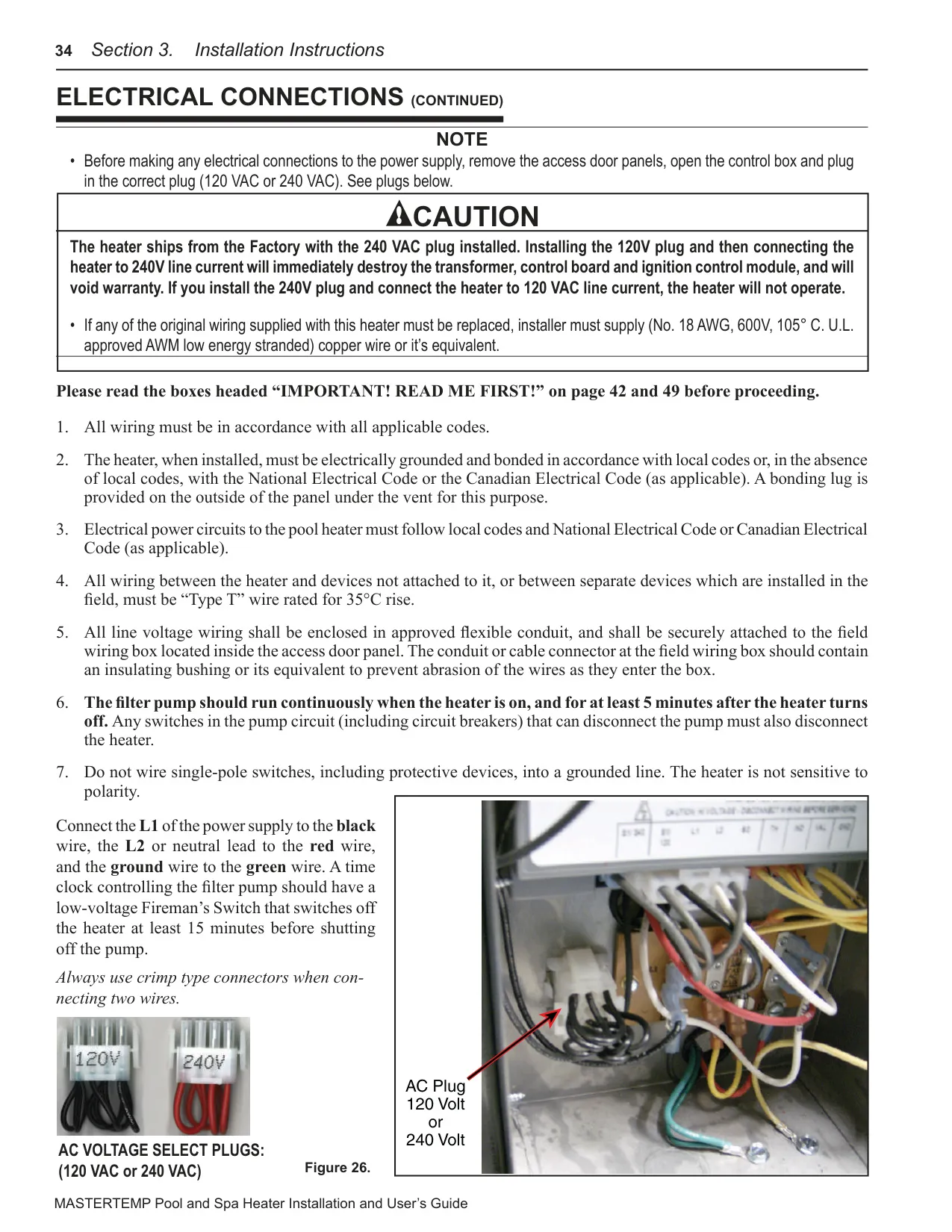

| Specification | Detail |
|---|---|
| Model Size | 400K BTU/HR Input Rating |
| Fuel Type | Natural Gas (NA) / LP Gas (Propane) |
| Voltage | 120 VAC / 240 VAC (Single Phase) |
| Frequency | 60 Hz |
| Minimum Water Flow Rate | 40 GPM (152 LPM) |
| Maximum Water Flow Rate | 120 GPM (454 LPM) |
| Maximum Gas Inlet Pressure | 14 in. W.C. |
| Minimum Gas Inlet Pressure | 4 in. W.C. |
| Manifold Gas Pressure | -0.2 ± 0.1 in. W.C. |

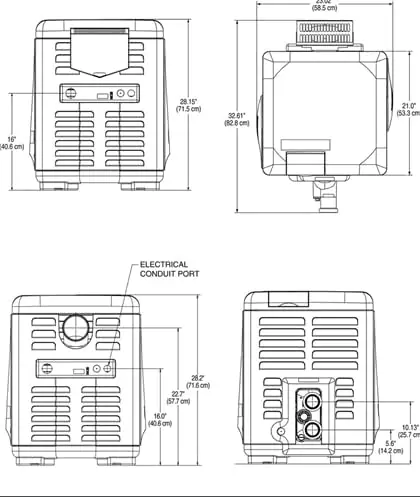

| Width | 23.02 in. (58.5 cm) |
| Depth | 28.15 in. (71.5 cm) |
| Height | 32.61 in. (82.8 cm) |
| Minimum Clearances (Combustible Surfaces) | Top: 6 in. (15 cm), Exhaust Side: 6 in. (15 cm), Header Side: 6 in. (15 cm), Door Panels: 6 in. (15 cm) |
| Operating Temperature Range | 65°F - 104°F (Pool/Spa) |
| Ignition Type | Hot-Surface Ignition (HSI) |
| CSA Certification | ANSI Z21.56/CSA 4.7 (Gas Fired Pool Heaters) |
| Combustion Air Intake | Direct duct capable with 3-inch PVC (optional kit) |
Mastertemp 400K Pool Heater Details
The MasterTemp 400K Pool and Spa Heater offers advanced features beyond its core specifications, designed for superior performance and user convenience. It boasts a compact, lightweight, and highly efficient induced-draft design. This gas-fired heater is engineered for high performance, ensuring quick and reliable heating for both pools and spas.

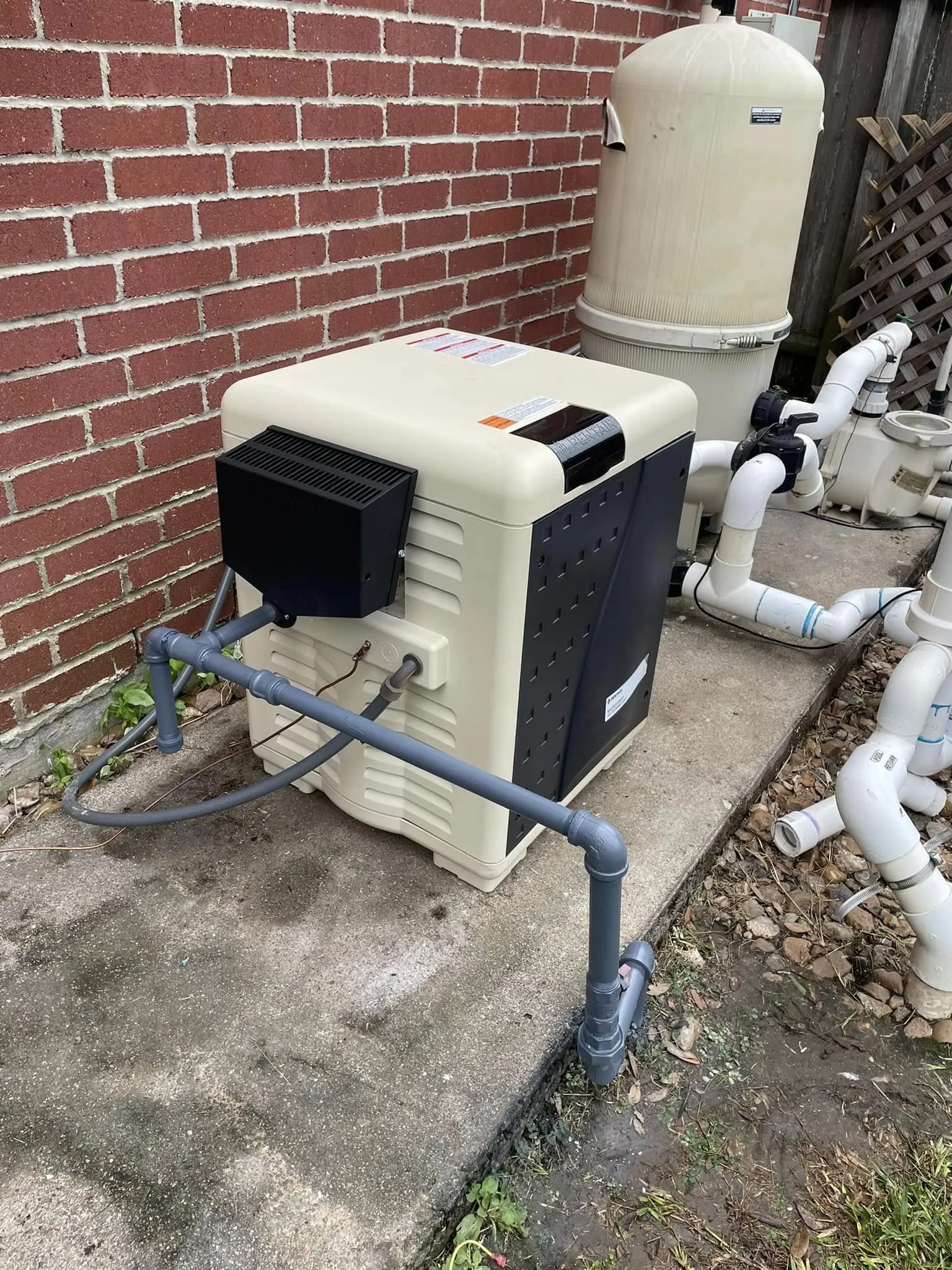

One of its notable advantages is the unique capability for direct Schedule 40 PVC plumbing connections. The heat exchanger’s outer manifold remains cool during operation, eliminating the need for additional heat sinks. This design simplifies installation and enhances safety by minimizing external heat transfer to plumbing components.

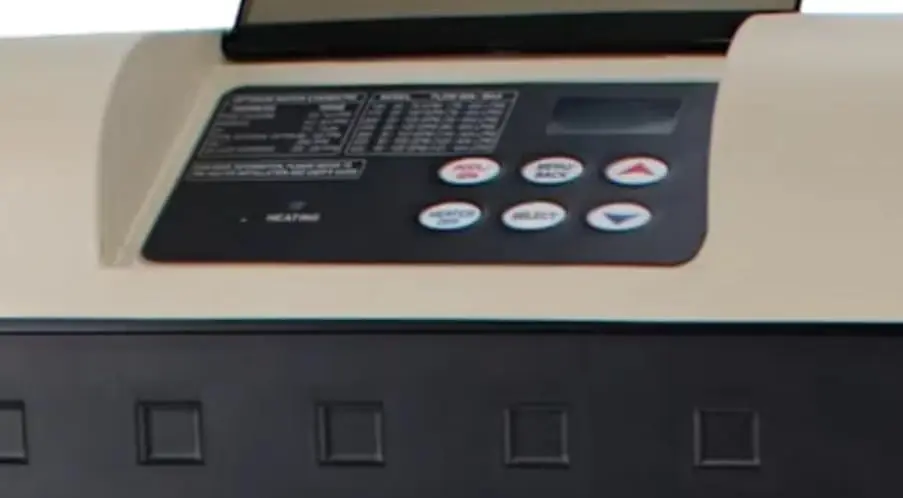

The heater features a sophisticated Pentair multifunction temperature controller with a digital display. This controller provides real-time water temperature readings and allows users to easily set desired temperatures for both pool and spa modes. The digital interface contributes to user-friendly operation and precise temperature management.
A key technological aspect is the Hot-Surface Ignition (HSI) system, which eliminates the need for a constant standing pilot light. This not only improves energy efficiency but also enhances safety by only igniting the burners when a call for heat is present. The HSI system ensures reliable startup, even in varying environmental conditions.
The MasterTemp 400K integrates a comprehensive suite of safety interlocks to protect against potential hazards. These include a pressure switch (PS) for water flow, a high limit switch (HLS) to prevent overheating, an air flow switch (AFS) for proper combustion air, an automatic gas shut-off (AGS), and a stack flue sensor (SFS) to monitor exhaust gas temperatures. These interlocks work in series to ensure safe and continuous operation.

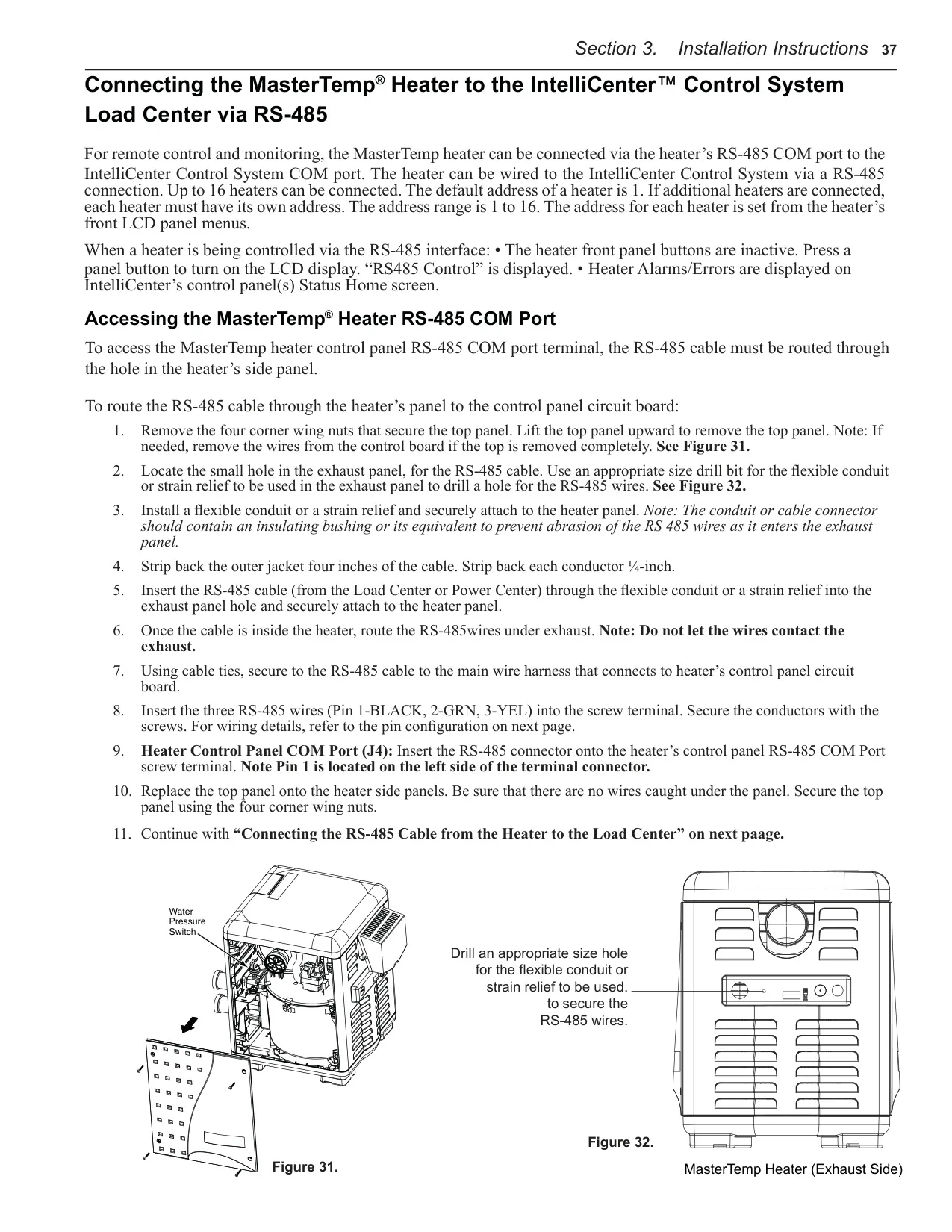

The heater's control panel, strategically located on the top, can be rotated to any of three sides for optimal accessibility, particularly useful in various installation configurations. For enhanced connectivity, the heater supports RS-485 communication, allowing integration with advanced automation systems like the IntelliCenter Control System. This enables remote control and detailed monitoring capabilities, elevating the user experience.

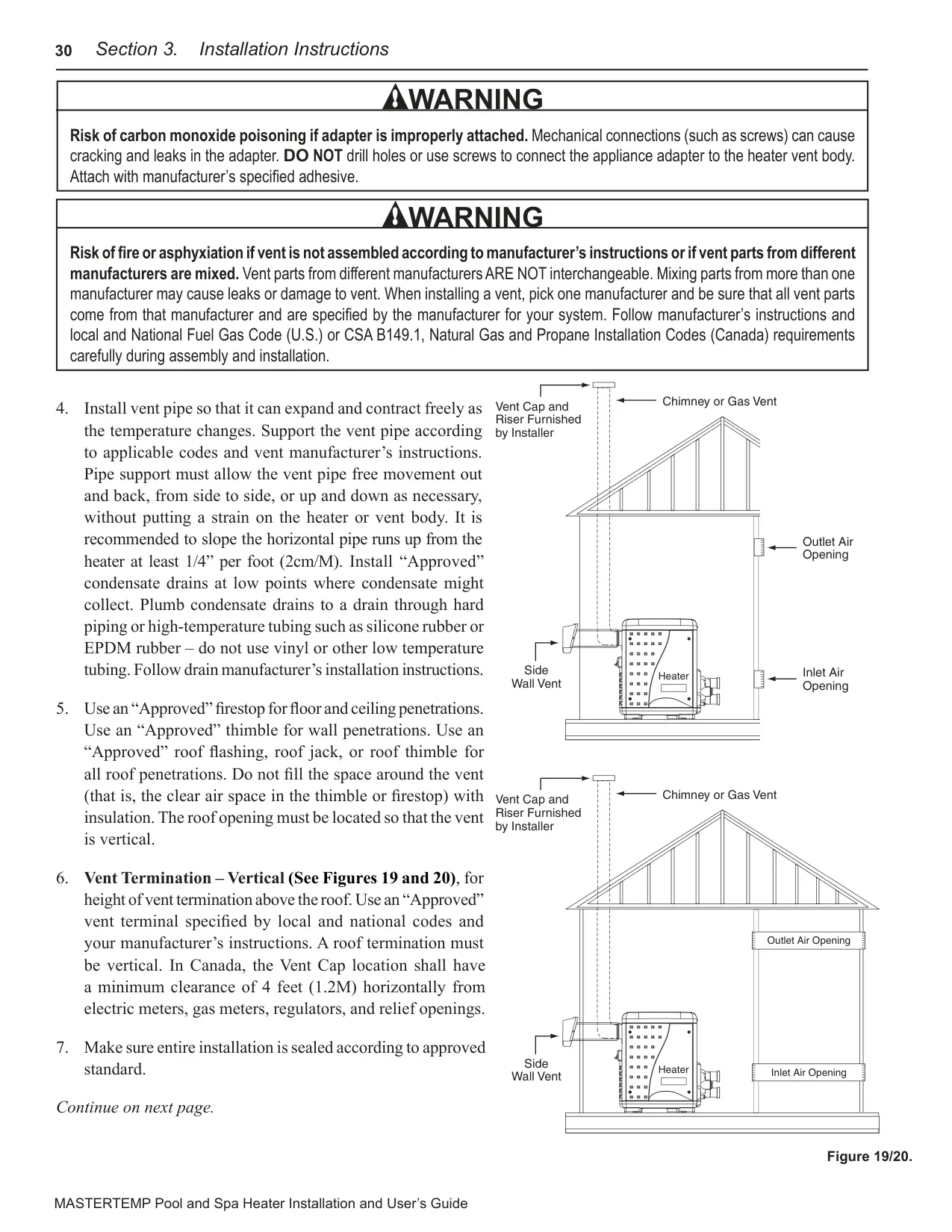

For indoor installations or situations with insufficient combustion air, an optional direct air intake duct kit is available, utilizing 3-inch PVC pipe to draw outside air directly into the heater. This ensures proper combustion while preventing the intake of corrosive chemical fumes, which could damage the heater and void the warranty.
Pentair also provides accessories like rodent-resistant escutcheons for gas and water pipes, demonstrating attention to product longevity and protection. The manual details recommended water chemistry parameters, emphasizing that proper chemical balance is crucial for avoiding heat exchanger damage and maintaining warranty validity.
The heater's internal bypass mechanism and optional IntelliValve compatibility contribute to operational longevity and efficiency. The microprocessor-based ignition module continuously monitors and controls the gas flame holder, ensuring optimal performance. These combined features underscore the MasterTemp 400K’s design as a robust, safe, and user-centric heating solution for modern pools and spas.
