Mastertemp 300K Pool And Spa Heater Instruction Manual
Mastertemp 300K Pool And Spa Heater
Mastertemp 300K Pool Heater Instructions
Here we offer the Mastertemp 300K Pool And Spa Heater manual completely free and in English. We have cataloged this manual in the Pool Heaters section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Mastertemp 300K Pool And Spa Heater, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

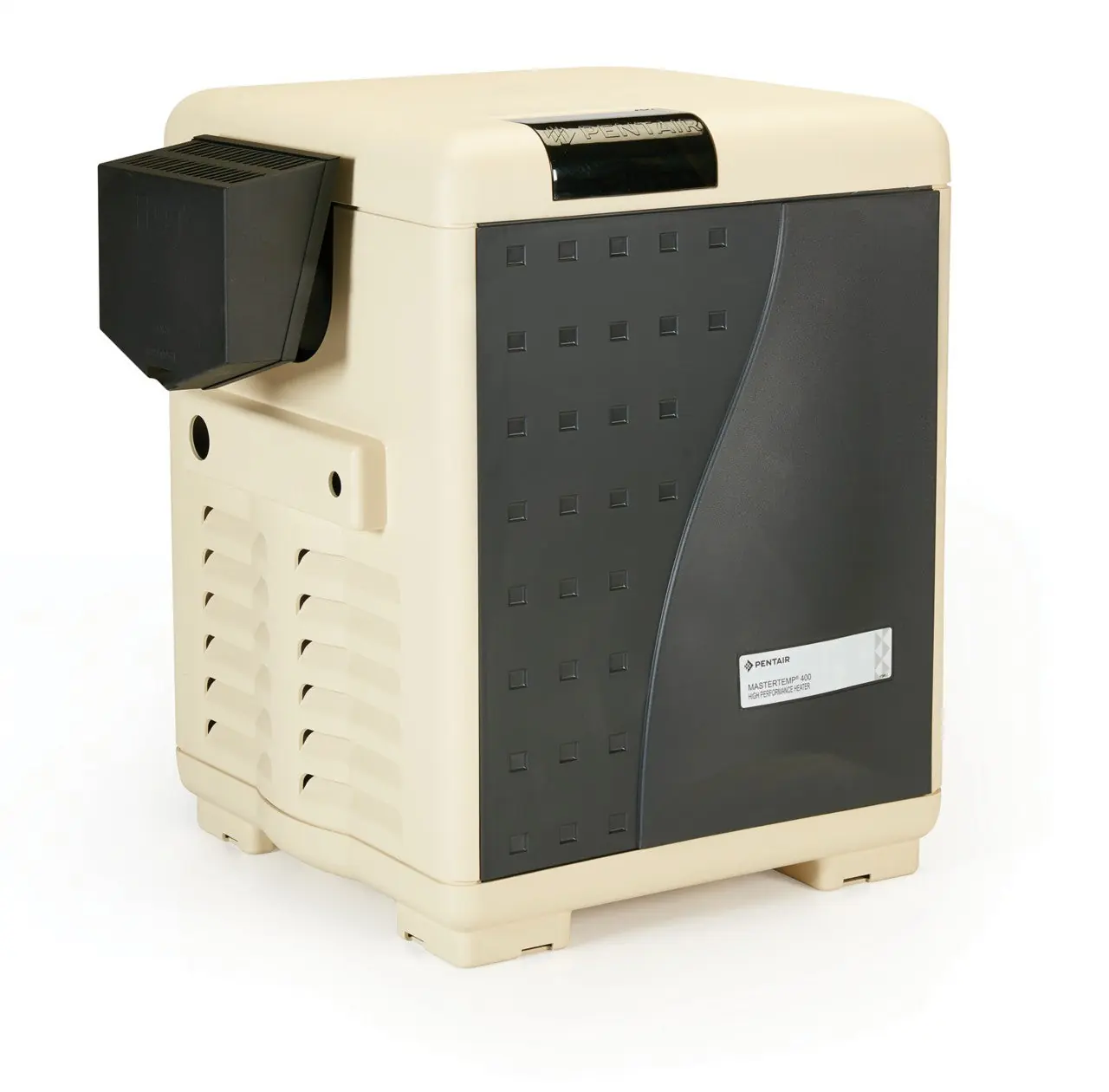

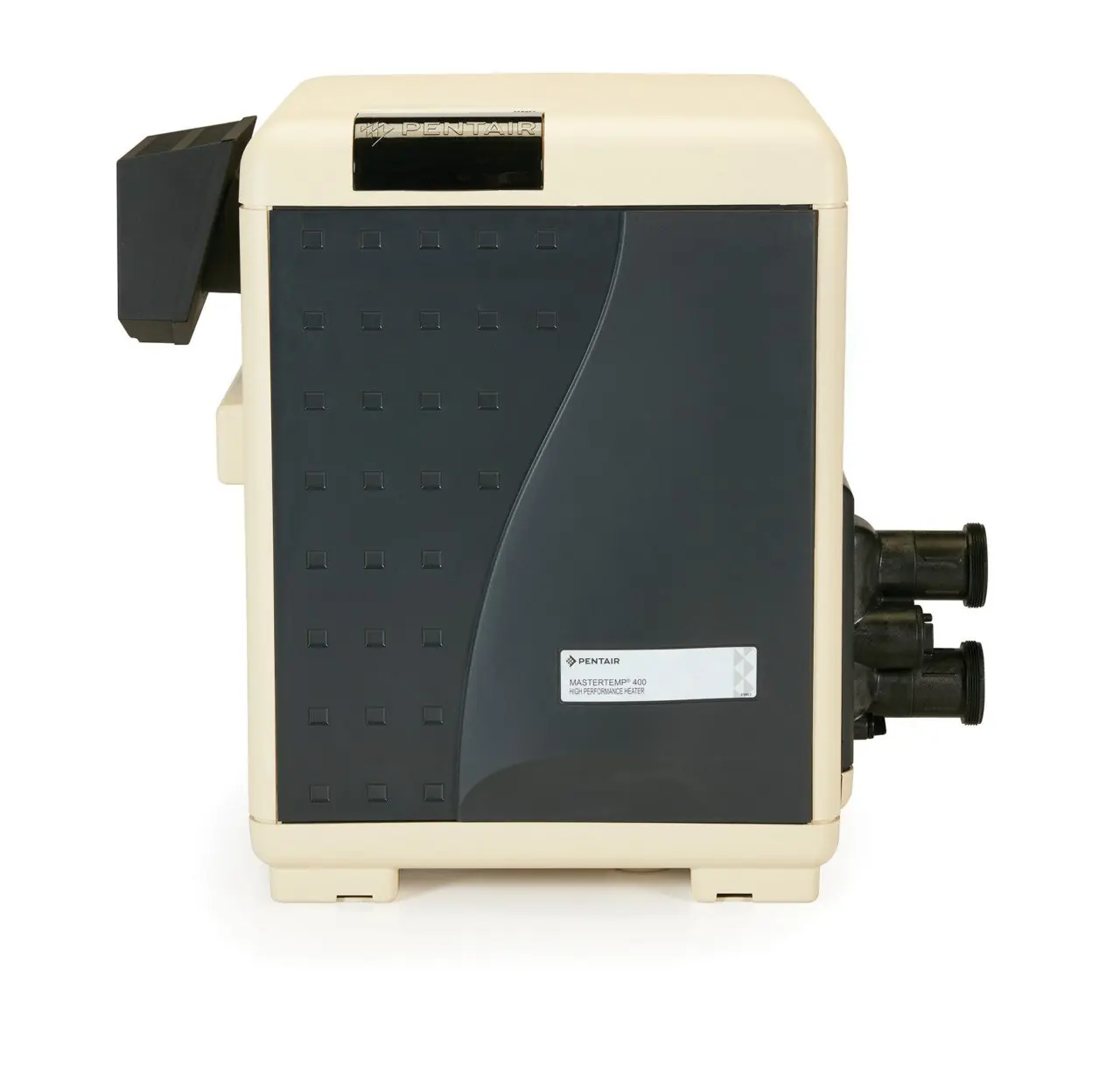

Product Images
Mastertemp 300K Pool And Spa Heater Specifications
| Specification | Value |
|---|---|
| Model | MasterTemp 300K Pool And Spa Heater (P/N 460734 Natural Gas, 460735 Propane Gas) |
| BTU Input Rating | 300,000 BTU/HR |
| Fuel Type | Natural Gas / LP (Propane) Gas |
| Electrical Rating | 120/240 VAC, 60 Hz, Single Phase, 15 Amp Circuit |
| Operating Amperage | 5 Amps @ 120 VAC, 2.5 Amps @ 240 VAC |
| Gas Supply Pressure | Max Inlet: 14" W.C. Min Inlet: 4" W.C. Manifold: -0.2 ± 0.1" W.C. |
| Minimum Water Flow Rate | 30 GPM (114 LPM) |
| Maximum Water Flow Rate | 120 GPM (454 LPM) |
| Dimensions (H x W x D) | 32.61" x 23.02" x 28.15" (82.8 x 58.5 x 71.5 cm) |
| Plumbing Connections | 2" PVC Slip Unions (Schedule 40 direct connect) |
| Min. Indoor Clearances (Top/Sides) | 6 inches (15 cm) |
| Min. Outdoor Overhang Clearance | 3 ft (1 m) above exhaust vent |
| Min. Outdoor Side Clearances | 6 inches (15 cm) from building wall, 4 ft from window/door |
| Min. Indoor Air Supply (Net Free Area) | From Inside Building: 300 sq. in. (1935 sq. cm) per opening From Outside Building: 75 sq. in. (484 sq. cm) per opening |
| Max. Direct Air Intake Duct (3" PVC, 0 elbows) | 70 ft (21.3 m) |
| Max. Vent Length (Category III, 4" Metal, 0 elbows) | 70 ft (21.3 m) |
Mastertemp 300K Pool Heater Details
The MasterTemp 300K Pool And Spa Heater stands out with its compact and lightweight design, facilitating easier installation and placement. It features an efficient induced-draft, gas-fired system, specifically engineered for high performance. Its unique capability allows for direct connections to Schedule 40 PVC pipe, eliminating the need for additional heat sinks and simplifying plumbing setups.
At the core of its operation is the Pentair multifunction temperature controller, providing users with a clear digital display of water temperatures and set points. This heater utilizes a Hot-Surface Ignition (HSI) device, which automatically lights the burners and removes the requirement for a continuous standing pilot, contributing to both safety and energy efficiency. An external 120/240 VAC 60 Hz power source is needed for its operation.
Safety is paramount, and the MasterTemp 300K is equipped with a comprehensive suite of interlocks. These include a pressure switch (PS) to monitor water flow, a high limit switch (HLS) to prevent excessive heat exchanger outlet temperatures, and an air flow switch (AFS) to ensure proper combustion air. Further safeguards are provided by an automatic gas shut-off (AGS) and a stack flue sensor (SFS), which protect against overheating and high flue gas temperatures respectively.
The digital operating control offers seamless navigation, allowing users to precisely set desired pool and spa water temperatures. This intuitive interface includes menu options to adjust various settings and view operational data. For enhanced control and monitoring, the heater can integrate with advanced automation systems like the IntelliCenter Control System via its RS-485 COM port, offering remote management capabilities.
Efficient water management is critical for heater longevity. The MasterTemp 300K incorporates a thermal regulator and an internal bypass to optimize water flow through the heat exchanger. An optional IntelliValve automatic bypass feature can be enabled to intelligently divert water flow when the heater is not actively heating, further reducing operational costs and extending the lifespan of the unit.
Installation flexibility is a key design aspect. The heater supports outdoor installations with its built-in stackless venting system. For indoor setups, it can be configured as a Category I or Category III appliance, accommodating both vertical and horizontal venting solutions as per local codes. Proper clearances and an adequate combustion air supply are essential for safe and efficient operation.
It's vital to note that this heater is specifically designed for heating chlorine, bromine, or salt system swimming pools and spas. It is expressly cautioned against use as a space heating boiler or a general-purpose water heater. Maintaining proper water chemistry, including balanced pH, disinfectant levels, and total alkalinity, is crucial to prevent heat exchanger damage and uphold the product warranty.
The user experience is simplified with clear LCD error codes for initial troubleshooting, along with detailed guidance on seasonal operation and winterization. Importantly, continuous operation below 68°F (20°C) is not recommended, as it can lead to harmful condensation and void the warranty. Rodent-resistant features, such as specialized escutcheons for gas and water pipes, further enhance durability and protection.
