Minelab Equinox 800 Metal Detector Instruction Manual
Minelab Equinox 800 Metal Detector
Minelab Equinox 800 Metal Detector
Minelab Equinox 800 Instructions
Here we offer the Minelab Equinox 800 Metal Detector manual completely free and in English. We have cataloged this manual in the Metal Detectors section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Minelab Equinox 800 Metal Detector, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Minelab Equinox 800 Metal Detector Specifications
| Feature | Specification |
|---|---|
| Detect Modes | Park | Beach | Field | Gold |
| Custom Search Profiles | 8 (2 per Detect Mode) |
| User Profile Button | Yes |
| Operating Frequencies (kHz) | Multi | 5 | 10 | 15 | 20 | 40 |
| Noise Cancel | Auto | Manual (-9 to 9) |
| Ground Balance | Auto | Manual | Tracking |
| Sensitivity | 1 to 25 |
| Target Volume | 0 to 25 |

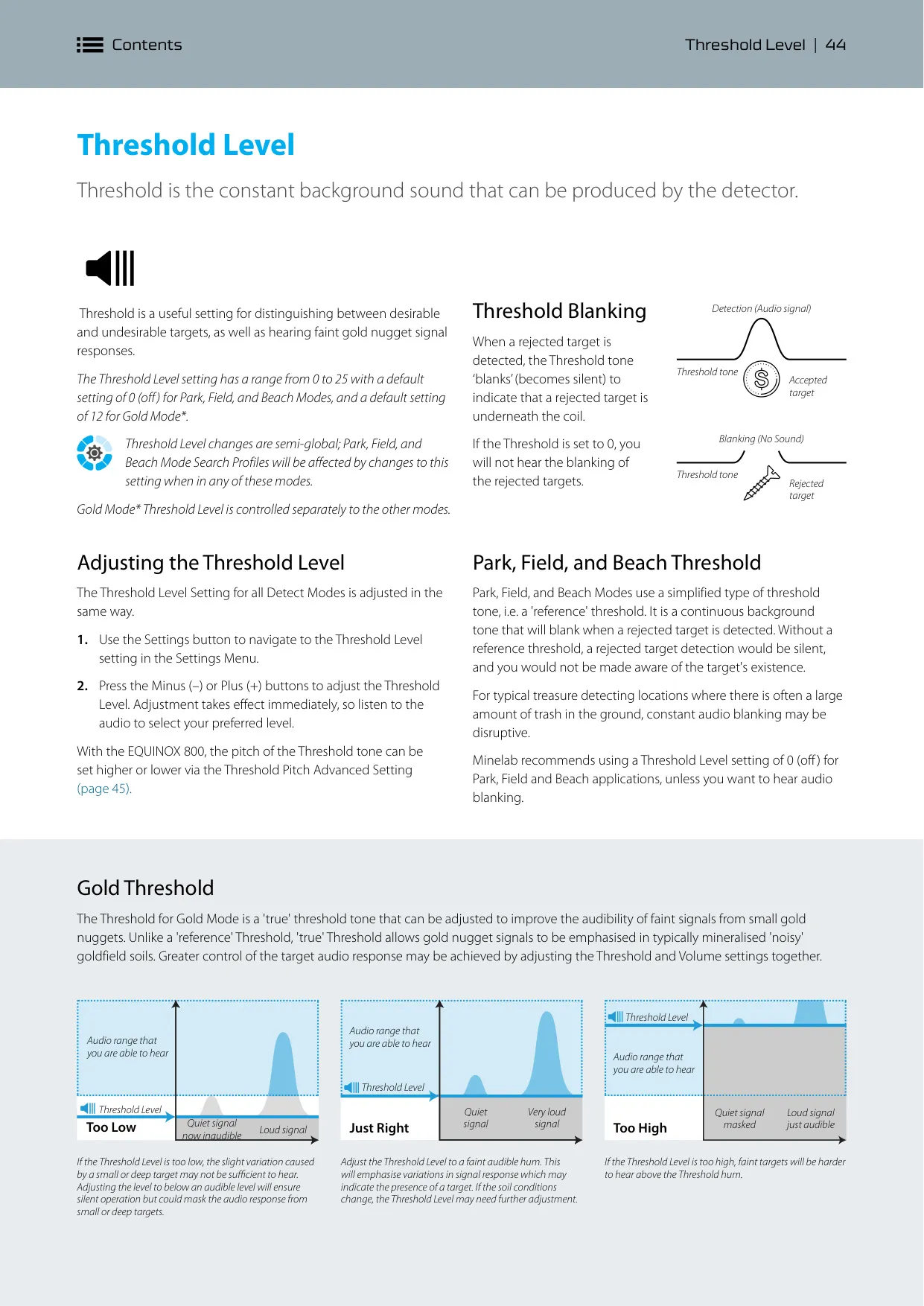

| Threshold Level | 0 to 25 |
| Threshold Pitch | 0 to 25 |

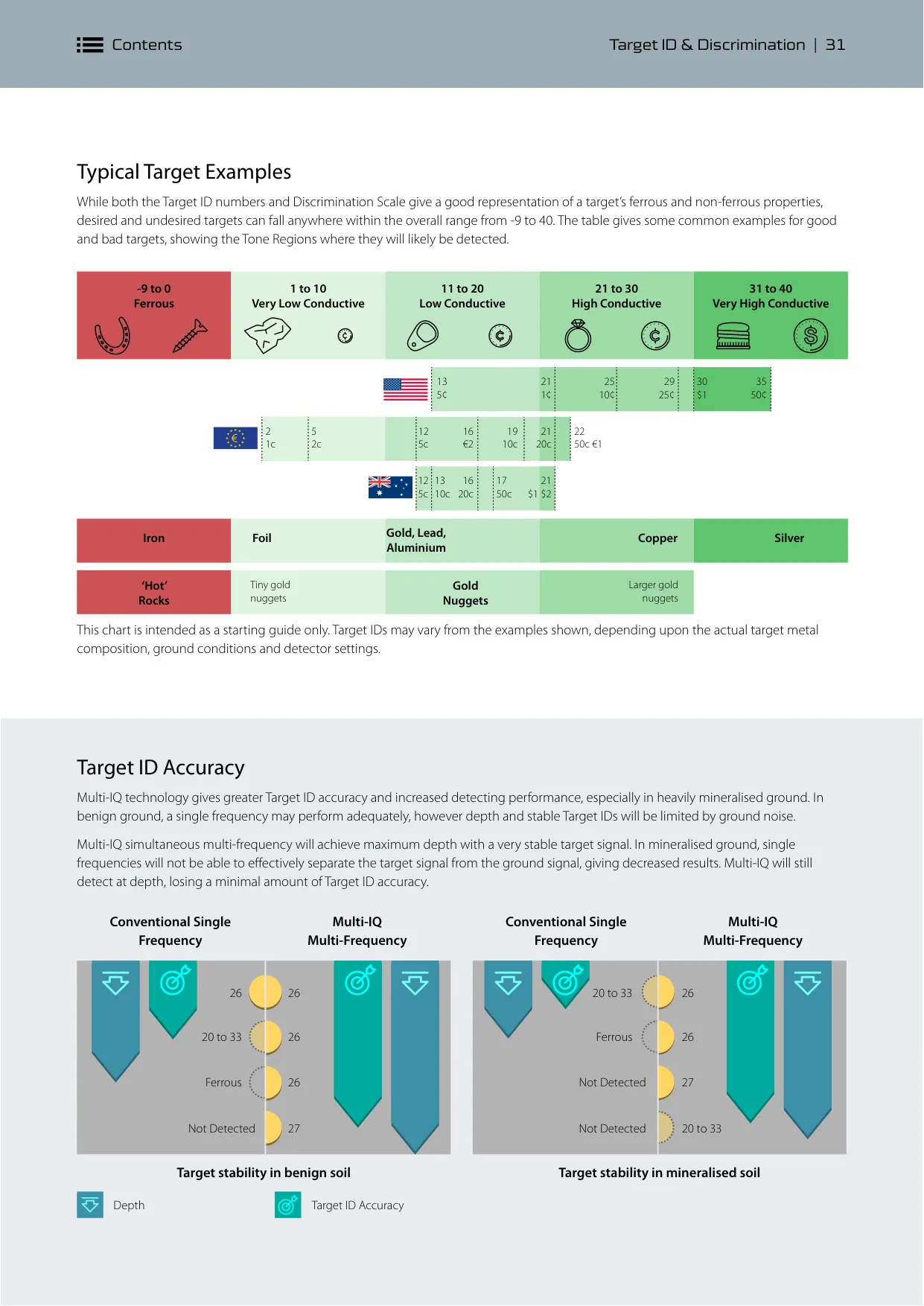

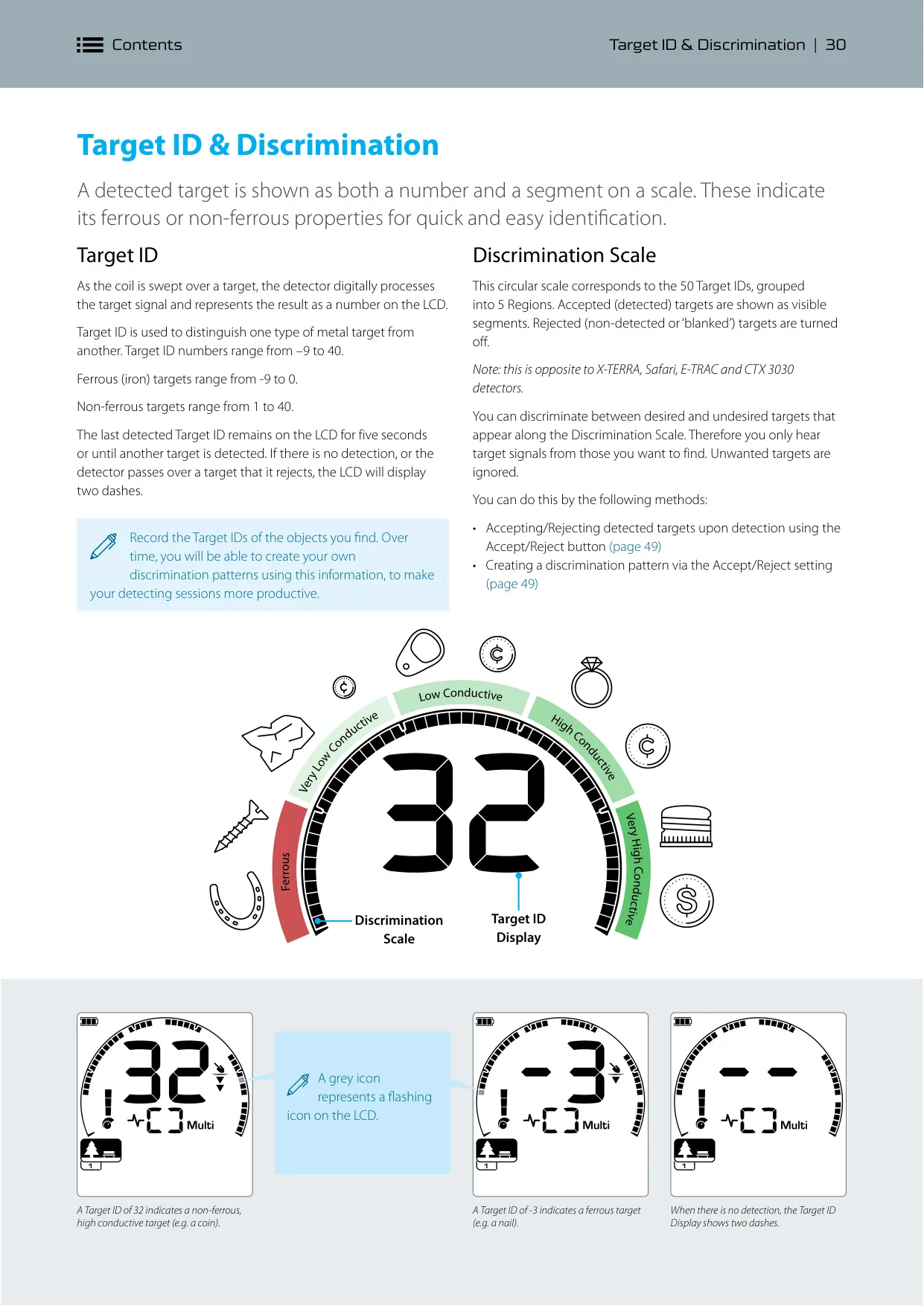

| Target Identification | 50 segment notch discrimination: Ferrous: -9 to 0 | Non-ferrous: 1 to 40 |
| Target Tones | 1 | 2 | 5 | 50 |
| Tone Break | Ferrous | Non-ferrous |
| Tone Pitch | Ferrous | Non-ferrous |
| Tone Volume | Ferrous | Non-ferrous |
| Recovery Speed | 1 to 8 |
| Iron Bias | 0 to 9 |
| Depth Indicator | 5 levels |
| Length (assembled) | Extended: 1440 mm (56.7") | Collapsed: 1120 mm (44.1") |
| Weight | 1.34 kg (2.96 lbs) |
| Standard Coil | EQX 11: 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10') |
| Audio Output | Speaker | 3.5 mm (1/8") headphones (included) | Bluetooth® aptX™ Low Latency compatible | WM 08 Wi-Stream compatible |

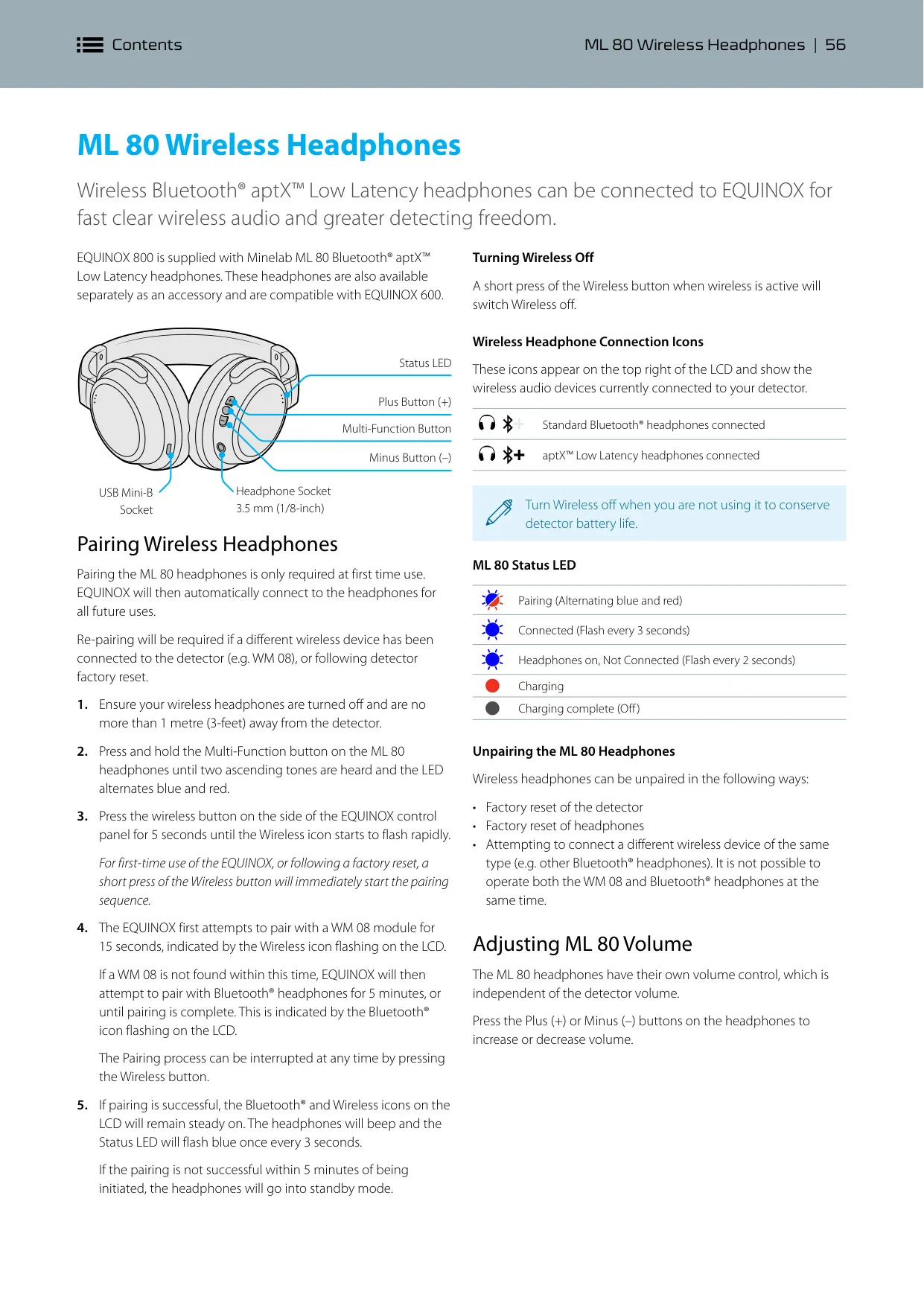

| Headphones (included) | Bluetooth® aptX™ Low Latency (non-waterproof) |
| WM 08 (included) | Yes |
| Display | Monochrome LCD with backlight |
| LCD Backlight | Off | High | Medium | Low |

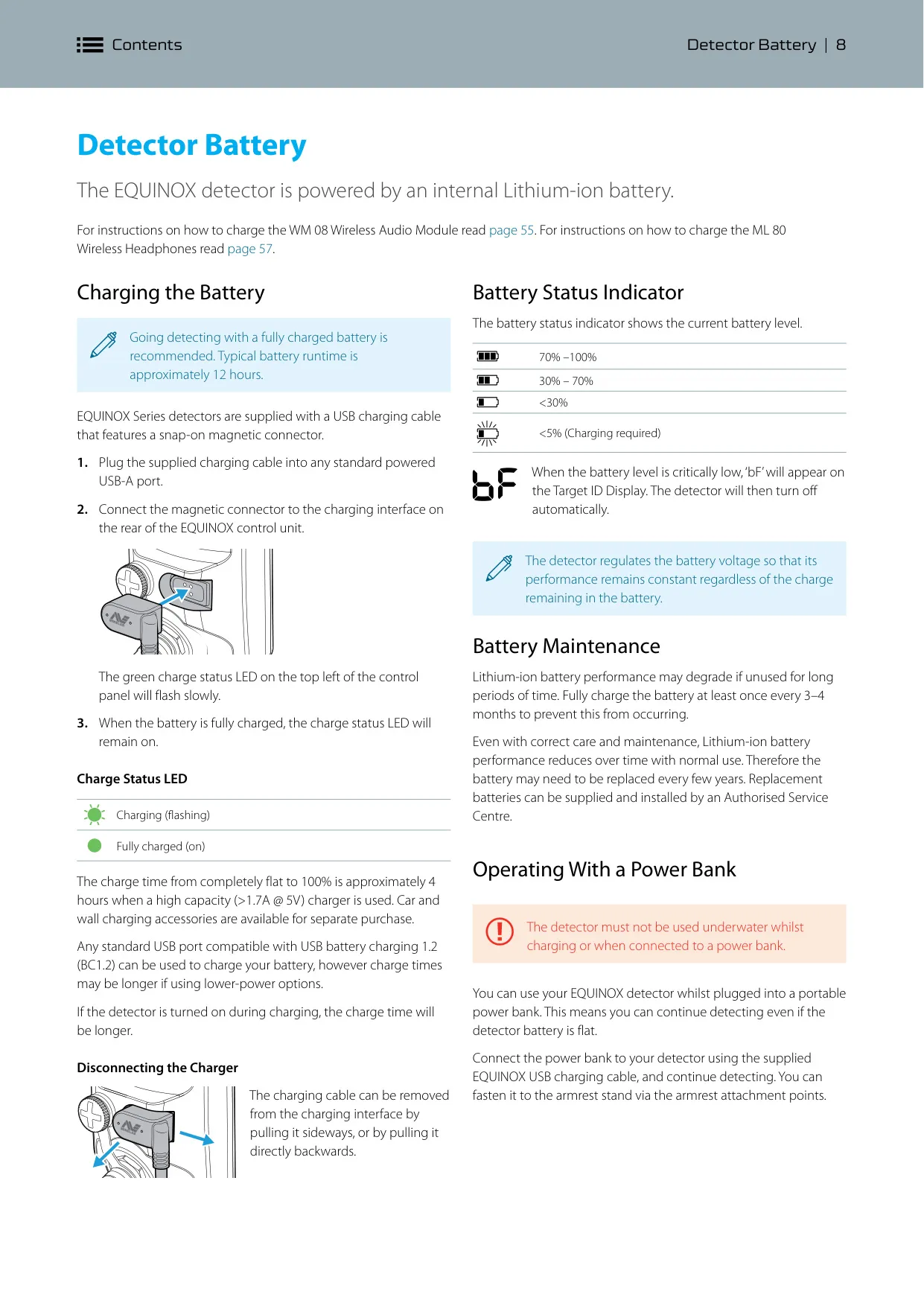

| Battery | Internal rechargeable Lithium-ion battery 5000 mAh |
| Battery Life | Approximately 12 hours |
| Battery Charge Time | Approx. 4 hours (When charging via a >1.7A @ 5V USB port) |
| Waterproof | Waterproof to 3m/10-feet |
| Operating Temperature Range | -10°C to +50°C (+14°F to +122°F) |
| Storage Temperature Range | -20°C to +50°C (-4°F to +122°F) |
| Charging Temperature Range | 0°C to +40°C (+32°F to +104°F) |
| Key Technologies | Multi-IQ | 5F×8 | Wi-Stream | Bluetooth® aptX™ Low Latency |
| Other Accessories | USB Charging cable, Multi Language Screen protectors |
| Software Upgradeable | Yes, via USB connection (Windows and Mac OS) |
| Warranty | Please refer to www.minelab.com/warranty-conditions for full warranty terms and conditions. |
Minelab Equinox 800 Metal Detector Details
The Minelab Equinox 800 is engineered with Multi-IQ technology, a revolutionary system that combines the performance benefits of FBS and VFLEX in a new fusion. This simultaneous multi-frequency detection delivers exceptional Target ID accuracy even at significant depths, far surpassing single-frequency detectors. Multi-IQ also excels at minimizing ground noise, particularly in challenging saltwater environments, ensuring reliable performance across diverse detecting conditions and target types, efficiently distinguishing valuable finds from mineralized ground and trash.

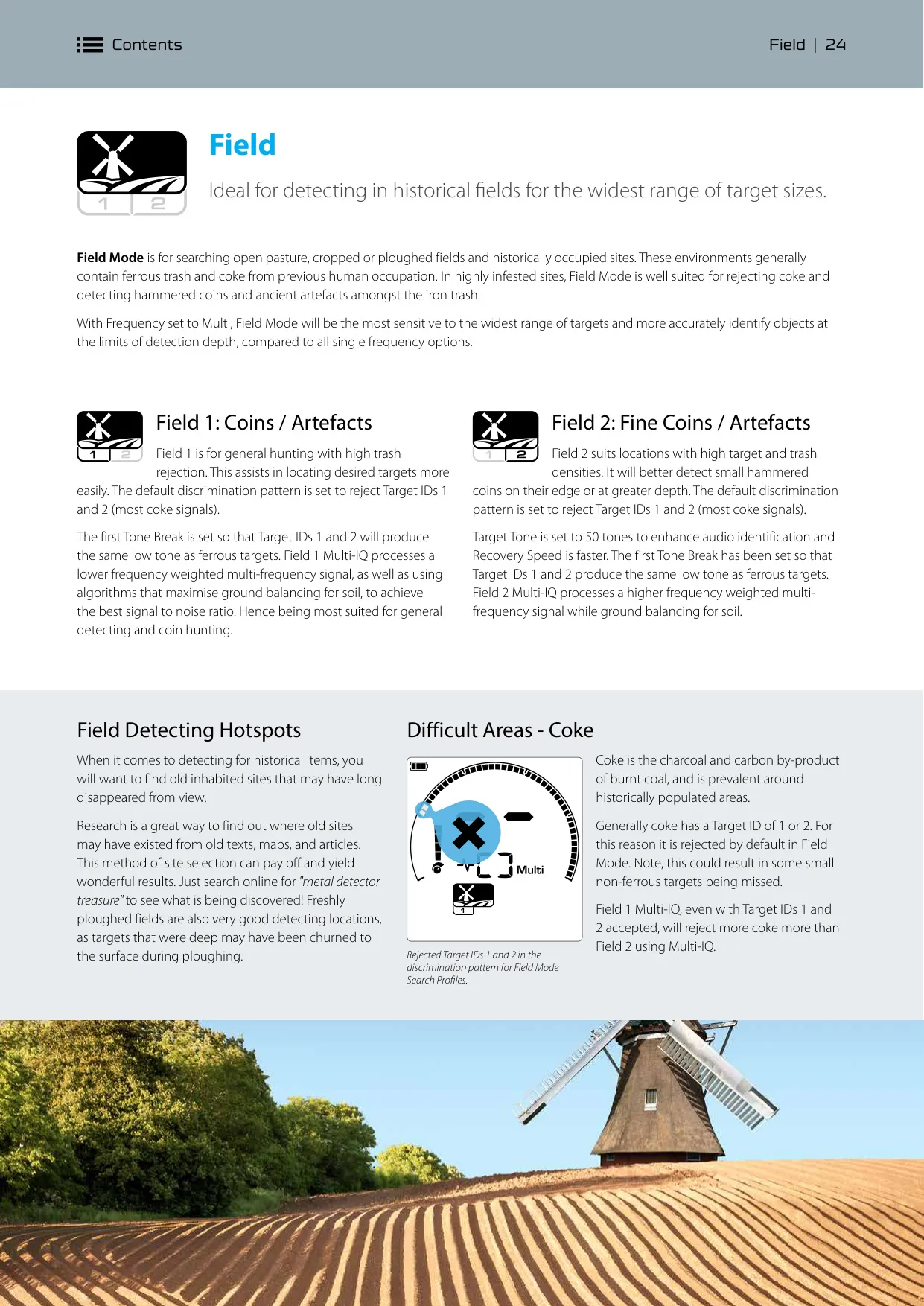

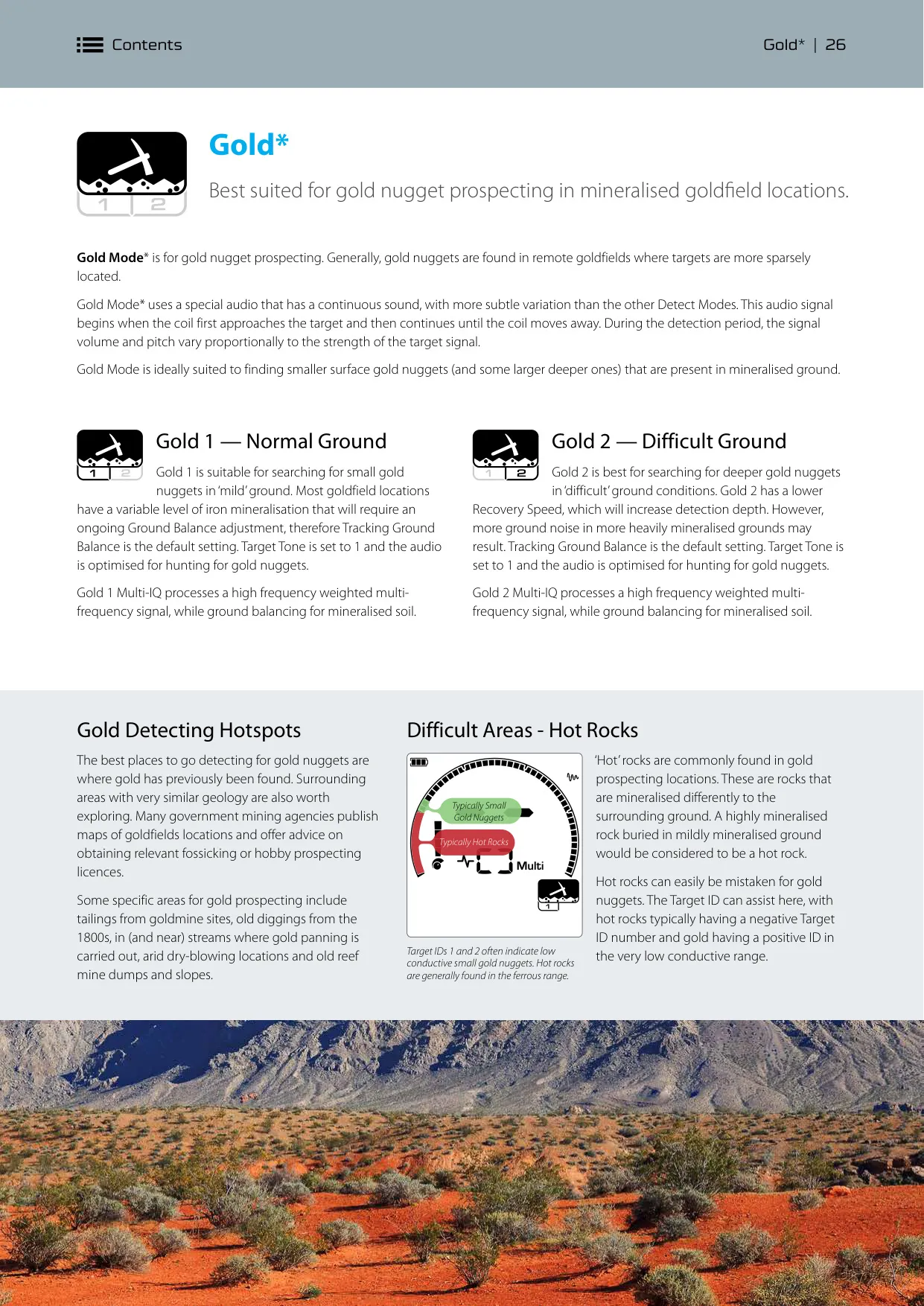

Beyond its powerful Multi-IQ foundation, the Equinox 800 offers four specialized Detect Modes: Park, Field, Beach, and Gold. Each mode features two customizable Search Profiles, pre-configured to optimize performance for specific environments like urban parks, historical fields, saltwater beaches, and goldfields. Exclusive to the 800, a User Profile button allows detectorists to save their preferred settings instantly for quick recall, streamlining transitions between different hunting styles or locations, significantly enhancing operational flexibility.
The Equinox 800 provides extensive control over audio responses, crucial for experienced detectorists. Advanced Settings allow precise adjustments to Tone Volume, Tone Pitch, and Tone Break, enabling users to customize the sound of different target types. This granular control helps differentiate between desired targets and unwanted trash, even in cluttered environments. For instance, specific tone regions can be muted or amplified, providing a tailored audible experience that highlights preferred finds and minimizes distractions from iron signals.

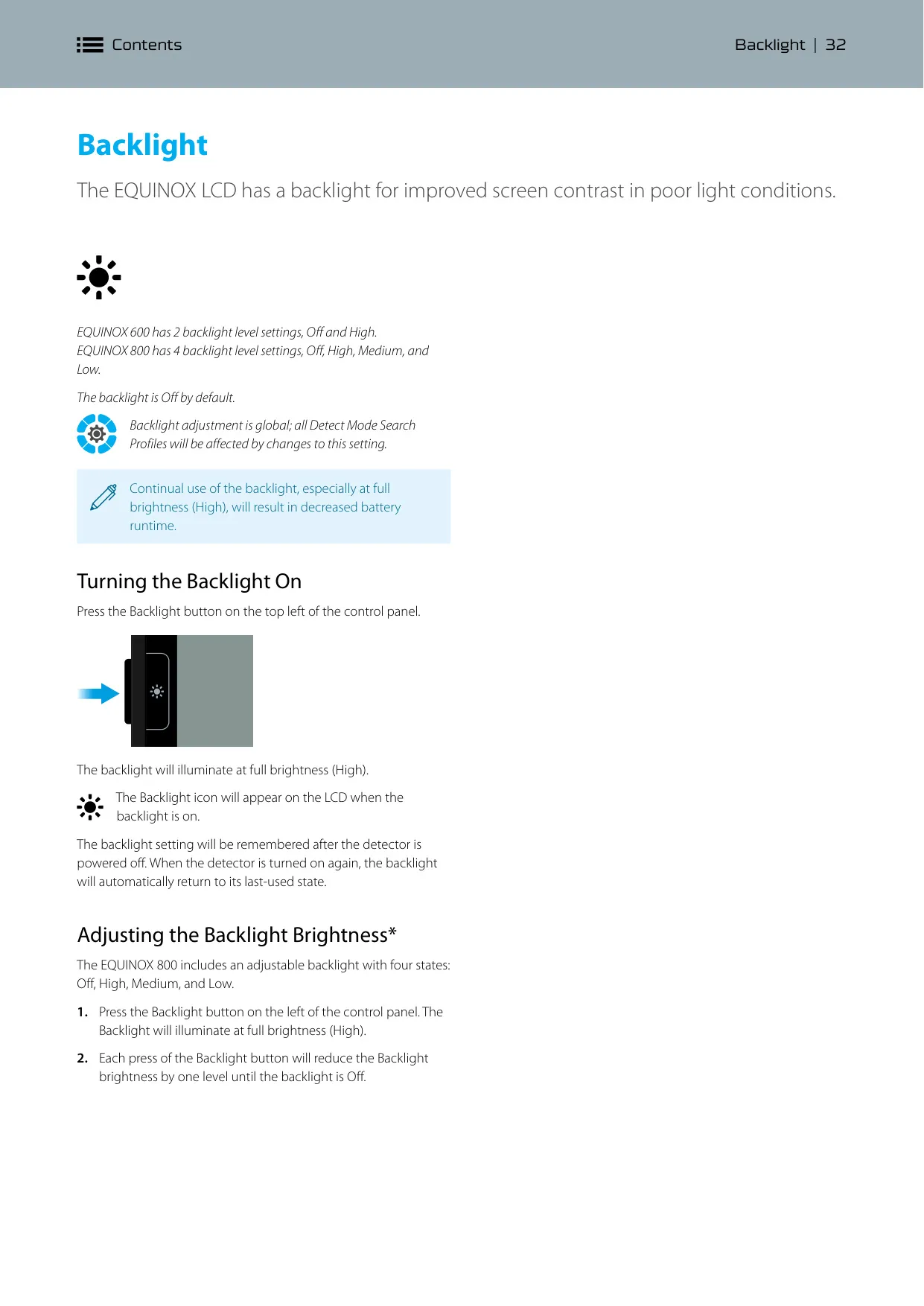

Connectivity is a strong suit, with diverse audio options including wired headphones, Bluetooth® aptX™ Low Latency, and Minelab's ultra-fast Wi-Stream technology via the included WM 08 module. Low latency audio is crucial for precise pinpointing, minimizing the delay between target detection and sound output, aligning the audible signal closely with the coil's position. An adjustable LCD backlight with four settings (Off, Low, Medium, High) ensures optimal screen visibility in any lighting condition, prioritizing user convenience.

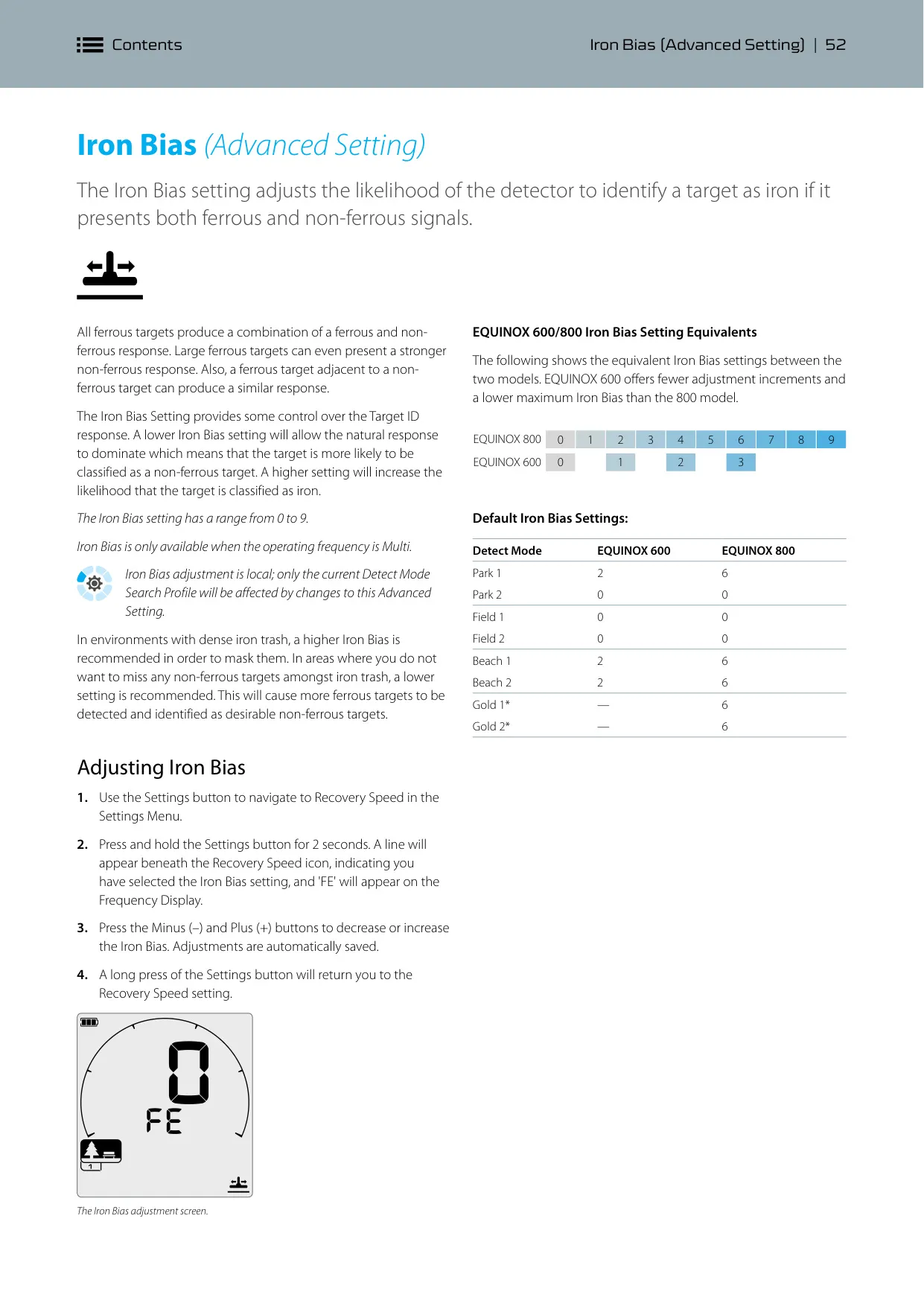

The Equinox 800's Iron Bias setting provides crucial control over how the detector classifies mixed signals from ferrous and non-ferrous targets. A higher Iron Bias helps mask unwanted ferrous objects, while a lower setting increases the likelihood of detecting small non-ferrous targets hidden amongst iron. This nuanced control, alongside variable Recovery Speed (1 to 8), enables swift processing of multiple target signals. Its robust, waterproof construction allows full submersion up to 3 meters, and it supports regular software updates via USB for ongoing performance enhancements.
